| Computer Modeling in Engineering & Sciences | |
DOI: 10.32604/cmes.2021.016297
ARTICLE
A Binomial Model Approach: Comparing the R0 Values of SARS-CoV-2 rRT-PCR Data from Laboratories across Northern Cyprus
1Department of Medical Microbiology and Clinical Microbiology, Faculty of Medicine, Near East University, Nicosia, 99138, Cyprus
2DESAM Research Institute, Near East University, Nicosia, 99138, Cyprus
3Department of Mathematics, Near East University, Nicosia, 99138, Cyprus
4Faculty of Medicine, Kocaeli University, Clinical Laboratory, PCR Unit, Kocaeli, 41001, Turkey
*Corresponding Author: Nazife Sultanoglu. Email: nazife.sultanoglu@neu.edu.tr
Received: 24 February 2021; Accepted: 10 April 2021
Abstract: Northern Cyprus has implemented relatively strict measures in the battle against the outbreak of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). The measures were introduced at the beginning of the COVID-19 pandemic, in order to prevent the spread of the disease. One of these measures was the use of two separate real-time reverse transcription polymerase chain reaction (rRT-PCR) tests for SARS-CoV-2 referred to as the double screening procedure, which was adopted following the re-opening of the sea, air and land borders for passengers after the first lockdown. The rRT-PCR double screening procedure involved reporting a negative rRT-PCR test which was carried in 72 to 120 h before departure whilst presenting no known symptoms of the COVID-19 and performing a second rRT-PCR test at the point of arrival. This study compares the results of SARS-CoV-2 rRT-PCR tests performed on incoming flight passengers from the 1st July to 9th of September 2020 to Northern Cyprus. The rRT-PCR test results collected by the Near East University (NEU) DESAM COVID-19 laboratory were compared with the rRT-PCR test results collected by the Ministry of Health and/or private COVID-19 laboratories in Northern Cyprus. This comparative study was conducted using binomial distribution. In addition, by applying the Susceptible-Exposed-Infected-Removed (SEIR) model to Northern Cyprus, overall basic reproduction number
Keywords: COVID-19; tests performed; basic reproduction number; statistical analysis; comparison
2019 novel coronavirus—later named as severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2)—first emerged in Wuhan, China in late December 2019. SARS-CoV-2 is the cause of coronavirus disease 2019 (COVID-19) and has spread outside China, leading to a major public health crisis worldwide [1]. World Health Organization (WHO) declared on the 11th March 2020 that SARS-CoV-2 had reached epidemiological characteristics to be announced as a pandemic [2].
Clinical presentation of COVID-19 may range from mild to severe symptoms. The symptoms may occur 2 to 14 days after being exposed to SARS-CoV-2. Frequently observed signs of COVID-19 include high fever, sore throat, dry cough, sneezing, muscle pain and fatigue. People who have underlying conditions such as diabetes, cancer, lung or heart diseases may develop more serious symptoms which could lead to death [3].
In addition, there are asymptomatic individuals who carry the SARS-CoV-2 but present no symptoms. These individuals have the ability spread the virus efficiently, and therefore are silent spreaders, making it a challenge to control the spread [4].
Transmission can occur either directly through inhaling infected droplets and aerosols from breathing, sneezing or coughing or through indirect transmission routes from fomites where the virus can enter the body through the mouth, nose, or eyes [5,6].
As of the 27th September 2020, statistical data published by the WHO stated that 32.7 million confirmed cases and 991,000 confirmed COVID-19 related deaths have occurred. The situation follows an increasing pattern in the Eastern Mediterranean region. According to the aforementioned data, a total of 2,340,215 SARS-CoV-2 confirmed cases and 60,345 COVID-19 related deaths had occurred in in the Eastern Mediterranean region since the start of the pandemic [7].
Cyprus is the third largest island located in the Eastern Mediterranean region. The population in Northern is approximately 375 000, majority of whom are Turkish Cypriots. The first case of SARS-CoV-2 in Northern Cyprus was identified on 9th March—a German female tourist (patient zero) who arrived on the island as part of a tour group. Soon after, everyone with close contact to patient zero, including fellow tour group members who arrived in the same flight were quarantined in three different hotels [8].
Consequently, strict measures were adopted starting from the 10th March 2020, such as the closure of schools.
By the 14th March 2020, travel restrictions were put in place such that only Northern Cyprus citizens were allowed to enter the country with an obligatory 14-day quarantine. In addition, gatherings in associations, unions and communal spaces as well as performing collective worship were prohibited. The hospitality sector was also closed [9]. Moreover, to promote isolation of the individuals, a partial daytime curfew was imposed as of 23rd March 2020 during which people were only allowed to go to the market, pharmacy and petrol stations to maintain their essential needs (all other non-essential shops were closed in this period). At the beginning of April, a “full curfew” between 21:00 pm and 06:00 am was adopted as an additional precaution [10].
These strict measures, however were lifted shortly thereafter due to the deteriorating economic circumstances. On 29th April 2020 the partial daytime curfew was lifted, and the hospitality sector were allowed to re-open [11]. Schools re-opened on 1st September 2020 for the new academic year [12]. By the 1st of July, sea, air and land borders were re-established. With the opening of the borders, new regulations were established to prevent and control the spread of SARS-CoV-2. This included two separate real-time reverse transcription polymerase chain reaction (rRT-PCR) referred to as the double screening procedure for all individuals coming from abroad. According to this regulation, a negative rRT-PCR test conducted in 72 to 120 h prior to arrival as well as presenting no symptoms such as dry cough or fever were mandatory for passengers' entry to Northern Cyprus. Upon arrival at the border, a second rRT-PCR test was performed on the spot and the passengers were allowed to enter Northern Cyprus only if this second test was also negative, otherwise they were quarantined [13].
The rRT-PCR is one of the diagnostic methods used to detect SARS-CoV-2 infection. This method qualitatively detects viral nucleic acid of SARS-CoV-2 from upper and lower respiratory specimens such as nasopharyngeal or oropharyngeal swabs obtained from individuals. The rRT-PCR test method is highly sensitive and is considered as the gold standard frontline test in the detection of SARS-CoV-2 infection [5].
Approximately 40% of all COVID-19 infections are estimated to be asymptomatic infections. SARS-CoV-2 can be detected in asymptomatic patients and the viral load can be similar to a symptomatic person [14–16]. In addition, after contracting SARS-CoV-2, it may take 3 to 5 days on average to be able to detect SARS-CoV-2 infection with rRT-PCR [17].
The two separate rRT-PCR screening test method was implemented with the aim of detecting individuals who had a SARS-CoV-2 infection which may have gone undetected in the first PCR test and in turn presented as SARS-CoV-2 negative. However, with the second rRT-PCR the result come out as SARS-CoV-2 positive for the same person. Thus, the double screening strategy enabled such cases to be identified and prevented the transmission of the virus to the local population. Hence, we propose that performing a double rRT-PCR procedure is instrumental in preventing SARS-CoV-2 transmission from imported cases to the local population.
Many innovative approaches have been established by combining physics and mathematical models to study infectious diseases and epidemiological dynamics. Such innovative approaches include the use of calculus in nearly all branches of sciences [18], the study of the role of liver by a new model of Caputo–Fabrizio fractional derivative with the exponential kernel [19], the use of hyperchaotic models for a biological snap oscillator [20] and many other [21,22].
With the rise of the COVID-19 pandemic, many attempts have been made to study and analyze the SARS-CoV-2 dynamics, such studies include studying the dynamical structures of the physical behavior of SARS-CoV-2 via a fractional natural decomposition method [23], the study of reported and unreported SARS-CoV-2 cases by Caputo derivative [24], a mathematical model to analyze local/global stability and diseases free/endemic equilibrium points of COVID-19 [25], other mathematical model called the Bats-Hosts-Reservoir-People coronavirus model to analyze the transmission of SARS-CoV-2 from reservoir to people [26] and hybrid analytical method q-HASTM for the accomplishment of numerical solutions of COVID-19 model with fractional operator [27].
Motivated by the aforementioned papers, this study aimed to calculate the basic reproduction number
2.1 Laboratory Data Collection
Upon arrival at the Northern Cyprus airport, all passengers which had SARS-CoV-2 rRT-PCR negative results were subjected to a second rRT-PCR test collected under sterile conditions by healthcare workers from the Northern Cyprus Ministry of Health. After collection of the combined nasopharyngeal and oropharyngeal swabs, samples were stored at 4°C and transported to dedicated laboratories for SARS-CoV-2 rRT-PCR testing. Until the rRT-PCR results were released, all passengers were obligated to self-isolate. If they didn't comply, legal action was initiated against them.
From 1st July to 9th September 2020, a total of 62 passengers were detected to be SARS-CoV-2 RNA positive by rRT-PCR screening in the NEU DESAM COVID-19 laboratory. Samples which arrived with cold chain to NEU DESAM COVID-19 laboratory was treated immediately and the results were released within 4 to 8 h. Between the 1st and 12th July 2020, the detection kit referred to as Bio-Speedy® (Bioeksen R&D Technologies Inc. COVID-19 rRT-PCR Detection Kit v2.0, Istanbul-Turkey) was used [28] and from the 13th of July to the 9th of September 2020, Diagnovital® (RTA Laboratories Inc., SARS-CoV-2 Real-Time PCR Kit v2.0 Istanbul-Turkey) [29] was used in the detection of SARS-CoV-2 from combined nasopharyngeal and oropharyngeal swab samples.
For both of the kits, a Q96 rRT-PCR device was used in routine screening. Results were analyzed independently by qualified molecular biologists and confirmed by an infectious disease specialist before releasing the results. In both used kits, positive results indicated the presence of SARS-CoV-2 RNA. Similarly, in the absence of SARS-CoV-2 RNA, samples were reported as negative. Upon detection of positive SARS-CoV-2 cases, three different confirmative steps were performed. These included repeating the combined nasopharyngeal and oropharyngeal swab, performing Diagnovital Magicprep Fast Extraction kit 2 and RNA isolation from the swab samples, Diagnovital RTA Viral RNA isolation Kit (Istanbul-Turkey) and screening these samples using an Insta Q96 plus rRT-PCR (Mumbai, India) device as well as in a different device named Rotor-Gene-Q (Qiagen, Hilden, Germany). These three procedures on different rRT-PCR devices were used to ensure the reported results were reliable and to prevent reporting of false positive results. The obtained results were reported to the official Ministry of Health Pandemic Information System (https://COVID-19.gov.ct.tr/) using the barcoding system. If the results of the patients were positive, they were quarantined immediately for the prevention of further spread of the virus to the local population. This study was approved by the NEU scientific research Ethics Committee (YDU/2020/85-1213).
The other COVID-19 laboratories of the Ministry of Health and/or private laboratories found a total of 88 SARS-CoV-2 positive cases via rRT-PCR in Northern Cyprus from air passengers arriving on the island between the 1st July to 9th September 2020. Other COVID-19 laboratories are distributed across Northern Cyprus, performing SARS-CoV-2 rRT-PCR tests for the population as well as the passengers coming from abroad. The number of positive SARS-CoV-2 cases found in the study period for air passengers from these laboratories were obtained from the Northern Cyprus Ministry of Health official website [30].
Present research has adopted statistical modelling that used statistical distributions. For this purpose, the statistical distributions, gamma, binomial and posterior were applied.
In this study, gamma distribution was used in the delay of reported cases in of SARS-CoV-2 obtained from NEU DESAM COVID-19 laboratory and other COVID-19 laboratories rRT-PCR results from air passengers in Northern Cyprus. Since some of the cases were reported the day after their diagnosis, gamma distribution was used in this study with the purpose of minimizing the error in the delay in reported cases to make sure accurate forecasting was made by using the initial data. The data used in the model was the number of reported cases of SARS-CoV-2 per day in the study period. It is important to start with minimized error data since starting with an error contained data will affect the future estimation. Therefore, in distribution, mean and standard deviation of reported cases were represented and distributed as follows:
where
Binomial distribution is a random process that can result in two exact outcomes (success or failure). In this study, it was used for the assumption of cases, i.e., assuming the cases were distributed according to binomial distribution. Here, success was the positive SARS-CoV-2 cases and failure was the negative SARS-CoV-2 cases. This distribution can be used to predict the upcoming week's cases by using the previous week's cases. The formula is given below:
This formula is based on reported positive cases of SARS-CoV-2 within the 1st July to 9th of September 2020. Here,
In order to use posterior distribution, a prior distribution is needed as evidence. Here, the prior distribution is binomial distribution and the evidence is the assumption of predicted SARS-CoV-2 cases obtained from the binomial distribution above. Posterior distribution was used to obtain daily
where
Using this approach, together with the predictions calculated from the gamma, binomial and posterior distributions,
Following this,
2.3 Susceptible-Exposed-Infected-Removed (SEIR) Model

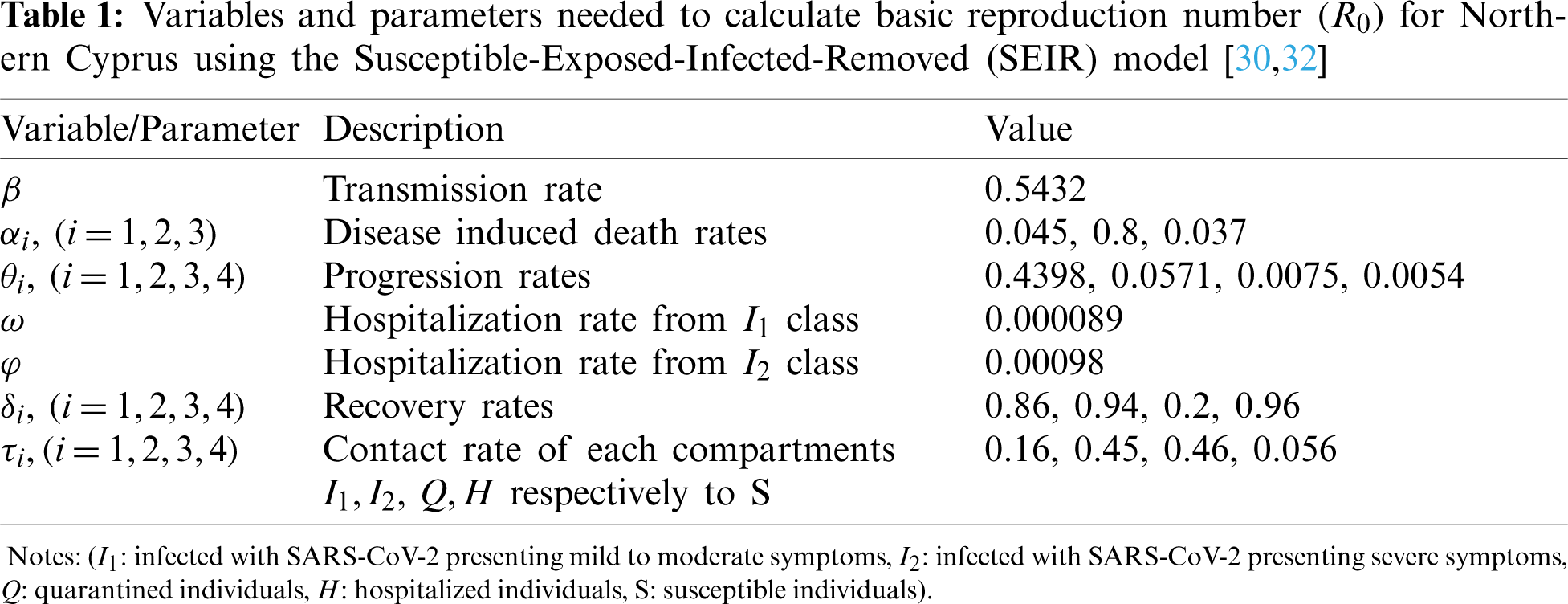

By applying data and parameter values listed in Tab. 1, to the Susceptible-Exposed-Infected-Removed (SEIR) model in [31], daily

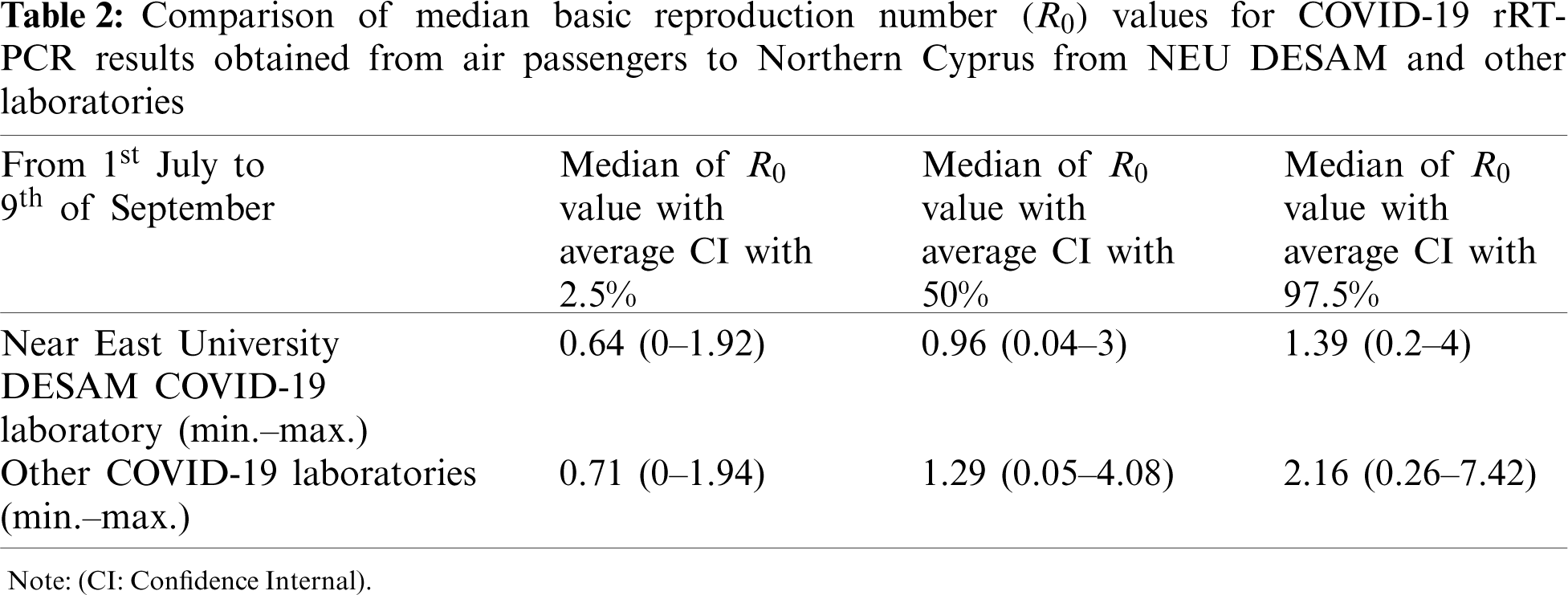

By using the binomial model outlined in the Methods section and daily SARS-CoV-2 cases from air passengers for a total of 71 days (from 1st July to 9th September 2020) taken from NEU DESAM COVID-19 laboratory and other laboratories of Northern Cyprus Ministry of Health and/or private laboratories,
In the 2.5% confidence interval, the sample represents a small part of the population which makes it hard to generalize the results for the whole population. On the other hand, 97.5% confidence interval means the sample represents the whole population with 97.5% confidence interval. In this case, error in data will be ignored with a high percentage which affects future predictions negatively. In 50% confidence interval, the median taken from sample may include 50% error but at least 50% should contain the true value. Thus, 50% confidence interval gives the most reliable results compared to 2.5% and 97.5% confidence intervals. Therefore, in this study 50% confidence interval
In the

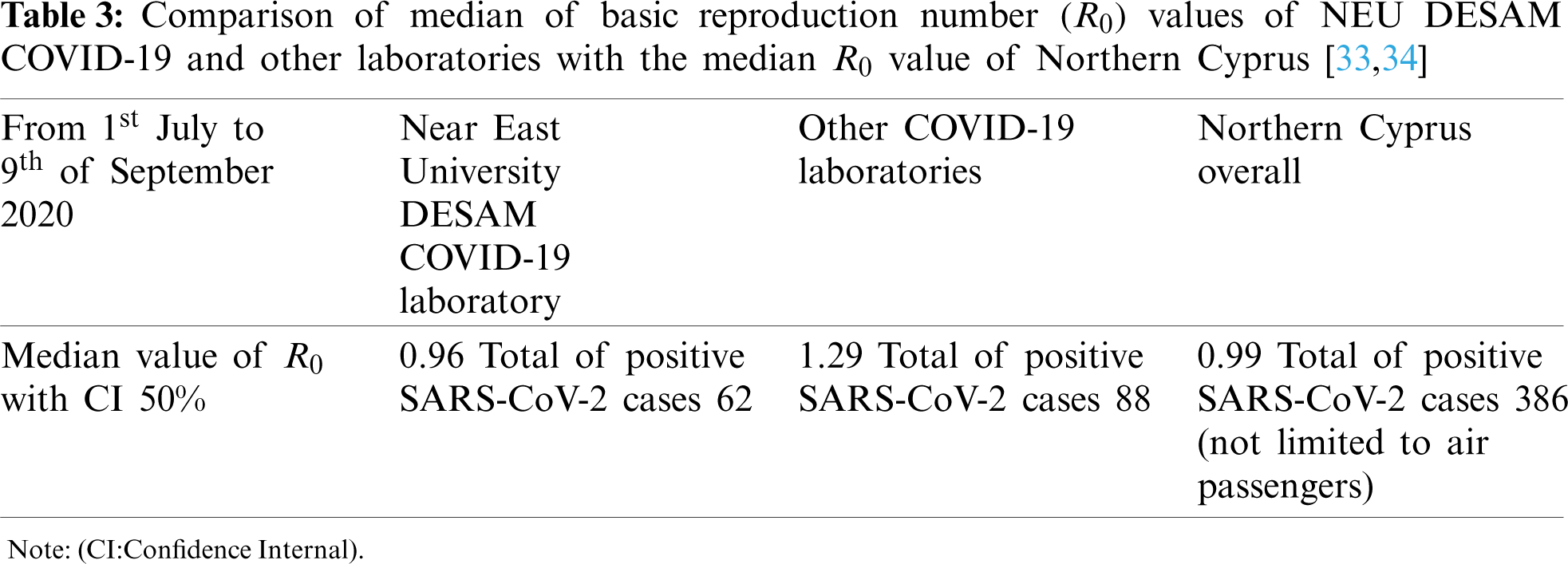

The comparison of

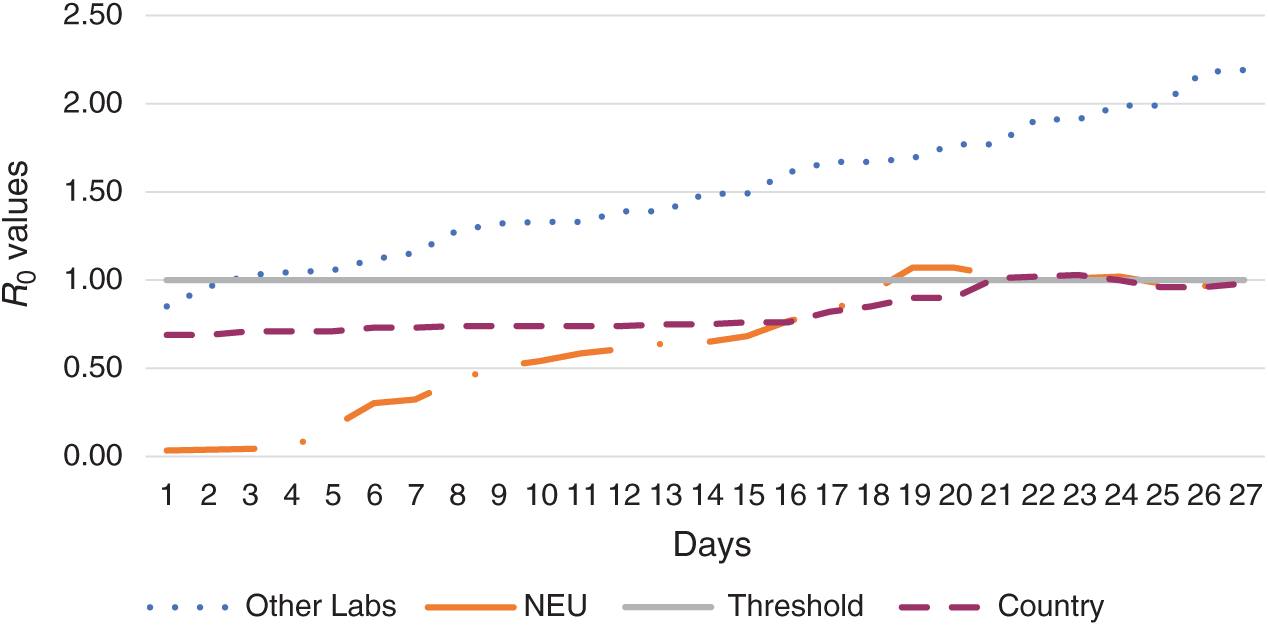

Figure 1: Comparison of basic reproduction number
Comparison of basic reproduction number
By using the binomial model outlined in the Methods section and daily SARS-CoV-2 cases from air passengers for a total of 71 days (from 1st July to 9th September 2020) taken from NEU DESAM COVID-19 laboratory and other COVID-19 laboratories of Northern Cyprus Ministry of Health and/or private laboratories,
Each COVID-19 laboratory uses different rRT-PCR kits, equipment, devices and employs staff of varying degrees of experience in the COVID-19 diagnosis procedure. In this research, all the steps carried in NEU DESAM COVID-19 laboratory and the COVID-19 diagnosis protocol were revealed. With this study, SARS-CoV-2 rRT-PCR results from air passengers to Northern Cyprus upon arrival (the second rRT-PCR test carried as a part the double screening procedure) were analyzed and the results obtained from NEU DESAM COVID-19 laboratory to other laboratories were compared using the binomial method. In order to carry out the comparison using the binomial method the
The calculated
However, data from other laboratories revealed a
It is also worthwhile to mention that, with the double rRT-PCR screening procedure in the given period of 71 days, 62 positive SARS-CoV-2 cases were identified in NEU DESAM COVID-19 laboratory and 88 in other laboratories across Northern Cyprus. This firmly suggested that performing the double rRT-PCR screening procedure for passengers is really important since it prevented the spread of the disease among the population by the asymptotic positive SARS-CoV-2 individuals, also known as the silent spreaders.
This was an original study that used statistical distributions to construct a statistical model in infectious disease to analyze and find the dynamics of COVID-19. Statistical models are less frequently adapted to study infectious diseases compared to the mathematical modelling. One example of frequently used mathematical modelling is the SEIR model, which is commonly used to analyze infectious diseases such as SARS-CoV-2 and Human immunodeficiency virus, under conditions where data is present for the diseases [35]. However, mathematical modelling is a deterministic type of model which ignores randomness and variability. Generally, at each time point, it calculates a single estimation for new infections. In mathematical modelling, such as the SEIR model, neglect randomness and variability. In other words, single estimation is made and the results lack in uncertainty whereas in statistical modelling results are given in confidence intervals. Also, distributions in statistical modelling can give evidence about the future dynamics of an epidemic, to analyze whether the decisions made by the government and the public health interventions are efficient or not. Thus, evidence about these questions can be found in terms of probability [31].
Also, COVID-19 experts who are not familiar with statistical models can easily adopt the created binomial model and obtain
Further statistical studies can be conducted using the SARS-CoV-2 -cases or -related deaths for future predications rather than the sole analysis of
The main aim of this study was to compare the results of SARS-CoV-2 rRT-PCR results from different laboratories in Northern Cyprus and to point out the importance of the SARS-CoV-2 rRT-PCR double screening procedure to prevent the silent SARS-CoV-2 spreaders entering the country. As a result of the comparison, it was revealed that the SARS-CoV-2 RT-PCR results were dramatically different between the laboratories, revealing the need of standardized methods, techniques and kits to be implemented and used across all laboratories.
Acknowledgement: I would like to thank members of the Near East University DESAM COVID-19 laboratory for their hard work in the battle against COVID-19. Also, I would like to thank Kıyal Eresen, for proofreading and editing this paper.
Funding Statement: The authors received no specific funding for this study.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
