Biocell
DOI:10.32604/biocell.2021.014336		 images
www.techscience.com/journal/biocell
Article

Overexpression of rice F-box phloem protein gene OsPP12-A13 confers salinity tolerance in Arabidopsis

Chunkun Fan, Yongpeng Zhang, Chunbao Yang, Yawei Tang, Ji Qu, Bu Jie, Deji Quzhen and Liyun Gao*

Tibet Academy of Agriculture and Animal Husbandry Sciences, Lhasa, 850009, China
*Address correspondence to: Liyun Gao, gaoliyun@taaas.org
Received: 27 September 2020; Accepted: 23 December 2020

Abstract: Salinity is a serious challenge for agriculture production by limiting the arable land. Rice is a major staple food crop but very sensitive to salt stress. In this study, we used Arabidopsis for the functional characterization of a rice F-box gene LOC_Os04g48270 (OsPP12-A13) under salinity stress. OsPP12-A13 is a nuclear-localized protein that is strongly up-regulated under salinity stress in rice and showed the highest expression in the stem, followed by roots and leaves. Two types of transgenic lines for OsPP12-A13 were generated, including constitutive tissue over-expression using the CaMV35S promoter and phloem specific over-expression using the pSUC2 promoter. Both types of transgenic plants showed salinity tolerance at the seedling stage through higher germination percentage and longer root length, as compared to control plants under salt stress in MS medium. Both the transgenic plants also exhibited salt tolerance at the reproductive stage through higher survival rate, plant dry biomass, and seed yield per plant as compared to control plants. Determination of Na+ concentration in leaves, stem and roots of salt-stressed transgenic plants showed that Na+ concentration was less in leaf and stem as compared to roots. The opposite was observed in wild type stressed plants, suggesting that OsPP12-A13 may be involved in Na+ transport from root to leaf. Transgenic plants also displayed less ROS levels and higher activities of peroxidase and glutathione S-transferase along with upregulation of their corresponding genes as compared to control plants which further indicated a role of OsPP12-A13 in maintaining ROS homeostasis under salt stress. Further, the non-significant difference between the transgenic lines obtained from the two vectors highlighted that OsPP12-A13 principally works in the phloem. Taken together, this study showed that OsPP12-A13 improves salt tolerance in rice, possibly by affecting Na+ transport and ROS homeostasis.

Keywords: Antioxidants; Rice phloem protein; Reactive oxygen species; Salt stress; Na+ transport

Abbreviations

CAT: catalase
GFP: green fluorescent protein
GST: glutathione S-transferase
MDA: malondialdehyde
POD: peroxidase
ROS: reactive oxygen species
SOD: superoxide dismutase

Introduction

Salinity is among the major abiotic stresses that hamper plant growth and productivity (Munns and Tester, 2008; Zafar et al., 2020c). Industrial development and excessive use of fertilizers are continuously increasing the land areas under salt stress (Alzubaidi et al., 1990; Han et al., 2015; Shrivastava and Kumar, 2015). In saline soils, the uptake of salts (mainly Na+ ions) by roots increases manyfold, and salts are transported to the aerial parts of the plant, mainly leaves and shoot (James et al., 2011; Byrt et al., 2014). Since leaves are major photosynthetic organs, the accumulation of Na+ ions seriously affects the rate of photosynthesis and leads to cell death in most cases (Chaves et al., 2009; Kumar et al., 2017). Thus, identification of the salt-tolerant varieties, understanding the mechanisms of salinity tolerance and identification of genes responsible for salt tolerance, will provide the most durable and eco-friendly solutions to cope with this major issue (Huang et al., 2008; Chaves et al., 2009; Rahnama et al., 2011; Zafar et al., 2015; Zafar et al., 2020c).

Crops differ in their ability to tolerate salt stress, and rice being a major staple crop is highly sensitive to salt stress (Martínez-Atienza et al., 2007; Huang et al., 2008; Liu et al., 2013). Salt stress usually causes the accumulation of Na+ ions in leaf cells, which affects various metabolic processes such as protein synthesis and activation of key metabolic enzymes (Munns et al., 2006; Munns and Tester, 2008). Plants manage to exclude the excessive Na+ ions from the leaf and shoot to the root cells to protect from cellular damage (Byrt et al., 2007; Han et al., 2018). Thus, Na+ exclusion or recirculation from leaves has been regarded as an important mechanism of salinity tolerance in plants (Munns et al., 2006; Byrt et al., 2007; Munns and Tester, 2008; Han et al., 2018). Several genes have been identified from the model plant Arabidopsis thaliana and the major crop wheat that regulate salinity tolerance via Na+ exclusion or recirculation from leaves (Huang et al., 2008; James et al., 2011). Among these, Salt Overly Sensitive (SOS) pathway genes, such as SOS1 and SOS2, play key roles in maintaining the ion homeostasis in cells and contribute significantly to salt tolerance (Martínez-Atienza et al., 2007; Cheng et al., 2019). In addition, Na+/H+ antiporter genes have shown a potential role in salinity tolerance in different crops, including Arabidopsis (Sottosanto et al., 2007), kiwifruit (Tian et al., 2011), and mungbean (Kumar et al., 2017). Thus, all these gene families play important roles in salinity tolerance mainly by regulating Na+ transport and exclusion in leaves.

In addition to the Na+ accumulation, salt stress also causes oxidative damage to plants through the overaccumulation of ROS in cells (Abogadallah, 2010; Abdelgawad et al., 2016; Kumar et al., 2017). This oxidative damage induces membrane lipid peroxidation and thus leads to cell death in different tissues (Abdelgawad et al., 2016; Zafar et al., 2020b). However, plants have a huge genetic variation to cope with this stress under harsh climates, which depends on their antioxidant defense system (Abogadallah, 2010; Zafar et al., 2020a). The antioxidant enzymes such as superoxide dismutase (SOD), catalase (CAT), peroxidase (POD), and glutathione S-transferase (GST) have the ability to scavenge or detoxify the ROS molecules in order to protect plants from oxidative damage induced by environmental stresses (Abogadallah, 2010; Abdelgawad et al., 2016; Zafar et al., 2020a).

Fox box domain proteins are a large family with around 700 members in Arabidopsis and rice (Xu et al., 2009). Several F-box genes have been shown involved in salinity tolerance (Jain et al., 2007; Gonzalez et al., 2017; An et al., 2019). In rice, a member of the F-box protein family, known as MAIF1 (miRNAs regulated and abiotic stress induced), has been shown to negatively regulate salt tolerance by affecting root growth (Yan et al., 2011). In Arabidopsis, another F-box protein, EST1, also negatively affects salinity tolerance by regulating plasma membrane Na+/H+ antiport activity (Liu et al., 2020). Overexpression of another F-box gene, OsMsr9, enhanced salinity tolerance in Arabidopsis and rice by increased root and shoot growth, higher production of proline, and less malondialdehyde (MDA) contents (Xu et al., 2014). Similarly, overexpression of a wheat F-box gene TaFBA1 in tobacco enhanced drought and salinity tolerance by regulating antioxidant, reactive oxygen species (ROS) production, as well as Na+ and K+ levels in cells (Zhou et al., 2014; Zhao et al., 2017b). A novel F-box gene, CaF-box, in pepper has also been reported to play a role in multiple abiotic stress tolerance, including salinity (Chen et al., 2014). A genome-wide analysis of F-box proteins in Medicago truncatula identified several other functional domains in the C-terminal region, such as LRR, Kelch, FBA, and PP2, in addition to the conserved domains (Song et al., 2015). These F-box genes are speculated to play a role in salt and heavy metal stresses (Song et al., 2015). These studies indicated a potential role of F-box genes in salinity tolerance, and thus identification of new F-box genes in rice would play important role in breeding salt-tolerant cultivars.

In this study, we have reported the role of a rice F-box domain-containing protein OsPP2-A13 in salinity tolerance. OsPP2-A13 was identified as a hub gene predicted to play a major role in salt tolerance in rice (Zhu et al., 2019). We showed that overexpression of OsPP2-A13 in Arabidopsis ecotype Columbia-0 displayed enhanced salinity tolerance at seedling and reproductive stages, probably by modifying Na+ transport from root to leaves. OsPP2-A13 affects the expression of antioxidant-associated genes, which probably caused higher antioxidant activities under salt stress and ROS levels under normal range in transgenic lines.

Materials and Methods

Plant materials, growth conditions and stress treatments

Seeds of japonica rice cultivar Nipponbare were sown in Petri plates under high moisture conditions at 37°C in the dark for good germination (3–4 days). Uniformly germinated seeds were transferred to Yoshida solution (Yoshida et al., 1971) and grown for 4 weeks at 28°C with 70% relative humidity. Leaf, stem, and root tissues were collected at this stage for tissue-specific relative gene expression analysis. Then seedlings were shifted to a new Yoshida solution having 150 mM NaCl (Quan et al., 2018), and the samples were harvested at 0, 3, 9, 24, and 48 h of salt treatment for RNA isolation.

For the salt treatment of Arabidopsis thaliana at the seedling stage, seeds were sown on half-strength Murashige and Skoog (MS) medium and laid on 4°C for 3 days and then shifted to a growth chamber at 22°C with a light intensity of 120–150 µmol/m2.s and relative humidity of 50%. After 10 days, seedlings were shifted to a new MS medium with 200 mM NaCl. Root length was observed after 7 days of salt treatment, and data for root length were recorded. For the estimation of germination percentage, seeds were plated initially on MS medium with 200 mM NaCl and germination rate was recorded after 5 days.

For salt stress at the reproductive stage, Arabidopsis plants were grown in a growth chamber at the above-mentioned conditions, and 250 mM NaCl solution was applied to four-weeks old plants every three days interval. Leaf samples were collected at this stage for various physiological assays including Na+ concentration. The number of survived plants, plant dry biomass, and seed yield per plant (mg) were recorded at the time of complete maturity.

RNA isolation and real time PCR

RNA was isolated using the RNAprep Pure Kit (for Plants; Tiangen) and quantified in NanoDrop. 1 µg total RNA was reverse transcribed into cDNA using a first-strand cDNA synthesis kit (Takara). Quantitative real-time PCR was performed using SYBR green master mix on an ABI7500 sequence detection system (Zhao et al., 2017a). OsActin1 gene was used as an internal control for rice (Zafar et al., 2020a), and AtActin2 was used for Arabidopsis (Zhao et al., 2017a). The primer sequences for all genes are listed in Suppl. Tab. 1.

Phylogenetic analysis and gene structure

Protein sequence for rice OsPP12-A13 gene was retrieved from Rice genome annotation project (http://rice.plantbiology.msu.edu/) under locus name LOC_Os04g48270. The protein sequences for ortholog genes of different species were retrieved from NCBI via BLAST search against OsPP12-A13. The amino acid sequences were aligned using CLUSTALX software (Wang et al., 2018), and a phylogenetic tree was constructed using MEGA 7 with 1000 bootstrap replicates (Zafar et al., 2020b). The gene structure of the OsPP12-A13 gene was constructed using a gene structure display server (Hu et al., 2014).

Vector construction and transgenics development

To construct a binary vector for gene overexpression in transgenic plants, the coding sequence of OsPP12-A13 cDNA was amplified using a forward primer (5’-ATCGTCTAGAATGGGGGCGGGGG-3’, XbaI site is underlined) and a reverse primer (5’-ATCGGGTACC TTACTTGCAGATTGTGC-3’, KpnI site is underlined). The PCR product was confirmed by sequencing. Then, the gene fragment was digested with XbaI and KpnI and cloned into the plant binary vector ProkII under the control of the CaMV 35S and pSUC promoters to generate the 35S::OsPP12-A13 and pSUC::OsPP12-A13 constructs, respectively. For pSUC::OsPP12-A13, the pSUC promoter was first constructed into the ProkII vector. These constructs were introduced into Agrobacterium tumefaciens strain LBA4404 after sequencing and then transformed into Arabidopsis ecotype Col-0 by the floral dipping method (Zhang et al., 2006). Empty vectors were also introduced in Arabidopsis as controls.

Subcellular localization

Localization of OsPP12-A13 protein was first predicted using the WoLF PSORT database (www.genscript.com/tools/wolf-psort). For experimental validation, the coding sequence of OsPP12-A13 cDNA was fused with GFP and cloned into vector pBWA(V)HS-GLosgfp. This construct was co-transformed along with the nucleus marker vector pBWA(V)HS-Nucleus-mKate into Arabidopsis protoplasts and observed under a confocal microscope. For the negative control, an empty vector pBWA(V)HS-GLosgfp containing only the GFP gene was transformed into Arabidopsis protoplasts.

Determination of Na+ concentration

Na+ concentration from leaf, stem, and root tissues was determined by the freeze-thawed method as described earlier (Wu et al., 2019). Plant samples were harvested and frozen (−80°C) immediately for 60 min and then thawed again, followed by squeezing to release cell sap. The cell sap was centrifuged at 5000 x g for 10 min, and the supernatant was collected. The 10 μL of supernatant was diluted to 25 mL and used for Na+ determination with a flame photometer.

Measurement of H2O2, MDA and antioxidant activities

Quantitative measurement of H2O2 was performed using a spectrophotometric method as described earlier (Zafar et al., 2020a). Briefly, 0.1 g fresh leaves were harvested from Arabidopsis plants and extracted with 1 mL of 50 mM sodium phosphate (pH 7.4) buffer and kept on ice for 20 min. The mixture was centrifuged at 12000 × g for 15 min and quantified using a spectrophotometer. Measurement of MDA, SOD, POD, CAT, and GST activities was performed using the kits provided by Nanjing Jiancheng bioengineering Institute, China (Zafar et al., 2020b). One unit of SOD activity was defined as 1 g tissue, among which the inhibition rate of SOD is 50%. One unit of CAT activity was estimated as the amount of enzyme that decomposes 1 µmol H2O2 per second in 1 g tissue. One unit of POD activity was defined as an absorbance change of 0.01 per minute.

Electrolyte leakage assay

The relative electrolyte leakage was determined using the following method (Bajji et al., 2002). Leaf segments of 1 cm were harvested from selected plants and washed with deionized water to clean out the solutes from the leaf surface. The cut segments were then put into test tubes containing 20 mL deionized water, and electrical conductivity was measured with an electrical conductivity meter.

Statistical Analyses

All the data were analyzed with the R software (www.r-project.org). One-way analysis of variance was performed by comparing each transgenic line to the vector control plants. This was followed by the Tukey HSD test for mean comparison. The error bars were calculated with data from a single experiment.

Results

OsPP12-A13 is a salt responsive gene

F box proteins have been shown to play a role in diverse processes, including response to environmental stresses (Jain et al., 2007; Gonzalez et al., 2017; An et al., 2019). However, its role under salinity stress has not been studied in most crop species, including rice. Here, we studied one of rice F box proteins, PHLOEM PROTEIN 2-LIKE A13 (OsPP2-A13), which is predicted to work through phloem tissue and may be involved in the transportation of Na+ ions for salinity tolerance (Zhu et al., 2019). We first investigated whether OsPP2-A13 is responsive to salt stress. We applied salt stress of 150 mM NaCl to rice seedlings for different time durations from zero to 48 h and detected mRNA abundance of OsPP2-A13. The quantitative real-time PCR (qRT-PCR) analysis showed that OsPP2-A13 expression was strikingly induced under 150 mM NaCl, and the expression increased proportionally with the duration of salt stress (Fig. 1a). We further tested the tissue-specific expression of OsPP2-A13 in different tissues of rice using qRT-PCR. This showed the highest relative expression in the stem, followed by root and leaf, which have almost similar expression levels (Fig. 1b). The lowest expression was observed in seed tissues. These results indicate that OsPP2-A13 is a salt responsive gene and may have a role in salinity tolerance.

images

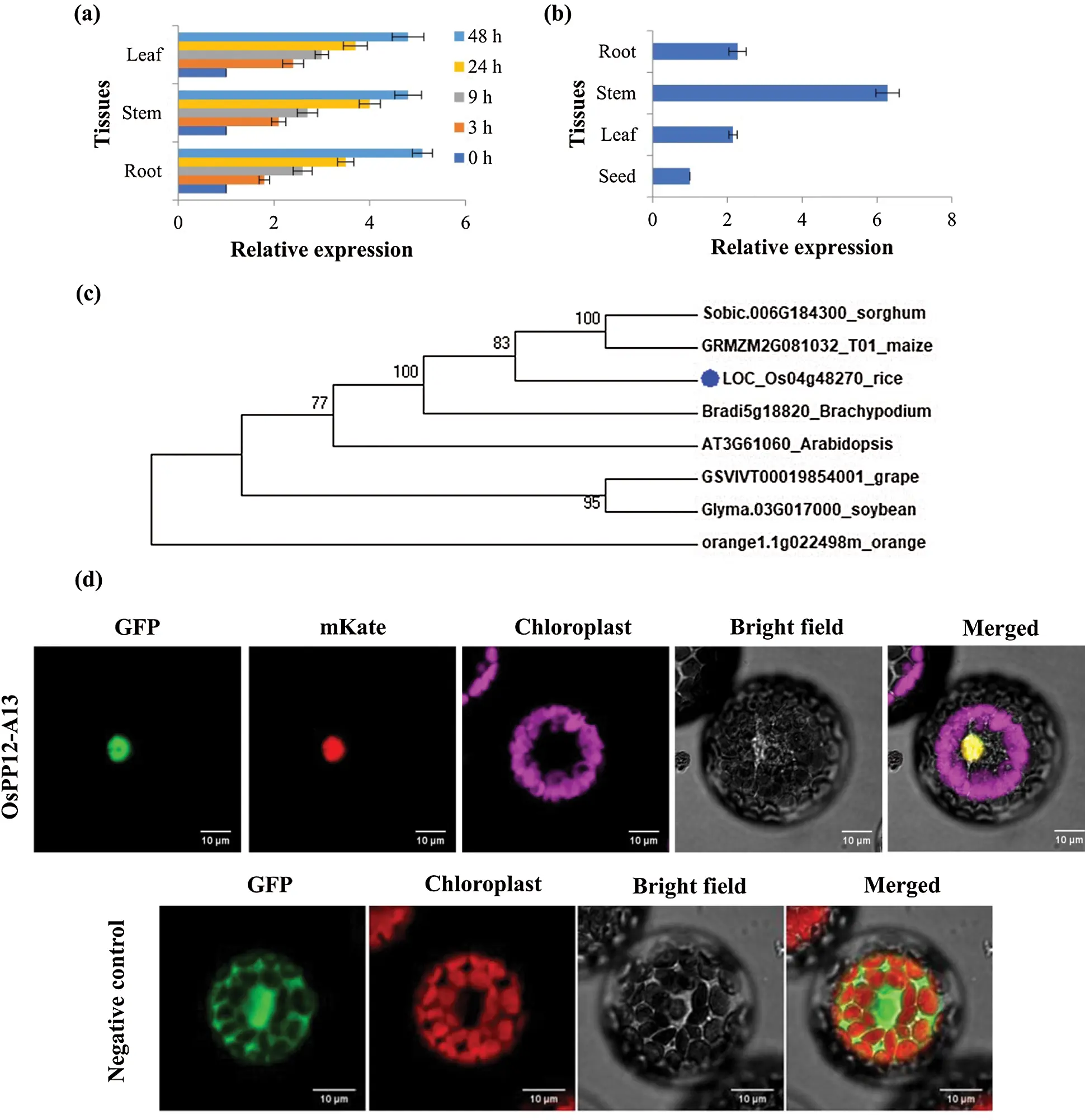

Figure 1: Expression pattern and subcellular localization of OsPP2-A13.

Evolutionary study and subcellular localization of OsPP12-A13

The protein sequence of rice OsPP12-A13 was obtained from the Rice Genome Annotation Project (http://rice.plantbiology.msu.edu/) under gene locus LOC_Os04g48270. The OsPP12-A13 gene is located on chromosome 4 of rice with a nucleotide length of 3362-bp and CDS of 915 bp. The gene structure analysis showed that it has 3 exons and 2 introns (Suppl. Fig. S1a). The OsPP12-A13 encodes a protein of 305 amino acids having an F-box domain at the N terminal and a large phloem protein 2 (PP2) domain near the C-terminal (Suppl. Fig. S1b). The molecular weight of the protein is 33.7 kDa, and the predicted isoelectric point (pI) is 7.18. To study the evolutionary relationship of OsPP12-A13 with its orthologs from other species, we retrieved the amino acid sequences of its orthologs from different species, including monocots and dicots. Phylogenetic analysis of protein sequences indicated that all orthologs are evolutionarily related to each other, and rice OsPP12-A13 was closer to monocot members (maize, sorghum, and brachypodium) as expected (Fig. 1c). The dicots were also closer to each other, with grape and soybean clustered into one branch while the orange F-box ortholog was in a clearly separate clade, which implies a high sequence variation in orange (Fig. 1c).

To study the subcellular localization of OsPP12-A13 in rice, we first predicted its location using available bioinformatics tools. WoLF PSORT server (www.genscript.com/tools/wolf-psort) predicted that OsPP12-A13 is localized in the nucleus similar to its ortholog AT3G61060 in Arabidopsis thaliana. For the experimental validation of this result, we fused the OsPP12-A13 gene with green fluorescent protein (GFP) and transformed it into Arabidopsis protoplasts. We also transformed a vector containing mKate protein into these protoplasts. Co-localization of GFP and mKate signals under the confocal laser microscope confirmed that OsPP12-A13 is a nuclear-localized protein (Fig. 1d). For the negative control, we transformed an empty vector into Arabidopsis protoplasts, which showed GFP signals not only in the nucleus but also in the cytoplasm and other organelles. These results confirm that OsPP12-A13 is a nuclear-localized protein.

OsPP12-A13 increases germination percentage and root length of seedlings in transgenic Arabidopsis plants under salt stress

Germination percentage and root length are the key traits related to salinity tolerance in plants (Zafar et al., 2015). To see if OsPP12-A13 can improve the germination percentage and root length, we fused OsPP12-A13 under CamV35S promoter and developed tissue constitutive overexpression lines for model plant Arabidopsis thaliana (Suppl. Fig. S2a). For the negative control, we transformed a vector containing only the CamV35S promoter without the OsPP12-A13 gene. We obtained nine positive homozygous F3 lines for CamV35S–OsPP12-A13 plants and 15 lines for CamV35S plants. Four positive overexpressing lines were selected after qRT-PCR analysis for stress treatment and other physio-molecular assays (Suppl. Fig. S3). Results demonstrate that germination percentage was significantly reduced to 40% under salinity stress of 200 mM NaCl in MS medium for control plants (35s_VC, plants transformed with a vector containing the CamV35S promoter but not the OsPP12-A13 gene). However, constitutive overexpression of OsPP12-A13 increased germination percentage up to 90% under salt stress in transgenic Arabidopsis seedlings (Fig. 2a). OsPP12-A13 has been described as a phloem protein. To see if OsPP12-A13 works mainly in phloem tissues, we further developed phloem specific over-expression plants using the pSUC2 promoter (Truernit and Sauer, 1995; Wippel and Sauer, 2012) fused with OsPP12-A13 (Suppl. Fig. S2b). We obtained 17 positive homozygous F3 overexpressing lines for pSUC2–OsPP12-A13 plants and 21 lines for pSUC2 plants. Four positive overexpressing lines from both vectors were selected after qRT-PCR analysis for further experimental evaluation (Suppl. Fig. S3). The transgenic overexpressed plants (pSUC2–OsPP12-A13) also improved the germination percentage up to 90% compared to control plants (pSUC2_VC) having only pSUC2 promoter but not OsPP12-A13 (Fig. 2a).

images

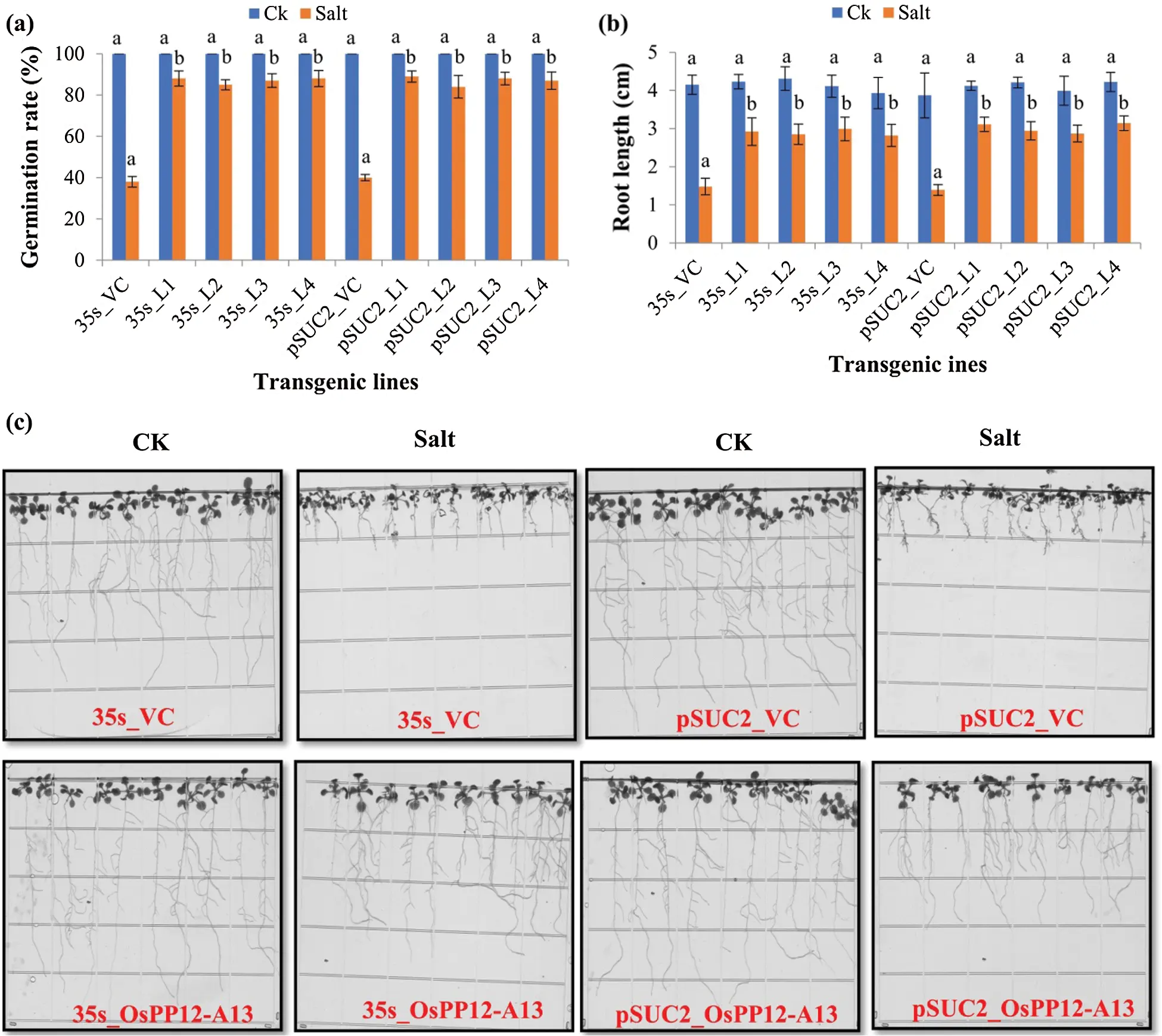

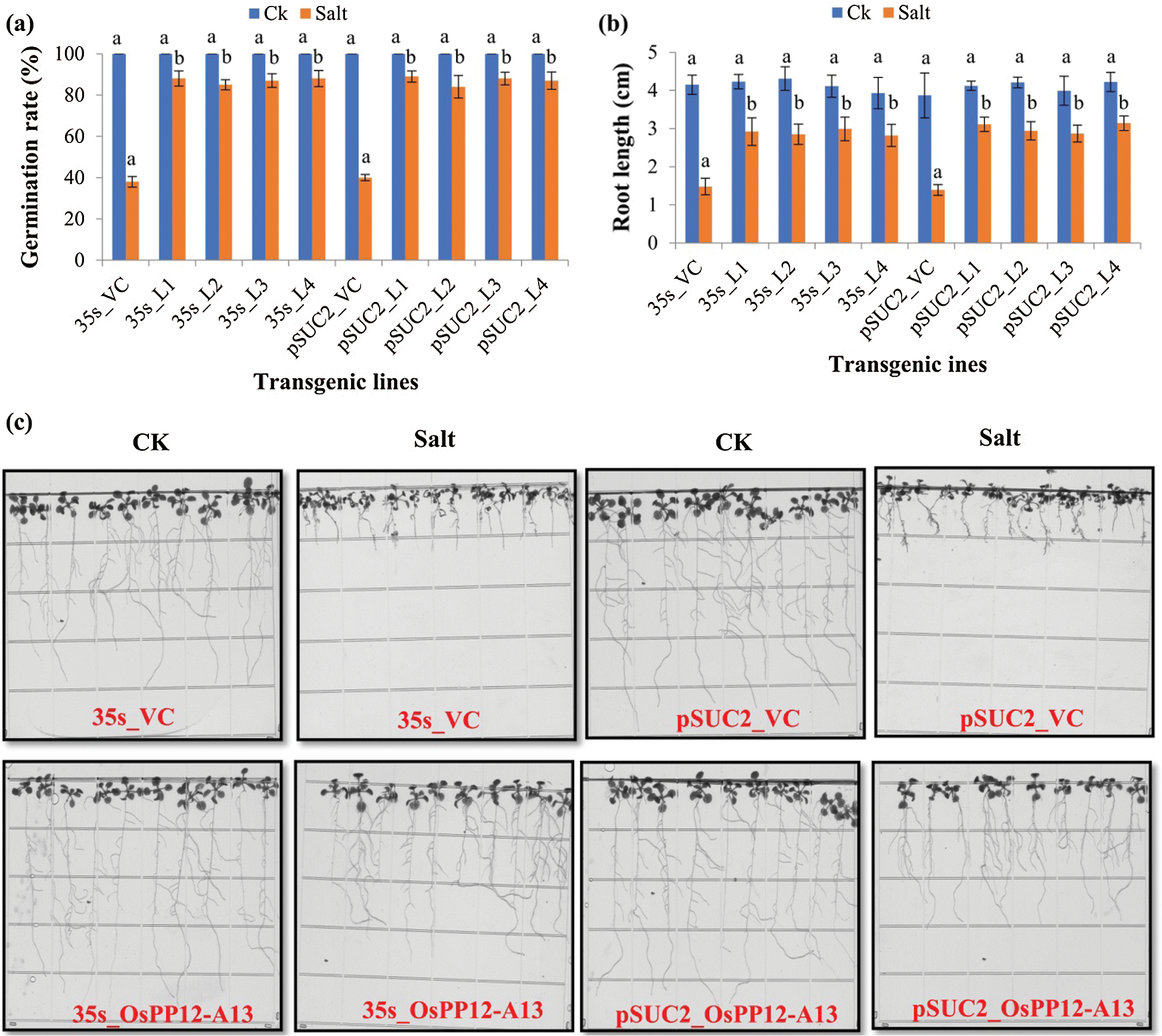

Figure 2: Overexpression of OsPP2-A13 improves germination and root length in transgenic Arabidopsis plants under salt stress.

To observe the effects of these overexpression constructs on root length, we measured root length of 10 days old seedlings grown in MS medium with and without 200 mM NaCl, respectively. OsPP12-A13 overexpressing plants from positive lines (CamV35S-OsPP12-A13 and pSUC2-OsPP12-A13) significantly increased root length up to 2 folds under salt stress compared with controls lines (CamV35S_VC and pSUC2_VC) (Figs. 2b, 2c). These results demonstrate that OsPP12-A13 improves salt tolerance via regulating root length and improved germination percentage.

OsPP12-A13 increases transgenic plants survival and seed yield under salt stress

To observe the role of OsPP12-A13 in salt tolerance at later growth stages, we evaluated plant survival, plant dry biomass, and seed yield per plant by growing transgenic overexpression plants in soil under control and salt stress (250 mM NaCl) at the reproductive stage. Under salt stress, only less than 20% of plants survived for either of the control plants (CamV35S_VC or pSUC2_VC) (Fig. 3a). However, both the CamV35S-OsPP12-A13 and pSUC2-OsPP12-A13 significantly increased the rate of plant survival up to 90% under salt stress (Figs. 3a and 3d). Plant dry biomass is also a good indicator of salt tolerance. The plant dry biomass was significantly reduced under salt stress in control plants (CamV35S_VC and pSUC2_VC) (Fig. 3b). But both the constitutive and phloem specific overexpression of OsPP12-A13 significantly increased plant dry biomass under salt stress compared with controls (Fig. 3b). Seed yield is the ultimate objective and the most important trait for grain crops, including rice (Chun et al., 2020). We observed a significant increase in seed yield per plant under salt stress in transgenic Arabidopsis plants overexpressing OsPP12-A13 compared to their vector controls CamV35S_VC and pSUC2_VC (Fig. 3c). Based on these results, we conclude that OsPP12-A13 positively regulates plant survival, plant biomass, and seed yield under salt stress. Furthermore, the similar responses of constitutive and phloem specific overexpressing plants further support our conclusions that OsPP12-A13 works mainly in phloem tissues.

images

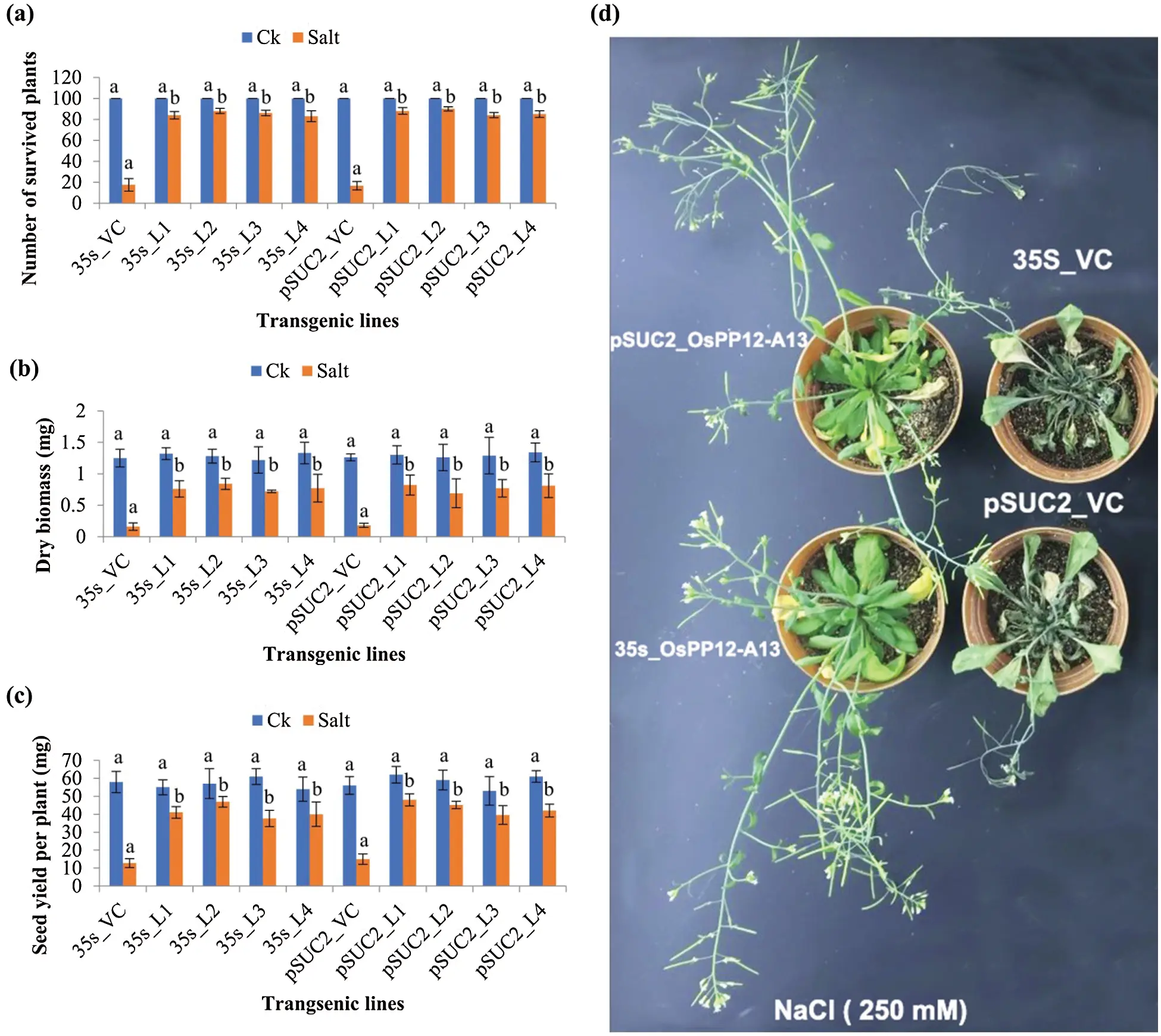

Figure 3: Assay for survival rate and seed yield in transgenic Arabidopsis plants under salt stress.

OsPP12-A13 regulates salinity tolerance by affecting Na+ transport

Plants absorb salts mainly Na+ ions from roots and translocate them into aerial parts mainly leaf and stem. Under conditions of high salinity in the soil, these salts are accumulated in higher concentrations in leaf cells, which are toxic for cells and leads to cell death (Munns and Tester, 2008). Thus, protecting Na+ accumulation in leaf cells is a mechanism of salinity tolerance by plants (Munns and Tester, 2008; Roy et al., 2013; Byrt et al., 2014). To see if OsPP12-A13 may be involved in regulating salinity tolerance by affecting Na+ transport, we measured the Na+ concentration of leaf, stem, and root tissues under control and salt stress conditions. Our results showed that Na+ concentration was significantly higher in leaf and stem tissues in control vectors under salt stress; however, Na+ concentration in these tissues was significantly less in OsPP12-A13 overexpressing plants as compared to control vectors CamV35S_VC and pSUC2_VC (Figs. 4a, 4b). We then measured Na+ concentration in root tissues, which indicated a significantly higher Na+ concentration in OsPP12-A13 overexpressing plants as compared to vector control plants CamV35S_VC and pSUC2_VC under salt stress (Fig. 4c). These results demonstrate that OsPP12-A13 regulates salinity tolerance in Arabidopsis, probably by limiting Na+ transport from root to leaf cells.

Electrolyte leakage is an indicator of cell membrane stability, which is used as an important trait for stress tolerance (Elbasyoni et al., 2017; Zafar et al., 2020a). To find the role of OsPP12-A13 in maintaining cell membrane stability, we measured relative electrolyte leakage from leaf tissues under salt stress. We observed a strikingly higher electrolyte leakage under salt stress in the control plants CamV35S_VC and pSUC2_VC, showing higher damage to cell membrane under stress (Fig. 4d). Nevertheless, the electrolyte leakage was significantly less in transgenic plants overexpressing OsPP12-A13 under both the constitutive and phloem specific promoters, suggesting higher cell membrane stability under salt stress to avoid tissue damage (Fig. 4d).

images

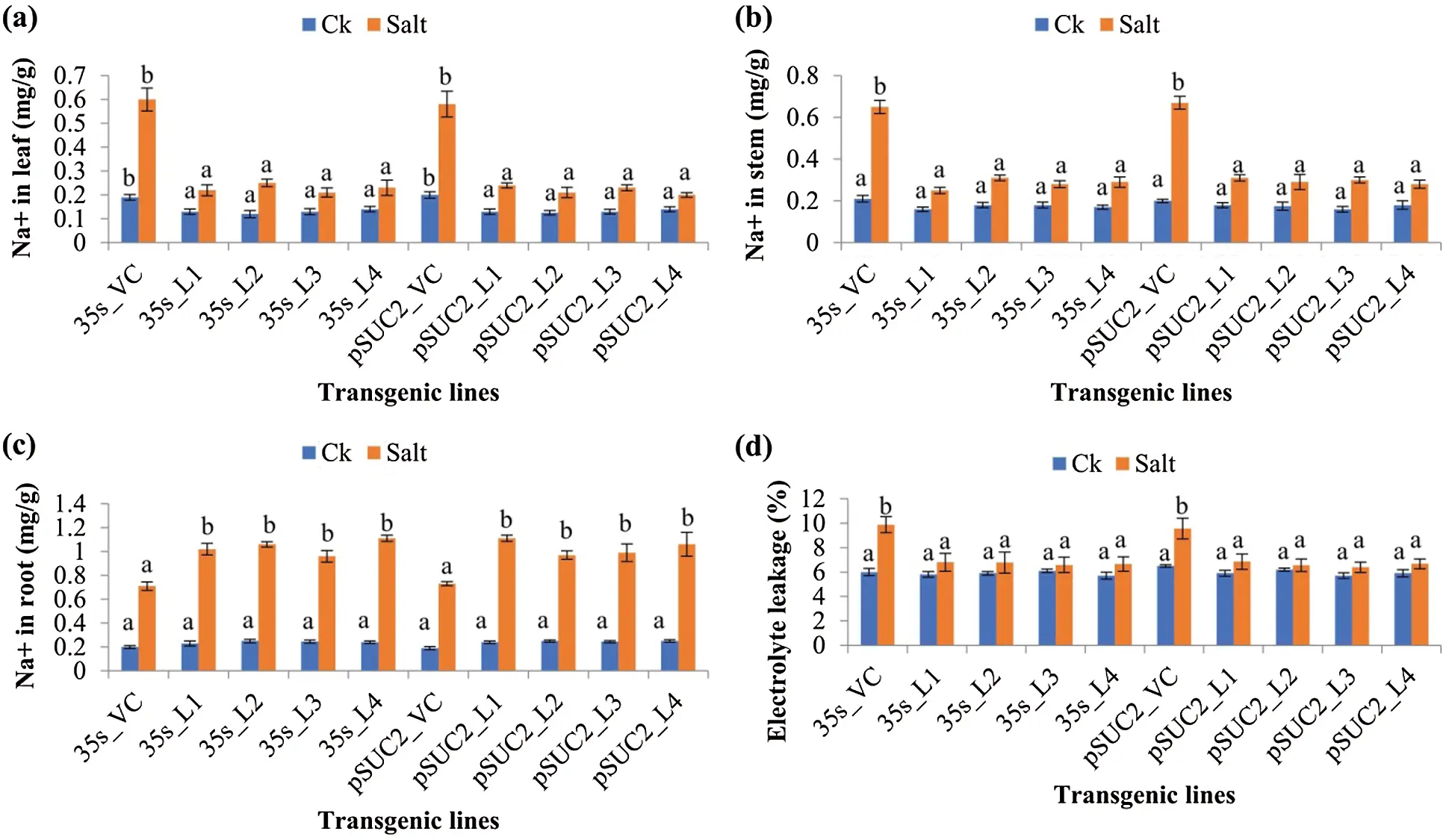

Figure 4: OsPP2-A13 affects Na+ transport in transgenic Arabidopsis plants under salt stress.

OsPP12-A13 maintains ROS homeostasis under salt stress

Abiotic stresses often lead to oxidative stress caused by the overaccumulation of ROS (Zafar et al., 2018b; Zafar et al., 2020a). To examine whether OsPP12-A13 affects the ROS levels, we measured cellular H2O2 (hydrogen peroxide, the most stable ROS species). Our results demonstrate that H2O2 level was significantly increased under salt stress in the control plants (CamV35S_VC and pSUC2_VC); however, it was considerably low in transgenic plants overexpressing OsPP12-A13 under both CamV35S and pSUC2 promoters (Fig. 5a). ROS usually leads to membrane lipid peroxidation, which is measured in terms of malondialdehyde (MDA) (Zafar et al., 2020b). Measurement of MDA contents showed that MDA level was significantly higher under salt stress in the control plants (CamV35S_VC and pSUC2_VC) (Fig. 5b). In contrast, we observed significantly less MDA contents in transgenic plants overexpressing OsPP12-A13 under CamV35S as well as pSUC2 promoters (Fig. 5b), suggesting that OsPP12-A13 protects plants from oxidative damage by keeping lower ROS levels.

Enzymatic antioxidants such as CAT, SOD, POD, and GST serve as important ROS scavengers in plant and animal tissues (Di Meo et al., 2019; Zafar et al., 2020a). We thus estimated the activities of these antioxidant enzymes to understand the mechanism of ROS scavenging and balance in transgenic plants. According to our results, activities of CAT and SOD were significantly enhanced under salt stress in both the control vectors as well as transgenic plants overexpressing OsPP12-A13 (Figs. 5c, 5d). Since the activities were increased irrespective of the OsPP12-A13 gene, this suggests that OsPP12-A13 has no role in the increased activities of CAT and SOD, perhaps it could be due to compensatory response by the plant under stress. On the other hand, activities of POD and GST were significantly increased in the transgenic plants overexpressing OsPP12-A13 under CamV35S as well as pSUC2 promoters, but not significantly high in the control plants (Figs. 5e, 5f). These results suggest that OsPP12-A13 maintains ROS homeostasis in the plant under salt stress by regulating activities of POD and GST specifically and protect tissues from oxidative damage.

images

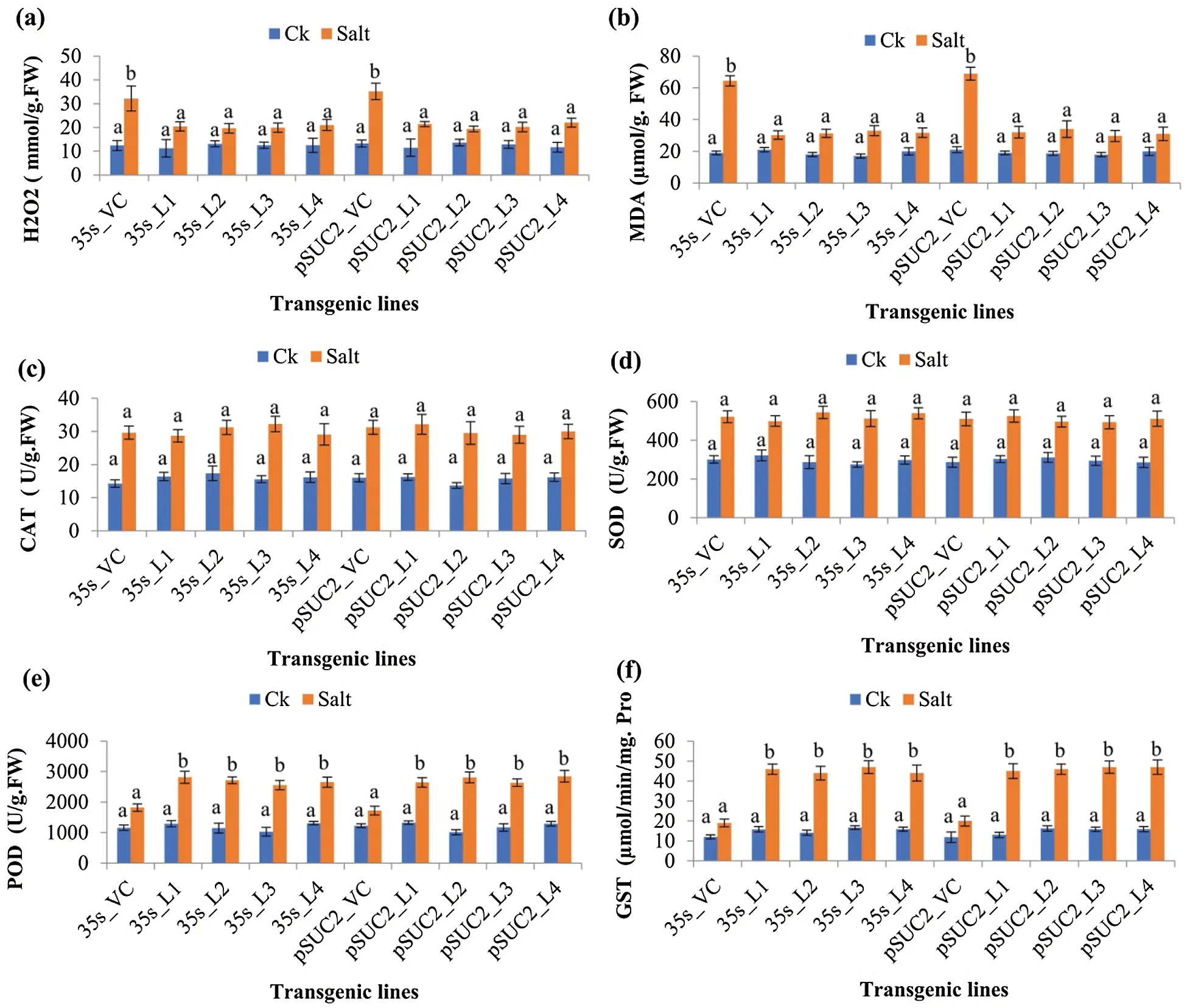

Figure 5: Analysis of ROS and antioxidants in transgenic Arabidopsis plants under salt stress.

OsPP12-A13 regulates ROS homeostasis by modulating the expression of salt and stress responsive genes

To get insight into the underlying molecular mechanism of OsPP12-A13 mediated salt stress tolerance, we investigated the expression of stress-responsive and antioxidant-related genes in Arabidopsis leaf (Martínez-Atienza et al., 2007; Cheng et al., 2019; Zafar et al., 2020a). The Salt Overly Sensitive (SOS) pathway plays a key role in maintaining ion homeostasis in cells and contributes significantly to salt tolerance (Cheng et al., 2019). Since SOS genes positively regulate salt tolerance, we studied their expression in response to salt stress in transgenic plants overexpressing OsPP12-A13 compared to control plants. We observed around 1.5–2.0- fold upregulation in the expression of AtSOS1 and AtSOS2 genes compared to control plants under salt stress (Fig. 6). AtNHX1 and AtHNX2 genes play important roles in vacuolar compartmentalization of Na+, which is an important mechanism of salt tolerance (Yokoi et al., 2002). We observed 2.5–3.6-fold upregulation in the expression of AtNHX1 and AtHNX2 genes compared to control plants under salt stress (Fig. 6). Arabidopsis thaliana high-affinity potassium transporter 1 (AtHKT1) regulates salinity tolerance by limiting the transport of Na+ from roots to shoots (Rus et al., 2001; An et al., 2017). We observed more than 3 folds upregulation in the expression of AtHKT1 in transgenic plants overexpressing OsPP12-A13 compared to control plants under salt stress (Fig. 6). This suggests that OsPP12-A13 affects the expression of AtHKT1 and thereby maintain low leaf Na+ concentration in transgenic plants.

Next, we studied the expression levels of antioxidant-related genes. We observed a slight upregulation in the expression levels of AtSOD1, AtSOD2, AtCAT1, and AtCAT3 genes in transgenic plants overexpressing OsPP12-A13 compared to control plants under salt stress (Fig. 6). Unlikely, we observed a moderate upregulation in the expression of AtPOD1 and AtPOD2 in overexpressing plants compared to control plants under salt stress (Fig. 6). Notably, we observed a significant upregulation of up to 5 folds in the expression of ATGST1 and ATGST2 genes under salt stress in the transgenic plants overexpressing OsPP12-A13 compared to control plants (Fig. 6). These gene expression profiles were almost consistent with the recorded antioxidant activities (Fig. 5) and suggest that OsPP12-A13 regulate the expression of AtGST1 and AtGST2 genes and maintain redox balance in transgenic plants under salt stress.

images

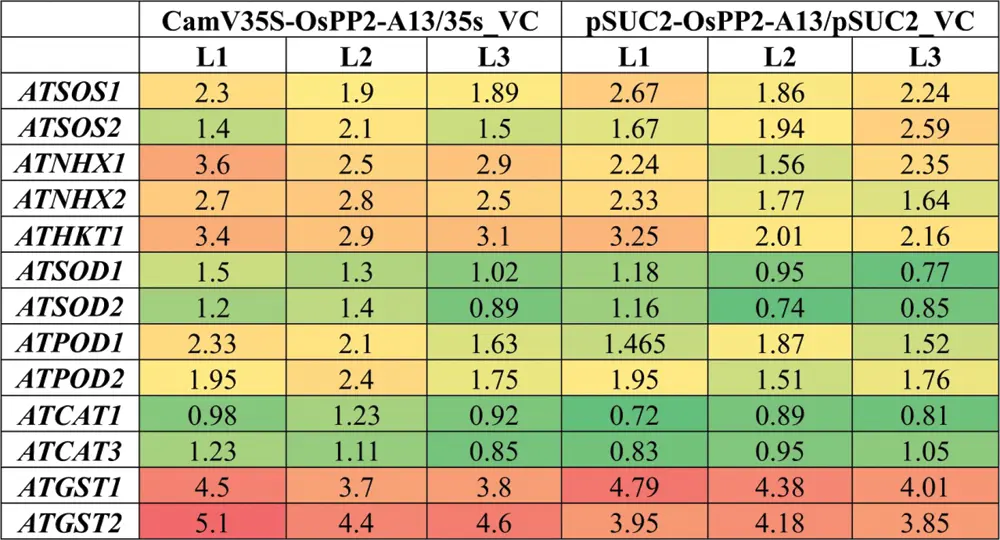

Figure 6: Expression fold-change of various Na+ transport and antioxidant-related genes under salt stress in Arabidopsis leaf.

Discussion

OsPP2-A13 is salt responsive nuclear protein

Environmental stresses such as drought, heat, and salinity pose a serious threat to global crop production (Zafar et al., 2020c). The most sustainable and eco-friendly approach to tackle this challenge is the development of climate-smart varieties (Munns and Tester, 2008; Zafar et al., 2018b). Salinity has been a key challenge for sustainable crop production as it seriously affects crop yield, especially in rice (Shrivastava and Kumar, 2015; Zafar et al., 2015; Abdelgawad et al., 2016). Thus, identification of novel genes regulating salinity tolerance from either wild species or natural genetic variation will provide a useful genetic resource to breed salinity tolerant cultivars in rice (Huang et al., 2008; Rahnama et al., 2011; Quan et al., 2018). F-box genes are a large family with several hundred members in Arabidopsis and rice (Xu et al., 2009). Overexpression of an F-box gene OsMsr9 enhanced salinity tolerance in Arabidopsis and rice by increased root and shoot growth, higher production of proline, and less malondialdehyde (MDA) contents (Xu et al., 2014). Similarly, overexpression of another F-box gene, TaFBA1, in tobacco enhanced salinity tolerance by regulating antioxidant, reactive oxygen species (ROS) production and Na+ and K+ levels in cells (Zhao et al., 2017b). These studies indicated a potential role of F-box genes in salinity tolerance, and thus identification of new F-box genes for their role in salt tolerance would play important role in breeding salt-tolerant rice cultivars. In this study, we have characterized the role of a rice F-box phloem protein 2-LIKE A13 (OsPP2-A13) in salinity tolerance. We first detected that OsPP2-A13 is highly responsive to salt stress, and its expression was highest in the stem, followed by roots and leaves (Fig. 1). Transformation of OsPP2-A13 with GFP tag into Arabidopsis protoplasts revealed that OsPP2-A13 is localized to the nucleus, similar to its Arabidopsis ortholog AT3G61060. Since transcription factors are known to regulate the expression of stress-responsive genes and are located in the nucleus (Zhang et al., 2013; Li et al., 2017; Ali et al., 2018; Dai, 2019; Zhu et al., 2020), this suggests that OsPP2-A13 may interact with some key transcription factors and regulate salt-responsive genes to impart salinity tolerance.

OsPP2-A13 regulates salinity tolerance probably via phloem tissues

We showed with a number of evidences that overexpression of OsPP2-A13 in Arabidopsis imparts salt tolerance at both seedling and reproductive stages. We constitutively expressed OsPP2-A13 under CamV35S promoter in Arabidopsis and observed a significantly higher germination percentage and root length in Arabidopsis seedlings grown in MS medium with 200 mM NaCl (Fig. 2). Alongside, we observed a significantly higher survival rate, dry biomass, and seed yield per plant in transgenic CamV35S-OsPP2-A13 plants grown in soil with 250 mM NaCl (Fig. 2). Since root length, survival rate, dry biomass and seed yield are the key traits associated with salinity tolerance (Liu et al., 2013; Farooq et al., 2015; Zafar et al., 2015), we conclude that OsPP2-A13 improves salinity tolerance in Arabidopsis.

Phloem serves as an important medium for salinity tolerance by translocating Na+ salts from leaves and shoot (place of higher Na+ concentration) to the root (place of low Na+ concentration) (Berthomieu et al., 2003; Kong et al., 2012; Wu, 2018). Phloem played a key role in salinity tolerance in several species, including maize, clover, and sweet pepper (Tester and Davenport, 2003). Since OsPP2-A13 is a phloem protein gene, we tested if OsPP2-A13 works mainly via the phloem to improve salinity tolerance. We expressed OsPP2-A13 under pSUC2 promoter (phloem specific promoter) (Truernit and Sauer, 1995; Wippel and Sauer, 2012) in Arabidopsis and evaluated salinity tolerance. We found that pSUC2-OsPP2-A13 plants showed almost similar results for the recorded traits, which proved that OsPP2-A13 works mainly via the phloem to regulate salinity tolerance. This suggests that OsPP2-A13 restricts Na+ transport from roots to leaves, and phloem plays a central role.

Na+ transport is an important mechanism of salinity tolerance in plants (Wu, 2018). We therefore investigated if OsPP2-A13 affects Na+ transport from roots to leaves. Our results showed that both the CamV35S-OsPP2-A13 and pSUC2-OsPP2-A13 plants had significantly reduced Na+ concentration in leaf and stem tissues under salt stress compared with control plants (Fig. 4). However, Na+ concentration was considerably higher in roots under salt stress. Since a high concentration of Na+ in roots is not detrimental to the plant as compared to the leaf and stem (Berthomieu et al., 2003; Kong et al., 2012; Wu, 2018), we speculate that OsPP2-A13 regulates salinity tolerance mainly by downregulating Na+ transport from root to leaves. Thus, OsPP2-A13 could serve as an important functional gene to modulate salinity tolerance in breeding programs.

OsPP2-A13 protects from oxidative damage under salt stress

One of the most common and frequent responses to abiotic stresses is the excessive production of ROS which often leads to detrimental effects. The accumulation of ROS beyond certain levels causes membrane lipid peroxidation, cell death, reduced fertility, and poor seed setting (Abogadallah, 2010; Abdelgawad et al., 2016; Zafar et al., 2020a; Zafar et al., 2020b). Plants protect themselves from oxidative damage by activating stress-responsive genes and antioxidant defense mechanisms (Abogadallah, 2010; Abdelgawad et al., 2016). In this study, although the ROS level was increased under salt stress, ROS level was significantly less in transgenic plants overexpressing OsPP2-A13 as compared to control plants with normal OsPP2-A13 expression (Fig. 5). A similar trend was observed for MDA (Fig. 5), which is used as an oxidative stress marker (Zafar et al., 2020a). This indicates that OsPP2-A13 helps to keep the ROS levels under normal ranges. Plants adapt various defense mechanisms against oxidative stresses (Larson, 1995). Among these, the activation of antioxidant machinery is one of the major defense strategies (Abogadallah, 2010; Gill and Tuteja, 2010). Antioxidant enzymes such as SOD, POD, CAT, and GST are key enzymes that detoxify ROS molecules and protect cellular organelles from ROS damage (Jiang and Yang, 2009; Zafar et al., 2018a). We found a dramatic increase in the activities of POD and GST under salt stress in the transgenic plants expressing OsPP2-A13 as compared to control plants without OsPP2-A13 (Fig. 5). This proves that low ROS levels in the transgenic plants expressing OsPP2-A13 could be attributed to the higher POD and GST activities, which protected the plants from oxidative damage under salt stress (Abogadallah, 2010; Hussain et al., 2019; Zafar et al., 2020a). Since TaFBA1 (an F-box gene) also controls salinity tolerance by regulating antioxidant and ROS production and Na+ and K+ levels in cells, this suggests some common evolution and mechanism of action of these F-box genes (Zhao et al., 2017b).

OsPP2-A13 regulates the expression of Na+ transport and antioxidant related genes

Our results suggest that OsPP2-A13 improves salinity tolerance probably by affecting Na+ transport and antioxidant defense response. To understand the molecular basis of this response, we studied the expression levels of various Na+ transport and antioxidant-related genes under salt stress. We observed a slight to moderate upregulation of AtSOS1, AtSOS2 (Salt overlay sensitive pathway genes) AtNHX1, AtHNX2 (Na+/H+ antiporter genes) and AtHKT1 (high-affinity potassium transporter gene) (Fig. 6). The SOS pathway plays a key role in maintaining ion homeostasis in cells and contributes significantly to salt tolerance (Cheng et al., 2019). Na+/H+ antiporter genes play an important role in vacuolar compartmentalization of Na+, which is an important mechanism of salt tolerance (Yokoi et al., 2002). Similarly, AtHKT1 regulates salinity tolerance by limiting the transport of Na+ from roots to shoots (Rus et al., 2001; An et al., 2017). Thus, the increased expression of these genes in OsPP2-A13 overexpressing plants may be correlated with the Na+ transport regulation mechanism imparting salt tolerance. Notably, the increased expression of AtHKT1 further supports the hypothesis that OsPP2-A13 enhances salinity tolerance by downregulating Na+ transport from roots to upper plant parts and that AtHKT1 and OsPP2-A13 may work in the same pathway of Na+ transport.

The enzymatic activities are often positively correlated with the expression level of their corresponding genes (Yin et al., 2017). To see if increased activities of antioxidant enzymes are correlated with increased transcripts levels of corresponding genes (Das et al., 2019; Zafar et al., 2020a), we measured the relative mRNA abundance of CAT, SOD, POD, and GST related genes in Arabidopsis. We found that the expression of AtSOD1, AtSOD2, AtCAT1, and AtCAT3 increased slightly, AtPOD1 and AtPOD2 increased moderately; however, ATGST1 and ATGST2 showed a 5-fold increase in the expression under salt stress in transgenic plants expressing OsPP2-A13. The relative transcript levels were consistent with the observed antioxidant activities, as observed previously under salt and other abiotic stresses in rice (Das et al., 2019; Zafar et al., 2020a), suggesting that the enzymatic activities have a moderate positive correlation with the expression levels of their corresponding genes. These results suggest that AtNHX1, AtHKT1, ATGST1, and ATGST2 could be downstream target genes of OsPP2-A13, which could be further validated using yeast two-hybrid, pull-down, or split luciferase assays. Taken together, our study describes an important role of a rice F-box gene in enhancing salt tolerance in Arabidopsis via modulating multiple traits.

Conclusions

In summary, this study demonstrated the important role of rice F-box phloem protein OsPP2-A13 in regulating salinity tolerance in transgenic Arabidopsis plants (Fig. 7). We showed that OsPP2-A13 is a nuclear-localized protein that functions mainly via the phloem, probably by affecting Na+ transport from root to leaves. Lastly, we showed that OsPP2-A13 protect plants from oxidative stress by maintaining higher antioxidant activities and regulating the expression of AtGST1 and AtGST2 genes. OsPP12-A13 knock-out or RNAi experiments are needed directly in rice in order to have a complete understanding of the role of this gene in salt tolerance. Further analysis to study allelic variation and development of molecular markers linked to this gene may facilitate rapid screening of salt-tolerant rice germplasm in breeding programs.

images

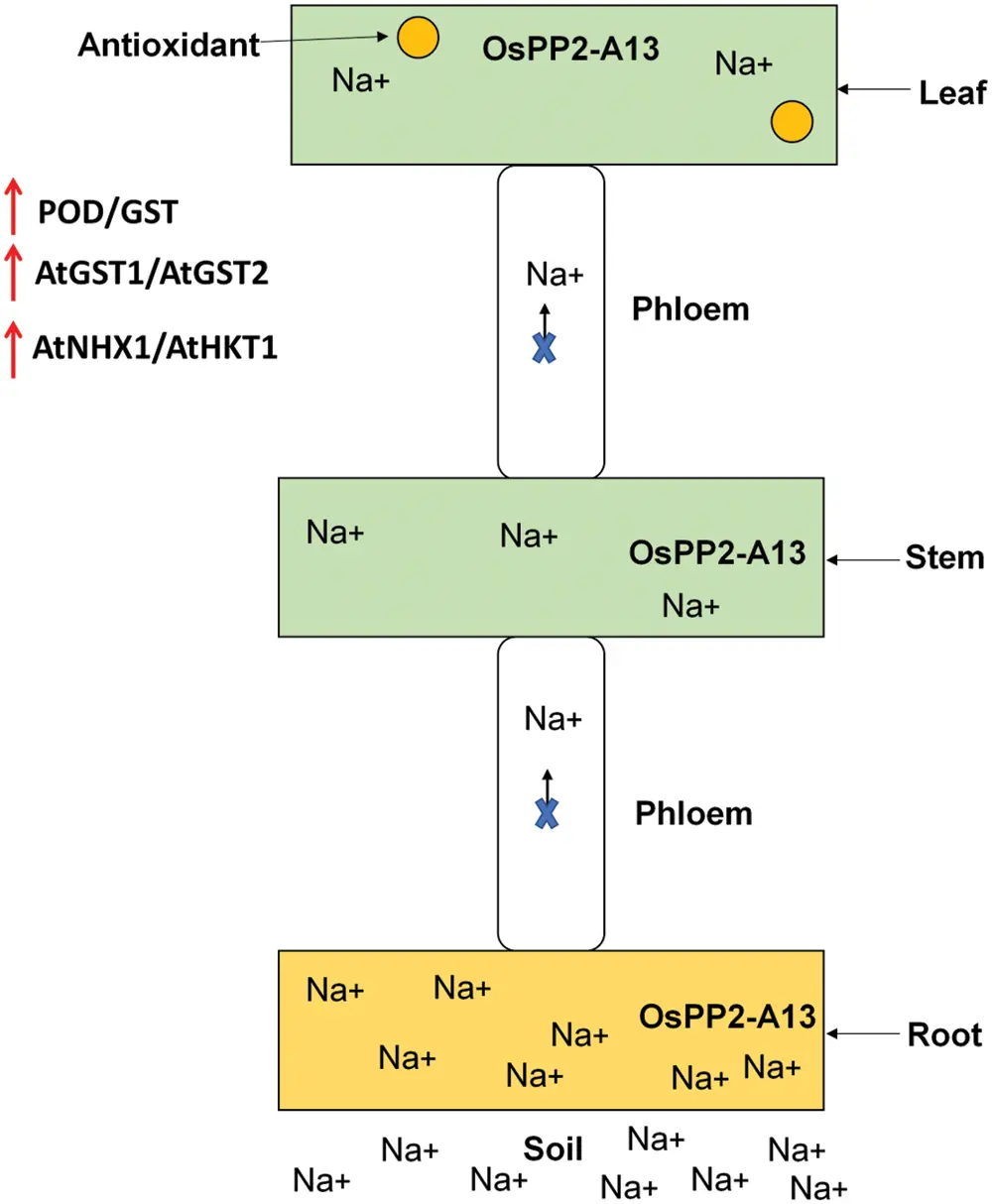

Figure 7: Working model of OsPP2-A13 for Na+ transport to regulate salinity tolerance.

Acknowledgement: We thank the technical support from Wuhan Bio-mall Biotechnology Co., Ltd., (Wuhan, China).

Availability of Data and Materials: Data supporting the results described in this manuscript are available in the text and its supplementary files.

Authors’ Contributions: Chunkun Fan: Design, experimental execution, paper writing; Yongpeng Zhang, Chunbao Yang, Yawei Tang, Ji Qu, Bu Jie, Deji Quzhen: Experimental execution, validation, and paper revision; Liyun Gao: Design, supervision, funding acquisition, paper revision. All authors have read and approved the final version of the manuscript.

Ethics Approval: Not applicable.

Funding Statement: This work was financially supported by the Crop Breeding Special Project (XZ201901NB03) and the Identification of experimental planting and ecological adaptability of rice in high-altitude areas of Tibet (XZ—2019—NK—NS—0010). The funders had no role in the design and conduct of the study; collection, management, analysis, and interpretation of the data; preparation, review, or approval of the manuscript; and decision to submit the manuscript for publication.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.

References

  1. AbdElgawad, H., Zinta, G., Hegab, MM., Pandey, R., & Asard, H. (2016). High salinity induces different oxidative stress and antioxidant responses in maize seedlings organs. Frontiers in Plant Science, 7, 276. [Google Scholar]
  2. Abogadallah, GM. (2014). Antioxidative defense under salt stress. Plant Signaling & Behavior, 5, 369-374. [Google Scholar] [CrossRef]
  3. Ali, MA., Azeem, F., Nawaz, MA., Acet, T., Abbas, A., Imran, QM., Shah, KH., Rehman, HM., Chung, G., Yang, SH., & Bohlmann, H. (2018). Transcription factors WRKY11 and WRKY17 are involved in abiotic stress responses in . Journal of Plant Physiology, 226, 12-21. [Google Scholar] [CrossRef]
  4. Alzubaidi A, Aljanabi AS, Al-Rawi A (1990). Interaction between nitrogen and phosphorus fertilizers and soil salinity and its effect on growth and ionic composition of corn (Zea mays L.). In: El Bassam N, Dambroth M, Loughman BC (eds.), Genetic Aspects of Plant Mineral Nutrition. Developments in Plant and Soil Sciences, vol. 42pp. 195– 202. Dordrecht: Springer Netherlands. DOI 10.1007/978-94-009-2053-8_30. [CrossRef]
  5. An, D., Chen, JG., Gao, YQ., Li, X., Chao, ZF., Chen, ZR., Li, QQ., Han, ML., Wang, YL., Wang, YF., Chao, DY., & Borevitz, JO. (2017). AtHKT1 drives adaptation of to salinity by reducing floral sodium content. PLoS Genetics, 13, e1007086. [Google Scholar] [CrossRef]
  6. An, J., Li, Q., Yang, J., Zhang, G., Zhao, Z., Wu, Y., Wang, Y., & Wang, W. (2019). Wheat F-box protein TaFBA1 positively regulates plant drought tolerance but negatively regulates stomatal closure. Frontiers in Plant Science, 10, 815. [Google Scholar] [CrossRef]
  7. Bajji, M., Kinet, JM., & Lutts, S. (2002). The use of the electrolyte leakage method for assessing cell membrane stability as a water stress tolerance test in durum wheat. Plant Growth Regulation, 36, 61-70. [Google Scholar] [CrossRef]
  8. Berthomieu, P., Conejero, G., Nublat, A., Brackenbury, WJ., & Lambert, C. (2003). Functional analysis of AtHKT1 in shows that Na recirculation by the phloem is crucial for salt tolerance. EMBO Journal, 22, 2004-2014. [Google Scholar] [CrossRef]
  9. Byrt, CS., Platten, JD., Spielmeyer, W., James, RA., Lagudah, ES., Dennis, ES., Tester, M., & Munns, R. (2007). HKT1; 5-like cation transporters linked to Na exclusion loci in wheat, Nax2 and Kna1. Plant Physiology, 143, 1918-1928. [Google Scholar] [CrossRef]
  10. Byrt, CS., Xu, B., Krishnan, M., Lightfoot, DJ., Athman, A., Jacobs, AK., Watson-Haigh, NS., Plett, D., Munns, R., Tester, M., & Gilliham, M. (2014). The Na transporter, TaHKT1;5-D, limits shoot Na accumulation in bread wheat. Plant Journal, 80, 516-526. [Google Scholar] [CrossRef]
  11. Chaves, MM., Flexas, J., & Pinheiro, C. (2009). Photosynthesis under drought and salt stress: Regulation mechanisms from whole plant to cell. Annals of Botany, 103, 551-560. [Google Scholar] [CrossRef]
  12. Chen, R., Guo, W., Yin, Y., & Gong, ZH. (2014). A novel F-box protein CaF-box is involved in responses to plant hormones and abiotic stress in pepper ( L.). International Journal of Molecular Sciences, 15, 2413-2430. [Google Scholar] [CrossRef]
  13. Cheng, C., Zhong, Y., Wang, Q., Cai, Z., Wang, D., Li, C., & Mehanathan, M. (2019). Genome-wide identification and gene expression analysis of SOS family genes in tuber mustard ( var. tumida). PLoS One, 14, e0224672. [Google Scholar] [CrossRef]
  14. Chun, Y., Fang, J., Zafar, SA., Shang, J., Zhao, J., Yuan, S., & Li, X. (2020). MINI SEED 2 (MIS2) encodes a receptor-like kinase that controls grain size and shape in rice. Rice, 13, 635. [Google Scholar] [CrossRef]
  15. Dai, Z. (2019). Transcription factors indirectly regulate genes through nuclear colocalization. Cells, 8, 754. [Google Scholar] [CrossRef]
  16. Das, P., Lakra, N., Nutan, KK., Singla-Pareek, SL., & Pareek, A. (2019). A unique bZIP transcription factor imparting multiple stress tolerance in rice. Rice, 12, 58. [Google Scholar] [CrossRef]
  17. di Meo, S., Napolitano, G., & Venditti, P. (2019). Physiological and pathological role of ROS: Benefits and limitations of antioxidant treatment. International Journal of Molecular Sciences, 20, 4810. [Google Scholar] [CrossRef]
  18. ElBasyoni, I., Saadalla, M., Baenziger, S., Bockelman, H., & Morsy, S. (2017). Cell membrane stability and association mapping for drought and heat tolerance in a worldwide wheat collection. Sustainability, 9, 1606. [Google Scholar] [CrossRef]
  19. Farooq, M., Hussain, M., Wakeel, A., & Siddique, KHM. (2015). Salt stress in maize: Effects, resistance mechanisms, and management. A review. Agronomy for Sustainable Development, 35, 461-481. [Google Scholar] [CrossRef]
  20. Gill, SS., & Tuteja, N. (2010). Reactive oxygen species and antioxidant machinery in abiotic stress tolerance in crop plants. Plant Physiology and Biochemistry, 48, 909-930. [Google Scholar] [CrossRef]
  21. Gonzalez, LE., Keller, K., Chan, KX., Gessel, MM., & Thines, BC. (2017). Transcriptome analysis uncovers F-BOX STRESS INDUCED 1 as a regulator of jasmonic acid and abscisic acid stress gene expression. BMC Genomics, 18, e0174. [Google Scholar] [CrossRef]
  22. Han, J., Shi, J., Zeng, L., Xu, J., & Wu, L. (2015). Effects of nitrogen fertilization on the acidity and salinity of greenhouse soils. Environmental Science and Pollution Research International, 22, 2976-2986. [Google Scholar] [CrossRef]
  23. Han, Y., Yin, S., Huang, L., Wu, X., Zeng, J., Liu, X., Qiu, L., Munns, R., Chen, ZH., & Zhang, G. (2018). A sodium transporter HvHKT1; 1 confers salt tolerance in barley via regulating tissue and cell ion homeostasis. Plant and Cell Physiology, 59, 1976-1989. [Google Scholar] [CrossRef]
  24. Hu, B., Jin, J., Guo, AY., Zhang, H., Luo, J., & Gao, G. (2015). GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics, 31, 1296-1297. [Google Scholar] [CrossRef]
  25. Huang, S., Spielmeyer, W., Lagudah, ES., & Munns, R. (2008). Comparative mapping of HKT genes in wheat, barley, and rice, key determinants of Na transport, and salt tolerance. Journal of Experimental Botany, 59, 927-937. [Google Scholar] [CrossRef]
  26. Hussain, HA., Men, S., Hussain, S., Chen, Y., Ali, S., Zhang, S., Zhang, K., Li, Y., Xu, Q., Liao, C., & Wang, L. (2019). Interactive effects of drought and heat stresses on morpho-physiological attributes, yield, nutrient uptake and oxidative status in maize hybrids. Scientific Reports, 9, 1. [Google Scholar] [CrossRef]
  27. Jain, M., Nijhawan, A., Arora, R., Agarwal, P., Ray, S., Sharma, P., Kapoor, S., Tyagi, AK., & Khurana, JP. (2007). F-box proteins in rice. Genome-wide analysis, classification, temporal and spatial gene expression during panicle and seed development, and regulation by light and abiotic stress. Plant Physiology, 143, 1467-1483. [Google Scholar] [CrossRef]
  28. James, RA., Blake, C., Byrt, CS., & Munns, R. (2011). Major genes for Na exclusion, Nax1 and Nax2 (wheat HKT1;4 and HKT1;5), decrease Na accumulation in bread wheat leaves under saline and waterlogged conditions. Journal of Experimental Botany, 62, 2939-2947. [Google Scholar] [CrossRef]
  29. Jiang, L., & Yang, H. (2009). Prometryne-induced oxidative stress and impact on antioxidant enzymes in wheat. Ecotoxicology and Environmental Safety, 72, 1687-1693. [Google Scholar] [CrossRef]
  30. Kong, X., Luo, Z., Dong, H., Eneji, AE., & Li, W. (2012). Effects of non-uniform root zone salinity on water use, Na recirculation, and Na and H flux in cotton. Journal of Experimental Botany, 63, 2105-2116. [Google Scholar] [CrossRef]
  31. Kumar, S., Kalita, A., Srivastava, R., & Sahoo, L. (2017). Co-expression of NHX1 and bar improves the tolerance to salinity, oxidative stress, and herbicide in transgenic mungbean. Frontiers in Plant Science, 8, 1896. [Google Scholar] [CrossRef]
  32. Larson, RA. (1995). Plant defenses against oxidative stress. Archives of Insect Biochemistry and Physiology, 29, 175-186. [Google Scholar] [CrossRef]
  33. Li, K., Xing, C., Yao, Z., & Huang, X. (2017). , a novel MYB protein of , functions in drought tolerance and modulates polyamine levels by regulating arginine decarboxylase gene. Plant Biotechnology Journal, 15, 1186-1203. [Google Scholar] [CrossRef]
  34. Liu, AL., Zou, J., Liu, CF., Zhou, XY., Zhang, XW., Luo, GY., & Chen, XB. (2013). Over-expression of OsHsfA7 enhanced salt and drought tolerance in transgenic rice. BMB Reports, 46, 31-36. [Google Scholar] [CrossRef]
  35. Liu, J., Lin, QF., Qi, SL., Feng, XJ., Han, HL., Xu, T., & Hua, XJ. (2020). The F-box protein EST1 modulates salt tolerance in by regulating plasma membrane Na/H antiport activity. Journal of Plant Physiology, 251, 153217. [Google Scholar] [CrossRef]
  36. Martínez-Atienza, J., Jiang, X., Garciadeblas, B., Mendoza, I., Zhu, JK., Pardo, Jé M., & Quintero, FJ. (2007). Conservation of the salt overly sensitive pathway in rice. Plant Physiology, 143, 1001-1012. [Google Scholar] [CrossRef]
  37. Munns, R., James, RA., & Läuchli, A. (2006). Approaches to increasing the salt tolerance of wheat and other cereals. Journal of Experimental Botany, 57, 1025-1043. [Google Scholar] [CrossRef]
  38. Munns, R., & Tester, M. (2008). Mechanisms of salinity tolerance. Annual Review of Plant Biology, 59, 651-681. [Google Scholar] [CrossRef]
  39. Quan, R., Wang, J., Hui, J., Bai, H., Lyu, X., Zhu, Y., Zhang, H., Zhang, Z., Li, S., & Huang, R. (2018). Improvement of salt tolerance using wild rice genes. Frontiers in Plant Science, 8, 146. [Google Scholar] [CrossRef]
  40. Rahnama, A., Munns, R., Poustini, K., & Watt, M. (2011). A screening method to identify genetic variation in root growth response to a salinity gradient. Journal of Experimental Botany, 62, 69-77. [Google Scholar] [CrossRef]
  41. Roy, SJ., Huang, W., Wang, XJ., Evrard, A., Schmockel, SM., Zafar, ZU., & Tester, M. (2013). A novel protein kinase involved in Na exclusion revealed from positional cloning. Plant, Cell & Environment, 36, 553-568. [Google Scholar] [CrossRef]
  42. Rus, A., Yokoi, S., Sharkhuu, A., Reddy, M., Lee, BH., Matsumoto, TK., Koiwa, H., Zhu, JK., Bressan, RA., & Hasegawa, PM. (2001). AtHKT1 is a salt tolerance determinant that controls Na entry into plant roots. Proceedings of the National Academy of Sciences, 98, 14150-14155. [Google Scholar] [CrossRef]
  43. Shrivastava, P., & Kumar, R. (2015). Soil salinity: A serious environmental issue and plant growth promoting bacteria as one of the tools for its alleviation. Saudi Journal of Biological Sciences, 22, 123-131. [Google Scholar] [CrossRef]
  44. Song, JB., Wang, YX., Li, HB., Li, BW., & Zhou, ZS. (2015). The F-box family genes as key elements in response to salt, heavy mental, and drought stresses in . Functional & Integrative Genomics, 15, 495-507. [Google Scholar] [CrossRef]
  45. Sottosanto, JB., Saranga, Y., & Blumwald, E. (2007). Impact of AtNHX1, a vacuolar Na/H antiporter, upon gene expression during short- and long-term salt stress in . BMC Plant Biology, 7, 18. [Google Scholar] [CrossRef]
  46. Tester, M., & Davenport, R. (2003). Na tolerance and Na transport in higher plants. Annals of Botany, 91, 503-527. [Google Scholar] [CrossRef]
  47. Tian, N., Wang, J., & Xu, ZQ. (2011). Overexpression of Na/H antiporter gene AtNHX1 from improves the salt tolerance of kiwifruit (). South African Journal of Botany, 77, 160-169. [Google Scholar] [CrossRef]
  48. Truernit, E., & Sauer, N. (1995). The promoter of the SUC2 sucrose-H symporter gene directs expression of beta-glucuronidase to the phloem: Evidence for phloem loading and unloading by SUC2. Planta, 196, 564-570. [Google Scholar] [CrossRef]
  49. Wang, M., Qin, Y., Chun, Y., Zhao, J., & Fang, J. (2018). Characterization of a novel semi-dwarf GID1 allele identifies an amino acid required for its interaction with SLR1 in rice. Journal of Plant Growth Regulation, 37, 840-848. [Google Scholar] [CrossRef]
  50. Wippel, K., & Sauer, N. (2012). SUC1 loads the phloem in SUC2 mutants when expressed from the SUC2 promoter. Journal of Experimental Botany, 63, 669-679. [Google Scholar] [CrossRef]
  51. Wu, H. (2018). Plant salt tolerance and Na sensing and transport. Crop Journal, 6, 215-225. [Google Scholar] [CrossRef]
  52. Wu, H., Shabala, L., Zhou, M., Su, N., Wu, Q., Ul‐Haq, T., Zhu, J., Mancuso, S., Azzarello, E., & Shabala, S. (2019). Root vacuolar Na+ sequestration but not exclusion from uptake correlates with barley salt tolerance. Plant Journal, 100, 55-67. [Google Scholar] [CrossRef]
  53. Xu, G., Cui, Y., Wang, M., Li, M., Yin, X., & Xia, X. (2014). OsMsr9, a novel putative rice F-box containing protein, confers enhanced salt tolerance in transgenic rice and . Molecular Breeding, 34, 1055-1064. [Google Scholar] [CrossRef]
  54. Xu, G., Ma, H., Nei, M., & Kong, H. (2009). Evolution of F-box genes in plants: different modes of sequence divergence and their relationships with functional diversification. Proceedings of the National Academy of Sciences of the United States of America, 106, 835-840. [Google Scholar] [CrossRef]
  55. Yan, YS., Chen, XY., Yang, K., Sun, ZX., Fu, YP., Zhang, YM., & Fang, RX. (2011). Overexpression of an F-box protein gene reduces abiotic stress tolerance and promotes root growth in rice. Molecular Plant, 4, 190-197. [Google Scholar] [CrossRef]
  56. Yin, J., Zhang, D., Zhuang, J., Huang, Y., & Mu, Y. (2017). Study on the correlation between gene expression and enzyme activity of seven key enzymes and ginsenoside content in ginseng in over time in Ji’an, China. International Journal of Molecular Sciences, 18, 2682. [Google Scholar] [CrossRef]
  57. Yokoi, S., Quintero, FJ., Cubero, B., Ruiz, MT., Bressan, RA., Hasegawa, PM., & Pardo, JM. (2002). Differential expression and function of Arabidopsis thaliana NHX Na/H antiporters in the salt stress response. Plant Journal, 30, 529-539. [Google Scholar] [CrossRef]
  58. Yoshida S, Forno DA, Cock JH ( 1971). Laboratory manual for physiological studies of rice, The international rice research institute los baños, philippines, pp 1–61.
  59. Zafar, SA., Hameed, A., Ashraf, M., Khan, AS., Qamar, ZU., Li, X., & Siddique, KHM. (2020a). Agronomic, physiological and molecular characterisation of rice mutants revealed the key role of reactive oxygen species and catalase in high-temperature stress tolerance. Functional Plant Biology, 47, 440-453. [Google Scholar] [CrossRef]
  60. Zafar, SA., Hameed, A., Nawaz, MA., Wei, M., & Noor, MA. (2018a). Mechanisms and molecular approaches for heat tolerance in rice ( L.) under climate change scenario. Journal of Integrative Agriculture, 17, 726-738. [Google Scholar] [CrossRef]
  61. Zafar SA, Noor MA, Waqas MA, Wang X, Shaheen T ( 2018b). Temperature extremes in cotton production and mitigation strategies. In: Rahman MR, Zafar Y , (eds.) Past, Present and Future Trends in Cotton Breeding. pp. 65– 91. London: IntechOpen.
  62. Zafar, SA., Patil, SB., Uzair, M., Fang, J., Zhao, J., Guo, T., Yuan, S., Uzair, M., Luo, Q., Shi, J., Schreiber, L., & Li, X. (2020b). DEGENERATED PANICLE AND PARTIAL STERILITY 1 (DPS1) encodes a cystathionine beta-synthase domain containing protein required for anther cuticle and panicle development in rice. New Phytologist, 225, 356-375. [Google Scholar] [CrossRef]
  63. Zafar, SA., Shokat, S., Ahmed, HGM-D., Khan, A., & Ali, MZ. (2015). Assessment of salinity tolerance in rice using seedling based morpho-physiological indices. Advancements in Life Sciences, 2, 142-149. [Google Scholar]
  64. Zafar, SA., Zaidi, SSEA., Gaba, Y., Singla-Pareek, SL., Dhankher, OP., Li, X., Mansoor, S., Pareek, A., & Foyer, C. (2020c). Engineering abiotic stress tolerance via CRISPR/Cas-mediated genome editing. Journal of Experimental Botany, 71, 470-479. [Google Scholar] [CrossRef]
  65. Zhang, S., Xu, ZS., Li, P., Yang, L., & Wei, Y. (2013). Overexpression of TaHSF3 in transgenic enhances tolerance to extreme temperatures. Plant Molecular Biology Reporter, 31, 688-697. [Google Scholar] [CrossRef]
  66. Zhang, X., Henriques, R., Lin, SS., Niu, QW., & Chua, NH. (2006). -mediated transformation of using the floral dip method. Nature Protocols, 1, 641-646. [Google Scholar] [CrossRef]
  67. Zhao, J., Zhao, L., Zhang, M., Zafar, S., Fang, J., Li, M., Zhang, W., & Li, X. (2017a). E3 ubiquitin ligases PUB22 and PUB23 negatively regulate drought tolerance by targeting ABA receptor PYL9 for degradation. International Journal of Molecular Sciences, 18, 1841. [Google Scholar] [CrossRef]
  68. Zhao, Z., Zhang, G., Zhou, S., Ren, Y., & Wang, W. (2017b). The improvement of salt tolerance in transgenic tobacco by overexpression of wheat F-box gene TaFBA1. Plant Science, 259, 71-85. [Google Scholar] [CrossRef]
  69. Zhou, S., Sun, X., Yin, S., Kong, X., Zhou, S., Xu, Y., Luo, Y., & Wang, W. (2014). The role of the F-box gene TaFBA1 from wheat ( L.) in drought tolerance. Plant Physiology and Biochemistry, 84, 213-223. [Google Scholar] [CrossRef]
  70. Zhu, M., Xie, H., Wei, X., Dossa, K., Yu, Y., Hui, S., Tang, G., Zeng, X., Yu, Y., Hu, P., & Wang, J. (2019). WGCNA analysis of salt-responsive core transcriptome identifies novel hub genes in rice. Genes, 10, 719. [Google Scholar] [CrossRef]
  71. Zhu, MD., Zhang, M., Gao, DJ., Zhou, K., Tang, SJ., Zhou, B., & Lv, YM. (2020). Rice OsHSFA3 gene improves drought tolerance by modulating polyamine biosynthesis depending on abscisic acid and ROS levels. International Journal of Molecular Sciences, 21, 1857. [Google Scholar] [CrossRef]

images

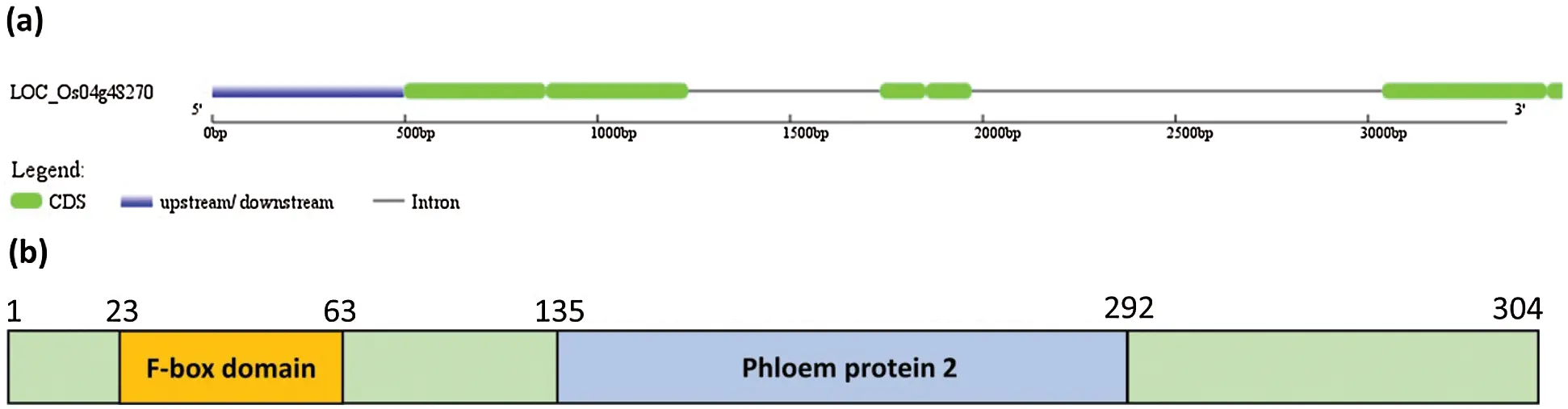

Supplementary Figure S1: Domain analysis and gene structure of OsPP2-A13.

images

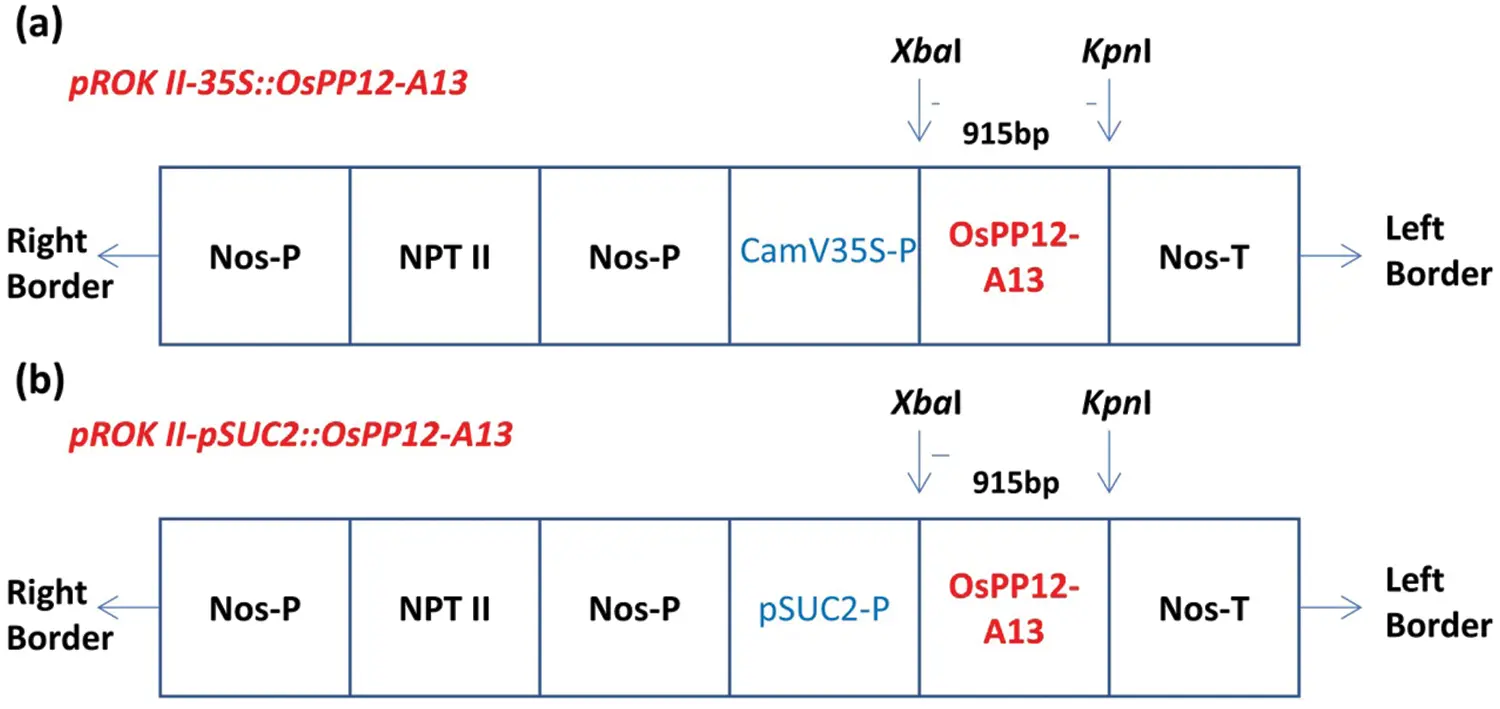

Supplementary Figure S2: Map of vectors used for OsPP2-A13 overexpression.

images

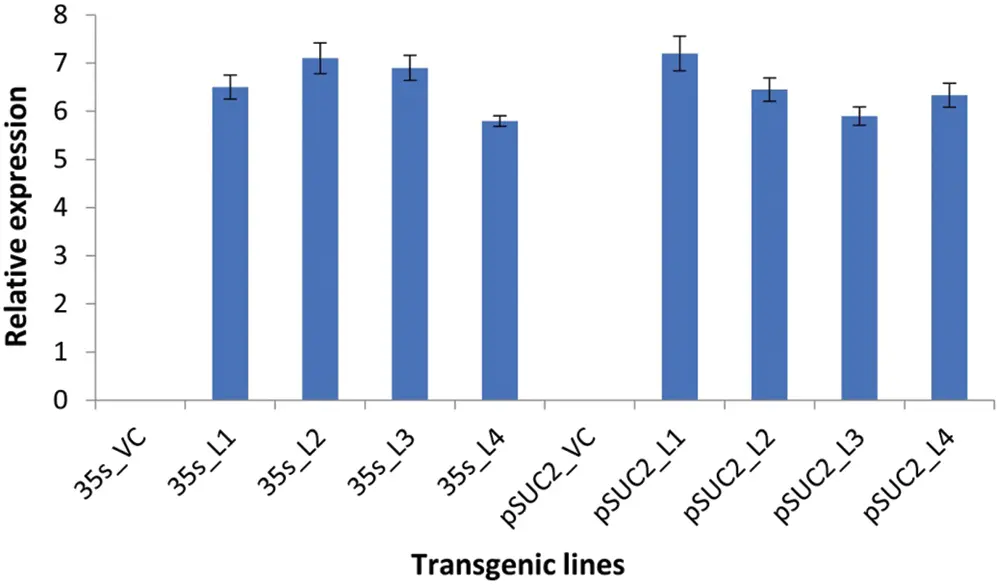

Supplementary Figure S3: qRT-PCR analysis of overexpression in transgenic OsPP2-A13 lines.

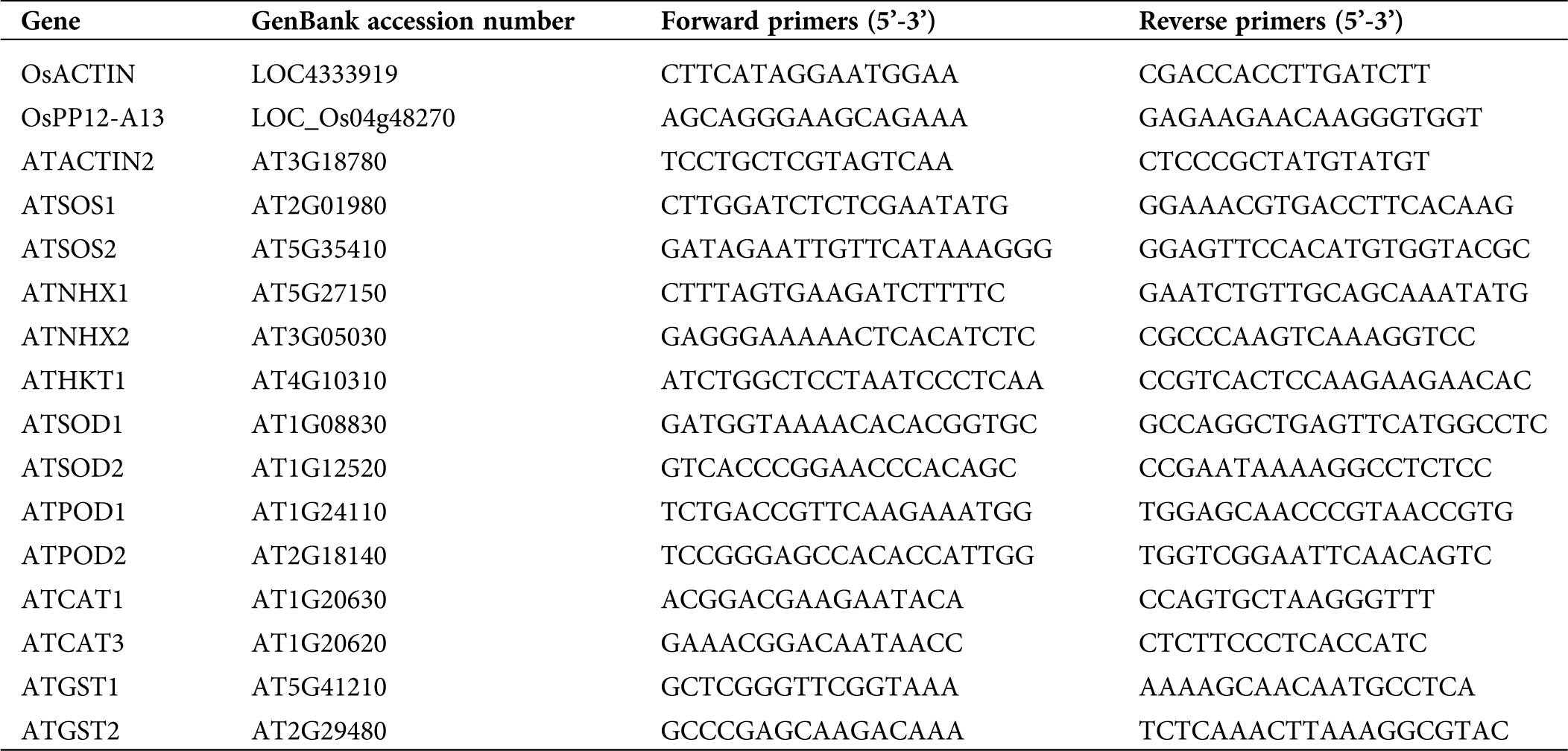

Supplementary Table 1: List of primer sequences used for qRT-PCR analysis
