DOI:10.32604/biocell.2022.020966
| BIOCELL DOI:10.32604/biocell.2022.020966 | |
| Viewpoint |
Ready to migrate? Reading cellular signs of migration in an epithelial to mesenchymal transition model
1Biochemistry-Molecular Biology, Faculty of Science, Universidad de la República, Montevideo, 11400, Uruguay
2Bioinformatics Unit, Institut Pasteur de Montevideo, Montevideo, 11400, Uruguay
3Departamento de Ciencias Exactas y Naturales, Universidad Católica del Uruguay, Montevideo, 11600, Uruguay
4Institut Pasteur de Montevideo, Montevideo, 11400, Uruguay
*Address correspondence to: Mónica Marín, marin@fcien.edu.uy
#These authors contributed equally
Received: 31 December 2021; Accepted: 18 March 2022
Abstract: The epithelial to mesenchymal transition (EMT) is a cellular program that drives de-differentiation of cells in both physiological and pathological processes. One of the characteristics of cells describing an EMT is the (re)acquisition of a motility capacity that allows them to migrate through the original tissue as well as to other sites in the organism. The molecular mechanisms that control the EMT are rapidly emerging and here we add to the idea that the adaptation required for cells to commit to the EMT includes adjustments of the translation machinery and metabolic pathways to cope with a high demand of extracellular components.
Keywords: EMT; Migration; Translation machinery; Metabolism
The epithelial to mesenchymal transition (EMT) is a highly conserved cellular outcome considered as a driving force of migration-dependent processes and characterized by a number of morphological, structural, and molecular changes (Trepat et al., 2012; Yang et al., 2020). In order to prepare and adapt to variable and stressful conditions encountered during migration, cells must put in place concerted molecular and cellular programs, some of which are the focus of this piece.
Several in vitro and in vivo models have been developed to study different aspects of EMT (Greco et al., 2021). While the latter gives insightful information about the interplay among cells and their environment, in vitro approaches using cell-based models are advantageous to answer specific molecular and biochemical questions under well-defined conditions. Over the last years, we have been characterizing global differences in gene expression and metabolism in EMT using a MCF7-derived breast cancer cellular model based on the overexpression of truncated forms of the MKL1 protein (also known as MRTFA) that results in an EMT-like phenotype. While MCF7 control cells remain close to the epithelial edge of the EMT spectrum, cells expressing a constitutively active N-terminal domain-lacking (ΔN200) MKL1 show characteristics of basal cells (Flouriot et al., 2014; Kerdivel et al., 2014) that can be associated with the breakdown of some features of intercellular cooperation (Aktipis et al., 2015).
We recently reported that EMT-like MKL1 ΔN200 cells show extensive molecular and biochemical modifications (Fernández-Calero et al., 2020). Indeed, our transcriptomic and translatomic results suggest a general boost in translation that could be sustained by the significant increase in the expression and activity of several components of the protein synthesis machinery and translation-associated factors (Fig. 1) (Fernández-Calero et al., 2020). Higher ribosome biogenesis was previously detected in other EMT cellular models, such as non transformed mouse mammary gland epithelial NMuMG and MMTV-PyMT mouse-derived Py2T mammary cell lines treated with TGFβ, and MCF7 cells cultured under hypoxic conditions, as well as in Wnt-driven EMT delamination and migration of neural crest cells in chick and mouse embryonic development (Prakash et al., 2019). Altogether, this suggests that modification of translation is a common characteristic of EMT. In addition, MKL1 ΔN200 cells display deep metabolic rewiring consistent with an enhanced Warburg-like effect characterized by impairment of Tricarboxylic Acid Cycle (TCA), rise of glucose consumption and glycolysis, and flux redirection towards oxidative steps of the Pentose Phosphate Pathway (Fig. 1) (Fernández-Calero et al., 2020). This behavior was also detected in different cellular models of EMT (Kondaveeti et al., 2015; Liu et al., 2016; Morandi et al., 2017; Martínez-Reyes and Chandel, 2020). This phenotype is potentially promoted by HIF-1α (and other regulatory factors) (Semenza, 2017), as suggested by changes in the expression of glucose transporters, phosphoglucokinase, pyruvate dehydrogenase kinase, and mitochondrial isocitrate dehydrogenase isoforms. In addition, using metabolomics approaches, we detected higher concentration of oxaloacetate, fumarate, and mainly, α-ketoglutarate (AKG) in MKL1 ΔN200 cells, which is consistent with modified usage of TCA enzymes (Fernández-Calero et al., 2020 and references therein), as exemplified by the switch from IDH3 to IDH2 isoform that enables cycle reversal.
The above-described rewiring is associated with a non-proliferative state of MKL1 ΔN200 cells as pointed out by maintenance of cell number and repression of proliferation-associated genes (Prakash et al., 2019; Fernández-Calero et al., 2020). Rather, cells augment their size, which is accompanied by development of cellular structures and triggering of molecular programs that are both related to migrating phenotypes.
Does this context support cell migration?
MKL1 ΔN200 cells acquire migration-related features exemplified by modification of cytoskeleton components (actins ACTA and ACTB, keratins KRT10-17), disassembly of E-cadherin (Kerdivel et al., 2014), and adjustment of cell-cell junction types, lamellipodia-like structures and focal adhesions (Fig. 1) (Fernández-Calero et al., 2020). Noteworthy, the latter could be fueled by the preferential expression of many integrin genes (particularly ITGA1 and ITGA5), several of which have been associated with EMT and metastasis (Gharibi et al., 2017; Deng et al., 2019; Janiszewska et al., 2020). Moreover, these cells display increased expression of genes implicated in synthesis and export of extracellular matrix (ECM) proteins, mainly collagens and enzymes involved in their processing (COL3-11-12-13-16-24, AKG-dependent collagen prolyl-hydroxylases P3H2 and P4H2, and precollagen lysyl-oxoglutarate dioxygenases PLOD 1-3), laminin (LAMA, LAMB) and fibronectin (FN1) (Fig. 1) (Fernández-Calero et al., 2020). Secretion of ECM components is a well-known characteristic of cancer cells that contribute to (re)define the composition of the matrix to facilitate cell migration and tumor progression (Naba et al., 2012, 2014). Importantly, the high demand of protein synthesis imposed by the production of ECM components could be sustained by the above-mentioned high expression of translation-associated factors, which is in turn promoted, attractively, via favoring their own translation (Fernández-Calero et al., 2020). Of note, these observations are consistent with the description of circulating tumor cells derived from breast tumors that over-express ribosomal proteins (Ebright et al., 2020). Furthermore, the high concentration of AKG, which is a key hub metabolite for several processes, could also add to the phenotypic adaptations induced by MKL1. For instance, AKG favors biosynthetic processes since it is used to hydroxylate collagen’s prolines and lysines at the endoplasmic reticulum (Krane, 2008; Rappu et al., 2019) and supports biosynthesis of lipids exported towards the extracellular matrix (ECM) and required to increase cell size (Reitman and Yan, 2010; Martínez-Reyes and Chandel, 2020). Moreover, AKG promotes epigenetic modifications through activation of histone demethylation by specific dioxygenases (Tsukada et al., 2006; Salminen et al., 2015; Liu et al., 2017; Rhoads and Anderson, 2020) and regulates the redox state through NADP to NADPH conversion at the expense of NADH oxidation (Mullen et al., 2014; Ju et al., 2020; Sharma and Ramanathan, 2020).

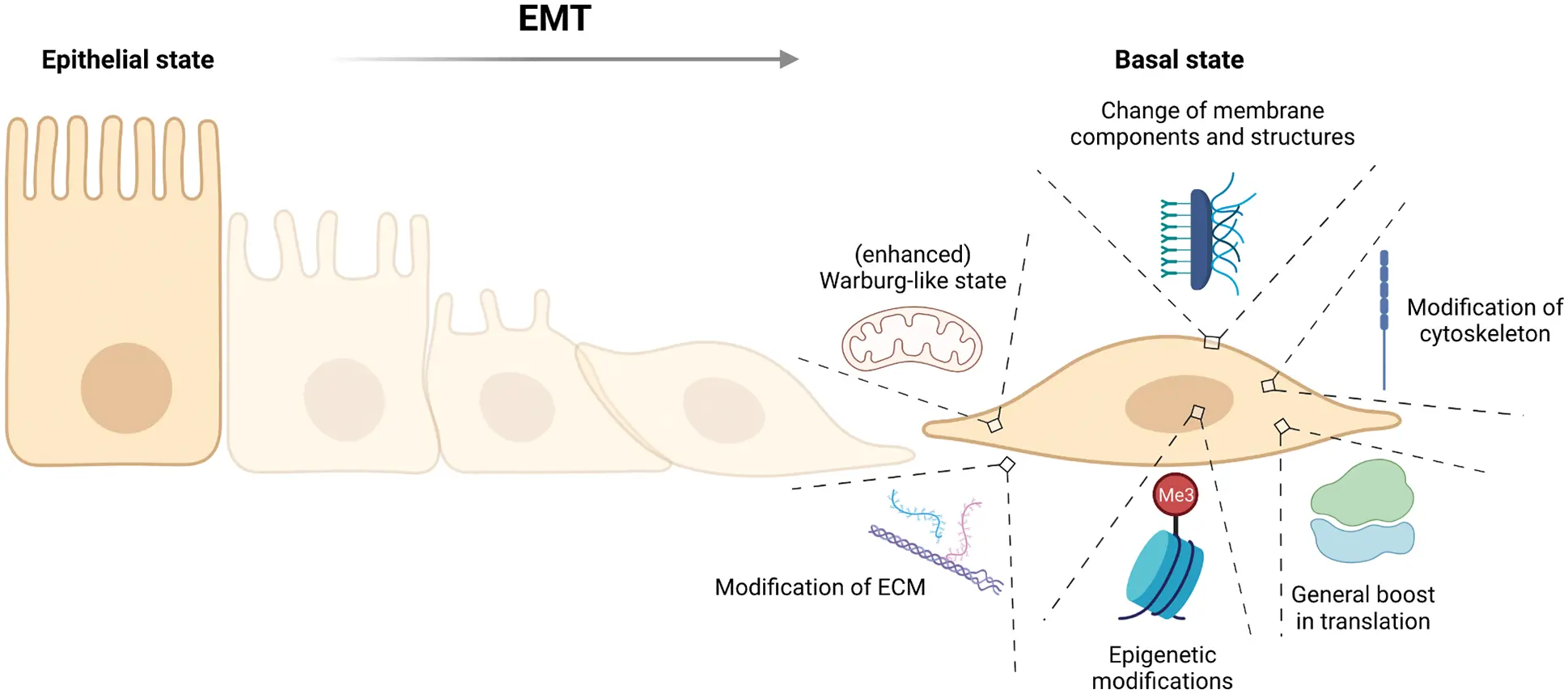

Figure 1: Biochemical, molecular and cellular adaptations detected in truncated MKL1-dependent MCF7-derived breast cancer cellular model during the epithelial to mesenchymal transition (EMT)-like process. The well-differentiated and polarized epithelial cells change their morphology and cell contacts, and through a series of intermediate states, develop a de-differentiated and basal state able to migrate. For instance, basal cells have increased expression of several components of the protein synthesis machinery and translation-associated factors such as eIF1, eIF2, eIF3, eIF4, eIF5, eIF5A, eEF1A, eEF1B, eEF1G, and eEF2. This is accompanied by a metabolic rewiring defined by changes in the expression of enzymes involved in glucose metabolism and Tricarboxylic Acid Cycle (TCA) (glucose transporters, phosphoglucokinase, pyruvate dehydrogenase kinase, and mitochondrial isocitrate dehydrogenase isoforms) that are in line with the measured higher concentration of oxaloacetate, fumarate and α-ketoglutarate (AKG). Basal cells also express significantly higher levels of KDM2A, KDM3A, KDM6A, JARID2, and JMJD6 dioxygenases, which could lead to epigenetic modifications (histone demethylation). Membrane structures such as lamellipodia and focal adhesions are also modified, as well as the cytoskeleton through disassembly of E-cadherin and increased expression of, for example, actins ACTA and ACTB and keratins KRT10-17. Finally, basal cells produce and export more extracellular matrix (ECM) proteins, mainly collagens and enzymes involved in their processing (COL3-11-12-13-16-24, AKG-dependent collagen prolyl-hydroxylases P3H2 and P4H2, and precollagen lysyl-oxoglutarate dioxygenases PLOD1-3), laminin (LAMA, LAMB) and fibronectin (FN1).
The above-mentioned attributes are coherent with the phenotype of detaching cells. However, are cells actually migrating in our model? Our experiments showed that although MKL1 ΔN200 cells continuously expand their size when maintained in regular liquid medium, the population viability decreases over time. However, if cells are cultured in a moving-favorable context such as Matrigel, they remain alive and migrate (Fernández-Calero et al., 2020). This result points towards the importance of migration as an alternative and viable output for such cells that occurs in particular scenarios. Indeed, the experiments performed suggest that the composition and nature of the pre-existing environment are essential for cells to develop their fully motile capacity. Therefore, further studies are required to define to what extent MKL1 ΔN200 cells depend on the matrix and if its nature induces extra changes on gene expression towards more migration-associated signatures.
Indeed, ECM composition drives, for example, stem cell migration and differentiation resulting in fundamental consequences on cell and tissue functions and is also decisive in fibroblast proliferation and migration during wound healing and tissue regeneration (Jiang et al., 2016). ECM composition underlies ECM stiffness, geometry interaction with cell receptors, as well as several physicochemical parameters that together work as major determinants of cell fate and behavior in the tissue (Druso and Fischbach, 2018; Winkler et al., 2020). This is particularly relevant for breast cancer cells, since their ability to metastasize and invade new tissues largely depends on the physicochemical characteristics of the ECM where the original tumor had developed (Spill et al., 2016; He et al., 2017; Watson et al., 2021). Therefore, cells and ECM constitute a single unit sustained by a bidirectional interplay that relies on mutual modifications and that ultimately leads to their own constant variation and adaptation (van Helvert et al., 2018; Winkler et al., 2020).
Conclusions and perspectives
As any other cellular program, migration requires a concerted adaptation plan. In reaching such a state, cells modify central features of cooperation that characterize multicellularity to sustain detachment and migration, and the above-described mechanisms provide, at least in part, the context and fuel to dialogue with the ECM and face this stressful quest. Moreover, the regulation of gene expression at the translation step appears strategic for cells to cope with continuous cues rising throughout migration and colonization of new environments, and to be ready to proliferate immediately once they have colonized a secondary site. Addressing these questions requires a combination of in vivo and in vitro approaches to further analyze the steps followed by soon-to-migrate cells and to characterize the cell-environment system as a whole, which would contribute to unravel the relationship between cancer-related EMT and ancestral networks, and to identify putative targets to block dissemination of migrating tumor cells.
Acknowledgement: The authors would like to thank Dr. Gilles Flouriot for useful discussions and technical assistance. Figures were created with https://BioRender.com (Agreement No. DF23DM5I8P).
Availability of Data and Materials: Not applicable.
Author Contribution: The authors confirm contribution to the paper as follows: study conception and design: TF-C, RE, MM; draft manuscript preparation: TF-C, IL, MD, CC, RE, MM; figure assembly: IL, MD, RE. All authors reviewed the article text and approved the final version of the manuscript.
Ethics Approval: Not applicable.
Funding Statement: This work was partially supported by Fondo Clemente Estable (ANII) and PEDECIBA from Uruguay. T. Fernández-Calero received fellowships from CAP-Universidad de la República, ANII and the Embassy of France in Uruguay. M. Davyt received a fellowship from CSIC-Universidad de la República.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
Aktipis CA, Boddy AM, Jansen G, Hibner U, Hochberg ME et al. (2015). Cancer across the tree of life: Cooperation and cheating in multicellularity. Philosophical Transactions of the Royal Society B: Biological Sciences 370: 20140219. DOI 10.1098/rstb.2014.0219. [Google Scholar] [CrossRef]
Deng Y, Wan Q, Yan W (2019). Integrin α5/ITGA5 promotes the proliferation, migration, invasion and progression of oral squamous carcinoma by epithelial-mesenchymal transition. Cancer Management and Research 11: 9609–9620. DOI 10.2147/CMAR. [Google Scholar] [CrossRef]
Druso JE, Fischbach C (2018). Biophysical properties of extracellular matrix: Linking obesity and cancer. Trends in Cancer 4: 271–273. DOI 10.1016/j.trecan.2018.02.001. [Google Scholar] [CrossRef]
Ebright RY, Lee S, Wittner BS, Niederhoffer KL, Nicholson BT et al. (2020). Deregulation of ribosomal protein expression and translation promotes breast cancer metastasis. Science 367: 1468–1473. DOI 10.1126/science.aay0939. [Google Scholar] [CrossRef]
Fernández-Calero T, Davyt M, Perelmuter K, Chalar C, Bampi G et al. (2020). Fine-tuning the metabolic rewiring and adaptation of translational machinery during an epithelial-mesenchymal transition in breast cancer cells. Cancer & Metabolism 8: 8. DOI 10.1186/s40170-020-00216-7. [Google Scholar] [CrossRef]
Flouriot G, Huet G, Demay F, Pakdel F, Boujrad N et al. (2014). The actin/MKL1 signalling pathway influences cell growth and gene expression through large-scale chromatin reorganization and histone post-translational modifications. Biochemical Journal 461: 257–268. DOI 10.1042/BJ20131240. [Google Scholar] [CrossRef]
Gharibi A, La Kim S, Molnar J, Brambilla D, Adamian Y et al. (2017). ITGA1 is a pre-malignant biomarker that promotes therapy resistance and metastatic potential in pancreatic cancer. Scientific Reports 7: 10060. DOI 10.1038/s41598-017-09946-z. [Google Scholar] [CrossRef]
Greco L, Rubbino F, Morelli A, Gaiani F, Grizzi F et al. (2021). Epithelial to mesenchymal transition: A challenging playground for translational research. current models and focus on TWIST1 relevance and gastrointestinal cancers. International Journal of Molecular Sciences 22: 11469. DOI 10.3390/ijms222111469. [Google Scholar] [CrossRef]
He F, Chiou AE, Loh HC, Lynch M, Seo BR et al. (2017). Multiscale characterization of the mineral phase at skeletal sites of breast cancer metastasis. PNAS 114: 10542–10547. DOI 10.1073/pnas.1708161114. [Google Scholar] [CrossRef]
Janiszewska M, Primi MC, Izard T (2020). Cell adhesion in cancer: Beyond the migration of single cells. Journal of Biological Chemistry 295: 2495–2505. DOI 10.1074/jbc.REV119.007759. [Google Scholar] [CrossRef]
Jiang M, Qiu J, Zhang L, Lü D, Long M et al. (2016). Changes in tension regulates proliferation and migration of fibroblasts by remodeling expression of ECM proteins. Experimental and Therapeutic Medicine 12: 1542–1550. DOI 10.3892/etm.2016.3497. [Google Scholar] [CrossRef]
Ju HQ, Lin JF, Tian T, Xie D, Xu RH (2020). NADPH homeostasis in cancer: Functions, mechanisms and therapeutic implications. Signal Transduction and Targeted Therapy 5: 231. DOI 10.1038/s41392-020-00326-0. [Google Scholar] [CrossRef]
Kerdivel G, Boudot A, Habauzit D, Percevault F, Demay F et al. (2014). Activation of the MKL1/actin signaling pathway induces hormonal escape in estrogen-responsive breast cancer cell lines. Molecular and Cellular Endocrinology 390: 34–44. DOI 10.1016/j.mce.2014.03.009. [Google Scholar] [CrossRef]
Kondaveeti Y, Guttilla Reed IK, White BA (2015). Epithelial-mesenchymal transition induces similar metabolic alterations in two independent breast cancer cell lines. Cancer Letters 364: 44–58. DOI 10.1016/j.canlet.2015.04.025. [Google Scholar] [CrossRef]
Krane SM (2008). The importance of proline residues in the structure, stability and susceptibility to proteolytic degradation of collagens. Amino Acids 35: 703–710. DOI 10.1007/s00726-008-0073-2. [Google Scholar] [CrossRef]
Liu M, Quek LE, Sultani G, Turner N (2016). Epithelial-mesenchymal transition induction is associated with augmented glucose uptake and lactate production in pancreatic ductal adenocarcinoma. Cancer & Metabolism 4: 19. DOI 10.1186/s40170-016-0160-x. [Google Scholar] [CrossRef]
Liu PS, Wang H, Li X, Chao T, Teav T et al. (2017). α-ketoglutarate orchestrates macrophage activation through metabolic and epigenetic reprogramming. Nature Immunology 18: 985–994. DOI 10.1038/ni.3796. [Google Scholar] [CrossRef]
Martínez-Reyes I, Chandel NS (2020). Mitochondrial TCA cycle metabolites control physiology and disease. Nature Communications 11: 102. DOI 10.1038/s41467-019-13668-3. [Google Scholar] [CrossRef]
Morandi A, Taddei ML, Chiarugi P, Giannoni E (2017). Targeting the metabolic reprogramming that controls epithelial-to-mesenchymal transition in aggressive tumors. Frontiers in Oncology 7: 1420. DOI 10.3389/fonc.2017.00040. [Google Scholar] [CrossRef]
Mullen AR, Hu Z, Shi X, Jiang L, Boroughs LK et al. (2014). Oxidation of alpha-ketoglutarate is required for reductive carboxylation in cancer cells with mitochondrial defects. Cell Reports 7: 1679–1690. DOI 10.1016/j.celrep.2014.04.037. [Google Scholar] [CrossRef]
Naba A, Clauser KR, Hoersch S, Liu H, Carr SA et al. (2012). The matrisome: In silico definition and in vivo characterization by proteomics of normal and tumor extracellular matrices. Molecular & Cellular Proteomics 11: M111.014647. DOI 10.1074/mcp.M111.014647. [Google Scholar] [CrossRef]
Naba A, Clauser KR, Whittaker CA, Carr SA, Tanabe KK et al. (2014). Extracellular matrix signatures of human primary metastatic colon cancers and their metastases to liver. BMC Cancer 14: 518. DOI 10.1186/1471-2407-14-518. [Google Scholar] [CrossRef]
Prakash V, Carson BB, Feenstra JM, Dass RA, Sekyrova P et al. (2019). Ribosome biogenesis during cell cycle arrest fuels EMT in development and disease. Nature Communications 10: 2110. DOI 10.1038/s41467-019-10100-8. [Google Scholar] [CrossRef]
Rappu P, Salo AM, Myllyharju J, Heino J (2019). Role of prolyl hydroxylation in the molecular interactions of collagens. Essays in Biochemistry 63: 325–335. DOI 10.1042/EBC20180053. [Google Scholar] [CrossRef]
Reitman ZJ, Yan H (2010). Isocitrate dehydrogenase 1 and 2 mutations in cancer: Alterations at a crossroads of cellular metabolism. JNCI: Journal of the National Cancer Institute 102: 932–941. DOI 10.1093/jnci/djq187. [Google Scholar] [CrossRef]
Rhoads TW, Anderson RM (2020). Alpha-ketoglutarate, the metabolite that regulates aging in mice. Cell Metabolism 32: 323–325. DOI 10.1016/j.cmet.2020.08.009. [Google Scholar] [CrossRef]
Salminen A, Kauppinen A, Kaarniranta K (2015). 2-Oxoglutarate-dependent dioxygenases are sensors of energy metabolism, oxygen availability, and iron homeostasis: Potential role in the regulation of aging process. Cellular and Molecular Life Sciences 72: 3897–3914. DOI 10.1007/s00018-015-1978-z. [Google Scholar] [CrossRef]
Semenza GL (2017). Hypoxia-inducible factors: Coupling glucose metabolism and redox regulation with induction of the breast cancer stem cell phenotype. EMBO Journal 36: 252–259. DOI 10.15252/embj.201695204. [Google Scholar] [CrossRef]
Sharma R, Ramanathan A (2020). The aging metabolome—biomarkers to hub metabolites. Proteomics 20: 1800407. DOI 10.1002/pmic.201800407. [Google Scholar] [CrossRef]
Spill F, Reynolds DS, Kamm RD, Zaman MH (2016). Impact of the physical microenvironment on tumor progression and metastasis. Current Opinion in Biotechnology 40: 41–48. DOI 10.1016/j.copbio.2016.02.007. [Google Scholar] [CrossRef]
Trepat X, Chen Z, Jacobson K (2012). Cell migration. Comprehensive Physiology 2: 2369–2392. DOI 10.1002/cphy. [Google Scholar] [CrossRef]
Tsukada Y, Fang J, Erdjument-Bromage H, Warren ME, Borchers CH et al. (2006). Histone demethylation by a family of JmjC domain-containing proteins. Nature 439: 811–816. DOI 10.1038/nature04433. [Google Scholar] [CrossRef]
van Helvert S, Storm C, Friedl P (2018). Mechanoreciprocity in cell migration. Nature Cell Biology 20: 8–20. DOI 10.1038/s41556-017-0012-0. [Google Scholar] [CrossRef]
Watson AW, Grant AD, Parker SS, Hill S, Whalen MB et al. (2021). Breast tumor stiffness instructs bone metastasis via maintenance of mechanical conditioning. Cell Reports 35: 109293. DOI 10.1016/j.celrep.2021.109293. [Google Scholar] [CrossRef]
Winkler J, Abisoye-Ogunniyan A, Metcalf KJ, Werb Z (2020). Concepts of extracellular matrix remodelling in tumour progression and metastasis. Nature Communications 11: 5120. DOI 10.1038/s41467-020-18794-x. [Google Scholar] [CrossRef]
Yang J, Antin P, Berx G, Blanpain C, Brabletz T et al. (2020). Guidelines and definitions for research on epithelial-mesenchymal transition. Nature Reviews Molecular Cell Biology 21: 341–352. DOI 10.1038/s41580-020-0237-9. [Google Scholar] [CrossRef]
