Mycorrhiza improves plant growth and photosynthetic characteristics of tea plants in response to drought stress
1College of Horticulture and Gardening, Yangtze University, Jingzhou, 434025, China
2State Key Laboratory of Tea Plant Biology and Utilization, Anhui Agricultural University, Hefei, 230036, China
3Plant Production Department, Faculty of Food and Agricultural Sciences, King Saud University, Riyadh, 11451, Saudi Arabia
*Address correspondence to: Chunyan Liu, 201573031@yangtzeu.edu.cn; Shengrui Liu, liushengrui@ahau.edu.cn
Received: 23 August 2021; Accepted: 26 September 2021
Abstract: Tea plants are sensitive to soil moisture deficit, with the level of soil water being a critical factor affecting their growth and quality. Arbuscular mycorrhizal fungi (AMF) can improve water and nutrient absorption, but it is not clear whether AMF can improve the photosynthetic characteristics of tea plants. A potted study was conducted to determine the effects of Claroideoglomus etunicatum on plant growth, leaf water status, pigment content, gas exchange, and chlorophyll fluorescence parameters in Camellia sinensis cv. Fuding Dabaicha under well-watered (WW) and drought stress (DS) conditions. Root mycorrhizal colonization and soil hyphal length were significantly reduced by the eight-week DS treatment. AMF inoculation displayed a significant increase in shoot and root biomass production. The relative water content, leaf water potential, nitrogen balance index, pigment content, maximum photometric effect (Fv/Fm, QY_max), and steady-state photometric effect Y (II) (QY_Lss) decreased dramatically, while the leaf water saturation deficit and steady-state non-photochemical fluorescence quenching (NPQ_Lss) generally increased under DS conditions. Mycorrhizal treatment induced significantly higher relative water content, leaf water potential, nitrogen balance index, pigment (chlorophyll, flavonoid, and anthocyanin) content, net photosynthesis rate, transpiration rate, stomatal conductance, intercellular CO2 concentration, QY_max, and QY_Lss; however, it resulted in a lower leaf water saturation deficit and NPQ_Lss under both WW and DS conditions, as compared with non-mycorrhizal plants. These results imply that AMF promoted tea plant growth and alleviated negative effects of DS by promoting gas exchange, regulating the water status of leaves, and regulating photosynthetic parameters.
Keywords: Arbuscular mycorrhizal fungi; Drought stress; Photosynthesis; Tea
Arbuscular mycorrhizal fungi (AMF) are widespread in soils and can establish symbioses with most vascular plants, thus influencing the soil microhabitat around plant roots and the forms of soil mineral nutrients present, and driving soil nutrient cycling (Cheng et al., 2021; Meng et al., 2020). AMF can improve plant growth and development, root uptake capacity, stress tolerance, osmotic adjustment, and antioxidant capacity (Zou et al., 2021). In addition, symbiosis between AMF and plant roots can improve crop yield and significantly contribute to plant growth and development, morphological establishment, and yield increases under adversity stress (Saboor et al., 2021).
Tea plant (Camellia sinensis (L.) O. Ktze.) is a perennial evergreen woody plant in the Camelliaceae family. It is one of the important industrial crops in South Asia, and its growth and development are strictly tied to the external growth environment (Qian et al., 2018). However, increasing temperature and frequency of drought in recent years pose a great threat to the growth of tea plants (Gupta et al., 2013). Drought stress (DS) increases water loss rate (WLR) and decreases relative water content (RWC), dry mass, chlorophyll, carotenoid, and total leaf phenolic content and antioxidants such as ascorbate and glutathione in tea (Upadhyaya and Panda, 2013). In 2009, the decrease in tea yield caused by DS is as high as 31% of tea plantations in Sri Lanka, and the plant mortality caused by drought and clonal variation is 6%–19% (Cheruiyot et al., 2009). Chen et al. (2019) reported that Australian white tea grew slowly and accompanied with less resistant under natural drought conditions. In addition, Wang et al. (2020) found that tea plants had smaller leaf area, fewer leaves, lower fresh and dry weight of tea plants, weaker photosynthesis, and lower yields under different moisture conditions (soil moisture content of 15%–25% and a total of 20 days of drought). In order to cope with DS, tea plants have a series of coping mechanisms in the process of growth, photosynthesis, and metabolism, primarily related to changes in leaf structure, chlorophyll content, chlorophyll fluorescence parameters, and soluble sugars (Upadhyaya and Panda, 2013).
Establishing symbiosis with AMF to improve nutrient status and water demand, photosynthesis, and other parameters required to cope with DS could be a superior strategy. Under natural cultivation conditions, a variety of AMF are widely present in tea plantations, especially in red soil (Wu et al., 2019). A previous study showed that AMF had an important impact on nutrient uptake and physiological ecology in tea plants, manifested by increased chlorophyll content and leaf area, and reduced leaf water potential, thus enhancing plant water absorption capacity (Mathur et al., 2019). It can also significantly increase the mass fraction of proline, soluble protein, and glutathione glycopeptides, as well as the contents of various mineral nutrients required by tea plants, thereby improving the quality of tea (Cao et al., 2021). Based on these reports, it is of great importance to promote the positive effects of AMF on tea tree growth and to further research the effects of AMF on tea growth and quality under drought conditions, as well as the mechanisms of AMF on tea resilience.
Hence, the purposes of this study were to (i) to analyze the effects of AMF inoculation on the growth, development, and photosynthetic characteristics of tea plants under DS, and (ii) to clarify the potential mechanisms of AMF-induced drought resistance in host plants.
The AM fungus used in this experiment was Clariodeoglous etunicatum (Nicol. & Gerd.) Schüßler & Walker [BGC GZ03C]. The selection of strains was based on the results of Shao et al. (2018). C. etunicatum was provided by the Bank of Glomeromycota in China (BGC) and expanding propagation in white clover (Trifolium repens) for 16 weeks.
The test plants were Camellia sinensis cv. ‘Fuding Dabaicha’. The seeds were supplied by the Tea Research Institute of the Guizhou Academy of Agricultural Sciences. The seeds were disinfected and germinated for 30 days, according to Liu et al. (2020). Then, two 3-leaf-old tea seedlings in uniform size were transplanted into a 1.8 L plastic pot, each pot was prefilled with 1.5 kg sterilized (0.11 MPa, 121°C, 2 h) mixture substance (soil: sand = 1:1, v/v). At seedling transporting, an AMF inoculum of 80 g C. etunicatum carrying 1500 spores, and some colonized root segments of white clover were inoculated with the growth substrates for AMF treatments. The non-AMF-inoculated treatment was supplied with the same amount of sterilized inoculum plus 2 mL filtrate (25-μm filter) of mycorrhizal inoculum to minimize differences in other microbial communities. All the tea seedlings were evenly placed in plastic greenhouse conditions (900 μmol/m2/s photon flux density, 28/20°C day/night temperature, and 80% relative humidity) in Yangtze University (Jingzhou, China).
After transportation, all the AMF and non-AMF seedlings grew for 6 weeks under the conditions of the soil being at 75% maximum water holding capacity (soil WW status). Subsequently, half of the seedlings were maintained under WW conditions for 8 weeks, and the remaining half seedlings, including AMF and non-AMF treatments, were exposed to 55% of the maximum water holding capacity of the soil (DS status) for 8 weeks. Before tea seedling transplanting, we pre-calculated the actual soil water content and the maximum field water capacity by weighing method, thus calculated the soil weight of each pot under WW and DS conditions. And then the pots were maintained at a stable water content by weighing the water content daily at 18:00 pm, and the amount of water lost was restored to the designated soil water levels.
The experiment was conducted in a 2 × 2 two-factorial experimental design with four treatments. Factor 1 was inoculated with (+AMF) or without C. etunicatum (-AMF). Factor 2 was moisture treatment, having either 75% of maximum soil water holding capacity (soil WW status) or 55% of maximum soil water holding capacity (soil DS status). The four treatments were WW + AMF, WW, DS + AMF, and DS. Each treatment was replicated six times in a total of 24 pots, completely randomly arranged.
Before these seedlings were harvested, the third top leaf in full expedition was selected to measure the photosynthetic parameters using a Li-6400 portable photosynthesis system (LI-COR Biosciences, Lincoln, NE, USA) to obtain the net photosynthetic rate (Pn), intercellular CO2 concentration (Ci), stomatal conductance (Gs), and transpiration rate (Tr) under the condition of 400 µmol/mol [CO2] on a sunny morning from approximately 09:00 to 11:00 am. Subsequently, chlorophyll, anthocyanin, flavonoid content, and nitrogen balance index were measured using a Dualex portable plant polyphenol-chlorophyll meter (Force-A, Orsay, France). Further, fully expanded functional leaves were randomly selected to determine the chlorophyll fluorescence parameters, including maximum photometric effect (Fv/Fm, QY_max), steady-state photometric effect Y (II) (QY_Lss), and steady-state non-photochemical fluorescence quenching (NPQ_Lss) by the domestic RAP-FLUO high-throughput plant fluorescence phenotype monitoring platform from Gufeng Optoelectronics.
At seedlings harvest, plant height, leaf number, stem diameter (the root neck is about 1 cm away from the surface of potted soil), and biomass in shoots and roots were recorded. Meanwhile, a fully expanded leaf was randomly selected to measure the relative water content (RWC) according to Liu et al. (2020), and the water saturation deficit was calculated (1−relative water content). The leaf water potential was measured using a PSΨPRO water potential system with a leaf hygrometer (L-51A-SF, WESCOR Inc.).
The root systems in different levels were then randomly selected, the root tips were removed, and approximately 40 root segments (1-cm long) from each treatment were stained with 0.05% (w/v) trypan blue in lactophenol for mycorrhizal status evaluation (Phillips and Hayman, 1970). Mycorrhizal colonization rate (%) = length of the colonized root segment/length of the observed root segment × 100. In addition, plant harvest and fresh rhizosphere soil samples were collected to determine the soil hyphae length using the method described by Bethlenfalvay and Ames (1987).
The ANOVA procedure of SAS (8.1) software was used to test for differences between treatments, and multiple comparison analysis was performed using Duncan’s new complex polar difference method (P < 0.05).
Changes in mycorrhiza development and plant growth

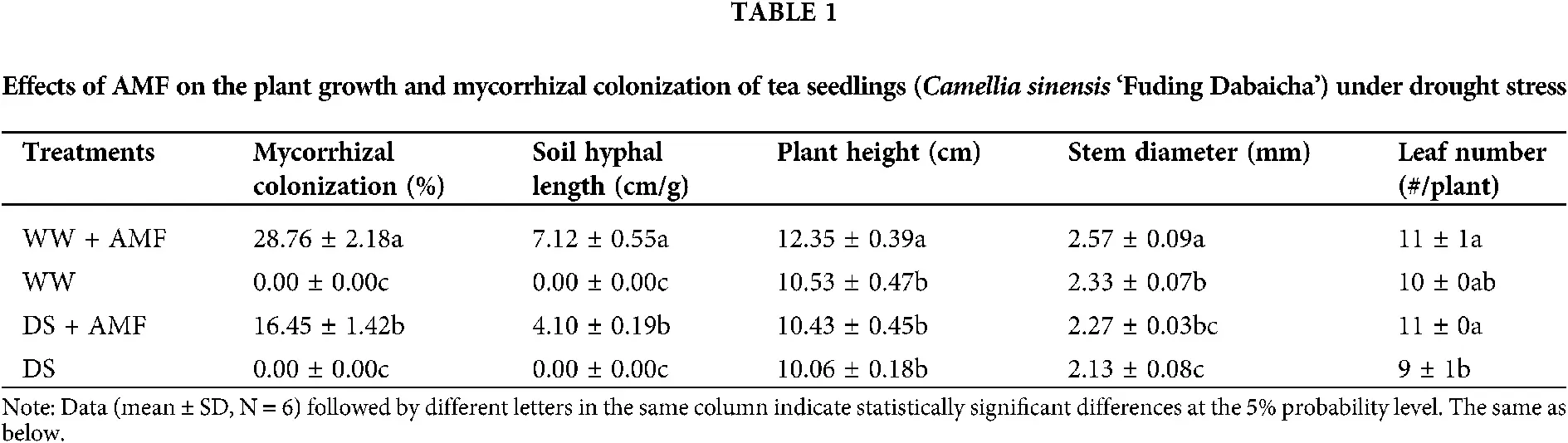

Roots of tea seedlings were colonized by C. etunicatum, establishing a good symbiotic relationship and hyphal network in the rhizosphere. In contrast, DS inhibited mycorrhizal infection by 74.83% and the establishment of mycelial network by 42.42% (Table 1). In addition, DS significantly decreased plant height in AMF-colonized seedlings and stem diameter in both AMF and non-AMF seedlings. AM-colonized seedlings showed 17.28% and 10.30% higher in plant height and stem diameter under WW, and 22.22% higher in leaf numbers under DS condition than that in non-AMF colonized seedlings, respectively (Table 1).
Compared with WW, DS significantly reduced the tea stem fresh weight by 61.54% in mycorrhizal treatments, but it had no significant effect on leaf and root fresh weight (Fig. 1). However, inoculation with AMF dramatically increased the fresh weight in leaves, stems and roots were by 26.55%, 65.79% and 36.96% under WW, and 30.48%, 21.87% and 32.24% under DS, respectively, as compared with non-AMF inoculation seedlings.

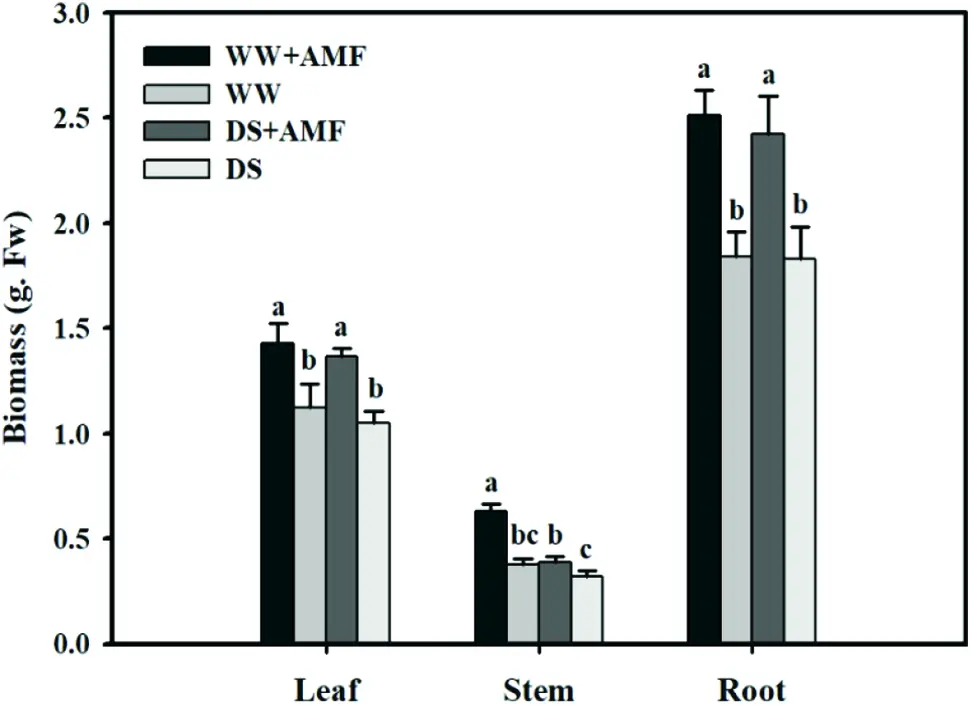

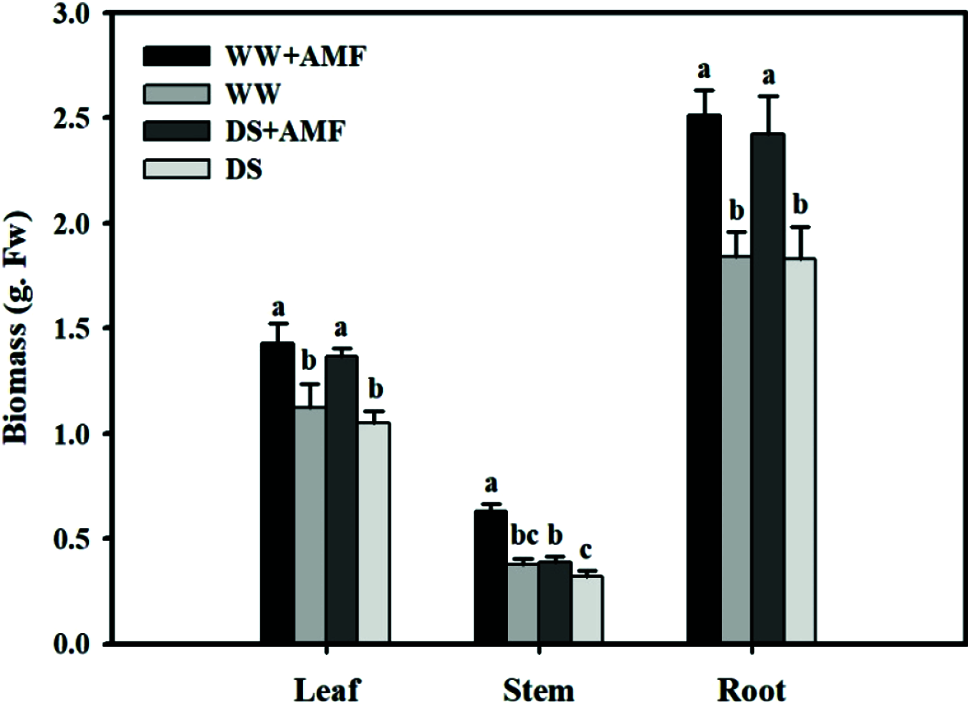

Figure 1: Effect of AMF on biomass of tea (Camellia sinensis ‘Fuding Dabaicha’) seedlings under drought stress. Data (means ± SD, N = 6) with different letter above bars indicated significant differences between treatments at the 5% level. The same as below.
Changes in leaf moisture status
The results showed a decrease in leaf water potential and an increase in water saturation deficit caused by DS, irrespective of AMF inoculated or not. Meanwhile, the leaf RWC was 4.80% lower in non-AMF seedlings under DS than in WW (Fig. 2). Whereas, mycorrhizal inoculation with C. etunicatum substantially increased the leaf water potential and RWC by 25.81% and 17.07% and 11.90% and 13.75% under WW and DS conditions, respectively. Moreover, lower water saturation deficit was memorably appeared in mycorrhiza seedlings ignorance of water status (Fig. 2).

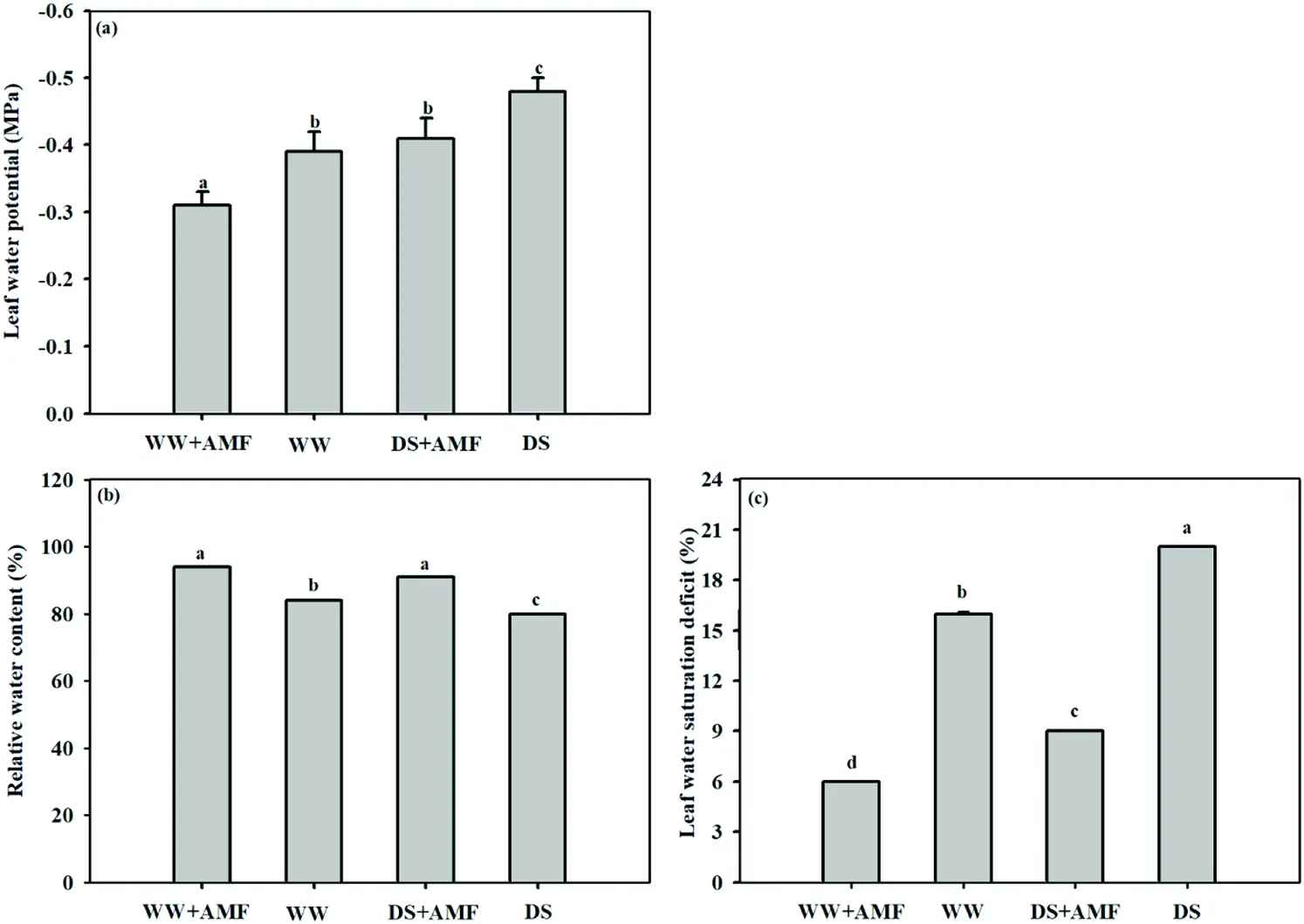

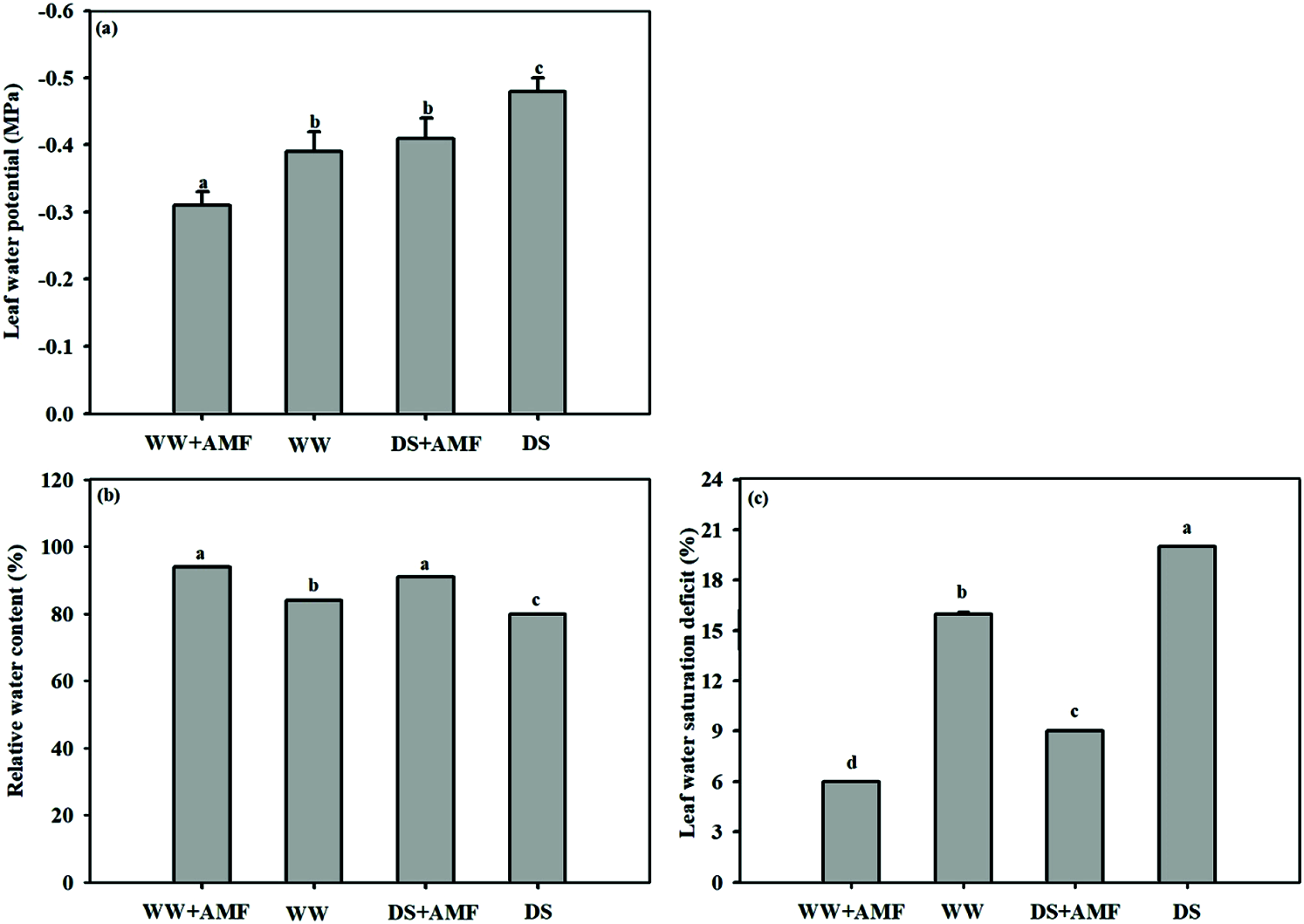

Figure 2: Effect of AMF on leaf moisture status of tea (Camellia sinensis ‘Fuding Dabaicha’) seedlings under drought stress. (a) Leaf water potential, (b) Relatively water content. (c) Leaf water saturation deficit.
Changes in pigment content and nitrogen balance index
Compared with WW treatment, DS generally decreased the nitrogen balance index (NBI) in both AMF- and non-AMF seedlings (Fig. 3a). C. etunicatum inoculation meaningfully increased the leaf NBI of tea seedlings by 30.61% and 24.46% under WW and DS conditions, respectively. Mycorrhizal seedlings exhibited considerably higher contents of chlorophyll and flavonoids than the non-AMF seedlings under WW and DS conditions (Figs. 3b and 3c). In addition, inoculation with AMF substantially increased the anthocyanin content in WW, but not in the DS treatment (Fig. 3d).

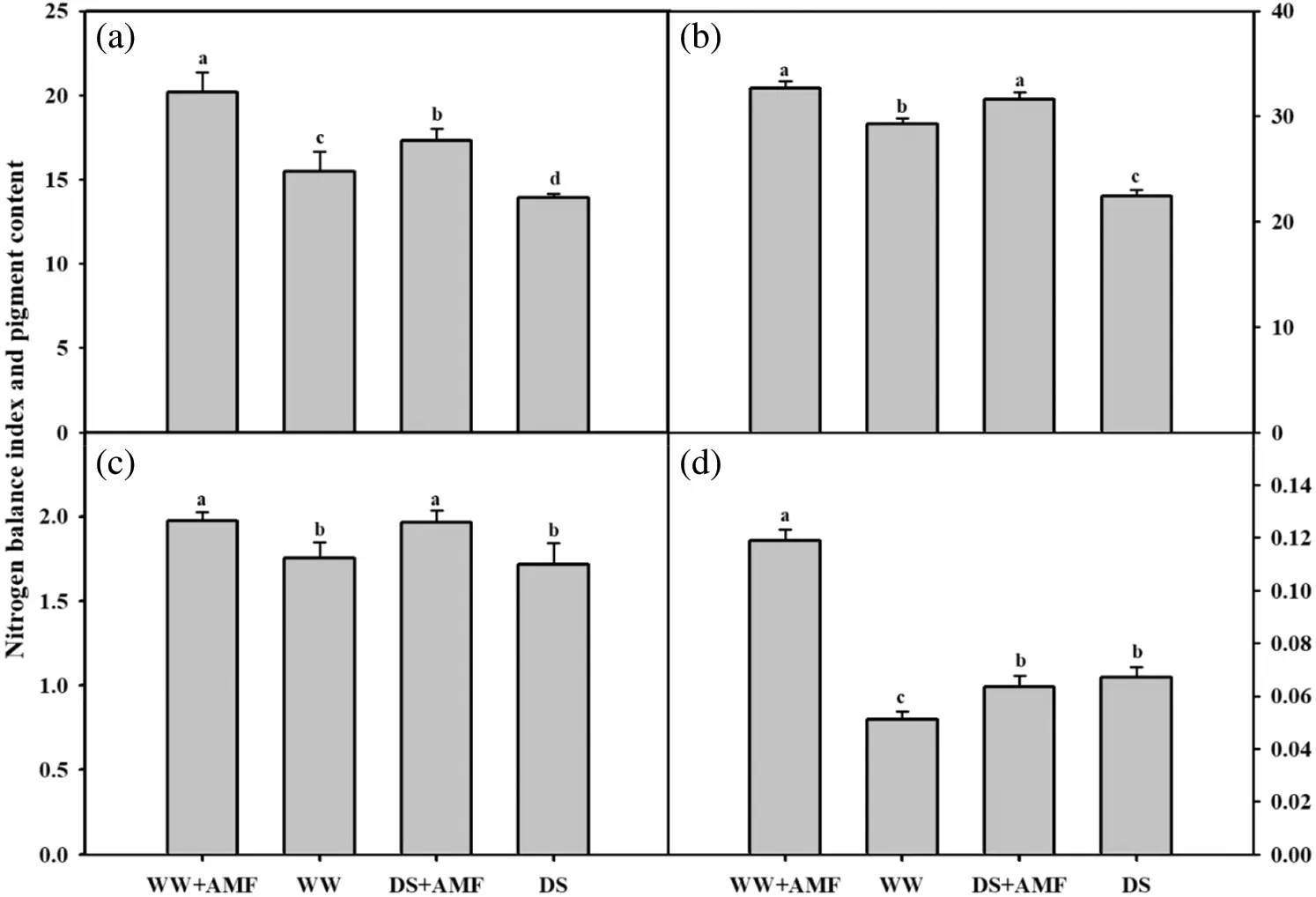

Figure 3: Effect of AMF on the leaf nitrogen balance index and photosynthetic pigment content in tea (Camellia sinensis ‘Fuding Dabaicha’) seedlings under drought stress. (a) Nitrogen balance index (b) Chlorophyll content (mg/g) (c) Flavonoid content (μg/g) (d) Anthocyanin content (mg/g).
DS considerably decreased Gs and Ci but did not affect Pn and Tr regardless of AMF treated or not. Compared with non-AMF treatment, inoculation with C. etunicatum remarkably increased the Pn, Gs, Ci, and Tr by 79.37%, 79.16%, 32.12%, and 98.92% under WW and 82.46%, 96.91%, 39.32%, and 112.93% under DS, respectively (Fig. 4).

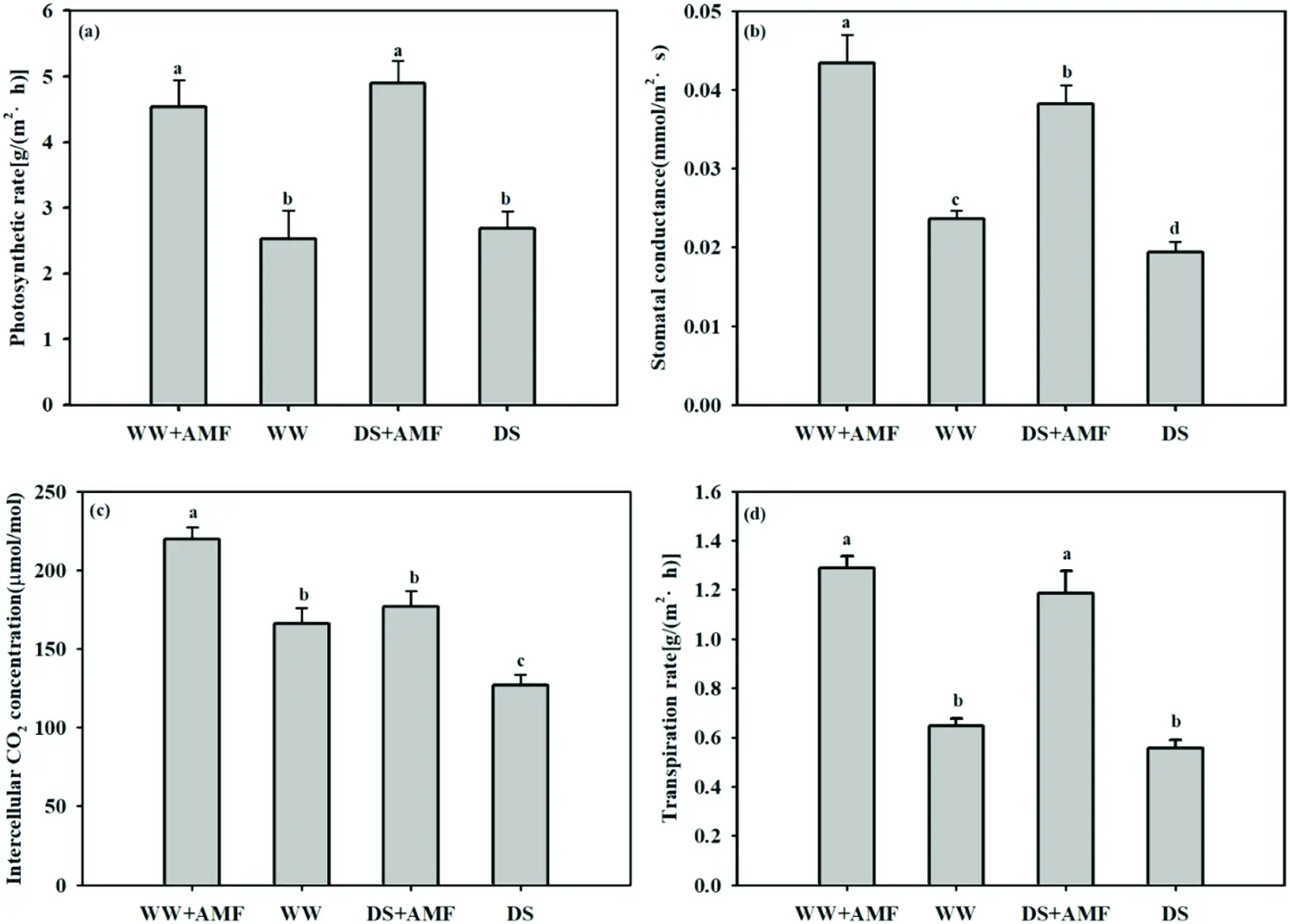

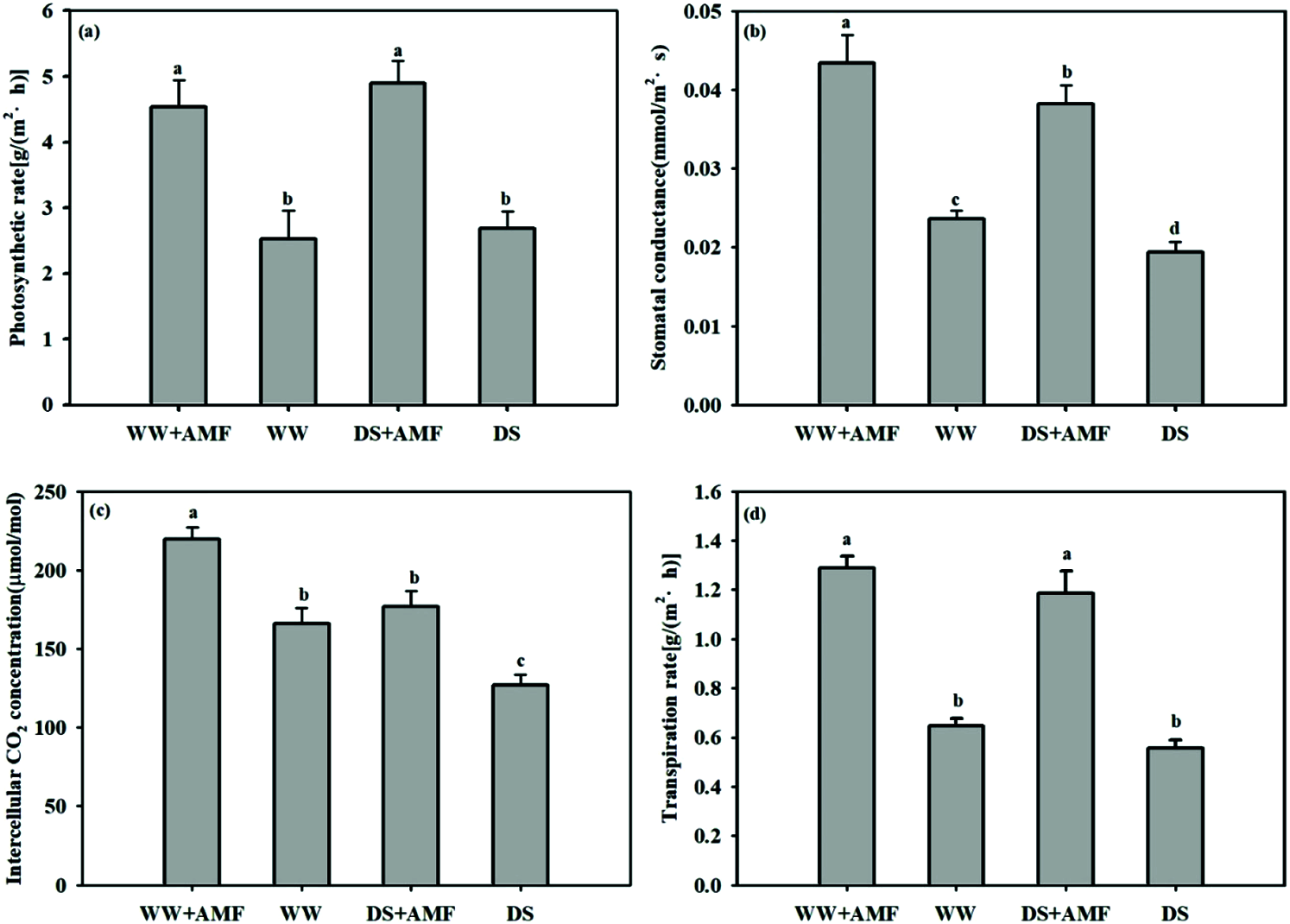

Figure 4: Effect of AMF on photosynthetic parameters of tea (Camellia sinensis ‘Fuding Dabaicha’) seedlings under drought stress. (a) net photosynthetic rate (Pn), (b) stomatal conductance (Gs), (c) intercellular CO2 concentration (Ci), (d), and transpiration rate (Tr).
Changes in chlorophyll fluorescence

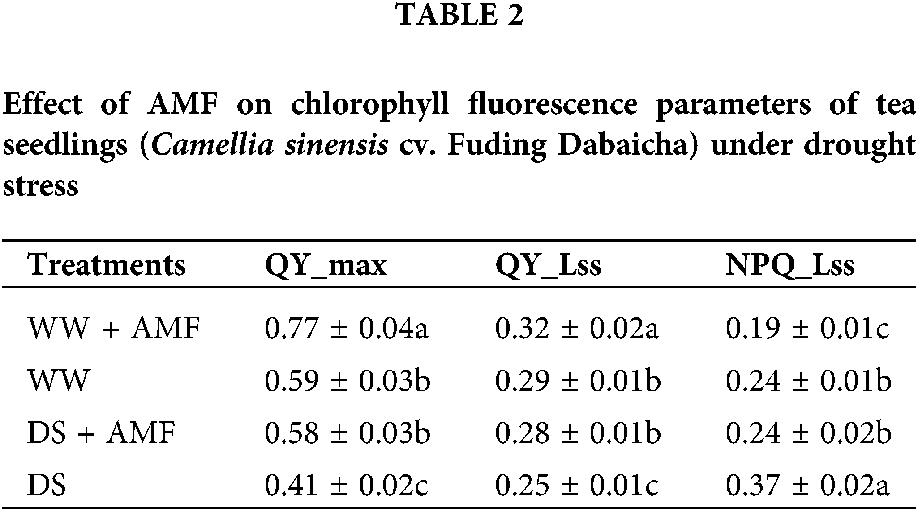

Leaf chlorophyll fluorescence parameters of tea leaves were observed (Fig. 5). Compared to WW treatment, DS considerably decreased the leaf QY_max and QY_Lss but increased NPQ_Lss of tea seedlings regardless of AMF treated or not, whereas AMF treatment notably ameliorated these fluorescence parameters (Table 2, Fig. 5). Compared with non-mycorrhizal treatment, AMF seedlings showed significantly higher leaf QY_max, QY_Lss and lower NPQ_Lss by 30.51%, 10.34%, and 20.83% under WW and 41.46%, 12.00%, and 35.14% under DS, separately (Table 2).

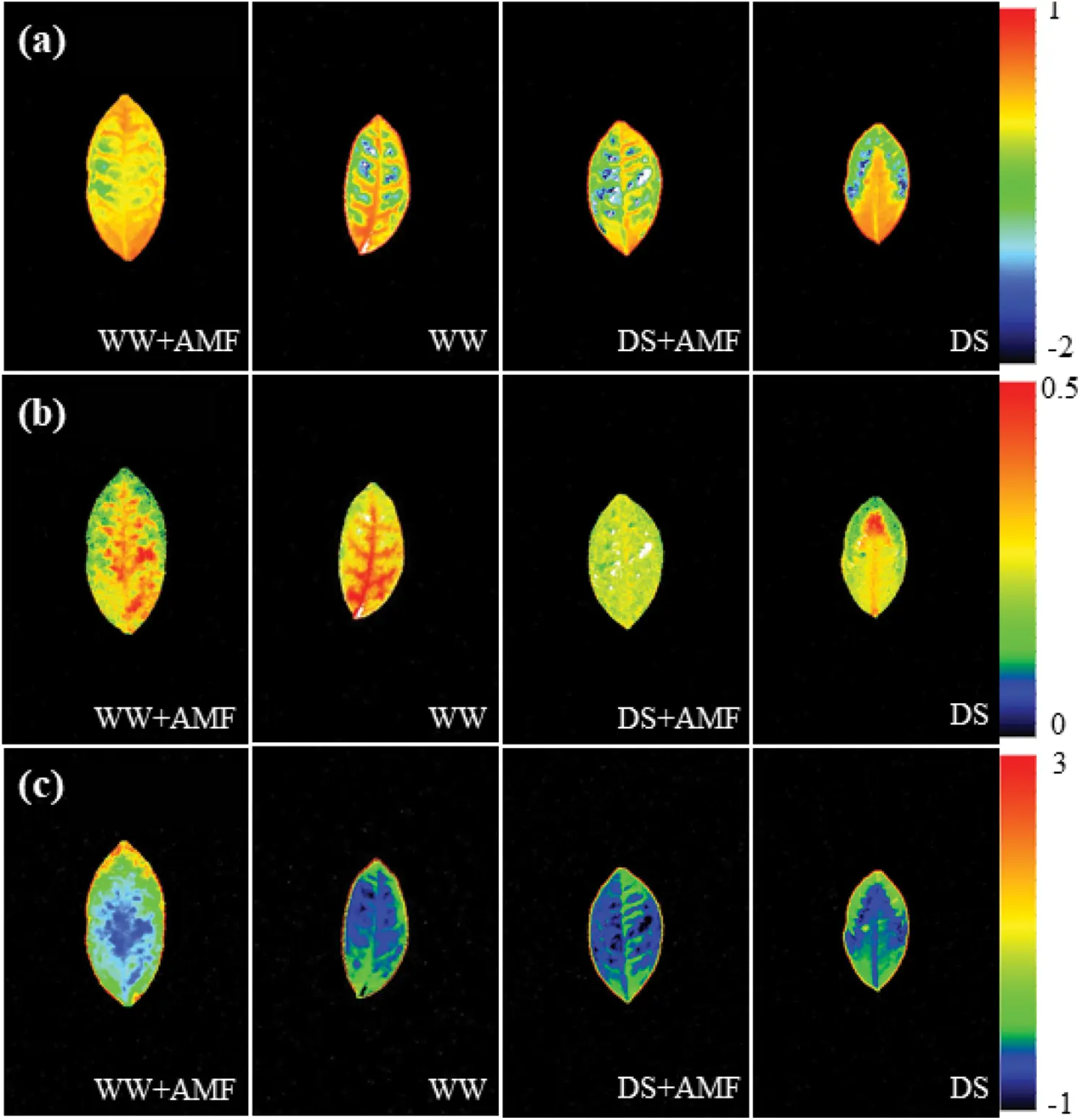

Figure 5: Effect of AMF on chlorophyll fluorescence parameters of tea seedlings (Camellia sinensis ‘Fuding Dabaicha’) under drought stress. (a) QY_max (b) QY_lss (c) NPQ_lss.
Drought is an important factor limiting plant growth, especially tea plants with significantly sensitive to soil water status. Whereas, AMF external hyphae can improve the root activity of host plants and enhance the absorption of soil water and nutrients, thus promoting plant growth and development (Shao et al., 2021). In the present study, C. etunicatum has been shown to colonize tea roots and establish a symbiotic association, which agrees with the findings of Shao et al. (2019) on tea seedlings. Moreover, root mycorrhizal colonization of tea seedlings by C. etunicatum was dramatically inhibited by the 8-week DS treatment. This is consistent with Liu et al. (2020), who observed a decrease in root colonization by C. etunicatum in tea plants exposed to DS. Prolonged DS inhibited spore germination and accumulation of carbohydrates, thus triggering a decrease in AMF colonization in the host plants (Tyagi et al., 2017).
It is well known that DS can reduce soil water supply, decrease root water absorption and plant water content, and inhibit plant growth and development (Liu et al., 2020). AMF can absorb soil water through its widely spread hyphal network and transport it to the plant root, thus improving the water status of host plants (Zhang et al., 2018). A previous study reported that approximately 4% of water in AMF plant roots originates from mycorrhizal hyphae (He et al., 2019). In this study, DS substantially decreased the leaf water potential and RWC and increased the leaf water saturation deficit, while C. etunicatum inoculation markedly increased the leaf water status of tea seedlings, regardless of the soil water status. These results are in agreement with earlier studies on trifoliate orange and tea seedlings (He et al., 2019; Liu et al., 2020). Moreover, mycorrhizal external hyphae can diffuse into the soil beyond the root system to absorb water and nutrients for the plant partner, thus promoting the growth performance of host plants (Zhang et al., 2018). In this study, the growth-promoting effects of mycorrhizal inoculation on tea seedlings were mainly indicated by an increase in biomass, while mycorrhizal inoculation significantly increased biomass in shoots and roots of tea plants, irrespective of soil water status, which was in accordance with the findings of Wu et al. (2016) on trifoliate orange and Quiroga et al. (2020) on Zea mays. Under mycorrhizal treatment, the improvement in plant growth may be due to the enhancement of water and nutrient absorption capacity of extraradical hyphae in AMF-colonized seedlings (He et al., 2019).
Photosynthetic pigments are the key medium for plants to transform inorganic matter into organic matter, which is one of the important indicators reflecting plant photosynthesis and nutrition. The proportion of each component markedly impact the plant photosynthesis, and further affects the normal growth and stress resistance of plants to a certain extent (Mathur et al., 2019). Flavonoids are secondary metabolites found in many plants. They have strong antioxidant capacity, can improve plants resistance against various stresses, eliminate reactive oxygen species, and protect plant cells (Tohge et al., 2017). Previous study reported that DS could affect the photosynthetic capacity of plants and reduce the photosynthetic pigment content in leaves (Lin et al., 2014), while inoculation with AMF can reduce the negative effects caused by DS and increase the photosynthetic pigment content (Xie et al., 2019). In this study, higher contents of chlorophyll, flavonoids, and anthocyanins were observed in AMF seedlings than in non-AMF seedlings, which is consistent with the results of previous studies on Hyacinths orientalis (Xie and Wu, 2018), Phaseolus radiatus (Bhattacharjee and Sharma, 2012), and onions (Perner et al., 2008), indicating that AMF infection is conducive to the accumulation of pigment and the enhancement of photosynthesis.
The ratio of chlorophyll to flavonoids is the nitrogen balance index, which is an important indicator of the nitrogen status in plants and reflects the growth of plants and the degree of absorption and utilization of proteins by the organism (Dong et al., 2020). DS can inhibit the absorption of nitrogen by plants, resulting in insufficient nutrient supply in plants (Sarhadi et al., 2020), while AMF can improve the absorption of nitrogen and maintain normal nutrient supply (He et al., 2018). This study demonstrated that DS reduced the nitrogen absorption of tea seedlings, whereas AMF inoculation significantly improved the plant nitrogen balance index, with the positive effect being more significant under WW conditions. This is mainly attributed to the enhancement of nutrient absorption by roots and the improvement of plant nutritional status by AMF extraradical hyphae (He et al., 2018).
Water is essential for photosynthesis, and water deficiency significantly decreases leaf Pn, Ci, Gs, and Tr, severely affecting the ability of a plant to photosynthesize (Chandrasekaran et al., 2019). Mycorrhizal colonization is often associated with changes in gas exchange in the host plant (Zhu et al., 2011). In the present study, C. etunicatum inoculation significantly increased photosynthetic parameters under both WW and DS conditions. These results are in accordance with the findings of Wang et al. (2017) on trifoliate orange colonized by Funneliformis mosseae and Zhu et al. (2011) in high-temperature-stressed maize (Zea mays) plants colonized by G. etunicatum. These results further implied that AMF symbiosis enhances gas exchange capacity by reducing stomatal resistance and increasing transpiration flux (Zhu et al., 2011). Moreover, AMF can improve the photosynthetic capacity of host plants, which may be related to enhanced nutrient absorption, as previous studies have reported that an increase in N and P content can improve the stomatal conductance, leaf water potential, chlorophyll content, and photosynthetic rate, thereby improving the drought resistance of host plants (Ruiz-Sánchez et al., 2010). Furthermore, higher Ci concentrations appeared in AMF seedlings, irrespective of the soil water status, which may be because AMF reduce the damage to the photosynthetic apparatus (Mathur et al., 2019; Wang et al., 2017).
The light absorbed by plants is divided into three parts, of which chlorophyll fluorescence is emitted in the form of fluorescence, which reflects the photosynthetic capacity and resistance of plants in adverse environments (Papageorgiou and Govindjee, 2004). Plant chlorophyll fluorescence parameters reflect the chemical properties of plant photosynthetic reactor reaction centers, including QY-max, QY-Lss, and NQP_Lss, among which the most common parameter is the QY-max (Papageorgiou and Govindjee, 2004). Generally, DS can reduce the maximum photochemical efficiency, actual photochemical quantum yield, and photochemical quenching coefficient of leaves, and gradually increase with an increase in drought degree (Chen et al., 2016), while AMF inoculation can improve the chlorophyll fluorescence parameters (Jiang et al., 2019). This study suggests that DS markedly decreased the QY-max and QY-Lss regardless of AMF inoculated or not, which is consistent with the results of Ahmed et al. (2002) on mungbean subjected to water stress, further demonstrated that DS could inhibit the photorespiration of tea plants and reduce the activity of the photosynthetic apparatus (Miyashita et al., 2005). Nevertheless, AMF-colonized seedlings showed higher QY-max and QY-Lss and lower NQP_Lss than non-AMF-colonized seedlings, which is consistent with the results of Ren et al. (2019) on Sesbania rostrata. QY_max and QY_Lss are sensitive indices of photosynthetic performance. QY_Lss releases excessive excitation energy in the form of heat energy; therefore, the results of this study indicate that AMF inoculation can not only significantly improve the efficiency of light energy conversion in plant leaves and the electron transfer activity of the reaction center but could also significantly reduce the loss of light energy in the form of heat, so as to ensure the maximum accumulation of photosynthetic products in plants.
In short, AMF tea seedlings had better growth performance under DS conditions, which associated with the improved leaf moisture status by mycorrhizal widespread hyphae. Colonization by mycorrhizal fungi also induces greater photosynthesis, which is possibly involved in pigment accumulation, gas exchange and chlorophyll fluorescence amelioration.
