Novel Universal Windowing Multicarrier Waveform for 5G Systems

1Wireless and Radio Science Centre, Faculty of Electrical and Electronic Engineering, Universiti Tun Hussein Onn Malaysia, Parit Raja, 86400, Malaysia

2Department Communications Engineering, University of Diyala, Baqubah, 32001, Iraq

3College of Computer Science and Information Technology, University of Anbar, Anbar, 31001, Iraq

4Department of Electrical Engineering and Computer Science, University of Tennessee, Knoxville, TN, 37901, USA

*Corresponding Author: Lukman Audah. Email: hanif@uthm.edu.my

Received: 30 August 2020; Accepted: 28 October 2020

Abstract: Fifth Generation (5G) systems aim to improve flexibility, coexistence and diverse service in several aspects to achieve the emerging applications requirements. Windowing and filtering of the traditional multicarrier waveforms are now considered common sense when designing more flexible waveforms. This paper proposed a Universal Windowing Multi-Carrier (UWMC) waveform design platform that is flexible, providing more easily coexists with different pulse shapes, and reduces the Out of Band Emissions (OOBE), which is generated by the traditional multicarrier methods that used in the previous generations of the mobile technology. The novel proposed approach is different from other approaches that have been proposed, and it is based on applying a novel modulation approach for the Quadrature-Amplitude Modulation (64-QAM) which is considered very popular in mobile technology. This new approach is done by employing flexible pulse shaping windowing, by assigning windows to various bands. This leads to decreased side-lobes, which are going to reduce OOBE and boost the spectral efficiency by assigning them to edge subscribers only. The new subband windowing (UWMC) will also maintain comprehensively the non-orthogonality by a variety of windowing and make sure to keep window time the same for all subbands. In addition, this paper shows that the new approach made the Bit Error Rate (BER) equal to the conventional Windowed-Orthogonal Frequency Division Multiplexing (W-OFDM). This platform achieved great improvement for some other Key Performance Indicators (KPI), such as the Peak to Average Power Ratio (PAPR) compared with the conventional (W-OFDM) and the conventional Universal Filtered Multicarrier (UFMC) approaches. In particular, the proposed windowing scheme outperforms previous designs in terms of the Power Spectral Density (PSD) by 58% and the (BER) by 1.5 dB and reduces the Complementary Cumulative Distribution Function Cubic Metric (CCDF-CM) by 24%.

Keywords: 5G waveform; window-OFDM; universal filtered multi–carrier; key performance indicators

Modern wireless telecommunication technologies support many diverse services. The International Telecommunications Union (ITU) classified the fifth generation of wireless communications (i.e., 5G) into an enhanced Mobile Broadband (eMBB), massive Machine Type Communications (mMTC), Ultra-Reliable Low-Latency Communication (URLLC), Industrial Internet of Things (I-IoT), and many more use cases [1]. Therefore, a flexible waveform design is required in order to handle such conflicting applications and use cases’ requirements. The waveform design is essential for all of these use cases as it is considered the main component of the air interface between the base station and the mobile devices (UE’s). So, waveforms for 5G and beyond need to be designed to fulfill the required adaptability and flexibility. Although the Orthogonal Frequency Division Multiplexing (OFDM) and its variant with low Peak to Average Power Ratio (PAPR) [2] and multimedia streaming are widely used in systems and standards before the 5G, they have many drawbacks [3].

Employing OFDM based waveforms offers several attractive attributes, such as effective hardware implementation (low cost, low complexity) hardware implementation, low-complexity equalization in the receiver side, and the straightforward integration with the Multiple Input Multiple Output (MIMO) system architectures [4,5]. However, traditional OFDM systems also incur high PAPR, require complete synchronization between transmitters and receivers, and large Out Of Band Emissions (OOBEs), which has motivated many studies looking for better waveforms for 5G and beyond [6–9]. The incumbent standard shows that 5G numerology requires adaptive waveform parameters with specific subcarrier spacing, such as 15, 30, and 60 kHz for Frequency Range 1 (FR1); and specific symbol length [10]. Future standards will also require improved resilience for these waveforms. OFDM also suffers from losing orthogonality when subcarrier spacing changes, e.g., from 15 to 30 kHz, which causes interference with other sub bands [11]. Interference between the carriers is generally controlled with windowing, filtering or guard band allocation [8]. Although many waveform designs have been considered to provide the required flexibility while improving OFDM spectral efficiency and flexibility [1,12,13], a universal flexible waveform that fits all use cases for 5G and beyond networks remains elusive.

The time domain OFDM waveform uses rectangular windows, equivalent to sinc-shape in the frequency domain. The main OFDM downside for high OOBE are sidelobes (at 1/f) for the sinc function (f), reducing coexistence for neighboring resources and high adjacent Channel Leakage Ratio (ACLR). Since overhead synchronization would reduce latency and increase power consumption power, various waveforms have been proposed to relieve OOBE leakage. A mandatory requirement for the 5G waveform is time domain localization and supporting required latency and short message transmission [5]. Filtering and windowing have been recently proposed to reduce OOBE and provide asynchronous transmission, and can be applied into subcarrier and subband 5G waveforms [14].

Subcarrier filtering approaches, such as Filter Bank Multicarrier (FBMC) [6] and Generalized Frequency Division Multiplexing (GFDM), have better performance than conventional OFDM [15]. However, FBMC and GFDM filters require a long tail of filter impulse responses to achieve this improved performance, which degrades latency and increases system complexity.

Filtering and windowing subbands are a suitable solution for 5G and beyond waveforms to avoid these shortcomings. Filtered OFDM (F-OFDM) filters the whole transmitter bandwidth using a single filter [16]; whereas full band filtering cannot remove the Inter-Carrier Interference (ICI)and Inter-Symbol Interference (ISI)influences, similar to standard OFDM. Therefore, filter tapes need to be raised to relieve OOBE constraints, thereby increasing complexity and latency [17].

The UFMC waveform is well known in 5G and beyond paradigms. Several studies have shown that using UFMC in 5G waveforms improves traffic separation, robustness against a-synchronicity (time-frequency misalignment), fragmented spectrum support, sporadic access (short bursts of network access particularly by IoT devices), low-medium complexity, OFDM technology and knowledge base re-use, and short filter length when applying the filter for group of subcarriers.

Window functions are used in digital signal processing to reduce side lobe suppression on the edge of the subcarrier. Gaussian pulses have the same performance in time and frequency domains but leak in orthogonality, hence ICI and ISI can be greatly identified [18]. On the other hand, the selected waveform should also improve spectrum efficiency, time and frequency localization, and orthogonality between subcarriers. Unfortunately, these features cannot all be achieved simultaneously [18]. Therefore, the waveform should be intelligently built to offer reasonable trade-off between time and frequency localization, and increased spectrum performance compared with the current waveform.

This paper proposed a waveform incorporating flexible windowing shapes using the universal windowing multicarrier (UWMC) system and assessed its performance. The UWMC scheme provides flexibility to handle multicarrier signal OOBE, with assured trade-off for diverse pulse shape since increasing some parameters or factors in the frequency-time domain can affect time domain performance and vice versa. For example, contributions from OFDM subcarrier sidelobes to OOBE. Thus, multiple windowing schemes that suppress side-lobes have been used to edge subcarriers, with smaller windows employed for inner cases, e.g., Kaiser windowing for edge subcarriers with raised cosine (RC) inner windows. However, this method decreases cyclic prefix (CP) length in conventional OFDM, originally intended to reduce multipath effects, which can cause ISI. Kaiser windowing in UFMC with different beta factors provided the required flexibility and additional control over OOBE [14], but ICI still occurred even with the enhanced spectral efficiency.

Kaiser and RC windowing have been used with various roll-off factors to control OOBE and provide more flexibility. This paper focused on windowing shape diversity to reduce OOBE, enhance spectral efficiency, and improve flexible waveform coexistence compared with current systems. The proposed approach also significantly improved bit error rate (BER) and PAPR.

The remainder of this paper is organized as follows. Section 2 discusses foundations for UWMC with different windowing. Section 3 explains the UWMC waveform concept and provides performance assessment parameters. Section 4 summarizes and concludes the paper.

2 Universal Filtering Multi-Carrier (UFMC) Waveform

The UFMC approach is a quadrature amplitude modulation (QAM) multicarrier modulation alternative to OFDM and FBMC waveforms for 5G. UFMC is similar to F-OFDM for subcarriers and filtering, but not the whole band. UFMC divides the whole bandwidth into subbands, and then filters each subband to reduce filter length of the filter and computational time compared with F-OFDM and FBMC. Subband UFMC is similar to conventional OFDM without filtering. Let OFDM be formulated as

where X is the OFDM signal representing the inverse discrete time Fourier transform (IDFT) with size N; k is the time index; n is the frequency domain index. The X set is generated using quadrature Multilevel Amplitude Modulation (M-QAM) mapping and contains identically independent distributed (IID) random variables. The summation in Eq. (1). is either constructive or destructive, hence data coherence summation will result in a large PAPR. The Cyclic-Prefix OFDM (CP-OFDM) adopted for Long-Term Evolution (LTE) in the 4G mobile communications standard can be formed by adding rectangular windowing to the whole band,

and executing rectangular windowing gives CP-OFDM as

where L is window length w(n), which should be an odd number in this case; and W is the IDFT matrix with dimension , where N is the number of subcarriers. Rectangular behavior in the frequency domain is achieved using the discrete time Fourier transform (DTFT) of w(n).

where F is for finite impulse response (FIR) filter Toeplitz matrix that provides convolution over the M-th band, where the whole band is subdivided to M subbands. Therefore, the UFMC system can be expressed as

where M-QAM entries in Xr, k are first converted to the time domain using the IDFT matrix column corresponding to the specified subband r within the frequency band; and is the corresponding subband filter.

Fig. 1 shows the complete UFMC system derived from Eq. (5). The process starts with zero padding at the receiver end to achieve two-fold up-sampling, and then selects subcarriers (down-sampling) for a juncture using 2N-DFT until implementing M-QAM de-mapping to collect the received data.

The filtering operation uses Physical Resource Blocks (PRBs) to facilitate design flexibility. Filter length of is a critical design parameter, with filter length, and X containing one M-QAM symbol. Provided filter length in the frequency domain is sufficiently long, the time domain tail will be shorter (i.e., in the order of cyclic prefix length of the traditional CP-OFDM) which enables the network to support transmitted short messages (TSM).

The superior UFMC performance in both frequency and time domains leads to the improvement in the spectrum efficiency and is solely dependent solely on the suggested filter design. A technique which is simple, systematic, and easily implementable online technique, is the windowed-Sinc method [15]. However, many In fact, there are different windows that can be applied here, hence and that is why this design is generally preferred. The filter can be expressed as

where is the filter time domain response, and we can apply an ideal low pass filter sinc response [19]. Using different windows can reduce OOBE and be more suitable for different numerology subcarrier spacing and secrecy (illegitimate eavesdropping will be unable to subtract the subcarriers). The resulting filter must be shifted in the frequency domain (a modulation property using DTFT) to align it with the allocated bandwidth center.

The Gibbs phenomenon [19] ensures that if sinc filter windowing is applied in the time domain then output frequency ripples will occur near the dedicated bandwidth edge. This ripple frequency can be eliminated by expanding the allocated band for a few subcarriers at the transition edges or starting filter roll-off at the design edges of the subband. Thus, the filter passes frequencies as flat as possible for the allocated subband.

Filter design is critical to system function, and should be approached by selecting the correct window function from the useful choices. Good design can significantly reduce OOBE and improve time and frequency localization [18], consequently enhancing spectrum efficiency by releasing more bands for user data, in contrast with conventional CP-OFDM. Section 2.1 shows how such a filtering scheme will increase data throughput. Thus, windowing is an efficient and simple tool to control inter-subband interference in a system with multiple UWMC numerologies multiplexed in the frequency domain [20].

The proposed UWMC is a novel modulation scheme for the well-known quadrature-amplitude modulation (64-QAM). The underlying concept is to utilize flexible pulse shaping windowing, i.e., windows with different bands, as shown in Fig. 2, to reduce side-lobes, and then only assign them to edge subcarriers to increase spectral efficiency and decrease OOBE. UWMC subband windowing is also thorough to maintain non-orthogonality through various windowing and guarantee that all subbands take the same time window. The UWMC waveform baseband signal with N subcarriers can be expressed as

where ; is the corresponding subband windowing IDTF matrix; and the M-QAM symbol entries in Xr, kare first converted to the time domain using the Wr, k column corresponding to the specified subband r within the frequency band.

Fig. 2 shows the complete UWMC system derived from Eq. (7). The process starts with zero-padding at the receiver end to achieve two-fold up-sampling, and then conducts 2N-DFT upon juncture subcarriers (down-sampling) until implementing M-QAM de-mapping to collect the received data. Time windowing schemes can be applied for spectral shaping with multiuser interference suppression at the received side,

Data symbols Xr, k for the r-th subband () are transformed to the time domain using a tall IDFT matrix that includes corresponding columns from the inverse Fourier matrix for the respective subband positions in the available frequency range. System parameters can be adjusted according to propagation conditions and time-frequency offset requirements [4,5]. This paper assumed that UWMC waveform subband sizes were equal for simplicity and length of subband windowing. The time domain signal for subband windowing input r is

where first UWMC symbol consists of samples and the remaining samples values are zero,

The summation in time domain samples by the IFFT:

with relevant symbol contributions

The DTFT for will depict windowing behavior in the frequency domain. Applying various algebraic simplifications, can be expressed as

The first windows combine Kaiser and RC windows,

where is the zero-order modified Bessel function given as,

where input is the control side lobe attenuation in the Kaiser-Bessel window and balance between the main lobe width and side-lobe level is achieved by increasing to reduce side-lobe level. However, this will increase complexity.

Therefore, the UWMC approach suggests arranging two or more windows in various directions to avoid increasing complexity and or , creating a new window with a narrow main lobe width and reduced side lobe. For example, convolution in the time domain of two rectangular windows produces the Bartlett window [20],

where is the stopband attenuation expressed in decibels. The Kaiser window product with RC window provides new coefficient windowing in the time domain referring to the frequency domain convolution, and UWMC individual waveforms per subband are more flexible for diverse implementation and specification designs for 5G waveforms.

3 The Performance Evaluation of UWMC Waveform

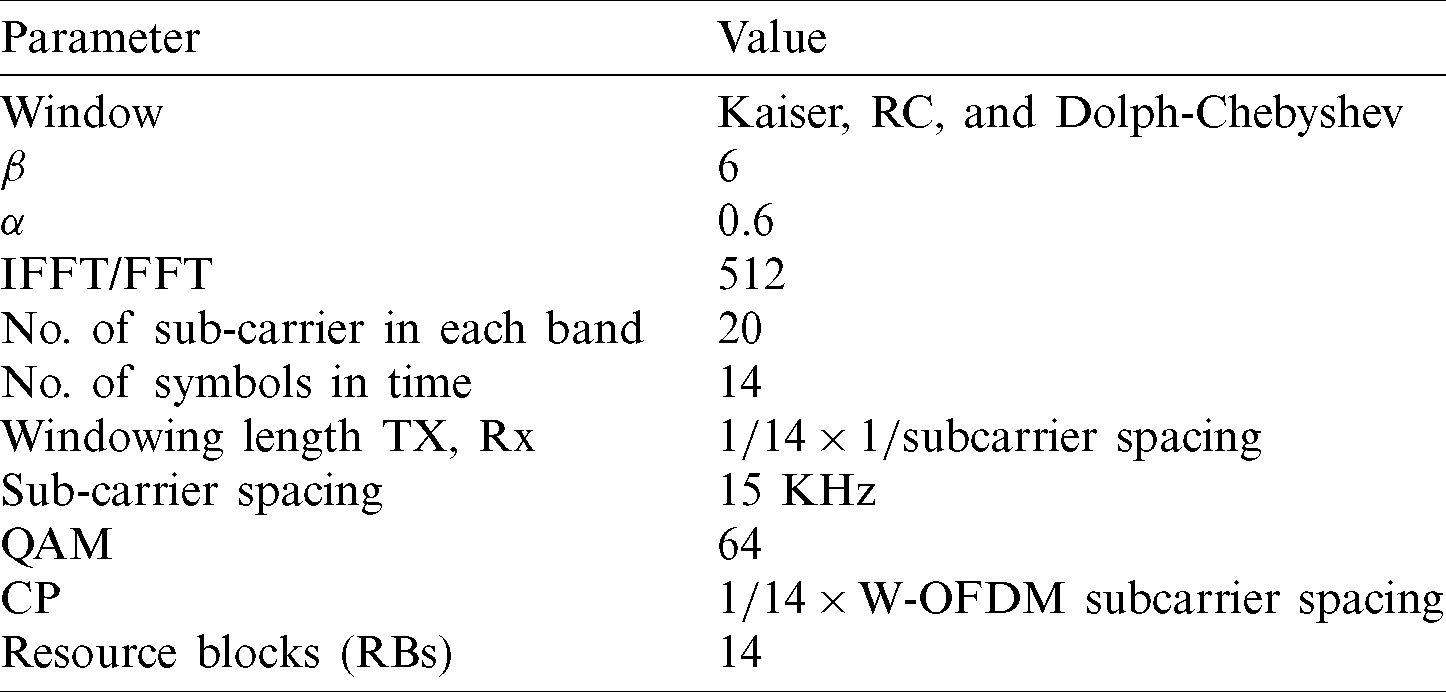

We evaluate UWMC waveform performance compared with windowed CP-OFDM (W-CP-OFDM), treating all the subcarriers in the same way with respect to side-lobe suppression. Tab. 1 shows the parameters used in the simulation experiments.

Figs. 3 and 4 show that UWMC waveform OOBE is less than for W-CP-OFDM and conventional UFMC. Thus, the proposed UWMC waveform provides OOBE suppression and better spectral efficiency compared with conventional UFMC and W-OFDM. Conventional UFMC also requires more side lobe attenuation for Dolph-Chebyshev to achieve the same level. These results are significant in at least two major respects: better coexistence with incumbent systems (e.g., a cognitive radio paradigm), and different numerology concepts. Adjacent channel leakage ratio (ACLR), For UWMC is superior to UFMC and CP-OFDM by 21% and 140%, respectively.

The complementary Cumulative Distribution Function Cubic Metric (CCDF-CM) is measured in dB,

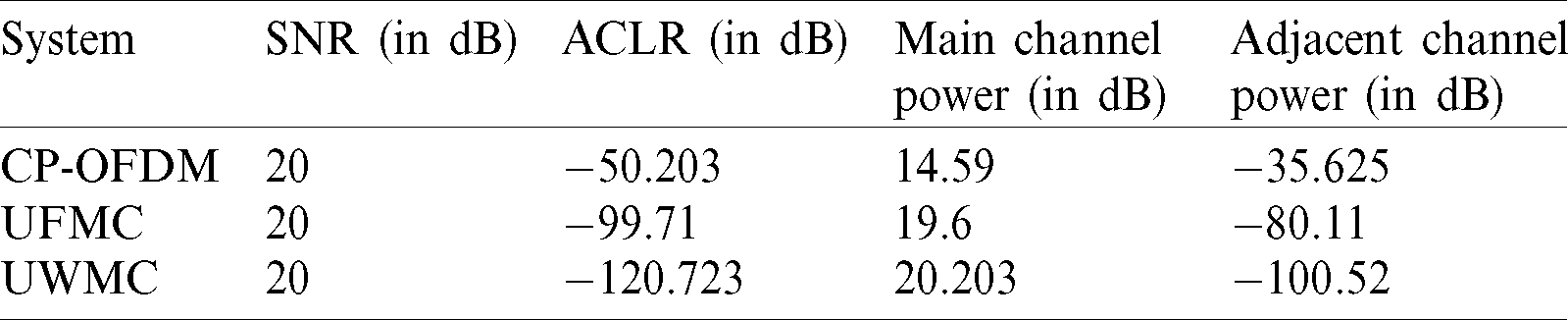

and provides a good comparison between different 5G systems. Fig. 5 compares CCDF-CM for UWMC, UFMC, and CP-OFDM. CCDF-CM for conventional dB, with 3.4 dB for UWMC, i.e., UWMC reduces CCDF-CM by 24%. This enhancement was due to the cutting for the windowing only on the edge, which reduced subcarrier discontinuity compared with conventional UFMC [21].

Fig. 6 shows BER performance for UFCM, W-OFDM, and UWMC waveforms. Conventional UFMC achieved the poorest performance, requiring more transmission power, whereas W-OFDM and UWMC achieved comparable performance at 20 dB SNR. These findings may help us understand how to control the OOBE when using a mixed windowing waveform. In addition, the UWMC waveform is proven to be more suitable when we need to use different windowing and different bands in the receiving side (Rx) and with more secrecy.

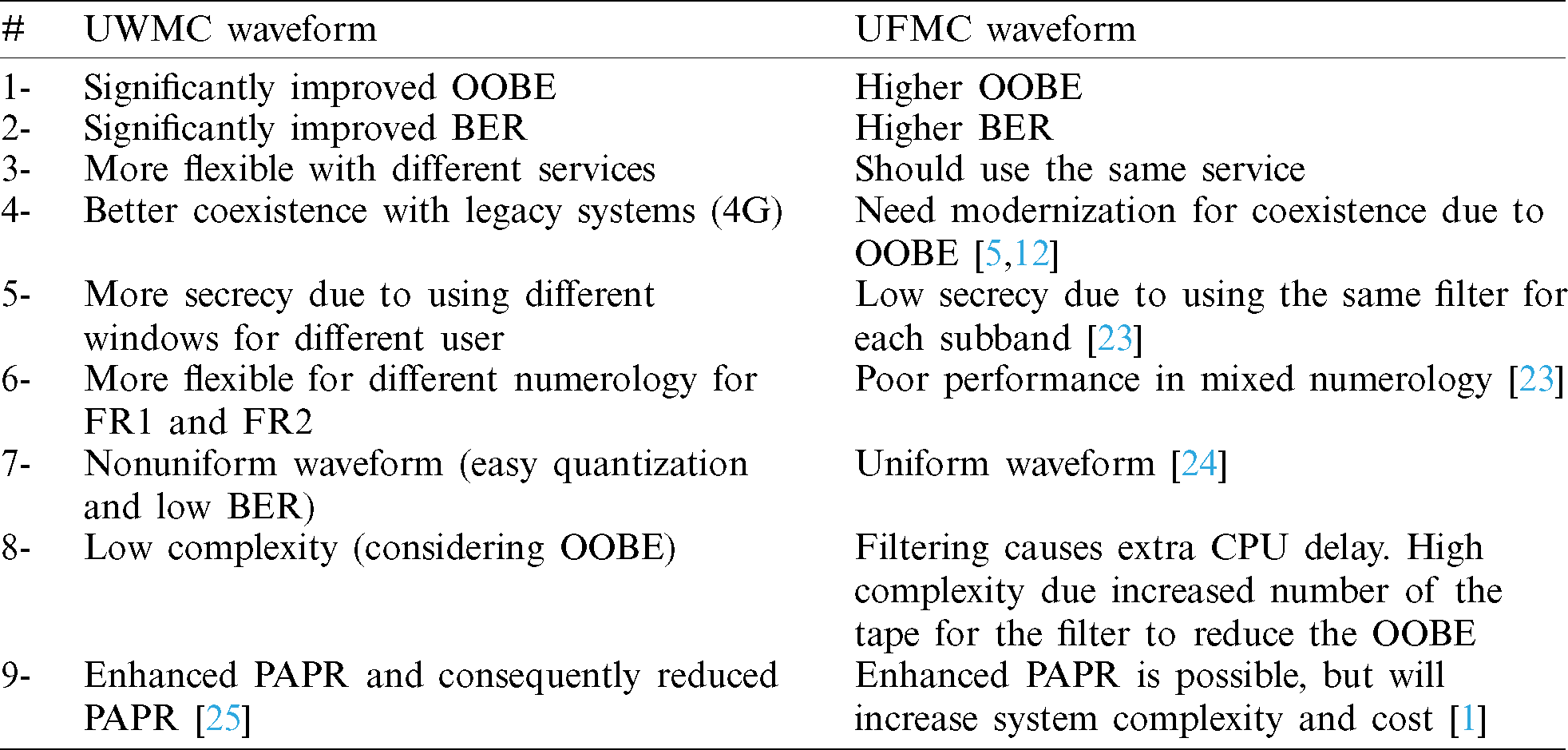

Tab. 2 shows that UWMC individual window per subband is a more flexible waveform for designing 5G versatile applications and requirements. Tab. 3 lists UWMC waveform advantages compared with conventional UFMC.

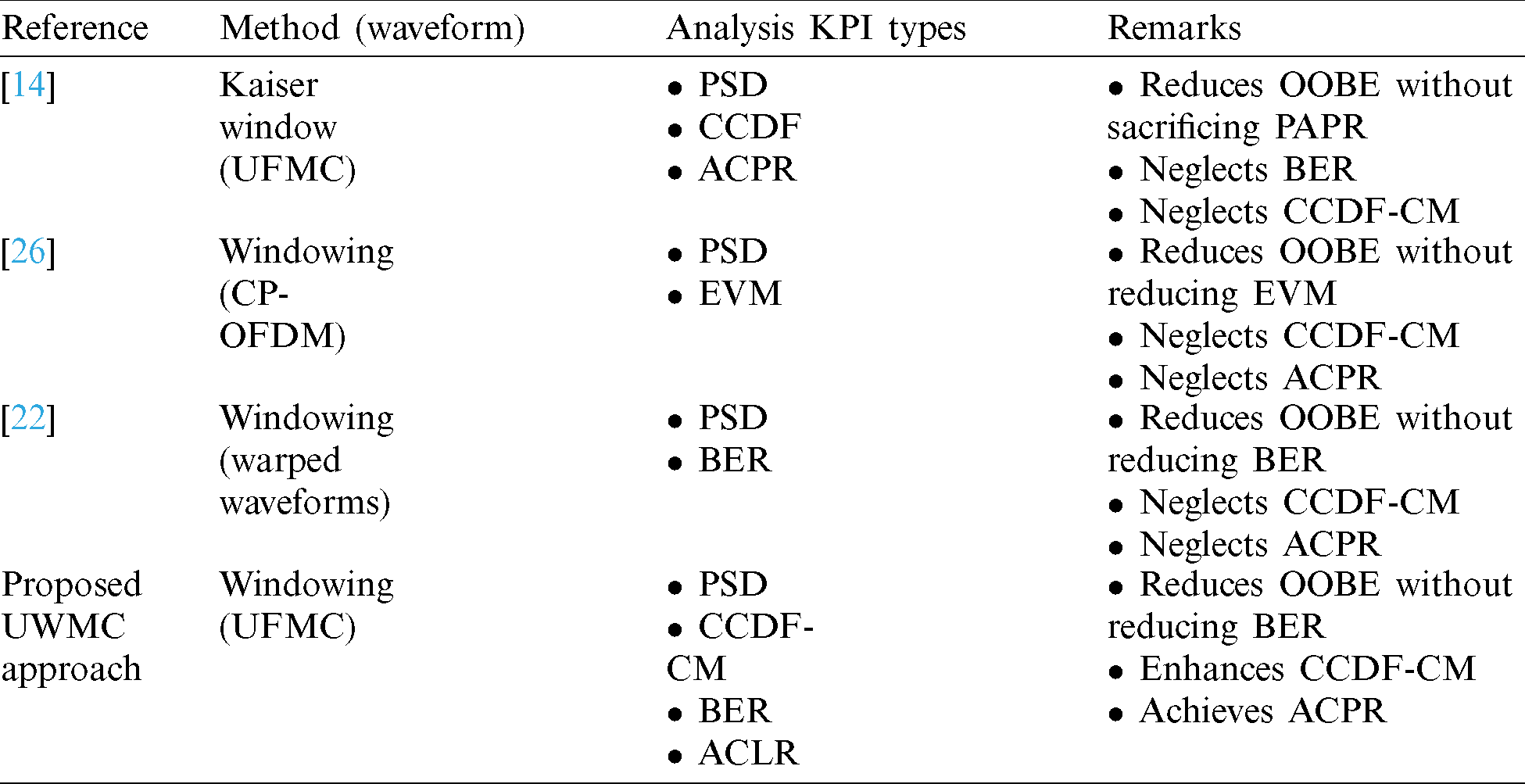

We have focused 5G network parameters OOBE, PSD, BER, ACLR/ACPR, and CCDF, but improving some parameters could negatively affect others. For example, improving OOBE could also increase computational complexity or BER, and vice versa [22]. Tab. 4 compares the proposed UWMC with benchmarks for related work based on this argument. The most common waveform is CP-OFDM with windowing being applied to CP-OFDM to minimize OOBE for the waveform. Subsequently, UFMC is considered a promising waveform for 5G technology because it has lower latency and better BER than CP-OFDM but remains more complex to build. Both CP-OFDM and UFMC suffer from high OOBE, with conventional UFMC being somewhat better than CP-OFDM. The proposed UWMC waveform has not been evaluated, but our approach can simultaneously reduce OOBE, PAPR, BER, and CCDF-CM; with lower complexity than conventional UFMC and more suitable for coexistence with legacy systems. However, CP-OFDM has lower complexity than UWMC.

This study indicates that the proposed UWMC framework has better spectral efficiency, can reduce ICI due to improved UWMC signals, and is more flexible for different numerology for FR1 and FR2 for different services compared with current approaches. UWMC shows better performance and consumes lower power than the CP-OFDM and conventional UFMC.

This paper proposed a new and flexible waveform suitable for 5G and beyond (UWMC) and evaluated its performance compared with several current approaches using multiple KPIs (PSD, CCDF-CM, BER, and ACLR). UWMC achieved less OOBE, better spectral efficiency, and comparable BER to conventional W-OFDM; with better frequency localization, which is critical for asynchronous transmission across adjacent subbands and harmony with different numerologies in the network. These results provide important insights into it and have the resilience to control each side. Hence, it prevents needless OOBE from deactivating that lowering spectral efficiency when requirements are different on each side of the band. Future work directions will include integrating the suggested waveform into multi-layer scheduling, precoding, and waveform design, which is strongly required for 4G and 5G network coexistence. The UWMC waveform provides essentially improved flexibility to facilitate this goal.

Funding Statement: This work was supported in part by the Ministry of Higher Education Malaysia through the Fundamental Research Grant Scheme (FRGS/1/2019/TK04/UTHM/02/8) and the University Tun Hussein Onn Malaysia. The authors would like to thank the Ministry of Higher Education Malaysia and Universiti Tun Hussein Onn Malaysia for the generous financial support.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.

- S. F. Sijal, L. Audah, S. A. Mostafa, S. S. Gunasekaran, A. Baz et al. (2020). , “A new SLM-UFMC model for universal filtered multi-carrier to reduce cubic metric and peak to average power ratio in 5G technology,” Symmetry, vol. 12, no. 6, pp. 909.
- Y. A. Al-Jawhar, K. N. Ramli, A. Mustapha, S. A. Mostafa, N. S. M. Shah et al. (2019). , “Reducing PAPR with low complexity for 4G and 5G waveform designs,” IEEE Access, vol. 7, pp. 97673–97688.
- Q. Zheng, F. Wang, X. Chen, Y. Liu, D. Miao et al. (2017). , “Comparison of 5G waveform candidates in high speed scenario,” in 32nd General Assembly and Scientific Symp. of the Int. Union of Radio Science, Montréal, Canada, pp. 1–4.
- H. Wang and Y. Huang. (2017). “Performance evaluation of the universal filtered multi-carrier communications under various multipath fading propagation conditions,” in Proc. IEEE 8th Int. Conf. on Awareness Science and Technology (iCASTTaichung, Taiwan, pp. 466–469.
- A. Hammoodi, L. Audah and M. A. Taher. (2019). “ Green coexistence for 5G waveform candidates: A review,” IEEE Access, vol. 7, pp. 10103–10126.
- I. Galdino, R. Zakaria, D. Le Ruyet and M. L. De Campos. (2020). “Short-filter design for intrinsic interference reduction in QAM-FBMC modulation,” IEEE Communications Letters, vol. 24, pp. 1487–1491.
- A. F. Demir and H. Arslan. (2017). “The impact of adaptive guards for 5G and beyond,” in IEEE 28th Annual Int. Symp. on Personal, Indoor, and Mobile Radio Communications, Montréal, Canada, pp. 1–5.
- A. F. Demir and H. Arslan. (2020). “Inter-numerology interference management with adaptive guards: A cross-layer approach,” IEEE Access, vol. 8, pp. 30378–30386.
- W. Anwar, A. Krause, A. Kumar, N. Franchi and G. P. Fettweis. (2020). “Performance analysis of various waveforms and coding schemes in V2X communication scenarios,” in Proc. IEEE Wireless Communications and Networking Conf., Virtual Conference, pp. 1–8.
- D. Erik, G. Mildh, S. Parkvall, J. Peisa, J. Sachs et al. (2014). , “5G wireless access: Requirements and realization,” IEEE Communications Magazine, vol. 52, no. 12, pp. 42–47.
- Z. E. Ankaralı, B. Peköz and H. Arslan. (2020). “Enhanced OFDM for 5G RAN,” ZTE Communications, vol. 15, no. S1, pp. 11–20.
- A. T. Hammoodi, F. S. Shawqi, L. Audaha, A. A. Qasim and A. A. Falih. (2019). “Under test filtered-OFDM and UFMC 5G waveform using cellular network,” Journal of Southwest Jiaotong University, vol. 54, no. 5, pp. 1–
- J. Pérez Santacruz, S. Rommel, U. Johannsen, A. Jurado-Navas and I. Tafur Monroy. (2020). “Candidate waveforms for AROF in beyond 5G,” Applied Sciences, vol. 10, no. 11, pp. 3891.
- R. S. Yarrabothu and U. R. Nelakuditi. (2019). “Optimization of out-of-band emission using kaiser-bessel filter for UFMC in 5G cellular communications,” China Communications, vol. 16, no. 8, pp. 15–23.
- W. Jian, A. Jing, D. Shi, L. Wang, H. Shen et al. (2017). , “Spectral efficiency improvement with 5G technologies: Results from field tests,” IEEE Journal on Selected Areas in Communications, vol. 35, no. 8, pp. 1867–1875.
- H. Seongbae and S. Cchoi. (2020). “Partial response signaling for circular convolution based filter bank multi-carrier system adopting quadrature amplitude modulation,” IEEE Access, vol. 8, pp. 122791–122797.
- Y. Xianzhen, S. Yan, X. Li and F. Li. (2020). “A unified spectrum formulation for OFDM, FBMC, and F-OFDM,” Electronics, vol. 9, no. 8, pp. 1285.
- B. Helmut. (2003). “Orthogonal frequency division multiplexing based on offset QAM,” in Advances in Gabor analysis, Birkhäuser. Boston, MA, pp. 321–352.
- Y. Huang, P. Yin, J. Ma and R. Wang. (2020). “Physical layer encryption based on hyper-chen chaos in universal filtered multi-carriers system,” in Proc. Springer the 11th Int. Conf. on Modelling, Identification and Control (ICMIC2019Tianjin, China, pp. 33–39.
- H. Fredric. (1978). “On the use of windows for harmonic analysis with the discrete fourier transform,” Proceeding of IEEE, vol. 66, no. 1, pp. 51–83.
- O. Alang, T. R. Buck and R. W. Schafev. (2015). Discrete Time Signal Processing, vol. 2. London: Pearson Education.
- M. Ibrahim, A. F. Demir and H. Arslan. (2018). “Time–frequency warped waveforms,” IEEE Communications Letters, vol. 23, no. 1, pp. 36–39.
- L. Marijanovic, S. Schwarz and M. Rupp. (2019). “A novel optimization method for resource allocation based on mixed numerology,” in Proc. IEEE Int. Conf. on Communications, Shanghai, China, pp. 1–6.
- W. Gerhard, P. Tung, M. Kasparick, T. Wild, Y Chen et al. (2014). , “5G now: Non-orthogonal, asynchronous waveforms for future mobile applications,” IEEE Communications Magazine, vol. 52, no. 2, pp. 97–105.
- A. Tom, A. Şahin and H. Arslan. (2015). “Suppressing alignment: joint PAPR and out-of-band power leakage reduction for OFDM-based systems,” IEEE Transactions on Communications, vol. 64, no. 3, pp. 1100–1109.
- A. Sahin and H. Arslan. (2011). “Edge windowing for OFDM based systems,” IEEE Communications Letters, vol. 15, no. 11, pp. 1208–1211.
