Medical Image Compression Method Using Lightweight Multi-Layer Perceptron for Mobile Healthcare Applications
1Kyungnam University, Changwon, 51767, Korea
2Kyungpook National University, Daegu, 41566, Korea
3Sookmyung Women’s University, Seoul, 04310, Korea
4Electronics and Telecommunications Research Institute, Daejeon, 34129, Korea
*Corresponding Author: Dongsan Jun. Email: email@example.com
Received: 19 April 2021; Accepted: 14 June 2021
Abstract: As video compression is one of the core technologies required to enable seamless medical data streaming in mobile healthcare applications, there is a need to develop powerful media codecs that can achieve minimum bitrates while maintaining high perceptual quality. Versatile Video Coding (VVC) is the latest video coding standard that can provide powerful coding performance with a similar visual quality compared to the previously developed method that is High Efficiency Video Coding (HEVC). In order to achieve this improved coding performance, VVC adopted various advanced coding tools, such as flexible Multi-type Tree (MTT) block structure which uses Binary Tree (BT) split and Ternary Tree (TT) split. However, VVC encoder requires heavy computational complexity due to the excessive Rate-distortion Optimization (RDO) processes used to determine the optimal MTT block mode. In this paper, we propose a fast MTT decision method with two Lightweight Neural Networks (LNNs) using Multi-layer Perceptron (MLP), which are applied to determine the early termination of the TT split within the encoding process. Experimental results show that the proposed method significantly reduced the encoding complexity up to 26% with unnoticeable coding loss compared to the VVC Test Model (VTM).
Keywords: Mobile healthcare; video coding; complexity reduction; multi-layer perceptron; VVC; intra prediction; multi-type tree; ternary tree; neural network
Image or video compression is widely used to facilitate real-time medical data communication in mobile healthcare applications. This technology has several applications, including remote diagnostics and emergency incidence responses, as shown in Fig. 1 . Mobile healthcare is one of the key aspects of telemedicine in which clinicians perform a broad range of clinical tasks remotely. At the same time, patients communicate with clinicians on hand-held devices with a limited hardware platform. Therefore, there is a need to develop a low-complexity video codec that achieves minimum bitrates with better coding performance while still maintaining high perceptual quality for seamless delivery of medical data within a constrained network bandwidth.
The state of the art video coding standard, Versatile Video Coding (VVC)  has been developed by the Joint Video Experts Team (JVET) of ITU-T Video Coding Experts Group (VCEG) and ISO/IEC Moving Picture Experts Group (MPEG) in 2020. It can significantly improve the coding performance compared with High-Efficiency Video Coding (HEVC) . According to , VVC test model (VTM) has higher compression performance by 25% when compared with HEVC test model (HM) under the All Intra (AI) configuration recommended by JVET Common Test Conditions (CTC) . This improvement was achieved as a result of newly adopted coding tools, such as flexible block structure, Position Dependent intra Prediction Combination (PDPC) , Cross Component Linear Model intra prediction (CCLM) , Wide Angular Prediction (WAP) , and Matrix weighted Intra Prediction (MIP) . Although VVC can significantly improve the coding performance, the encoder’s computational complexity also substantially increased by approximately 26 times  compared to HEVC. Therefore, it is essential to reduce the encoding complexity of VVC to facilitate its real-time implementation in low-end mobile devices.
One of the main differences between HEVC and VVC is the block structure scheme. Both HEVC and VVC commonly specify Coding Tree Unit (CTU) as a basic coding unit with an interchangeable size based on the encoder configuration. In addition, to adapt to the various block properties, CTU could be split into four Coding Units (CUs) using a Quad-Tree (QT) structure. In HEVC, a leaf CU could be further partitioned into one, two, or seven Prediction Units (PUs) according to the PU partitioning types. After obtaining the residual block derived from the PU level using either intra or inter prediction, a leaf CU can be further partitioned into multiple Transform Units (TUs) according to a Residual Quad-Tree (RQT) that is structurally similar to that of the CU split. Therefore, the block structure of HEVC has multiple partition concepts, including CU, PU, and TU, as shown in Fig. 2 .
On the other hand, VVC replaces the concepts of multiple partition unit types (CU, PU, and TU) of HEVC with another block structure, named QT-based Multi-type Tree (QTMTT). In VVC, a MTT can be partitioned into either Binary Tree (BT) or Ternary Tree (TT) to support more flexible CU shapes. As shown in Fig. 3, VVC specifies a single QT split type and four MTT split types. These include quad-tree split (SPLIT_QT), vertical binary split (SPLIT_BT_VER), horizontal binary split (SPLIT_BT_HOR), vertical ternary split (SPLIT_TT_VER), and horizontal ternary split (SPLIT_TT_HOR), respectively. While the minimum BT and TT sizes are both 4 × 4, the maximum BT and TT sizes are 128 × 128 and 64 × 64, respectively. Note that a QT node with a square shape can be further partitioned into either sub QT or MTT node, while a MTT node can be only partitioned into MTT node, as shown in Fig. 4 . Here, a QT or a MTT leaf node is considered as a CU, and it is used in the unit of the prediction and transform processes without any further partitioning schemes. It means that a CU in VVC can have either a square or a rectangular shape, while a CU in HEVC always has a square shape.
Although the block structure of VVC is superior to that of HEVC in terms of the flexibility of CU shapes, it causes heavy computational complexity on VVC encoder due to the excessive Rate-distortion Optimization (RDO) calculations required to search for the optimal QT, BT, and TT block mode decision. Furthermore, VVC adopted a dual-tree structure in the intra-frame so that a CTU can have different block structures according to the color of each component. It means that a luma CTU and a chroma CTU can have their own QTMTT structures. This dual-tree concept significantly improves the coding performance in the chroma components but comes at the cost of increasing the computational complexity . Therefore, we propose a fast MTT decision method with two Lightweight Neural Networks (LNNs) using Multi-layer Perceptron (MLP), which are applied to determine the Early Termination (ET) of the TT split within the encoding process. In this paper, we implemented two LNNs before the RDO process of the TT split. These are denoted as HTS-LNN and VTS-LNN for the ET of the horizontal and the vertical TT split, respectively.
In this study, we investigated four input features to use as an input vector on the proposed two LNNs with MLP structure. With the proposed four input features, two LNNs were designed to provide high accuracy with the lowest complexity. In addition, various ablation works were performed to evaluate their effectiveness how these features would affect the accuracy of the proposed LNNs. We then proposed a fast MTT decision method using the two LNNs to determine the early termination of the horizontal and the vertical TT splits required in the CU encoding process. Finally, we implemented the proposed method on top of the VTM and evaluated the trade-off between the complexity reduction and the coding loss on medical sequences as well as JVET test sequences.
The remainder of this paper is organized as follows. In Section 2, we review the related fast encoding schemes used to reduce the complexity of the video encoder. Then, the proposed method is described in Section 3. Finally, experimental results and conclusions are given in Sections 4 and Section 5, respectively.
2 Related Works
Several methods have been proposed to reduce the computational complexity of HEVC and VVC encoders. Shen et al. proposed a fast CU size decision algorithm for HEVC intra prediction, which exploited RD costs and intra mode correlations among previously encoded CUs . Goswami et al.  designed a fast block mode decision method using the Markov-Chain-Monte-Carlo model and the Bayesian classifier to determine the optimal CU partitioning shapes. Min et al.  proposed a fast CU partition algorithm based on the analysis of edge complexity. As described in , Min et al. addressed a fast QTBT decision method based on the RD costs of the previously encoded CUs in VVC. Yang et al.  also proposed a fast QTBT decision method using the properties of intra prediction mode. Cho et al. proposed a fast CU splitting and pruning method for sub-optimal CU partitioning with Bayes decision rules in the intra prediction of HEVC . In [19,20], the proposed schemes exploited both texture properties and spatial correlations derived from neighboring CUs. In , a fast CU mode decision method was proposed to estimate the optimal prediction mode in HEVC. Recently, Park et al.  proposed a context-based fast TT decision (named C-TTD) method using the correlation according to the directional information between BTs and TTs. Saldanha et al.  proposed a novel fast partitioning decision scheme for VVC intra coding to reduce the complexity of the QTMT structure. This scheme is composed of two strategies that explore the correlation of the intra prediction modes and samples of the current CU for deciding the split direction of binary and ternary partitions. Fu et al. designed two fast encoding schemes to speed up the CU splitting procedure for VVC intra-frame coding . Lei et al.  proposed a look-ahead prediction based on a CU size pruning algorithm to cut down redundant MTT partitions. Wu et al.  investigated a support vector machine (SVM) based fast CU partitioning algorithm for VVC intra coding designed to terminate redundant partitions by using CU texture information. Fan et al.  proposed a fast QTMT partition algorithm using the texture properties such as variance and gradient to reduce the computational complexity of VVC CU partitions. This method exploited RD costs obtained from the previously encoded CU data based by using a probabilistic approach.
While the aforementioned methods evaluated statistical coding correlations between a current CU and neighboring CUs, recent researches have studied new fast decision schemes using Convolutional Neural Network (CNN) or Multi-layer Perceptron (MLP) to avoid the redundant block partitioning within video encoding processes. Xu et al.  defined a Hierarchical CU Partition Map (HCPM) with nine convolutional layers in order to determine the optimal CU partition structure in HEVC. Kim et al.  designed simple neural networks using MLP to estimate the optimal CU depth in HEVC. Galpin et al.  proposed a CNN-based block partitioning method for fast intra prediction in HEVC by exploiting texture analysis of CTU blocks to predict the most probable splits inside each potential sub-block. Wang et al.  proposed a QTBT partitioning decision in order to determine the optimal CU depth as a multi-classification problem in the inter prediction. Jin et al.  proposed a fast QTBT partition method with a CNN model to predict the depth range of QTBT according to the inherent texture richness of the image. Li et al.  addressed a deep learning approach to predict QTMT-based CU partition to accelerate the encoding process in the intra prediction of VVC. Lin et al.  proposed a CNN-based intra mode decision method with two convolutional layers and a fully connected layer. Zhao et al.  developed an adaptive CU split decision method with the deep learning and multi-featured fusion. Zaki et al.  also proposed a CtuNet framework to support CTU partitioning using deep learning techniques. As the aforementioned methods are mainly focused on speeding up QT or BT, fast encoding schemes for the TT split are still needed in VVC.
3 Proposed Method
The RD-based encoding procedures for the current CU are illustrated in Fig. 5, whereby the gray rectangles represent the newly adopted MTT (BT and TT) block structures in VVC. In order to find the optimal block structure, the encoder conducts the RD competitions for all MTT split types, including QT split according to the order illustrated in Fig. 5. In this paper, we propose a fast MTT decision method to determine the early termination of the TT split in the CU encoding process. Note that the proposed method can only be applied for cases wherein a further MTT split is allowed. For the implementation of the proposed method, we deployed two early termination networks for the horizontal and vertical TT splits, which are denoted as HTS-LNN and VTS-LNN, respectively.

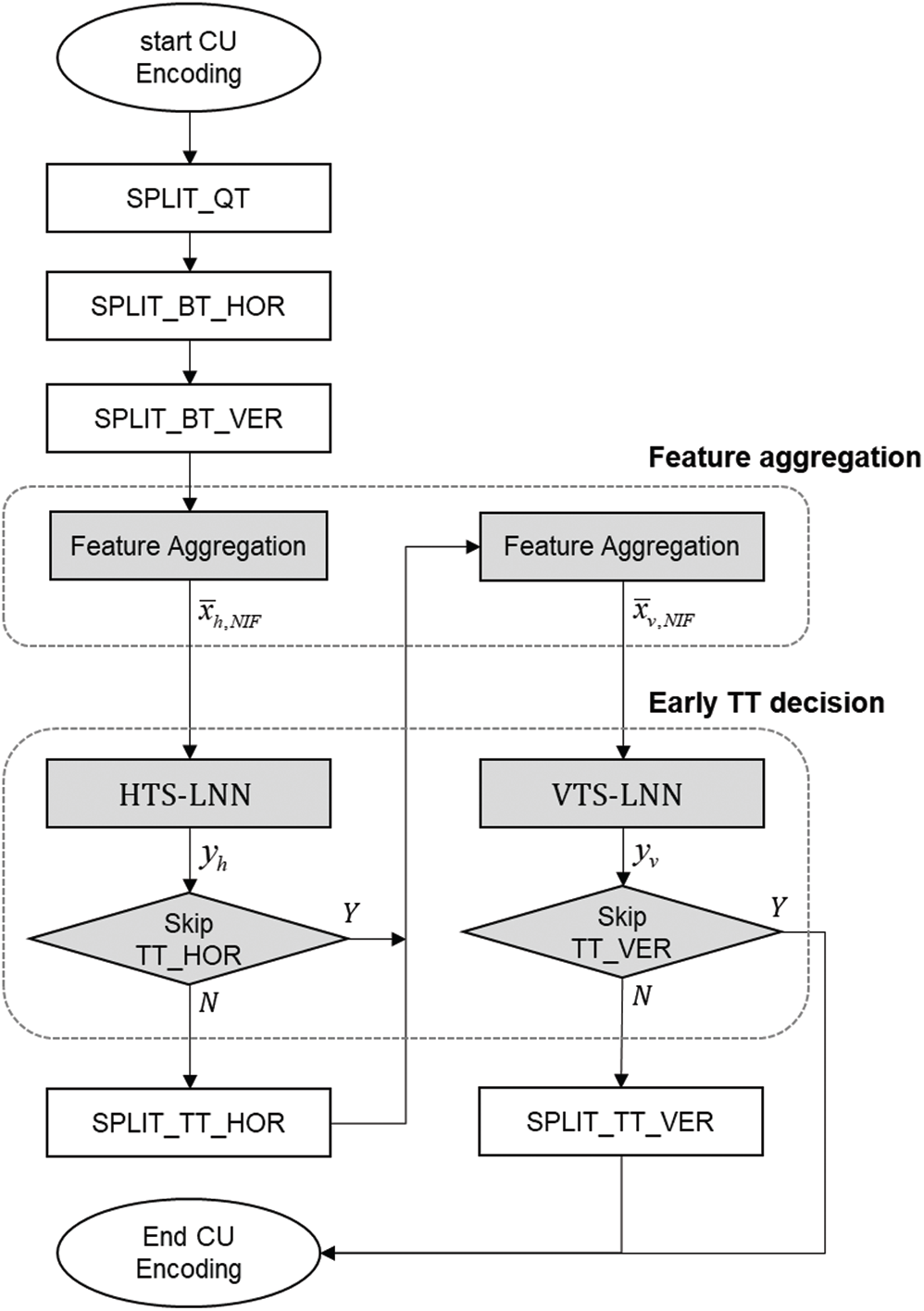

As shown in Fig. 6, the proposed method has two modules which are feature aggregation and early TT decision consisting of HTS-LNN and VTS-LNN. In the feature aggregation module, the Network Input Features (NIF) of the two LNNs are extracted halfway through encoding processes according to the TT direction. These are then fed into the two LNNs in order to be used as the input vectors, which are denoted as
3.1 Feature Aggregation
In this paper, we defined the relationship between the parent CU and current CUs used to extract the network input features. The parent CU can be either a QT node with a square shape or a MTT node with either a square or a rectangular shape covering the area of the current CU. For example, the divided QT, BT, and TT CUs can have the same parent CU, which is the QT node with 2 N
Because CNN generally requires heavy convolution operations between input features and filter weights, the proposed LNNs were designed to use fewer input features that can be easily extracted during the current CU encoding process. In this paper, we proposed four input features which are named as Ratio of Block Size (RBS), Optimal BT Direction (OBD), Ratio of the Number of Direction (RND), and TT Indication (TTI), respectively, as described in Tab. 1.
3.2 Early TT Decision with LNNs

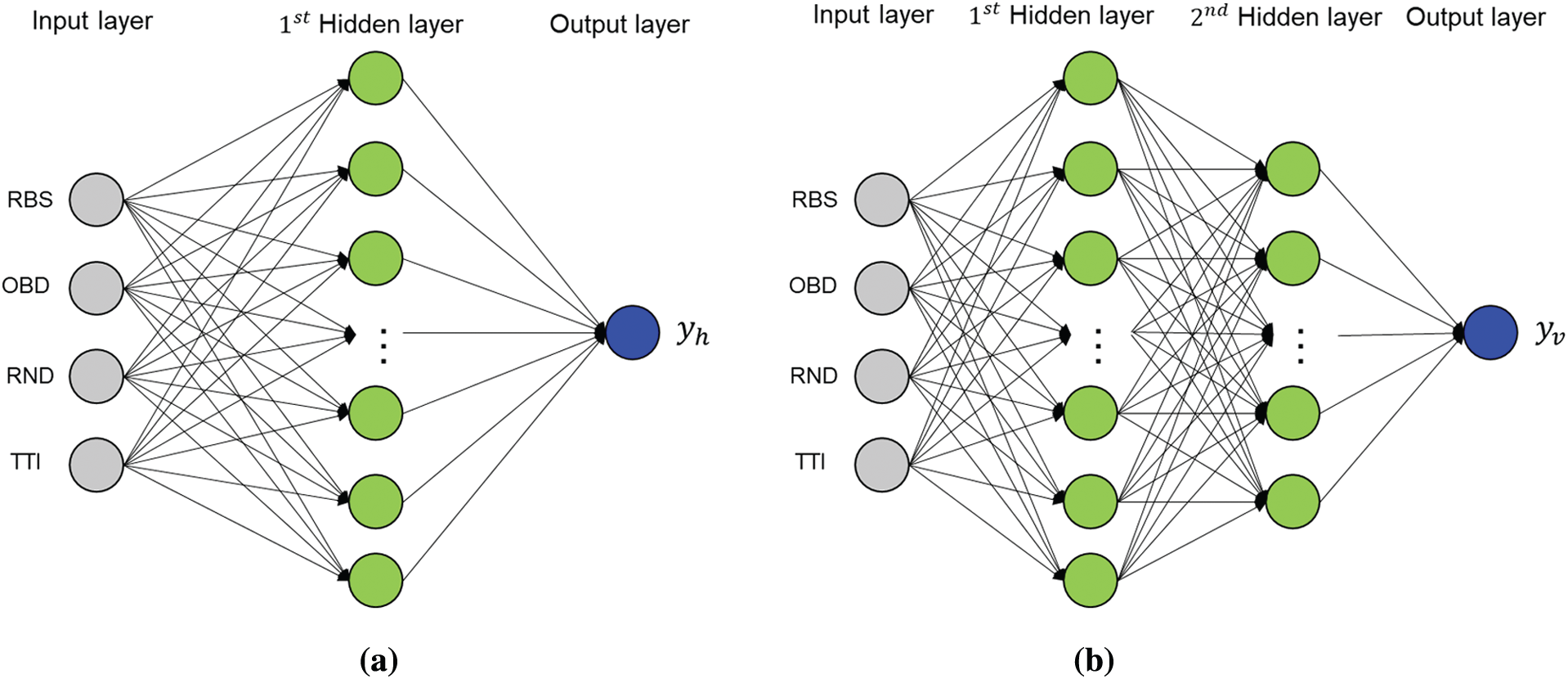

We implemented two LNNs with MLP architectures before the TT split, defined as HTS-LNN and VTS-LNN, according to the early termination of the horizontal and vertical TT splits, respectively. Through feature aggregation, a 1-dimensional (1D) column vector with four features as an input vector was identified for both HTS-LNN and VTS-LNN. As shown in Fig. 8, HTS-LNN consisted of four input nodes, one hidden layer with 15 hidden nodes, and one output node. Conversely, VTS-LNN consisted of four input nodes, two hidden layers with 30 and 15 hidden nodes, and one output node. The value of the output node finally determined the horizontal or vertical TT splits.
We implemented both HTS-LNN and VTS-LNN on PyCharm 2020.3.2 using the Keras library. In the process of network training, the output of the

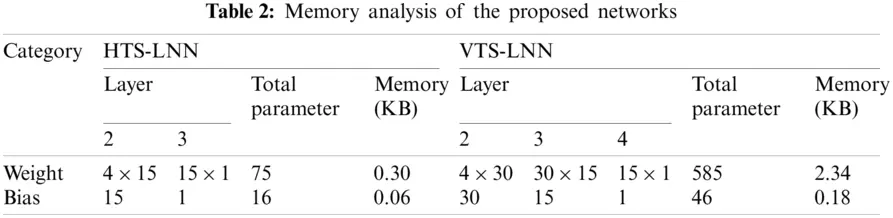

Tab. 2 shows the measured weight and bias parameters as well as the total memory size. Since the parameters were stored as a 4-byte floating number, the total memory of the proposed networks was less than 3 KB.
Under the AI configuration of JVET CTC , we collected training datasets halfway through the encoding by VTM 10.0  to train the proposed networks. A Quantization Parameter (QP) of 30 was selected to separate the training conditions from the testing conditions. The input features were then extracted with the type of floating number, which ranged from 0 to 1. The total numbers of input vectors for the training HTS-LNN and VTS-LNN were 185,988 and 209,337, respectively. In addition, 20% of them were used as the validation set. Note that the training datasets had to be extracted evenly for both the TT non-split and the TT split because the TT split was rarely encoded as the best block.

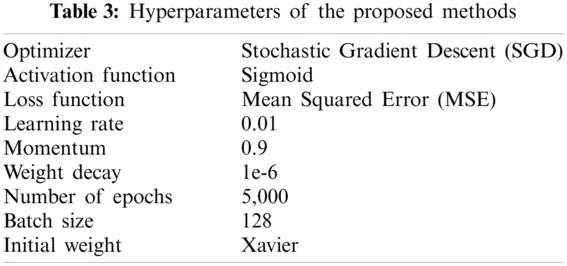

The selected hyperparameters are presented in Tab. 3. The weight values of the proposed networks were optimized using a Stochastic Gradient Descent (SGD) with a momentum value of 0.9 and a weight decay of 1e-6 . The batch size and learning rate were set at 128 and 0.01, respectively. The initialization of all MLP weights was performed according to Xavier’s normalized initialization procedure , whereby the optimized model parameters were updated iteratively within the predefined epoch number, and the Mean Squared Error (MSE) was used as a loss function. Finally, we implemented the trained models on top of VTM 10.0.
4 Experimental Results

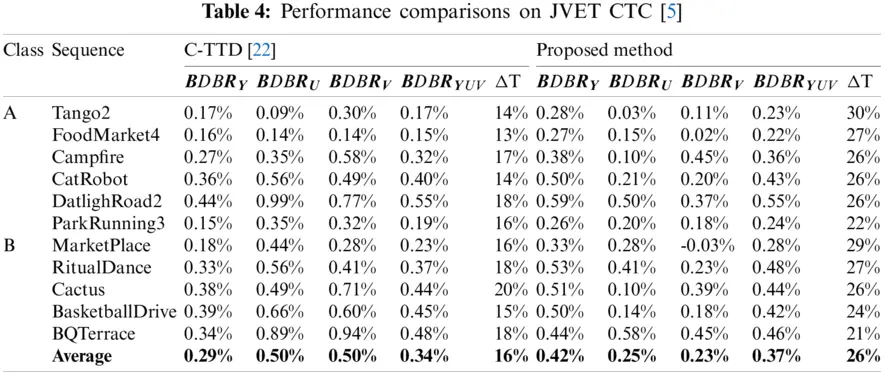

All experiments were run on an Intel Xeon Gold 6138 40-cores 2.00 GHz processors having 256GB RAM operated by the 64-bit Windows server 2016. In the class A (3,840 × 2,160) and B (1,920 × 1,080) sequences of JVET CTC, the proposed method was evaluated under AI configuration and we compared our method with the previous method , where VTM 10.0 was used as an anchor.
4.1 Performance Measurements
In order to evaluate the coding loss, we measured the Bjontegaard Delta Bit Rate (BDBR) . In general, a BDBR increase of 1% corresponds to a BD-PSNR decrease of 0.05 dB where the positive increment of BDBR indicates the coding loss. Eq. (2) represents the weighted average BDBR of Y, U, and V color components in the test sequences recommended by JVET CTC. For comparison of the computational complexity, we measured time-saving (

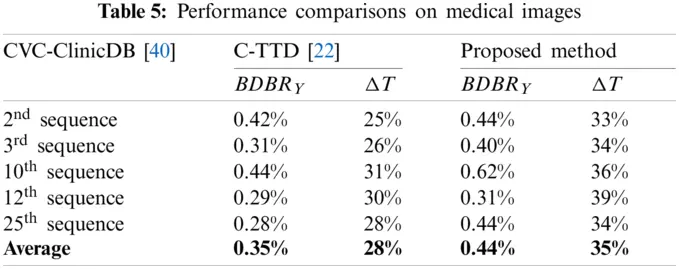

4.2 Ablation Works

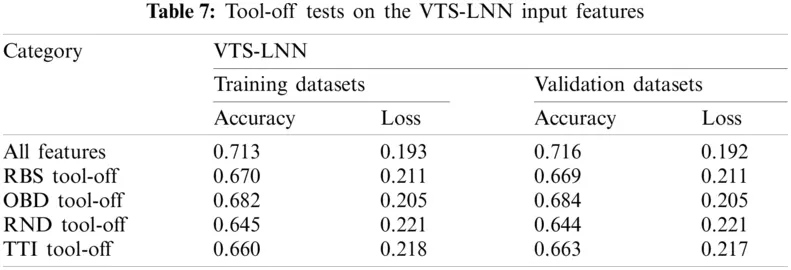

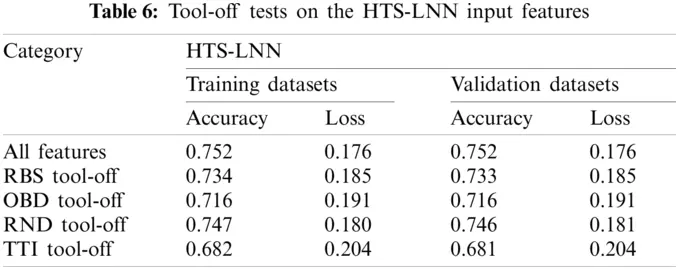

In order to optimize the proposed network architecture, it is essential to determine the valid input features, the number of hidden layers, and the number of nodes per hidden layer. Tool-off tests on both validation and training datasets were performed to measure the effectiveness of the four input features. This test involved measuring the efficacy of all input features combined (“all features”) and then by subsequently omitting one of the four input features. The results of the tool-off tests are illustrated in Tabs. 6 and 7. Since the “all features” input exhibited the best accuracy and the lowest coding loss, the effectiveness of each of the tool-off tests was determined as a proportion of the “all feature” category. Based on these findings, we confirmed that the proposed four input features affected the performance of our networks in different ways. In particular, the TTI and RND were identified as the most effective input features in the HTS-LNN and VTS-LNN, respectively.

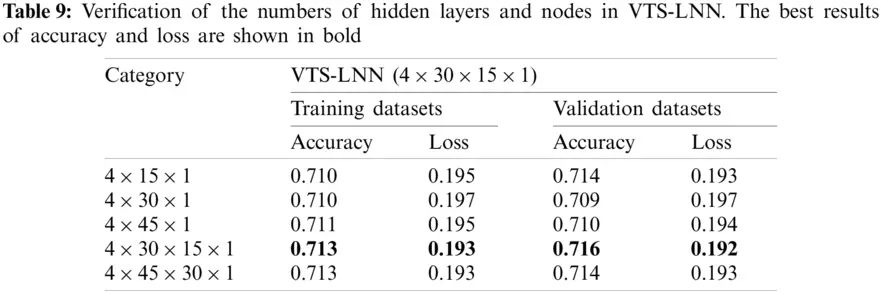

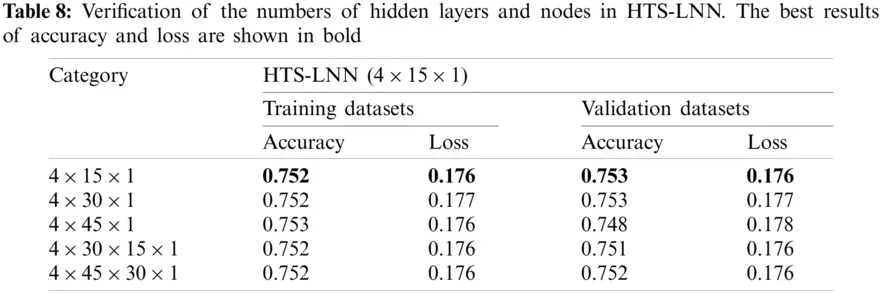

In terms of the number of hidden layers and the number of nodes per hidden layer, we investigated a few neural network models using different numbers of nodes and hidden layers, as shown in Tabs. 8 and 9. Note that the maximum number of hidden layers was set to two for all the lightweight network designs. After considering both the accuracy and the loss of networks, HTS-LNN was optimized under one hidden layer with 15 nodes. On the other hand, VTS-LNN was optimized under two hidden layers with 30 nodes in one of the layers and 15 nodes in the second layer.
In this paper, we proposed two LNNs with MLP architectures to determine the early termination of the TT split in the encoding process, namely HTS-LNN and VTS-LNN for the early termination of the horizontal and vertical TT splits, respectively. HTS-LNN consisted of four input nodes, one hidden layer with 15 hidden nodes, and one output node. On the other hand, VTS-LNN consisted of four input nodes, two hidden layers with 30 and 15 hidden nodes, and one output node. The various verification tests of those networks were conducted to determine the optimal network structure. In order to identify the effectiveness of this method for the transfer of medical images, we evaluated the performance of our approach using colonoscopy medical sequences obtained from the CVC-ClinicDB and JVET CTC sequences. Our experimental results indicate that the proposed method can significantly reduce the average encoding complexity by 26% and 10% with unnoticeable coding loss compared to the anchor and the previous method, respectively. Through visual comparison, we demonstrated that the proposed method could provide almost the same visual quality compared to the anchor.
Acknowledgement: This work was supported by Institute for Information & communications Technology Planning & Evaluation (IITP) grant funded by the Korea government (MSIT) (No. 2017-0-00072, Development of Audio/Video Coding and Light Field Media Fundamental Technologies for Ultra Realistic Tera-media)
Funding Statement: The author received no specific funding for this study.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
