Quaternion Integers Based Higher Length Cyclic Codes and Their Decoding Algorithm

Muhammad Sajjad1, Tariq Shah1,*, Mohammad Mazyad Hazzazi2, Adel R. Alharbi3 and Iqtadar Hussain4

1Department of Mathematics, Quaid-I-Azam University, Islamabad, 45320, Pakistan
2Department of Mathematics, College of Science, King Khalid University, Abha, 61413, Saudi Arabia
3College of Computing and Information Technology, University of Tabuk, Tabuk, 71491, Saudi Arabia
4Department of Mathematics, Statistics and Physics, Qatar University, Doha, 2713, Qatar
*Corresponding Author: Tariq Shah. Email: stariqshah@gmail.com
Received: 17 November 2021; Accepted: 15 February 2022

Abstract: The decoding algorithm for the correction of errors of arbitrary Mannheim weight has discussed for Lattice constellations and codes from quadratic number fields. Following these lines, the decoding algorithms for the correction of errors of n=p−12 length cyclic codes (C) over quaternion integers of Quaternion Mannheim (QM) weight one up to two coordinates have considered. In continuation, the case of cyclic codes of lengths n=p−12 and 2n−1=p−2 has studied to improve the error correction efficiency. In this study, we present the decoding of cyclic codes of length n=φ(p)=p−1 and length 2n−1=2φ(p)−1=2p−3 (where p is prime integer and φ is Euler phi function) over Hamilton Quaternion integers of Quaternion Mannheim weight for the correction of errors. Furthermore, the error correction capability and code rate tradeoff of these codes are also discussed. Thus, an increase in the length of the cyclic code is achieved along with its better code rate and an adequate error correction capability.

Keywords: Mannheim distance; monoid ring; cyclic codes; parity check matrix extension; syndromes decoding; code rate and error correction capability

1  Introduction

The study of the features of codes and their suitability for various applications is known as coding theory. Data compression, error detection and correction, security, data storage, and data transmission are all performed by codes. Code words are used in some digital communication systems for error correction or detection. Because of this, all code words in a message may have the same pattern of digits. As a result, the message becomes more redundant. As part of the message identification, each code word (without the first) in the message would have a code syndrome. The cyclic code does not utilize these syndromes for error correction. When a message's code words have been switched in specific sections of the system, simple decoding methods may reveal this. To decide which syndromes are appropriate, random and burst error correction codes are analyzed and compared to one another.

A perfect code is defined as one that achieves a bound (the sphere-packing bound) in a given metric. Perfect codes have long piqued the interest of coding theorists and mathematicians, since they play an essential theoretical and practical role in coding theory. Over finite fields, several perfect codes with regard to the Hamming metric are known, [1–5]. In the perspective of Hamming distance, the single error correction of cyclic codes (C) over the ring Zm of integers modulo m are defined by Han et al. [6]. Then, Tamm et al. [7] established that integer’s cyclic codes for general construction are perfect, and these codes are used for single error correction.

Though, in [8] Huber investigated that cyclic codes over Gaussian integers for two-dimensional signal space are perfect for one Mannheim error, and he further shaded light on the difference in Hamming and Mannheim distances. On the other hand, in [9] Huber substantiated the Mac William’s theorem for the codes having symbols from a finite field with a two-dimensional modulo metric. Neto et al. [10] spoke the cyclic codes over Gaussian integers Z[i] for Mannheim weight one and two, besides he has given a comparison of these cyclic codes with the cyclic codes having symbols from the ring Z[w] of algebraic integers. Nevertheless, Kostadinov [11] derived the bit error probability of the transmitted code word of an integer cyclic code using quadrature amplitude modulation (QAM). For two-dimensional signal patterns like QAM, Severe coding difficulties arise from the algebraic theory of block-cyclic codes over finite fields.

The cyclic, Bose Chaudhuri Hocquenghem (BCH), Srivastava, alternant, and Goppa codes having symbols from a unitary finite commutative ring R, are described by Andrade et al. in [12]. Accordingly, for this purpose, they used the factor ring of polynomial ring R[x] in one indeterminate x. Özen et al. [13] has introduced Quaternion Mannheim (QM) distance as a metric and give a decoding procedure of Cyclic codes of length n=p−12 over Quaternion integers. Andrade et al. [14,15] has given the modified Berlekamp-Massey decoding algorithm for cyclic, BCH, Goppa, alternan and Srivastava codes designed by the monoid ring R[x,12Z0] analogue to the codes obtained by polynomial ring R[x]. In continuation, Shah et al. [16,17] in the place of a polynomial ring, the construction of cyclic, BCH, Goppa, alternan and Srivastava codes over a finite ring are realized by the monoid ring.

Özen et al. in [18] further contributed some results on the construction of cyclic codes over some finite Quaternion integer rings with respect to the QM distance. However, Güzeltepe et al. [19] has discussed Gaussian, Lipschitz, and Hurwitz weight codes for error correction and revealed that these codes are perfect. A comparison of the code rate, bandwidth, and average energy is also part of the study of [19]. Following the cyclic code’s design through monoid ring as described in [14–19] have introduced the decoding of C over Quaternion integers of length n=p−12 for QM weight two. Moreover, they also discussed the corresponding 2n−1=p−2 length cyclic codes of the n=p−12 length cyclic codes for QM weight one and two.

The goal of this work is to demonstrate a decoding procedure for cyclic codes of length n=φ(p)=p−1 with QM weight one and two by following the lines drawn in [13,20]. In addition, followed monoid ring technique given in [20] for the designing of cyclic codes, the decoding procedure of the cyclic codes of length 2n−1=2φ(p)−1=2p−3 with QM weight one and two is obtained. Thus, a gain in the increase code rate of cyclic codes due to prime p, is achieved.

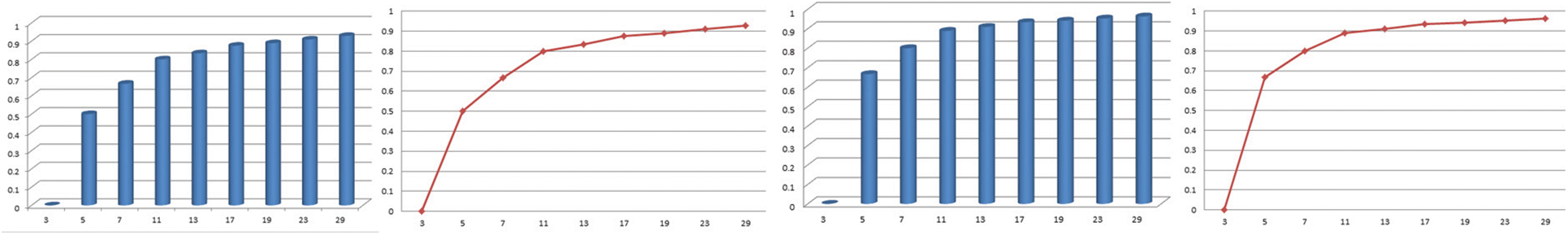

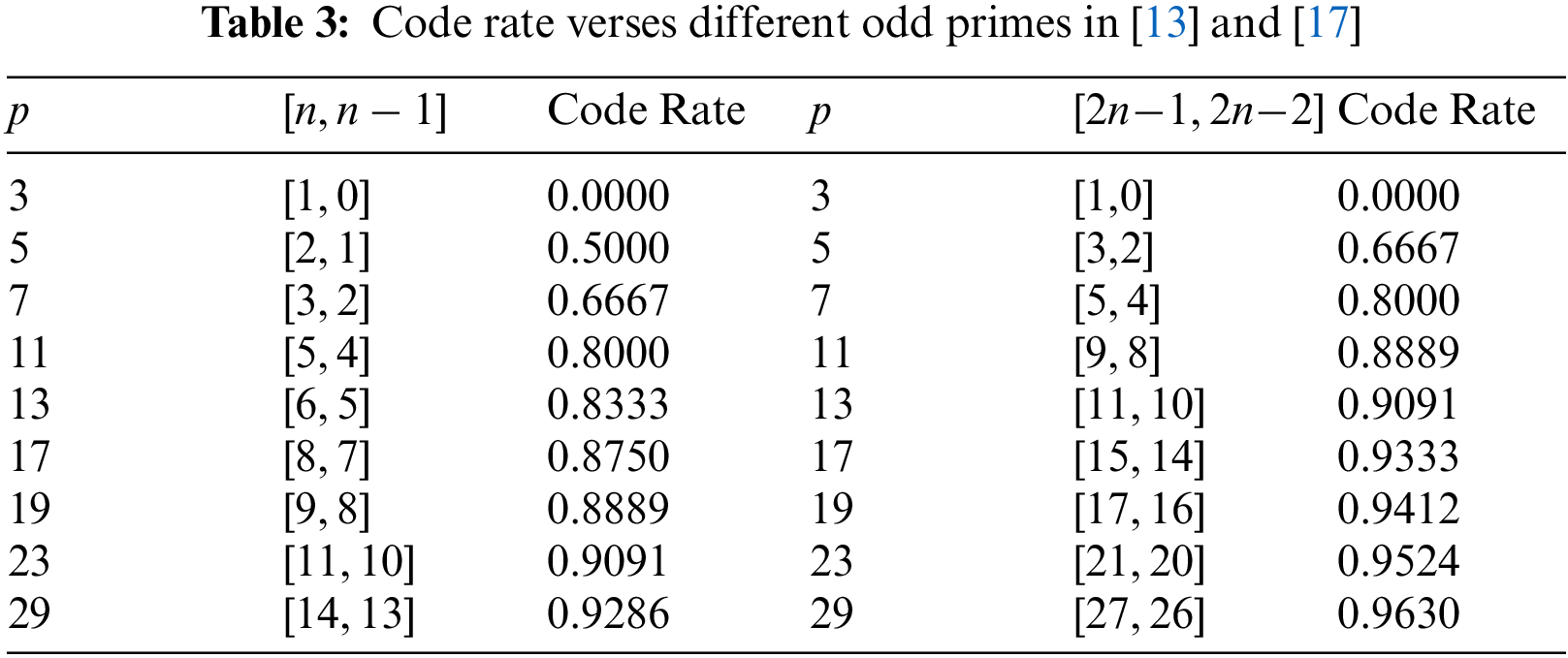

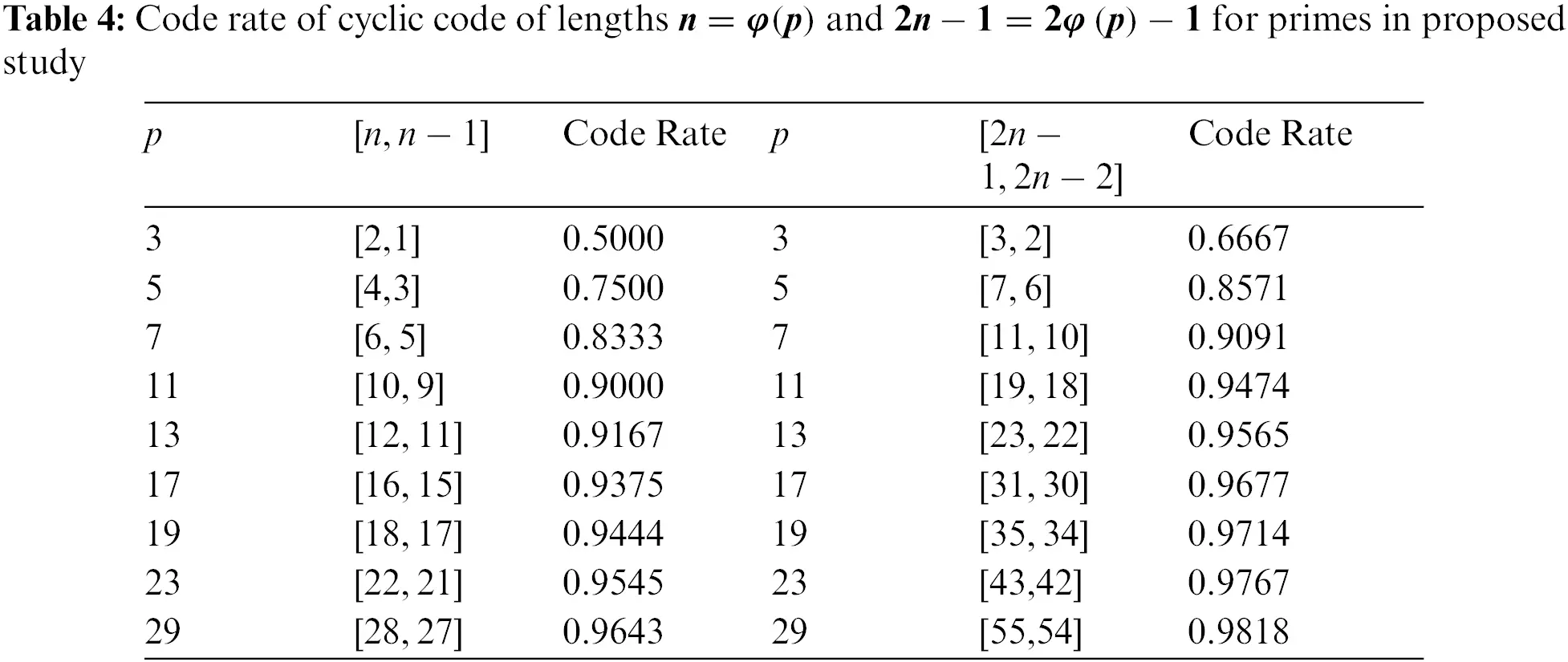

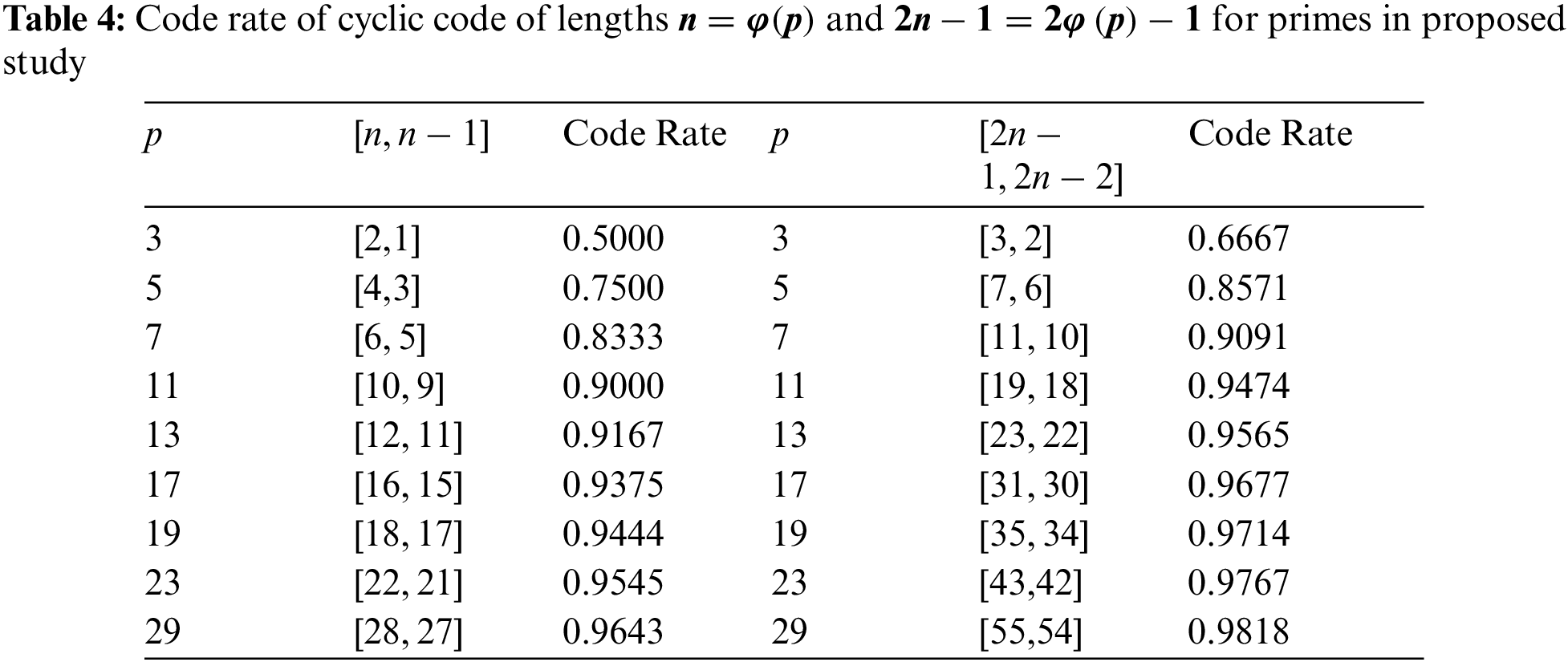

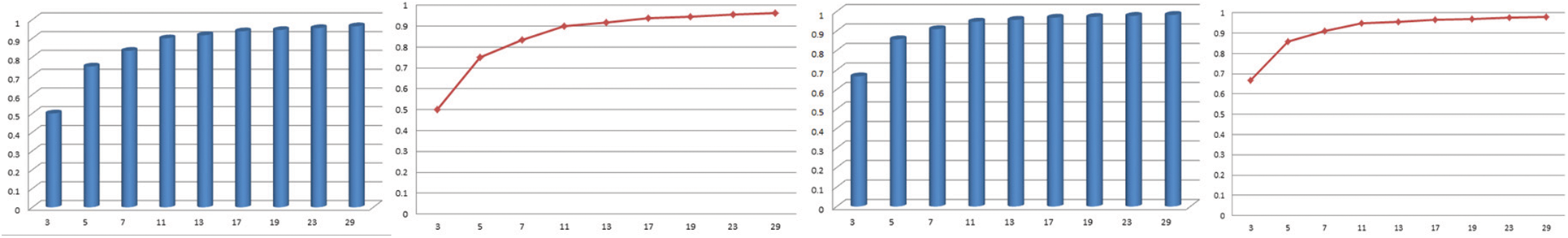

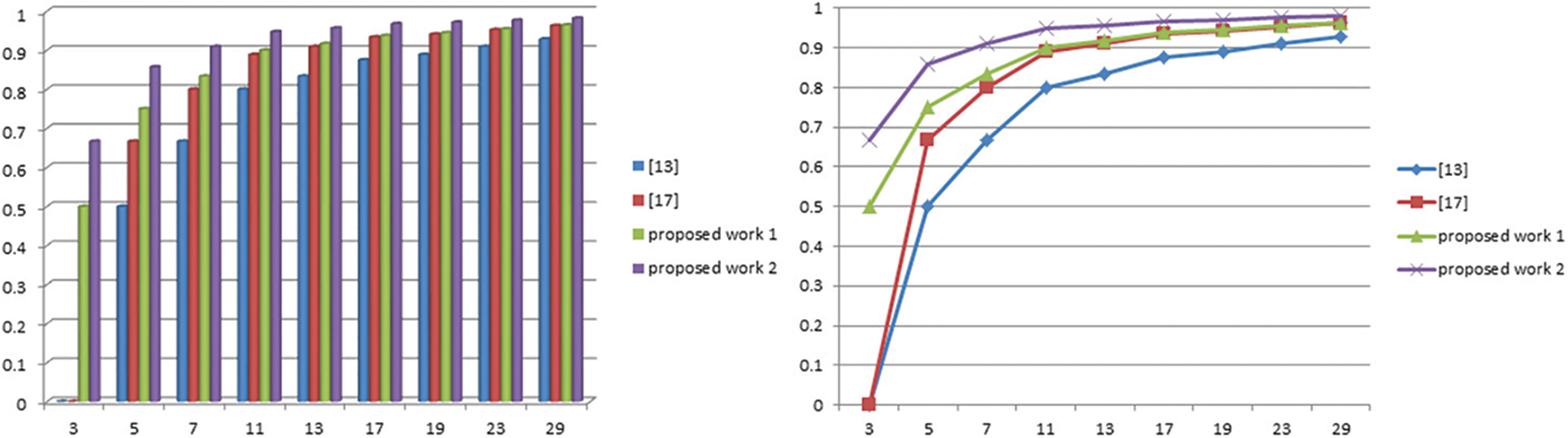

The rest of the paper is laid out as follows: Related work is discussed in Section 2. In Section 3, single and double error-correcting cyclic codes of length n=φ(p)=p−1 for QM weight one and two by following techniques in [10,20]. In Section 4, the parity check matrix (H) of the cyclic code of length n=φ(p)=p−1 is extended to parity check matrix (H) of the cyclic code of length 2n−1=2φ(p)−1=2p−3. Consequently, single and double error-correcting cyclic codes of length 2n−1=2φ(p)−1 for QM weight one and two through monoid rings by following techniques in [20] is obtained. In Section 5, code length and code rates comparison of the cyclic codes for different odd primes. Finally, Section 6, concluded the findings of the study and future directions respectively.

2  Preliminaries

This section provides the key concepts and basic findings that will be used in the study of upcoming sections. First of all, we recall definition of Quaternion integers, QM weight, QM distance and some related results.

2.1 Hamilton Quaternion Integers

By following [21], the Hamilton Quaternion algebra over the set of the real number R, indicate by H(R), is the associative unital algebra by the following conditions.

1.    H(R)={b0+b1i+b2j+b3k:b0,b1,b2,b3∈R} is free R module.

2.    Multiplicative identity is 1.

3.    i2=j2=k2=−1 and jk=−kj=i,ki=−ik=j,ij=−ji=k.

The Quaternion integer ring H(Z)={b0+b1i+b2j+b3k:b0,b1,b2,b3∈Z} is contain in H(R), where Z is the ring of integers. If q=b0+b1i+b2j+b3k is a Quaternion integer, then q¯=b0−b1i−b2j−b3k is the Quaternion conjugate of q. N(q)=qq¯=b02+b12+b22+b32 is the norm of q. A Quaternion integer q having only two parts one is scalar part b0 and other is vector part b1i+b2j+b3k. In Quaternion integer’s commutative property of multiplication is not hold. It is possible only in case of two vector part of quaternion integers are parallel.

Define H(K) as: H(K)={c+dV:c,d∈Z}, Where V indicates (i+j+k). H(K) is a subring of the Quaternion integer ring H(Z), then the commutative property of multiplication holds over H(K).

Theorem: In [21], the set of natural numbers for each odd rational prime p, there is a prime π∈H(Z), such that N(π)=p=ππ¯. In particular, p is not prime in H(Z).

Corollary: In [18], π∈H(Z) is prime in H(Z) if and only if N(π) is prime in Z.

Definition: In [18], let residue class of H(K)π is H(K) modulo π, π=a+bV. Then, the modulo function

define as ω(q)=z mod π=q−[qπ¯ππ¯]ππ.¯

where z∈H(K)π. In the above expression, the number of [.] is rounding to the nearest integer. Quaternion integer rounding should be possible by rounding the coefficients of vector part and scalar part independently to the nearest integer.

Definition: Let β,ρ∈H(K)π and α=β−ρ=(b0+b1i+b2j+b3k)(mod π). The QM weight of γ be characterized as WQM(α)=|b0|+|b1|+|b2|+|b3|

and Quaternion Mannheim distance dQM(α) between β and ρ is defined as WQM(α)=dQM(ρ,β)

Remark: Indeed, Quaternion Mannheim weight WQM is a metric.

2.2 Construction of Cyclic Codes

Construction of cyclic codes of length n=φ(p)=p−1 by following the techniques of [10]. Let ξ is the primitive element of H(K)π, p be a prime in Z, where π=b0+b1i+b2j+b3k, p=ππ¯ and ξp−1=1. Then cyclic code (C) defined by H as follows;

H=(ξ0ξ1⋯ξφ(p)−1⋮⋱⋮ξ0ξt+1⋯ξ(t+1)(φ(p)−1))(1)

where t is nonnegative integer less than n. A vector c=(c0,c1,…,cφ(p)−1)∈H(K)πn is a codeword of C if and only if Hctr=0. If c(z)=∑j=0n−1cjzj is a codeword polynomial, then c(ξi+1)=0,for i=0,1,2,⋯,t. The polynomial f(z)=(z−ξ)(z−ξ2)⋯(z−ξt+1) is the generator polynomial of cyclic code C, and C=⟨f(z)⟩ is a principle ideal of H(K)π[z]/⟨zn−1⟩. If we multiple c(z) by z(mod(zn−1)), then zc(z)=c0z+c1z2+⋯+cn−1zn. But we know that zn=1. Therefore, if c(z)∈C, then zc(z)∈C. Thus, multiply c(z) by z(mod(zn+1)) means the following:

1.    For Cyclic Shift c(z) shift one place to the right.

2.    Locating the initial symbol of the new codeword by rotating the coefficient cn−1 by π radians.

3  Error Correction of Cyclic Codes of Length n=φ(p) for QM Weights One and Two

This section consists of decoding method for C of length n=φ(p) that uses the techniques in [ [13], Section 3, and Section 4 ] and [ [17], Section 3, Theorem 2, Lemma 1 and Theorem 3] to rectify single and double errors of QM weight one and two.

3.1 Single Error Correcting Cyclic Codes of QM Weight One

Let ξ is the primitive element of H(K)π, π=b0+b1i+b2j+b3k, p=ππ¯ and ξp−1=1 Then,

H=(ξ0ξ1ξ2⋯ξφ(p)−1)(2)

G=(−ξ110⋯0⋮⋱⋮−ξφ(p)−100⋯1)(3)

The one QM error-correcting codes of length n=φ(p) can be constructed by H. Then C defined by H in Eq. (2) is able to correct any QM error of weight one. The possible error values are 1 or −1. For the decoding procedure first step is to find the syndrome S(r)=Hrtr with the help of H and the received vector r. Then the error value is computed by Sξ−l, where l(mod n=φ(p)) is a non-negative integer which is helpful for error location. Hence, c=r−e is the corrected codeword.

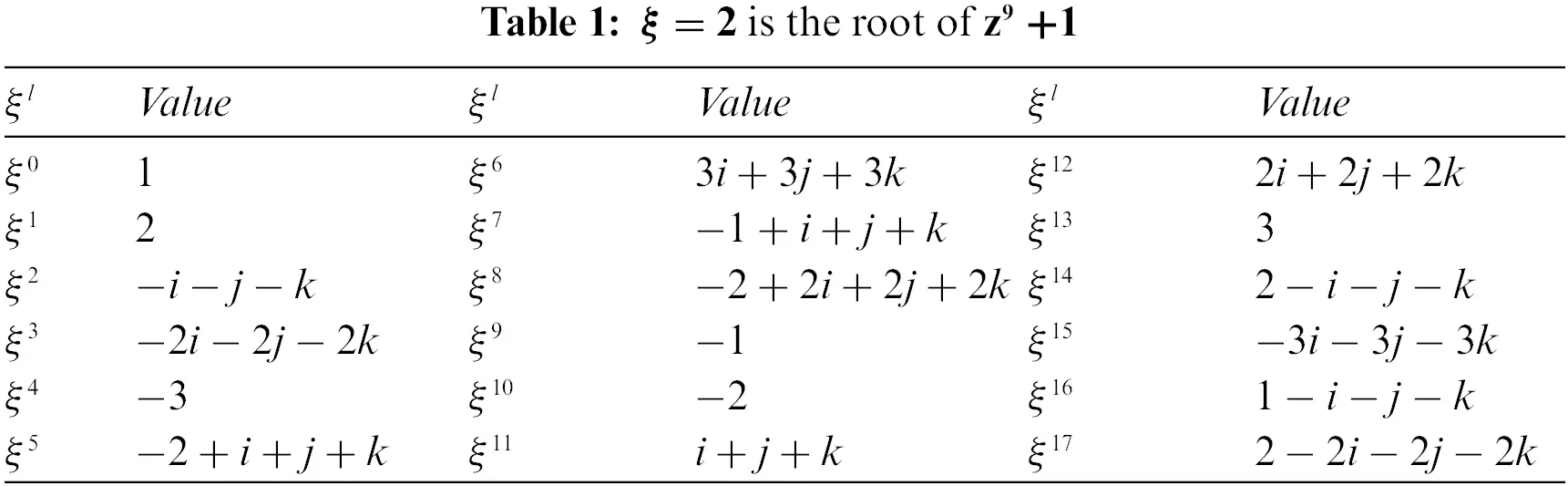

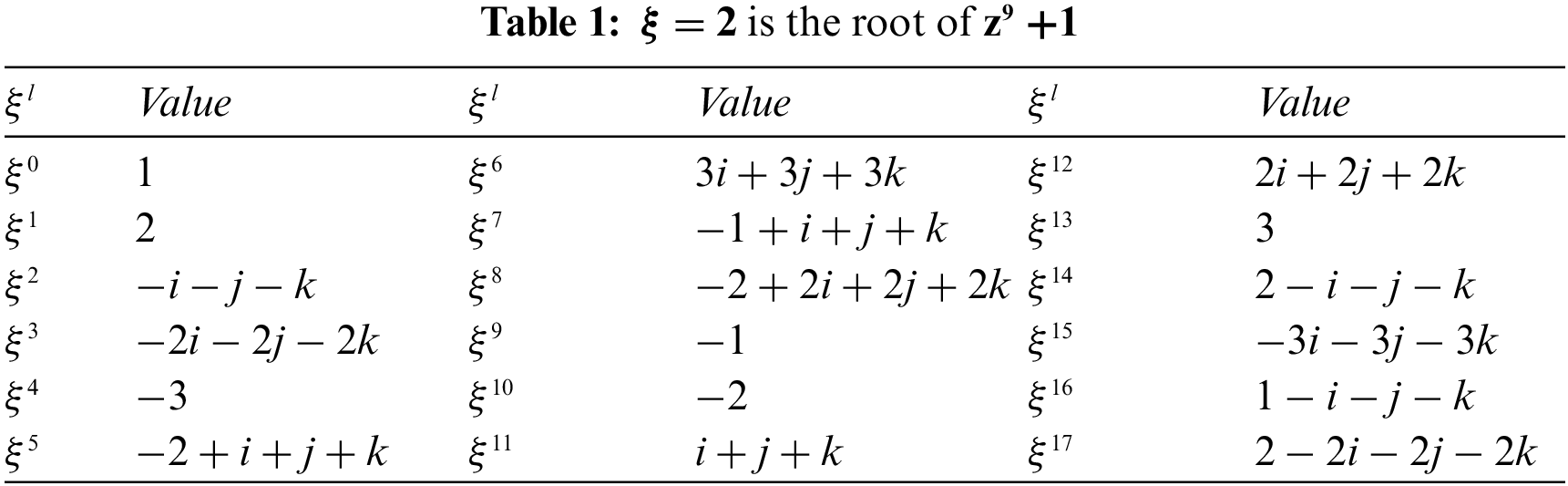

Illustration: Let π=4+i+j+k, p=19, n=φ(p)=18 and ξ=2. Then, H and G by using Eqs. (2) and (3) and ξ be the primitive element of H(K)π, see Tab. 1 respectively;

11≡11(mod 18), it means error occur in received vector at location 12. Hence error value is Sξ−11=1(mod π). c=(1−i−j−k,1,−1+i+j+k,0,0,0,0,0,0,0,0,−1,0,0,0,0,0,−1).

Hctr=O(mod π). Hence, c is a codeword of C.

Perfect codes of Lengthn=φ(p) for QM Weight One:

The cyclic codes defined by H of length n=φ(p)=p−1 in Eq. (2), can be generalized as

H=(ξ0ξ1ξ2⋯ξφ(pr)−1)(4)

The cyclic codes defined by the generalized H are perfect in Eq. (4), by the sphere packing bound, since we have pn−r(n+2)=pn−rpr=pn.

3.2 Double Error Correcting Cyclic Codes of QM Weight One

Theorem: Let cyclic code (C) defined by H in Eq. (1). Then cyclic code (C) can be correct error as the form e(x)=ejxj+eixi, where 0≤WQM(ej),WQM(ei)≤1.

Proof: Consider two errors occur at two different places l1,l2 in received r and two error vectors e1,e2 of QM weight 0≤wQM(e1),WQM(e2)≤1. First, find syndromes with the help of H and the transpose of received vector r as;

H=(ξ0ξ1ξ2⋯ξφ(p)−1ξ0ξ2ξ4⋯ξ2φ(p)−2)(5)

S(r)=Hrtr=(s1s2)(modπ)(6)

Now we find a polynomial h(x) for the location and correction of errors as follows:

h(x)=(x−ξl1)(x−ξl2)=x2−(ξl1+ξl2)x+ξl1.ξl2=x2−s1x+η(7)

Where we can get η by syndromes. From s1=ξl1+ξl2,s2=ξ2l1+ξ2l2 and η=ξl1ξl2. we get

s12−s2=(ξ2l1+ξl2)2−(ξ2l1+ξ2l2)=2ξl1ξl2=2η(8)

s12−s22=2η2=η(modπ)(9)

Thus, h(x) helps for the locations and error values. If ξ1l1 and ξ2l2 are roots of h(x), then l1(modn)=m1, l2(modn)=m2 are locations of error and error values are e1=ξl1m1, e2=ξl2m2 which having three possibilities. If both two syndrome s1 and s2 are zeros then no error occurs. If s12=s2≠0, then one error occurs. If s12≠s2 and s1≠0, then two error occurs.

Illustration: Let π=4+i+j+k, p=19, n=φ(p)=18 and ξ=2. Then, H by using Eq. (5) and elements see Tab. 1 respectively; H=(ξ0ξ1ξ2⋯ξ17ξ0ξ2ξ4⋯ξ34),

S(r)=Hrtr=(i+j+k2−2i−2j−2k)=(ξ11ξ17)(mod π)=(s1s2), Both syndromes s1, s2 are non-zeros and s12≠s2≠0. Hence two error occurs. By Eq. (9), η=s12−s22=ξ13(mod π). Hence error polynomial by Eq. (7) is h(x)=x2−ξ11x+ξ13. Error locator polynomial roots h(x) are ξl1=ξ4 and ξl2=ξ9, so, error locations are 4 and 9 in received vector r. Hence, error values are el1=1 and el2=1. c=(1−i−j−k,1,−1+i+j+k,0,−1,0,0,0,0,−1,0,0,0,0,0,0,0,−1)1×18.

Hctr=O( mod π). Hence, c is a codeword of C.

Theorem: The cyclic code C defined by H in Eq. (1) has the minimum QM distance dQM≥4. If p be a prime in Z then π be a prime in H(Z), where p=ππ¯≥19 and t=1.

Proof: The decoder’s ability to distinguish between single and double errors is all that is required in this proof. Assume QM weight error is one. Then, s12=s2≠0(modπ). From Eq. (7),

x1,2=s1±s2s12=s1±s12(10)

Hence, the decoder can differentiate in single and double errors.

3.3 Single Error Correcting Cyclic Codes of QM Weight Two

Theorem: Let ξ is the primitive element of H(K)π, π=b0+b1i+b2j+b3k and p=ππ¯. Let a cyclic code C of length n=φ(p)=p−1 define by H.

H=(ξ0ξ1ξ2⋯ξφ(p)−1ξ0ξ2ξ4⋯ξ2φ(p)−2)(11)

then the error of code C can be correct as of the form e(x)=elxl, where 1≤wQM(el)≤2.

Proof: Let ξi is error which occurred in location j, where 0≤i≤n−1 and 0≤j≤n−1. Let e(x)=ξixj be the error structure. Then, s1=ξj+i and s2=ξ2j+i are syndromes. Let s1=ξl1 and s2=ξl2 are the basis of sjj=1,2.

{s1=ξj+i,⟹j+i≡l1(modp−1)s2=ξ2j+i,⟹2j+i≡l2(modp−1)(12)

Eq. (11) having unique solution at j=l2−l1 (mod p−1), i=l1−j (mod p−1). Hence we conclude that error is occurred in location (l2−l1)(mod n) with magnitude ξi.

Illustration: Let π=4+i+j+k, p=19, n=φ(p)=18 and ξ=2. Then, we have H by using Eq. (11) and elements of Tab. 1 respectively; H=(ξ0ξ1ξ2⋯ξ17ξ0ξ2ξ4⋯ξ34)(2×18),

S(r)=Hrtr=(3i+3j+3k3i+3j+3k)=(ξ6ξ6)(mod π)=(s1s2), Both syndromes s1, s2 are non-zeros. By using Eq. (12), {s1=ξ6,⟹j+i≡6(mod18)s2=ξ6,⟹2j+i≡6(mod18), Solve the above system, we get error location j=0 and error magnitude ξ6=3i+3j+3k.

Hctr=O (mod π). Hence, c is a codeword of C.

3.4 Double Error Correcting Cyclic Codes of QM Weight Two

Theorem: Let a cyclic code C of length n=φ(p) define by H as:

H=(ξ0ξ1ξ2⋯ξφ(p)−1ξ0ξ2ξ4⋯ξ2φ(p)−2ξ0ξ3ξ6⋯ξ3φ(p)−3ξ0ξ4ξ8⋯ξ4φ(p)−4)(13)

Then,

1.    ξl2−ξl1≠0, where l1, l2∈Z,0≤l1<l2≤n−1

2.    S1S3−S22≠0, otherwise, in received vector only one coordinate is in error.

Proof: 1. Suppose ξl2−ξl1=0. Then, ξl2=ξl1 this implies that ξl1−l2=1. So, n|(l1−l2). But n>n−1≥l1−l2, a contradiction that the order of ξ is n.

2. S1.S3−S22=0. Then, S1.S3=S22. If and only if ξ2l1S1x+ξ2l2S12−ξ2l2S1x=(ξl2−ξl1)2x2+ξ2l2S12+2ξl2(ξl1−ξl2)S1x. If and only if (ξl1−ξl2)2x2+2ξl1+l2S1x−ξ2l1S1x−ξ2l2S1x=0.Therefore, either x=0 or (ξl1−ξl2)2x+2ξl1+l2S1−ξ2l1S1−ξ2l2S1=0. if x=0 then it is not possible because ρl+s≠0. If (ξl1−ξl2)2x+2ξl1+l2S1−ξ2l1S1−ξ2l2S1=0, then x=(ξl1−ξl2)2.S1(ξl1−ξl2)2=S1.If and only if y=0. That’s also correct, if and only if ξl2+s=0. This is a contradiction that until in a received vector only one coordinate is in error. Hence, S1.S3−S22≠0 whenever two errors occurs.

Theorem: Let a cyclic code C of length n=φ(p) define by H as:

H=(ξ0ξ1ξ2⋯ξφ(p)−1ξ0ξ2ξ4⋯ξ2φ(p)−2ξ0ξ3ξ6⋯ξ3φ(p)−3ξ0ξ4ξ8⋯ξ4φ(p)−4); then the error of C can be corrected as the form e(x)=el1xl1+el2xl2, where 0≤l1<l2≤n−1 with, 0≤WQM(el1),WQM(el2)≤2.

Proof: Consider el1≠0 and el2≠0. In previous Theorem either el1=0 or el2=0. So by the help of H there are four syndromes

{S1=el1ξl1+el2ξl2S2=el1ξ2l1+el2ξ2l2S3=el1ξ3l1+el2ξ3l2S4=el1ξ3l1+el2ξ3l2(14)

Let u=el1ξl1 and v=el2ξl2, we get the following linear system of equations

{S1=u+vS2=uξl1+vξl2S3=uξ2l1+vξ2l2S4=uξ3l1+uξ3l2(15)

Two errors can be correct in code C if and only if the Eq. (14) has only unique solution. Since el1≠0 and el2≠0, then the system has unique solution. By using u+v=S1 then Eq. (13) becomes,

{(ξl1−ξl2)u=S2−ξl2S1(ξ2l1−ξ2l2)u=S3−ξ2l2S1(ξ3l1−ξ3l2)u=S4−ξ3l2S1(16)

which implies that

(ξl1+ξl2)(S2−ξl2S1)=S3−ξ2l2S1(17)

(ξ2l1+ξl1ξl2+ξ2l2)(S2−ξl2S1)=S4−ξ3l2S1(18)

Consider S=ξl1+ξl2 and P=ξl1ξl2. Then

{S(S2−ξl2S1)=S3−ξ2l2S1(S2−P)(S2−ξl2S1)=S4−ξ3l2S1(19)

From Eq. (16), we get P=SS2−S3S1, Since S1≠0, from Eq. (17), we get

S=S1S4−S2S3S1S3−S22(20)

S1S3−S22≠0, otherwise in a received vector only one coordinate is in error. By Eqs. (17) and (18),

P=S2S4−S32S1S3−S22(21)

X2−SX+P=0(22)

is the equation of sum and product of roots and the roots of this equation are x1=ξl1 and x2=ξl2,where l1 and l2 are error locations and error values are

{el1=S2−ξl2S1ξl1(ξl1−ξl2)el2=S2−ξl1S1ξl2(ξl2−ξl1)(23)

Illustration: Let π=4+i+j+k, p=19, n=φ(p)=18 and ξ=2. Then, H is define by using Eq. (13) and elements of Tab. 1 respectively;

Here, S1,S2,S3 and S4 are four syndromes. By using Eqs. (20) and (21), we get, S=ξ15 and P=1. X2−ξ15X+1=0, and roots of this equation are ξ and ξ17. The error occurs at position 1 and 17 in the received vector r. By Eq. (23), the error values are 1 and −1. e=(0,1,0,0,⋯0,−1)1×18,c=(0,0,0,0⋯0,0)1×18

Hctr=O(modπ). Hence c is a codeword of C.

4  Parity Check Matrix Extensions of n=φ(p) Length to 2n−1=2φ(p)−1 Length Cyclic Codes and Error Correction of these Codes for QM Weight One and Two through Monoid Rings

Parity check matrix extension of C of length n = φ(p) to 2n−1=2φ(p)−1 length and this constructed parity check matrix is in blocks of parity check matrices by following techniques in [ [20], Section 4] will be discussed in this Section. Furthermore, single and double error correction of these cyclic codes for quaternion mannheim weight one and two through moniod ring using techniques in [ [20]; Section 5].

Let an associative ring and semigroup are (B,+,.) and (Q,∗). Let a set Y of all finite non zero functions from Q into B. Let a ring Y which defines by binary operation addition and multiplication as: For h,g∈Y,s′∈Q, (h+g)(s′)=h(s′)+g(s′),(h.g)(s′)(x+a)n=∑t′∗u′=s′h(t′).g(u′).

It is clear that the sum is obtained by the pairs (t′,u′) elements of Q so that s′=t′∗u′ and for any t′,u′∈S if s′ is not expressed as the form t′∗u′, then (h.g)s′=0. Hence Y is called a semigroup ring of Q over B. If Q is monoid, then Y is known as a monoid ring. Hence Y ring is characterized by B[Q], here Q indicates multiplicative semigroup and Y written as ∑s′∈Qh(s′)s′. Here Y shows B[X,Q], where Q shows additive semi group. Here isomorphism between additive semigroup Q and multiplicative semigroup {Xs′:s′∈Q}, Hence h′∈B[X,Q] shows unique canonical form of non zero elements ∑k=1nh(sk′)Xsk′=hXsk′, where hk is non-zero and sk′≠(s′)j. The idea of order and degree is not commonly used for the semigroup rings if we take ordered semigroup Q, i.e., if ∑k=1nh(sk′)Xsk′, s1′<s2′<s3′⋯<sn′ is the canonical form of the non-zero element h∈B[X,Q], then deg(h)=sn′ and ord(h)=s′. Now, if integral domain is R, then for g,h∈B[X,Q], then deg(g+h)=deg(g)+deg(h),ord(g.h)=ord(g)+ord(h). If Q is not Z0 and B would be an associative ring, semigroup B[X,Q] is called polynomial ring B[X]. Of course, B[X]=B[X,Z0]⊂B[X12Z0]. For semigroup ring concepts the Gilmer’s book [22] is better. Extension of parity check matrix H of C of length 2n−1=p−2 in [ [17]; Section 4]; By following these parity check matrices, we describe H of C of length 2n−1=2φ(p)−1=2p−3 as follows:

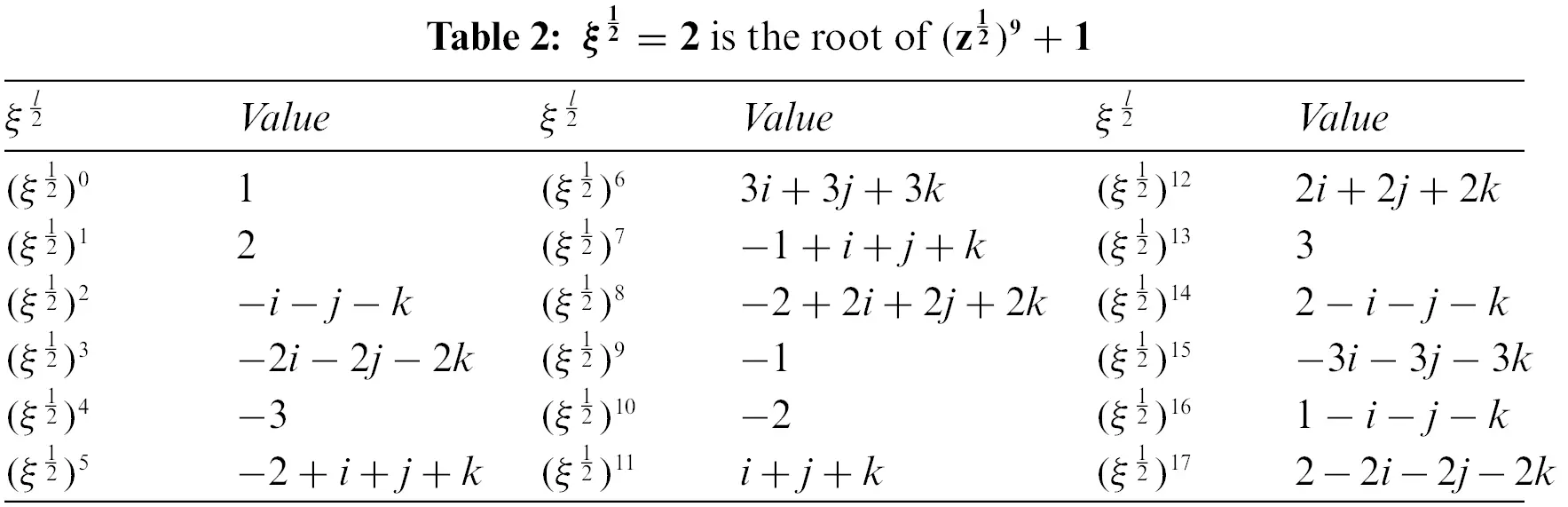

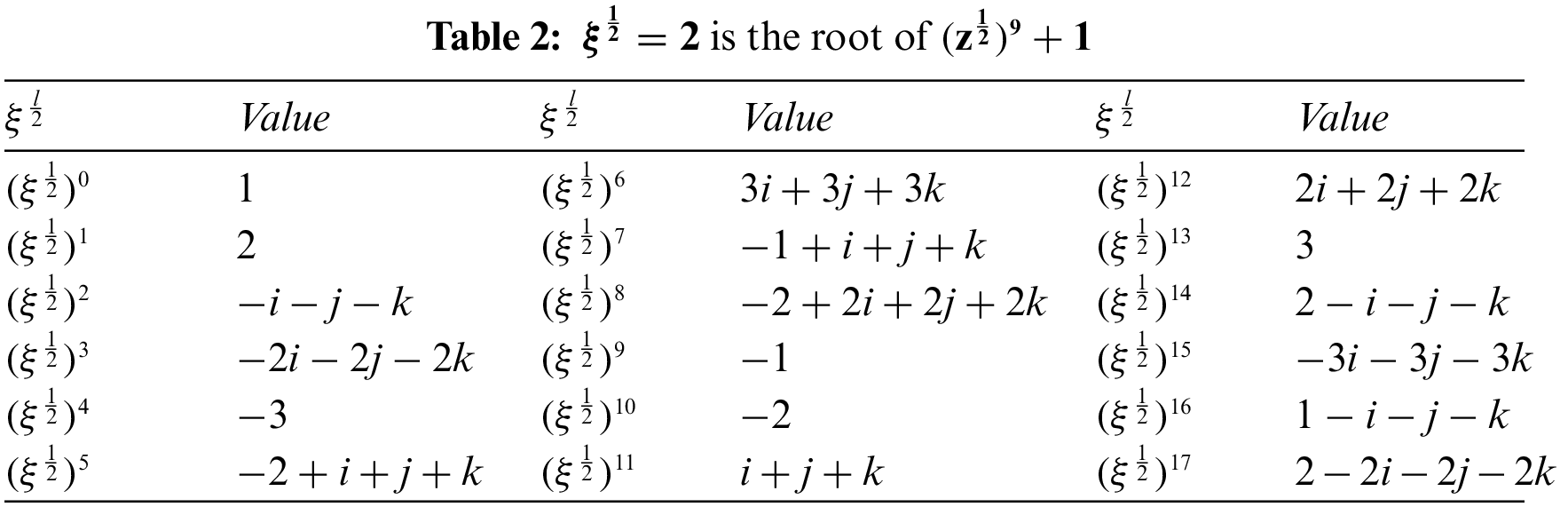

H=((ξ12)0(ξ12)1⋯(ξ12)2φ(p)−1−1⋮⋱⋮(ξ12)0(ξ12)(2t+1)⋯(ξ12)(2t+1)(2φ(p)−1−1))(24)

1.    H can be written in block form H11,H12,H21 and H22 as: H=(H11H12H21H22); H11=((ξ12)0(ξ12)1⋯(ξ12)φ(p)−1⋮⋱⋮(ξ12)0(ξ12)(t+1)⋯(ξ12)(t+1)(φ(p)−1)); H21=((ξ12)0(ξ12)2(t2)+1⋯(ξ12)(φ(p)−1)(2(t2)+1)⋮⋱⋮(ξ12)0(ξ12)2t+1⋯(ξ12)(φ(p)−1)(2t+1)); H12=((ξ12)φ(p)⋯(ξ12)(2φ(p)−1)−1⋮⋱⋮(ξ12)(t+1)(φ(p))⋯(ξ12)(t+1)((2φ(p)−1)−1)); H22=((ξ12)(φ(p))(2(t2)+1)⋯(ξ12)((2φ(p)−1)−1)(2(t2)+1)⋮⋱⋮(ξ12)(φ(p))(2t+1)⋯(ξ12)((2φ(p)−1)−1)(2t+1)) Here, H11 is equal to H of length n=φ(p)=p−1 as like in Eq. (1).
