DOI:10.32604/csse.2022.019557
| Computer Systems Science & Engineering DOI:10.32604/csse.2022.019557 | |
| Article |
ML-Fresh: Novel Routing Protocol in Opportunistic Networks Using Machine Learning
Department of Computer Engineering, J. C. Bose University of Science and Technology, YMCA, Faridabad, 121006, India
*Corresponding Author: Puneet Garg. Email: puneetgarg.er@gmail.com
Received: 17 April 2021; Accepted: 23 May 2021
Abstract: Opportunistic Networks (OppNets) is gaining popularity day-by-day due to their various applications in the real-life world. The two major reasons for its popularity are its suitability to be established without any requirement of additional infrastructure and the ability to tolerate long delays during data communication. Opportunistic Network is also considered as a descendant of Mobile Ad hoc Networks (Manets) and Wireless Sensor Networks (WSNs), therefore, it inherits most of the traits from both mentioned networking techniques. Apart from its popularity, Opportunistic Networks are also starting to face challenges nowadays to comply with the emerging issues of the large size of data to be communicated and blind forwarding of data among participating nodes in the network. These issues lower the overall performance of the network. Keeping this thing in mind, ML-Fresh-a novel framework has been proposed in this paper which focuses to overcome the issue of blind forwarding of data by maintaining an optimum path between any pair of participating nodes available in the OppNet using machine learning techniques viz. pattern prediction, decision tree prediction, adamic-adar method for complex networks. Apart from this, ML-Fresh also uses the history of successful encounters between a pair of communicating nodes for route prediction in the background. Simulation results prove that the ML-Fresh outperforms the existing framework of Opportunistic Networks on the grounds of standard Quality-of-Service (QoS) parameters.
Keywords: Opportunistic networks; artificial intelligence; machine learning; link prediction; routing protocols; QoS parameters
Owing to the hard efforts put by network science researchers, man today can communicate even beyond the planetary boundaries. Due to the significant growth in the networking domain, data communication has been possible in such areas where it once seemed impossible. Opportunistic Networks are the result of such momentous growth in a couple of years in the field of wireless networking [1].
According to some researchers, Opportunistic Networks inherited their basic traits from Mobile ad hoc Networks (MANETs) [2] and Wireless Sensor Networks (WSNs) [3,4]. Yuan et al. [5] suggested that Opportunistic Networks (OppNets) may be regarded as a part of Delay Tolerant Networks or Disruption Tolerant Networks. As the name itself indicates, this type of network is developed especially to tolerate long delays. There are various scenarios in real life like where this networking technique fits best. These scenarios may include Inter-Planetary communication, Disaster Management, War-Field situation, Space communications, etc.
Opportunistic Networks work on the principle of store-carry-and-forward i.e. the member node in the OppNet first stores the data which is supposed to be sent to some pre-decided node and send it to the desired location directly or through the intermediate node(s) [6]. The node stores the mentioned data until it gets a notification of the successful delivery to the destination. This feature makes the Opportunistic networks best suited for a situation like intermittent connection or connection failure.
According to Nayyar et al. [7], there is no standardized definition of Opportunistic Networks, but, based on Literature Survey, Opportunistic Networks may be described as a “network of wirelessly connected nodes”. Opportunistic networks do not require any specific infrastructure support for their establishment. Following Garg et al. [8], An Opportunistic Network can be formed using smartphones via Bluetooth or Wi-Fi. Similarly, using the basic connection feature available in the device to be connected, Opportunistic Networks may form various kinds of networks such as Acoustic Networks, Airborne Networks, Mobile Communication, Vehicular Networks, etc. Besides the mentioned networks, Opportunistic networks may also include all types of mentioned networks to form a single hybrid network with the help of necessary infrastructure to connect heterogeneous network devices. A general scenario of such a situation is depicted in Fig. 1.

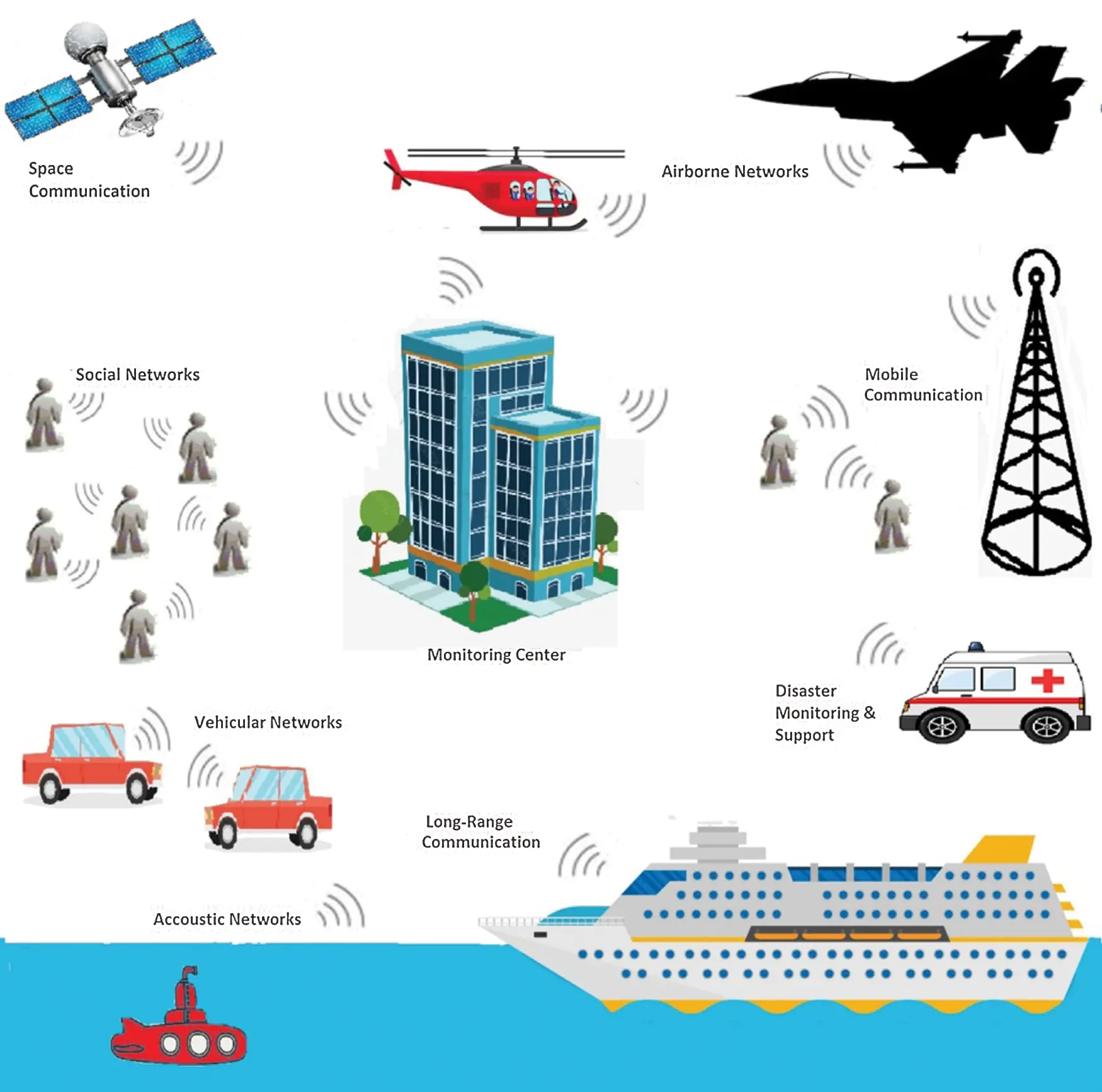

Figure 1: A general scenario of OppNet
Apart from the above-mentioned traits, Opportunistic Networks has numerous applications in the real-life world; some of them are listed below:
a) Support for Smart City: Saloni et al. [9] developed LASSO which is an android based app that connects a group of people in a city via Bluetooth/Wi-Fi for communication and tracking each other. This app worked well on a group of tourists in an unknown city and preventing them from miss that place.
b) Under-water communication: Menon et al. [10] and Detweiller et al. [11] discussed the various methods to use Opportunistic Networks as a backbone networking technique for communicating above as well as underwater in sea region.
c) Forest surveillance: Martonosi [12] developed a project named Zebranet under the Princeton University project to monitor the routine life of Zebra in the Forest using Opportunistic Networks as the backbone. This project may be extended to cover all animals residing in the forest for surveillance purposes.
d) SWIM: Small et al. [13] elaborated an opportunistic network based on the concept of the Shared Wireless Info-station Model (SWIM) for data exchange over the long-range in ocean area. Initially, it was practiced by tying sensors on whales back and data was forwarded through the tied sensors and received successfully back on Info-Station.
e) Inter-Planetary Communication: Wood et al. [14] described Saratoga, an opportunistic network-based routing protocol specifically designed for inter-planetary data communication. Currently, Saratoga is used by NASA for few years.
f) Miscellaneous: Besides the above-mentioned applications, Opportunistic Networks have proved themselves highly beneficial in establishing Airborne Networks [15] and space operations [16].
1.1 Categories of Routing Protocols
Although Opportunistic Networks have numerous routing protocols with different strategies and working styles, to make it in a standardized format, all available protocols are categorized on the ground of some standard parameters such as working strategy [17], data forwarding techniques, etc. Juyal et al. [18] classified routing protocols of Opportunistic Networks into six major categories which are depicted in Fig. 2:

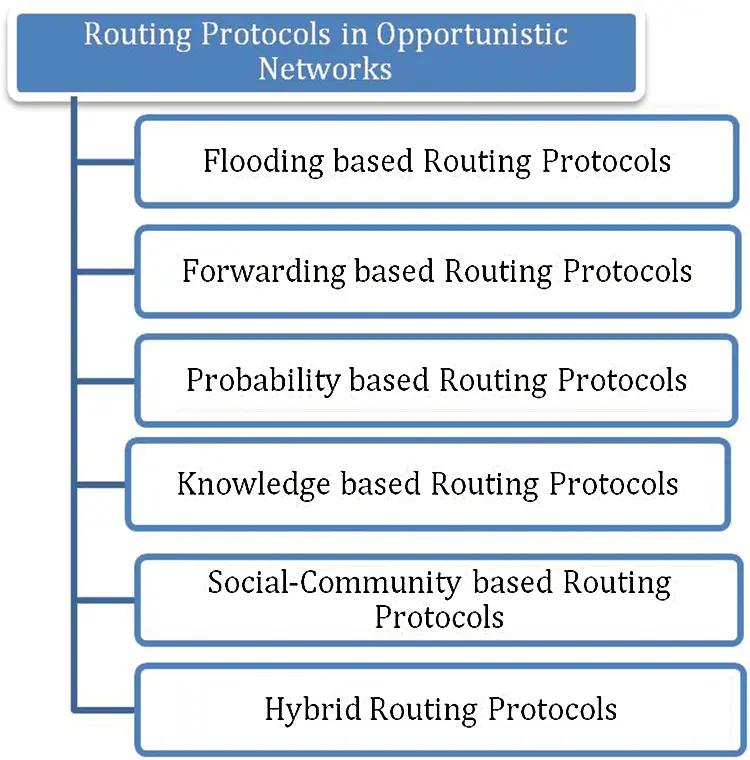

Figure 2: Classification of routing protocols in opportunistic networks
This paper is categorized into five major sections. Section 1 is dedicated to the introduction of Opportunistic Networks (OppNets), their applications, and routing protocols. It primarily aims at the new researchers who do not have enough knowledge about the research work. The extensive research work in this arena is carried out in the next sections. Section 2 describes the motivation and recent research work that inspire authors towards the focused research. Section 3 explains the methodology and working strategy of the proposed work i.e., ML-Fresh followed by Section 4 which mentions the simulation and result in part of the research work carried out. Towards the end, Section 5 concludes the overall research work explained in this paper.
Recent research work proved through simulation that Fresh Protocol from the category of social-community-based routing protocols delivers the best performance on the criteria of standard QoS parameters [19,20]. It motivates for appending this discussed research for further improvisation in the Fresh Routing framework to get the best out of it. But, before discussing further research, a basic somehow of Fresh Routing protocol is explained to get a better understanding of the proposed methodology of ML-Fresh Protocol in this paper.
Fresh (i.e., FResher Encounter SearcH) Protocol was introduced by Ferriere et al. [21]. Initially, it was designed for Mobile Ad hoc Networks but soon it was also adapted for Opportunistic Networks with few updates as per the network standards. Despite its simplicity, Fresh protocol is well known for its efficient route discovery in dynamic network topology which makes it a good choice for real-life situations. In Fresh Protocol, every node keeps a record of its encounter with other nodes present in the network in the process of route discovery along with the age gradient. Instead of searching new path for the destination node every time, the node firstly searches the destination node or any intermediate node towards the destination node from its record along with the respective age gradient. After the successful search, the node prefers the path or intermediate node which has the least encounter age i.e., which has more recent encounter experience with the destination node.
Some key points of Fresh Routing Protocol are as follows:
a) Fresh Protocol does not require any geographic knowledge about the participating nodes in the network as it follows the concept of Euclidean Space.
b) Fresh Protocol follows the concept of age gradient i.e. the path between source and destination node depends upon encounter history. It means the selected path may or may not be the shortest path between two nodes i.e. a straight line between source node to destination node on Euclidean Space.
c) Each Node in Fresh Protocol maintains its encounter history with all other nodes of the network; therefore, it does not require a common clock for synchronization.
d) Overall performance of Fresh Protocol does not get affected by the heterogeneous velocities of nodes, although it creates some hurdle during route discovery.
e) The search criteria of route discovery in Fresh protocol are Omni-directional.
Pseudocode of Fresh Protocol is as follows:
proc FRESH (S,D) =
{
if (thisnode.ID = D) then
{
replyToSource(S);
}
else
{
T := prevEncounterAge(D);
A := findNextAnchor (D, T);
if (A != D) then
notifyNextAnchor(A, D);
}
}
Fresh Protocol first searches the direct path between source node S and destination node D. If there is such path, it informs the source node otherwise it recursively searches intermediate node with the recent encounter with destination node D which can be used for data transmission from S towards D up to the point when data transmission is complete.
There have been various research attempts to make opportunistic routing better than the previous one. Some important efforts are listed below:
Sharma et al. [22] proposed a routing protocol named kROp(k‑Means clustering based routing protocol for opportunistic networks) which uses machine learning techniques in the background for next-hop selection in route discovery during data dissemination. The output delivered by kROp was compared with PRoPHET and other standard opportunistic routing protocols. Results proved kROp as the better option in terms of hop count and delivery probability.
Lakshmi et al. [23] introduced a novel routing model known as SPR (Socialized Proficient Routing) for OppNet using Machine Learning. In this model, intermediate nodes are chosen on the ground of human-social traits to maintain the robustness of the path being selected for data forwarding. Various ML-based classifiers such as Decision-Tree, Neural-Networks, and Support-Vector-Machine are used during the training phase. Simulation results proved good performance using standard parameters.
Kara et al. [24] proposed an algorithm known as position-based hybrid routing algorithm (PBHRA) to exploit the bandwidth and energy consumption at the maximum level. It was implemented in MATLAB and compared with some standard Table-driven and position-based algorithms. The comparative study explained PBHRA outperforms the other algorithms taken.
Lambrinos et al. [25] presented a novel algorithm that is motivated by location-based Social Networks. Programmable controllers were used for route discovery and data transmission. A Portion of Machine learning is also used for training datasets containing the location-based information of nodes present in the Opportunistic network. Implementation of this algorithm delivered good performance on standard parameters over traditional location-based Opportunistic Routing Protocols.
Sharma et al. [26] developed a history-based routing protocol that uses the history of encounters between two nodes for current path selection in Opportunistic Networks using reinforced learning. To simulate this concept, a real mobility trace from INFOCOM-2006 was taken. Simulation results show that this strategy worked efficiently.
Souza et al. [27] introduced the “FriendShip and Acquaintanceship Forwarding” (FSF) protocol that performs data forwarding based on the Social relationship between the communicating nodes. It was implemented on ONE Simulator to inspect its performance on Message Delivery. The Proposed Protocol scored good results over standard metrics.
Rashidibajgan et al. [28] efficiently explained the advantages of using the history of node movement and interaction with other nodes during data communication. They proposed a Privacy-Preserving History-Based (PPHB) routing algorithm for implementing their proposition. In this approach, Each node participating in the opportunistic Network maintains a History Table (HT) which contains geographic knowledge about the other nodes encountered during data dissemination and every node decides after looking up its History Table for the next data communication.
Huang et al. [29] present a new framework based on Kernel regression named PreKR based on the Kernel Regression Technique for Link Prediction in Opportunistic Networks during route discovery. This research aims to enhance the packet delivery ratio by reducing the time consumption in route discovery in a network with dynamic topology. Experimental results showed that the proposed framework outperforms the standard method by 25% with 90% accuracy.
Sharma et al. [30] introduced a reinforced learning-based approach named RLProph for Opportunistic Networks. Its primary objective was to maximize message delivery probability using machine learning and reinforced learning in the background. With the help of simulation, it had been proved that RLProph delivered better performance over standard QoS parameters.
Li et al. [31] presented a new Link Prediction Method named Combo-Pre using a combination of machine learning and standard prediction methods. Experimental results proved its superiority over the traditional link prediction methods.
Janku et al. [32] presented the benefits of using unsupervised learning in Cluster Opportunistic Networks. The authors designed a hierarchical routing algorithm with the combination of three different strategies for decision making in route prediction using unsupervised learning techniques of machine learning. Experimental results show its better performance than traditional approaches.
The research in the above-mentioned research papers indicates that there are lots of opportunities to get a better result if machine learning is used with Opportunistic Networks. Keeping this thing in mind, this paper proposes the new routing protocol using Machine Learning in the background as well as adopting the Fresh Routing protocol as the backbone technique.
As discussed in previous sections of this paper, Fresh Protocol is observed as the best routing protocol among all the variety of routing protocols available in Opportunistic Networks [19]. Literature survey indicates the direction of incorporating machine learning in Fresh Protocol for better performance. Therefore, a new routing protocol known as ML-Fresh (Machine Learning enabled Fresh) Routing Protocol has been introduced.
Opportunistic Network involves blind forwarding of data to intermediate nodes to send it to the destination node, but, this blind forwarding deteriorates the overall performance of the Network due to unnecessary replication of single data which is supposed to be forwarded to a particular endpoint. This limitation can be removed by forwarding the data only to those nodes which are actual intermediate node during data transmission which can boost the delivery outcome by minimizing the delivery overhead of the whole network. This objective may be achieved by predicting the optimum suited path between source and destination node during data transmission.
ML-Fresh is based on such methodology. It uses the combination of three prime machine learning methods to predict the route in the dynamic topology of Opportunistic Networks with aim of achieving the best prediction from available options. The Three Machine Learning techniques are Pattern Prediction [33,34], Decision Tree Prediction [35,36], and Adamic-Adar Method [37]. Besides these, ML-Fresh also takes inputs from the history of successful encounters between two endpoints as Dhurandher et al. [38] proved it as a crucial factor for efficient routing in Opportunistic Networks.
The functioning of ML-Fresh protocol may be classified into the following phases:
a) Warm-up Phase
b) Preparation Phase
c) Prediction Phase
d) Decision Phase
It begins with the Warm-up Phase when participating nodes move as per the mobility model chosen and prepare their respective routing tables mentioning their recent encounter experience with other nodes. Like Fresh Protocol, ML-Fresh Protocol works on Euclidean space. The Formula for calculating Euclidean Distance (ED) [39] between each pair of nodes (a, b) in Set N is
Besides saving recent encounter experiences with other nodes like Fresh Protocol, each node keeps the record of its every successful encounter with other nodes additionally in ML-Fresh.
The preparation phase starts with pattern mining of links between two nodes that are still connected as per the current timestamp ti. It forwards such Links to the Active Updated Links Set block. It also transfers remaining Links for Threshold Validity Checks for validating their usage possibility for future use. After the Threshold check, such Links are categorized and forwarded into two categories. The first category contains those Links which were connected or active for some timestamp tj but is not updated as time varies. The second category covers all those links set which were connected for a very few time or never connected. All Links set covered in three different groups are forwarded for further processing in the Prediction Phase as shown in Fig. 3.
Prediction Phase contains three different kinds of Link prediction mechanisms on three different kinds of Links set supplied. Firstly, Links set which are updated as well as active as per current timestamp are processed for pattern prediction for future use and forwarded to the Decision Phase. It involves the calculation of the smallest route between two nodes in the network which are not connected directly. Secondly, Decision Tree Prediction is used to process those links set which are not currently updated but were connected sometimes. The decision Tree-based prediction method [35] is one of the most popular Machine Learning-based methods involving the probability of successful communication. After the processing of Decision Tree Prediction, Links set with higher success probability are forwarded further. Lastly, Adamic-Adar Method is used to process those Links set which were connected for a very few time or never connected. Adamic-Adar Method is a very popular method among Machine Learning based Link prediction methods for Complex Networks and is regarded as the best one among the available options [37].

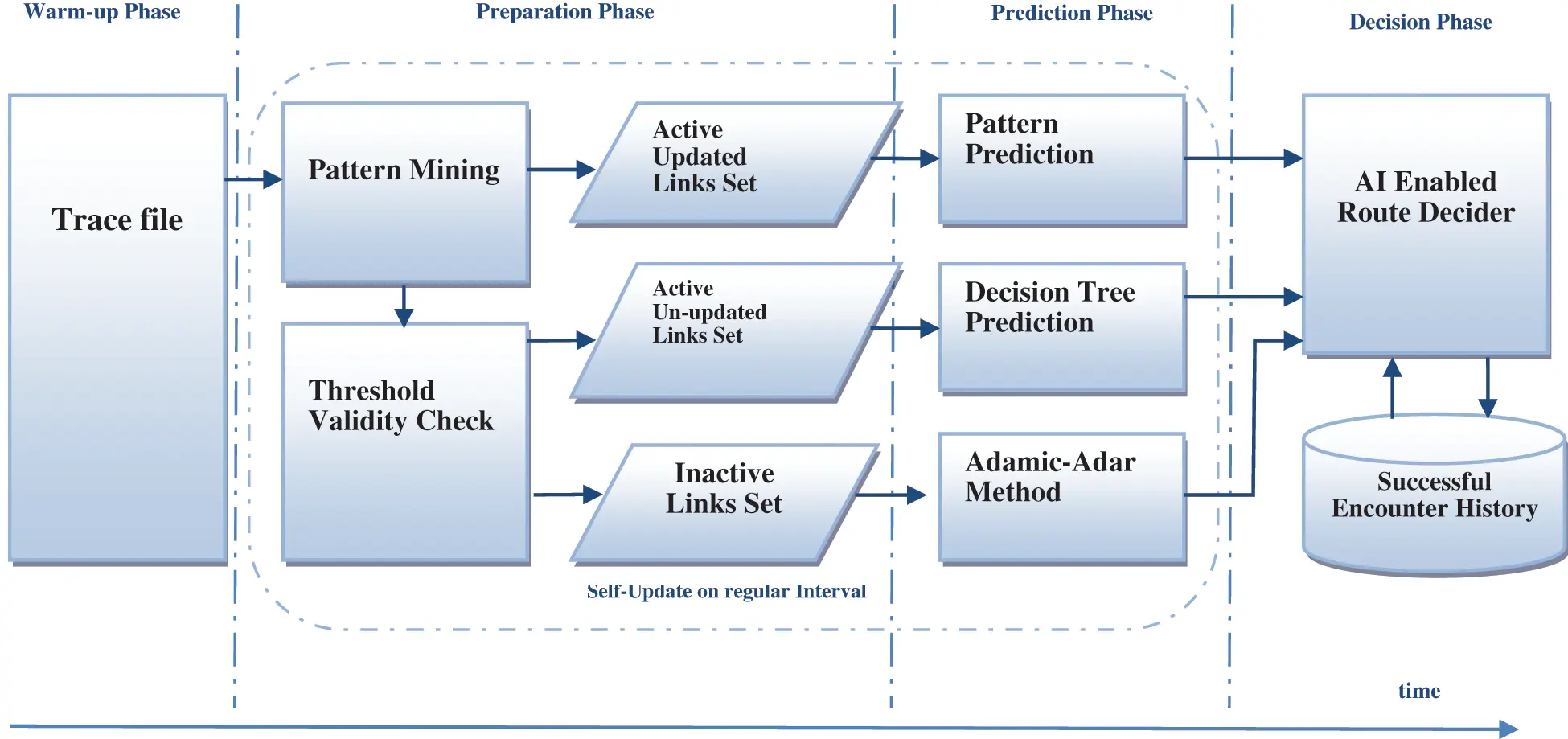

Figure 3: Framework of ML-fresh
Decision Phase receives three different Links set as Input to the AI-Enabled Route Decider. It also takes input from the History of successful encounters between two nodes. After receiving all inputs, AI-Enabled Route Decider optimizes and predicts a safe and secure route between two endpoints during data communication.
The working mechanism of ML_Fresh between the source node S and destination node D is shown through the pseudocode written below:
proc ML_FRESH (S,D) =
{
if (thisnode.ID = D) then
{
replyToSource();
}
else
{
P [] := pattern_prediction(S,D);
T [] := decision_tree(S,D);
A [] := adamic_adar(S,D);
H []:= encounter_history(S,D);
R []:= optimum_route(P,T,A,H);
}
}
ML-Fresh first searches whether the destination node D is in direct contact with source node S or not. If the two nodes are indirectly in contact, then, the communication starts directly through the If block otherwise four different functions viz. pattern_prediction(S, D), decision_tree(S, D), adamic_adar(S, D) and encounter_history(S, D) execute one by one. pattern_prediction(S, D) returns all active and updated intermediate node pairs between S and D to the array P using Machine Learning enabled Pattern Prediction mechanism. decision_tree(S, D) gives all active but un-updated intermediate node pairs between S and D to the array T using the probability-based decision tree method. adamic_adar(S, D) returns all intermediate nodes between S and D to array A using the Adamic-Adar method which is a prime technique for link prediction in complex networks. Moreover, encounter_history(S, D) returns the all node pairs between S and D from the history of successful encounters which involves routing between S and D to the array H. Lastly, all the intermediate node pairs obtained from four different functions described above are pass to optimum_route(P, T, A, H) through P, T, A, H. optimum_route(P, T, A, H) returns the exact and optimum path between S and D containing intermediate node pairs to the array R which can be retrieved for getting the optimized path.
The performance of the ML-Fresh has been evaluated in the Opportunistic Network Environment (ONE) Simulator. This simulator has been chosen because, in accordance with Kuppusamy et al. [40], ONE is the most popular simulator used by researchers for Opportunistic Networks. ONE [41] is a simulator that provides visual output as well as trace files which can be analyzed through a plotting tool like Graphviz. The main advantage of using ONE Simulator over other simulators is that it easily generates event logs of even difficult mobility scenarios which are very much closer to the real-life situation which makes it the most suitable tool for applying in this research.
The performance delivered by the ML-Fresh is compared with the performance delivered by Fresh Routing Protocol in Opportunistic Network under common parameters listed in the next sub-section.
4.2 Common Parameters during Simulation
Some parameters that have been kept constant to achieve comparative performance between Fresh Protocol and ML-Fresh Protocol have been described in Tab. 1.
Following Performance Metrics are chosen for the evaluation of ML-Fresh with Fresh Protocol:
a) Average Energy Consumption:
It is the energy consumed by the whole network on the average ground. The primary objective of every network researcher is to reduce it up to the maximum extent. It is inversely proportional to the network lifetime as the participating nodes have limited power in general.
Mathematically, it can be denoted as:
b) Load-Delivery Ratio:
Load delivery ratio (LDR) is characterized as the proportion of data packets conveyed effectively to destination nodes and the total number of data packets produced for those destinations. LDR portrays the packet loss rate, which restricts the throughput of the network. The higher the delivery ratio, the better the performance of the routing protocol. LDR is determined as written below:
c) Average Latency:
Average Latency is the average time consumed in the successful delivery of all messages transmitted between two endpoints during the complete network lifetime. High value of Latency is not considered desirable for a Good Network. The formula for its calculation is given below:
d) Error Rate:
Error Rate is the average number of lost messages during data transmission throughout the network lifetime. A good network has the least Error Rate. It can be calculated by the formula shown below:
Following are the comparative analysis of the existing Fresh Protocol along with the ML-Fresh Protocol on the ground of mentioned parameters:
a) Average Energy Consumption:

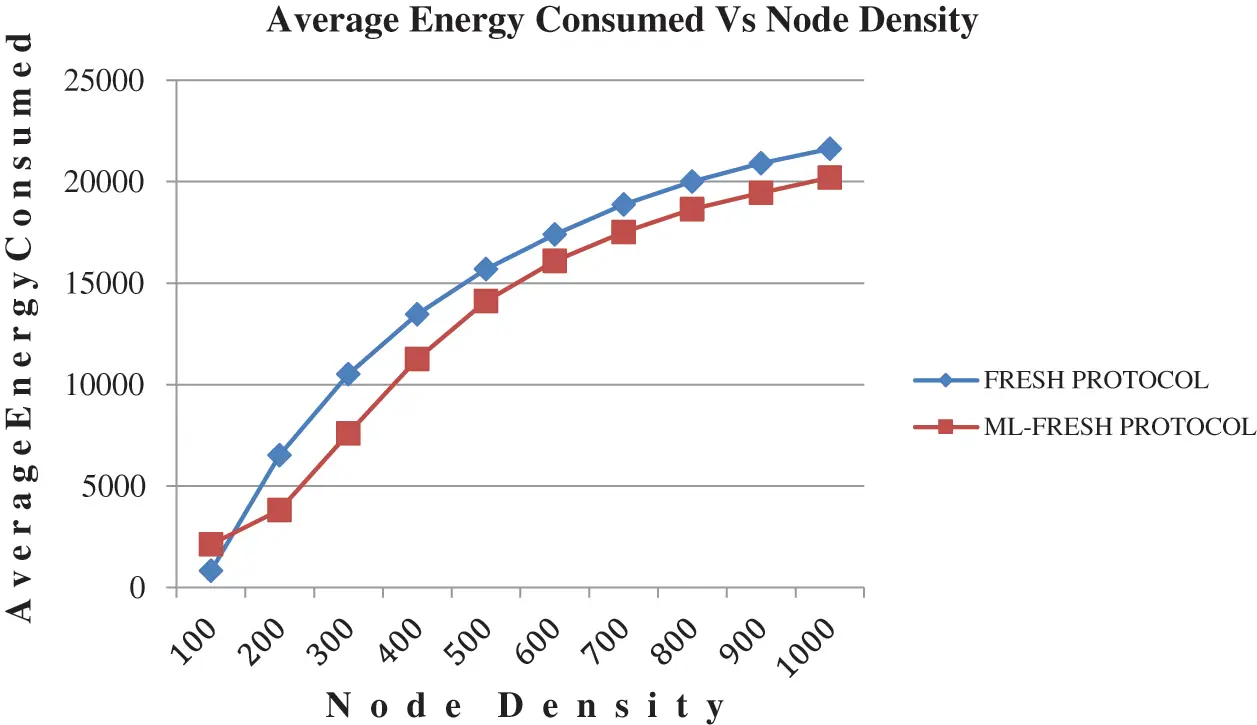

As depicted in Fig. 4, The ML-Fresh exhibits a good performance over Fresh Protocol on the criteria of Average Energy consumed during data communication. It gives the best performance i.e., 71% better than Fresh protocol when the number of nodes is 200. In average count, ML-Fresh outperforms Fresh Protocol by 11.65% on the ground of mentioned parameter.
Figure 4: Protocols’ performance based on Average Energy Consumption versus Number of Nodes
b) Load-Delivery Ratio:

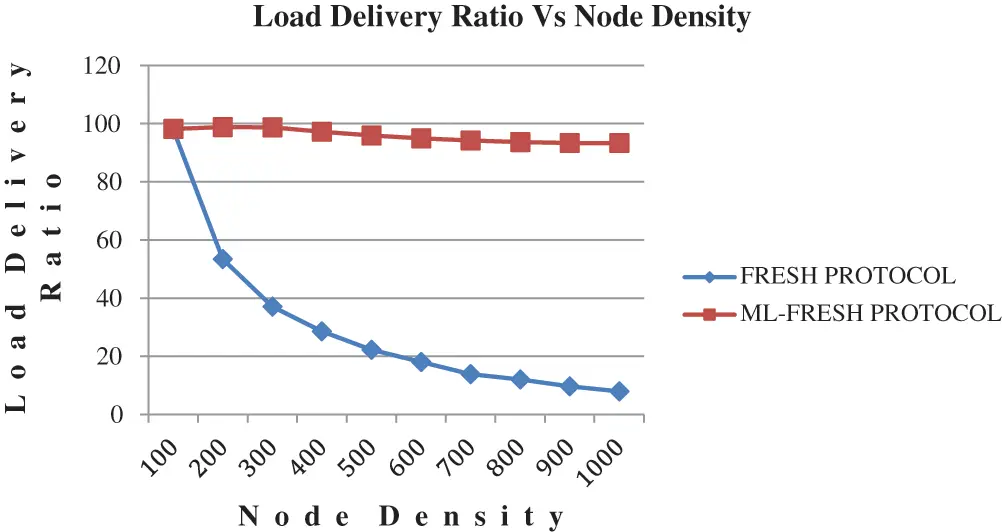

The ML-Fresh proved itself beyond the expectations on the criteria of Load Delivery Ratio. Through Fig. 5, it was observed during simulation of both protocols along with the varying number of node densities that Load delivery Ratio (LDR) decreases as node density increases in the case of Fresh Protocol. It starts with LDR= 97.99 with node density of 100 and ends with LDR= 7.91 with a node density of 1000. On the contrary, LDR remains around the same i.e. 95.8 (Average) with all different cases of node densities in the case of ML-Fresh.
Figure 5: Protocols’ performance based on Load Delivery Ratio versus Number of Nodes
c) Average Latency:

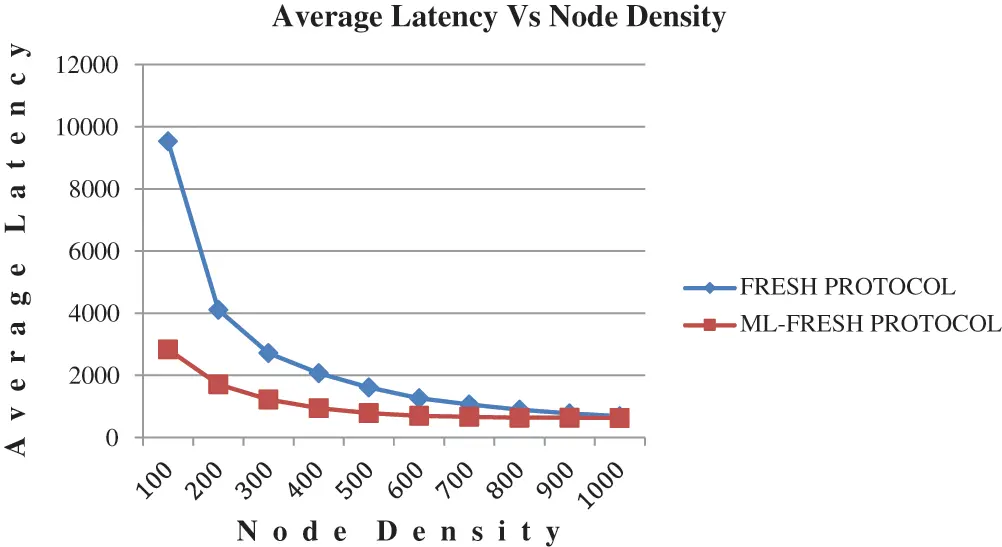

After the simulation of both protocols with different Node Densities, It may be easily observed from Fig. 6, Fresh Protocol possesses more Latency than the ML-Fresh. However, The Latency difference between the two mentioned protocols decreases gradually as the node density increases. However, the ML-Fresh Protocol leads Fresh Protocol by 42% on average.
Figure 6: Protocols’ performance based on Average Latency versus Number of Nodes
d) Error Rate:

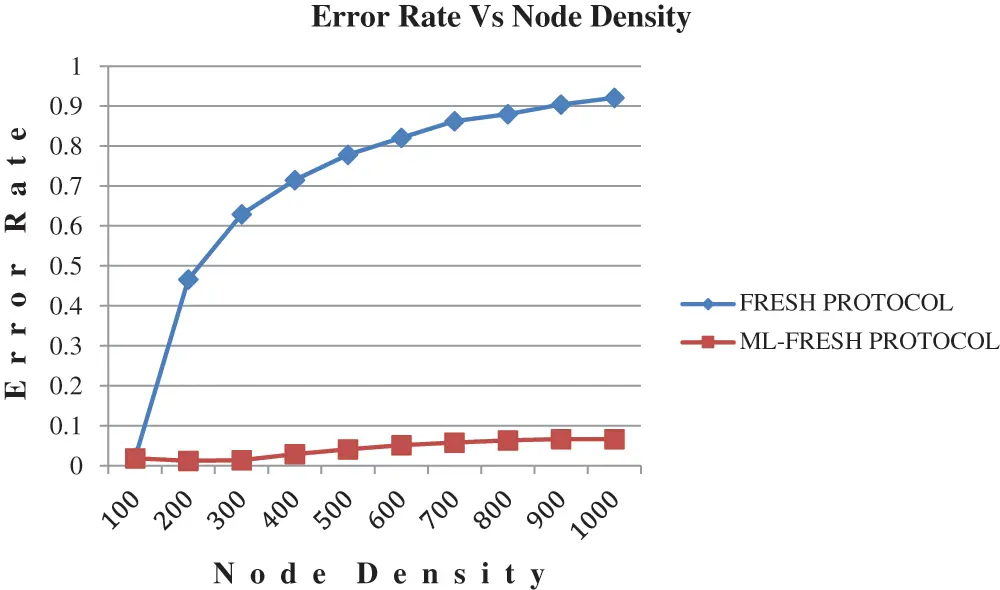

Error Rate of any protocol decides the possibility of successful delivery of the desired data packet to the destined node. Lesser the Error Rate, communication will be more safe and secure. As Fig. 7 is showing the clear huge difference between the Error Rate of Fresh Protocol and ML-Fresh Protocol, It may be easily concluded that on average, ML-Fresh has 19 times less Error Rate than Fresh Protocol.
Figure 7: Protocols’ performance based on Error Rate versus Number of Nodes
ML-Fresh protocol is inspired by Fresh Protocol which uses recent encounter experience for data transmission. ML-Fresh uses all three prime mechanisms from Machine Learning for Link Prediction in Opportunistic Networks. The simulation observations proved it as significant over Fresh Protocol. ML-Fresh delivered noteworthy performance on the ground of Average Energy Consumed, Load Delivery Ratio, Average Latency, and Error Rate. It is believed that ML-Fresh Protocol will motivate future researchers for further research.
Acknowledgement: The authors appreciate the J. C. Bose University of Science & Technology, YMCA, Faridabad, India, for providing research resources and equipment to encourage research among research scholars and faculty members.
Funding Statement: The authors received no specific funding for this study.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
