Improvisation of Node Mobility Using Cluster Routing-based Group Adaptive in MANET
1Department of Computer Science & Engineering, Dr. N.G.P. Institute of Engineering, Coimbatore, Tamilnadu, India
2Department of Computer Science & Engineering, SNS College of Technology, Coimbatore, Tamilnadu, India
*Corresponding Author: P. Punitha. Email: Punithapalanisamy93@gmail.com
Received: 14 January 2022; Accepted: 30 March 2022
Abstract: In today's Internet routing infrastructure, designers have addressed scaling concerns in routing constrained multiobjective optimization problems examining latency and mobility concerns as a secondary constrain. In tactical Mobile Ad-hoc Network (MANET), hubs can function based on the work plan in various social affairs and the internally connected hubs are almost having the related moving standards where the topology between one and the other are tightly coupled in steady support by considering the touchstone of hubs such as a self-sorted out, self-mending and self-administration. Clustering in the routing process is one of the key aspects to increase MANET performance by coordinating the pathways using multiple criteria and analytics. We present a Group Adaptive Hybrid Routing Algorithm (GAHRA) for gathering portability, which pursues table-driven directing methodology in stable accumulations and on-request steering strategy for versatile situations. Based on this aspect, the research demonstrates an adjustable framework for commuting between the table-driven approach and the on-request approach, with the objectives of enhancing the output of MANET routing computation in each hub. Simulation analysis and replication results reveal that the proposed method is promising than a single well-known existing routing approach and is well-suited for sensitive MANET applications.
Keywords: Diplomatic; mobile Ad-hoc network; grouping mobility; interior stable; hybrid routing scheme; adaptive switch structure; clustering; communication
Mobile Ad-hoc Network it pursues the two primary plans of routing based on dual main metrics like topology and established position. Topology-based routing is inferred into three structures i.e., Proactive, Reactive, Hybrid. The Reactive Routing Process (RRP) is an on-demand routing mechanism suited for MANETs. The originator node initiates the route search process in this protocol when transmitting data packets to a destination node. As a result, the route search process is triggered by the demand for a route. Furthermore, proactive routing systems keep track of all routes in the network, even if they aren't necessary, thus each node keeps track of routes to all other nodes. These protocols send control information back and forth between nodes on a regular basis, ensuring that every node in the network has the most up-to-date route information. Location aware map-reading comprises of double sorts i.e., Greedy sending and Constrained Flooding directing. Node mobility is one among thee internal individualities of mobile ad hoc networks (MANET). Thin parameters that most disapprovingly disturb the performance of network protocols.
Three noteworthy routing protocols in (MANET) Proactive Routing (PR) are additionally termed to unicast directing. In globally distributed internet, single directional way of handshaking is carried out from initial node to final node. Physical connection association utilize the exchange of information throughout the system; unicast transportation is bound for the remarkable location. Model: FTP server acts as disseminator and PC is the beneficiary [1].
Destination progression Distance Vector is partner degree expanded revision of Bellmen-Ford algorithmic program where every center point maintains a table that contains the most constrained division nearby the main hub on the briefest method of each alternative inside the framework. Dynamic Programming is used in the Bellman-Ford algorithm. It begins with a beginning vertex and calculates the distances between additional vertices that can be reached by a single edge. It then searches for a path with two edges, and so on [2,3]. The bottom-up technique is used by the Bellman-Ford algorithm. When the value of the edge is negative, the Bellman-Ford method is a single-source shortest approach that really can detect negative patterns in a system. The sole difference is that Bellman-Ford can accommodate both positive and negative weights, while the Dijkstra Algorithm could only manage positives Here there'll be no supervisory host, as an option a host with limited energy inside the directing table is kept up by every hub and complexity id Destination Sequence Distance Vector DSDV is created for looking after tables. Every hub after getting a quick, communicates it to neighbors so as to spread the messed up connection data for the engendering of table update data to the whole system [4].
Wireless Routing table keeps up all the data while transmission procedure connection cost table retains up the data linking and message retransmission. It picks the retransmission route on every occasion of link breaks. Cluster Gateway Switch Routing works to regulate the gathering from asserting Ad-hoc has. Cluster-head gateway switch routing (CGSR) is a hierarchical routing scheme. It's a proactive approach. The routing tables are already present at the nodes when a source routes packets to a destination. The packets are sent from a higher-level cluster to a lower-level cluster. Each What's all the more every center point manages the information in two sorts from asserting tables, for example, bundle part table Furthermore detachment vector coordinating table [5]. Reactive Routing (RR) is additionally baptized as Multicast steering where the broadcast is for set of groups zero to even more has recognized by as single end address. Multicasting which is expected for the gathering focused Computing where the participation of host gathering is commonly unique i.e., the host may join and leave a gathering whenever. It thinks about more ways in a system to locate the most brief way, for sending information from source to target hub. On the off chance that there is any way disappointment, it effectively finds another most brief way. Ad-hoc on-demand Distance Vector were always superior in favor of upgrade necessary information about the link failure accrues in a transaction path so that unwanted data are deleted from a table. A benefit of AODV is Bandwidth efficiency, is an advantage of Ad Hoc On-Demand Distance Vector (AODV), although it requires a lot of memory [6]. A routing protocol for wireless and mobile ad hoc networks is Ad Hoc On-Demand Distance Vector (AODV). This protocol provides on-demand routes to destinations and supports both unicast and multicast routing.
Dynamic Rise Routing is a trouble-free and able acquisition agreement planned. to be used for mobile nodes in multi-hop wireless Ad-hoc networks. It maintains two different counter intended for path discovery, path maintainer [7]. Transiently Ordered Routing Algorithm is significantly flexible, circle free, and disclosure calculation estimation and is totally established on the possibility of association dissatisfaction and reverse. The Synchronous clock is requisite for source started process and gives various courses to a source to goal pair. This convention keeps up three stages 1) path Creation, 2) Route upholding and 3) Route dumping [8].
Associatively Based Routing is versatile coordinating show which is familiar in locating the consistent associations among the centers while keys for that center points should liberated from the duplicate key and it performs retransmission process too. Hybrid Routing (HR) is a routing or guiding show that bonds both proactive and responsive steering, it might have been recommended to reduce those control overhead from asserting proactive coordinating and furthermore decreases those dormancy expedited toward course finding in the delicate coordinating system. Hybrid routing, also known as balanced-hybrid routing, is a combination of distance-vector routing, which works by exchanging information about the whole network with its neighbors, and link-state routing, which works by routers informing each other about their nearest neighbors.
Blend coordinating shows need help Zone Routing Protocol ZRP What's more Temporally Ordered Routing Algorithm TORA. Zone coordinating convention may have been needed to diminish those control overhead about proactive coordinating What's all the more lessening those idleness made toward the track. This high likelihood of collection hubs in Tactical MANET and proposed a mixture steering calculation named as CGAHRM, that joins Table directing procedure and on-request approach provides a versatile system to trading progressively between these two directing calculations [9].
The main contribution of the paper is as follows:
Hubs can function in tactical MANETs based on a work plan in various social affairs, and internally connected hubs are almost having related moving standards where the topology between one and the other is tightly coupled in steady support by considering the touchstone of hubs such as self-sorted out, self-mending, and self-administration. For collecting portability, we provide the Group Adaptive Hybrid Routing Algorithm (GAHRA), which uses a table-driven directing methodology in stable accumulations and an on-request steering technique in variable conditions. The suggested method outperforms a single well-known current routing solution in simulations and replications, indicating that it is well-suited for sensitive MANET applications.
The upcoming sections of this paper are organized as follows: Section 2 discusses the related work. In Section 3, an overview of the proposed proposal is represented. Performance evaluations are given in Section 4. Section 5 represents the results and discussion. Finally, Section 6 concludes this paper.
Park et al., Presents in [10] Tactical MANET is mainly used in Battlefield for making a strategic approach for communication scope. It's a collection and gathering of wireless mobile knobs, which can form a short term and dynamic network without the necessity of an infrastructure. Routing is the essential and fundamental technology of MANET Network to estimate the routes, where the types are Table-Driven, on-demand and Hybrid Routing. Table-driven or proactive are direction-finding protocol that helps for maintaining up to date table information about routing table where the path already exist, thereby packet sending is the only process. This routing may produce many overheads in the network. On-demand routing protocol is an immediate path generating method based on user needs. An on-demand routing avoids the overheads of building a routing table. Tactical communication is not working effectively in Proactive and Reactive routing approach, so better option is to choose Hybrid routing. A proactive strategy focuses on avoiding problems from emerging, whereas a reactive strategy focuses on responding to events that have already occurred. The point of view each approach employs while judging acts and occurrences distinguishes these two strategies It is a sequence of both the approach based on the communication range either in or out and later that it is named as a Group Adaptive Hybrid Routing Algorithm. Many groups are used in a communication where each group performs a different function. GAHRA is functioned under a mobility of gathering nodes in Tactical MANET; Group adaptive is convenient in providing a better result compared to an independent Table-Driven and on-demand. Group Adaptive Hybrid Routing Procedure is suitable for tactical communication in the network and also minimizes the delay of termination to termination, normalized load and progresses the packet delivery ratio to an maximum extent.
Zygmunt et al., chatter about in [11] Clustering which is grouping is the significant idea in Mobile Ad-hoc Network (MANETs). Clustering supplies a certification to an essential degree of exhibitions like throughput, delay and, security, accessibility, Mobility. Clustering protocols define the hierarchical non overlapping clusters of sensor nodes and their architecture. For self-organizing sensor networks, a reliable clustering algorithm is required. Clusters with almost the same radius and cluster heads that are best positioned in the clusters are created using an efficient clustering process. Clustering protocol approached Demand Group Mobility Based Clustering with the visitor hub On-Demand Group Mobility Based Clustering With Guest Node (ODGMGN) which is the responsive procedure that particularly addresses the idea of gathering versatility in a MANET. Here clarified about visitor hub and group level of execution to assess the portability. For the most part, clustering having six sorts, DS-grouping fundamental procedure is identifying a weakly associated which speaks to a set to diminish the quantity of hubs taking an interest in course search or steering table support. Low support clustering gives a foundation to a top of the layer application with least expense while Mobility Aware grouping is a confidently associated one and versatile hubs are utilized for a development and upkeep procedure and same speed will be kept up for a bunch. Burden adjusting or Load balancing clustering split the work for all the portable hubs in the system simultaneously restricting the scope of hubs. Joined measurement based grouping having a few measurements in a bunch arrangement, including hub degree, capacity, battery vitality, group size and modifying their weighting factors for various application situations. On-Demand Group Mobility Based Clustering with the visitor hub (ODGMGN) will improve the Mobility level of the system in better way.
Khatkar et al., [12] proposed Clustering is a significant method for improving chain of command and association in MANET. It scales back the unpredictability in the executives of insights concerning every one of the hubs. Portable handles are basically disentangling the transmission capacity designation. Innovative Mobility Metrics for Mobile Ad-hoc Network relies upon proportion level which is determined by received the vitality level of progressive exchange at any hub of generally speaking hubs. Improving the versatility of navigation administration depends on group arrangement which is an consequent one for portable measurements. NMMA essentially reviews the information, which is not an ideal area. Now utilizing a Distributed Cluster principle, group skull go about as the principle and it prompts a steady bunch in a system. MANET pursues a group based which are tightly associated with bunch administration, the measurements of system execution is throughput, delay rearrangement. MOBIC calculation utilized by methods for every one who handles and sends the operational data to get HELLO initimation note for the entire neighbor's and totally the power flatten of double progressive hubs. At long last, MOBIC grants a few stable arrangements, it will consequently improve the exhibition.
Loutfi et al. introduces in [13] MANET are made by a mix of Mobile centers (MNs), which passes on and pass through the fine distinction using a remote associations. A few agreements are prepared for a system to watch the versatility, challenges in agreements. At this time reference point Group versatility prototypical (RPGM) was reasonable for the directing, on-request steering, and table-driven steering convention. Bounce by Hop AODV underpins RPGM so it will yield a immense trouble some condition at the time AODV gives a vigorous for RPGM examplary. These understandings are surveyed similarly as package delivery Ratio (PDR), dropped groups, guiding overhead and all the way to finish delay. It focuses on shifted hub thickness from low to high. So result likewise of various execution for steering convention condition. Portable Ad-hoc Network gives the favorite implementation in enormous scale systems. The routing techniques for wireless mesh/ad hoc networks include Dynamic Source Routing (DSR) and AdHoc On Demand Distance Vector Routing (AODV). Both procedures use distinct mechanisms, which results in varying levels of performance. By varying the number of sources, speed, and pause duration, DSR and AODV may be compared and assessed based on the packet delivery ratio, normalized MAC load, normalized routing load, and average end-to-end latency. AODV offers a superior fallout contrasted through DSR in quicker, speed condition.
Rahman et al. [14] brings up a brand newly designed multicast direction-finding protocol called as Mobility situated Energy Efficient Multicast Protocol (M-EEMC). The motivation of this illustration is decreasing the vitality dissemination of the Mobile Ad-hoc fashion MEEMC convention is a co-activity of the tree and work-based coordinating strategy. This gathering exploits to start and manage a spirited multicast hierarchy bound by a detached work among the versatile has in portable unplanned system where course revelation idea is utilized for making a multicast work. While controlling the repeated data reception in network, is the one of the best for increasing the energy efficiency. Adjacent and neighbouring node information are clearly measured using the Mobility based Energy Well-organized Multicast Protocol. Shaping mechanism is the best strategy for destroy the redundancies of work that is created by route invention methodology and it likewise develops the multicast tree. This plan staples to packet delivery proportion, less vitality diffusion, and shortend bundle delay resembled to on-request multicast routing protocol (ODMRP).
Mirsadeghi et al., Presents in [15] developed a Gathering versatility built Multipath directing Protocol (GMMR) for bigger Furthermore conservative versatile Ad-hoc organizes. Gathering portability will be calm, basic in a few sensible h0ubs and the remote earth to which converting may be a challenging undertaking for multipath directing. Gathering Mobility Based Multipath Routing convention is a system zone among source and goal, these regions are isolated into such a large number of zones relies upon geographic information, therefore it is termed as a zone-in strategy [16]. Gathering Mobility Based Multicast navigation Protocol gives acknowledged data for both Intra gathering and Inter gathering directing. Gathering pioneer go about as a noteworthy job in dealing with a steering table, Zoning types and hub separated information, way losing information. Zoning Type for way assurance is intended to separate zone and Disjoint ways. Gathering Mobility is normal in a few utilizations similar to a battlefields, Conference discussion group, Counseling area, Tourism circumstances. Intra gathering controlling is sensible for Proactive while Inter gathering coordinating is fitting for Reactive coordinating in flexible hubs. . GMMR show has an average flexibility and much considerable in Mobile Ad-hoc Networks.
3 Overview of Proposed Proposal
In the strategic dynamic Ad-hoc Network, they accomplishes the parcel of man oeuvres. i.e., each gathering carry out different roles. Gathering Adaptive Diagram having a three district, Ist REGION {A,B,C}, IInd REGION {a, b, c, d, e, f}, IIIrd REGION{1, 2, 3, 4, 5}. Every one of the locales are in an autonomous way and changing the closest hubs. Locale I hubs {A,B,C,D} are gone into another Region like REGION-II or REGION-III at the time, All the rest of the hubs are limit hubs. REGION I, REGION-II, REGION–III call these hubs Connecting Nodes. Specially appointed directing calculations has table-driven routing calculation used for giving a stability on topology in system and On-demand methodology are utilized appropriatively Quick changing powerful topology [17]. Mobile Ad-hoc Network establishes a mixture of stable-mobility subnets along with speedy evolving movable subnets.
A node gets into a network and being operational in Table-focused State communicate its direction-finding table to its near ones intermittently and updates their information in directing table once the communicated parcel arrives. A access point working in on request state won't communicate or report its directing table but begins an on-request course revelation component in the event that it needs a way to another hub. Each hub trades their control data between these two steering state in a dependable way according to the variation level of its neighbors. Correspondence is completed in cross-gathered with the goal that the bundles must be moved starting with one gathering then onto the next gathering for the connecting hubs [18]. The directing procedure among the gatherings is commonly done in on-request mode since different interfacing hubs work in an on-Demand State [19].
This steering procedure receives table-driven in neighborhood on-request in worldwide extension which brands a half and half directing calculation which has a two distinctive methodology and hubs trade their directing state adaptively rendering to their Stability of the neighbors. A hub depart with and operational in Table-focused state broadcast its directing work area to its neighbors on intermittent premise and from where updation of their steering table is conveyed once they all get the communicated packet.
A hub working under On-Demand conditions won't transfer or report its routing table however it initites an on-request path detection in the event that it needs a way to another hub. All hub trades their control data between these two routing state in a consistent way according to the variation level of its neighbors. connection is completed in cross-gathered where the package must be reallocate starting with one section then onto the next for the connecting hubs [20,21].
The routing process among the groups is typically done in on-demand mode while a variety of nodes work in an request approach. This routing process trademarks the result of hybrid routing algorithm where pro-active approach is followed in local region whereas on-demand is approached in global scope and has a two different approach for periodic exchange of routing state rendering to their constancy of the neighbours [22].
Routers have the authority to achieve group adaptive routing. Whenever two or more output ports connect to the same destination, either directly or indirectly, they can be set as a cluster. When packets are received at an input source for forwarding out of a busy output side, it can be forwarded to any output side in the very same collective as the discussed output side. The AODV algorithm is used in GAHRA to handle defining a backward route to the originator by intermediate nodes, as well as gladly accept Reversing Ticket-based Probing (RREP) packets to the originator by destination or intermediate. The on-demand routing technique in GAHRA minimizes the level of flooding transition by combining directional and flooding transmission of RREQs. As a result, GAHRA reduces the on-demand routing overhead and saves bandwidth for the entire network. GAHRA has two types of connection establishment: table-driven route servicing and on-demand packet forwarding. Other parts of table-driven route maintenance in GAHRA are identical to DSDV, with the exception that the RTBP fluctuates with the Neighbors’ Stability. The on-demand routing maintenance method will be almost the same as the AODV routing procedure.
Distance in the middle of two or more cluster can be measured by using D(i,j) it can measure any number of distance [19]. Distance of cluster link is measured by three unique ways namely distinct link, entire link, average link. Single link minimal distance between elements in the other. While measuring a large distance at the time Complete link is used. The Average link is determined by estimating typical range between elements present in a cluster and elements in the further. The average inter-cluster length is derived by collecting the distance among each pair of data within every cluster and dividing by the total number of pairings. The two most common distance measurements in hierarchical clustering are average-linkage and complete-linkage. Dist(Xi) indicates distance of node i, x1, x2, y1, y2 are common nodes.
3.2 Node Mobile Stability Calculation
The model uses neighbor stability to look over the average change rate of a node's neighbors over time. Every node assesses its neighbours’ consistency on a regular basis, and then when it finds that it exceeds a pre-defined threshold, it acts in Table-Driven State; anything other than that, it immediately flips to On-Demand State. It is coming to see that Table-Driven State is computed for Inner-Group Nodes and Non-Connecting Bounding Nodes because the Stability of their neighbors is ordinarily greater than the threshold. In addition, the relative displacement of adjacent groups affects the neighbour stability of Connecting Endpoints. Independent nodes have weak neighbor stability since they move arbitrarily and autonomously, hence they are generally in On-Demand State.
Internet connected device are called as mobile node, while calculating a mobile node stability have to consentrate on node stability during path establishment. Node stability factor can be measured by following methods, 1.The all-encompassing node in network, 2. considering neighbors self-stability of all the peers in MANET, 3. Based on own-stability and neighbor stability only computing each and every node stability in MANET [20,21].
Selecting a path from source to target may be a stability factor of nodes used. The following parameters high packet delivery ratio (PDR) and low stoppage (LL) are easily achived by using stable node in path. The Connected Neighbors (CN) calculation is given below,
Consider two communication nodes as i and j and communication range as R, and distance at time as DijT. A Qti here “i” be well-defined like the place of adjoining nodes at interval t, it can demarcated as {Vj|Vj ɛ Vt, eijT ɛ Et, j = i}. Number of nodes mentioned here as N and then Total Mobility Trace mention as Tmt.|CYit| isthe cardinality of CYit. Over-all amount of associates among node i and j be mentioned as Cij lifespan whose connection reputable among i and j at their kth link be hijk in support of a node i, neighbors mean available time HIQ can be conveyed as below Eq. (2)
HQact in place of neighbor accessible time of network can be printed as (4).
Afterward, RQ the neighbor reachability can be well-defined as (5).

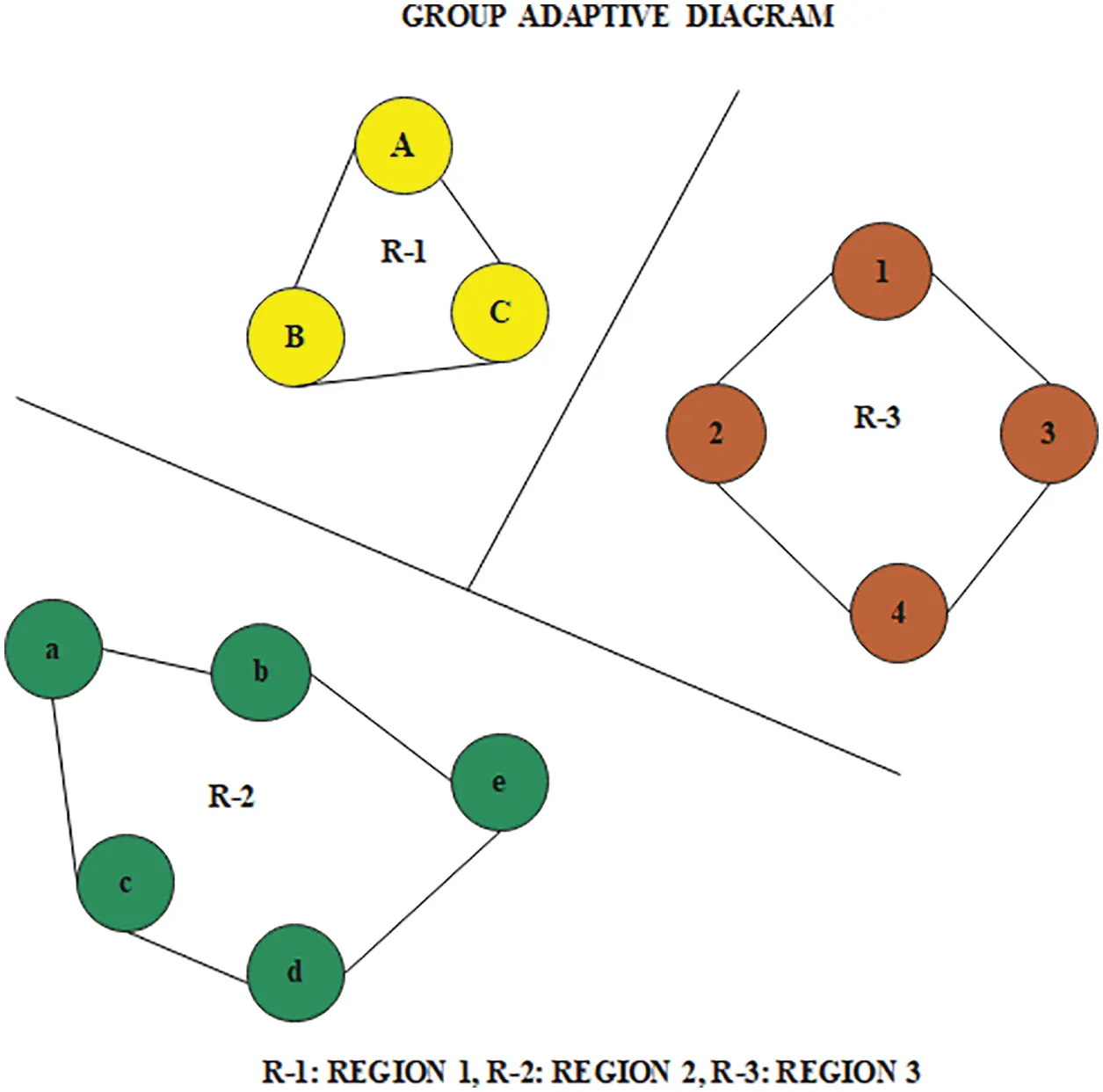

Group level measuring is the easy way to compute node reachability. Fig. 1 shows the group acts as a associated component in the network. At time interval t set of path connection between nodes are defined as Pt, i node and j node are hypothetical towards the identical cluster if ∃ Pijt where Pijt ɛ Pt. The cluster inclosing a node i at interval t, Gti , can be clear as {vj|vj ∈ V t, pijt ∈ Pt ∨ i = j}. The cruel cluster dimension trained by a node, CN tends be printed to
Figure 1: Group adaptive diagram
Let, Gi is group1 holding node i and Gj is group2 holding node j, Mij is mobility trace of node i and j in different groups. A definite quantity of time node j has to be wait in Gi pro kth time be τk ij . At that point in node i, the suggest group accessible time H I G will be printed as (6). The unkind set reachable time HG and the set reach ability RG can be printed as (8) and (9), correspondingly.
Based on (5) and (9)th equation we explain the node stability as
δ is used to fine-tune the weight of reachability in the not the same group. If δ upturns, the group reachability is well-thought-out towards a elevated status otherwise the attainment of near ones were motivated by the parameters. To regularize the NS range among 0 to 1. NSmax represent a value became from the scenario which the entire nodes keep on together until the simulation ends. Changes the equation as
The estimated signal quality SS (xi) between the source and goal relies upon the physical remoteness between the hubs. The received signal strength is the ability of a received signal evaluated at the receiver's antenna (RSS). The power of the broadcast, the range between transmitter and receiver, and the radio environment all have an impact on RSS. The received signal strength is a challenging subjective measure that is inextricably linked to the transmitter's location Consequently MANET, determined RSSI is wrong and insufficient because of dynamic versatility. Because non-uniform nodes topologies affect dispersed and autonomous reconfiguration, a dynamically adjustable routing architecture must be capable of dealing with, supporting, and potentially exploiting non-uniform distribution node deployments. The way a routing structure endorses non-uniform layout is determined by the framework's structure. The insufficiency negatively affects cluster head determination. In any case, the RSSI depends on NFD which acquainted with conquer the issues from uncertainty and deficient in the RSSI of neighbor hub j with the relating neighbor i. The SS(xi) measures the sign quality proportion for neighbor hubs, which is characterized in Eq. (4),
The cluster head assortment is based on energy, link quality, velocity of mobility and acknowledged received Signal Strength (RSSI). The subsequent statement gives the entire cost for cluster head selection.
Compute COST for all the neighbors nodes with minimum cost and stable path is selected for the next hop.
The proposed technique is simulated in network simulator version-2 with 100 nodes of 100, Category of MAC is 802.11, the direction-finding convention is Adhoc On demand Distance Vector (AODV). A network simulator is software that predicts the performance of a network connection. Because communications systems are becoming too complicated for traditional analytical methodologies to provide a meaningful understanding of the structural behavior, network simulators are used. The Network Simulator-2 results of Group Adaptive Hybrid Routing Algorithm (GAHRA) by earlier period scheme Neighbor Coverage based topology control scheme (NC-TCA). Tab. 1 list the abbreviated terms and Tab. 2 shows the experimental simulation metrics and its values.
Packet Delivery Ratio (PDR): Packet Delivery Ratio act as a important role in Network. Based onn Packet delivery Ratio network performances are measured. Using small amount of time for transmitting a packet from source to destination called as a PDR.
Routing Overhead (RO): Maintaning a Routing Overhead is the main thing in network for successful transmission. Build communication is necessary for packet directing in network called as routing overhead. Routing Overhead is calculated by overall request script are divided by the response script.
Throughput: Throughput is measured by bits per second. Using correspondence channel, remote channel performing packet moving process successful manner.
Speed (S): Speed representation are categorized in 5 types, like a seconds (s), minutes (m) and mile seconds (ms), micro seconds (μs), Nano seconds (ns) in Mobile Ad-hoc Network. Speed is defined as the time (S) taken by the packet (PKT) to pass through between source and destination.
Average End-End Delay (AEED): Network Communication is tied up with time for packet, Which is crossed from home node to target node to make a communication.
Algorithm for Node MobilityCalculation
STEP 1. Consider for four regins named as: Region I, Region II, Region III and Region IV
STEP 2: if a engendered packet has a delay Treal after that
STEP 3: Evaluation the hops number n to the end node R
STEP 4: Dmax = Treal/n;
STEP 5: Pull-out Dmax into the legend of Route REQuest packet;
STEP 6: If node receives Route REQuest packet then
a) Determine Connectivity Part:
b) Connect superiority based on delay and Energy:
c) Cost
The cost based on Connect superiority, mobility and Received Signal strong point (RSSI). The subsequent equation specifies the total cost for Neighbour selection.
STEP 7: Broadcast the RREQ packet with TIL (xi, xj), State Notification Of Connecting Node (SNCN) and Packet Serial Number (PSN);
STEP 8: else
STEP 9: Announcement to the conventional RREQ packet;
STEP 10: end
STEP 11: if source S accepts an RREP packet with SNCN and PSN then
If (SNCN is according to PSN)
Node J abstracts Node I's Region ID beginning Node I's ID in SNCN and approves if it be in the correct position of that Region , it check its Connecting Nodes Table (CNT) and fix the Timeout Timer of Node I's table element to extreme and modernize the neighbor Group ID List in Node I's table entry; if not, take account of alternative thing in CNT, put Node I's ID and its Region ID List into this entry and fix this present item Timeout Timer to most extreme.
STEP 12: Else
STEP 13: Discard
STEP 14: Optimal path selection is based on TIL (xi, xj) and COST(xi, xj);
STEP 15: Send a packet via selected path only;
STEP 16: if Forwarder receive a new RREQ packet with Dmax inserted then
STEP 17: Call the ITCD algorithm;
STEP 18: Dpa = DT−1,i;
STEP 19: Rebroadcast the RREQ packet;
STEP 20: else if Forwarder i receives an RREP or data packet then
STEP 21: Forward the RREP or data packet according to its routing table;
STEP 22: end if
STEP 23: Receiver R:
STEP 24: if Receiver R receives an RREQ packet then
STEP 25: Send an RREP packet to the source S with Dpa;
STEP 26: end if

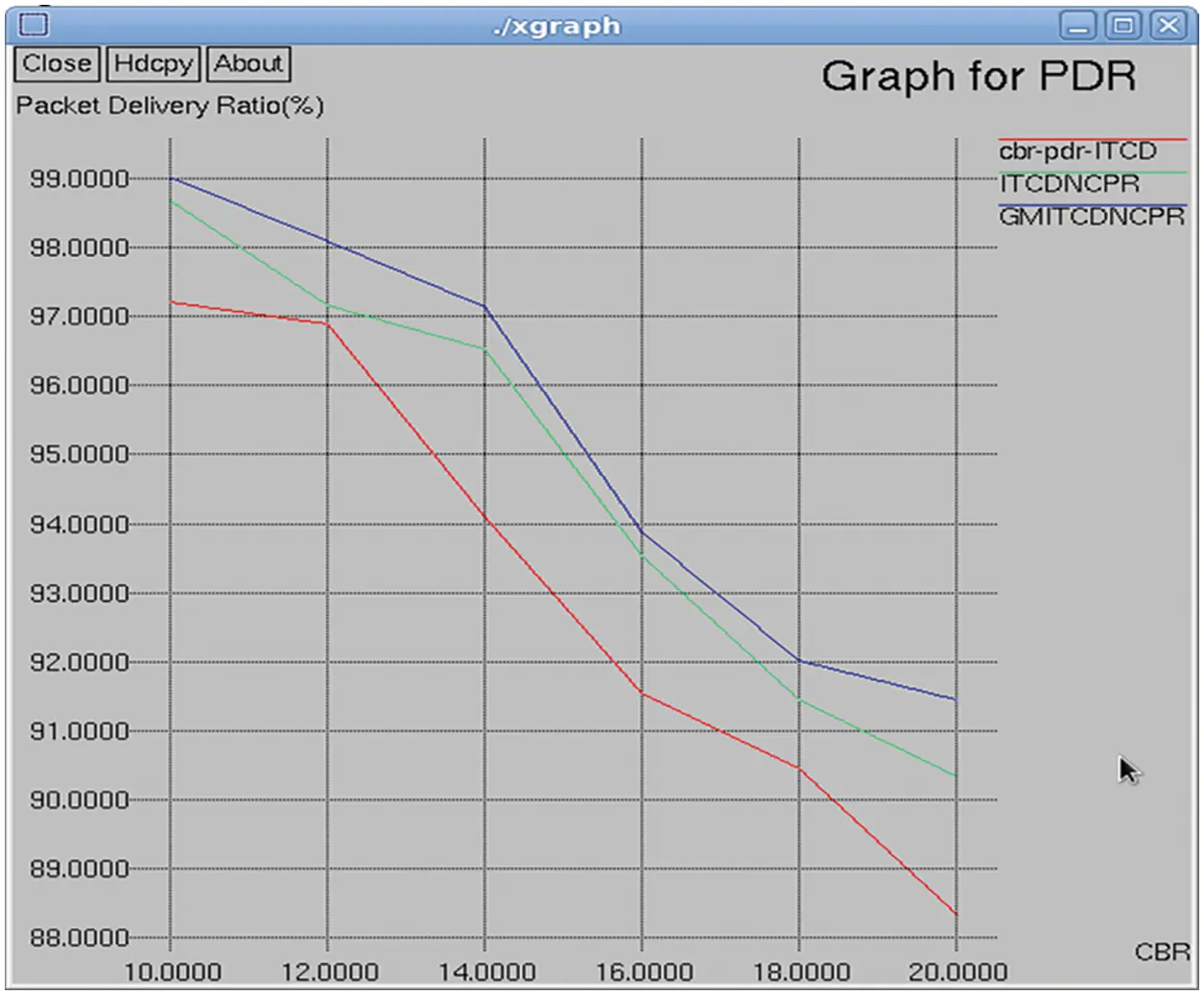

Fig. 2 represents the Comparision n graph between packet delivery ratio and constant bit rate. In this proposed method using AODV routing protocol, cluster based group adaptive routing algorithm and tool is network simulator-2. ITCD algorithm successfully transmits 97.3 packets in Constant bit rate value 20, rather than using ITCDNCPR packet 98.5 which is transmitted in same constant bit rate value 20, at the same time GMITCDNCPR algorithm gives a 99.65 packet delivery ratio level. The packet delivery ratio (PDR) is the percentage of total packet delivery to total sequences sent by a source address to a target device in the network. The recipient should receive as many packets of data as feasible. Following Fig. 2 illustrates the packet delivery ratio vs. constant Bit Rate comparison.
Figure 2: Packet delivery ratio vs. constant bit rate

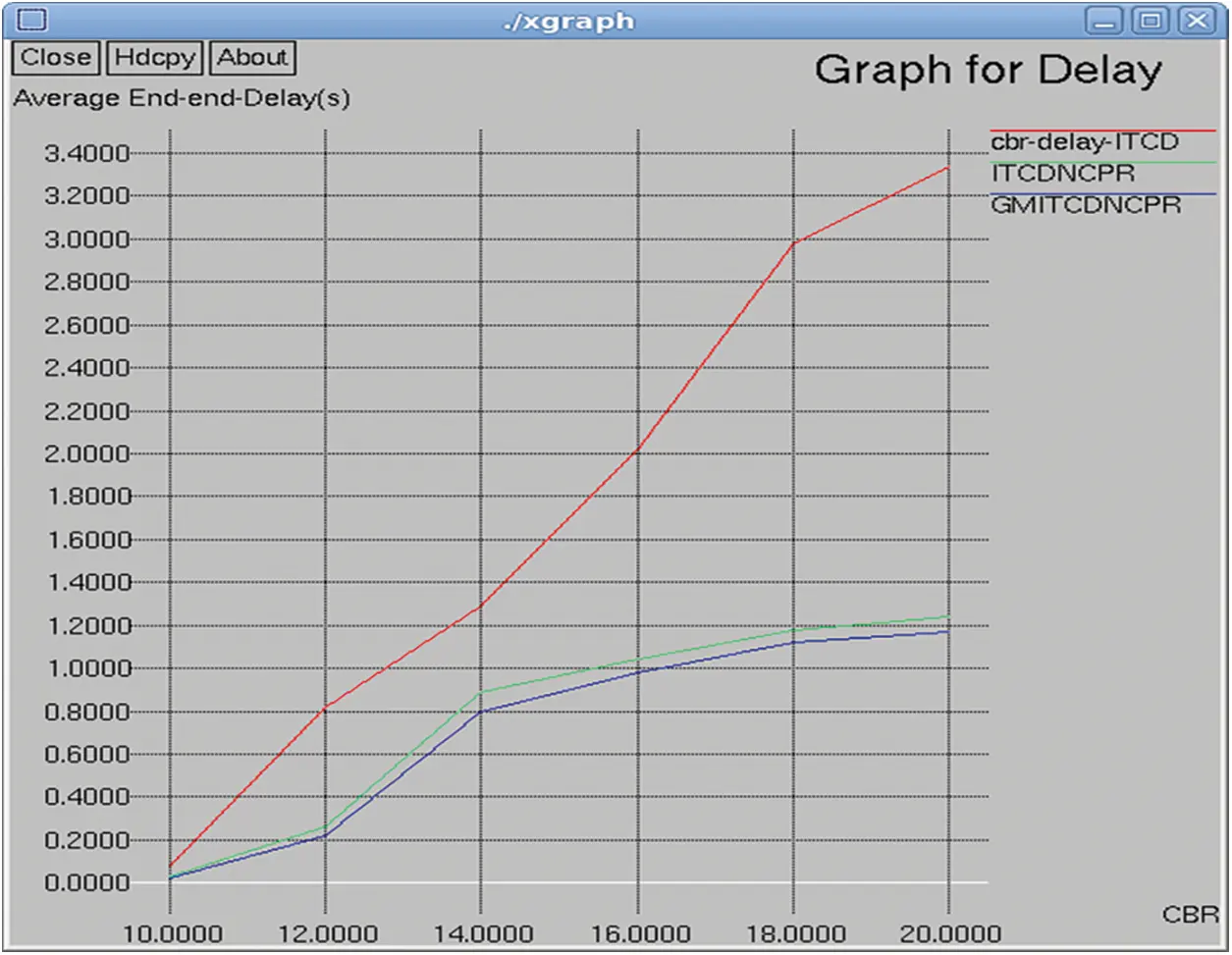

Fig. 3 displays the Comparision n graph between average delay and constant bit rate. Here planned technique by means of AODV routing protocol, cluster based group adaptive routing algorithm and tool is network simulator-2. ITCD algorithm successfully transmits delay 0.5 in Constant bit rate value 20, rather than using ITCDNCPR packet 0.4 which is transmitted in same constant bit rate value 20, at the same time GMITCDNCPR algorithm gives a 0.0 delay.
Figure 3: Average delay vs. constant bit rate
Fig. 4 following network simulator compassion graph displays the previous values and proposed values, ITCD algorithm 140 routing load in Constant bit rate value 20, rather than using ITCDNCPR load level 90 which is transmitted in same constant bit rate value 20, at the same time GMITCDNCPR algorithm gives a 80 normalized load level. Due to this graph GMITCDNCPR gives a better result for packet transmission in network.
Figure 4: Normalized routing load vs. constant bit rate

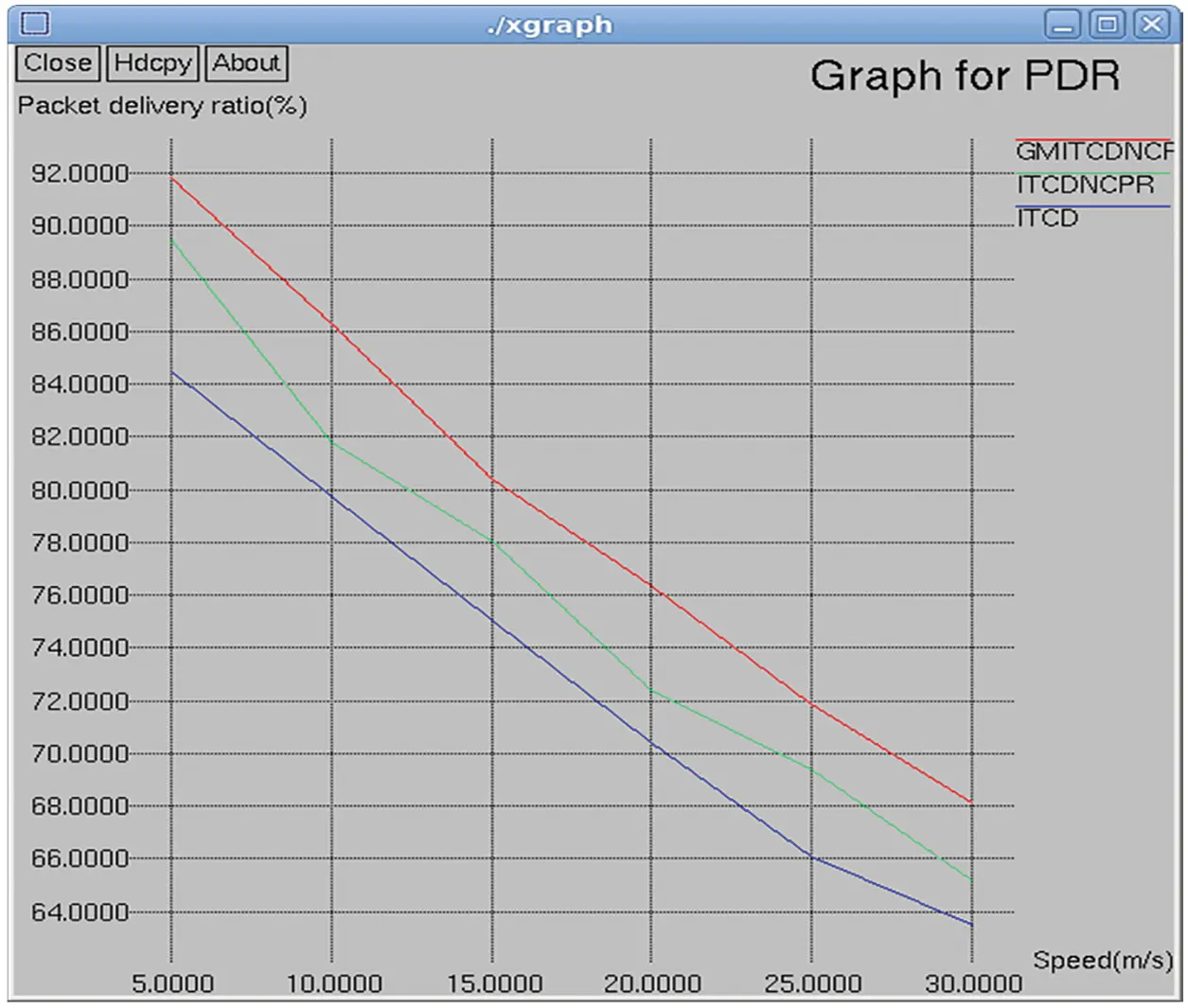

Fig. 5 represents the simulator comparision n graph between packet delivery ratio and speed. This graph, X-axis express Average delay and Y-axis express speed in a simulation. Delay values are resolute by seconds (sec), speed values are is estimated in mile seconds (m/s). In this planned scheme using AODV routing protocol, cluster based group adaptive routing algorithm and tool is network simulator-2. ITCD sends a 84 packet at a speed is 20 only and ITCDNCPR sends a 90 packet at the speed of 30 at the same time GMITCDNCPR algorithm deliver 92 packets successfully. Group adaptive algorithm gives a good result compared to existing algorithms.
Figure 5: Packet delivery ratio vs. speed

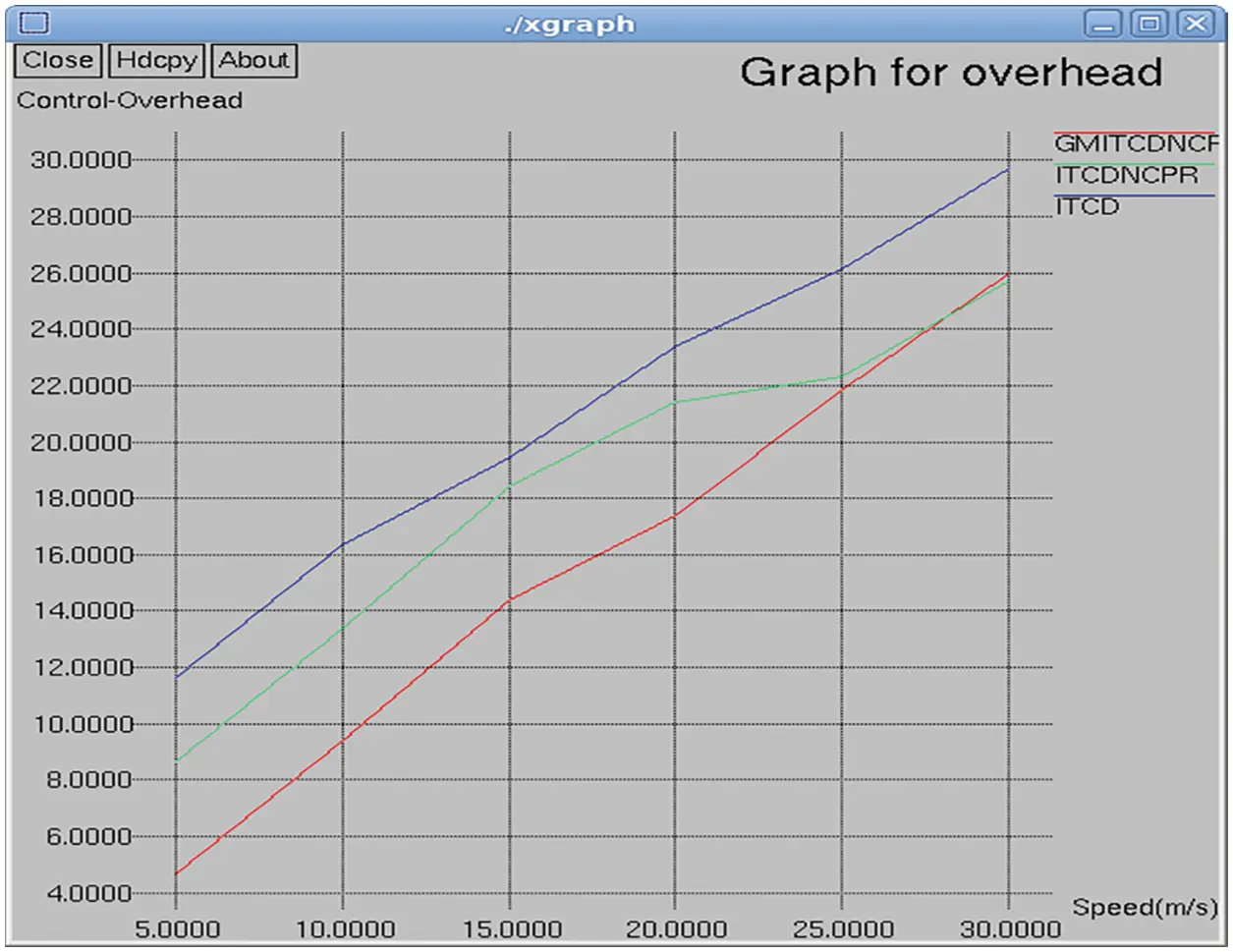

Fig. 6 displays the comparison between the metris speed and overhead. It overviews the perception that the reative routing protocol taking the response for route detection using broadcasting which is the basic and well organized data propogation for route detection. Retransmission is the important reason for producing overhead during packet transmission in the network ITCD algorithm overhead level 12 in Constant bit rate value 20, rather than using ITCDNCPR overhead level 8 which is transmitted in same constant bit rate value 20, at the same time GMITCDNCPR algorithm gives a 4 overhead.
Figure 6: Control overhead vs. speed

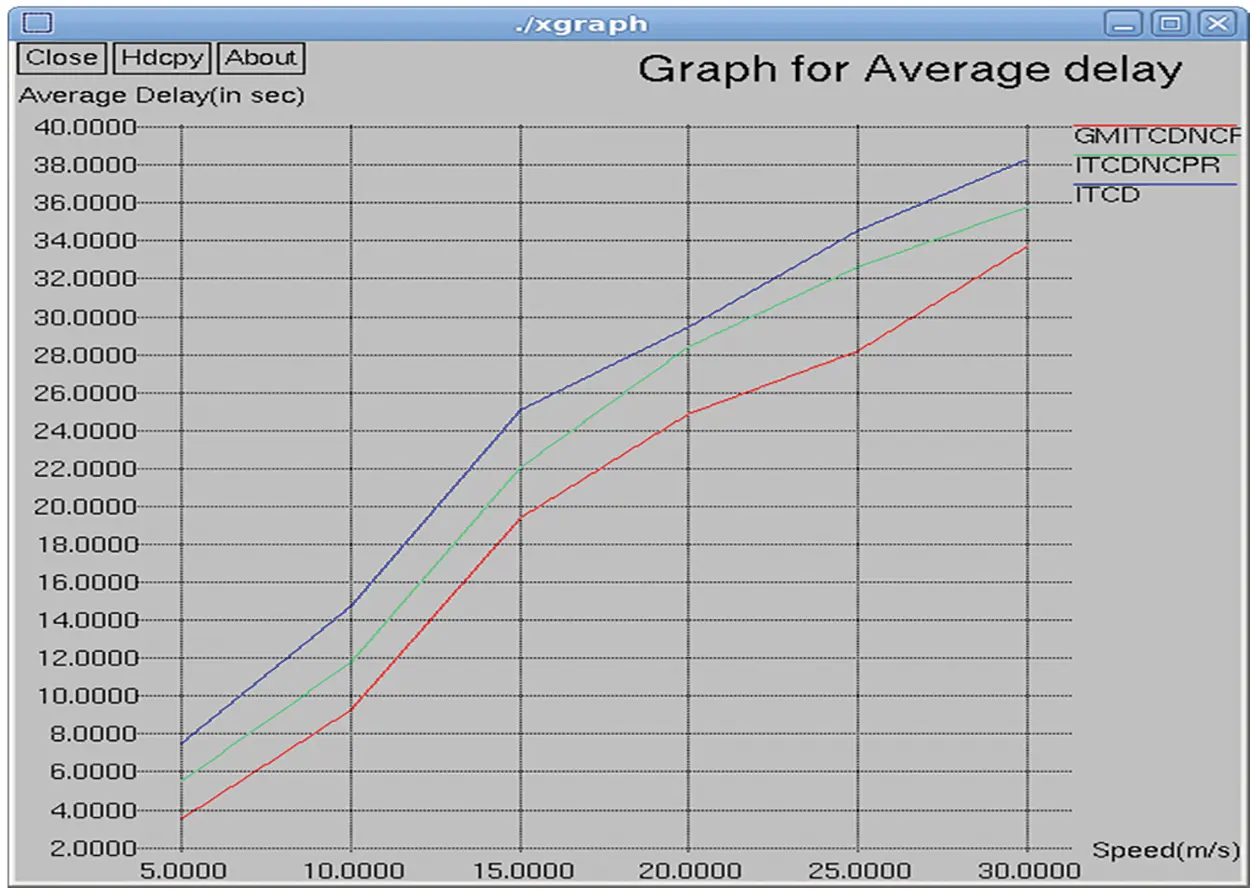

Fig. 7 correspond to Delay and speed. Delay may occur due to following replication route request, route reply process. To overthrow this issue GMITCDNCPR algorithm forming a nodes into a group manner so easily find the delay or congested node in a network. To sufficient hop is allocated in GMITCDNCPR will minimize the end to end delay time of the packet. X-axis values measurement depends on seconds; Y-axis values are calculated by using a mile sec value.
Figure 7: Average delay vs. speed
As MANET has a lot of issues, one of the issues determined is flexibility point the correct way shows which can't guarantee execution in the dynamic association. This examination can move analysts to offer progressively beneficial and effective on together gathering and topology control plot for MANET.
This article can encourage to offer increasingly proficient and successful on utilizing grouping and topology control conspire for MANET. A Group versatile crossover routing calculation (GMITDNCPR) for portability in Tactical MANET is proposed and tentatively demonstrated in this investigation. As demonstrated by gathering portability and inward gathering social event stable topology incorporate examination, two kinds of directing states, for example, table-driven navigation process in steady gatherings and on-request steering process among groups are characterized in GMITCDNCPR. The adequacy of this proposed framework is to utilize Group Adaptive calculation which goes about as a connector among proactive and receptive steering for giving progressively adaptable to versatility. Theoretical investigation and reproduction result results demonstrates that the GMITCDNCPR has better execution and proficiency than any simplex table-driven steering or on-request directing, and it is increasingly appropriate for routing in Tactical MANET.
Our future work comprise of travelling other versatility the board plans for a more extensive assortment of topology control gathering with increasingly flexible and versatile.
Funding Statement: The authors received no specific funding for this study.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
