Field Studies on the Removal Characteristics of Particulate Matter and SOx in Ultra-Low Emission Coal-Fired Power Plant

Xu Zhao, Houzhang Tan, Fuxin Yang* and Shuanghui Deng

Key Laboratory of Thermo-Fluid Science and Engineering, Ministry of Education, Xi’an Jiaotong University, Xi’an, 710049, China
*Corresponding Author: Fuxin Yang. Email: fxyang@xjtu.edu.cn
Received: 31 December 2020; Accepted: 25 March 2021

1  Introduction

With the rapid urbanization and economic growth, smog is common in large areas of China in recent years. It has adverse effects on people’s health and climate change and has attracted more attention [1]. The causes of smog mainly come from air pollutants, such as fine particulate matter (PM, fine PM refers to the particles with aerodynamic diameter less than 2.5 μm), sulfur dioxide (SO2), and nitrogen oxides (NOx). The coal-fired flue gas is one of the main sources. According to the Analysis of China Statistical Yearbook, 70% of China’s primary energy consumption is coal, of which 75% is used for combustion, while coal-fired power plants (CFPPs) consume about 50%. Moreover, it will take a long time for China’s coal-based energy structure to change, so the particulate matter emitted by CFPPs has to receive extensive attention [2,3].

In 2011, the Chinese government issued the “Emission Standard of Air Pollutants for Thermal Power Plants (GB 13223–2011)” [4], which specified the emission concentration of PM, SO2, NOx, and other air pollutants. The emission limit of PM is 30 mg · m−3, and it is 20 mg · m−3 in the key areas. In 2014, the “Reformation and Upgrading Action Plan for Coal Energy Conservation and Emission Reduction (2014–2020)” [5] was published by the National Development and Reform Commission, which proposed the ultralow-emission (ULE) standards, requiring the total PM emission concentration to be less than 10 mg · m−3. To achieve the ULE, a series of air pollutant emission control devices (APCDs) have been used in CFPPs, including selective catalytic reduction (SCR), electrostatic precipitator (ESP), wet flue gas desulfurization (WFGD), and wet electrostatic precipitator (WESP). In China, most WFGD uses limestone as a desulfurizer, because the limestone raw material is easy to obtain, the cost is low, the operation is stable, the desulfurization efficiency is high, and the by-products with a high utilization rate can be used [6–8]. Moreover, WFGD is retrofitted to improve its desulfurization efficiency in some CFPPs. For example, a double tower wet flue gas desulfurization device is proposed, which is built after the original desulfurization tower. The research showed that the actual operation desulfurization efficiency of the relevant units can reach more than 99.5% [9]. WFGD using a new magnesium-based catalyst has attracted attention because of its small floor area, less pipeline blockage, and less secondary pollution. Nevertheless, the magnesium-based raw materials are distributed unevenly and the reuse of by-products is difficult, so it has not been widely used [10,11].

Furthermore, relevant studies have shown that the installation and use of WFGD will lead to great changes in PM concentration and ion composition in the flue gas. Meij et al. [12] found that after WFGD the PM mass concentration decreased from 100 mg · m−3 to 10 mg · m−3, and gypsum and limestone appeared in the particles at the outlet. Wang et al. [13] found that in a 300 MW CFPP, the diameter of particles decreased from 3 to 1 μm in WFGD. In addition, the particles changed from regular spherical distribution to irregular blocks easily agglomerated. About 47.5% limestone particles and 7.9% gypsum particles were found in the fine particles at the outlet of WFGD. Lu et al. [14] found that the concentration of Mg2+ and Ca2+ ions increased significantly after WFGD. Mg and Ca are the main components of WFGD desulfurization slurry. A part of the desulfurization slurry will be converted into fine particles under the interaction of limestone and flue gas, and these particles will be entrained by flue gas. Wu et al. [15] tested four 300 MW coal-fired plants and found that the particle size distribution, mass concentration, and ion composition of particles changed significantly after WFGD. Pan et al. [7] found that after WFGD using limestone, the composition of particles changed and a new particle CaSO4 were formed. Yan et al. [16] found that different desulfurization methods had different effects on the morphology and elemental composition of fine particles. During the desulfurization process, the reaction, evaporation, crystallization, and trapping of high-temperature flue gas and desulfurization slurry may form new fine particles or adsorb on the surface of particles, leading to the changes in the elemental composition and morphology of particles. The effect of WFGD on the concentration of particles depended on the relative strength of slurry spray effect and flue gas entrainment effect, and it also could be affected by flue rate and flue gas temperature. The transition and migration mechanism of flue gas in WFGD is complicated, and further research is needed.

WESP is used as the supplement of flue gas purification equipment [17,18], which has a good removal effect on gypsum droplets, acid mist, toxic heavy metals, fine dust, and other pollutants. Zhang et al. [19] conducted field tests on an ultra-low emission demonstration project of a 1000 MW coal-fired unit and found that the removal efficiency of PM2.5 by WESP was 57.3%. Li et al. [20] carried out a particle emission test on six coal-fired power plants with ultra-low emission, and the results showed that WESP had a good removal effect on PM>1. However, with the decrease of particle size, the removal efficiency of WESP decreased gradually. The factors affecting the efficiency of WESP to remove particles need to be further studied.

SO3 is the cause of blue smoke or yellow smoke in CFPPs as well as acid rain. Moreover, it will form secondary particulate sulfate when discharged into the atmosphere, which is also one of the important sources of PM2.5 [21,22]. The existing APCDs of CFPPs have a certain effect on SO3 removal. The test results of typical units by Li et al. [23] showed that the removal efficiency of most WFGD and WESP reached 50%. Wang et al. [24] conducted field tests on the SO3 concentration of several typical coal-fired units in China. The SO3 mass concentration in flue gas before WESP was generally lower than 15 mg · m−3, and the concentration at the outlet of WESP was less than 5 mg · m−3, and the removal efficiency was between 58.0% and 76.5%. Feng et al. [25] found that the SO3 removal efficiency by WESP in coal-fired units with two-stage WFGD was 23.0%. This might be due to the bipolar desulfurization tower that had a good removal effect on SO3, and the concentration of SO3 at the inlet of WESP was very low. This showed that the removal efficiency of WESP is affected by the imported concentration. It is still controversial that the existing flue gas purification devices have a good removal effect on SOx, and there is no standard emission requirement for SO3 at this stage. Therefore, it is necessary to study its transformation and migration characteristics in the flue gas to reduce its pollutant emissions.

In order to meet the ULE, many improvements have been made to the existing flue gas purification equipment in CFPPs, but the conversion and migration process of PM and SOx in the flue gas are complex and affected by many factors. In this work, a coal-fired power plant with ultralow-emission is studied. The original desulfurizing tower is reformed. A spray layer is added between the inlet flue duct of the absorption tower and the first spray layer, and a slurry circulating pump is added. The mode of two-layer flat plate demister is changed into two-layer roof ridge type and one layer pipe type demister, to eliminate the phenomenon of side wall escape of absorption tower and realize absorption tower. In addition, a WESP is installed behind the desulfurization tower to further remove the pollutants in the flue gas. The field test was carried out under full load operation to explore the transformation and migration characteristics of PM and SOx after the ultralow-emission retrofit.

2  Materials and Methods

2.1 Research Object

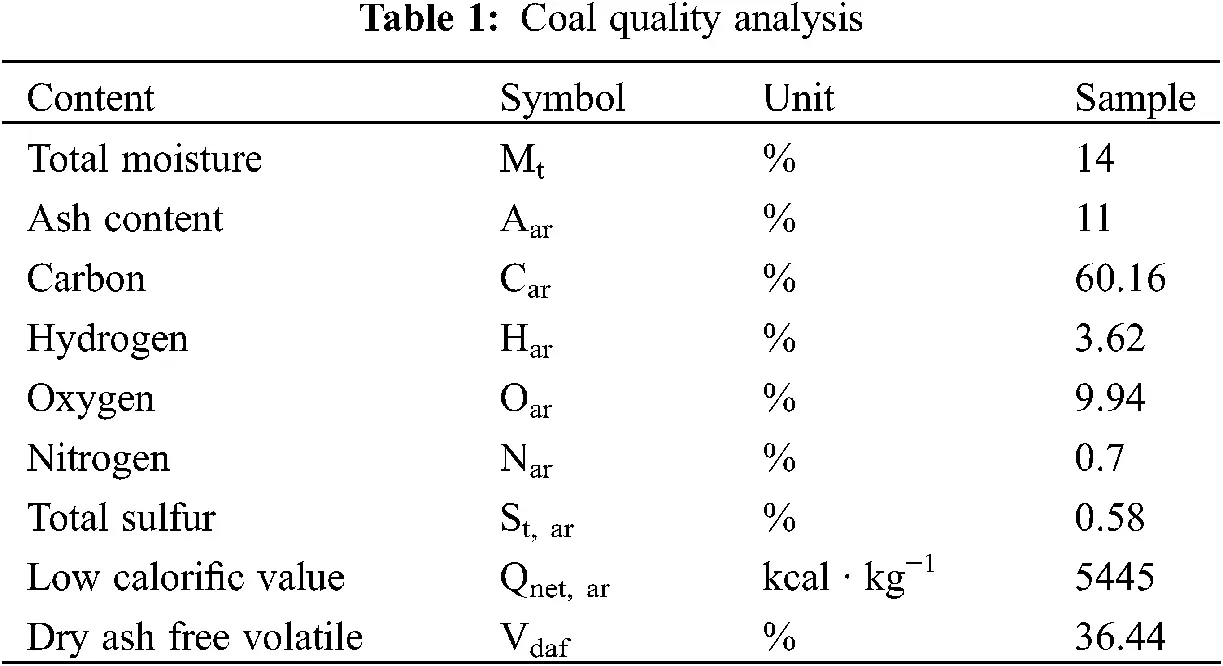

The research object is a CFPP in the Beijing-Tianjin-Hebei region. The power plant is equipped with a pulverized-coal boiler and the designed maximum continuous evaporation capacity of the boiler is 2150 t · h−1. During the test period, the boiler operated at full load. The combustion coal was bituminous coal. The industrial element analysis results are shown in Table 1.

2.2 Test Sampling Point Setting

SCR, ESP, WFGD, and WESP are installed in the test unit after ultralow-emission transformation. As shown in Fig. 1, five sampling sites were selected in the test, which was located at the inlet of SCR, the outlet of SCR, the outlet of ESP, the outlet of WFGD, and the outlet of WESP. The measurement of SO2 and SO3 were measured at four samplings (Points A, B, D, and E), while the measurement of particulate matter was sampled at sites after ESP.

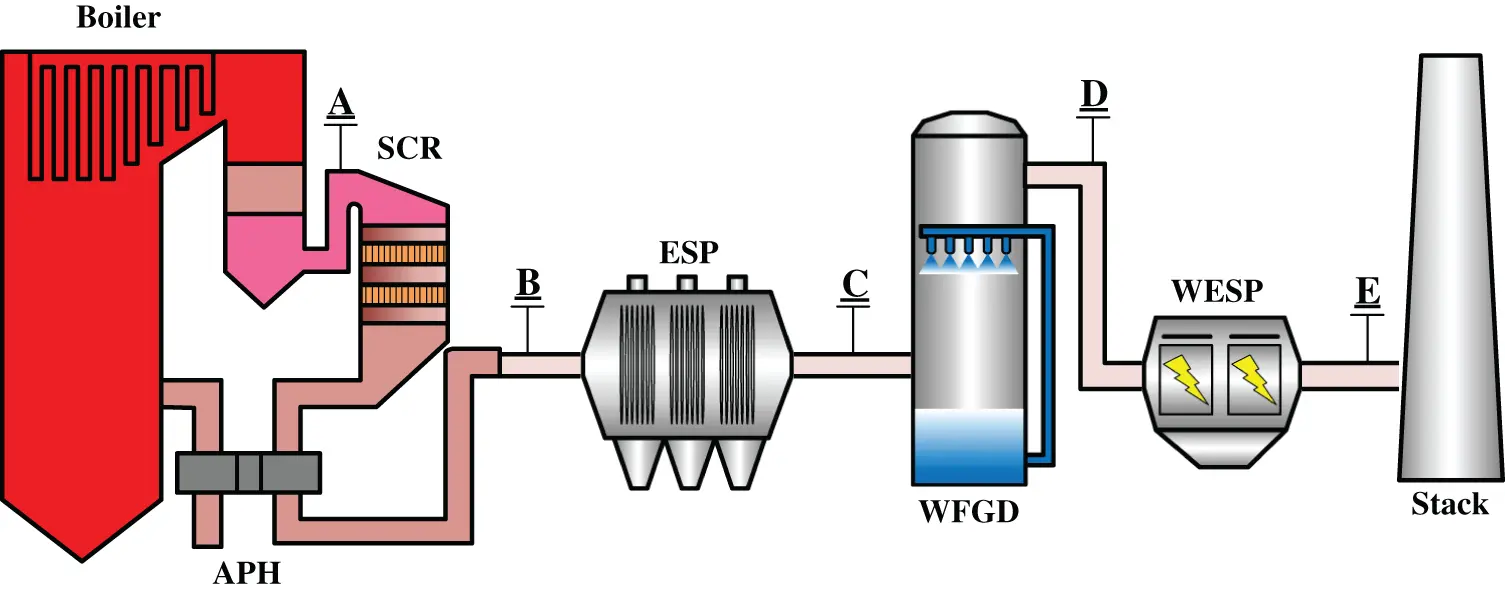

Figure 1: Schematic diagram of sampling points

2.3 Sampling and Analysis Methods

According to “The Determination of Particulates and Sampling Methods of Gaseous Pollutants Emitted from Exhaust Gas of Stationary Source” (GB/T 16157-1996) and “Determination of Particulate Matter Emissions from Stationary Sources” (EPA method 5, 17), the isokinetic sampling method was used to determine the mass concentration of PM in the flue gas. According to the actual situation of the test sample, the sampling time of each sampling point was set. The angle between the central axis of the sampling nozzle and the direction of flue gas flow should be less than 5°.

The sampling device is shown in Fig. 2. The sampling device was mainly composed of a sampling gun, cyclone separator, Dekati low-pressure impact instrument (DLPI), vacuum pump, etc. According to the sampling flow rate (extraction flow rate is 10 L · min−1) and flue gas flow rate, the appropriate sampling nozzle was selected to realize isokinetic sampling. In the sampling process, the sampling gun was used to extract the flue gas from the flue gas. Firstly, the cyclone separator was used to remove and collect the particles with aerodynamic diameter greater than 10 μm in the flue gas, and then went into DLPI. The particles in the DLPI were divided into 13 grades due to their different aerodynamic diameters, and then they were collected separately. DLPI used the principle of inertial collision to classify particles. The collecting base of particles in the device was made of aluminum foil coated with Apiezon-H silicone grease. Before and after measurement, the Sartorius BP211D microanalysis balance was used to weigh the aluminum foil. The mass difference obtained was the mass distribution information of particles in different stages. To avoid the influence of moisture and acid gas condensation on the measurement results, the heating sleeve was used to heat the sampling gun, cyclone separator, DLPI, and connecting pipe during the sampling process, and the temperature should not be lower than 403.15 K.

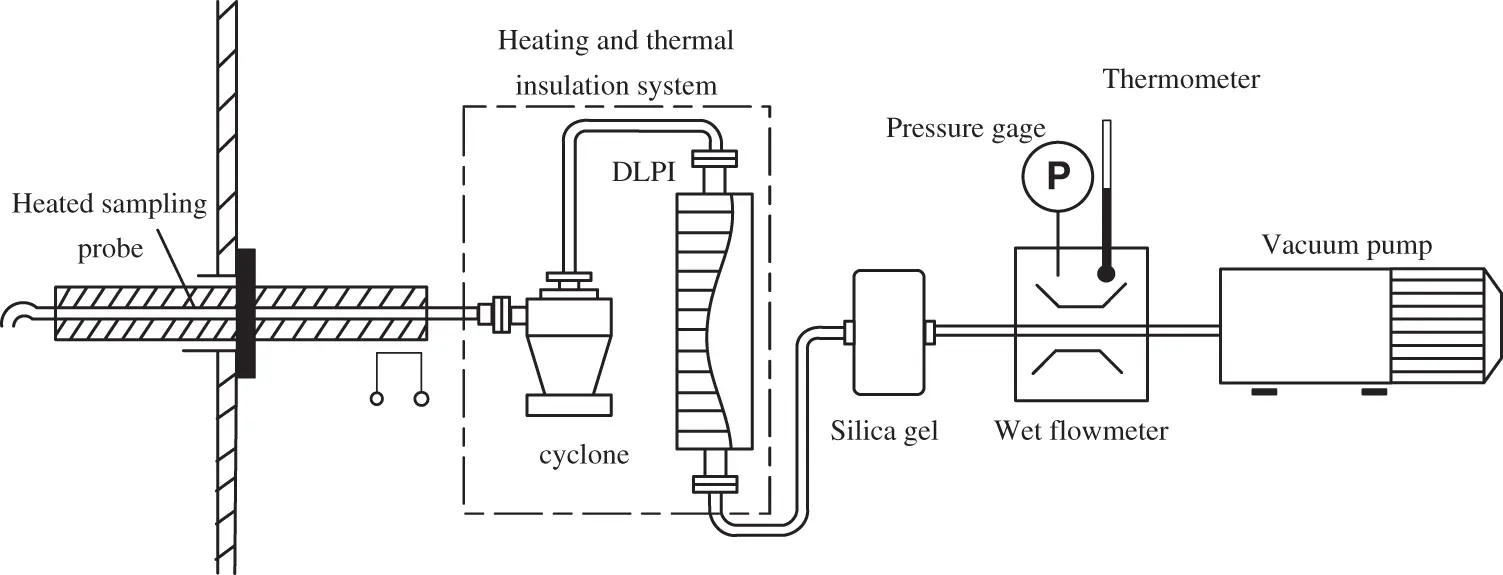

Figure 2: Schematic diagram of particulate matter sampling system

As shown in Fig. 3, the SO3 sampling test is based on “Performance Test Method for Coal-fired Flue Gas Desulfurization Equipment (GB/T 21508-2008)”, which was mainly composed of sampling gun, quartz filter, serpentine glass collecting pipe, droplet separator, and vacuum pump. A quartz filter was used to filter PM in the flue gas. During measurement, the quartz filter and sampling gun should be heated to 473.15 K to prevent condensation of water vapor and acid gas. At the same time, the absorption bottle needed to be placed in a water bath, the bath temperature was not higher than 303.15 K. The sample flow was kept at a constant rate of about 10.0 L/min for 30–60 min After sampling, the glass tube and quartz filter needed to be washed with deionized water, and then the washing liquid would be added and converted to the concentration of SO3. The concentration was determined by Barium-Thorin titration. In the titration process, the resin was used to remove NH4+ and other impurity ions. Before the use, the resin was treated using sodium hydroxide and hydrochloric acid solution. Moreover, each sample was titrated several times and the average value was adopted to eliminate the biases.

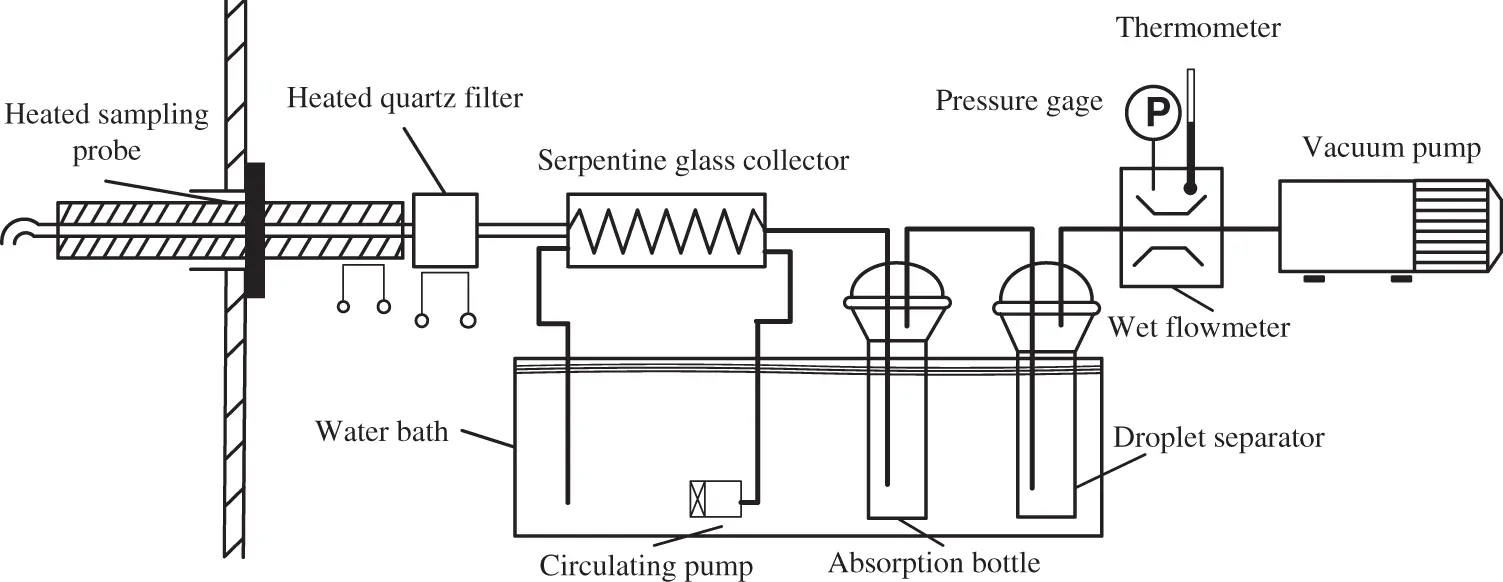

Figure 3: Schematic diagram of the SO3 sampling system

2.4 Composition Analysis of the Flue Gas

According to the requirements of “The Determination of Particulates and Sampling Methods of Gaseous Pollutants Emitted from Exhaust Gas of Stationary Source” (GB/T 16157-1996), a calibrated flue gas analyzer was used to obtain the composition analysis of the flue gas. The concentration of each grid point was converted to the same oxygen content for arithmetic average, and the result was the flue gas composition concentration of the section, and the CEMS of the unit was checked.

2.5 Calculation of Emission Factors

Taking fuel consumption as the basic unit, establish SOx and PM emission factors, which represent the emission of 1 t coal consumed per unit, respectively [26]. The formula is as follows:

where EFe is the emission factor (kg · t−1), C is the pollutant concentration (mg · m−3), Qgas is the flue gas emission (m3 · h−1), Mfuel is the coal consumption (t · h−1). The emission factors of PM1, PM2.5, and PM10 need to be converted according to the emission factors, and the formula is as follows:

where EFPM is the emission factor (kg · t−1), Y is the conversion coefficient. The conversion coefficient of PM1, PM2.5, and PM10 are 0.9896, 0.9354, and 0.6584, respectively.

3  Result and Discussion

3.1 Emission Characteristics of Particulate Matter at the Inlet and Outlet of WFGD and WESP

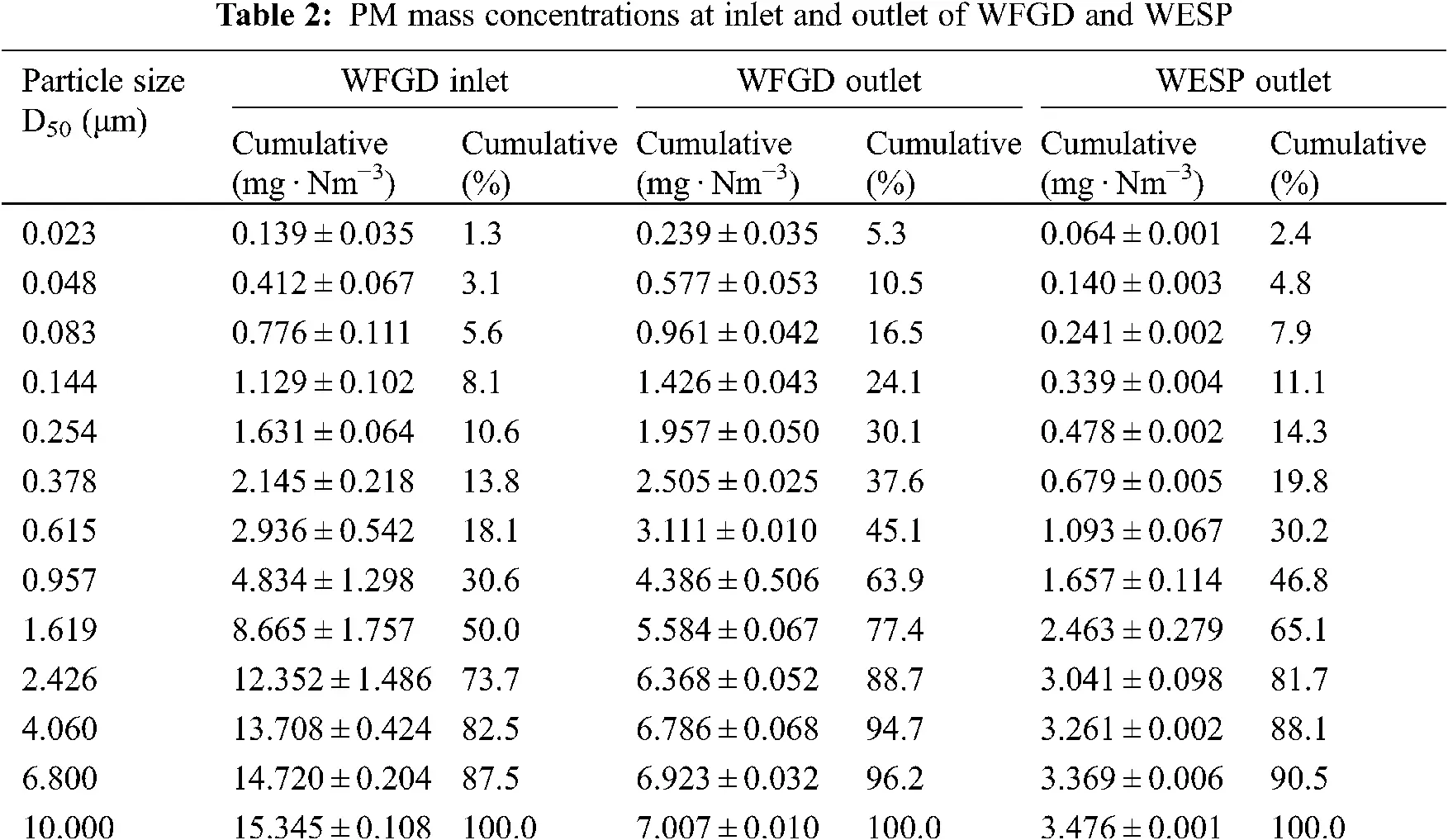

The PM mass concentration at the inlet and outlet of WFGD and WESP of coal-fired units was tested by DLPI divided into 13 grades. Table 2 shows the PM mass concentration and cumulative percentage of each stage of DLPI. The mass concentration of PM10 at the inlet of WFGD is 15.345 mg · Nm−3. At the outlet of WFGD, the mass concentration of PM10 is 7.007 mg · Nm−3, and the removal efficiency is 54.34%. At the outlet of WESP, the mass concentration of PM10 decreases to 3.476 mg · Nm−3, and the total removal efficiency is 50.39%. After WFGD and WESP, the efficiency is 77.35%, but the proportion of PM2.5 increases from 73.7% to 88.7%.

Fig. 4 shows the mass concentration distribution and removal efficiency of particles with different particle sizes in the desulfurization process. At the inlet and outlet of WFGD, the concentration of PM presents a single peak distribution. The peak appears at the aerodynamic diameter of 1.62 μm at the inlet of WFGD, mainly concentrated in 0.957~6.80 μm. At the outlet of WFGD, the peak of PM appears at the aerodynamic diameter of 0.95 μm and the main particle concentration is PM2.5. But the proportion of PM1 increases to 63.9%. The peak of mass concentration distribution shifts to smaller particles after WFGD. The removal efficiency of particles with aerodynamic diameter less than 0.61 μm by WFGD is negative, indicating that WFGD has a negative effect on the removal of these particles and will increase the mass concentration. When the particle size is greater than 0.61 μm, the removal efficiency increases with the increase of particle size.

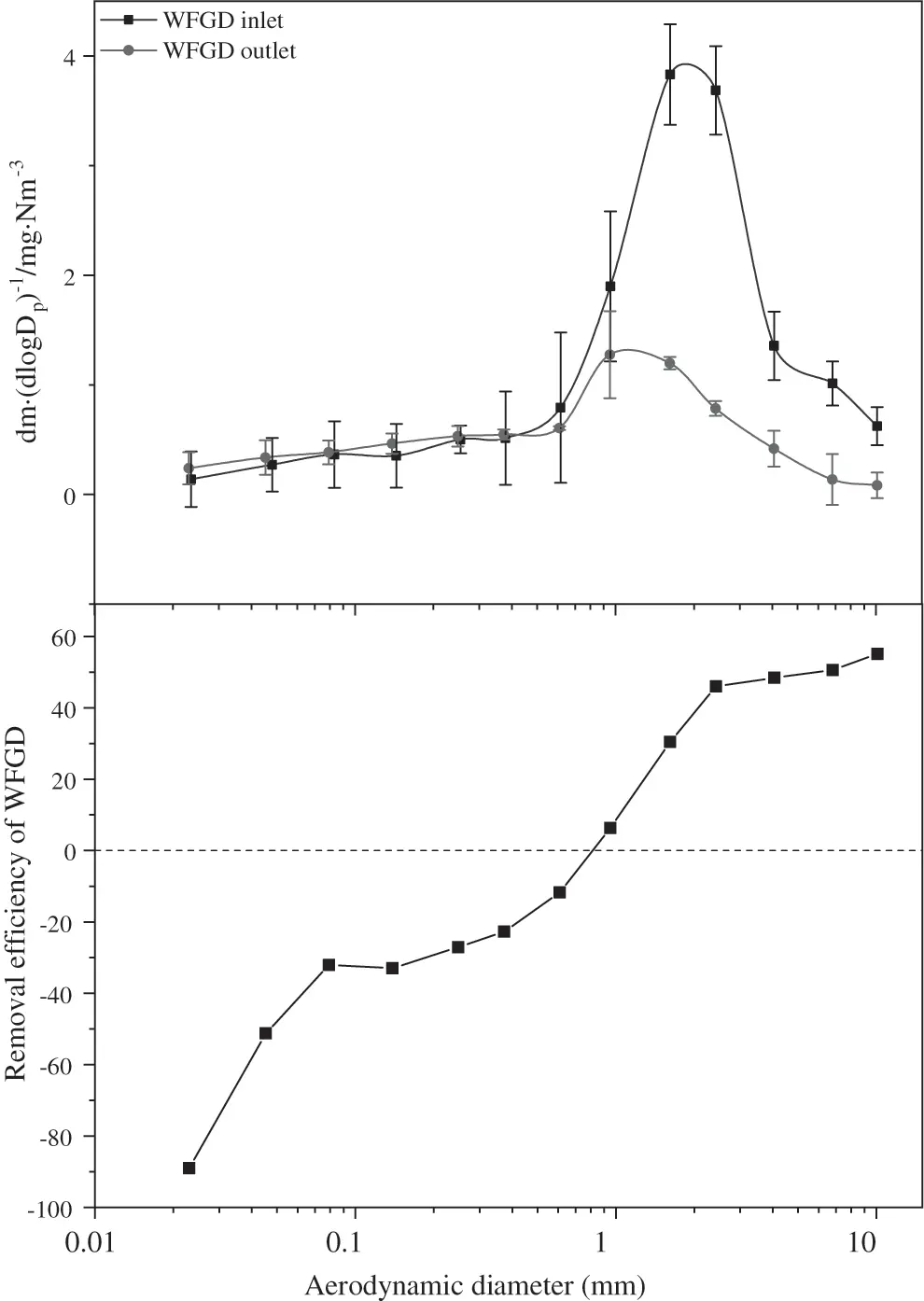

Figure 4: Part size distributions and removal efficiency in WFGD

By comparing the mass concentration distribution of different particle sizes in WFGD inlet and outlet, it can be concluded that WFGD has a good removal effect on the larger particles, but it has no removal effect for the particle with the size less than 0.61 μm. Instead, it increases the mass concentration of fine particles in the flue gas, causing the peak of mass concentration distribution at the WFGD outlet to shift to the smaller particles reason.

After entering the desulfurization tower, the flue gas and desulfurization slurry exchange heat rapidly, then the temperature of the flue gas decreases to below the acid dew point, and most of the sulfuric acid vapor form submicron sulfuric acid droplets. The sulfuric acid droplets with particle size greater than 10 μm will be absorbed and trapped by the slurry of desulfurization tower, and the sulfuric acid droplets with particle size of 0.5~3.0 μm will form aerosol, which is difficult to remove [24]. In the related research [13,15], it was also found that the mass concentration of fine particles increases after WFGD. The effect of WFGD on particles can be divided into two parts, one is the washing effect of spray slurry for particles, and the other is the carrying effect of high temperature flue gas. The large size particles are easy to be absorbed and removed by the spray slurry, which significantly reduces the mass concentration of particles. However, the fine particles are not easy to be captured and removed by the spray slurry, and a large part of them will still flow out of the desulfurization tower with the flue gas. At the same time, the reaction, evaporation, and other effects will occur between the high temperature flue gas and desulfurization slurry, which produce desulfurizer crystal and other fine particles. The particles originally carried in the flue gas will also react with the desulfurization slurry to generate new particle crystals [7], which will be carried out of the desulfurization tower with the flue gas. This will increase the mass concentration of fine PM in the flue gas after WFGD.

Fig. 5 shows the mass concentration distribution and removal efficiency of particles with different particle sizes at the inlet and outlet of WESP. It is shown that the mass concentration of PM still presents a single peak distribution. The peak of PM occurs at 0.95 μm at the WESP inlet. The main concentration of PM is PM2.5, and the proportion of PM1 reaches 63.9%. At the outlet of WESP, the peak of PM appears at 1.62 μm, and the main contributor is the fine particles with particle size of 0.61~2.42 μm, accounting for 51.5%. The peak of WESP outlet mass concentration distribution shifts to larger particles. The results show that the removal efficiency of WESP for particles with particle size of 0.02~0.95 μm is 62.2~76.2%, and it is 50.4~55.9% for 0.95~10.09 μm. WESP has good removal effects for all sizes of particles, but when compared with large particle size, WESP has a better removal effect on PM1 particles. This is one of the reasons that the peak of WESP outlet mass concentration distribution shifts to larger particles. Another possible reason is that under the action of the WESP electric field and other fields, fine particles are agglomerated to form larger particles.

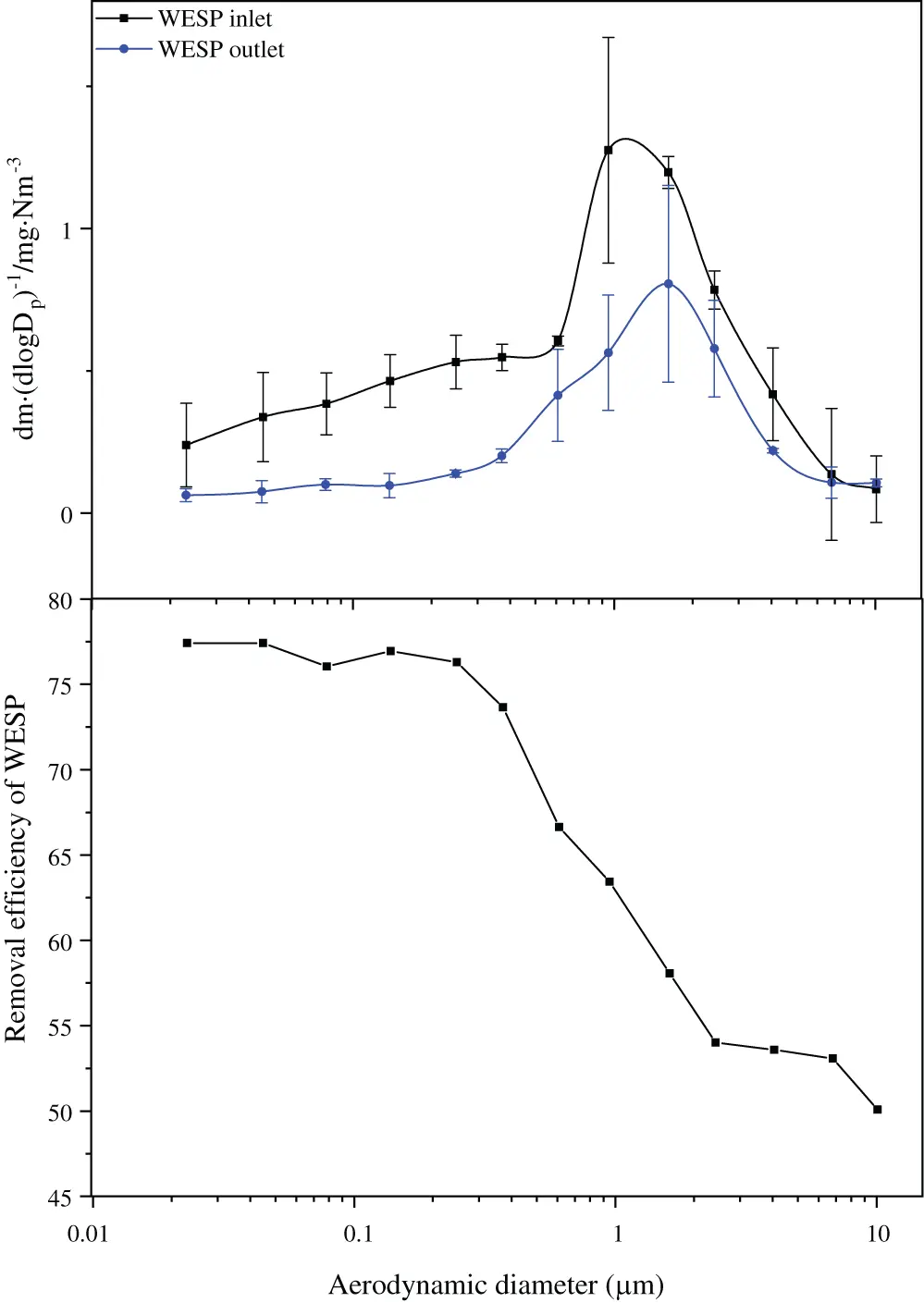

Figure 5: Part size distributions and removal efficiency in WESP

WESP mainly depends on electrostatic force, fluid drag force, thermophoresis force, and liquid bridge force to remove particles from flue gas. When the droplets are injected into the electric field, the distribution area of high potential becomes wider, which is conducive to the collection of particles [27]. The particles with the size of 0.1~1.0 μm belong to the difficult charging area [28], so the removal efficiency is lower than that of other particle sizes. Zhao et al. [29] found that the removal efficiencies of WESP for PM10, PM2.5, and PM1 were 79.6%, 77.0%, and 75.9%, respectively. The larger the particle size, the higher the removal efficiency, and the proportion of PM1 increased after WESP. In the study of Wu et al. [15], the average removal efficiencies of WESP for PM2.5, PM2.5–10, and PM>10 were 59%, 64%, and 45%, respectively. Although the removal efficiency of PM2.5–10 was higher than that of PM2.5, the removal efficiency of PM>10 with a larger particle size decreased. The removal of particulates in flue gas by WESP is affected by many aspects. In addition to the influence of particle size, the influence of voltage, current, flue gas flow, and humidity during WESP operation should be considered. In the test, WESP uses a three-phase power supply, and the DC voltage during operation is 80000 V. The WESP has a removal efficiency of 67.9% for mist droplets, so a part of the mist droplets will be carried out of the WESP by the flue gas. This will affect the composition of the particulate matter in the flue gas.

3.2 Removal Characteristics of Sulfur Oxides by WFGD and WESP

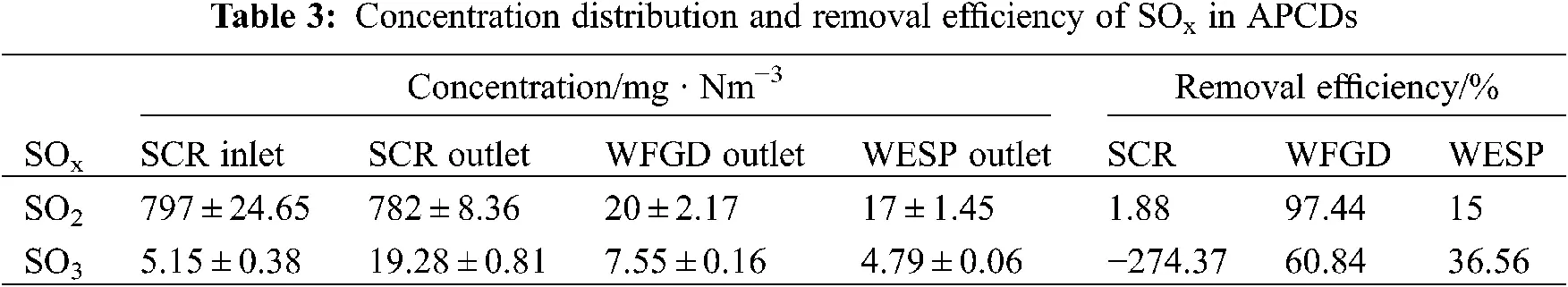

Table 3 and Fig. 6 show the removal efficiency of SOx by APCDs. At the inlet of SCR, the mass concentrations of SO3 and SO2 are 5.15 mg · Nm−3 and 797 mg · Nm−3, respectively. After SCR, the mass concentration of SO3 increases, while the mass concentration of SO2 decreases. At the outlet of SCR, the mass concentration of SO3 is 19.28 mg · Nm−3, and the mass concentration of SO2 is 782 mg · Nm−3. The removal efficiency is −274% and 1.88% for SO3 and SO2, respectively. SCR is designed to remove NOx in flue gas, which has little effect on the removal of SOx. The principle of SCR for NOx removal is that under the action of catalyst, the reducing agent selectively reacts with NOx in the flue gas to generate environmentally friendly N2 and H2O, but at the same time, the catalyst can also oxidize some of SO2 in the flue gas to SO3. SO3 will react with unreacted ammonia in SCR to produce NH4HSO4. NH4HSO4 is viscous, which will harm the catalytic bed and air preheater, and affect the morphology and elemental composition of particulates in flue gas [30,31]. In general, the conversion rate of SO2/SO3 in SCR of CFPPs is between 0.25~1.25% [32], and some studies have shown that the conversion rate of SO2/SO3 is 0.5~2.0% through SCR [33]. In this test, the conversion rate is 0.91%, which meets the design and environmental requirements.

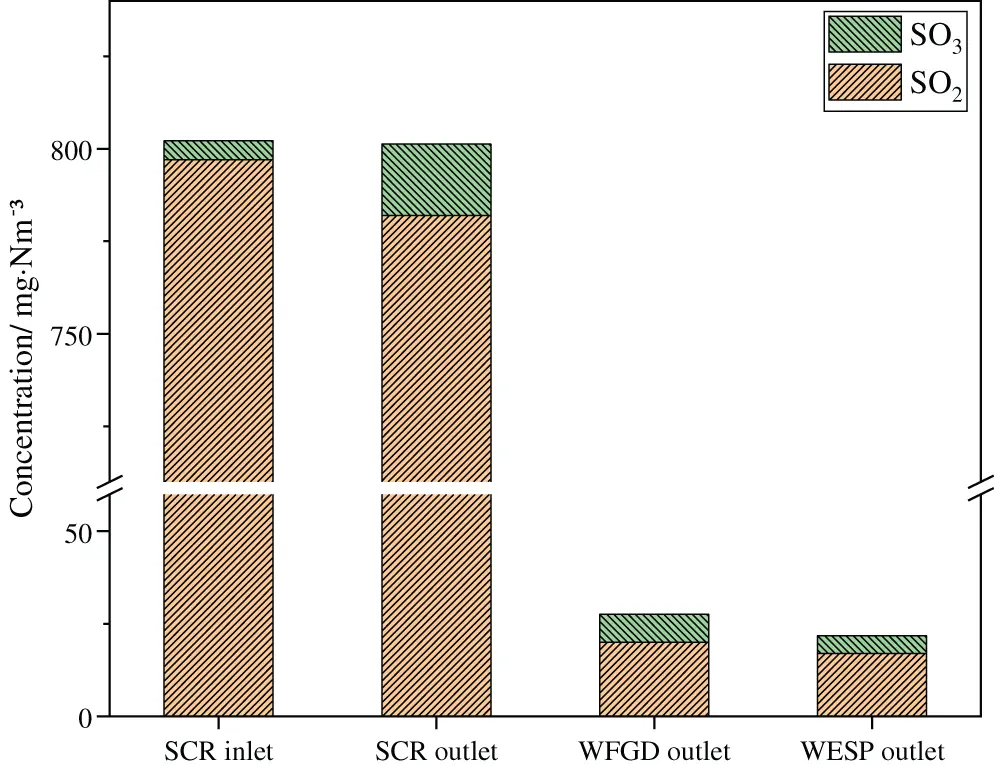

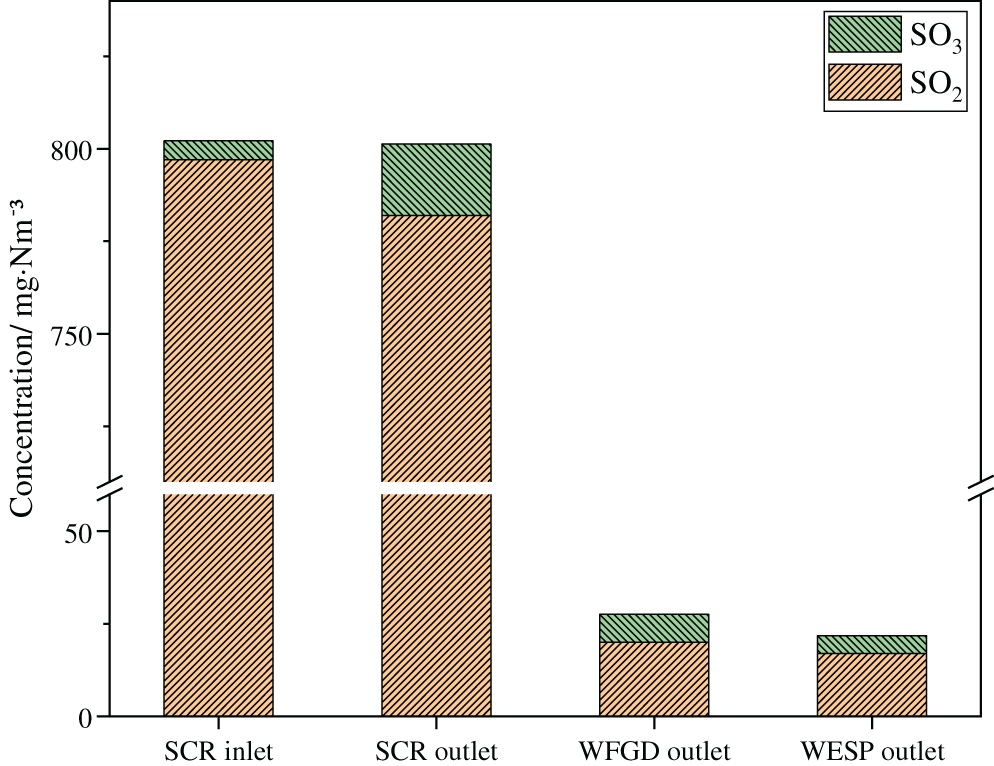

Figure 6: Concentration distribution of SOx in APCDs

After WFGD, the mass concentration of SO2 and SO3 decreases. WFGD has a great influence on SOx with efficiencies of 96.56%. The mass concentration of SO2 decreases to 20 mg · Nm−3, and the removal efficiency is 97.44%. Meanwhile, the mass concentration of SO3 decreases to 7.55 mg · Nm−3, and the removal efficiency is 60.84%. After entering WFGD, The flue gas temperature will rapidly drop below the acid dew point, SO3 will combine with water in the flue gas and form a sulfuric acid aerosol. The slurry of absorption tower is sprayed from top to bottom and reversely intersects with flue gas, which neutralizes acid SO2 and removes part of the sulfuric acid mist. Due to the high velocity of flue gas and the short contact time between spray slurry and flue gas, the speed of sulfuric acid fog formation is greater than that of slurry absorbing sulfuric acid mist. The larger particle size of sulfuric acid fog aerosol is intercepted due to inertial collision and is removed by reaction with slurry [23,34]. However, the submicron sulfuric acid aerosol with a smaller particle size is not easy to be intercepted and trapped, so the removal efficiency is not high. Relevant researchers [35] have tested the removal efficiency of several limestone gypsum desulfurization units, and the removal rate was 42.1%~77.8%. In this test, the removal efficiency is 60.84%, which is in accordance with the previous studies.

After WESP, the flue gas will be discharged into the atmosphere from the chimney. The mass concentration of SOx measured at the outlet of WESP is the final mass concentration of CFPP. At the outlet of WESP, the mass concentrations of SO2 and SO3 are 17 mg · Nm−3 and 4.79 mg · Nm−3 respectively, and the removal efficiencies are 15% and 36.56%, respectively. It can be seen that WESP has a certain removal effect on SOx, but the removal efficiency is only 20.91%. WESP has the advantages of multiple pollutants coordinated control, especially for the removal of fine particles. After entering WESP, SO3 in flue gas mainly exists in the form of a submicron sulfuric acid aerosol, which belongs to the category of fine particles [36]. According to the research on WESP in many CFPPs [23,35,37], the removal efficiency of SO3 is generally 52.2~90.4%. In contrast, the SO3 removal efficiency in this study is relatively low. The reason may be that the SOx concentration at the inlet of WESP is very low, and only a small part of submicron sulfuric acid aerosol particles are charged for removal, which results in the low removal efficiency of WESP.

The removal of SO2 in WESP is based on the gas-liquid diffusion, coupled with the effect of electric field force and active groups [38]. Yang et al. [39] have proved that corona discharge can enhance the absorption of SO2 by droplets, especially for low concentration SO2. The removal efficiency reaches 79.8%. However, the laboratory research and the actual test in the engineering site are different. In practical application, the situation is often more complex and changeable. Li et al. [34] found that the removal efficiency of SO2 by WESP is 19.6~24.8%, which is close to the test results.

In the study, the overall removal efficiency of SO2 by air pollutant emission control device is 97.87%, and the removal efficiency of SO3 is 6.99%. The mass concentration at the outlet of the chimney meets the requirements of the emission standard.

3.3 Emission Factors of Particulate Matter and SOx

During the test, the flue gas rate was 2319935 m3 · h−1, and the standard coal consumption was 247 t · h−1. According to the above formula, the final emission factors of pollutants from coal-fired units are calculated, and the emission factors of SO2 and SO3 are 0.1597 and 0.0450 (kg · t−1), and the emission factors of PM1, PM2.5, and PM10 are 0.0154, 0.0267 and 0.0215 (kg · t−1), respectively. Wang et al. [24] studied the emission characteristics of PM from CFPPs without ultralow-emission retrofit, and the results showed that the emission factors of PM2.5, PM10, and total dust were 0.747~0.1855, 0.1424~0.3545, and 0.1561~0.3852 (kg · t−1), respectively. Liu et al. [26] found that the emission factors from coal-fired units with ultra-low emissions in Haikou of SO2, PM1, PM2.5, and PM10 were 0.1131, 0.0065, 0.0092, and 0.0098 (kg · t−1), respectively. Compared with the research results, the emission factors were reduced by 1~2 orders of magnitude. Li et al. [20] explored the emission characteristics of PM from coal-fired units, and the emission factors of PM1, PM2.5 and PM10 were 0.0062~0.019, 0.0059~0.016 and 0.0059~0.017 (kg · t−1), respectively. Compared with the results of the existing research on ultra-low emission coal-fired units, the emission factor studied in this work is slightly higher, and compared with the coal-fired units without ultra-low emission retrofit, the emission control level of air pollutants has been greatly improved.

4  Conclusion

This work studies the effects of WFGD and WFGD on PM and SOx in flue gas after ultra-low emission conversion, and the following conclusions are as follows:

WFGD and WESP have good removal effects on PM, with a removal efficiency of 54.34% and 50.39%, respectively. The overall removal efficiency is 77.35%. After WFGD, the peak of PM shifts from 1.62 to 0.95 μm, and WFGD has a negative effect on fine particles with a diameter less than 0.61 μm. The main reasons are the entrainment of small droplets with the flue gas, which are difficult to remove and easy to escape from the desulfurization tower.

After WESP, the particle size peak shifts from 0.95 to 1.61 μm with a larger particle size. This should be due to the agglomeration and growth of small particles under the action of WESP. However, the cumulative removal efficiency of WESP decreases with the increase of particle size, which is different from previous studies. Therefore, it is necessary to further study the influencing factors of WESP removal.

SCR increases the mass concentration of SO3 by 274%, which is due to the oxidation of SO2 to SO3 by SCR catalyst. WFGD has a good effect on SOx removal, and the removal efficiencies of SO2 and SO3 reach 97.44% and 60.84%, respectively. WESP also has a certain effect on SOx removal, but the efficiency is not high. The reason may be that the concentration of SO3 at the entrance of WESP is low, and the SO3 aerosol is difficult to charge.

The emission factors of SO2, SO3, PM1, PM2.5 and PM10 are 0.1597, 0.0450, 0.0154, 0.0267 and 0.0215 (kg · t−1). Compared with the research results without ultra-low retrofit, the emission factors have been reduced by 1~2 orders of magnitude, and the air pollutant emission control level is greatly improved.
