Fast Access and Retrieval of Big Data Based on Unique Identification
1Pujiang Institute, Nanjing Tech University, Nanjing, 211200, China
2School of Computer, Wuhan University, Wuhan, 430072, China
3School of Computing, Ulster University, Belfast, BT370QB, United Kingdom
*Corresponding Author: Wenshun Sheng. Email: firstname.lastname@example.org
Received: 11 August 2021; Accepted: 18 October 2021
Abstract: In big data applications, the data are usually stored in data files, whose data file structures, field structures, data types and lengths are not uniform. Therefore, if these data are stored in the traditional relational database, it is difficult to meet the requirements of fast storage and access. To solve this problem, we propose the mapping model between the source data file and the target HBase file. Our method solves the heterogeneity of the file object and the universality of the storage conversion. Firstly, based on the mapping model, we design “RowKey”, generation rules and algorithm. Then according to the mapping rules of data file fields with the HBase table column, the data in the data file are transformed into HBase. Finally, the retrieved keywords in “RowKey” are stored and used to achieve fast data retrieval by prefix matching or keyword matching method. Our method has been applied to different projects, which shows these results can be applied to the data conversion from regular row store data file to HBase distributed large data storage and has strong commonality. The method can be widely used in HBase big data storage applications.
Keywords: Big data; row store; RowKey; fast retrieval; HBase
For big data applications, massive data are stored in files by rows [1,2]. With the continuous development and application of distributed database technology, converting these data files into distributed storage can provide a more convenient application environment [3,4]. However, there is only a little literature on the data file conversion to the distributed database. Currently, there are three ways to integrate different types of data migration into distributed databases (such as HBase) , using the HBase interface to write special programs to achieve data docking, using tools such as bulk load to complete data import, and writing MapReduce programs to import data into HBase [6–9]. The three methods all have problems such as poor versatility, limited environment, and high operational complexity. Besides, there are many studies about fast access techniques in HBase, where indexing is mostly used. The Reference [10,11] reviews the current indexing techniques in HBase and compares the characteristics and applications of several indexing techniques. In the Reference [12,13], the Z curve is used to reduce the dimensionality of the spatial data; the spatial information and text information of the spatial text object are simultaneously indexed through an effective data allocation strategy [14,15]. References [16,17] are the research on big data storage and retrieval schemes based on distribution NoSQL database. The Reference [18,19] propose a storage optimization method for vector spatial data from the relational database to the distributed NoSQL database. The storage and retrieval method through associated multi-attributes of massive data is described in Reference , which solves the secondary index problem based on the multi-condition query of HBase dynamic properties . Although the indexing technique can improve retrieval speed significantly, the disadvantage is that the maintenance is relatively complex. There are also some researches that put forward the corresponding optimization solution for distributed database storage and retrieval based on the characteristics of data storage of the specific application domain, which have achieved relatively satisfactory results [22,23]. However, the versatility is weak because the optimization aims at the specific application environment.
The studies in the above references are generally directed at a specific area of use. In this paper, aiming at the problem mentioned above, we study converting and storing the data file stored by row to HBase distributed database, and fast retrieval and access to the big data in HBase. It involves the storage domain of big data. A common tool for distributed storage, transformation and retrieval of big data is to be studied.
2 The Specific Issue to Solve of This Research
Distributed No-SQL databases are gradually being used in more and more systems due to their large capacity, easy expansion and fast retrieval speed [24,25]. However, the problem that needs to be solved in practical application is how to convert and store the existing massive data into a non-SQL database, and the converted data must be retrieved quickly.
Concretely, data files are defined differently. For example, in a row of data, some attributes are for marking and distinguishing, such as time, coordinates, numbers, etc., while others are descriptive text. As shown in Fig. 1, the first two fields of the data file represent attribute information for coordinates x and y, while the remaining fields are descriptive information about specific parameter values. Due to the different structures, field names and types of source data files, the storage mode of data items is also different, so it is difficult to design a general method to import data using the current HBase import tool such as “bulkloader”. Generally, to solve this kind of problem, programmers should write a specific program to extract and import the data. However, this program only applies to the specific source data file or the destination table. If they have changed, the program would be no longer applicable. Therefore, the general conversion of file data stored in rows to the HBase distributed database is needed.
This paper, based on HBase, introduces the feature-based conversion of big data files into distributed No-SQL database and fast retrieval technology. Retrieval needs to return data matching the specified attribute information, which is called the feature [26–28]. The data in HBase is accessed by “RowKey”, shown in Fig. 2. To achieve this, the HBase row key “RowKey” in the specified destination table should be generated automatically according to the data retrieval requirements in different files. At the same time, it is necessary to ensure that the “RowKey” of each row in HBase is unique and can be retrieved and accessed quickly.
Aiming at the problem, we propose a general HBase data conversion storage technique based on mapping models. “HBase Thrift” client is used to generate row keys through a defined “RowKey” expression and import the data stored in rows into the HBase database. On the premise of consistency, according to a variety of combinations, the multiple features of data objects are formed into row keys which are stored in multiple HBase data tables with column data redundantly. In the multi-feature data retrieval, by matching several feature values in the row key, a fuzzy result set can be quickly obtained, and the fuzzy result set can be further filtered to obtain the final accurate result set. Our proposed method could be applied to other kinds of files due to the user-defined import rules and mapping tables. The row key storage data formed according to the multi-feature combination mode can provide a fast data retrieval interface.
3 Technical Scheme
In order to convert a row format file into an HBase file, we designed a mapping model that shows the mapping relationship between the source file field and the target HBase table, where the “RowKey” generation expression describes the mapping file from the source file to HBase.
The “RowKey” is unique and automatically generated by extracting the required characters from the file name, the field name and the field value, where we may truncate and reformat these characters if necessary. Besides, to speed up retrieval and access, we adopt the prefix matching on the feature of “RowKey” and set the matching priority.
3.1 The HBase Data Conversion Based on the Mapping Model
The mapping model describes the convertible file objects, the mapping from file object fields to HBase columns, and the specific conversion scheme. The model consists of three kinds of data structures: “DataFileObject”, “DataFileFields” and “ImportScheme”.
The data file object is the mapping source of HBase big data, and its data structure shows the essential attribute of a kind of data file object:
Structure of DataFileObject
String MODEL_ID; // The identifier of data file, uniqueness and non-null
String MODEL_NAME; // The name of data file
Integer FIELD_COUNT; // The number of fields
String MODEL_MEMO; // The description of data file
The mapping structure is a detailed description of the data file object fields. Each instance of the data structure describes one kind of field mapping relationship. A data file object can contain multiple field mapping relationships. The data structure which describes the mapping from data fields to HBase columns is as follows:
String FIELD_ID; //The identifier of field, uniqueness and non-null
String MODEL_ID; // The identifier of data file object of field
String FIELD _NAME; //The name of field
String COLUMN_FAMILY; //The field corresponding name of column cluster in HBase
String COLUMN_QUALIFIER; // The column qualifier in HBase of field corresponding
Integer FIELD _INDEX; // The position index in every row of field in data file object
String FIELD _DATATYPE; // The data type of field
The conversion scheme defines the details of data conversion and storage. The mapping model of data structure which describes the importing execution plan is as follows:
String EXPRINCIPLE_ID; //The identifier of import scheme, uniqueness and non-null
String EXPRINCIPLE_NAME; //The name of import scheme
String MODEL_ID; //The identifier of data file object which import scheme correspond to
String HOST; // The server of objective HBase
String TABLE_NAME; // The name of table of objective HBase
Integer PORT_NUM; // The port number of server of objective HBase
String ROWKEY_EXPRESSION; // The expression of row key which to be generated
String FIELD_COLLECTION; // The field collection of data file to be imported
In order to improve the execution efficiency, a conversion cycle starts from opening a data file object. One cycle could execute several different execution schemes, which splits a row of data into multiple HBase data rows or imports the data into different HBase instances according to different mapping rules.
The mapping relationship described by the “DataFileFields” data structure and the conversion scheme described by the “ImportScheme” data structure are associated with data item MODEL_ID to the data file object defined by the “DataFileObject” data structure. Because a data file can contain more than one column mapping relation and a single execution can correspond to multiple storage solutions at the same time, it is a one-to-many relationship between the data structure defined by “DataFileObject” and the data structures defined by “DataFileFields” and “ImportScheme”.

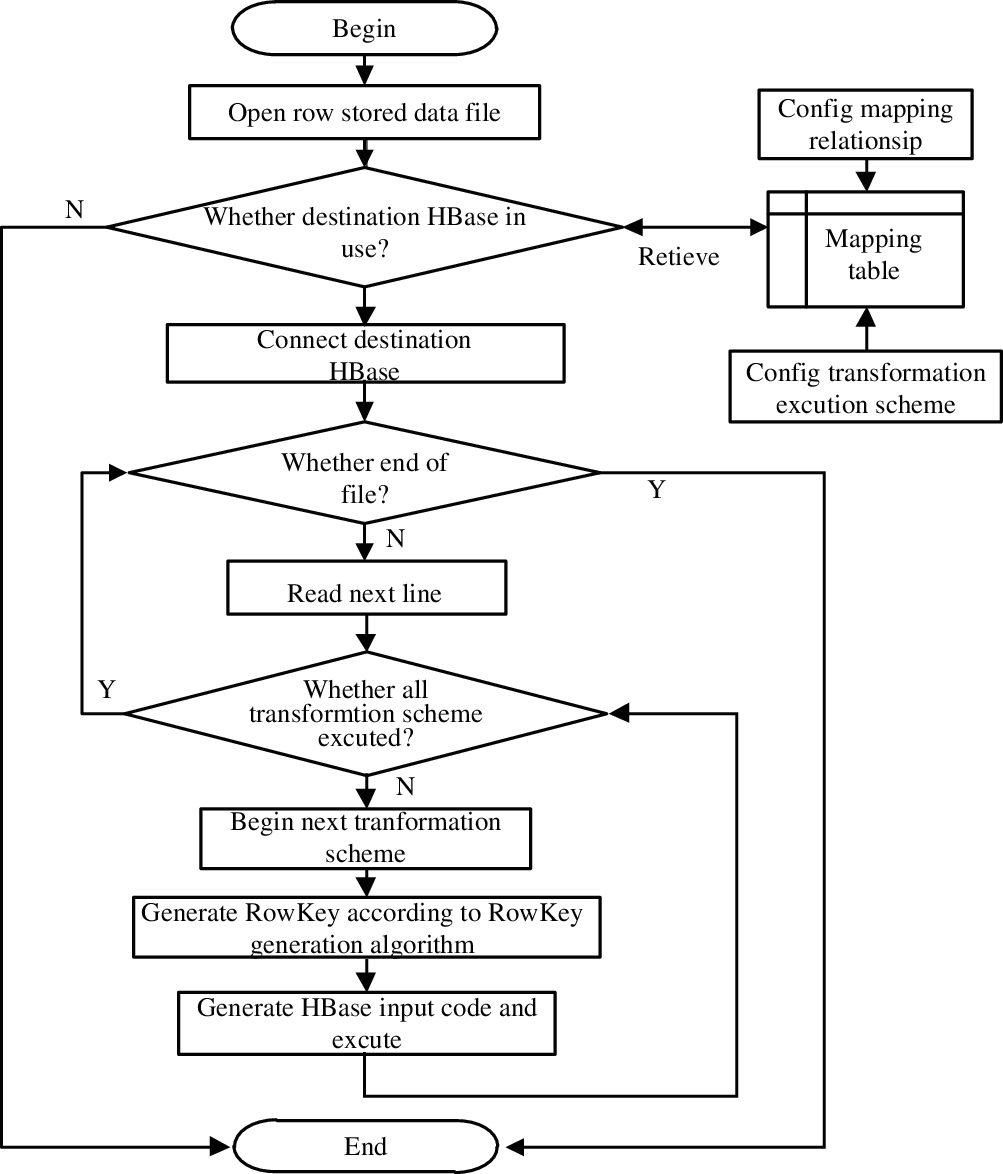

As shown in Fig. 3, the converting of a source file into HBase data based on the mapping model is as follows:
2) Open the data file stored in row;
3) Check whether the objective HBase is available, if it is not available, go to 11), otherwise, go on;
4) Connect objective HBase;
5) Judge whether the reading file has reached the end, if it ends, go to 11), otherwise go on;
6) Read the next row data of the source file;
7) Judge whether all the import schemes have finished, if not go to 5), otherwise go on;
8) Begin to execute next import scheme;
9) Generate row key on the generating algorithm of “RowKey”;
10) Generate the execute code to import HBase, and go to 7) after the execution has been finished.
The process firstly sets up the field mapping model of the data file and imports the conversion scheme; secondly opens the data file to check its availability; finally reads the data file by row, traverses all the import schemes that need to be executed, generates row keys according to the “RowKey” generation rules of each scheme, then writes the data into the corresponding columns of the destination table according to the mapping model. After all the rows in the data file are executed, the import process ends.
3.2 The Expression of “Rowkey” and the Generating Algorithm of “Rowkey”
The “RowKey” expression is a set of simplified encoding and decoding rules. The “RowKey” in HBase contains feature values. The “RowKey” is generated by the following steps. We first abstract and determine the source of the “RowKey” and then define the rule of the “RowKey” expression. When data are converting, the algorithm automatically extracts multiple feature values from the specified location, and they are combined into a “RowKey” after some conversion. Specifically, each “RowKey” imported into HBase is generated by calculating the “RowKey” expression on the fixed character, the field name and the field name value.
“RowKey” expression definition rules are as follows:
1) Fixed Character: The expression appears in row key in the form of fixed character, for example, “ABC”;
2) Escape Character: The expression is as “”, except for the fixed character, all content need to appear in the escape character. When decoding, the content in the brackets is escaped calculation;
3) File Name: The expression is as “F”, which means the file name of the acquired data file, such as “TEC_AA_L01_00001.DAT”;
4) Field Name: The expression is as “C (index)”, which means to acquire the field name whose index is “index” in the field collection. For example, “[C(0)]” means to get the field name “MODEL_ID” ;
5) Field Value: The expression is as “V (name index)”, which means to obtain the field value from the field name or index number. The field name needs to be quoted in double quotes. If using an index number, the value must be an integer. For example, “[V(0)]” means to acquire the field value “MDS_Z0120150217001”;
6) Truncation Operator: The expression is as “.S (start, end)”, which means to get the characters from “start” position to “end” position. For example, “[V(0). S(7, 10)]” means to acquire the result “2015”;
7) Formation String: The expression is as “.T (format)”, it means to transform the string to the “format” format. For example, “[“12”.T(“000”)]”means to acquire the result “012”;
8) Mathematical Operators: The expression is as “+” or “-“, which is a mathematical operator. For example, “[V (0) .S (7, 10)]-1” means to acquire the result “2014”;
Based on the above definitions of row key expressions, the row key generation algorithm is as follows:
1) Read row key expression string and decompose the string to the collection of characters which is expressed as “EXP”;
2) Initialize variables: Result string SR="", state variable ST="", escape control character TB=false, temporary cache strings TMP="", loop control variable i = 0. Then traverse row key expression character set EXP;
a) Judging escape character “TB”, if it is “FALSE” then it expresses the state of non-escape and go to b) or else it is “TRUE” which expresses the state of escape and go to c);
b) Judge whether “EXP[i]” is equal to ‘[’, if it is, it means the escape begins, and “TB” is set to “TRUE”, otherwise, “EXP[i]” is added to the result string and go to h);
c) Judge whether “EXP[i]” is equal to ‘]’, if it is, it means the escape ends, and “TB” is set to “FALSE”, and the string TMP is added to the result string SR and go to h), otherwise, go to d);
d) Judge the string control character SB, if it is “TRUE”, it means it is in the character state, if EXP[i] is "", it means the character state is over, TB is set to “FALSE”, otherwise, EXP[i] is added to the temporary buffer string TMP, and then turn to h), if SB is “FALSE”, turn to e) or else continue;
e) Judging the string “EXP[i]”, if it is "" then it expresses the state of beginning and “TB” is set as “TRUE” then go to h); if the string “EXP[i]” is a character ‘F’ then the file name is put into temporary string TMP or else if it is a character ‘C’ or ‘V’ or ‘S’ or ‘T’ then set the state variable ST as corresponding character and go to h) or else go to f);
f) When the string “EXP[i]” is “)”, it expresses ending character with parameters. If the character type in state variable ST is ‘C’ then the column name is put into TMP. If is ‘V’ then the column value is put into TMP. If is ‘S’ then temporary string TMP is truncated in parameter. And if is ‘T’ then temporary string TMP is formatted by calling the method of “String.to String (format)” in the parameter format. Then go to h) after ending;
g) If the string “EXP[i]” cannot be judged, go to h);
h) I = i+1, if the “i” less or equal to the largest row number of collect R then go to a) or else go to 3);.
i) Return the result string SR.

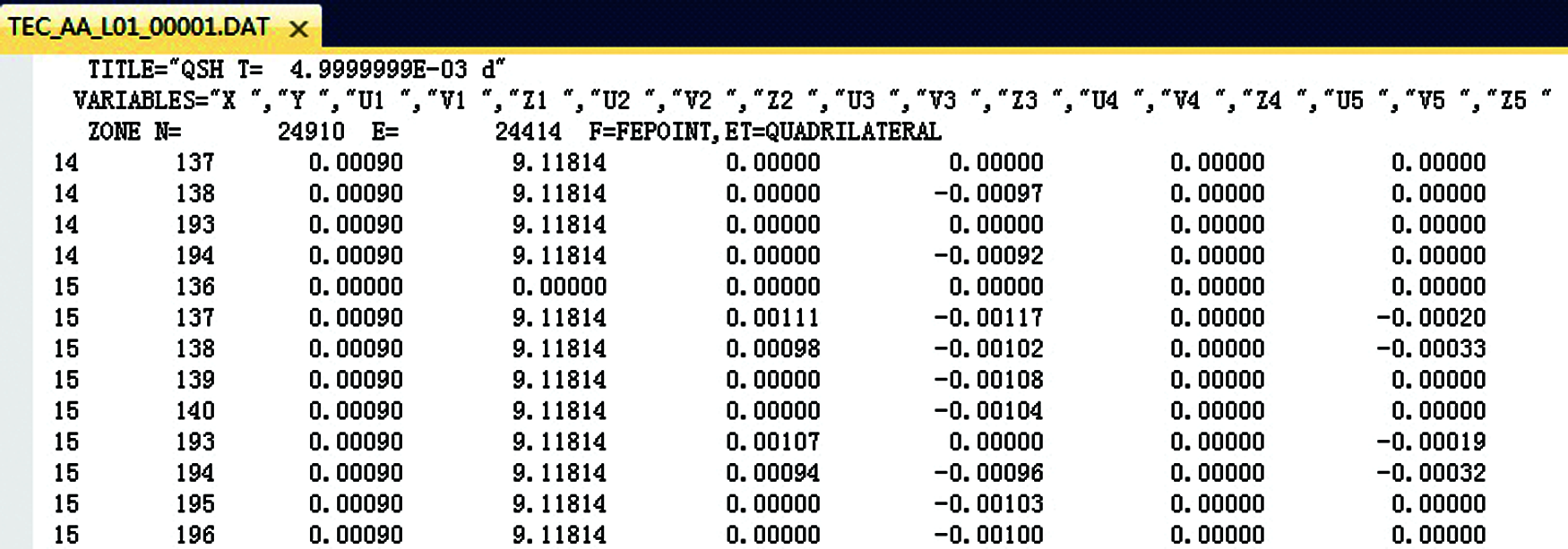

For example, if the expression of “RowKey” is ["T" F.S (9, 2) "K" V(1). T("000")], the generated rule is to take the fixed character "t", keep two characters from the ninth character of the file name, take the fixed character K, take the value of the first column and convert it into the numerical lattice “000”, and finally group these characters in order. The data file generates row keys according to “RowKey” expressions and stores them into HBase, where the conversion process is as Fig. 4.

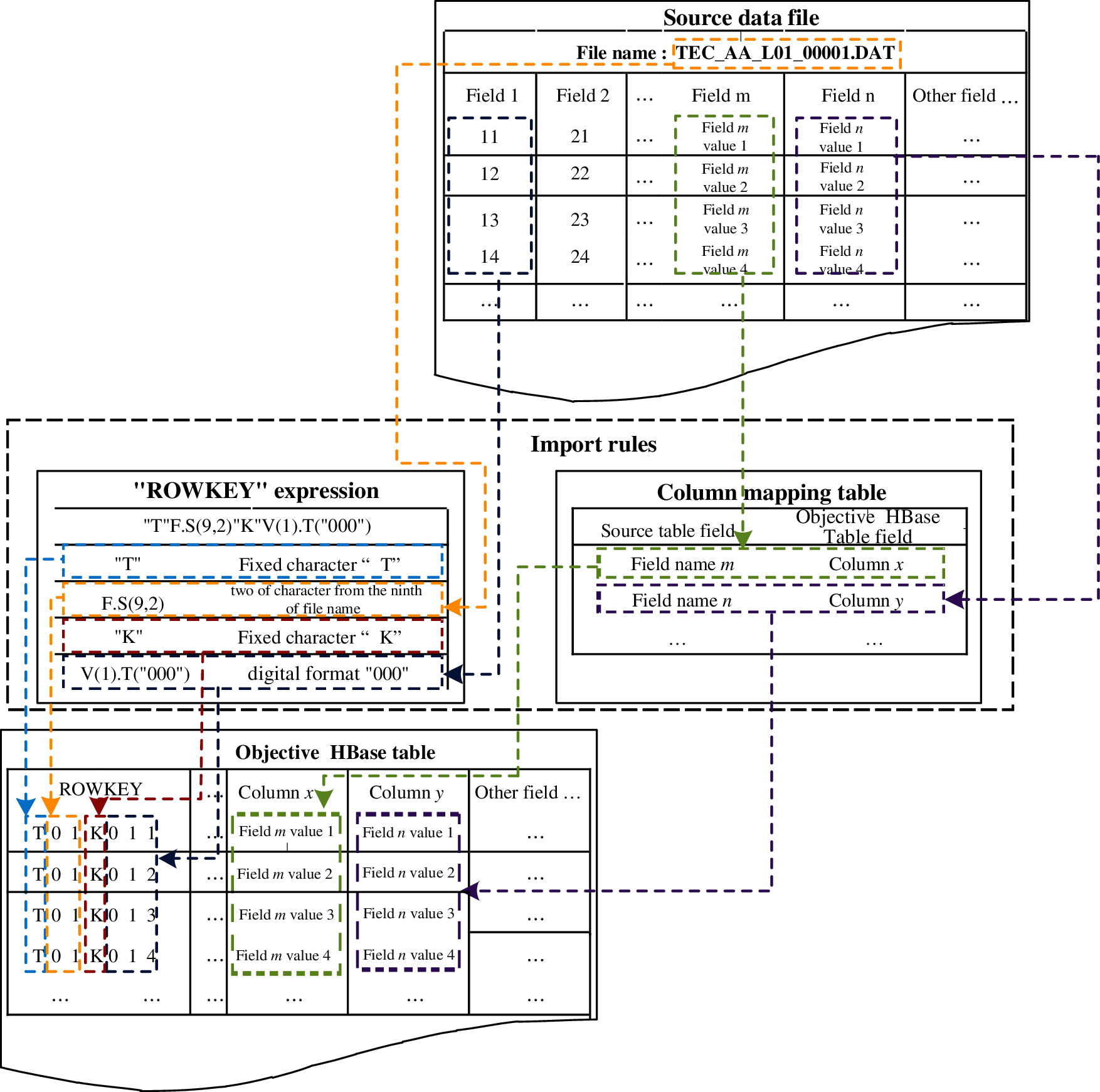

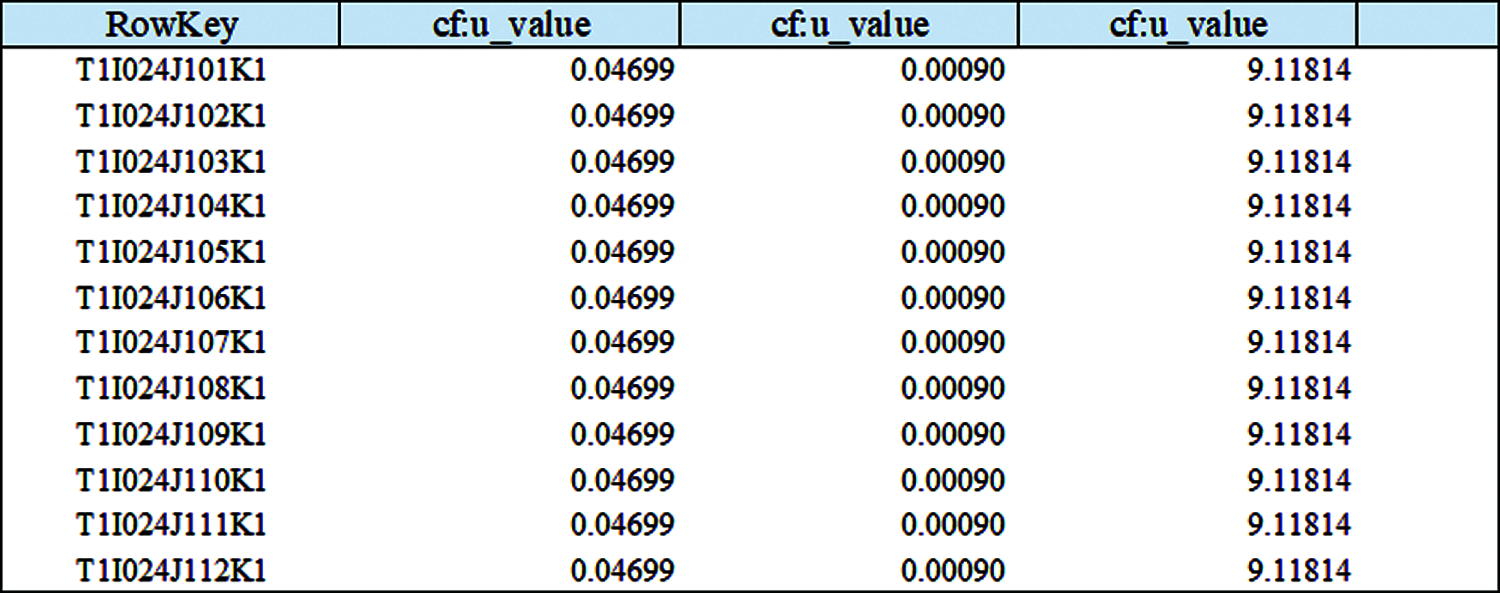

In the above generate rules, the “RowKey” of the first row (in the destination HBase table of Fig. 4) is “T01K011”, the “RowKey” of the second row is “T01K012”, the “RowKey” of the third row is “T01K013”, the “RowKey” of the fourth row is “T01K014”, the column m and column n in the source file correspond to the column x and the column y in the table of HBase respectively through mapping model. The conversion of other columns is similar.
The traditional retrieval method is data column matching query , which requires a full table scan, so it is inefficient. We store the HBase data row in the order of “RowKey”, and retrieve data through “RowKey” feature matching, which can achieve a faster response speed [30,31].
In addition, the longest prefix matching of “RowKey” should be satisfied, that is, the feature value should match the first few characters of “RowKey” as much as possible. The fastest retrieval speed can be obtained by calling the “ScanWithPrefix” interface in HBase. Therefore, we put the common feature attribute at the head position of the “RowKey”, or use multiple “RowKey” rules to retrieve multiple feature attributes. Besides, the way of redundant storage of data is adopted to achieve fast retrieval of HBase big data based on feature values. Specific solutions are as follows.
3.2.1 Multiple Feature Value Index Storage Schemes for a Large Amount of Data

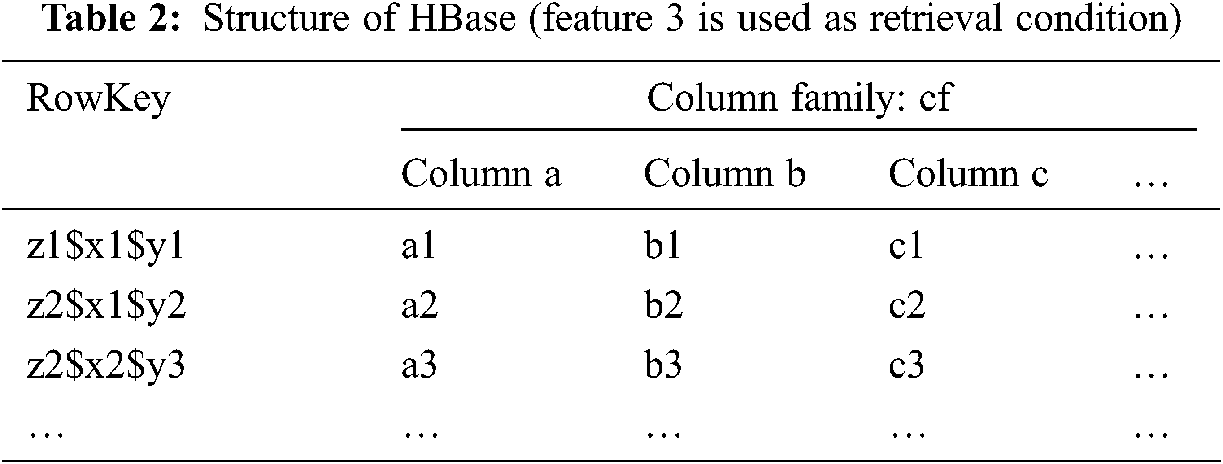

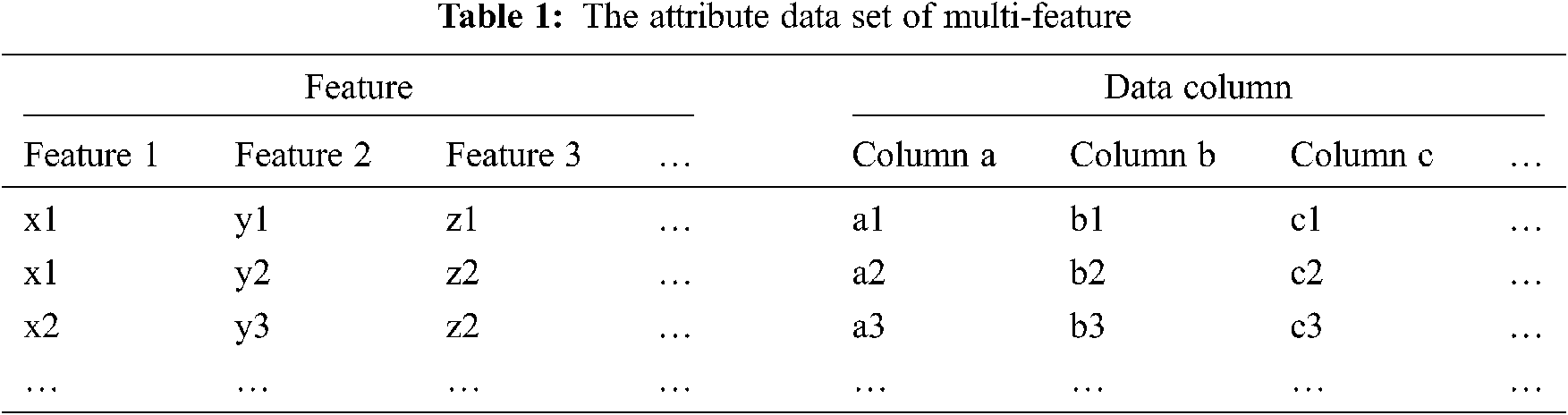

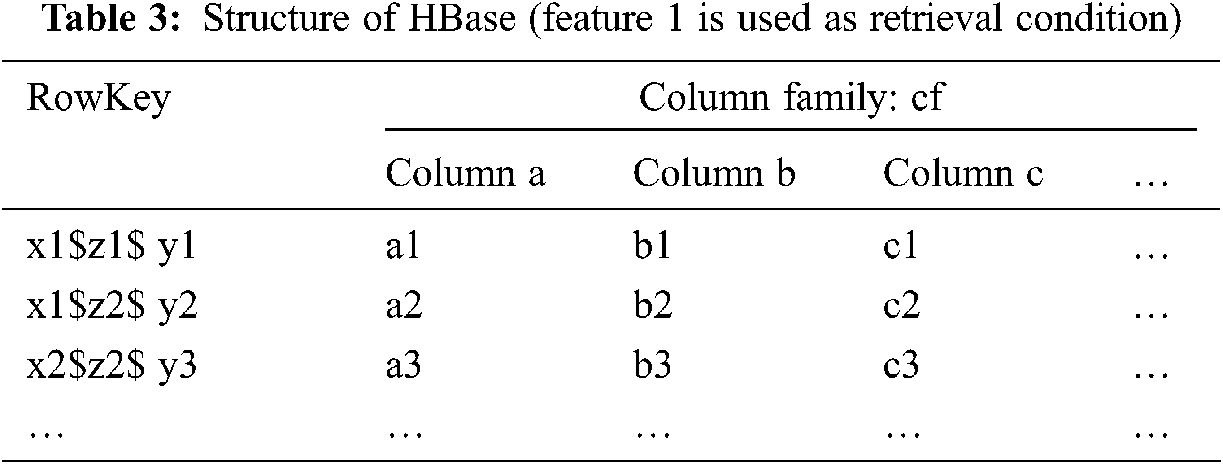

According to the characteristics of HBase, we optimize data storage. On the premise of consistency, according to the needs of retrieval, the “RowKey” is composed of multiple attributes of data objects and is stored in one or more HBase data tables together with common column values redundantly. The fuzzy result set is obtained fast by matching several feature values of row key when the multi-feature data are retrieved. If the feature-based retrieval cannot meet the requirements, the way of filtering the fuzzy result set is taken to obtain the final result set.
3.2.2 The Rule to Generate Multi Feature “Rowkey”
The data are stored in HBase by the “RowKey” dictionary order. To improve the efficiency of multi-keyword retrieval, we propose a method of generating “RowKey” according to the feature, which puts the frequently-used features in the head position of “RowKey”. For example, a series of index data representing 3D space of multiple attribute datasets is shown in Tab. 1. If the feature 3 is required as the retrieval condition, that is, a certain data crosscut with fixed z-coordinate is retrieved; the finally generated “RowKey” and data storage form in HBase are shown in Tab. 2. If the feature 1 is required, the final results are shown in Tab. 3.
In this way, the data with similar feature values can be stored as closely as possible, and the “RowKey” prefix matching can be used to filter conveniently. The results are filtered to get the final result set, which avoids frequent full table scanning when retrieving data and improves the retrieval efficiency. Besides, to meet the needs of fast retrieval, a number of import rules are created for a certain type of data files. When the “RowKey” expression is set, a sequence of feature values extracted is ordered according to the retrieval need. The “RowKey” and the description data which are both obtained in different orders of feature values are stored in multiple tables in the way of redundant storage.
3.2.3 The Fast Retrieve and Access Method
There are two ways to retrieve and access converted HBase data. According to the requirements of cross-language and cross-platform data access, the HBase cluster needs to open the “Thrift” service and provides a data access interface supporting multiple languages for “HBase Thrift” clients .
a) The Prefix Matching Retrieve
Since HBase stores data in the dictionary order of “RowKey”, the most effective method is to search through the “RowKey” prefix matching. In the open “HClient” instance which specifies the target table, we could directly call the “ScanWithPrefix” method to get the result set.
b) The Feature Matching Retrieve
According to the previous multi-feature value “RowKey” generation rules, for feature-based retrieval, the common-used features are placed in the front position of “RowKey” when one is designing the HBase table structure. Therefore, the tables whose feature values are in the head positions appear at the top of the query results. If using multi-feature query, we could call the “Scan” method and set “rowfilter” for data retrieval.
4 Test and Analysis of Big Data Retrieval
This research is derived from the model integration system of “The integration technology research of three gorges reservoir area and upstream basin water environment risk assessment and pre-warning platform” which is the sub-project of “The Water Environment Risk Assessment and Pre-warning Technology Research and Demonstration of the Three Gorges Reservoir Area and Upstream Basin”. We should save the output to visualize the output of the model. However, the amount of data generated by a day is up to tens of GB. Therefore aiming at the problem of a large amount of computation, we adopt the big data idea, which uses the HDFS distributed storage cluster to store massive data and provides a stable, efficient, and scalable storage scheme . The efficient indexing technology of model data based on HBase has provided high-speed data retrieval services for the real-time demonstration of model, historical event playback of the model, model analysis and other business.
4.1 Conversion in Different Types of Data File
In order to verify the validity of data transformation, two different types of model data files were selected. Hadoop platform consists of 8 virtual machines, including 1 set as name-node and h master and provides thrift interface, the other 7 as data-node and region server . The virtual machines are configured for dual core 2.0G Hz CPU, 2GB memory and 1TB hard disk, connected by gigabit network cards. Two different types of model data files were recorded as model file A and model file B.

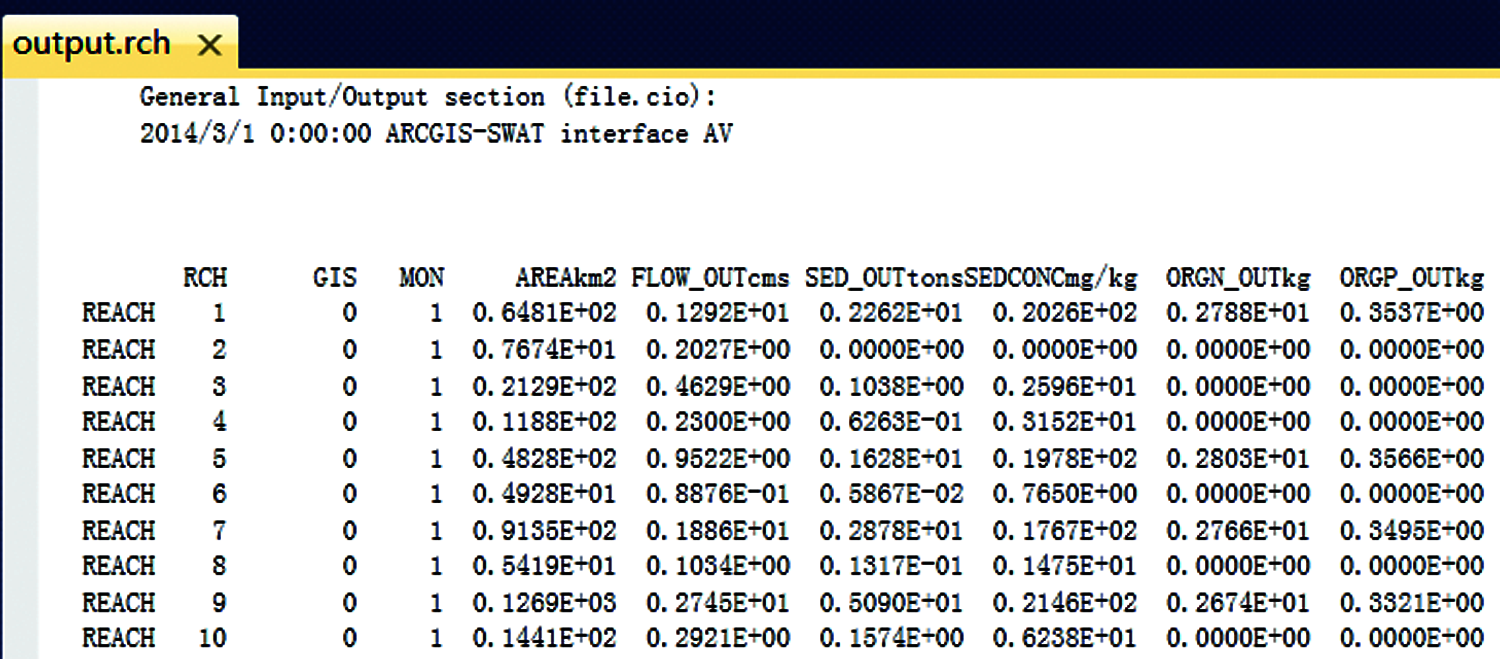

As shown in Fig. 5, summary information such as time and version are stored in the header part of model file A, feature values are stored in the first three columns at the main part of the data file, and the common values are stored in the last 12 columns. To meet the need for data conversion, “RowKey” in HBase after conversion is composed of time string and feature values in the first three columns that were formatted. Therefore, the “RowKey” expression to convert is ["201403010000RCH"V(1). T("000")"GIS" V(2). T("000")"MON"V(3). T("000”)]. Then data in the last 12 columns is stored in the corresponding column under column family in HBase.

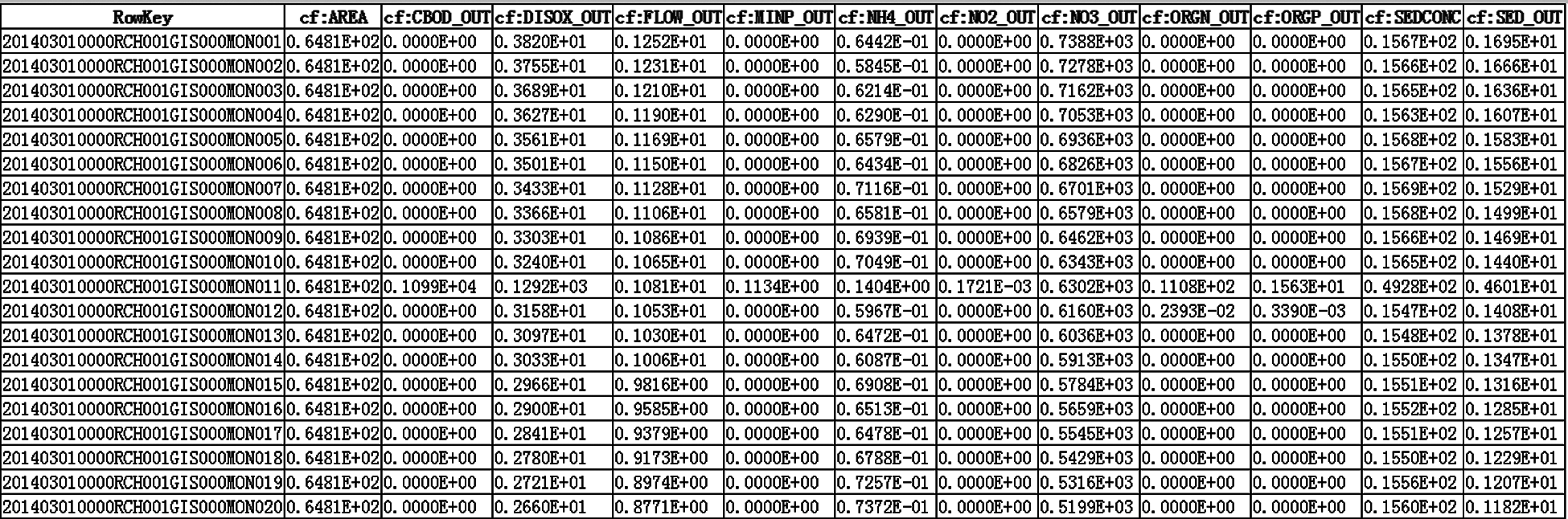

Data in HBase after conversion are shown in Fig. 6.

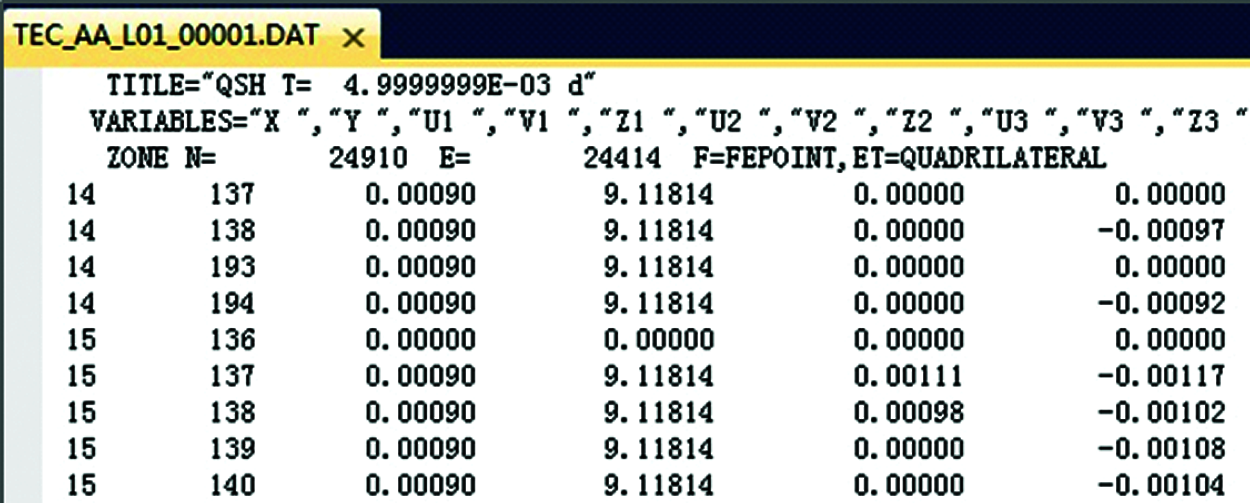

As shown in Fig. 7, summary information such as time and version are stored in the header part of model file A, part of feature values are stored in the first two columns at the main part of the data file, and the common values are stored in the last nine columns. Three categories of value denoted as U, V and Z are stored in the last nine columns. For example, U1 is composed of category name U and a feature value 1.
One data-row in the file is transformed into three records in the HBase, so three different conversion plans are required to complete this job. In the first conversion plan, the “RowKey” expression is ["T"F.S(11,5)"I"V(43). T("000")"J"V(44). T("000")"K1"], and the columns of common values are U1 and V1 and Z1. In the second conversion plan, the “RowKey” expression is ["T"F.S(11, 5)"I"V(43). T("000")"J"V(44). T("000")"K2"], and the columns of common values are U2 and V2 and Z2. In the last conversion plan, the “RowKey” expression is ["T"F.S(11,5)"I"V(43). T("000")"J"V(44). T("000")"K3"], and the columns of common values are U3 and V3 and Z3.

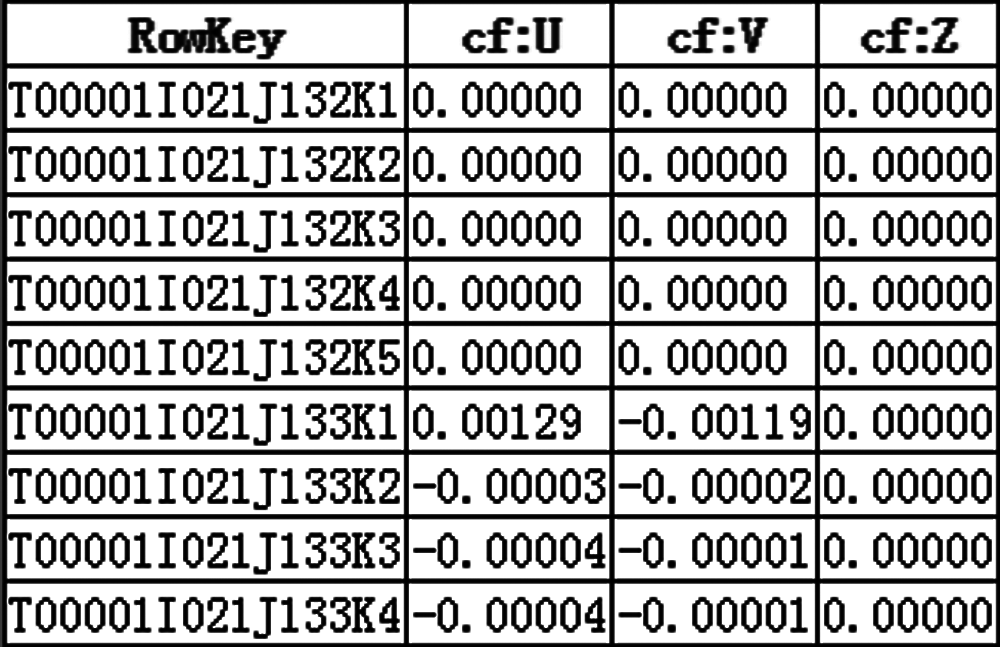

Data in HBase after conversion are shown in Fig. 8.
4.2 Fast Retrieve Based on “Rowkey”
To meet the need for fast retrieval in HBase after conversion, “RowKey” is formed in different combinations of features, and data redundancy is stored in different HBase tables. We use data in model file B to conduct experiments. The “RowKey” expression in conversion plan is ["T"F.S(11, 5)"I"V(43). T("000") "J"V(44). T("000")"K1"], which have put the filename index in the head position of the “RowKey”. Therefore, data files transformed in this conversion plan could be retrieved fast through the filename index.

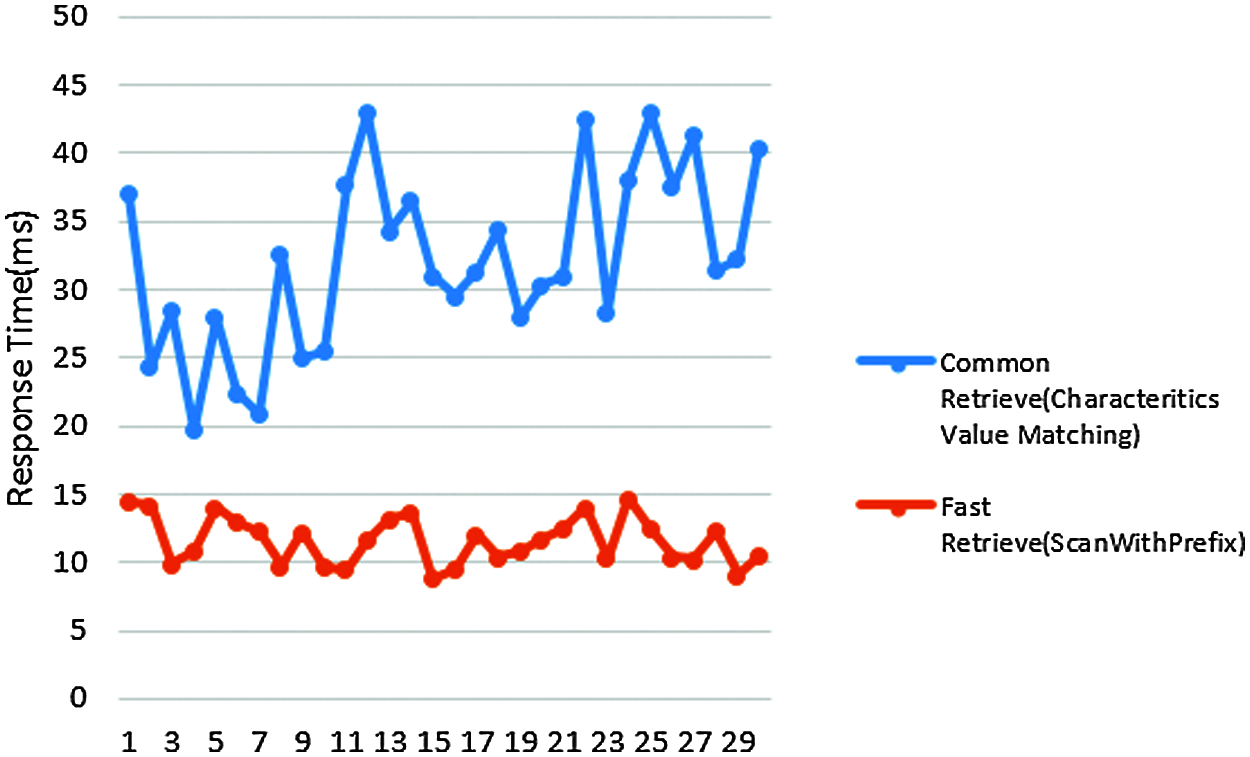

The actual data in the project is converted into HBase No-SQL database through the conversion plan, and the total number of records exceeds 50 million. We use the same retrieve parameters to compare the “Scan With Prefix” retrieval and the common retrieve which is using the feature value matching method [35–37]. After 30 times of retrieval experiments, the response time of each retrieve parameter is as shown in Fig. 9.

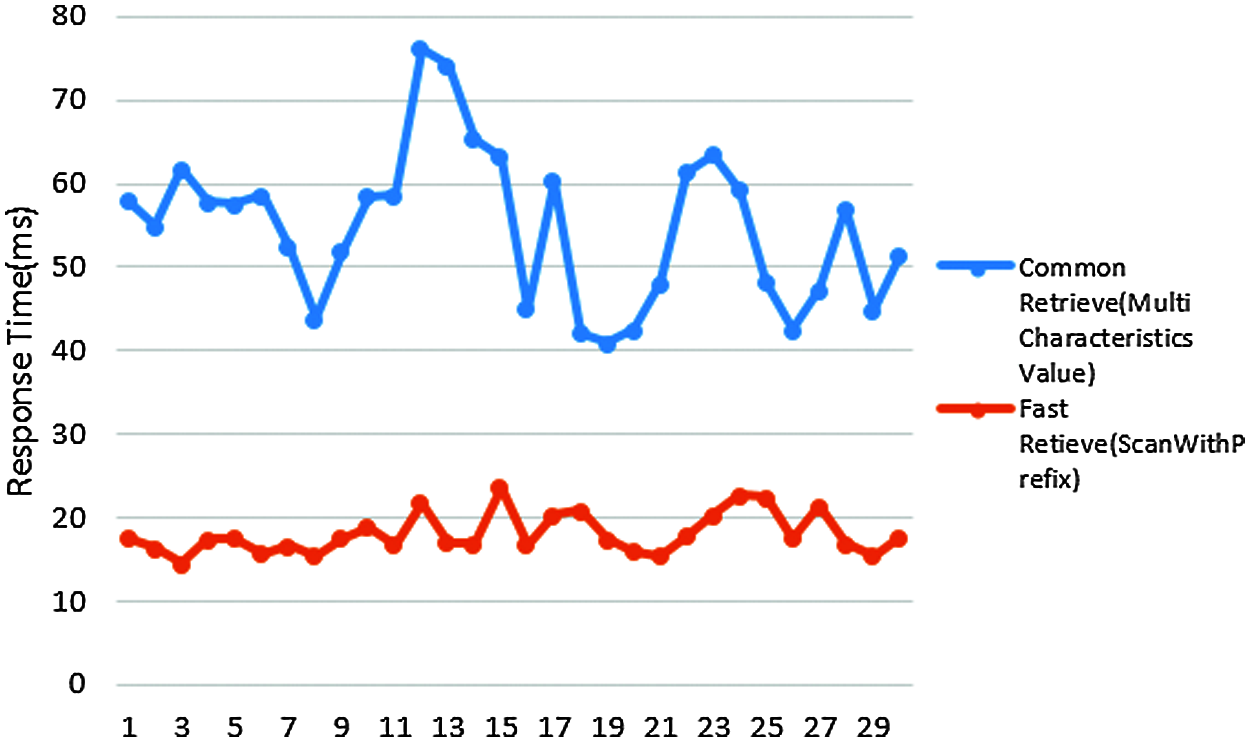

Then, in order to test the fast retrieval through coordinates, a new conversion plan with a “RowKey” expression ["I"V(43).T("000")"J"V(44).T("000")"K1""T"F.S(11,5)] is created. Similarly, we compare the method of using the “Scan With Prefix” and the fast retrieval of common feature value. Because the coordinates have many parameters, it takes a long time to complete the retrieval of multiple features. The results are shown in Fig. 10.
The research results of this paper can be applied to most cases of big data files from row storage to HBase single line or multi-line storage, as well as to quickly retrieve and access data in different application environments. This research has been applied to the data storage and quick retrieval of the following three national scientific and technological innovation projects including “Three Gorges Reservoir area and upstream basin”, “Research on GIS Voice Query Based on Natural Language Understanding” and “Cloud Storage Based Smart City Big Data Processing and Key Technology Research”. The application is of great help to improve the efficiency of video data access. It has also been adopted in the sub-project data storage and retrieval of model integration system of “Three Gorges Reservoir Area and Upstream Basin Water Environment Risk Assessment and Early Warning Technology Research and Demonstration”. Although the data formats and types of the two applications are different, this method is also applied in the above mentioned two fields with great storage efficiency and retrieval effect, which improves its general applicability.
In the future, this method will be extensively adopted in distributed No-SQL database big data storage and retrieval with broad prospects. It also can be developed into a commercial level big data storage and high-speed retrieval management tool.
