Secure Multi-Party Quantum Summation Based on Quantum Homomorphic Encryption

1School of Information Science and Technology, North China University of Technology, Beijing, 100144, China

2Advanced Cryptography and System Security Key Laboratory of Sichuan Province, Chengdu, 610025, China

3Information Security Center, State Key Laboratory of Networking and Switching Technology, Beijing University of Posts and Telecommunications, Beijing, 100876, China

4School of Cyber Science and Technology, Beihang University, Beijing, 100083, China

5School of Cybersecurity, Chengdu University of Information Technology, Chengdu, 610225, China

6Muroran Institution of Technology, Muroran, 050-8585, Japan

*Corresponding Author: Xiu-Bo Chen. Email: flyover100@163.com

Received: 06 February 2022; Accepted: 15 March 2022

Abstract: Secure multi-party computation has been playing a fundamental role in terms of classical cryptography. Quantum homomorphic encryption (QHE) could compute the encrypted data without decryption. At present, most protocols use a semi-honest third party (TP) to protect participants’ secrets. We use a quantum homomorphic encryption scheme instead of TP to protect the privacy of parties. Based on quantum homomorphic encryption, a secure multi-party quantum summation scheme is proposed in which N participants can delegate a server with strong quantum computing power to assist computation. By delegating the computation and key update processes to a server and a semi-honest key center, participants encrypt their private information data using Pauli operators to get the sum. Besides, the server can design and optimize the summation lines itself, and the correct results can be obtained even if the secret information is negative. The correctness analysis showed that the participants could correctly obtain the results of the calculation. The security analysis proves the scheme is resistant to both outside attack and participant’s attack, and is secure against collusive attack by up to N-2 participants. From the theoretical point of view, our protocol can extend to other secure multi-party computing problems.

Keywords: Quantum homomorphic encryption; secure multi-party computation; TP; correctness analysis; security analysis

Secure multi-party computation (SMC) means that two or more users who do not trust each other want to cooperate to complete a certain computing task without disclosing their input information in a distributed network environment. The initial SMC protocol was proposed in Yao’s millionaire problem [1], which compares the property of two millionaires without knowing others’ any private information. The secure multi-party summation is an elementary aspect of SMC that enables multiple parties to calculate their private inputs without revealing any private inputs information. It is extensively applied to solve some privacy preservation problems in the classical background [2] and is developed to the quantum related region [3–8]. In 2010, Chen et al. [9] proposed a quantum summation protocol by using Greenberger–Horne–Zeilinger (GHZ) states. In 2015, Zhang et al. [10] designed a quantum three-party summation protocol based on the genuinely maximally entangled six-qubit states. Then Liu et al. [11] presented a quantum summation protocol using Pauli matrices operations to encode information for extracting information, and a quantum summation protocol based on the commutative encryption [12] was proposed. In 2017, Zhang et al. [13] put forward a multi-party quantum summation protocol based on single particles without a trusted third party.

Most secure multi-party computation needs to consider semi-honest parties to the protocol, but homomorphic encryption does not. Some researchers use homomorphic encryption [14,15] (HE) algorithm to solve SMC’s problem. HE is utilized for users to process and calculate encrypted information without decryption. As an essential branch of quantum cryptography, QHE allows the client to delegate quantum data to the server for computation. Boykin et al. [16] proposed a quantum encryption algorithm and quantum one-time pad (QOTP). They also proved that it is perfect security. Based on QOTP, Liang [17] proposed three symmetric quantum homomorphic encryption schemes and a symmetric quantum fully homomorphic encryption (QFHE), but this novel scheme requires the private key, and the untrusted server can steal client information. In their subsequent studies, a QFHE scheme with the universal quantum circuit (UQC) was proposed [18], and the decryption key depends on the structure of the UQC. When a T-gate occurs for the UQC, the client and server need interact once. In 2014, Fisher et al. [19] proposed a QHE scheme for performing universal set of quantum gates on untrusted servers. However, when the server performs T-gate evaluation, an S-error will occur, requiring the client to prepare auxiliary quantum states to communicate with the server to eliminate the S-error. Broadbent et al. [20] prepared two QHE schemes to handle S-error, namely entanglement-based scheme and auxiliary-qubit scheme. These two schemes are based on a classical quantum homomorphic encryption scheme suitable for low complexity quantum circuit, and the efficiency will be low when the circuit has enormous complexity. Recently, Liang [21] proposed two QHE schemes that are based on gate teleportation and its modified version. Both are non-interactive schemes. Then, Zhou et al. [22] propose a homomorphic search protocol based on QHE, in which a client with limited quantum ability can implement a search job on the encrypted superposition state with the help of a powerful but untrusted quantum server.

However, some of the existing protocols need to perform the exclusive-OR (XOR) operation, which is too difficult to apply on applications. Motivated by the works of References [19,22], we propose a secure multi-party quantum summation protocol based on QHE. Our protocol implements the addition of the integers to the participants, even if there are negative integers. A third party is required to assist the calculation in the protocol. In order to separate computing and key management in third party, it is divided into servers with strong computing power and semi-honest key centers. In addition, Yu et al. [23] prove the no-go result: A perfectly secure QFHE scheme requires exponential overhead. QFHE with no-interaction consumes more resources than one with interaction. Hence, we use Fisher et al.’s key update scheme in our protocol.

The rest of our paper is organized as follows. In Section 2, we summarize the preliminary knowledge of quantum computation, QHE and quantum full adder circuit. In Section 3, we propose a novel multi-party quantum summation protocol based on QHE. In Section 4, we give the security analysis of our protocol. In Section 5, we conclude this paper with a brief conclusion.

QHE is a way of delegating computation. The client sends the encrypted data to a powerful server to perform general quantum computation. As for quantum computation, the single qubit gates are Pauli operation X, Y, Z; the Hadamard gate H; the phase gates T and S, where,

Also, the double-qubits gate is CNOT gate; the triple-qubits gate is Toffoli gate, where,

The CNOT gate implements the following quantum transformation

The Toffoli gate implements the following quantum transformation

To realize universal quantum computation, one element of non-Clifford gate must be composed. Therefore, two different quantum gate sets to make up universal quantum computation can be obtained. The first set is {H, S, CNOT, T}, and the second set is {H, S, CNOT, Toffoli}. And in the second set, the T-gate and

2.2 Quantum Homorphic Encryption Basedon Quantum One-Time Pad

A quantum homomorphic encryption scheme includes four algorithms [18], and the process of each algorithm is described below.

(1) Key generation algorithm. The client uses the unary representation of security parameters as the algorithm’s input to obtain a set of keys, i.e., a classical public encryption key pk, a classical secret decryption key sk and a quantum evaluation key ρevk.

(2) Encryption algorithm. According to the value of the encryption key pk, the client encrypts the plaintext information M and sends the encrypted information C to the server.

(3) Homomorphic evaluation algorithm. The server performs unitary operator U on the received encrypted information C, and sends the evaluation information E to the client. This process will consume the quantum evaluation key.

(4) Decryption algorithm. Due to the unitary operator U executed by the server, the client updates the decryption key sk to decrypt the received evaluation information E. The client’s decryption information is essentially the unitary operator U acting on the plaintext information M.

Like many QHE schemes [17–19,22,24], this paper combines X and Z to encrypt the plaintext qubit |φ〉.

According to the perfect secure QOTP and proved by Boykin et al. [16], there is Eq. (5)

where σ is an arbitrary quantum state, and

In the homomorphic evaluation algorithm, Clifford gate set {X, Z, H, S, CNOT} evaluates the encrypted qubit, and the evaluation results are as follows.

It can be found that only by executing the new combination of X and Z on the evaluation results, the decryption results can be obtained that Clifford gate set {X, Z, H, S, CNOT} acts on the plaintext qubit respectively.

When the server performs the evaluation of a T or

If only X and Z are executed on the evaluation result, they cannot be completely obtained T|φ〉, and there may be a S-error. In order to eliminate S-error, based on the idea of U-rotated Bell measurement, Gong et al. [24] designed the quantum circuit shown in Fig. 1 to complete the homomorphic evaluation process of T-gate.

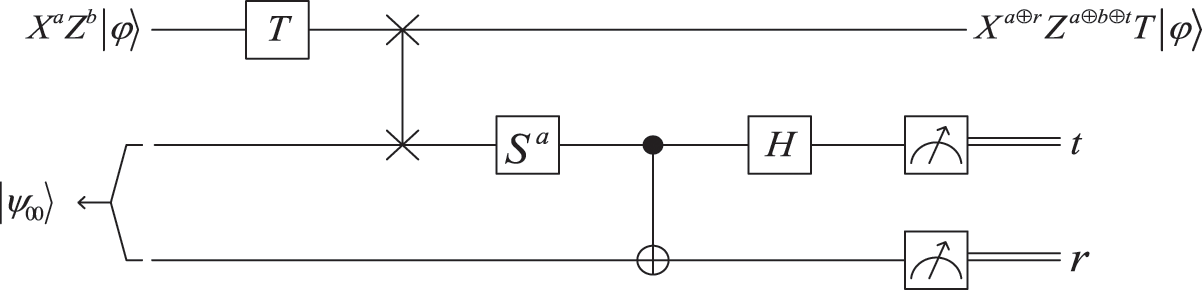

In Fig. 1, according to the value of the encryption key a, the client performs Sa-rotated Bell measurement to obtain the values of r and t. Based on the key-updating algorithm, the client updates the decryption key to

2.3 The Quantum Full Adder Circuit

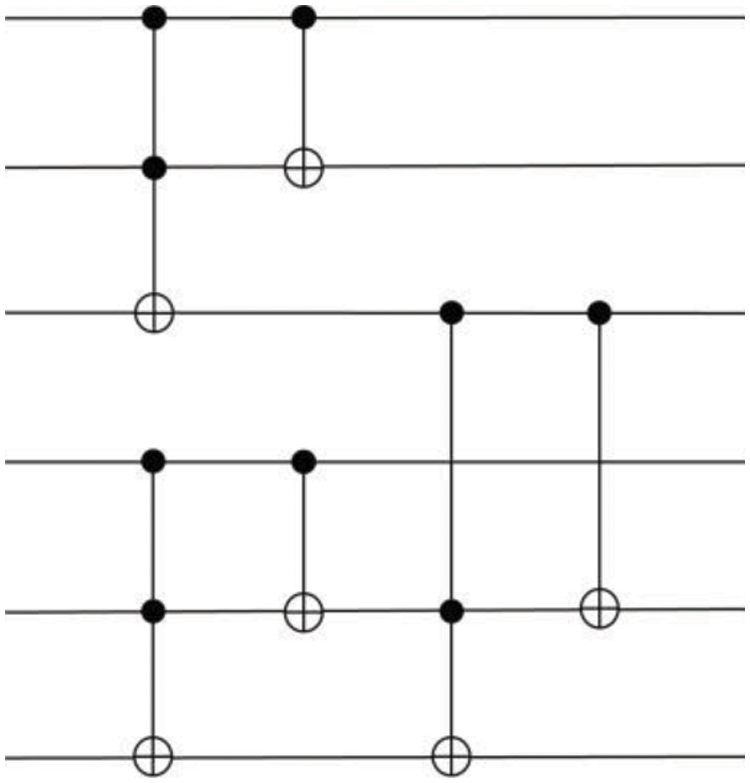

In this section, we describe how to construct a quantum full adder circuit based on classical binary addition. Suppose there are two unsigned binary digits,

Binary addition involves exclusive-OR and AND operations. CNOT and Toffoli gates in the quantum circuits that do these two operations. A full adder circuit of the two participants consisting of CNOT gate and Toffoli gate, a two-bit quantum full adder circuit is shown in Fig. 2.

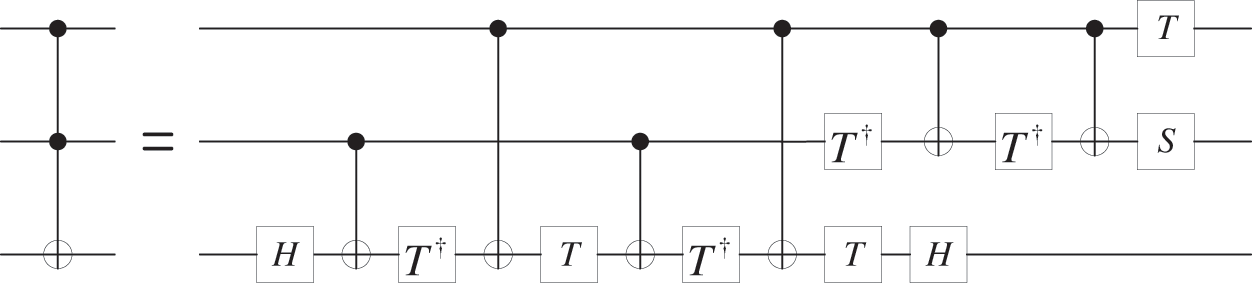

The Toffoli gate can be decomposed into two H gates, one S gate, six CNOT gates, three T-gates and four

The detailed decomposition circuit of the Toffoli gate is the basic element to realize a two-bit quantum full adder. It transforms the realization of a three-qubit gate into a combination of single-qubit and two-qubit gates, which is to some extent easy to implement experimentally and technically.

3 A Protocol of Multi-Party Quantum Summation Based on QHE

In our protocol, the participant’s message to be encrypted is classical binary data that can be represented by utilizing horizontal and vertical polarization. The vertically polarized photon |1〉 represents one and the horizontally polarized photon |0〉 represents zero. Before transmitting those photons, all the photons are encrypted by using QOTP. Note that if the encrypted message is classic, it is possible to use QOTP to generate the perfectly secure ciphertext.

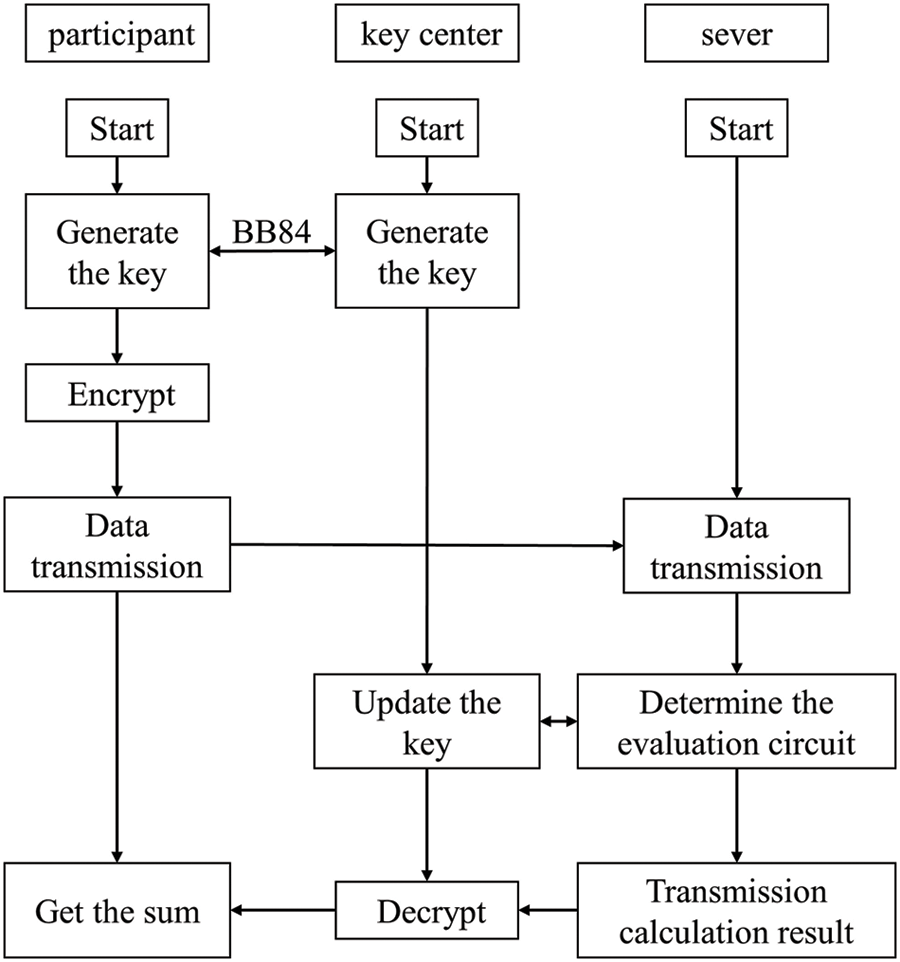

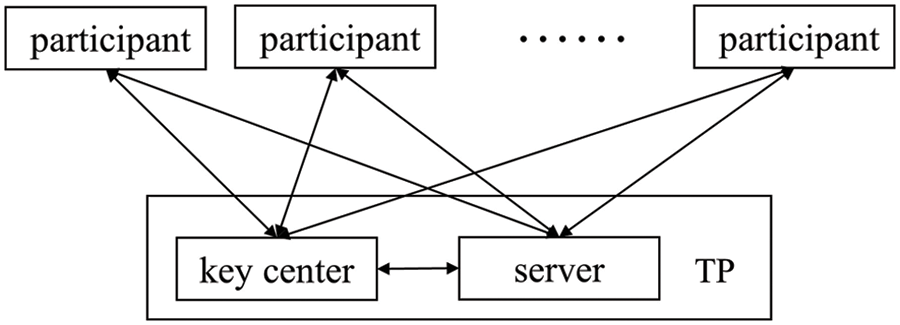

Suppose that there are N participants (P1, P2, …, Pn), each holding a M-length secret information Ii(i = 1, 2, …, n) known only to themselves. They can calculate the summation of Ii with the help of the server and a trusted key center, and the communication model between them and TP is shown in Fig. 4. A security parameter K is required to prevent computation overflow, where K = [log2(N)] + 2. In Fig. 5 we show the flow chart of this scheme.

Step 1: The key center randomly generates N secret keys of 2M-length, and sends

Step 2: If the number of the participant’s secret information Ii is positive or zero, the participants don’t have to do anything on their 0–1 code. Otherwise, they convert their 0–1 code into a two’s complement. And then they prepare the photon sequence

Step 3: To prevent the eavesdropping, the participants prepare Di decoy photons and randomly insert them in their photon sequence, each photon is selected from {|0〉, |1〉, | +〉, | −〉}, and send the new photon sequence to the sever.

Step 4: Once the server gets their photon sequences, the participants announce the position Poi and basis Bai of the inserted decoy photons. If the insert decoy is |0〉 or |1〉, the measurement basis is {|0〉, |1〉}; If the insert decoy is

Step 5: The server constructs a quantum full adder circuit, with each participant’s photon sequence as input to the circuit. In the evaluation operation, the key center updates the key based on the quantum gates performed by the server and the key update algorithm of quantum gates. After the server has performed all the quantum gates in the quantum circuit, the key center obtains the final updated

Step 6: The key center uses the decryption key to decrypt and measure all the photons in the photon sequence, and then releases the measurements to all participants. Then participants calculate the bits sequence to get the summation of their secret information.

In Step 5, in the homomorphic evaluation algorithm, when the server performs Clifford gates operation on ciphertext, according to the commutation rules between Clifford gate and Pauli matrices, the new intermediate keys can be obtained without any additional classical or quantum resources. Suppose the i-th Clifford gate operation performed by the server is defined as Gi, which acts on the k-th in the photon sequence

(1) If Gi = X, Y, Z, then (ak(j + 1), bk(j + 1)) = (ak(j), bk(j));

(2) If Gi = H, then (ak(j + 1), bk(j + 1)) = (bk(j), ak(j));

(3) If Gi = S, then

(4) If Gi = CNOT, then

Any arbitrary unitary operator can be composed of H, S, CNOT and T gates, and a T-gate key update is required for the client to perform any unitary operation on the server. But when a T-gate apply on the encrypted qubit, an S-error occurs: if a = 1,

In order to prevent the eavesdropping in the evaluation algorithm, the server and key center convert the classical information bits

Two examples are given to verify that the calculation of the protocol is correct. Without loss of generality, after ignoring the eavesdropper checking and evaluating algorithm process, suppose there are three participants named P1, P2, P3 who have a secret integer information I1, I2, I3, respectively. We convert their secret information into binary and give some examples to illustrate the correctness of our protocol.

Suppose that participants P1, P2, P3 have positive integer information I1 = 145, I2 = 201, I2 = 78, respectively. The security parameter is K = [log2(3)] + 2 = 2. The 0–1 code of length M = 8 (i.e., M = MAX.Length(log2(Ii)), i ∈ (1, 2, 3)) are I1 = (1, 0, 0, 1, 0, 0, 0, 1), I2 = (1, 1, 0, 0, 1, 0, 0, 1), I3 = (0, 1, 0, 0, 1, 1, 1, 0). According to the security parameter K, the new 0–1 code

Suppose that participants P1, P2 have positive integer information I1 = 138, I2 = 49, and P3 have I3 = −223. The security parameters are K = [log2(3)] + 2 = 2. The 0–1 code of length M = 8 (i.e., M = MAX.Length(log2(Ii)), i ∈ (1, 2, 3)) are |I1| = (1, 0, 0, 0, 1, 0, 1, 0), |I2| = (0, 0, 1, 1, 0, 0, 0, 1), |I3| = (1, 1, 0, 1, 1, 1, 1, 1). According to the two’s complement rule and the security parameter K, the new 0–1 code

In our protocol, outside attackers can attack during key distribution, ciphertext transmission and evaluation algorithm execution.

Firstly, in step 1 of our protocol, the key center and the participants use the BB84 protocol to distribute the key, which is a secure protocol from which the attacker cannot obtain the key information.

Secondly, the participants encrypt their secret information using QOTP, which is a perfectly secure encryption scheme where outside attackers cannot recover secret information from the ciphertext without knowing the encrypt key. During ciphertext transmission, the outside attacker might attack the quantum channel when the participants send their encrypted photon sequence to the sever in Step 3. Because of the participants insert some decoys into the photon sequence, the attacker cannot distinguish decoy photons from signal photons without knowing the position and bases of decoy photons insertion.

Thirdly, in the evaluation algorithm, the key center needs to communicate with the server once quantum and twice classical when the server performs a T or

In this type of attack, the dishonest participants, server and semi-honest key center involved in the protocol try to steal secret information from other participants. In our protocol, a collusive attack by N-2 dishonest participants is secure. If there are N-1 dishonest participants, they can calculate the secret information of the last participant according to the summation and their secret information. We initially analyze the case that Pi desires to know the secret information of other N-1 participants. Secondly, we analyze the case that the key center and the sever want to learn the secret information of N participants.

Case 1: Pi wants to steal the secret information of other N-1 participants.

There is no communication between dishonest participant Pi and other honest participants in our scheme, and he cannot get any information from other participants. Suppose a dishonest server cooperates with Pi to attack other participants, Pi cannot decrypt and measure these encrypted photon sequences without the decrypt key. Hence, arbitrary dishonest Pi cannot infer secret information about other N-1 participants. If a dishonest participant in the protocol with virtual secret information, only he can get the final summation, but he still cannot infer the secret information of other participants.

Case 2: The semi-honest key center and the server desire to steal the secret information of N participants.

The participant N interact with the key center who is semi-honest in our protocol. This means that key center must faithfully implement the protocol and cannot cooperate with anyone participants or the sever, but it can use the key data it obtains to try to get the participant’s secret information.

In Step 1, the key center generates the initial key with the participants by the BB84 protocol, and it does not obtain any secret information of participants in this process.

In Step 4, the server receives the ciphertext data of the participants. Without the decryption key, it cannot decrypt and measure the secret information of the participants.

In Step 5, the key center communicates with the server to generate the intermediate key in this process, there is only the interaction of the key information and no interaction of the secret information. The server only obtains

In summary, we propose a secure multi-party quantum summation protocol based on quantum homomorphic encryption. In our scheme, N participants utilize the QOTP to encrypt their photon sequences which are qubit forms of their secret information. The server and the semi-honest key center work together to complete the calculation, and then the key center publishes the decryption and measurement results

Funding Statement: This work was supported by the Open Fund of Advanced Cryptography and System Security Key Laboratory of Sichuan Province (Grant No. SKLACSS-202101), NSFC (Grant Nos. 62176273, 61962009, U1936216, 62076042), the Foundation of Guizhou Provincial Key Laboratory of Public Big Data (No. 2019BDKFJJ010, 2019BDKFJJ014), the Fundamental Research Funds for Beijing Municipal Commission of Education, Beijing Urban Governance Research Base of North China University of Technology, the Natural Science Foundation of Inner Mongolia (2021MS06006), Baotou Kundulun District Science and technology plan project (YF2020013), and Inner Mongolia discipline inspection and supervision big data laboratory open project fund (IMDBD2020020).

Conflicts of Interest: We declare that we have no conflicts of interest to report regarding the present study.
