Evolutionary Algorithm Based Adaptive Load Balancing (EA-ALB) in Cloud Computing Framework

J. Noorul Ameen1,* and S. Jabeen Begum2

1Department of Computer Science and Engineering, E.G.S Pillay Engineering College, Nagapattinam, 611002, India
2Department of Computer Science and Engineering, Velalar College of Engineering and Technology, Erode, 638012, India
*Corresponding Author: J. Noorul Ameen. Email: noornilo@gmail.com
Received: 13 November 2021; Accepted: 25 January 2022

Abstract: In the present decade, the development of cloud computing framework is witnessed for providing computational resources by dynamic service providing methods. There are many problems in load balancing in cloud, when there is a huge demand for resources. The objective of load balancing is to equilibrate the cloud server computations for avoiding overloading problems. On addressing the issue, this paper develops a new model called Evolutionary Algorithm based Adaptive Load Balancing (EA-ALB) for enhancing the efficacy and user satisfaction of cloud services. Efficient Scheduling Scheme for the virtual machines using machine learning algorithm is proposed in this work. Initially, process of K-means clustering is used for computing optimal min-max rates and then, local search capability for solving the load balancing problems in cloud model is determined with the incorporation of Evolutionary Algorithm. The results show that the proposed model achieves better results in terms of load balancing factors, Virtual Machine (VM) migration, energy consumption and so on, when compared to the existing model.

Keywords: Evolutionary algorithm; load balancing; cloud computing; virtual machine (VM); clustering; load estimation

1  Introduction

In the present scenario, cloud computing is very much popular due to the capability to offer seamless computing services with the on-demand based model [1]. The cloud models provide resources to the physical machines in the form of VMs, based on the user requirements. Each virtual machine executes its own OS and obtains their resources from their host physical machine. Moreover, the services are provided based on the Service Level Agreement (SLA) with the consumers. In the process of resource provision, there may cause SLA violations and may decrease the model effectiveness [2].

For handling this problem, it is significant for the cloud providers to use the cloud resources effectively. For attaining that, load balancing operations are performed in cloud by migrating virtual machines from overloaded physical machines to idle machine. The load balancing models [35] combines the varied resource utilizations by selecting virtual machines for migrations and determines the appropriate host physical machines. In this process, each resource is allotted with some weight for determining the load rate of physical machines and their capacities, the process of VM migration is carried out accordingly. By allocating varied resources with predefined weight rates, the models ignore the distinctive cloud feature, may cause, time complexities and over resource consumption in the physical machines. Moreover, the cloud virtual machines use varied resources to provide different services with varied resource intensities. As the cloud jobs are varied from consumers to consumers, and also varied based on time, the over utilization problem in the physical machine also varied on time.

Fig. 1 clearly depicts the sample scenario, which has four physical machines (PM1, PM2, PM3 and PM4). PM4 is overloaded with 3 virtual machines. Since the CPU is overloaded, based on the resource intensity measures, virtual machine (VM1) is considered to be the best to migrate, since, it shows higher intensity. PM1 is considered as the best host for VM1. Moreover, the main objective of the proposed model is to effectively reduce the migration numbers in the process of load balancing. Additionally, cost effectiveness also considered the service time, bandwidth and so on [6,7]. Typically, load balancing is a method to provide balanced workload between the cloud servers. Moreover, load balancing technique involves in optimizing the resource usage, cost effectiveness, increase throughput and provide cost effectiveness. The main objective of the proposed work is to provide cost and time effectiveness with the load balancing model between virtual machines. Based on the features of green scheduling, this work analyzed the load balancing methods of cloud framework based on,

i)   Server Workload Forecasting

ii)   Selection of VMs

iii)   Selection of Target Server

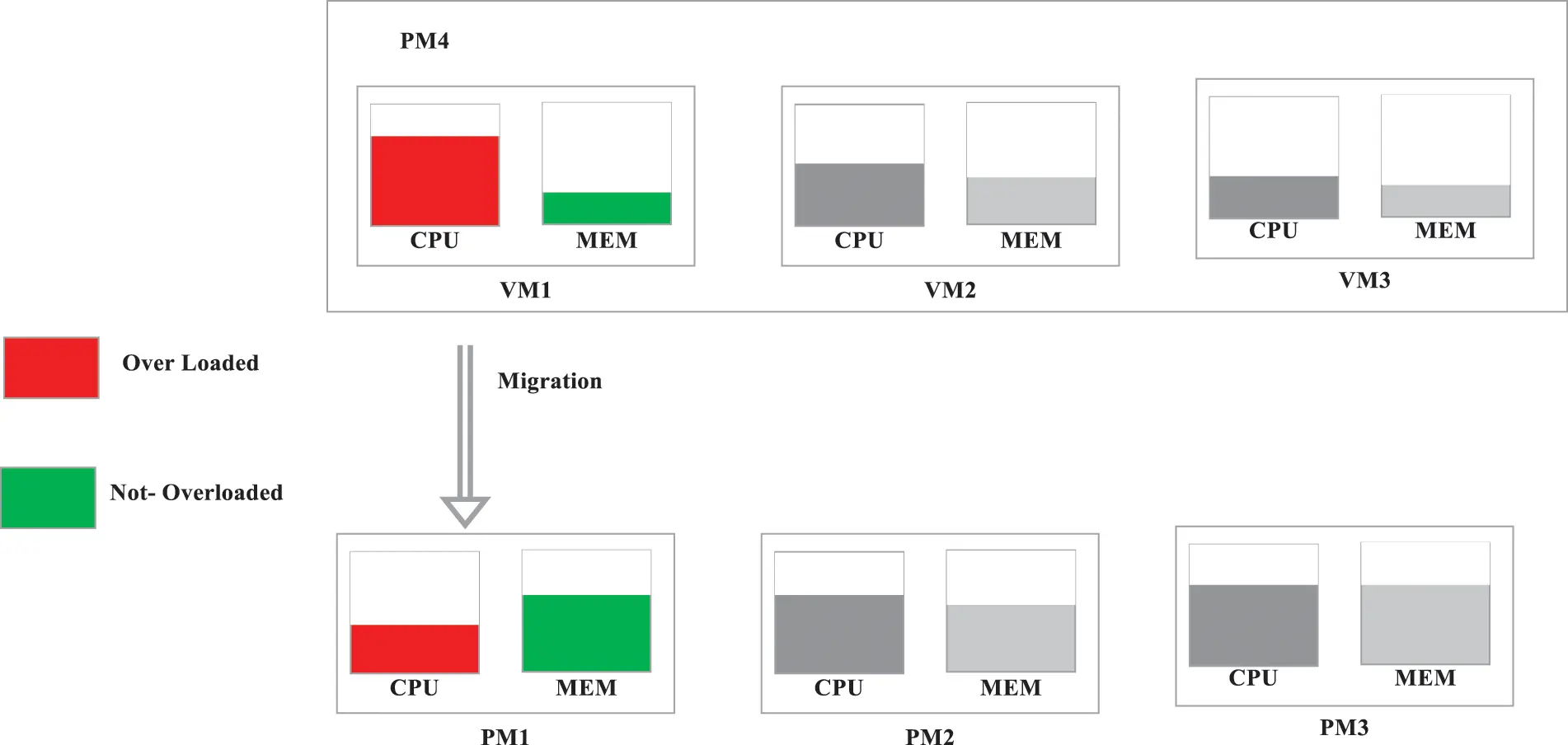

Figure 1: Virtual machine migration in cloud model

And the contributions of the proposed Evolutionary Algorithm based Adaptive Load Balancing (EA-ALB) are listed as follows:

i)   The objective of the work is to determine the accurate CPU utilization of Cloud servers based on the aforementioned factors

ii)   Incorporated K-Means Clustering (KMC) for finding the VMs with minimal migration, performance interferences and traffic.

iii)   The Local Search Capability in enhanced with the Modified Evolutionary Algorithm (MEA). And the VM determined by KMC is migrated to the destination server to provide efficient load balancing.

The remainder of this work is organized as follows, Section 2 explains about the related works developed previously for solving load balancing problems in cloud. The complete work process with the flow diagram is explained in Section 3. The results and discussions with comparisons are provided in Section 4. Finally, the work is concluded in the Section 5 with some ideas for future work.

2  Related Works

Myriad works are proposed in recent times for handling cloud resources effectively by performing dynamic load balancing. The authors of [8] provided the basics of cloud computing, components, features, benefits and disadvantages. Additionally, the work discussed about the conceits of virtualization, cloud services and cloud security methods are also discussed in the work. In cloud framework, the load balancing techniques are performed as [911]

i)   Centralized Load Balancing

ii)   Distributed Load Balancing

In Centralized Load Balancing, the central node involves in the process of resource allocation and de-allocation. On the other hand, in distributed load balancing, multiple machines act as the coordinator and perform the process of resource allocation. Furthermore, several scheduling methodologies such as, First Come First Serve (FCFS), Round Robin and other load balancing techniques such as Ant Colony Optimization (ACO), Max-Min, etc., are involved in solving the problems on cloud resource management and provisioning [12,13].

Load balancing model provided in [14] determines to maximize the load balancing across the physical machines. Load memory rate is defined, when the CPU load is partitioned by their memory utilization to evaluate its resource utilization. And equal weights are assigned for resources, which may be inappropriate for varied time slots in each physical machine. In [15] the authors have discussed about the related works that are derived for managing the virtual machines in an efficient manner. An efficient virtual machine placement methods has been proposed in [16] for cost effectiveness in cloud data center. In [17] the performances of virtual machines are considered for taking the migration decision and resource provisioning.

Load balancing methodology for distributed cloud models is provided in [18] by moving the files to light servers. Moreover, PROTEUS is the technique developed in [19] for bandwidth allocation for cost effectiveness in cloud named FairCloud. Nevertheless, the model concentrated only on bandwidth. So, it is not efficient for processing load balancing in physical machines. The authors of [20] defined a migration process of virtual machine sample as a task set that execute at the PM of sender and receiver to evaluate the migration time and the resource utilization. Some models provided methodologies to deal load balancing on single resources as [21] for storage based resources and bandwidth based resource management in [22,23]. For enhancing the network security, traffic pattern based virtual machine migration model has been proposed in [24]. Further, in [25] AppAware model has been proposed for inter virtual machine dependencies and the primary factors of network topology to replace machines.

An algorithm for dynamic resource provisioning in data center for efficient resource utilization is proposed in [26]. In the model, the idle server is turned off for resource efficiency. In [27] for attaining throughput optimization, a cloud resource allocation model has been proposed. In the model, stochastic model of cloud cluster, where the tasks are allotted based on the virtual machine requests. But, the model is minimal in throughput, which used Best-Fit algorithm for scheduling. Cloudscale [28] model has been proposed for providing online based resource provisioning to accomplish dynamic resource allocation. The review works in [29,30] provides valuable source of data on load balancing methods and materials in cloud computing environment.

3  Proposed Model

In the cloud model, the load balancing of servers is processed based on the number of Virtual Machines, VM Migration, memory, traffic flow and the server capacity. The server load condition is non-linear and periodic to certain level. In the proposed model, K-means clustering algorithm which is integrated with evolutionary algorithm for efficient load balancing between machines in cloud environment. In typical KMC algorithm, the following issues are noted.

i)   The process of k-value selection using KMC is hard to determine

ii)   In clustering, time and iterations are increased because of various reasons.

iii)   When there is a huge dataset, time complexity may cause

Considering the issues, this paper derives an efficient KMC based on the cluster-center and the k-value for determining the appropriate min-max.

3.1 Implementation of KMC in Proposed Model

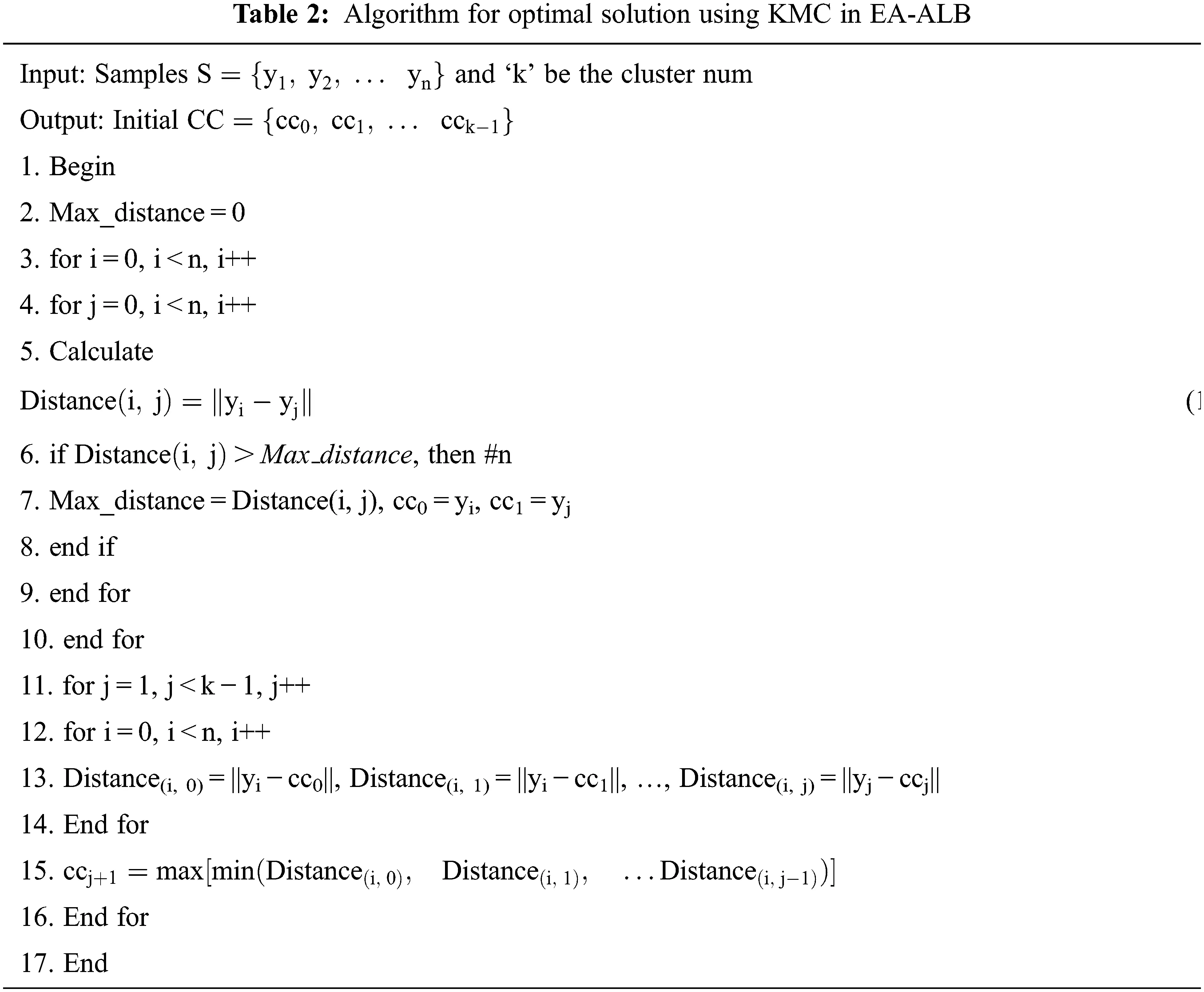

The operations of KMC in determining the Min-Max includes k-value selection and Cluster-Center (CC) selection.

3.1.1 K-Value Selection

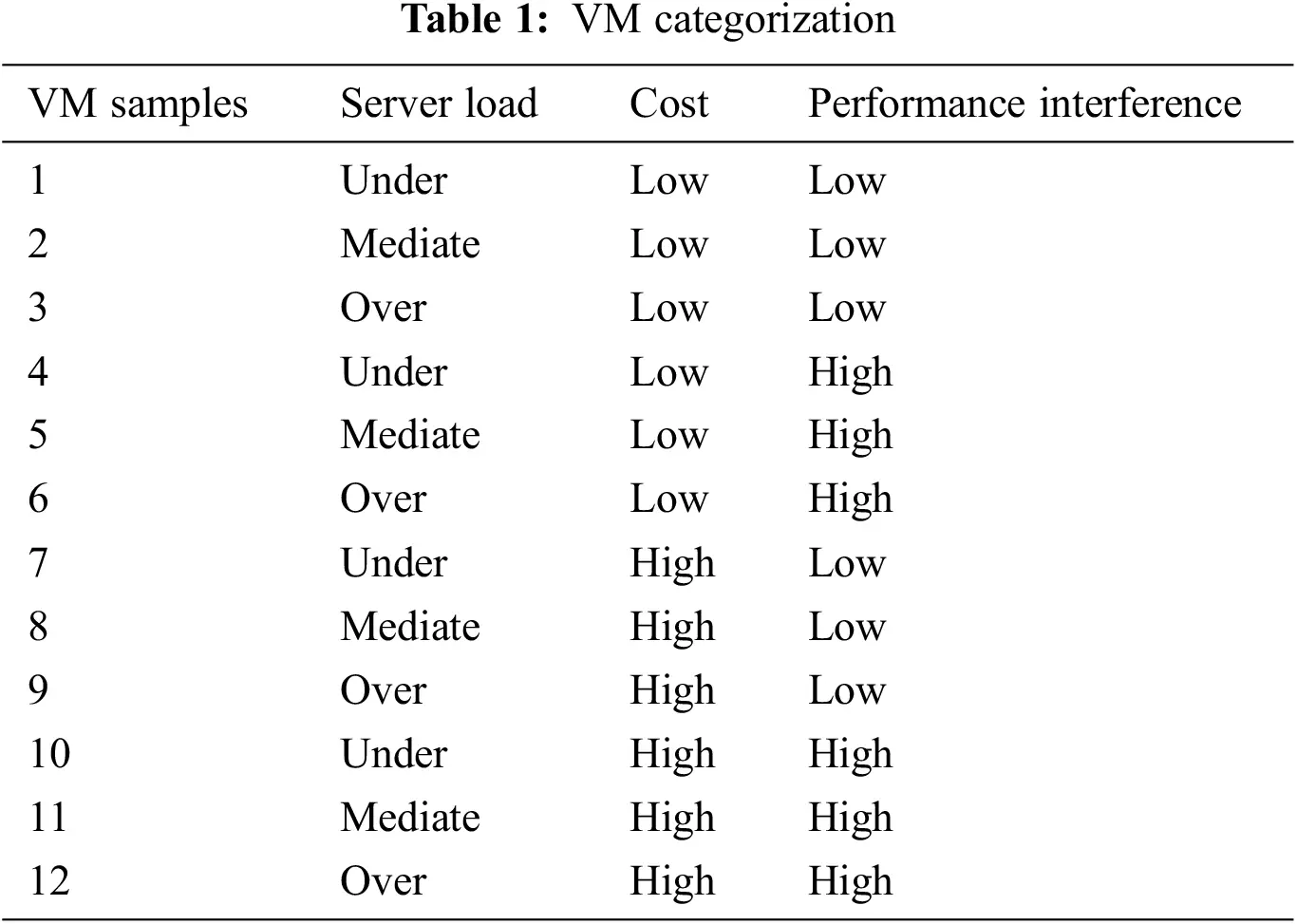

In the proposed work, the VMs in the cloud model is categorized based on three factors, such as,

i)   Load of the Server Machine

ii)   VM migration cost

iii)   Performance Interference

Moreover, the virtual machines clustering are provided as, three dimensional structure. Cost can be further considered as, low and high and further, the performance also considered as low and high, respectively. The server load is noted as, over load, under load and mediate load and their corresponding descriptions are given in Tab. 1.


3.1.2 Process of CC Selection

In KMC, initial cluster center (CC) is selected in random manner from the k-number of samples. When the selection process is instable, the derived solution is not optimal. Hence, the proposed model derives the optimal solution by CC selection to reduce the iteration numbers by increasing the distance between the initial CC. In the process of min-max selection of CC, initial CC is selected in random manner and given as CC0. Following, the distance between CC0 and each other sample point is calculated, in which the sample at shortest distance is taken as CC1 and the sample at longer distance is noted as CC2. The algorithm is presented in Tab. 2 for finding optimal solution with KMC.


3.2 Adaptive Load Balancing Process

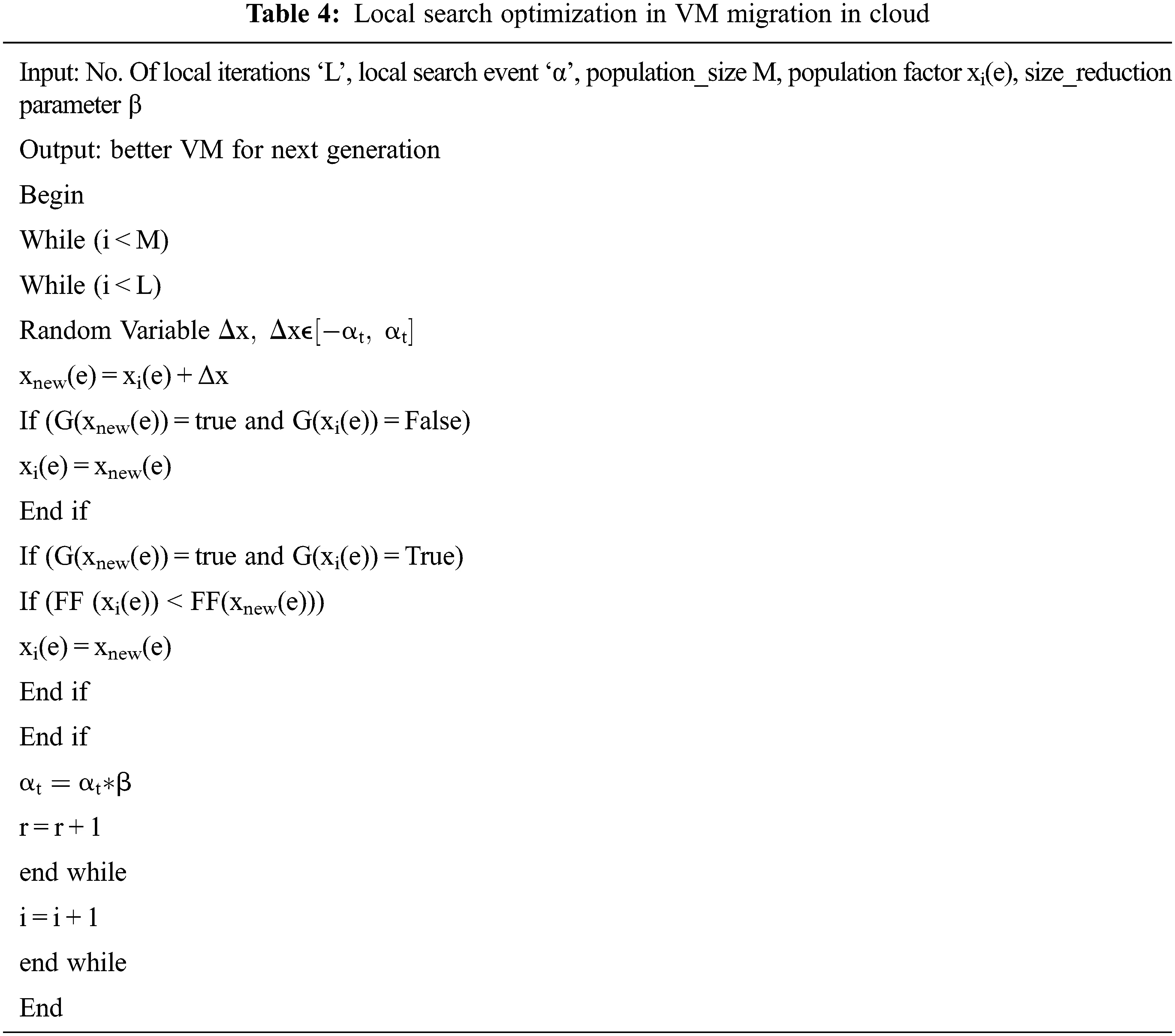

In the proposed model, the conventional differential evolution model is enhanced for improving the search ability. The process is employed to VM migration to make it more effective with respect to the aforementioned factors along with energy efficiency. For deriving optimal solutions, the fitness function is derived based on the following steps.

i) The traffic flow generated in the process of VM migration is based on the routing and memory. Here, the fitness function (FF) based on the traffic flow is given as,

traffic flowFF=i=1ndti×lenr(i)(2)

where, ‘dti’ denotes the size of data transmission of VM, during migration, ‘lenr(i)’ denotes the length of routes between VMs based on their topology, between the source and target and the formula is given as,

lenr(i)={{3×2,routelinkthroughcoreVM2×2,routelinkthroughaggregateVM1×2,routelinkthroughedgeVM} (3)

ii) Secondly, the FF based migration cost is derived based on the memory of the machine and the network bandwidth. The optimal solution is considered one which derives with minimal migration cost which is given as,

Migration Cost (MC)=i=1n0.1×t0t0+tVMiCPUVMi (4)

where, ‘t0’ denotes the initiation time of VM migration, ‘ tVMi ’ represents the total VM time and ‘ CPUVMi’ denotes the CPU utilization of machines. And, the formula is given as,


where, ‘tVMi ’ denotes the time taken for migration, ‘ MemVMi ’ represents the memory size and, the network bandwidth given as BWVMi .

iii) Further, the FF is computed based on the performance interference after the completion of VM migration. And the determined value is considered to be minimal, which is calculated as,


From the above equation, ‘Ti’ denotes the running time of VM of ‘i’ th server.

iv) Energy Efficiency based FF derivation is processed in the fourth step, where optimal solution is considered as, EEFF=Min (EEi) and the computation is presented below.

EEi=t(i)=1t(n)P(vi(tj)) (7)

Here ‘vi(tj)’ denotes the CPU utilization and the power consumption is given as, ‘P(vi(tj))’ and the formula is given below.

Pi(v)=ri×Pimaxi+(1ri)×Pimaxi×vi (8)

Hence, the energy efficient optimized solution is derived with the following formula, presented in (9).

OF=m1EEFF+m2traffic flowFF+m3 MC+m4PIFF (9)

And in (9) m1, m2, m3 and m4 are the balancing parameters on each derivation and their summation results unit value. Those factors can be adjusted to impact the other factors in determining the fitness function.

3.3 Incorporation of EA in Cloud Resource Allocation

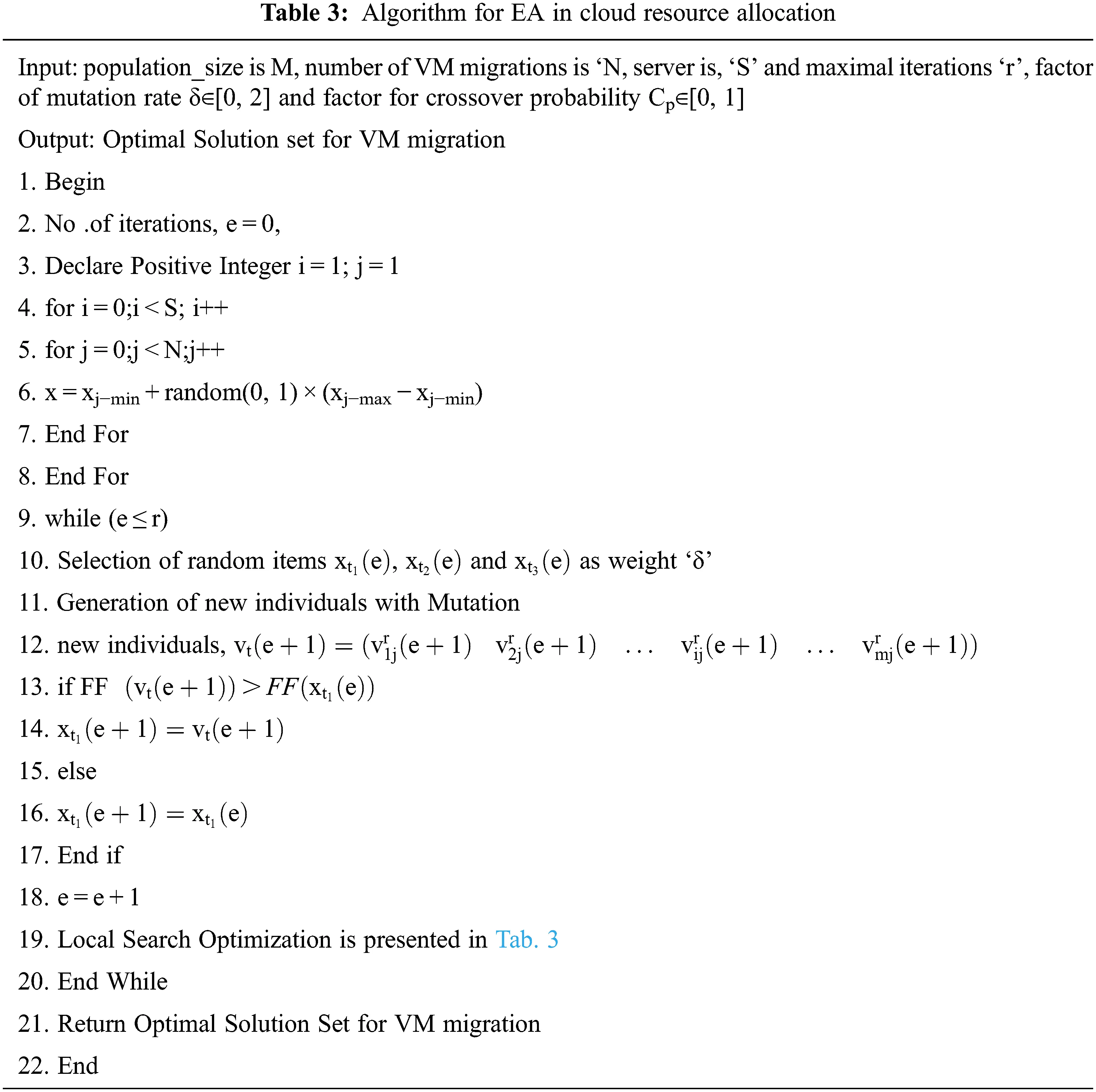

In this process, the population_size is defined as, ‘M’ and the number of VM migrations is given as ‘N’ and the servers are given as ‘S’ and the inbetween links are in ‘l’ length. The placement of VM is provided as [1, S] with the maximal number of ‘r’ iterations. Further, the factor of mutation rate is given as, δ∈[0, 2] and the factor for crossover probability is provided as Cp∈[0, 1]. Hence, the 1st generation of ith VM is computed as,

xr(0)=(x1jr(0),x2jr(0),,xijr(0),,xmjr(0)) (10)

In the above equation, xr(0), (r = 1, 2, …m), represented that kth VM of 0th generation is required to be migrated and x1jr(0),((i=1,2,m;j=1,2,r) denotes the migration of ith VM is to the jth placement. And the computation is given as,

x=xjmin+random(0,1)×(xjmaxxjmin) (11)

From the above equation, the minimal and maximal vectors rates are provided with the mapping of [1, S]. Further, based on the evolutionary algorithm, the different VM patterns with randomly generated population ‘e’ are given as xt1(e) , xt2(e) and xt3(e) . Here, the mutation operations are processed to create new population and the differential scaling factor is derived as,

scalingfactor=δ(xt1(e)xt2(e)) (12)

In the above equation, (xt1(e)xt2(e)) denotes the differential scaling factor and considering the weights, the VM migration is stated as,

ut(e+1)=xt3+scalingfactor (13)

Here, the newly produced individual is given as, ‘ut(e + 1)’. Further, the crossover operations are introduced to enhance the population diversity. Therefore, the new generations vt(e + 1) and the older ones xt1(e) are muted together to frame the new individuals as,

vt(e+1)=(v1jr(e+1),v2jr(e+1),,vijr(e+1),,vmjr(e+1)) (14)

The formula for cross over is given as,

vijr(e+1)={uijr(e+1),random(i)Cp=random(r)xijr(e),random(i)>Cprandom(r) (15)

Here, random (i) is denoted as the random number between 0 to 1 and random (r)[1, M]. Then, new cycle is started for the selection function and the FF of the cross over results vt(e + 1) is compared with the older individual xt1(e) and the FF is given as,

xt(e+1)={vt(e+1),FF(vt(e+1))>FF(xt(e))(xt(e),Others (16)

In the above equation, FF(x) denotes the fitness function of the individual, which is newly generated. The computed fitness values are compared and the better solution is provided for the iteration process to find next generation. The algorithm is presented in Tab. 3. From the above experimentation, it is determined that the convergence speed of the proposed model is efficient and faster than the traditional models. Moreover, in the process of cross-over mutation, the algorithm is enhanced with adding a local search event and the algorithm is provided in Tab. 4. The above operation in local search determines the optimal situation, which may result in migrating, when overload happens. Based on the results of the algorithm, the resources are allotted to the tasks.



4  Results and Discussions

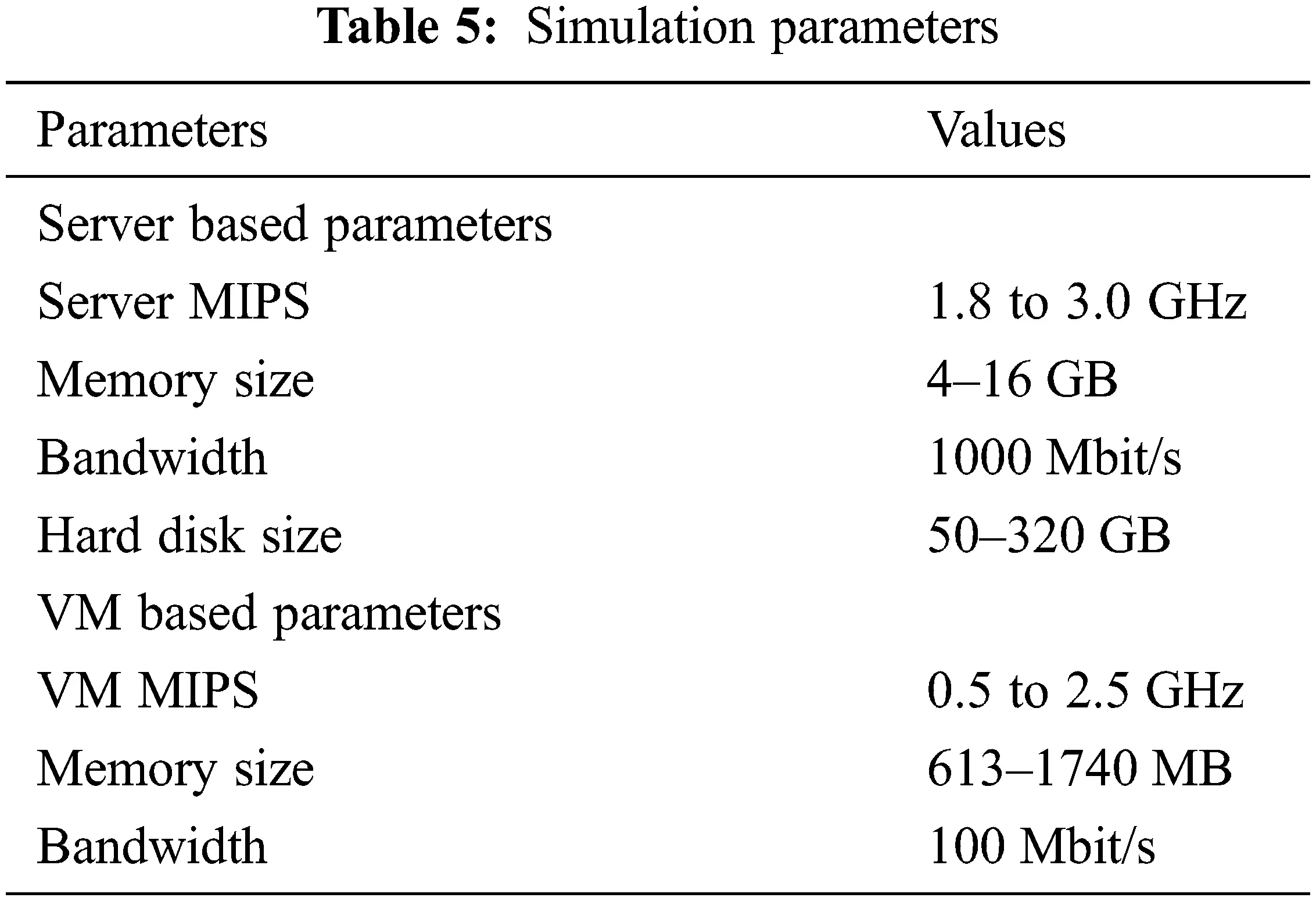

This section presents the results and discussions to prove the efficacy of the proposed model. The model is evaluated using the simulation software called CloudSim. And the results are compared with the existing models such as, First Come First Serve (FCFS), Ant Colony Optimization (ACO) and PROTEUS. The simulation parameters and the domain values are presented in the following Tab. 5. Moreover, the evaluations are carried out based on the factors such as, cost effectiveness, traffic flow and CPU utilization for measuring the overall model efficiency.

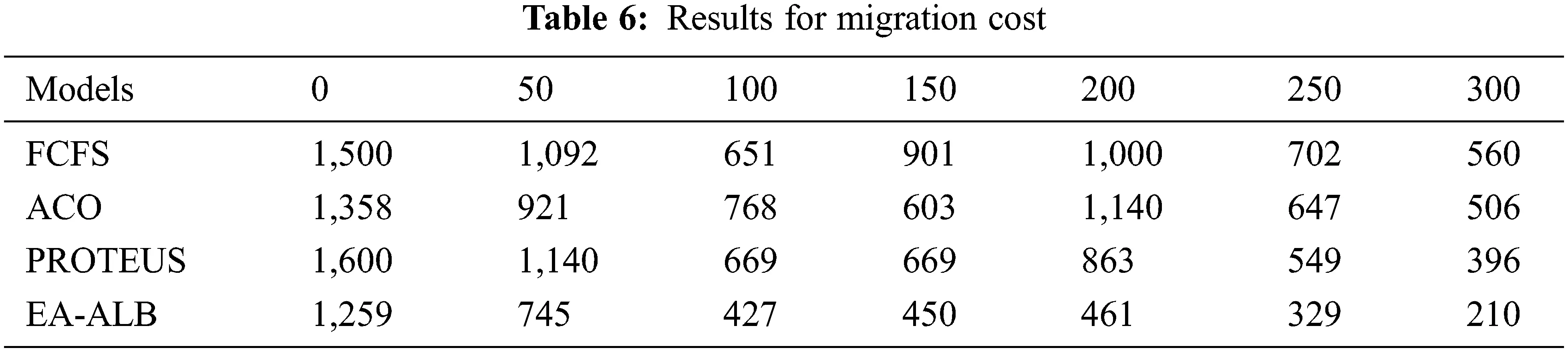

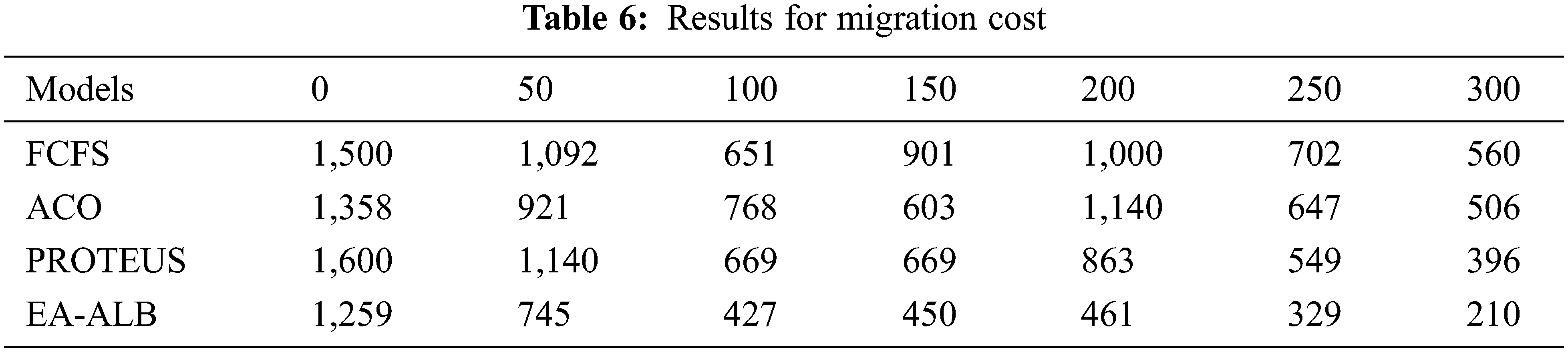

Fig. 2 presents the results for migration cost evaluations for cloud resource allocations, their corresponding values are given in Tab. 6, in which costs are denoted with units and the proposed model is cost effective than the compared works. The average migration cost of the proposed EA-ALB is 554.42, which is minimal than other models. The Fig. 3 depicts the performance interference based results on model evaluations. The results are carried out based on the execution time. From the results, it is evidenced that the model is efficient than the other models and the obtained results are presented in Tab. 7.

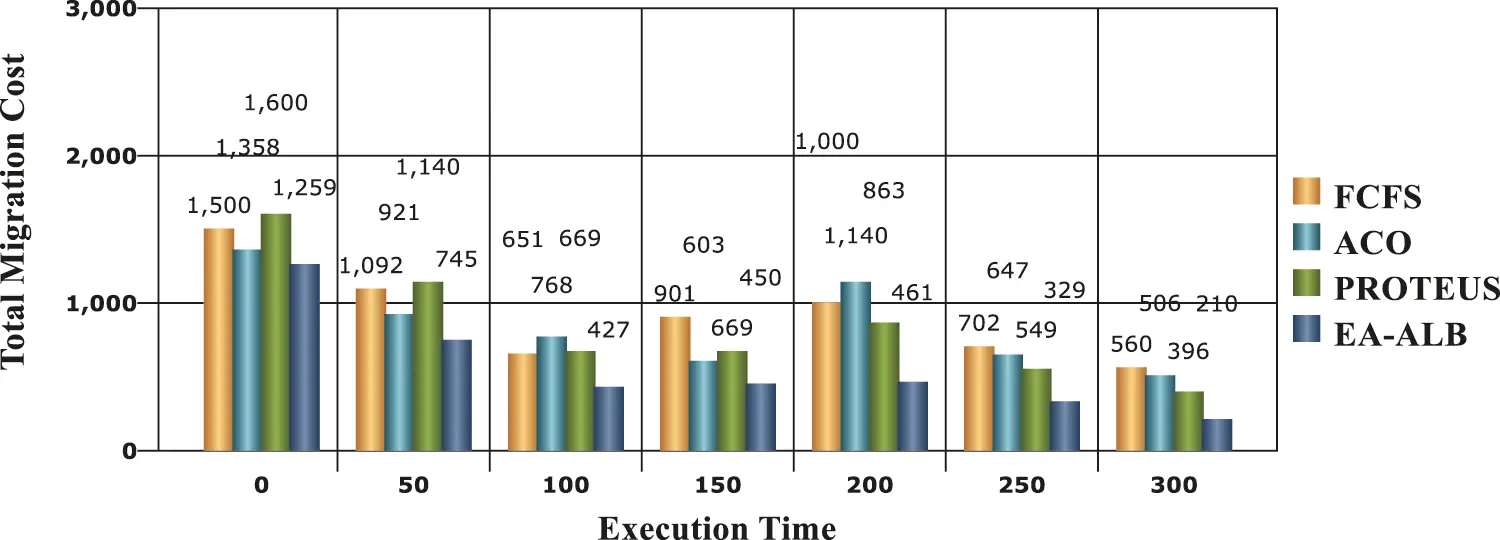

Figure 2: Migration cost vs. execution time

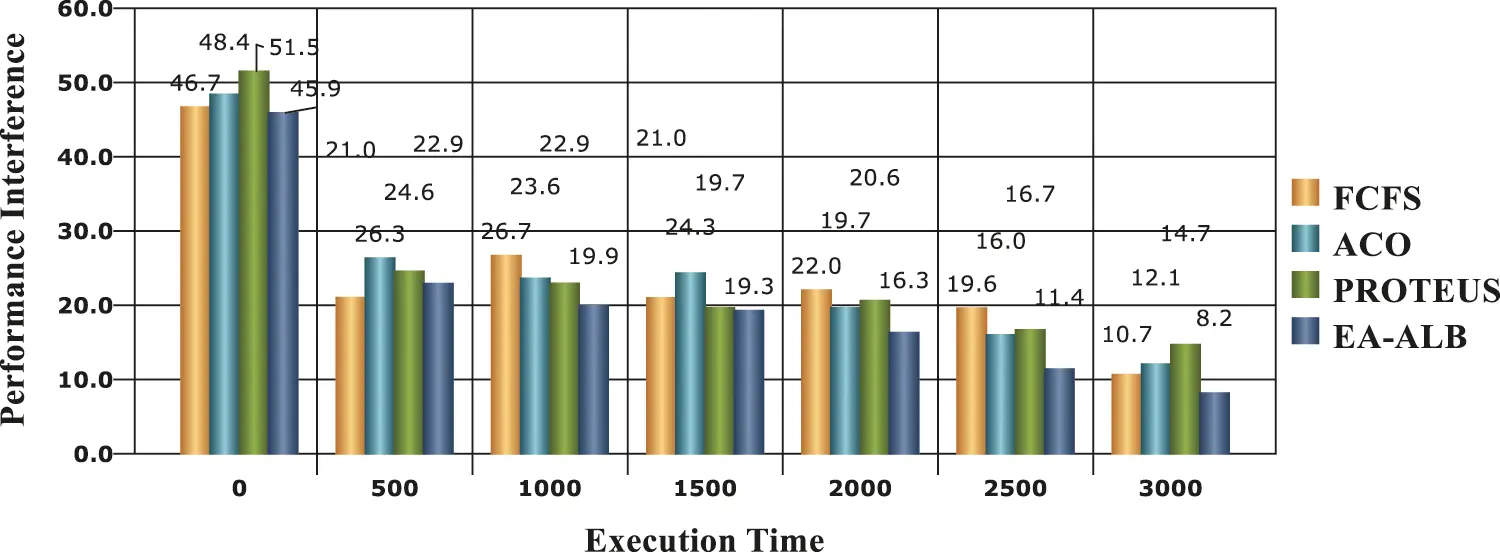

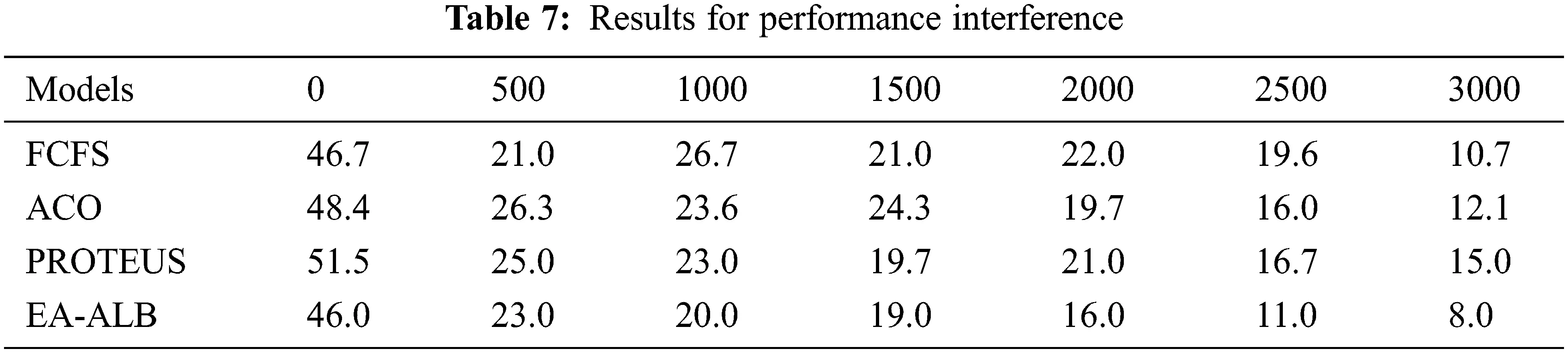

Figure 3: Execution time vs. performance interference

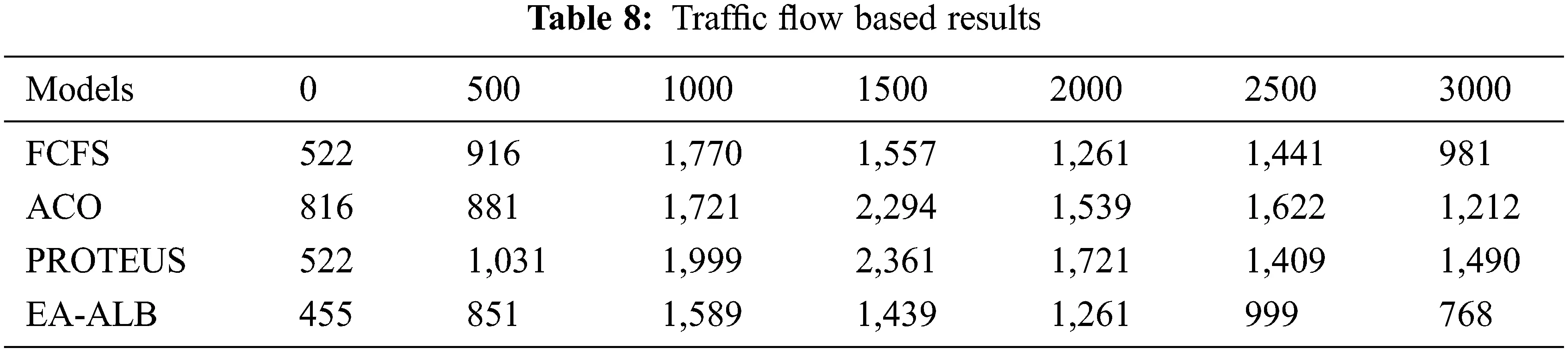

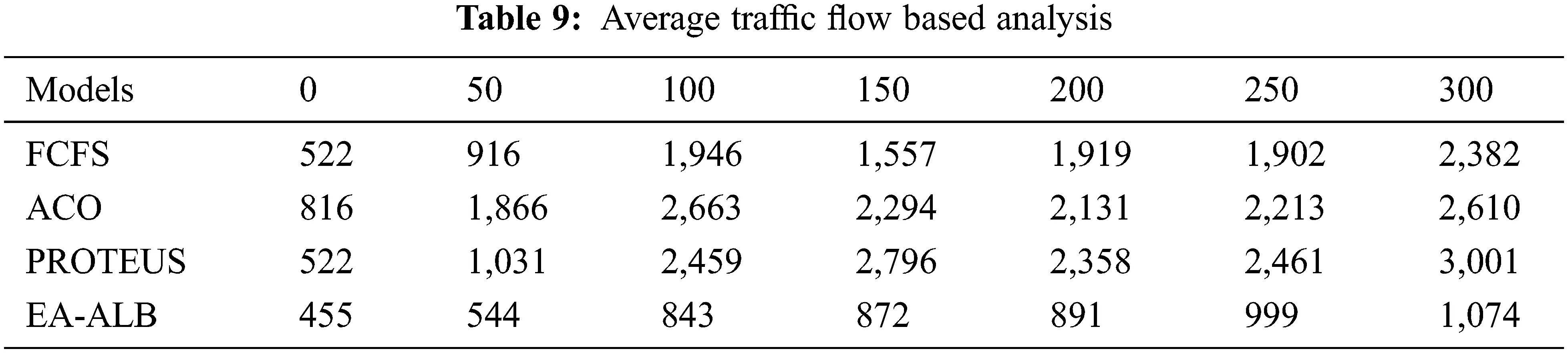

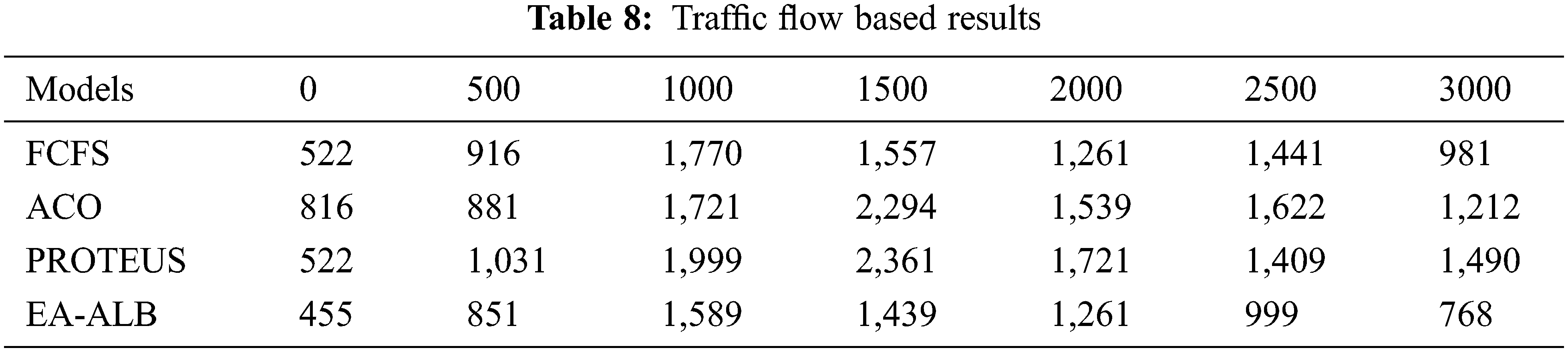

Traffic Flow based results are provided in Tab. 8 and their relevant comparison graph is given in Fig. 4. Further, Tab. 9 contains the values obtained for VM migration based analysis and their graph comparisons are given in Fig. 5. And the data center utilization based results are presented in Fig. 6 and the obtained values are given in Tab. 10. The evaluation for traffic flow is processed with respect to the execution time and the utilization based analysis is performed with number of tasks. In analyzing, VM migrations, it is the significant factor in evaluating the resource allocation model. The best solution is determined with the efficient incorporation of KMC with EA in the proposed work that effectively performs VM migration, by which load balancing is achieved.

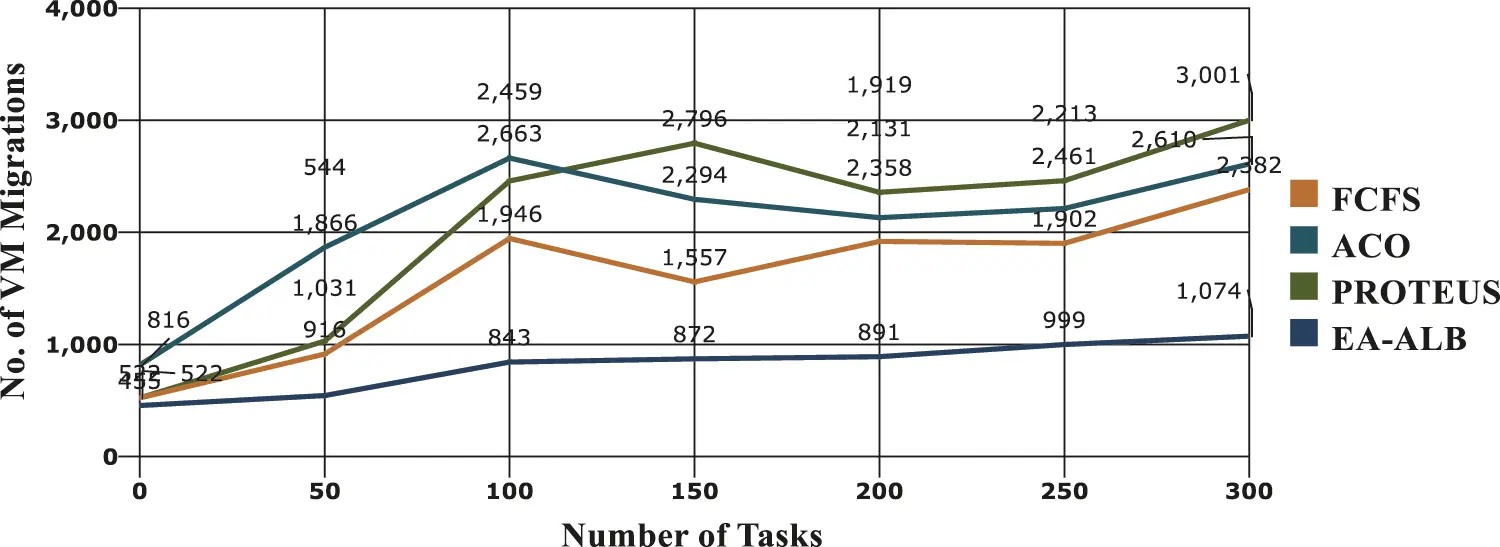

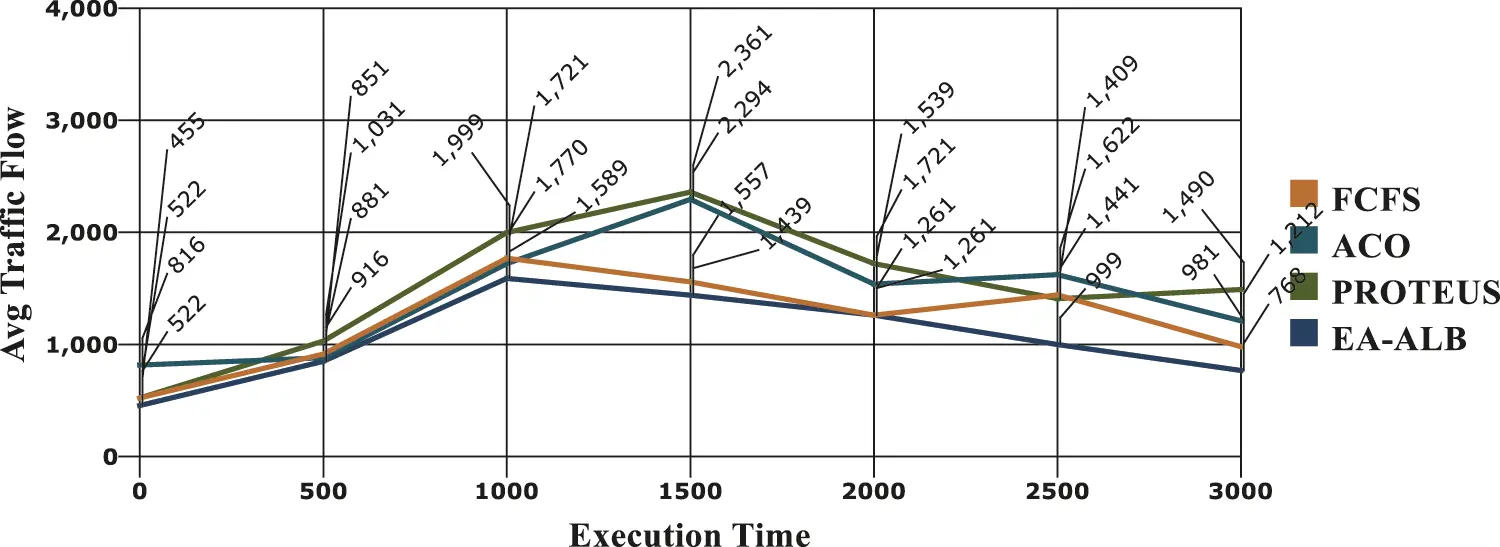

Figure 4: Average traffic data and execution time


Figure 5: Comparisons for average time flow

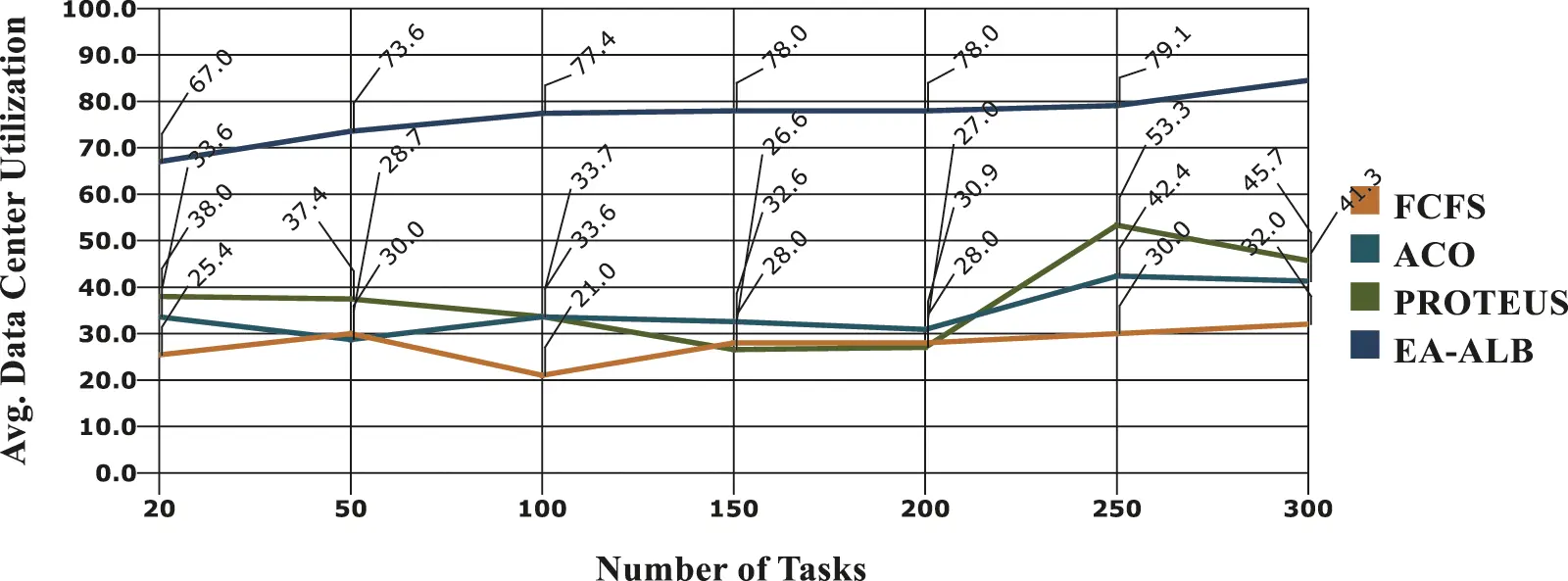

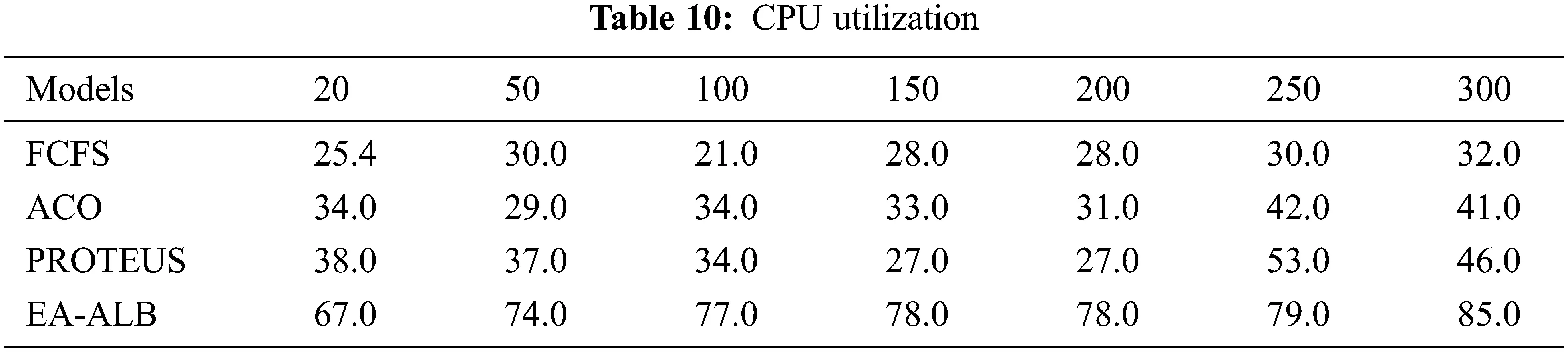

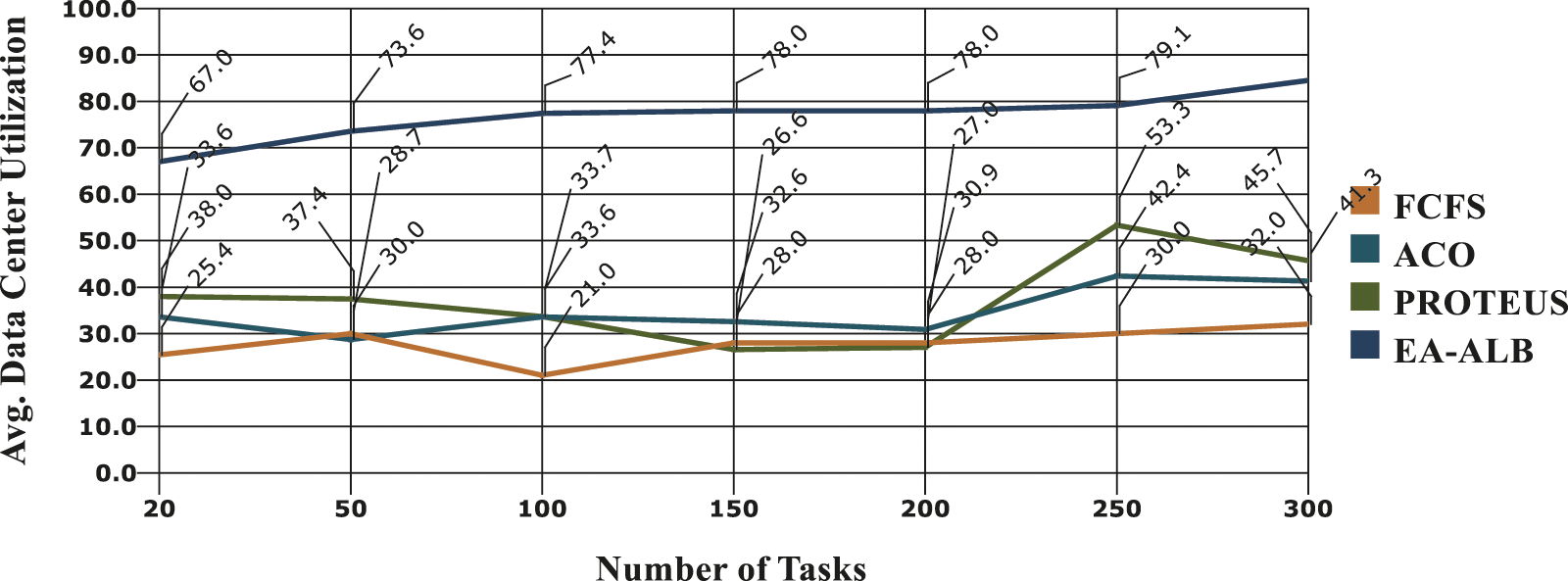

Figure 6: Average data center utilization based results




5  Conclusion and Future Work

For the process of efficient migration of virtual machines in Cloud computing process, this paper proposes a new model called EA-ALB. The model integrates the efficiency of KMC in determining best solution and the Evolutionary Algorithm for load balancing. The proposed model effectively predicts the resource utilization by machines, in which the min-max algorithm is used for finding the cluster centers. The model evaluation is carried out based on the factors such as cost effectiveness, CPU utilization, migration effectiveness and traffic flow. It is evidenced from the results that the proposed model achieves minimal cost, traffic flow and interference than other compared works. And the utilization is maximal, that is, the model effectively utilizes the machines about 95%, where load balancing is effectively achieved with the proposed model.

In Future, as the load balancing in cloud has a greater research scope, the potential applicability can be expanded for large scale cloud models. Methods can be developed to measure the algorithm's efficacy in applying it on a real life case to attain better results and routine.
