A Review of Recent Advances in Hybrid Natural Fiber Reinforced Polymer Composites

Jorge Neto; Henrique Queiroz; Ricardo Aguiar; Rosemere Lima; Daniel Cavalcanti; Mariana Banea

doi:10.32604/jrm.2022.017434

Jorge Neto, Henrique Queiroz, Ricardo Aguiar, Rosemere Lima, Daniel Cavalcanti and Mariana Doina Banea*

Federal Centre of Technological Education in Rio de Janeiro (CEFET/RJ), Rio de Janeiro, Brazil
*Corresponding Author: Mariana Doina Banea. Email: mdbanea@gmail.com
Received: 10 May 2021; Accepted: 23 June 2021

Several industrial sectors (e.g., the automotive and aeronautics), are continuously seeking development of lighter materials with increased resistance with the goal of improving system reliability and efficiency. Therefore, composite materials present an excellent solution to this demand, especially the fiber reinforced polymeric composites, due to their high strength and stiffness, as well as presenting low density [1]. Nowadays, the industry is looking for new characteristics of composite materials, such as renewability, low environmental impact and cost. Consequently, there is an increasing augment in research and innovation in the natural fiber reinforced composite (NFRC) materials, mainly due to the advantages of these materials compared to synthetic fibre-reinforced composites, such as low environmental impact and low cost. However, one of the shortcomings is that the NFRCs present relatively low mechanical properties. One method to increase the mechanical performance of NFRCs to extend their applications is the hybridisation [2,3]. Hybrid composites use different reinforcement fibers, which can be arranged in a random, layer-by-layer or in-yarn manner [2]. The possible combinations of fibers in hybrid composites include synthetic–synthetic, natural–synthetic and natural–natural fiber types.

It is worth mentioning that the main natural fibers studied and applied in industry (i.e., jute, sisal, oil palm, kenaf, and flax) are well established on the global market with a well-defined production line. However, new promising types of natural fibers are being discovered and used on a smaller scale or are still being used only for research. It is the case of the buriti and curauá fibres, for example, that still need some improvements in their production line to be more commercially affordable and widespread used [4–6]. Another relevant factor in using natural fibers as reinforcement materials in composites is their eco-friendliness associated with lower energy consumption in their manufacturing process [7]. Nevertheless, its recyclable properties depend also on the type of matrices used in the composite production and the management of residuals produced by superficial treatments used to improve the adhesion between fiber/matrix [8].

Natural fiber reinforced polymer composites have demonstrated outstanding potential for many different applications in various industries such as automotive, domestic furniture, food packaging, and agricultural industry [7,9–11]. The growing importance of natural fiber reinforced composites is reflected by the increasing number of publications (e.g., reviews, patents, book chapters and books) during the recent years [12–17]. Although there are several reviews concerning the use of natural fibers in the production of natural hybrid composites, this paper provides an overview of the recent advances in both interlaminar and intralaminar hybrid natural fiber composites with natural-synthetic and natural-natural fiber combination in thermoset polymeric matrices. First, the main factors that affect the performance of hybrid fiber-reinforced composites were discussed. The effect of hybridization on the mechanical and thermal properties of hybrid composites reinforced with several types of natural fibers (i.e., sisal, jute, curauá, ramie, banana, etc.) or natural fibers combined with synthetic fibers is presented. Finally, the water absorption behaviour of hybrid fiber-reinforced composites is also discussed.

2 Main Factors that Affect the Performance of Hybrid Fiber-Reinforced Composites

The main factors that affect the performance of hybrid fiber-reinforced composites (types of fiber and resin, and the effect of fiber surface treatment), are briefly discussed in this section.

The natural fibers are promising renewable alternatives to the traditional human-made fibers (i.e., glass and carbon fibers) in composite materials. Their consumption is increasing in different industrial sectors, such as aeronautical, automotive, civil, and naval, with an average annual growth of 7.5% and an expected global market demand around of 35 million tons by 2022 [16].

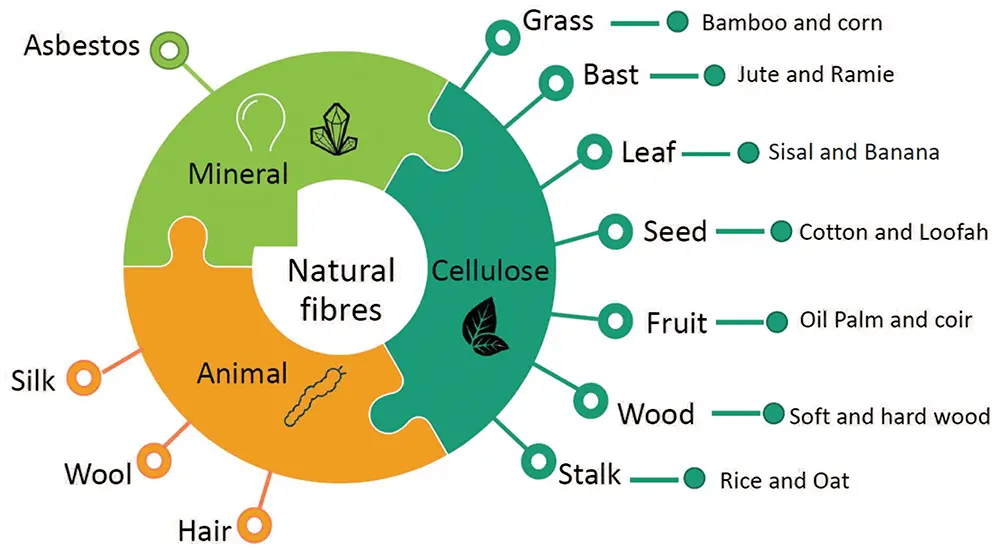

The natural fibers can be divided into three main groups regarding their origin: mineral, animal and cellulose/lignocellulose (see Fig. 1). Mineral-based fibers were widely used in composite materials. However, their use presented many human health issues (carcinogenic parts that can be inhaled or ingested), nowadays being forbidden in many countries worldwide. The animal fibers present lower mechanical properties compared to the cellulose fibers, except for the silk fiber that presents high tensile strength. However, the silk fibers are quite expensive and are more used in the textile industries [1]. The animal fibers (i.e., protein fibers such as silk and wool) and the mineral fibers are not covered in this review.

The cellulose/lignocellulose fibers are the most used natural fibers due to their relatively low price and higher mechanical properties compared to other natural fibers. They can also be subdivided into different categories corresponding to the plant part that originated them.

The cellulose/lignocellulose fibers are primarily composed of cellulose (α–cellulose), hemicellulose and lignin [18]. They also present small quantities of waxes in their outer part. The chemical composition and cell structure of cellulose fibers are somewhat complicated [19,20]. Each fiber is basically a composite in which rigid cellulose microfibrils are embedded in a lignin and hemicellulose matrix. Moreover, the microfibrils are helically wound along the fiber axis to form hollow cells. For instance, the curauá, jute, and sisal fiber morphology are different with distinct lumen diameters (4, 6 and 8 μm, respectively) and cell wall thickness [10,21]. Besides, they also present different percentages of lignin, cellulose and hemicellulose in their configuration. It is worth mentioning that the amount of cellulose and lignin in the natural fibers depends on the environmental conditions during the plant cultivation, soil properties, irrigation, and extraction techniques (i.e., automatic harvesting or manual extractions) [22]. These characteristics changes the natural fiber’s morphology, and consequently, their mechanical and thermal properties [23–27]. The main mechanical properties of the most used natural fibers in hybrid composite materials and their cellulose content are summarised in Tab. 1. The tensile strengths and Young’s moduli of these natural fibers cover an extensive range of values with typical tensile strength in the range of 100 to 1000 MPa (except for the curauà fibers), which are generally lower than the properties of synthetic fibers (e.g., the tensile strength of E-glass fiber is about 2000–3500 MPa).

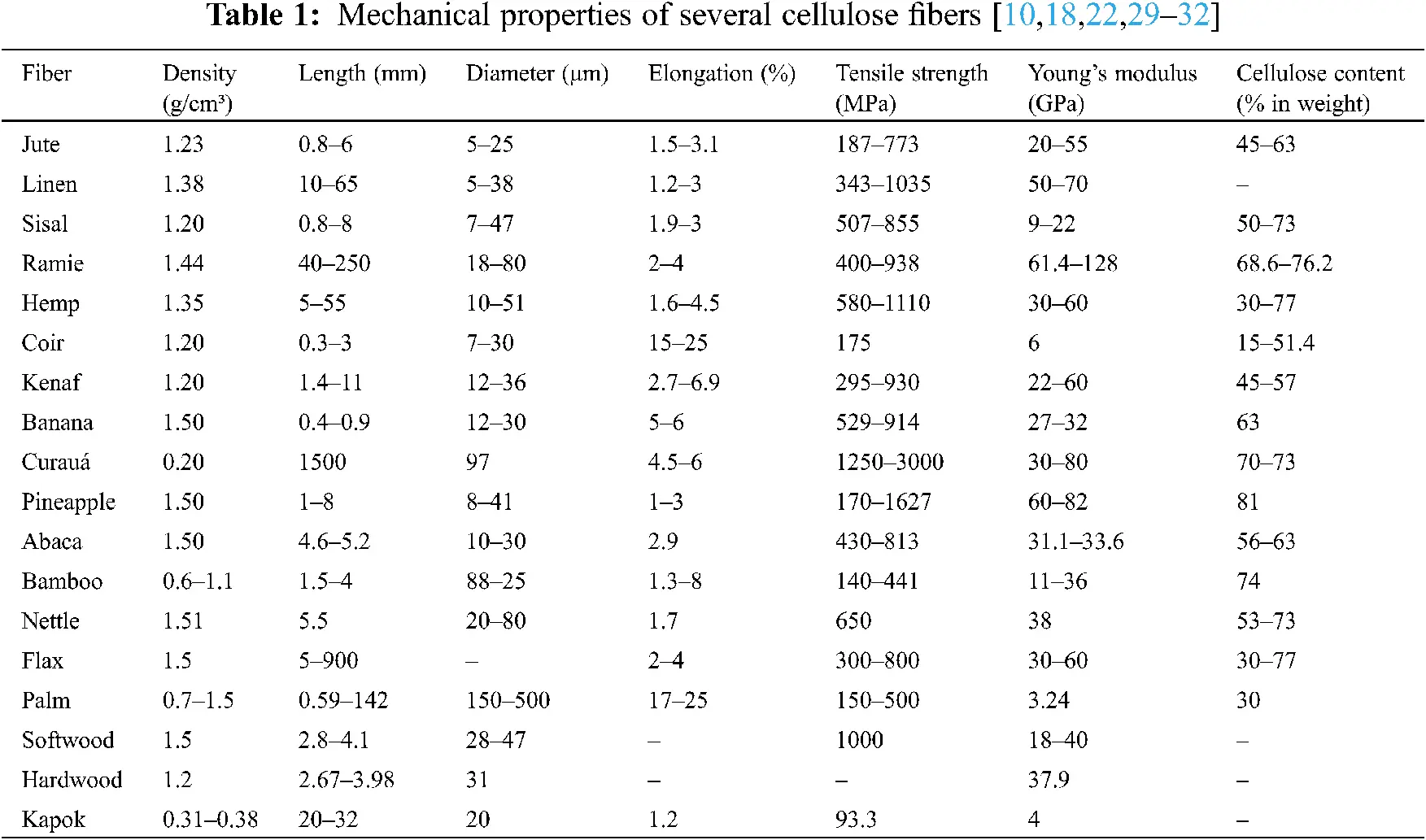

Generally, the fibers with higher cellulose contents present higher tensile strength and Young’s modulus values (i.e., curauá, sisal and ramie). However, the high variability in fiber quality, which leads to high scattering in the material property values, is still a limitation, showing that many factors can influence their behaviour as the already cited environmental and processing conditions. Therefore, more studies about these parameters are necessary, especially in consideration to the fiber’s conservation techniques. Another relevant issue is the lack of detailed information about single-fiber experimental testing procedures, making it difficult to compare the results obtained from different studies. Usually, these results are based on the sample’s total cross-section, and its non-corrected measurement can significantly affect the tensile strength results, explaining the different values found in the literature [1].

Synthetic fibers like glass, carbon and aramid are being used in hybrid polymer-based composites mainly because of their high stiffness and strength properties [28]. However, the main drawbacks of using these fibers are their biodegradability, initial processing costs, recyclability, energy consumption, machine abrasion, health hazards, etc.

Surface treatment of natural fibers is usually performed to enhance the properties of natural fibers, before using them to manufacture a composite material. Fiber surface modification can improve the fiber-matrix interfacial bonding, roughness, wettability and also decrease the moisture absorption of the fibers [33–42]. As a result, better mechanical properties of the resulting composites can be achieved. In this work, the focus will be on natural fibers, since the treatment suffered by the fiber improves the performance of the hybrid composites. The main surface modification methods used for natural fibers (i.e., physical and chemical) are briefly presented in this section.

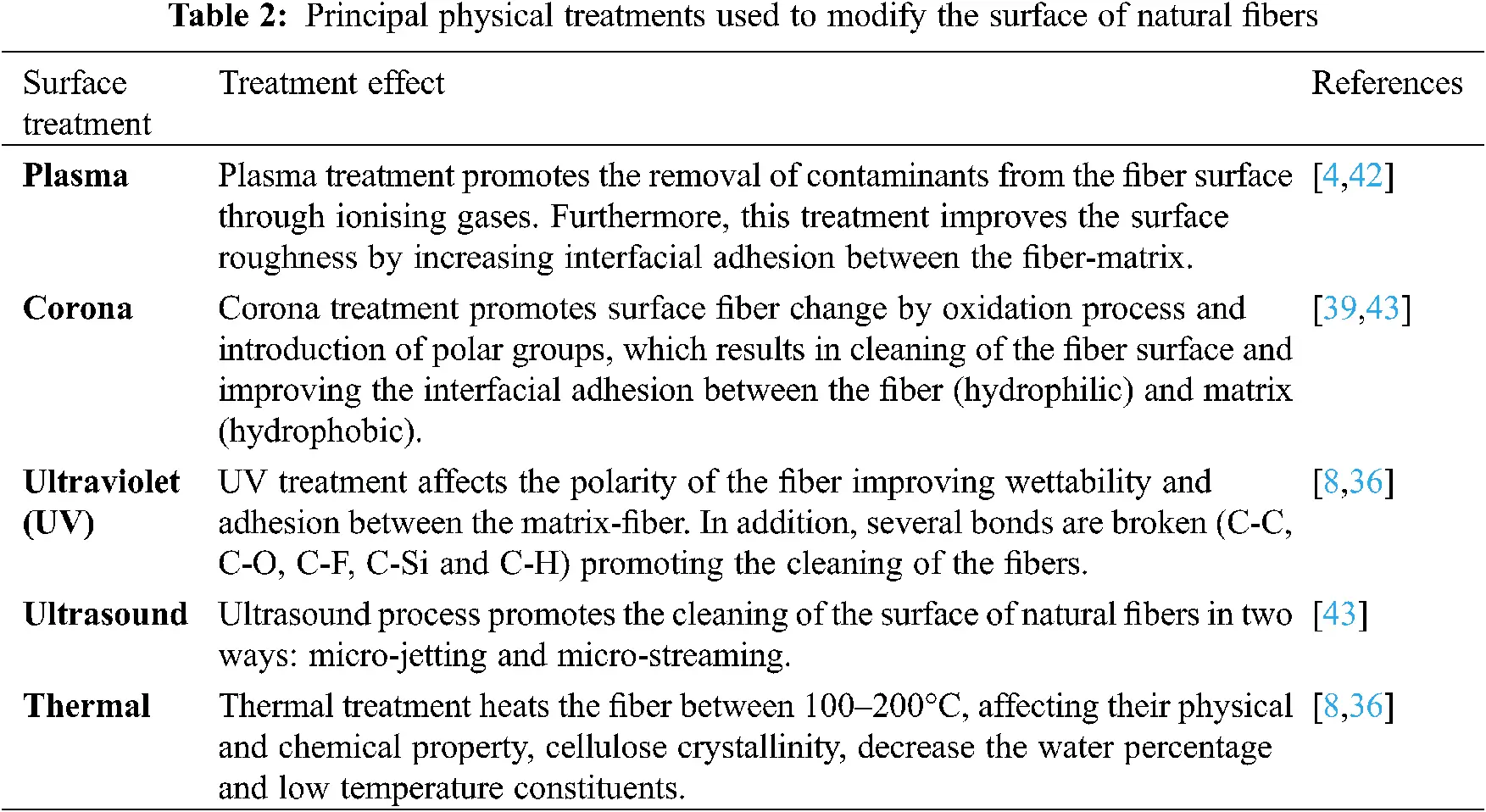

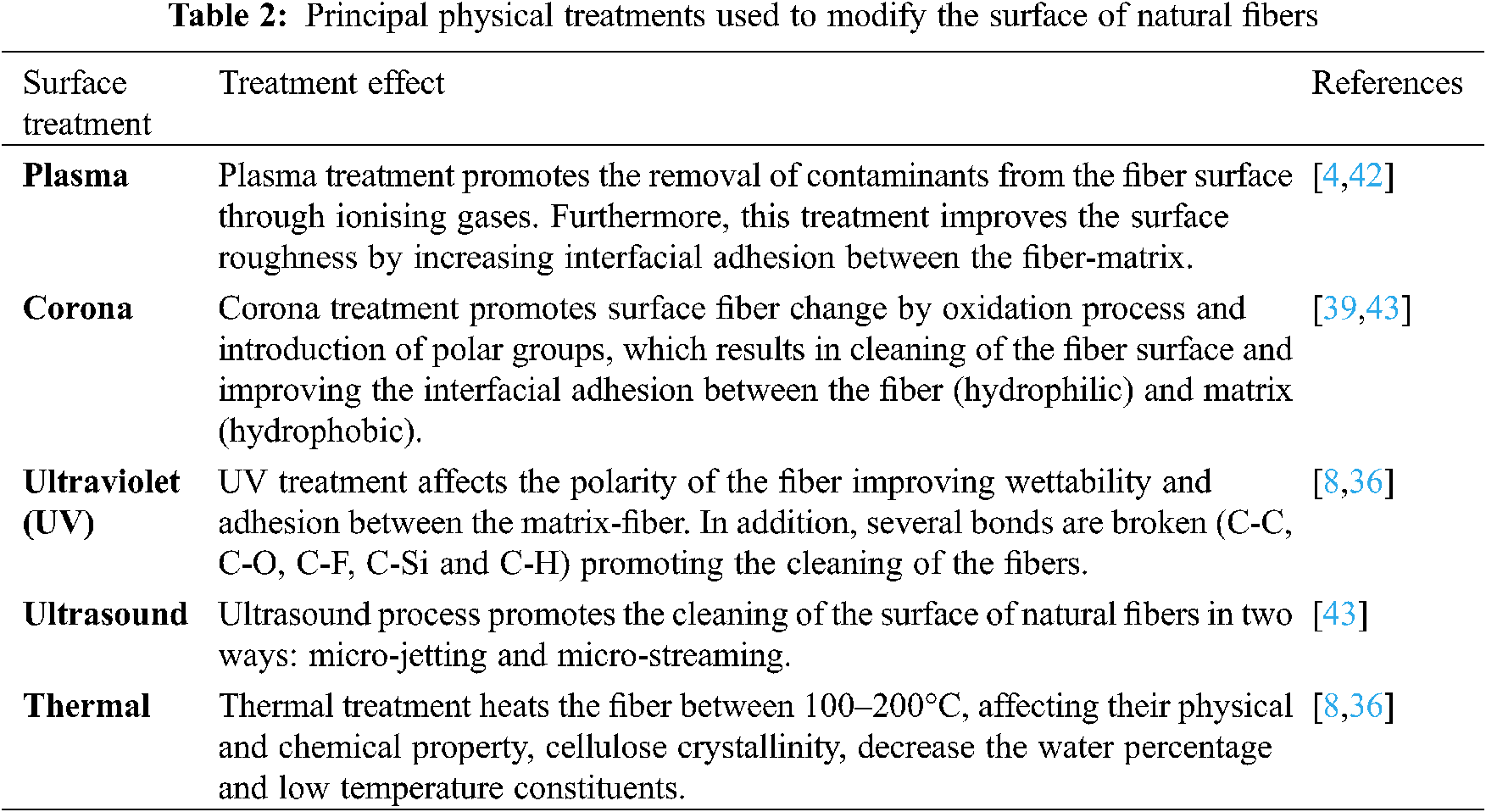

The main physical treatments used to modify the surface of natural fibers are as follows: plasma, corona, ultraviolet (UV), heat treatments, electron radiation and fiber beating [15,42–44]. These treatments improve the adhesion between the fiber and matrix by changing the surface proprieties of the fibers without changing their structural composition [7,36]. However, physical treatments are more expensive compared to chemical ones, mainly because of the equipment involved in the surface modification processes [7,15]. The principal effects of physical treatments on the natural fibers are summarised in Tab. 2.

Chemical treatments are a common way of increasing the interface adhesion between the fiber-matrix by chemical bonding or mechanical interlocking at the interface and decreases the water absorption of the fibers [8,25]. This is achieved by using compounds that promote adhesion by chemically coupling the fibers to the matrix, such as: sodium hydroxide [25,45–52], silane [8,23,29], acetic acid [36,42,43,53], Benzoyl Chloride [43,54,55], maleated coupling agents [39,42,43], isocyanates [4,8], peroxide [31,56,57], stearic acid [58], etc. It was shown in the literature that the fiber modification approaches have different levels of efficacy. In general, chemical approaches provide better improvements in properties compared to physical approaches. The improvement in mechanical and thermal properties depends on concentration of the chemical used and exposure time. Combination of treatments with two different chemicals presented better mechanical and thermal properties than the individual treatments in some cases.

Natural fibers that undergo chemical and physical surface modifications presented improved fiber-matrix interfacial adhesion, improved fiber roughness and wettability. In addition, most of the treatments help to minimise the hydrophilic nature and decrease the moisture absorption of natural fibers. The selection of the appropriate fiber modification technique will depend on the particular fiber/matrix used and the composite end-use application. It is essential to understand the interfacial properties and bonding mechanisms of fiber-matrix and this involves significant research efforts in order to maximise NFRCs and hybrid composite applications.

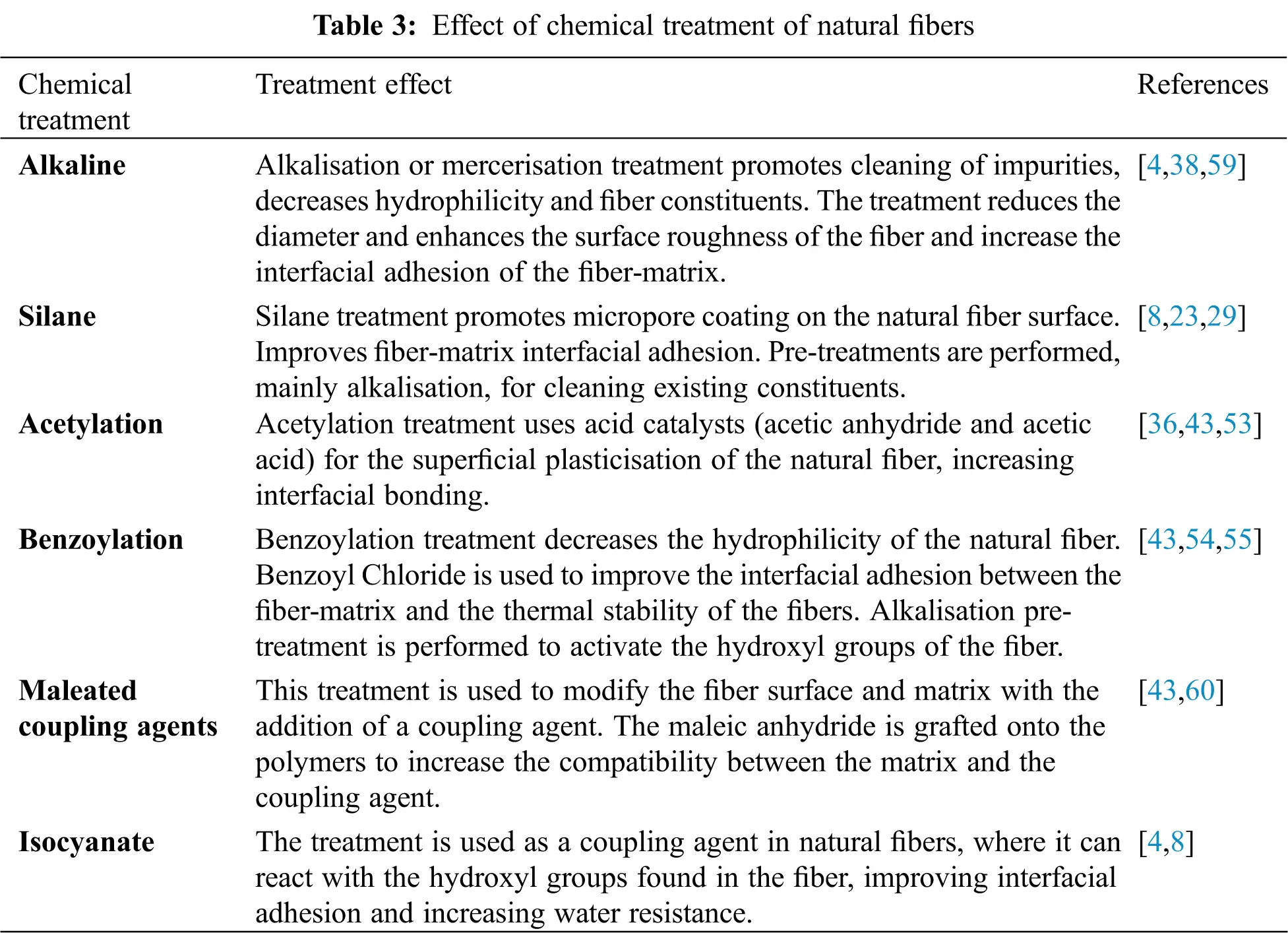

Tab. 3 presents the most common chemical treatments used to treat/modify the surface of natural fibers.

The mechanical properties (e.g., tensile, flexural, and impact) of composite materials are directly related to their fiber/matrix interface, where poor adhesion between these elements will result in an inefficient dispersion of loads [1]. Therefore, choosing the correct fiber/matrix combination is fundamental to obtain good composite mechanical and thermal properties. The matrix provides resistance to mechanical and chemical abrasion of the reinforcement fibers, keeps the fibers in the desired position, and is responsible for an efficient load transfer between them [61,62]. The most common matrices used to produce hybrid natural fiber composites are polymeric (thermoset or thermoplastic) mainly because they can be processed at low temperature and are lightweight [63].

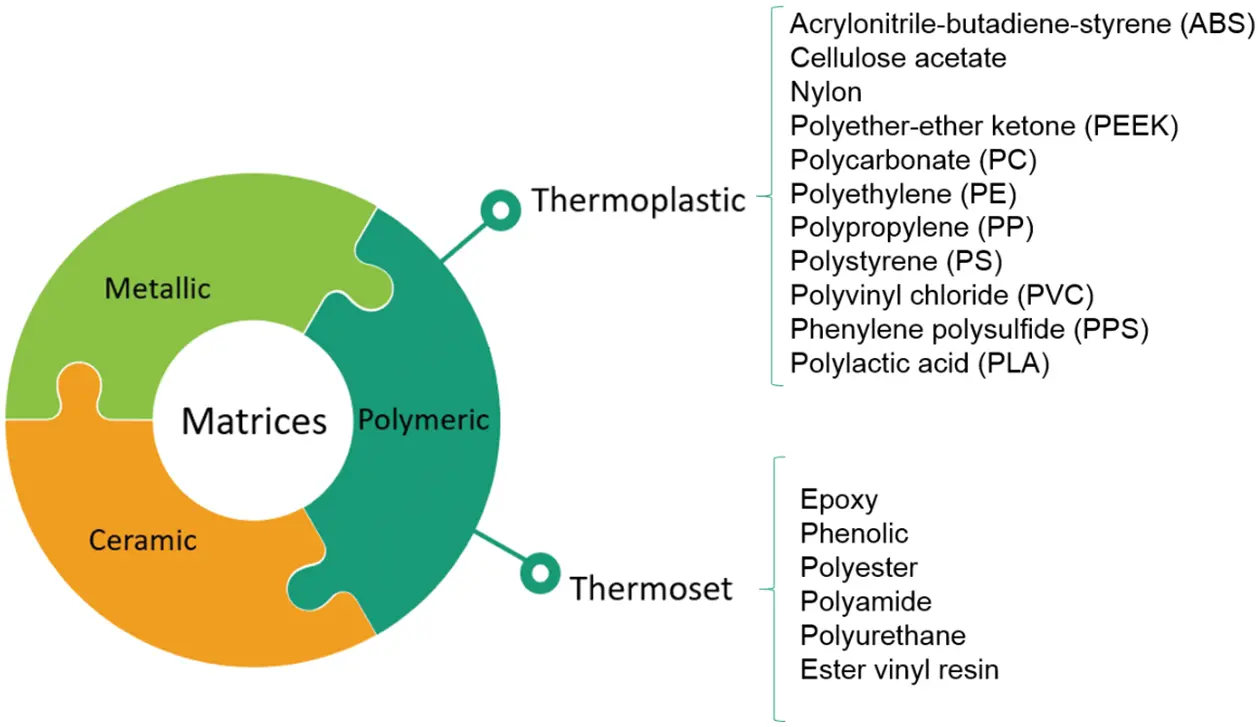

Fig. 2 presents a diagram of classification of matrices with the main polymeric matrices types used to produce composites.

Figure 2: Schematic of classification of matrices with the main polymeric matrices types

Thermoplastic polymer matrices can be softened, melted and, also, recycled by the application of heat. However, the continuous reprocessing of these polymers can deteriorate their mechanical and thermal properties [64]. On the other hand, the thermoset matrices (epoxy, urethane, Vinyl Ester, phenolic, polyester, polyimide, polyurethane (PU)) can hardly be recycled or change the shape once the polymerisation (curing) is concluded. These matrices have different chemical structures and undergo different reactivities with the surface molecules of fibers in composites [65].

The main thermoset resins used for hybrid natural composites are epoxy and unsaturated polyesters [66,67]. Epoxy resins have high mechanical strength and environmental degradation resistance. In general, epoxy resins have excellent adhesion properties, and they are easy to cure and use. In addition, no volatile agents are formed during the curing process, which is an important advantage as compared to phenolic, polyester, and vinyl ester resins. Finally, the shrinkage associated with epoxy resins is lower compared to polyesters. However, one disadvantage is that epoxy resins are relatively brittle, which is detrimental to the interlaminar properties between the matrix and the fiber reinforcement. It is known that epoxy resin cures from liquid to solid through a catalytic chemical reaction, creating extremely strong bonds that cannot be easily reversed or reformed. Because of this, the performance of this matrix material is superior to other matrices; nevertheless their recycling remains challenging. To summarise, as the majority of natural fibers become unstable at temperatures higher than 200°C, the matrices that require high processing temperatures are not suitable to manufacture NFRCs or hybrid natural fiber composites.

Several researches were carried out in the literature to study the mechanical properties of hybrid composites reinforced with several types of natural fibers (i.e., sisal, jute, curauá, ramie, banana, etc.) or natural fibers combined with synthetic fibers [2,20,23,59,60,66,68–84]. The main objective of hybridisation is to balance the deficiency of one specific fiber to achieve sustainability, low cost, and improved performance of the material [2]. Generally, natural hybrid composites are produced by hybridising natural fibers with another either natural or synthetic fiber with superior properties (i.e., higher mechanical strength, chemical stability, nontoxicity, resistance to high temperatures, and thermal or acoustic insulation). Hybridisation of natural fibers with synthetic fibers (i.e., glass, carbon, Kevlar, basalt fibers) can significantly improve the mechanical performance of NFRCs and also their water resistance [20,71]. The glass fiber is the most used fiber in the hybridisation of NFRCs. Carbon and aramid fibers are also used in NFRC hybridisation but are limited by their high cost and difficult recyclability, thus reducing the main advantage of the hybrid NFRCs (sustainability). Furthermore, the carbon fiber provides stability and high mechanical properties to the hybrid composites but at a much higher cost [85]. For Kevlar, the main use found in literature is for higher impact resistance and in this case, the hybridisation is focused in reducing the number of aramid layers with minimal loss in impact resistance [86]. Finally, another common approach is the substitution of synthetic fibers with natural fibers. This is done with the increase of natural fiber fraction in the hybrid composite. The main purpose is to reduce costs and environmental impact of the composite, while minimizing mechanical property losses [85–87]. Hybrid composites of natural fibers with other natural fibers might not show comparable mechanical enhancements as those hybridised with synthetic fibers, but the natural-natural fibers hybrid composites will be superior in terms of sustainability.

The mechanical properties of fiber reinforced composites are mainly affected by fiber content and orientation [88], stacking sequence [86,89,90], hybrid ratio and the fiber-matrix interfacial strength [1–2,36]. For example, the tensile strength of hybrid composites is largely dominated by the reinforcing fiber properties, where the failure begins with the fiber with lower elongation. Considering iso-static loading of all fibers in the hybrid composite the fibers with lower strain at failure will fail first. This results in the failed fibers not participating in carrying the load. Therefore, the fibers with higher elongation will have to carry the brunt of the load. Consequently, the composite should present a compromise between the high and low strain fibers [1,2]. Fig. 3 shows the hybrid effect of a 50:50 wt% LE/HE fiber composite (the hybrid effect is the apparent failure strain enhancement of the LE fiber in a hybrid composite compared to the failure strain of a LE fiber-reinforced non-hybrid composite).

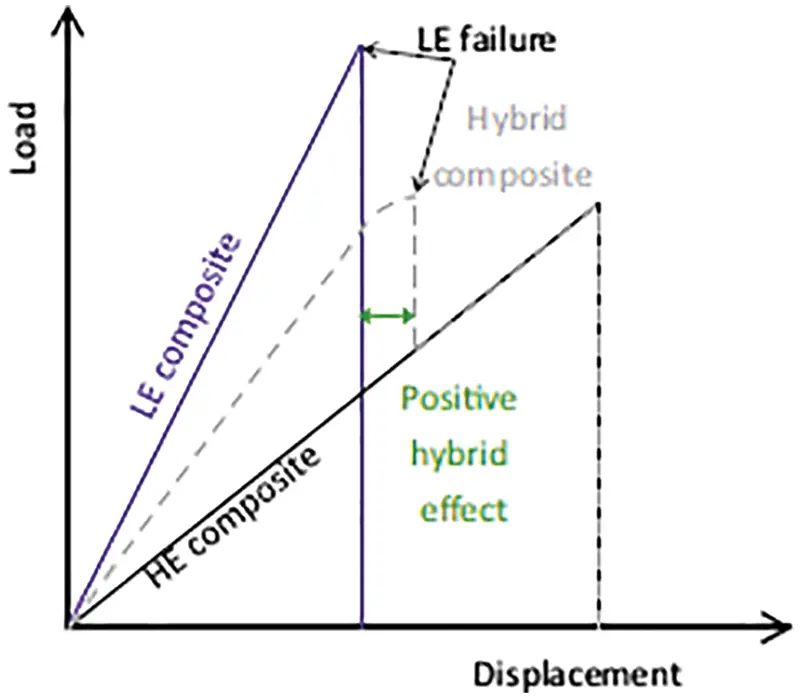

Figure 3: Illustration of the hybrid effect (the apparent failure strain enhancement of the LE fibers, under the assumption that relative volume fraction is 50/50 and that the hybrid composite is twice as thick as the reference composites: LE-low elongations; HE-High elongation). Reproduced with permission from [2]

The volume fraction of each type of fibers has an impact in how the failure will occur. For composites with high strain fiber volume, these fibers will dominate the stress distribution. The resulting stress/strain curve will present a higher secondary peak. If the fiber fraction is reversed, the composite’s strength will be limited by the low strain fiber [2]. Another factor that can affect the mechanical properties of hybrid composites is the weight ratio, also known as volume or weight fraction of the reinforcing fiber constituents [1]. By varying the weight ratio/volume of the fibers it is possible to change the composites overall mechanical properties. Therefore, depending on the application requirements the hybridisation method provides flexibility in fiber selection for achieving the desired materials properties.

For the flexural properties the stacking sequence of the hybrid composite is highly relevant [91,92]. The tensile and compressive stresses are maximum in the bottom and top faces of a specimen under 3-point bending flexural load, respectively and they linearly decrease towards the neutral line (middle of the specimen). As such the fibers with higher mechanical properties should be placed in the outward most lamina in a composite. This is especially interesting when using synthetic/natural hybrid composites, since most synthetic fibers also present a hydrophobic characteristic, and thus will reduce water absorption [78,93]. The impact properties of natural hybrid composites was found to vary greatly in the literature. The impact resistance of hybrid composites is strongly linked to the fiber mechanical properties [94,95], layer stacking sequence [2] and the interfacial adhesion between the fiber and the matrix [23]. Some authors found that the stacking sequence has an insignificant effect on the impact strength, while the fiber orientation in the hybrid composite has a noticeable effect on the impact strength [91].

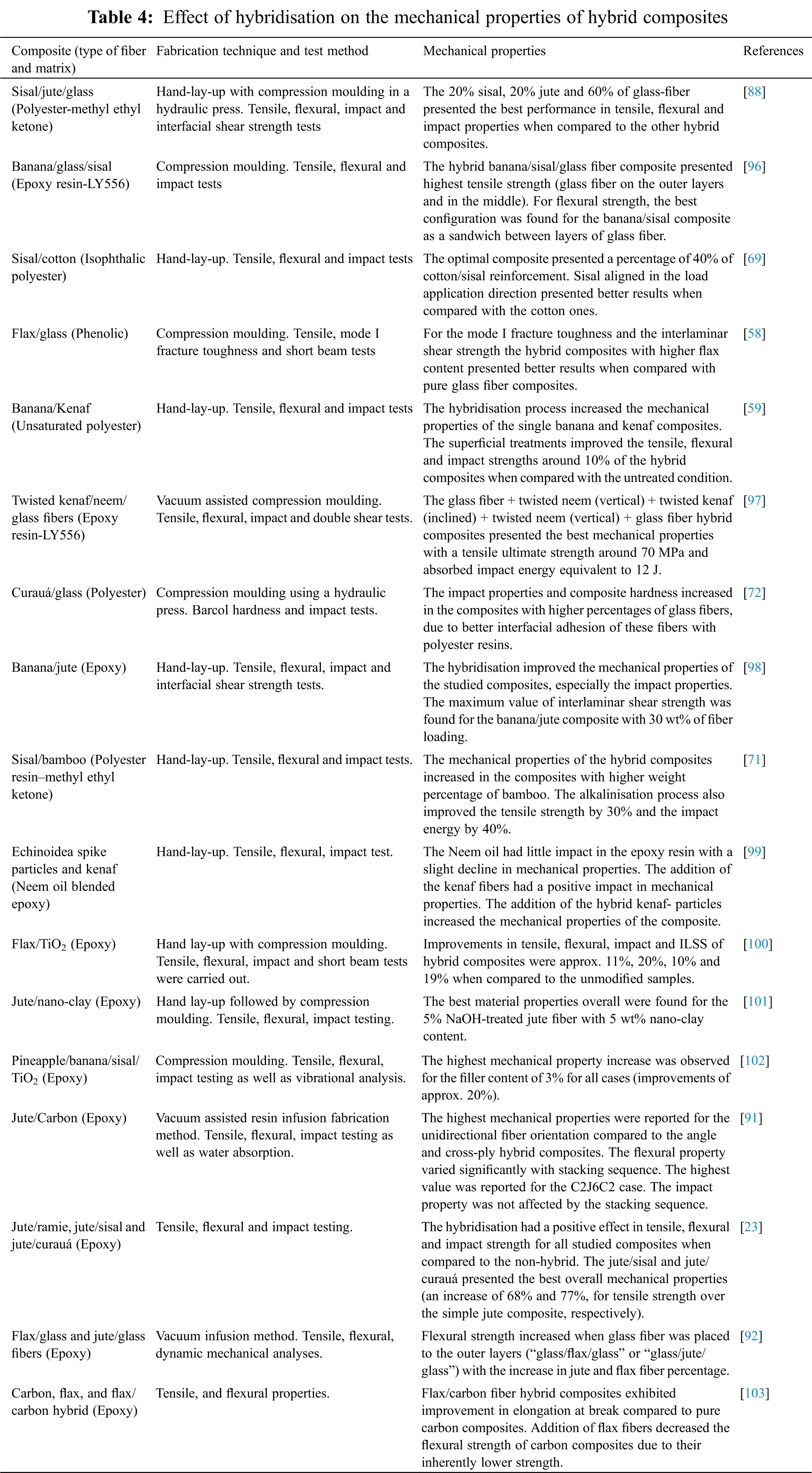

Tab. 4 summarises some recent studies on the effect of hybridisation on the mechanical properties of hybrid composites.

The main techniques used for thermal analysis of hybrid epoxy/synthetic/natural fiber composites are as follows: Thermogravimetric Analysis (TGA), Differential Scanning Calorimetry (DSC), Thermomechanical Analysis (TMA) and Dynamic Mechanical Analysis (DMA). The main thermal properties of the composites provided by these techniques are: the crystallisation temperature (Tc), melting temperature (Tm), glass transition temperature (Tg), thermal expansion coefficient (CTE), viscoelastic behaviour and thermal stability (see Fig. 4). It was shown in the literature that several factors can affect the thermal properties of the composite materials, such as: fiber and matrix type, manufacture process, and type of loading [104–106]. In addition, the fiber orientation and volume and chemical treatment of the fibers will also impact the thermal properties of the composites [15].

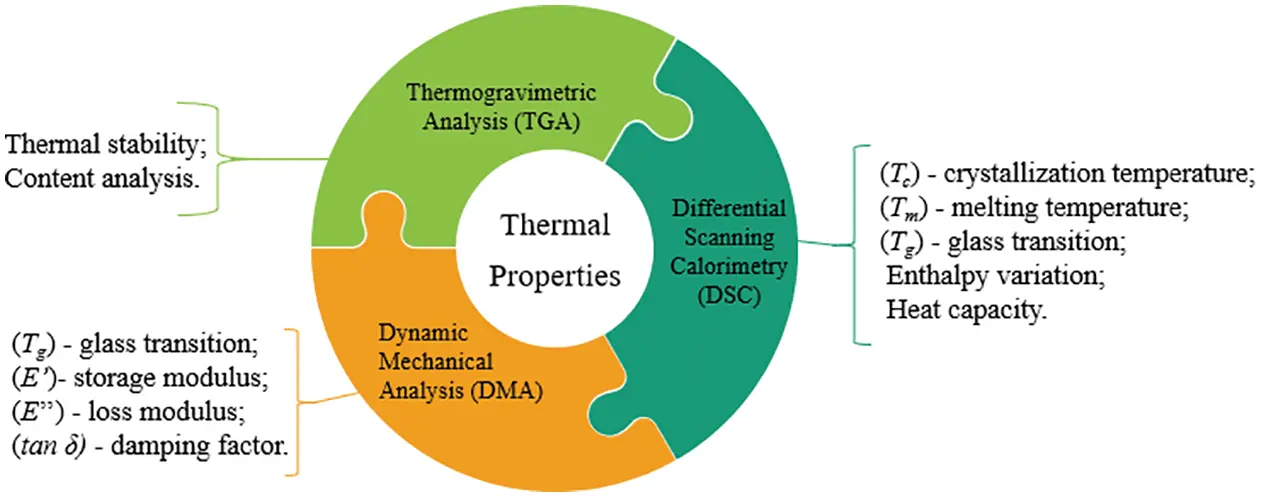

Figure 4: Schematic of the principal methods used to determine the thermal properties of composites with the main thermal properties of the bio composites provided by these techniques

TGA analysis consists of measuring the weight of a material sample, commonly either as a function of increasing temperature, or isothermally as a function of time, in an atmosphere of nitrogen, helium, air, or other gases [107,108]. Typical thermogravimetric parameters consist of moisture, volatile substances, loss on ignition or ash. Different temperatures and measurement times are applied in accordance with the matrix type of the composite sample [107–110]. Natural fiber based composites have the thermal stability measured from the decomposition of their constituents (hemicellulose, cellulose, lignin and others) [24,53,66,111–114]. The incorporation of synthetic fibers in natural composites will increase their thermal stability and shift the degradation point of the composites to the right, decreasing its thermal degradation [115]. The thermogravimetric behaviour of hybrid synthetic/natural composites depends on composite constituents (fibers and matrix). For example, similar natural fibers such as jute, sisal, wood and cotton have similar TG/DTG curves and thermal decomposition patterns. The derivative thermogravimetric test (DTG) shows the maximum rate of peak thermal decomposition, and fiber constituents are indicated by peaks in each degradation range. Lignocellulose fibers (i.e., jute, flax, wood, sisal, ramie, curauá and others) present three stages of degradation, the first stage is related to water loss by natural fiber (60°C–100°C). The second stage is related to the loss of the main constituents of the fibers: hemicellulose, cellulose, and lignin (200°C–500°C). Finally, the last stage of degradation is the formation of active coal as a form of residue [53,111–114].

The DSC determines the material transitions as a function of temperature and time. The endothermic (heat absorption) and exothermic (heat released) peaks and magnitudes indicate the thermal phase transformation of the composites [116,117]. Thermal data extracted from this analysis are: the glass-transition temperature (Tg), crystallisation temperature (Tc), fusion temperature (Tm), enthalpy variation and heat capacity [118]. The glass transition temperature (Tg) is the temperature band in which a thermoset polymer changes from rigid to a more flexible or ‘rubbery’ state. There are several factors that can affect the data collected by the DSC analysis, such as: sample size and shape, heat ramp and type of atmosphere. Several authors used the DSC technique to investigate the effect of hybridisation on the glass transition and the peaks (endothermic and exothermic) of hybrid epoxy/synthetic/natural composites [66,87,119–121].

The following data can be extracted from DMA: storage modulus (E′), loss modulus (E″), damping factor (tan δ = E″/E′) and glass transition temperature (Tg) [118]. The storage modulus (E′) is associated with the energy storage of the elastic characteristics of the material [24,105,122]. It decreases with increase in temperature and is associated with “stiffness” of the composites sample [105,122]. The loss modulus (E″) is associated with the energy dissipation promoted by the viscous part of the composite sample. This dissipation is related to the internal molecular friction of the molecular chains due to the following factors: morphological transformation and relaxation, morphology, and system heterogeneity [105,108]. The damping factor is defined by dividing the storage and loss modulus (tan δ = E″/E′) and is associated with the internal mobility of the polymeric molecular chains, showing the influence of the fiber/matrix interactions [24,105,123]. A high tan δ value shows that the system is dissipating more energy than it is storing due to fiber/matrix interaction quality, while a low tan δ value shows that the polymeric chain has lower mobility indicating a good fiber/matrix interfacial interaction. To determine Tg using DMA, measurements of the complex modulus are typically made as temperature is increased at a constant heating rate. The thermal properties of the composites obtained from DMA depends on the physical or structural arrangement of phases such as interface, morphology and the nature of composite constituents. It was shown in the literature that the presence of additive fillers, fiber content, fiber orientation, the chemical treatment of the fibers and the mode of testing governed the dynamic mechanical properties of a composite material [105,124]. Several researchers used the DMA tests to study the influence of hybridisation on the thermal properties of the hybrid composites [24,92,119,125–129].

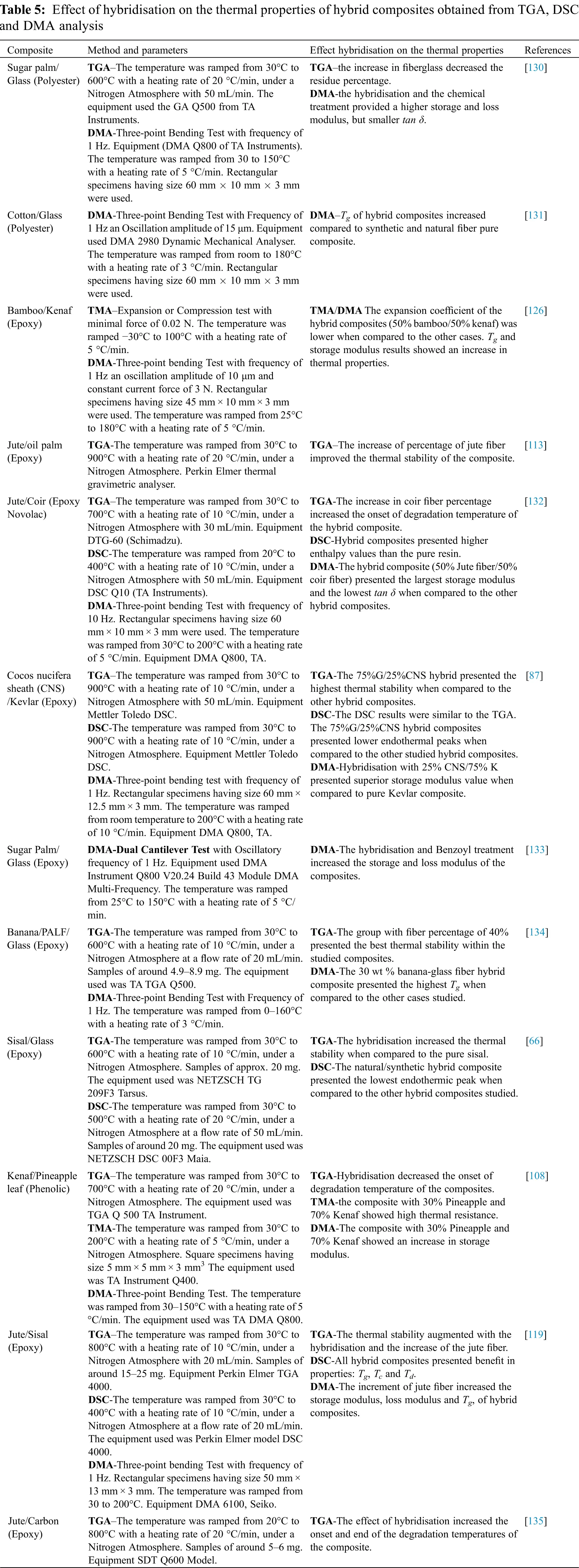

Tab. 5 summarises several recent studies on the effect of hybridisation on the thermal properties of hybrid composites.

To summarise, using natural fibers with low lignin content leads to better thermal performance of composites. The thermal stability of fibers can be enhanced by removing certain proportion of hemicelluloses and lignin constituents by different chemical treatments. The incorporation of synthetic fibers in natural fiber reinforced composites increases their thermal stability. The degradation of natural fibers is an important issue in the development of hybrid natural fiber reinforced composites in both manufacturing (curing, extrusion or injection moulding) and for the use of these materials in service.

The affinity to absorb moisture by natural fibers and its composites, is widely known and reported in the available literature [12–13,25,66,136–138]. The absorption of moisture into a fiber-reinforced polymer composite leads to poor fiber-matrix interfacial adhesion, which will lead to an increasingly poor load-transferring efficiency from the matrix to the reinforcement fiber. In particular, for natural fibers, there is also the aggravating factor that water uptake within the fiber leads to the degradation of its physical, thermal and mechanical properties due to the leeching of water-soluble components [139].

Moisture diffusion in polymeric composites is governed by three different mechanisms [140]. The first involves diffusion of water molecules inside the micro gaps between polymer chains. The second involves capillary transport into the gaps and flaws at the interfaces between fiber and the matrix. This is a result of poor wetting and impregnation during the initial manufacturing stage. The third involves transport from microcracks in the matrix arising from the swelling of fibers (particularly in the case of natural fiber composites) [35] (see Fig. 5). According to these mechanisms, there are three types of diffusion behaviour of polymeric composites: Fickian diffusion model, anomalous or non-Fickian, and an intermediate case between Fickian and non-Fickian [140].

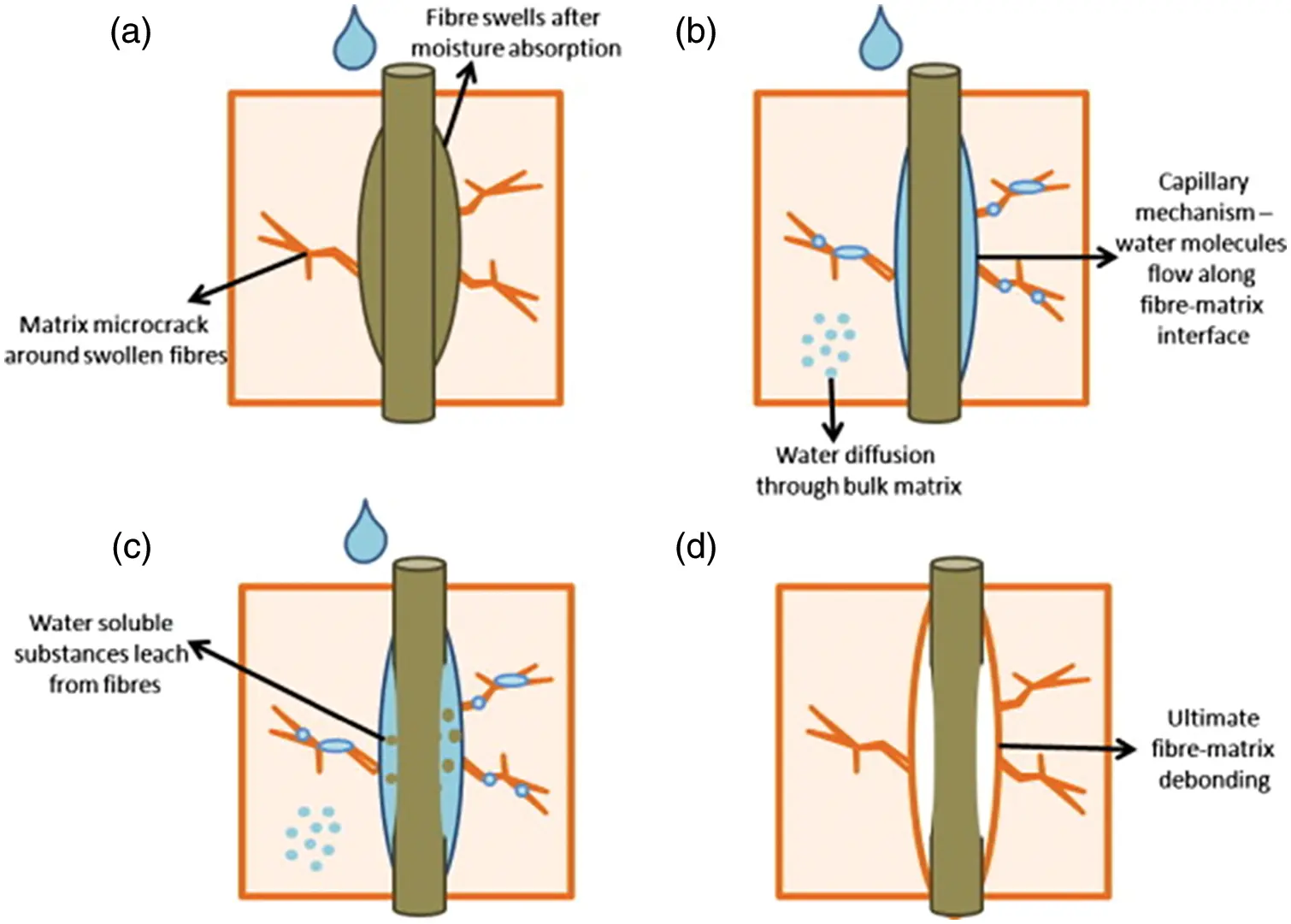

Figure 5: Effect of water on fiber–matrix interface: (a) Formation of micro-cracks due to fiber swelling; (b) water molecules diffuse in the bulk matrix and flow along the fiber-matrix interface (c) water soluble substance leaching; and (d) debonding of fiber-matrix interface. Reproduced with permission from [35]

It was shown in the literature that moisture diffusion in hybrid composites depends on a variety of parameters: fiber volume fraction, fiber orientation and stacking sequence, fiber nature, voids, temperature, presence of fillers, fiber surface treatments and immersion time. For instance, higher immersion times, natural fiber volume fraction and voids increase the composite moisture uptake [13,141,142]. As well, at higher temperature of immersion, moisture uptake behaviour is accelerated and the moisture saturation time is considerably shortened [1]. On the other hand, the fiber stacking sequence (e.g., placing the hydrophobic fiber fabrics on the outer layers), as well as the fiber orientation (e.g., 0° orientation of the natural fiber) was shown to lower the water uptake of the composites [143,144].

One solution to reduce the water uptake in natural fiber composites is the fibers’ surface treatments [31,34–42,145]. The main surface modification methods used for natural fibers (i.e., physical and chemical) were presented in Section 2.2 of this review. Another approach to decrease the water absorption in polymeric composites is to incorporate synthetic fillers which can fill the voids and better distribute the internal stresses in the composites [100,146–148]. For example, a number of researchers have investigated the effects of the incorporation of TiO2 nanofiller and glass powder in the polymer matrix with the objective of delaying the effect of water absorption on composites [100,149].

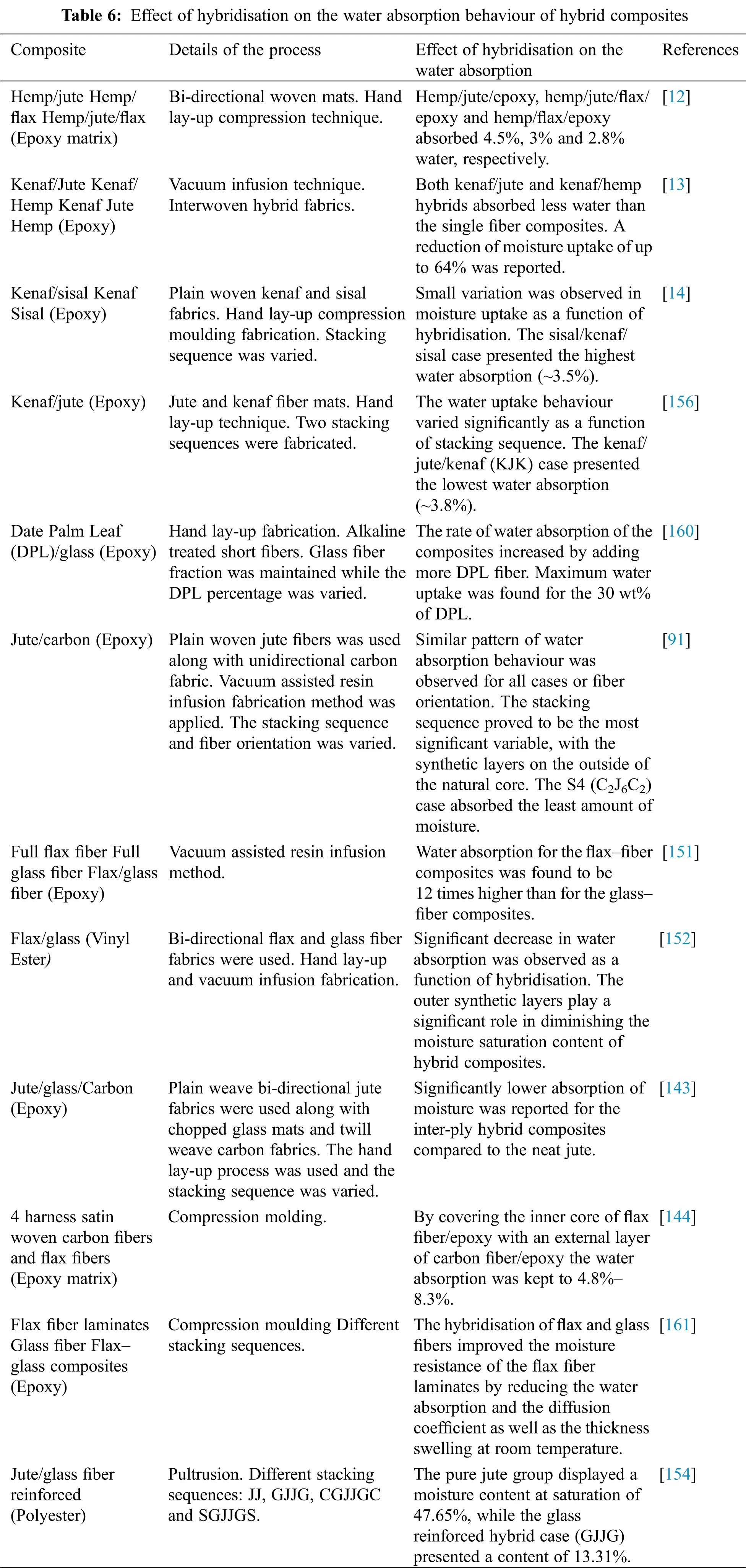

Several studies have been carried out in the literature concerning the moisture absorption behaviour of hybrid composites, both natural-natural and natural-synthetic fibers reinforced composites [12–14,54,71,91,95,143,144,150–159]. Tab. 6 summarises some recent studies on the effect of hybridisation on the water absorption characteristics of hybrid composites. In general, the natural-synthetic hybridisation technique coupled with choosing an optimum fiber content, stacking sequence and fiber orientation, can drastically reduce the moisture content at saturation and decrease the diffusivity coefficient. Therefore, the moisture degradation and composite material property impact is reduced. The water uptake behaviour of natural-natural hybrid composites vary significantly as a function of reinforcement fiber, as different natural fibers present different contents of hydrophilic groups, porosity, crystallinity among other parameters, their water uptake behaviour changes. As such, the natural-natural hybridisation methods provide a viable technique so that a balance may be found in terms of cost/performance regarding its uses in moisture-rich environments.

The global awareness of environmental issues is at an all-time high and NFRCs are nearing the point to become competitive with classical synthetic fiber-reinforced composites. This is leading advancements in nearly every industry as they seek the integration of biodegradable and more cost-efficient materials. However, there are still many challenges and a wide scope for improvement to extend their applications. The main challenges identified as potentially detrimental to market growth are supply logistics, moisture sensitivity and weak interfacial bond of NFRCs. In addition, the natural origin of these fibers, which result in variations in their properties produce large variations in properties, long-term stability and durability of NFRCs. Some of these challenges were addressed by recent development in fibers treatment and modification, and process or product innovation (hybridization). Moreover, intense research efforts are in progress to address these limitations.

In this context, there are many exciting market trends going forward in many different industries. For example, tri-dimensional hybrid natural fiber reinforcement preforms have been used recently by sports cars manufacturers such as Porsche and even McLaren in Formula 1 [162]. This application involved the use of flax fibers in a specific 3D architecture to increase stiffness and toughness, lower weight and reduce debris in a crash. It has been successful used in F1 car seats, and the front crash absorbing structure (crash box). Similarly, many other car manufacturers such as Tesla and BMW have been investigating the use of this technique in structural components of the vehicle with promising results. These advances were made commercially available by companies such as Bcomp® and Ycom® [162,163]. Nowadays, Audi, Volkswagen, Toyota, Daimler-Benz, Volvo, Ford use NFRCs to produce components such as: seat back, interior door paneling, noise insulation panels, instrumental panel support, engine insulation, and internal engine cover. The continually growing demands for lightweight and fuel-efficient vehicles will further push the growth of NFRCs in the automotive market.

In the defence industry, natural fibers are used as an alternative in replacing Kevlar fibers. For instance, they were used in the Multilayered Armour System (MAS) due to their high impact energy absorption, low-weight, and efficiency in capturing splinters from the ceramic plate typically present in MAS [164]. The curauá based natural fibers reinforced composites, for example, are up-and-coming solutions for these applications as they are being intensely studied recently to be applied in military equipment mainly due to their excellent relationship between weight and strength [165,166].

Another booming area involving natural fibers is the application of natural reinforcements in additive manufactured parts. The advantages using additive manufacture to produce NFRCs and hybrids are the design flexibility to fabricate complex geometry parts or functionally graded composites with local-specific performance and functionality. The use of natural fibers can bring many advantages to single or dispensable production such as production of tailored, non-toxic, renewable, and recyclable parts. The advantages of natural fibers compared to synthetic fibers are especially relevant when considering their lower toll on both printer durability and production cost. However, using natural fibers and additive manufacture (AM) still presents significant challenges such as: composite filament preparation, porosity/void formation and fiber orientation and large amount of moisture. These issues can be solved by modifying the AM process parameters, hardware and feed stock quality. As the demand for more sustainable material options grows in the general global marketplace, natural fibers coupled with novel processing techniques (e.g., additive manufacturing) can lead to the advancement of many industries towards a smart eco-conscious future.

The main challenges that need to be addressed in order to increase the performance and consequently the use of NFRCs composites in industry are mainly the poor adhesion between natural fibers and matrix, fiber quality inconsistency, thermal stability and moisture absorption of natural fibers. Intense research efforts are continuously made and some of these challenges were addressed by recent advancements in fibers treatment and modification, exploration of new natural fibers and hybridization. The fiber modification techniques provide improved fibre-matrix interfacial adhesion, improved fibre roughness and wettability and depends on the particular fiber/matrix used and the composite application, while the hybridization methods provide flexibility in fibers selection for the materials properties according to the end-use application requirements. Exploration of new natural fibers, especially, natural fibers with higher strength and modulus, such as curaua or nano-scaled cellulosic fibers, offer a promising potential for expanding the application of these composites. In addition, can diversify fiber sources and reduce material cost. Although, hybridization of natural fiber composites with other natural fibers may not provide comparable mechanical or thermal properties improvements to those hybridized with synthetic fibers, this approach may have noteworthy value in terms of sustainability. The hybridisation of natural fibers composites with other fibers characterised by low moisture absorption tendency is an effective method to improve the water absorption resistance of natural hybrid composites. Fiber’s treatment and addition of fillers are also solutions to reduce moisture absorption of these composites. The application of natural and hybrid fibers composites, particularly in automotive, civil industry and sports is quite promising and will significantly increase in the future due to the significant pressure on reducing costs and increasing demand for material recyclability.

Funding Statement: The authors acknowledge the National Council for Scientific and Technological Development (CNPq), Coordenação de Aperfeiçoamento de Pessoal de Nível Superior-Brasil (CAPES)- Finance Code 001, and Fundação de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ), Brazil.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
