Study on the Fire Behavior of Sandwich Wall Panels with GFRP Skins and a Wood-Web Core

Guangjun Sun, Chuting Wang and Lu Wang*

College of Civil Engineering, Nanjing Tech University, Nanjing, 211816, China
*Corresponding Author: Lu Wang. Email: kevinlwang@njtech.edu.cn
Received: 05 August 2021; Accepted: 09 October 2021

Abstract: To investigate the temperature field and residual bearing capacity of the sandwich wall panels with GFRP skins and a wood-web core under a fire, three sandwich walls were tested. One of them was used for static load test and the other two for the one-side fire tests. Besides, temperature probe points were set on the sandwich walls to obtain the temperature distribution. Meanwhile, the model of the sandwich wall was established in the finite element software by the method of core material stiffness equivalent. The temperature distribution and performance reduction of materials were also considered. The residual bearing capacity of specimens after fire exposure were simulated considering the effects of web spacing, wall panel thickness and fire exposure time. Because the sandwich wall panels were stressed by eccentric compression after a fire, the residual compressive strength of the wall panel after the fire can be calculated through the eccentric loading analysis. Compared with the numerical results, it can be concluded that the effectiveness of calculation method of residual bearing capacity after fire exposure was proved.

Keywords: Sandwich wall panels; fire behavior; fire test; finite element modeling; residual capacity

1  Introduction

Fibre reinforced polymer (FRP)-wood sandwich structural components have been widely adopted in the civil engineering due to their advantages of low energy consumption, corrosion resistance, fast construction, convenient maintenance and thermal insulation. FRP-wood sandwich structural components are usually formed by bonding the upper and lower high-strength skins and the middle light-weight core materials. The skins can bear tensile and compressive loads applied by bending moment, and the core materials can bear shear force [1,2]. To improve the bending strength and stiffness of flexural members, the glass fibre reinforced polymer (GFRP) webs are embedded in the core materials. The webs also can avoid the interfacial debonding failure [3].

In the past ten years, a number of experimental and theoretical studies on the mechanical properties of sandwich components at room temperature have been conducted. However, with the increase in the building fires in recent years, the fire resistance of sandwich components has caused the social extensive concern [46]. Bai et al. [710] studied the compressive strength of GFRP sheets and components under the temperature from 20°C to 300°C. FRP materials were epoxy organic compounds, the resin began to soften when the temperature exceeded its glass transition temperature (Tg), and some of the resins enter the thermal decomposition stage. When the ignition temperature exceeded Tg, the resin was completely decomposed by heat, which resulting in the reduction of the strength and stiffness of FRP materials. Correia et al. [11] investigated the on-axis compression properties of pultruded GFRP I shapes under elevated temperature from 20°C to 250°C. The results showed that the compressive strength at 250°C decreased sharply to 5% of that at room temperature. An analytical model was developed according to the Gompertz function to estimate the degradation of the compressive strength. Wong et al. [12] evaluated the compressive behavior of FRP channels under the temperatures from 20°C to 250°C. The test results indicated that the ultimate compressive strengths at 120°C and 250°C were 26% and 8% of that at room temperature, respectively. Meanwhile, the axial stiffnesses were 45% and 29%, respectively.

It is well known that wood is a kind of easily flammable material. The temperature rises, the physical and chemical changes occurred with the increase in temperature. Shen et al. [13] studied the changes of moisture with the temperature. The results showed that the moisture in the wood started to evaporated at 100°C, and the moisture stopped to flow at 320°C. Blasi et al. [14,15] investigated the category and output of pyrolysis products. The effects of the heating rate, moisture pressure and inorganic substances on the pyrolysis reaction were analyzed. Zhang et al. [16] conducted the numerical study on the performance of wood with three surfaces exposing to fire. Compared with the test results, the accuracy of the proposed model was improved due to inputting the apparent thermal parameters of wood into the finite element software ANSYS. Janssens [17] proposed an analytical model to evaluate the residual strength considering dry density of the wood, moisture content of the wood, lignin content of the wood and char contraction.

However, most of the studies focused on the material properties subjected to a fire, while it is hardly to find some references to introduce the investigations on the fire resistance of sandwich components under fire exposure, which has become a serious lack of scientific basis for the use of such components in building structures. Therefore, the performance degradation mechanism subjected to a fire and residual bearing strength should be evaluated. This is the motivation of this study. In this paper, the GFRP web reinforced-Douglas fir sandwich wall panels were taken as an example for the one-side fire tests. Then, the variation distribution of the internal temperature field and residual bearing capacity were studied and analyzed, which provides a reference for the subsequent fire resistance design of sandwich components.

2  Experimental Program

2.1 Specimen

A total of three web sandwich specimens were produced in the tests. One of them was a control specimen, named Control, which was not subjected to a fire, while the other two specimens subject to a 60 min one-side fire, named HW110 and HW90, and then the residual strengths were tested after the fire exposure. For all the specimens, the length was 1800 mm, the width was 350 mm, the thickness of a skin was 5 mm, the web thickness was 5 mm and the web spacing was 70 mm. But the core thickness was different, the core thickness of Control and HW110 were 110 mm, the core thickness of HW90 was 90 mm. The Douglas fir was adopted as the core material. The component schematic is shown in Fig. 1. In this paper, the vacuum infusion molding process (VIMP) [13] is used for the component manufacturing process. The GFRP skins and webs were wrapped with 10 mm (0/90°) glass fiber cloth, as shown in Fig. 2. The detailed specimen production process is as follows:

Step i: Douglas fir wood was cut according to the designed size along the grain direction. In the meantime, to completely and uniformly combine the resin with the core material, the Douglas fir wood should be grooved and punched before the resin was imported.

Step ii: Douglas fir was wrapped with GFRP mats, and nails were driven into the core material by an air gun so that GFRP can be fixed on it.

Step iii: The specimens were wrapped by the vacuum bag. Then, the release cloth, flow guide cloth, and flow guide tube were installed.

Step iv: The vacuum bag was evacuated, and the unsaturated polyester resin was introduced to fully combine the fiber and core material.

Step v: After reaching the curing time (24 h), the specimen was cut according to the required dimension.

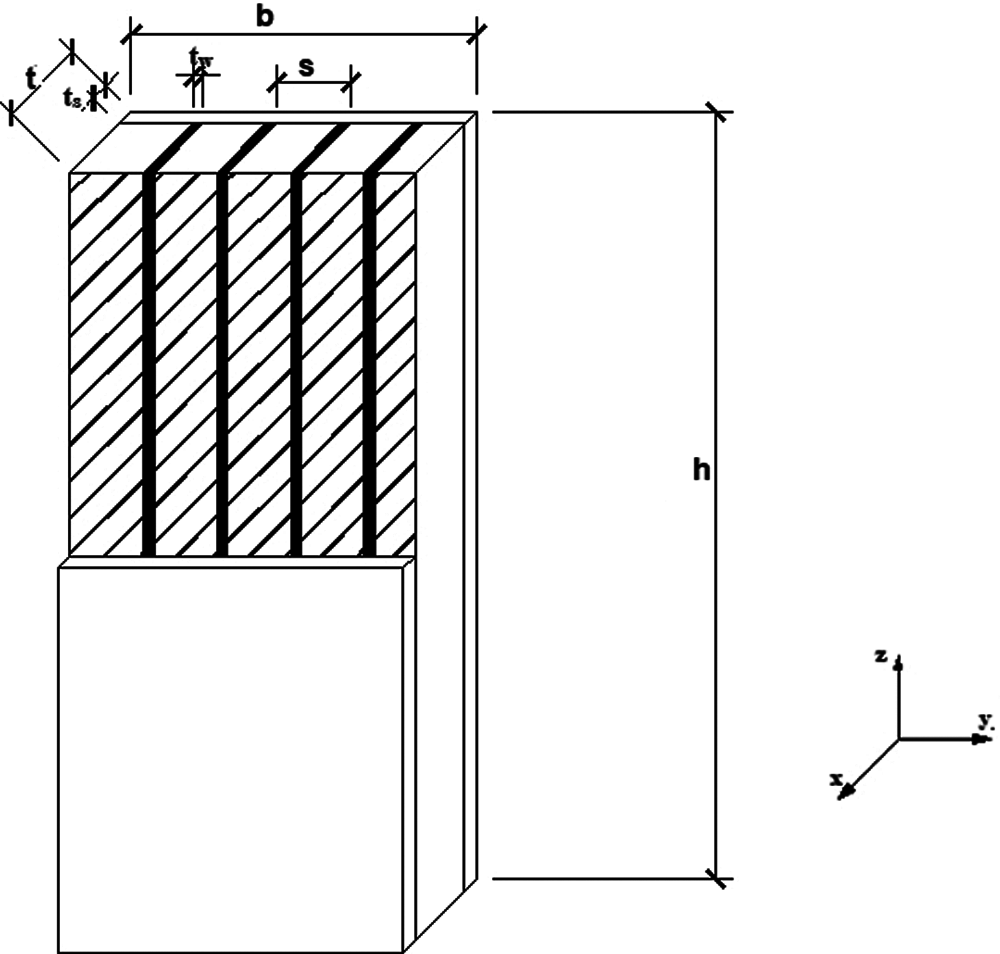

Figure 1: Component schematic

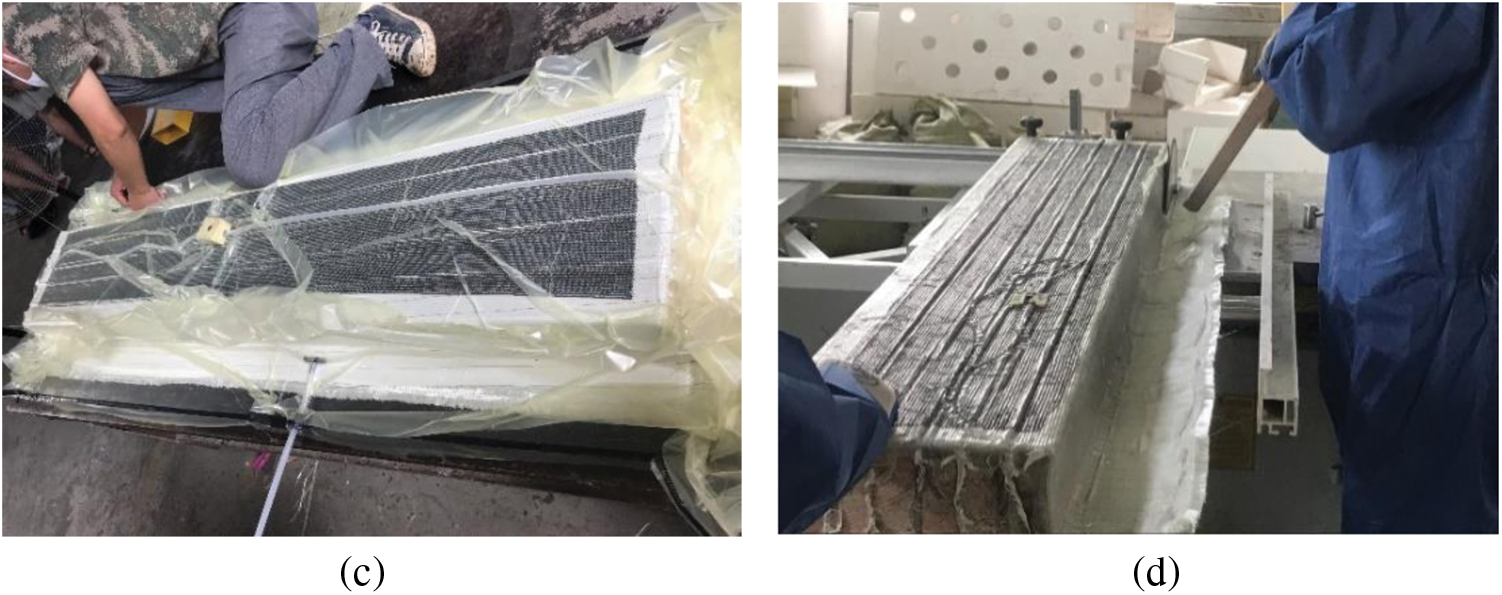

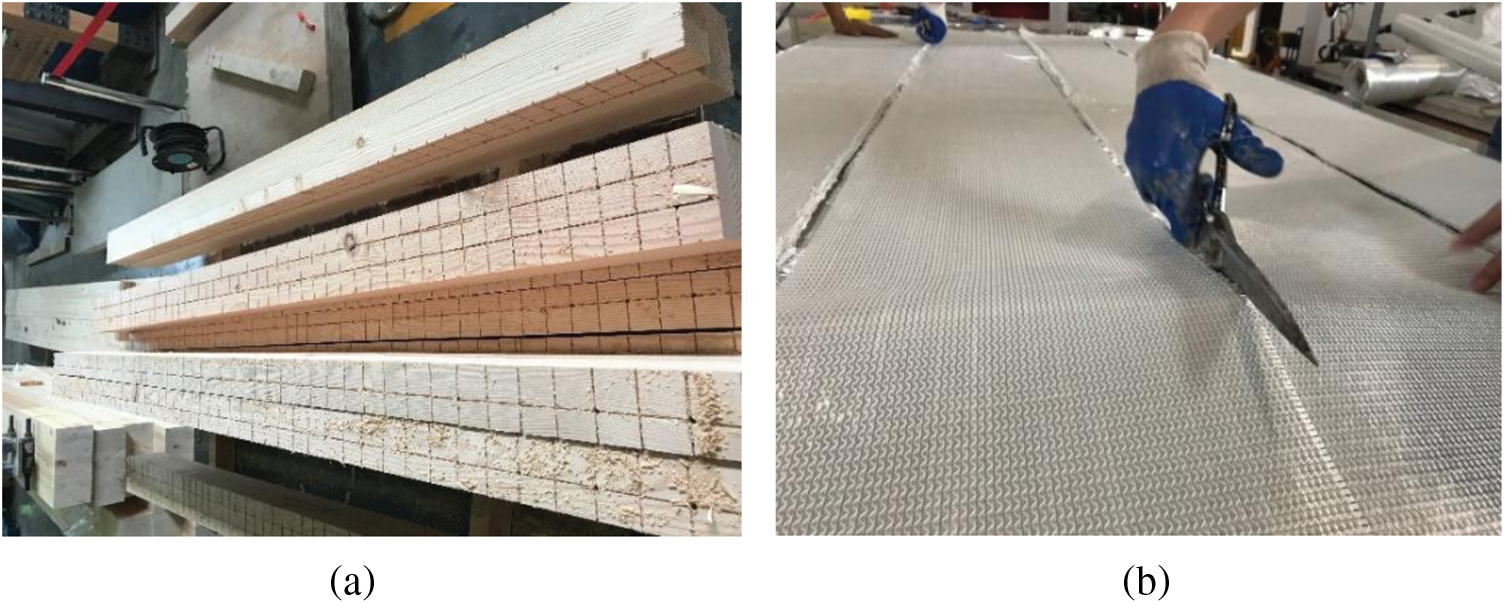

Figure 2: Specimen manufacture process. (a) Chamfering of Douglas fir timber (b) Cutting fiber cloth (c) Laying vacuum bag and guide cloth (d) Edge cutting and polishing

For specimens HW110 and HW90, the fire surface and the two sides were coated with ultra-thin fireproof coating. The brand of fireproof coating was Sika Pyroplast Wood T with topcoat. The coating thickness was 3 mm. Meanwhile, to ensure the one-sided fire test, the aluminum silicate panels were installed on the side and backfire surface of specimens, as shown in Fig. 3.

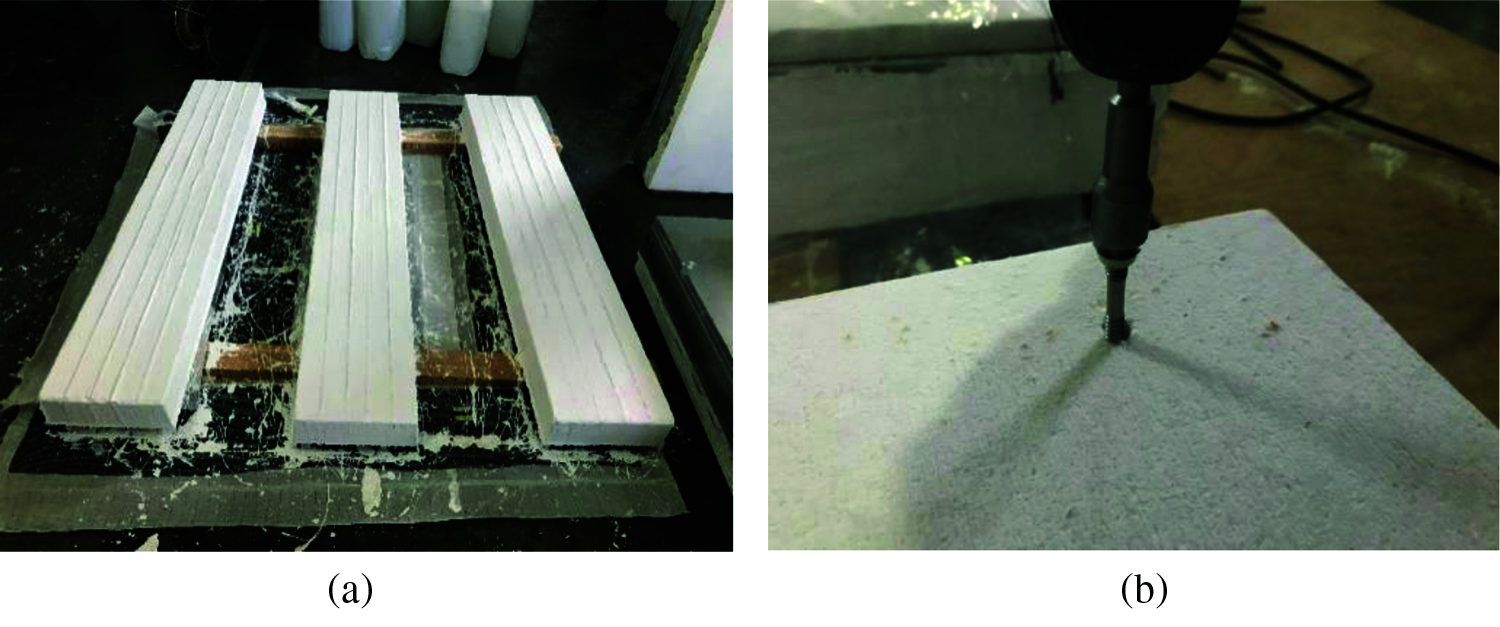

Figure 3: Fire prevention measures. (a) Apply fireproof paint (b) Installation of aluminum silicate board

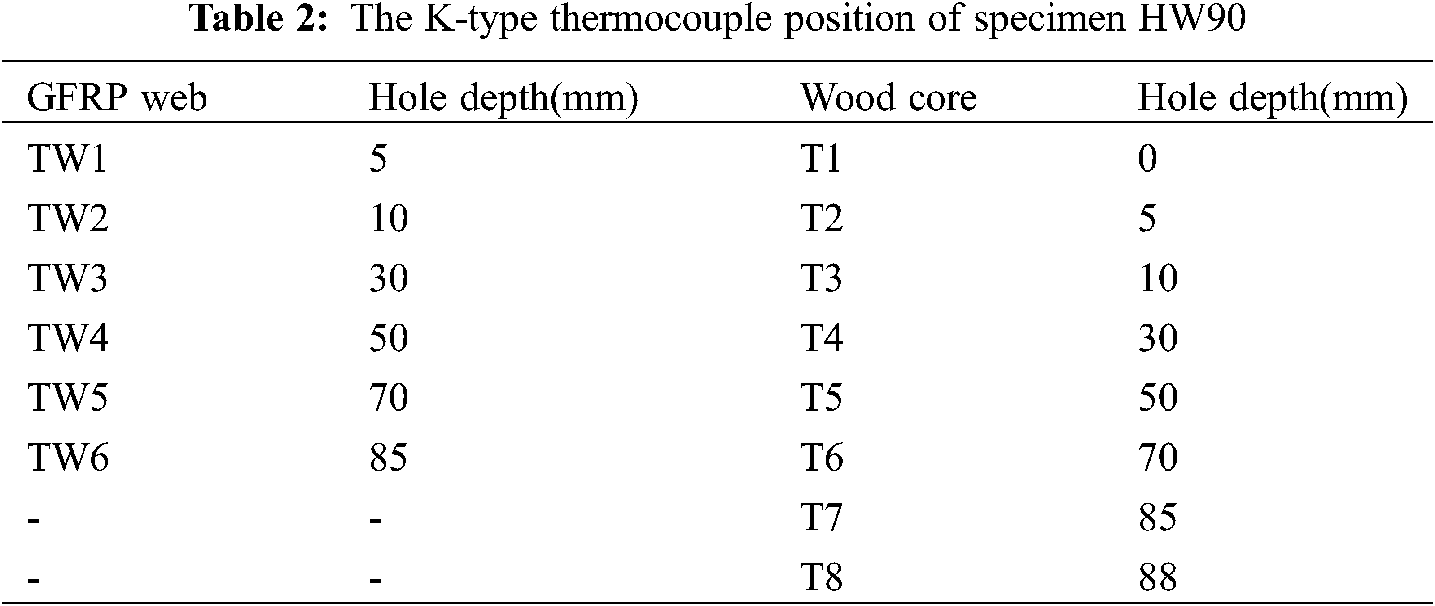

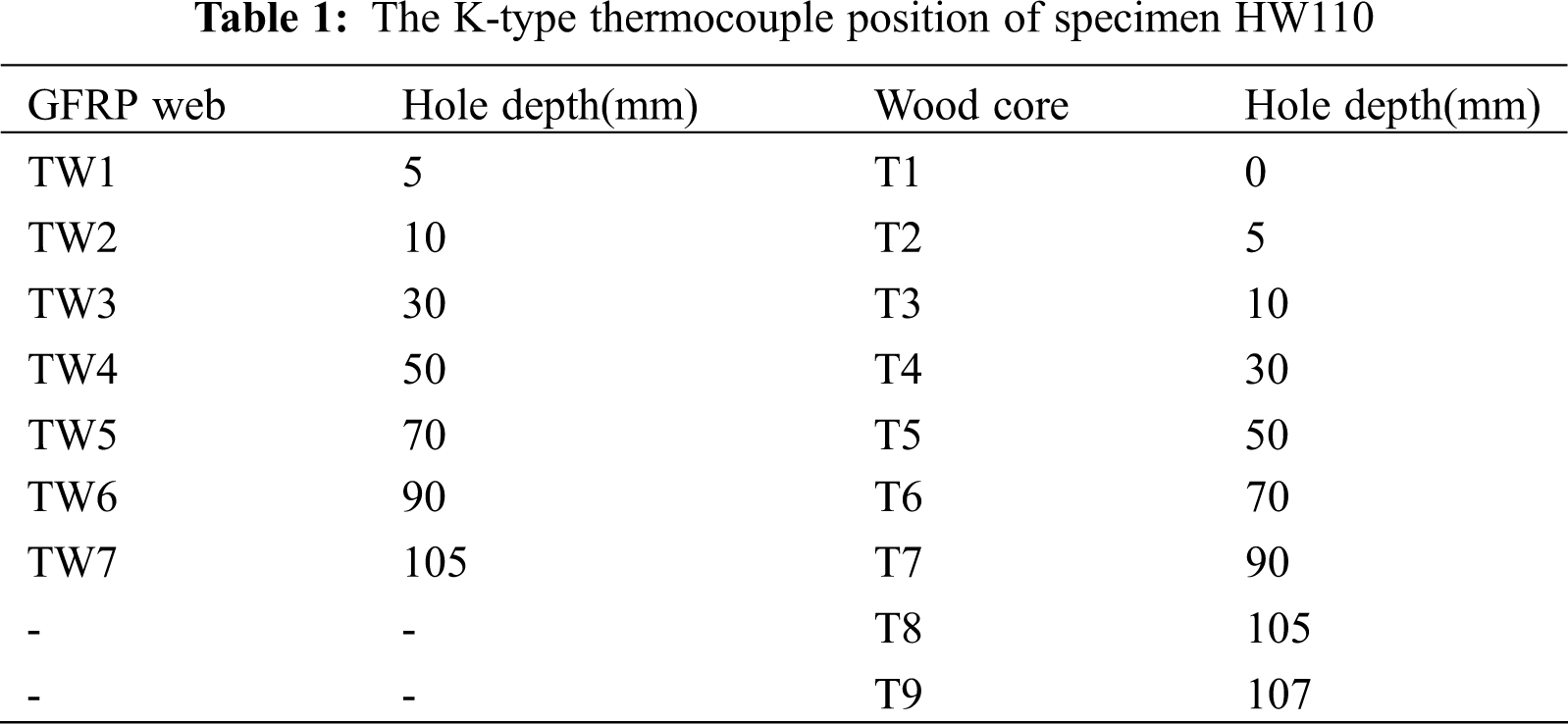

The K-type thermocouples were arranged along the thickness of the wall panel to investigate the temperature distribution. The thermocouple depth was successively increased by 20 mm. The positions are summarized in Tables 1 and 2. The schematic diagram of drilling is shown in Fig. 4.

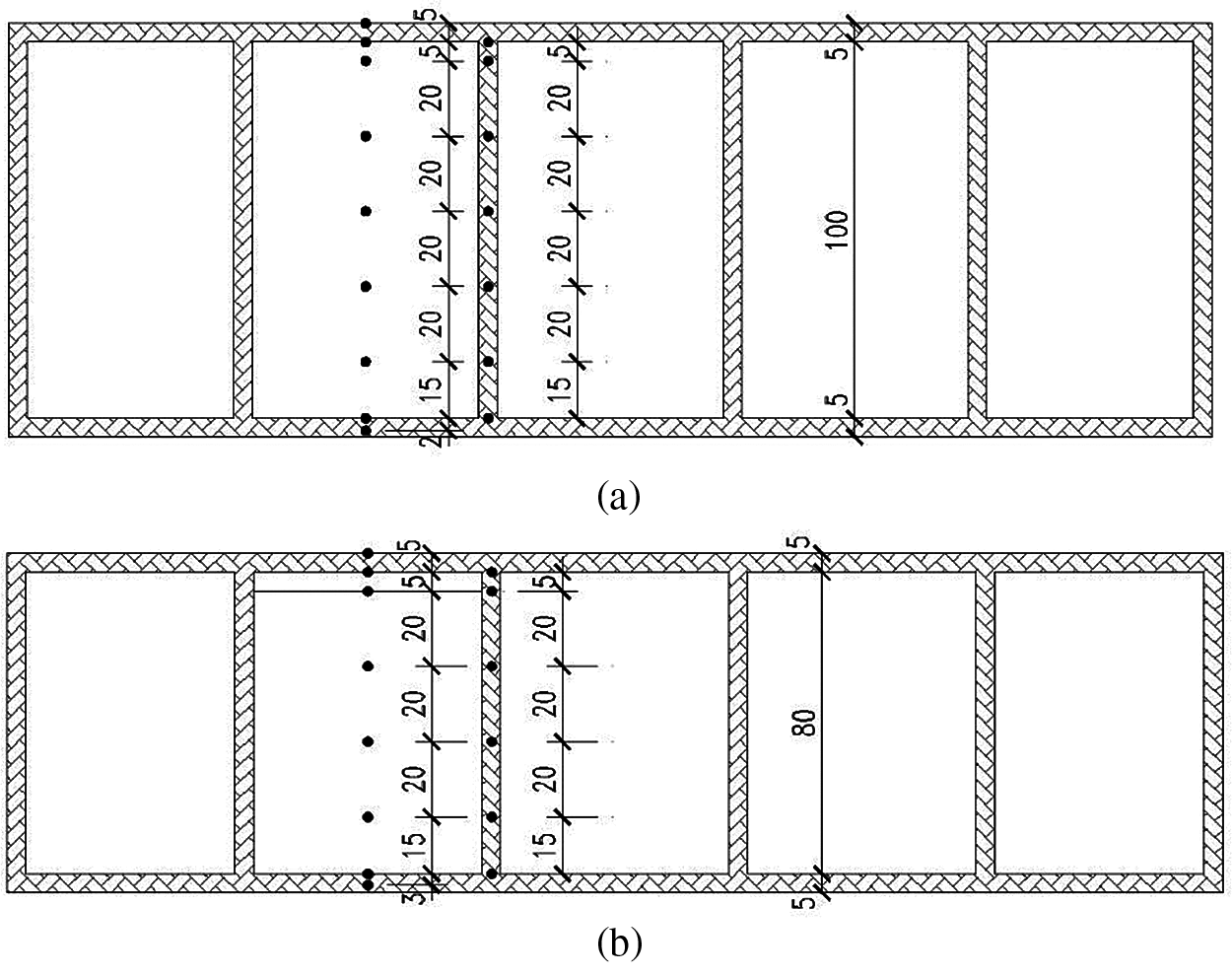

Figure 4: Schematic diagram of the thermocouple arrangement of the test pieces (a) HW110 thermocouple arrangement (b) HW90 thermocouple arrangement



2.2 Material Properties

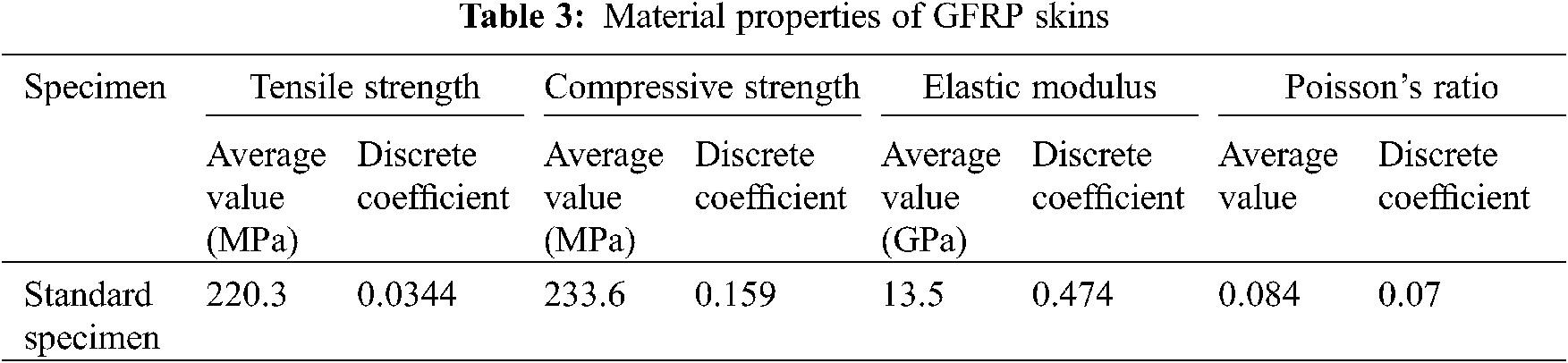

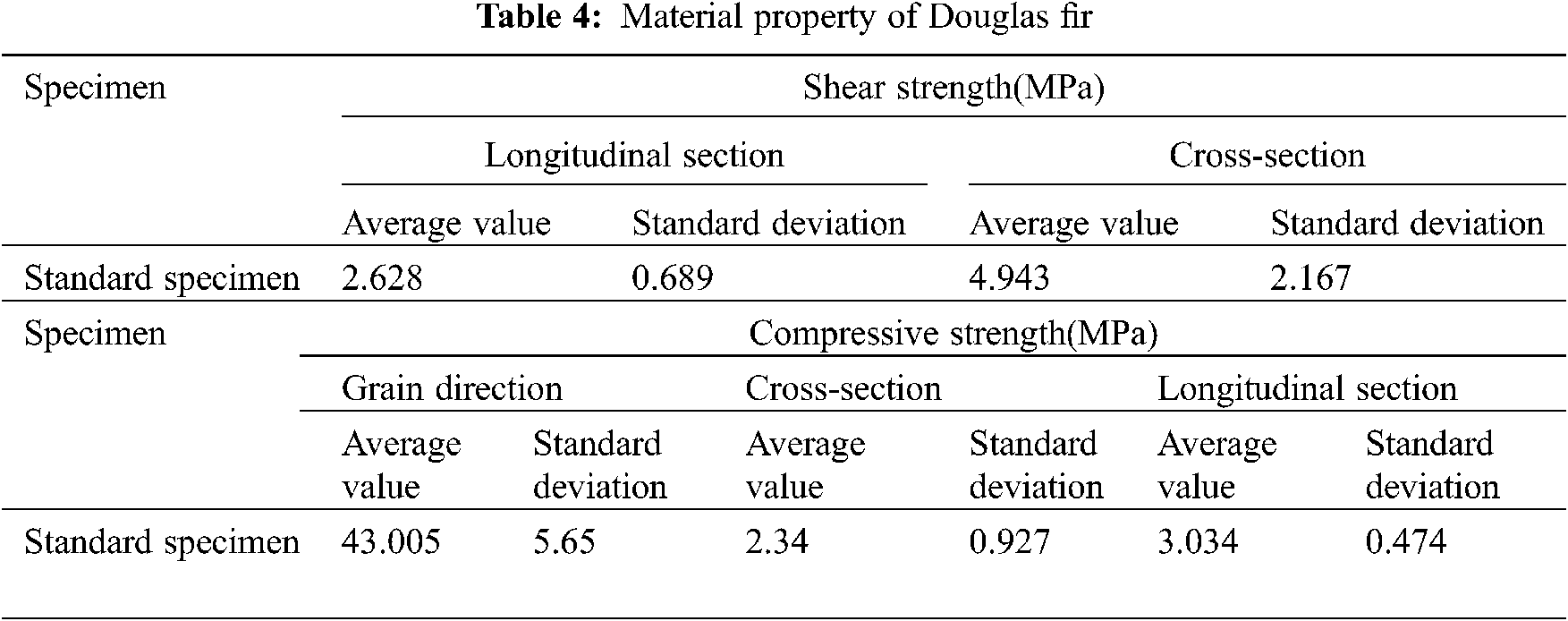

In this study, the tensile and compressive performance of GFRP skins (Fig. 5) and shear performance of Douglas fir (Fig. 6) were tested. Tensile and compressive strength tests, on the basis of GB/T 1447-2005 [18] and GB/T 1448-2005 [19], were conducted to determine the tensile strength, the tensile modulus, the compressive strength and the compressive modulus of GFRP skins. The loading rate was 2 mm/min during tests. The material properties of GFRP skins are listed in Table 3. Wood is a typical anisotropic material, its physical and mechanical properties are significantly different in different directions. Hence, shear and compressive properties of Douglas fir were tested in multiple directions according to GB/T 1937-2009 [20] and GB/T 1935-2009 [21], respectively. The dimension of specimens were 20 × 20 × 30 mm for the compressive tests. The dimension of specimens were 35 × 40 × 20 mm for the shear tests. The loading rate was 2 mm/min. The material properties of wood are listed in Table 4.

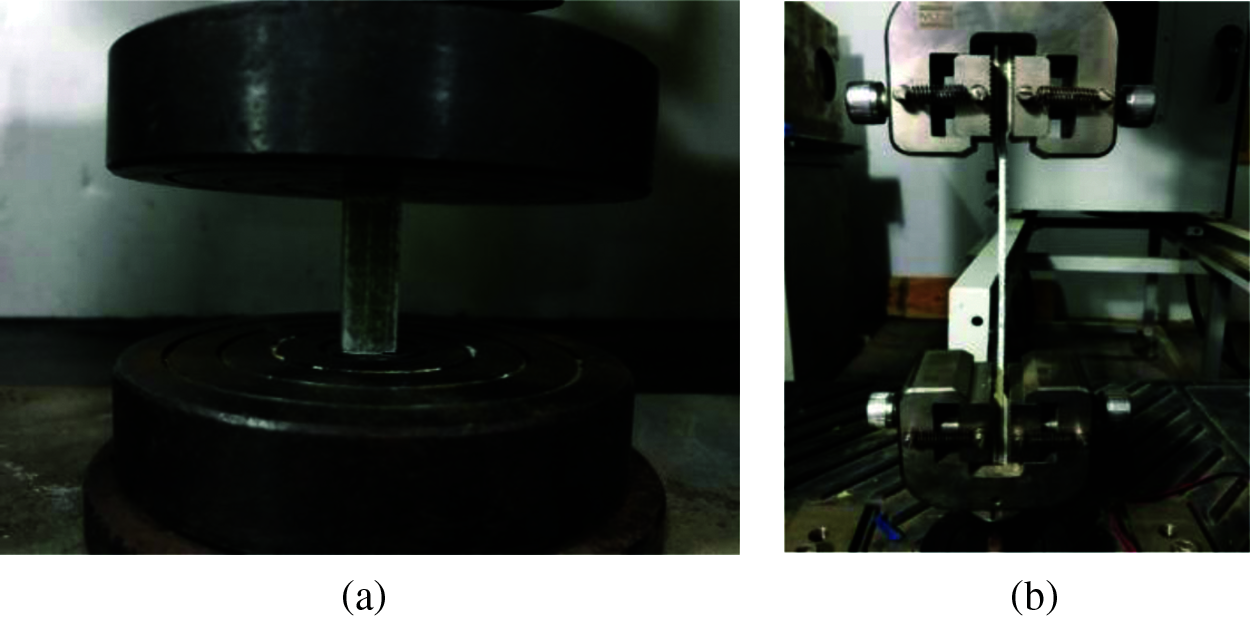

Figure 5: Material property testing of GFRP skins. (a) Compression test (b) Tensile test

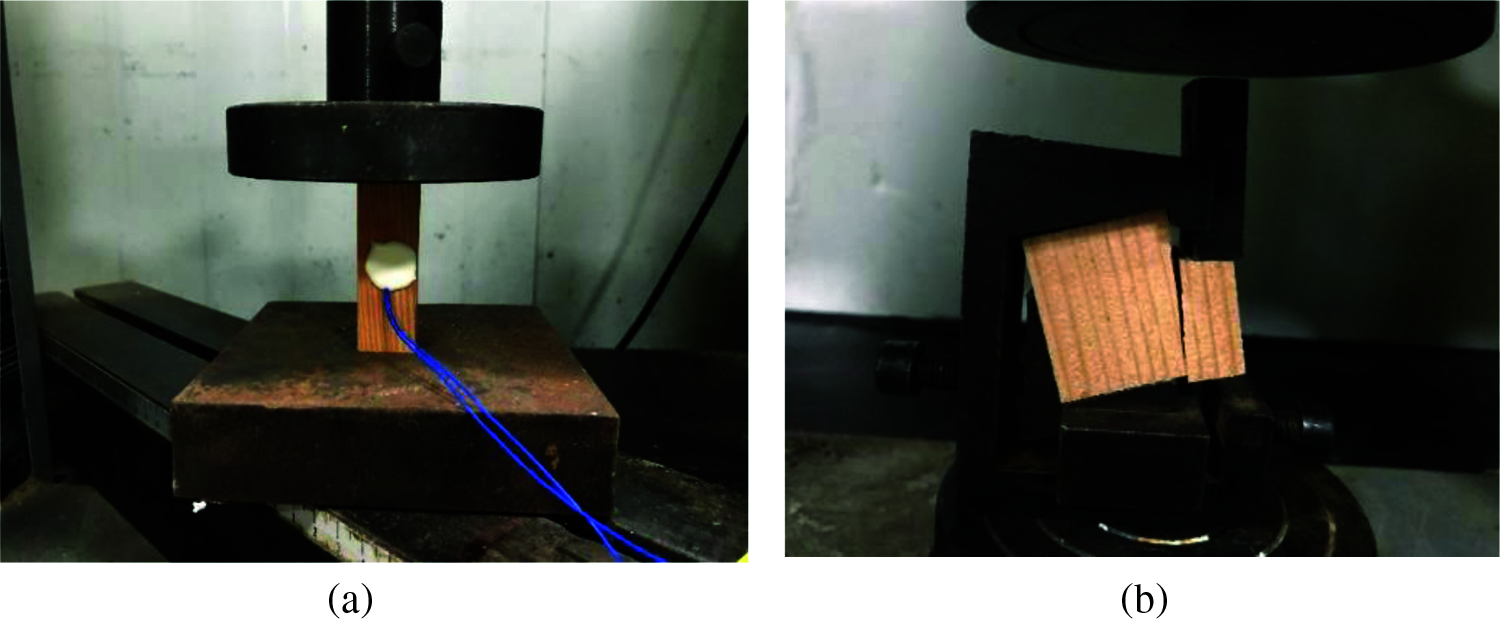

Figure 6: Material property testing of Douglas fir. (a) Compression test (b) Shear test



2.3 Test Set-Up

The test set-up was MTS universal loading test machine, as shown in Fig. 7. The specimen was loaded via the distribution beam which moved through the fixed sliding track. The upper and lower ends of the specimens were supported by fixed ends. The transverse strain, longitudinal strain and lateral displacement at the mid-height of the wall panel were recorded, respectively. The DH3816 data logger was used to record the strain and displacement readings. The displacement control was adopted with the loading rate of 2 mm/min.

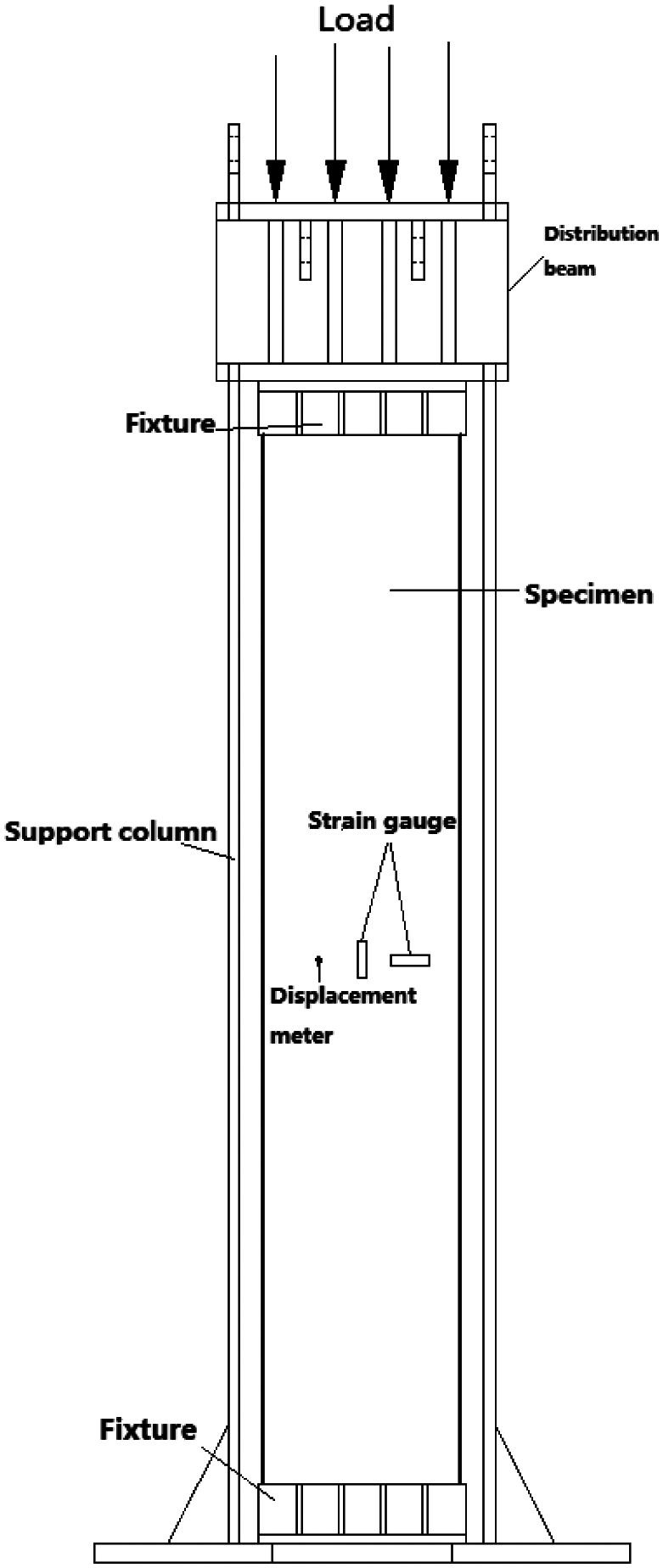

Figure 7: Loading schematic

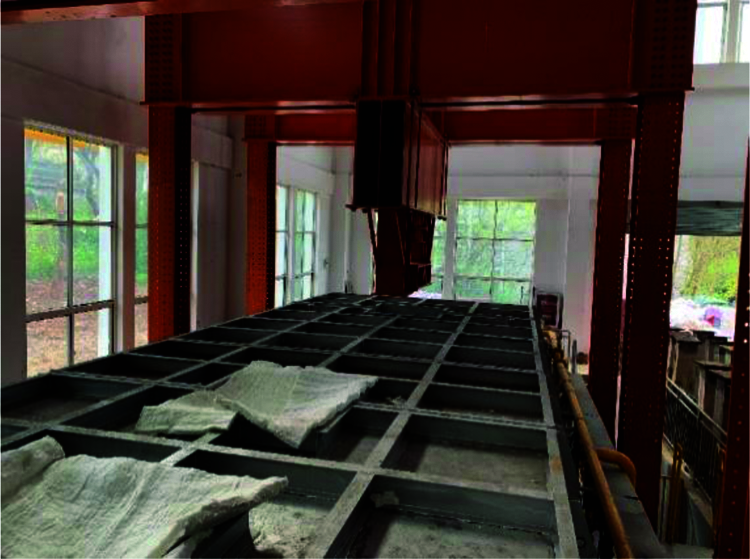

The fire tests were conducted at the Structural Fire Laboratory of Nanjing Tech University, China, as shown in Fig. 8. The large-scale furnace was built for full-scale fire tests on columns, walls, and floor elements. The heat was provided by twelve gas burners, with six burners on each side. The ISO-834 [22] standard temperature curve was adopted in the tests, which is expressed as follows:


where T is the temperature in the test furnace, in °C; T0 is the temperature in the test furnace at the beginning of the test, in °C; t is the time of the test in minutes.


Figure 8: Fire test furnace

2.4 Static Test Results

The ultimate load capacity of Specimen Control was 2446 kN. As shown in Fig. 9a, it can be found that the ultimate compressive displacement was 30 mm. Due to the presence of the webs, the interaction between the skin and the core material increased so that the overall compressive deformation of the specimen was relatively small. Furthermore, the interfacial delamination was avoided. Fig. 9b shows that the compressive load-strain relationship of the specimen is generally linear, and the longitudinal strain is much larger than the transverse strain. It can be concluded that the compressive strength of sandwich panels increased significantly due to the use of GFRP webs. Moreover, the compressive strength of wood core was also improved because of the confinement effect provided by skins and webs [2].

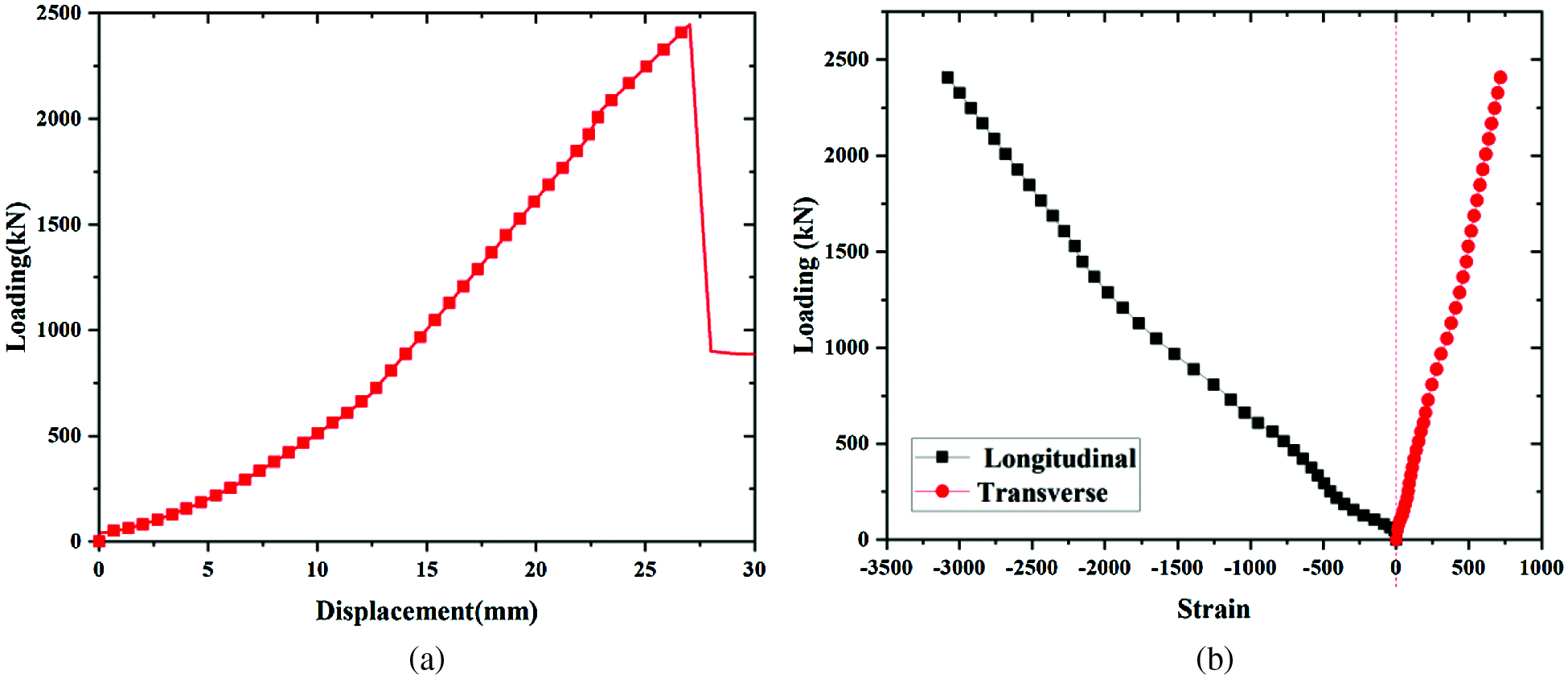

Figure 9: Static load test curve. (a) Load-displacement curve (b) Load-strain curve of wall panel

2.5 Temperature Distribution

The fire test was carried out for 60 min. Fig. 10 shows the temperature distribution of the specimens during the tests. The slope of the heating curves of the specimens was relatively flat in the first 10 min but gradually increases between 10 and 20 min. The reason was that the fire retardant coating provided a certain protective effect on the components in the early stage of the fire tests, which slows down the temperature rise of the specimens. When the fire retardant coating decomposed, the specimens were exposed to the flame on one side, hence, the temperature raised substantially. Meanwhile, when the temperature of any point on the backfire surface reaches 220°C, it can be said that the fire insulation function of component was destroyed. During the fire tests, the temperature on the backfire surface of the grid was always within the safety range required.

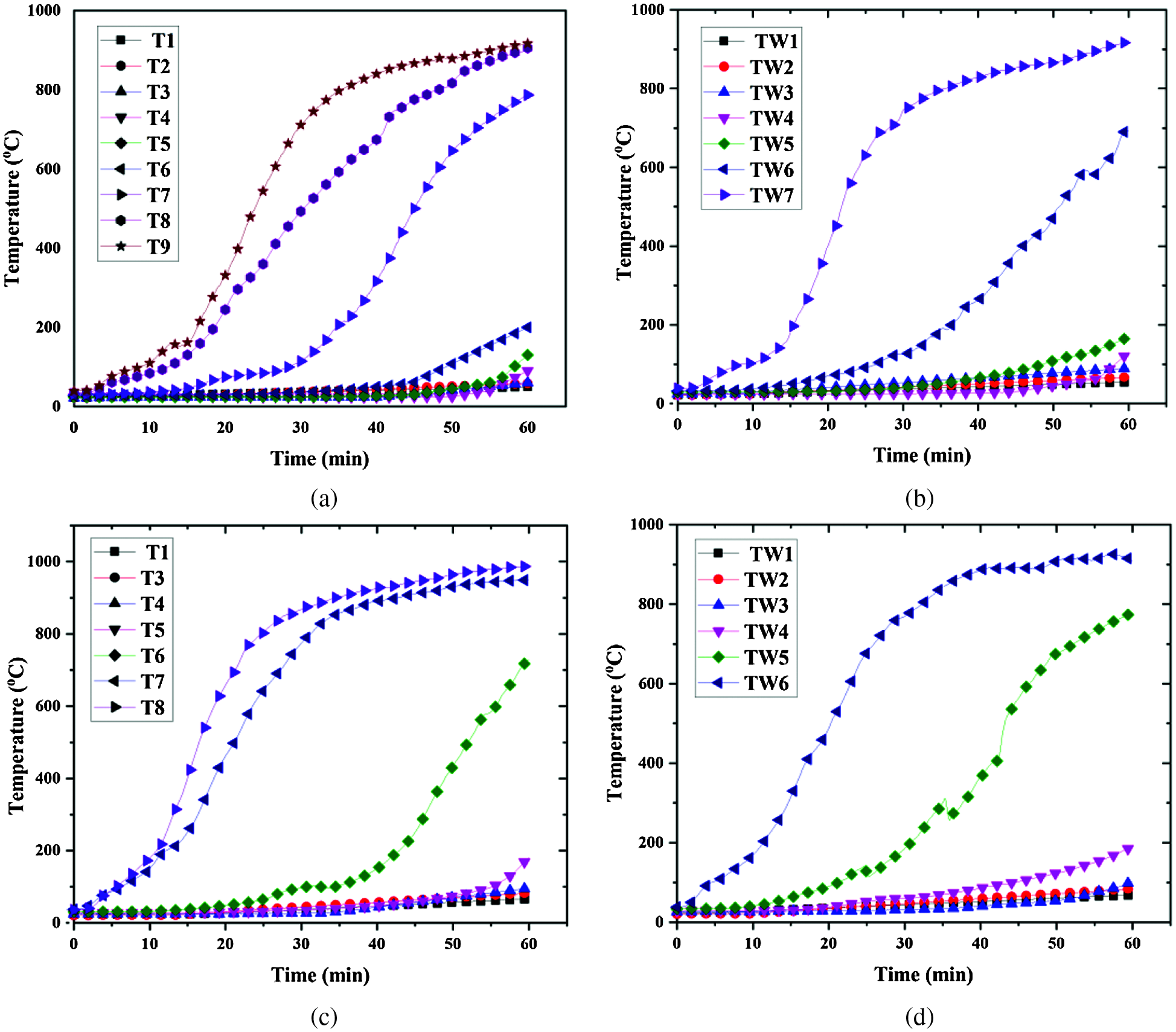

Figure 10: Temperature-time curve of specimens. (a) HW110 wood core temperature (b) HW110 web temperature (c) HW90 wood core temperature (d) HW90 web temperature

3  Numerical Investigations

3.1 FEM Modeling

A FEM model was adopted based on the commercial finite element program, ABAQUS, to numerically study the behavior of the sandwich panels. The model consisted of two types of elements: four-node shell (S4R) for the skin, and eight-node reduced integration element (C3D8R) for the core. The boundary condition of panels is hinged support at one end and roller support at another. The two types of elements were assumed to have perfect bonding through the resin.

To simplify the numerical modeling, the equivalent modulus of the web reinforced core material was adopted [2]. Hence, the sandwich wall panels with GFRP skins and a wood-web core can be equivalent to a traditional sandwich panel with two skins and a homogeneous continuous core, as shown in Fig. 11. The equivalent core material was assumed as follows:

(i)    The core material was an elastoplastic material during the mechanical analysis process, regardless of the creep and relaxation behavior of the material.

(ii)    The core material was considered as orthotropic material considering the modulus equivalent processing.

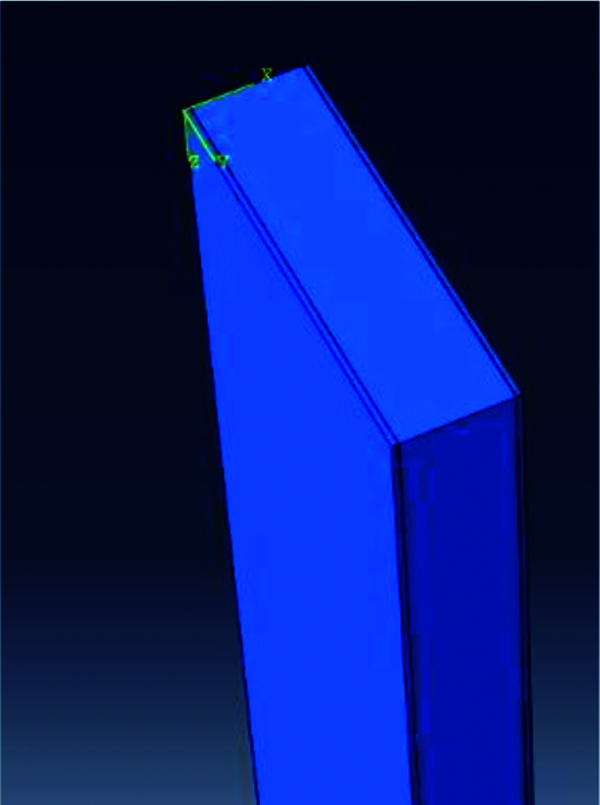

Figure 11: Model establishment

The Hashin failure criterion was adopted for the skins, and the equivalent core material was applied to the maximum stress criterion. The formula for Hashin failure criterion is as follows [23]:

Fiber tensile failure:

(σ1XT)2+σ1222G12+34σ124S1222G12+34S124+σ1322G13+34σ134S1322G13+34S1341 (1)

Fiber compression failure:

(σ1XC)21 (2)

Fiber shear failure:

(σ1XC)2+σ1222G12+34σ124S1222G12+34S124+σ1322G13+34σ134S1322G13+34S1341 (3)

where σi is the main direction stress; σij is the main direction shear stress; X is the main direction strength; Sij is the shear strength; Gij is the shear modulus.

The residual post-fire bearing capacities of the sandwich wall panels were simulated. The tested temperature distributions of the specimens were input the numerical model. According to EN1995-1-2 [24], the property parameters of wood weakened with increasing temperature was set. For the performance reduction of GFRP skins, the model to calculate the temperature-dependent compressive strength and modulus was proposed by authors [25].

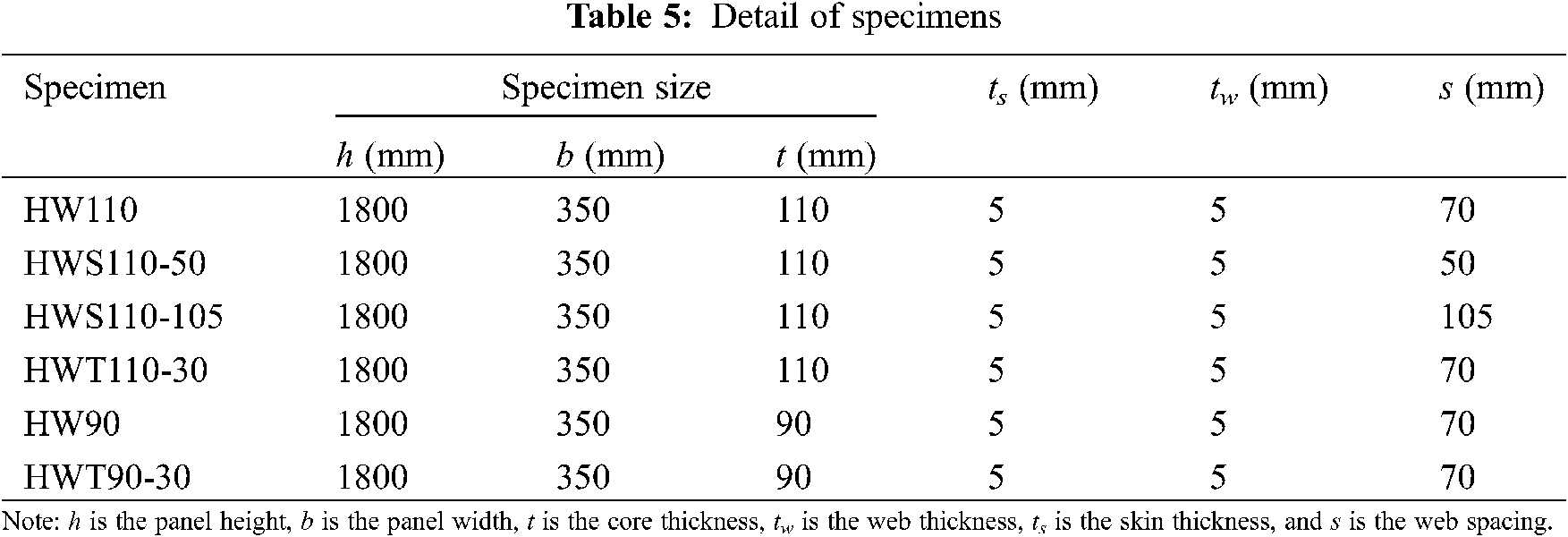

In this simulation, a total of 6 specimen models were established for simulation according to the three parameters, namely web spacing, wall panel thickness and fire exposure time. The parameters of the specimens are listed in Table 5. Specimen HWT110-30 was exposed to 30 min fire, and the dimension was identical with that of specimen HW110. Specimen HWT90-30 was exposed to 30 min fire, and the dimension was identical with that of specimen HW90.


To validate the accuracy of the proposed model, the ultimate strength of HW110 at room temperature was numerically calculated using the mentioned model. Fig. 12 shows the comparison between numerical and experimental results. The reason for the non-linear phase before the displacement of 13 mm in the test was that there was a pore inside the material of the component before compression, while the pores of the material were ignored during the numerical simulation. In the elastic region, the degree of coincidence was high.

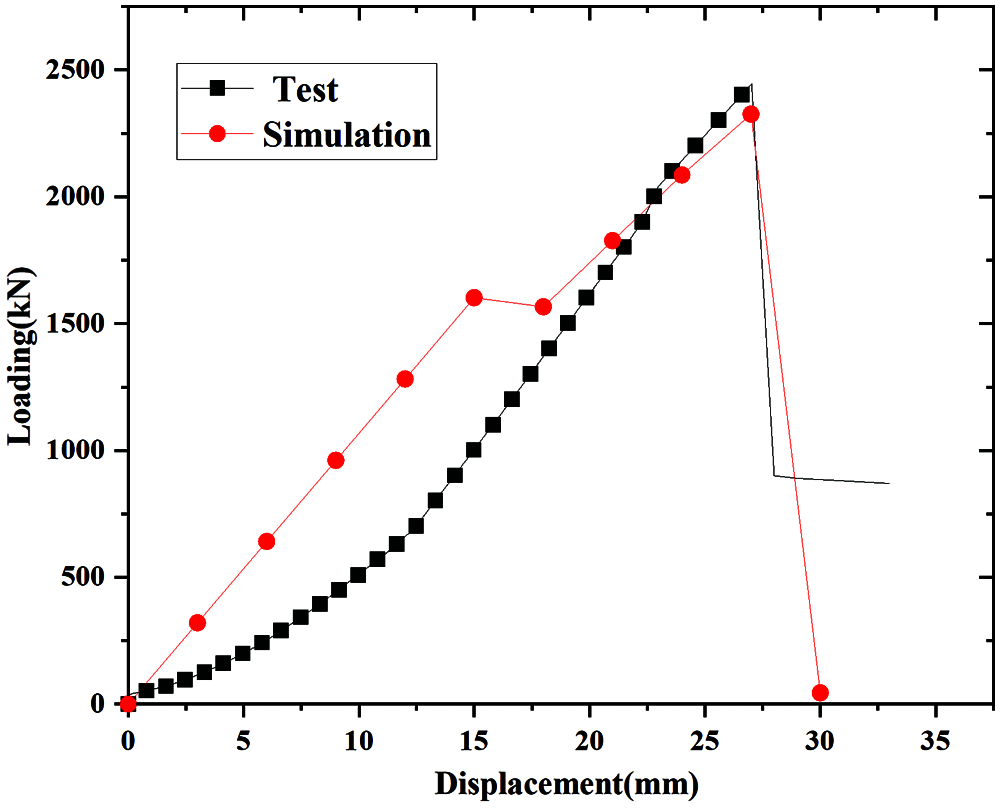

Figure 12: Load-displacement curve comparison

3.2 Numerical Results

Material properties and corresponding temperature distributions of HW110, HWS110-50, and HWS110-105 were substituted into the simulation for reduction calculation, as shown in Fig. 13. It can be found that the bending degree of HW110 after the fire was greater than that of HWS110-105 but less than that of HWS110-50 since the web spacing of HWS110-105 was the smallest. The web was composed of GFRP, which the temperature sensitivity was more sensitive than wood. At the same time, after 60 min of fire load, the resin in the web basically evaporated, and the residual fiber cannot provide the residual bearing capacity, furthermore the wood was carbonized but does not decompose. A large number of incomplete carbonized sections were retained so that the stiffness and strength loss of HWS110-50 was the largest, which ultimately led to the highest bending degree.

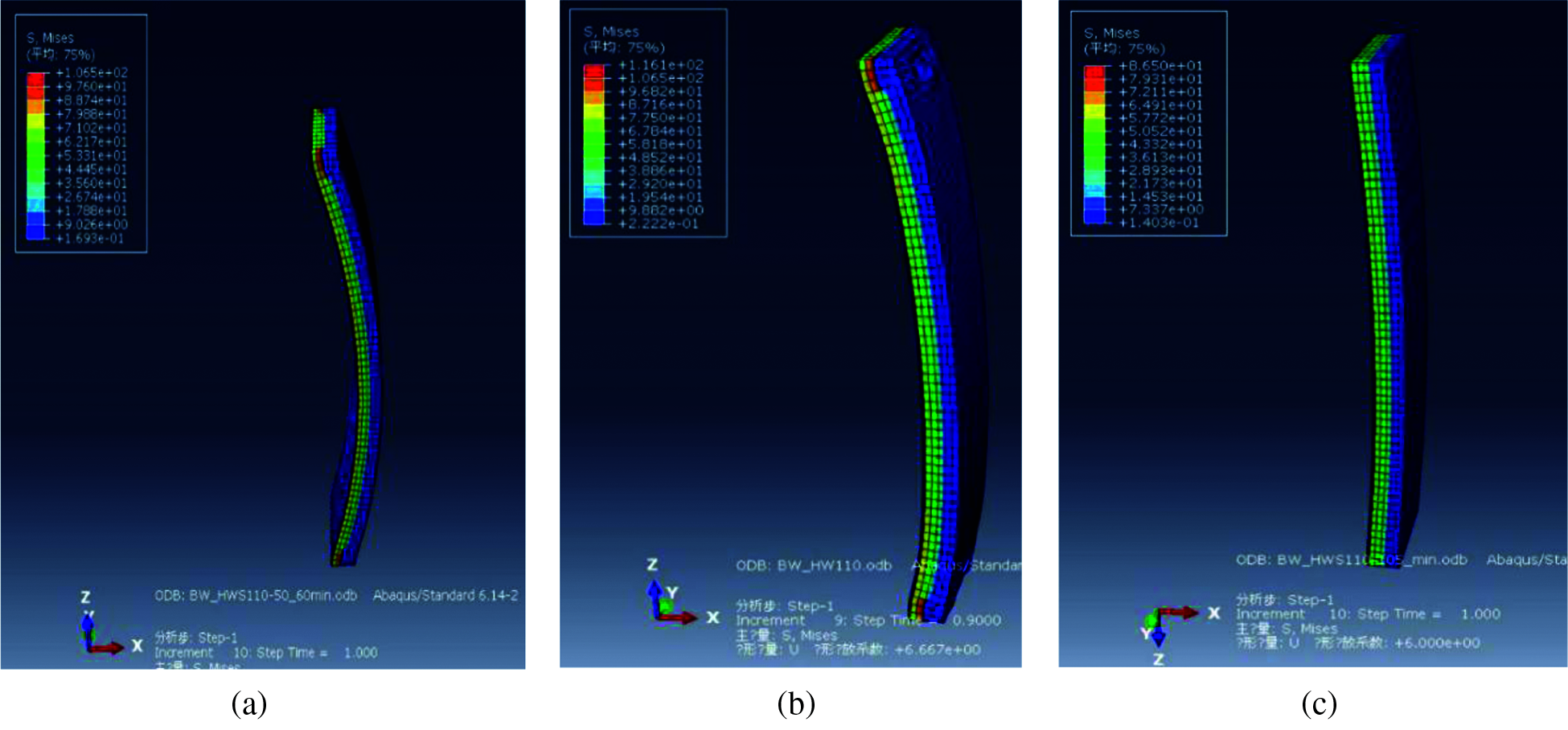

Figure 13: Post-fire compression analysis of HWS110-50, HW110, HWS110-105. (a) HWS110-50 (b) HW110 (c) HWS110-105

Fig. 14 summarizes the load-displacement curves of the three simulated components. The residual strength of the wall panel after the fire also varied regularly with the number of webs. The number of the web was inversely proportional to the residual bearing capacity of wall panels after the fire. When the web spacing changed from 50 to 70 mm, the residual bearing capacity of members was increased by about 20%. However, when the spacing increased from 70 to 105 mm, the residual bearing capacity was only increased by about 6.7%. Therefore, the residual bearing capacity of the component can be effectively improved if the web spacing increased within a certain range.

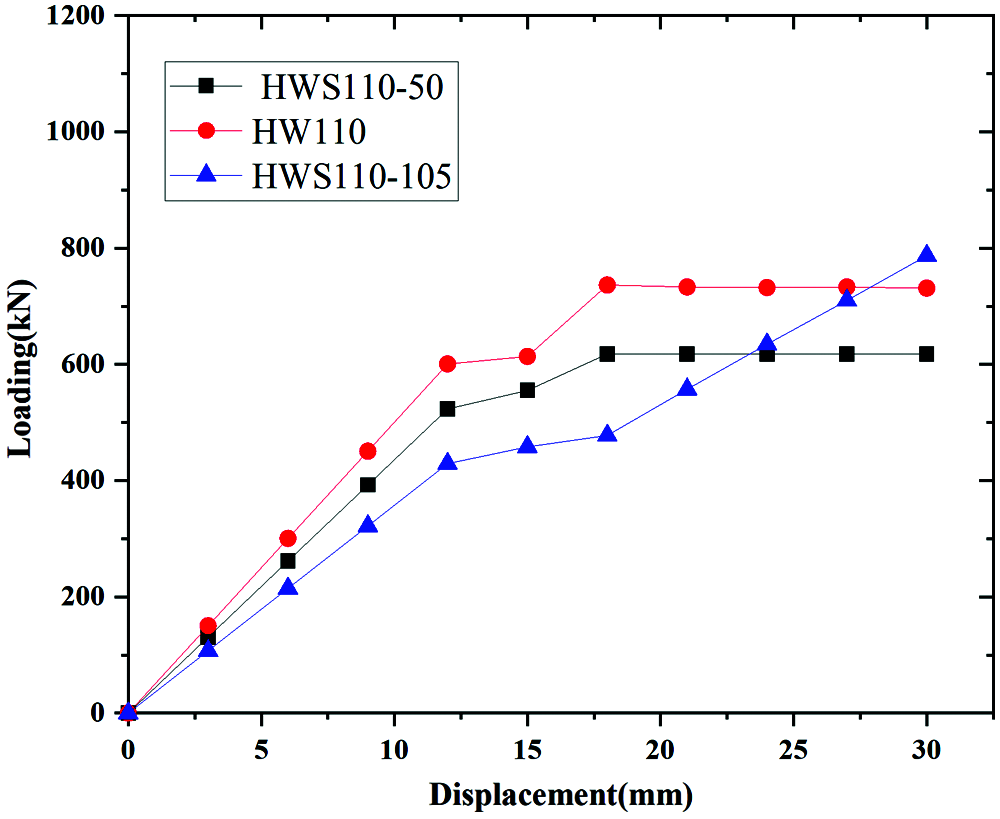

Figure 14: Post-fire load-displacement curves considering the effects of web spacing

HW110 and HW90 after 60 min fire tests were eccentrically compressed and destroyed. It can be found that HW90 was more prone to bending due to its wall thickness which was smaller than HW110, and the carbonization failure area on the fire side of it was larger than that of HW110. From the load-displacement curves in Fig. 15, HW90 lost strength due to the decrease in thickness under 60 min fire test, and its residual strength was 628.928 kN, which was about 14.6% lower than that of HW110 (736.41 kN). Therefore, the reduction in wall thickness had a greater impact on the residual strength of the component.

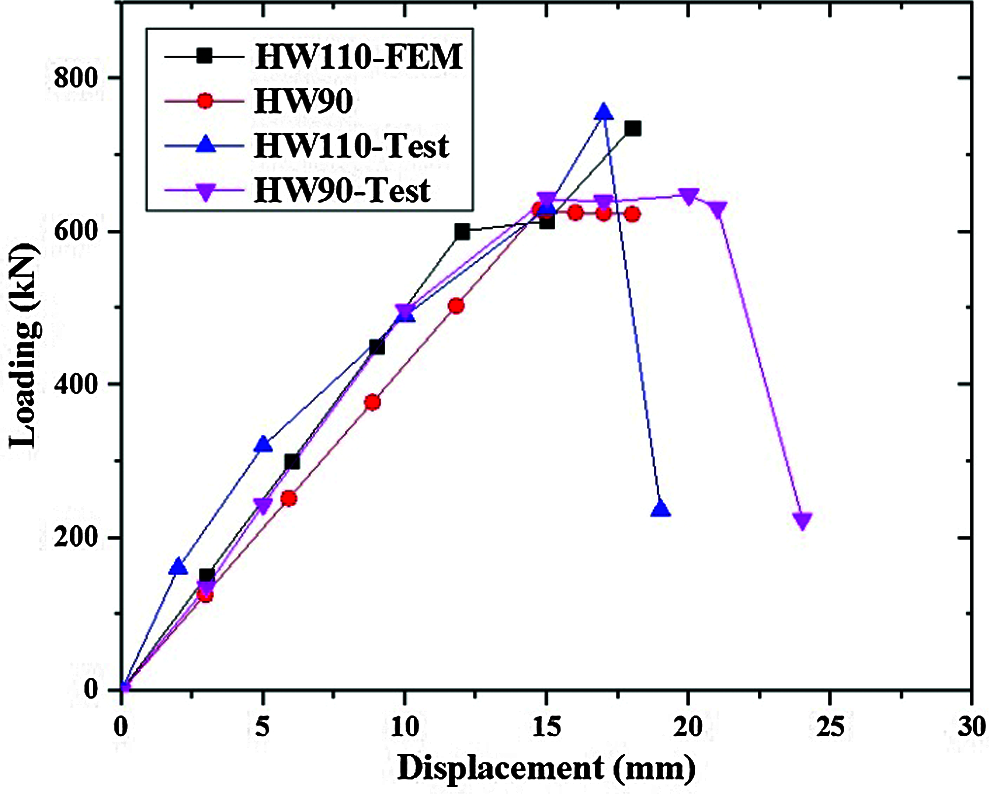

Figure 15: Post-fire load-displacement curves considering the effects of panel thickness

Fig. 16 summarizes the load-displacement curves of the four components. It can be concluded that the residual bearing capacity of the 30 min fired component was significantly improved compared to the 60 min fired specimen. The residual compressive strength of HWT110-30 was 1210 kN, which was about 64.3% higher than that of HW110 (736.41 kN). Compared with the residual compressive strength of HWT90-30 and HWT90, the former had about 74.96% improvement. The reason was that the thickness of HW90 was reduced compared to that of HW110, and the distribution of internal temperature was more sensitive to the fire time.

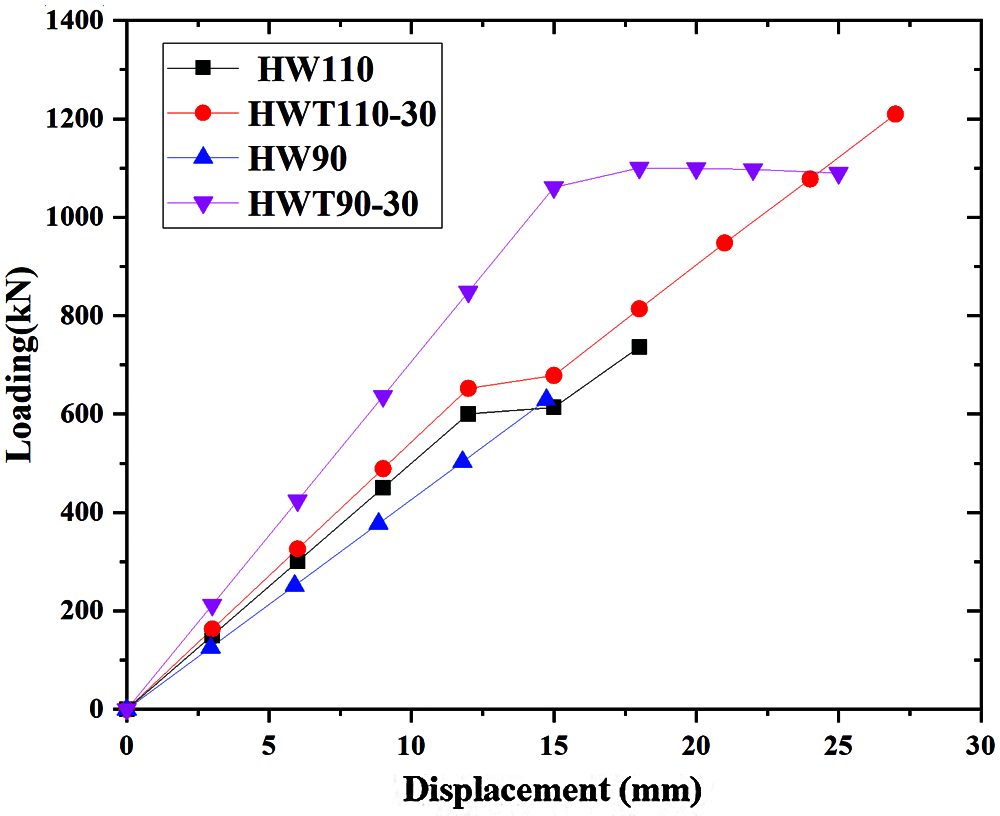

Figure 16: Post-fire load-displacement curves considering the effects of exposure time

Meanwhile, the ultimate bearing capacity of HW110 at room temperature is 2446 kN. After 30 min fire exposure, the residual bearing capacity was 1210 kN, and it was 628.928 kN under 60 min fire exposure. Compared to the compressive bearing capacity of HW110 at room temperature, the compressive bearing capacities decreased by 50.5% and 74.3% after 30 and 60 min fire exposure, respectively. The conclusion can be drawn that components are obviously affected by the fire exposure time.

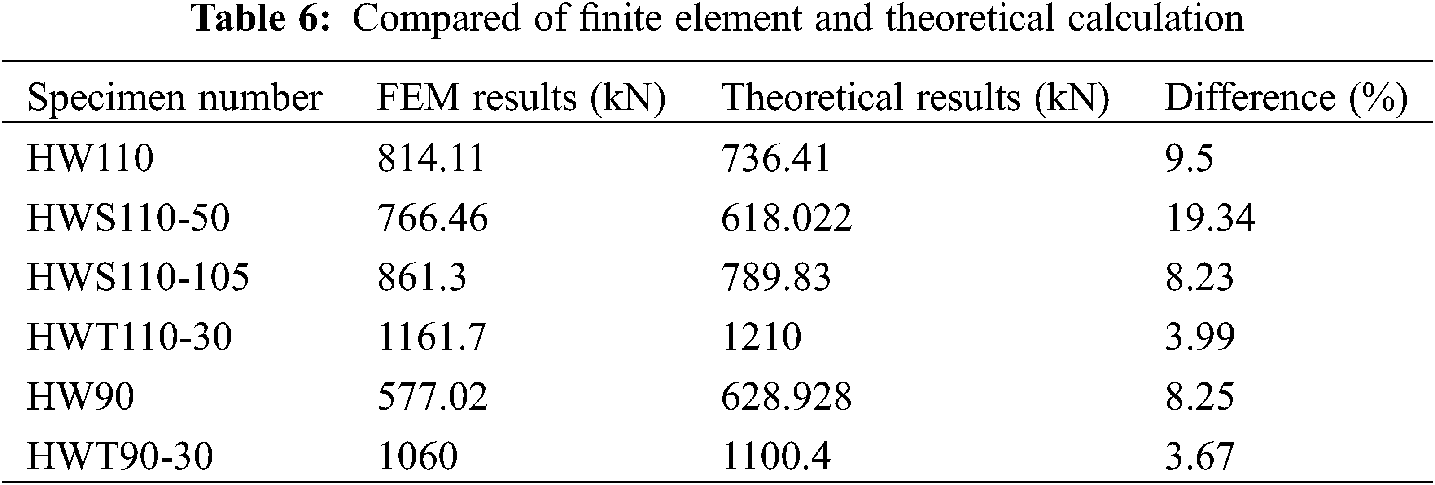

For sandwich wall panels after fire exposure, due to the different degree of material decomposition and carbonization on the fire surface and backfire surface, the loads applied to the fire-damaged components become eccentric compression. Therefore, the eccentric load analysis and calculation of were undergone. The residual compressive bearing capacity of the sandwich wall panel was theoretically calculated by analyzing the cross-section of the sandwich wall panel after the fire and the degrading of the corresponding material strength reduction. The theoretical and finite element calculation results are shown in Table 6. It showed that the results of theoretical calculation and finite element analysis results had a relatively good agreement, except HWS110-50. The reason for this phenomenon was that the finite element used the equivalent calculation of the GFRP webs, while all GFRP webs destroyed and their strengths were ignored in the theoretical calculation.


4  Conclusions

In this paper, sandwich wall panels with GFRP skins and a wood-web core are taken as the research objection. The conclusions are summarized as follows:

The results show that GFRP skins and webs can provide the effective confinement to the wood core. Hence, the web reinforced sandwich wall panels can achieve much higher bearing strength.

The internal temperature-time variation rule of the sandwich structure was tested by using the internationally accepted ISO-834 standard heating curve and measured with the thermocouples. The result shows that although the thermal conductivity of GFRP webs and Douglas fir core materials are different, the temperature-time distribution of them is roughly the same.

The model of the sandwich wall panel was established by the finite element software. The residual bearing capacity after the fire of 6 components were analyzed taking web spacing, panel thickness and fire exposure time as parameters and combining with the temperature distribution law obtained in the fire tests. Specific conclusions are as follows:

(1)   Improving the web spacing within a certain range can effectively increase the residual bearing capacity of members. When the web spacing was changed from 50 to 70 mm, the residual bearing capacity of a member increased by about 20%. However, the residual bearing capacity of them is only increased by about 6.7% when the web spacing changes from 70 to 105 mm.

(2)   When the thickness of the component is reduced by 18%, the strength of it decreases by 14.6%, and the reduction in the thickness of the wall panel has a large influence on the residual strength of the specimen.

(3)   When the burning time is different, the residual strength of the component burning for 30 min is 74.96% higher than that of burning for 60 min. By comparing the dead load specimens with those exposed to fire for 30 and 60 min, the residual bearing capacity decreased by 50.5% and 74.3%, respectively. It can be seen that the influence of fire exposure time is considerably important.
