Detection and Discrimination of Tea Plant Stresses Based on Hyperspectral Imaging Technique at a Canopy Level

Lihan Cui1, Lijie Yan1, Xiaohu Zhao1, Lin Yuan2, Jing Jin3 and Jingcheng Zhang1,*

1College of Artificial Intelligence, Hangzhou Dianzi University, Hangzhou, 310018, China
2Zhejiang University of Water Resources and Electric Power, Hangzhou, 310018, China
3Zhejiang Agricultural Technology Extension Center, Hangzhou, 310020, China
*Corresponding Author: Jingcheng Zhang. Email: zhangjcrs@hdu.edu.cn
Received: 23 December 2020; Accepted: 21 January 2021

1  Introduction

Tea is one of the most popular healthy drinks. Owning to the healthy benefits such as lowering the risks from heart disease, cancer, and diabetes, the demand of tea is rising around the world. As the largest tea producing country, China grew 2.93 million hectares of tea in 2018 [1,2]. Given that the quality of fresh tea leaves is decisive to the quality of the final tea product, management of the tea plantation is critical. Stresses of tea plants such as diseases, pests, and sunburns are some important restrictive factors that severely threaten the tea quality [3]. Therefore, the rapid and effective detection and differentiation of these tea plant stresses is of urgent demand to guide proper prevention measures in tea plantations.

At present, the investigation of tea plant stresses is mainly based on field inspection, which is inefficient, prone to be subjective, and difficult to be applied over large areas. As a nondestructive detection technique, hyperspectral sensing is able to respond the changes of plant morphology, material composition, physiological and biochemical status, which thereby has a great potential in detecting diseases, pests and other stresses in tea plantations. Some attempts have shown the capability of hyperspectral observations in detecting plant diseases and pests. Jone et al. [4] used hyperspectral data in determining the disease severity of leaf spot (Xanthomonas perforans) on tomato leaves. Combining the partial least squares (PLS) regression, correlation analysis, and stepwise multiple linear regression (SMLR) procedure, significant wavelengths were identified to construct the prediction models. The best result produced a relatively high prediction accuracy with an R2 of 0.82. Tian et al. [5] found that the hyperspectral imaging observations could be used to detect cucumber downy mildew, and the accuracy reached 90%. In detecting one biotic stress (Venturia inaequalis) in apple trees, Delalieux et al. [6] applied logistic regression, partial least squares logistic discriminant analysis, and tree-based modeling on the hyperspectral data, and developed robust stress spectral indicators. Mahlein et al. [7] successfully used hyperspectral signals in differentiating three leaf diseases (i.e., Cercospora leaf spot, sugar beet rust and powdery mildew) on sugar beet plants. A comprehensive spectral analysis was conducted with a RELIEF-F algorithm, which yielded the optimal bands and constructed specific disease indexes for discrimination of diseases. To detect tea diseases, Yuan et al. [8] selected three sensitive bands (542, 686 and 754 nm) for tea anthrax based on hyperspectral imaging technology, and constructed two vegetation indexes: The tea anthracnose ratio index (TARI) and the tea anthracnose normalization index (TANI). Based on the features above, they propose a discrimination method that combined the unsupervised classification and two-dimensional adaptive threshold methods. The overall accuracy of the models reached up to 98%.

Currently, studies about plant stress detection with hyperspectral data are mainly carried out at a leaf scale [9–11]. However, to achieve the large-scale inspection of tea stresses, it is required to develop the detection methods at a canopy scale. However, different from the relatively pure background in the leaf images, the canopy images include a large amount of variation about plant morphology, canopy structure, and the interaction between light and the plants. The complexity in the canopy images poses a big challenge in the stress detection. Huang et al. [12] compared the spectral responses of the rice leaf folder (Cnaphalocrocis medinalis) disease at a leaf and canopy scales, and found that despite the spectral response at the canopy scale is weaker than that at the leaf scale, some spectral bands and features still exhibited sensitivity at the canopy scale. Based on the canopy spectral measurements, Zhang et al. [13] discriminated two different stresses with similar symptoms (i.e., the stripe rust disease and nitrogen stress) in winter wheat. Besides, Behmann et al. [14] used hyperspectral imaging data to analyze the early drought stress in barley. The results suggested that by integrating image analysis and spectral analysis, the method can not only detect the stress at an early stage, but also identify the specific positions of the damaged areas in the plants’ canopy. Given that the canopy level stress detection methods can potentially be used in near ground UAV sensing platforms and achieve the fast scan and inspection of plant stresses in tea gardens, it is necessary to conduct experimental analysis based on canopy level hyperspectral imaging data. However, relevant works on this matter are still very rare at present.

As an important tea producing region in China, Zhejiang province is famous for its high quality green tea. However, some famous varieties such as Longjing-43 and Anji Baiye-1 are severely affected by plant diseases, pests and sunburn stress. In this work, based on the canopy level hyperspectral imaging data and several statistical and machine learning approaches, we attempt to develop methods for identifying and differentiating plant damages caused by three frequent tea plant stresses [i.e., anthracnose disease (AH), green leafhopper (GL) and sunburn (BU)]. The objectives of this study includes: (1) To identify the optimal spectral bands and features for detecting and differentiating the different stresses; (2) To construct a stepwise protocol for detecting stress damage areas differentiating their types under the complicated canopy scenario; (3) To validate the established method against the experimental data.

2  Materials and Methods

2.1 Materials

The target tea stresses of this study (i.e., the tea leafhoppers, anthrax and sunburns) often occur in tea gardens in Zhejiang province. The three stresses have relatively similar symptoms such as the grayish-brown lesions on leaves. However, given that the prevention of the different stresses require different procedures, it is important to differentiate them for precise management. This experiment was carried out in the experimental tea field of the Chinese Academy of Agricultural Sciences (Zhejiang) in June 2019. The disease, pest and sunburn stresses occurred naturally in the studied field. Based on a field survey, three locations corresponding to the three stresses were picked by an experienced plant pathologist to conduct in-situ canopy hyperspectral imaging measurements.

2.2 Hyperspectral Imaging Measurements at a Canopy Scale

The hyperspectral images were obtained using an UHD185 imaging spectrometer developed by Cubert Company in Germany (http://cubert-gmbh.com/). The imaging spectrometer is a full-frame, snap-shot devise, which have 126 bands within 450–950 nm. The spectrometer has a spectral sampling interval of 4 nm, and an image resolution of 1000 × 1000 pixels. The spectral measurements were made between 10:00 AM and 2:00 PM. The spectral images were taken at a distance of 50 cm above from the top of the tea canopy. The image radiometric correction was performed to convert the reflectance using the reference whiteboard and blackboard. For each type of stress, 40–50 spectral images were taken. After quality control, 30 hyperspectral images were used for subsequent analysis for each stress (Fig. 1).

Figure 1: Hyperspectral images of the three tea plant stresses (AH, anthrax disease; GL, leafhopper; BU, sun burn)

2.3 Development of the Stresses Detection Procedure

2.3.1 Selection of ROIs

To study the spectral characteristics of the different tea stresses, it is necessary to select the region of interest (ROI) to extract spectral information for analysis. Considering the complexity of the canopy image scenario, three types of ROIs were defined, including: Background region (BR), healthy leaf region and scab region (SR). Given that the wax coat of tea leaves tends to cause overexposure in the images, classes of overexposure regions (OR) were specifically defined. Besides, due to the leaf inclination and mutual occlusion, the healthy leaf region was under varied illumination conditions, which thus hampered the detection of stresses. To address this issue, within the healthy leaf region (HR), three types of ROIs were defined, including the (1) Highly illuminated leaf region (HLR), (2) Shadow leaf region (SLR) and (3) Normal-level illuminated leaf region (NLR). All the ROIs have the size of 20 × 20 pixels. For each type of the ROI classes, 3 ROIs were selected from each image.

2.3.2 Selection of Spectral Features for Stress Detection

To facilitate the stepwise detection and differentiation of the tea stresses, three sets of spectral features were selected corresponding to each step, including: (1) Spectral bands for differentiating plant areas and the background; (2) Spectral features for identifying anomalous areas in the tea canopy; (3) Spectral features for differentiating stresses.

(1) Selection of spectral bands for differentiating plant areas and the background

The selection of spectral bands applied the successive projection algorithms (SPA). The SPA is able to generate a combination of wavelengths with the least information redundancy, which thus minimize the collinearity among variables and reduce the dimension of features [15]. In this study, the number of bands in one combination was set as 5–10, and the accuracy of the classification was used as the criteria for bands selection.

(2) Selection of spectral features for identifying anomalous areas in the tea canopy

In this step, the three types of spectral features were included to form a candidate spectral feature set, which included the spectral derivative features, continuum removal features and vegetation indexes. These spectral features were designed to emphasize the spectral response to the plant physiological and biochemical changes (Tab. 1). The selection of spectral features adopted the t-test and autocorrelation analysis. Firstly, a t-test was used to test the difference between stressed (including all AH, GL, and BU stresses) and healthy samples, with the criteria of p-value < 0.001. Then, a pairwise cross-correlation was applied to eliminate features highly correlated with each other. In this process, a criteria of R2 < 0.8 was applied to further reduce the information redundancy among the sensitive spectral features.

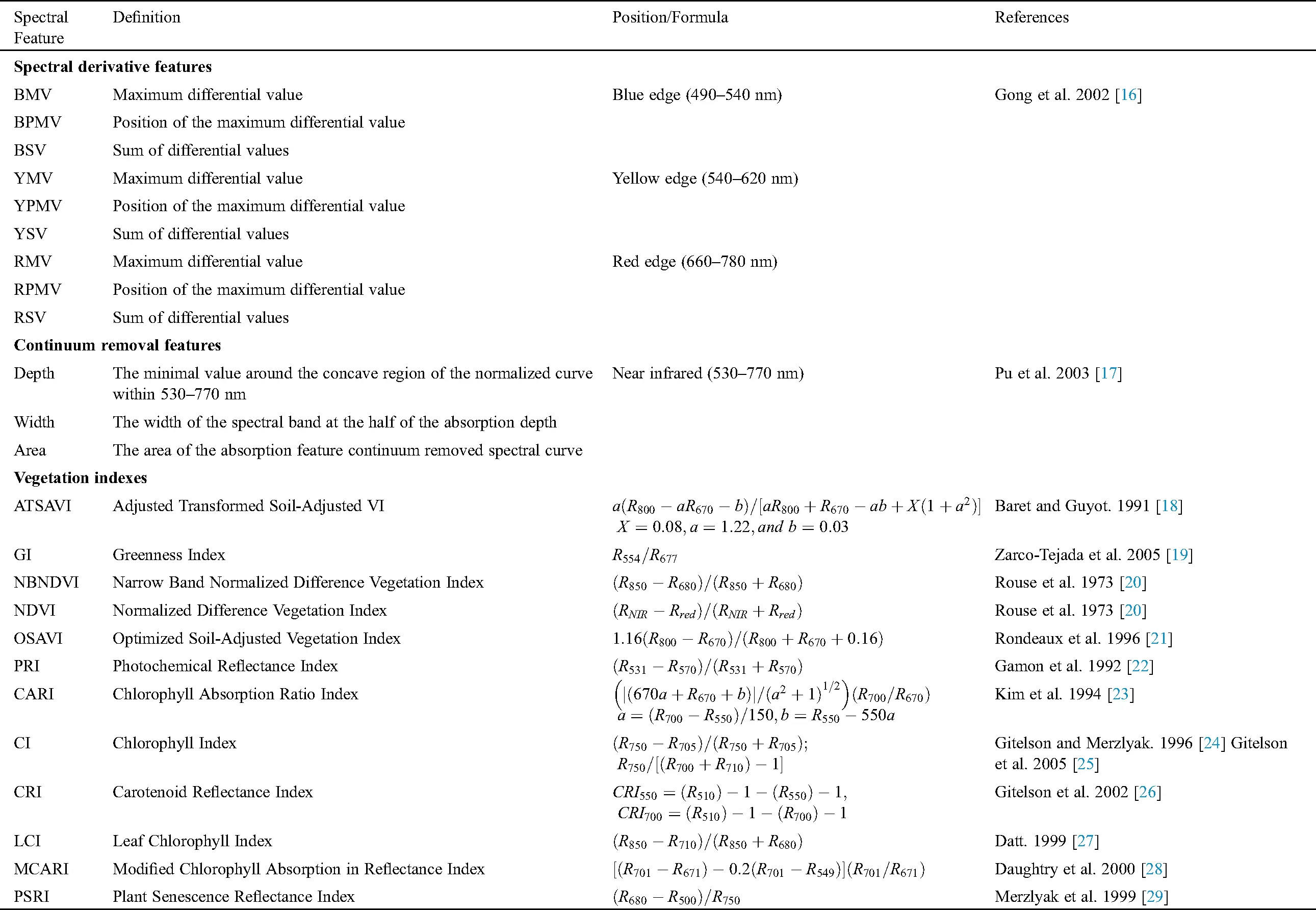

Table 1: Introduction of spectral features used in this study

(3) Selection of spectral features for differentiating three plant stresses

To select spectral features that could distinguish the three types of stresses, t-tests were conducted between each of any of the two stress type pairs (i.e., GL vs. AH, BU vs. AH and GL vs. BU), respectively. Using the criteria of p-value < 0.05, the spectral features that passed all three t-tests were selected, ensuring the features that have the capability in differentiating all three stresses. Then, a cross-correlation analysis was performed to remove spectral features with a high level of information redundancy, and finally form a feature set for distinguishing the stresses.

2.3.3 Construction of a Stepwise Stress Detection and Discrimination Procedure

Considering the complexity of the tea plant canopy images, a stepwise procedure was developed for detecting and discriminating tea stresses based on the hyperspectral imaging data. The procedure includes the steps as: Removal of non-plant background, identification of plant damaged areas and discrimination of the different stresses. The schematic diagram of the workflow is shown in Fig. 2.

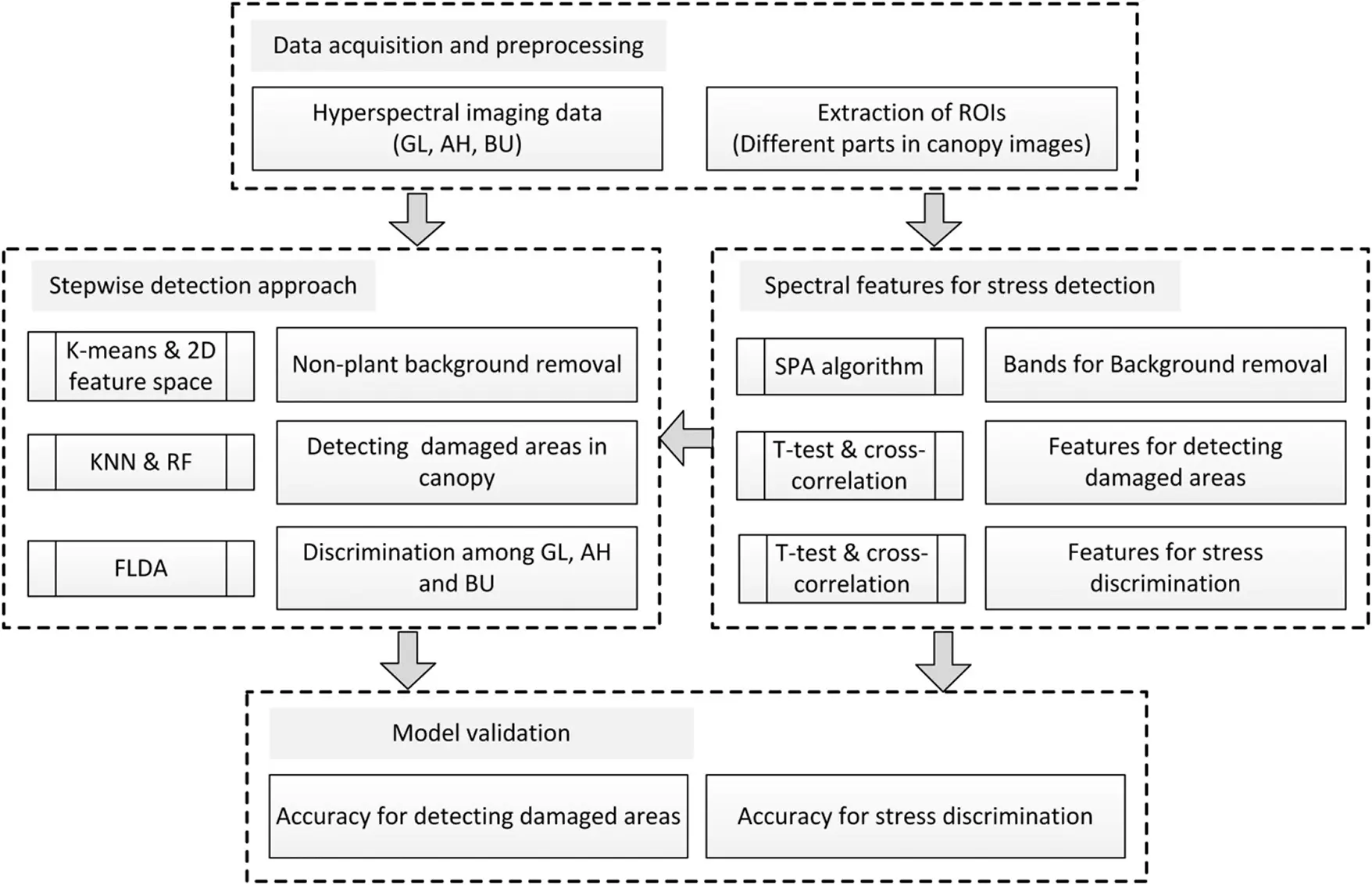

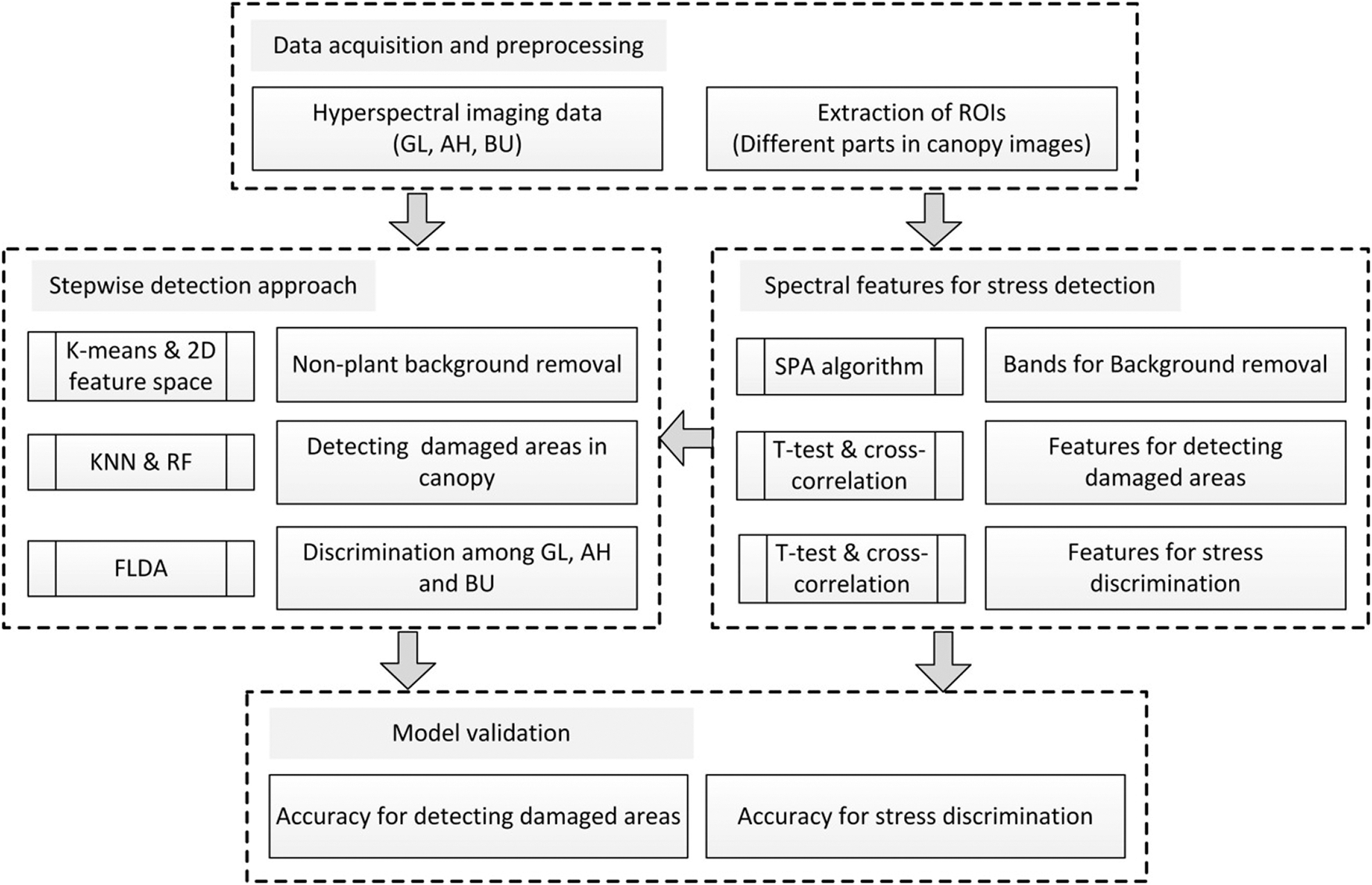

Figure 2: Workflow of data analysis

Firstly, to remove the non-plant background area, the K-means method was applied on a couple of sensitive spectral bands to generate the clustering result of the image. By analyzing the clustering results in the Red-NIR spectral feature space, a threshold method was used to remove those non-leaf areas [8]. To determine the most appropriate threshold value for Red and NIR bands, twenty evenly spaced intervals were traversed from the minimum to maximum. The threshold corresponding to the highest accuracy was determined and applied for background removal.

Secondly, a model for detecting damaged areas was established based on the corresponding optimal spectral features and two classic machine learning classifiers, the K-Nearest Neighbor (KNN) and Random Forest (RF). As a non-parametric learning algorithm, the KNN assigns samples to the class to which the majority of the K data points belong based on feature distance. The algorithm for RF is a supervised approach that made up the decision trees. It uses bagging and feature randomness when building individual decision trees to try to create an uncorrelated forest whose prediction is more accurate than that of any individual tree. The performance of the two classifiers in detecting damaged areas was compared.

Finally, a discrimination model was established based on the corresponding optimal spectral features and the Fisher linear discrimination model (FLDA). As a classic classification approach, the FLDA is able to generate linear combination of spectral features and construct a linear equation for classification. Within the damaged areas, the type of stress was thus separated with the FLDA.

2.4 Accuracy Evaluation

In this study, all hyperspectral images were randomly divided into two parts: 50% of data were used for training, and the other 50% for verification. According to the confusion matrix, the overall Accuracy (OA) and kappa coefficient were calculated as accuracy indicators. In this study, hyperspectral image data processing was completed in ENVI 5.3 (Exelis Visual Information Solutions, USA), and data analysis and modeling was completed in Matlab 2014 (MathWorks, USA).

3  Results and Discussion

3.1 Spectral Characteristic of Tea Plant Diseases and Pests

By observing and comparing the spectral curves that were extracted from the ROIs of GL, AH, BR stressed hyperspectral images, it was found that the spectral characteristic follow the same pattern across different types of ROIs. In all types of stress images, the overexposed region (OR) and the background region (BR) have the highest and lowest spectral reflectance in most bands, respectively. The reflectance of highly illuminated leaf region (HLR) and shadow leaf region (SLR) for the healthy leaf area (HR) were slightly higher and lower, respectively, than those of the normal-level illuminated leaf region (NLR) (Fig. 3).

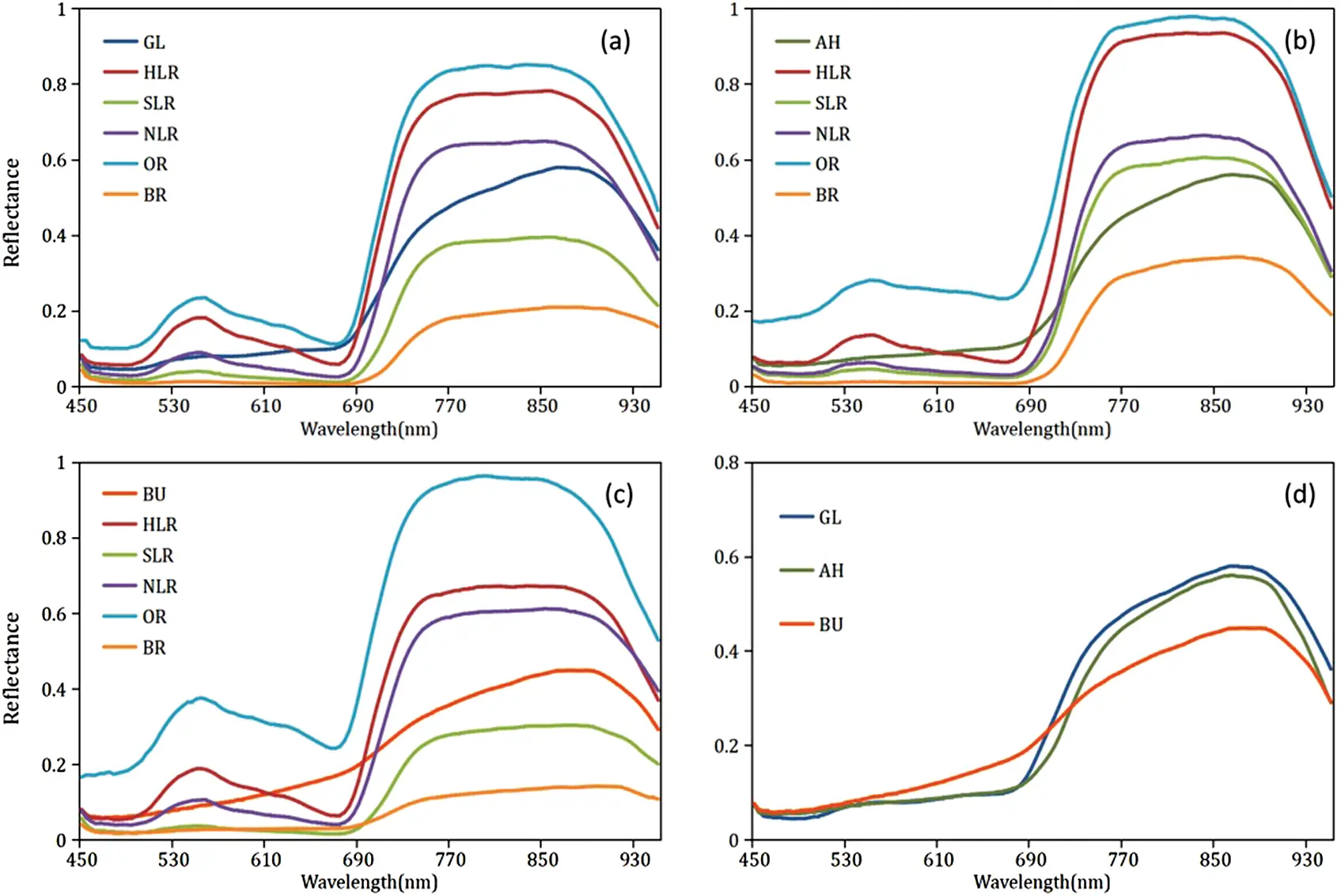

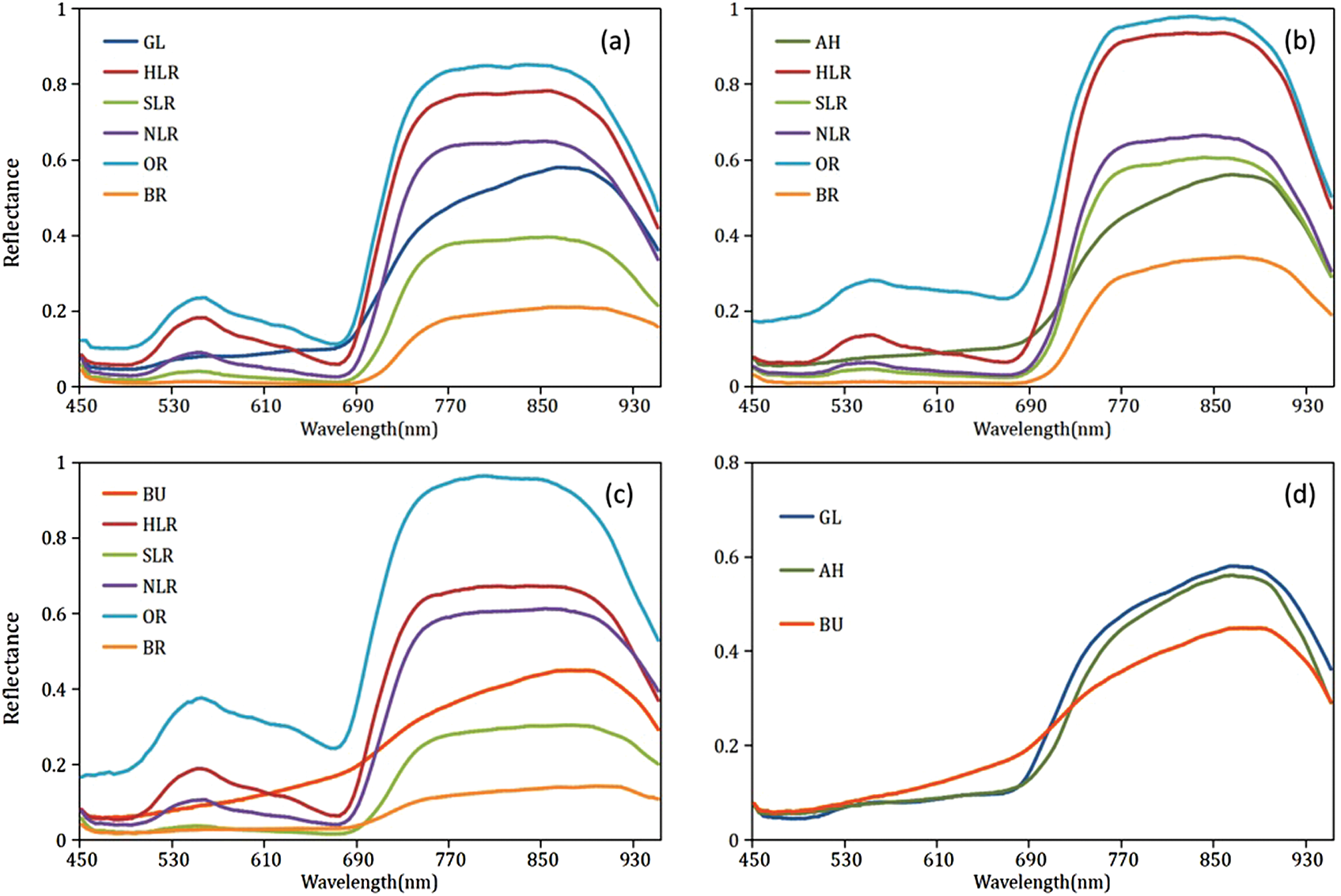

Figure 3: Reflectance spectral curves of different regions in images of 3 tea stresses. (a) Comparison of averaged spectral curves among different ROIs in GL images; (b) Comparison of averaged spectral curves among different ROIs in AH images; (c) Comparison of averaged spectral curves among different ROIs in BU images; (d) Comparison of averaged spectral curves among the damaged ROIs of the 3 stresses (i.e., GL, AH, BU)

In comparing the spectral reflectance between healthy and damaged leaf regions, it was found that the reflectance significantly increased in the red band (620–660 nm) and decreased in the near infrared platform (780–900 nm) for the damaged regions, and the shape of the entire spectral curves tend to be relatively flat. Such spectral changes might be associated with the damage to the pigment system and destruction of cellular structure [30]. Among the three stresses, GL and AH showed similar spectral curves, whereas the spectral curve of BU deviated from that of the healthy leaf regions at a larger extent, which indicates the different extent between biological and physical destruction. As a physical damage, BU usually causes relatively wide and severe damage to plant tissues, while the damage caused by disease infection and pest infestation usually presented a gradual damage process with a relatively limited extent. The spectral difference among the different ROIs forms an important basis for subsequent detection of canopy damaged areas and discrimination of stresses.

3.2 Selection of Optimal Spectral Features for Tea Stress Detection

For separating tea plants from the background in the canopy hyperspectral images, a total of seven spectral bands were selected through the SPA algorithm, including: 460 nm, 550 nm, 670 nm, 706 nm, 742 nm, 893 nm and 920 nm. These bands were distributed at some important positions in the spectral curve of plants (Fig. 4). For example, 460 nm, 550 nm and 670 nm were located around the blue edge, green peak, and red valley regions. These locations are sensitive to changes of some important biochemical components such as the content of chlorophyll, which may have a significant difference between healthy and stressed plant regions. The 706 nm and 742 nm located around the red-edge region, which are sensitive to the stress status of plants. As the SPA algorithm adopted the combinatorial optimization strategy, the optimized bands have a relatively low level of correlation among each other, which is carried out in the background removal process.

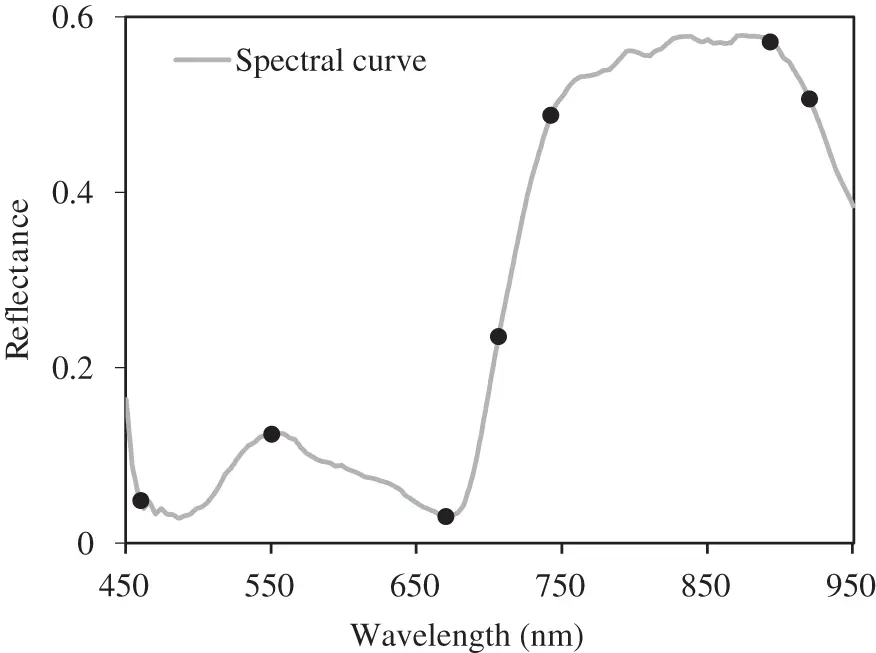

Figure 4: The locations of the optimal bands selected by SPA algorithm

In selecting features for detecting damaged areas, the t-test analysis and the cross-correlation analysis were applied on the three types of candidate spectral features (i.e., spectral derivative features, continuum removal features and vegetation indexes). This yielded a total of 5 spectral features: YSV, Area, GI, CARI and NBNDVI. Among them, the spectral derivative feature YSV captures the degree of spectral variation within 540–620 nm, while the continuum removal feature Area indicates the intensity of spectral absorption within 530–770 nm. These two spectral shape-based features mainly reflect the variation of pigment contents. The other three vegetation indexes indicated the greenness and the chlorophyll content of plants. Given that the content of these pigments will significantly decrease when plants are under stress, the identified spectral features can (1) Serve as indicators of the health status of plants, and (2) Be used for detecting the damaged areas in the hyperspectral images (Tab. 2).

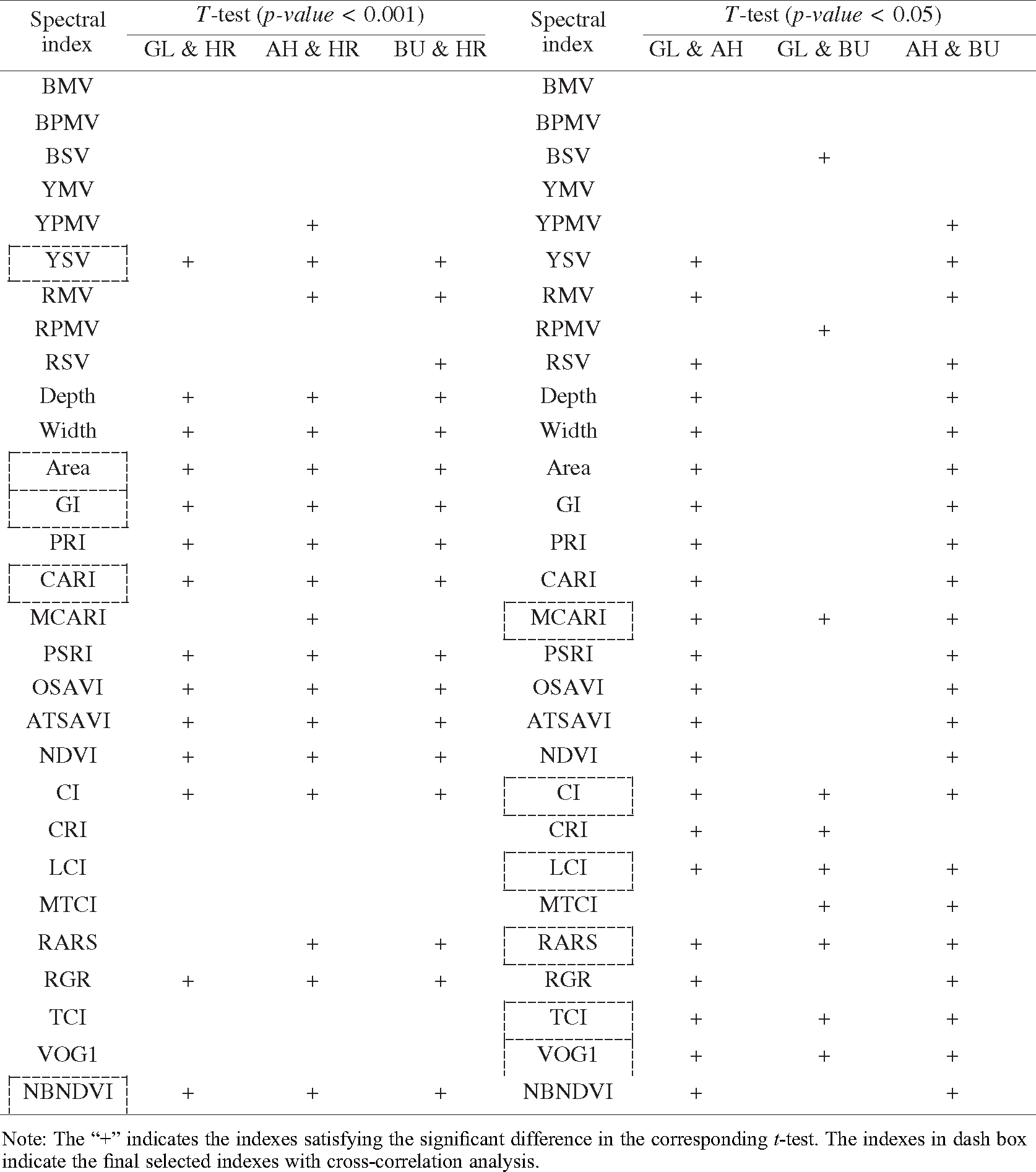

Table 2: Spectral features for detecting and discriminating tea stresses

In addition, the same strategy was applied on the selection of spectral features for discriminating different stresses, which yielded 6 optimal spectral features: MCARI, CI, LCI, RARS, TCI and VOG. These features are all vegetation indexes that associated with the contents of chlorophyll and carotenoid (Tab. 2). Given that different stresses can cause subtle differences of damage to the pigment system in plant leaves, the spectral responses are able to be captured by the features and used for discriminating these stresses.

3.3 Detection and Discrimination of Tea Plant Stresses

Firstly, and based on the optimal bands generated by the SPA algorithm, the non-plant background needs to be removed from the tea canopy hyperspectral images. The K-means algorithm was applied on the images of the selected bands to conduct the clustering on the image pixels. The pixels belonging to each cluster were then projected to the two-dimensional feature space that consisted in the reflectance of the RED (630–690 nm) and near-infrared (NIR; 760–900 nm) bands. It was observed that the background area was located in the part with relatively low RED and NIR values, whereas the overexposed area was located in the part with relatively high RED and NIR values. Through an iterative-optimized thresholding approach, the background and overexposed area were removed so that the subsequent analysis was focused on the plant area in the images (Fig. 5). Comparing with the traditional pixel-based classification methods, the clustering-based method effectively mitigated the edge irregularities and the “salt and pepper” phenomenon in the classification results [8].

Figure 5: Demonstration of the non-plant background removal process (In the result image, the overexposed and background areas are highlighted in yellow and black)

Within the plant area of the image, based on the selected optimal spectral features that were suitable for damage detection, both KNN and RF were applied for constructing the model for detecting the damaged areas on tea plants (Tab. 3). In this process, unlike the usual pixel-based analysis, the modeling process also took the K-means clustering results as basic units. The detecting models were validated with the validation image data, and the results showed that the KNN outperformed the RF model in general. The KNN achieved relatively high accuracy for all three stresses, with an OA over 95%. While for RF, the performance differed significantly among the stresses, with a relatively high accuracy for GL (OA = 98%), and moderate accuracies for AH (OA = 86%) and BU (OA = 83%). The difference of the model performance can also be observed from a couple of examples as shown in Fig. 6. It is noted that the results of the RF models included several over-classified regions, which was the main reason for their relatively low accuracy. The significant spectral difference between the stressed and healthy samples may provide a solid basis for the classification using the KNN model, which adopted the straightforward feature distance criteria. The simple structure and low level of computational complexity makes it a promising solution in practice.

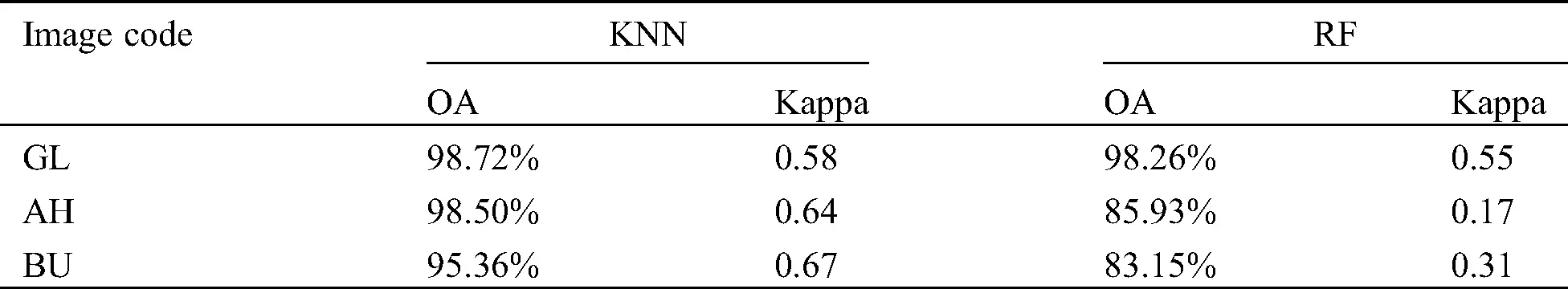

Table 3: The accuracies of detecting damaged areas in GL images

Figure 6: Demonstration of the damage detection on different plant stresses and different classifiers

For stress discrimination, after comparing with the visual recognition results, the Fisher discriminant model achieved relatively high accuracies for all the three types of stresses. In them, the discrimination accuracy reached 98.53% and 98.29% for GL and AH, respectively. The accuracy was slightly lower for BU, with an OA of 93.94%. Despite the three stresses were similar on symptoms, it is encouraging that the subtle differences were effectively captured by the spectral signals (Fig. 7). When comparing the present study with some studies that were conducted at a leaf level, the complicated background scenarios at the canopy level posed a big challenge in detecting and differentiating the diseases and pest. However, by adopting the conception of stepwise detection, the final discriminant analysis can be carried out in a relatively pure scenario (i.e., the damaged area), which is beneficial for improving the performance and stability of the model. It is of great importance to incorporate this canopy-level tea stress detecting and discriminating method in some autonomous driving platforms such as Unmanned Aerial Vehicle (UAV) that are equipped with hyperspectral or low-cost customized-bands cameras. More studies and experiments need to be carried out to verify the effectiveness of corresponding methods in large-scale detection of stresses in tea plantations.

Figure 7: Demonstration of the tea plant stress discrimination (The areas highlighted in red in the second column indicate damaged areas; the third column showed the discriminated results, with GL in yellow, AH in pink and BU in lake blue)

4  Conclusion

Aiming at detecting and discriminating among three commonly occurring stresses on tea plants (i.e., plant disease, pest and sunburn) at a canopy scale, this study proposed a stepwise procedure based on the canopy level hyperspectral imaging data and spectral analysis, image processing, and machine learning approaches. The main findings included:

  1.  Despite the structural complexity of the canopy images of tea plants, significant spectral differences were evident among different regions. Through comprehensive spectral sensitivity analysis, the optimal bands for background removal were identified at 460 nm, 550 nm, 670 nm, 706 nm, 742 nm, 893 nm and 920 nm; the optimal spectral features for damaged area detection were identified as YSV, Area, GI, CARI, and NBNDVI; and the spectral features for stress discrimination were identified as MCARI, CI, LCI, RARS, TCI, and VOG.

  2.  Based on the selected spectral features, a non-plant background removal method was proposed combining K-means and two-dimensional (Red-NIR) spectral feature space analysis. Then, a machine learning based model was constructed to identify the damaged areas in the tea canopy. Finally, a stress discrimination model was established with the Fisher linear discriminant method.

  3.  The validation results suggested that the proposed procedure is able to achieve a relatively high accuracy. The accuracy of damage area detection reached 95%, and the stress discrimination accuracy reached 98%. Our results confirmed the feasibility in detecting and differentiating among GL, AH and BU stresses in tea plants at a canopy scale.

Different from the stress detecting studies that were conducted at a leaf scale, the present study showed a possibility of using canopy-level hyperspectral imaging data in detecting plant stresses. The proposed method may provide a basis for detecting anomalous areas in tea gardens or orchards over large areas.

Acknowledgement: The authors are grateful to Dr. Huawei Guo and Prof. Wenyan Han for their assistance in experimental design and data collection.

Funding Statement: This work was supported by Zhejiang Public Welfare Program of Applied Research (LGN19D010001), Zhejiang Agricultural Cooperative and Extensive Project of Key Technology (2020XTTGCY04-02; 2020XTTGCY01-05), and the National Key R&D Program of China (2017YFE0122500).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
