Optimization of Transducer Location for Novel Non-Intrusive Methodologies of Diagnosis in Diesel Engines

S. Narayan1,*, M. U. Kaisan2, Shitu Abubakar2, Faisal O. Mahroogi3 and Vipul Gupta4

1Department of Mechanical Engineering, Qassim University, Buraydah, 51452, Saudi Arabia
2Department of Mechanical Engineering, Ahmadu Bello University, Zaria, 810211, Nigeria
3Department of Mechanical Engineering, Islamic University of Madina, Medina, 42351, Saudi Arabia
4Department of Mechanical Engineering, Indus International University, Una, 174301, India
*Corresponding Author: S. Narayan. Email: rarekv@gmail.com
Received: 18 March 2021; Accepted: 07 June 2021

Abstract: The health monitoring has been studied to ensure integrity of design of engine structure by detection, quantification, and prediction of damages. Early detection of faults may allow the downtime of maintenance to be rescheduled, thus preventing sudden shutdown of machines. In cylinder pressure developed, vibrations and noise emissions data provide a rich source of information about condition of engines. Monitoring of vibrations and noise emissions are novel non-intrusive methodologies for which positioning of various transducers are important issue. The presented work shows applicability of these diagnosis methodologies adopted in case of diesel engines. The effects of changing various fuel injection parameters was analyzed. Scope of using non-intrusive technique has been analyzed by changing locations of microphone. Novelty of this worklies in exploring signal processing methods for various locations around the engine test set up. Various frequency ranges of contributing noise and vibration sources were identified. Time-Frequency analysis showed the onset of various cyclic. Based on the identification of various frequency bands, it is possible to device suitable filters in order to extract more information.

Keywords: IC engines; automotive; vibrations and noise emissions; condition monitoring; specialized industrial machinery and equipment

1  Introduction

Various sources of noise and vibrations in an automotive systems are shown in Fig. 1 [118].

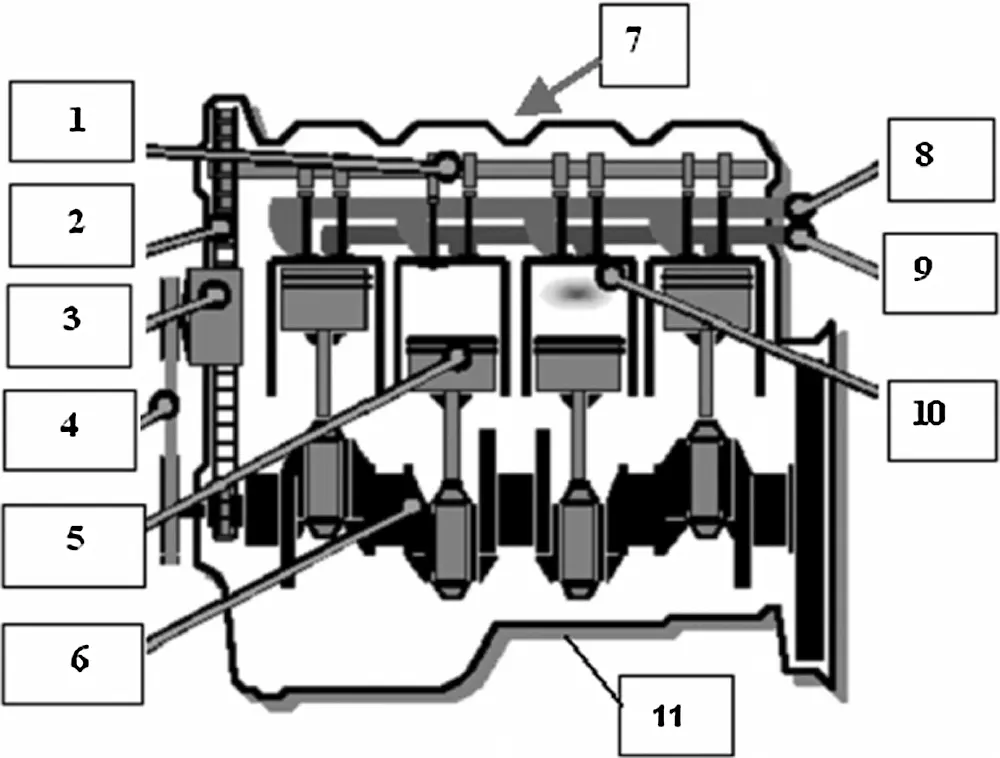

Figure 1: Sources of automotive noise (1: valve train motion, 2: chain drive motion, 3–4: accessory noise, 5: piston slapnoise, 6: bearing noise, 7: cover noise, 8: intake noise, 9: exhuast noise, 10: combustion noise, 11: oil pan noise)

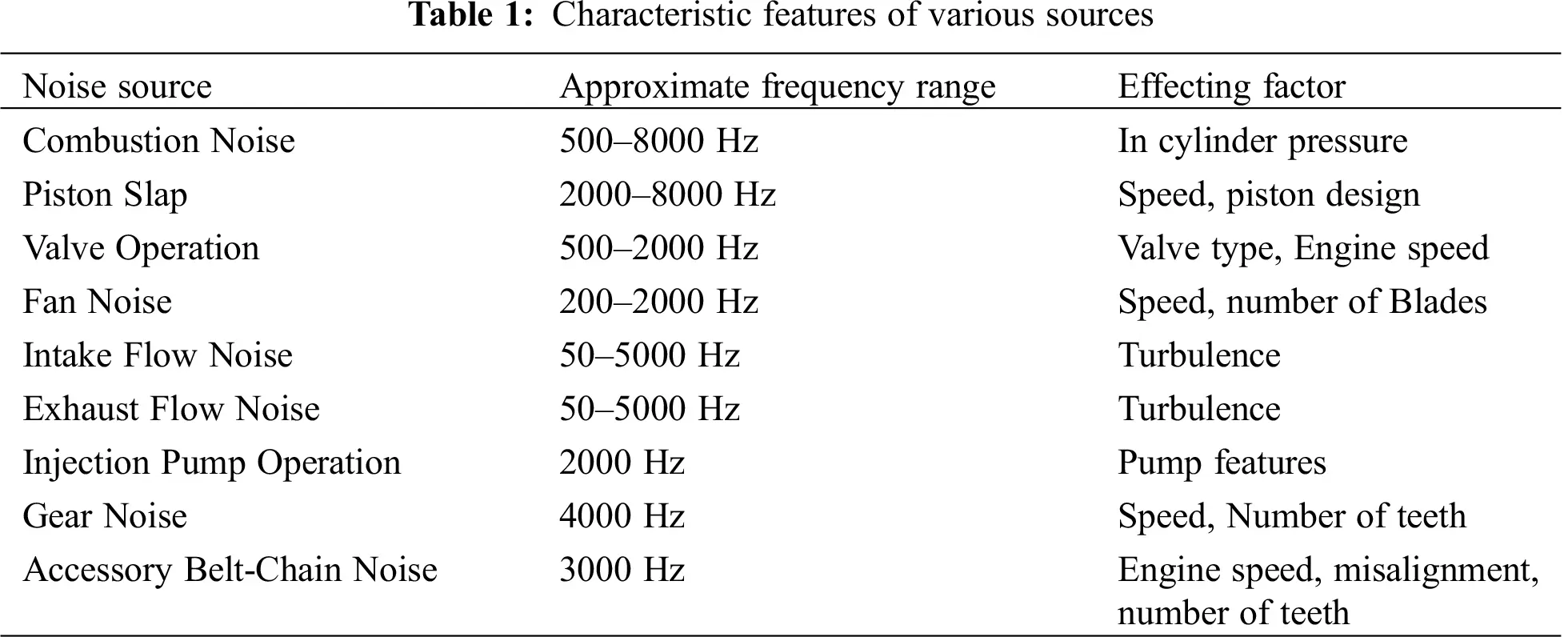

Combustion based noise can be analyzed by monitoring the speed of combustion. It is generated as an impulsive pressure wave [19]. Motion based noise which is proportional to operational speed of engine, includes noise due to piston motion, bearing noise, cam noise, oil pump noise, timing belt and chain noise as well as structural noise of cover [20,21]. Aerodynamic flow noise includes contributions due to intake noise, exhaust noise and noise due to motion of fan. Wind and road tire noise lie in the medium frequency ranges [22]. Tab. 1 presents comparisons of features of various sources of noise in engines.


Among the advanced techniques, monitoring of noise and vibration emissions from engines, are important benchmarks for various choice of customers [1121]. Various diagnosis methodologies adopted in case of diesel engines for their condition monitoring includes:

A. Monitoring of structural vibrations-optimumlocation of accelerometer transducer is a major hurdle as there may be contamination of signals. Frequency spectrum, peak or RMS values are effective to monitor various faults like imbalances, bearing damage or shaft misalignments [1].

B. Noise monitoring- injector operational faults, wear, incorrect injection timings, valve operation faults may be diagnosed by monitoring noise emissions from engine.

C. Cylinder pressure development monitoring-location of abnormal combustion and hence overall combustion efficiency of engines can be monitoring by profile of pressure developed inside combustion chamber. However, higher operational temperatures conditions make various pressure sensors expensive with short life span time [2].

Attributes such as durability and serviceability requires a vehicle to be in service for certain period of time. Costs of vibration and noise control are usually very high, e.g., the yearly costs of warranty for brake was about 1 Billion U.S. $. during the year 2005 [2340]. So it is necessary to focus on NVH aspects of combustion engines.

2  Background

Various signal processing methods that may be used for effective condition monitoring of engines includes:

A. Power spectral density function (PSD)—This function (Ψ 2) provides the frequency composition of data in terms of its mean square values [4]. The mean square values of a time sample in frequency range [ω, ω+ ω] can be obtained by passing sample through a band pass filter with sharp cut off frequency features and then computing the average of squared output from filter.

B. Time frequency analysis—This analysis is useful as long as frequency content of signals do not vary with time. Hence time frequency analysis or wavelet analysis are more suitable for analysis of transient signals [5]. In the time frequency analysis, the signal is windowed into small intervals and then Fourier transformation is taken for each interval [629]. Length of window can be used to change the resolution of the output signal. A shorter window has higher resolution in time domain, but a poor resolution in frequency domain and vice versa.

3  Literature Review

Dev Prakash Satsang investigated the efficacy of different diesel/n-butanol blends in a direct injection diesel genset engine [30]. Syed et al. recorded vibration signatures from an engine operated with ZnO particles suspended in Jatropha Methyl Ester (JME) biodiesel [31]. An artificial Neural Network (ANN) modelling was used to predict Root Mean Square (RMS) of velocity. Liu et al. [32]. developed random analysis procedure to predict the structural response of railway vehicle. Wang et al. [33] proposed a numerical method for NVH design sensitivity. Sofiyev et al. [34] analysed vibration of truncated conical shells made of functionally graded material. Jayaswal et al. [35] provided a review of ANN, fuzzy logic and wavelet transform in fault diagnosis in rolling bearings. Li et al. [36] achieved source separation using acoustic signals. Yildirim et al. [37] analysed noise and vibration of cars by feedforward and radial basis neural networks. Amezcua et al. [38] demonstrated accelerometer can provide sufficient combustion information. Morello et al. [39] analyzed crankshaft vibration to locate slapping motion of the skirt and combustion noise. In Jia et al. [40] concluded that the accelerometer signals were significantly influenced from a mechanical noise sources due to the start of injection. Research into the estimation of diesel engine combustion metrics via remote combustion sensing has become an increasingly active area of combustion research [41]. For reduction of engine-out emissions and improvement of fuel economy, closed-loop control of the combustion process has been explored and documented by many researchers [42]. A novel bi-directional non-negative matrix factorization (GBiNMF) algorithm was proposed to find a parts-based representation of the TFRs corresponding to different fault models [43,44]. An estimation method of the combustion chamber pressure, in an internal combustion engine was created based on the comparison of the vibration and pressure signals [4559].

4  Material and Methods

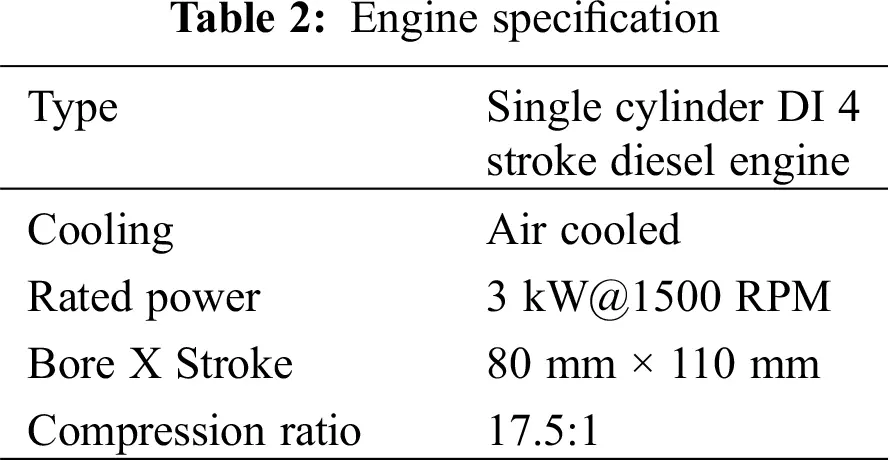

Experiments were conducted on a KPKN2520 type kirloskar diesel rig having specifications as presented in Tab. 2. Various testing conditions are enlisted in Tab. 2. Testing case with fuel injected at 3600 RPM engine speed and 700 Bar injection pressure was taken as references. 1 mm3/stroke of fuel was injected during pre -injection period as well as main injection period at crank angle positions 6° and 10° before top dead center positions of for this case.

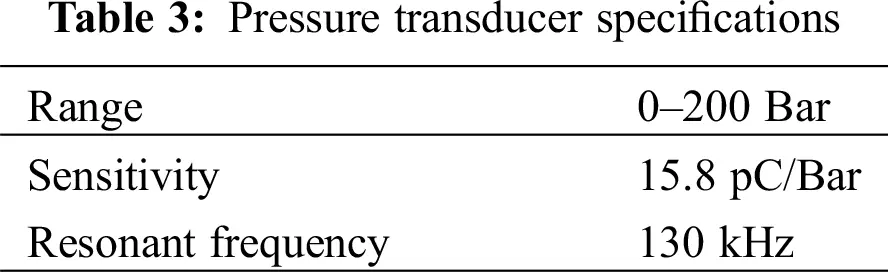

An AVL GU13P type piezoelectric transducer was used to acquire the instantaneous in-cylinder pressure data having various features enlisted in Tab. 3.

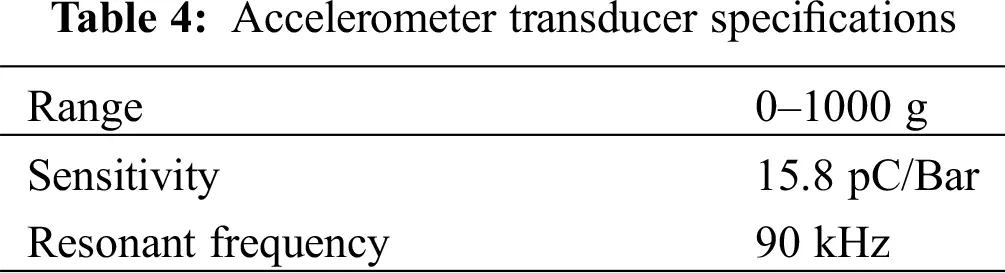

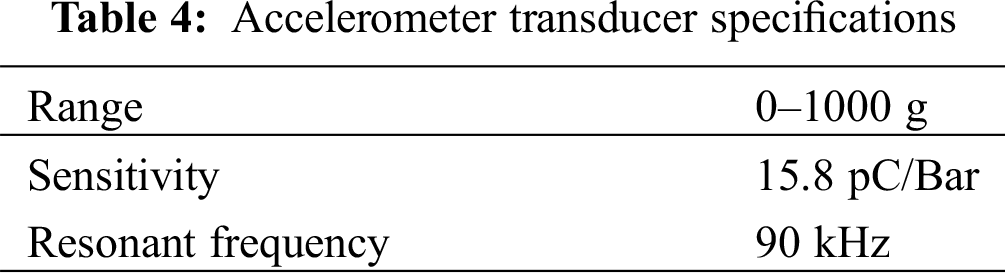

Various block vibrations were recorded by Endveco7240C make Mono axial accelerometers having features shown in Tab. 4.

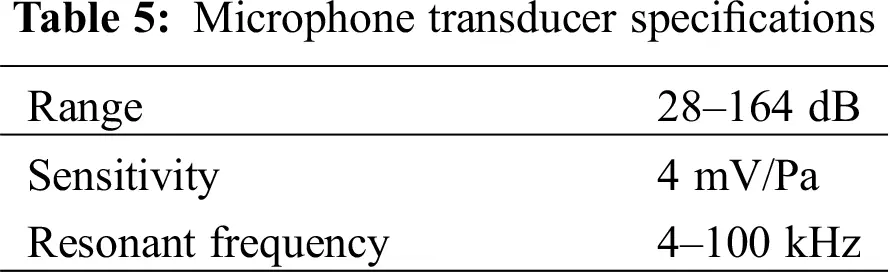

A 4939 type Bruel and Kjaerfree-field ¼″ make microphone having a preamplifier (type 2670) was used to acquire various noise emission signals. Main features of this transducer are shown in Tab. 5.


5  Results and Discussions

In order to analyze noise emissions at various locations, a grid was built around the test engine to change the location of microphone. Particular attention was focused on three positions marked A, B, C as depicted in Fig. 2. Figs. 3 and 4 show recorded noise emissions at three chosen locations under full 100% load conditions and speed of 1600 RPM and 2000 RPM. It can be observed that all traces have low frequency oscillations related to firing frequency of engine. Position C is characterized by high frequency oscillations around 360°crank angle position due to onset of combustion events.

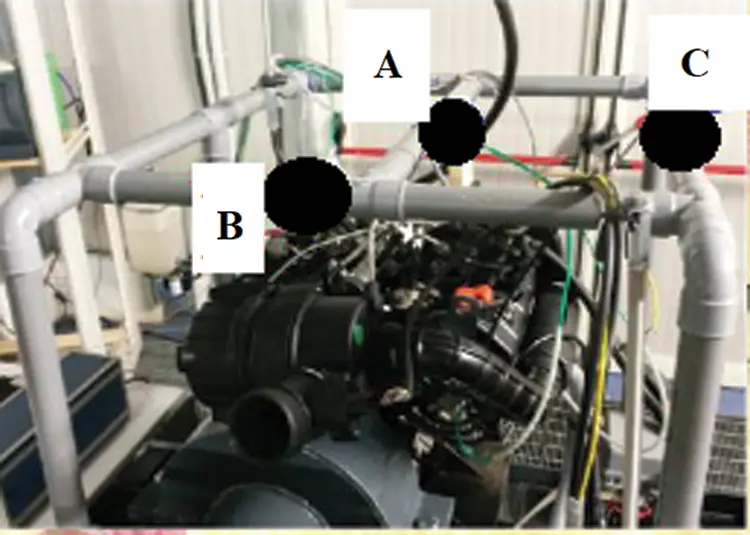

Figure 2: Three positions to acquire noise emissions

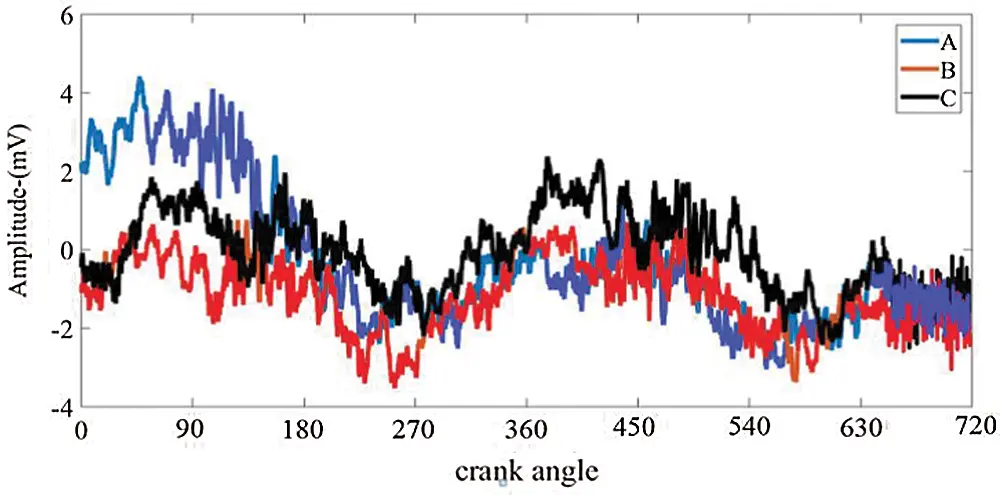

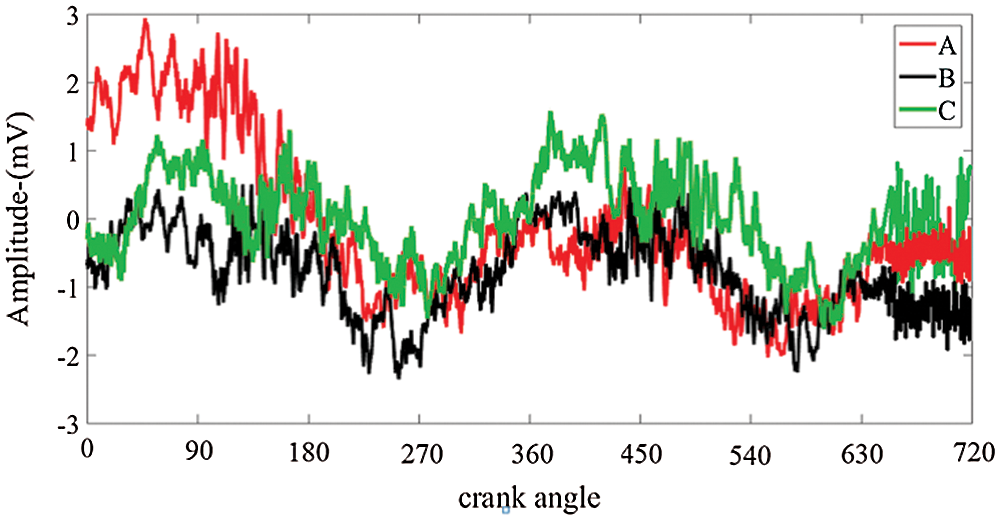

Figure 3: Noise emissions at 1600 RPM, 100% load


Figure 4: Noise emissions at 2000 RPM, 100% load

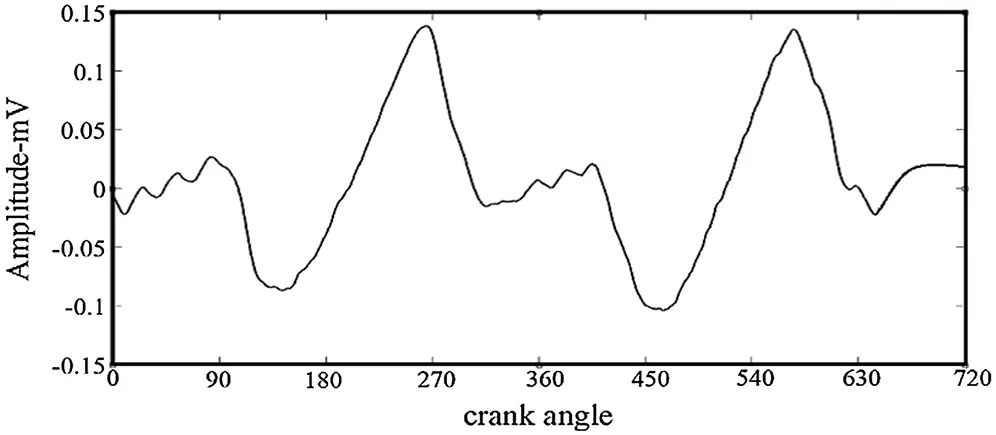

Position B was next investigated to see if any information could be extracted regarding intake flow noise. Figs. 5 and 6 show plot of intake pressures acquired at this position at various testing conditions. Absence of any noticeable changes in signals acquired shows that acoustic signals were least affected by load values.

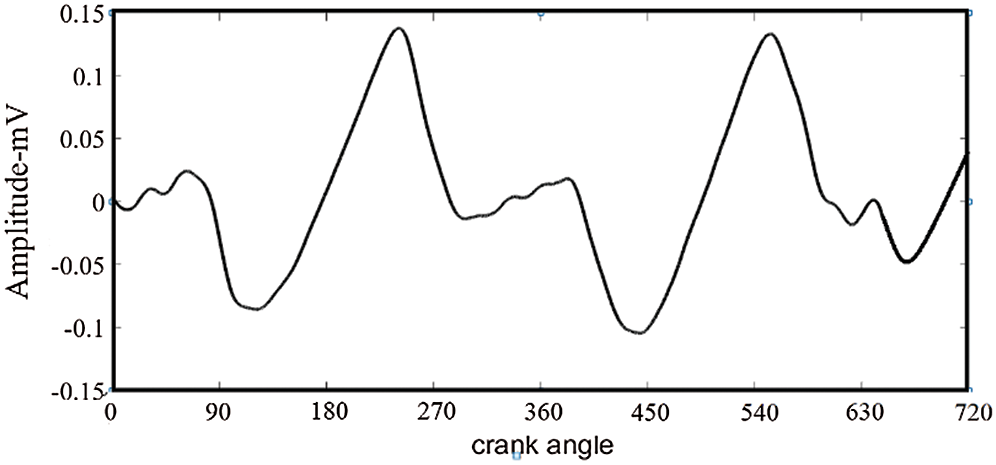

Figure 5: Intake pressure at 1600 RPM, 80% load


Figure 6: Intake pressure at 1600 RPM, 100% load

Further coherence function was used for analysis of signals. This function which is denoted as a normalized function that may be defined as the ratio between the square of cross power spectral densities of input and output signals to the product of the power spectral density (PSD) of individual signals. Figs. 7 and 8 show plot of coherence functions between intake pressure and noise radiated from engine at location B were computed using a Hanning window of length 1/6th of engine cycle. It may be observed that a close relationship exists between the two signals in frequency range [50 Hz–400 Hz] irrespective of load values. Such a band in which intake pressure signals are closely correlated with noise emissions is dependent on engine speed. In this frequency band, gas exchange process may be considered as a major contributor towards overall noise emissions.

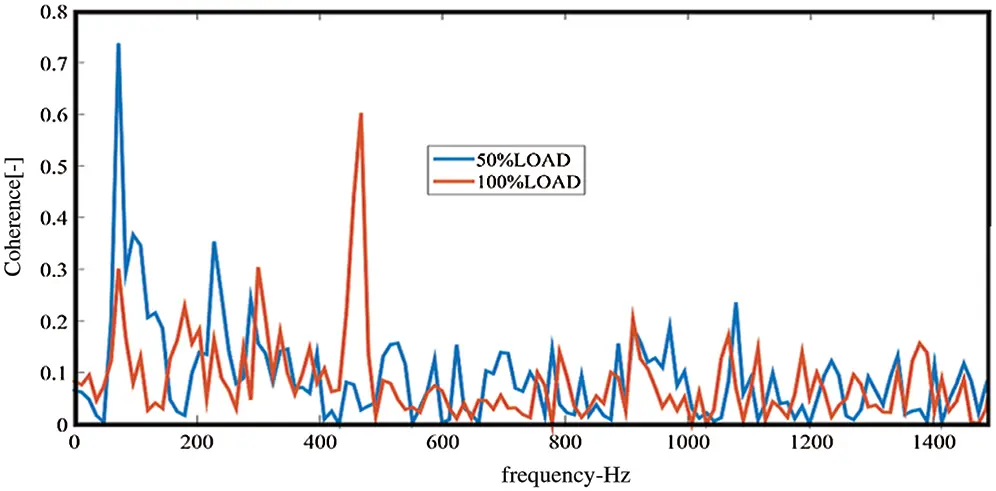

Figure 7: Coherence between cylinder pressure and intake pressure signals (100% load, 1600 RPM)

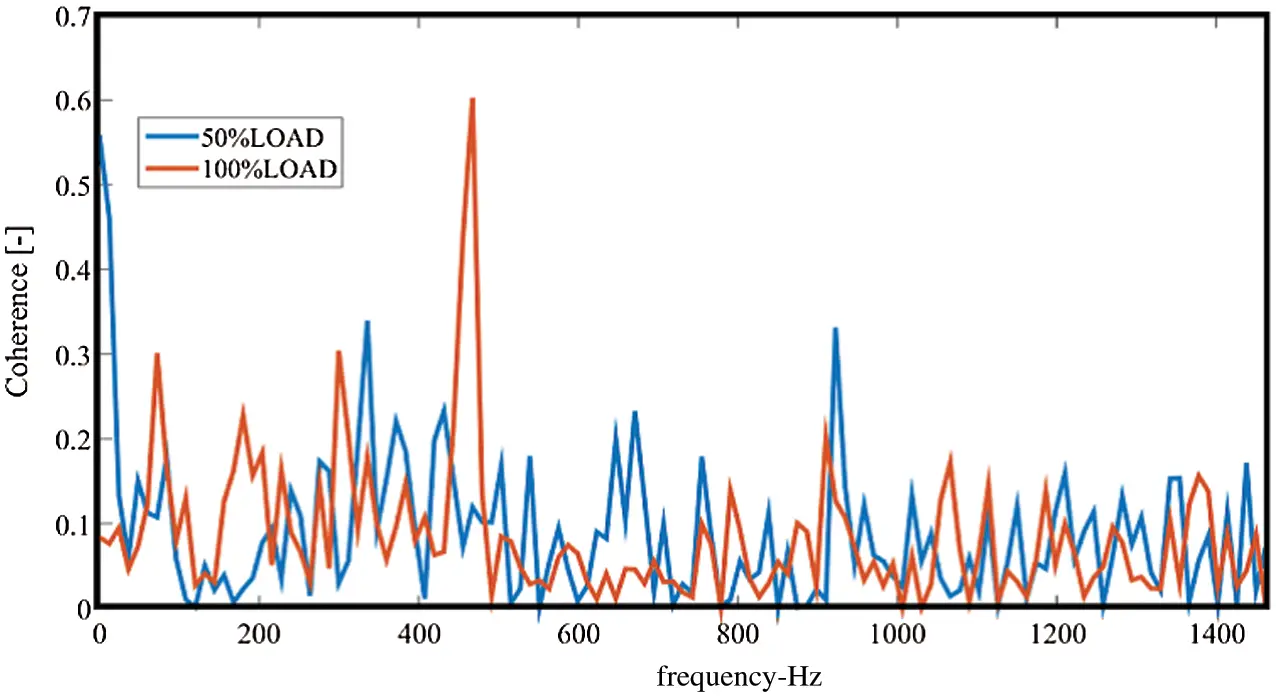

Figure 8: Coherence between cylinder pressure and intake pressure signals (100% load, 2000 RPM)

The noise emissions at location C were filtered in the above mentioned frequency range and compared with those of unfiltered noise emissions at location B as shown in Figs. 9 and 10. A close correlation between two signals shows the selected frequency band was properly chosen.

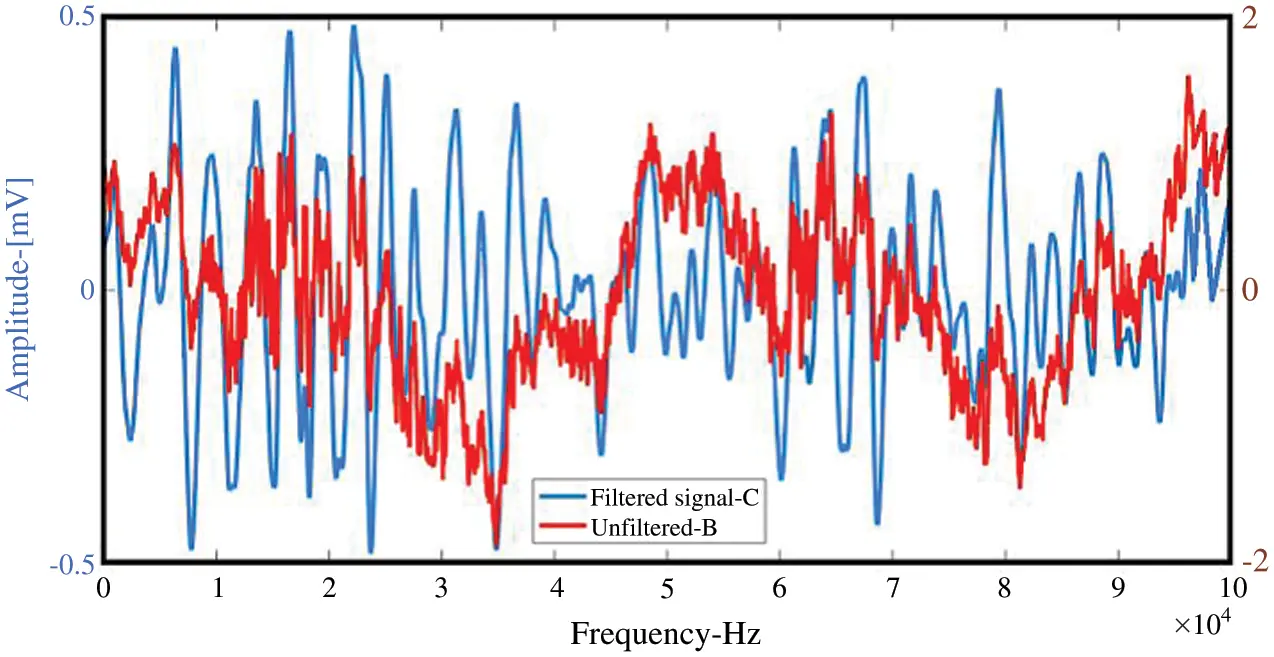

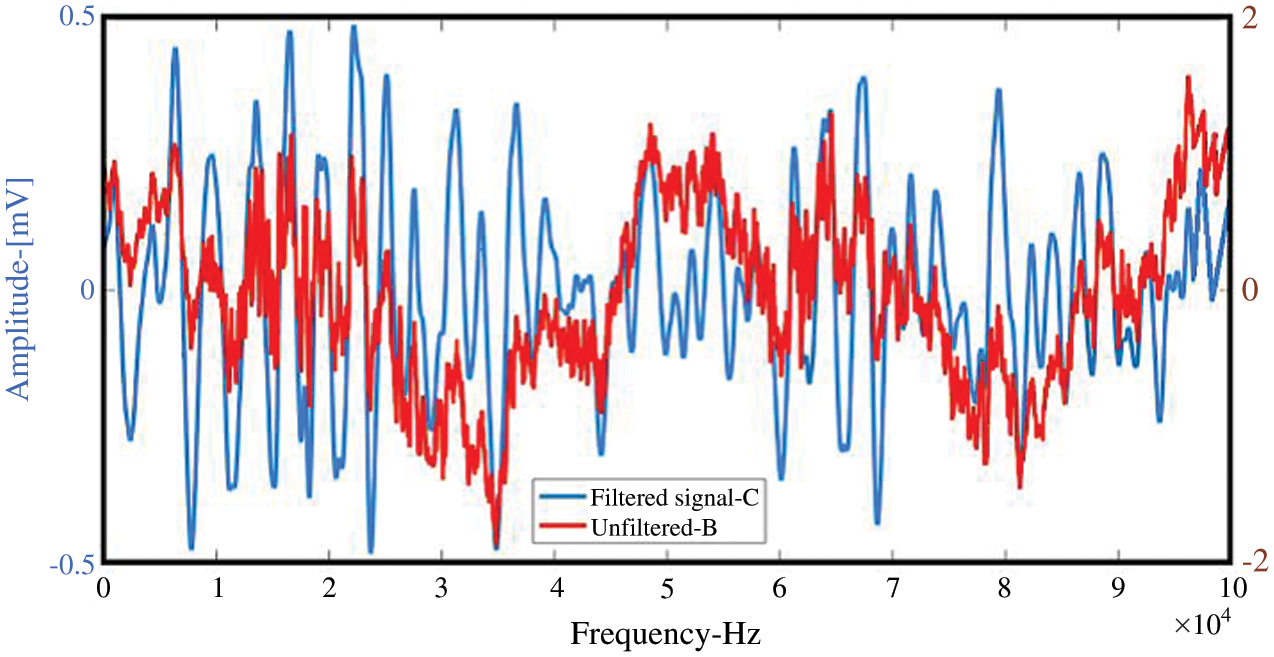

Figure 9: Comparison between signals (1600 RPM—100% load)

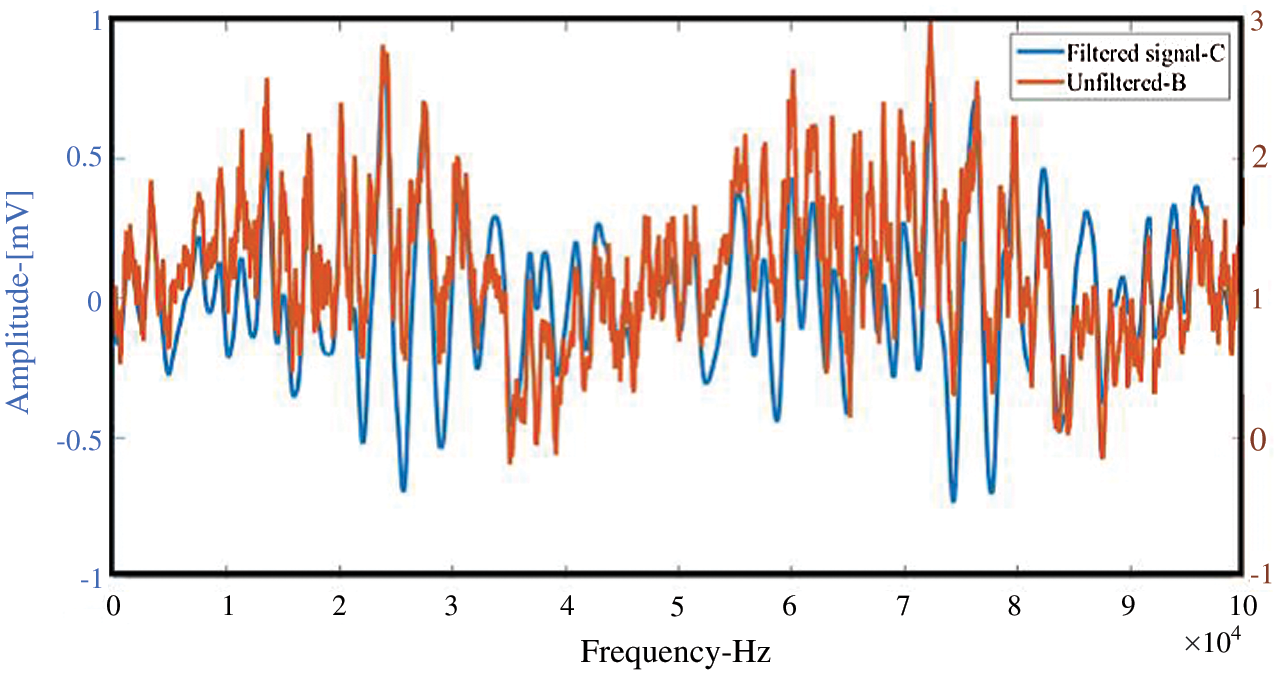

Figure 10: Comparison between signals (2000 RPM—100% load)

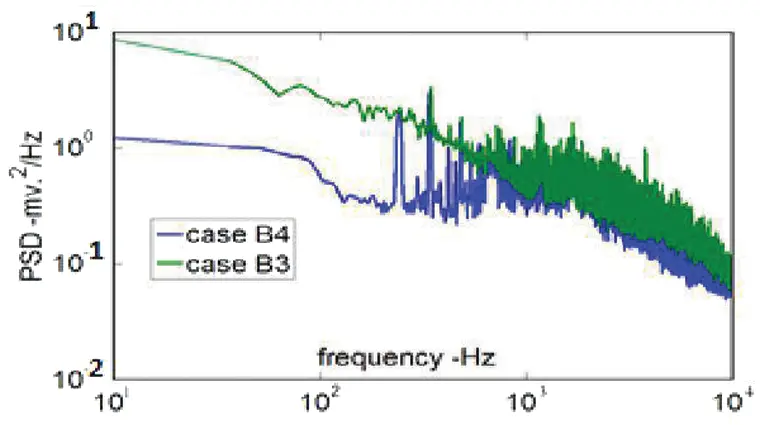

Further tests were done in order to investigate signals at various marked locations. PSD plots of various signals were analyzed using Pwelch function. Peaks were found in PSD plots of in cylinder pressure at frequencies which were integral multiples of fundamental firing frequency of engine. These plots highlight that main changes due to firing of fuel inside cylinder occurs at 300 Hz frequency (Figs. 11 and 12). Hence all combustion related events must be considered above this frequency.

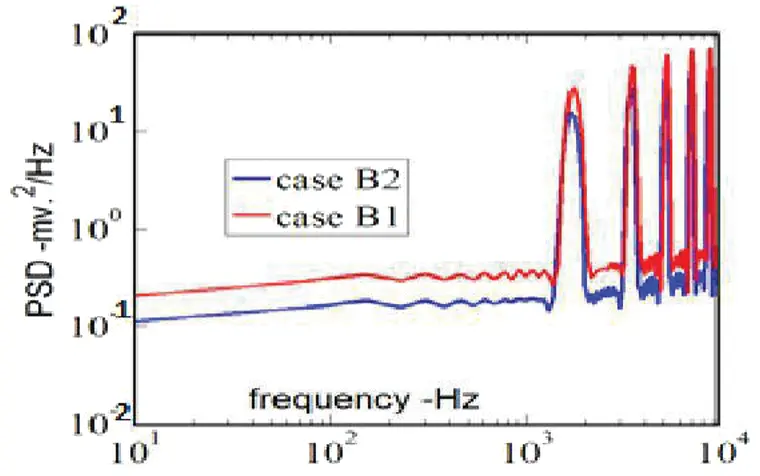

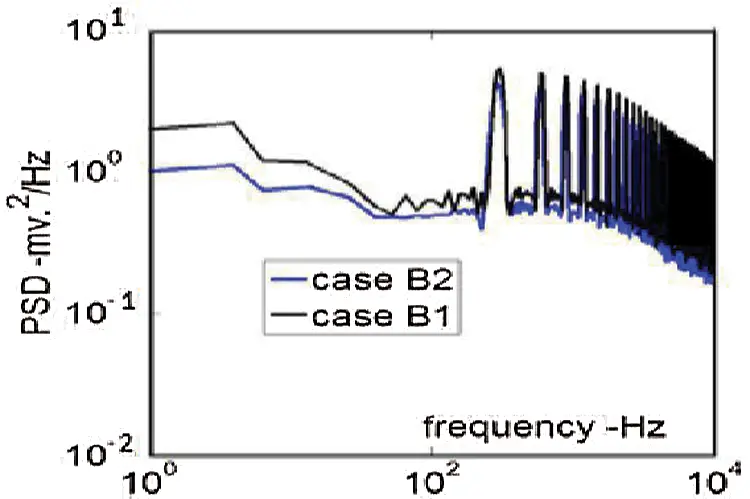

Figure 11: PSD plots for cylinder pressure signals (100% load, 1600 RPM)

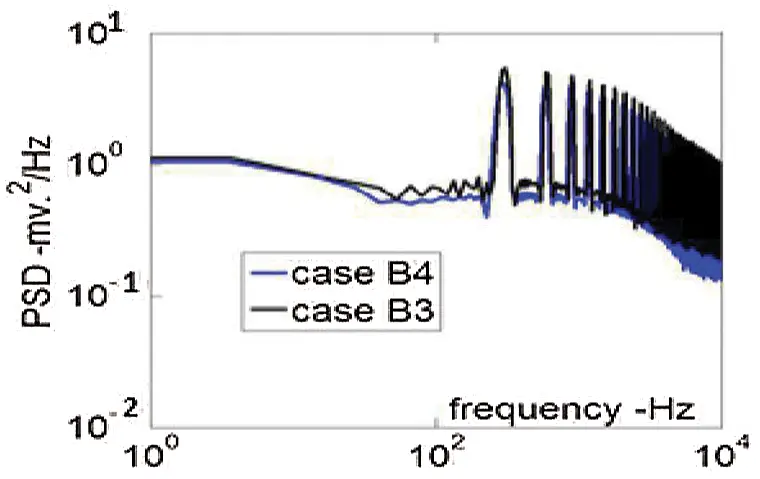

Figure 12: PSD plots for cylinder pressure signals (100% load, 2000 RPM)

Since the acoustic power radiated from engine also depends upon the block velocity, the velocity of in cylinder pressure evolution also represents an important term in study of combustion source. PSD plots of this parameter for given testing conditions were plotted as seen from Figs. 13 and 14. It is clear that the region 2 corresponding to medium frequency ranges of combustion noise begins after 1 kHz.


Figure 13: PSD plots for cylinder pressure derivative signals (100% load, 1600 RPM)

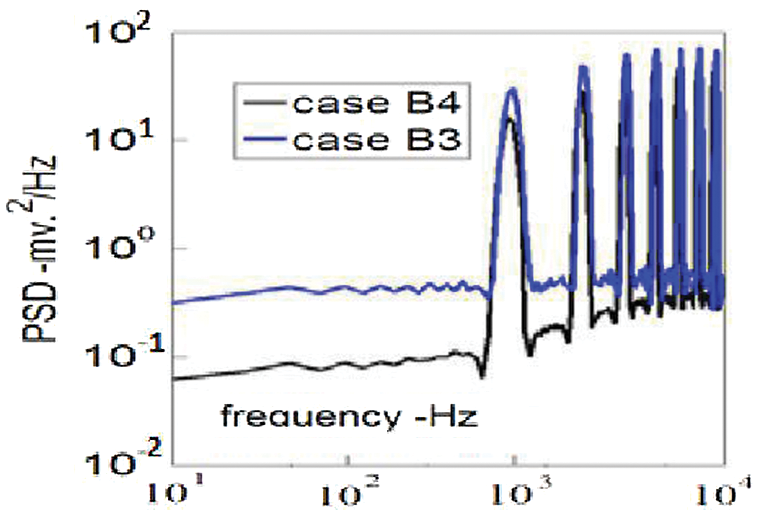

Figure 14: PSD plots for cylinder pressure derivative signals (100% load, 2000 RPM)

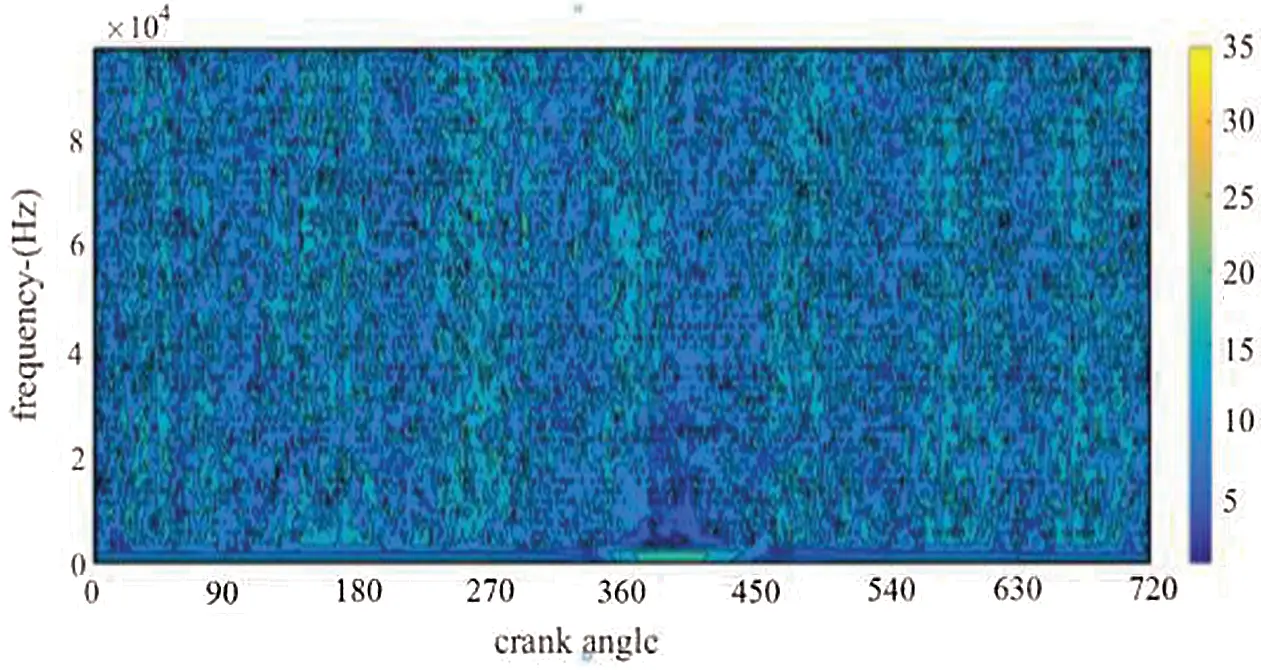

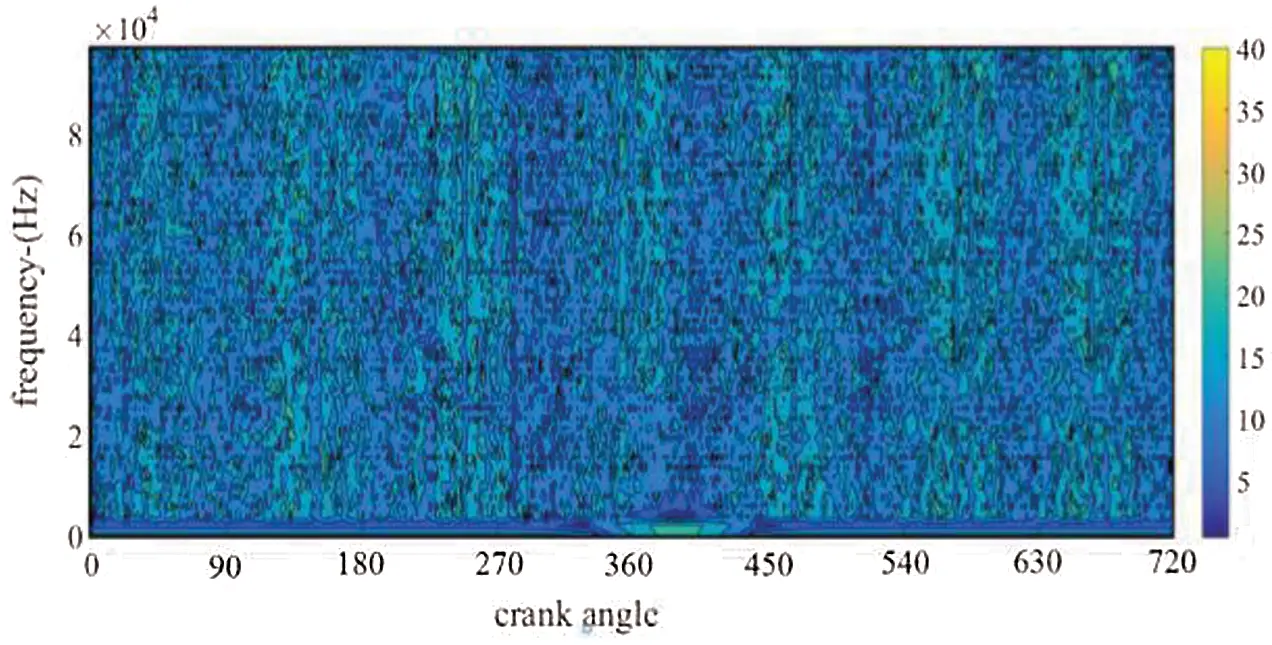

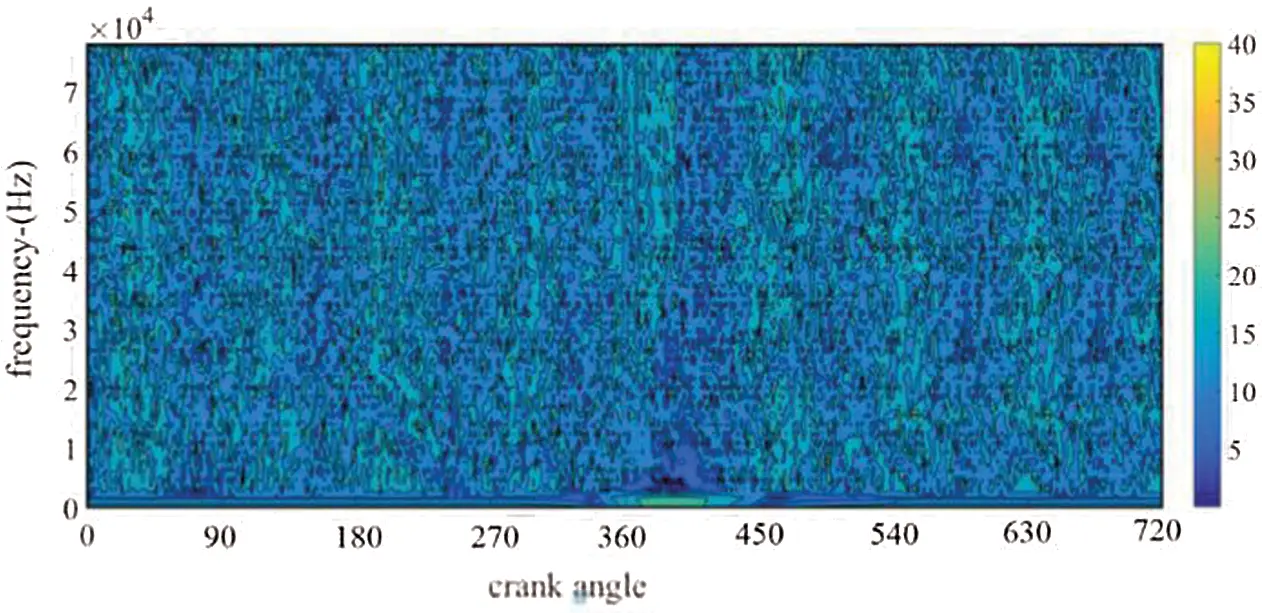

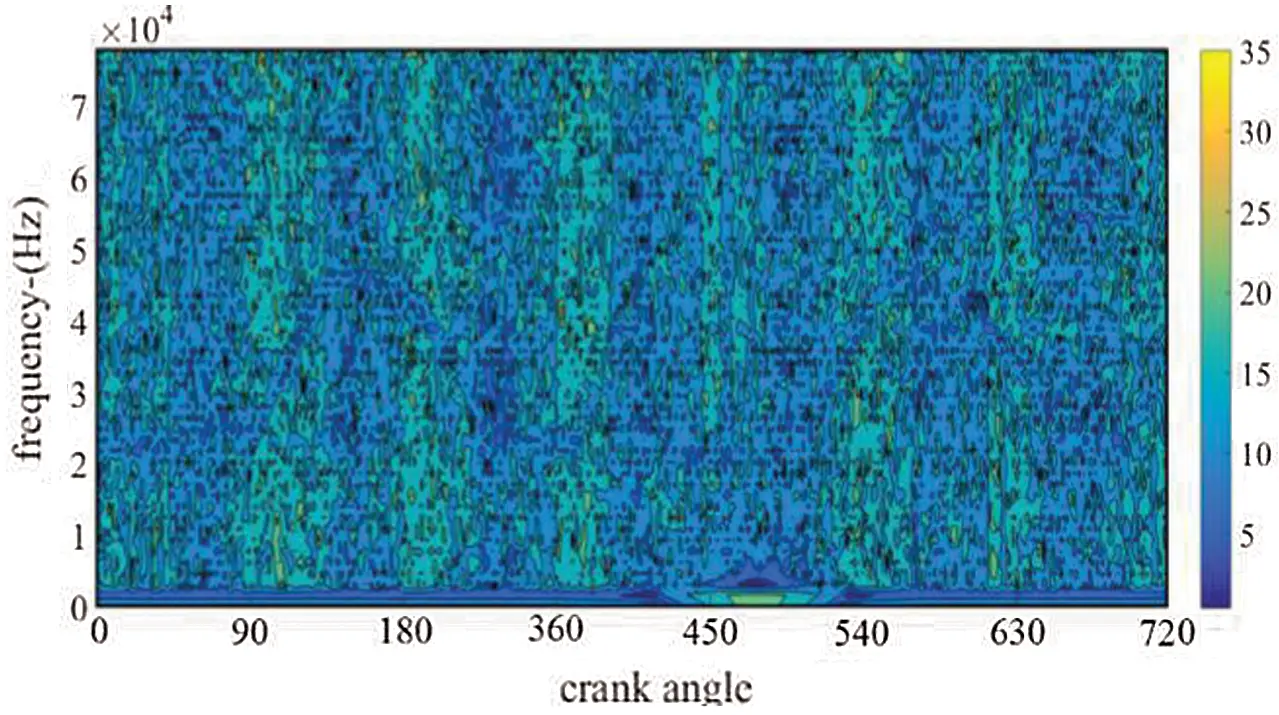

Further in cylinder pressure signals acquired at location C were studied using time-frequency spectrogram analysis as seen from Figs. 1518. The frequency contents of signals were calculated by means of discrete Fourier transformation that were computed using FFT of overlapped windowed segments of signals. The color bars in these figures denotes the amplitude of components. Dark colors denote higher energy bands, whereas the lighter ones displays lower energy bands. High frequency components were found in frequency range 500 Hz–40 kHz owing to rapid increase in cylinder pressure after pre- injection period a few degrees before TDC position. Figs. 19 and 20 show the PSD plots for noise signals acquired both at motored as well as fired conditions using microphone located at position marked as A. It can be seen that contributions of combustion process towards noise emissions occurs at wider frequency bands when compared with cylinder pressure PSD plots. This may be due to several non–linear paths of noise propagation through engine as discussed in [717]. Noise PSD plots were characterized by high frequency components that may be due to several other contributing sources.


Figure 15: Cylinder pressure spectrogram at 1600 RPM, 100% load


Figure 16: Cylinder pressure spectrogram at 1600 RPM, motored


Figure 17: Cylinder pressure spectrogram at 2000 RPM, 100% load


Figure 18: Cylinder pressure spectrogram at 2000 RPM, motored

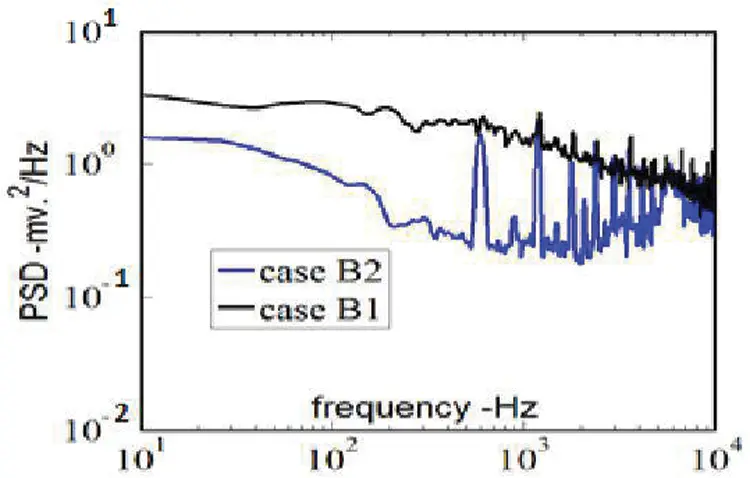

Figure 19: PSD plots for noise signals (100% load, 1600 RPM)


Figure 20: PSD plots for noise signals (100% load, 2000 RPM)

6  Conclusions

This work analysed the effects of change in various injection parameters on development of combustion pressure development and noise emissions from engines. Scope of using non-intrusive diagnosis technique has been analysed by using changing various locations of microphone around the engine. This work analysed the effects of changes in various injection parameters on development of combustion pressure and noise emissions from engines. Scope of using non-intrusive diagnosis technique has been analysed by changing various locations of microphone around the test engine. For this purpose, three positions were chosen denoted by A, B and C. Position C was seen as being most sensitive towards combustion process, position B was found to be sensitive towards intake process and finally position A was seen to have contribution of all other sources towards noise emissions. In particular, the noise emissions from engines were found to be dependent on quantity of fuel injected inside cylinder. Various characteristic frequency ranges of contributing sources have been identified. Time–Frequency analysis has shown onset of various events associated with working of engine. Based on the identification of various frequency bands, it is possible to device suitable filters in order to extract more information about combustion and motionbased noise which is done in later part of this work.
