# Securing 3D Point and Mesh Fog Data Using Novel Chaotic Cat Map

1 Department of Data Science and Business Systems, School of Computing, College of Engineering and Technology, SRM Institute of Science and Technology, Kattankulathur, Chennai, 603203, India

2 School of Computer Science and Engineering, Vellore Institute of Technology, Chennai, 600127, India

3 Department of Industrial and Systems Engineering, College of Engineering, Princess Nourah bint Abdulrahman University, P.O. Box 84428, Riyadh, 11671, Saudi Arabia

* Corresponding Author: Areej Malibari. Email:

*Computers, Materials & Continua* **2023**, *74*(3), 6703-6717. https://doi.org/10.32604/cmc.2023.030648

**Received** 30 March 2022; **Accepted** 11 May 2022; **Issue published** 28 December 2022

## Abstract

With the rapid evolution of Internet technology, fog computing has taken a major role in managing large amounts of data. The major concerns in this domain are security and privacy. Therefore, attaining a reliable level of confidentiality in the fog computing environment is a pivotal task. Among different types of data stored in the fog, the 3D point and mesh fog data are increasingly popular in recent days, due to the growth of 3D modelling and 3D printing technologies. Hence, in this research, we propose a novel scheme for preserving the privacy of 3D point and mesh fog data. Chaotic Cat map-based data encryption is a recently trending research area due to its unique properties like pseudo-randomness, deterministic nature, sensitivity to initial conditions, ergodicity, etc. To boost encryption efficiency significantly, in this work, we propose a novel Chaotic Cat map. The sequence generated by this map is used to transform the coordinates of the fog data. The improved range of the proposed map is depicted using bifurcation analysis. The quality of the proposed Chaotic Cat map is also analyzed using metrics like Lyapunov exponent and approximate entropy. We also demonstrate the performance of the proposed encryption framework using attacks like brute-force attack and statistical attack. The experimental results clearly depict that the proposed framework produces the best results compared to the previous works in the literature.## Keywords

With the expanding prominence of web utilization, 3D point [1] and 3D cross section [2] information portrayals are generally being utilized for the portrayal of articles. Applications like Autodesk123D catch the photo of articles from various points and send them to remote fog-based workers. This information is then recreated to frame 3D models of the articles and are sent to the clients. There are likewise various work area applications for altering the 3D point and cross section fog information. As of late, the Virtual Reality (VR) innovation empowers the clients to encounter the augmented experience 3D climate.

In any case, the principal issue looked by these information is the protection issue since they are put away in the fog. Subsequently, encryption of these information is an indispensable errand. These s3D information are monstrous and multi-dimensional. Likewise, they have a high relationship among the adjoining focuses. Subsequently, conventional encryption calculations like Rivest, Shamir, and Adleman (RSA) [3], Data Encryption Standard (DES) [4], Advanced Encryption Standard (AES) [5] and blowfish [6], Twofish [7], Elliptic Curve Cryptography (ECC) [8], ElGamal encryption [9], Diffie-Hellman key trade [10–14], and so forth, may not be adequate to meet the security issues of 3D information.

The contributions of this paper overall are threefold:

a) A unique Chaotic Cat map to produce Chaotic Cat sequence for encryption.

b) A novel two-level encryption framework for the encryption of 3D point fog and 3

c) D mesh fog data.

d) Evaluation of the proposed encryption scheme and comparison with the state-of-the-art frameworks.

There are several sections to this essay. Section 2 is devoted to a comprehensive review of prior works in the field of literature. Section 3 explains how the suggested Chaotic Cat map is used to generate Chaotic Cat sequences. Encryption methods are shown in Section 4. Section 5 discusses the conclusion and outcomes. Finally, Section 6 wraps up the research.

An audit of different plans for getting client information in distributed computing dependent on encryption calculations was proposed in [15]. In this exploration, the security issues looked by distributed computing, instruments utilized, the difficulties confronted are investigated exhaustively. Also, different security calculations like RSA, AES, DES and blowfish calculations were executed and examined in this paper. A structure for encoding wellbeing records in distributed computing was proposed in [16]. In this work, a patient-driven plan was proposed in which trait based encryption was performed. This framework accomplished a serious level of safety by using multi-authority encryption. An intermediary based encryption conspire for distributed storage was proposed in [17–22]. In this plan, an intermediary is approved by the sender for information encryption. This scrambled information is transferred to the fog. This structure depends on grid based cryptography. The framework was demonstrated to accomplish protection from the acted up fog workers.

Homomorphic encryption was used in [23] for accomplishing the security of large information put away in the fog. In this work, diverse fog notes were empowered and isolated for performing computational investigation of various pieces of the information. These hubs were made to work autonomously. Subsequently, the presentation of this framework was observed to be superior to the encryption utilizing a solitary distributed computing hub. Encryption plans dependent on bedlam hypothesis are prevalently utilized as of late. Another encryption plot utilizing confusion hypothesis and a solitary round word reference was proposed in [24–28]. In this work, the compressive detecting hypothesis was used to accomplish synchronous pressure and encryption. The estimation lattice utilized for encryption is a turbulent strategic arrangement. Measurement was accomplished utilizing a sigmoid capacity. A solitary round word reference was utilized as a substitute for discrete cosine change (DCT) premise work. Hence, an alternate remarkable word reference was produced for each picture. This assisted with accomplishing great encryption execution.

Encryption utilizing hyperChaotic Cat maps were proposed in [29]. Two kinds of changes were performed. At first, the information was encoded utilizing block changes followed by the bit stages. At long last rearranging was performed at the bit level to upgrade the security. A hash esteem having a length of 256 pieces was utilized for encryption. Another plan for the encryption of 3D point fog information was proposed in [30]. In this work, two sorts of encryptions were proposed, investigated and thought about. The primary plan depended on the age of irregular successions utilizing strategic tumultuous planning. The subsequent plan depended on the projection of the directions of the 3D fog information focuses utilizing a change grid. This network was created utilizing a turn lattice and an interpret vector.

3D fog information encryption utilizing the arrangements produced from the Cat map was proposed in [31]. Here, the succession produced by Cat tumultuous guides was utilized for two kinds of encryptions. The main system depended on arranging the arrangements and rearranging the areas of the 3D information dependent on the arranged successions. In this work, the Haar wavelet change was utilized to implant the cover pictures. The pictures in the spatial space were changed over to the recurrence area. In this space, the information was adjusted utilizing the arbitrary arrangements created by Henon map. This strategy assisted with accomplishing reversible information stowing away with a decent degree of safety.

3 Chaotic Cat Sequence Generation

3.1 Metrics to Validate Chaotic Cat Nature

The two commonly used metrics to validate the Chaotic Cat nature of these maps are approximate entropy and Lyapunov exponent.

A popularly used metric for quantification of the chaos in a Chaotic Cat map is the Lyapunov exponent [32]. It evaluates the average divergence between two trajectories that are obtained with two different initial values that are close to each other. It is mathematically defined as,

A positive value of Lyapunov exponent indicates that the two trajectories generated by the map will diverge exponentially with respect to time, whereas, a negative value of Lyapunov exponent indicates that the two trajectories will overlap at some point of time. Also, greater the value of LE, the more is the Chaotic Cat nature of the sequence produced by a map.

3.1.2 Approximate Entropy (AE)

Approximate entropy [33] is also used for the quantitative representation of the Chaotic Cat nature of Chaotic Cat maps. Higher values of AE indicate that the complexity of the Chaotic Cat sequence is very high.

The logistic map is defined as:

where the control parameter is

To further depict the Chaotic Cat nature of the logistic map, the Lyapunov exponent of the logistic map is shown in Fig. 2. In the Lyapunov exponent graph, the region which is positive refers to the Chaotic Cat region. The logistic map is Chaotic Cat in the region

The definition of proposed Chaotic Cat map is given below as:

where

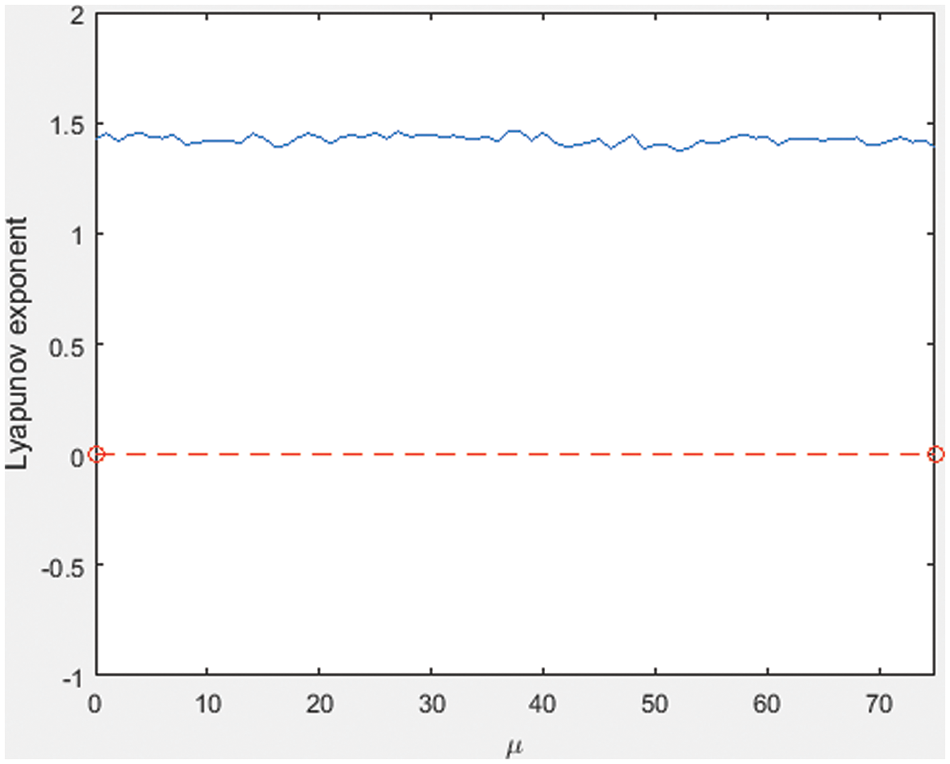

Similar to the logistic map and logistic sine maps, the Lyapunov exponent of the proposed map is plotted in Fig. 4. From Fig. 4, we see that the proposed map is completely Chaotic Cat in the region

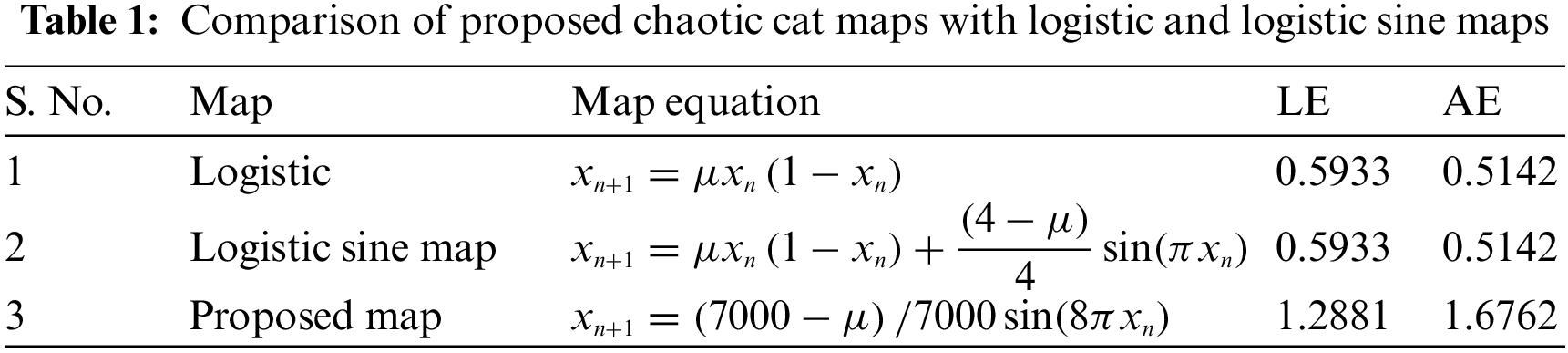

Also, to prove the Chaotic Cat properties of the proposed map quantitatively Lyapunov exponent and approximate entropy are evaluated in Tab. 1, which shows the LE and AE values of the proposed map and other existing maps. It can be inferred from the tabulated values that the LE and AE values of the proposed map are high compared to other maps indicating that the proposed map has better Chaotic Cat behavior compared to other existing maps.

4 Proposed Encryption Methodology

This section describes how fog encryption is performed using the sequence generated by the proposed Chaotic Cat map. The keys used for encryption and decryption are securely transmitted between the sender and the receiver. In addition, this technique utilized very few sets of keys hence the problem of data leakage is minimized. The security achieved by the proposed scheme is too high since we have utilized a two-level encryption algorithm. In the first level, the sequences generated by Chaotic Cat maps are sorted in ascending order to shuffle the coordinates of the fog data. In the second level, the sequences generated by Chaotic Cat maps are sorted in descending order to further shuffle the coordinates of the fog data. Thus, double encryption is achieved using ascending sort (AS) and descending sort (DS).

The 3D point fog model data comprises a 3-dimensional coordinate system. That is, each point consists of 3 coordinates. Also, the proposed scheme consists of a double encryption methodology. Hence, to encrypt this data, we generate six different random sequences from the proposed Chaotic Cat map. These six sequences are generated using 6 Chaotic Cat keys referred as

4.1.1 Encryption of 3D Point Fog Model

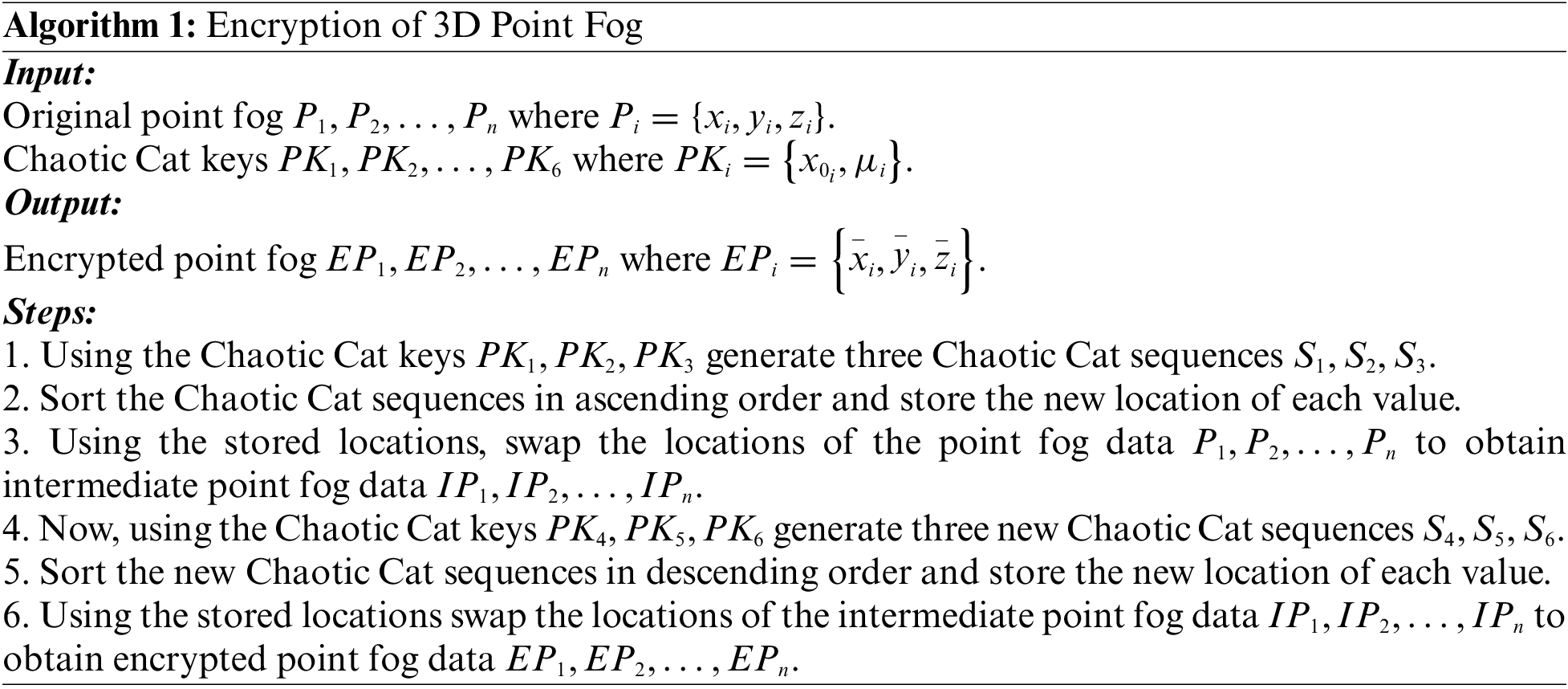

The steps involved in the encryption of the 3D point fog model are shown in Algorithm 1. Initially using the first three keys, three sequences are generated. The sequences are sorted using ascending order. The details of the original and the new locations of the sequences are then stored. Using these stored locations, the locations of the point fog data

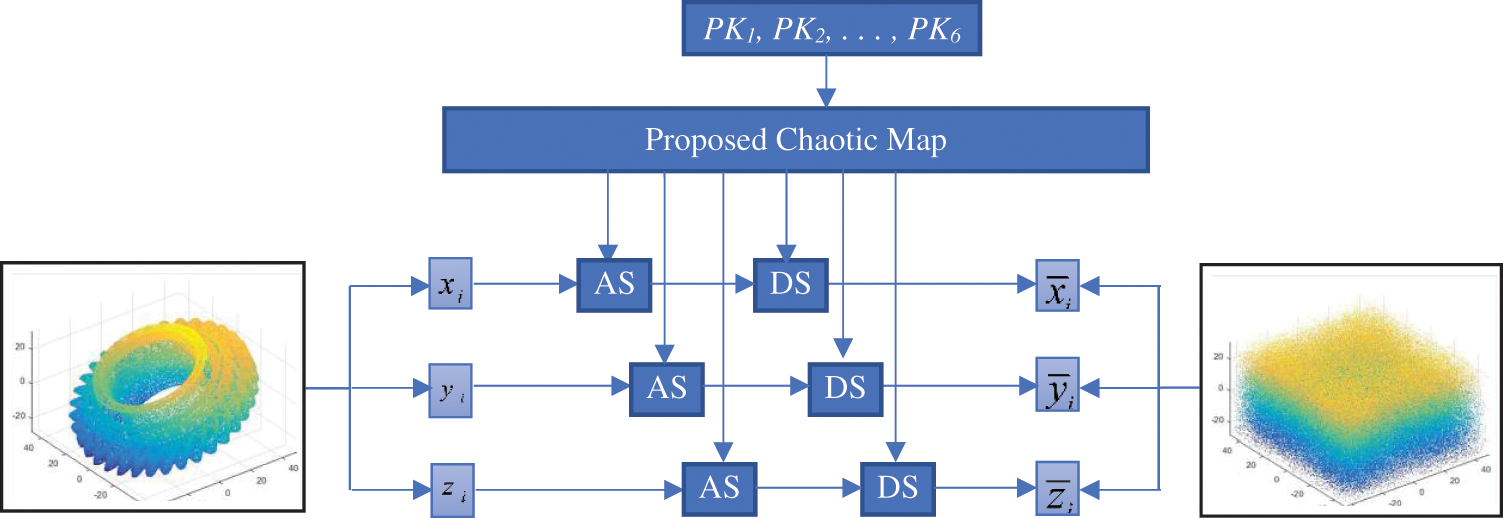

4.1.2 Decryption of 3D Point Fog Model

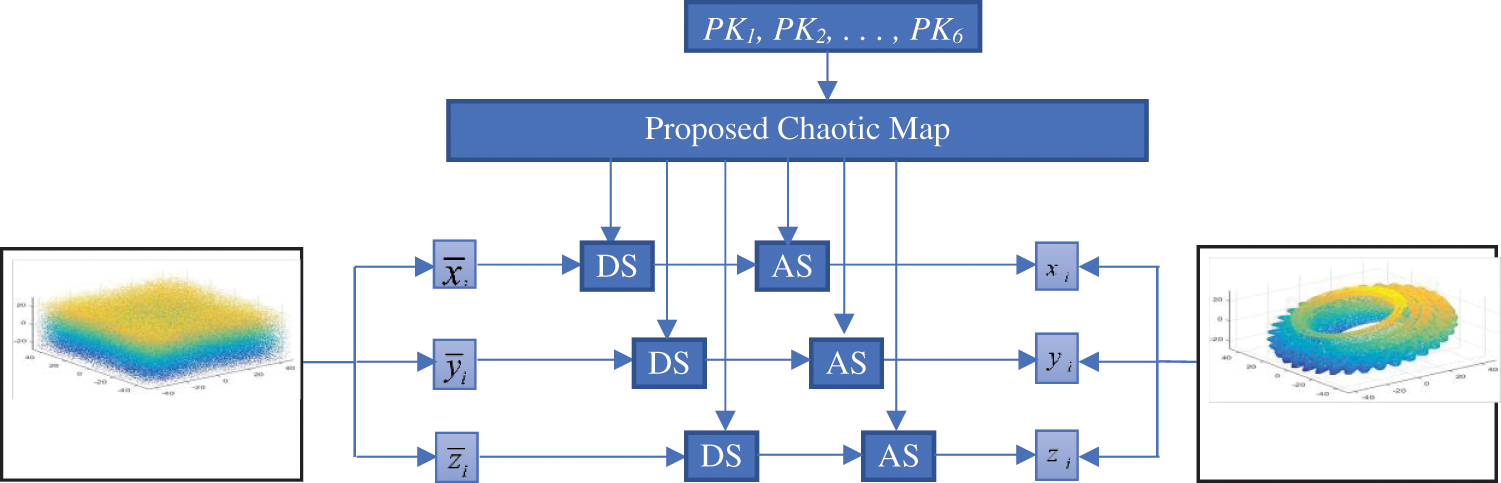

The decryption of 3D point fog is done to reverse the effect of encryption and to get back the original data

4.1.3 Encryption of 3D Mesh Fog Model

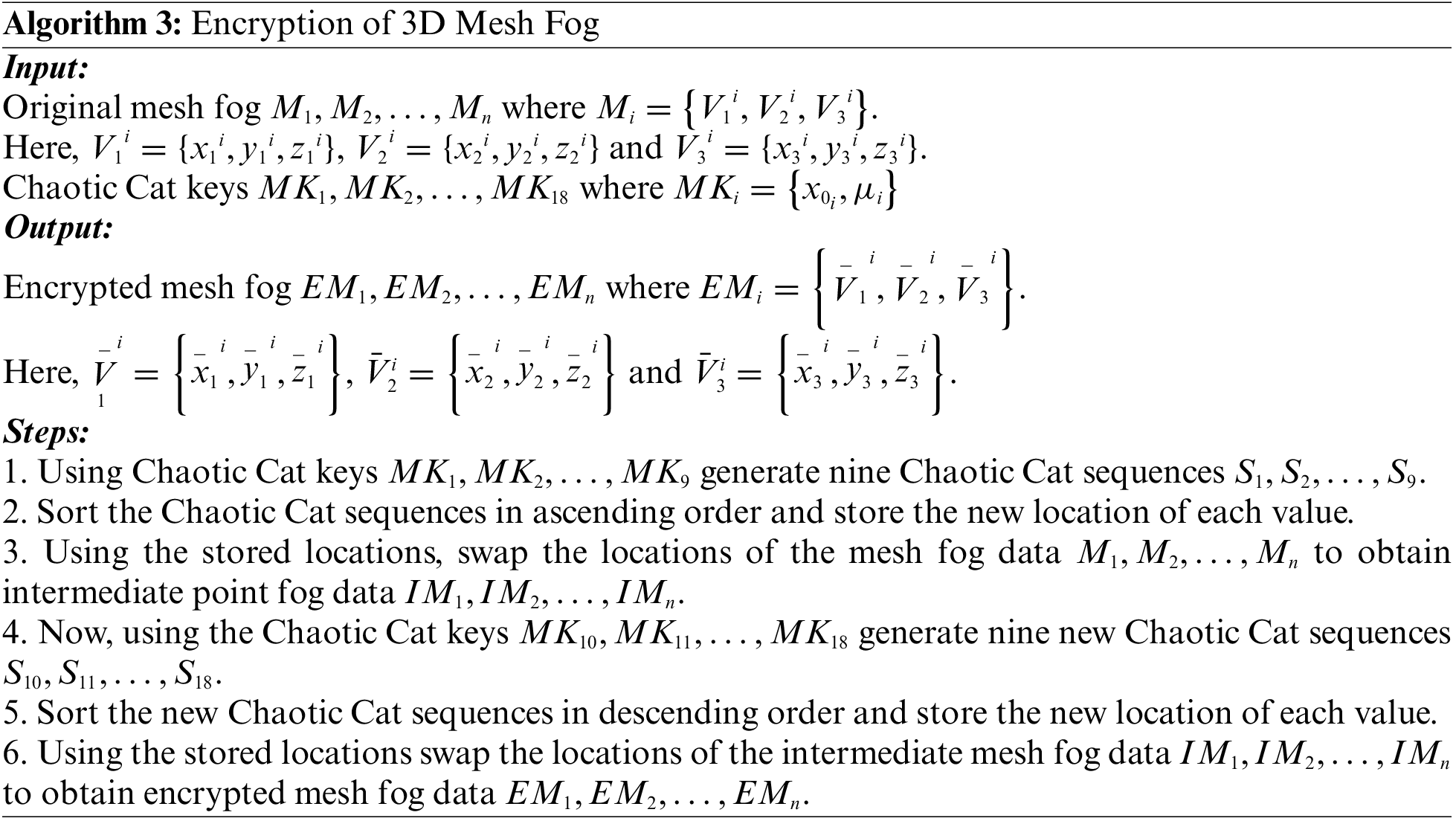

The steps involved in the encryption of 3D mesh fog model are shown in Algorithm 3. Initially using the nine Chaotic Cat keys

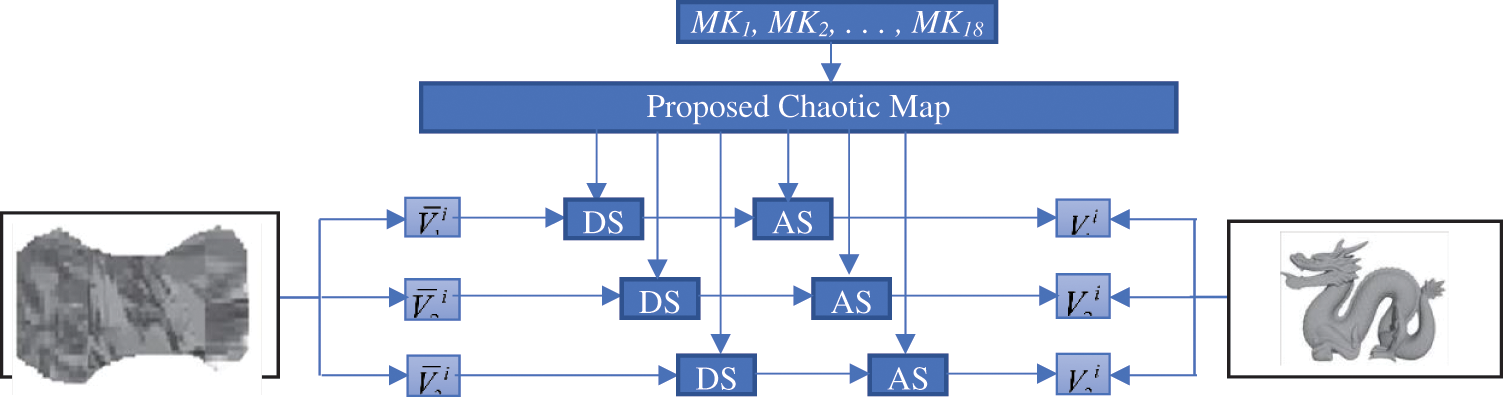

4.1.4 Decryption of 3D Mesh Fog Model

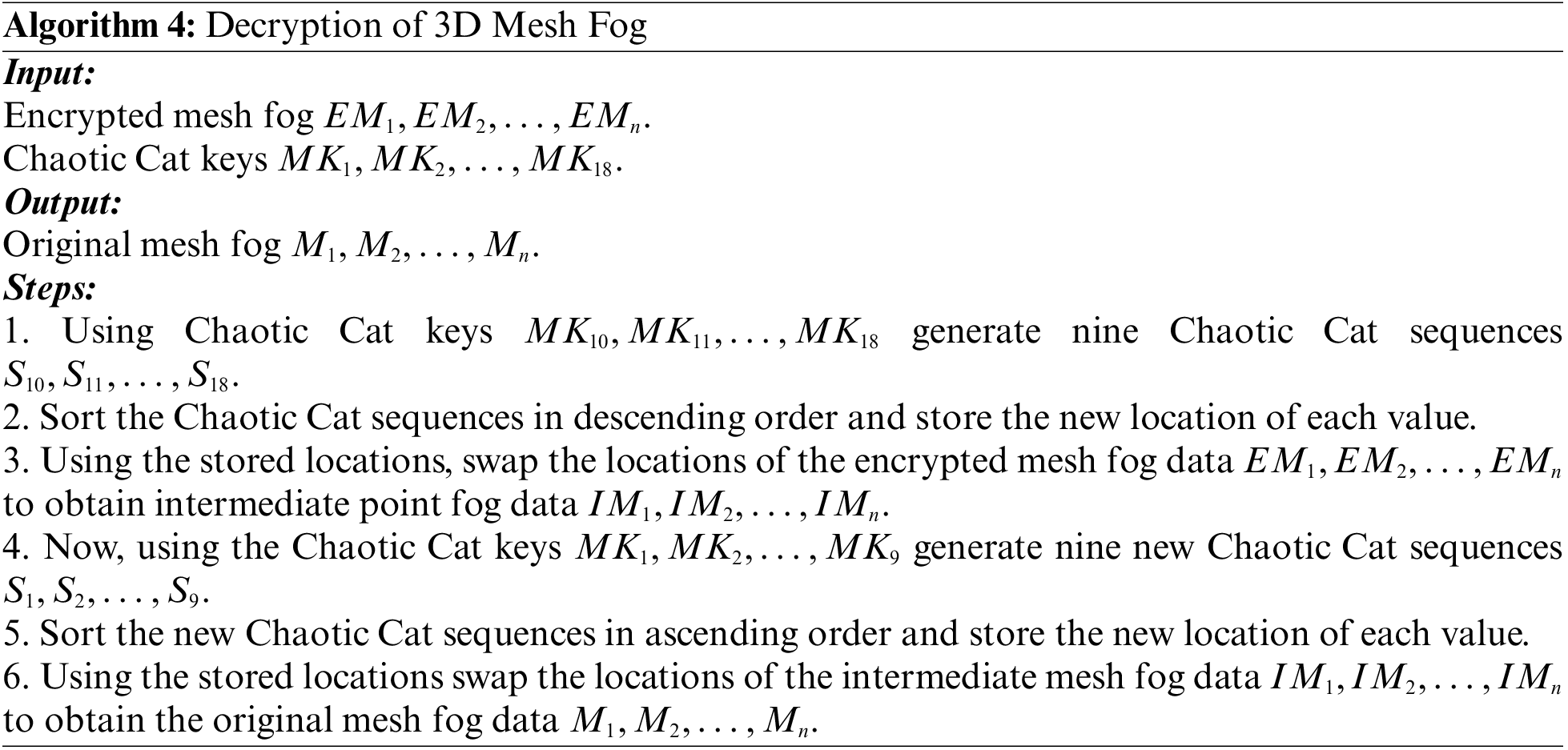

The decryption of 3D mesh fog is done to reverse the effect of encryption and to get back the original data

The analysis of 3D point fog and 3D mesh fog data was performed using data in the Artec 3D [34] and Stanford 3D scanning repository [35] datasets respectively.

5.1 Security Analysis of 3D Point fog

The security analysis of 3D point fog data is performed using secret key space analysis, secret key sensitivity analysis and speed of encryption analysis.

5.1.1 Secret Key Sensitivity Analysis

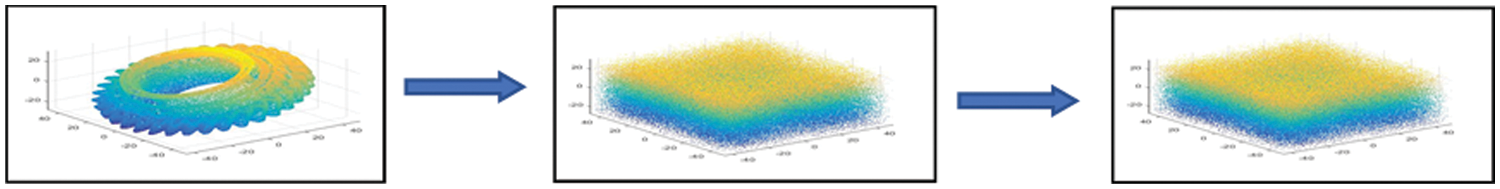

Since the proposed encryption scheme is based on chaos theory, it is highly sensitive to key parameters which are the initial condition and the control parameter. Thus, to test the secret key sensitivity we change the secret keys by a very small Δ = 10−15 value. The decryption is then performed using new set of keys where

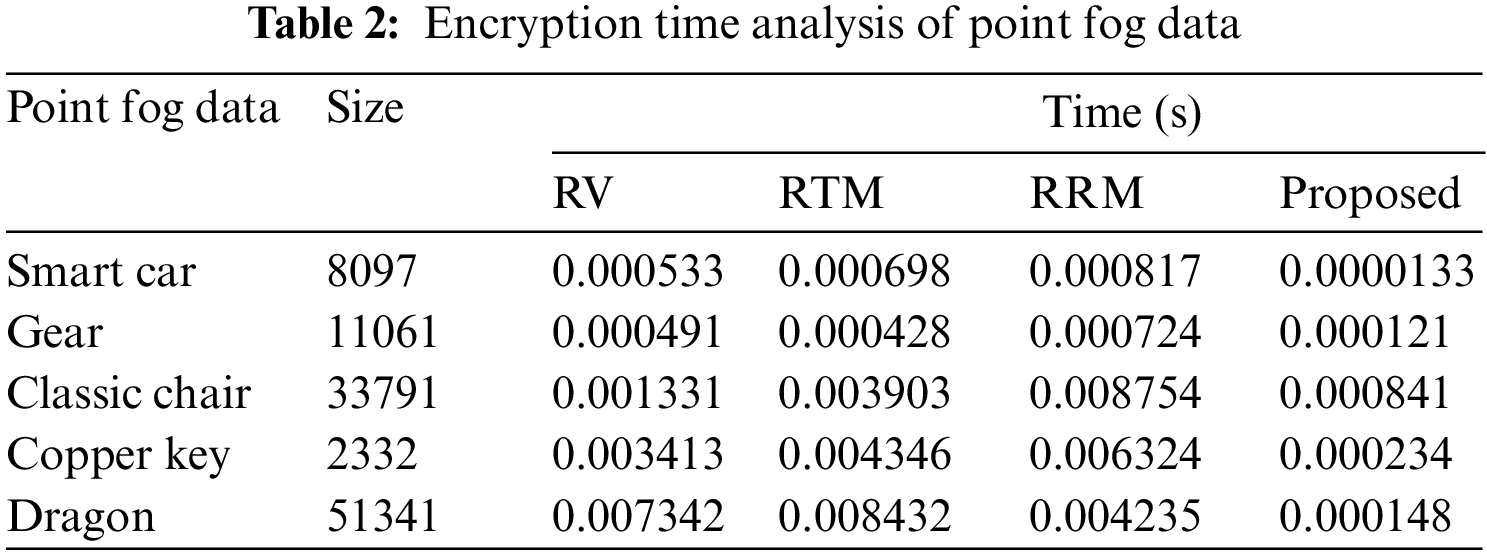

5.1.2 Speed of Encryption Analysis

The suggested system was simulated using MATLAB R2016b on a Windows PC with an Intel i3 core processor and 6GB of RAM. The proposed system has a temporal complexity of O (6 N). It is shown in Tab. 2 that the suggested framework for encryption consumes less time than previously proposed techniques. From Tab. 2, we can deduce that the proposed system takes a lot less time than the most recent state-of-the-art works. It was compared with previously proposed techniques like random variable (RV) [36], random transformation matrix (RTM) [37–39] and random reversible matrix (RRM) [40–43].

5.2 Security Analysis of 3D Mesh fog

The security analysis of 3D mesh fog data is performed using secret key space analysis, secret key sensitivity analysis and entropy analysis.

5.2.1 Secret Key Sensitivity Analysis

Since the proposed encryption scheme is based on chaos theory, it is highly sensitive to key parameters which are the initial condition and the control parameter. Thus, to test the secret key sensitivity for mesh data we change the secret keys again by a very small Δ = 10−15 value. The decryption is then performed using new set of keys where

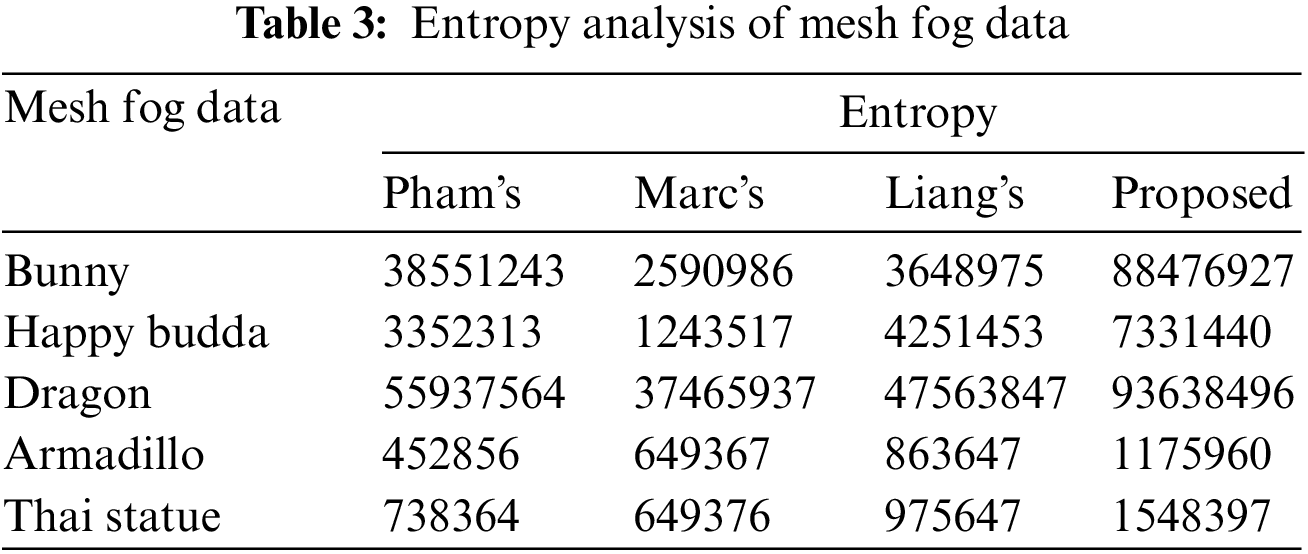

The best way to quantize the security of mesh encryption is by means of entropy analysis is given in Tab. 3. This is because entropy gives the uncertainty of an information source. It can be also defined as a measure of confusion. Thus, the amount of difficulty to retrieve the original mesh data without the use of the secret key is given by entropy. We compare the proposed scheme with state-of-the-art works like Pham’s [44], Marc’s [45], Liang’s [46].

In this examination, we have introduced an original plan for encryption of point and lattice fog information. The proposed plot uses the successions produced by a clever tumultuous guide for encryption. The tumultuous properties of the proposed turbulent guide were demonstrated utilizing bifurcation investigation, Lyapunov type and surmised entropy. Through quantitative examination, it was shown that the arbitrariness of the proposed map was more noteworthy than that delivered by regularly utilized calculated and sine strategic guides. Also, the proposed twofold encryption plot delivered amazing outcomes as far as security examination. For continuous execution, the fundamental angle is encryption time. The proposed point fog encryption plot used least encryption time contrasted with best in class works in the writing. Further, the entropy of the scrambled lattice information was additionally processed and contrasted and that accomplished by cutting edge works. It was seen that our framework creates the best outcomes. To limit the issue of information spillage there should be less keys. Since our structure depends on tumultuous guides, not very many keys were used and along these lines information spillage issue was additionally destroyed.

Acknowledgement: Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2022R151), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Funding Statement: This work was supprted by Princess Nourah bint Abdulrahman University Researchers Supporting Project number (PNURSP2022R151), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
