A Novel Evolutionary Optimized Transformer-Deep Reinforcement Learning Framework for False Data Injection Detection in Industry 4.0 Smart Water Infrastructures

1  Introduction

The ongoing evolution toward Industry 4.0 has driven the convergence of physical processes with advanced digital technologies such as the Internet of Things (IoT), edge computing, artificial intelligence, and 5G/6G-enabled connectivity [1–3]. This transformation has enabled the deployment of cyber-physical systems (CPS) across a wide range of critical infrastructures [4], including smart grids [5–7], vehicle-to-vehicle (V2V) networks [8–10], intelligent manufacturing plants [11], and energy-aware buildings [12]. These systems are increasingly reliant on real-time data exchange, automated decision-making, and distributed sensing to ensure resilience, efficiency, and autonomy. However, the same digital backbone that empowers these infrastructures also makes them vulnerable to cyber threats that can propagate through interconnected layers and compromise both safety and operational continuity [13–15].

One particularly sensitive domain within this ecosystem is smart water infrastructure, which encompasses water treatment, purification, distribution, and quality monitoring processes [16]. The integration of digital control systems, networked sensors, and supervisory control and data acquisition (SCADA) platforms has improved process optimization and resource efficiency [17–19]. Yet, these enhancements come with significant security implications. As water systems become increasingly dependent on CPS architectures, they face a growing risk of cyberattacks that can manipulate sensor readings, disrupt control logic, or compromise service availability [20]. The complex interplay between physical dynamics and cyber control makes these infrastructures especially susceptible to subtle and persistent threats, highlighting the urgent need for advanced and adaptive intrusion detection capabilities. One of the most concerning threats is false data injection (FDI), where attackers manipulate sensor measurements or control signals to mislead monitoring systems, degrade decision-making, or cause physical damage, often without immediate detection [21].

In recent years, the rapid advancements in machine learning (ML) and, more specifically, deep learning (DL) have introduced powerful tools to address the growing security challenges of cyber-physical and water distribution systems [22]. Unlike traditional statistical or rule-based detection approaches, DL models can automatically learn complex, nonlinear patterns from high-dimensional sensor and network data, making them particularly effective in identifying subtle or previously unseen anomalies. Reinforcement learning (RL) further extends these capabilities by enabling adaptive decision-making through continuous interaction with dynamic environments, while deep reinforcement learning (DRL) integrates the representational strength of neural networks with the sequential optimization ability of RL. These characteristics are highly suitable for smart water infrastructures, where attack patterns may evolve over time and detection mechanisms must adapt to changing operational conditions. Building on this, transformer architectures have emerged as a breakthrough in sequence modeling, originally in natural language processing, but now increasingly applied to time-series and multivariate sensor data [23]. Their self-attention mechanism allows models to capture both short- and long-term dependencies without the limitations of recurrent structures, enabling superior performance in scenarios where temporal and spatial correlations play a critical role. When applied to water distribution systems, transformers and DRL frameworks can collaboratively extract hidden dependencies across heterogeneous data streams, adapt detection strategies in real time, and enhance resilience against sophisticated cyber-physical attacks such as FDI [22–24].

1.1 Research Gaps and Paper Motivation

The increasing digitalization of industrial infrastructures, particularly in smart water distribution systems, has heightened the urgency for robust FDI detection frameworks capable of addressing subtle and persistent threats. While recent research has advanced significantly, most existing approaches still face notable limitations that prevent them from fully safeguarding critical infrastructures. Convolutional and recurrent neural networks, although effective in sequence modeling, often suffer from overfitting and struggle to capture long-range dependencies in multivariate time-series data, especially under high-dimensional and noisy sensor environments. Likewise, classical ML ensembles improve generalization to some extent, but their performance is highly dependent on manual hyper-parameter tuning and they lack the adaptability required for evolving cyber-physical attack patterns. Graph-based methods have also gained traction in FDI detection, leveraging relational structures among devices. However, as highlighted in recent works, topologically constrained graphs often miss latent associations, while fully connected graphs create redundancy and incur heavy computational overhead. Similarly, clustering-based hybrids and digital twin frameworks provide improved modeling of system behaviors but are limited in scalability and still rely on static assumptions that restrict their responsiveness to dynamic attack scenarios. Overall, the review of recent approaches underscores that the key challenges remain: balancing accuracy with computational efficiency, capturing both local and global temporal-spatial dependencies, and adapting detection strategies in real time to evolving threats.

Despite the progress achieved by recent data-driven, graph-based, and attention-enhanced detection models, several fundamental research gaps remain unresolved for securing Industry 4.0 water infrastructures. Existing temporal models still struggle to jointly capture global contextual cues and fine-grained temporal fluctuations under highly non-stationary operating conditions. Meanwhile, advanced spatio-temporal fusion networks, such as dual-attention or graph-learning-based frameworks, rely on fixed or partially adaptive structures that limit their ability to generalize across heterogeneous sensor layouts and dynamically evolving hydraulic processes. Furthermore, current FDI detection techniques (whether supervised, unsupervised, or hybrid) are typically static in nature and cannot adapt their decision strategies as attack behaviors evolve. Most importantly, even when deep transformers or DRL agents are employed, their performance remains strongly constrained by the absence of an optimization mechanism capable of tuning large, coupled, and highly sensitive hyper-parameter spaces. As highlighted by recent studies, suboptimal hyper-parameters significantly degrade detection stability, slow convergence, and increase the computational burden, making real-time deployment impractical in operational water distribution systems (WDS) environments. These limitations collectively reveal the need for a unified, adaptive, and optimization-driven framework capable of learning robust temporal–spatial representations while dynamically adjusting its detection policy and ensuring stable hyper-parameter convergence. The key research gaps identified from the existing literature are summarized as follows:

•   Limited capability to simultaneously model global and local temporal–spatial dependencies: Existing convolutional neural network (CNN)/long short-term memory (LSTM) architectures either miss long-range dependencies or impose structural constraints that obscure latent cross-sensor associations.

•   Lack of adaptability to evolving attack strategies: Most detection pipelines are static and fail to update decision rules as adversaries change their patterns over time.

•   Inability to generalize across heterogeneous and dynamically changing WDS environments: Graph-based and clustering-based models rely on rigid topologies or fixed assumptions that reduce robustness in real operational settings.

•   Strong sensitivity of transformer and DRL models to hyper-parameter configurations: Without a robust optimizer, performance becomes unstable, convergence slows, and runtime cost increases significantly.

•   Insufficient optimization strategies for large coupled hyper-parameter spaces: Classical grid search and standard meta-heuristics cannot reliably balance exploration–exploitation or maintain solution diversity in complex industrial control systems (ICS)/WDS domains.

•   Absence of a unified architecture that integrates representation learning, adaptive policy learning, and hyper-parameter optimization: Existing methods typically address these components in isolation rather than forming a coherent, synergistic framework.

To address these challenges, there is a strong motivation to adopt advanced DL architectures, such as transformers, which can exploit self-attention mechanisms to model long- and short-term dependencies across heterogeneous sensor streams without the bottlenecks of recurrent structures. Transformers have demonstrated remarkable success in extracting multi-scale temporal and contextual correlations, making them well-suited for FDI detection in cyber-physical environments. However, their performance is highly sensitive to hyper-parameter settings, and in complex domains such as ICS and WDS, inappropriate configurations can significantly degrade both accuracy and runtime efficiency. At the same time, DRL offers the potential to introduce adaptivity into FDI detection pipelines by enabling learning-based decision policies that dynamically respond to variations in data patterns and attack scenarios. Yet, DRL models are notoriously dependent on careful calibration of hyper-parameters, which directly affects convergence, stability, and generalization performance. Conventional optimization strategies such as grid search or classical meta-heuristics have proven insufficient in consistently balancing exploration and exploitation across such a large hyper-parameter space. This motivates the integration of an improved optimization scheme.

In this context, an improved grey wolf optimizer (IGWO) can play a vital role by introducing a new balancing mechanism between exploration and exploitation phases, thereby ensuring more reliable convergence toward optimal hyper-parameter configurations. By incorporating IGWO into the training pipeline of transformer-based DRL, it becomes possible to unify three complementary capabilities: robust temporal-spatial feature extraction (via transformers), adaptive policy learning (via DRL), and effective hyper-parameter optimization (via IGWO). This synergy directly addresses the gaps identified in recent studies and forms the foundation of our Evo-Transformer-DRL for FDI detection in smart water infrastructures.

1.2 Paper Contribution and Organization

Based on the identified research gaps and the objectives of this study, the main contributions of our work can be summarized as follows:

•   Problem-driven architecture design: We address the pressing challenge of FDI detection in cyber-physical WDS that are highly vulnerable to stealthy and persistent cyberattacks. To this end, we propose a unified detection framework that integrates advanced DL and optimization techniques tailored to capture both temporal–spatial dependencies and evolving attack behaviors.

•   Novel hybrid architecture: We introduce the Evo-Transformer-DRL model, which seamlessly combines (i) a transformer encoder for robust multivariate temporal–spatial feature extraction, (ii) a (DRL agent for adaptive FDI detection and decision-making, and (iii) an IGWO for hyper-parameter tuning. This integration provides a balanced solution for both detection accuracy and computational efficiency.

•   Transformer contribution: The transformer encoder independently provides strong temporal–spatial feature extraction through multi-head self-attention, capturing both short- and long-range dependencies across heterogeneous sensor streams. This enables robust identification of subtle FDI patterns that conventional DL models fail to capture.

•   DRL contribution: The DRL agent independently introduces adaptive policy learning, allowing the model to dynamically refine detection behavior under evolving attack patterns, delayed rewards, noisy sensor streams, and non-stationary cyber-physical processes.

•   IGWO contribution: Building upon the classical GWO, we incorporate an additional balancing wolf φ that dynamically regulates exploration and exploitation during the optimization process. This extension improves convergence reliability and prevents premature stagnation, ensuring more stable hyper-parameter optimization for deep models in high-dimensional search spaces.

•   Transformer + DRL + IGWO synergy: High-quality temporal embeddings from the transformer significantly improve DRL policy learning by providing semantically enriched state representations. IGWO optimizes Transformer-DRL hyper-parameters, improving convergence speed, stability, and overall detection effectiveness. The unified Evo-Transformer-DRL pipeline achieves superior accuracy, faster convergence, and stronger generalization across secure water treatment (SWaT), water distribution (WADI), and battle of the attack detection algorithms (BATADAL) compared to any individual module or pairwise combination, proving that the modules complement each other in both representation learning and adaptive decision processes.

•   Comprehensive benchmarking on critical datasets: We conduct extensive experiments using three widely adopted industrial control benchmarks which collectively cover diverse attack and operational conditions in water infrastructures. The performance of the proposed method is rigorously compared against multiple strong baselines, including bidirectional encoder representations from transformers (BERT), LSTM, CNN, and support vector machines (SVM).

The rest of this paper is organized as follows. Section 2 presents an extensive review of related work, summarizing recent advances in anomaly and FDI detection while critically discussing their strengths, limitations, and remaining research gaps. Section 3 describes the materials used in this study, including the SWaT, WADI, and BATADAL datasets, together with the preprocessing procedures applied to prepare the multivariate time-series data for model development. Section 4 introduces the methodological foundations of this work, outlining the conventional baselines considered in our comparisons as well as the detailed formulation of the proposed Evo-Transformer-DRL framework. Section 5 reports the experimental results, evaluation metrics, comparative analyses, and an in-depth discussion of the model’s performance under diverse operational and attack scenarios. Finally, Section 6 concludes the paper and highlights promising directions for future research.

2  Related Works

In this section, we present a structured and in-depth review of recent studies on anomaly and FDI detection in industrial control and water distribution systems. For each study, we analyze the problem formulation, datasets used, model architecture, quantitative performance, and the specific strengths and weaknesses that define its applicability to real-world ICS/WDS environments. This systematic evaluation highlights the methodological evolution across the literature, uncovers their remaining limitations in handling dynamic and heterogeneous FDI scenarios, and establishes the motivation for developing a more adaptive, optimization-driven, and temporally enriched detection framework.

Xu et al. [14] proposed a temporal–spatial anomaly detection framework named TDRT, which inte-grated a three-dimensional ResNet with a Transformer encoder to overcome the limitations of traditional CNN- and recurrent neural network (RNN)-based models in capturing long-range dependencies in multivariate industrial control data. Their architecture enabled automatic extraction of high-dimensional temporal–spatial representations while leveraging multi-head attention to model correlations across heterogeneous sensor streams. The method was evaluated on three widely used ICS benchmarks (SWaT, WADI, and BATADAL) and compared against five state-of-the-art baselines. Experimental results demonstrated that TDRT achieved an average F1-score above 0.98 and a recall of 0.98, consistently outperforming competing algorithms and highlighting the benefit of combining 3D convolutional structures with attention-driven temporal modeling for anomaly detection. Despite its strong performance, TDRT still exhibited several domain-specific limitations. First, the 3D-ResNet backbone introduced substantial computational cost, making real-time detection difficult in ICS and WDS environments where latency constraints are strict. Additionally, although the transformer component effectively captured long-range temporal dependencies, the overall framework remained primarily tailored to general anomaly detection rather than explicitly distinguishing structured FDI patterns. Because FDI attacks often manipulate sensor relationships rather than producing simple temporal deviations, models that incorporate explicit relational reasoning (e.g., graph-based approaches) may be more appropriate in settings where inter-sensor topology is critical. Furthermore, TDRT relied on fixed hyper-parameter settings without adaptive tuning, which reduced robustness when applied to heterogeneous datasets or non-stationary operating conditions. These limitations suggested that while TDRT provided strong temporal–spatial representation learning, further advances would require improving computational efficiency, incorporating adaptable hyper-parameter mechanisms, and integrating richer modeling of inter-sensor dependencies for complex ICS/WDS attack scenarios.

Wang et al. [15] tackled the limitations of conventional graph-based anomaly detection in industrial control systems (ICS), where predefined topologies fail to capture latent device interactions and fully connected graphs lead to redundant edges and high computational overhead. They proposed the local graph spatial analyzer (LGSA), a framework that constructed a refined device-level graph through decoupled edge tuning, enabling adaptive removal of redundant links while preserving semantically meaningful relationships among ICS components. Their method performed fine-grained device-level anomaly detection, distinguishing anomalous behaviors at individual nodes rather than relying solely on system-level predictions. The authors evaluated LGSA on five benchmark ICS datasets (SWaT, WADI, cyber-physical industrial system security (CISS), BATADAL, and process control process (PCP)) covering diverse operational and attack scenarios. According to the results, LGSA improved area under the curve (AUC) by up to 17.32% compared to state-of-the-art baselines while reducing training time by 5.57% and testing time by 7.21%. These findings demonstrated that selectively optimized graph construction enhanced both detection accuracy and runtime efficiency. In terms of limitations and insights, the LGSA framework excelled in scenarios where relational dependencies among devices played a dominant role; however, its performance remained sensitive to the initial graph design and the presence of missing or noisy relational information. Moreover, although LGSA reduced computational overhead relative to fully connected graphs, the edge-tuning procedure still required repeated spectral evaluations, which could become expensive for very large-scale ICS deployments. Overall, the study showed that adaptive graph refinement provides a powerful mechanism for modeling local and global ICS interactions, particularly for anomaly detection tasks where device-level behaviors exhibit rich structural dependencies.

Lachure and Doriya [16] proposed a hybrid deep hierarchical clustering framework for anomaly detection in ICS to overcome the difficulty of analyzing complex, high-dimensional multivariate sensor data. Their method combined hierarchical clustering for structural grouping with DL for representation refinement, aiming to improve anomaly detection robustness under diverse operational modes. The model was evaluated on WADI and BATADAL, two widely used water-sector ICS datasets containing mixed normal and cyber-attack scenarios. Experiments showed solid performance on BATADAL, achieving recall = 0.91, precision = 0.915, and F1 = 0.915, whereas performance dropped on WADI (Recall = 0.70, Precision = 0.81, F1 = 0.67), indicating sensitivity to data complexity and attack distribution. While the hybrid hierarchical-deep framework provided meaningful structure-aware feature learning, it still suffered from several limitations. First, hierarchical clustering introduced static cluster boundaries, making the method less responsive to evolving or stealthy FDI scenarios. Second, the lack of temporal modeling prevented the capture of long-range dependencies in sequential water-system processes, limiting its suitability for FDI detection where attacks evolve gradually. Third, the approach lacked a mechanism for hyper-parameter optimization, making its performance highly dependent on manual parameter tuning and potentially unstable across heterogeneous datasets. These gaps highlight the need for adaptive, temporally aware, and optimization-driven approaches for securing ICS environments.

Luo et al. [17] proposed STMBAD, a spatio-temporal multimodal behavior anomaly detector aimed at identifying stealthy and persistent cyberattacks in ICS environments. Their model embedded each data modality into variate tokens, enabling the system to separately learn modality-specific representations before fusing temporal and spatial dependencies through an attention-based architecture. To address the limitations of global thresholding in highly dynamic ICS processes, the authors introduced a dual-threshold strategy combining global and local decision rules. STMBAD achieved strong performance across multiple benchmark datasets, reporting F1-scores of 0.95 on SWaT, 0.91 on BATADAL, and 0.88 on WADI, outperforming conventional baselines such as LSTM, CNN, and gated recurrent unit (GRU) in both detection stability and resilience to stealthy FDI patterns. Despite these strengths, the approach exhibited several important limitations. First, STMBAD’s reliance on variate-token embeddings inherently reduced temporal resolution within each modality, limiting the model’s ability to capture rapid transients or short-lived anomalies. Second, the dual-threshold mechanism improved sensitivity but introduced added computational overhead, requiring window-size tuning and incremental recalibration that hinder real-time deployment. Moreover, the reconstruction-based learning paradigm remained sensitive to distribution shifts, making STMBAD vulnerable when attack behaviors or operational regimes evolve over time. These shortcomings indicate that although multimodal attention-based models enhance representational depth, additional mechanisms are required to address temporal granularity, computational scalability, and adaptive robustness in large-scale industrial systems.

Xu et al. [18] explored the security risks of adversarial attacks in ICS and proposed a dual-stage framework for both generating and defending against such attacks. In the attack module, a gated recurrent unit (GRU)-based generator learned complex temporal dependencies among sensor variables and produced realistic adversarial samples by injecting perturbations constrained by physical plausibility. This generator outperformed conventional fast gradient sign method (FGSM) and LSTM encoder–decoder (LSTM-ED) approaches, causing severe degradation of IDS performance across SWaT, WADI, and BATADAL datasets (for example, reducing precision in SWaT by up to 82.84% and recall in BATADAL by 41.17% under strong perturbations). For defense, the authors introduced a variational autoencoder-feature weighting (VAE-FW) mechanism that balanced reconstruction errors across attributes, thereby preventing poorly reconstructed features from dominating anomaly scores. Experimental evaluations showed that VAE-FW achieved up to 28.8% improvement in AUC over baseline methods, demonstrating increased robustness against adversarially manipulated signals. Despite its contributions, the method presented several limitations. First, the GRU-based generator captured only temporal correlations and did not explicitly model underlying causal or physical process dynamics, making it less reliable under multi-stage or system-level coordinated FDI scenarios. Second, the VAE-FW defense depended heavily on the reconstruction capacity of the VAE; under noisy, highly non-stationary, or distribution-shift conditions (as in WADI), its stability decreased noticeably, revealing vulnerability to domain drift. Third, although the study evaluated three real-world water datasets, the generalizability to broader ICS domains, diverse sensor layouts, or unseen operational modes remained untested. Finally, both the attack and defense modules introduced non-trivial computational costs, which may limit real-time deployment in resource-constrained industrial environments. These gaps indicate that while the proposed dual-stage GRU–VAE framework improves robustness against adversarial manipulation, further advancements are needed in causal modeling, scalability, and lightweight defense mechanisms.

Lachure and Doriya [19] proposed ensemble stacking machine learning (ESML), a hyper-parameter-tuned stacking ensemble framework for detecting anomaly attacks in water distribution systems. Their method combined several traditional ML classifiers using stacked generalization while applying systematic hyper-parameter tuning to enhance model robustness. The framework was evaluated on the WADI and BATADAL datasets, covering diverse operational states and cyber-physical attack scenarios. Experimentally, ESML achieved strong performance, reaching 99.96% accuracy on WADI and 96.93% on BATADAL, outperforming individual classifiers such as k-nearest neighbors, decision trees, and naïve Bayes. Despite these advantages, the method still exhibits notable limitations. ESML relies heavily on manual feature engineering and traditional classifiers, which restricts its ability to capture complex temporal–spatial dependencies inherent in industrial water processes. Its performance also depends on extensive hyper-parameter tuning, which increases computational load and reduces scalability to large, multivariate real-time environments. The absence of adaptive learning mechanisms makes the model less resilient to evolving FDI attack strategies. These gaps underscore the need for more flexible, representation-learning-driven, and dynamically optimized approaches for securing modern WDS infrastructures.

Lyu et al. [20] proposed the graph sample-and-integrate network (GSIN), a GNN-based anomaly detection framework designed to model both local contextual semantics and global process-level correlations in ICS data. Unlike conventional GNNs that rely solely on neighborhood aggregation, GSIN introduced a two-stage feature integration scheme combining partial graph pooling and embedding fusion, enabling node-level anomaly detection that captures heterogeneous interactions among sensors and actuators. The framework was evaluated on multiple benchmark ICS datasets (including SWaT, WADI, BATADAL, CISS, and cyber-physical heterogeneous dataset (CHD)) and consistently outperformed representative baselines across metrics such as F1-score and AUPRC. The results reported in the paper showed noticeably higher detection accuracy and faster runtime, confirming that advanced contextual feature integration substantially enhances the model’s ability to detect covert anomalies in complex industrial environments. Despite its strong performance, GSIN exhibits several limitations inherent to GNN-based anomaly detectors. First, the model relies on manually defined graph structures and stage- or layer-based pooling strategies, which may not generalize well to ICS deployments where device topology changes dynamically or includes implicit dependencies not reflected in physical connectivity. Second, although partial pooling reduces redundancy, the integration still introduces notable computational cost when applied to large-scale networks with high device counts. Third, GSIN operates on fixed temporal windows and does not explicitly model long-range temporal patterns, making its effectiveness sensitive to window size and the preprocessing pipeline.

Li et al. [21] proposed multibranch LSTM with differential overfitting mitigation (MuLDOM), a multibranch LSTM framework combined with a novel differential overfitting mitigation mechanism to enhance anomaly forecasting in heterogeneous industrial edge devices (IEDs) within industrial internet of things (IIoT) environments. The method introduced adaptive multivariate feature extraction, denoising, and an online prediction scoring strategy to better capture evolving spatio-temporal dependencies in real-world operational data. Experimental evaluations across four publicly available industrial datasets demonstrated that MuLDOM consistently outperformed nine state-of-the-art baselines, achieving superior detection and forecasting accuracy with notable improvements in robustness under noisy and heterogeneous conditions. Despite its strong empirical performance, the framework suffered from several limitations. First, the multibranch LSTM architecture remained sensitive to long-term temporal dependencies and could not fully capture global contextual information due to the inherent sequential bottleneck of recurrent models. Second, the differential mitigation algorithm required careful tuning of multiple hyper-parameters, making the approach less scalable for rapidly changing IIoT environments. Third, while the method improved robustness against overfitting, it did not incorporate mechanisms for adaptive decision-making or dynamic model reconfiguration under evolving attack patterns. These limitations highlight the need for architectures capable of jointly modeling global–local temporal relations, reducing dependency on manual hyper-parameter tuning, and improving adaptability for real-time anomaly detection in complex IIoT systems.

Xu et al. [22] proposed digitaL twin-based Anomaly deTecTion wIth Curriculum lEarning (LATTICE), a digital-twin–based anomaly detection framework designed to address the growing complexity and heterogeneous difficulty levels of CPS data. Building on their earlier ATTAIN model, the authors introduced a curriculum-learning strategy in which samples are ranked by difficulty and fed gradually from easy to hard, effectively stabilizing the learning process. LATTICE exploited both historical and real-time CPS data to improve temporal representation and robustness under varying operational conditions. Extensive experiments across five real-world CPS testbeds showed that LATTICE consistently outperformed three strong baselines achieving F1-score improvements of 0.906% to 2.367% while reducing ATTAIN’s training time by an average of 4.2%, without worsening inference latency. Despite these strengths, LATTICE also exhibited several limitations relevant to CPS/ICS anomaly detection. First, although curriculum learning enhanced training stability, the approach relied on predefined difficulty estimation, which may not generalize across unseen environments or evolving attack strategies. Second, the model focused primarily on temporal difficulty progression and did not explicitly incorporate spatial dependencies or multi-sensor interactions, which are crucial for high-dimensional CPS such as water distribution systems. Third, the framework lacked adaptive online decision-making, since the detection process remained static once training was completed. Finally, LATTICE did not integrate any hyper-parameter optimization mechanism, leaving performance sensitive to manual tuning and reducing its scalability in operational settings. Overall, while LATTICE improved efficiency and robustness through curriculum learning, its limited adaptability and absence of unified temporal–spatial modeling highlight remaining gaps for real-time FDI detection in complex infrastructures.

Lachure and Doriya [23] presented a hybrid meta-heuristic framework designed to enhance the security of water distribution systems by integrating chicken swarm optimization (CSO) with particle swarm optimization (PSO) for feature selection in high-dimensional CPS data. This joint selection strategy aimed to identify the most discriminative attributes while reducing redundancy and improving model stability. For classification, the authors constructed a robust voting ensemble that combined SVM, decision trees, random forests, and extreme gradient boosting (XGBoost) to strengthen detection reliability under diverse attack conditions. Experimental evaluations on the WADI and BATADAL datasets demonstrated near-perfect performance, including 100% accuracy and an F1-score of 0.9981 on WADI, and an F1-score of 0.9888 with a recall of 0.99 on BATADAL, highlighting the framework’s effectiveness in detecting cyber-physical anomalies in water infrastructures. Despite its strong results, the method exhibited several limitations. The reliance on meta-heuristic feature selection significantly increased computational cost and introduced sensitivity to numerous hyper-parameters, affecting reproducibility and scalability. The ensemble-based decision mechanism also reduced interpretability and made deployment in real-time control environments more challenging. Furthermore, the framework did not incorporate explicit temporal modeling, leaving it unable to capture evolving temporal patterns that are crucial in ICS/WDS anomaly detection. Its static structure also lacked adaptive mechanisms to handle long-term distribution shifts or changing attack behaviors, which limits its generalization capability in dynamic operational settings.

Wang et al. [24] proposed a fully data-driven framework for detecting and localizing FDI attacks in DC microgrids (DC-MGs). Their method constructs an input–output subspace identification model that learns the dynamic behavior of DC-MGs directly from process data, eliminating the need for detailed physical modeling. Based on this model, the authors designed adaptive residual generators and data-dependent thresholds to identify abnormal manipulation, along with localization observers to pinpoint the compromised distributed generation units (DGUs). Experimental results on a meshed four-DGU DC-MG test system demonstrated strong performance: the proposed method achieved a detection Accuracy of 99.41%, Precision of 98.92%, Recall of 99.67%, and F1-score of 99.29%, while localization accuracy exceeded 98% across all attack scenarios. Moreover, compared with UKF-based and SVM-based baselines, the proposed framework reduced average detection time by 34%–51%, highlighting its effectiveness for real-time FDI monitoring. While the approach presents several strengths (including its independence from physical models, high detection accuracy, fast response time, and the ability to localize both single and multi-point attacks) certain limitations persist. The method does not incorporate deep temporal-spatial representation learning (e.g., transformer or LSTM encoders) and lacks adaptive decision-making mechanisms to respond to evolving attack strategies. In addition, its performance is sensitive to the quality and stationarity of the identified subspace model, which may limit scalability in large or dynamically changing Industry 4.0 infrastructures. Nevertheless, the study provides a powerful demonstration of how system-level residual modeling can form an efficient and interpretable baseline for FDI detection in cyber-physical energy systems.

Wang et al. [25] introduced a highly effective dual-attention spatio-temporal detection model (DASTFN) designed to enhance FDI detection in modern smart grids. The proposed framework combined graph attention networks (GAT) to capture fine-grained structural dependencies across the electrical grid with temporal convolutional networks (TCN) to model short- and mid-range temporal dynamics with high computational efficiency. Extensive experiments on the IEEE 14-bus and IEEE 118-bus benchmark systems demonstrated the robustness of the approach. DASTFN consistently achieved over 98% detection accuracy on the 14-bus system and around 96% accuracy on the 118-bus network, while improving F1-score by 3%–7% over state-of-the-art baselines. Under stealthy and persistent FDI scenarios, the model successfully reduced false-alarm rates by up to 40%, highlighting its strong resilience to subtle and evolving attack patterns. Beyond performance metrics, DASTFN offered several conceptual advantages. The use of graph attention allowed the model to adaptively weight critical nodes and edges, enhancing interpretability and improving sensitivity to localized anomalies. The TCN-based temporal module provided fast parallel computation, enabling scalable application to larger grid configurations. In addition, the overall architecture demonstrated stability across varying attack intensities and system complexities, proving its suitability for deployment in realistic smart grid environments. Despite these strengths, a few limitations remained: the model required predefined grid topology and exhibited moderate computational overhead due to dual-attention operations.

3  Materials

This section presents the materials and data sources employed in developing and evaluating the proposed Evo-Transformer-DRL framework. We first provide an overview of the end-to-end workflow that outlines how raw multivariate time-series measurements are transformed into model-ready representations and subsequently processed by the Transformer and DRL components. We then describe the benchmark industrial datasets used in our experiments, followed by the preprocessing procedures, normalization strategies, sequence construction steps, and labeling criteria applied to prepare the data for training and evaluation. To address the complex challenge of FDI detection in Industry 4.0 water infrastructures, we design a hybrid learning pipeline that integrates data preprocessing, intelligent feature learning, adaptive decision-making, and optimization. The overall workflow of the proposed solution is illustrated in Fig. 1, which demonstrates the flow of information from raw datasets to injection detection and final performance evaluation. As depicted in the figure, the methodology consists of two major stages: data preparation and the Evo-Transformer-DRL framework. In the first stage, datasets collected from three benchmark cyber-physical testbeds (SWaT, WADI, and BATADAL) undergo a series of preprocessing operations including missing value imputation, normalization, feature selection, and label encoding. These steps ensure that the raw data is clean, scaled, and semantically structured for downstream learning. The processed data is then fed into the core framework, which integrates three key components: a Transformer encoder, a DRL agent, and an IGWO optimizer. Within this architecture, the Transformer module extracts temporal and contextual patterns from sequential input features, which are then used by the DRL agent to learn optimal policies for attack classification under dynamic data conditions.

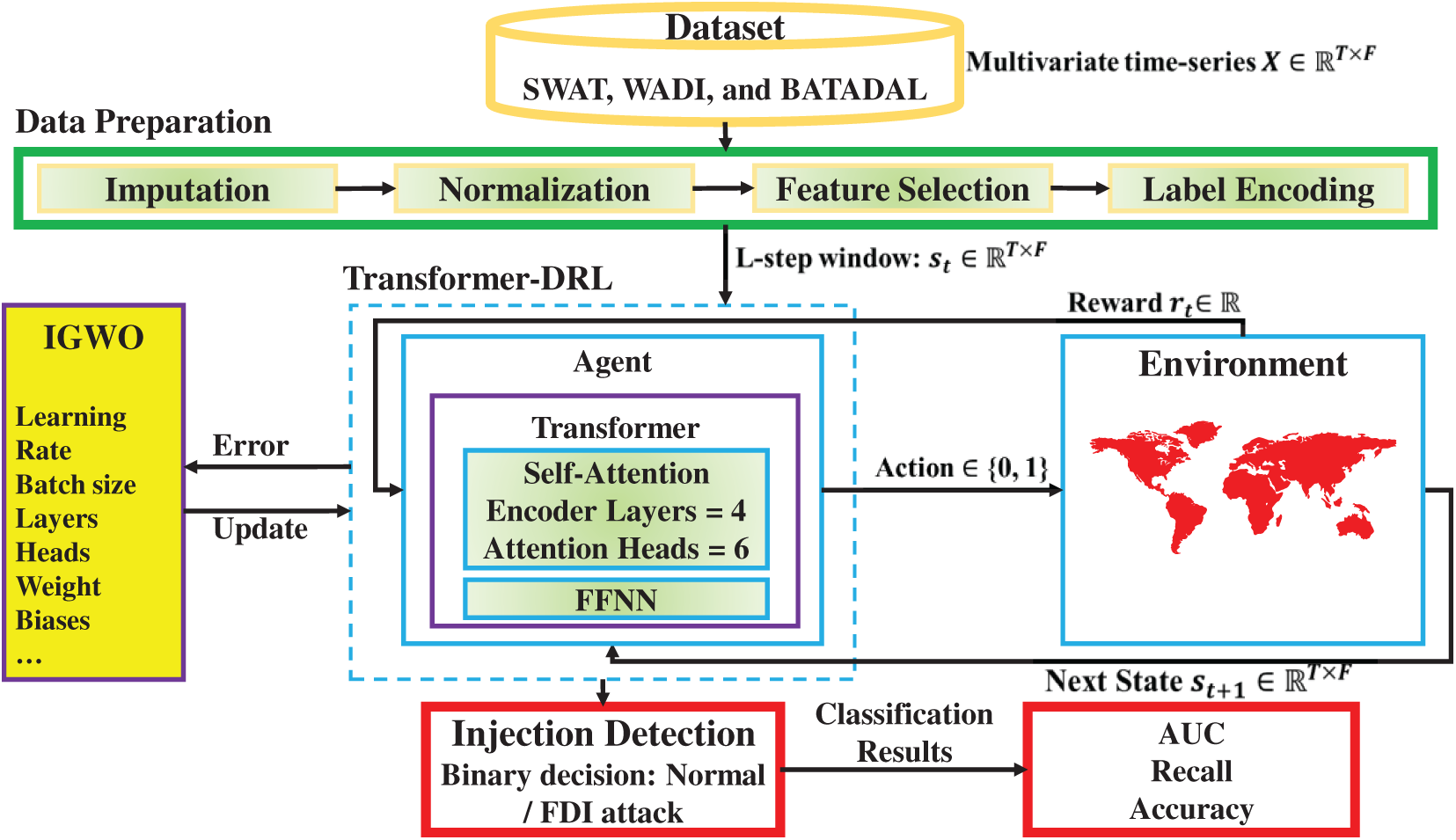

Figure 1: Overview of the proposed model for FDI detection.

To enhance generalization and convergence, the proposed IGWO model is employed to optimize the hyper-parameters of both the Transformer and DRL modules. This optimization step ensures that the agent maintains a balanced performance trade-off between detection quality and computational overhead. During training and testing, the agent interacts with a simulated environment that reflects the underlying dynamics of the industrial water systems. The agent receives a state representation based on transformed input features and returns an action indicating the likelihood of FDI presence. Based on the outcome, a reward is generated, guiding the learning process. Finally, the trained model is evaluated through an injection detection module using three performance metrics to assess its robustness across datasets. This closed-loop framework ensures end-to-end adaptability, making it suitable for real-world Industry 4.0 deployments with evolving threat landscapes. The details of each stage in this pipeline are thoroughly described in Section 4.

In this subsection, we introduce the three benchmark datasets which are widely adopted in the research community for evaluating intrusion and FDI detection methods in smart water infrastructures. These datasets cover diverse system behaviors, attack scenarios, and operational complexities. Following the dataset descriptions, we also explain the data preparation steps performed prior to model training. The SWaT dataset was collected from a scaled-down but functionally complete water treatment testbed located at the Singapore University of Technology and Design. The testbed replicates a realistic six-stage water treatment process, comprising raw water intake, chemical dosing, filtration, and backwashing, among others. Each stage is equipped with industrial-grade programmable logic controllers (PLCs), sensors (e.g., flow meters, pressure transducers, level sensors), and actuators (e.g., pumps, valves), and is controlled by SCADA software, thereby providing a cyber-physical environment that closely mirrors real industrial setups [14–16].

The dataset includes more than 11 days of operational data, consisting of seven days of normal behavior followed by four days of attack scenarios. The data is captured at 1-s intervals and includes 51 features, such as flow rates, water levels, pump and valve statuses, conductivity, and pressure readings across the six stages (P1–P6). Each record is labeled either as normal or attack, and the attack logs are well documented with timestamps and descriptions. The attacks span a wide variety, including FDI, command injection, denial-of-service (DoS), man-in-the-middle (MitM), and sensor spoofing. These attacks are injected using both internal and external vectors, simulating insider and outsider threats. What makes SWaT FDI valuable is its fine-grained resolution and detailed control logic, enabling the evaluation of FDI detection models on real-time, multivariate sensor-actuator interactions. Due to its controlled nature, ground truth labeling is accurate, and the system behavior under both benign and malicious conditions is well understood. This makes it ideal for developing and validating classification models focused on binary detection of cyberattacks in treatment-oriented water systems [14–16].

The WADI dataset was constructed to simulate a large-scale municipal water distribution system, capturing the flow of treated water from reservoirs to consumption points. Developed using a combination of real industrial control equipment and software simulation, the WADI testbed is more complex than SWaT in terms of network topology, data dimensionality, and physical interconnectivity. It reflects a full water distribution system with various storage tanks, pumps, valves, and pipelines, controlled by multiple PLCs under a central SCADA system. WADI consists of 16 days of data, including 14 days of normal operation and 2 days of attacks. The sampling frequency is one record every 1 s, and each sample includes 123 features, such as sensor measurements (e.g., pressure, flow, conductivity, tank levels) and actuator states (e.g., valve open/close status, pump on/off status). The dataset captures a variety of attack types, including multi-point FDI, DoS, actuator state flipping, and unauthorized command injections. The attacks are launched both via network interfaces and physical access to actuators, mimicking realistic insider and outsider adversarial behaviors. Labels are provided in a binary format (normal vs. attack), and detailed attack timelines are published alongside the dataset. Compared to SWaT, WADI introduces higher levels of noise, feature redundancy, and temporal dependencies, requiring robust detection mechanisms capable of learning from high-dimensional and highly correlated time-series data. Moreover, its size and heterogeneity make it suitable for evaluating models under scalability and generalization constraints [14–16].

BATADAL is a simulation-based dataset developed for a public challenge aimed at advancing FDI detection in critical water infrastructure. Unlike SWaT and WADI, which rely on physical testbeds, BATADAL uses the EPANET hydraulic simulation engine to model a city-scale water distribution network. The dataset is generated from SCADA log emulations under varying operational conditions, including consumer demand profiles, pump schedules, and random fluctuations. The simulation environment includes a wide network of pipes, junctions, storage tanks, and pumps, and reproduces both nominal and malicious system behavior. The BATADAL dataset includes six scenarios with different attack configurations and durations. Data is sampled at 1-min intervals, and each record includes 43 features, such as flow rate, tank water level, pressure readings, and actuator states (pump status, valve positions). The attacks are designed to mimic realistic and stealthy threats, such as gradual FDI, parameter manipulation, leak simulations, and demand distortion. Each scenario provides a log of attack windows and types, allowing supervised or semi-supervised model training. One unique advantage of BATADAL is its high stochastic variability, resulting from randomized water demand patterns and synthetic noise injected into sensor measurements. These characteristics make it especially challenging and useful for testing model robustness against uncertainty and unseen behaviors. Although simulated, BATADAL is widely accepted in the community due to its complexity and scale, and it complements SWaT and WADI by covering different aspects of smart water infrastructure [14–16].

To ensure data quality and compatibility with the proposed learning framework, four essential preprocessing steps are applied to all three datasets: imputation, normalization, feature selection, and label encoding. These operations collectively improve the consistency, efficiency, and discriminative power of the input data, which is crucial for training a high-performance detection model. First, missing values are addressed through imputation strategies to prevent disruptions in the temporal continuity of sensor readings. Gaps in the data (caused by sensor faults, communication issues, or logging errors) are handled using a combination of forward-fill, backward-fill, and linear interpolation, depending on the nature and length of the missing sequence. This step is critical to maintain a coherent input stream for time-series modeling and to avoid introducing learning artifacts. Once the data is complete, all continuous features are normalized to a common numerical range. Due to the variety of measurement units (e.g., liters per second, kilopascals, microsiemens), normalization is required to eliminate scale-related bias and to stabilize gradient-based learning. A min-max scaling technique is adopted to rescale values between 0 and 1, preserving the relative dynamics of each signal while enabling effective integration into the Transformer and DRL architectures.

After normalization, we reduce the input dimensionality by selecting a subset of relevant features. High-dimensional datasets such as WADI often include redundant or low-variance variables that do not contribute to FDI discrimination. By applying statistical filtering and leveraging domain expertise, we retain only those features that exhibit strong temporal variability or are known to be directly affected by attacks. This not only improves computational efficiency but also helps prevent overfitting during model training. Finally, categorical output labels are transformed into binary numerical codes to facilitate supervised classification. All samples labeled as “Normal” are encoded as 0, while any form of malicious behavior (regardless of the attack type) is encoded as 1. This binarization ensures consistency across the datasets and aligns with the output format expected by the classification layer in proposed Evo-Transformer-DRL.

4  Proposed Methods

This section presents the methodological foundations and the proposed hybrid learning framework. We first outline the standard RL formulation used as the decision-making backbone of our approach. Next, we describe the conventional transformer architecture employed for temporal representation learning. We then introduce the IGWO, which is designed to enhance the stability and performance of both the Transformer and DRL components through adaptive hyper-parameter tuning. Finally, we detail the complete Evo-Transformer-DRL framework, where these components are integrated into a unified pipeline for robust anomaly detection under complex temporal and non-stationary industrial conditions.

4.1 RL

RL is a goal-oriented learning framework in which an agent learns to make sequential decisions by interacting with an environment and receiving evaluative feedback in the form of rewards. Unlike supervised learning, RL does not rely on labeled input–output pairs; instead, it enables autonomous learning through trial and error [26]. This capability makes RL particularly advantageous for dynamic and partially observable environments, where system responses may be stochastic, delayed, or incomplete. Among its key strengths are adaptability, scalability, and the ability to optimize long-term cumulative performance in complex, high-dimensional state spaces. In the context of cybersecurity and FDI detection RL offers unique advantages. FDI scenarios involve evolving attack vectors, uncertain feedback, and time-sensitive responses. Traditional static models may fail to detect such patterns unless explicitly trained on similar attacks. In contrast, RL-based methods can adapt to changing threat landscapes by continuously refining detection strategies in response to observed behavior and delayed outcomes. This real-time adaptability makes RL highly suitable for safeguarding cyber-physical systems operating under uncertain conditions. Fig. 2 depicts the generic architecture of an RL-based decision-making loop. The agent receives a state from the environment and selects an action according to its policy. This action influences the environment, which responds with a new state and a scalar reward. The agent uses this feedback to update its policy via a learning algorithm, gradually improving its decision-making process over successive interactions. This cycle continues until an optimal policy is learned that maximizes the agent’s long-term performance [26].

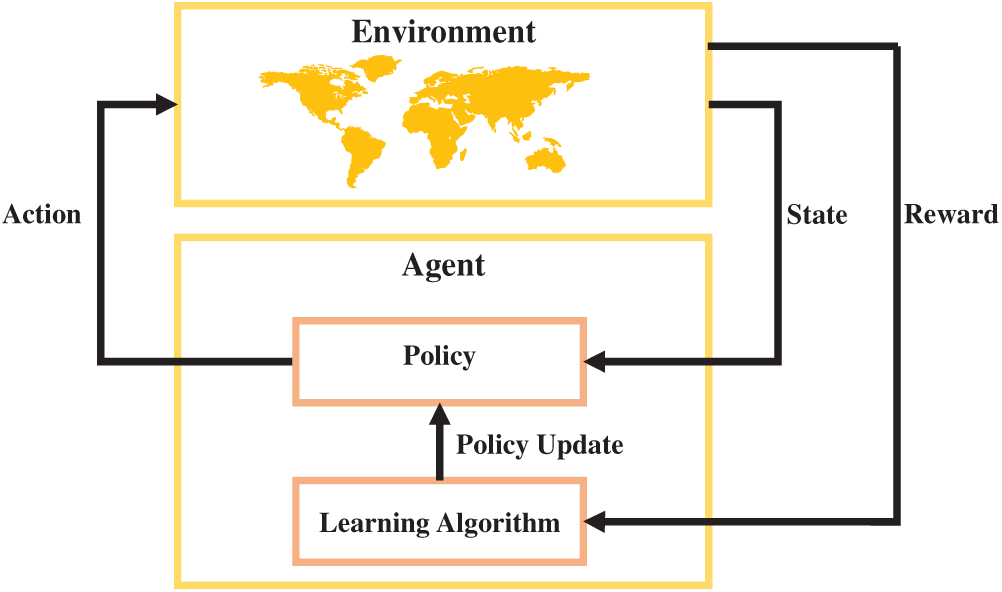

Figure 2: Interaction loop between the agent and environment in a RL framework.

The agent’s objective is to maximize the cumulative future reward, denoted by the return Gt. As shown in Eq. (1), this return is defined as the infinite sum of discounted future rewards [27]:

Gt=∑k=0∞γtrt+k+1(1)

where Gt is the cumulative return at time step t; rt+k+1 is the reward received k+1 steps after time t; and γ is the discount factor that controls the influence of future rewards, with 0<γ≤1.

To evaluate how desirable it is to be in a certain state, the value function Vπ(s→) is defined in Eq. (2) as the expected return when starting from state s and following a policy π:

Vπ(s→)=E[Gt|s→0=s→](2)

where Vπ(s→) is the expected return from state s→ under policy π; E denotes the expectation over all possible future trajectories.

This function quantifies the long-term benefit of being in a given state under a specific policy. To more precisely estimate the quality of individual actions in each state, the action-value function Qπ(s→,a) is introduced in Eq. (3):

Qπ(s→,a)=E[Gt|s→t=s→,at=a](3)

where Qπ(s→,a) is the expected return for taking action a in state s→ and then following policy π; s→t is the current state; at is the selected action.

A commonly used update rule in RL is the Q-learning update, which adjusts the current estimate of the action-value function based on observed transitions. This is defined in Eq. (4) as:

Q(s→,a)←Q(s→,a)+α(r+γmaxa′Q(s→′,a′)−Q(s→,a))(4)

where Q(s→,a) is the current estimate of the action-value function; a is the learning rate controlling how much new information overrides old estimates; r is the immediate reward received after action a; s→′ is the next state; maxa′Q(s→′,a′) is the maximum estimated return achievable from state s→′. This iterative update enables the agent to learn optimal policies even in the absence of a model of the environment [28].

4.2 Transformer

The transformer encoder has rapidly become a cornerstone in modern sequence modeling. Unlike recurrent or convolutional architectures, which struggle with capturing long-range dependencies and suffer from vanishing gradients or fixed receptive fields, the transformer leverages self-attention to directly model contextual relationships across entire sequences [29]. This innovation not only accelerates training by enabling parallelization but also significantly enhances the capacity to extract meaningful temporal and semantic dependencies. For FDI detection and cybersecurity tasks such as FDI detection, this adaptability is crucial since attacks often manifest as subtle, time-dependent perturbations embedded within multivariate sensor data. By relying on attention mechanisms rather than sequential recurrence, the transformer encoder ensures efficient learning from diverse attack scenarios, offering robustness against heterogeneous and evolving Industry 4.0 environments.

Over time, the transformer’s advantages (scalability, interpretability, and superior generalization) have positioned it as a preferred choice across domains including natural language processing, computer vision, and increasingly, cyber-physical security. In the context of Industry 4.0 water infrastructures, where continuous monitoring of high-dimensional signals is required, transformers offer the ability to capture both short-term fluctuations and long-range correlations that characterize complex system dynamics. This is especially beneficial for FDI detection, where stealthy manipulations might span multiple time steps and impact interrelated variables. By leveraging multi-head self-attention, the transformer encoder provides a mechanism to jointly weigh different aspects of input features, enabling robust identification of anomalous patterns while minimizing false alarms. The structure of the transformer encoder is depicted in Fig. 3, which illustrates its hierarchical composition [29].

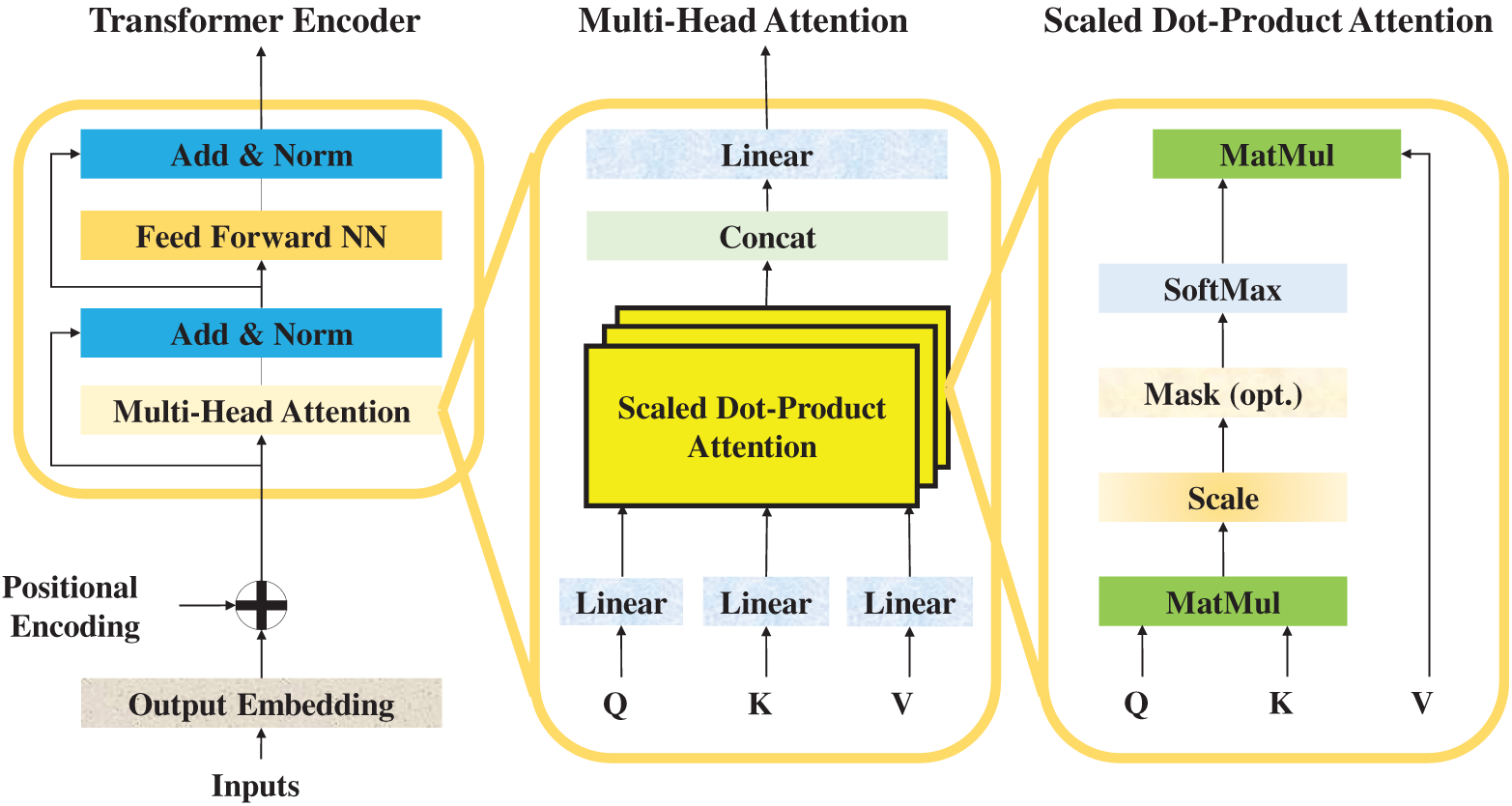

Figure 3: The transformer encoder architecture.

At the input stage, raw feature embeddings are augmented with positional encodings to preserve sequential ordering. These enriched embeddings are then fed into stacked encoder blocks, each comprising two key sublayers: a multi-head self-attention mechanism and a feed-forward neural network. Surrounding these sublayers are residual connections and layer normalization, which stabilize training and mitigate vanishing gradient issues. The output from successive encoder layers thus represents increasingly abstract and context-aware representations of the input data, enabling accurate classification of normal vs. attack states in smart water systems. Within Fig. 3, the inner workings of the multi-head attention mechanism are further detailed. The process begins with the projection of inputs into three distinct vectors: queries, keys, and values. Scaled dot-product attention computes pairwise interactions between queries and keys, scaling them to avoid dominance from large values, and applies a softmax function to derive attention weights. These weights are subsequently used to aggregate value vectors, resulting in context-sensitive representations. Multiple such attention heads operate in parallel, capturing complementary aspects of dependencies, before being concatenated and passed through linear transformations. This enriched representation then flows into the feed-forward network, which applies non-linear transformations for further abstraction, followed by normalization and residual connections to ensure information preservation across layers [30].

In continuation, the mathematical formulation of these components is presented. Eqs. (5) and (6) describe the sinusoidal positional encoding mechanism, which injects sequence order information into the model. This encoding ensures that the transformer can distinguish the relative positions of tokens, allowing it to model temporal dependencies effectively [30].

PE(pos,2i)=sin⁡(pos10002i/d),(5)

PE(pos,2i+1)=cos⁡(pos10002i/d)(6)

where pos is the position index; i is the dimension index; d is the embedding size.

Eqs. (7)–(9) define the linear transformations applied to the input embeddings, projecting them into query, key, and value subspaces:

Q→=Z→WQ,(7)

K→=Z→WK,(8)

V→=Z→WV(9)

where WQ, WK, and WV are learnable weight matrices responsible for transforming the input into distinct subspaces.

Eq. (10) then formalizes the scaled dot-product attention mechanism. This operation highlights the importance of certain time steps or features relative to others in determining anomalous patterns [30].

Attention(Q→,K→,V→)=softmax(Q→K→TdK)V→(10)

where dK is the dimensionality of each attention head.

Eqs. (11) and (12) extend this to multi-head attention, which aggregates multiple parallel attention mechanisms:

MultiHead(Q→,K→,V→)=Concat(head1,head2,…,headh)WO,(11)

head1=Attention(Q→WiQ,K→WiK,V→WiV)(12)

Eq. (13) defines the feed-forward network (FFNN) that processes the aggregated attention outputs. This non-linear transformation enriches the model’s representational capacity.

FFNN(x→)=ReLU(0,x→W1,+b1)W2+b2(13)

where x→ is the input vector corresponding to a single token or position in the sequence; W is the weight matrix; b is bias vector.

Finally, Eqs. (14) and (15) incorporate residual connections and layer normalization, ensuring stable training and efficient gradient propagation. Together, these formulations establish the transformer encoder’s ability to process multivariate time-series data effectively, providing the foundation for robust FDI detection when integrated into the proposed Evo-Transformer-DRL framework [30].

Z→´=LayerNorm(Z→+MultiHead(Q→,K→,V→)),(14)

Z→out=LayerNorm(Z→´+FFNN(Z→´))(15)

4.3 IGWO

The GWO algorithm was first introduced by Faris et al. [31] in 2014 as a nature-inspired meta-heuristic designed to solve complex optimization problems. Inspired by the leadership hierarchy and hunting mechanism of grey wolves in nature, GWO quickly gained attention due to its simplicity, low parameter dependency, and strong balance between exploration and exploitation. Its ability to navigate large and high-dimensional search spaces effectively makes it particularly suitable for continuous, discrete, and combinatorial optimization problems where traditional methods often fail. One of the major advantages of GWO is its adaptability and robustness in escaping local optima while converging toward global solutions. Compared to other evolutionary algorithms, it requires minimal parameter tuning, yet delivers competitive performance across diverse applications, from feature selection and neural network training to engineering design and intrusion detection. These features make GWO a popular choice for real-world optimization problems in Industry 4.0 systems, where adaptability, efficiency, and scalability are critical [32].

The social hierarchy of GWO consists of four main roles: alpha, beta, delta, and omega. The alpha wolf represents the best candidate solution and is primarily responsible for guiding the optimization process. Beta wolves are considered the second-best solutions, supporting the alpha in decision-making and guiding the pack. Delta wolves come third in the hierarchy and help to manage the omegas while also assisting the alpha and beta in the hunting process. Finally, the omega wolves represent the rest of the population and explore the search space more broadly. This hierarchical model allows GWO to strike a balance between intensification around the best solutions and diversification across unexplored regions. The mathematical formulation of GWO begins with the Eqs. (16)–(19), which model the encircling behavior of wolves around their prey. These equations describe how wolves update their positions by considering the distance between their current location and the prey (optimal solution). The coefficient vectors control the influence of the prey and randomness during the search process, while the parameter a→ is gradually decreased from 2 to 0, ensuring a transition from exploration to exploitation as iterations progress [33].

D→=C→X→p(t)−X→(t)(16)

X→(t+1)=C→X→p(t)−A→.D→(17)

A→=2a→r→1−a→(18)

C→=2r→2(19)

where X→p is hunting position vector, X→ is the position vector of a wolf, r→1 and r→2 are random vectors in the interval [0, 1], A→ and C→ are coefficient vectors, the a→ vector is linearly reduced from 2 to 0 during the repetition.

Eqs. (20)–(22) extend this model to simulate the cooperative hunting strategy of grey wolves. Here, the wolves rely on the positions of the three best solutions in the population (alpha, beta, and delta) to update their own positions. By calculating distances and combining the corresponding candidate solutions, each wolf updates its position as the average influence of these three leaders. This mechanism ensures that the pack collectively converges toward the global optimum by balancing guidance from multiple elite solutions.

D→α=|C→1X→α−X→|,D→β=|C→2X→β−X→|,D→δ=|C→3X→δ−X→|(20)

X→1=X→α−A→1⋅(D→α),X→2=X→β−A→2⋅(D→β),X→3=X→δ−A→3⋅(D→δ)(21)

X→(t+1)=X→1+X→2+X→33(22)

where X→p is hunting position vector, X→ is the position vector of a wolf, r→1 and r→2 are random vectors in the interval [0, 1], A→ and C→ are coefficient vectors, the a→ vector is linearly reduced from 2 to 0 during the repetition [33].

As shown in Fig. 4, the encircling mechanism allows wolves to move toward the prey from different directions under the influence of the alpha, beta, and delta wolves. Each of these leaders exerts a force that guides the other wolves, while the randomized coefficients ensure stochastic exploration. This cooperative hunting strategy mimics real-world grey wolf behavior and provides GWO with the ability to avoid premature convergence while steadily moving toward the optimal solution [33].

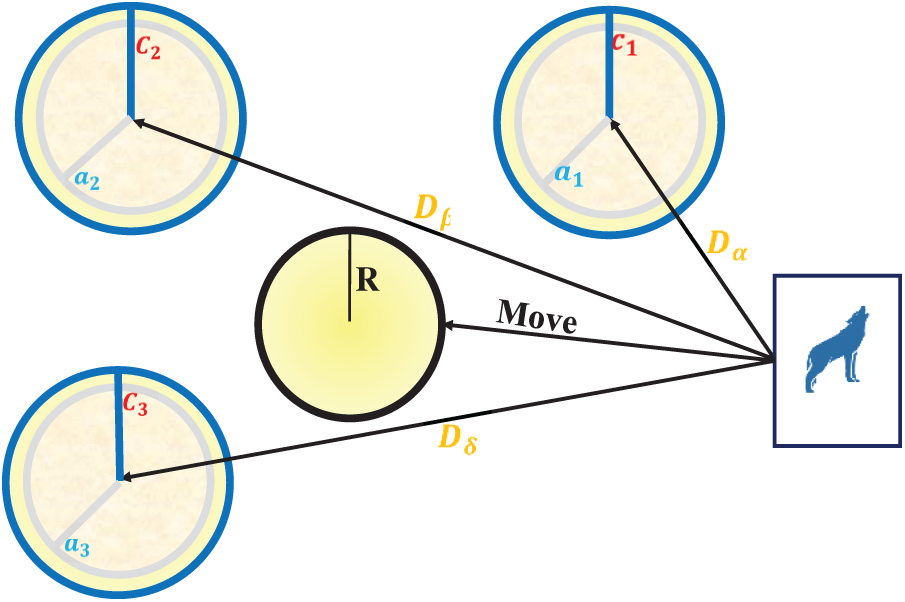

Figure 4: The encircling and hunting mechanism of the GWO.

The original GWO, despite its success, suffers from several limitations that hinder its performance in more complex optimization problems. One of the key issues is premature convergence, where the algorithm tends to get trapped in local optima due to excessive reliance on the three leader wolves (α, β, and δ). This hierarchical structure, although effective for exploitation, sometimes restricts the diversity of solutions within the population, leading to weak exploration in high-dimensional or rugged search spaces. Another limitation is the imbalanced trade-off between exploration and exploitation: in early iterations, exploration is dominant, but as the control parameter a decreases linearly toward zero, the algorithm heavily favors exploitation, which may reduce its ability to discover new promising regions of the search space. This rigidity in the exploration–exploitation mechanism limits the adaptability of GWO in dynamic or non-convex optimization landscapes [33].

To address these shortcomings, we propose an enhanced GWO by introducing a fifth wolf, denoted as φ, which acts as a balancer between exploration and exploitation. Unlike α, β, and δ that focus primarily on guiding the pack toward the best solutions, and ω that represents the general population, the φ-wolf introduces an additional adaptive mechanism. Its role is twofold: (i) to support elite wolves by reinforcing convergence when the pack is closing in on promising areas, and (ii) to inject exploration by periodically diverging toward less-explored regions of the search space. This hybrid role makes φ a mediator that dynamically adjusts the balance of the algorithm depending on the state of convergence, preventing stagnation and ensuring diversity. Specifically, the φ-wolf contributes by maintaining a memory of under-explored zones and periodically guiding ω wolves toward these areas, while also refining solutions around the leaders when diversity is already sufficient. By combining these dual responsibilities, φ ensures that the algorithm does not overcommit to exploitation too early, while still exploiting when necessary. Moreover, φ can interact with, β, and δ by partially averaging their influence, introducing a controlled level of randomness to avoid overfitting to a narrow search region. This makes the enhanced GWO more resilient to local optima and improves its adaptability across various problem domains.

Eqs. (23)–(25) present the updated formulation. Eq. (23) computes the distance components for all four guiding wolves (α, β, δ, and φ), thereby expanding the search guidance to include the new balancer wolf. Eq. (24) updates the candidate positions by considering the influence of each leader individually, while Eq. (25) finalizes the new position of a wolf as the average of these four influences. These updated equations ensure that the search process is no longer dominated solely by the three best solutions. Instead, the φ-wolf introduces an adaptive balance by reinforcing elite-driven exploitation while also guiding exploration into under-explored regions. Consequently, the improved GWO avoids premature convergence, maintains diversity longer in the optimization process, and enhances its global search capability.

D→α=|C→1X→α−X→|,D→β=|C→2X→β−X→|,D→δ=|C→3X→δ−X→|,D→ϕ=|C→4X→ϕ−X→|(23)

X→1=X→α−A→1⋅(D→α),X→2=X→β−A→2⋅(D→β),X→3=X→δ−A→3⋅(D→δ),X→4=X→φ−A→4⋅(D→φ)(24)

X→(t+1)=X→1+X→2+X→3+X→44(25)

4.4 Proposed Evo-Transformer-DRL

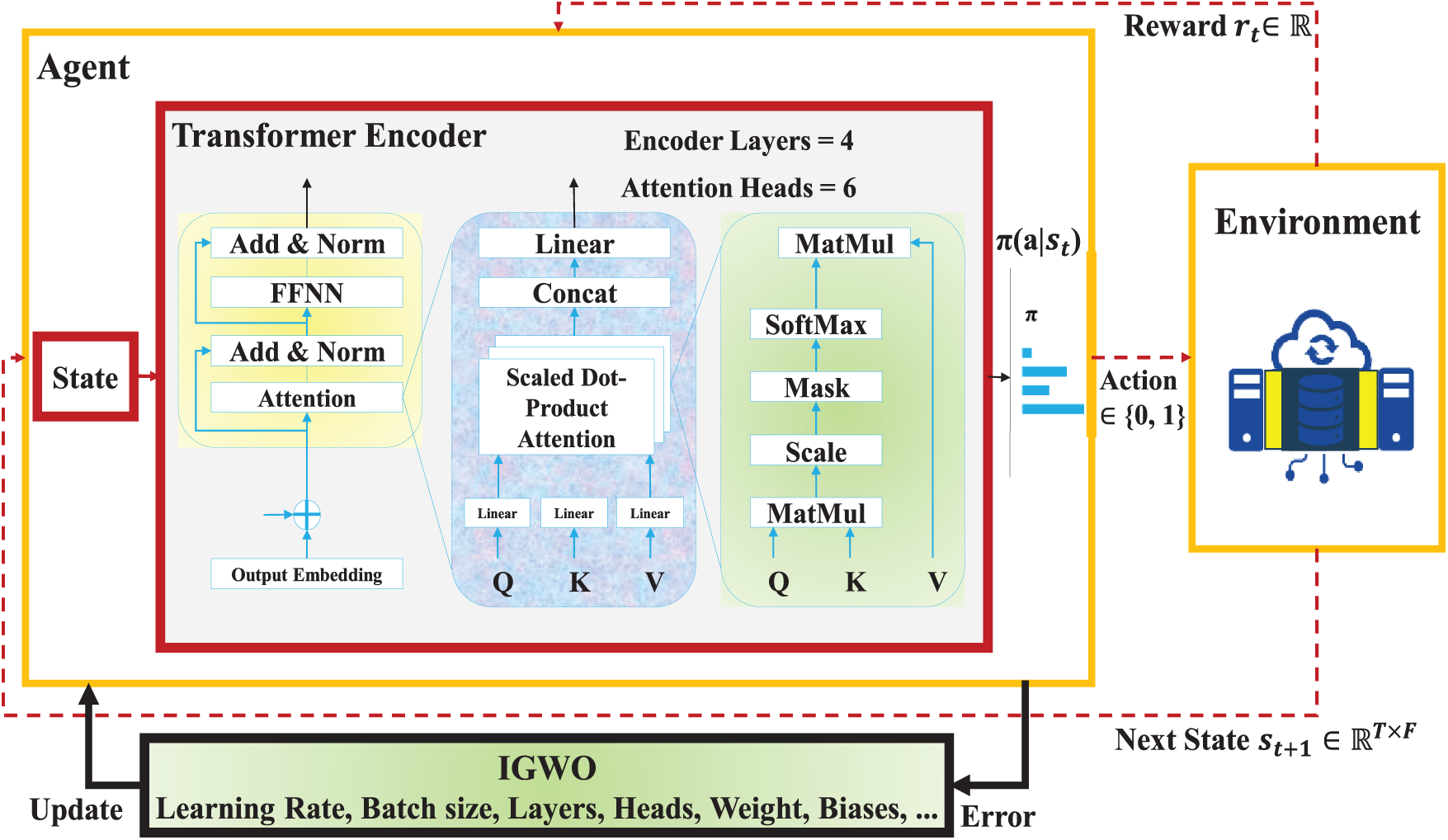

Fig. 5 illustrates the overall architecture of the proposed Evo-Transformer-DRL framework, where the agent interacts continuously with the environment through a reinforcement learning loop. The figure highlights how raw state inputs from the environment are processed by the transformer encoder, how the DRL agent selects an action based on the encoded state, and how the proposed IGWO module updates the system by optimizing hyper-parameters using error feedback. This closed-loop cycle integrates representation learning, adaptive decision-making, and evolutionary optimization into a single robust pipeline for FDI detection in Industry 4.0 smart water infrastructures. The proposed Evo-Transformer-DRL framework establishes a closed-loop pipeline in which an agent continuously interacts with the environment of Industry 4.0 smart water infrastructures to detect FDI attacks. At each time step, the environment provides a state vector derived from multivariate sensor readings, actuator signals, and control parameters. This state is passed into the agent, where the transformer encoder acts as the initial feature extraction module, capturing temporal dependencies and contextual relations among the inputs. The agent then decides on an action based on the learned detection policy. The environment subsequently returns a reward signal reflecting the accuracy of this decision, which is used to refine the detection strategy in subsequent iterations.

Figure 5: The proposed Evo-transformer-DRL architecture.

In this study, the state vector s→t represents a multidimensional snapshot of the physical water process at time step t. Each dimension corresponds to a specific sensor or actuator signal collected from the SWaT, WADI, and BATADAL infrastructures. These include flow rates, water levels, valve positions, pump statuses, pressures, and control setpoints across different physical stages of the treatment and distribution systems. To formalize the interaction between the agent and the smart water infrastructure, the proposed Evo-Transformer-DRL framework is modeled as a Markov decision process (MDP) defined by the tuple (S,A,R,P). In this formulation, the multivariate sensor–actuator window described earlier constitutes the state space, while the agent’s detection decisions form the action space. The reward function quantifies detection correctness, and the transition model characterizes how temporal water-process dynamics evolve across successive time steps. The state at time t is expressed in Eq. (26) as a stacked temporal window of L multivariate observations extracted from the SWaT, WADI, and BATADAL datasets:

s→t=[s→t−L+1,s→t−L+2,…,s→t](26)

where, s→t denotes the instantaneous measurements of t heterogeneous variables (flow, level, pressure, pump status, valve position, setpoints). This representation preserves both short- and long-range temporal structure for Transformer-based encoding.

The agent selects an action according to the discrete action space in Eq. (27):

A=[0,1](27)

where action 0 indicates a decision of “normal operation” and action 1 corresponds to detecting an “FDI attack.” This binary formulation aligns the DRL agent with the final classification objective while still enabling adaptive policy learning through sequential reward feedback.

The reward signal guiding policy updates is defined in Eq. (28):

R(s→t,at)={+1  if at correctly matches the ground−truth label,−1  otherwise(28)

which explicitly encourages correct detection decisions while penalizing false alarms and missed attacks. The reward structure is intentionally kept sparse and discriminative to stabilize policy gradients and promote fast convergence during IGWO-optimized training. The temporal evolution of the environment follows the transition model shown in Eq. (29):

P(s→t+1|s→t,at)=f(s→t)(29)

where f(.) denotes the deterministic time-indexed shift arising from the recorded physical process data.

Since the datasets represent fixed historical trajectories, the agent’s action does not influence physical plant dynamics. Instead, actions only affect the reward stream and subsequent policy updates, a common setting in data-driven RL for cyber-physical security. This structure ensures that the MDP remains well-defined even when applied to non-interactive historical sequences. Finally, combining Eqs. (26)–(29), the Evo-Transformer-DRL agent learns an optimal policy by mapping Transformer-encoded embeddings of s→t to actions that maximize the expected cumulative reward. This closes the loop between representation learning, sequential decision-making, and IGWO-driven hyper-parameter optimization within the proposed framework.

Consequently, the Transformer encoder receives a time-windowed sequence of these multivariate states, forming an input tensor of shape T×D, where T denotes the temporal window length and D the number of monitored variables. Physically, each feature captures a key operational property of the industrial water process (flow and pressure reflect hydraulic dynamics, level sensors indicate storage conditions, and actuator signals represent control commands). The Transformer leverages these heterogeneous dimensions to extract temporal–spatial dependencies, allowing the DRL agent to interpret the system’s evolving operational state and detect anomalous manipulations indicative of FDI attacks.

Within this interaction loop, the role of the transformer encoder is to transform raw sequential data into high-level representations suitable for decision-making. Unlike conventional architectures, the transformer utilizes self-attention to identify both short- and long-term correlations across heterogeneous time series without suffering from vanishing gradients or bottlenecks in sequential processing. The output of the Transformer forms a high-dimensional embedding that captures temporal and cross-variable dependencies among multivariate sensor and actuator signals. Physically, this representation reflects the instantaneous operational condition of the water infrastructure, serving as the input state for the DRL agent to evaluate and classify normal vs. attack scenarios. By integrating positional encodings, the transformer preserves the order of events while enabling parallelized computations. As a result, the input state is encoded into a rich embedding that highlights subtle anomalies characteristic of stealthy FDI attacks. The DRL agent builds on these embeddings to derive an optimal detection policy. It interprets the transformer’s outputs as part of the state representation and applies reinforcement learning to map these states to actions. The learning process is guided by cumulative rewards, where correct detection of attacks yields positive reinforcement and misclassifications incur penalties. Over time, the agent improves its classification accuracy by dynamically adapting to evolving attack strategies. This adaptability is critical for Industry 4.0 environments, where attack vectors are often non-stationary and conventional supervised models fail to generalize.

The decision-making process in DRL hinges on balancing exploration and exploitation. Here, the integration of DRL ensures that the framework can continuously refine its policy in the presence of uncertainty, delayed feedback, and adversarial manipulation. Unlike static detection methods, this allows the system to remain effective under novel or evolving FDI scenarios. Despite the strengths of transformers and DRL, the performance of such a hybrid system is highly sensitive to the choice of hyper-parameters, including learning rates, embedding dimensions, attention head sizes, discount factors, and exploration-exploitation coefficients. Suboptimal hyper-parameter configurations can lead to unstable training, poor convergence, or excessive computational cost. This challenge necessitates the inclusion of an evolutionary optimizer capable of fine-tuning these critical parameters in an adaptive manner. The novel IGWO fulfills this role by systematically tuning hyper-parameters to maximize detection accuracy while minimizing execution time. By modeling the leadership hierarchy and hunting mechanism of grey wolves, IGWO efficiently explores the hyper-parameter search space.

The introduction of the φ-wolf as a balancer between exploration and exploitation enhances this capability, ensuring that the optimizer avoids premature convergence and maintains solution diversity. Consequently, IGWO ensures that the transformer and DRL operate under conditions that yield stable and superior performance. Fig. 6 illustrates the schematic structure of an individual wolf in the IGWO population. Each wolf encodes a candidate hyper-parameter configuration composed of learning rate, batch size, and representative weight and bias values from the Transformer–DRL network. The figure is meant purely for schematic demonstration; it does not display every parameter in the model but shows a representative subset to visualize how a single search agent stores and manipulates its solution vector during optimization.

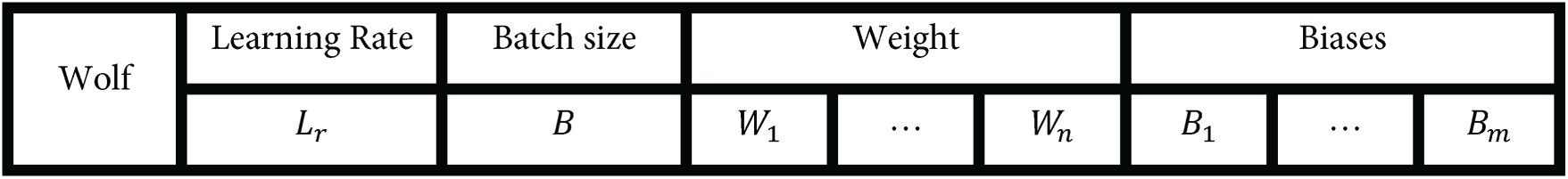

Figure 6: The structure of a wolf in Evo-Transformer–DRL.

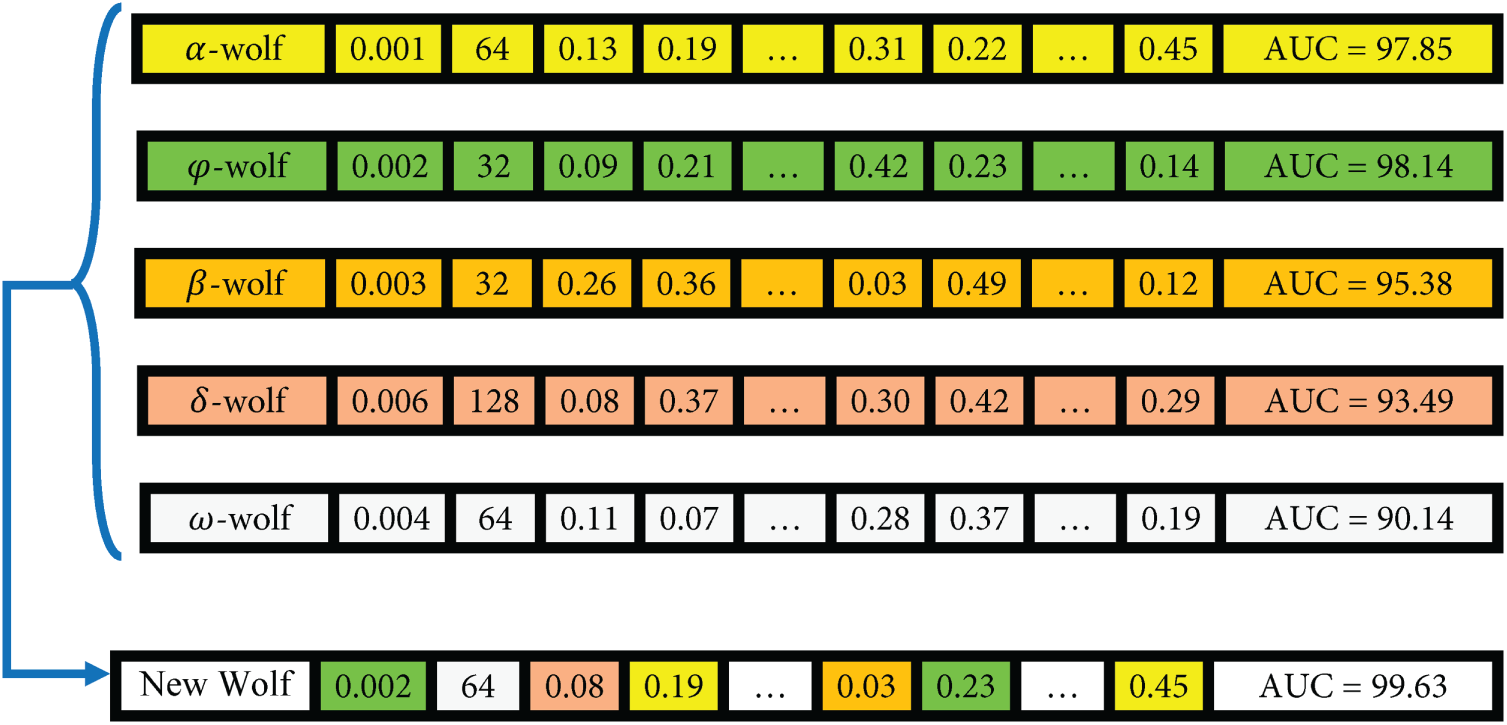

Fig. 7 provides an illustrative example of how IGWO updates the positions of wolves during the evolutionary process. As shown, the new wolf adjusts each of its genes (hyper-parameter values) by referencing the corresponding components of multiple leader wolves each contributing certain genes based on their color-coded influence. For instance, two genes are inherited from the α-wolf and two from the φ-wolf. This cooperative update allows the new wolf to combine the best traits of high-performing solutions, resulting in a configuration with higher overall fitness (in this example, improved AUC = 99.63 compared with previous leaders). The figure thus provides an illustrative, numeric visualization of the IGWO’s internal mechanism for adaptive hyper-parameter tuning in the proposed Evo-Transformer-DRL framework.

Figure 7: An example of position updates in the IGWO algorithm.

In this configuration, the interaction between the three components is tightly coupled: the transformer provides high-quality embeddings, the DRL agent leverages these embeddings for adaptive decision-making, and IGWO refines the system’s operational parameters to maintain an optimal balance between accuracy and efficiency. This synergy creates a self-reinforcing cycle: better embeddings enable more effective learning policies, while optimized hyper-parameters ensure that both modules reach their full potential. Together, they form a robust and generalizable architecture capable of addressing the dynamic nature of FDI attacks in smart water systems.

5  Results

The experimental evaluation of the proposed Evo-Transformer-DRL framework was carried out entirely in Python 3.10, leveraging a stable yet modern software stack to ensure both performance and reproducibility. Core numerical operations and data handling were managed through NumPy 1.24 and Pandas 1.5, while the learning modules were implemented using TensorFlow 2.12 and PyTorch 2.0, complemented by scikit-learn 1.3 for baseline comparisons and preprocessing. Visualization and statistical analyses were performed with Matplotlib 3.7 and Seaborn 0.12, providing clear insight into model behavior across experiments. All computations were executed on a high-performance workstation equipped with an Intel Core i9-12900K CPU (16 cores, 3.2 GHz), 64 GB RAM, and an NVIDIA RTX 4090 GPU with 24 GB VRAM, operating on Ubuntu 22.04 LTS. This configuration enabled efficient large-scale training and ensured that cross-testbed evaluations could be performed without memory or runtime bottlenecks. For all experiments, the datasets were divided into training (70%), validation (10%), and testing (20%) subsets. Due to the large dataset size and the high computational cost of Transformer–DRL training, k-fold cross-validation was not employed; instead, model selection was performed using the validation set. To ensure reproducibility and stability, each experiment was repeated five times with different random seeds, and the reported results represent the mean performance, with variance also included.

To ensure stable and reliable training of the DRL component, several key Q-learning stabilization mechanisms are incorporated into the implementation. The agent adopts an ε-greedy exploration schedule in which ε is initialized at 1.0 and decays exponentially at a rate of 0.995 toward a minimum threshold of 0.05, enabling a smooth transition from exploration to exploitation throughout training. A replay buffer with a capacity of 100,000 transitions stores past experience tuples, from which uniformly sampled minibatches of size 64 are used during optimization to decorrelate updates and prevent instability caused by sequential data. Furthermore, a separate target network is updated every 200 training steps using a soft-update coefficient of τ=0.01, effectively mitigating oscillations in Q-value estimation and improving convergence stability. To avoid exploding gradients and ensure consistent learning under the non-stationary temporal dynamics of WADI and BATADAL, gradient clipping with a maximum 𝓁2-norm of 1.0 is applied during backpropagation. Collectively, these stabilization techniques guarantee robust, reproducible, and convergence-stable DRL behavior across all experimental datasets.

For a comprehensive evaluation, several state-of-the-art algorithms were implemented alongside the proposed Evo-Transformer-DRL framework. BERT was included as a benchmark due to its powerful contextual representation learning ability, which has shown strong performance in sequential FDI detection tasks but often struggles with domain adaptation in cyber-physical environments. The vanilla Transformer was evaluated to highlight the benefit of combining temporal feature extraction with reinforcement learning, as it excels at capturing long-range dependencies but lacks adaptive decision-making. DRL alone was considered because of its adaptability in dynamic and uncertain environments, yet its performance typically degrades without advanced representation learning modules. Similarly, LSTM was included for its established ability to handle temporal correlations in multivariate time series, though it is limited by sequential computation bottlenecks and difficulty in capturing long-term dependencies. In addition, CNN was implemented for its efficiency in extracting local temporal-spatial patterns, which makes it effective for detecting abrupt anomalies but insufficient for capturing long-range correlations. Finally, SVM served as a classical machine learning baseline, offering simplicity and robustness for binary classification but limited scalability in high-dimensional and evolving data streams. Together, these baselines represent a diverse spectrum of traditional, DL, and RL paradigms, making them suitable comparators. Evaluating against these methods underscores the advantages of the hybrid Evo-Transformer-DRL, which combines the contextual modeling of transformers, the adaptability of DRL, and the fine-tuned optimization of IGWO, thereby demonstrating superior generalization and resilience for FDI detection in Industry 4.0 smart water systems.

For evaluating the algorithms, a set of metrics was employed, including accuracy, recall, area under the curve (AUC), root mean square error (RMSE), convergence trend, statistical t-test, runtime, and variance. According to Eq. (30), accuracy is defined as the ratio of correctly classified samples (true positives and true negatives) to the total number of samples. This metric reflects the overall correctness of the model’s predictions. A higher accuracy indicates better general performance, although it may be misleading in imbalanced datasets where the normal class dominates.

Accuracy=truepositive+truenegativetruepositive+truenegative+falsepositive+falsenegative(30)

As shown in Eq. (31), AUC is computed as the integral of the receiver operating characteristic (ROC) curve across all threshold values. This metric measures the separability of the classes independent of a specific threshold. An AUC value closer to 1.0 indicates excellent discrimination between attack and normal classes, while a value of 0.5 corresponds to random guessing.

AUC=∫01ROC(t)dt(31)

where, ROC(t) is ROC curve at threshold t.

Based on Eq. (32), recall is defined as the proportion of true positives to the sum of true positives and false negatives. This metric reflects the sensitivity of the model in detecting actual attacks. A higher recall indicates that fewer attacks are missed, which is critical in security-sensitive environments such as FDI detection.

Recall=true positivetrue positive+false negative(32)

Eq. (33) defines RMSE as the square root of the mean squared error between the actual values and the predicted values. This metric quantifies the prediction error magnitude, where lower RMSE values correspond to more stable and accurate predictions.

RMSE=1N∑i=1N[xi−x^i]2(33)

where, xi is the actual value, x^i is the predicted value, and N is the total number of data points.

It is important to note that RMSE is not used as a classification metric in our evaluation. RMSE is reported only as a convergence indicator during training to assess optimization stability and computational behavior across different models. The classification performance is evaluated exclusively using Accuracy, Recall, and AUC. The statistical t-test was applied to evaluate whether the improvements of the proposed Evo-Transformer-DRL framework over baseline algorithms are statistically significant. A p-value lower than 0.01 confirms that the performance difference is unlikely due to randomness, strengthening the reliability of the results. Runtime measures the computational cost in terms of wall-clock time required for training and inference. Lower runtime is desirable, especially for real-time deployment in Industry 4.0 systems where timely attack detection is critical. Finally, variance captures the stability of the model across multiple independent runs with different random seeds. Lower variance indicates more consistent performance, which is important for ensuring reproducibility and robustness under varying conditions.

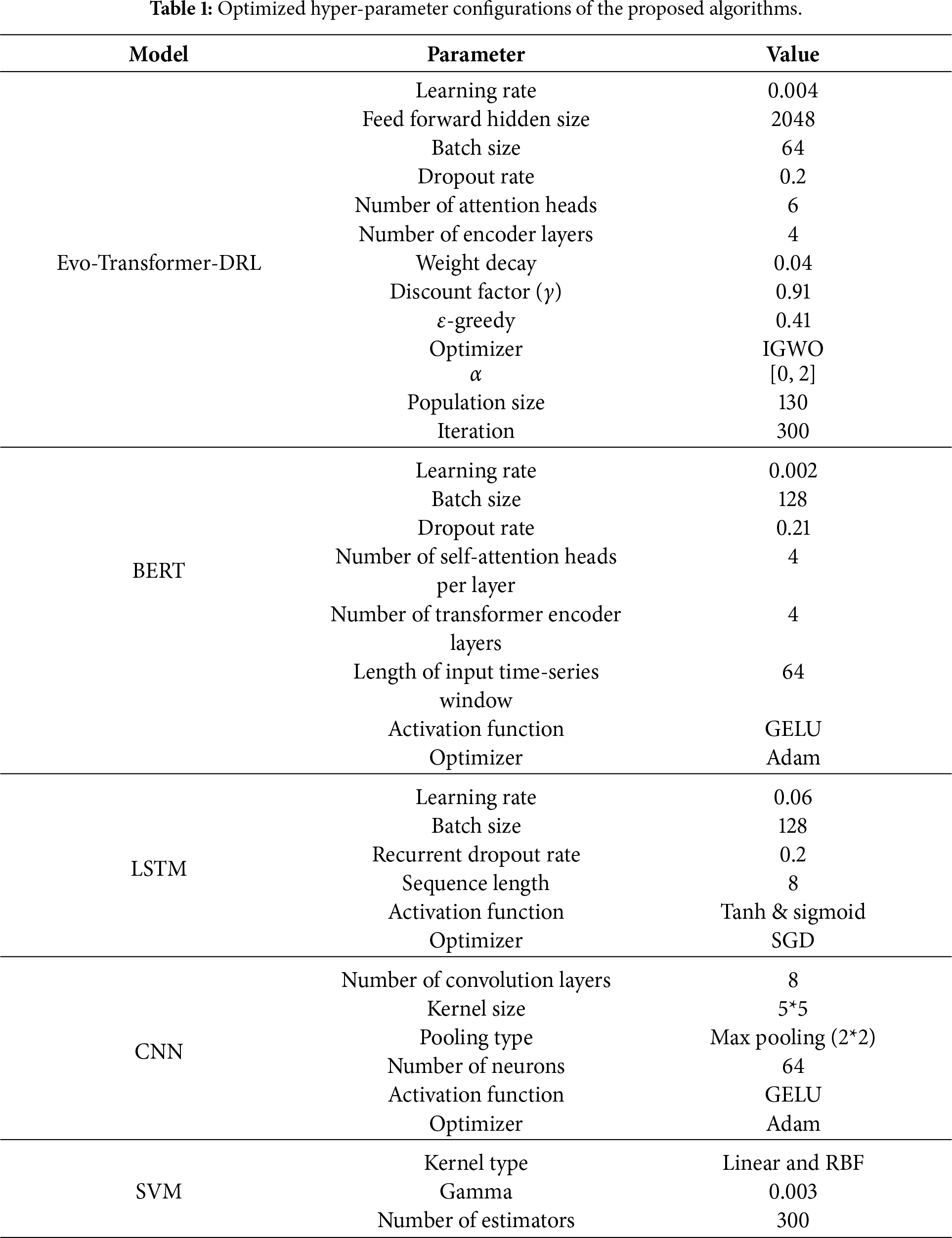

Before implementation, careful hyper-parameter tuning is essential, as it directly affects convergence speed, stability, and final detection accuracy. Improper settings may lead to underfitting, overfitting, or unstable training, while optimal configurations ensure reliable and reproducible performance across datasets. In our framework, the proposed Evo-Transformer-DRL benefited from the IGWO, which adaptively searched for the best parameter set to balance exploration and exploitation. For the baseline architectures (BERT, LSTM, CNN, and SVM), a grid search strategy was adopted to systematically explore parameter combinations and select the configurations yielding the best validation results. Table 1 presents the final optimized hyper-parameters for all evaluated algorithms.

For Evo-Transformer-DRL, the IGWO optimizer selected a learning rate of 0.004, batch size of 64, dropout of 0.2, 6 attention heads, and 4 encoder layers, with a discount factor of 0.91 and ε-greedy value of 0.41. The optimizer parameters included a population size of 130 and 300 iterations, with weight decay set at 0.04, which collectively ensured stable training dynamics and superior generalization. For BERT, the optimal configuration included a learning rate of 0.002, batch size of 128, 4 self-attention heads, and 4 encoder layers, using Gaussian error linear unit (GELU) activation with the Adam optimizer. The LSTM achieved its best performance with a learning rate of 0.06, batch size of 128, sequence length of 8, and tanh and sigmoid activations optimized via stochastic gradient descent (SGD). The CNN converged optimally with 8 convolutional layers, a 5 × 5 kernel size, max pooling (2 × 2), and 64 neurons using GELU and Adam. Finally, the SVM baseline attained its best results using both linear and radial basis function (RBF) kernels, with γ = 0.003 and 300 estimators. These configurations reflect the optimized trade-off between accuracy, robustness, and efficiency, providing a fair ground for comparative evaluation with the proposed method.

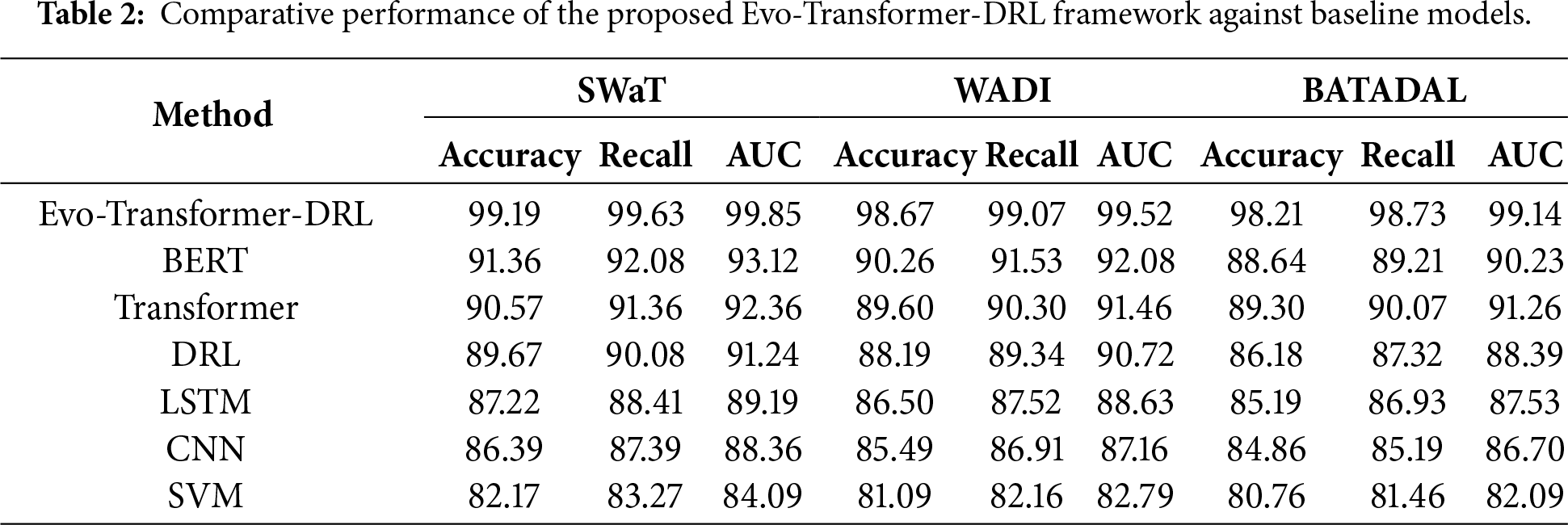

As presented in Table 2, the proposed Evo-Transformer-DRL framework consistently outperforms all baseline methods across the three benchmark datasets. Specifically, it achieves the highest accuracy, recall, and AUC on SWaT (99.19%, 99.63%, and 99.85%), WADI (98.67%, 99.07%, and 99.52%), and BATADAL (98.21%, 98.73%, and 99.14%). In contrast, conventional baselines such as SVM and CNN exhibit significantly lower scores, particularly on the more complex WADI and BATADAL datasets, highlighting their limited ability to generalize under noisy and heterogeneous conditions. The superior performance of the Evo-Transformer-DRL can be attributed to its synergistic architecture. The Transformer encoder ensures robust temporal and contextual representation learning, while the DRL agent dynamically adapts detection policies to evolving attack patterns. Crucially, the integration of IGWO for hyper-parameter optimization fine-tunes the model to achieve an optimal trade-off between detection accuracy and computational efficiency. This combination explains why the proposed framework maintains near-perfect Recall values, effectively minimizing false negatives.

As shown in Fig. 8, the results from Table 2 are presented in a visual form to highlight performance differences among the models. Each panel corresponds to one dataset, with accuracy, recall, and AUC illustrated side by side. Across all three datasets, the Evo-Transformer-DRL consistently achieves the highest values across all metrics, clearly outperforming baselines such as BERT, Transformer, DRL, LSTM, CNN, and SVM. The superiority of the proposed method is especially evident in recall and AUC, where it maintains near-perfect detection capability with minimal false negatives. The comparative plots also reveal the performance gap between DL–based approaches and traditional ML. While CNN and LSTM capture local and temporal dependencies, they lag behind the transformer-based models in handling long-term correlations. SVM consistently records the lowest scores, confirming its limited scalability in high-dimensional settings. By contrast, the Evo-Transformer-DRL leverages representation learning, adaptive decision-making, and IGWO-driven optimization, leading to robust results across diverse datasets. This confirms that the proposed framework not only achieves state-of-the-art accuracy but also ensures generalizability in cross-testbed scenarios.

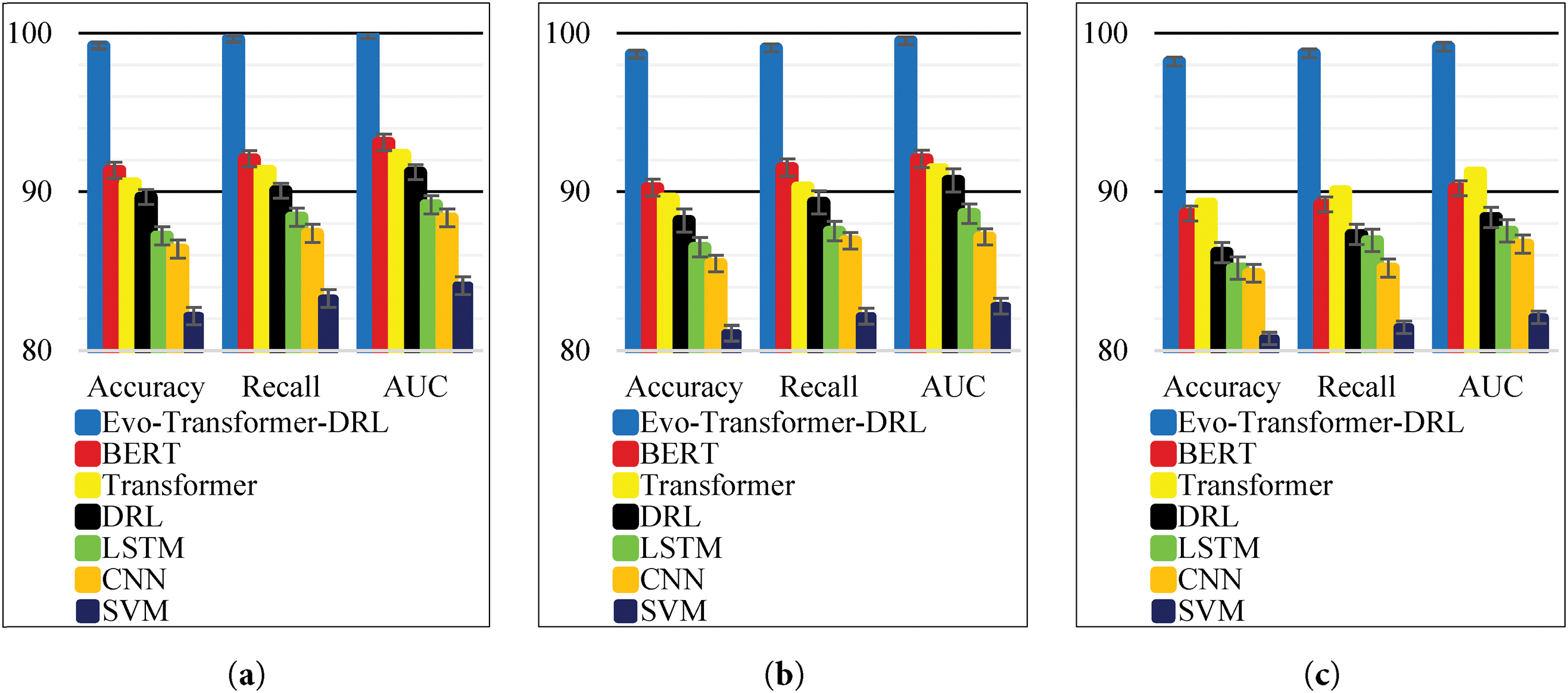

Figure 8: Visual comparison of accuracy, recall, and AUC for the proposed Evo-Transformer-DRL and baseline models across: (a) SWaT; (b) WADI; (c) BATADAL datasets.

Figs. 9–11 illustrate the ROC curves of the proposed Evo-Transformer-DRL framework against baseline models across the three benchmark datasets. These curves show the trade-off between sensitivity and specificity, effectively representing the discriminative power of each algorithm. In all datasets, the curve of Evo-Transformer-DRL remains consistently closer to the upper-left corner of the plot, confirming its superior classification capability compared to BERT, Transformer, DRL, LSTM, CNN, and SVM. This visual evidence directly corresponds with the higher AUC values previously reported in Table 2. The comparative analysis highlights that while transformer-based baselines such as BERT and vanilla Transformer perform better than LSTM, CNN, and SVM, they still lag behind the proposed Evo-Transformer-DRL. The advantage of our method is most prominent in SWaT and WADI, where the ROC curve almost perfectly approaches the ideal boundary, reflecting near-optimal detection rates with minimal false positives. Even in BATADAL, which is the most challenging dataset due to its stochastic nature and stealthier attacks, Evo-Transformer-DRL demonstrates a noticeable margin over other models.

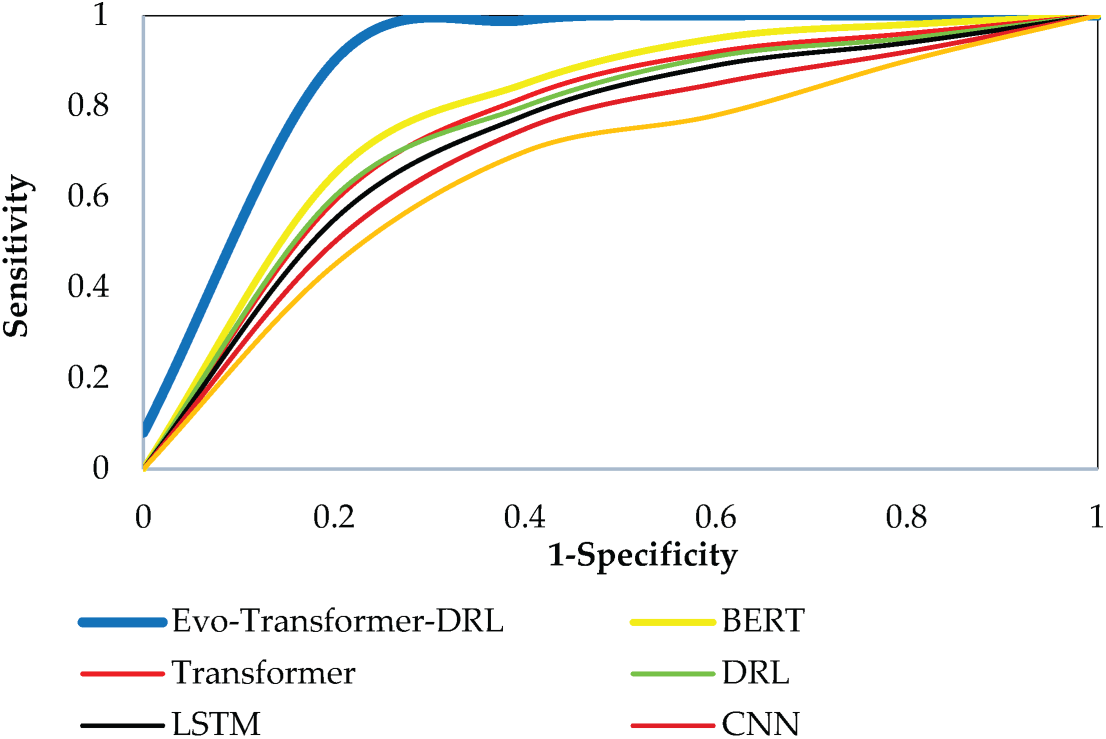

Figure 9: ROC curve comparison of Evo-Transformer-DRL and baseline models on the SWaT dataset.

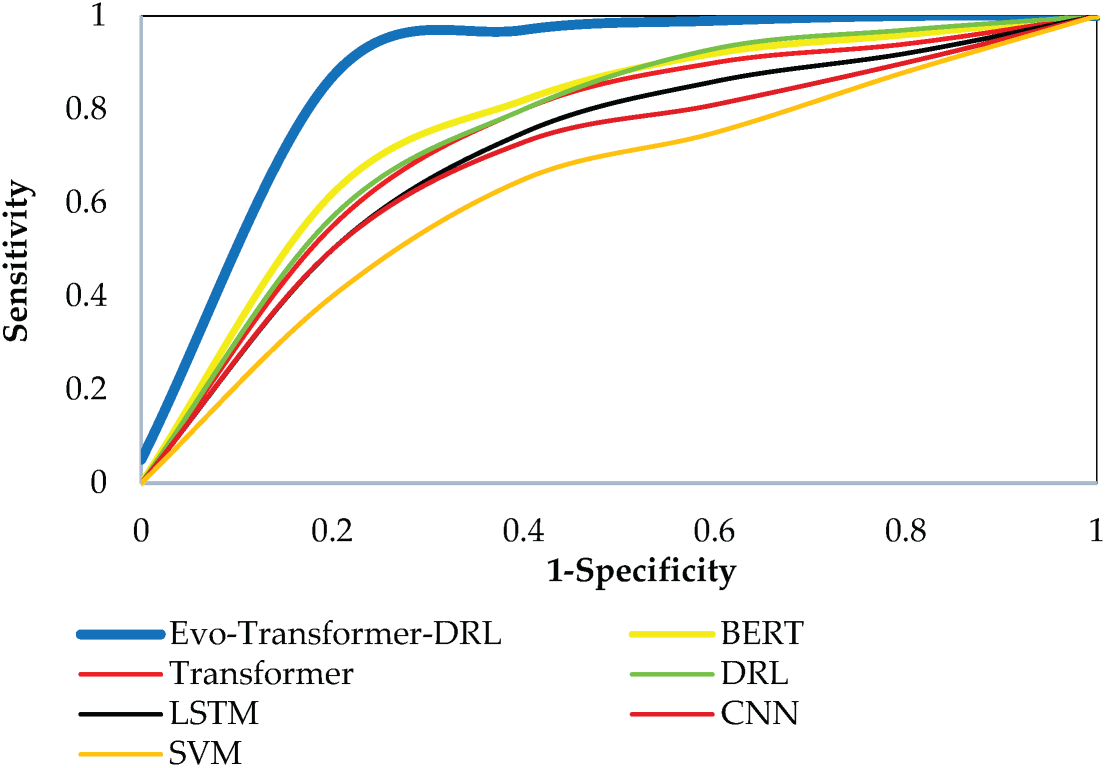

Figure 10: ROC curve comparison of Evo-Transformer-DRL and baseline models on the WADI dataset.

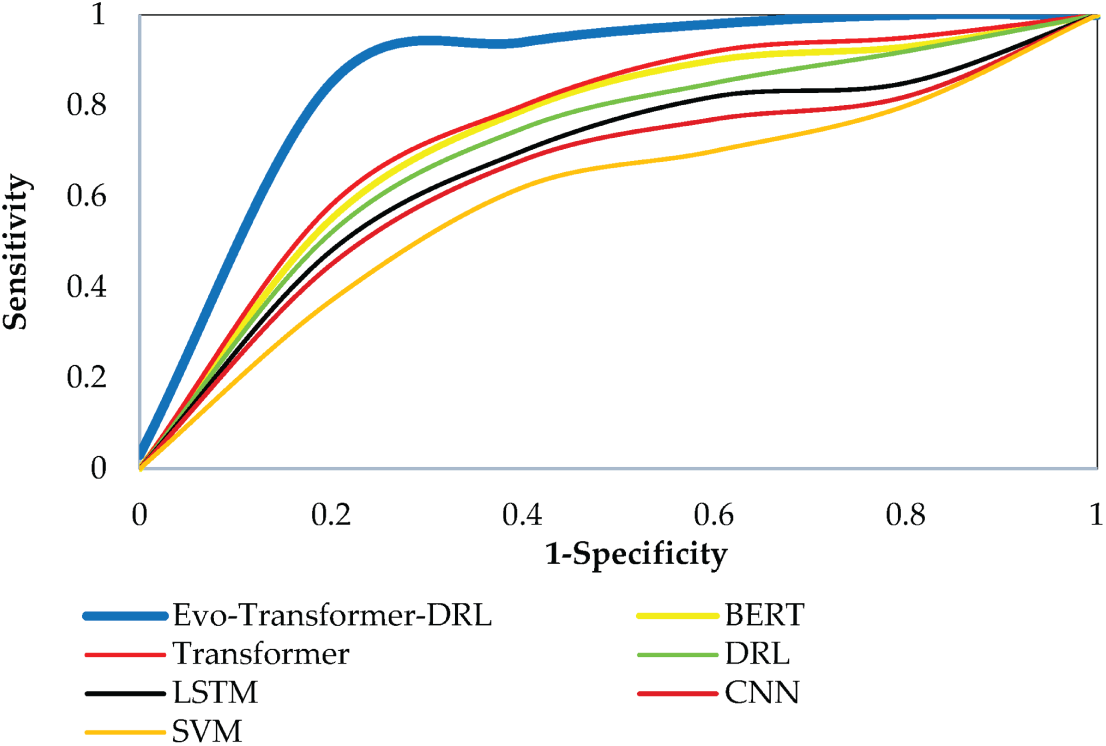

Figure 11: ROC curve comparison of Evo-Transformer-DRL and baseline models on the BATADAL dataset.

The inferior ROC performance of the baseline models can be attributed to fundamental architectural limitations that prevent them from fully capturing the complex temporal–spatial patterns underlying stealthy FDI attacks. Classical models such as CNN and SVM lack temporal modeling capability, making them sensitive to high-frequency noise and unable to track evolving multi-step attack sequences. LSTM partially addresses temporal dynamics but struggles with long-range dependencies and suffers from gradient bottlenecks, reducing its ability to discriminate subtle deviations in extended operational windows like those in SWaT and WADI. DRL-only baselines exhibit unstable decision boundaries because policy learning depends heavily on the quality of the state representation, which, when built from shallow features, leads to high variance and lower separability in ROC space. Even transformer-based baselines (BERT and Transformer), despite their attention mechanisms, operate with fixed hyper-parameter configurations and lack adaptive thresholding; thus, they cannot effectively adjust to shifting anomaly distributions or distinguish low-magnitude FDI events from normal operational fluctuations. These architectural and optimization constraints collectively result in weaker true positive rates (TPR) and higher false positive rates (FPR), as reflected by their ROC curves falling below the proposed framework.

In contrast, the Evo-Transformer-DRL framework integrates three synergistic components that directly resolve the shortcomings of the baselines, explaining its pronounced ROC superiority. The Transformer encoder produces high-resolution temporal–spatial embeddings, enabling accurate separation between normal and manipulated sequences even when FDI perturbations are minimal or distributed across multiple sensors. The DRL layer further enhances this separability by learning adaptive policies that optimize detection thresholds dynamically rather than relying on static discriminators, giving the model a clear advantage in datasets like BATADAL where attack patterns evolve over time. IGWO contributes a crucial optimization layer by systematically tuning the intertwined hyper-parameters of both the Transformer and DRL modules, reducing overfitting in stable datasets (e.g., SWaT) and underfitting in heterogeneous environments (e.g., WADI). This combination yields smoother decision surfaces and more stable convergence behavior, enabling the model to maintain consistently higher TPR and lower FPR across all operating points. Consequently, while each baseline model fails due to a specific structural or optimization limitation, Evo-Transformer-DRL overcomes all these weaknesses simultaneously, resulting in ROC curves that consistently approach the optimal upper-left boundary.

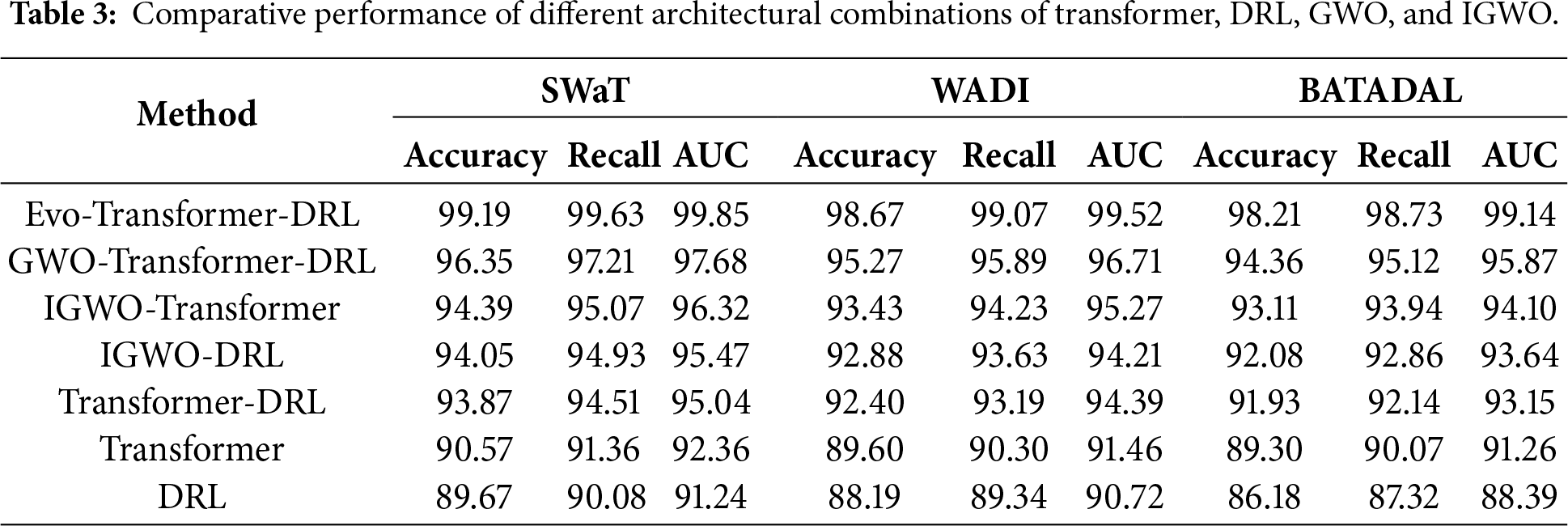

Table 3 illustrates the effect of integrating various architectural components on detection performance. The results highlight not only the incremental benefits of combining deep sequence models with reinforcement learning, but also the significant role of IGWO in optimizing hyper-parameters. The analysis shows that the proposed Evo-Transformer-DRL achieves the best results across all datasets, with accuracy, recall, and AUC values consistently higher than other combinations. For instance, IGWO-Transformer and IGWO-DRL both outperform their non-optimized counterparts, confirming that the grey wolf optimizer significantly enhances performance by fine-tuning critical hyper-parameters such as learning rate, dropout, and discount factor. Moreover, Transformer-DRL achieves better results than standalone Transformer or DRL, proving the advantage of combining representation learning with adaptive decision-making. However, it is only when IGWO is introduced that the models reach near-optimal performance, as seen in the Evo-Transformer-DRL. This indicates that the optimizer not only balances exploration and exploitation during parameter search but also ensures that the hybrid architecture converges efficiently to a stable and robust solution.

In addition, we implemented the classical GWO-Transformer-DRL configuration to explicitly quantify the contribution of the φ-wolf enhancement mechanism introduced in IGWO. As shown in Table 3, the GWO-based model performs noticeably worse than its IGWO counterpart across all datasets, despite using identical hyper-parameter budgets and architectural settings. For example, on SWaT the GWO-Transformer-DRL achieves an accuracy of 96.35%, compared to 99.19% obtained by Evo-Transformer-DRL, and similar performance gaps are observed for WADI (95.27% vs. 98.67%) and BATADAL (94.36% vs. 98.21%). These consistent improvements demonstrate that the φ-wolf adaptation in IGWO leads to more effective exploration–exploitation balancing, faster convergence, and superior hyper-parameter refinement relative to classical GWO. This empirical comparison directly confirms that the enhanced optimizer contributes substantially to the overall robustness and accuracy of the proposed hybrid architecture.

Figs. 12–14 illustrate the convergence behavior of all evaluated models during training, with RMSE plotted against epochs for SWaT, WADI, and BATADAL respectively. These curves clearly demonstrate the learning dynamics of each architecture, highlighting how fast and stable they approach their optimal states. Across all datasets, Evo-Transformer-DRL achieves rapid convergence, reaching near-zero RMSE within the first 100 epochs, whereas other models require substantially more iterations and still plateau at higher error values. The analysis shows that traditional baselines such as SVM and CNN not only converge slowly but also maintain high residual errors, indicating limited learning capacity for complex temporal dependencies. LSTM and DRL improve upon them but still struggle with slower convergence and higher variance across epochs. Transformer and BERT exhibit better stability but require longer training to reduce RMSE significantly. In contrast, Evo-Transformer-DRL benefits from its hybrid architecture and IGWO-driven optimization, which accelerates convergence and ensures consistent error minimization. This demonstrates the framework’s efficiency in balancing representation learning, adaptive decision-making, and parameter tuning, ultimately leading to faster and more reliable model training across diverse datasets.

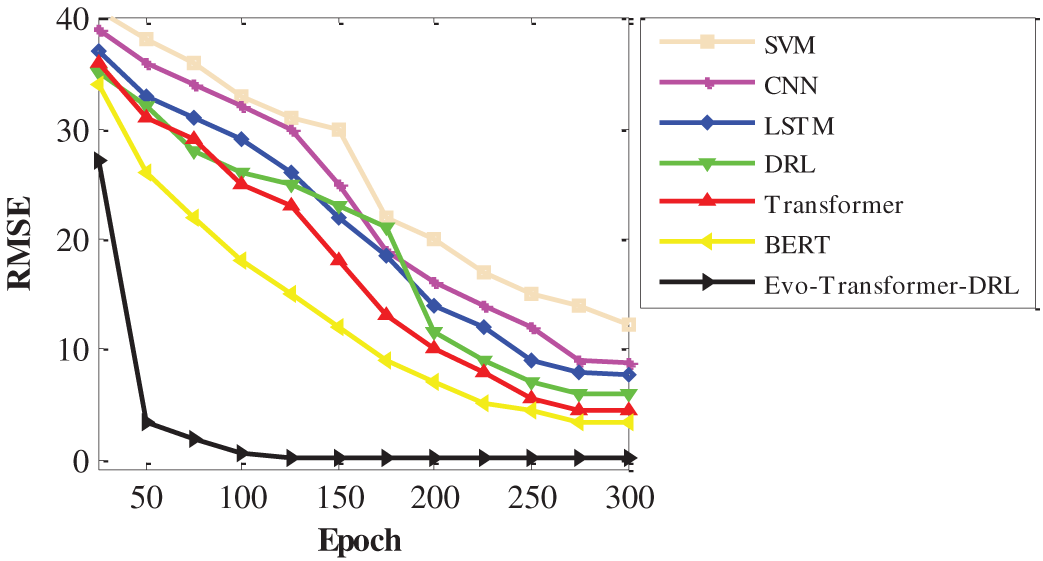

Figure 12: Training convergence curves for different models on the SWaT dataset.

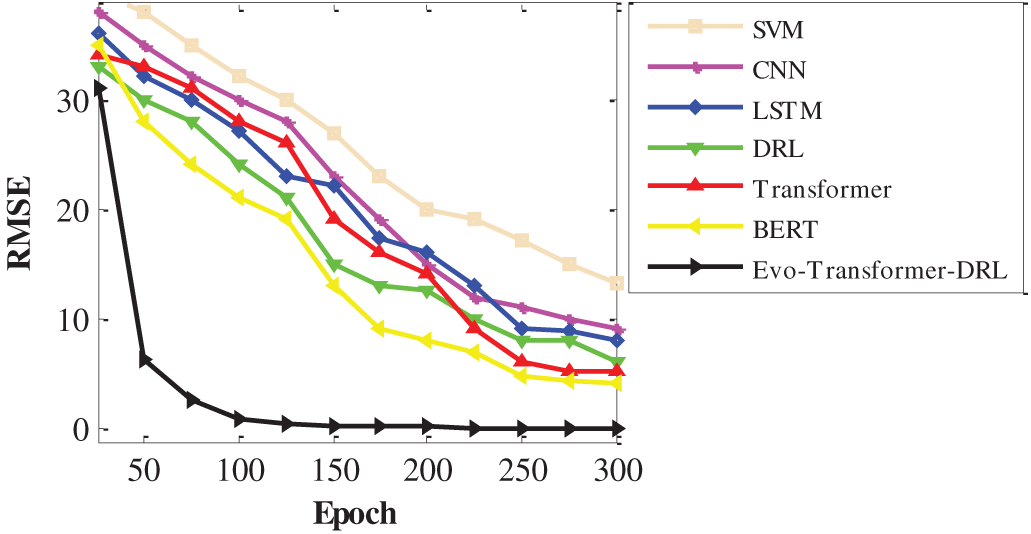

Figure 13: Training convergence curves for different models on the WADI dataset.

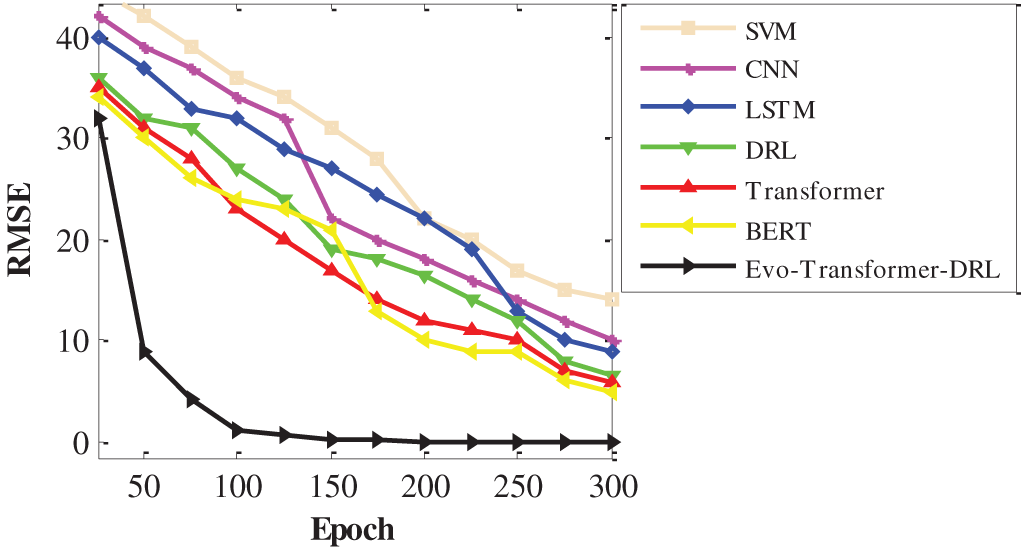

Figure 14: Training convergence curves for different models on the BATADAL dataset.

The superior convergence behavior of the Evo-Transformer-DRL framework can be further explained by the enhanced optimization dynamics introduced through the IGWO. Unlike traditional GWO, which often suffers from premature convergence and unbalanced exploration–exploitation phases, the IGWO variant incorporates an additional balancing wolf φ that dynamically regulates search diversity throughout training. This adaptive mechanism prevents early stagnation and ensures that both the Transformer encoder and DRL agent receive consistently optimized hyper-parameters across epochs. As a result, the learning trajectory becomes smoother, RMSE reductions occur more rapidly, and variance across training runs is significantly minimized. The stabilizing influence of φ is particularly beneficial for complex datasets like BATADAL, where subtle temporal–spatial perturbations require fine-grained parameter adjustments. By maintaining a stronger balance between global search and local refinement, IGWO enables the hybrid architecture to reach its optimal error basin much faster than baseline models, thereby validating its critical role in accelerating convergence and enhancing overall training efficiency.

Beyond the results already discussed (such as accuracy, recall, and AUC) the evaluated architectures also reveal important insights into their stability and computational efficiency. While performance metrics highlight detection capability, a complete assessment must also consider how reliably each model behaves across multiple runs and how practical they are for real-time deployment in critical infrastructures. Therefore, in the following discussion we extend the evaluation by examining three additional criteria: variance, which reflects the stability of models under different runs and initializations; the t-test, which provides statistical validation of improvements over baseline methods; and runtime, which captures computational complexity and execution cost. These metrics allow us to assess not only effectiveness but also robustness and efficiency, offering a more holistic view of the proposed Evo-Transformer-DRL framework in comparison to alternative architectures.

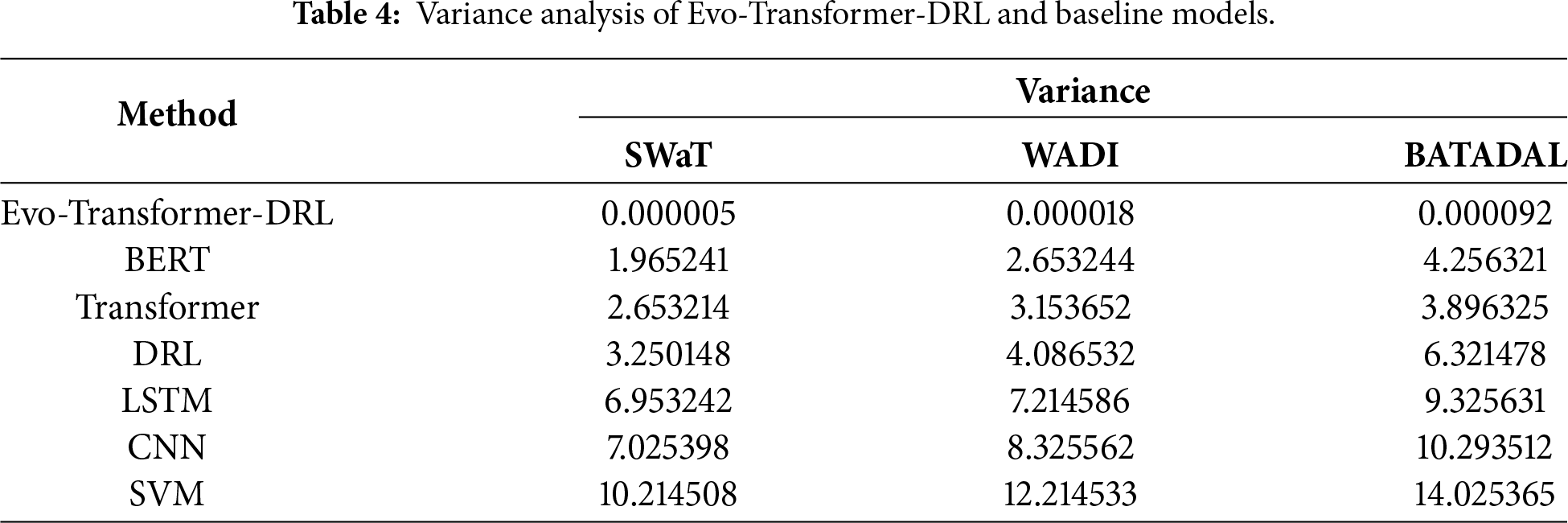

As shown in Table 4, the proposed Evo-Transformer-DRL demonstrates extremely low variance across all datasets, with values close to zero (e.g., 0.000005 on SWaT and 0.000092 on BATADAL). This highlights the remarkable stability of the framework compared to all baselines. In contrast, classical models like SVM and CNN exhibit the highest variances, often exceeding 10 in complex datasets such as WADI and BATADAL, indicating inconsistent behavior across multiple training runs. Even advanced baselines such as BERT, Transformer, and DRL record higher variances, confirming that while they can achieve good accuracy, their results are less reliable across different initializations and data distributions. The integration of IGWO into Evo-Transformer-DRL plays a crucial role in this stability, ensuring optimal hyper-parameter tuning that minimizes fluctuations during training.

From a real-world perspective, such stability is critical in Industry 4.0 water infrastructures, where FDI attacks must be detected reliably under dynamic and noisy operating conditions. High variance in model behavior could translate to inconsistent detection, leading to missed attacks or unnecessary false alarms that disrupt operations. By achieving near-zero variance, Evo-Transformer-DRL provides consistent predictions, which is essential for trustworthiness in real-time industrial control systems. The ability of the architecture to combine transformer-based feature extraction, DRL’s adaptability, and IGWO’s stability optimization ensures not only high accuracy but also robustness under uncertainty, making it a practical solution for real-world cyber-physical security challenges.

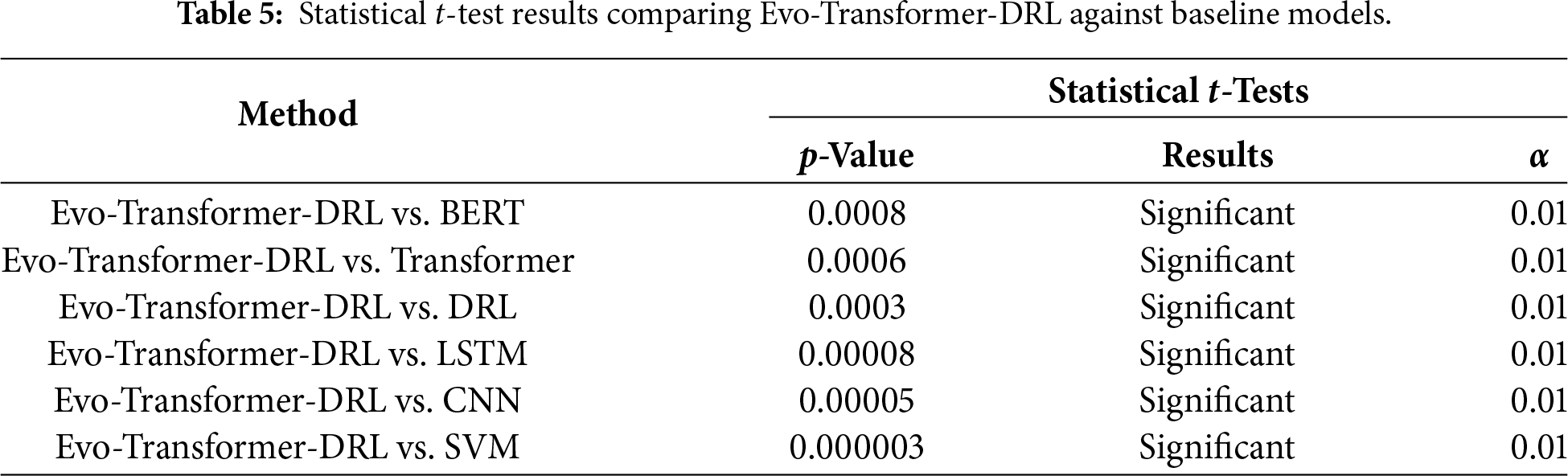

Table 5 presents the outcomes of paired t-tests conducted between the proposed Evo-Transformer-DRL and each baseline model. This paired t-test was selected because all models were evaluated on identical training–testing splits, resulting in matched samples across runs. Across all comparisons, the p-values are well below the threshold of 0.01, confirming that the improvements of Evo-Transformer-DRL are statistically significant and not due to random variation. The statistical test was performed on the accuracy values obtained from multiple runs, as accuracy serves as the primary and most comparable metric for FDI detection in industrial control systems. This validates that the observed gains in accuracy, recall, and AUC are consistent and robust, further reinforcing the superiority of the proposed framework over conventional baselines such as BERT, Transformer, DRL, LSTM, CNN, and SVM. These results are especially important in the context of industrial control security, where detection algorithms must demonstrate not only high average performance but also reliable and repeatable improvements under varying conditions. The significance confirmed by the t-test indicates that Evo-Transformer-DRL provides dependable advantages that can be trusted in real-world deployment.

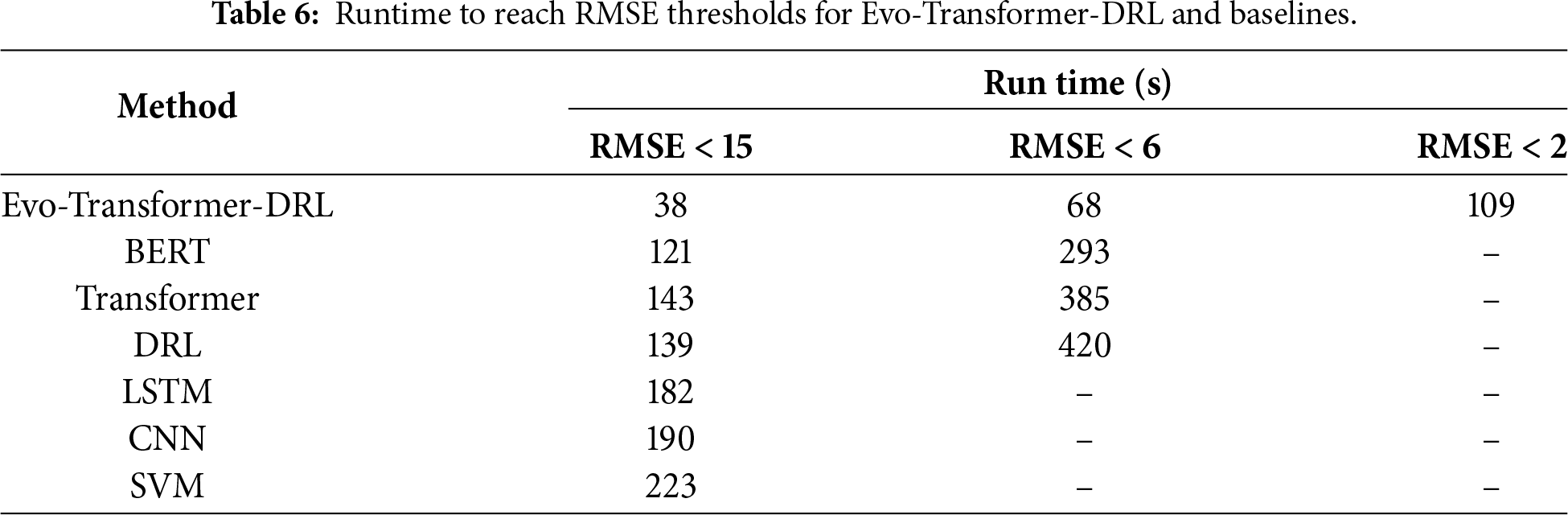

Table 6 reports the runtime required for each model to reach specific RMSE thresholds. The results show that Evo-Transformer-DRL achieves these levels significantly faster than all baselines. For example, it reaches RMSE < 15 in only 38 s, compared to 121 s for BERT and over 200 s for CNN and SVM. More importantly, Evo-Transformer-DRL is the only model capable of reaching RMSE < 2 within 109 s, while none of the other architectures achieve this level of error reduction within the evaluated timeframe. Transformer, DRL, and BERT, while relatively competitive, still require three to six times more runtime to approach moderate thresholds such as RMSE < 6, highlighting their higher computational burden. Traditional models like LSTM, CNN, and SVM perform poorly, failing to reach stricter error targets altogether, which underscores their limitations for real-time deployment in complex industrial scenarios. From a practical perspective, these results carry strong implications for real-world applications in Industry 4.0 water infrastructures. Faster convergence with lower RMSE means the system can adapt more quickly to dynamic operational states and emerging cyberattacks, ensuring reliable protection without imposing heavy computational delays. By combining efficient representation learning, reinforcement-driven adaptability, and IGWO-based hyper-parameter tuning, Evo-Transformer-DRL achieves both accuracy and efficiency. This balance makes it particularly well-suited for deployment in critical infrastructures, where computational complexity must remain manageable while maintaining robustness against sophisticated FDI attacks.

6  Conclusions

The detection of FDI attacks in cyber-physical water infrastructures is a critical requirement for maintaining operational security and reliability. To address this challenge, this paper introduced the Evo-Transformer-DRL framework, which combines transformer-based feature extraction, deep reinforcement learning for adaptive detection, and IGWO for hyper-parameter optimization. The framework was extensively evaluated on three widely used benchmark datasets (SWaT, WADI, and BATADAL) representing real-world and simulation-based water treatment and distribution systems. A comprehensive set of evaluation metrics, including accuracy, recall, AUC, RMSE, variance, statistical t-tests, and runtime analysis, were employed to assess the effectiveness, stability, and efficiency of the proposed approach in comparison to state-of-the-art baselines.

On all three datasets, the proposed Evo-Transformer-DRL consistently delivered superior performance compared to the baselines. It achieved 99.19% accuracy, 99.63% recall, and 99.85% AUC on SWaT, which is significantly higher than all competing models. On WADI, the framework obtained 98.67% accuracy, 99.07% recall, and 99.52% AUC, again surpassing both transformer-based and classical approaches. Even on the more challenging BATADAL dataset, Evo-Transformer-DRL maintained strong performance with 98.21% accuracy, 98.73% recall, and 99.14% AUC, whereas models such as CNN and SVM failed to exceed 85%. The ablation analysis also confirmed that while each component (transformer, DRL, and IGWO) individually improved detection, their integration into Evo-Transformer-DRL provided the most substantial and consistent gains.

Beyond detection performance, the framework demonstrated excellent stability and efficiency. Variance values across runs were close to zero (e.g., 0.000005 on SWaT and 0.000092 on BATADAL), indicating robust and repeatable results. Statistical tests further verified that improvements were highly significant, with p-values well below 0.01. In terms of runtime, Evo-Transformer-DRL reached RMSE < 15 in 38 s, RMSE < 6 in 78 s, and RMSE < 2 in 109 s, while none of the baselines managed to meet the strictest error threshold. Convergence curves highlighted that our model stabilized faster and at lower RMSE values than all alternatives, and ROC curves consistently hugged the upper-left boundary, reflecting excellent separability between normal and attack classes. These findings show that the framework not only delivers state-of-the-art accuracy but also ensures stability, efficiency, and real-world practicality for securing Industry 4.0 water infrastructures.

By combining transformer-based temporal feature extraction, RL–driven adaptability, and IGWO-based hyper-parameter optimization, the architecture achieves not only state-of-the-art accuracy but also stability and computational efficiency across diverse real-world datasets. The results show that the framework consistently delivers near-perfect detection performance, converges faster than competing methods, and maintains robustness with minimal variance, making it well-suited for deployment in critical industrial environments. In practical terms, this means that operators of water treatment and distribution systems can rely on Evo-Transformer-DRL to provide timely, consistent, and scalable protection against sophisticated cyberattacks, ensuring both operational continuity and public safety.

Despite the strong performance of the proposed Evo-Transformer-DRL framework, several limitations should be acknowledged. First, the combination of transformer-based feature extraction, DRL policy learning, and IGWO-driven hyper-parameter optimization increases the initial computational cost, particularly during early training stages before convergence is achieved. Although the optimized model operates with reduced runtime, the full training pipeline remains more resource-intensive than classical or single-module baselines. Second, the framework still relies on annotated data for performance evaluation and reward calibration, which may be challenging to obtain in large-scale industrial environments. Future work will therefore focus on designing lightweight training strategies and exploring semi-supervised or self-supervised learning mechanisms to reduce dependency on labeled data while preserving detection performance.

For future work, several promising directions can be explored. On the application side, extending the framework beyond water infrastructures to other Industry 4.0 domains such as power grids and transportation systems would validate its versatility under diverse cyber-physical environments, while incorporating multi-modal data (e.g., network traffic logs alongside sensor readings) could further enhance detection robustness. On the architectural side, lightweight variants of Evo-Transformer-DRL could be developed for deployment on edge and IoT devices with limited resources, and ensemble strategies combining multiple evolutionary optimizers may yield even stronger stability and convergence guarantees. These directions would broaden the applicability and scalability of the framework in real-world industrial cybersecurity.

Acknowledgement: Not applicable.

Funding Statement: The authors received no specific funding for this study.

Author Contributions: The authors confirm contribution to the paper as follows: Conceptualization, Ahmad Salehiyan, Nuria Serrano, Francisco Hernando-Gallego, Diego Martín and José Vicente Álvarez-Bravo; methodology, Ahmad Salehiyan, Nuria Serrano, Francisco Hernando-Gallego and Diego Martín; software, Ahmad Salehiyan and Nuria Serrano; validation, Ahmad Salehiyan, Francisco Hernando-Gallego and Diego Martín; formal analysis, José Vicente Álvarez-Bravo and Nuria Serrano; investigation, Ahmad Salehiyan, Nuria Serrano, Francisco Hernando-Gallego, Diego Martín and José Vicente Álvarez-Bravo; resources, Diego Martín and Nuria Serrano; data curation, Ahmad Salehiyan, Francisco Hernando-Gallego and José Vicente Álvarez-Bravo; writing—original draft preparation, Ahmad Salehiyan, Nuria Serrano, Francisco Hernando-Gallego, Diego Martín and José Vicente Álvarez-Bravo; visualization, Ahmad Salehiyan, José Vicente Álvarez-Bravo and Nuria Serrano; supervision, Diego Martín; project administration, Diego Martín; funding acquisition, Diego Martín. All authors reviewed and approved the final version of the manuscript.

Availability of Data and Materials: The data that support the findings of this study are available from the Corresponding Author, Diego Martín, upon reasonable request.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest.

References

1. Bhatt K, Agrawal C, Bisen AM. A review on emerging applications of IoT and sensor technology for industry 4.0. Wirel Pers Commun. 2024;134(4):2371–89. doi:10.1007/s11277-024-11054-x. [Google Scholar] [CrossRef]

2. Ambadekar PK, Ambadekar S, Choudhari CM, Patil SA, Gawande SH. Artificial intelligence and its relevance in mechanical engineering from Industry 4.0 perspective. Aust J Mech Eng. 2025;23(1):110–30. doi:10.1080/14484846.2023.2249144. [Google Scholar] [CrossRef]

3. Rojek I, Kotlarz P, Dorożyński J, Mikołajewski D. Sixth-generation (6G) networks for improved machine-to-machine (M2M) communication in industry 4.0. Electronics. 2024;13(10):1832. doi:10.3390/electronics13101832. [Google Scholar] [CrossRef]

4. Wang X, Wang Y, Yang J, Wang X, Meng Z, Liu Z, et al. A paradigm shift for modeling and operation of oil and gas: from industry 4.0 in CPS to industry 5.0 in CPSS. IEEE Trans Ind Inform. 2024;20(7):9186–93. doi:10.1109/TII.2024.3378848. [Google Scholar] [CrossRef]

5. Serôdio C, Mestre P, Cabral J, Gomes M, Branco F. Software and architecture orchestration for process control in industry 4.0 enabled by cyber-physical systems technologies. Appl Sci. 2024;14(5):2160. doi:10.3390/app14052160. [Google Scholar] [CrossRef]

6. Kiangala SK, Wang Z. An effective adaptive customization framework for small manufacturing plants using extreme gradient boosting-XGBoost and random forest ensemble learning algorithms in an Industry 4.0 environment. Mach Learn Appl. 2021;4(6385):100024. doi:10.1016/j.mlwa.2021.100024. [Google Scholar] [CrossRef]

7. Toussaint M, Krima S, Panetto H. Industry 4.0 data security: a cybersecurity frameworks review. J Ind Inf Integr. 2024;39(3):100604. doi:10.1016/j.jii.2024.100604. [Google Scholar] [CrossRef]

8. Oks SJ, Jalowski M, Lechner M, Mirschberger S, Merklein M, Vogel-Heuser B, et al. Cyber-physical systems in the context of industry 4.0: a review, categorization and outlook. Inf Syst Front. 2024;26(5):1731–72. doi:10.1007/s10796-022-10252-x. [Google Scholar] [CrossRef]

9. Ntousakis E, Loukakis K, Petrou E, Ipsakis D, Papaefthimiou S. Optimizing an urban water infrastructure through a smart water network management system. Electronics. 2025;14(12):2455. doi:10.3390/electronics14122455. [Google Scholar] [CrossRef]

10. Jun S, Lansey KE. Comparison of AMI and SCADA systems for leak detection and localization in water distribution networks. J Water Resour Plann Manage. 2023;149(11):04023061. doi:10.1061/jwrmd5.wreng-5953. [Google Scholar] [CrossRef]

11. Gray ADL, Pisica I, Taylor GA, Whitehurst L. A standardised modular approach for site SCADA applications within a water utility. IEEE Access. 2017;5:17177–87. doi:10.1109/ACCESS.2017.2654685. [Google Scholar] [CrossRef]

12. Bello A, Jahan S, Farid F, Ahamed F. A systemic review of the cybersecurity challenges in Australian water infrastructure management. Water. 2023;15(1):168. doi:10.3390/w15010168. [Google Scholar] [CrossRef]

13. Raza N, Moazeni F. Chance-constrained vulnerability assessment of smart water distribution systems against stealthy false data injection attacks. Int J Crit Infrastruct Prot. 2024;44(1):100645. doi:10.1016/j.ijcip.2023.100645. [Google Scholar] [CrossRef]

14. Xu L, Ding X, Zhao D, Liu AX, Zhang Z. A three-dimensional ResNet and transformer-based approach to anomaly detection in multivariate temporal-spatial data. Entropy. 2023;25(2):180. doi:10.3390/e25020180. [Google Scholar] [PubMed] [CrossRef]

15. Wang K, Lyu S, Liu Y, Wang B. Graph optimization via decoupled edge tuning for efficient industrial anomaly detection. IEEE Trans Netw Sci Eng. 2025;12(5):4028–43. doi:10.1109/TNSE.2025.3567671. [Google Scholar] [CrossRef]

16. Lachure J, Doriya R. Intelligent sensor data analysis through hybrid deep hierarchical clustering for anomaly detection. Trans Inst Meas Control. 2024;2024(2):01423312241299859. doi:10.1177/01423312241299859. [Google Scholar] [CrossRef]

17. Luo J, Cai Y, Cai J, Fang W, Zheng W. STMBAD: spatio-temporal multimodal behavior anomaly detector for industrial control systems. IEEE Trans Ind Inform. 2025;21(5):3746–55. doi:10.1109/TII.2025.3528559. [Google Scholar] [CrossRef]

18. Xu L, Yang Z, Zhao D, Yu F, Zhou Y, Zhang H. G-VAE: variational autoencoder-based adversarial attacks and defenses in industrial control systems. Comput Electr Eng. 2025;124(11):110290. doi:10.1016/j.compeleceng.2025.110290. [Google Scholar] [CrossRef]

19. Lachure J, Doriya R. ESML: a hyperparameter-tuned stacking machine learning approach for anomaly attack detection in water distribution systems. SN Comput Sci. 2025;6(5):505. doi:10.1007/s42979-025-04028-8. [Google Scholar] [CrossRef]

20. Lyu S, Wang K, Wei Y, Liu H, Fan Q, Wang B. GNN-based advanced feature integration for ICS anomaly detection. ACM Trans Intell Syst Technol. 2023;14(6):1–32. doi:10.1145/3620676. [Google Scholar] [CrossRef]

21. Li P, Wu M, Zhang Y, Xia J, Wang Q. MuLDOM: forecasting multivariate anomalies on edge devices in IIoT using multibranch LSTM and differential overfitting mitigation model. IEEE Internet Things J. 2024;11(23):38645–56. doi:10.1109/JIOT.2024.3448505. [Google Scholar] [CrossRef]

22. Xu Q, Ali S, Yue T. Digital twin-based anomaly detection with curriculum learning in cyber-physical systems. ACM Trans Softw Eng Methodol. 2023;32(5):1–32. doi:10.1145/3582571. [Google Scholar] [CrossRef]

23. Lachure J, Doriya R. Securing water distribution systems: leveraging sensor networks against cyber-physical attacks using advanced chicken swarm optimization. IEEE Sens J. 2024;24(23):39894–913. doi:10.1109/JSEN.2024.3472022. [Google Scholar] [CrossRef]

24. Wang X, Zhu H, Luo X, Guan X. Data-driven-based detection and localization framework against false data injection attacks in DC microgrids. IEEE Internet Things J. 2025;12(17):36079–93. doi:10.1109/JIOT.2025.3579915. [Google Scholar] [CrossRef]

25. Wang X, Li Y, Luo X, Guan X. Dual-attention-based spatio-temporal detection model against false data injection attacks in smart grids. Int J Electr Power Energy Syst. 2025;172(3):111156. doi:10.1016/j.ijepes.2025.111156. [Google Scholar] [CrossRef]

26. Botteghi N, Poel M, Brune C. Unsupervised representation learning in deep reinforcement learning: a review. IEEE Control Syst. 2025;45(2):26–68. doi:10.1109/MCS.2025.3534477. [Google Scholar] [CrossRef]

27. Hu K, Li M, Song Z, Xu K, Xia Q, Sun N, et al. A review of research on reinforcement learning algorithms for multi-agents. Neurocomputing. 2024;599(4):128068. doi:10.1016/j.neucom.2024.128068. [Google Scholar] [CrossRef]

28. Le N, Rathour VS, Yamazaki K, Luu K, Savvides M. Deep reinforcement learning in computer vision: a comprehensive survey. Artif Intell Rev. 2022;55(4):2733–819. doi:10.1007/s10462-021-10061-9. [Google Scholar] [CrossRef]

29. Ahmed S, Nielsen IE, Tripathi A, Siddiqui S, Ramachandran RP, Rasool G. Transformers in time-series analysis: a tutorial. Circuits Syst Signal Process. 2023;42(12):7433–66. doi:10.1007/s00034-023-02454-8. [Google Scholar] [CrossRef]

30. Hammad A, Moretti S, Nojiri M. Multi-scale cross-attention transformer encoder for event classification. J High Energy Phys. 2024;2024(3):144. doi:10.1007/JHEP03(2024)144. [Google Scholar] [CrossRef]

31. Faris H, Aljarah I, Al-Betar MA, Mirjalili S. Grey wolf optimizer: a review of recent variants and applications. Neural Comput Appl. 2018;30(2):413–35. doi:10.1007/s00521-017-3272-5. [Google Scholar] [CrossRef]

32. Hatta NM, Zain AM, Sallehuddin R, Shayfull Z, Yusoff Y. Recent studies on optimisation method of Grey Wolf Optimiser (GWOa review (2014-2017). Artif Intell Rev. 2019;52(4):2651–83. doi:10.1007/s10462-018-9634-2. [Google Scholar] [CrossRef]

33. Mahboub V, Ebrahimzadeh S, Baghani A, Rastegar A, Zanganeh M. L1-norm optimisation of rank deficient GNSS networks by an improved Grey Wolf method. Surv Rev. 2024;56(399):582–8. doi:10.1080/00396265.2024.2327124. [Google Scholar] [CrossRef]
