Random Forest-Based Fatigue Reliability-Based Design Optimization for Aeroengine Structures

Xue-Qin Li1, Lu-Kai Song2,3,*

1 School of Energy and Power Engineering, Beihang University, Beijing, 100191, China
2 Department of Mechanical Engineering, The Hong Kong Polytechnic University, Kowloon, Hong Kong, 999077, China
3 Research Institute of Aero-Engine, Beihang University, Beijing, 100191, China

* Corresponding Author: Lu-Kai Song. Email: email

(This article belongs to the Special Issue: Computer-Aided Uncertainty Modeling and Reliability Evaluation for Complex Engineering Structures)

Computer Modeling in Engineering & Sciences 2024, 140(1), 665-684. https://doi.org/10.32604/cmes.2024.048445

Abstract

Fatigue reliability-based design optimization of aeroengine structures involves multiple repeated calculations of reliability degree and large-scale calls of implicit high-nonlinearity limit state function, leading to the traditional direct Monte Claro and surrogate methods prone to unacceptable computing efficiency and accuracy. In this case, by fusing the random subspace strategy and weight allocation technology into bagging ensemble theory, a random forest (RF) model is presented to enhance the computing efficiency of reliability degree; moreover, by embedding the RF model into multilevel optimization model, an efficient RF-assisted fatigue reliability-based design optimization framework is developed. Regarding the low-cycle fatigue reliability-based design optimization of aeroengine turbine disc as a case, the effectiveness of the presented framework is validated. The reliability-based design optimization results exhibit that the proposed framework holds high computing accuracy and computing efficiency. The current efforts shed a light on the theory/method development of reliability-based design optimization of complex engineering structures.

Keywords


Nomenclature

MCS Monte Carlo simulation
RF Random forest
RF-I RF with random subspace strategy
RF-II RF with random subspace strategy and weight allocation technology
QP Quadratic polynomial
SVR Support vector regression
ANN Artificial neural network
ω rotational speed
T temperature
E elastic modulus
ρ material density
λ thermal conductivity coefficient
α coefficient of thermal expansion
b fatigue strength index
c fatigue ductility index
σf fatigue strength coefficient
ɛf fatigue ductility coefficient
σmax maximum stress
Δɛt strain range
σm mean stress

1  Introduction

Aeroengine structures like turbine discs usually operate in harsh multi-physics environments for long amounts of time and must fulfill a number of strict requirements like long service life and high fatigue reliability [13]. At present, the anti-fatigue design of modern high-reliability structures has become a barrier in the aeroengine industry that needs to be addressed. For instance, under the ground-air-ground operating cycles, the turbine disc is prone to incur low-cycle fatigue damage in the complex thermal-structure coupling environment, which seriously affects the service life and structural reliability of aeroengine turbine [46].

Currently, extensive efforts have been carried out to boost the resist fatigue performance of aeroengine structures [710], including fatigue reliability modeling under random loads [1115], probabilistic fatigue life evaluation considering material variability [1619], constitutive response-based fatigue failure accounting for model uncertainties [2024], stochastic randomness-based fatigue failure evaluation [2527], and so forth. During the above investigations, the disperse characteristics of fatigue life were sufficiently studied, laying the groundwork for fatigue reliability degree assessment. However, few works simultaneously consider the multiple uncertainties like load fluctuations [2831], material variabilities [3235] and model uncertainties [3639], which disrupts the correlations between multisource uncertainties and therefore causes significant computational discrepancies in fatigue reliability assessment [4042]. To consider multisource uncertainties in anti-fatigue design, various probabilistic analysis techniques are widely applied. For instance, Nguyen et al. [43] determined the Monte Carlo based-failure probability of planar steel frames considering the uncertainties of materials and cross-section parameters. Zhu et al. [44] proposed a first order reliability method-based hybrid intelligent approach to solving high-dimensional engineering problems. Bouledroua et al. [45] employed the second-order reliability method to assess the reliability degree of corroded pipelines.

Apart from the consideration of multiple uncertain factors, the modeling methods and/or solving algorithms are other key problems for performing reliability-based design optimization. Up to now, plenty of progress in this field has been succeed [4649]. For example, Karar et al. [50] presented a sensitivity/elasticity factor-driven reliability modeling technique for robust design optimization. Hao et al. [51] proposed a sequential single-loop optimization and confidence analysis method for reliability-based design optimization, and its computing efficiency and accuracy were validated to be improved significantly. To simultaneously deal with the probabilistic, uncertain-but-bounded, and fuzzy parameters, Meng et al. [52] proposed a unified high-performance computation method for the reliable optimization of complicated structures. Meng et al. [53] developed a decoupling-assisted evolutionary/metaheuristic algorithm for expensive optimal problems, and its superior performance was demonstrated over other comparative algorithms. In these researches, the reliability-based design optimization problems of general engineering structures were adequately studied, and correspondingly established a solid foundation for more complex engineering structures like aeroengine structures.

For the reliability-based design optimization of aerospace structures, the mapping relationships between structural responses and random variables always show complex high-nonlinearity traits, leading to the traditional Monte Carlo methods or moment-based methods incur the issues of insufficient computing efficiency or computing accuracy. As one valuable computing method, surrogate modeling methods have emerged and attracted much attention in reliability design fields [5457]. In the surrogate modeling method, the tremendous computing tasks of real limit state functions can be avoided by establishing a surrogate mathematical model, which is conducive to alleviating the computing burdens and improving the computing efficiency [5860]. For instance, Meng et al. [61] proposed an enhanced collaborative optimization method based on the adaptive surrogate model for the design of high-dimensional nonlinearity systems. Wang et al. [62] built an extremum Kriging surrogate for dynamic probabilistic analysis of complex structures. Nannapaneni et al. [63] presented a probability-space surrogate for uncertain multidisciplinary design optimization. Gu et al. [64] embedded the random forest models into the framework of the evolutionary algorithm as surrogates to improve the approximation accuracy of discrete optimization problems. Unfortunately, although conventional surrogate models like response surface models and Kriging models have proven their accuracy and efficiency in general engineering optimization problems, for the fatigue reliability-based design optimization of aeroengine structures, multiple repeated calculations of reliability degree are always involved in each optimization cycle, and the large-scale calls of implicit limit state function are further nested in each calculation of reliability degree, these traditional surrogate modeling method still faces with insufficient generalization performance issues when evaluating the reliability degree in optimization cycles. By constructing multiple base decision trees as one random forest regressor, the random forest ensemble models are developed to perform the regression and classification problems efficiently. Given the benefits of assembling multiple models in terms of computing accuracy and efficiency, the random forest is chosen to analyze the fatigue reliability degree during the design optimization of aeroengine structures in this study.

In this paper, to perform high-accuracy and high-efficiency fatigue reliability-based design optimization of aeroengine structures, by fusing the random subspace strategy and weight allocation technology into bagging ensemble theory [65,66], an assigning weight technique-based random forest (RF) surrogate model is first presented, and the RF-assisted fatigue reliability-based design optimization framework is further developed by embedding the RF model into the multilevel optimization model [67,68]. The presented framework is verified by the low-cycle fatigue reliability-based design optimization of aeroengine turbine disc considering the multisource uncertainties. In what follows, Section 2 investigates random forest modeling with basic thought and mathematical modeling. Section 3 establishes the RF-based framework for fatigue reliability-based design optimization. Section 4 validates the effectiveness of the presented framework by considering aeroengine turbine disc as a case. Section 5 summarizes some conclusions.

2  The Proposed RF Method

2.1 Random Forest Modeling

Due to the reliability degree, regression always involves the complex computations of high-nonlinearity and high-complexity, and establishing one individual model is frequently insufficient to achieve satisfactory regression accuracy in the fatigue reliability-based design optimization of aeroengine structures. In this case, by integrating several individual basis models into the integrated framework, ensemble models like random forests have emerged and are widely applied in probabilistic analysis [69], classification [70] and regression [71], etc. However, because only the mean values of each individual decision tree are examined, generalization accuracy issues concerns may arise when utilizing typical random forests in complex regression tasks.

In this case, by merging random subspace strategy and weight allocation technology, an assigning weight technique-based RF approach is presented to map the input variables to output response accurately. The basic thought of the presented method is: firstly, multiple sets (D1, D2, …, DM) of independent sample subsets are established using bootstrap sampling techniques; then, regarding the random subspace strategy-based parallel bagging framework, the basic architecture of RF is established; moreover, instead of simply averaging of all decision trees, the weight allocation technology is employed to assign different weights for each decision tree, the RF model is accurately mathematical modeled, to enhance the generalization accuracy and regression performance. The schematic diagram of the presented assigning weight technique-based RF model is illustrated in Fig. 1.

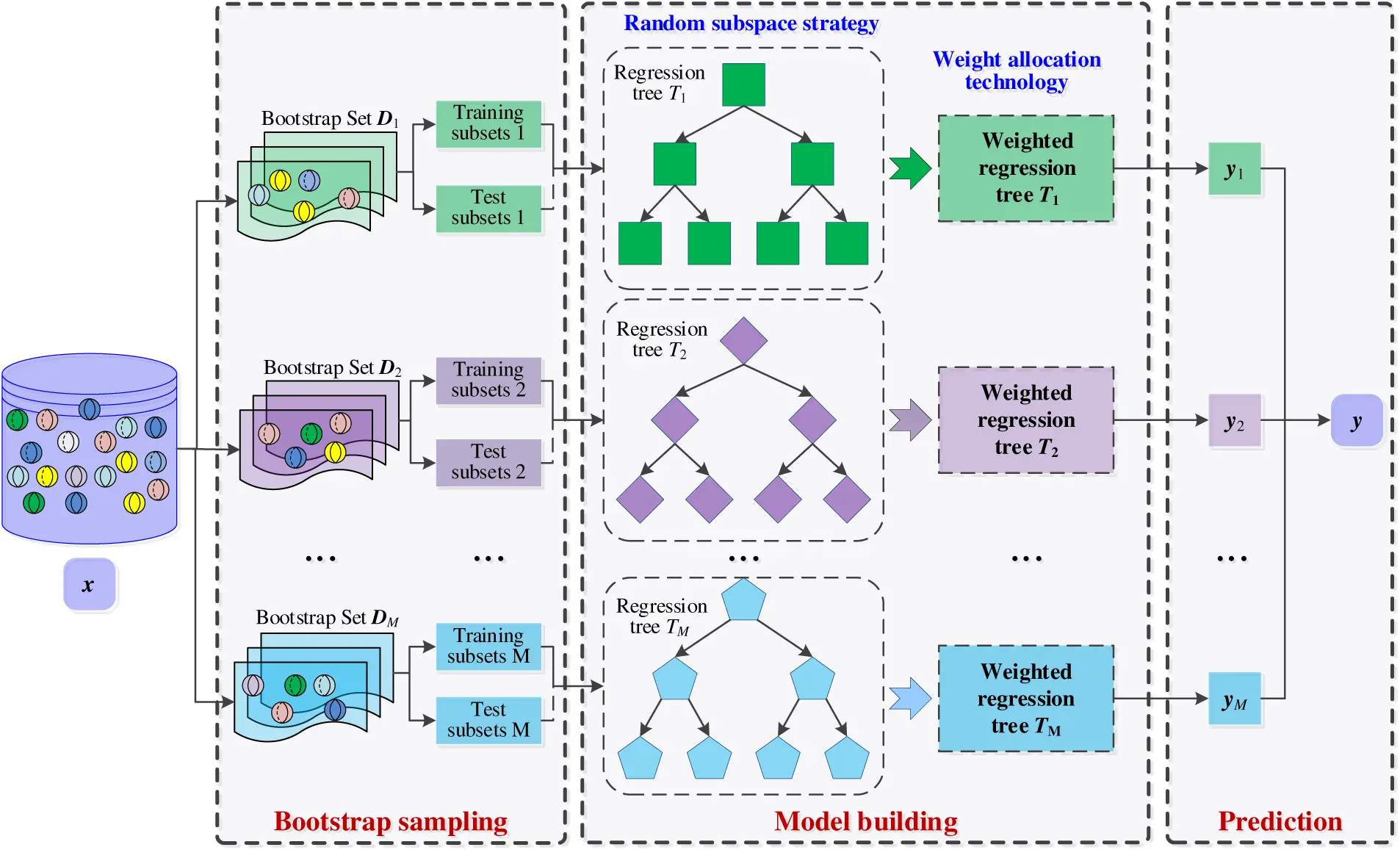

images

Figure 1: Basic thought of the proposed RF model

2.2 Mathematical Modeling

Considering the extracted sample D = {xij, yij( xij)}, the sample space R is decomposed to M sub sample spaces R1, R2, …, RM by random subspace strategy, the basis decision tree f(x) is termed as

f(x)=m=1McmI(xRm)(1)

During the training process of the above decision trees, it is necessary to consider how to select and measure segmentation features and points. To find the best segmentation variables and points, the quality of segmentation features and points are measured by the weighted sum of impure degrees G (xi, vij) of each sub node, i.e.,

G(xi,vij)=nleftNsH(Xleft)+nrightNsH(Xright)(2)

where xi indicates the segmentation feature of a node; vij the segmentation value for segmentation features; nleft, nright the sample number in the left sub node, and the right sub node, respectively; Ns and the current node; Xleft, Xright the training samples in the left, right sub node, respectively; H(X) the node impure function, which is calculated by the Mean Square Error (MSE), i.e.,

H(Xs)=1Nsi=1Ns(yiy¯s)2(3)

where Xs represents the samples in the current node; y¯s the feature mean value in the current node.

By substituting the Eq. (3) into the Eq. (2), the weighted sum of impure degrees G for any segmentation point can be rewritten as

G(x,v)=1Ns((i=1nleft(yiy¯left))2+(i=1nrighe(yiy¯right))2)(4)

Regarding the dividing method, assuming the nl example (xi, yi) falls into the l-th leaf node (with indices from a set Dl, i.e., iDl), the corresponding output z is acquired as

z=f(x)=1nliDlyi(5)

Furthermore, assuming the RF consists of T trained trees, by averaging the predicted values zt across all of the decision trees, the output zRF is acquired as

zRF=1Tt=1Tzt(6)

By assigning the weight wt to the t-th decision trees with the weight allocation technology, the weighted average of the tree results is gained as

zRF=t=1Tztwt=wz(7)

where w = (w1, …, wT) indicates the weight vector, z = (z1, …, zT)T the output vector corresponding to example x. The node impure function H(Xs) is rewritten as

H(Xs)=1nsi=1ns(yiwzi)2(8)

By calculating the mean values of the output results in each decision tree, the distributed output response of the j-th stage i-th level sub-model is acquired and the nonlinear mapping between the random input variables and the j-th stage i-th level response can be realized as

y^ij=t=1Tiw{y(xi,θt)}(9)

where θt indicates the independent random variables; y(xij, θt) is the output response of the decision tree based on xij and θt.

3  RF-Assisted Fatigue Reliability-Based Design Optimization Theory

For fatigue reliability-based design optimization problems of aeroengine structures, each optimization cycle involves multiple repeated calculations of reliability degree, and each calculation of reliability degree also contains large-scale calls of implicit high-nonlinearity limit state function, resulting in expensive computing cost and unsatisfactory optimization accuracy when using the direct Monte Claro Simulation and traditional surrogate methods [72]. In this study, by introducing the proposed RF model into the design optimization theory, an efficient RF-assisted fatigue reliability-based design optimization framework for aeroengine structures is established, i.e., (1) by imposing the boundary conditions into finite element simulation, the deterministic fatigue evaluation of aeroengine structure is performed; (2) a small batch of input samples are extracted, and be imposed into the deterministic simulation to generate the training samples; (3) by applying the developed bagging architecture and training algorithm, the RF models are established for replacing the complex reliability calculations; (4) by regarding the high-sensitivity parameters as the design variables, the RF-surrogate reliability degree as constraint, fatigue life as optimal objective, the fatigue reliability optimization model is established; (5) after several repeated optimization cycles in solving the fatigue reliability-based design optimization model, the best design variables for aeroengine structures are obtained. The basic modeling process is summarized as follows.

By employing the presented random forest modeling method, the constitutive responses like mean stress and strain range of aeroengine structures can be mapped by

{σmRF=t=1Tiw{y(xi,θt)}ΔεtRF=t=1Tiw{y(xi,θt)}(10)

where σmRF, ΔεtRF indicate the estimated mean stress and estimated strain range obtained by random forest model, respectively.

For the widespread low-cycle fatigue problems in aeroengine structures, fatigue life is usually evaluated using the improved Manson-Coffin model [54], i.e.,

Δεt2=σfσmE(2NL)b+εf(2NL)c(11)

where σm indicates the mean stress; NL the low-cycle fatigue life; E indicates Young’s modulus; σf the fatigue strength coefficient; εf the fatigue ductility coefficient; b the fatigue strength index; c the fatigue ductility index. Regarding n0 as the actual number of operating cycles, the fatigue damage D is termed as

D=n0NL(12)

By regarding the a as the damage strength coefficient (usually set as 1 in aeroengine engineering) [72], the limit state function Z of the aeroengine structure can be termed as

Z=an0NL(13)

According to the Monte Carlo simulation thought [73], the fatigue reliability degree is

R^S=1Mj=1MIS(Zj)=MSMIS(Zj)={1,ZjS0,ZjS(14)

By setting the high-sensitivity variables including operating loads xL, material parameters xM and life model parameters xP as the design variables, fatigue life Nf as optimization objective, reliability degree R and other boundaries as constraints, the reliability optimization model is established by

{findx=(xL,xM,xP)maxNf=Nf(σm,εt,xP)s.t.1Nl=1NIr[G(xl(t))][R0]x=(σm,εt,xP)xaxxb{minσm(xL,xM)minεt(xL,xM)s.t.x=(xL,xM)xcxxd(15)

Therefore, by fusing the presented random forest model into the reliability optimization model, the large-scale of the real high-nonlinearity reliability degree calculations can be avoided effectively, which is conducive to reducing huge computational tasks and enhancing the optimal accuracy for the fatigue reliability-based design optimization of aeroengine structures. The RF-based fatigue reliability optimization workflow is constructed in Fig. 2.

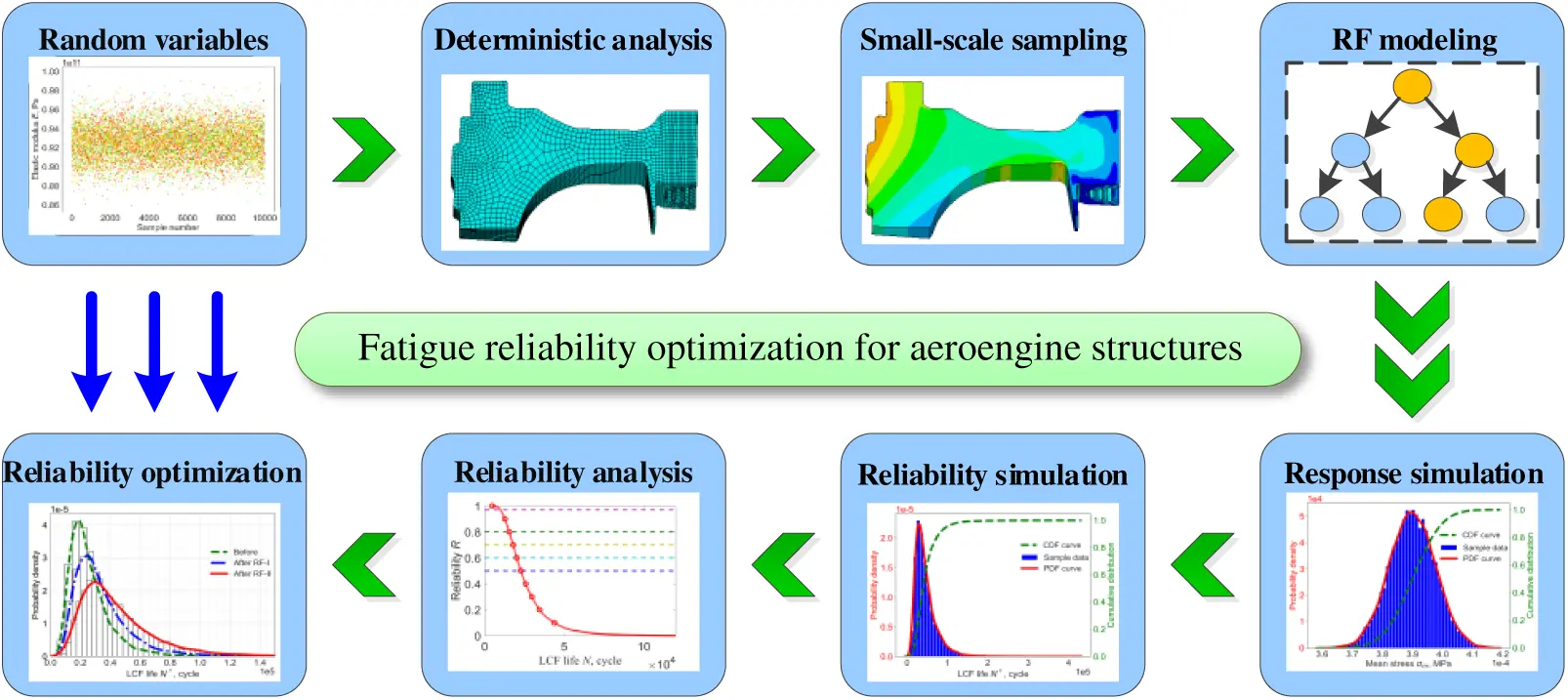

images

Figure 2: Workflow of RF-assisted fatigue reliability-based design optimization

4  Fatigue Reliability-Based Design Optimization for Aeroengine Turbine Disc

During the operation of aircraft engines, the high-pressure turbine disc is subjected to complex environmental loads such as high-temperature, high-pressure and high-speed, resulting in uneven temperature gradients, large stress loads, and low cycle fatigue damage. To achieve the fatigue reliability-based design optimization and improve the fatigue reliability performance of aeroengine turbine disc, the presented RF method is employed, where the RF-I represents the RF method with random subspace strategy, and RF-II presents the RF method with random subspace strategy and weight allocation technology. The sketch of aeroengine turbine disc is shown in Fig. 3.

images

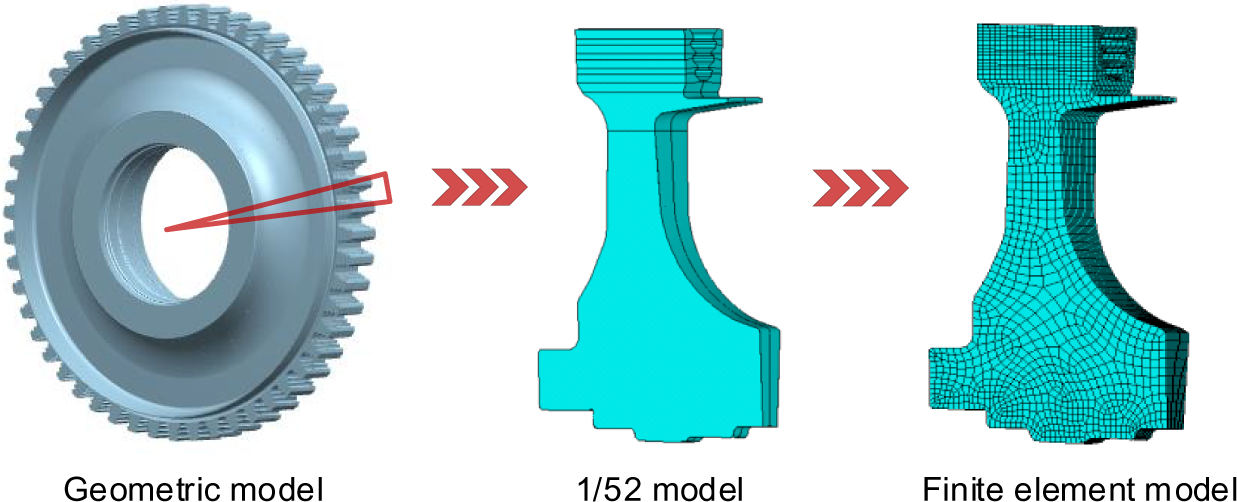

Figure 3: Schematic diagram of an aeroengine turbine disc

4.1 Material Preparations

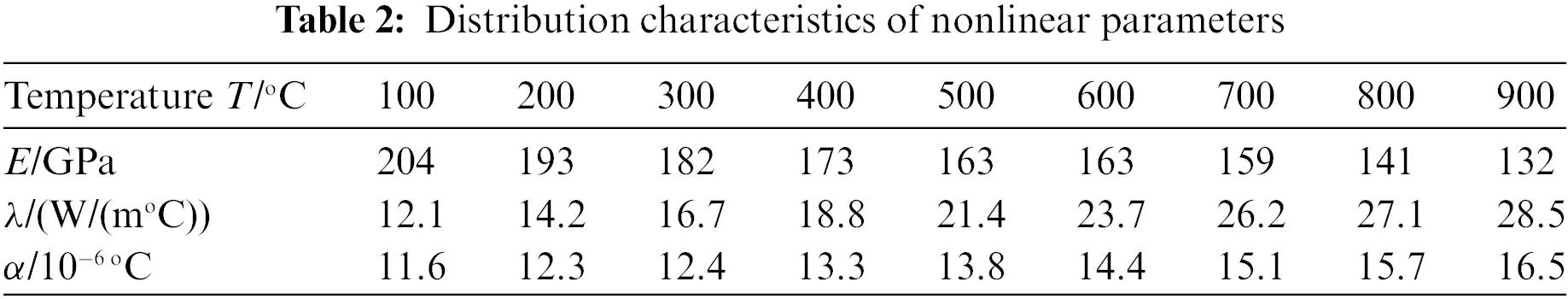

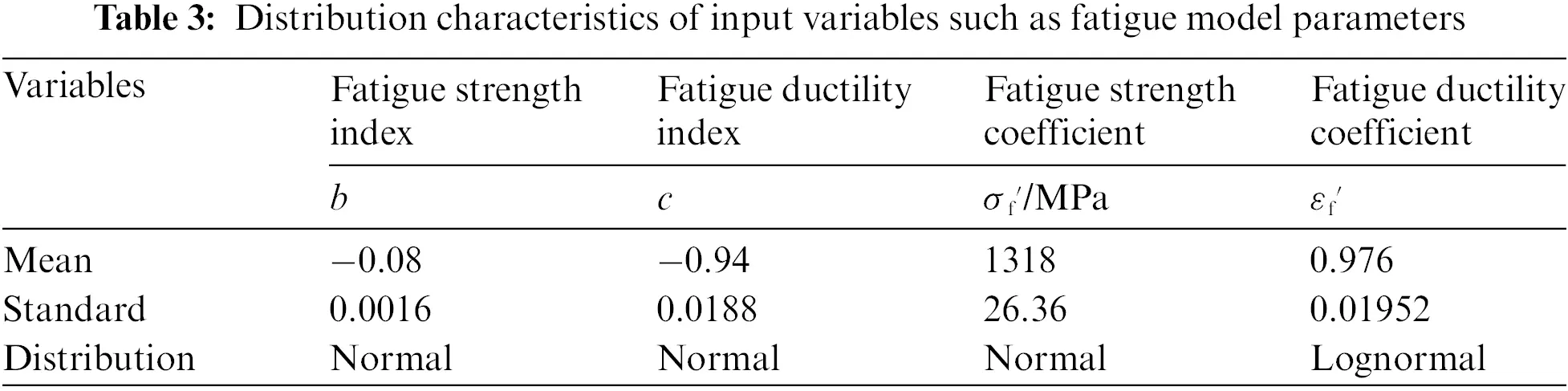

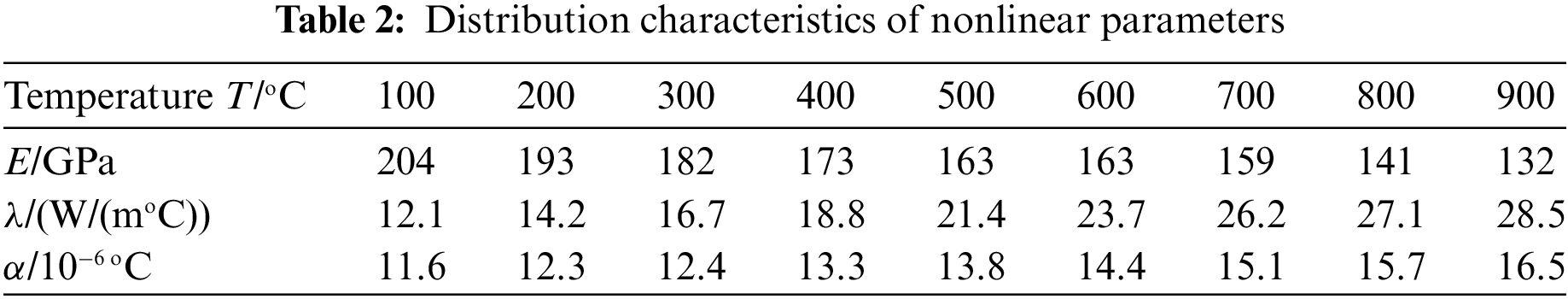

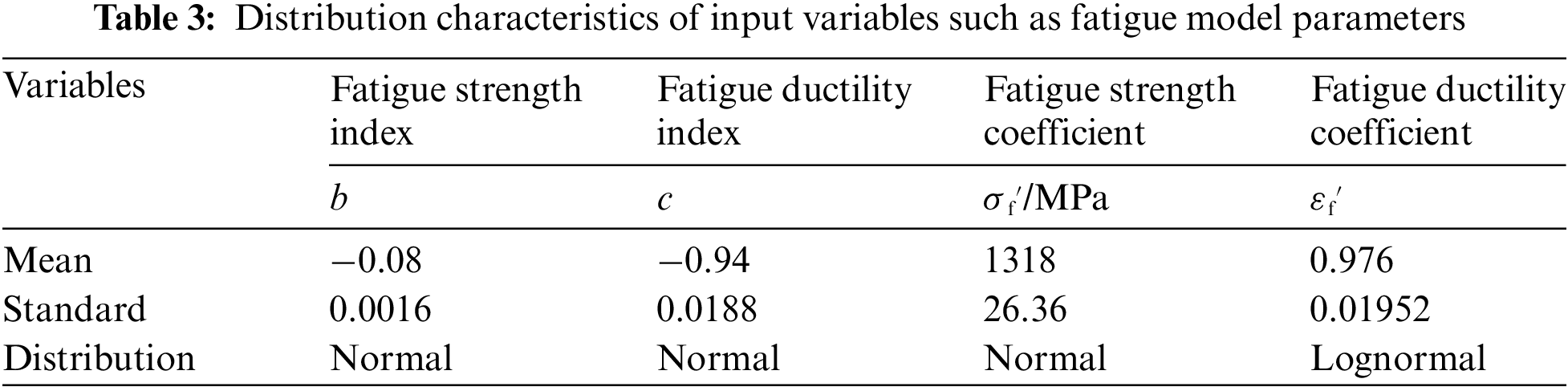

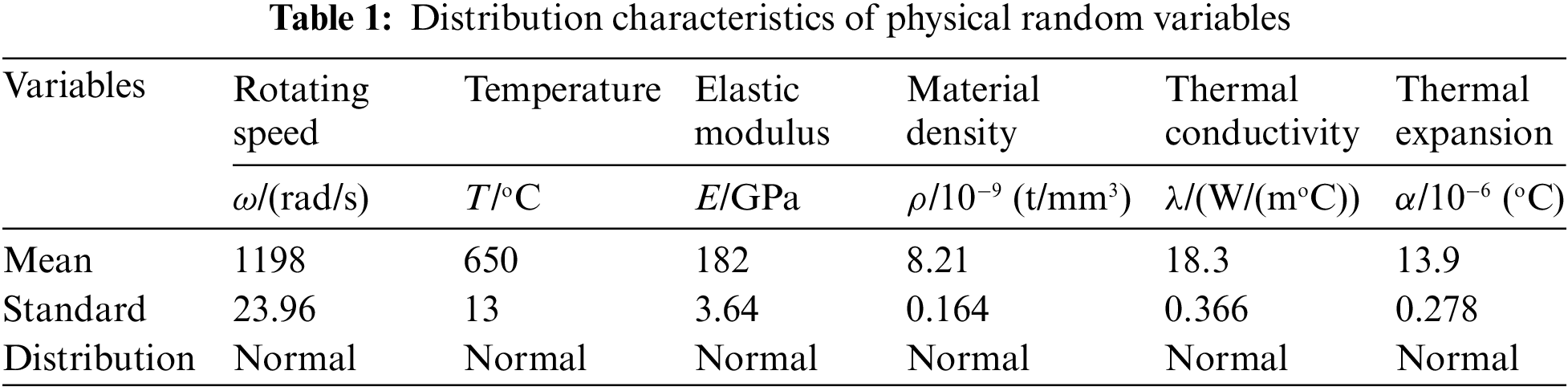

In view of the multisource uncertain factors co-determine the fatigue life of the turbine disc, we select the physical uncertain parameters as random variables [7274], whose distribution traits are shown in Table 1. The dependency between elastic modulus E, thermal conductivity λ, thermal expansion α and temperature are described in Table 2. Moreover, the model uncertain parameters are also chosen as random variables, its distribution traits are shown in Table 3. Based on the radial loading criterion and temperature continuity distribution law, the steady-state thermal analysis is performed and the temperature distribution is obtained, as shown in Fig. 4a [75,76]. Moreover, by transmitting the obtained temperature loads to the structural field, the deterministic thermal-structure coupling analysis is accomplished, and the equivalent stress & strain distributions are derived in Figs. 4b and 4c. As shown in Figs. 4b and 4c [75,76], the maximum stress σmax and strain range Δɛt appear at the center of the disc. In this study, the mean stress σm = (σmax + σmin)/2 and the strain range ∆ɛt = ɛmaxɛmin at the risk section of the turbine disc are considered as the first layer output responses [75]. It should be highlighted that it takes 23.71 s to carry out one-time thermal-structural analysis, which also shows that the large-scale finite element simulations for reliability degree calculations are unbearable in engineering. Based on the constitutive responses at dangerous sites and the model parameters in Table 3, the low-cycle fatigue life of the turbine disc is acquired as 11592 cycles.

images

images

images

images

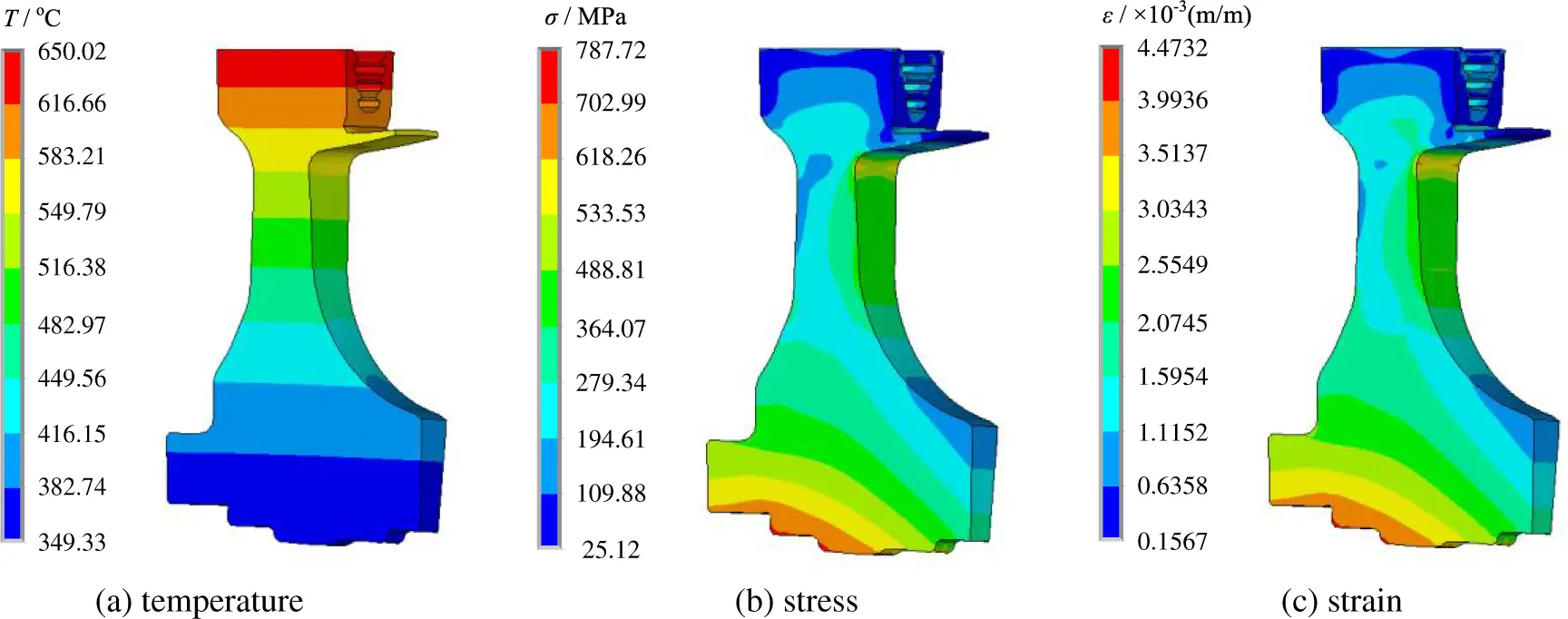

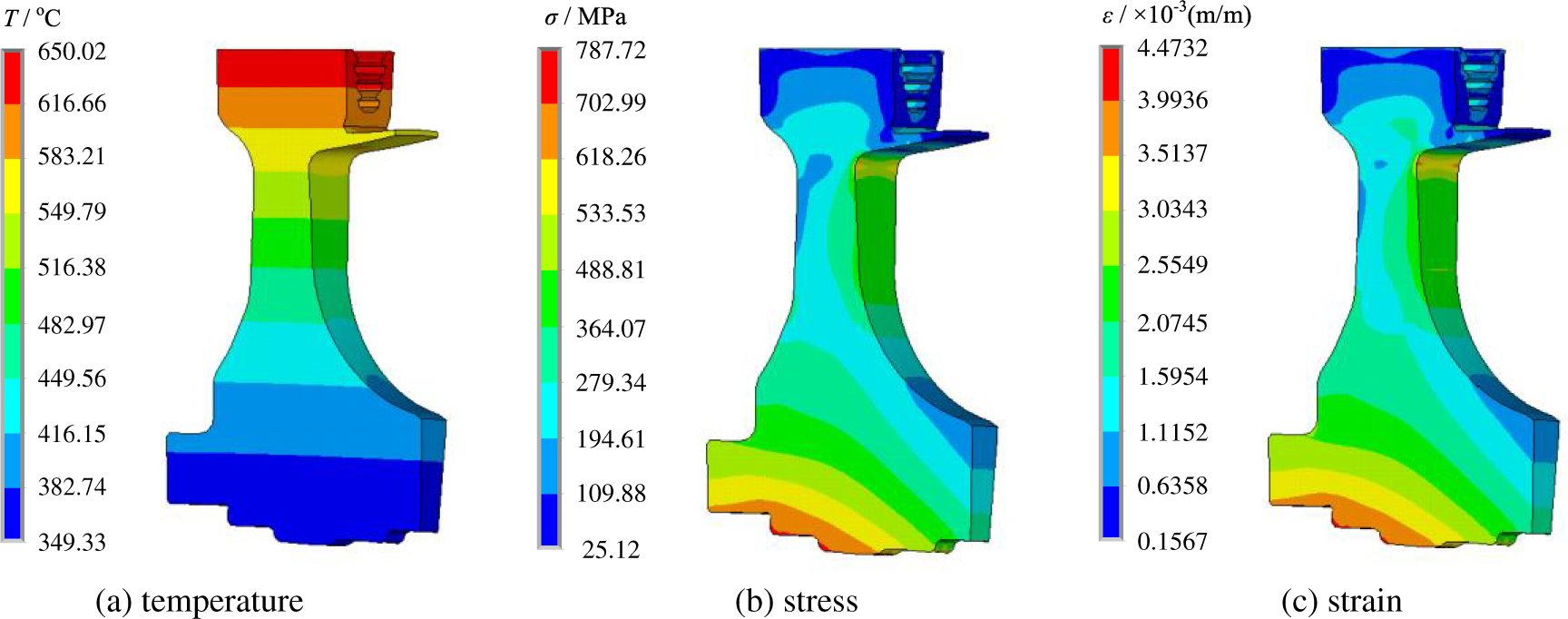

Figure 4: Response distributions after thermal-structural coupling

4.2 Reliability Optimization Modeling

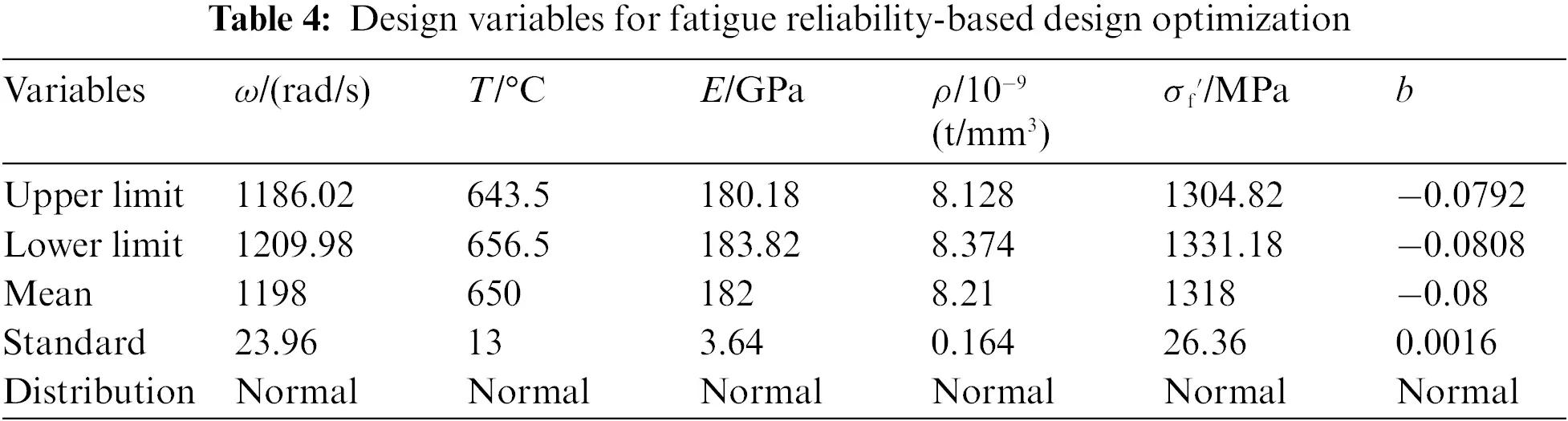

To reduce the dimensionality of design variables and downsize the computing scale of fatigue reliability-based design optimization, high sensitivity parameters (ω, T, E, ρ, σf, b) [34] are chosen as the design variables x, their range of variations are shown in Table 4. Based on the proposed RF-assisted fatigue reliability-based design optimization theory, a multilevel optimization model is established, i.e., by considering high sensitivity parameters xʹ = (ω, T, E, ρ) as design variables, the constitutive responses (i.e., σm and Δɛt) as objectives, and the value span of xʹ as constrain conditions, the first layer optimization model is established; moreover, by regarding the high sensitivity parameter xʺ = (σm, Δɛt, σf, b) as design variable, the fatigue life Nf as objective, and the fatigue reliability and value span as the constrained conditions, the second layer reliability optimization model is established. The built optimal model is shown in Eq. (16).

{findx=(ω,T,E,ρ,σf,b)maxNf=Nf(σm,εt,σf,b)s.t.1Nl=1NIr[G(xl(t))]0.9987x=(σm,Δεt,σf,b)xaxxb{minσm(ω,T,E,ρ)minεt(ω,T,E,ρ)s.t.x=(ω,T,E,ρ)xaxxb(16)

images

4.3 Distributed Response Simulation

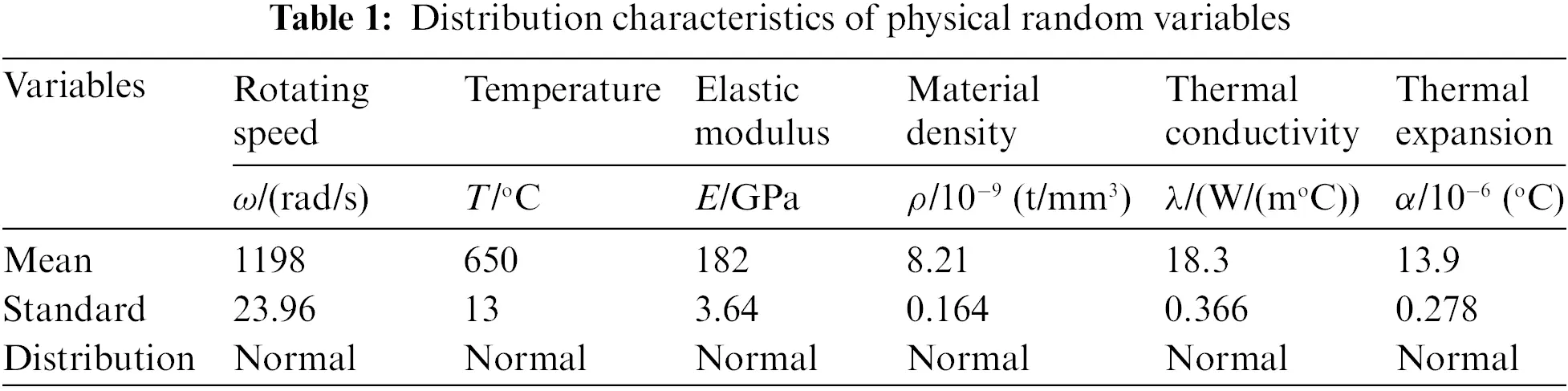

Based on the linkage sampling technique [37] and the probability distribution in Tables 1 and 2, 100 sets of input variables and stress/strain outputs are obtained. Herein, by taking 75% of 100 sets of data as training data and the remaining as testing data, the RF model is established, its nonlinear response surfaces are drawn. From the Figs. 5 and 6, even for the mapping of the constitutive responses, the response surfaces also show a highly nonlinear degree. By extracting 10 000 groups of input variables, the corresponding stress/strain constitutive responses are obtained by running the built RF model 10 000 times. As shown in Figs. 7 and 8, the mean stress & strain range both roughly follow normal distributions of mean values (389.93 MPa, 4.406 × 10−3 m/m) and standard deviations (7.7 MPa, 1.103 × 10−4 m/m), respectively.

images

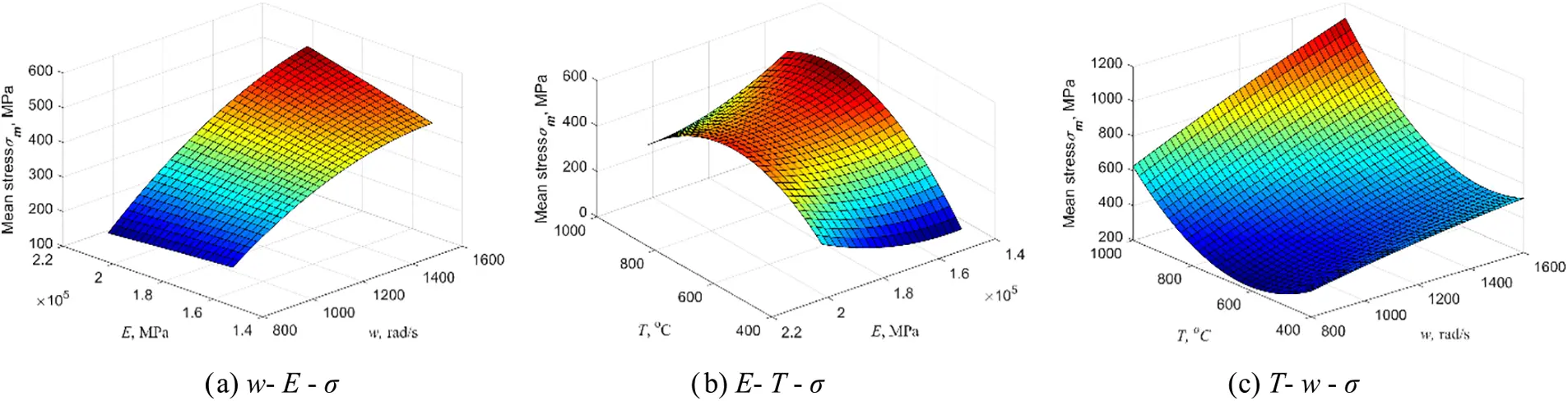

Figure 5: Stress response surface

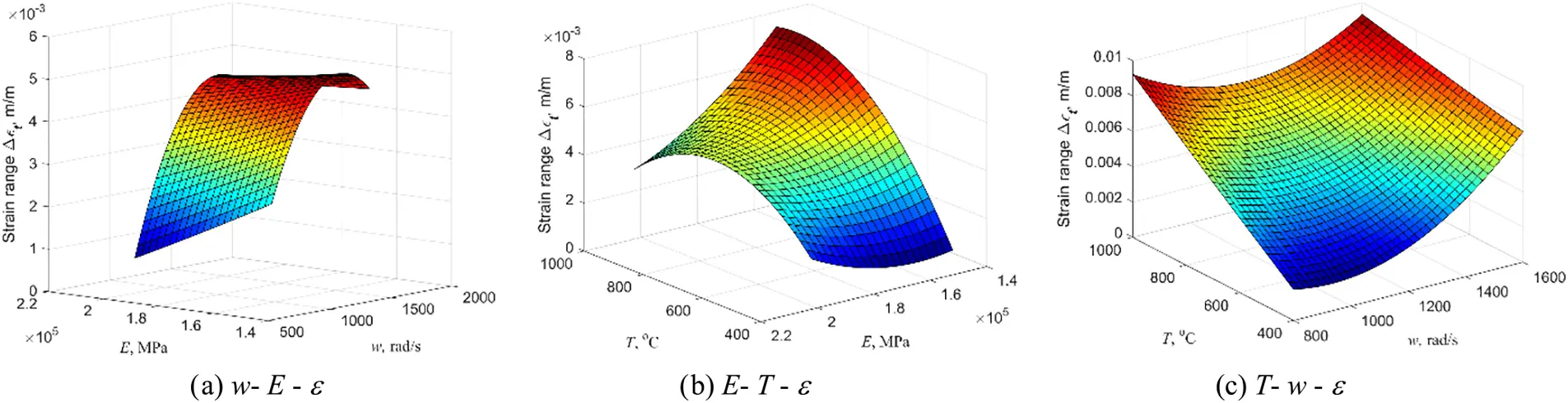

images

Figure 6: Strain response surface

images

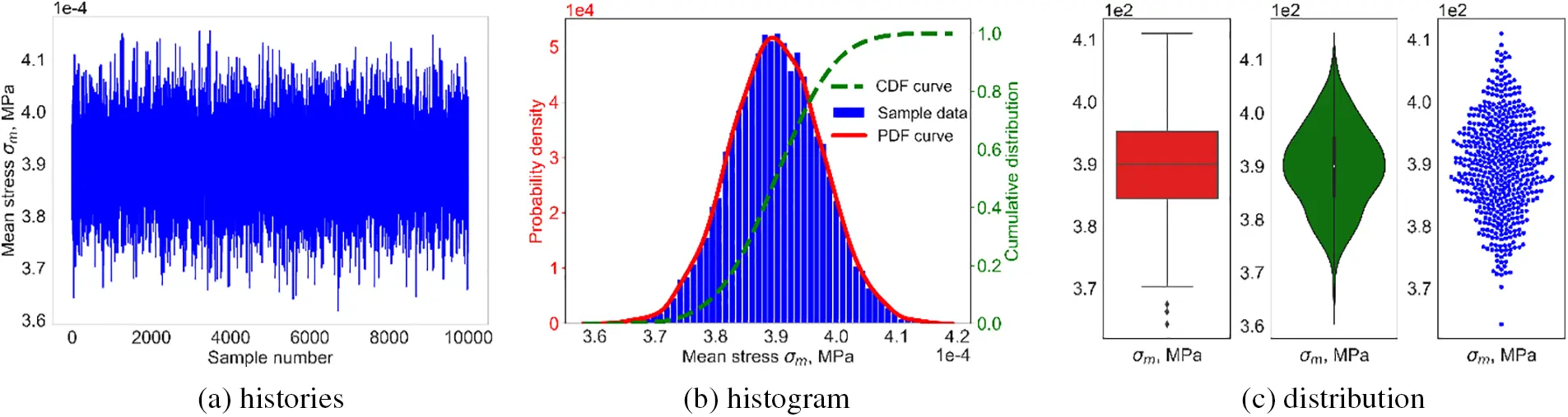

Figure 7: Probabilistic distribution of mean stress

images

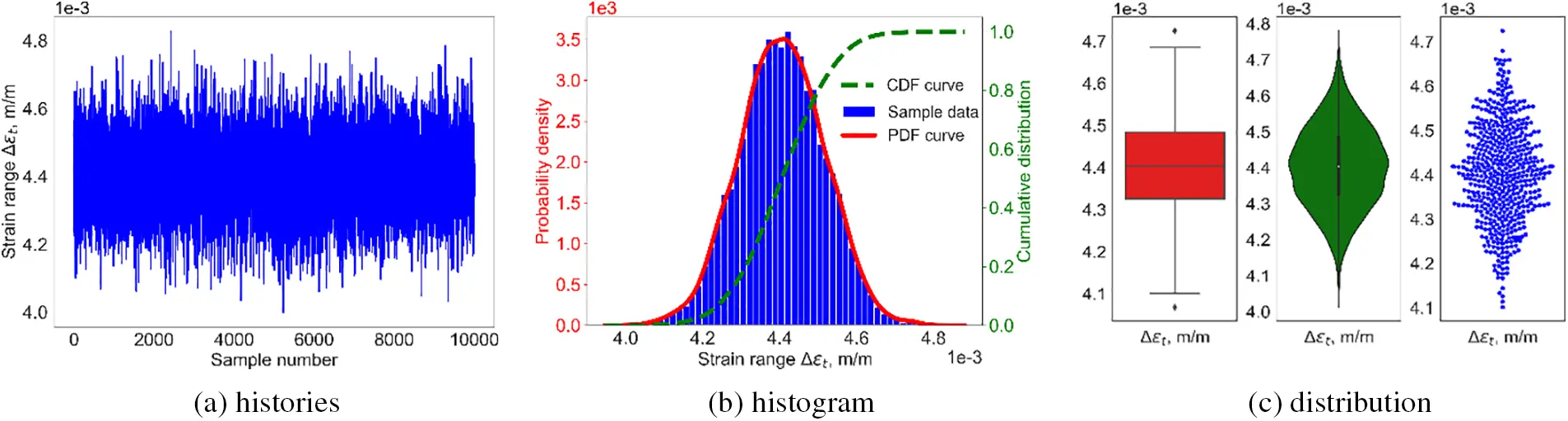

Figure 8: Probabilistic distribution of strain range

4.4 Fatigue Reliability Simulation

According to the stress/strain responses obtained in Section 4.3 and the fatigue model variables shown in Table 3, 100 sets of input variables and fatigue lives are obtained to build the RF-II model, their nonlinear mapping surface between high sensitivity input variables and fatigue life is drawn. From the Fig. 9, it can be observed that the fatigue lives exhibit a high degree of nonlinearity. Based on the built RF model, the probabilistic distribution characteristics of fatigue life at the dangerous site of the turbine disc are obtained. It can be found in Fig. 10 that the fatigue life roughly follows the lognormal distribution. Moreover, the correlation relationships between high-sensitivity variables (i.e., rotor speed, gas temperature, elastic modulus) and fatigue life are depicted in Fig. 11. To explore the effect of different application cycles n on fatigue damage, the fatigue damages under different application cycles n are analyzed, its distribution traits under various application cycles n are acquired. As shown in Figs. 12a and 12b, we find that the larger the number of application cycles n, the greater the cumulative damage of the turbine disc. Based on the built RF and reliability degree model, the fatigue reliability degree is acquired, as shown in Fig. 12c.

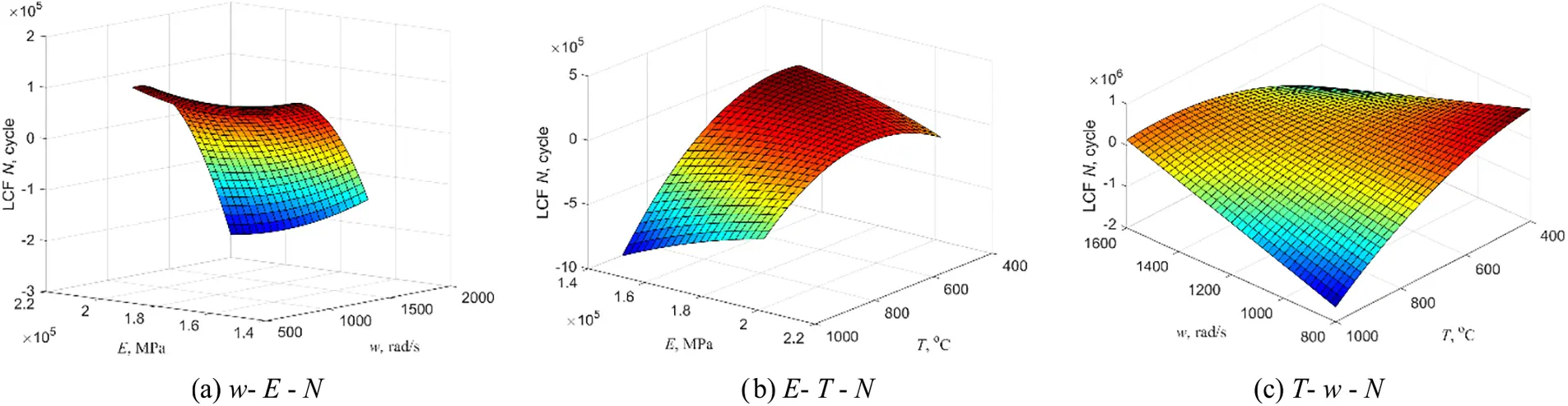

images

Figure 9: Fatigue life response surface

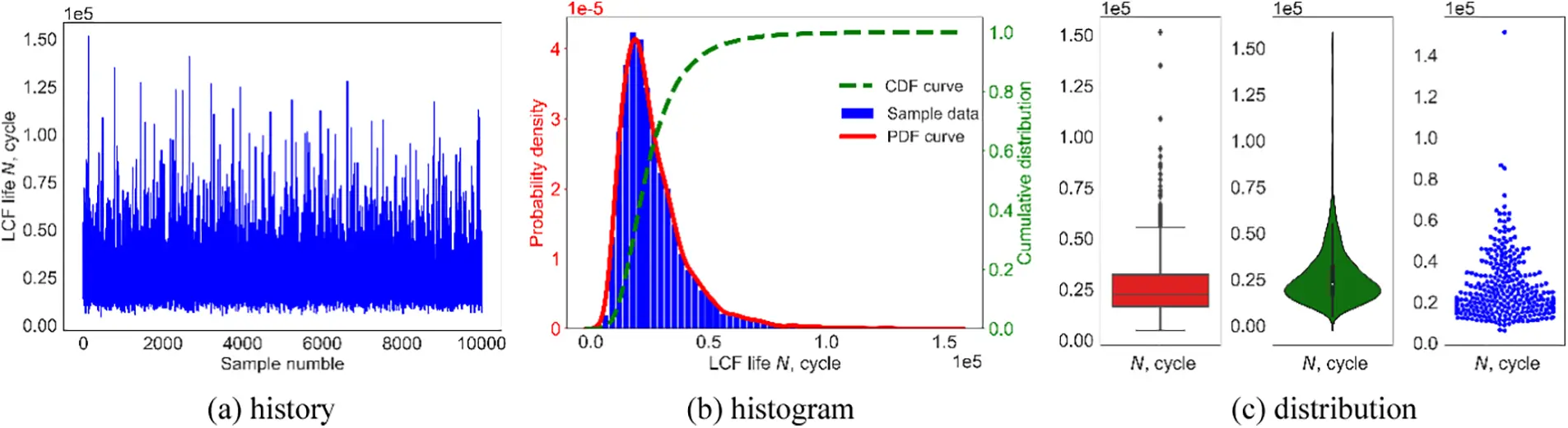

images

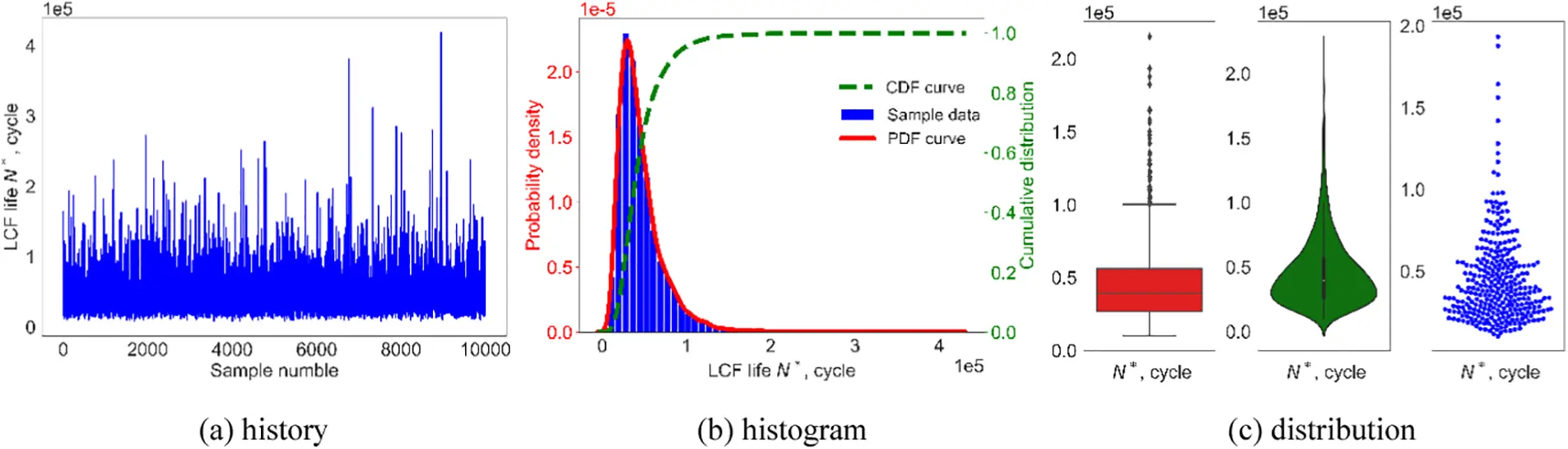

Figure 10: Probabilistic distribution of fatigue life

images

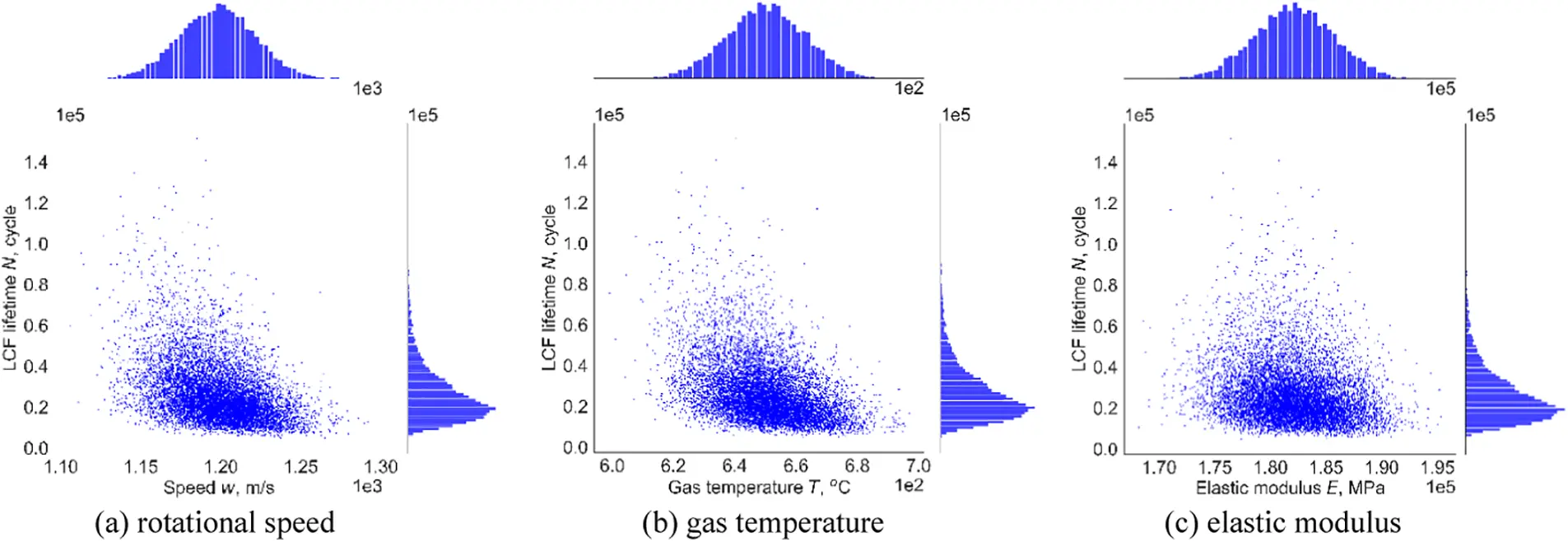

Figure 11: Scatter diagram between input variables and output response

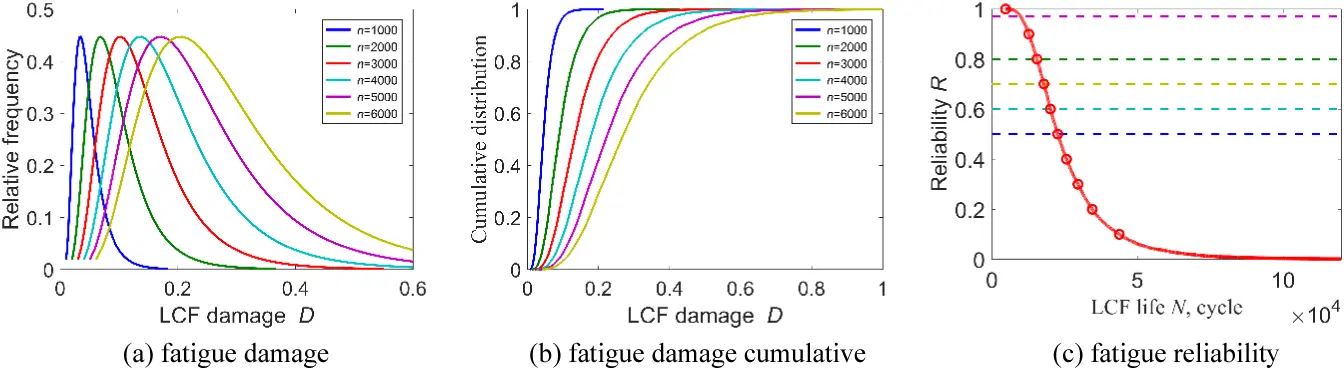

images

Figure 12: Cumulative damage and reliability degree of turbine disc

4.5 Fatigue Reliability-Based Design Optimization

Based on the built reliability-based design optimization model, the fatigue reliability-based design optimization of the turbine disc is completed by using the presented RF methods (i.e., RF-I, RF-II). The probabilistic distributions of maximum stress, strain range and fatigue life before and after optimized by RF-I, RF-II are revealed. In Figs. 1315, the green curve represents the fitted probabilistic density curves and cumulative distribution curves of responses before optimization, whereas the red curve and blue curve reflect the fitted probabilistic density curves and cumulative distribution curves of responses after optimization. To validate the computing ability of the proposed method, its optimization results are compared with four state-of-the-art methods, as illustrated in Table 5. It should be noted that 10 000 simulations of surrogate models were conducted to calculate the reliability degree in the optimization cycle.

images

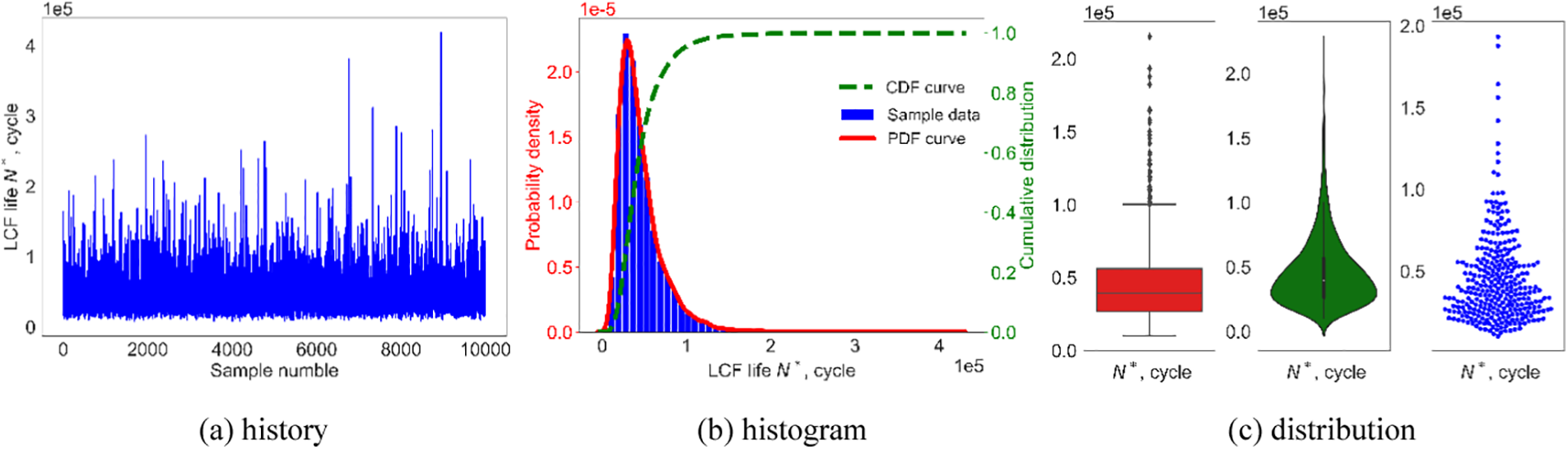

Figure 13: Probabilistic distribution of fatigue life after optimization

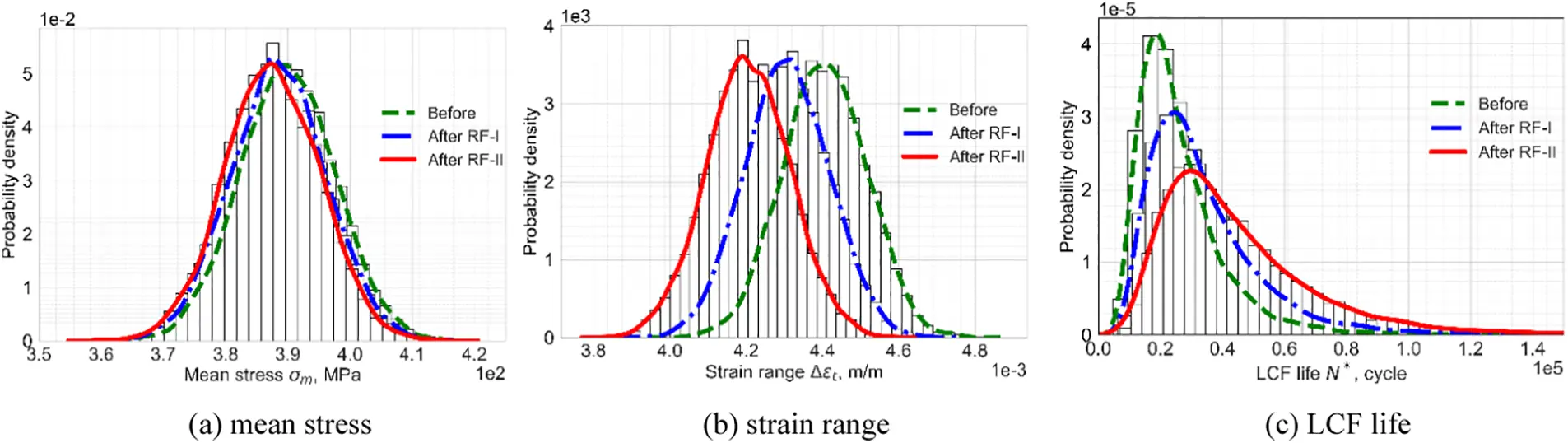

images

Figure 14: Probabilistic histogram of output responses

images

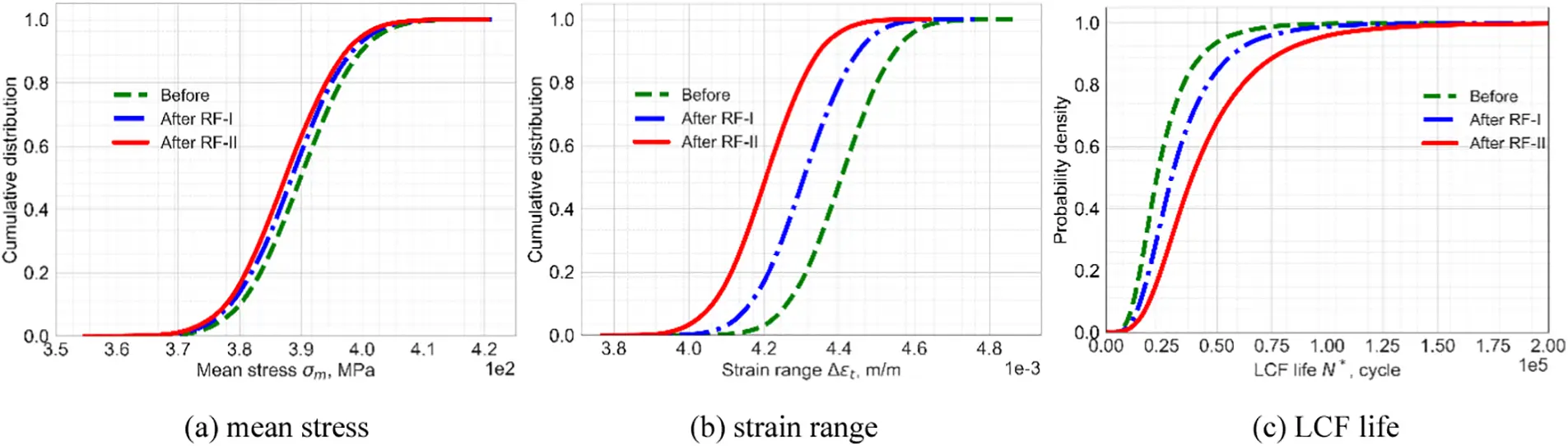

Figure 15: Comparison of cumulative distribution optimized by different models

images

4.6 Discussions

From Figs. 14 and 15, we find that regardless of before and after optimization, the stress and strain roughly obey the normal distribution and the fatigue lives roughly obey the lognormal distribution; the stress and strain optimized by RF-II are smaller than that of RF-I, while the life response optimized by RF-II is greater than that of RF-I. From Table 5, the RF-I method can prolong the fatigue life, which reaches 1765 cycles, and the RF-I method prolongs the fatigue life by 2954 cycles. Therefore, RF-II holds better optimization effects than RF-I. The main factors are (i) instead of merely averaging all decision trees, the weight allocation technology is employed to assign different weights for each decision tree, which contributes to enhancing the model regressing ability; (ii) the random subspace strategy in RF model increases the diversity and difference of decision trees, which can elevate the generalization ability of the surrogate model.

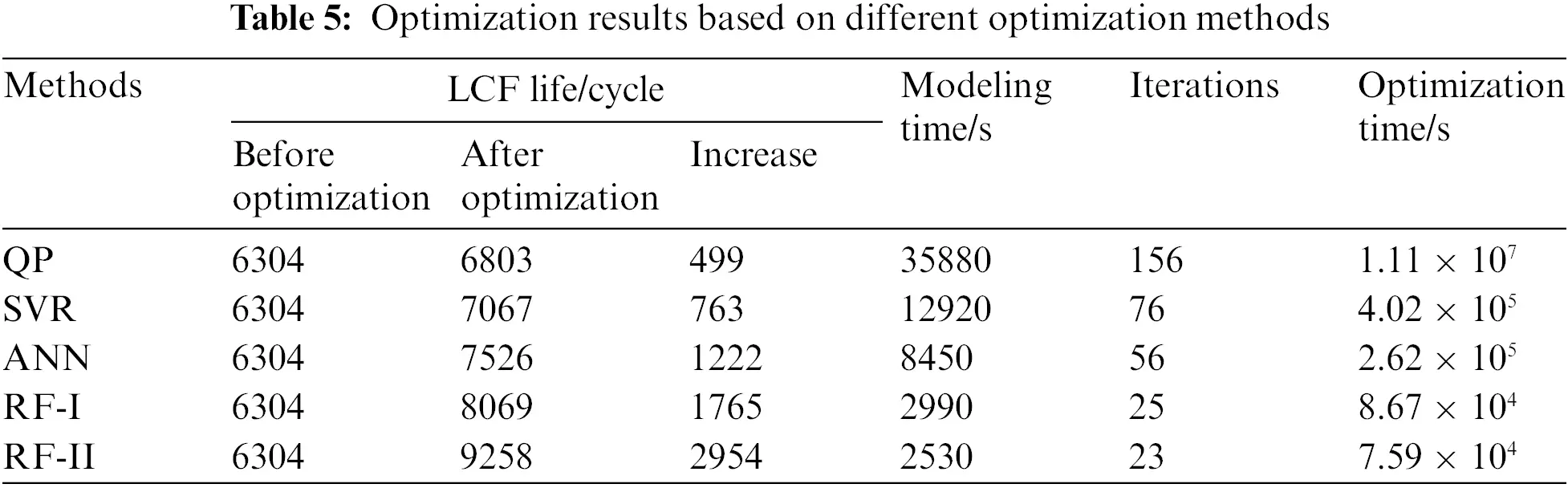

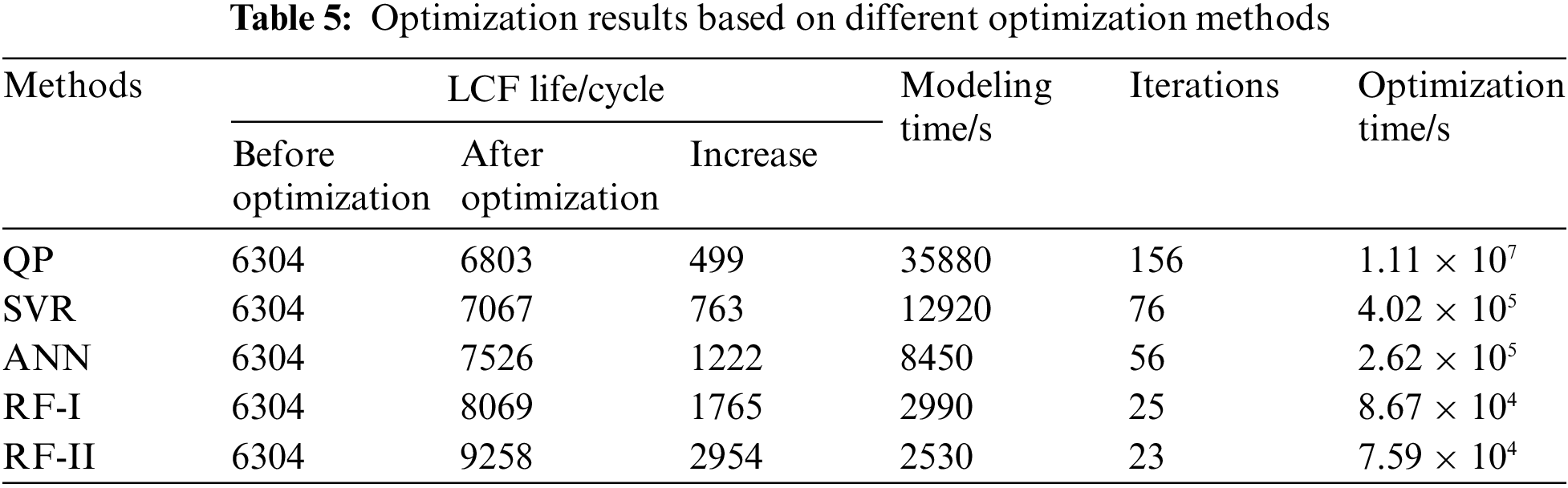

As shown in the iteration times and optimization time in Table 5, the modeling time of the RF method is shorter than that of the QP, SVR and ANN methods, and the RF-II method requires the least number of iterations and optimization time, followed by the RF-I method. The main reasons are (i) the RF method and parallel processing technique enable the model regression calculations to be simultaneously carried out, largely elevating the optimizing speed; (ii) embedding the RF model into a multilevel optimization model realizes the distributed parallel computing, which is conducive to simplifying the computing tasks and improving computing efficiency.

Therefore, the presented RF-II method can greatly reduce optimal iterations and save computational time while keeping the solving accuracy in fatigue reliability-based design optimization problems for aeroengine structures.

5  Conclusions

To perform high-efficiency and high-accuracy fatigue reliability-based design optimization for aeroengine structures, a random forest (RF) surrogate model is first presented by fusing the random subspace strategy and weight allocation technology into bagging ensemble theory; by embedding the RF surrogate into the multilevel optimal model, the RF-based fatigue reliability optimization framework is further developed. The presented framework is verified by the low-cycle fatigue reliability-based design optimization of aeroengine turbine disc considering the multisource uncertainties. Some conclusions are summarized as follows:

(1) From the fatigue reliability-based design optimization of turbine disc, the presented RF model is validated to be efficiently converged to the accurate reliability results, which can greatly accelerate the solving process in optimal models.

(2) Through the method comparisons, it has been confirmed that the RF-based reliability optimization framework that has been created has the computational benefits of high accuracy and high efficiency when it comes to designing aeroengine structures.

(3) The current work offers a brand-new RF-assisted fatigue reliability-based design optimization framework for aeroengine structures and thereby promoting the development of modeling and methodology for fatigue optimization design of aeroengine structures.

The work in this study proposed a feasible and effective method for fatigue reliability-based design optimization of aeroengine structures (i.e., Random Forest (RF) method). However, this method still has limitations regarding accuracy deviating from actual engineering. This deviation is mainly attributed to the incomplete factors considered in this study. According to current research, to further apply the proposed method framework in the future, the following issues need to be addressed:

(1) In the current reliability design of aeroengine structures, further improvement is needed to determine the random variable coefficients of model uncertainty and material randomness parameters.

(2) More sensitivity parameters that have a significant impact on the fatigue life should be further considered, the more accurate fatigue reliability optimization design should be performed.

(3) More accurate fatigue mechanics, such as creep-fatigue, and high-low cycle composite fatigue, etc., should be considered to improve the engineering application value of aerospace structures.

Acknowledgement: The authors express their appreciation to the National Natural Science Foundation of China. The authors also express gratitude for the support of the Hong Kong Polytechnic University and Beihang University.

Funding Statement: This work was supported by the National Natural Science Foundation of China under Grant (Number: 52105136), the Hong Kong Scholar program under Grant (Number: XJ2022013) China Postdoctoral Science Foundation under Grant (Number: 2021M690290), and Academic Excellence Foundation of BUAA under Grant (Number: BY2004103). The authors would like to thank them.

Author Contributions: The authors confirm contribution to the paper as follows: study conception and design: Lu-Kai Song; data collection: Xue-Qin Li; analysis and interpretation of results: Lu-Kai Song; draft manuscript preparation: Xue-Qin Li. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The data that support the findings of this study will be made available on request.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
