MAD-ANET: Malware Detection Using Attention-Based Deep Neural Networks

1  Introduction

Nowadays, the quick advancements in technology have impacted both personal daily life practices and business operations. Additionally, in the cyber world, privacy is an essential right of users that must be secure via technological efforts. Cyberattacks have become a common threat that can damage the data or sensitive information of individual user enterprises or even governments. These actions can be performed by attackers who utilize malware or harmful software to get unauthorized access to the user’s system, steal confidential information of users for financial gains, or damage their system and make them vulnerable. Malicious software (malware) is a computer program that gets different names, such as ransomware, worms, spyware, and trojans, that are designed to use or harm the operating system (OS), networks, or devices [1,2].

Moreover, there are multiple common cyberattacks, such as web application attacks to get unauthorized access to the user’s private data, DoS attacks to disable user’s systems, services, or networks and make them unavailable, and many more. Each category of malicious software with specialized families has its own architecture and working mechanisms. Currently, the primary malware categories including Spyware, Trojan horses, and Ransomware retain one shared capability which allows them to operate undetected by security protocols until they achieve complete or partial completion of their attack objective [3].

In [4], the authors proposed an advanced deep learning system to detect malware in healthcare IoT devices and smartphones. This approach utilizes neural networks to analyze and categorize malware threats effectively. The system achieved impressive results on benchmark datasets, showcasing its potential to enhance the security of IoT and smartphone environments. Furthermore, each malware sub-category has multiple functionalities, for instance, gaining access to sensitive information or carrying out other cybercrimes within each category, the efficient solution for its detection should focus on each category along with its families to prevent and stop them in the future. Multiple learning systems, such as deep learning and machine learning, are utilized instead of manual detection methods due to their high complexity and time consumption. These systems may automatically extract intelligent insights from the data. These learning systems are mostly useful for finding appropriate training data to feed the system and make a more accurate evaluation. Machine learning systems get a set of attributes that can be examined in detail to compare and contrast differences [5].

Another study [6] designed a spatial attention and convolutional neural network (SACNN) framework that applied deep learning techniques to classify 25 malware families using images with or without balanced class distributions. They performed experiments on the Malimg benchmark dataset and achieved 97.42% precision, 97.95% recall, 97.11% precision, and 97.32% F1-score, respectively. Additionally, there are several formats in which features can be inputs, which is a factor in finding the machine learning system that should be utilized. Whereas certain ML algorithms emphasize speed, others focus on precision and accuracy. Consequently, choosing the different algorithms that match the objective and type of input has a significant impact on the outcome of the system [7,8].

In machine learning, the ensemble model is well correlated with these detection and characterization objectives. Multiple existing malware detection techniques often struggle with hidden or new types of malware, as well as with imbalanced data. These approaches mainly focused on identifying non-obfuscated privacy malware that makes them hard to use in real time. However, existing programming mechanisms cannot infer a general rule from the patterns and behaviors of various families and categories of obfuscated privacy malware, which shows the need for efficient, fast, more adaptable solutions. Therefore, machine learning algorithms, specifically deep neural networks, are frequently utilized for analyzing privacy-related malware [9].

Malware that hides its features, functions, and activities as its central technique of eluding security measures during runtime is referred to as obfuscated malware. It is difficult to address malware that has been obfuscated because it resists techniques based on signature analysis used by security controls, including intrusion detection systems, antivirus, and intrusion protection system (IPS) engines [10]. Detection metrics against non-obfuscated malware are higher. However, this resistance leads to less effective ones. Furthermore, it is quite difficult to handle multiclass classification when dealing with obfuscated malware since it prevents the establishment of features that allow a distinct division between various malware families and categories [11]. It is essential to identify the type of privacy malware being attacked to put appropriate security controls and countermeasures in place and comprehend the nature of attacks [12]. Multiple strategies have been proposed to collect data that enable the detection and categorization of obfuscated privacy malware. Such as the investigation of Domain Generation Algorithms (DGA) [13], the identification of patterns in command-and-control sequences, and the examination of DNS patterns to identify malware hosting patterns [14]. With the use of 6G and other emerging technologies, cybersecurity faces new complexities. These systems introduce huge data volumes with very low latency and a maximum number of connected devices, all of which expand the attack surface and produce new vulnerabilities. Malware detection models should be able to handle these challenges by becoming faster and more capable of using high-speed networks.

Unfortunately, the majority of the work has significant levels of complexity and time consumption, which makes them unsuitable for real-world applications. This is the motivation to present a lightweight, efficient, and fast model using an attention-based deep neural network architecture for obfuscated malware that is optimized with principal component analysis (PCA) for binary classification and SMOTE for multiclass. The major contributions of this research include:

•   We propose a lightweight attention-based novel Convolutional Neural Network (CNN) model for binary classification of obfuscated malware, the benign and malicious respectively that uses an attention layer, flattered layer, dense layer, and multiclass obfuscated malware classification including benign, trojan horse, ransomware, and spyware to gain high metrics and computational efficiency.

•   We evaluate our proposed approach using different performance metrics to ensure the reliability of the proposed attention-based CNN model with the existing machine-learning techniques.

•   A detailed comparison between the proposed approach and traditionally used approaches is also presented to depict the robustness of the binary and multiclass malware detection architecture.

•   A detailed analysis of the CIC-MalMem-2022 [15] dataset is also presented in this research.

The subsequent sections follow this structure. Section 2 represents the multiple existing studies that were conducted by various researchers on obfuscated malware detection. Section 3 presents the proposed technique and describes the dataset named CIC-MalMem-2022, as well as the experimental setup in detail. Section 4 describes the results and analysis of the research, and evaluation and comparison with existing approaches are carried out in Section 5. Finally, Sections 6 and 7 contain research limitations and future work.

2  Literature Review

Since the establishment of malware, it has obtained a lot of attention in the cyber-security field because of its multiple delivery methods and categories. While there are multiple detecting techniques, each approach has its own set of difficulties. In existing studies, mostly utilized different deep learning techniques, including convolutional networks and recurrent, while some of them used machine learning techniques. This section explains the related works on malware detection and addresses the limitations and challenges of these techniques.

In [16], the authors performed binary classification along with the big data technique for malware detection by using the CIC-MalMem-2022 dataset that contains data of memory analysis. They used Apache Spark big data forum to introduce a new direction for malware detection based on memory analysis and established a classification model using traditional nine deep learning and machine learning algorithms. With an accuracy rate of 99.97%, the Logistic Regression (RL) proved to be the most efficient algorithm among them. However, they used the complex deep neural network architecture to tackle the binary classification problem. In another study [14], the authors proposed a structural variations approach by using the Bidirectional Long Short-Term Memory (BiLSTM) method to enhance the time performance of classifiers. The main focus of this study was on analyzing behaviors of dynamic requests for detecting and classifying polymorphic malware by using the Windows API Calls Sequences dataset.

An attention-based multi-dimensional deep learning (DL) approach has been proposed in [17] for a cross-architecture IoMT malware detection and classification system. The presented approach was based on byte sequences extracted from Executable and Linkable Format files that automate the feature extraction process from unstructured byte sequences. They used the IoMT cross-architecture benchmark dataset for IoMT malware detection and gained 94% accuracy.

To identify the malicious DNS found in volatile memory that leads to malware, the authors proposed a Heterogeneous Deep Neural Network (HDNN) [13] that is capable of executing trojan horses, and botnets carried out DDoS attacks and stealthy exploits, respectively. The 360netlab DGA dataset was used in this research and gained a high accuracy rate for trojan horses and botnet threats. However, this research only focused on DNS name recognition produced by malware. Similar research was conducted in [18–20], but their method was based on traditional ML algorithms used in the cloud-based services environment. The created system can detect and classify stealthy malware attacks by utilizing a dataset created through memory introspection techniques.

In other studies [21,22], the authors used the advantage of NLP (Natural Language Processing) methods as a baseline to get the local spatial correlations and presented a CNN-LSTM model by combining the neurons of both CNNs and LSTM models that aim to detect the malware in real-time. Moreover, the author split the dataset into two sets, one set for training and the second set for testing the proposed trained model. As a result, the presented model gained the highest accuracy, at 99% among the decision tree (DT) and support vector machine (SVM) algorithms respectively.

In [23], the authors used deep learning and machine learning to enhance the process of malware detection to identify malware accurately without any manual interference, which often leads to overlooking obfuscated malware. They train and validate multiple deep-learning neural networks, including convolutional and recurrent neural networks while visualizing the malware for better analysis simultaneously. They achieved over 98% validation accuracy using CNN. However, the drawback of this research is that it only focused on visualizing malware techniques. The study [24] performed the binary classification by using the memory data in trojan horse detection. The authors used the decision tree classifier with memory data and experiments were performed on the CIC-MalMem-2022 dataset and as a result, gained 98.41% accuracy.

The dilated convolutional neural network proposed in [25,26] classified the memory dump data with obfuscated malware. The presented algorithm deals with the obfuscated malware detection problem in memory. They used the latest CIC-MalMem-2022 dataset which considers the current era of technologies. Additionally, this research provides different techniques for malware detection and classification from the existing memory information as well as tested traditional methods of machine learning optimization approaches along with hyper-parameters. The proposed neural network architecture achieved 83% accuracy while classifying the malware family.

The authors presented a new model [27] for APT attack detection built on the Adversarial Tactics Techniques and Common Knowledge (ATT&CK) matrix named Strange Behavior Inspection (SBI). The aim of introducing this model is to detect the APT on the first potential victim when the attackers utilize the credential dumping technique. This study presented results level by level, such as first is random access memory, second is CPU, third is Windows registry, and last is file.

In another research [28], the Running Window Entropy (RWE) based malware classifier named Malgazer was designed and developed to achieve the best results. In this research, 60,000 malware samples including trojan horses, PUA, backdoors, ransomware, worms, and viruses are used. They evaluated eight different machine learning algorithms using the RWE and the GIST features in this study. The proposed classifier gains approximately 76% accurate results as compared to the other leading classifiers. In [29], the authors proposed an end-to-end AEFETA framework that is based on the self-DNN to handle the encrypted network traffic classification task. The proposed framework extracted features and patterns from traffic seen through PCAP (raw packet capture) files. In another study [30], the authors used the Windows Performance Counters dataset to detect and classify the crypto-mining malware that allows it to take sensitive data and particular types of ransomware. This research gathers data through PowerShell analysis. The operating Context Profiling system proposed in [31] is based on deep neural networks LSTM networks. The Windows Performance Counters data is used for detecting crypto-mining applications. In [32], the authors proposed a deep learning-based efficient malware detection model. The presented model used the reweighted class balanced loss function while handling the imbalanced data to obtain crucial performance improvements in malware classification. In another study [33], a new hybrid CNN model has been proposed for malware classification. This research developed a B2IMG approach to transform the byte files to RGB and gray image formats. The authors presented a new CycleGAN-based data augmentation system to tackle the inconsistent data size problem between malware families.

In [34], the authors presented a malware detection and classification approach that used memory forensic techniques to extract memory-based features from memory images. The extracted features can show the behavior of malware [35], for instance, linking with the operating system, interacting with commands and control site, DLL, and process injection. Before training and testing the proposed classifier, the feature engineering technique was used for feature extraction and conversion of these features to binary vectors. In another study [36], the authors proposed the MaIFCS malware classification framework to visualize the malware binaries on structural entropy as entropy graphs. They used the deep CNN model to extract features and SVM to classify the malware patterns. Stiawan et al. [37] use opcode behavior analysis with the k-Nearest Neighbors (k-NN) algorithm to detect ransomware. It achieves high detection accuracy by distinguishing between malicious and legitimate software through opcode sequence patterns. The approach is lightweight and effective for malware classification. In [38], the authors propose a stacked ensemble model combining multiple machine-learning techniques to improve intrusion detection in cloud systems. It identifies attacks like DDoS and unauthorized access, offering a scalable and real-time solution for cloud security. The study is tested on real-world datasets. Cevallos-Salas et al. [39] focus on identifying obfuscated malware using memory dumps to extract key features. The method outperforms traditional signature-based detection and highlights the importance of memory-based analysis in modern malware detection.

Detecting and classifying the multiclass problem among the malware categories is not performed in [7] nor [16] as shown in Table 1. However, the authors highlighted that the CIC-MalMem-2022 dataset’s observations contain an analysis of in-memory obfuscated malware that is difficult to examine and classify into different categories with standalone classifiers. In other studies [12], and [22], respectively, the multiclass classification problem was analyzed by utilizing the CIC-MalMem-2022, but the proposed solutions are only based on complex CNN architectures. Deep learning models have attention mechanisms that help us emphasize the most significant features of the data, which improves our ability to identify small indications of malicious behavior. So, our study focused on the detection and classification of binary as well as multiclass obfuscated malware detection and enabled it to differentiate whether a process gives general patterns and behaviors of a malicious or benign infection as well as This will help to contribute to more secure computing environments by enhancing the ability to respond against malware threats.

3  Methodology

This section contains a detailed explanation of the used dataset named CIC-MalMem-2022 (Section 3.1), a preprocessing strategy that was applied to the dataset (Section 3.2), data splitting for training and testing (Section 3.3), proposed methodology with detailed description (Section 3.4), utilized performance metrics for experiments (Section 3.5) and experimental setup (Section 3.6). Fig. 1 demonstrates the methodology overview for our research presentation consisting of three distinct phases. The first phase is dataset preparation by data cleaning and preprocessing to set the foundation for the obfuscated malware detection model in the next phase. This phase comprised the implementation of the Attention-based DNN-CNN model for binary and multiclass classification. The third phase obtained the results, comparison, and conclusion.

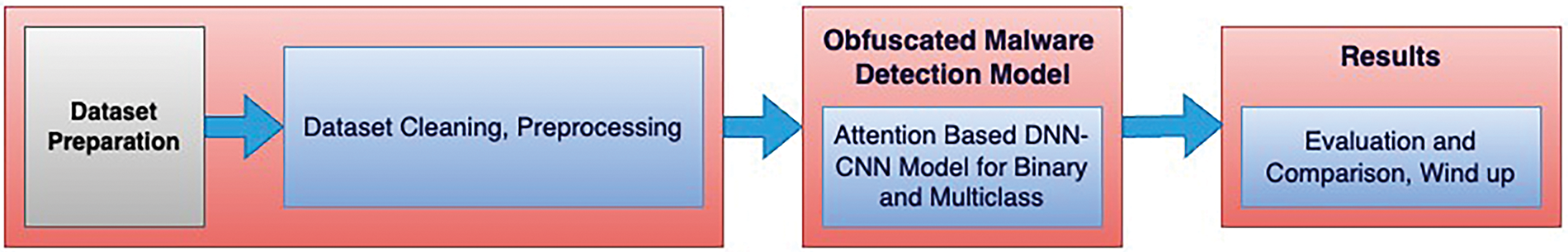

Figure 1: Overview of proposed methodology

3.1 Dataset

This study utilized the Malware Memory Analysis CIC-MalMem-2022 dataset [15] which was originated by the Canadian Institute for Cybersecurity of the University of New Brunswick (CIC-UNB) in 2022. The CIC-MalMem-2022 is a modern dataset-based memory dumping analysis and contains information on whether it is malware or not. It has a total of 58,596 records that contain 50% benign memory dumps and 50% malicious memory dumps as shown in Table 2.

This dataset not only contains benign and malware classes but is also made up of different categories of malware that are shown in Fig. 2, such as Trojan Horse, Ransomware, and Spyware malware as shown in Table 3.

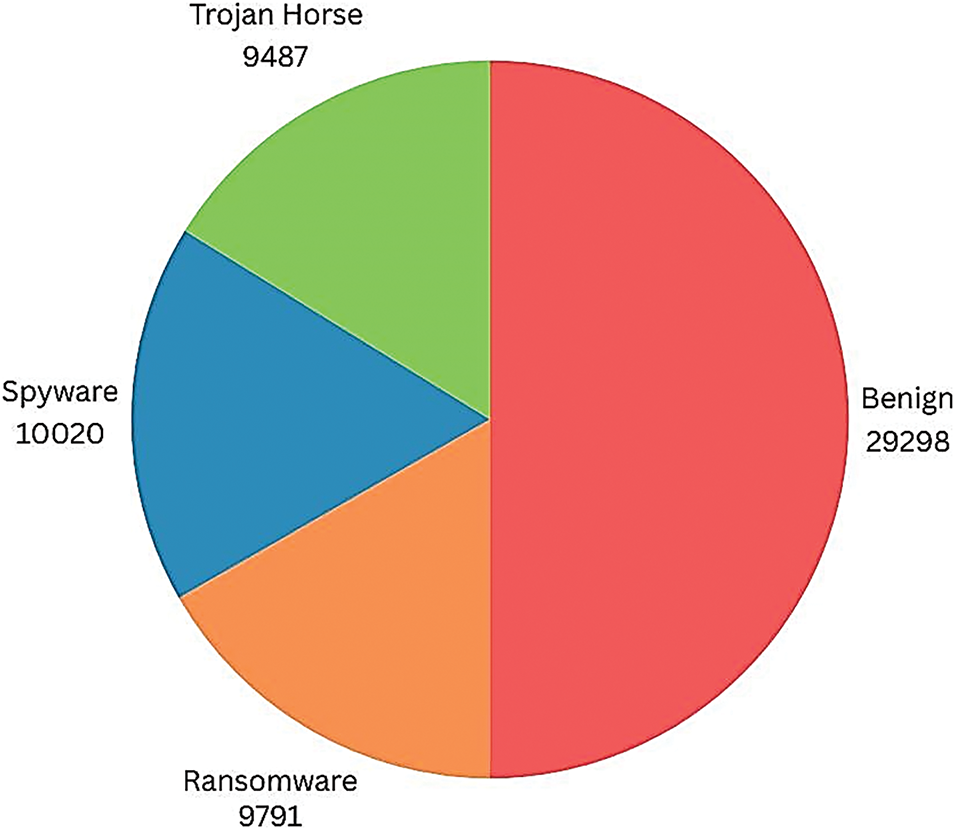

Figure 2: Overview of CIC-MalMem-2022 dataset distribution

3.2 Preprocessing

We performed transformations on the data to prepare it for classification-based analysis. These steps are important to enhance the classification model performance. Additionally, it shows data in an appropriate format for the use of deep learning and machine learning algorithms. Moreover, the used CIC-MalMem-2022 dataset is balanced and contains two classes, malware and benign respectively. Therefore, no data imbalance was performed for the overfitting problem while binary classification used the PCA technique to get the main features in a dataset. However, for multiclass detection and classification, the SMOTE data balancing technique is carried out to overcome the overfitting issues posed by random oversampling, mainly in the deep learning approach. This process also prevents the unessential consumption of resources.

3.3 Splitting

In this research, we split the dataset in a stratified way between the types for training and testing for the proposed model. We used 80% of the total data for training and 20% for testing.

3.4 Proposed Methodology

This study organized its methodology into distinct phases as presented in Fig. 3. The information collected at each sub-stage of the process combined to establish the study’s final research conclusion. The first phase involved preparing the dataset through the acquisition of patterns and behaviors from the three types of obfuscated malware. Then preprocessing was performed on the input CIC-MalMem-2022 dataset. In this phase, we performed feature selection and data normalization on the acquired dataset that enabled recognition and differentiating among the used dataset observations corresponding to the malicious and benign memory dumps (for binary classification).

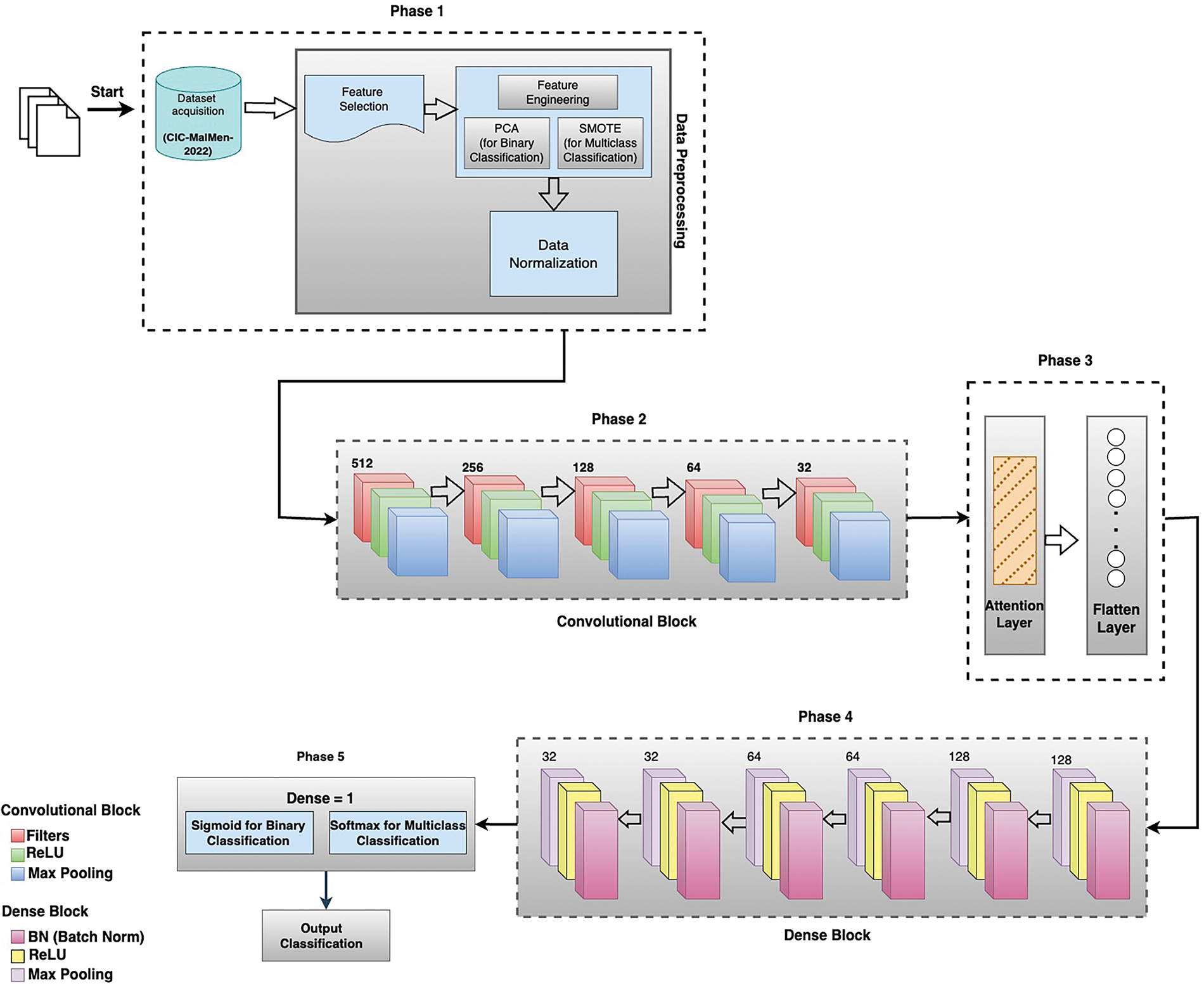

Figure 3: Proposed attention-based DNN-CNN model for binary and multiclass malware detection

Additionally, the three sub-categories of obfuscated privacy are malicious (for multiclass classification). We also applied the PCA technique to standardize and dimensionally minimize training data to two axes for binary classification and used SMOTH to tackle the imbalanced data in multiclass obfuscated malware. In the second phase, we applied a convolutional block that contains filters that are used for detecting the specific features or patterns in the input dataset.

Then, the rectified linear unit (ReLU) function replaces all the negative pixel values in the feature map with zero to show non-linearity. Furthermore, applied max pooling to extract the maximum values from the feature map stated by the filter size and strides. In phase three, we used the attention layer to improve the performance of the model to capture long-range dependencies and handle complex tasks. It also allows us to selectively focus on particular parts of the input sequence while predicting and generating output. The attention layer is used to calculate the attention weights, and these weights are utilized to weigh the contributions of multiple elements when generating the model’s output. Along with the 1 attention layer, we used the 1 flatten layer that feeds from the output of the convolutional block. Next, in phase four, we used a dense block that consists of three layers 32, 64, and 128 respectively, and contains 3 batch normalization layers (1 per dense layer), ReLU activation function, and max pooling layers (1 per dense layer) respectively. The dense block connects all layers directly with each other and every layer obtains additional inputs from all previous layers. At the last phase, we used the “Sigmoid” activation function which is an ideal logistic function for binary classification and the “SoftMax” activation function for multiclass classification which enabled us to achieve a vector of probabilities for each class analyzed. We used these activation functions to increase the performance of our proposed model while training. We performed 50 epochs to train our presented model using an initial learning rate of 0.001, which was reduced by a factor of 0.1 if validation performance plateaued. For overfitting prevention, we implemented the early stopping with a patience of 5 epochs. Finally, our proposed attention-based DNN-CNN model achieved the highest classification accuracy rate of 99.5% for binary classification and 97.9% for multiclass classification.

3.5 Performance Metrics

This research optimized the model results to evaluate the performance of the Attention-based DNN-CNN model. For that purpose, we used different evaluation metrics. The main metric of interest was accuracy, which computed the proportion of the correctly classified number of samples from the CIC-MalMen-2022 dataset. Meanwhile, the comprehensive evaluation included calculating precision, recall, and F1-score along with other performance metrics. Mathematically, we can describe these metrics as:

(a) Accuracy

The number of correct true positive predictions represents accuracy, measured as a percentage of total predicted outcomes:

Accuracy=TP+TNTP+TN+FP+FN(1)

(b) Precision

Precision describes how many correct predictions of positive cases exist among all positive predictions:

Precision=TPTP+FP(2)

(c) Recall

The proportion of correct positive predictions among all operational outcomes indicates recall value:

Recall=TPTP+FN(3)

(d) F1-score

F1-score is the harmonic mean of recall and precision, representing a balanced measure of the model performance:

F1−score=2×=precision.recallprecision+recall=TPTP+12(Fp+FN)(4)

where,

True Positive (TP) = Number of true-positive rates that have been correctly identified

True Negative (TN) = Number of true-negative rates that have been incorrectly identified

False Positive (FP) = Number of false-positive rates that have been incorrectly identified

False Negative (FN) = Number of false-negative rates that have been correctly identified

3.6 Experimental Setup

As we described earlier, we divided our dataset for training and testing with the “train_test_split” set into an 80:20 ratio. We carried out experiments on the Google Collaboratory environment as we described in Table 4.

4  Result and Analysis

In this section, we have provided the results and a complete analysis of the results achieved with the presented methodology. We trained our Attention-based DNN-CNN proposed model using our trained data. We have performed two experiments on the same dataset, and the first experiment was carried out to accurately perform the binary classification. For that purpose, we used the PCA technique to minimize the training data to two axes and the Sigmoid activation function to map the input values between 0 and 1.

The second experiment was performed for multiclass classification. That includes benign and malware families, such as Spyware gathering data related to the user’s browsing activities and conveying it to third parties. Ransomware focuses on getting funds directly from the user and restricts their access by encrypting files, drives, or other data on the system. The Trojan horse carries out malicious software activities in the background, but it is harmless to users. We addressed the imbalance data through the SMOTH technique while performing multiclass classification and applied the SoftMax activation function to achieve a vector of probabilities for each class analyzed.

4.1 Binary Malware Classification Using Attention-Based DNN-CNN Model

Fig. 4 indicates the resulting confusion matrix to evaluate the proposed model for binary classification on the CIC-MalMem-2022 dataset. According to this figure, 26 observations were classified as FP cases that influence accuracy and precision, while 22 were classified as FN cases that influence recall and, consequently, the F1-score. These observations indicate that our model can minimize the FN rate to obtain the high recall matrix. As we previously described, we used the PCA technique for binary classification, which helped achieve the high matrix and maintained the balance in the input dataset among the malicious and benign observations which made the classification problem easy considering both classes equally. The results indicate that our model achieved the highest accuracy 99.5% for binary classification, as shown in Table 5.

Figure 4: Binary classification confusion matrix

4.2 Multiclass Malware Classification Using Attention-Based DNN-CNN Model

The obtained results indicate that our Attention-based DNN-CNN model leverages SMOTE techniques and SoftMax activation function, strategically comprising deep learning concepts. According to the provided Fig. 5. of the confusion matrix, we achieved 97.9% accuracy on multiclass classification, and other obtained metrics are listed in Table 5.

Figure 5: Multi-class classification confusion matrix

5  Evaluation and Comparison with Existing Approaches

Malware detection and classification is a challenging issue based on the dataset quality that needs to be solved.

The CIC-MalMem-2022 dataset has an obfuscated nature of the memory dumps observations that enable it to achieve high performance in binary classification problems while restricting the metrics values for the multiclass classification scenario. The contribution of this research was obtained via DNN-CNN model metrics values for the binary classification. This study delivers significant value through its revelation of preprocessing with data augmentation methods as well as the attention-based DNN model that outperforms convolutional neural networks when using CIC-MalMem-2022 data. Existing studies have carried out multiple experiments on various datasets with multiple categories of obfuscated malware, using a variety of features, several observations, and different techniques for data splitting and evaluation across applications. Multiple existing studies that used the attention layer gain accuracy less than our presented model accuracy. We used the attention layer mechanism to identify underlined patterns from the used data and hence were able to identify binary and multi classes more efficiently, as you can see in Table 5. We aim to make a fair comparison between our purpose model and those presented in significant previous works with similar techniques and goals, using a common test metric as the comparison criterion.

This measure includes accuracy for binary and multiclass classification. However, a direct comparison with similar works becomes challenging because each study approaches the privacy malware detection problem from its own unique perspective and situation while addressing different objectives for classification and handling obfuscated malware. Table 6 contains the comparison of this research, results with the other obfuscated malware classification contributions. In the case of a binary classifier, the accuracy score of 97.7% obtained in [13] using the Heterogeneous Deep Neural Network is less than 99.5% presented in this research.

According to Table 6. in the comparison table, our proposed methodology achieved the highest accuracy score which is greater than reached by [13] equal to 97.7% without using parallel computing methods and using other malware classification techniques based on the 360netlab DGA dataset. We highly recommend that our presented attention-based approach be used on other datasets that tackle the binary obfuscated malware classification problem. In terms of multiclass classification, using the SMOTE technique to handle the imbalanced data to differentiate between obfuscated malware categories is insufficient on its own to obtain the highest metrics scores, but only by using this technique with the presented approach, it was possible.

6  Discussion

Our presented model of preprocessing methods delivers higher accuracy results than traditional Machine Learning methods since it addresses more complex multi-classification problems. Moreover, comparative analysis shows that the presented DNN-CNN obtains comparable and ever-best metrics to multiclass obfuscated malware classifiers developed using alternative detection methods. CIC-MalMem-2022 offers an appropriate memory dumping dataset to detect malicious samples against benign samples, enabling the development of robust classifiers. The CIC-MalMem-2022 dataset allows traditional deep learning methods to solve the binary classification task effectively. However, traditional machine learning algorithms face limitations when trying to detect and classify multiclass obfuscated malware through memory dump observations due to their complex patterns.

According to the above-mentioned comparison table, various classification methods and classifiers as well as datasets and performance metrics demonstrate multiple vital observations. Convolutional Neural Networks and Random Forests show that they perform outstanding on binary classification problems and achieve 97% to 98% accuracy. On the other hand, the 1D-CNN performs well on multiclass classification problems and achieves 88% accuracy on the CIC-MalMem-2022 dataset. Most research relies on accuracy as their main evaluation method while F1-score acts as a preferred metric for multiclass data to measure precision against the recall. Performance outcomes show substantial dataset dependence since the CIC-MalMem-2022 dataset appears in most analytical methods. The performance of algorithms depends on the type of data during evaluation processes because each dataset requires distinct assessment methods. Data balancing techniques substantially impact the operational performance of these classifiers. The performance of CNN-based models functions optimally under balanced data distribution conditions but competing models experience difficulty due to unbalanced classes which corrupt their achieved F1-scores. Additional data balancing approaches should be considered to enhance performance since current methods achieve only 59% accuracy on the target class. Furthermore, the analysis shows our proposed DNN-CNN model gained 99.5% accuracy on binary and 97.9% accuracy on multiclass. As per the above comparative analysis, it can be observed that our proposed model outperforms other approaches. The proposed systems can work with both binary, as well as multi-class attacks.

Due to this reason, deep learning is being utilized immensely along with novel data preprocessing techniques. In this study, we proposed a lightweight obfuscated malware detection attention-based DNN-CNN model for binary classification, such as benign and malware, and for multiple class detection including benign, trojan horse, ransomware, and spyware. We tested our proposed model on the CIC-MalMem-2022 dataset that tackles binary and multiclass problems. For binary classification, we gathered features through the Principal Component Analysis (PCA) technique, and for multiclass classification, we applied the SMOTE (data augmentation technique) to handle the imbalanced data.

7  Conclusion and Future Work

The CIC-MalMem-2022 malware memory dumping observations dataset provides an effective way to detect malicious samples from benign ones resulting in high-classifier performance metrics. For that corresponding purpose, traditional deep learning techniques can be utilized with the CIC-MalMem-2022 dataset to successfully handle the binary classification problem. However, traditional machine learning algorithm results are limited while detecting and classifying the multiclass obfuscated malware based on the memory dumping observation because of having complex patterns. Due to this reason, deep learning is being utilized immensely along with novel data preprocessing techniques. In this research, we proposed a lightweight obfuscated malware detection attention-based DNN-CNN model for binary classification, such as benign and malware, and for multiple class detection, including benign, trojan horse, ransomware, and spyware. We tested our proposed model on the CIC-MalMem-2022 dataset that tackles the binary and multiclass problems. For binary classification, we gathered features through the Principal Component Analysis (PCA) technique, and for multiclass classification, we applied the SMOTE technique (data augmentation technique) to handle the imbalanced data. In this research, we mainly focused on binary and multiclass classification by using novel techniques and reliance on a single dataset named CIC-MalMem-2022, which limited potential scalability, generalizability, and issues when applied to larger datasets. However, in the future, we will use our presented model for detecting sub-families of malware categories with the CIC-MalMem-2022 dataset through novel preprocessing techniques. We will also use the different datasets to evaluate the performance of our presented model.

Acknowledgement: The authors would like to express their deep thanks to the Vice Presidency for Scientific Research at Naif Arab University for Security Sciences for their kind encouragement of this work.

Funding Statement: This research was funded by Naif Arab University for Security Sciences under grant No. NAUSS-23-R11.

Author Contributions: Conceptualization, Emad Ul Haq Qazi and Muhammad Hamza Faheem; data curation, Waleed Khalid Al-Ghanem, Emad Ul Haq Qazi, Tanveer Zia, Muhammad Hamza Faheem, Muhammad Imran and Iftikhar Ahmad; formal analysis, Emad Ul Haq Qazi and Muhammad Hamza Faheem; funding acquisition, Emad Ul Haq Qazi; methodology, Emad Ul Haq Qazi and Muhammad Hamza Faheem; project administration, Emad Ul Haq Qazi; resources, Emad Ul Haq Qazi; software, Waleed Khalid AL-Ghanem, Emad Ul Haq Qazi, Tanveer Zia, Muhammad Hamza Faheem, Muhammad Imran and Iftikhar Ahmad; supervision, Emad Ul Haq Qazi; validation, Waleed Khalid AL-Ghanem, Emad Ul Haq Qazi, Tanveer Zia, Muhammad Hamza Faheem, Muhammad Imran and Iftikhar Ahmad; visualization, Waleed Khalid AL-Ghanem, Emad Ul Haq Qazi, Tanveer Zia, Muhammad Hamza Faheem, Muhammad Imran and Iftikhar Ahmad; writing—original draft, Emad Ul Haq Qazi and Muhammad Hamza Faheem; writing—review and editing, Waleed Khalid AL-Ghanem, Emad Ul Haq Qazi, Tanveer Zia, Muhammad Hamza Faheem, Muhammad Imran and Iftikhar Ahmad. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The data that support the findings of this study are available in the malware memory dataset CIC-MalMem-2022, https://www.unb.ca/cic/datasets/malmem-2022.html#:~:text=CIC%2DMalMem%2D2022&text=The%20dataset%20was%20created%20to,test%20obfuscated%20malware%20detection%20systems (accessed on 1 January 2025).

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest to report regarding the present study.
