Smart Shoes Safety System for the Blind People Based on (IoT) Technology

Ammar Almomani1,2,*, Mohammad Alauthman3, Amal Malkawi2, Hadeel Shwaihet2, Batool Aldigide2, Donia Aldabeek2, Karmen Abu Hamoodeh2

1 Research and Innovation Department, Skyline University College, P. O. Box 1797, Sharjah, UAE.
2 IT-Department-Al-Huson University College, Al-Balqa Applied University, P. O. Box 50, Irbid, Jordan
3 Department of Information Security, Faculty of Information Technology, University of Petra, Amman, Jordan

* Corresponding Author: Ammar Almomani. Email: email

(This article belongs to this Special Issue: Security, Privacy and Trust Management for IoT-based Blockchain)

Computers, Materials & Continua 2023, 76(1), 415-436. https://doi.org/10.32604/cmc.2023.036266

Abstract

People’s lives have become easier and simpler as technology has proliferated. This is especially true with the Internet of Things (IoT). The biggest problem for blind people is figuring out how to get where they want to go. People with good eyesight need to help these people. Smart shoes are a technique that helps blind people find their way when they walk. So, a special shoe has been made to help blind people walk safely without worrying about running into other people or solid objects. In this research, we are making a new safety system and a smart shoe for blind people. The system is based on Internet of Things (IoT) technology and uses three ultrasonic sensors to allow users to hear and react to barriers. It has ultrasonic sensors and a microprocessor that can tell how far away something is and if there are any obstacles. Water and flame sensors were used, and a sound was used to let the person know if an obstacle was near him. The sensors use Global Positioning System (GPS) technology to detect motion from almost every side to keep an eye on them and ensure they are safe. To test our proposal, we gave a questionnaire to 100 people. The questionnaire has eleven questions, and 99.1% of the people who filled it out said that the product meets their needs.

Keywords


1  Introduction

People who are visually impaired or blind have limited eyesight and are unable to see fine details. The World Health Organization (WHO) reports that approximately 70 million people globally, or 1% of the population, have visual impairments. Of these, 7 million are considered blind, and 63 million have poor vision. Magnitude, temporal trends, and safety system of the global prevalence of blindness [1,2].

The main problem with blind people is how to go anywhere they want. These people frequently need help from others with good eyesight. As described by WHO, 10 percent of the visually impaired have no functional eyesight at all to help them move around without assistance and safely.

Learning to interpret non-visual sensory signals is a significant barrier to visual movement. The blind has to learn in their environment how to move safely [3]. Movement ability is the capacity to detect obstacles and avoid them while walking. The effective transition process requires the know-how to master both so that the technologies introduced to enhance the ability to detect and prevent obstacles while walking and a vibration alert is in place when the blind face any obstructions or dangers such as fire.

Technology is evolving now, yet there is no cost-effective gadget for visually challenged people. For visually handicapped people, tasks that normal people consider routine and easy can be impossible or dangerous. Blind people may not walk without the help of others. People generally want to live independently, but blind people are always dependent on others. Advanced technology is hence required to help these people, and smart shoes can aid them in their motions, and they can perform their tasks much easier as well [46].

Blind individuals face significant challenges in navigating and moving safely through their environment. To address this problem, we developed an intelligent shoe safety system based on IoT technology to improve the safety and independence of blind individuals by providing real-time guidance and assistance in navigating their environment. The system utilizes a combination of sensors and connectivity, including GPS, obstacle detection, and emergency alert features. It is also connected to a social network or support group to allow the wearer to connect with others and share their location and status. The system was evaluated through user testing with blind individuals, and results demonstrated a significant improvement in the safety and independence of the participants. The smart shoes safety system has the potential to greatly improve the lives of blind individuals by helping them navigate their surroundings with greater confidence and autonomy.

The main objectives of the research safety system include (1) to develop a safety system of an intelligent shoe based on IoT technology; (2) to develop an application that considers and manages the information of blind people and helps them cope with their physical barriers; (3) to assist blind people in overcoming water obstacles; (4) to assist blind people in coping with fire obstacles, and (5) to assist blind people in following a path.

The main contributions of a smart shoes safety system for blind people based on IoT technology:

1.    Improved safety: The system can help blind individuals avoid obstacles and tripping, increasing their safety when moving through their environment.

2.    Enhanced independence: By providing real-time guidance and assistance in navigating their environment, the system can help blind individuals move more confidently and autonomously, increasing their independence.

3.    Connected community: The system can be connected to a social network or support group, allowing blind individuals to connect with others and share their location and status. This can provide a sense of community and support for the wearer.

4.    Convenience: The system can provide real-time guidance and assistance, eliminating the need for blind individuals to rely on others to navigate unfamiliar areas.

5.    Innovation: The use of IoT technology in a smart shoe safety system is a novel approach to addressing the challenges faced by blind individuals in navigating their environment.

The rest of the paper is organized as follows: In Section 2, a review of the relevant works and literature is given, and in Section 3, the proposed method for designing a safety system is explained. Section 4: Includes information about the safety system implementation and testing and results, and Section 5: Concludes with conclusions and suggestions for future research.

2  Literature Review

In India, about 40 million people were blind, and 1.6 million were children. Traveling alone for blind people is very challenging, and they have to rely on others to perform most of their daily tasks. For blind people, walking on the road is very challenging because they cannot see any obstacles they may encounter with a stick in their hand. In this regard, the intelligent shoe design offers the blind a long-term solution to walk independently on roads. These shoes will ease them in reaching their destination unassisted. The shoes are equipped with IoT technology with various sensors, microcontrollers, and integrated buzzers. A buzzer sound will be produced when the user nears an obstacle. Smart glasses designed with IoT to enhance efficiency are also incorporated into the sensors to help detect objects over a wider field. The intelligent footwear and the intelligent lenses communicate with each other and coordinate to ensure that the user does not encounter any obstacles [3,79].

For the elderly, technology is increasingly needed to allow them to live more independently. The MATUROLIFÉ safety system funded by EU Horizon2020 was to develop solutions that integrate intelligent fabrics to help older adults to improve their well-being and independence. Accordingly, a qualitative study by Callari explored an ‘intelligent’ footwear integration technology [10]. A total of 37 older adults and co-generation with 56 older adults were chosen as participants. These participants were from Belgium, France, Germany, Italy, Poland, Spain, Turkey, and the United Kingdom. The authors also discussed the co-creation priorities and concept ideas in considering how footwear harmonizes with autonomous aging.

Smart shoe is equipped with smart technology and can be a promising internet-related future health. Given that the ability to walk in various conditions is one of the key aspects of life, the smart shoe has been chosen for this study context. Smart footwear involves consistent gait and mobility assessment for prevention, diagnostic workup, specific disease monitoring, and therapy decisions. Innovative solutions and services to promote and reinvent healthy living and health care are conjectured to take the form of coherent and wearable computing systems [11].

Chandekar et al. [12] presented a paper examining the existing solutions designed to ensure independent mobility for people with disabilities and a new design that would guide a visually impaired person while navigating with the embedded Sensor of Smart Shoes and provide a warning to the person on the incoming obstacles. Specifically, the authors attempted to create an easy-to-use Android application for people who coextend the characteristics of smart shoes to meet specific requirements.

Drăgulinescu et al. [13] presented smart use methods in special medical applications for gait and foot pressure analysis. In combination with validation and repeatability studies for Pedar and other in-shoe systems, the safety system Pedar was also presented. Pedar apps, mainly in medicine and sports, were then presented. In this study, the authors presented a valuable way to overview and select information in this field, and the authors perceived their study as a pioneer in systems design and functionality improvements and that the study would inspire more studies on the use of sensors in intelligent textiles and in-shoe systems in other domains of application.

In their study, Jung et al. [14] developed an auto-powered intelligent shoe to monitor a user’s body weight changes. Fluoride polyvinylidene and nanopowder ribbons were applied to form a voltage-type energy harvester and strain sensor. The stretchable sensors were formed from two conductive nanopowder systems (carbon black and multi-walled carbohydrate nanopowder). These circuits draw in energy, transfer data, and change power sources. Reddy et al. [15] introduced a solution based on Radio-frequency identification (RFID) and Infrared sensor (IR) technology. The unit was placed inside a blind person’s shoe. Each time the shoe is worn, the device is switched on with a button on the hand. Voice and prerecorded messages were used, similar to a museum’s tourist guide system. MATLAB identifies the voice command and produces the correct voice command to follow to the destination.

Seo et al. [16] developed a module that computes the number of steps from Arduino-based wearable smart shoes through data delivery to Android-based smartphones. The computation was to ensure accurate measurement of steps. Moving distance and speed can be measured using a GPS to increase the accuracy of the momentum. Truong et al. [17] demonstrated the application of an off-shelf Smart Band and two Smart Shoes in monitoring and identifying daily tasks. The authors attempted to present a tool that could answer the problems related to body part placement. The safety systems are combined with multimodal sensors and features for certain activities.

Wu et al. [18] introduced a system controlled by STM32L432KC (an STMicroelectronics microcontroller). A lithium-ion battery-powered the system, and the battery is chargeable. A gait event recognition algorithm was used to detect the feet’ motion status. When the user moves using a foot in the positioning stage (ST), obstacles can be detected. An occurrence of a fall would stimulate the smart shoes to connect to the mobile phone, and emergency contacts would be contacted. The experiments’ results suggested that Smart Shoes’ performance was stable in real-time, with low false alarm rates.

Yang et al. [19] demonstrated the use of clever shoes. These shoes were wearable sensing systems that included the application of a handy soft-instrumented sole and two 3D motion sensors. A new data structure for the measured ground reaction and foot motion functioned as a “sensor image”. A coevolutionary autoencoder was applied, merging the multisensory datasets and extracting the concealed characteristics of sensor images. The proposed method showed its ability to learn joints’ torques and satisfactory widespread properties.

In their study, Zhou et al. [20] designed rationally as a composite structure. The purpose was to allow the full usage of pressure distribution of a footfall and the delivery of an output of power of up to 580 μW. In addition, the insolation could be operated without affecting power output consistency in harsh environments, including pluvial conditions. On the floor, there were 260 light-emitting diodes. Meanwhile, an 88 μF condenser was charged to 2.5 V in 900 ss. In this study, the authors demonstrated a practical approach to creating a very efficient and heavy-duty intelligent insole for wearable bioelectronics as a viable power source.

In their study, Zou et al. [21] examined TENG-based smart power-generating shoes. The shoes demonstrated the ability to scatter biomechanical energy through ambulatory motion and to apply rhythm tracking and pace biomonitoring for the health parameters of the ragnostic. However: Table 1 will show the main contribution of our safety system compared with current systems, which represent related works.

images

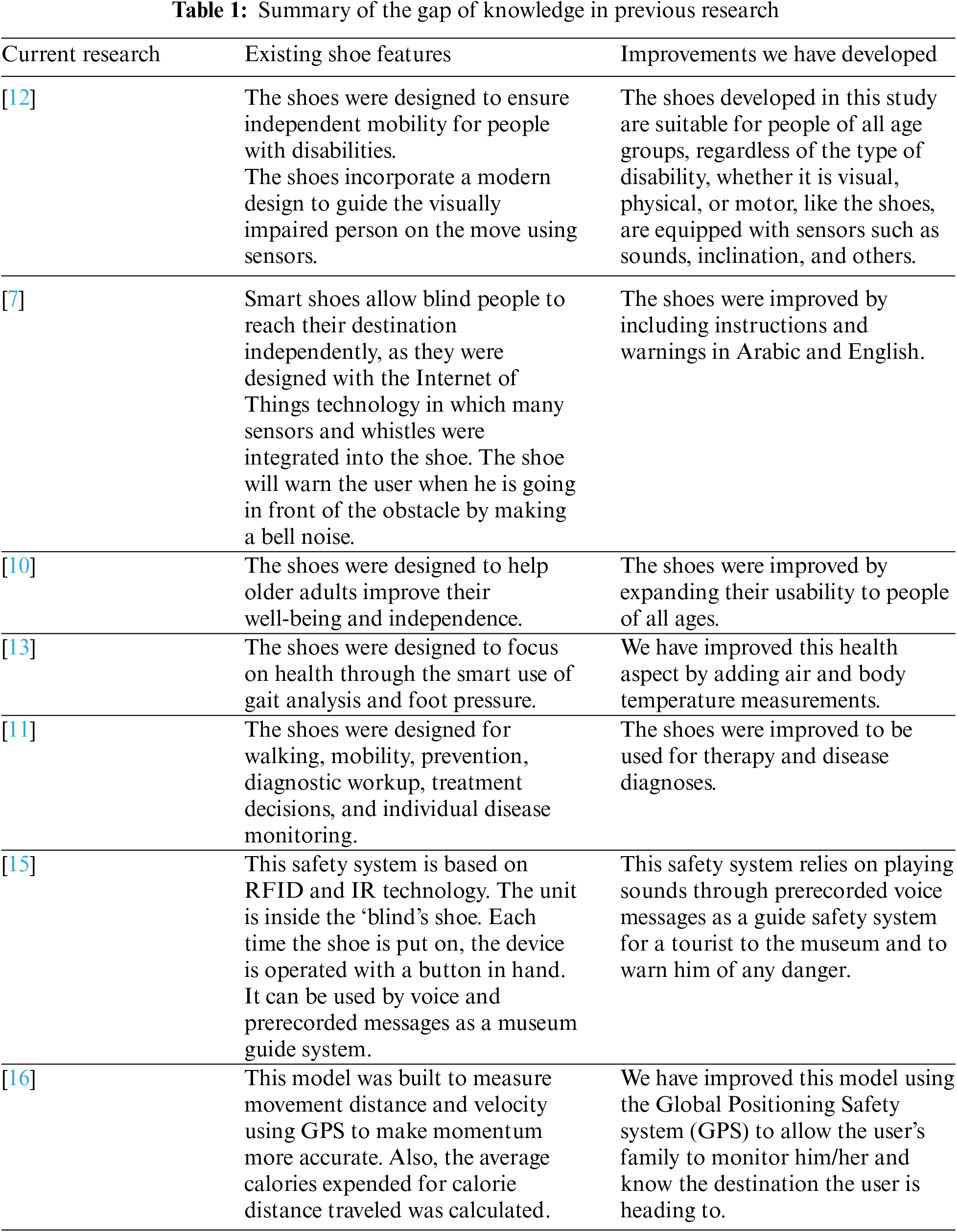

The problem that a smart shoe safety system for blind people based on IoT technology is designed to address is the challenges faced by blind individuals in navigating and moving safely through their environment. Blind individuals may struggle to detect and avoid obstacles and rely on others for assistance navigating unfamiliar areas. This can limit their independence and mobility and increase the risk of accidents or injuries. The problem of improving the safety and independence of blind individuals in navigating their environment is a significant one, as it impacts the quality of life and well-being of these individuals. A smart shoe safety system for blind people based on IoT technology has the potential to address this problem by providing real-time guidance and assistance in navigating the environment, helping blind individuals move more confidently and autonomously.

A smart shoe safety system for blind people based on IoT technology could fill an important gap in the current options available for improving the safety and independence of blind individuals. While some existing technologies can assist with navigation, such as canes or guide dogs, a smart shoe system could provide real-time guidance and assistance more conveniently and discretely. One potential research gap in this area is the lack of studies evaluating the effectiveness of smart shoe systems in improving the safety and independence of blind individuals. While user testing has demonstrated positive results, more rigorous studies are needed to fully understand these systems’ impact. Finally, there is a need for more research on the long-term use and maintenance of smart shoe systems for blind individuals. It is essential to understand the durability and reliability of these systems over time, as well as the resources and support that may be needed to maintain them.

Based on TENG, this study systematically evaluated the rational design, practical applications, scenario analysis, and performance assessment of Smart Shoes wearable electricity production. The prospect of developing smart energy shoes as a sustainable and comprehensive energy solution for the next era of the Internet of Things was also discussed.

3  Proposed Methodology

The main purpose of this study was to produce a safety system for users to detect objects or obstacles and to feed users with voice and vibration as warning forms. Ultrasonic sensors and a microcontroller for detection, distance, and obstacles are combined in front of them. Furthermore, this safety system ends locations for a shoe for blind and disabled people to help their movements and improve safety. The limitation of independent mobility and navigation constitutes a major difficulty that visually impaired people face. They use the white cane primarily as a mobility aid for detecting close barriers on the ground. It is impossible to detect certain objects like water and fire, or even temperature, as these are major obstacles to them. Embedded systems developments have opened a broad field of research and development for the physically challenged by providing them with affordable mobile assistance devices.

This safety system was designed and implemented to increase the functionality of the commonly used white cane and allow further detection of obstacles. This unit which will be removable comprises an ultrasonic guard and a microcontroller controlling sound that increases within three meters in the detection range. The distance to obstacles is conveyed to the user through multi-sonic signals that indicate their proximity. This unit can also identify rapidly moving barriers. A blind shoe location is sent to increase safety while the user is walking to other places. Table 2 summarizes the existing features utilized in the previous research and the improvement developed in this study.

images

3.1 Safety System Design

Implementing the proposed ideas required the use of several components, which were divided into hardware and software parts. These components were essential for the functioning of the system. The hardware components included physical components that made up the system, while the software components comprised the programming and computational elements. Both hardware and software components are described in detail in this section, with their arrangement illustrated in Fig. 1.

images

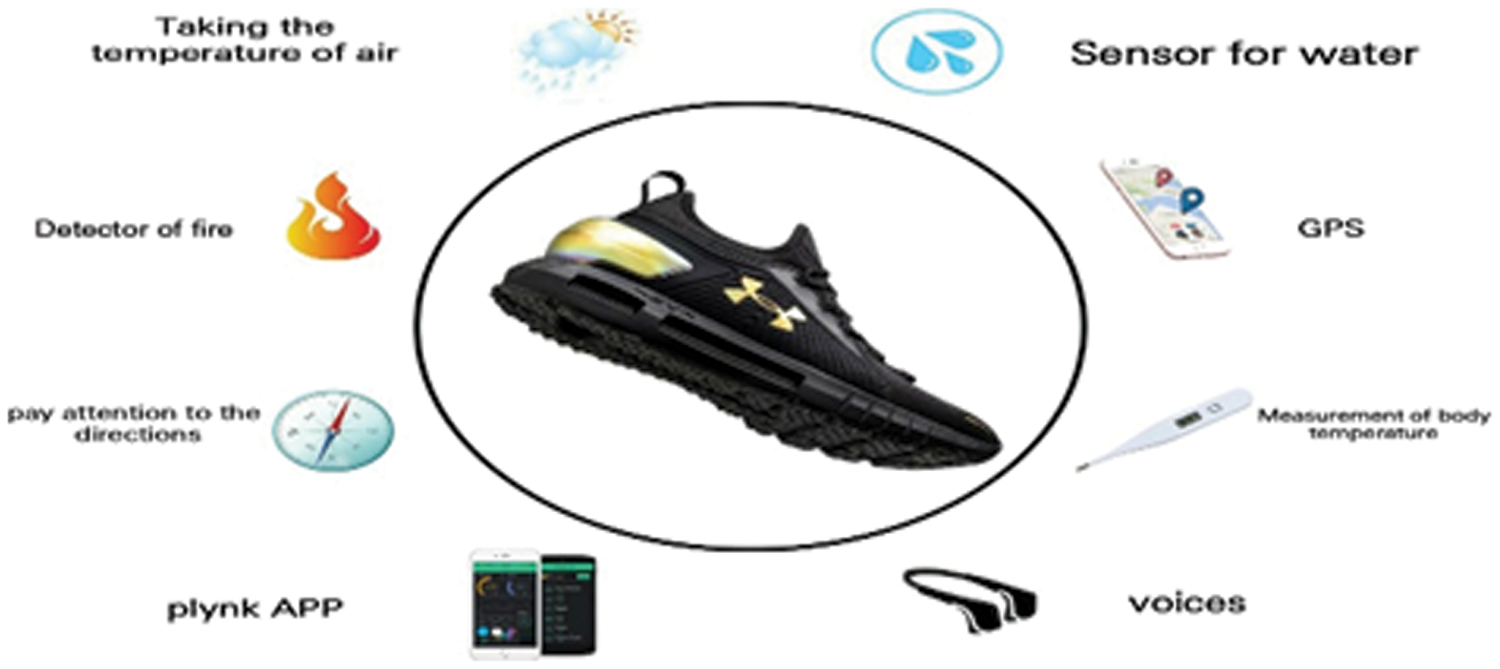

Figure 1: Smart shoe for the blind and the normal people based on IoT technology

Arduino is the machine’s brain, which means all other components will be connected. Figs. 2 and 3 represent the proposed safety system1 and proposed safety system2, respectively.

images

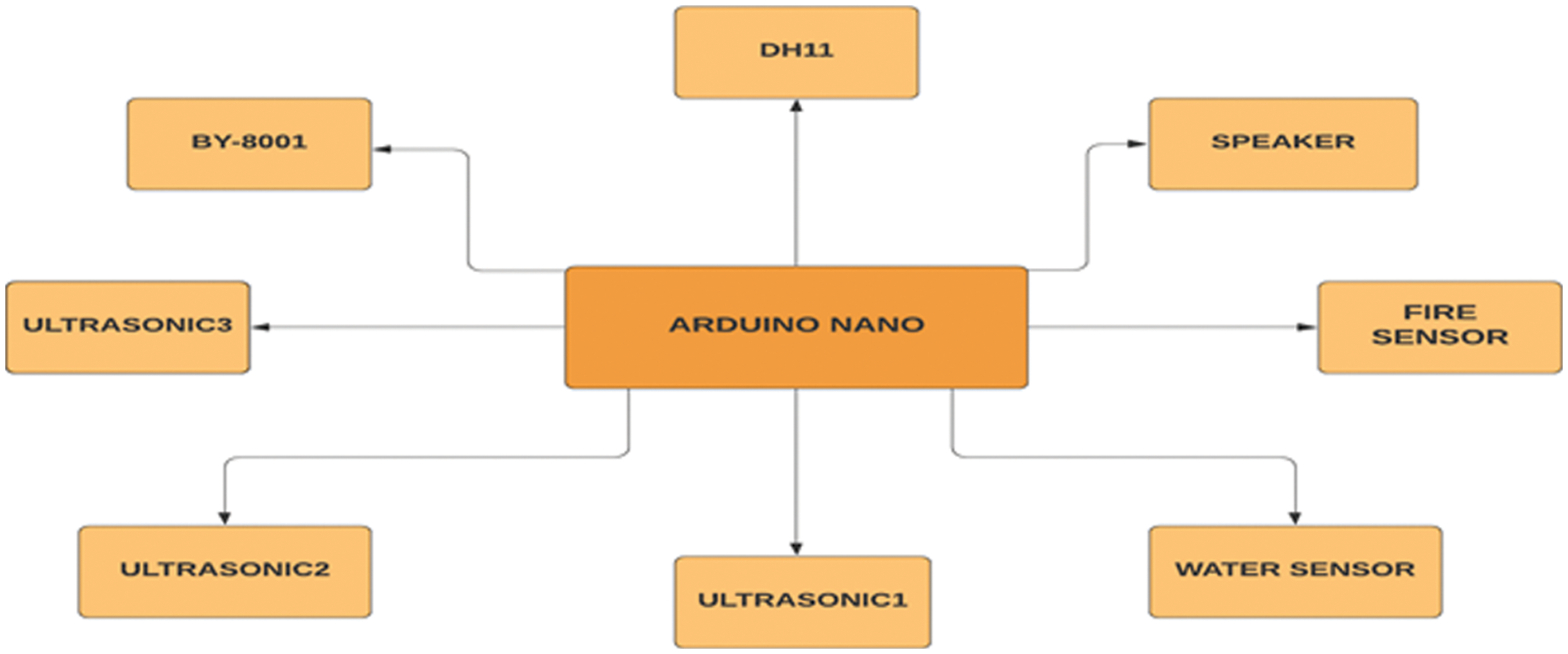

Figure 2: Block diagram of proposed safety system1

images

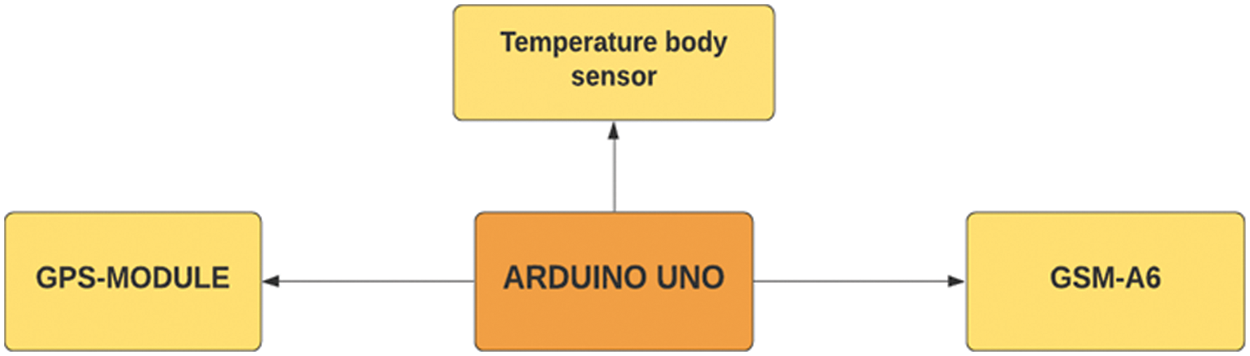

Figure 3: Block diagram of proposed safety system2

3.2 Connections of Circuits

This section will discuss the real implementation of our safety system step by step to show how it works and the connection between all sensors and software. In our system, we used two main circuits: one to connect the various sensors, the other to connect the module responsible for Global System for Mobile (GSM) communications, and the other is a Sensor responsible for GPS positioning.

3.3 The Overall Connections of the Sensors

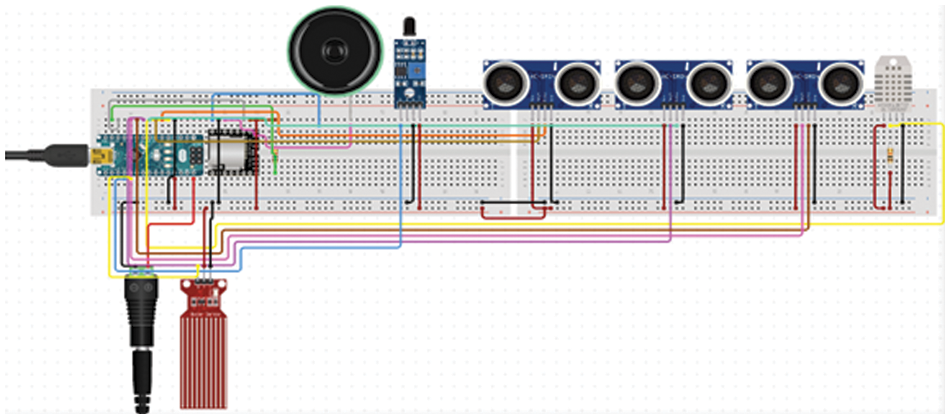

Fig. 4 below illustrates the pins of the Arduino Uno board and their connections to various components and sensors, as well as the connections between all other sensors.

images

Figure 4: Arduino Uno connections

3.4 The Overall Connections of the Second Circuit

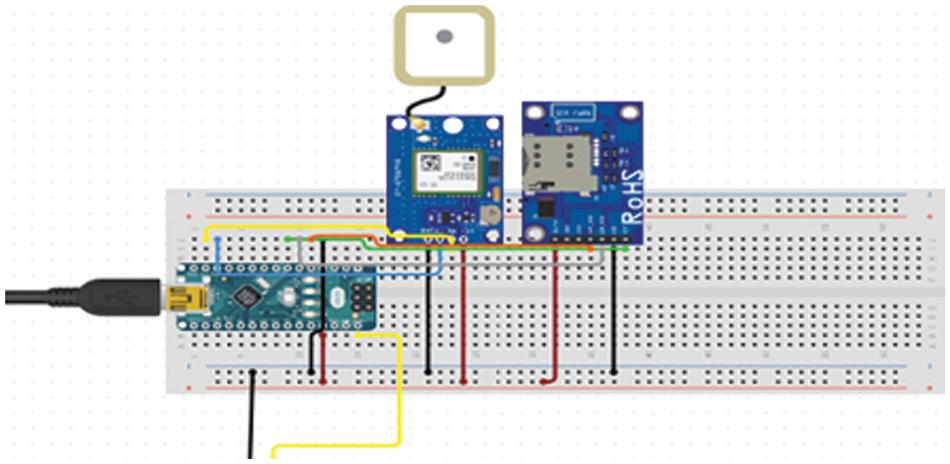

Fig. 5 below shows all the PINS of Arduino Uno used, with what it has connected, and the connections of all other components.

images

Figure 5: Arduino Uno connections

The sensors circuit is the first circuit, consisting of an ultrasonic sensor, water level sensor, and BY8001-16P.

Ultrasonic Sensor is one of the most important sensors used in creating sticks. Accordingly, two sensors were used as follows:

a) Ultrasonic one Sensor, located in the middle of the stick, is used to detect forward obstructions by calculating the distance, and how we connect it with Arduino Nano is shown in Fig. 6 below.

images

Figure 6: The Ultrasonic 1 connection

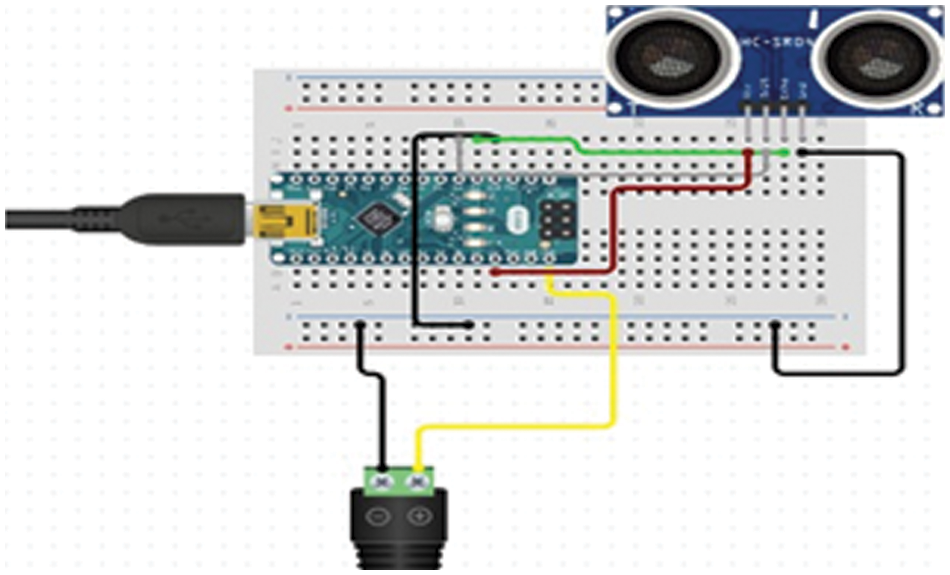

As shown in Fig. 6 above, the Ultrasonic Sensor (1) relates to the Arduino Nano. Hence, the 5 V in Arduino Nano relates to the Voltage Common Collector (VCC) in the Ultrasonic Sensor through the red wire. The Ground (GND) in Arduino Nano connects with the GND in the Ultrasonic through the blue wire, the grey wire connects the trigger in the Ultrasonic Sensor with the digital PIN (7) in Arduino Nano, and the pink wire connects the echo in the Ultrasonic Sensor with the digital PIN (8) in the Arduino Nano.

b) Ultrasonic 2 is the other Ultrasonic Sensor at the end of the stick, called Ultrasonic sensor #2, which is used to identify the lower obstructions, such as holes, and the way to link it with Arduino Nano is shown in Fig. 7 below.

images

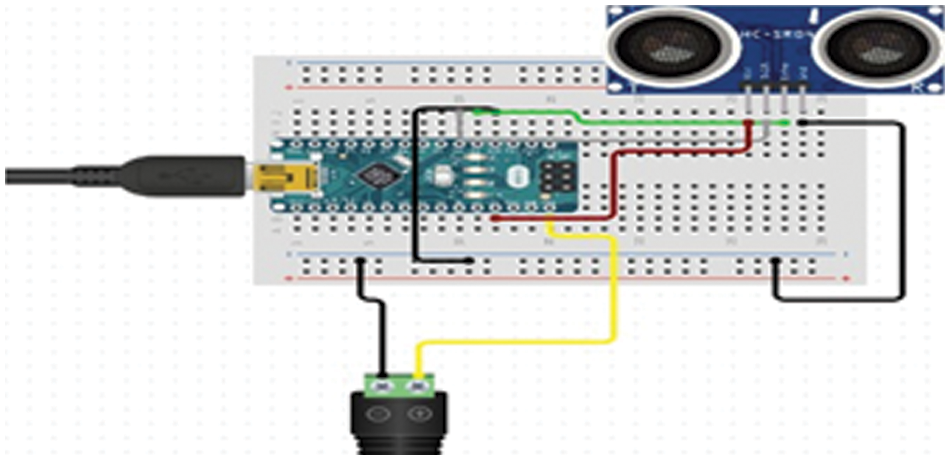

Figure 7: The ultrasonic 2 connections

The circuit in Fig. 7 above shows how we connected the ultrasonic (2) with the Arduino Nano. Hence, we connected the 5 V in Arduino Nano with the VCC in the Ultrasonic Sensor through the red wire. The GND on the Arduino Nano is connected to the GND on the ultrasonic Sensor through a blue wire. The ultrasonic sensor trigger is connected to digital pin six on the Arduino Nano via a gray wire. The ultrasonic sensor echo is connected to digital pin five on the Arduino Nano through a pink wire.

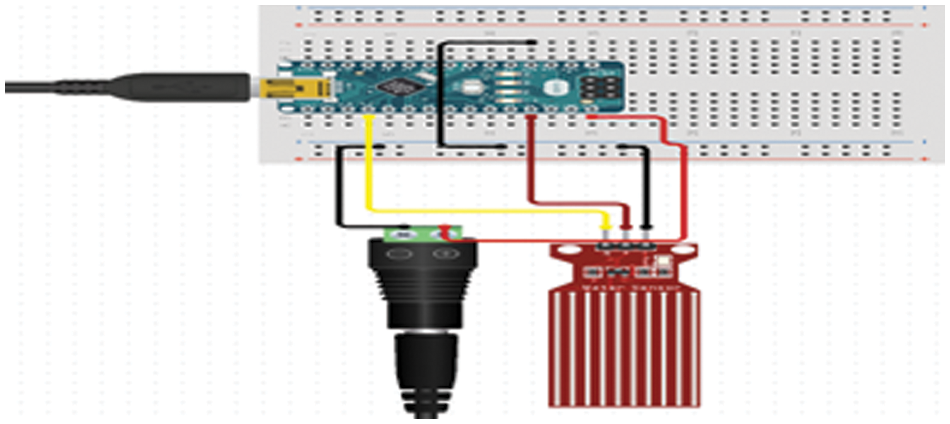

c) Water level sensor: As shown in Fig. 8 below, we connected the water level sensor with the Arduino Nano. Hence, we connected the 5 V in Arduino Nano with the VCC in the water level sensor through the red wire. The GND in Arduino Nano connects with the GND in the water level sensor through the blue wire. The yellow wire connects the data at the water level with the analog PIN (A0) in Arduino Nano.

images

Figure 8: Water level sensor

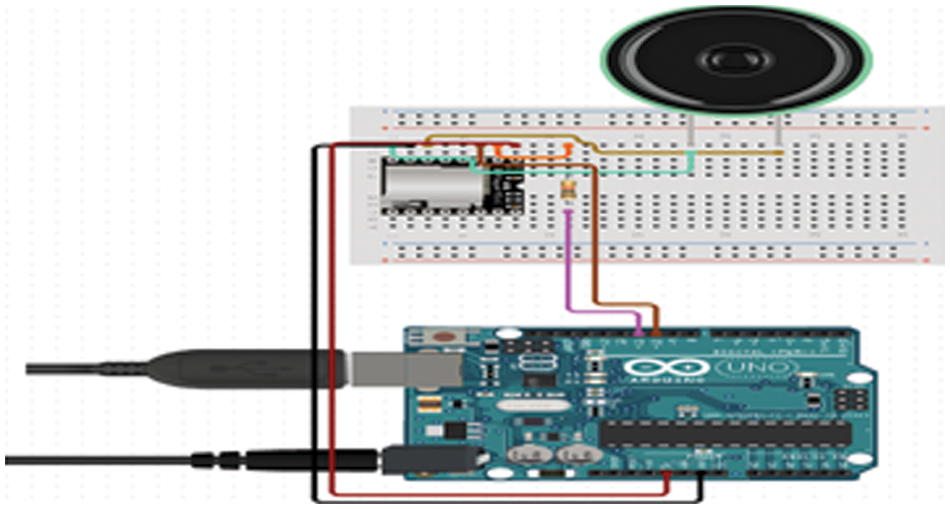

d) BY8001-16P: The circuit in Fig. 9 below shows how we connected BY8001-16P with the Arduino Uno. Hence, we connected pin 2 with TX in Arduino and pin 3 with RX in Arduino, connected the 5 V with pin 8, and connected the ground with pin 14 to connect pin six and pin 7 with the speaker.

images

Figure 9: BY8001-16P connection

3.5 Connecting the DHT11 With Arduino Uno

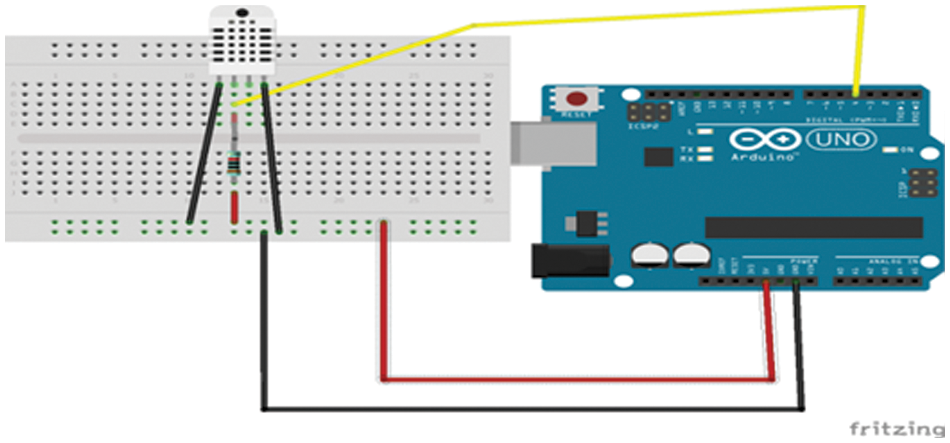

Based on Fig. 10, three connections to DHT11 are required: voltage, ground, and data. Pin 1 (located on the left) of the Sensor is connected to +5 V. However, if a board with 3.3 V logic, like an Arduino Due, is used, pin one is connected to 3.3 V instead of 5 V. Pin 2 of the Sensor is connected to the selected DHTPIN. Pin 4 (located on the right) of the Sensor is connected to GROUND, and a 10K resistor from pin 2 (data) is connected to pin 1 (power) of the sensors.

images

Figure 10: Connecting the DHT101 sensor with Arduino Uno

3.6 Connecting the Flame Sensor with Arduino Uno

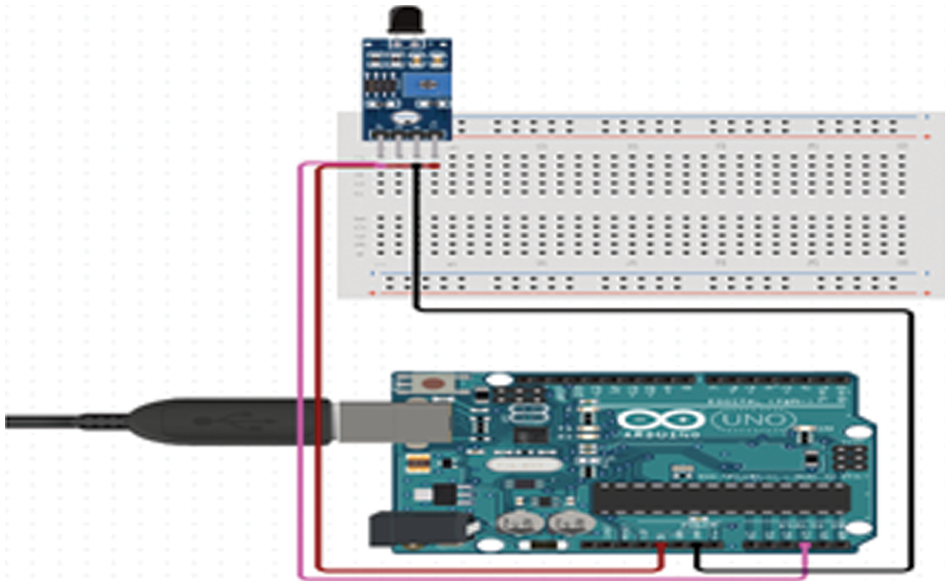

As shown in Fig. 11 below, three connections to the flame sensor are required: Voltage, data, and ground connecting directly with Arduino Uno.

images

Figure 11: Flame sensor

3.7 The Circuits Responsible for Positioning and Making Calls

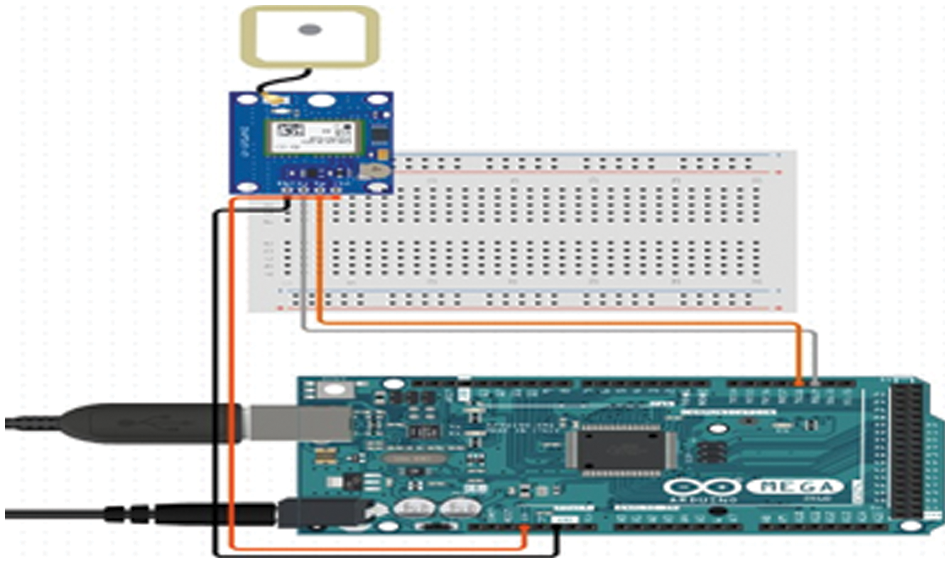

As displayed in Fig. 12 below, the GPS relates to Arduino MEGA, such that GND relates to the GND in the Arduino through the blue wire. VCC relates to the 5 V voltage source in the Arduino through the red wire. Tx is connected with pin digital (0) in the Arduino through the orange wire, and Rx relates to pin digital (1) in the Arduino through the gray wire.

images

Figure 12: The GPS connection

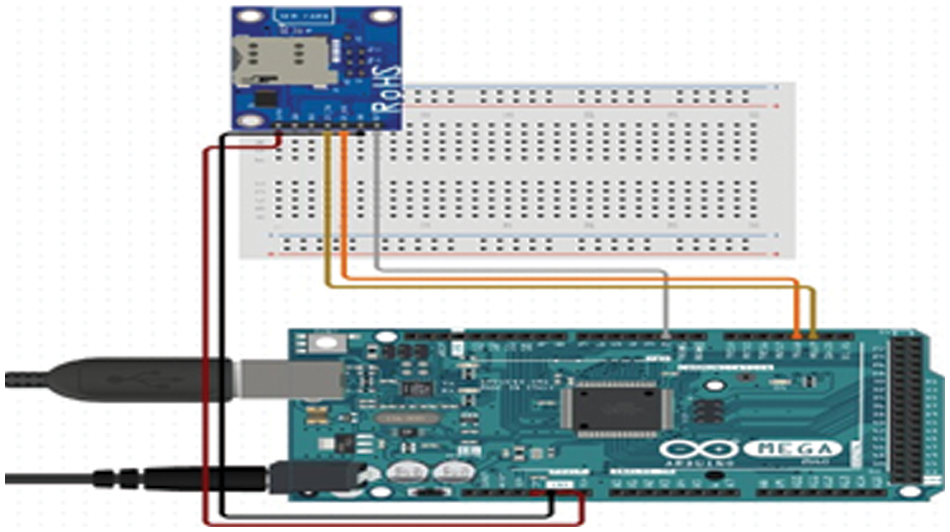

In Fig. 13 below, the GSM relates to the Arduino MEGA. Tx relates to pin digital (3) in the Arduino through the green wire, and Rx relates to pin digital (2) in the Arduino through the yellow wire.

images

Figure 13: The GSM connection

4  Safety System Testing and Evaluation

Innovations or other stakeholders in technology may have predetermined preferences for a certain idea at this point, notwithstanding outcomes from the decision matrix method, so in our experimental section, we test our safety system practically in the real world. Then we collected information from 100 blind people and analyzed the results in the next section of our experiments. However, we will start with the hardware and software requirements and discuss how we did our safety system in full detail.

4.1 Hardware Requirements

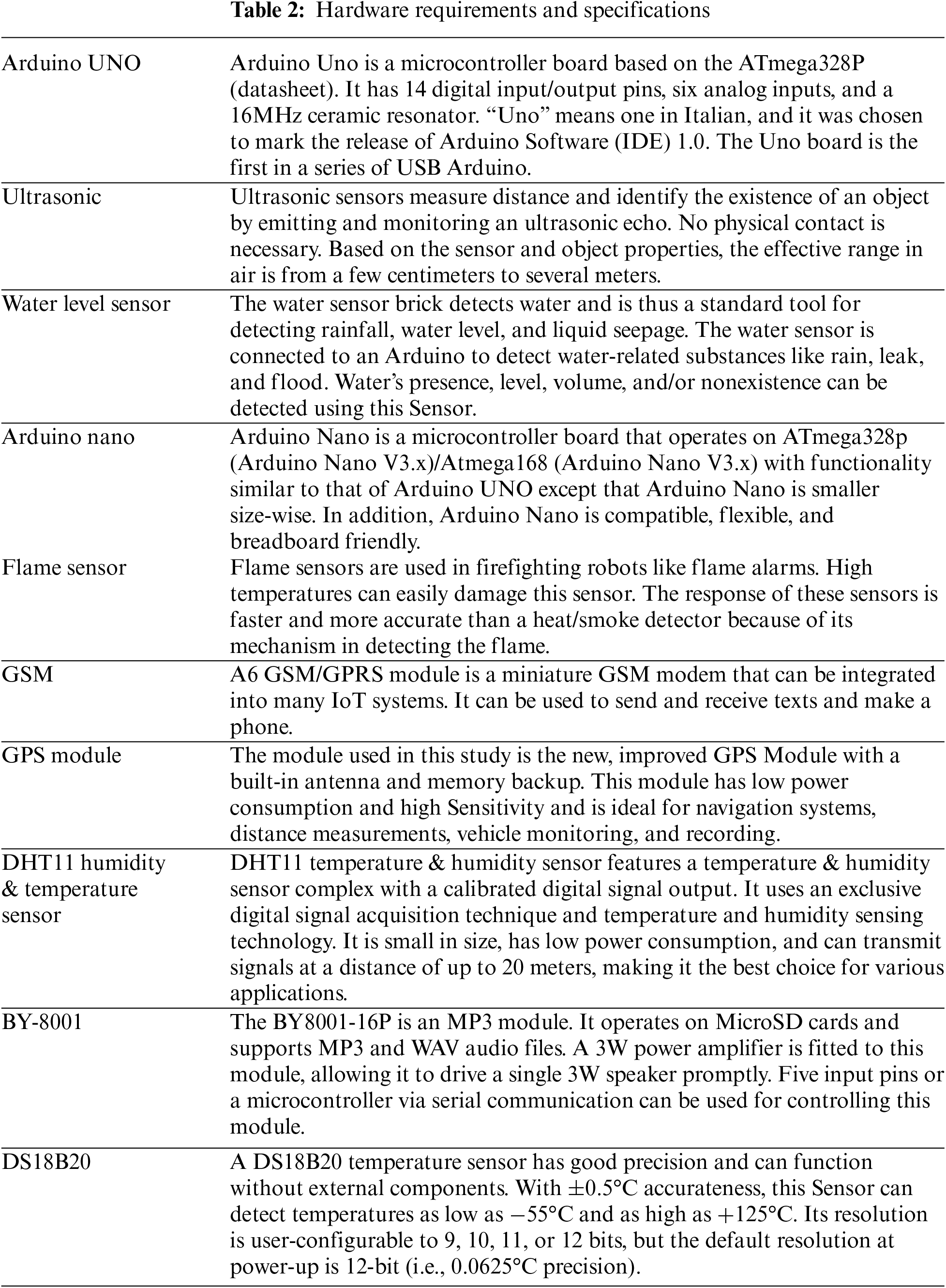

In our system, the hardware components are shown in Table 2.

4.2 Software Requirements

The target system’s features and functionalities are defined in the software specifications. Meanwhile, Computer Measures quantify and symbolize the software’s various characteristics and features. Software metrics give measures to various aspects of software processes and products. Technology requires software measurements as a basic requirement. They assist in managing the software development process and maintaining the final product’s high quality.

4.3 The Open-Source Arduino Software IDE

The open-source Arduino Software (IDE) operates on Windows, Mac OS X, and Linux. It eases code writing and uploads. The environment is written in Java following Processing and other open-source software. IDE is usable with any Arduino board.

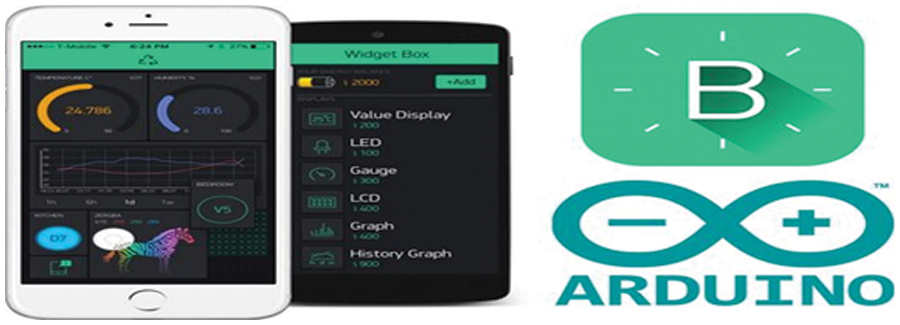

Blynk is a Platform with iOS and Android apps specially designed for IoT. It imposes control over the Internet on Arduino, Raspberry Pi, and other comparable microcontroller boards. Blynk can remotely control hardware, display sensor data, store data, visualize data, and perform several other tasks. The three key components of Blynk are:

Blynk App—This component enables the creation of incredible interfaces for systems using different kinds of widgets.

Blynk Server—This component allows smartphone-hardware communication. For instance, users can use the common/shared Blynk Cloud or execute their private Blynk server locally. Blynk Server is open-source and can handle large amounts of devices, including Raspberry Pi.

Blynk Libraries—This component allows hardware platforms to communicate with the server and process all inbound and outbound commands. When the user presses a Button in the Blynk app, the message travels to the Blynk Cloud space and quickly reaches the user’s hardware. The opposite process also takes a very short moment to complete, as illustrated in Fig. 14.

images

Figure 14: Blynk

4.4 Data Acquisition (Collection, Information Gathering)

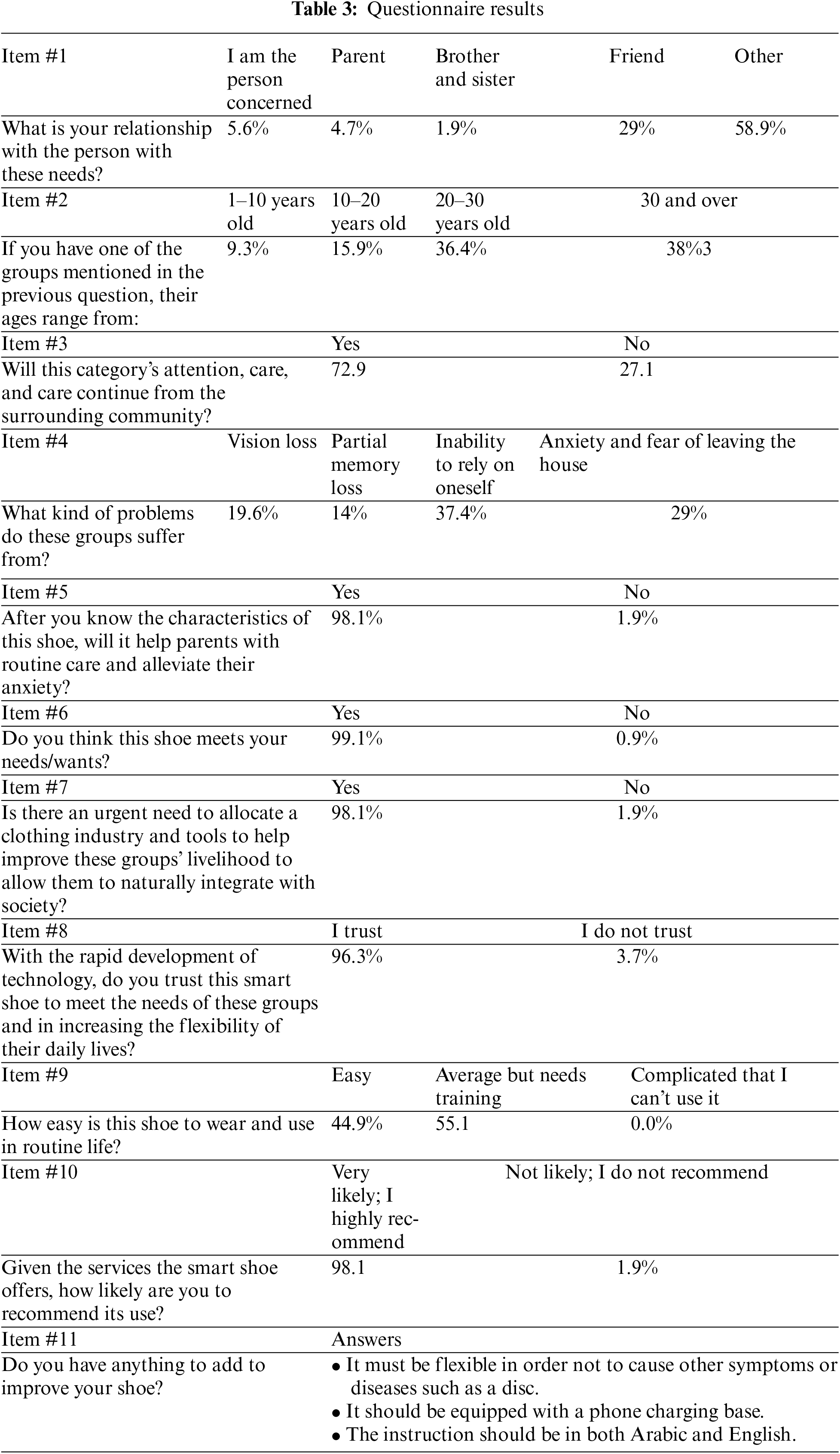

We have done more research on the Internet. As most people hope to move more comfortably and safely, we made the questionnaire for blind people. We have a pivot questionnaire consisting of eleven items, and we have distributed the questionnaire to the sample comprising 100 individuals. Table 3 shows the questionnaire results.

images

4.5 Flow Chart of GPS & GSM

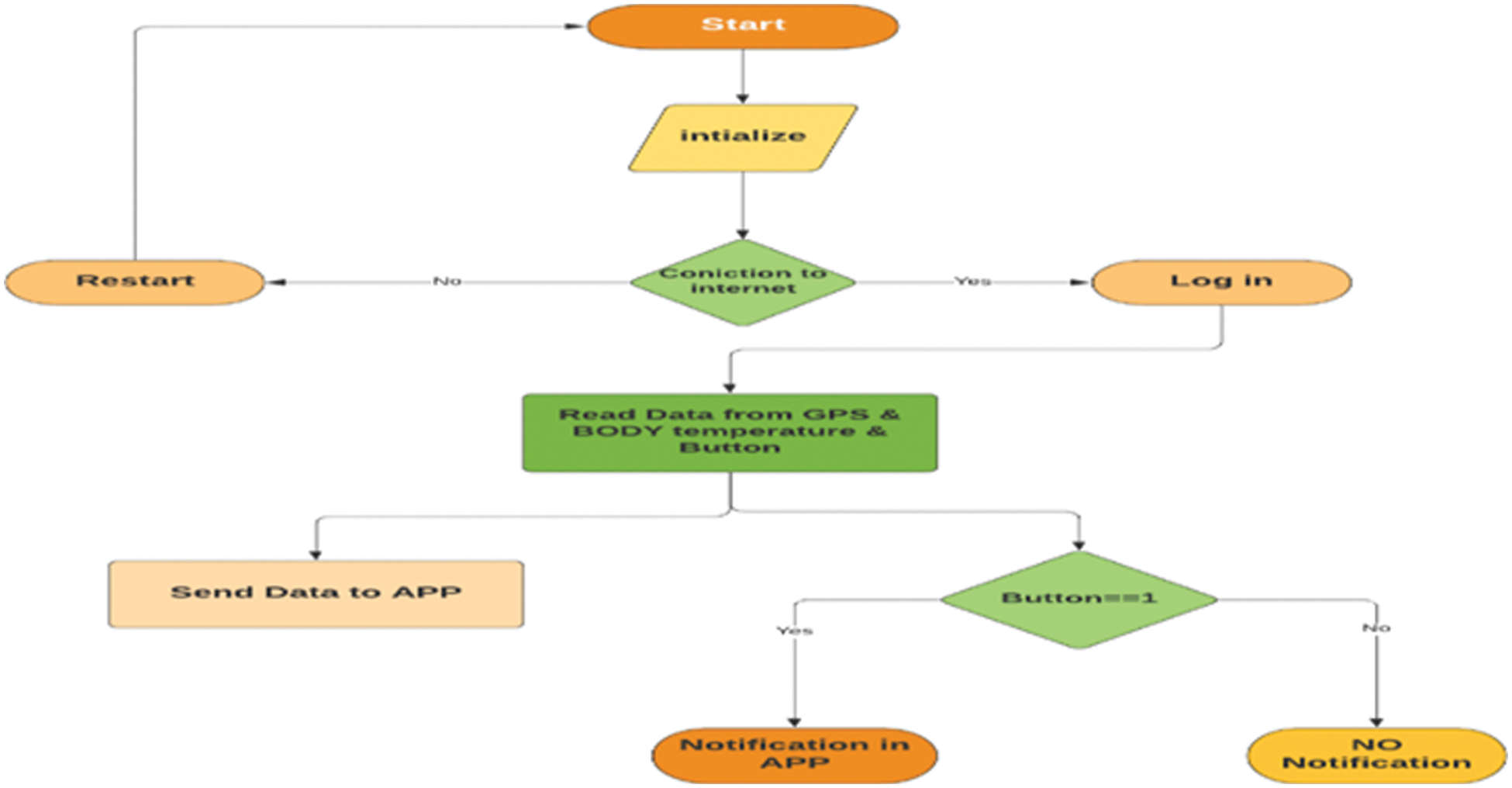

As shown in Fig. 15, the flow chart connects to the Internet and the global site system.

images

Figure 15: Operation of GPS & GSM

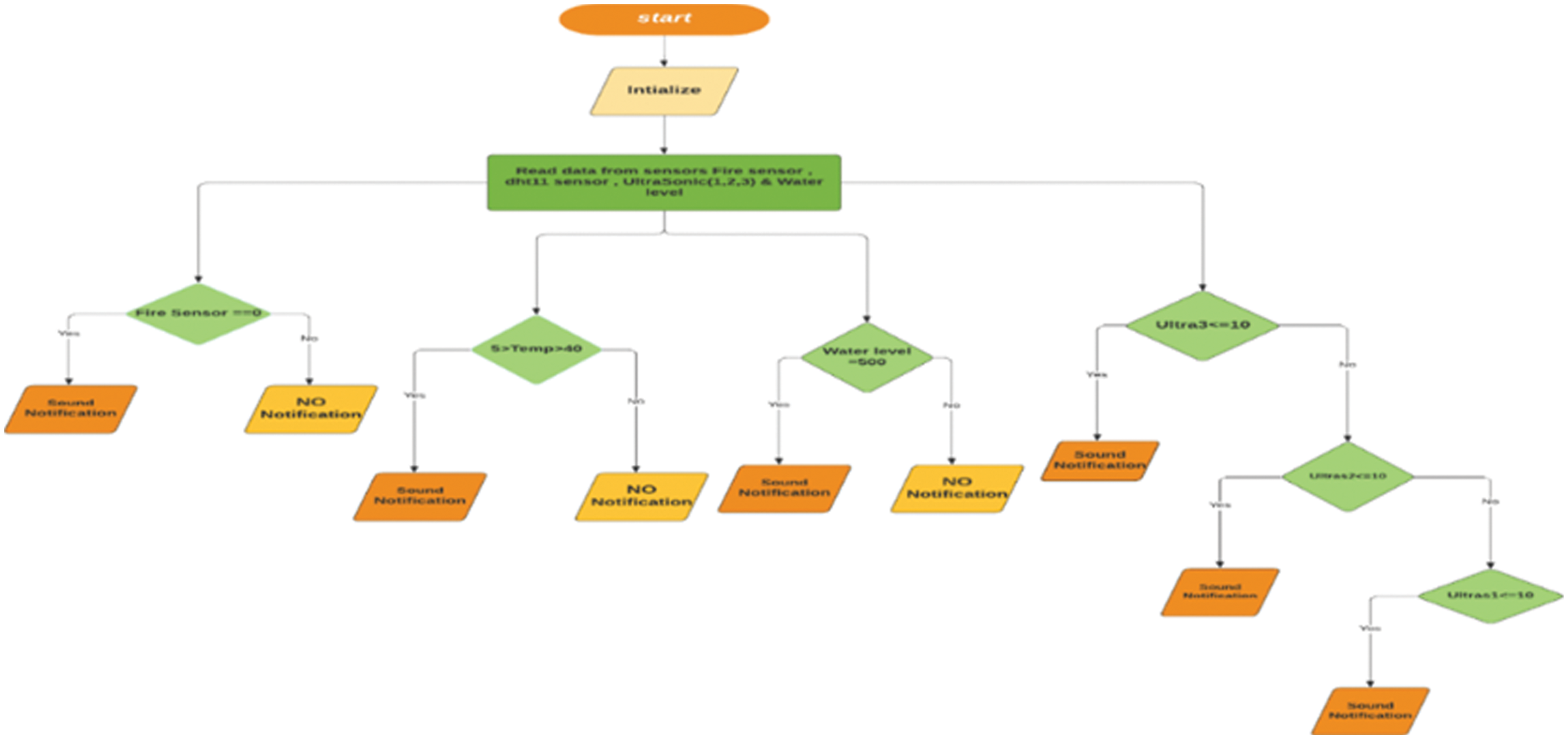

In the flowchart below Fig. 16, we show all operations of sensors.

images

Figure 16: Operation of sensors

images

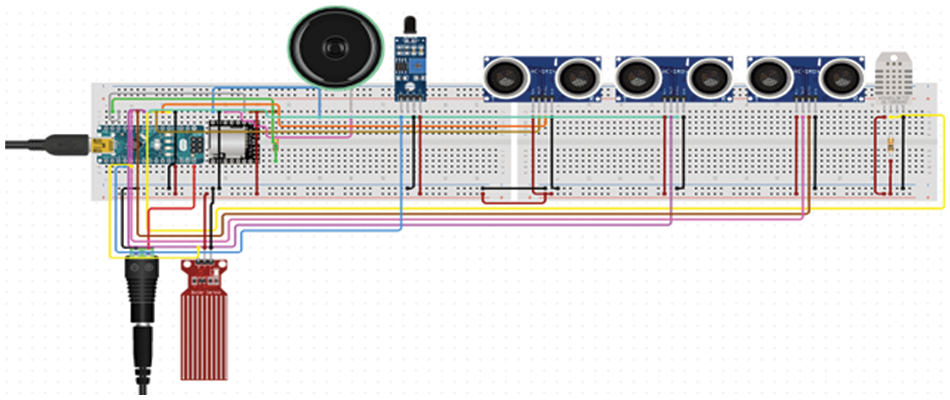

Fig. 17 shows the overall connections of the sensors.

images

Figure 17: Overall connections of the sensors

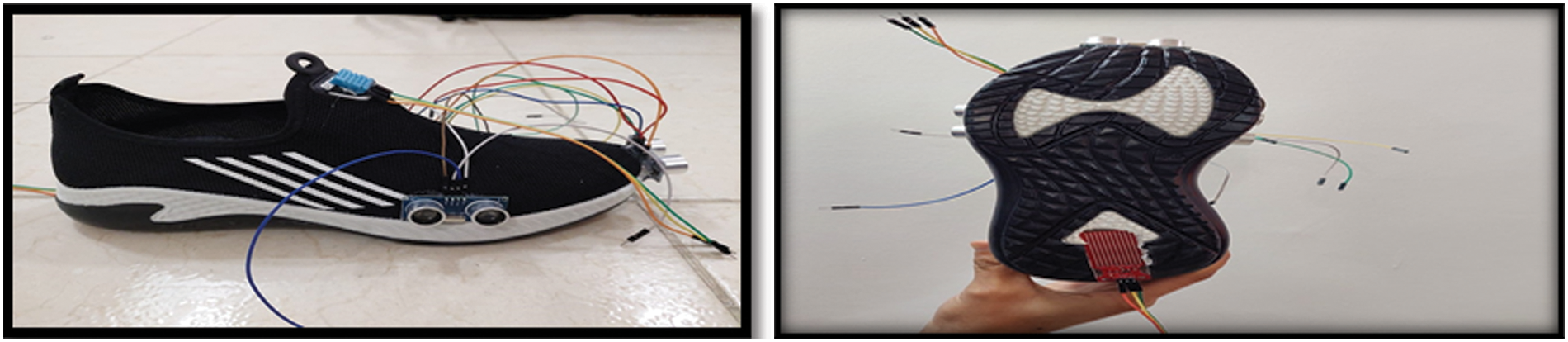

Finally, the completed safety system is depicted in Fig. 18, where all the sensors are integrated into the shoe.

images

Figure 18: Final system

The specific parameters of the algorithms used in a smart shoe safety system for blind people based on IoT technology would depend on the specific design of the system and the goals of the researchers or developers. Some potential parameters that might be considered in the design of such a system could include the Sensitivity of sensors: The Sensitivity of the sensors used in the system, such as GPS or obstacle detection sensors, could be adjusted to optimize their performance and accuracy. Algorithm performance: The performance of the algorithms used in the system, such as those used for navigation or obstacle detection, could be evaluated, and optimized to ensure their effectiveness. Connectivity: The system could be designed to connect to different networks or devices, such as a social network or a caregiver’s phone. The parameters for these connections could be optimized for reliable and secure communication. User preferences: The system could be designed to allow the user to customize specific parameters, such as the intensity of vibrations used to alert the wearer to obstacles or the types of alerts they receive. Ultimately, the parameters of the algorithms used in a smart shoe safety system for blind people based on IoT technology would depend on the specific goals and needs of the system and would be optimized to improve the safety and independence of the wearer.

Several reasons why a smart shoe safety system for blind people utilizing IoT technology could be considered innovative and need further research. First, such a system has the potential to significantly improve the safety and independence of blind individuals by providing real-time guidance and assistance in navigating their environment. By leveraging the capabilities of connected devices and sensors, the system can help blind individuals avoid obstacles and tripping and allow them to move more confidently and autonomously through their surroundings. This can significantly improve the quality of life and well-being of blind individuals and reduce reliance on others for assistance in navigating their environment. Second, the use of IoT technology in designing a smart shoe safety system for blind people could be considered novel and need further research due to the potential for real-time updates and connectivity. The use of connected devices and sensors can provide real-time information and alerts to the wearer, which can enhance the system’s effectiveness in improving the safety and independence of the wearer. Finally, there may be a need for further research on a smart shoe safety system for blind people based on IoT technology due to the ongoing challenges faced by blind individuals in navigating and moving safely through their environment. While there have been some advancements in assistive technologies for blind individuals, there is still a need for more effective and innovative solutions that can improve the safety and independence of these individuals. A smart shoe safety system for blind people based on IoT technology could be a promising approach to addressing these challenges, and further research could help refine and improve such a system’s effectiveness.

A smart shoe safety system for blind people based on IoT technology is a type of assistive technology designed to improve the safety and independence of blind individuals by providing real-time guidance and assistance in navigating their environment. The system could be equipped with sensors and connectivity, such as GPS and obstacle detection, to provide real-time information and alerts to the wearer. It could also be connected to a social network or support group, allowing the wearer to connect with others and share their location and status. The goal of a smart shoe safety system for blind people based on IoT technology is to improve the safety and independence of blind individuals by helping them navigate their environment with greater confidence and autonomy. By providing real-time guidance and assistance, the system can help the wearer avoid obstacles and tripping and allow them to move more confidently and independently through their surroundings. The use of IoT technology in the system design allows for real-time updates and connectivity, which can enhance the system’s effectiveness in improving the safety and independence of the wearer.

Several innovations could be incorporated into a smart shoes safety system for blind people based on IoT technology:

1.    Real-time guidance and assistance: Using sensors and connectivity, such as GPS, can provide real-time guidance and assistance to the wearer in navigating their environment.

2.    Obstacle detection: Sensors, such as ultrasonic or infrared sensors, could detect obstacles in the wearer’s path and alert them through vibrations or other cues.

3.    Emergency alerts: The system could send an alert to a caregiver or emergency services, including a location tracking feature to help responders locate the wearer.

4.    Social connectivity: The system could be connected to a social network or support group, allowing the wearer to connect with others and share their location and status.

5.    Customization: The system could be designed to allow the user to customize certain features, such as the intensity of vibrations used to alert the wearer to obstacles or the types of alerts they receive.

Overall, the innovations in a smart shoe safety system for blind people based on IoT technology would improve the safety and independence of the wearer by providing real-time guidance and assistance in navigating their environment and connecting them with others for support and communication.

1.    There are several potential limitations of a smart shoes safety system for blind people based on IoT technology:

2.    Cost: The development and implementation of such a system could be expensive, which may limit its accessibility to some individuals.

3.    Maintenance: The system may require regular maintenance and updates, which could burden users.

4.    Battery life: The system may rely on a battery to power its sensors and connectivity, which could limit its use if the battery runs out.

5.    Sensors: The accuracy of the sensors used in the system, such as GPS or obstacle detection sensors, may be limited by environmental factors or other factors, which could affect the system’s effectiveness.

6.    Connectivity: The system may rely on a connection to a network or other device, which could be disrupted if the connection is lost or compromised.

7.    User adoption: Some individuals may resist using new technology or prefer other navigation and assistance methods.

Overall, while a smart shoe safety system for blind people based on IoT technology can improve the safety and independence of blind individuals significantly, some limitations may affect its effectiveness and adoption.

5  Conclusion

The principal objective of this study is to create a safety system that detects objects or obstacles before users and provides warnings back to users in the form of voice messages and vibrations. The safety system employs a mix of ultrasonic sensors and a microcontroller for sensing and remote sticking, as well as for detecting obstacles. This safety system also sends blind shoe locations to disabled people who are blind to facilitate their movement and enhance safety. Limits to independent mobility and navigation are major problems facing visually challenged individuals. The white cane is used primarily as a mobility aid to detect obstacles closely on the ground. Furthermore, detecting objects over knee height is almost impossible, which is a significant impediment. Embedded systems developments have opened a wide range of research and development of affordable and portable devices for physically challenged individuals. This safety system was designed and implemented to increase the functionality of the existing shoe, enabling the detection of knee-high obstacles. The unit comprises an ultrasound guard and a microcontroller-controlled sound with a three-meter detection range. The proximity of obstacles is communicated to the user through a multi-sound signal that is free from interference, which conveys the nearness of barriers. This system is also capable of rapidly detecting moving obstacles. The experiment outcomes demonstrate the proposed safety system’s ability to decrease the risks and injuries for blind people when walking in public. It should be noted that people of all ages can have visual impairment problems, and it is a serious condition as it puts the sufferer at significant risk of injuries. Also, risks impede blind people from walking independently. In this regard, the Modern Blind Shoe can become a basic platform for the next generation with visual issues to help them safely navigate indoors and outdoors. These practical and affordable shoes could detect obstacles on the user’s path within two meters of distance. Also, the shoes are lightweight even though armed with sensors and other components. Other aspects of this safety system can be improved via wireless connectivity between the safety system components, thus, increasing the range of the ultrasonic Sensor. Furthermore, technology could be incorporated for determining the speed of approaching obstacles. Also, a camera with shoes and a mpu 6050 could be used to determine the movement.

Funding Statement: This work is supported by the Research and Innovation Department, Skyline University College, University City of Sharjah—P. O. Box 1797-Sharjah, UAE. Grant numbers: 1-2-2022, Dr. Ammar Almomani https://www.skylineuniversity.ac.ae/.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
