A Common Architecture-Based Smart Home Tools and Applications Forensics for Scalable Investigations

1  Introduction

Advances in software and hardware technologies have made factories, vehicles, homes, and infrastructure increasingly smart [1]. As a result, companies and countries are focusing on research and development in areas such as networks, devices, and cybersecurity to expand smart industries [2,3]. In the smart home industry, appliance manufacturers, mobile carriers, and construction companies are increasingly investing in smart home solutions, while numerous companies are introducing IoT devices through both proprietary and third-party platforms.

As smart home services expand, IoT devices generate and store vast amounts of data. This data is stored both within the devices and on cloud servers of smart home platforms, and it includes sensitive user information such as phone numbers, emails, and home addresses, as well as logs and timestamps that track user behavior. From a forensic perspective, this data plays a crucial role in identifying suspects and providing evidence of criminal activities. For example, if an intruder unlawfully enters a residence, sensor activation records can confirm the exact time of the intrusion. Even if the perpetrator attempts to tamper with evidence by damaging a smart camera, forensic techniques can restore and recover the stored footage. Additionally, cloud forensics can help retrieve video data stored in the smart home platform’s cloud.

Investigation agencies and research institutes have been conducting studies on data acquisition and analysis using various smart home IoT devices such as home cameras, AI speakers, smart plugs, and smartphones to broaden the scope of digital investigations [4–6]. However, due to the continuous development and application of new IoT technologies, it is difficult to apply existing research directly. Moreover, since smart homes are built on diverse platforms, studies that focus solely on the forensic analysis of individual devices have limitations in real-world investigations.

IoT devices consist of various software and hardware components, generating and storing different types of data depending on their functions. Furthermore, the complex interconnections among IoT devices lead to distributed data storage. These challenges make it difficult to develop a standardized forensic framework for IoT environments [7–9]. In most smart home setups, platforms such as Amazon Alexa and Google Home are used by consumers, providing common components like security products (e.g., smart cameras and door locks) and domestic appliances (e.g., smart refrigerators and washing machines).

Traditional methods that focus on isolated devices are increasingly inadequate for addressing the evolving complexity of smart home environments. Therefore, scalable and adaptable research frameworks are essential to integrate and analyze data across diverse IoT ecosystems effectively. In this study, we propose a layer-based architecture that represents smart home structures using common components to overcome the limitations of current smart home IoT forensics. This layered smart home architecture can be applied to actual IoT environments during investigations, allowing for efficient identification of complex interconnections. Based on this architecture, we also propose a smart home forensic framework that analyzes the functions of IoT devices to infer the types of generated data, acquires the actual data, and classifies it according to its characteristics. By inferring the data, investigators can pinpoint the target IoT device to extract the artifacts needed for a specific event. Classifying data based on its characteristics further enables rapid identification of necessary evidence corresponding to different types of crimes. We validate the proposed framework using the Samsung SmartThings and Xiaomi Mi Home platforms.

The contributions of this study are as follows: 1) It classifies meaningful elements from a digital forensics perspective by identifying components common to smart home ecosystems. 2) It derives a common structure for smart homes in the form of a layered architecture based on these components, thereby laying the foundation for smart home forensics. 3) It proposes a forensic framework applicable to general smart home environments. The framework infers the data generated in a smart home and extracts it from actual devices, classifying the artifacts into device use data, user data, and smart home environment identification data, which facilitates subsequent investigations. 4) It demonstrates a method for utilizing the extracted artifacts through data inference and extraction on the Samsung SmartThings and Xiaomi Mi Home platforms, confirming the framework’s applicability in a general smart home setting.

The remainder of this paper is organized as follows. Section 2 describes smart home components and structures, Section 3 reviews smart home forensic research, Section 4 explains the common structure of smart homes based on these components, Section 5 presents the forensic framework for smart home environments, Section 6 verifies the framework through forensic analysis on the Samsung SmartThings and Xiaomi Mi Home platforms, Section 7 discusses the study, and Section 8 concludes the paper.

2  Background

The concept of a smart home emerged as users began utilizing a wide range of IoT devices to access various services within their homes. Several researchers have proposed frameworks or models to perform smart home forensics [10,11]. In the context of smart home forensics, it is important to identify the components constituting the smart home environment. Smart homes generally follow the same structure as the one depicted in Fig. 1. IoT devices are interconnected seamlessly to offer diverse services, enabling users to control and manage them both within and outside their homes. These devices communicate with devices and cloud servers through various network protocols for smart home services. Devices can be connected wirelessly, such as via Wi-Fi, as well as through wired connections like Ethernet. In addition, devices such as sensors are connected using low-power wireless communication such as Bluetooth, ZigBee, and Z-wave. These connected IoT devices generate a wide range of data, which is stored in the devices’ internal storage and on cloud servers. Data stored on cloud servers can be used to remotely control and manage apps installed on management devices such as smartphones and tablets. This section describes the components constituting the smart home environment.

Figure 1: Structure of smart home ecosystem

Smart home IoT devices represent the most basic form of smart home construction. These devices are created by embedding hardware (HW) and software (SW) components—such as a central processing unit (CPU) and an operating system (OS)—into conventional household appliances like washing machines, televisions, and speakers, while adding additional functionalities. Moreover, they enable new services through devices not typically found in homes, such as crime prevention sensors and smart meters.

These devices offer specialized functionalities, communicate with cloud servers, and can be controlled and managed via smartphone apps. In addition, some devices are designed to control other smart home devices.

Companies and users classify smart home services based on functionality. Consequently, users choose and install the IoT devices required to access their desired smart home services. For example, home cameras and crime prevention sensors are purchased and utilized for residential security. Thus, IoT devices are categorized according to the services they provide, which facilitates the inference of the type of data they generate.

To manage the growing number of IoT devices and services, smart home platforms have emerged, enabling users to control their devices efficiently. Currently, major companies are developing a range of devices and technologies to establish dominance within the smart home ecosystem, while small and medium-sized companies collaborate with these giants to enhance compatibility and market their IoT devices. Although most platforms offer similar services, subtle variations and distinctions exist among them. Identifying these commonalities and differences is important from a forensic perspective.

Cloud servers play a crucial role by integrating, managing, and controlling smart home applications while facilitating scalable home configurations through software development kits (SDKs) and application programming interfaces (APIs). As a result, a wide variety of data is stored on these servers. In particular, many miniaturized and integrated IoT devices rely on cloud servers due to their limited internal storage. Consequently, forensic investigations in smart home environments may employ methods such as packet analysis to infer data stored on cloud servers.

Smart homes comprise various components that exchange data using a range of communication protocols. While protocols such as Ethernet and Wi-Fi are commonly used, low-power alternatives like Bluetooth and Z-wave are also available. In addition, management applications installed on devices such as smartphones and tablets control these components, and hubs and gateways facilitate sensor connectivity. The protocols and devices involved in these interactions are significant for forensic analysis, as they help reveal the overall communication structure among components.

3  Related Works

The smart home environment stores data generated by IoT devices and provides services to users based on that data. Since this data originates in residential areas, it holds significant forensic value. Consequently, various forensic studies have been conducted on IoT devices and smartphones. For instance, Castelo Gómez et al. conducted a forensic study on smart home kits—comprising hubs and sensors—by acquiring data from Xiaomi Mi smart sensor sets and linked smartphones, thereby obtaining several smart home artifacts from related applications [12]. Similarly, Boucheraud et al. undertook forensic research in IoT environments based on crime scenarios. They configured a home IoT environment using smart bulbs, cameras, sensors, scales, and wearable devices in addition to home automation devices such as AI speakers, Raspberry Pis, and hubs. Their analysis involved logical extraction via APIs and Android Debug Bridge (ADB) as well as physical extraction using Joint Test Action Group (JTAG) and Chip-Off techniques [13]. Li et al. proposed a forensic process centered on physical extraction techniques for IoT devices, utilizing 3D printers and pogo pins to connect to interfaces such as JTAG and Universal Serial Bus (USB), and evaluated five different data acquisition methods [14]. In another study, Kim et al. performed data acquisition and analysis on smartphone applications linked to IoT devices by connecting Google Nest, SmartThings, and Kasa Cam to corresponding apps, and successfully extracted voice command information, phone data, and smart home device information [15]. Iqbal et al. conducted a forensic analysis on five types of smart plugs, analyzing data from connected smartphones and examining communication packets using Wireshark. Hutchinson et al. studied the August Smart Doorbell Pro and August Smart Lock Pro by linking both routed and isolated smartphones to these devices; they collected network traffic via Wireshark and extracted user data, location data, and doorbell camera images through smartphone analysis with administrative rights [16]. Furthermore, Kim et al. proposed a digital forensic methodology focusing on wallpads—smart home management devices with displays. They built a testbed using wallpads from Samsung, Kocom, and Commax, and extracted and analyzed network packets, disk images, and files using both logical and physical acquisition techniques. Their work successfully identified user-related information and multimedia files stored on these devices [17]. Additionally, Youn et al. conducted a forensic study on the Echo Show 2nd, an AI speaker with a display, extracting and analyzing data to propose a smart display digital forensics framework [18]. Although most smart home forensic studies to date have concentrated on individual IoT devices and smartphones—such as AI speakers and smartwatches [19–22]—and have provided detailed methodologies for analyzing device-generated data, they remain largely device-centric. These studies lack a standardized forensic framework that can be applied across different smart home ecosystems. Moreover, most users interact with smart home environments through integrated platforms rather than through individual IoT devices. While existing research offers valuable forensic methodologies, it does not fully address the challenges posed by smart home platforms, which serve as central hubs for device management and user interaction. This gap underscores the need for a comprehensive forensic framework that encompasses both individual IoT devices and platform-level interactions. Therefore, this study proposes a common architecture for smart homes along with a forensic framework that is applicable to general smart home environments. To validate the proposed framework, we establish a platform-level testbed that mirrors real-world smart home usage, ensuring a more holistic and applicable forensic methodology.

4  Smart Home Common Architecture

For forensic frameworks applicable to modern smart home environments, it is crucial to identify common components and structural elements. Smart homes operate primarily through the Internet of Things (IoT), where IoT devices contain key forensic elements such as cameras, memory, and operating systems (OS). These devices generate different types of data depending on their product family, even when they offer similar services. These services are integrated and managed by centralized platforms, each of which varies in its supported devices and services based on the company that operates it. Platforms are interconnected via cloud servers, providing compatibility and management services through APIs, software development kits (SDKs), and smart home applications. The smart home ecosystem relies on various wired and wireless communication technologies and is primarily controlled via management devices such as smartphones and tablets. Given this complexity, the core components of a smart home can be categorized into five main layers: cloud servers, platforms, services, IoT devices, and device components. In this study, we propose a common smart home architecture based on a layered model. The designed architecture consists of five layers, as illustrated in Fig. 2, where communication and management functions are implemented vertically across all layers. For instance, AI speakers comprise device components such as microphones and speakers, along with hardware/software elements like CPUs, memory, and OS. As integral components of smart home ecosystems, they facilitate centralized control and automation. At the service layer, AI speakers provide home automation functionalities that vary based on the smart home platform they are integrated with. If the platform belongs to a home appliance manufacturer, it may support a broader range of home appliances, whereas IT-driven platforms may emphasize IT service integrations. The smart home platform communicates with cloud servers via applications, enabling remote control and device management. New devices can be linked through APIs and SDKs at the cloud layer. Additionally, smart home systems are typically managed via smartphones and tablets, while communication protocols such as Ethernet, 4G, and Wi-Fi facilitate connectivity at each stage.

Figure 2: Smart home common architecture

The cloud layer, located at the top, is a key element in smart home operations and functions based on the smart home’s cloud server. This layer comprises smart home applications, SDKs, APIs, and data related to smart home services. The platform layer encompasses smart home platforms provided by companies such as home appliance manufacturers and mobile carriers. These platforms deliver smart home services by integrating their own and third-party services and devices through cloud servers. The service layer consists of a variety of offerings provided by the platform, including home automation, crime prevention and security, and smart home appliance services. The IoT device layer includes the actual IoT devices that enable these services. Various devices are used for different purposes; for example, AI speakers and hubs support home automation, while smart door locks, doorbells, and smart home cameras cater to security services. The device components layer refers to the internal parts of smart home IoT devices, including hardware such as sensors, actuators, cameras, and CPUs, as well as software elements like operating systems. Data stored on these devices can be inferred from the components that constitute them. In addition to these five layers, the architecture incorporates elements for interlayer communication and smart home management. Communication between layers and devices utilizes low-power protocols such as Bluetooth, Zigbee, and Z-Wave, as well as Ethernet, 4G/5G, and Wi-Fi. Moreover, management is facilitated through devices such as smartphones, tablets, hubs, and gateways. The seamless interaction between these layers and components enables smart home platforms to provide platform-specific services. This common architecture encapsulates the shared elements of smart homes and is adaptable to the unique characteristics of various smart home platforms. Consequently, it can be applied across different smart home systems and scaled to accommodate newly released smart home technologies.

5  Forensic Analysis Framework for Smart Home Ecosystem

The common architecture includes most components of the smart home environment. And we propose a framework for smart home forensics using smart home environment information derived from the common architecture (see Fig. 3). The forensic framework consists of three stages, as shown in Fig. 4: 1) functional analysis-based data inference, 2) real-world device-based data identification, and 3) data identification available for criminal investigation. App service analysis is performed to infer data in the smart home environment. Smart homes can generally be controlled and managed through platform apps installed on management devices such as smartphones. Therefore, it is possible to infer data generated through common functions of IoT devices and platforms via app analysis. By inferring data, it is possible to narrow the scope of analysis by selecting the target device, which can help conduct an efficient forensic investigation. Second, the data to be analyzed is extracted and examined. Smart home data can exist in cloud servers, management devices, or in-device storage, and this stage identifies where the inferred data is stored. Finally, the identified data are classified according to their characteristics. Data types can be classified into device use data, user data, and smart home environment identification data, and these data types vary depending on the event.

Figure 3: Smart home forensics diagram

Figure 4: Forensics analysis framework based on smart home platform common architecture (Stage 1 derives the expected data, while Stage 2 extracts the actual acquired data. The actual data predicted through the expected data is integrated as forensic artifacts.)

5.1 Stage 1: Guessing Data through APP Service Analysis

In general, the smart home environment is managed and controlled through a smartphone application. IoT devices are linked to cloud servers using smartphones to communicate smart home-related data and provide services. Although some sensors are limited to low-power wireless communication, all IoT devices transmit and receive data via cloud servers and Wi-Fi, as they communicate with servers through hubs in conjunction with smart hubs. Therefore, because most smart home services are provided based on the functions of smartphone applications, it is possible to identify these services and device functions through smartphone app function analysis, which in turn allows for data inference. Although various devices may be present at an investigation site, extracting and analyzing data from all devices is often impractical due to numerous restrictions. Consequently, inferring the stored data forms the basis for selecting a target device for data extraction. For example, in a residential intrusion incident, the analysis may focus on devices such as home cameras—inferring that they store images of outsiders—rather than on devices like smart TVs and AI speakers.

Identification data in the smart home platform may be composed of two types: expected data for each device and common expected data for the platform. The expected data for each device is data generated to provide unique functions for each service and device, and the expected data varies depending on the device’s function. Platform-common expected data is data generated throughout the component through platform-specific functions, and the expected data has different characteristics depending on platform-common functions and management device systems. For data in a management device system, expected data can be identified through various smartphone analysis studies. Therefore, it is possible to derive common expected data for each device and platform through smart home application function analysis.

5.2 Stage 2: Data Extraction and Analysis

The data inferred through functional analysis is validated by applying specific device-targeted data acquisition methods, allowing us to pinpoint the storage location, which can be classified as device, cloud, or management device. When data resides on a device, it is extracted using methods tailored to that device after comprehensive software and hardware analysis; extraction is feasible if internal storage is present, and techniques include logical extraction—via a direct connection between the IoT device and a PC—and physical extraction using Universal Asynchronous Receiver-Transmitter (UART), JTAG, or Chip-off methods. When data is stored in the cloud, it is identified through analysis of device-to-cloud communication packets, which requires that the device supports Wi-Fi and that packets can be captured using a PC’s mobile hotspot function. For management devices, typically smartphones, established forensic data acquisition methods are employed, and once data is retrieved, further extraction is conducted through a detailed analysis of the application data stored on the management device.

5.3 Stage 3: Classification Based on Data Characteristics

Smart home data can be composed of three types based on data characteristics through functional analysis and data identified through actual devices. Device usage data’ is data that can identify the alibi of the person who used the device through the device usage log. The ‘smart home environment identification data’ can identify the configuration of the smart home environment, and more data can be obtained through other acquisition methods using the data. The ‘smart home environment identification data’ includes communication information, device specification information, device identification information, and a list of linked devices.

6  Case Studies for Forensics Analysis of Smart Home Platforms

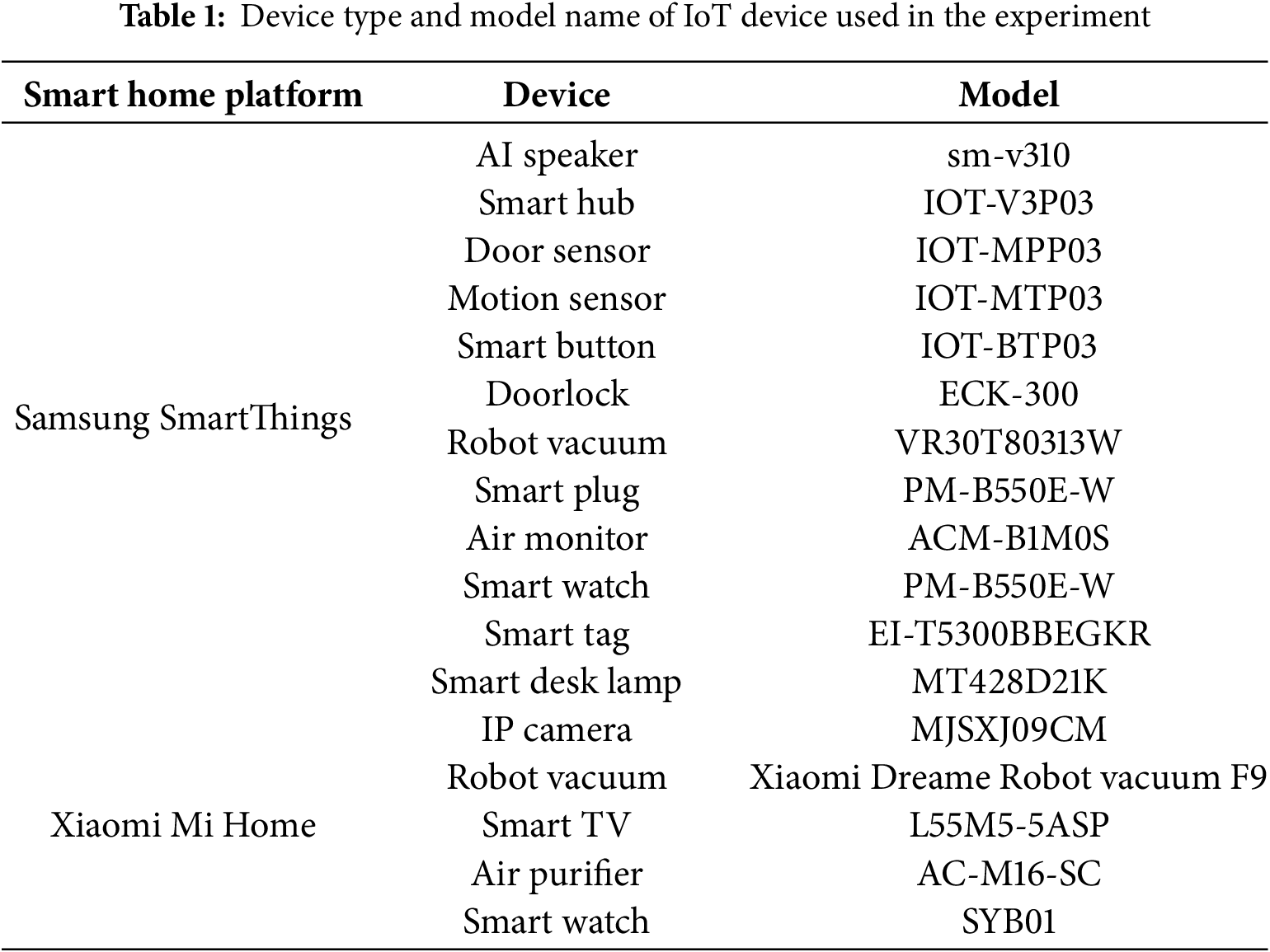

To validate the proposed forensic framework, we established a smart home platform test bed and conducted a comprehensive forensic analysis. The smart home platform is configured as illustrated in Fig. 5, and the test bed was designed accordingly. The configurations of the Samsung SmartThings and Xiaomi Mi Home test beds used in the experiment are detailed in Table 1. For management devices, we employed a routed Samsung Galaxy S9+ running Android 10. These test beds acquire artifacts through data inference and extraction and develop methods for utilizing these artifacts in scenarios similar to those encountered in the home of a suspect in a fugitive murder case.

Figure 5: Example of samsung smartthings platform configuration

6.1 Samsung SmartThings

6.1.1 Guessing Data through APP Service Analysis

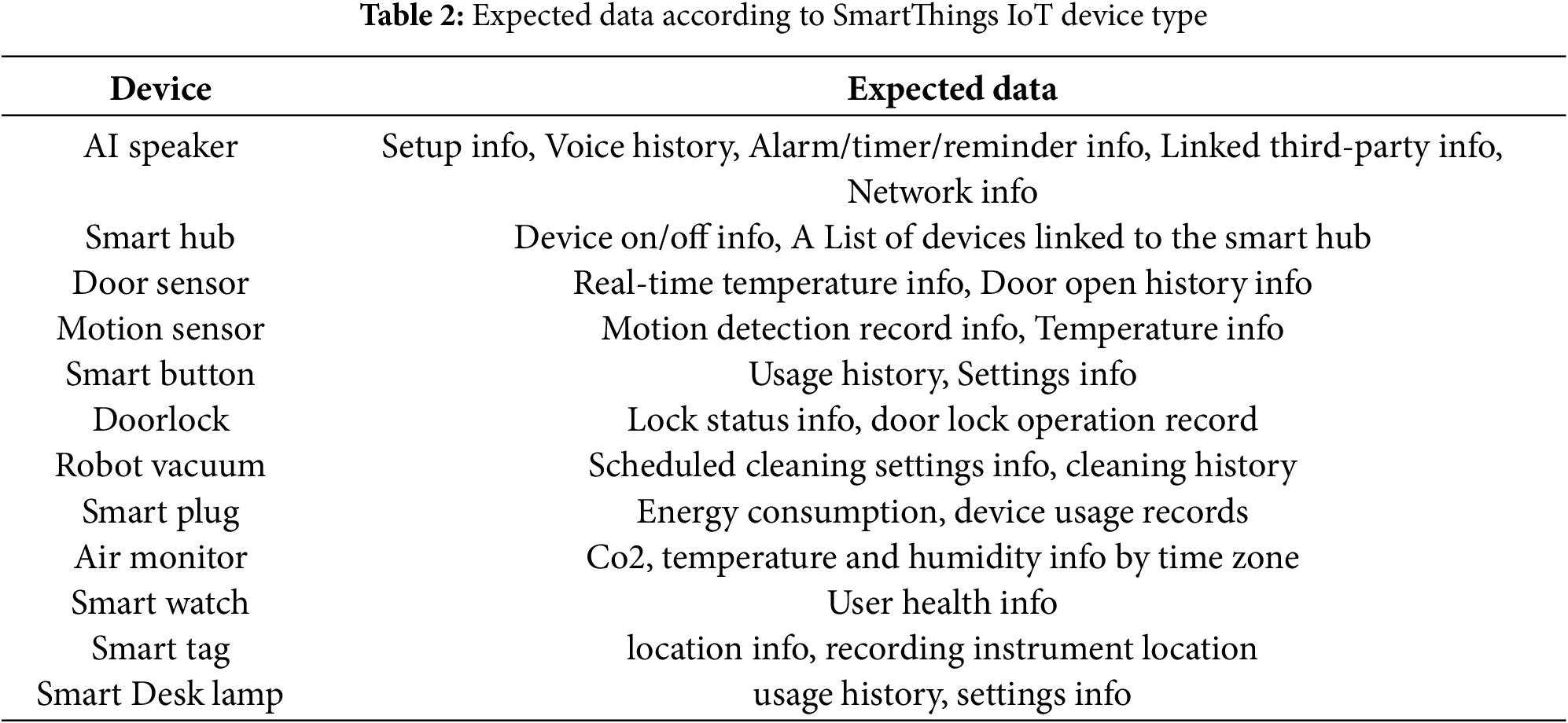

Through analysis of smart home app functions, we can identify the services provided by smart home devices and infer the expected data based on these functions. For example, with SmartThings, the entire smart home environment is controlled via the “SmartThings” application, which in turn allows us to determine the functions of linked devices. Fig. 6 shows the main feature tab of the Galaxy Home Mini, an AI speaker, revealing the available functions of Samsung AI speakers. These speakers offer features such as alarms, timers, reminders, and music playback. Additionally, the setup function indicates that network information—such as Wi-Fi MAC addresses—is stored along with details on the AI speaker’s location, user preferences, and user accounts. As illustrated in Table 2, the inferred stored data may reside on the device itself, cloud servers, or smartphones, a finding that can be confirmed through actual data analysis.

Figure 6: Galaxy home mini function of samsung smartthings smartphones

6.1.2 Data Extraction and Analysis

The data expected earlier can be divided into three types of storage: internal storage of the device, cloud server, and management device (smartphone). Accordingly, data acquisition was performed by targeting each data store.

Data in Device Storage

To perform data acquisition inside IoT devices, it is necessary to first verify the presence or absence of storage inside the device through device specification analysis. Through device specification analysis, devices with internal storage are AI speakers, smart hubs, robot vacuum cleaners, air monitors, and smartwatches. For AI speakers, 4 GB Nand Flash memory (KLM4G1FETE-B041, 153ball) was identified, and data were acquired through chip-off as shown in Fig. 7. The separated chip could extract dump images after connecting to a PC through a flash memory reader. The dump image was mounted on Linux to identify the partition and extract the image. Because of the mount, a dump image and partition of 3.7 GiB capacity could be identified as shown in Fig. 8. In addition, as shown in Fig. 9, it is estimated that the 16th partition, known as the user partition, is based on the examination of the partition using FTK Imager.

Figure 7: Nand flash memory in galaxy home mini PCB

Figure 8: Mounted galaxy home mini dump image

Figure 9: Galaxy home mini partition list (FTK Imager)

Multiple artifacts can be obtained from the database file stored in the AI speaker dump image. For instance, as shown in Fig. 10, the ‘device_table’ in ‘sc.db’ currently holds a list of smart home-linked devices. Additionally, the ‘Unique_table’ in ‘cloud_pdm.db’ stores the login ID used to link the account, as illustrated in Fig. 11; this login ID is typically an email address. It was also confirmed that device setting information—including the user’s name, date of birth, and timer settings—is stored.

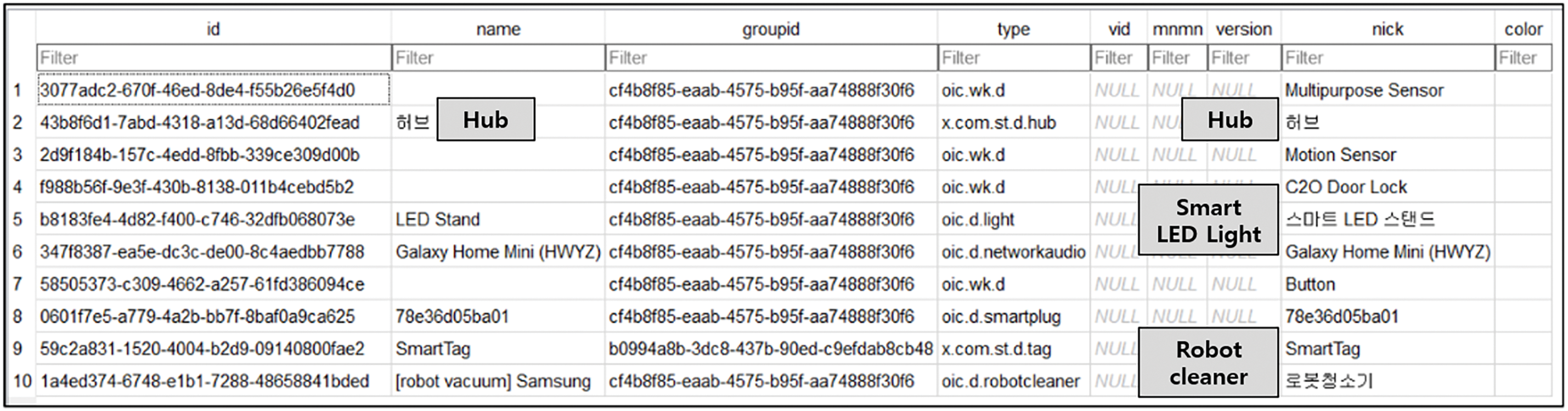

Figure 10: ‘Device_table’ table in ‘home/owner/apps_rw/com.samsung.lux-st-service/data/sc.db’ (accessed on 1 February 2025)

Figure 11: ‘Unique_table’ table in ‘home/owner/apps_rw/com.samsung.tizen.samsung-cloud/data/.cloud_pdm.db’ (accessed on 1 February 2025)

For robot vacuum cleaners, 4 GB Nand Flash memory of the same model as AI speakers were identified, and dump images were similarly extracted using chip-off. In the robot vacuum cleaner image, cleaning records including cleaning start timestamps were stored in the ‘History table’ of ‘history_new3.db’ as shown in Fig. 12. In addition, information on the reservation cleaning time set by the user was stored.

Figure 12: ‘History’ table in ‘/home/owner/apps_rw/org.tizen.ocfd/data/history/history_new3.db’ (accessed on 1 February 2025)

For smart hubs, the same model, 4 GB Nand Flash memory, could be identified and the image dumped, but internal data could not be verified because of disk encryption through LUKS, as shown in Fig. 13. In addition, for air monitors, Nand Flash memory was identified as a result of printed circuit board (PCB) analysis, but internal extraction was infeasible owing to the absence of a reader capable of reading the memory, and for smartwatches, Nand Flash memory could not be identified.

Figure 13: Hub V3 partition disk encryption for samsung smartthings

Cloud Server

Most smart home IoT devices communicate with cloud servers via Wi-Fi, allowing communication packets between the wall pad and the cloud to be captured using a PC’s mobile hotspot function. Since these packets exchange information related to device usage and user data, it is possible to infer the data stored on the cloud server, which may be useful for future warrant issuance screening. However, the contents of packets from AI speakers remain unknown because most are encrypted with TLS, as shown in Fig. 14, and the same applies to other devices.

Figure 14: Packets generated when using AI speakers

Smartphone

Given that all IoT devices are managed through a dedicated application, it is evident that a smartphone stores a wealth of related information. In our experiment, the smartphone was pre-rooted, and its dump image was acquired via ADB. Within the application’s data directory, several database files were identified. For example, the devices table in CloudDb.db contains a list of interconnected devices, as illustrated in Fig. 15. Additionally, the Messages table in NotificationDb.db logs system notifications and timestamps—for instance, hub connection messages and cleaning start/end events, as shown in Fig. 16. Furthermore, the smartphone retains user personal information linked to SmartThings, as well as device-specific settings and network information.

Figure 15: ‘devices’ table in ‘data/com.samsung.android.oneconnect/databases/CloudDb.db’ (accessed on 1 February 2025)

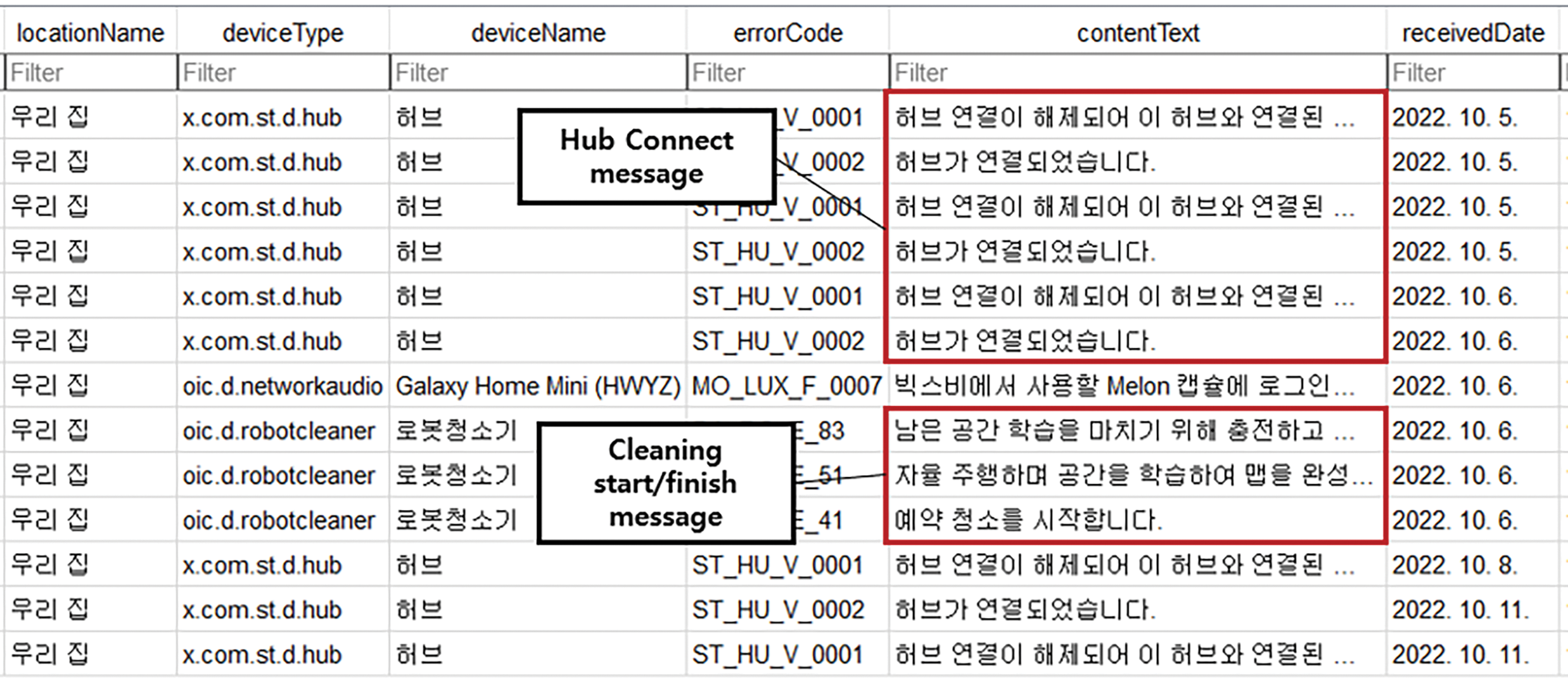

Figure 16: ‘Messages’ table in ‘Data/com.samsung.android.oneconnect/databases/NotificationDb.db’ (accessed on 1 February 2025)

6.1.3 Classification Based on Data Characteristics

Acquired data have different utilization methods depending on their characteristics. The data can be broadly divided into three categories: device usage data, user data, and smart home environment identification data. Device usage data reveal the behavior of the device user, user data confirm the identity of the user, and smart home environment identification data clarify the overall configuration of the smart home. Accordingly, in this section, we demonstrate how data utilization methods can be derived for various crime scenarios based on these characteristics.

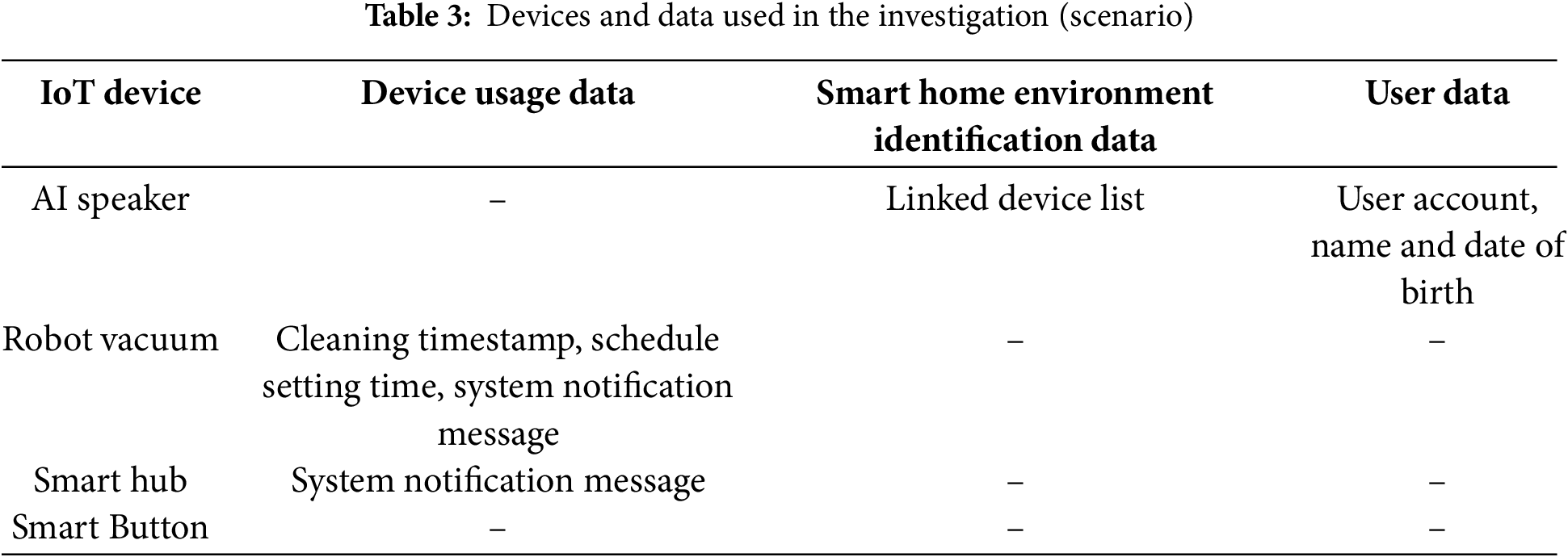

In this scenario, an in-house murder in a two-person household is investigated using a pre-configured Samsung SmartThings smart home environment to track the alibi of a housemate, who is the prime suspect. The suspect claims he was outside the home at the time of the crime. Prior analysis of the smart home architecture identified the components available within a residence. Since the smart home environment connects various IoT devices—such as AI speakers, TVs, and sensors—via a central gateway, identifying these components is a crucial first step in the investigation. Accordingly, the investigator secured the AI speaker, robot vacuum cleaner, smart hub, smart button, and the tablet used as a management device linked to SmartThings at the scene.

The components of the smart home environment contain different types of data depending on the platform, service, and IoT device. A functional analysis of the smart home can predict what data are stored, thereby narrowing the range of devices targeted during data acquisition and accommodating even the latest IoT devices. In this investigation, functional analysis of IoT devices linked with Samsung SmartThings was performed to derive expected data; as a result, data acquisition efforts focused on the AI speakers and robot vacuum cleaners. Investigators extracted and analyzed NAND flash memory from both devices using chip-off techniques and corroborated expected findings by analyzing data from a confiscated smartphone application.

As noted above, the acquired data fall into three categories—device usage data, user data, and smart home environment identification data—with each type serving distinct investigative purposes. In this case, where verifying the suspect’s alibi is paramount, device usage data are crucial. The investigator inferred that the suspect was at home at the time of the crime by examining cleaning timestamps and reservation settings from the robot vacuum cleaner. Additionally, system notification logs from the tablet controlling the smart home confirmed that both the smart hub and the robot vacuum cleaner generated notifications at the relevant times. Moreover, user data—such as account details, name, and date of birth—retrieved from the AI speakers were used to assess the possibility of accomplices. Finally, by collecting a list of interconnected devices (i.e., smart home environment identification data) from the AI speakers, investigators confirmed the potential for additional evidence from smart lighting and security sensors like Table 3.

6.2 Xiaomi Mi Home

6.2.1 Guessing Data through APP Service Analysis

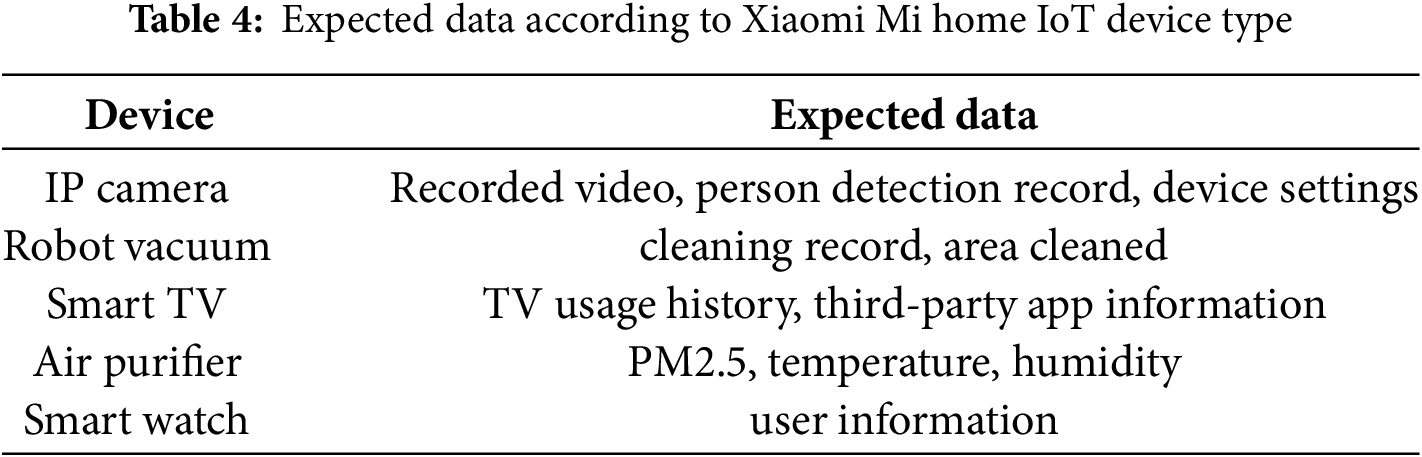

Xiaomi Mi Home also infers expected data based on the functional analysis of the smart home app. For Xiaomi, the entire smart home environment is managed through the “Mi Home” app. Fig. 17 shows the main function tab of the IP camera. In addition to its primary video recording function, the IP camera offers features such as person detection and the replay of previous monitoring records. In this way, the stored data can be inferred, as shown in Table 4. This data may reside on the device, in cloud servers, or on smartphones, which can be confirmed through actual data analysis.

Figure 17: IP camera function in Xiaomi Mi Home app

6.2.2 Data Extraction and Analysis

Data Stored on the Device

Based on device specification analysis, it was determined that devices with internal storage—such as IP cameras and smart TVs—can store data locally. For an IP camera, which saves images on an SD card, data extraction is performed using an SD card reader. When connected to a PC, this reader revealed several JPEG and MP4 files (see Fig. 18). The analysis further showed that the IP camera automatically records a video every minute, storing both thumbnail (.jpeg) and video (.mp4) files.

Figure 18: Multimedia files (JPEG, MP4) stored on the IP camera memory card

Furthermore, because of analyzing the ‘/MIJIA_RECORD_MOTION/2022101814/motion_record_msg’ file in the SD card directory with Hex Editor, it was confirmed that the time stamp when a person was detected was saved in little-endian as shown in Fig. 19. For smart TVs, UART pin and Nand Flash memory could be identified, however, data acquisition was infeasible owing to technical limitations.

Figure 19: IP camera people detection timestamp

Cloud Server

Similar to other IoT devices, Xiaomi Mi Home’s IoT devices communicate with the cloud server via Wi-Fi. Accordingly, communication packets between each device and the cloud server were acquired through packet capture. However, similar to Samsung SmartThings, there were some packets encrypted with TLS, and there was no meaningful data in other packets.

Smartphone

The smartphone used in the experiment targeting the Xiaomi platform was pre-rooted, and its dump image was acquired via ADB. Several database files were found within the smartphone’s app data. For instance, in cn_6607694827_typelist_v2.db, user IDs, device notification messages, and timestamps are stored, as shown in Fig. 20.

Figure 20: DB file (cn_6607694827_typelist_v2.db) stored in IP camera memory card

6.2.3 Classification Based on Data Characteristics

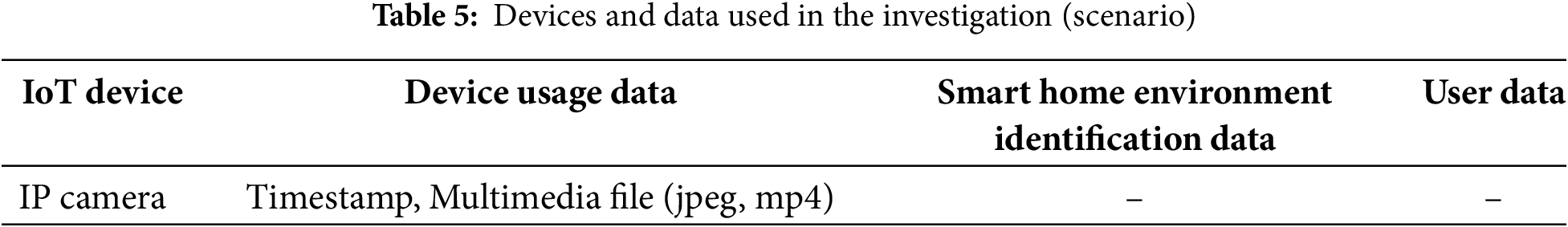

For the Xiaomi Mi Home, artifacts were previously obtained from both IP cameras and management devices. However, due to technical limitations, data extraction from devices other than the IP camera was not feasible. In the case of the IP camera, videos and photos were stored on the SD card, and people detection timestamps were recorded. Since this information is generated through device usage, it is classified as device usage data as shown in Table 5 . This data is critical because it can help establish the alibi of an individual involved in a case. For example, in a house invasion, the automatically recorded video can capture the intruder’s face, clothing, and body type, while the people detection timestamp indicates the exact time the intruder entered the house.

7  Discussion

In this study, we proposed an architecture that represents the smart home environment from a forensic perspective, based on its constituent components. The architecture is organized into five layers—cloud, platform, service, IoT device, and device component—each representing a common element within the smart home ecosystem. This comprehensive architecture not only encapsulates all smart home components but also serves as a foundational model for forensic research, as it aligns with the overall structure of smart homes. Moreover, our proposed architecture is extendable, allowing for the incorporation of new devices, services, and platforms as they emerge.

Based on this common architecture, we developed a forensic framework comprising three parts. In the function analysis-based smart home data inference phase, a functional analysis of the smart home application identifies the capabilities supported by IoT devices and the specific features of each platform. For instance, Samsung and Xiaomi operate through the SmartThings and Mi Home apps, respectively, both of which enable remote control of interconnected devices. This analysis allows us to infer the anticipated data from these devices and platforms, aiding in the planning and targeting of specific devices during the forensic readiness stage.

The inferred data may be stored in the cloud, within management systems, or in the internal storage of IoT devices—each requiring different data acquisition methods for extraction. When data resides in a device’s internal storage, techniques such as extracting data from NAND flash memory or SD cards can be employed. In our study, data extraction from Samsung and Xiaomi devices allowed us to identify user information and lists of linked devices. Although additional artifacts might be recovered through file system recovery of deleted files, data extraction was not feasible from other devices (for example, the Samsung Smart Hub, due to disk encryption, or small devices like smart plugs and smart tags, due to limited storage), and data from devices such as the Xiaomi Smart TV could not be acquired because of technical constraints. While numerous studies have addressed data acquisition methods, evolving IoT devices necessitate new methodologies and further research into the latest smart home technologies.

If data is stored in the cloud, its verification can be achieved by analyzing the packets exchanged between the IoT device and the cloud server. In our study, packet analysis was limited by TLS encryption, and unencrypted packets did not reveal meaningful data. However, in some cases, artifacts extracted from packet analysis have supported warrant review. For example, if a certificate can be injected into the device, tools like Burp Suite can decrypt TLS packets, enabling data extraction via replay attacks. These security constraints often restrict data acquisition, and as security measures evolve, continuous research into new acquisition techniques is essential.

When data is stored in a smartphone app, extraction is accomplished by analyzing data on smartphones linked with Samsung and Xiaomi applications. Our research confirmed that a significant amount of app data is stored on these devices; however, obtaining smartphones from a home environment can be challenging. Nonetheless, smartphones can provide critical information from IoT devices that lack onboard storage, such as sensors and door locks, making them invaluable evidence when available.

Finally, the data derived through these methods are utilized differently depending on the type of crime. Accordingly, we categorized the data into three types: device usage data, user data, and smart home environment data. Device usage data can help establish a suspect’s alibi, user data assists in identifying both victims and suspects, and smart home environment data enables investigators to accurately assess the configuration of the smart home, thereby facilitating more efficient investigations.

8  Conclusion

Owing to advances in software and hardware technology, a wide range of IoT devices are being released. In particular, improvements in hardware—such as enhanced sensing technology—enable devices to collect diverse data and deliver higher-quality services. Consequently, not only are traditional home appliances being converted into IoT devices, but entirely new devices are also being developed to provide users with convenient functionalities at home.

Accordingly, smart home vendors are expanding the smart home environment through dedicated platforms. These smart homes deliver customized services by communicating with cloud servers via IoT devices. As these devices continuously generate and store various types of data, numerous forensic studies have been conducted on smart home systems. However, with the emergence of the latest devices and the expanding scope of smart homes, scalable forensic research is increasingly required.

In this study, we identified the components and structures of smart homes to develop a forensic method suitable for this evolving environment, and based on this, we derived a common smart home architecture. The common architecture is composed of five layers—cloud, platform, service, IoT device, and device components—each representing a fundamental element of the smart home environment. Building on this common architecture, we proposed a forensic framework for smart home environments.

The forensic framework comprises three steps: predictive data inference, actual data acquisition, and data identification for criminal investigations. In our study, Samsung and Xiaomi smart home test beds were established to verify the forensic framework. Expected data within the smart home were identified through functional analysis of the smart home apps, and some of this data was obtained and validated using the Samsung and Xiaomi test beds. We acquired various data from the devices, including user information and lists of connected devices. These data can serve not only as direct evidence, depending on their characteristics, but also as clues for obtaining additional information through further analysis. Subsequently, the identified data were classified into three categories: device usage data, smart home environment identification data, and user data.

The classification of smart home components and the common architecture established in this study incorporates the fundamental elements of smart home environments, enabling their collective application during investigations. This study is of great significance in the field of smart home digital forensics. Moreover, when investigators examine smart home IoT devices in the field, the proposed framework can serve as a valuable reference and provide key evidence by tracking data collection, analysis, and user behavior.

In future work, we plan to analyze Matter—the emerging smart home standard—and conduct further research to enhance our proposed smart home common model, ultimately deriving a more scalable smart home framework.

Acknowledgement: This work was supported by Supreme Prosecutors’ Office of the Republic of Korea.

Funding Statement: This research received no external funding.

Author Contributions: Sungbum Kim: Methodology: Investigation, Formal analysis, Writing—original draft. Gwangsik Lee: Writing—review & editing, Validation. Jian Song: Writing—review & editing, Validation. Insoo Lee: Writing—review & editing, Validation. Taeshik Shon: Conceptualization, Writing—review & editing, Resources, Supervision, Validation. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: No new dataset was generated for this study, and the analysis was conducted based on publicly available literature and existing data.

Ethics Approval: All authors certify that they have no affiliations with or involvement in any organization or entity with any financial interest or non-financial interest in the subject matter or materials discussed in this manuscript.

Conflicts of Interest: The authors declare no conflicts of interest to report regarding the present study.
