KPA-ViT: Key Part-Level Attention Vision Transformer for Foreign Body Classification on Coal Conveyor Belt

1  Introduction

Foreign body classification on coal conveyor belts is essential for the timely detection of foreign objects that may cause damage during high-speed operation. For instance, large gangue or anchor rods can scratch or tear the belt, while accumulated coal may lead to blockages at discharge points. It is therefore critical to accurately identify and categorize foreign bodies—such as oversized rocks and bolts—on the conveyor belt to enable early warnings and prevent potential hazards, thereby enhancing the safety of coal mining operations [1]. Nevertheless, the challenging roadway conditions, including poor illumination and complex background textures, often compromise classification accuracy. Traditional methods [2–4] are prone to misclassification, as they may incorrectly focus on irrelevant background features or struggle with low-light conditions [5].

Owing to the feature invariance and adaptable receptive fields of convolutional neural networks (CNNs), CNN-based frameworks have been widely adopted for foreign object classification tasks in this context [1,6,7]. For instance, reference [6] employed the VGG16 architecture [8] combined with transfer learning to develop a foreign body recognition model. Reference [7] enhanced the classic LeNet-5 network [9] to better accommodate the specific requirements of foreign object image identification. Meanwhile, reference [1] leveraged the translation invariance of convolution operations to integrate low-level spatial information into high-level semantic features via a residual network structure. Nevertheless, due to the insufficient modeling of correlations between local image patches, CNN-based approaches often constrain the expressive capacity of spatial information within features, leading to noticeable performance bottlenecks [10].

Inspired by the Non-Local method [11], preserving valid local information within key regions can significantly enhance the model’s perceptual capabilities. Dosovitskiy et al. [12] introduced the Vision Transformer (ViT) framework, which learns correlations among pixels within patches to extract discriminative image features. However, ViT-based approaches such as [12,13] require large volumes of accurately labeled training images to learn effective representations; otherwise, they are prone to overfitting, limiting the model’s generalizability and practicality in dynamic, complex real-world scenarios [10]. In the context of foreign body classification, the scarcity of extensive annotated data hinders ViT’s ability to achieve strong discriminative performance. Thus, it is essential to extract meaningful training signals from the available dataset to facilitate and stabilize the learning process.

In the patch extraction process of ViT-based methods, a significant amount of irrelevant background information is often incorporated into the token vectors, which impedes the model’s ability to quickly perceive semantically relevant features in the training images, as illustrated in Fig. 1a. To address this issue, an effective strategy involves detecting keypoints in each image using a dedicated keypoint detection algorithm and expanding these points into local patches within their surrounding regions. Compared to uniformly divided patches, these keypoint-centered patches contain richer and more discriminative information, as demonstrated in Fig. 1b.

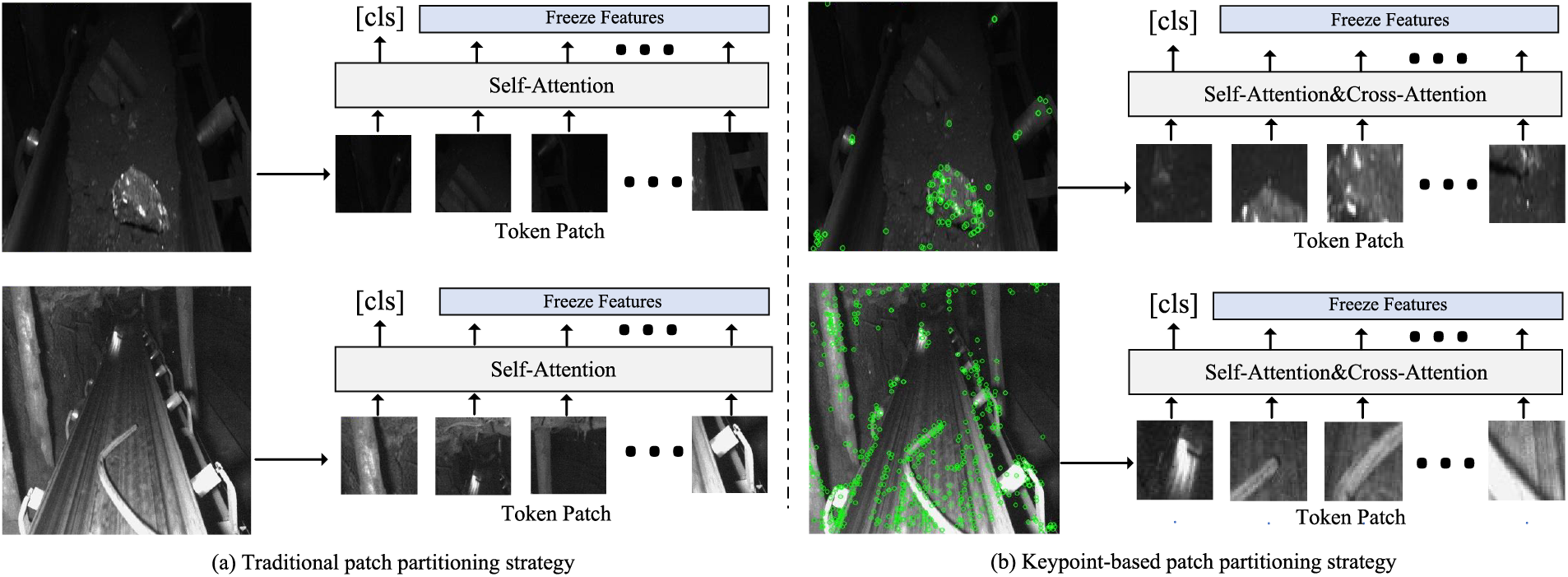

Figure 1: The training samples and their corresponding patches are segmented using (a) a conventional patch partitioning strategy and (b) a key-point-guided patch partitioning strategy

To fully leverage the semantic information within these patches, we employ self-attention and cross-attention modules to integrate key local features into the image representation for foreign object classification. The effectiveness of this key information is validated on the coal conveyor belt dataset CUMT-BelT [1]. Furthermore, to assess the generalization capability of our approach, we conduct additional evaluations on common classification benchmarks, namely the CIFAR-10 and CIFAR-100 datasets [14]. Experimental results demonstrate that our method achieves competitive performance compared to other state-of-the-art methods.

The contributions of our paper are summarized as follows:

•   This paper proposes a novel Key Part-level Attention Vision Transformer (KPA-ViT) framework for foreign body classification on coal conveyor belts, aiming to mitigate overfitting caused by insufficient effective training information.

•   This paper proposes a key local mining strategy that detects discriminative key points based on image appearance characteristics and extracts informative local regions to facilitate model training.

•   This paper introduces a novel attention module designed to effectively integrate the extracted key local features with global features, thereby enabling more comprehensive utilization of both local and global information.

The remainder of this paper is structured as follows: Section 2 offers a concise summary of pertinent research. Section 3 introduces the proposed transformer framework, which leverages global and local key information for foreign object classification on coal conveyor belts. Section 4 presents experimental results and discussions aimed at validating the proposed method’s efficacy. Lastly, Section 5 presents the conclusion.

2  Related Work

The section briefly reviews related work on foreign body classification methods, as well as the feature extraction frameworks.

2.1 Foreign Body Classification

The objective of foreign body classification is to quickly identify images containing foreign bodies in industrial processes, which is an important part of industrial warning. The traditional methods use image prior-knowledge feature fusion and general classification decision technology to achieve this task. Wang et al. [2] use the inter-frame difference method, threshold classification, and select-shape operators to identify large foreign bodies in belt conveyors. He et al. [3] use support vector machine technology to classify foreign bodies in combination with their texture and gray features. Reference [4] combines the K-nearest neighbor algorithm, support vector machine, and multi-feature fusion technology for foreign body recognition. However, since the prior knowledge is greatly dependent on the clear appearance of the image, these methods as a whole have problems such as poor robustness and susceptibility to illumination.

Relying on the development of deep learning technology, the deep learning framework is used to adapt to the classification of foreign bodies in different scenarios through continuous iterative calculation. The method based on a deep convolutional network extracts class-specific features through a large-scale parameter network and then determines whether the image contains foreign objects through the decision level [6]. Whata et al. [15] insert the uncertainty quantification techniques into the Bayesian Neural Networks and the Deep Neural Network to solve the multi-class classification of chest X-ray images. Amaya et al. [16] propose an iterative training process that aims to identify a representative data subset and a novel distance-based kernel based on a similarity matrix, leading to improved inferences about the population to solve both binary and multi-class classification problems. These CNN-based methods are easy to optimize and can achieve reliable classification results. However, these methods have insufficient perception of the local characteristics of the targets in each sample. They are easy to be misled by complex background information in images, thus limiting the classification performance.

2.2 Feature Extraction Framework

The feature extraction framework plays an important role in computer vision tasks. Most previous methods typically extract global feature representation or object-specific voxel information per image for image classification [17,18]. When the background is cluttered or the pedestrian is occluded, part-level features can improve the performance. Non-local neural network [11] utilizes the relationships between pixel-aware features to explore the effective object information, thus further enhancing the instance-level discriminative capability of extracted features per image.

Inspired by local information interaction [11], ViT [12] directly encodes local patches in an image, and the information between these encodings is interacted with by a self-attention mechanism. Based on this, DETR [19] and BEVFormer [20] introduced the cross-attention mechanism [21] to learn the target feature in each query by grouping the local feature information from the image database into a set of questions and mapping the matching target. Serikbay et al. [22] successfully apply deep convolutional neural networks (CNNs) to classify high-voltage insulator surface conditions. H-QNN [23] combines quantum and classical neural networks, which use a two-qubit quantum circuit with a classical convolutional architecture to enhance classification accuracy and address the overfitting for small datasets. PBNet [24] combines a CNN and a Transformer complementary network to address the issues of weakly textured images. DCD-GCN [25] proposes a dual-channel deep graph convolutional neural network, which applies residual connections to dual-channel graph convolutional neural networks, and increases the depth of dual-channel graph convolutional neural networks.

3  Methods

Given a labeled dataset 𝒳={(xi,yi)}i=1N, xi∈R3×H×W is the i-th training image and N is the number of training images, H and W denote the height and width of each training image xi; yi is the class label of xi. The goal of foreign body classification on coal conveyor belts is to train a model based on 𝒳 that can accurately classify the types of foreign bodies in each input image. The KPA-ViT framework is presented for the task in Fig. 2. The framework consists of three components: a key local mining method is to search the part-level patch by the detected key points of each xi; an attention module uses self-attention and cross-attention modules to integrate and enhance global and part-level features, and predicts the final classification results through a decision module.

Figure 2: Overview of our framework. For a query image, we first utilize a key-point detector to generate the key-point positions. Then, the framework is to mine key locals and filter redundant locals. Finally, these mine key locals are introduced into the proposed attention module to calculate the classification results by self-attention and cross-attention blocks

3.1 Key Local Mining

For each input image xi, the key point detection method is to calculate the location of its key points using the appearance characteristics of xi. For convenience, we adopt the traditional ORB (Oriented Fast and Rotated Brief) key point detection method [26], which first uses the FAST (Features from Accelerated Segment Test) method [14] to quickly detect corner points, and then uses the Harris corner measurement [27] to screen N points with the largest Harris response value from the extracted FAST corner points as the key points of xi. These key points of xi are denoted as 𝒫i={pk}k=1K, where pk denotes the k-th key point of xi.

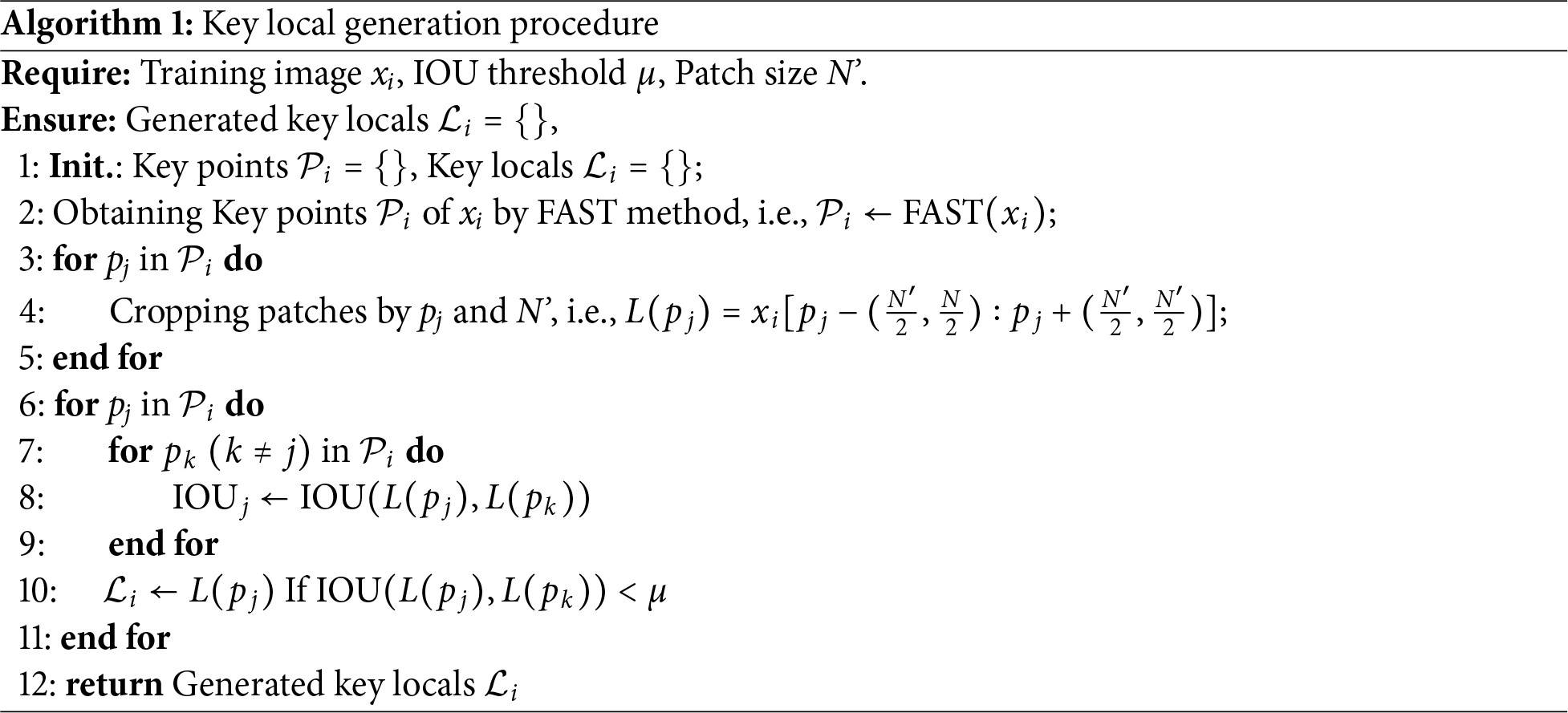

After obtaining the key points 𝒫i, the key local mining strategy can mine the key part-level patches for the attention module. However, some key points come together. Therefore, we should filter the key region corresponding to each key point to reduce the key local redundancy. The key locals’ filter process is formulated as:

ℒk={L(pj)|IOU(L(pj),L(pk))<μ}j=1Kℒi={ℒk}k=1K,(1)

where, L(pj) represents a N′×N′ image neighborhood with pj as the center point. IOU(a,b)=(a∩b)/(a∪b) means the IOU (intersection-over-union) ratio of set a and b. μ is an IOU hyper-parameter, which is used to select the key locals. ℒk represents the key locals based on the k-th key point, and ℒ denotes the key locals of xi. The key local generation procedure is presented in Algorithm 1. In this way, the patches based on the mining of key textures in the image contain more category-relevant appearance/texture information compared to the original patches without background filtering.

3.2 Attention Module

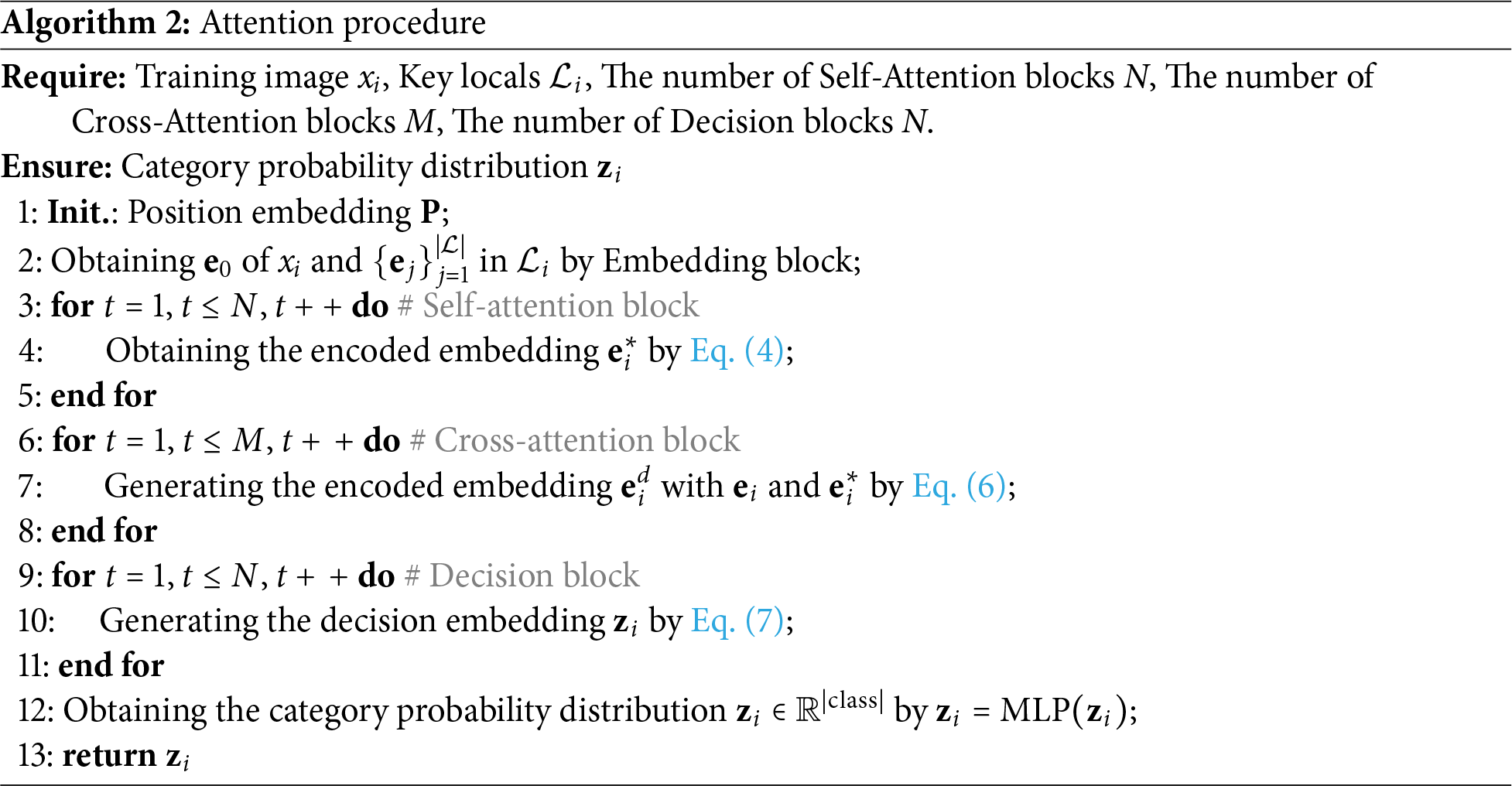

After key local mining, we introduce these key local ℒ with rich key local information of xi into the attention module, thus expanding the training information in the samples to avoid overfitting in training and further boosting the discriminative information in the features. The attention module consists of four components, namely the embedding block, self-attention block, cross-attention block, and decision block. We will cover the technical details of each component in detail below.

Embedding block. The embedding block is to generate the global and part-level patch embedding of each xi. We use convolutional neural networks to encode these global and local patches to retain the global and key local texture cues of xi, rather than MLP (Multilayer Perceptron) layers in the ViT framework [12]. First, the embedding block uses the convolution layer of 1×1×C to increase the number of channels in the image, and uses a convolution of N′×N′×C to generate a patch embedding for each patch. The process is formulated as:

E=[e0,e1,…,e|ℒ|],(2)

where e0∈RC is a global patch embedding, which first resizes xi as N′×N′ by a convolutional layer and is generated by an embedding block. e1∈RC denotes the key part-level embedding of each L(pj) in ℒ.

Self-attention block. The self-attention module encodes each patch embedding in E, which is used to capture the long-term dependency relationships between the global and part-level embedding tokens in E. First, we assign an initial learnable position embedding for each patch embedding in E, which is denoted as E′=[e0′,e1′,…,e|ℒ|′]. Then, we introduce the position embedding E′ in each embedding in E by adding operation, i.e., E+E′=[e0+e0′,e1+e1′,…,e|ℒ|+e|ℒ|′]. Following ViT [12], we insert each ei+ei′ in E into q, k and v, i.e., q=k=v←ei+ei′, where q,k,v are the query, key and value vectors, respectively. And then, q,k,v are fed into the multi-head attention to encode each part local L(pi) in ℒ, as:

MultiHead(q,k,v)=Concat(h1,…,hn)⋅Wo,hi=Softmax[(q⋅Wiq)⋅(k⋅Wik)Tdk]⋅(v⋅Wiv),(3)

where MultiHead() denotes the multi-head attention operation, Concat() denotes the vector concatenating attention operation. hi is the output vector extracted by the i-th attention head. Wiq, Wik and Wiv denote three non-shared learnable weights. Softmax is an activation function, which is used to normalize the feature distribution. dk=C/n denotes the dimension of the output vector by the i-th attention head. Wo is used to integrate the vector hi output by each attention head.

Finally, in order not to reduce the feature information in each patch, we employ the residual strategy to mix each ei+ei′ and MultiHead(q,k,v), which is formulated as:

ei∗=MLP(L_2Norm(ei+ei′+MultiHead(q,k,v))),(4)

where ei∗∈RC is the encoded embedding by the self-attention module. L2Norm() means a L2 normalization operation, MLP() is Multi-layer Perceptron (MLP).

Cross-attention block. To fully aggregate the global and key part-level information, inspired by DETR [19], we design a simple yet effective cross-attention block to decode each ei∗. Thus, the multi-head attention of cross-attention is formulated as:

MultiHead(ei∗,k,v)=Concat(h1,…,hn)⋅Wdo,hi=Softmax[(ei∗⋅Widq)⋅(k⋅Widk)Tdk]⋅(v⋅Widv),(5)

where Widq, Widk and Widv denote the learnable parameters of ei∗, k and v in the cross-attention block. ei∗ includes the more aggregation cues of global and key part-level. By the cross-attention block, the information of ei∗ can be introduced in the generated decoded embedding eid, as:

eid=MLP(L_2Norm(ei+ei′+MultiHead(ei∗,k,v))).(6)

As a result, the cross-attention block is to fuse the self-attention and original embedding information, and through attention weights to achieve selective transmission of information, it is used to generate better image descriptors.

Decision block. The goal of the decision block is a classifier to predict the category of each xi. To better understand the key information in eid, as shown in Fig. 2, the self-attention blocks are exploited. And then, an MLP is used to predict the category yi∗ of each xi. The decision block is formulated as:

zi=MLP(L_2Norm(eid+MultiHead(eid,eid,eid))).(7)

Finally, the category probability distribution is generated by zi=MLP(zi), where zi∈R|class|. |class| is the category number. yi∗=argmax zi is the predicted category of xi. The attention procedure is shown in Algorithm 2.

3.3 Loss Function

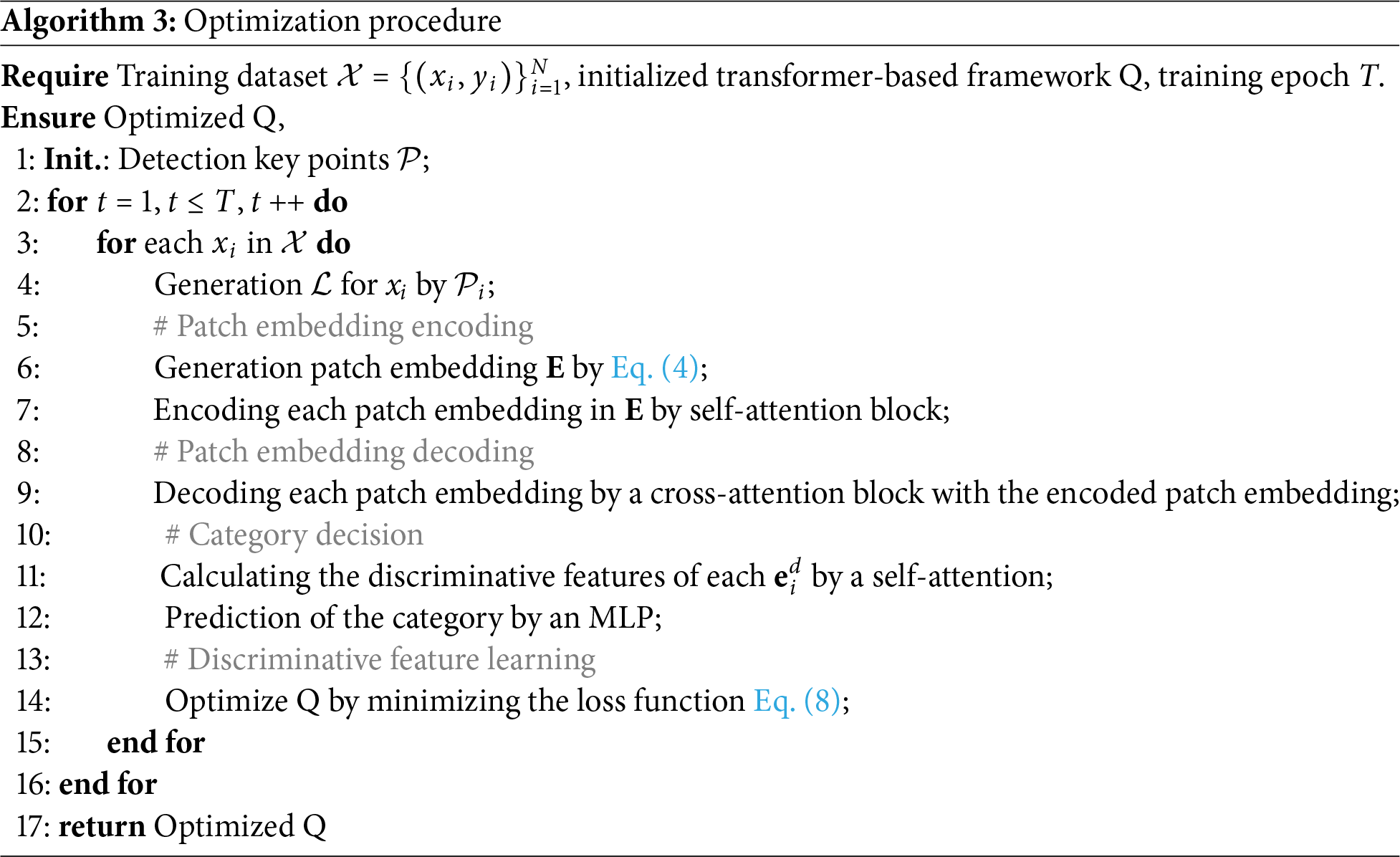

We optimize the foreign body classification framework by maximizing zi[yi]. We exploit the cross-entropy loss function as:

Loss=−1|ℬ|∑xi∈ℬlogexp(zi[yi])∑yjexp(zi[yj]),(8)

where ℬ is a mini-batch samples and |ℬ| is the mini-batch size. The overall optimization procedure is presented in Algorithm 3.

4  Experiments and Discussions

4.1 Datasets and Protocol

Datasets. We evaluate our method on a foreign body classification on the coal conveyor dataset, i.e., CUMT-BelT [1]. Moreover, to verify the effectiveness of our proposed method on the public classification task, we also evaluate the method on cifar-10 [14] and cifar-100 [14] datasets.

•   CUMT-BelT dataset [1] collects from the underground belt transport environment, a total of 6000 images, divided into three categories, namely block, bolt, and normal pictures. Each category has 2000 images, including 1600 training images and 400 test images.

•   Cifar-10 dataset [14] consists of 60,000 color images in 10 categories, 6000 images in each category, 5000 images in the training dataset, and the rest in the test.

•   Cifar-100 dataset [14] consists of 60,000 color images containing 100 categories, 600 images per class, 500 images in the training dataset, and 100 images in the test dataset.

Protocol. Following the common experimental setting in [1,14], we employ the classification accuracy to evaluate the performance of the methods. The classification accuracy is the proportion of samples correctly predicted by the category to all samples, i.e., acc.=∑xi∈𝒳testI(yi∗==yi)/|𝒳test|. I(a) is a logical function, I(a)=1 only a is True. 𝒳test is the testing dataset, and |𝒳test| means the cardinality of 𝒳test.

4.2 Implementation Details

Our method is implemented in PyTorch [28] with two NVIDIA GeForce RTX 4090 Ti. We process the training images with a random crop and a random flip. During optimization, our framework is optimized by the SGD [29] method with a learning rate of 0.001 and the mini-batch size |ℬ|=8 following the ViT fine-tuning process. We train the method with 100 epochs in total and adopt a cosine learning rate scheduler strategy following ViT [12]. About the key local mining, to balance the redundancy and richness of the training information, we limit the μ∈{0.1,0.2,…,0.9} and select the μ corresponding to the best classification accuracy, which is discussed in Section 4.3 “IOU threshold μ”, and we set the IOU threshold μ as 0.7. The key local size N′ is setting as 16 to generate 16×16 patches for our KPA-ViT framework, and we also discuss N′ in Section 4.3 “Key local N′”. To avoid the time-consuming grid search process, we set M = N. According to the number of attention heads in ViT-base being 12, the total number of attention heads in the self-attention and cross-attention blocks is set as N+M+N=12. Therefore, we set M=N=4. Following VIT [12], the number position embedding is set as 196, and we randomly select 196 key locals in ℒ.

4.3 Ablation Study

To evaluate the effectiveness of each component in our proposed method, experiments are conducted as follows.

1.    “Base” denotes only self-attention blocks for the classification task;

2.    “Base+random” denotes the “Base.” with randomly selection locals;

3.    “Base+key” denotes introducing the key locals into “Base.”;

4.    “Base+key+cross” is inserting the cross-attention blocks into “Base+key”;

5.    “Base+key+cross+decision” incorporates the decision blocks into “Base+key+cross”;

6.    “Base+cross+decision” removes the key locals from “Base+key+cross+decision”.

To align the experimental settings, the attention head numbers of each component are the same, i.e., 12. Table 1 shows the experimental results.

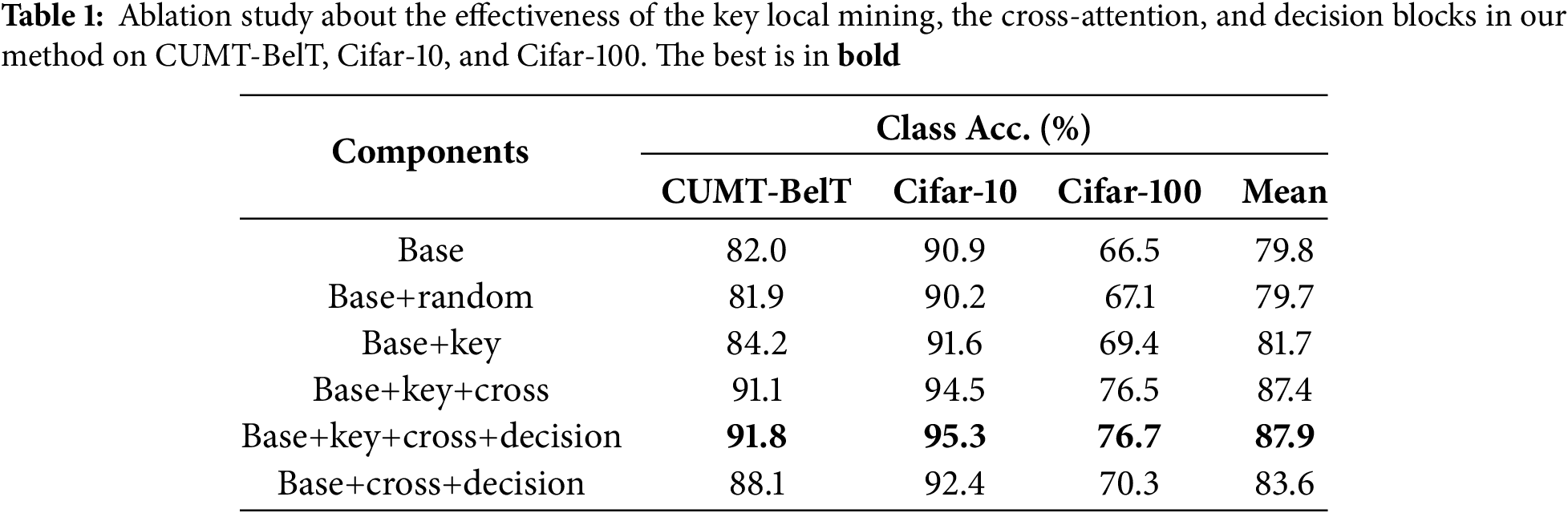

The effectiveness of key local mining. As shown in Table 1 “Base+random” has similar performances as “Base” on CUMT-BelT, Cifar-10, and Cifar-100. The results indicate that the randomly selected locals do not have effective training information. After incorporating the mined key locals, the results are presented in Table 1 “Base+key”. We can observe that the classification accuracy of the “Base+key” is improved by 2.2%, 0.7%, and 2.9% over the “Base” on CUMT-BelT, Cifar-10, and Cifar-100, respectively. Also, the mean classification accuracy on the three datasets of “Base+key” is improved by 1.9% and 2.0% than “Base” and “Base+random”. This is because the mined key locals can provide more effective information than the uniform and random selection patches, which can increase the distinctiveness of the features to boost the classification results.

The effectiveness of cross-attention blocks. Table 1 demonstrates that the classification results of “Base+key+cross” are improved by 6.9%, 2.9%, and 7.1% over “Base+key” on CUMT-BelT, Cifar-10, and Cifar-100, which determines the effectiveness of the cross-attention blocks. After incorporating the cross-attention blocks, the mean performance is improved by 5.7% and 7.6% over “Base+key” and “Base”. The reason is that the cross-attention blocks can fully aggregate the key part-level information into the patch embedding to help the model distinguish the differences of categories better.

The impact of decision blocks. The experimental results of the decision blocks are presented in Table 1 “Base+key+cross+decision”. Compared to the component “Base+key+cross”, the classification results are higher at 0.7%, 0.8%, and 0.2%, which indicate the effectiveness of decision blocks after the cross-attention block. Introducing the decision blocks can improve the mean classification accuracy 0.5% on the three datasets than “Base+key+cross”. Moreover, we also evaluate the component “Base+cross+decision” which removes the key local from the overall framework. We can observe that the performances have both significantly dropped. The results present that the key part-level information plays an important role in foreign body classification tasks.

4.4 Parameter Analysis

We explore the impacts of the IOU threshold μ, the key local size N′, and the number of attention heads N in self-attention blocks and M in cross-attention blocks on the CUMT-BelT.

IOU threshold μ. According to the description of Eq. (1), μ is used to filter out the locals with a high repetition rate to avoid redundant information, thus ensuring the diversity of information in samples. Fig. 3a reports the classification accuracy by varying μ from 0.1 to 0.9 every 0.2. It can be seen that the performance is best at μ=0.7. A low μ creates redundant key locals, which dilute the diversity of key local information; while a higher μ reduces the number of key locals, thus affecting the effective training information in samples.

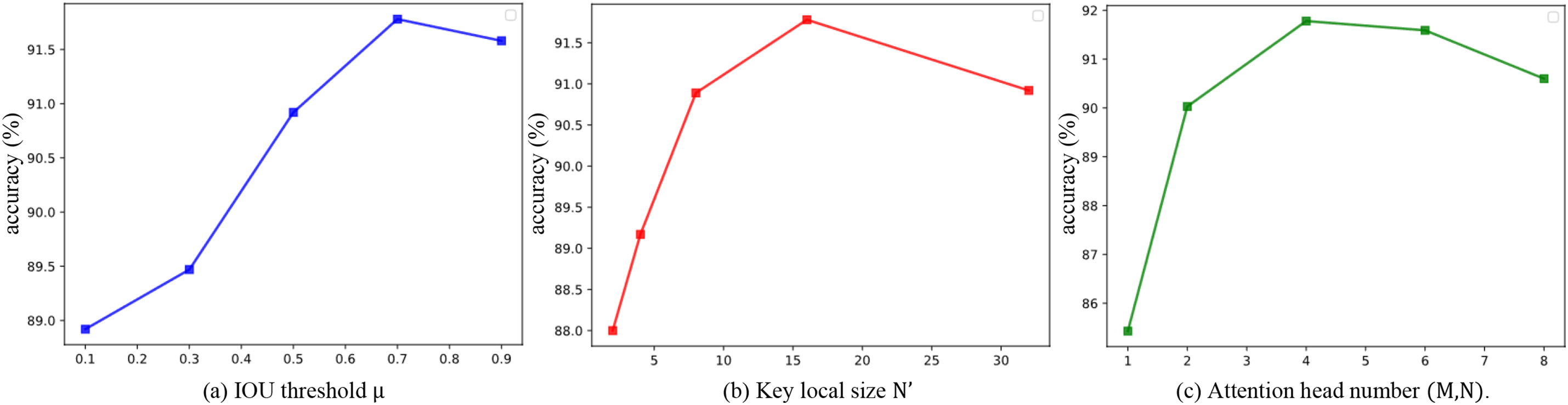

Figure 3: Experiments on the impact of (a) the IOU threshold μ, (b) the key local size N′, and (c) the attention head number (M,N) on the CUMT-BelT dataset

Key local size N′. In the key local mining, the hyper-parameter N′ affects the part-level information of each patch. The results are presented in Fig. 3b. It demonstrates that both classification accuracies increase significantly over the N′=16 and then slightly decrease. A smaller N′ will make the information in each patch not enough, while a larger N′ will make the information in each patch hard to learn. Therefore, choosing a suitable N′ is important for the overall performance, and we set N′=16.

Attention head number M and N. M and N are the number of attention heads in the cross-attention blocks and the self-attention blocks, respectively. Since M and N are both used in the attention module to enhance the perceptibility of our method in the training and inference process, we set M = N to reduce the parameter search difficulty. Thus, we can denote M and N as (M,N) for simplicity. We draw the classification accuracy curves by varying (M,N) in {1,2,4,6,8}, as given in Fig. 3c. The curves show that our method works well under different weights, which demonstrates the flexibility of our method. Specifically, when (M,N)∈{1,2,4}, the classification accuracy is increased on the CUMT-BelT dataset; when (M,N)∈{4,6,8}, both classification accuracy has a slight degradation in general. We speculate that smaller (M,N) will make the model too simple, thus the discriminative information in the samples is not perceived well, while larger (M,N) will make of model contain more parameters, which are hard to optimize. Thus, we empirically choose M=N=4 for our method.

4.5 Comparison Results

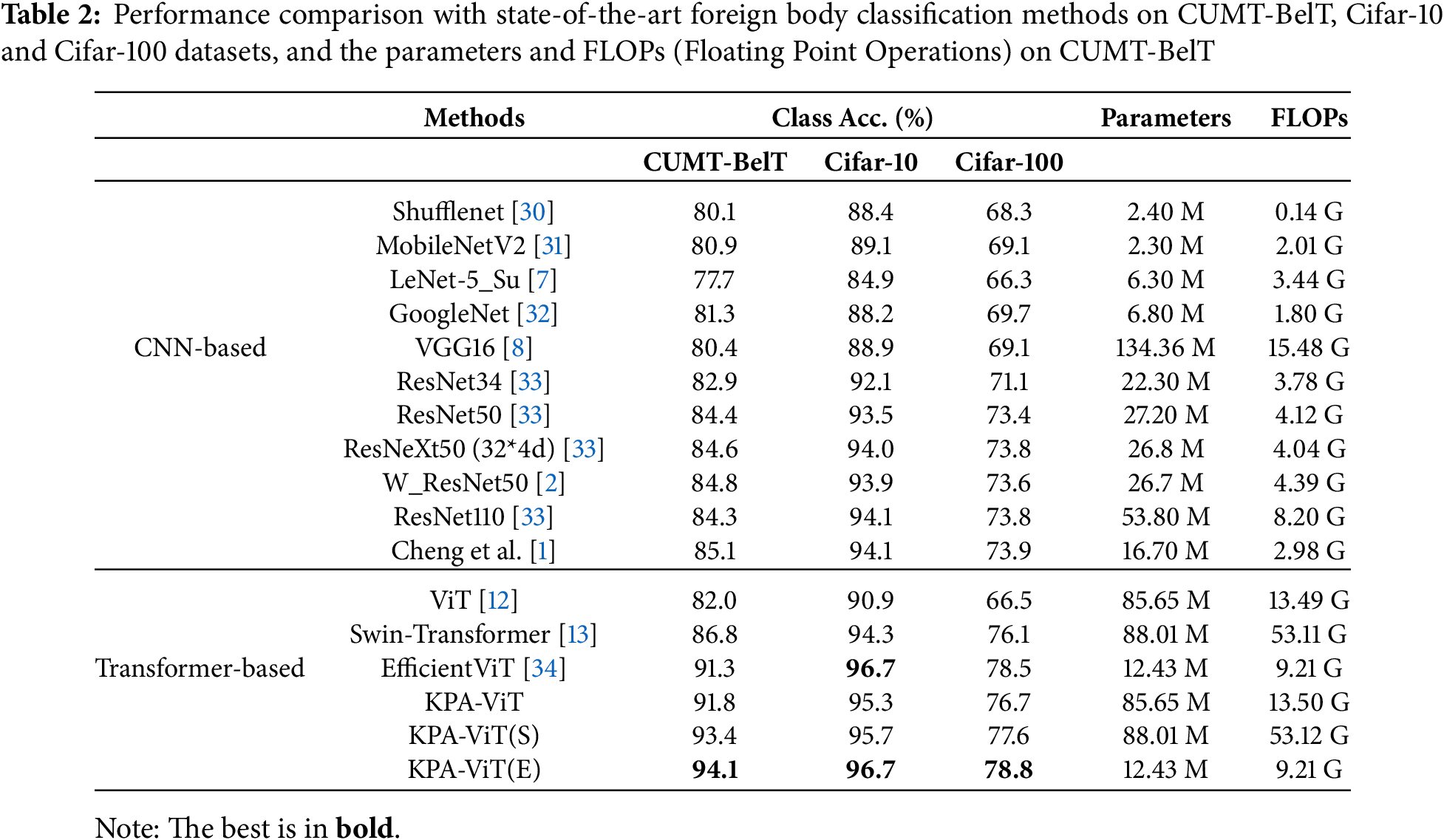

We proceed to compare our proposed method with the previous foreign body classification methods on coal conveyor belts, i.e., CUMT-BelT. Moreover, to verify the generalization of our method, we evaluate our method on two public classification benchmarks, i.e., Cifar-10 and Cifar-100. Table 2 presents the experimental results on CUMT-BelT [1], Cifar-10 [14], and Cifar-100 [14].

On CUMT-BelT. The CUMT-BelT dataset is collected from real coal mine scenarios. Thus, our method mainly focuses on the benchmark. We first compare our method to the state-of-the-art foreign body classification methods. The results of our method on CUMT-BelT are presented in Table 2 “CNN-based”, denoted as “CUMT-BelT”. Compared to the CNN-based foreign body classification methods, the performance of our KPA-ViT surpasses that of these methods on the CUMT-BelT dataset [1]. The results determine that the effectiveness of our KPA-ViT is owing to the prior extraction of local texture information and the focus on semantic information in key regions compared with the CNN-based methods.

About the transformer-based framework that performs well on computer vision tasks, our method is more suitable for the foreign body classification task on the coal conveyor belt, with a result of is higher by 9.8% than the ViT framework. Moreover, compared to the recent transformer-based frameworks, such as Swin-transformer [13] and EfficientViT [34], our KPA-ViT method also achieves better results on the foreign body classification on coal conveyor belt, i.e., CUMT-BelT. To explore the effectiveness of the key-local information in the classification task, we also introduce this information into the swin-transformer and efficientViT frameworks, termed as KPA-ViT(S) and KPA-ViT(E). To suit the methods, we first reconstruct the token embedding in the KPA-ViT according to the location of each keypoint. And then, the multi-head attention blocks in self-attention and cross-attention modules are replaced as the attention blocks in the Swin-transformer [13] and EfficientViT [34].The results are shown in Table 2 “Transformer-based”. Due to the limitation of training data, these transformer-based foreign body classification methods cannot effectively address the interference of complex background information, which affects the foreign body classification results. However, our KPA-ViT method can quickly capture effective regions and ignore the impact of background information on features, thereby reducing the dependence on large-scale training data.

4.6 More Discussions

With deformable attention. Without losing generality, we explore our method with different attention heads to extract features for foreign body classification. We replace each attention head in the attention module with a deformation attention head in our method, which is called “Ours (Defor.)”, and then evaluate it on CUMT-BelT, Cifar-10, and Cifar-100. The results are presented in Table 3. We can observe that the performances are slightly improved after incorporating the deformable attention module. The results determine that deformable attention is more suitable for foreign body classification. However, due to the more FLOPs (floating point operations) of deformation attention, i.e., 15.8 G, we do not adopt deformable attention, and it will be our further work.

With CNN+Transformer. The CNN-transformer framework has achieved excellent performance in the object detection task, which generates a descriptor for each receptive field through the CNN framework, and then generates the corresponding image descriptor through the attention mechanism in the transformer. In order to combine the proposed method with the CNN-transformer framework, we retain the center points corresponding to the key regions. By sending the image into the CNN to generate the corresponding feature map, and then searching for the corresponding embedding tokens based on the center point coordinates. The corresponding category distribution is generated by the proposed attention module. The results are shown in Table 3 “CNN+Trans”. We can observe that the performances of our method with CNN+Transformer, i.e., Ours (CNN+Trans), are slightly improved by 1.6% than “Ours” on the CUMT-BelT dataset. The CNN can provide more spatial context information for the embedding tokens, while the key region mining module can offer richer category-related clues for the image descriptors.

Training/inference speed analysis. We also evaluate the training and testing speed of our method on the CUMT-BelT dataset with two NVIDIA GeForce RTX 4090Ti. For our method, the training speed is 45.8 FPS and the testing speed is 120.4 FPS. In practical applications, the focus is on test speed. Therefore, our method is suitable for real-time foreign body classification tasks on coal conveyor belts.

Visualization results. To intuitively evaluate the effectiveness of our method, we visualize the features of the samples on the testing sets of CUMT-BelT learned by ViT, as in Fig. 4a, and our method, as in Fig. 4b. The points of the same color indicate that these samples are of the same class. The visualization results also indicate that our method can more accurately bring the training samples with the same class together than the ViT framework, which shows the discriminative capability of the features helped by our method, thus validating the effectiveness of our key part-level information and the cross-attention module.

Figure 4: The t-SNE (t-Distributed Stochastic Neighbor Embedding) visualization of the features of the testing samples on CUMT-BelT, which are extracted by (a) ViT and (b) KPA-ViT frameworks

5  Conclusion

In this paper, we propose a method for foreign body classification on a coal conveyor belt. Unlike most previous methods that mainly focus on global information and ignore key part-level information, the proposed method uses key local features with abundant appearance cues to boost the classification results. Specifically, the method first uses key-point detection to detect key points in images and then extracts the key part-level information by the key local mining strategy. Then, by introducing the attention module with cross-attention blocks to fully use the key part-level information for aggregating the features for foreign body classification. Extensive experimental results demonstrate that the proposed method is more suitable for the foreign classification on the coal conveyor belt, i.e., CUMT-BelT. Moreover, the method also has good results in the classification task, i.e., Cifar-10, and Cifar-100 datasets.

Limitations and Future Work. To fully explore the performance of our KPA-ViT, we present some incorrect and correct classification results with the keypoints, in Fig. 5. These visualization results determine that the keypoint detection may provide the erroneous keypoint locations caused by the lack of lighting conditions and complex background, etc. As a result, the local features corresponding to these erroneous keypoints always contain the key information of non-target objects (i.e., background), misleading the Attention Module to provide the incorrect classification results.

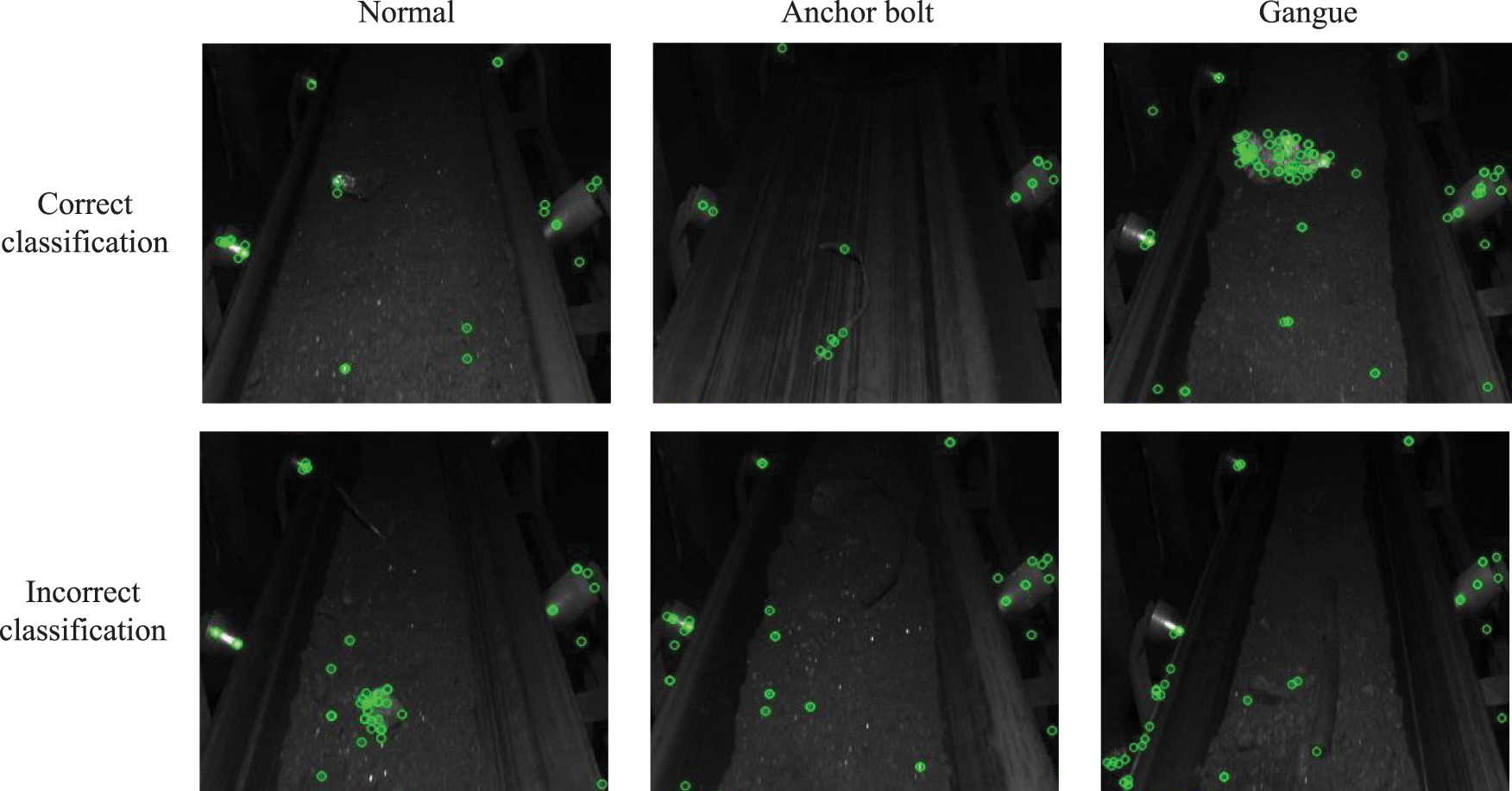

Figure 5: Some visualization results of the correct (upper) and incorrect (under) classification. From left to right, each column represents the image is normal (class:0), with an anchor bolt (class:1), and with Gangue (class:2)

To sum up, a robust keypoint detection method can provide accurate keypoint locations in the absence of lighting and complex underground scenes, thus providing reliable key-local information for the Attention Module to boost the classification results.

Acknowledgement: Not applicable.

Funding Statement: This research was funded by the National Key Research and Development Program of China (grant number 2023YFC2907600), the National Natural Science Foundation of China (grant number 52504132), Tiandi Science and Technology Co., Ltd. Science and Technology Innovation Venture Capital Special Project (grant number 2023-TD-ZD011-004).

Author Contributions: Conceptualization: Haoxuanye Ji, Pengfei Jiang, and Ting Yu; methodology: Pengfei Jiang, Ziyue Wang, and Haoxuanye Ji; software: Zhiliang Chen and Haoxuanye Ji; formal analysis: Pengfei Jiang, Zhiliang Chen, and Haoxuanye Ji; investigation: Pengfei Jiang and Wei Zhang; writing—original draft preparation: Pengfei Jiang, Haoxuanye Ji, and Zhiliang Chen; writing—review and editing: Pengfei Jiang, Haoxuanye Ji, Ziyue Wang, Zhiliang Chen, Ting Yu, and Wei Zhang; supervision: Ting Yu and Wei Zhang. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The datasets ANALYZED for this study can be found in the [CUMT-BelT] [https://github.com/CUMT-AIPR-Lab/CUMT-AIPR-Lab] (accessed on 26 September 2025) and the [Cifar-10] and [Cifar-100] [http://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz] (accessed on 26 September 2025).

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest to report regarding the present study.
