Steganography in IoT Applications: A Survey on Methods, Current Emerging Challenges, and Future Directions

1  Introduction

Today, technology is advancing at a rapid pace. One of the most widely used technologies of this era is the Internet of Things (IoT) [1]. A core feature of IoT systems is their ability to provide intelligent connectivity by leveraging existing network infrastructures and enabling context-aware computation. The expansion of wireless technologies, such as 5G and Wi-Fi, has significantly contributed to the growth of IoT communication and data exchange. However, realizing the full potential of IoT requires moving beyond traditional mobile computing toward a paradigm where intelligence is seamlessly embedded into everyday environments and objects [2]. For secure, smart, and context-aware connectivity within IoT, several foundational requirements must be met: (1) accurate identification of users and their devices, (2) robust and scalable communication frameworks to transmit and process contextual data effectively, and (3) intelligent analytics that support autonomous decision-making. Within this landscape, steganography plays a vital role in securing data exchange, ensuring that sensitive information remains hidden even across pervasive and resource-constrained IoT networks.

Fundamentally, IoT systems consist of a four-layer architecture [2], which includes the perception layer, network layer, processing layer, and application layer. The perception layer is responsible for collecting environmental data. Then, the network layer is responsible for transferring data collected earlier to the processing unit. Furthermore, the processing layer is responsible for processing and analyzing data to make decisions. And lastly, the application layer provides an interface to users based on processed data [3–6].

Steganography is a data hiding technique that conceals information within various carriers, such as images [7–12], audio [13–16], video [17–21], text [22,23], or even network protocols [24], in a way that avoids detection. By embedding important information into digital content, steganography enables hidden data transfer while preserving the normal appearance of the carrier media. Unlike cryptography [25–30], which transforms data into unreadable ciphertext to protect the content of the data, steganography focuses on concealing the very existence of the data transfer itself. This difference gives steganography an advantage in scenarios where encrypted data alone may raise suspicion and increase the risk of interception.

As illustrated in Fig. 1, the continuous data transmission within the IoT environment provides adversaries with greater opportunities for data interception. Interconnected devices constantly exchange sensitive packets through the network, such as sensor readings, device status logs, and actuator control commands. This constant exchange makes the IoT communication channel an attractive target for attackers. Without any appropriate security mechanism, the intercepted data is instantly compromised and left completely transparent to the attacker. Unauthorized parties can then easily understand, process, and possibly exploit the acquired data maliciously. This critical vulnerability highlights the importance of data protection within IoT environments. Therefore, the implementation of steganography in IoT presents a viable solution, since it can provide data security by concealing the transmitted data from potential attackers.

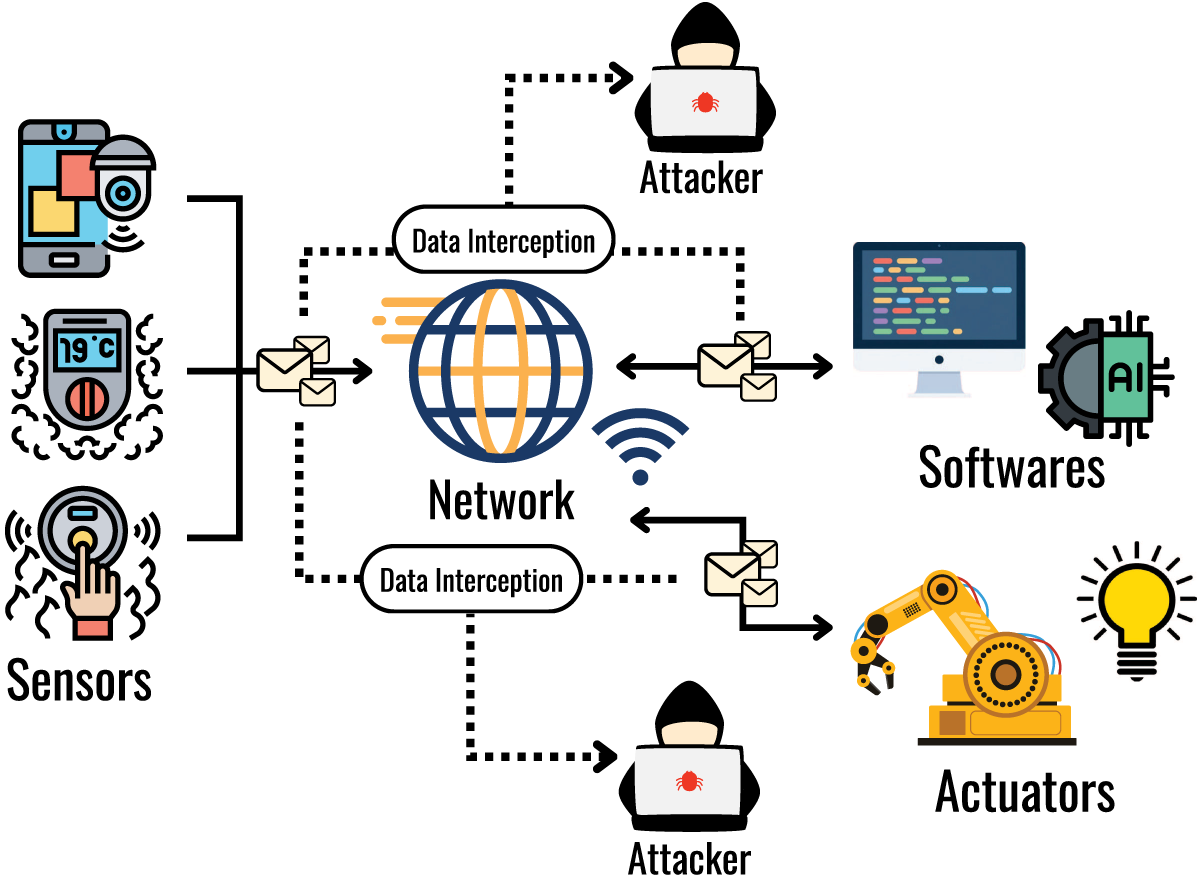

Figure 1: Illustrative IoT data interception scenario.

In IoT contexts, where devices often operate with minimal resources and handle sensitive data, steganography offers a discreet layer of protection [22,23]. It has demonstrated promising applications in various domains, including competent healthcare [31–33], industrial systems [34,35], smart homes, cities, and financial IoT infrastructures, helping to mitigate cyber risks while minimizing substantial computational overhead [27]. However, integrating steganography into IoT environments poses unique technical challenges due to the limited processing power, energy constraints, and real-time demands of IoT devices [36]. These systems generate high volumes of data, requiring steganographic techniques that are lightweight, efficient, and compatible with existing communication protocols. Additionally, such methods must remain scalable and undetectable, ensuring minimal impact on system performance, network delay, and energy use. As steganalysis tools become more advanced, conventional hiding techniques are increasingly vulnerable to exposure [37,38]. To enhance resilience, researchers are exploring adaptive approaches, as well as hybrid models that combine steganography with cryptographic techniques to improve confidentiality and robustness [39]. In addition to adaptive and hybrid models, emerging technologies such as blockchain [40–43] offer promising avenues by ensuring decentralized trust, traceability, and tamper-resistant data handling. These developments are critical to advancing secure, efficient, and reliable steganographic solutions in next-generation IoT applications.

Effectively addressing steganography within IoT environments requires lightweight, adaptive, and forward-looking approaches that reflect the highly dynamic, distributed, and resource-constrained nature of these systems. As IoT networks scale in complexity and face increasingly sophisticated security threats [44], there is a growing need for intelligent steganographic models that can adjust embedding strategies in real-time based on fluctuating network conditions, device capabilities, and evolving threat landscapes. While several prior surveys have examined steganography in general contexts [45,46], few have addressed the specific constraints of IoT devices, including limited memory, processing power, energy efficiency, and the requirement for real-time operation. Additionally, challenges related to interoperability, scalability, and performance in large-scale IoT deployments remain insufficiently explored.

This survey aims to fill these gaps by providing a focused, in-depth review of steganographic methods, with an emphasis on their applicability and optimization for IoT systems. It also investigates the potential of emerging technologies to enhance adaptability, security, and resilience in IoT-specific steganographic solutions. Beyond evaluating existing methods, this work identifies current limitations and sets a foundation for future research in building scalable, efficient, and context-aware steganography frameworks for secure and discreet communication in diverse IoT applications. In this context, the survey makes the following key contributions:

1.   Deliver a comprehensive and focused review of steganographic techniques specifically designed or adapted for IoT applications. This includes an in-depth examination of their design principles, operational mechanisms, and practical limitations when deployed in IoT systems. The survey highlights how these methods align with the core requirements of IoT, such as low latency, low power consumption, and minimal computational overhead.

2.   Propose a focused taxonomy that maps the diverse landscape of steganography methods in IoT systems. This framework illustrates the breadth of current research by categorizing approaches into generative deep learning methods and cryptographic hybrids alongside optimization-driven designs and alternative cover media. This structure highlights the multifaceted strategies used to secure resource-constrained networks and ensures they are not artificially isolated during comparative analysis.

3.   Identify current research gaps and future directions. This includes the need for adaptive and context-aware steganographic models that can intelligently respond to dynamic network conditions and emerging security threats. The survey advocates for the development of scalable and interoperable frameworks that support real-time data hiding while preserving the functionality and efficiency of heterogeneous IoT networks.

The studies included in this survey were identified and screened through a systematic literature review process, shown in Fig. 2 and explained in full in Section 3, which determined the final set of papers analyzed in the taxonomy and comparisons that follow. To contextualize the varied applications of data hiding in IoT ecosystems this paper presents a streamlined taxonomy as illustrated in Fig. 3. Moving away from generalized network security models this framework explicitly categorizes steganography methods in IoT into four highly relevant thematic areas. The first area is Cryptographic and Steganographic Hybrids which layer encryption directly with covert communication channels. The second area covers Optimization-Driven Image Steganography to highlight techniques that mathematically balance imperceptibility and payload capacity. The third area encompasses Generative and Deep Learning Steganography to reflect the growing reliance on artificial intelligence for adaptive payload distribution. The final area is Coverless and Novel Alternative Media which explores data hiding across video networks and DNA sequences without altering traditional carrier pixels. The subsequent review merges these techniques into unified comparative tables to better highlight cross-domain trade-offs and operational performance. Therefore this taxonomy is not used to strictly partition the literature but rather serves as a conceptual map. It illustrates the immense diversity of current methodologies and sets the stage for the integrated analyses.

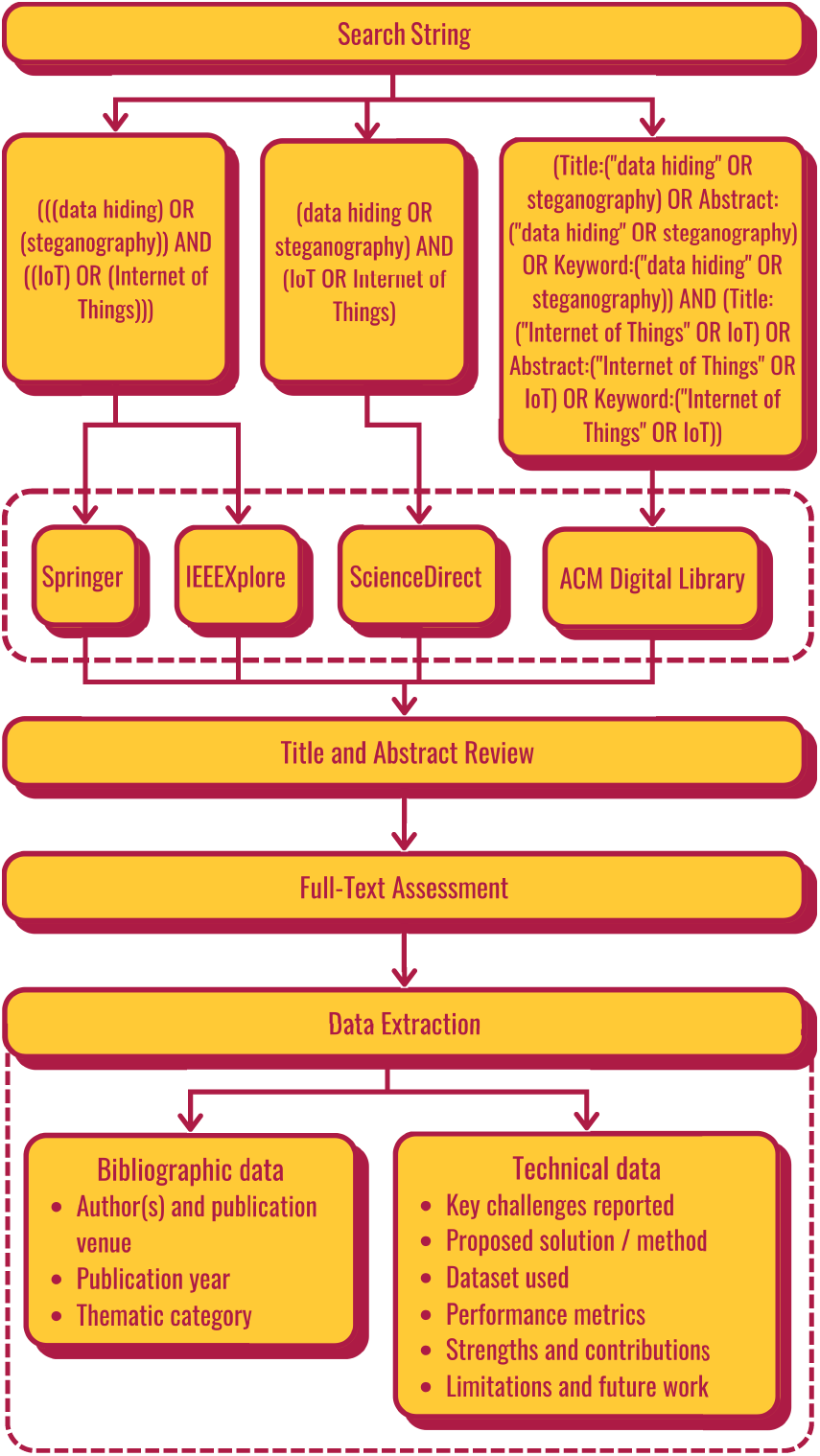

Figure 2: Survey data collecting and filtering process.

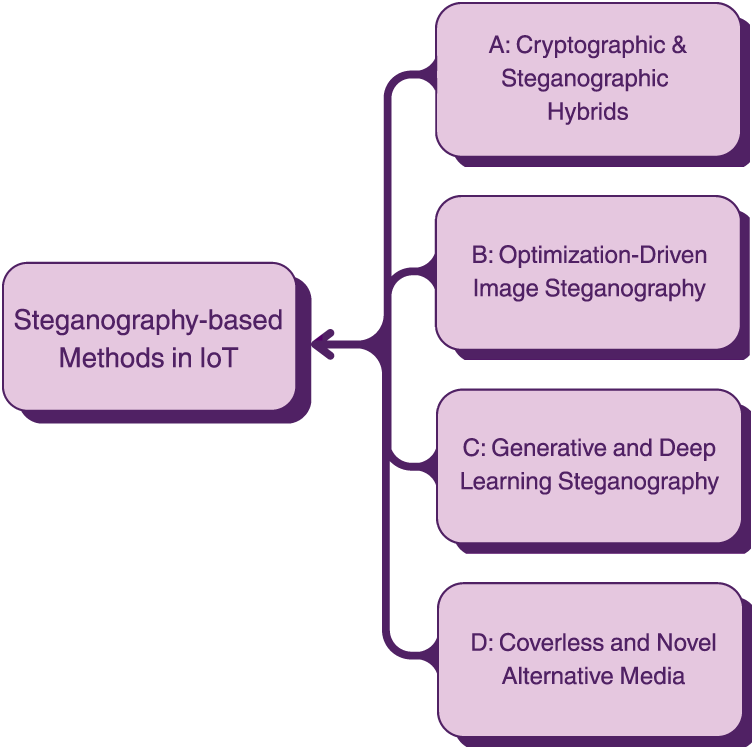

Figure 3: A taxonomy of security approaches in IoT ecosystems. A: [32,56,57,59,62–65,68] B: [35,69] C: [31,58,60,70] D: [61,66,67].

This paper is organized into six sections. Following the Introduction, Section 2 discusses related previous survey works on steganography with particular emphasis on their relevance to IoT environments. Section 3 describes the significance of this survey, presenting its rationale and the methodology used to filter and analyze existing literature on steganography techniques. Section 4 presents the main findings and provides detailed discussions of the reviewed literature. Section 5 highlights key insights and inferential take-away messages that can guide future research in IoT steganography. Lastly, Section 6 concludes the paper by summarizing the contributions and implications of this work.

2  Related Works and Surveys

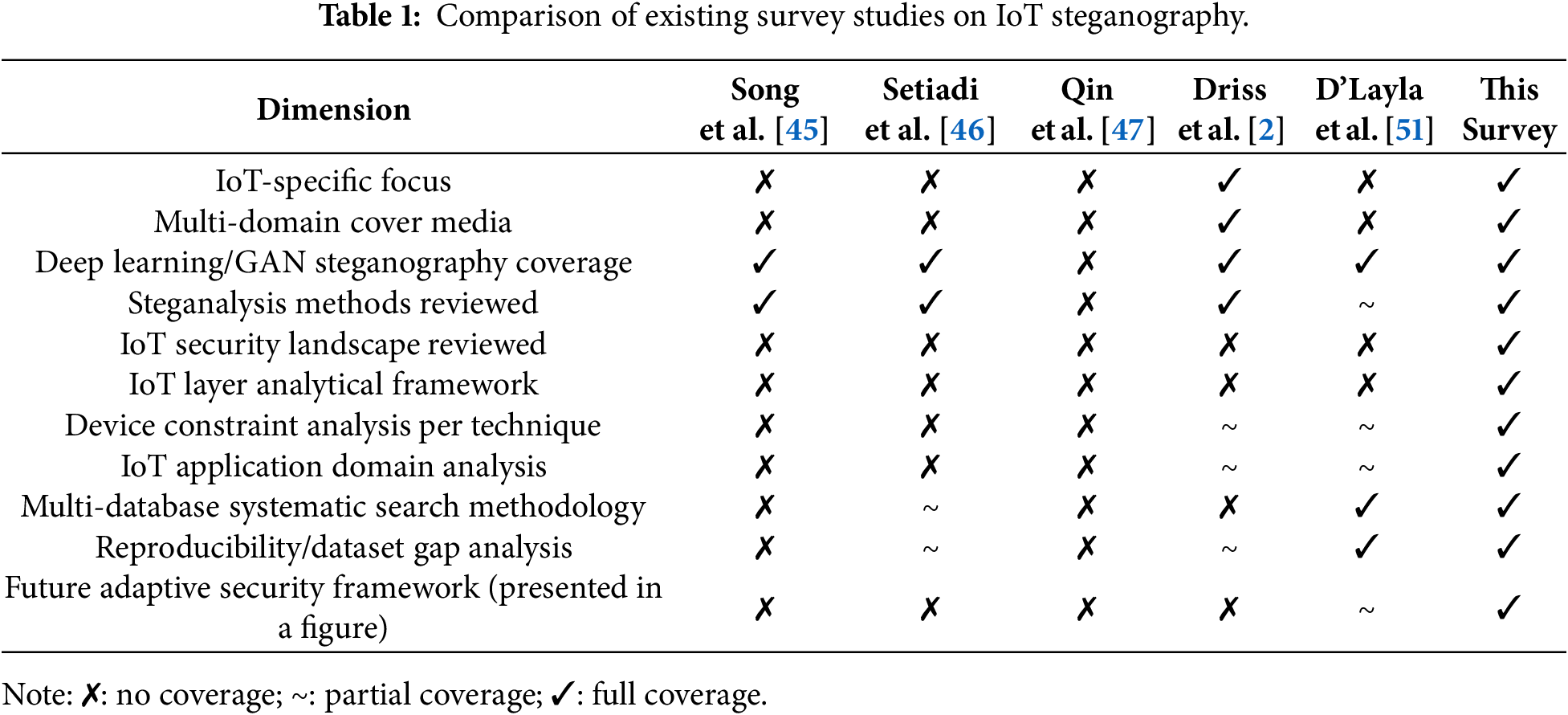

This section reviews existing works and surveys in the field of steganography, focusing on their relevance and applicability to IoT environments. It critically examines the extent to which current literature addresses the unique constraints of IoT systems, including limited computational and energy resources, real-time data processing requirements, low-latency communication, and heightened demands for data privacy and integrity. Although several surveys have explored general steganographic methods [45–47], few have tailored their analyses to the specific challenges posed by IoT networks. This gap underscores the need for a more targeted evaluation that examines the interplay between lightweight security mechanisms and the operational constraints of IoT. By identifying these shortcomings, this paper aims to lay the groundwork for future research and offer new perspectives on designing steganographic approaches suited for IoT ecosystems.

Several studies have explored the integration of steganography with cryptographic techniques to enhance data confidentiality and integrity [39,48–50]. While these studies demonstrate enhanced security performance, they often overlook critical constraints related to IoT. They tend to focus on traditional computing environments, overlooking key aspects relevant to IoT, including processing limitations, energy efficiency, bandwidth constraints, and real-time operational requirements. Moreover, these works lack comparative evaluation frameworks that assess the effectiveness of steganographic approaches under IoT-specific conditions. As a result, their findings, although valuable in broader contexts, underscore the necessity for research that is explicitly focused on steganography within the constraints and demands of IoT systems.

A survey in [45] explores the integration of steganography with deep learning, offering a detailed classification of steganographic strategies, overviews of learning models, and evaluation metrics. It discusses the use of convolutional and generative models to improve adaptability and detection resistance. However, it lacks focus on IoT-specific constraints such as limited memory, processing power, and the need for energy-efficient and real-time operations, which limits their relevance to IoT deployments. Likewise, [46] provides a comprehensive overview of digital image steganography, covering classification methods, evaluation criteria, and emerging techniques. While informative, it does not address the practical challenges of implementing steganography in IoT, including lightweight design, computational efficiency, or power-aware processing. These omissions restrict its applicability to real-world IoT scenarios. Additionally, a comprehensive survey in [47] investigates coverless image steganography, a technique that maps secret data directly to inherent image attributes to effectively resist steganalysis tools. Despite evaluating fundamental frameworks, pre-processing techniques, feature extraction, generation of hash sequences, and mapping relationships, it does not specifically focus on IoT resource constraints, leaving the applicability of these techniques in such environments unclear. The survey in [2] represents a closer effort, explicitly targeting IoT steganographic contexts and covering multi-domain cover media, yet it still lacks a dedicated IoT security landscape review, an IoT layer analytical framework, and a formally documented multi-database systematic search methodology. Similarly, D’Layla et al. [51] contribute a rigorous systematic search methodology and reproducibility analysis within the medical imaging domain, but its scope remains confined to healthcare applications and does not extend to broader IoT environments or multi-domain cover media. While these surveys collectively advance the understanding of steganography in various contexts, they fail to account for the unique demands of IoT ecosystems.

This study fills that gap by focusing on resource-conscious steganographic solutions explicitly tailored to IoT environments. To provide a clearer interpretation, Table 1 presents a structured comparison of this survey against five closely related works across eleven analytical dimensions. The surveyed papers include two image steganography surveys [46,47], one survey focused specifically on deep learning-based image steganography [45], one IoT-focused steganography survey [2], and one systematic review of medical image steganography [51]. The dimensions were selected to reflect the specific analytical demands of IoT-aware steganographic research, covering IoT-specificity, cover media diversity, security landscape coverage, device constraint analysis, and methodological rigour. The comparison reveals a clear progression in scope across the surveyed works. Song et al. [45] focus specifically on deep learning-based image steganography, Setiadi et al. [46] survey broader digital image steganography methods, and Qin et al. [47] examine coverless image steganography exclusively. None of these three works addresses IoT-specific constraints, multi-domain cover media beyond images, or systematic IoT security analysis. The survey by Driss et al. [2] represents the closest prior work, covering IoT-specific focus and multi-domain media, yet lacks dedicated IoT security landscape coverage, an IoT layer analytical framework, and a formally documented multi-database systematic search methodology. The medical image steganography survey [51] contributes a rigorous systematic search methodology and a dedicated dataset and reproducibility analysis, but is constrained to the healthcare domain and does not address IoT environments broadly, multi-domain cover media beyond medical images, or the full IoT security landscape. The present survey is the only work covering all eleven dimensions, offering IoT-layer-aware analysis, cross-domain security landscape review, per-technique device constraint evaluation, and a forward-looking adaptive security framework, thereby addressing gaps that remain unresolved across all five prior surveys.

Given the growing need for secure and efficient data transmission in resource-constrained environments, there is an urgent demand for a focused survey that addresses steganographic techniques explicitly tailored for IoT systems. Although previous studies have reviewed traditional, cryptographic [40], and deep learning-based steganography [45], they largely neglect the operational constraints inherent to IoT, such as limited processing power, restricted memory, energy constraints, and the need for real-time responsiveness. Integrating steganography into IoT holds significant promise, offering lightweight data concealment, reduced communication overhead, and enhanced privacy without the computational cost of conventional encryption. Recent advances, such as adaptive payload distribution using deep neural networks [52,53], secure embedding through multi-hashing, and imperceptible data hiding via generative models [54,55], highlight the potential for high-security, low-cost solutions.

3  Significance of This Survey

This section presents the motivation and methodology for reviewing steganography literature within IoT environments. It first covers the underlying research rationale for the survey and then describes the systematic approach used to analyze the literature.

3.1 Rationale

The rapid development of IoT technologies has created an urgent demand for lightweight and secure data transmission mechanisms. As IoT systems expand into domains such as industrial automation, smart homes, urban infrastructure, and financial services, they impose strict constraints on processing power, energy consumption, and communication latency. These constraints pose significant challenges for conventional security techniques, particularly cryptographic algorithms that are computationally intensive and often unsuitable for resource-constrained devices. As a result, alternative approaches that offer robust security while maintaining operational efficiency have become a critical area of investigation.

In this context, steganography has emerged as a promising complementary solution for secure communication in IoT environments. By embedding sensitive information within seemingly ordinary data, steganographic techniques provide a covert channel that enhances confidentiality without introducing significant computational or energy burdens. This transparent nature makes it well-suited for IoT devices where maintaining low overhead is essential. Despite growing interest in this field, the existing body of literature lacks a systematic evaluation of how steganographic methods align with the unique operational constraints of IoT. This survey, therefore, aims to fill that gap by consolidating current advancements, critically assessing their applicability, and providing clear directions for the development of next generation steganographic solutions explicitly tailored to IoT ecosystems. To comprehensively evaluate the current steganographic applications within the IoT domain, this survey employs a structured literature analysis approach, drawing on scientific publications sourced from major academic databases. The objective is to identify and assess the adaptation and performance of steganographic techniques under the unique constraints imposed by IoT systems. To guide this investigation, the following research questions were formulated:

1.   What are the primary motivations for adopting steganographic techniques in IoT environments?

2.   Which steganographic methods have been specifically developed or modified to suit IoT applications?

3.   How do these methods address the core limitations of IoT devices, such as constrained power, memory, and processing capabilities?

4.   What technical challenges and implementation barriers hinder the effective deployment of steganography in IoT systems?

5.   What are the emerging trends and future research directions in steganography tailored to the evolving needs of IoT security?

3.2 Methodology of the Systematic Review

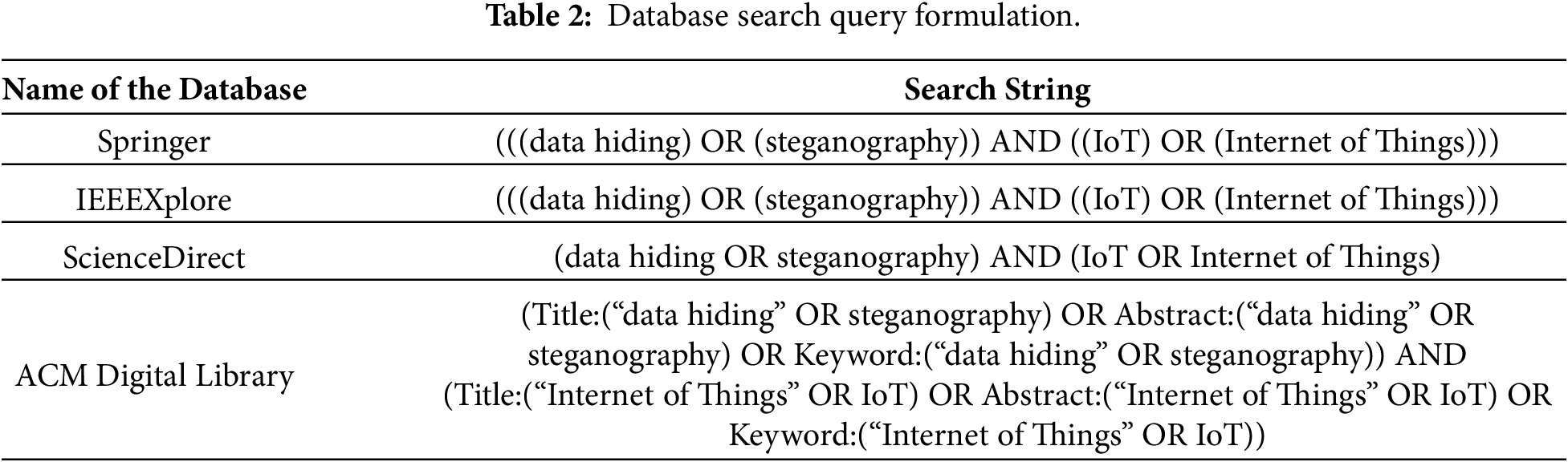

This study undertakes a systematic literature review to examine the integration of steganographic techniques within IoT frameworks. The review draws upon scholarly contributions from interdisciplinary domains, including computer security, digital signal processing, and data hiding, with a focus on research outcomes relevant to secure and covert communication in IoT environments. The literature search targeted peer-reviewed journal articles and conference proceedings published between 2020 and 2026, written in the English language. To ensure comprehensive coverage, key search terms, including “steganography,” “data hiding,” and “Internet of Things,” were utilized. These keywords were systematically combined using Boolean operators (AND/OR) to construct precise search queries, which were executed across four major scientific databases: SpringerLink, IEEEXplore, ScienceDirect, and the ACM Digital Library. This strategy ensured the identification of relevant studies across both the engineering and applied sciences disciplines with an emphasis on real-world implementation of steganographic approaches in IoT contexts. The general search query applied was ((Steganography OR Data Hiding) AND (Internet of Things OR IoT)). The exact query formulations used in each database are summarized in Table 2. Following query execution, the retrieved records underwent duplicate removal and a two-stage screening process consisting of title and abstract review followed by full-text assessment to verify alignment with the defined scope. Studies that did not address steganographic techniques within IoT environments were excluded at each stage. Papers passing full-text review were then subjected to structured data extraction covering bibliographic information and technical details, including proposed methods, datasets, performance metrics, and reported limitations. The complete workflow applied throughout this review is illustrated in Fig. 2.

4  Findings and Discussions

This section presents the key findings on security challenges and methodological approaches to data hiding and steganography in IoT. It encompasses device constraints, implementation difficulties in dynamic and resource-limited environments, existing methods, datasets, and evaluation practices. It also discusses future directions toward secure and scalable IoT steganographic solutions. To assess the effectiveness and reliability of these techniques, the reviewed literature typically relies on four key criteria outlined in this section. These measures are:

1.   Imperceptibility, which assesses how well the embedded data blends with the original medium. The most common metrics for imperceptibility are Mean Squared Error (MSE), Peak Signal-to-Noise Ratio (PSNR), and the Structural Similarity Index (SSIM) defined as in Eqs. (1)–(3).

MSE=1h×w∑i=1h∑j=1w(ci,j−si,j)2(1)

PSNR=10×log10MAX2MSE(2)

SSIM(x,y)=(2μxμy+C1)(2σxy+C1)(μx2+μy2+C1)(σx2+σy2+C2)(3)

In these equations, ci,j and si,j denote the pixel values of the cover and stego images at coordinates (i,j). The variables h and w represent the image’s height and width. The MAX variable denotes the maximum pixel value. Furthermore, x and y denote the two images being compared (cover and stego). Lastly, μ represents the mean pixel intensity, σ2 is the variance, and σxy is the covariance.

2.   Embedding Capacity, which evaluates the amount of data that can be hidden without compromising performance.

3.   Robustness, which measures resistance to tampering or signal degradation using metrics like BER as defined in Eq. (4).

BER=Number of Erroneous BitsTotal Number of Bits Embedded(4)

4.   Security, which concerns the detectability and recoverability of the hidden data.

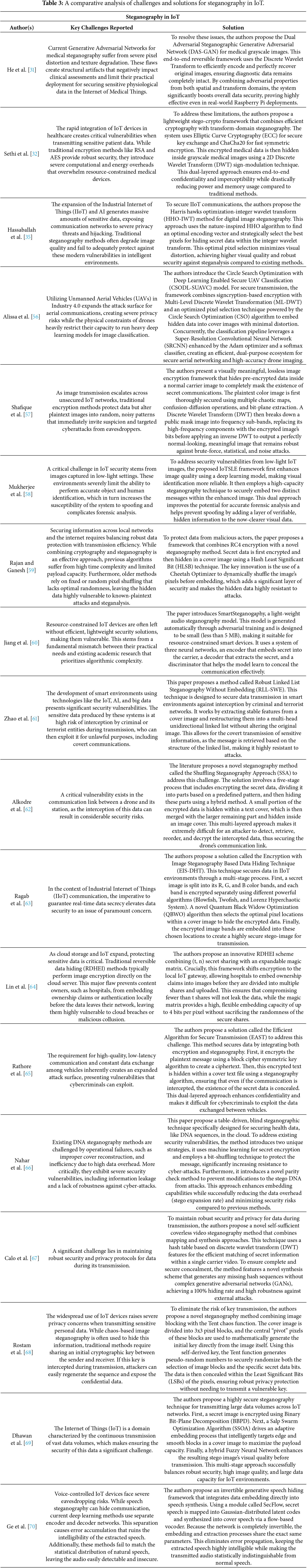

4.1 Challenges and Practical Barriers in Adapting Steganographic Techniques to IoT Ecosystems

Steganographic research directed at the IoT spans an unusually broad set of application domains, ranging from medical imaging and cloud-hosted health records to unmanned aerial vehicles, industrial control networks, connected vehicles, and voice-controlled smart devices. Each of these domains is represented among the works compiled in Table 3, and taken together they paint a fairly consistent picture of what makes IoT deployment difficult. Rather than a single unified obstacle, what emerges is a cluster of interrelated adaptation problems, namely hardware and energy constraints, contextual and environmental variability, an increasingly adversarial detection landscape, and the operational complexity introduced once multi-stage security pipelines are assembled. These four threads recur across nearly every entry in the table, and they help explain why steganographic techniques that perform well under laboratory evaluation frequently struggle to translate into deployable IoT solutions.

The most immediate barrier concerns the limited processing power, memory, and energy reserves available on typical IoT hardware. Conventional cryptographic primitives such as RSA and AES are well understood and robust, but they impose computational overheads that resource-constrained medical and wearable devices cannot comfortably sustain. This concern motivated Sethi et al. [32] to pair Elliptic Curve Cryptography with the lighter ChaCha20 cipher and embed the resulting ciphertext through a sign-modulation based two-dimensional discrete wavelet transform, reporting substantially reduced power and memory consumption relative to conventional approaches. Jiang et al. [60] confront the same constraint from the perspective of audio steganography, observing that much of the academic literature prioritizes algorithmic sophistication over deployability, and responding with SmartSteganogaphy, an adversarially trained encoder-decoder-discriminator architecture compressed to under five megabytes so that it can run on smart embedded devices. He et al. [31] extend this concern to medical image security by validating their Dual Adversarial Steganographic Generative Adversarial Network on genuinely constrained hardware, specifically a Raspberry Pi platform, rather than relying solely on simulated results, which underscores that lossless recovery of diagnostic imagery through discrete wavelet decomposition must remain computationally tractable even outside controlled laboratory conditions.

A second, closely related challenge arises from the sheer heterogeneity of IoT deployment contexts, which prevents any single embedding strategy from generalizing cleanly across domains. Unmanned aerial platforms illustrate this tension particularly well, since Alissa et al. [56] note that the physical constraints of drones severely limit their capacity to run deep classification models. They respond by combining signcryption-based encryption with multi-level discrete wavelet transformation and Circle Search Optimization for pixel selection, while reserving a lightweight super-resolution convolutional network for the classification stage itself. Alkodre et al. [62] approach the same drone-to-ground-station vulnerability rather differently, distributing an encrypted payload across a five-stage process that splits data between text and image covers so that no single channel carries the full secret. Industrial environments introduce their own timing pressures, with Hassaballah et al. [35] relying on Harris Hawks Optimization to select an optimal encoding vector within an integer wavelet transform so as to minimize visual distortion while resisting steganalysis, and Ragab et al. [63] splitting a secret image into its red, green, and blue components before applying three distinct encryption algorithms and using Quantum Black Widow Optimization to locate suitable embedding positions, a design intended to satisfy the near real time secrecy demands of Industrial IoT communication. Vehicular networks present a comparable challenge, addressed by Rathore et al. [65] through a block cipher combined with text-based steganography for the Internet of Vehicles, and more broadly by Rajan and Ganesh [59], whose Cheetah Optimizer driven pixel shuffling paired with Hash Least Significant Bit embedding targets the time complexity and predictable shuffling patterns that had previously left transmitted data vulnerable to known-plaintext attacks. Environmental variability compounds this same heterogeneity problem, since the conditions under which IoT devices actually capture and transmit data are rarely as clean as those assumed during algorithm design. Mukherjee et al. [58] make this point directly by targeting low-light image capture, a common scenario for surveillance and monitoring nodes, in which reduced visual clarity undermines both human identification and forensic verification. Their IoTSLE framework first applies deep learning based enhancement before performing high-capacity embedding of two distinct messages using finite automata and DNA computing principles, thereby treating image quality as something to be actively corrected rather than assumed fixed.

Beyond resource and contextual limitations, the growing sophistication of steganalysis and adversarial detection tools represents a distinct and evolving threat that many of the surveyed methods explicitly target. As IoT ecosystems increasingly incorporate artificial intelligence and large-scale analytics, adversaries gain access to adaptive classifiers capable of flagging statistically anomalous carrier signals, which has pushed several research groups away from simple least-significant-bit style modification. Shafique et al. [57] construct a visually meaningful encryption scheme in which chaotic maps, confusion-diffusion operations, and bit-plane extraction secure the plaintext before its bits replace selected high-frequency wavelet sub-bands of an otherwise ordinary carrier image, producing output that resists brute-force, statistical, and noise-based attacks while giving no visual indication that a secret exists. Zhao et al. [61] pursue an even more conservative strategy through steganography without embedding, extracting stable features from a cover image and reorganizing them into a multi-head unidirectional linked list so that the carrier itself is never modified, a property intended to defeat interception by criminal or terrorist networks operating within smart environments. Rostam et al. [68] isolate a narrower but often overlooked vulnerability, namely the transmission of the cryptographic key itself, and eliminate it entirely by deriving a Tent chaos function seed from the pivot pixels of three by three image blocks, removing the need to exchange any key between sender and receiver in the first place. Nahar et al. [66] apply a comparable defensive posture to DNA-based health data steganography, combining machine learning driven encryption with a bit-shuffling technique and a novel parity check mechanism that prevents undetected modification of the stego sequence, while also reducing the stego expansion rate relative to earlier table-driven methods. Ge et al. [70] extend this same adversarial concern into the speech domain, showing that conventional encoder-decoder speech hiding architectures fail to reproduce the natural statistical distribution of speech and are therefore detectable, and countering this with an invertible generative framework, SecFlow, in which secret speech is mapped to Gaussian distributed latent codes and synthesized through a flow-based vocoder whose embedding and extraction stages share identical parameters, keeping the resulting audio statistically close to ordinary synthesized speech.

A further source of difficulty lies in the architectural and operational complexity that many of these solutions introduce once cryptographic, optimization-based, and neural components are combined into a single pipeline. Lin et al. [64] address a structural weakness in conventional reversible data hiding for encrypted images, namely that encryption is typically performed on the cloud server itself, leaving content owners unable to embed ownership claims locally. Their solution relocates encryption to the IoT gateway and combines a (t,n) secret sharing scheme with an expandable magic matrix capable of an embedding capacity of up to four bits per pixel without compromising the randomness of the resulting shares. Calo et al. [67] avoid heavy generative components altogether in coverless video steganography, instead using a discrete wavelet transform based hash table for secret matching and a dedicated synthesis scheme for any missing hash sequences, achieving a reported hiding rate of one hundred percent without relying on generative adversarial networks. Dhawan et al. [69] illustrate a different form of complexity by chaining Binary Bit-Plane Decomposition for encryption, a Salp Swarm Optimization Algorithm that adaptively targets edge and smooth regions of the cover image for embedding, and a hybrid Fuzzy Neural Network for post-embedding quality enhancement. Taken together, these examples show that while multi-stage architectures reliably improve individual performance metrics, they also raise integration and maintenance burdens that become increasingly difficult to manage as systems scale across heterogeneous fog, edge, and cloud layers.

A final, somewhat cross-cutting issue becomes visible only when these methods are considered as a whole, and it concerns the absence of a shared evaluation methodology across the field. Each contribution tends to report the metrics most favorable to its own design, whether that is embedding capacity, distortion measures such as PSNR and SSIM, resistance to a particular class of steganalysis, or processing latency, but rarely all of these simultaneously and rarely under comparable device and network conditions. This inconsistency makes it genuinely difficult to determine whether performance gains reported for, say, a drone-oriented UAV classification framework would transfer cleanly to a medical IoT setting with very different bandwidth and power characteristics. It is likewise unclear whether a scheme demonstrated on desktop-class hardware would retain its reported advantages once deployed to the kind of constrained edge nodes it was ostensibly designed for. Without common benchmarks, readers are left to compare methods largely on the strength of the authors’ own framing rather than on directly comparable evidence.

Addressing these compounding challenges will likely require research to move beyond isolated algorithmic improvements toward more systemic solutions. Lightweight, adaptive embedding algorithms that scale their computational footprint to available device resources would help close the gap between laboratory performance and real deployment. Gateway or edge-native processing that avoids dependence on centralized cloud infrastructure, together with steganographic designs that are explicitly evaluated against adaptive, learning-based steganalysis rather than static detectors, would further address the resource, heterogeneity, and adversarial dimensions identified above. Equally important is the development of standardized benchmarking protocols that jointly report capacity, imperceptibility, energy consumption, and throughput under realistic and reproducible IoT conditions, which would allow the diverse contributions surveyed here to finally be compared on genuinely equal terms rather than through isolated, domain-specific evaluations.

4.2 Datasets, Performance Benchmarks, and Reported Strengths of Steganographic Techniques in IoT

Steganography continues to serve as a central technique for enhancing Internet of Things security, allowing sensitive information to be embedded within images, audio, video, or even biological sequences so that its transmission remains covert. Table 4 compiles eighteen recent contributions spanning medical imaging, industrial and Industrial IoT communication, unmanned aerial vehicles, voice-controlled devices, vehicular networks, and cloud-based health data, each evaluated on its own datasets and performance metrics. This section synthesizes the methodological trends visible across these works, the quantitative strengths they report, and the gaps that remain once the datasets and evaluation protocols are examined collectively. Image-based approaches dominate the collection, but the range of media types and target applications is considerably broader than a single modality can capture.

Among the image-based methods, imperceptibility figures reported through PSNR and SSIM are consistently high, though the specific values vary with embedding capacity and payload size. Sethi et al. [32] report a PSNR as high as 75.32 dB on the MURA radiograph dataset for their ECC-ChaCha20 and wavelet-based scheme, while Hassaballah et al. [35] reach 52.47 dB and an SSIM of 0.9988 on the USC-SIPI database using Harris Hawks Optimization for pixel selection. Rajan and Ganesh [59] similarly report PSNR up to 61.68 dB with SSIM reaching 0.9999 through their Cheetah Optimizer-driven pixel shuffling and Hash LSB scheme, and Ragab et al. [63] achieve comparable fidelity, with PSNR up to 56.76 dB, SSIM up to 0.9995, and a Quality Index of 1.000 on the same USC-SIPI images. Dhawan et al. [69] report PSNR up to 60.82 dB and SSIM up to 0.999279 for their hybrid optimization framework, and their measurements extend across three separate cover images to show how quality shifts with increasing payload. He et al. [31] evaluate their reversible DAS-GAN on medical neuroimaging datasets, reporting PSNR up to 44.32 dB together with an effective embedding capacity reaching 3.3704 bits per pixel and classification accuracy up to 98.84% on ADNI, figures that decline only modestly on the BraTS2023 dataset.

Beyond static images, several contributions target other media entirely. Jiang et al. [60] apply adversarial training to speech data drawn from TIMIT and LibriSpeech, reporting carrier and secret loss values as low as 0.0001 and 0.0003 respectively, along with a carrier SNR reaching 7.2413. Ge et al. [70] extend speech steganography further with an invertible generative framework evaluated on LJ Speech and AISHELL-3, reporting stego speech MOS up to 3.82, PESQ up to 3.47, and STOI up to 0.97, alongside extracted secret speech that retains a character error rate as low as 0.021 and speaker consistency accuracy reaching 1.000 under favorable conditions. Calo et al. [67] move into the video domain with a coverless steganography method tested on UCF101 and HMDB51, reporting a hiding success rate of 100% and processing efficiency of 0.00007 s per byte, figures that reflect the appeal of coverless techniques for latency-sensitive IoT communication. Zhao et al. [61] take an embedding-free approach on ImageNet, restructuring stable image features into a linked list rather than modifying pixel values directly, and their restoration accuracy remains near 100% under most tested conditions.

Robustness under adversarial or transmission-induced distortion is reported by several of the surveyed methods, though the specific attacks tested differ from paper to paper. Sethi et al. [32] report bit error rates as low as 0.012 under JPEG compression and no higher than 0.027 under 10 degree rotation, while Hassaballah et al. [35] and Ragab et al. [63] both test resilience against dilation, Gaussian noise, salt and pepper noise, and Poisson noise, recovering structural content values above 0.94 and normalized cross-correlation values approaching 1.000 in most cases. Zhao et al. [61] report restoration accuracy staying above 98% under Gaussian noise, salt and pepper noise, and JPEG compression. However, their accuracy drops from 87.42% to 66.40% as rotation attacks increase from 5 to 30 degrees, indicating that geometric distortion remains a harder case than pixel-level noise. Alkodre et al. [62] report an extraction error rate between 0.998 and 1.000 for their shuffling-based approach applied to drone communication, a result that speaks to the reliability of their five-stage encryption and hiding pipeline even under the execution time constraints imposed by aerial platforms.

Several works place a stronger emphasis on cryptographic and statistical security rather than visual fidelity alone. Shafique et al. [57] deliberately report low similarity metrics for their encryption stage, with PSNR between 6.76 and 9.56 dB and a correlation coefficient close to zero, since in their visually meaningful encryption framework weaker resemblance between plaintext and ciphertext indicates stronger protection rather than a shortcoming. Lin et al. [64] report an average Number of Pixel Change Rate above 99.60% and entropy values approaching the theoretical maximum of 7.9994 across BOSSbase, BOW-2, and Osirix, supporting their gateway-level encrypted secret sharing scheme. Nahar et al. [66] report a zero percent error rate for their DNA-based hiding method evaluated on NCBI sequence data, with an embedding capacity of one bit per nucleotide and a maximum expansion rate of 50 percent. Rostam et al. [68] avoid key transmission altogether by deriving their chaotic seed from the cover image itself, reporting PSNR up to 45.88 dB and SSIM of 0.9887 on the UCID database at an embedding rate of 1.5 bits per pixel.

Efficiency and hardware feasibility are addressed explicitly in a subset of the studies, which matters given the constrained processing budgets typical of IoT deployment. He et al. [31] validate their DAS-GAN model directly on a Raspberry Pi 4B, confirming that reversible medical image steganography can run on genuinely limited hardware rather than only in simulation. Shafique et al. [57] report processing times between 0.0018 and 0.0033 s on a standard desktop CPU, and Rajan and Ganesh [59] report embedding times as low as 0.0153 s, both suggesting suitability for near real-time operation. Ge et al. [70] report the widest efficiency range among the surveyed works, with embedding latency dropping to 0.017 s on a GPU but rising to as much as 2.44 s on CPU alone, illustrating how heavily flow-based generative approaches depend on hardware acceleration to meet real-time factor targets near 0.57.

The datasets used across the surveyed works reveal a field that draws from a wide variety of domains without converging on shared benchmarks. Medical imaging is represented through ADNI, BraTS2023, MURA, and the Harvard whole-brain atlas, natural image benchmarks appear through USC-SIPI, UCID, and standard test images such as Lena, Baboon, and Peppers, aerial and remote sensing data appear through UCM and AID, speech corpora include TIMIT, LibriSpeech, LJ Speech, and AISHELL-3, and video steganography draws on UCF101 and HMDB51. Several contributions, including those by Shafique et al. [57], Rajan and Ganesh [59], Alkodre et al. [62], and Rathore et al. [65], do not specify a named public dataset, relying instead on individually selected test images or generated files whose scale and diversity are difficult to assess from the reported figures alone. This pattern makes direct cross-paper comparison difficult even where the same metric, such as PSNR or SSIM, is reported in multiple studies, since the underlying cover material, payload size, and embedding rate are rarely held constant.

Despite these encouraging results, the collection of studies surveyed here also exposes some recurring weaknesses that limit how confidently the reported numbers can be generalized. A sizable share of the methods, including those of Shafique et al. [57], Rajan and Ganesh [59], Alissa et al. [56] for the security component of their pipeline, Alkodre et al. [62], and Rathore et al. [65], rely on unspecified or self-selected datasets rather than named public benchmarks, which makes it difficult for other researchers to reproduce the reported PSNR, SSIM, or robustness figures under identical conditions. A related gap concerns experimental transparency, since several of the surveyed entries, among them Alissa et al. [56], Zhao et al. [61], and Alkodre et al. [62], report performance numbers without disclosing the hardware or software environment used to obtain them, in contrast to studies such as those by He et al. [31], Shafique et al. [57], Rajan and Ganesh [59], Lin et al. [64], and Calo et al. [67], which explicitly state the CPU, GPU, or embedded platform involved. This inconsistency makes it hard to judge whether a reported embedding time of a few milliseconds reflects genuine efficiency or simply a more powerful test machine. Robustness testing is also uneven, since attacks such as rotation, translation, or geometric warping are evaluated by only a handful of the surveyed methods, and even among those that do, the specific noise levels, filter sizes, or compression ratios tested rarely overlap enough to allow a fair side-by-side comparison. Finally, almost none of the surveyed studies report results from a live IoT network or a multi-device testbed, with hardware validation such as He et al.’s [31] Raspberry Pi deployment remaining the exception rather than the norm.

Building on these observations, several directions appear promising for future research. Wider adoption of shared, publicly available benchmark datasets, similar to how USC-SIPI already recurs across multiple image-based studies, would make cross-method comparison considerably more reliable than the current mix of proprietary and unspecified test sets allows. Consistent reporting of the hardware and software configuration used for every timing or efficiency measurement would likewise help distinguish genuine algorithmic gains from differences in test infrastructure. Expanding robustness evaluation to a common, agreed-upon set of attacks, covering geometric distortion alongside the more commonly tested noise and compression attacks, would give a fuller picture of how these methods behave outside idealized conditions. Finally, moving beyond desktop or single-board simulation toward validation on actual multi-device IoT deployments, following the direction already taken by He et al. [31] on a Raspberry Pi, would help confirm whether the strong imperceptibility and robustness figures reported above continue to hold once these methods operate within real, resource-constrained, and network-variable IoT environments.

4.3 Limitations and Research Opportunities in IoT-Based Steganography

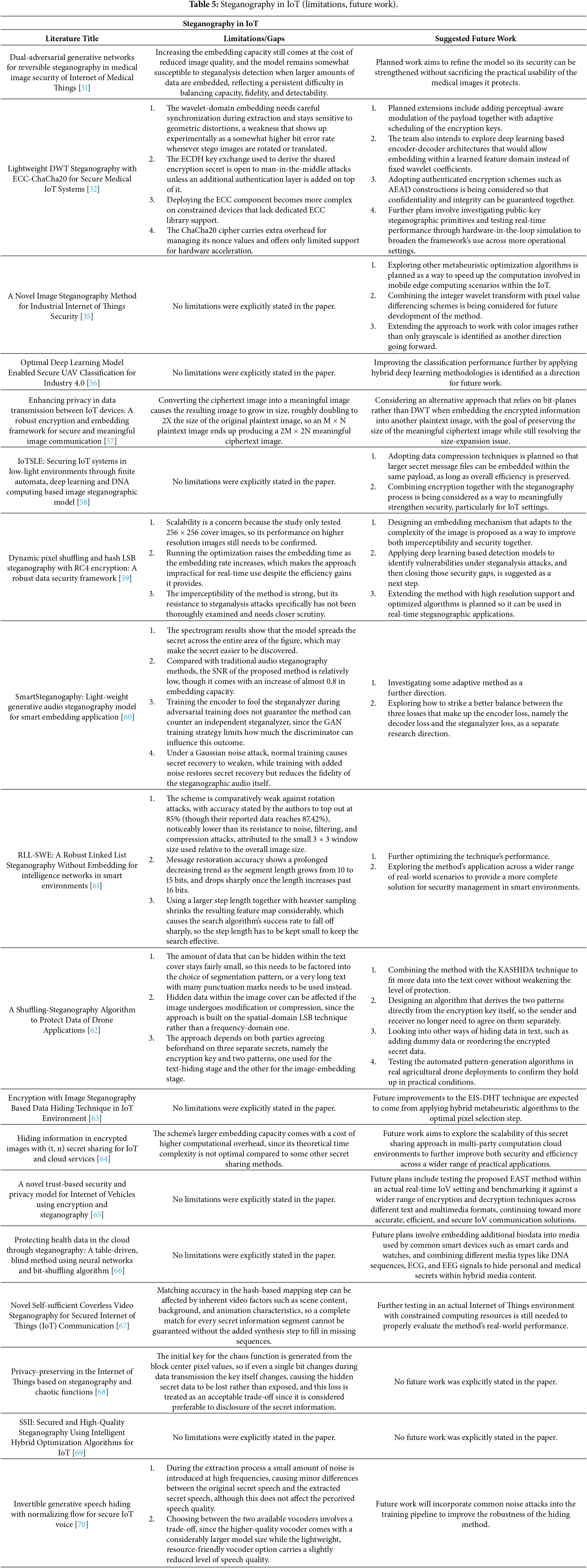

Table 5 summarizes the limitations, gaps, and suggested future work reported across the eighteen steganographic methods surveyed for IoT applications. Several recurring themes emerge once these entries are read together, including trade-offs between embedding capacity and both quality and detectability, vulnerabilities tied to key management and protocol design, uneven robustness against different classes of attack, unresolved scalability concerns, and a noticeable inconsistency in how transparently authors report the weaknesses of their own methods. Taken as a whole, the table paints a picture of a field that has made strong progress on imperceptibility and basic security demonstrations while leaving many of the harder deployment questions for future work rather than resolving them within the studies themselves.

A capacity-quality-detectability trade-off appears repeatedly among the surveyed entries. He et al. [31] note that increasing the embedding capacity of their DAS-GAN framework comes at the cost of reduced image quality and greater susceptibility to steganalysis, reflecting a tension the authors describe as persistent rather than fully resolved. Jiang et al. [60] report a related issue for their audio-based SmartSteganogaphy model, where the spectrogram of the stego signal spreads the secret across the entire time-frequency plane, potentially making it easier to detect, while the model’s SNR remains lower than that of traditional audio steganography methods despite an accompanying gain in embedding capacity. Rajan and Ganesh [59] identify a comparable concern for their optimization-driven pixel shuffling scheme, whose strong imperceptibility has not yet been paired with a thorough evaluation against steganalysis attacks specifically. Ge et al. [70] report a milder version of this trade-off, noting that their two available vocoder options force a choice between a larger, higher-quality model and a lighter, resource-friendly one that sacrifices a small amount of speech quality, alongside minor high-frequency noise introduced during extraction that does not noticeably affect perceived quality.

Key management and protocol-level vulnerabilities form a second recurring concern. Sethi et al. [32] identify several such issues in their ECC-ChaCha20 framework, including susceptibility of the ECDH key exchange to man-in-the-middle attacks without an added authentication layer, added deployment complexity on devices lacking native ECC library support, and nonce management overhead in the ChaCha20 cipher that limits hardware acceleration. Alkodre et al. [62] report a different flavor of the same problem, since their shuffling steganography approach depends on both communicating parties pre-agreeing on three separate secrets, namely the encryption key and two segmentation patterns, before any secure exchange can take place. Rostam et al. [68] describe an intentional design trade-off rather than an oversight, where a single bit change during transmission alters the chaos function’s derived key enough that the hidden data is lost rather than exposed, a failure mode the authors frame as preferable to disclosure even though it limits reliability under noisy channels.

Robustness against specific classes of attack also varies considerably across the surveyed methods, and several authors are transparent about where their techniques fall short. Zhao et al. [61] report that their RLL-SWE scheme is comparatively weak against rotation attacks. Although the authors textually state that accuracy tops out at 85%, their reported data shows a peak of 87.42%, which remains noticeably lower than its resistance to noise, filtering, or compression, a limitation they attribute to the small window size used relative to the overall image. The same authors also note that restoration accuracy declines steadily as the message segment length grows past 15 bits, and that increasing the step length or sampling rate to speed up processing causes the underlying search algorithm’s success rate to fall sharply. Sethi et al. [32] similarly acknowledge that their wavelet-domain embedding remains sensitive to geometric distortion, showing a somewhat higher bit error rate under rotation and translation compared to other tested attacks. Alkodre et al. [62] add that because their image-embedding stage relies on spatial-domain LSB modification rather than a frequency-domain technique, the hidden data can be disrupted if the carrier image undergoes compression or other modification during transmission.

Scalability and real-time practicality represent a further gap identified across several entries. Rajan and Ganesh [59] report that their method was tested only on 256 by 256 cover images, leaving its behavior at higher resolutions unconfirmed, and that embedding time increases alongside the embedding rate to a degree that limits practical real-time use despite otherwise strong efficiency. Lin et al. [64] note that the larger embedding capacity achieved through their secret sharing scheme comes with higher computational overhead, since its theoretical time complexity does not match more optimized alternatives. Calo et al. [67] observe that the matching accuracy of their coverless video steganography approach can be affected by inherent video properties such as scene content and background complexity, meaning a complete hash match for every secret segment cannot be guaranteed without the synthesis step that fills in missing sequences. Shafique et al. [57] report a more structural limitation, where converting an encrypted image into a visually meaningful one roughly doubles its dimensions relative to the original plaintext image, an expansion that carries direct implications for storage and transmission bandwidth on constrained IoT links.

A notable pattern in this body of work is how unevenly limitations are reported across the surveyed literature. Several works, including those by Hassaballah et al. [35], Alissa et al. [56], Mukherjee et al. [58], Ragab et al. [63], Rathore et al. [65], Nahar et al. [66], and Dhawan et al. [69], do not explicitly state any limitations, despite reporting strong quantitative results elsewhere in their respective papers. This asymmetry makes it difficult to judge how these methods might behave outside the specific conditions under which they were evaluated, and it stands in contrast to entries such as Sethi et al. [32], Jiang et al. [60], and Zhao et al. [61], which offer detailed, multi-point self-assessments covering both algorithmic and deployment concerns. A more consistent norm of transparent limitation reporting across the field would make it considerably easier to judge which methods are genuinely closer to real-world readiness.

Despite this unevenness in self-reported limitations, the suggested future work converges on a fairly consistent set of priorities. Several authors point toward hybrid or adaptive optimization as a next step, including Hassaballah et al. [35], who propose exploring additional metaheuristic algorithms for faster mobile edge computation, and Rajan and Ganesh [59], who suggest an embedding mechanism that adapts to image complexity to jointly improve imperceptibility and security. Others emphasize deeper integration of learning-based components, such as Sethi et al. [32], who plan to explore encoder-decoder architectures operating in a learned feature domain rather than fixed wavelet coefficients, and Mukherjee et al. [58], who intend to combine encryption more tightly with their steganographic pipeline. A third recurring theme is validation under realistic operating conditions, reflected in Alkodre et al.’s [62] plan to test their pattern-generation algorithms in real agricultural drone deployments, Calo et al.’s [67] call for further testing within an actual resource-constrained IoT environment, and Rathore et al.’s [65] intention to benchmark their EAST method within a live Internet of Vehicles setting. Ge et al. [70] contribute a related direction specific to the audio domain, planning to incorporate common noise attacks directly into the training pipeline to improve robustness rather than treating noise resilience as a purely post-hoc evaluation step. Two entries in the table, those by Rostam et al. [68] and Dhawan et al. [69], do not state any future work, leaving open questions about their respective key-loss trade-off and their untested robustness against steganalysis without a clearly articulated path forward.

Overall, these limitations and future directions suggest that IoT steganography research has matured considerably in demonstrating imperceptibility and basic security under controlled conditions, but that formal robustness guarantees, consistent self-reported limitations, and validation under realistic multi-device deployment remain the areas most in need of continued attention. Closing these gaps will likely depend on the field adopting more uniform reporting practices for limitations, alongside broader dataset standardization and hardware validation.

4.4 Comparative Performance across Operational Metrics

This subsection compares steganographic methods for IoT across several practical performance dimensions, including memory and storage, computational time, processing speed, energy consumption, data overhead, embedding capacity, image quality, and robustness. Metrics are grouped into a shared table only where the underlying unit and measurement are genuinely comparable across studies. Where a metric is reported by very few methods, uses inconsistent units, or measures conceptually different things despite a shared name, it is discussed directly in the text instead.

Memory and storage are reported by only two methods, and the two figures describe different things. Sethi et al. [32] report runtime memory consumption of 38.00 to 49.14 MB, the RAM occupied while their ECC-ChaCha20 and wavelet-domain scheme executes, a range modest enough to run comfortably on most embedded Linux platforms with more than 64 MB of available RAM. Jiang et al. [60] instead report a stored model size under 5 MB for their SmartSteganogaphy network, a figure small enough to fit on flash-constrained microcontrollers where Sethi et al.’s runtime footprint would not necessarily apply, since the two numbers measure disk footprint and active execution memory respectively. Taken together, the two results suggest that both classical signal-processing pipelines and compact neural models can be made to fit within the memory budgets typical of mid-range IoT hardware, though the very small number of methods reporting either figure makes it difficult to say how representative these two cases are of the field as a whole.

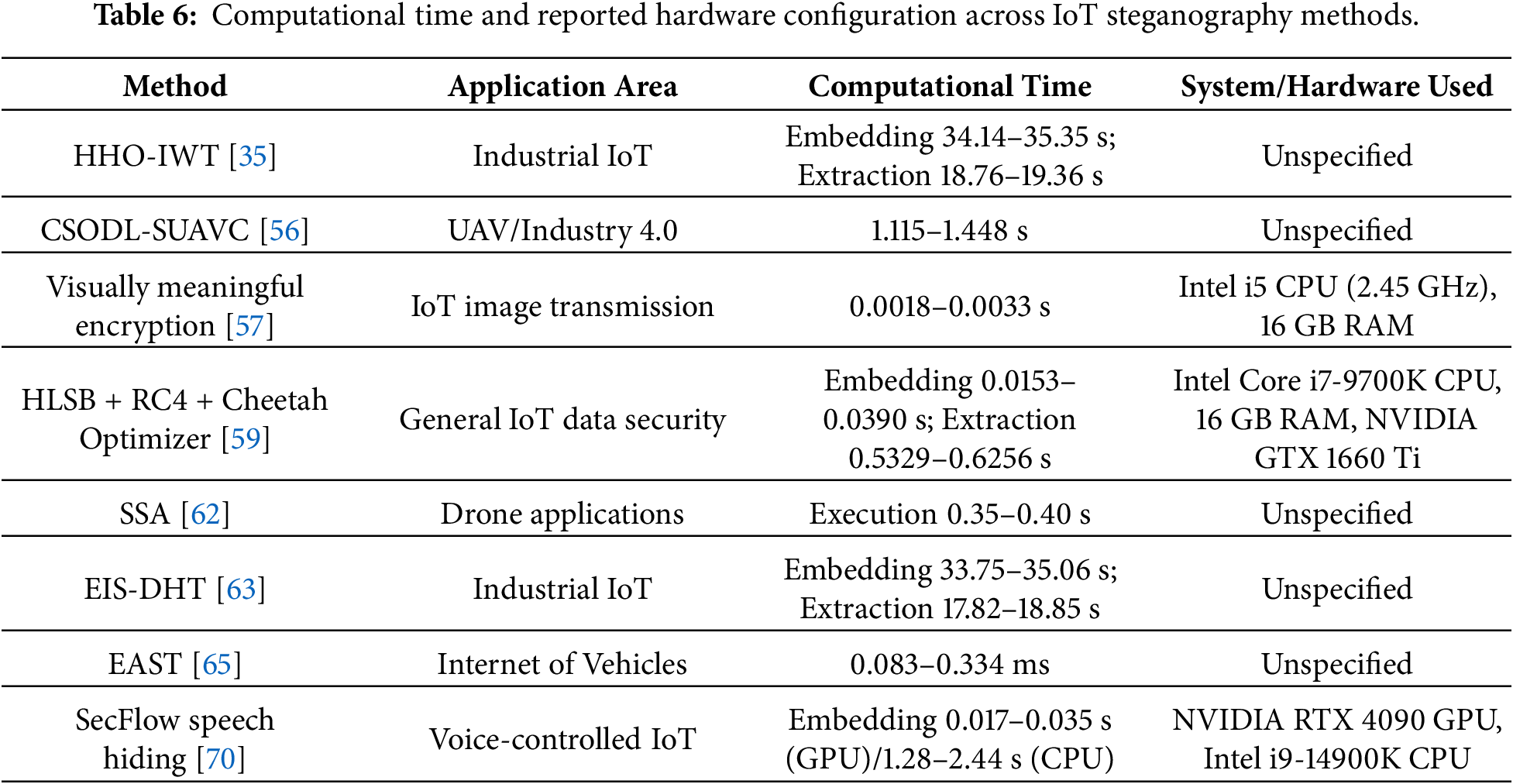

Reported computational time spans several orders of magnitude, from Rathore et al.’s [65] sub-millisecond EAST encryption to embedding stages exceeding thirty seconds in Hassaballah et al. [35] and Ragab et al. [63], both dependent on iterative pixel search within a wavelet transform. Part of this spread reflects genuine algorithmic differences, but part is confounded by hardware, since Ge et al. [70] needed an RTX 4090 GPU to reach millisecond-scale latency, with the same method slowing to over two seconds on CPU alone, a nearly hundredfold difference driven entirely by hardware rather than the underlying algorithm. Four of the eight methods in Table 6, namely Hassaballah et al. [35], Alissa et al. [56], Alkodre et al. [62], and Ragab et al. [63], do not report the hardware used to obtain their timings, which is marked as unspecified rather than assumed. This leaves the thirty-second embedding times reported by Hassaballah et al. and Ragab et al. impossible to attribute confidently to algorithmic cost rather than modest test hardware, and it similarly leaves Alissa et al.’s sub-1.5 s result and Alkodre et al.’s sub-second result without a clear indication of whether they were achieved on desktop-class or genuinely constrained equipment.

A further five methods report their test hardware without pairing it to any computational time figure, leaving the specification effectively orphaned from a performance number. He et al. [31] state their DAS-GAN model was deployed on a Raspberry Pi 4B with a 1.5 GHz quad-core ARM Cortex-A72 processor and 4 GB of RAM, confirming feasibility on constrained hardware without reporting a corresponding latency figure that would show how quickly the model actually runs on that device. Lin et al. [64] report an AMD Ryzen 7 5800H system, Nahar et al. [66] report a 3 GHz desktop with 16 GB of RAM, and Rostam et al. [68] report an older Intel Core 2 Duo laptop with 4 GB of RAM, all of which are considerably more capable than typical IoT edge nodes yet none of which is accompanied by a stated processing time to indicate how that capability translates into actual speed. Dhawan et al. [69] similarly mention only an 8 GB RAM environment without further detail.

Processing speed, distinct from raw embedding or extraction time, is reported by only two methods using incompatible units. Calo et al. [67] report 0.00007 s per byte for coverless video steganography, measured on an Intel Core i7 system with a GTX 1050 GPU, a rate that would allow a one-megabyte payload to be processed in roughly 70 milliseconds. Ge et al. [70] instead report a real-time factor of 0.572 to 0.577, comparing processing time to audio playback duration rather than data volume, meaning their SqueezeWave configuration generates stego speech in just over half the time it takes to play back, which is fast enough to support streaming voice communication without a perceptible buffering delay. Both results indicate that their respective methods are fast enough for near real-time IoT communication, though the video-oriented per-byte rate and the audio-oriented real-time factor answer different practical questions and cannot be converted into one another.

Energy consumption is reported by only one method, Sethi et al. [32], at 78.20 to 104.28 mW for their ECC-ChaCha20 and DWT configuration as message size increases from 32 to 8192 bytes. This range sits well within the power budget of many battery-operated microcontroller platforms, which commonly draw tens to a few hundred milliwatts during active operation, suggesting the method itself would not be the dominant drain on a typical IoT sensor’s battery life. No other surveyed method reports a comparable power draw figure, so it is not possible to say whether this result is representative of steganographic methods generally or specific to the lightweight cipher and wavelet combination Sethi et al. selected.

Data overhead is mentioned by three methods but in forms that describe different relationships between input and output size. Nahar et al. [66] report a maximum expansion rate of 50% for their DNA sequence relative to the original message, meaning a fully expanded encoding could nearly double the space needed to store or transmit the hidden data. Rathore et al. [65] report that their EAST cover must be roughly 1.9 times the size of the secret file, a similar near-doubling but measured as a cover-to-secret ratio rather than a message expansion rate, evaluated across secret file sizes of 10, 20, and 40 kilobits. Shafique et al. [57] report the largest overhead of the three, since their visually meaningful ciphertext image doubles in both width and height relative to the plaintext, producing a fourfold increase in pixel count for an M×N image mapped to 2M×2N. All three figures point toward the same practical concern for bandwidth-limited IoT links, namely that stronger visual concealment or biological encoding tends to come with a substantial increase in transmitted data volume.

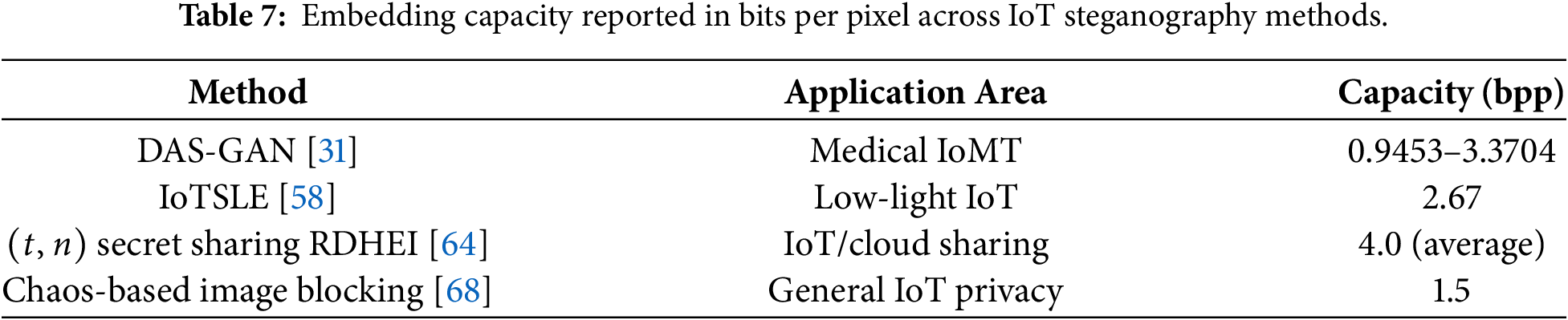

Four methods report embedding capacity in bits per pixel, allowing direct comparison in Table 7, where Lin et al. [64] report the highest average capacity at 4 bpp and He et al. [31] report the widest range, from 0.9453 up to 3.3704 bpp as embedding rate increases across their four tested payload levels. Mukherjee et al. [58] and Rostam et al. [68] report fixed capacities of 2.67 and 1.5 bpp respectively, both comfortably within the range spanned by the other two methods, indicating that low-light image steganography and chaos-based blocking are not systematically more or less capacity-limited than the reversible and secret-sharing approaches at either end of the table. Several other methods report capacity in units that do not translate cleanly into bits per pixel. Hassaballah et al. [35] and Ragab et al. [63] report capacity as a percentage of image resolution, reaching up to 50% and 17.37% respectively, Zhao et al. [61] report 10 to 14 bits per message segment independent of a fixed bpp rate, and Nahar et al. [66] report 1 bit per DNA nucleotide, a unit specific to their biological encoding scheme and considerably lower than the image-based figures once the difference in medium is taken into account.

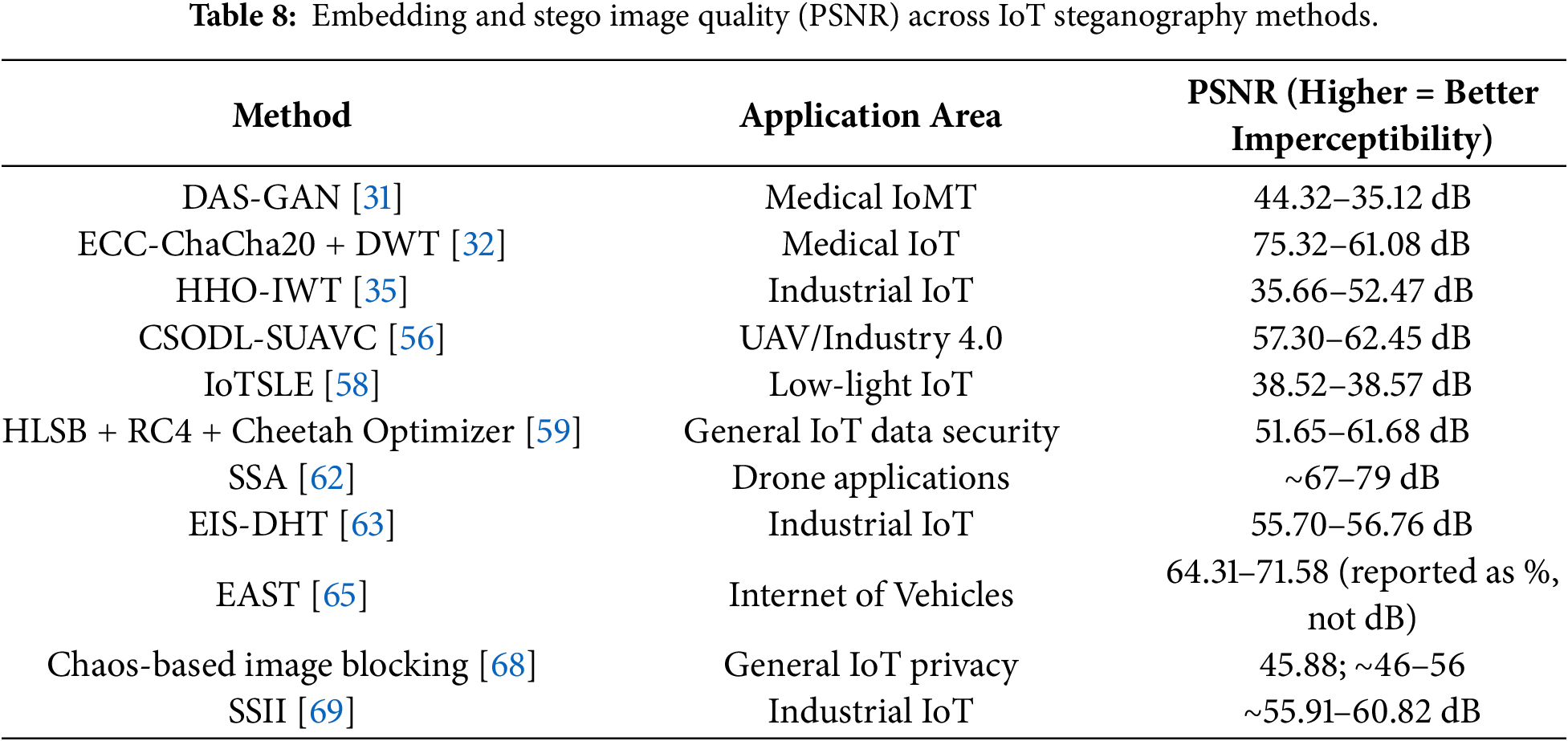

Table 8 lists methods where PSNR compares a stego image to its original cover, so a higher value indicates better imperceptibility. Sethi et al. [32] report the strongest result at up to 75.32 dB, followed by Alkodre et al. [62] near 79 dB and Rajan and Ganesh [59] at up to 61.68 dB, all three well above the 30 to 40 dB range typically considered visually indistinguishable from an unmodified cover. Mukherjee et al. [58] sit at the lower end of the table with a narrow 38.52 to 38.57 dB range, still within an acceptable imperceptibility band but noticeably less headroom above the visual detectability threshold than the top-performing methods, which may reflect the added difficulty of embedding into already low-light, lower-contrast source images. Rathore et al.’s [65] reported figure of 64.31% to 71.58% is preserved exactly as it appears in the source study, carrying a percentage symbol rather than a decibel unit. He et al. [31] and Rostam et al. [68] both show PSNR declining as embedding capacity increases, from 44.32 down to 35.12 dB and from roughly 56 down toward 46 dB respectively, illustrating the same capacity-quality tradeoff across two otherwise very different steganographic designs, one built on a generative adversarial network and the other on chaotic pixel blocking.

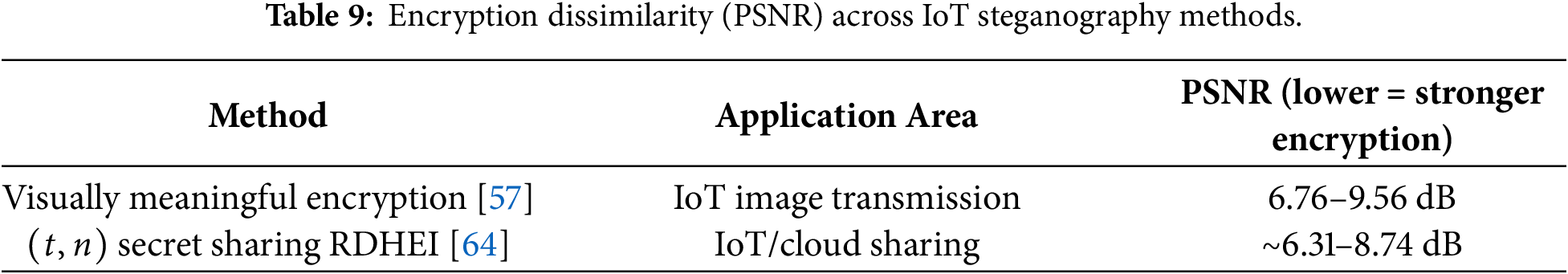

Table 9 separates the two methods that report PSNR in the opposite sense, confirming dissimilarity between an encrypted image and its plaintext rather than measuring embedding quality. Shafique et al. [57] and Lin et al. [64] both report values between roughly 6 and 10 dB, with Lin et al.’s range starting slightly lower at 6.31 dB, indicating marginally stronger dissimilarity between their encrypted shares and the original plaintext than Shafique et al. achieve with their chaotic map and confusion-diffusion approach. Both results sit far below the 30 dB range considered visually acceptable for embedding-oriented steganography, which is the intended outcome for an encryption stage rather than a shortcoming, since the goal in both cases is to make the encrypted output as statistically unlike the original as possible.

SSIM values largely parallel the PSNR results already discussed, since the two metrics are reported by the same methods and follow the same relative ordering. Rajan and Ganesh [59] and Dhawan et al. [69] report the highest SSIM values, both exceeding 0.999, consistent with their strong PSNR results above and indicating near-perfect structural preservation between cover and stego image even at higher payloads. He et al. [31] and Hassaballah et al. [35] show SSIM declining alongside PSNR as embedding capacity increases, from 0.9902 down to 0.9433 on ADNI and from 0.9095 up to 0.9988 depending on the number of embedded bits respectively, reinforcing the same capacity-quality tradeoff observed in the PSNR results. Mukherjee et al. [58] report a comparatively tight SSIM range of 0.9884 to 0.9990, again mirroring their narrow PSNR band and suggesting that their low-light embedding method behaves consistently across the tested payload sizes rather than degrading sharply at higher capacities.

Only one method, Lin et al. [64], reports SSIM in the encryption-dissimilarity sense, with an average value between 0.0046 and 0.0100 across their encrypted shares on BOSSbase, BOW-2, and Osirix. This near-zero result is consistent with the same authors’ correspondingly low PSNR values reported in Table 9, together confirming that their encrypted output bears almost no structural resemblance to the original plaintext image, which is the desired property for a secret-sharing scheme intended to withstand direct visual or statistical comparison against the source.

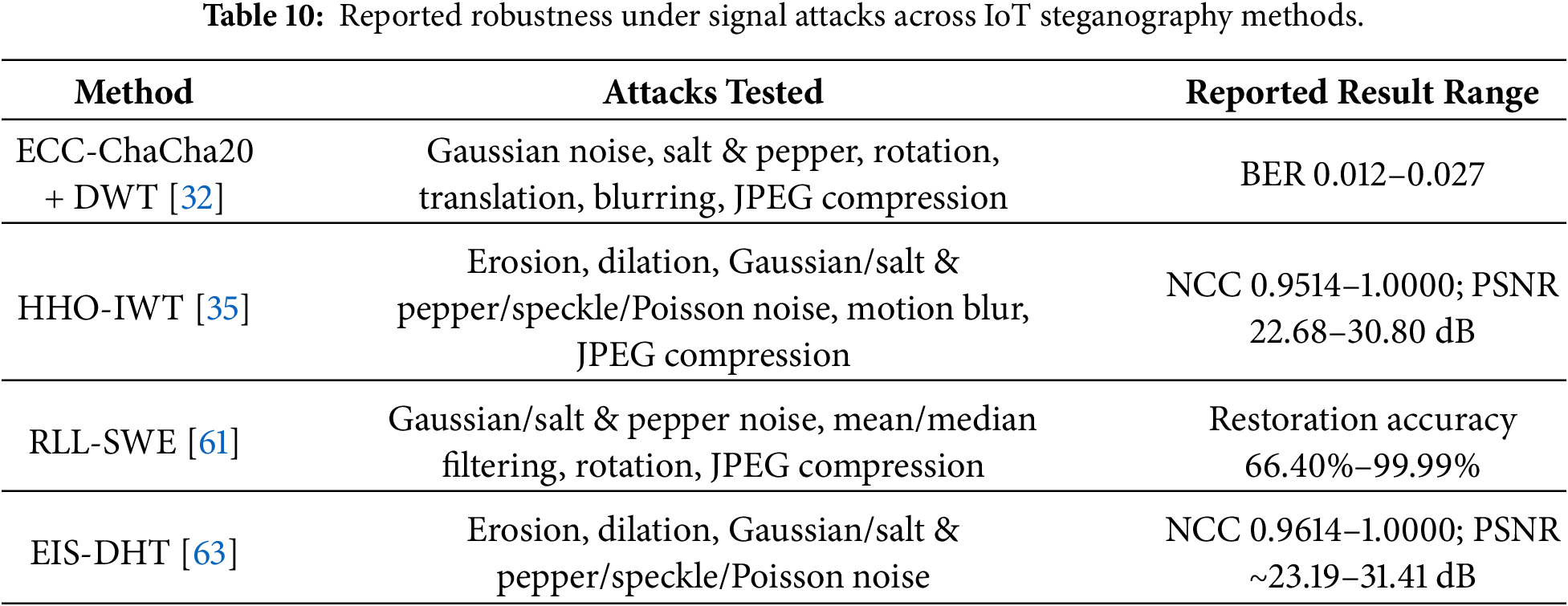

Four methods report robustness under simulated attacks, summarized in Table 10. Sethi et al. [32] report the tightest bit error rate range at 0.012 to 0.027 across six distinct attack types, with JPEG compression at quality 50 producing the lowest error and 10 degree rotation producing the highest, suggesting their wavelet-domain embedding is somewhat more resilient to compression than to geometric distortion. Zhao et al. [61] report a comparable pattern using a different metric, restoration accuracy, which stays above 98% under Gaussian noise, salt and pepper noise, and JPEG compression but falls to 87.42% at 5 degrees of rotation and further down to 66.40% at 30 degrees, again showing geometric distortion as the harder case relative to pixel-level noise. Hassaballah et al. [35] and Ragab et al. [63] apply an overlapping attack set spanning erosion, dilation, and three types of noise, and both recover normalized cross-correlation values above 0.95 alongside PSNR figures in the low-to-mid 20s and low 30s decibel range, indicating that some visible degradation remains after these attacks even though the underlying secret data proves recoverable. Because Sethi et al. and Zhao et al. use different rotation severities and different reporting metrics, and because Hassaballah et al. and Ragab et al. report structural and correlation-based results rather than accuracy or bit error rate, the four methods cannot be ranked against one another on a single robustness scale, even though each individually demonstrates measurable resistance to the specific attacks it was tested against.

Across all metrics considered, no single method performs best on every dimension. Methods with the strongest imperceptibility, such as Sethi et al. [32] and Alkodre et al. [62], are not the fastest in Table 6, and the fastest methods, such as Rathore et al. [65], report their strongest results elsewhere. Memory, energy, processing speed, and data overhead remain the least consistently reported dimensions despite being the most directly tied to constrained IoT hardware, and computational time figures are frequently missing the hardware context needed to interpret them. Addressing these gaps through standardized hardware reporting, a shared definition of data overhead, and a common attack protocol for robustness testing would substantially improve the comparability of future work in this area.

5  Inferential Take-Away Messages: Key Insights for IoT Steganography Research

The comprehensive analysis of steganographic data hiding approaches for IoT presented in Section 4 reveals several critical insights that shape the future of this field. These take-away messages synthesize the patterns, gaps, and opportunities identified across the eighteen evaluated studies. Fig. 4 outlines a conceptual adaptive security framework that motivates several of the directions discussed below, illustrating how an IoT device might select among robust, hybrid, or lightweight steganography based on device resources, network conditions, and data sensitivity, then continue monitoring the transmitted data through AI-driven steganalysis so that the security policy can be adapted if a threat is later detected.

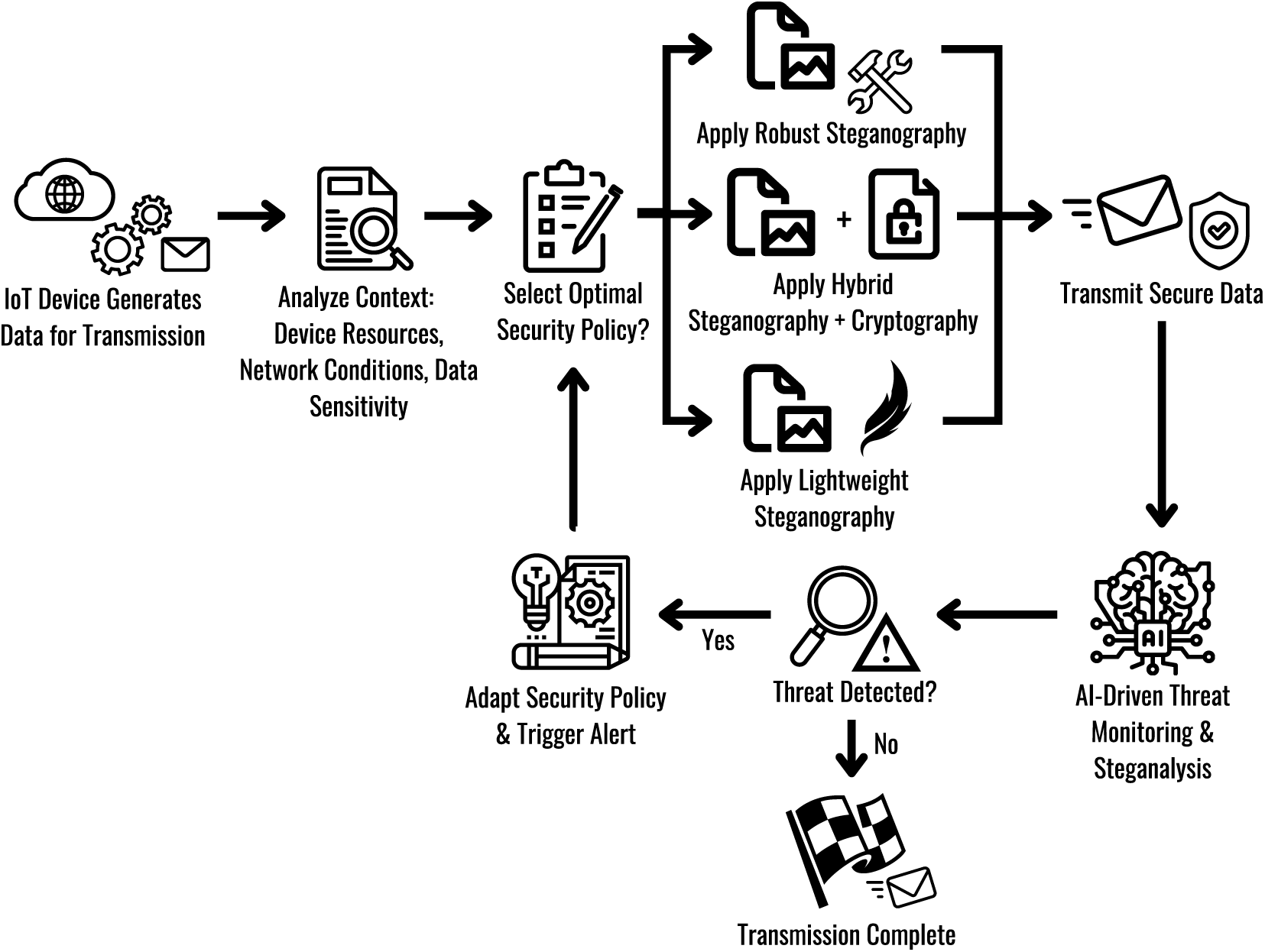

Figure 4: A future adaptive security framework for IoT.

5.1 Balancing Imperceptibility, Robustness, and Resource Constraints

A central tension in IoT steganography lies between achieving strong imperceptibility or robustness and operating within the severe resource limitations of IoT devices. Optimization-driven methods such as the Harris Hawks [35] and Quantum Black Widow [63] based approaches reviewed in Section 4 achieve high PSNR and reliable recovery under attack, but require embedding times exceeding thirty seconds, a cost whose relationship to the underlying hardware cannot be fully assessed since neither method discloses the platform used for testing. Flow-based generative approaches such as SecFlow [70] similarly depend on GPU acceleration to reach millisecond-scale latency, with the same method slowing by up to roughly 140 times when run on CPU alone rather than GPU. On the other hand, lightweight designs such as the sub-5 MB SmartSteganogaphy model [60] and the low-power ECC-ChaCha20 configuration [32] are explicitly built to minimize model size and power draw, and their robustness evaluation is not uniform even between the two: Jiang et al. [60] uniquely report explicit steganalysis detection accuracy against SRM and CNN classifiers, while Sethi et al. [32] instead cover a broader range of six distinct attack types without testing detector accuracy directly, so neither lightweight method combines both forms of evidence. Reversible medical image steganography has separately demonstrated feasibility on genuinely constrained hardware through a Raspberry Pi deployment [31], though this method is not itself designed to minimize model size or power draw in the way the two lightweight methods above are, so hardware feasibility and lightweight design remain two distinct properties that do not always co-occur in the surveyed literature. To resolve the underlying resource tension, future embedding architectures should adaptively scale computational cost according to available device resources and payload sensitivity, reserving higher-cost optimization for critical data while defaulting to lightweight embedding elsewhere, in the spirit of the context-driven policy selection illustrated in Fig. 4. The performance variation documented in Section 4.4 confirms that deployment feasibility is not a binary property but a continuum shaped by the interaction between algorithm design, target hardware, and operational environment.

5.2 Addressing the Reproducibility Gap in IoT Steganography Research

The lack of reproducibility across the surveyed literature poses a significant barrier to meaningful comparison. A substantial share of the eighteen reviewed methods rely on unspecified or self-selected datasets rather than named public benchmarks, a pattern already documented in Section 4.2, and several report performance figures without disclosing the CPU, GPU, or embedded platform used to obtain them. USC-SIPI recurs across four of the surveyed studies as a shared public benchmark, while other named datasets such as BOSSbase appear in only a single study, so public benchmark reuse remains the exception rather than a broadly established norm across the field. Most methods instead evaluate on individually chosen test images, generated files, or proprietary data whose scale and diversity are difficult to assess from the reported figures alone. This gap is compounded by inconsistent pairing of performance figures with hardware context, since Section 4.4 found several methods reporting computational time without stating their test platform, and several others reporting detailed hardware specifications without a corresponding timing figure. Advancing the field will require wider adoption of shared, publicly available datasets, consistent disclosure of the hardware and software environment behind every timing, memory, or energy measurement, and sufficient methodological detail to support independent replication.

5.3 Evolving toward Domain-Specific Embedding Strategies

Application-specific constraints increasingly shape steganographic design choices across the surveyed literature, echoing the deployment heterogeneity discussed in Section 4.1. Medical IoT applications favor wavelet-domain embedding evaluated across increasing payloads on radiograph and neuroimaging data [31,32], though both reported implementations show PSNR declining as payload increases, a capacity-quality tradeoff also noted in Section 4.3 rather than a fully resolved property of the medical domain; He et al. [31] additionally design their framework to be fully reversible so that the original image can be perfectly recovered alongside the embedded data. Industrial IoT communication instead prioritizes robust protection against steganalysis despite the heavier computational cost that optimization-based pixel selection introduces [35], with one design explicitly targeting near real-time secrecy as a stated goal even though its own reported embedding time runs into the tens of seconds [63]. Unmanned aerial and vehicular applications operate under constraints that vary by their specific source: Rathore et al. [65] target the low-latency, high-throughput communication demands of the Internet of Vehicles directly, while Alkodre et al. [62] are instead motivated primarily by the interception risk on the drone-to-station link, and Alissa et al. [56] are motivated by the limited onboard computational capacity of drones to run deep classification models rather than by link bandwidth itself. The surveyed literature demonstrates that a single, domain-blind embedding strategy is unlikely to serve all of these contexts equally well, since a wavelet-domain approach tuned for medical image fidelity does not necessarily meet the timing constraints required for drone or vehicular communication. Future efforts should instead tailor embedding domain, cover medium, and optimization strategy to each application’s specific data type, hardware limitations, and latency tolerance. The performance figures collected in Section 4.4 reinforce this point directly, since methods evaluated under medical, industrial, aerial, and vehicular conditions show substantially different trade-offs between imperceptibility, capacity, and speed, precluding the use of one generic steganographic design across all of these domains.

5.4 Toward Intelligent, Adaptive, and Steganalysis-Aware Frameworks

A critical limitation across the reviewed literature is the predominance of static embedding strategies that operate with fixed parameters regardless of the operational context in which they are deployed. While optimization-driven and generative approaches have begun to appear in IoT steganographic systems, their use has largely remained confined to the design stage rather than becoming architecturally central to how the system behaves once deployed. Intelligent pixel selection aimed at minimizing distortion [35,56,63], security-motivated pixel shuffling [59], adaptive payload allocation [69], and adversarial training [31,60] have each measurably improved imperceptibility, capacity, or resistance to attack in individual studies, yet none of the surveyed frameworks adjusts its embedding behavior in response to real-time variables such as fluctuating device resources, network conditions, or evolving steganalysis capability. This gap is visible directly in Section 4.3, where strong imperceptibility results are not always paired with a corresponding evaluation against steganalysis [59], and where scalability to larger images or higher resolutions frequently remains unconfirmed beyond the specific conditions tested. Metaheuristic optimization algorithms have proven effective at locating embedding positions that minimize distortion in several of the surveyed studies [35,56,63], while the invertible generative framework reviewed for voice-controlled IoT [70] has demonstrated, through distribution-matching rather than adversarial training, the ability to produce stego media whose statistical distribution closely resembles that of unmodified cover data, yet few of the surveyed studies combine optimization-based and learning-based approaches within a single pipeline. What is needed is a shift toward steganographic systems that treat embedding strategy as a dynamic variable rather than a static design choice, in which optimization-based embedding selection is guided by a learned steganalysis-resistance objective rather than imperceptibility alone, echoing the monitor-and-adapt loop shown in Fig. 4. Future frameworks should incorporate lightweight decision layers, trainable on constrained hardware, and should be evaluated not only on peak imperceptibility metrics but on their behavioral consistency and resilience under dynamic, realistic IoT deployment conditions as steganalysis techniques themselves continue to advance.

5.5 Sustaining Robustness across Deployment Lifecycles

Several of the surveyed methods depend on design choices that behave predictably under the specific conditions tested but that could plausibly degrade under channel conditions those tests did not cover. Key derivation schemes that regenerate a chaotic seed directly from cover-image pixels lose the hidden message entirely if even a single bit changes during transmission [68], a failure mode its authors present as an acceptable tradeoff against disclosure but one that nonetheless limits reliability on noisy channels. Cryptographic key-exchange protocols embedded within other frameworks remain vulnerable to interception without an additional authentication layer [32], and the same wavelet-domain embedding method shows a measurably higher error rate under rotation than under any of the other five attack types it was tested against [32]. None of the surveyed studies directly tested behavior over an extended deployment period, so it remains an open and untested question, rather than an established finding, whether these single-condition vulnerabilities compound as channel noise, geometric misalignment, and the sophistication of interception attempts evolve over a device’s operational life. Future work should incorporate embedding schemes that degrade gracefully rather than failing completely under transmission errors, authentication layers added alongside existing key-exchange protocols, and periodic re-evaluation against newly published attacks rather than a single benchmark performed once at design time.

5.6 Strategic Priorities for Future Research

Based on these observations, several strategic directions emerge for advancing IoT steganography research. Standardized hardware and software reporting should become a baseline expectation for every timing, energy, or memory measurement, so that genuine algorithmic gains can be distinguished from differences in test infrastructure. Steganographic methods must evolve to defend against active, adaptive steganalysis rather than static detectors, extending the adversarial training strategies already demonstrated in two of the surveyed works [31,60] and the distribution-matching objectives demonstrated through invertible generative modeling [70] to a broader share of the field. A shared, common attack protocol covering geometric distortion alongside the more commonly tested noise and compression attacks would allow robustness claims to be compared directly across methods rather than read in isolation, as would a consistent unit convention for embedding capacity across image, audio, video, and biological media. Moving evaluation beyond desktop or single-board simulation toward validation on genuine multi-device IoT testbeds, following the direction already taken by the one surveyed study validated on constrained embedded hardware [31], is essential to confirm that the strong imperceptibility and robustness figures reported throughout this survey continue to hold under real deployment conditions. Proactively designed, resource-aware steganographic frameworks, evaluated consistently across these dimensions, are essential to ensure the safe and efficient use of covert communication in future IoT systems.

6  Conclusion

This survey has comprehensively analyzed the current landscape of steganographic data hiding for IoT, examining eighteen recent methods spanning medical imaging, industrial and Industrial IoT communication, unmanned aerial vehicles, voice-controlled devices, vehicular networks, and cloud-based health data. Notable advancements have been achieved in imperceptibility, embedding capacity, and resistance to common signal distortions, with several surveyed methods reporting PSNR values reaching above 60 dB [59,69] and SSIM values remaining above 0.99 even at nontrivial embedding payloads [59,63,69]. Despite this progress, critical challenges remain. A significant portion of the reviewed studies suffer from reproducibility issues, arising from undisclosed or self-selected datasets and inconsistent reporting of the hardware or software environment used for evaluation. Furthermore, several of the most capacity-efficient methods depend on iterative optimization or GPU-accelerated generative synthesis that exceeds the computational budget of genuinely constrained IoT devices, limiting their practical deployment without dedicated hardware acceleration. This survey addressed deployment feasibility directly by evaluating the surveyed methods against concrete operational metrics in Section 4.4, including memory and storage requirements, computational time, processing speed, energy consumption, and data overhead, providing a basis for assessing practical viability across heterogeneous IoT hardware. The heterogeneity of IoT application domains presents a further challenge, since medical, industrial, aerial, and vehicular deployments each impose different combinations of latency, payload, and fidelity requirements that no single steganographic design satisfies equally well. While emerging techniques such as coverless steganography [67] and invertible generative embedding [70] show clear promise, they require further testing on constrained hardware and evaluation against a broader and more consistent set of adversarial attacks before they can be considered viable at scale. Sustaining robustness across long deployment lifetimes, particularly against key-loss failure modes [68], unauthenticated key exchange [32], and evolving steganalysis capability, also remains insufficiently explored across the surveyed literature, since none of the eighteen studies reviewed here tested behavior under sustained, extended-duration deployment conditions.

To address these challenges, future research must prioritize several key directions. First, standardized benchmarks and public datasets tailored for IoT steganography are essential for meaningful comparison and reproducibility, alongside consistent reporting of the hardware platform behind every performance figure. Second, lightweight and adaptive embedding frameworks, of the kind conceptually outlined in Fig. 4, must be designed to balance imperceptibility against computational efficiency across heterogeneous devices, rather than optimizing for imperceptibility alone at the cost of deployability. Third, domain-specific optimization is essential, since solutions tailored to medical imaging fidelity, industrial latency budgets, and aerial or vehicular bandwidth constraints will outperform generic designs applied uniformly across these contexts. Fourth, closer integration of optimization-driven pixel selection with steganalysis-aware learning objectives, evaluated under a shared set of geometric, noise, and compression attacks, will strengthen robustness claims that currently cannot be compared directly across studies. Lastly, sustaining embedding and key-derivation robustness across long-lived deployments, rather than validating only against a single design-time benchmark, should be treated as a core design requirement rather than an afterthought. By aligning research with these priorities, the IoT steganography community can move toward more comparable, deployable, and resilient covert communication solutions.

Acknowledgement: The authors thank all members of the Cyber Security Research Group, Net-Centric Computing Laboratory, Department of Informatics, ITS, for their support and discussion. The authors declare that AI is used to check grammar and spelling.

Funding Statement: This research is funded by the Indonesian Endowment Fund for Education (LPDP) on behalf of the Indonesian Ministry of Higher Education, Science and Technology and managed under the EQUITY Program (Contract No 4299/B3/DT.03.08/2025 & No 3029/PKS/ITS/2025).

Author Contributions: The authors confirm contribution to the paper as follows: Conceptualization, Rafif Aydin Ahmad, Ntivuguruzwa Jean De La Croix, Tohari Ahmad, Kambombo Mtonga, and Mungwarakarama Irenee; methodology, Rafif Aydin Ahmad, Ntivuguruzwa Jean De La Croix, Tohari Ahmad, Kambombo Mtonga, and Mungwarakarama Irenee; formal analysis, Rafif Aydin Ahmad, Ntivuguruzwa Jean De La Croix; investigation, Rafif Aydin Ahmad, Ntivuguruzwa Jean De La Croix; writing—original draft preparation, Rafif Aydin Ahmad; writing—review and editing, Ntivuguruzwa Jean De La Croix, Reynandriel Pramas Thandya, Tohari Ahmad, Kambombo Mtonga, and Mungwarakarama Irenee; visualization, Reynandriel Pramas Thandya; supervision, Tohari Ahmad; project administration, Tohari Ahmad; funding acquisition, Tohari Ahmad. All authors reviewed and approved the final version of the manuscript.

Availability of Data and Materials: Not applicable.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest.
