Performance Enhancement of XML Parsing Using Regression and Parallelism

Muhammad Ali, Minhaj Ahmad Khan*

Department of Computer Science, Bahauddin Zakariya University, Multan, 60000, Pakistan

* Corresponding Author: Minhaj Ahmad Khan. Email: email

Computer Systems Science and Engineering 2024, 48(2), 287-303. https://doi.org/10.32604/csse.2023.043010

Abstract

The Extensible Markup Language (XML) files, widely used for storing and exchanging information on the web require efficient parsing mechanisms to improve the performance of the applications. With the existing Document Object Model (DOM) based parsing, the performance degrades due to sequential processing and large memory requirements, thereby requiring an efficient XML parser to mitigate these issues. In this paper, we propose a Parallel XML Tree Generator (PXTG) algorithm for accelerating the parsing of XML files and a Regression-based XML Parsing Framework (RXPF) that analyzes and predicts performance through profiling, regression, and code generation for efficient parsing. The PXTG algorithm is based on dividing the XML file into n parts and producing n trees in parallel. The profiling phase of the RXPF framework produces a dataset by measuring the performance of various parsing models including StAX, SAX, DOM, JDOM, and PXTG on different cores by using multiple file sizes. The regression phase produces the prediction model, based on which the final code for efficient parsing of XML files is produced through the code generation phase. The RXPF framework has shown a significant improvement in performance varying from 9.54% to 32.34% over other existing models used for parsing XML files.

Keywords


1  Introduction

With its simple textual structure, the eXtensible Markup Language (XML) has become a universal standard for storing data and information transmission between different formats for internet applications. XML is used as a markup language to express data in a hierarchical structure that is parsed for processing by a web application. Enterprises permanently store large amounts of critical business data in XML format. Many native XML database systems have evolved, and almost all prime relational database developers include XML features in their products. Every XML document requires parsing, which uses a lot of CPU time, thereby requiring the development of efficient techniques for XML parsing.

In general, the effectiveness of the XML parsers is determined by the performance of various XML operations. Several software, hardware, and hybrid methods are used to accelerate XML parsing [1,2]. The software-based approaches incorporate techniques such as schema-specific parsing [3], lazy parsing [4], and pull-based parsing [5]. The hardware-based approaches, in contrast, employ specialized hardware accelerators such as FPGA custom circuits [6] and LTMAdder [7]. Similarly, the hybrid XML parsing approaches [8] use both hardware (such as FPGA) and software parsing techniques.

The Document Object Model (DOM) parsers are widely used for reading and validating XML documents. A DOM parser checks an XML file after reading it against an XML schema. If the XML file is valid, the DOM parser will return a Document object that is represented in memory for random access to an element. The analysis of DOM parsing proves that storing the full tree structure in memory by DOM is inefficient. On the other hand, Simple API for XML (SAX) parsers employ a top-down approach to access XML documents without providing any random access. Similarly, the Streaming API for XML (StAX) extracts information through a pull-based technique, while JDOM is a Java-based library for parsing XML files using a low memory footprint. The JDOM parsers are approximately as fast as SAX but are not suited for large XML documents. Furthermore, many formats including binary XML [9] have been proposed in the literature for improving XML parsing performance.

Parsing and data processing using multicores has become a popular way to accelerate XML parsing. To fully exploit the processing capability of multicore processors, there is a need for programming models that may naturally enable concurrency with effective synchronization mechanisms. To resolve this issue, numerous techniques have been developed to accelerate parsing XML documents using parallel processing, including pre-parsing [10], direct parallel [11], and indexing [12] techniques. However, the performance is still limited for large XML files. The limitations of current parsing techniques create a gap for a more efficient algorithm.

In this paper, we propose a Parallel XML Tree Generator (PXTG) algorithm that aims at the efficient parsing of XML files through the parallel generation of XML trees. This article also suggests the Regression-based XML Parsing Framework (RXPF) that analyzes and predicts performance through profiling and regression, and subsequently, generates final code for efficient XML parsing. The RXPF framework analyzes the performance of various XML parsing algorithms including the PXTG algorithm, corresponding to multiple XML file sizes. The performance prediction through the RXPF framework is used to invoke the best algorithm for parsing that in turn improves the parsing time of XML files.

The remaining paper is structured as follows. Related work is described in Section 2, in terms of parallel XML parsing and regression modeling. The proposed PXTG algorithm used to accelerate XML parsing and proposed the RXPF framework used to analyze and predict performance through profiling, regression, and code generation are described in Section 3. The experimental setup and results obtained by executing the proposed framework and the existing well-known algorithms are described in Section 4. The final section of this document discusses conclusion and future work.

2  Related Work

Serial and parallel techniques have been widely developed and implemented in the existing practices to improve XML parsing. Zhang presented an innovative non-extracted XML parsing methodology known as VTD-XML [13,14]. VTD-XML produced a one-dimensional array by examining the XML document tree that could minimize the memory needs. A four-phase parallel approach for capturing, annotating, and visualizing parallel structures in XML documents was presented by Linghua et al. [15]. While their algorithm was built to visualize similarities as part of plagiarism detection tasks, they believed that a well-planned and integrative solution that separates addressing match sites and inserting highlight marks can help various applications. Lam et al. [1] compared four distinct XML parsing models DOM, SAX, StAX, and Virtual Token Descriptor (VTD) to determine which applications are best suited for each model. Many researchers used DOM [16] and SAX [17] based techniques to accelerate XML parsing. The DOM-based model defines a variety of interfaces to update and access the contents and structures of XML documents. It returns a tree structure containing all the elements after parsing an XML file. Node, Element, Attr, Text, and Document are the common interfaces used by DOM for manipulating the document and its structure. In contrast to the DOM-based parser, the SAX-based parser is event-based and does not create a fully parsed tree in memory. SAX offers a streaming interface during parsing. This implies that the SAX parser begins scanning the document from beginning to end node while ensuring well-formedness. It invokes the relevant event handler to process each token so that it appears after recognizing tokens. It is a simple process and takes up less memory to process large trees which is a significant advantage. The primary drawback of the SAX parser is that it does not provide random access due to its forward-only operation.

Lu et al. [18] proposed a variety of parallel parsing techniques, with two primary processes known as pre-parsing and full-parsing. Pre-parsing is done to know the structure of the XML document that serves as a guide for the parallel while full-parsing processes that come afterward. The pre-parsing stage is time-consuming because of serial processing giving rise to taking consideration more ideal designs. You et al. [11] suggested an XML parsing optimization method that does not require a pre-parsing phase for parallel parsing. This method applies data parallelism by partitioning an XML document for performing parallel processing over several threads by finding special symbols as delimiters. Similarly, other researchers have focused on parallel parsing to achieve more efficiency in XML parsing [1921].

Zhang et al. [22] proposed a Map-Reduce approach to handle the Smallest Lowest Common Ancestor (SLCA) based keyword search for continuous XML documents. Their approach processes several XML documents in the Hadoop environment using parallel algorithms. Their design is based on distributed SLCA, in which each net node determines SLCA separately, and just a small amount of data is transferred. Gang et al. contributed to the effect of memory change during XML document parsing. Pan et al. [23] proposed a mechanism called meta-DFA to parallelize the pre-parsing process. Hence, the meta-DFA executes many instances of preparers concurrently. The meta-DFA enables each chunk of XML file to be pre-parsed in parallel. Following the pre-parsing, libxml2 is used to conduct the parallel full parsing. Another approach proposed by Pan et al. [24] to generate a parallel skeleton is simultaneous transducers. It is perceived that these parallel techniques made implementation more difficult and obstructed system optimization. Bessai-Mechmache et al. [25] described a genetic algorithm in their proposal that maximizes the similarity between a group of XML components and the user query. A crowdsourcing-based XML keyword-searching strategy was proposed by Amini et al. [26]. In addition to explaining the basic architecture and details of various sections of the proposed approach, the effectiveness of the new technique is demonstrated through some tests.

Pan et al. [27] proposed another parallel parsing approach based on the SAX model. There are several stages in the parsing process and each stage is connected by a pipeline. This technique uses a streaming method that requires a partition boundaries determination method to be approximately equivalent to skeleton generation. Similarly, Shah et al. [28] suggested another parallel approach to parsing XML documents called ParDOM to increase scalability to parallel XML parsing by Lu. This method uses two phases to create an in-memory tree structure. The first phase is used to divide XML documents into chunks and each chunk parses concurrently. The second phase involves linking all partial DOM trees together to create the complete DOM tree in parallel. ParDOM provides fine-grained parallelism by offering a flexible scheme for chunking in which each chunk can have an arbitrary number of starting and ending tags. Jianliang et al. [29] offered another parallel parsing technique that utilizes partition on XML document called parallel speculative Dom-based XML parser (PSDXP) which is based on Field Programmable Gate Array (FPGA). They implement their technique on two and four threads by using the Xilinx Virtex-5 board.

Ahmed et al. [7] suggested another efficient XML parsing approach that involves reading multiple bytes and processing various tags simultaneously. The method takes advantage of specialized hardware for single-pass tree generation for enhancing the speed of XML parsing. Hammad et al. [30] discussed XML indexing by applying a cluster-based framework. They have designed a parallel model of storing and querying data on the distributed parallel environment for large XML files. Even though, parallel XML parsing has been the subject of several researchers, the efficiency of parsing large XML remains limited. Therefore, this paper proposes an algorithm has aims at the optimized performance for large XML files in parallel and also proposes a framework that incorporates regression to analyze and predict performance. Regression has been the subject of a lot of recent research for prediction in a variety of disciplines such as health [31], sports [32], stock market [33,34], and weather forecasts [35].

3  Proposed Methodology

This paper proposes the PXTG algorithm for accelerating XML parsing and the RXPF framework to analyze, predict the performance, and generate code for efficient XML parsing, as elaborated below.

3.1 Parallel XML Tree Generator (PXTG)

The PXTG algorithm aimed at efficient parsing takes as input an XML file and produces n subtrees. Before the creation of parallel subtrees, the proposed approach traverses the input file in n parts, serially. The traversal is based on the number of characters in the file. The XML contents are patched (replaced/merged) to bring in a proper format for XML traversal. To ensure the hierarchy of the XML file and the well-formedness for traversal of each part, the XML contents are adjusted with duplicate entries of the required nodes and edges, as shown in Figs. 1 and 2. Subsequently, the well-formed chunks are sent to individual cores for parallel creation of pre-parsed subtrees. The PXTG ends with transformations Ts s=1,2,,n that take pre-parsed subtrees and produce corresponding well-formed subtrees τi, using the following Eq. (1):

images

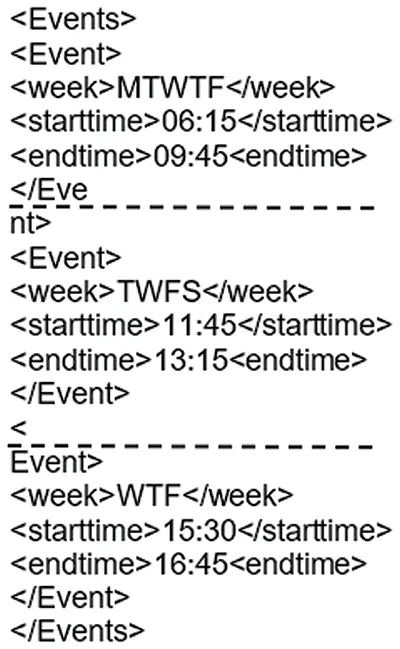

Figure 1: Chunks division of XML file

images

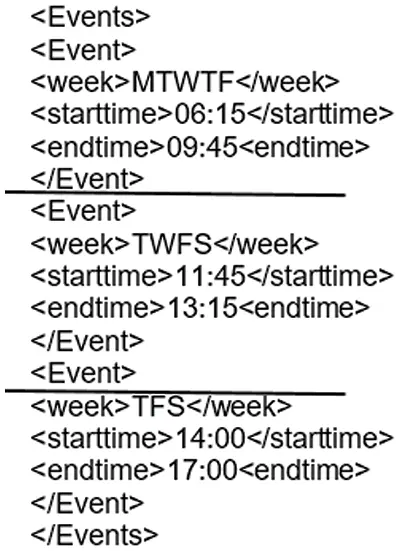

Figure 2: Patching of XML chunks

Ts:(τi,τi+1) τi,i=1,2,3,,n1(1)

For the PXTG algorithm, let the XML file be represented by in string form and the number of chunks is represented by (obtained from user input). The number of characters in the XML file is denoted by Ω. For parsing, multi-processors have been used that are represented by . Chunk length is represented by weight that depends on .

The PXTG algorithm uses Lexer( ) and SubTreeCreator( ) modules. The Lexer( ) module is used to create tokens and SubTreeCreator( ) module creates n subtrees. The proposed PXTG algorithm is given below:

images

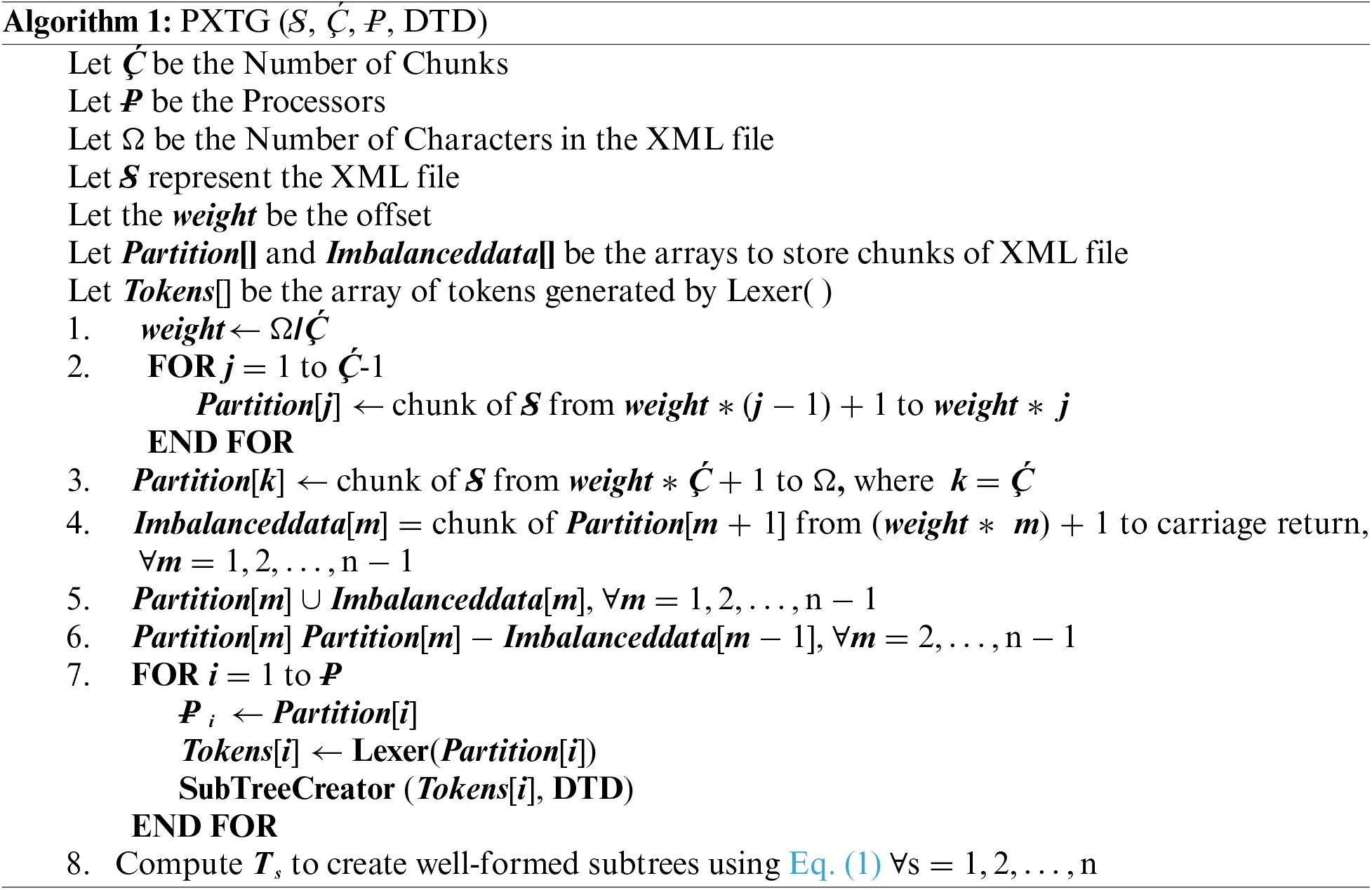

The PXTG (Algorithm 1) starts with the declaration of essential variables , , , , weight, Partition[ ], Imbalanceddata[ ] and Tokens[]. is used to represent the number of chunks for XML files. deals with the number of processors used for the parallel creation of well-formed subtrees. The function of is to store the number of characters in an XML file. is used to represent XML files. Step 1 creates an offset based on the number of chunks received by the PXTG algorithm that is represented by weight. As far as step 2 is concerned, it divides the XML file into n-1 parts and stores the chunks in a Partition[ ] array, where each part is equal in terms of the number of characters. Step 3 is applied to store the last chunk in the Partition[ ] array, where the last chunk has more characters. Step 4, properly handles the imbalanced data of each chunk except the first chunk to accurately store and place them. In step 5, each element of Imbalanceddata[ ] is embedded in the Partition[ ] array to get the well-formed chunks. Step 6 is used to maintain the hierarchy by removing imbalanced data from each Partition[ ]. Step 7 consisting of three major phases creates pre-parsed subtrees in parallel. The first phase allocates each XML chunk to a separate processor for parallel parsing, in the second phase each processor sends the XML chunk to the Lexer( ) module that returns tokens while the last phase applies the SubTreeCreator( ) module to create parsed subtrees. Step 8 which is the last step of the PXTG performs well-formedness to produce a well-formed subtree by computing Eq. (1).

images

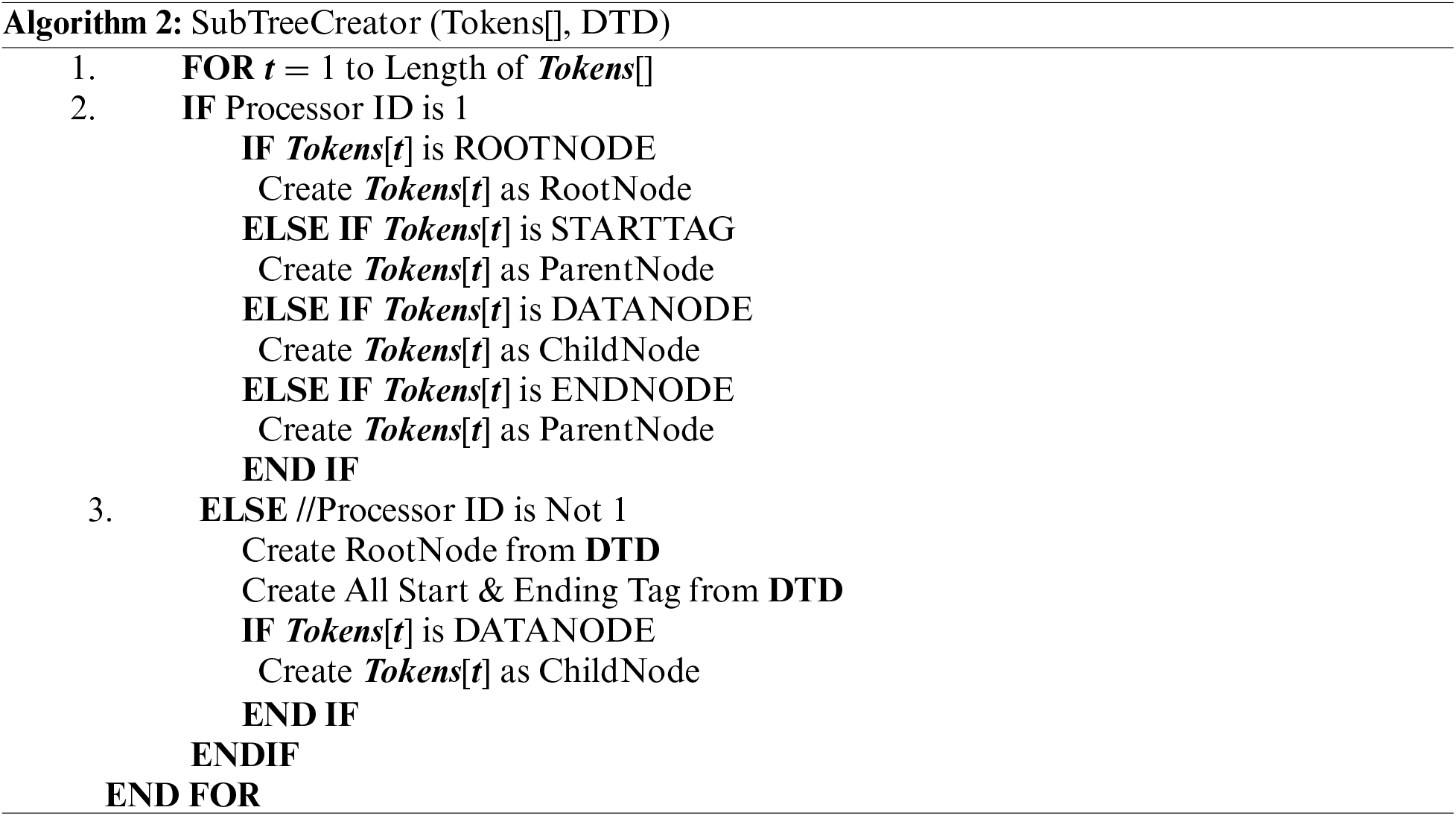

The Lexer( ) module of the PXTG receives a chunk of XML file on each processor to produce a set of tokens such as start tag, ending tag, data tags, etc., and then stores the tokens in an array for further processing. This is followed by a call to the SubTreeCreator( ) module (Algorithm 2) that takes array of tokens and a DTD file as input to create subtrees. The loop in steps 1 to 3 works for each token to create elements of a subtree. For the first processor, the tokens are generated corresponding to the root node, start tags, data nodes, and end nodes. For the rest of the processors, the root node, start nodes, and end nodes are retrieved from DTD, and the child nodes are created, as mentioned in step 3. The architecture of the proposed algorithm is described in Fig. 3.

images

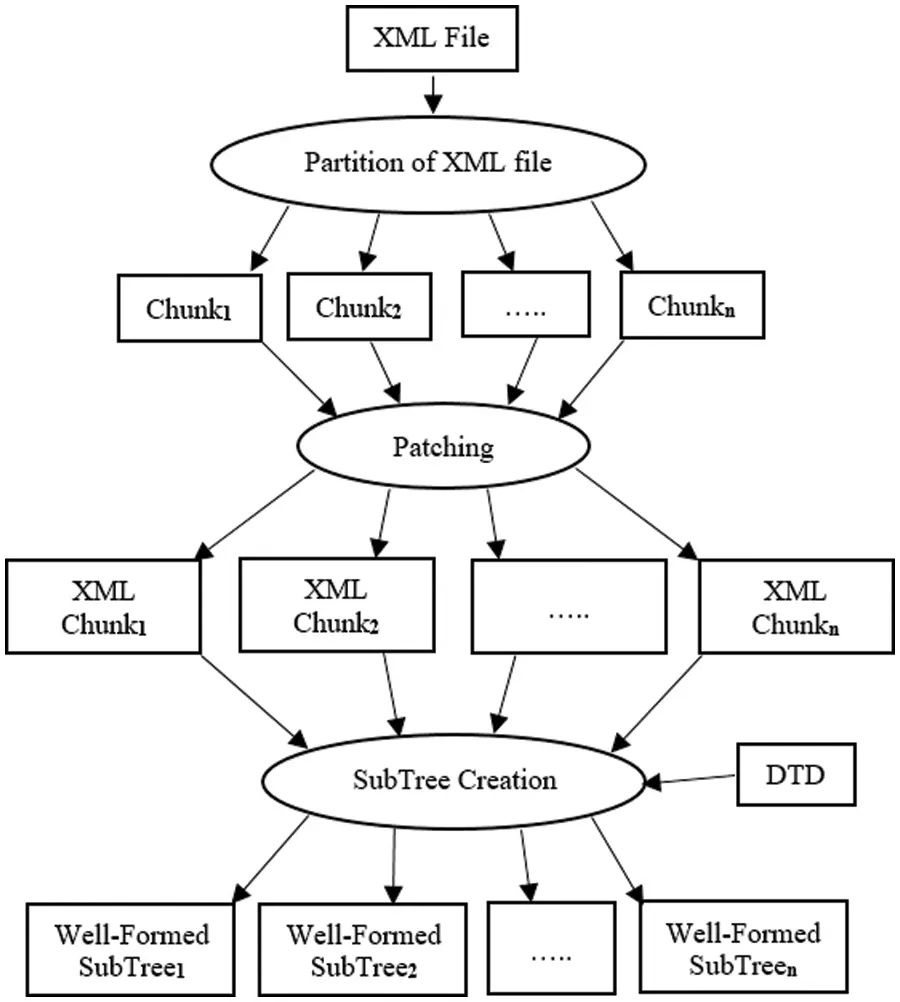

Figure 3: Architecture of proposed algorithm (PXTG)

As shown in Fig. 3, the PXTG algorithm divides the XML file into n chunks after computing the offset. The contents of the chunks are replaced and merged through patching to make them traversable. The functionality of the last phase is to create subtrees while ensuring hierarchy and the well-formedness of the XML file by adjusting entries of the required nodes and edges.

3.2 Regression-Based XML Parsing Framework (RXPF)

The proposed framework RXPF analyzes and predicts the performance of different parsing algorithms through profiling, regression, and then code generation. The framework initially performs the profiling phase and produces the dataset by calculating the parsing time of existing StAX, SAX, DOM, JDOM, PXTG_1, PXTG_4, PXTG_8, PXTG_12, and PXTG_16 algorithms. PXTG_1 treats XML files as a single chunk while PXTG_4, PXTG_8, PXTG_12, and PXTG_16 divide XML files into 4, 8, 12, and 16 chunks, respectively. The profiling phase is completed by calculating the parsing time of these algorithms by using different XML file sizes. The next phase of the RXPF framework is a regression which creates models of algorithms for prediction. The functionality of the last phase is to generate code for invoking the best algorithm in terms of execution time. The architecture of the RXPF framework is given in Fig. 4.

images

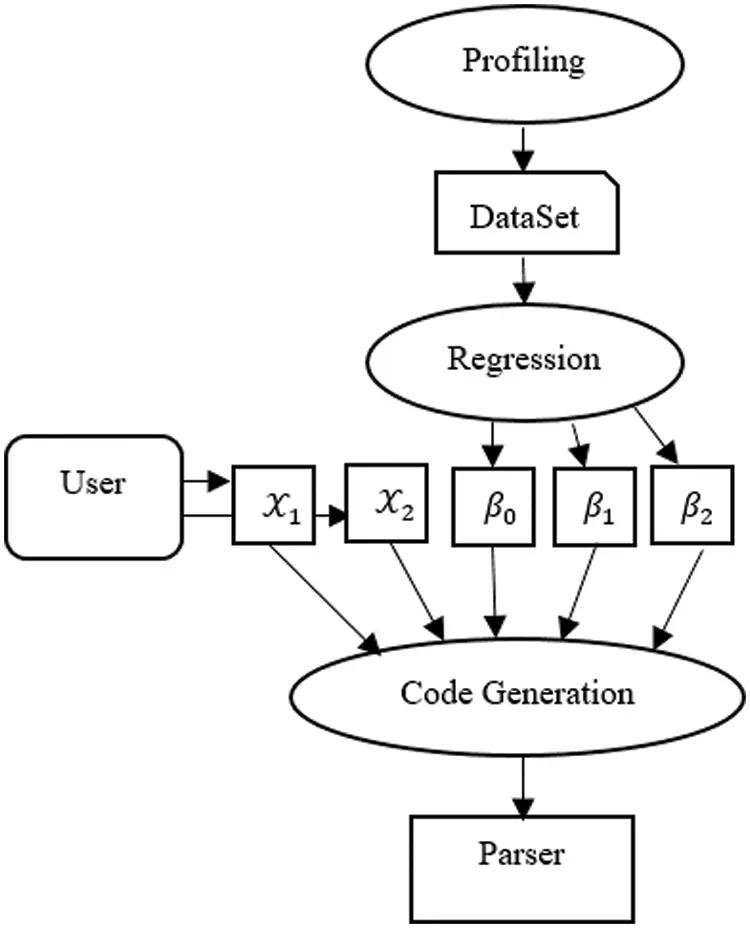

Figure 4: Architecture of proposed framework RXPF

Fig. 4 shows three major components that constitute the RXPF framework. Profiling is the first component of this framework is applied to create a dataset by measuring the processing time of different algorithms. The second component (regression) performs computations based on the linear regression technique to analyze the performance of profiling by producing an array of intercepts that is represented by β0[] and arrays of regression coefficients β1[] and β2[]. Code generation, the third and final component, uses values generated by regression and generates the parsing code that invokes the most efficient algorithm corresponding to 𝒳1 (size) and 𝒳2 (cores) values, obtained from users.

3.2.1 Profiling

The profiling is performed by measuring the performance of different algorithms including StAX, SAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1, PXTG_4, PXTG_8, PXTG_12, and PXTG_16 as shown in Fig. 5. PXTG_1 treats XML file as single chunk while PXTG_4, PXTG_8, PXTG_12, and PXTG_16 divide XML into 4, 8, 12, and 16 chunks.

images

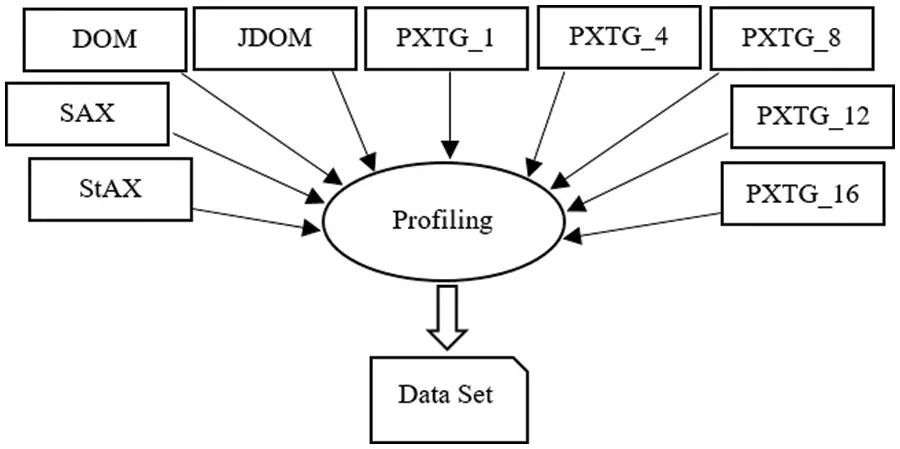

Figure 5: Profiling

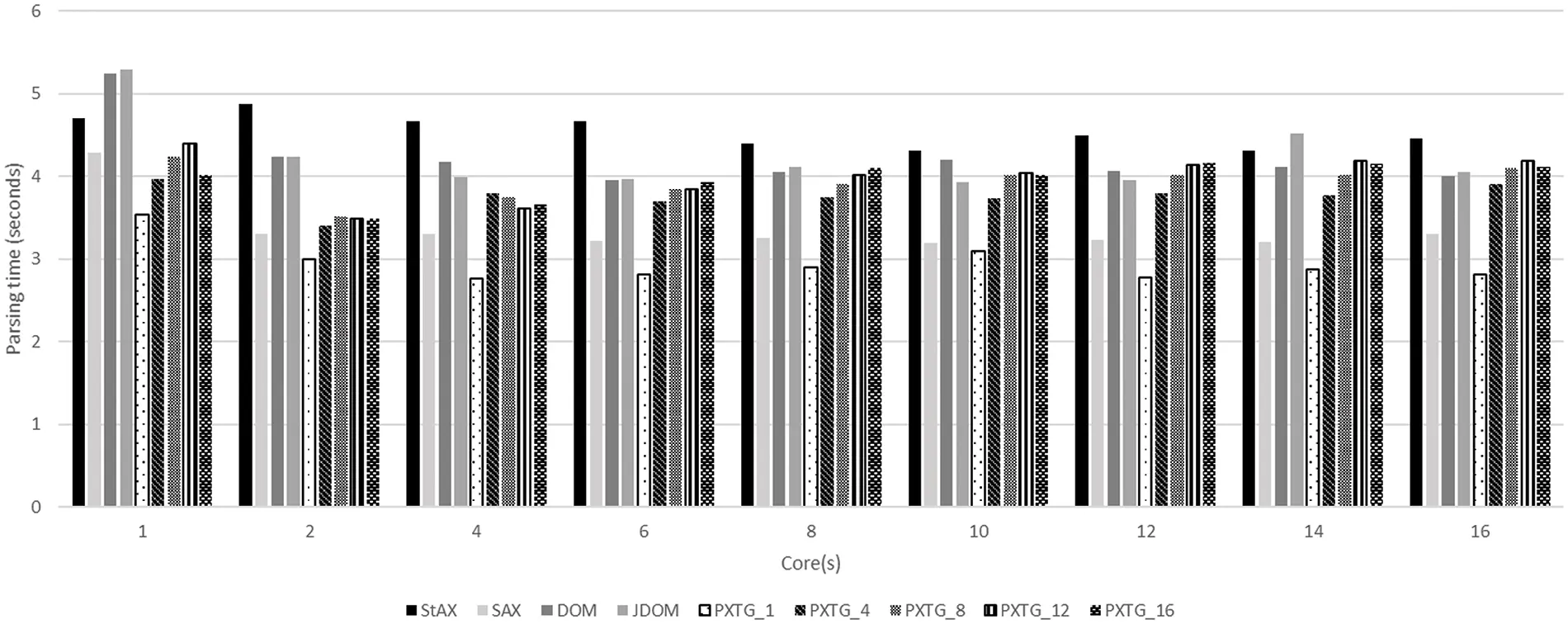

All algorithms including the variants of the proposed PXTG algorithm are tested on a variety of XML file sizes 10, 15, 20, 25, 50, and 75 MB by using 1, 2, 4, 6, 8, 10, 12, 14, and 16 cores. The proposed algorithm PXTG can divide XML files into several (n) parts for achieving parallelism and accelerating the parsing by using threads. The function of the profiling phase is to produce the dataset for the regression phase. The instances of a dataset are based on file size, number of cores, and parsing time (seconds). The results of profiling for utilized algorithms on 25, 50, and 75 MB file sizes are shown in Figs. 68.

images

Figure 6: Profiling of algorithms for 25 MB file

images

Figure 7: Profiling of algorithms for 50 MB file

images

Figure 8: Profiling of algorithms for 75 MB file

3.2.2 Regression

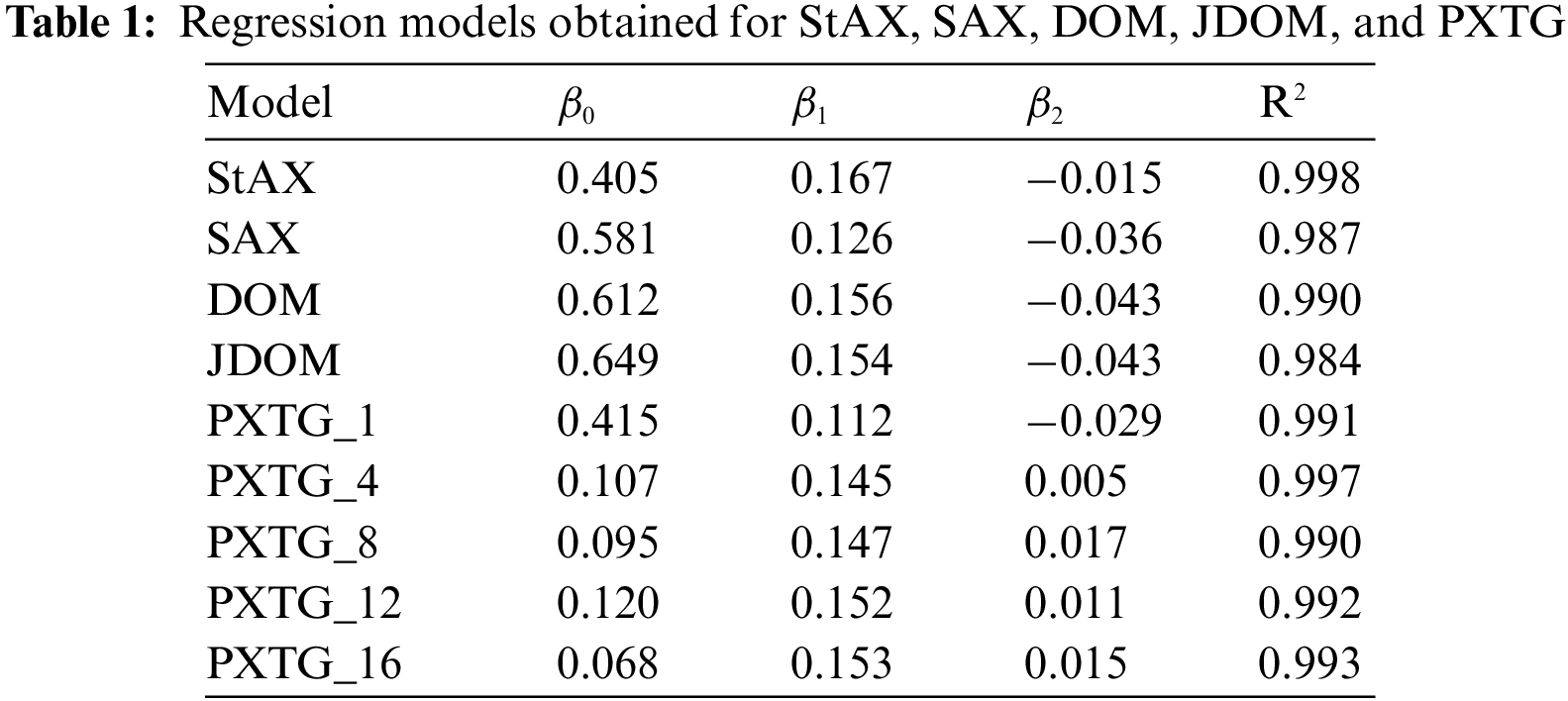

The RXPF framework progresses towards regression, which is a statistical technique to describe the relationship among variables [36,37]. Normally the linear regression technique analyses the relationship between independent and dependent variables, as given below:

𝒴^=β0+β1𝒳1+β2𝒳2++βn𝒳n+ϵ(2)

where 𝒴^ represents the predicted value, also known as a dependent variable. β0 describes intercept, which is the predicted value of dependent variables, if all 𝒳i’s are 0. 𝒳i, i=1,2,,n represent a list of all independent variables. βi, i=1,2,,n describes the regression coefficient, whereas ϵ describes the predicted error. The regression phase applies multiple regression on a dataset to create a regression model for each algorithm by using Eq. (3). Each model produces an intercept and regression coefficients of dependent variables are reported in Table 1.

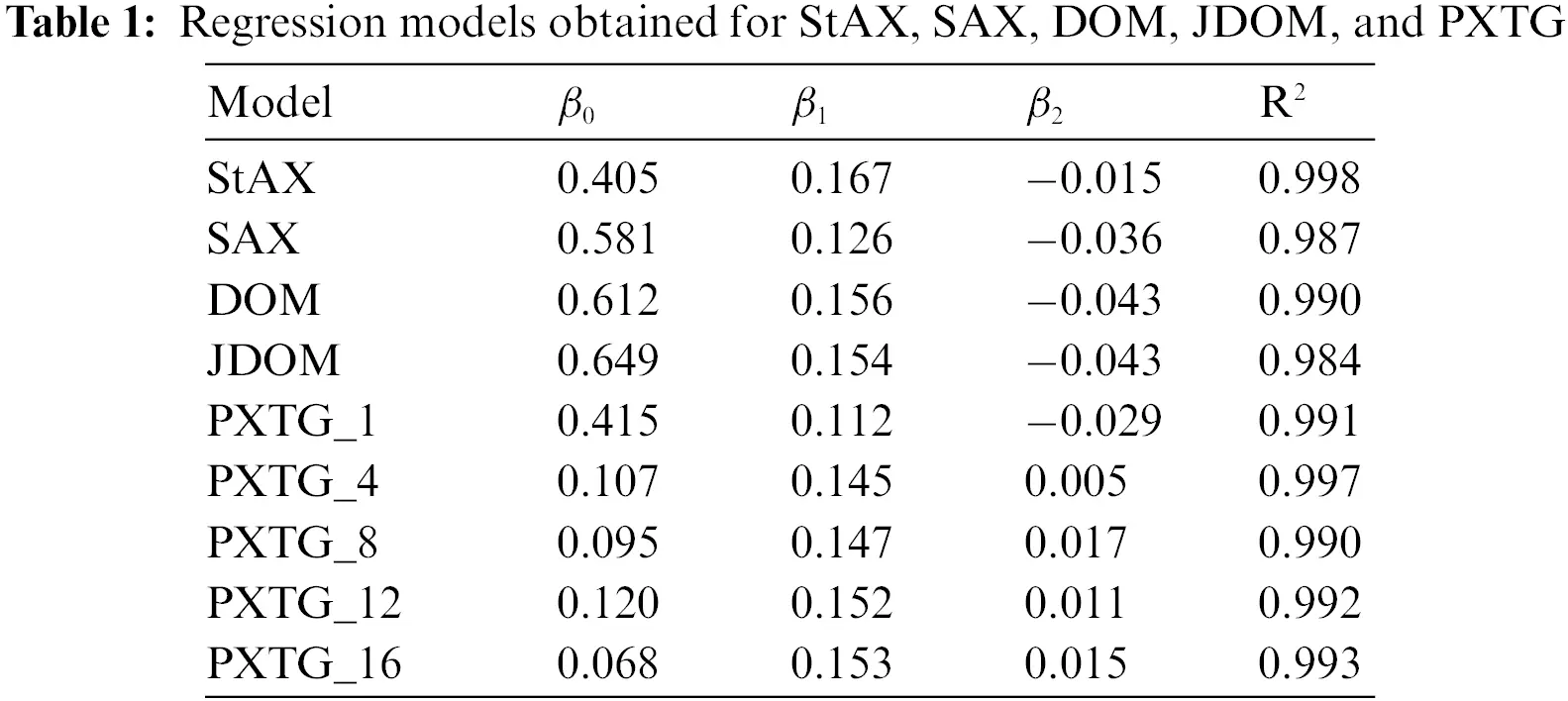

images

𝒴^=β0+β1(size)+β2(cores)(3)

β1 describes the rate of change in 𝒴^ (performance, i.e., execution time in seconds) by a unit change in 𝒳1 (size), when the effect of another variable 𝒳2 (cores) is kept constant. β2 describes the rate of change in 𝒴^ by a unit change in 𝒳2 (cores), when the effect of another variable 𝒳1 (size) is kept constant, while the performance of the model is measured by R2. The value of R-square (almost 0.99) shows that the execution time of parsers depends significantly on parameters, as computed by our model R-square is stated by Eq. (4), where 𝒴 represents actual value and 𝒴¯ represents mean of 𝒴.

R2=1(𝒴𝒴^)2(𝒴𝒴¯)2(4)

3.2.3 Code Generation

The RXPF framework uses the values generated by regression and generates the parsing code that invokes the most efficient algorithm for specified XML file size and the number of cores by calling the ParserTemplate( ) module (Algorithm 3), as given below:

images

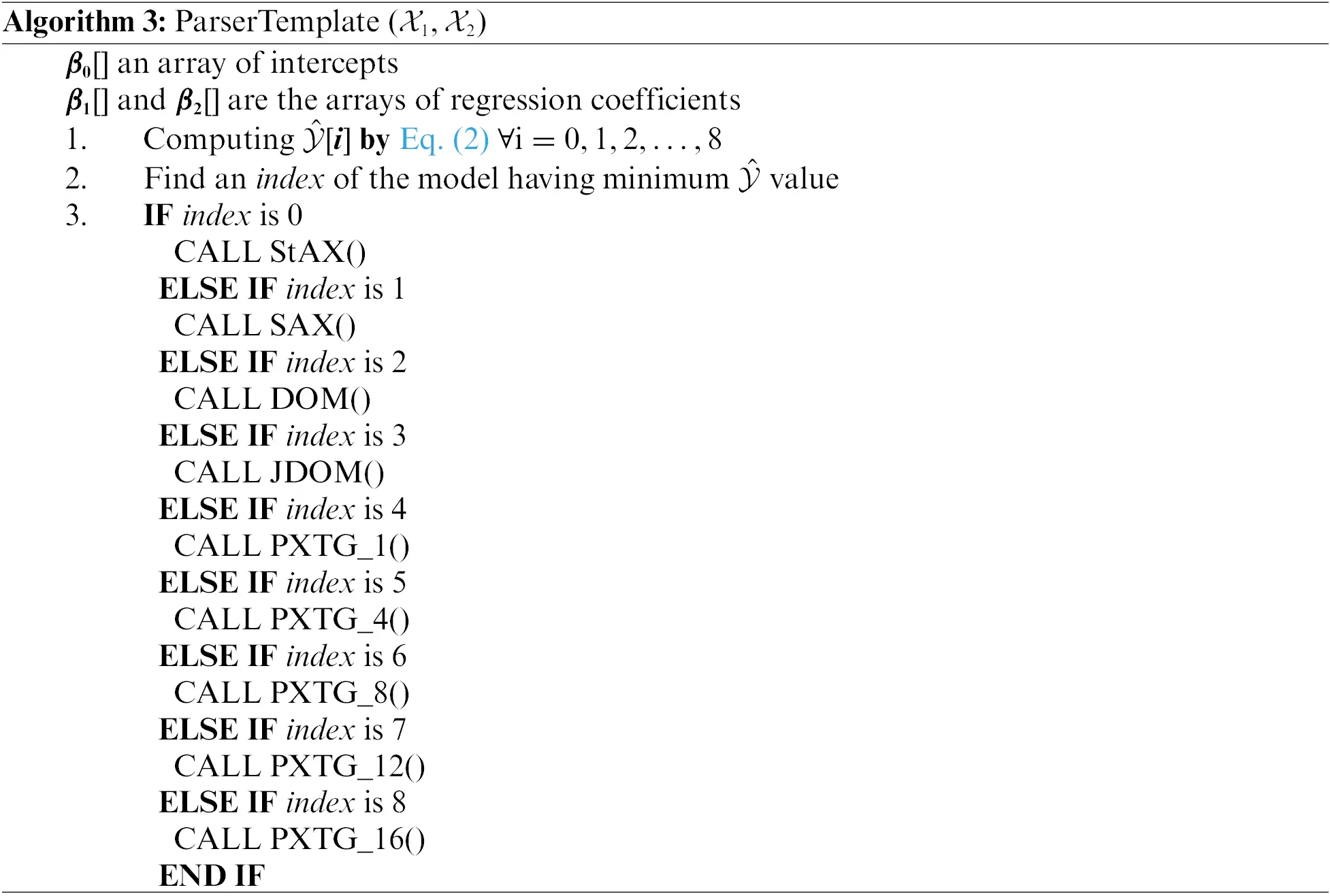

ParserTemplate( ) (Algorithm 3) receives an XML file size represented by 𝒳1 and the number of cores represented by 𝒳2. Step 1 computes the list of dependent variables of all algorithms by computing Eq. (3). Step 2 returns the index of the predicted algorithm after computing the minimum value from 𝒴^[i]. This is followed by calling the code of the best algorithm for parsing XML against 𝒳1 and 𝒳2.

4  Experimentation: Setup and Results

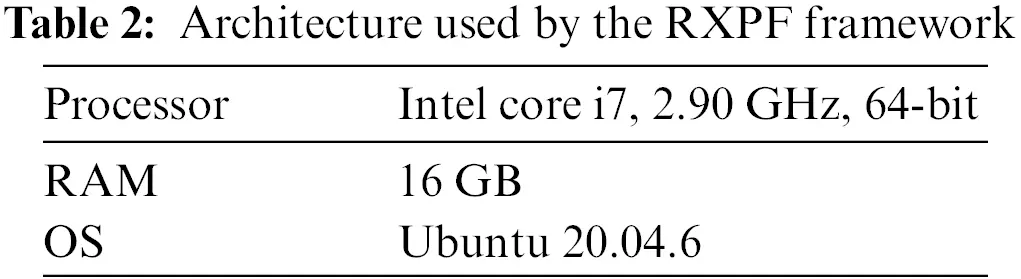

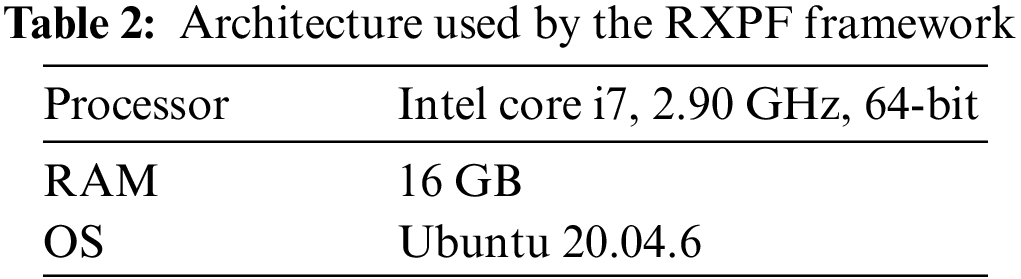

Our experimentation has been performed on the proposed framework RXPF. For training, the RXPF framework uses XML files of size 10, 15, 20, 25, 50, and 75 MB. For each XML file, the profiling has been performed by applying 1, 2, 4, 6, 8, 10, 12, 14, and 16 cores. The profiling phase generates a dataset containing file size, number of cores, and parsing time (seconds). The performance results generated after profiling1 are given in Figs. 68. The RXPF framework uses this dataset to create models by applying multiple regression technique. The testing process applies these models on different XML files of sizes 1, 5, 100, and 125 MB while executing code on 4, 8, and 16 cores. Finally, the parser code is generated by the RXPF framework. The architecture used for evaluating the algorithms is given in Table 2.

images

The performance results for the file of 1 MB size are given in Fig. 9. For this XML file, the RXPF framework takes 0.24, 0.26, and 0.24 s for parsing, while using 4, 8, and 16 cores, respectively. As Fig. 9 shows, the code generated by the RXPF framework for 4 cores produces speedup of 27.27%, 11.11%, 20%, 27.27%, 4%, and 7.69% over StAX, SAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1 and PXTG_12, respectively.

images

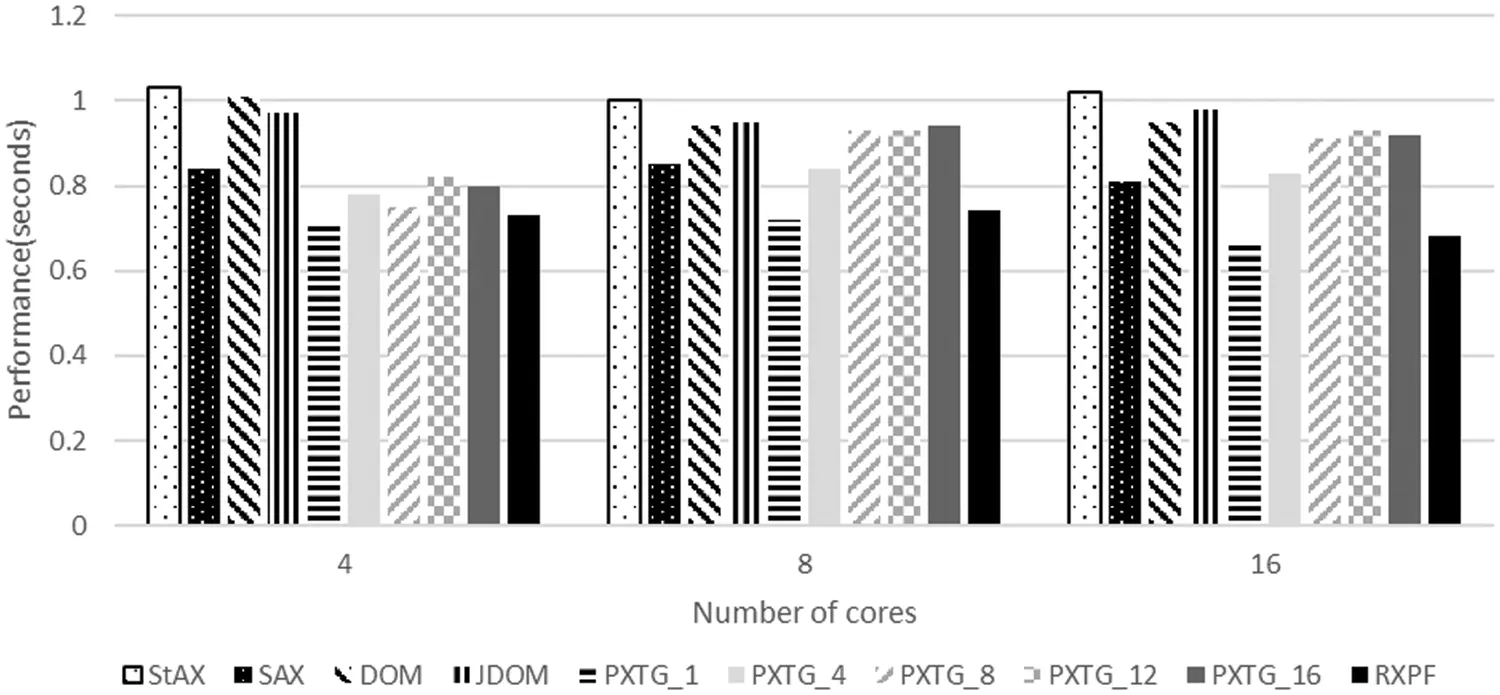

Figure 9: Parsing time for the evaluated approaches using a 1 MB XML file

The code generated by RXPF framework for 8-cores produces speed up of 16.12%, 10.34%, 21.21%, 3.70%, 3.70%, and 7.14% over StAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_8, PXTG_12, and PXTG_16, respectively. The code generated by RXPF framework for 16-cores produces speedup of 25%, 22.58%, 17.24%, 7.69%, 7.69%, 11.11%, and 11.11% over StAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1, PXTG_4, PXTG_8, PXTG_12, and PXTG_16, respectively. This performance of the RXPF framework is based on the selection of PXTG_8, PXTG_1, and SAX parser selected by the framework as the most efficient algorithm, for 4, 8, and 16, respectively.

The performance results for file a of 5 MB size are given in Fig. 10. For this XML file, the RXPF framework takes 0.73, 0.74, and 0.68 s for parsing while using 4, 8, and 16 cores, respectively. As the Fig. 10 shows, the code generated by the RXPF framework produces average speedup of 29.48%, 14.02%, 25.80%, 25.81%, 12.12%, 16.12%, 19.42%, and 18.70% over StAX, SAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1, PXTG_4, PXTG_8, PXTG_12 and PXTG_16, respectively.

images

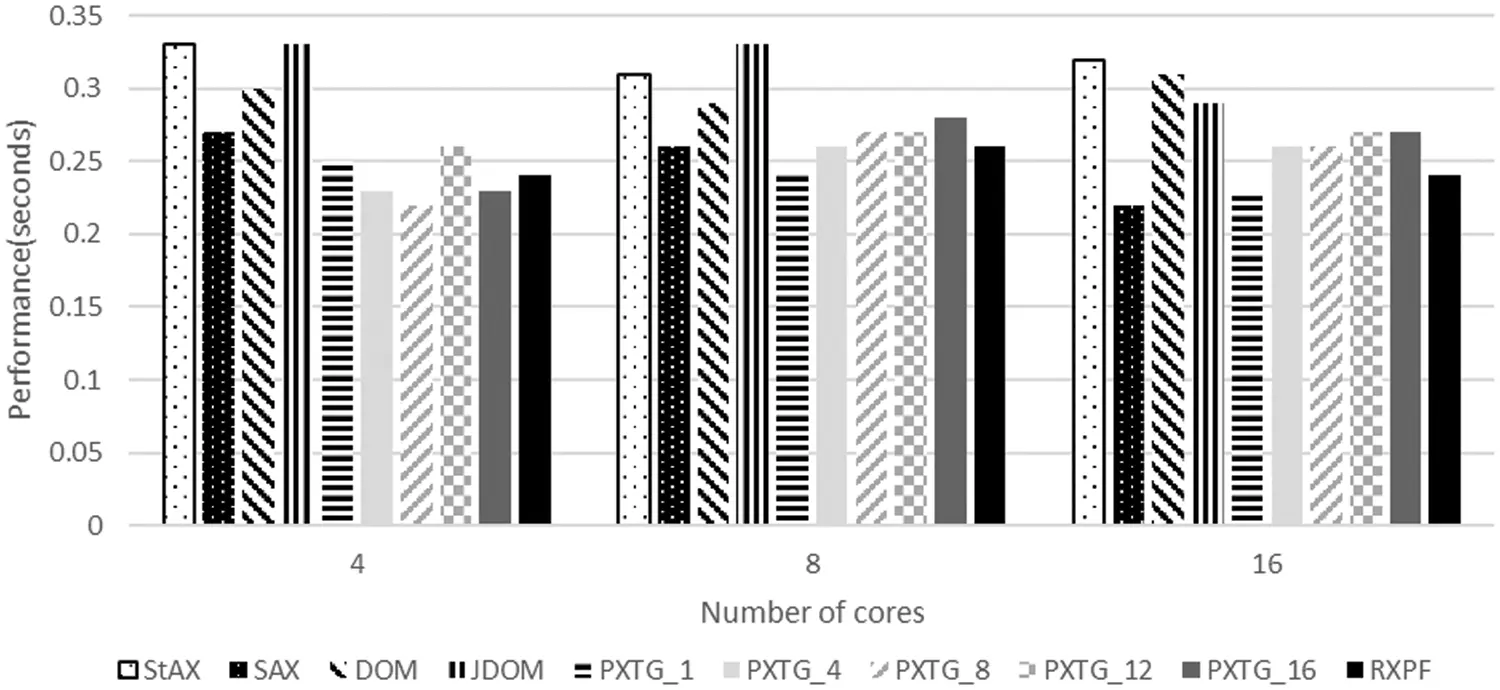

Figure 10: Parsing time for the evaluated approaches using a 5 MB XML file

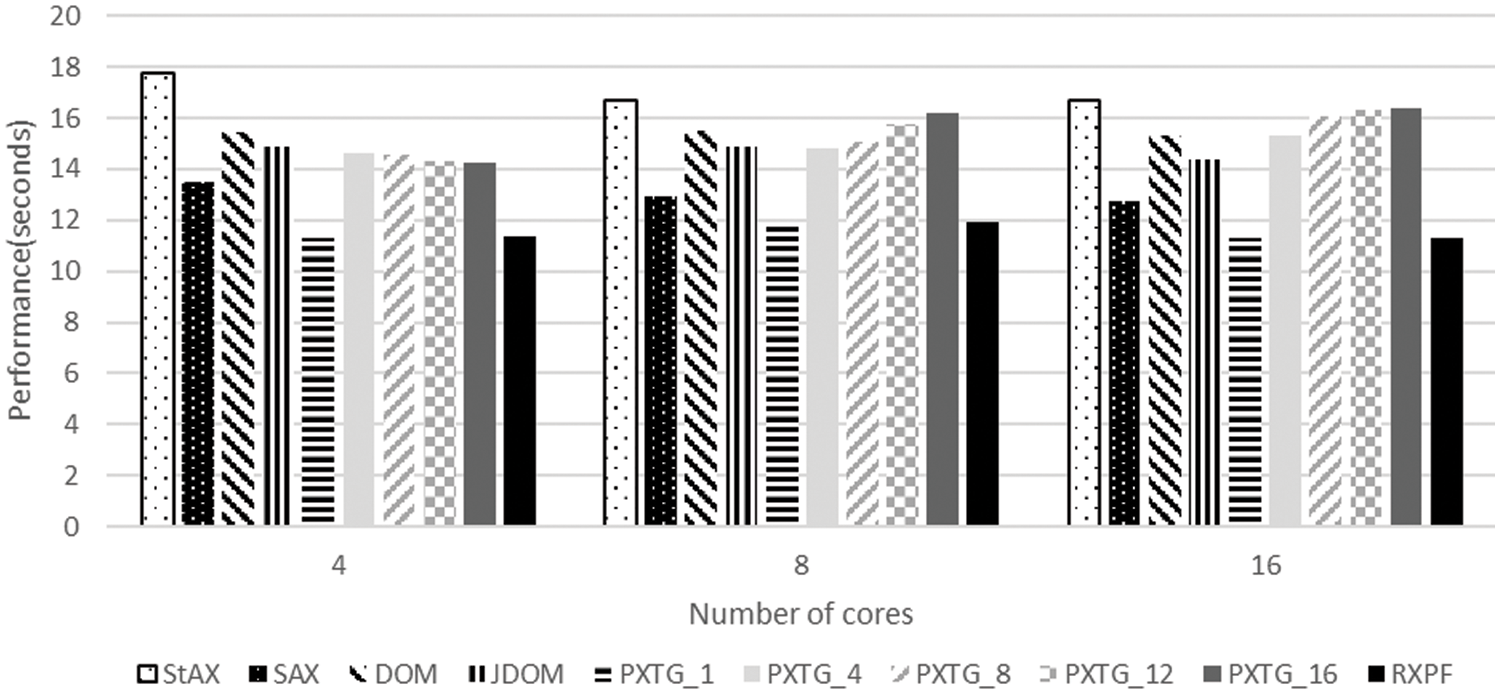

The performance results for a file of 100 MB size are given in Fig. 11. For this XML file, the RXPF framework takes 11.33, 11.92, and 11.32 s for parsing, while using 4, 8, and 16 cores, respectively. As the Fig. 11 shows, the code generated by the RXPF framework produces average speedup of 32.32%, 11.71%, 25.20%, 21.60%, 22.57%, 24.08%, 25.21%, and 25.83% over StAX, SAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1, PXTG_4, PXTG_8, PXTG_12, and PXTG_16, respectively.

images

Figure 11: Parsing time for the evaluated approaches using a 100 MB XML file

The performance results for a file of 125 MB size are given in Fig. 12. For this XML file, the RXPF framework takes 13.63, 14.84, and 14.57 s for parsing, while using 4, 8, and 16 cores, respectively. As the Fig. 12. shows, the code generated by the RXPF framework produces average speedup of 32.55%, 7.55%, 26.06%, 22.10%, 22.75%, 23.16%, 24.57%, and 24.96% over StAX, SAX, DOM, and JDOM, and variants of the proposed algorithm PXTG_1, PXTG_4, PXTG_8, PXTG_12, and PXTG_16, respectively.

images

Figure 12: Parsing time for the evaluated approaches using a 125 MB XML file

The average execution time of the RXPF framework over the StAX, SAX, DOM, and JDOM algorithms is given in Fig. 13. As Fig. 13 shows, the results obtained for parsing XML files show that the code generated by the RXPF framework outperforms other algorithms, by producing average improvements of 32.34%, 9.54%, 25.62%, and 22% over the StAX, SAX, DOM and, JDOM algorithms, respectively.

images

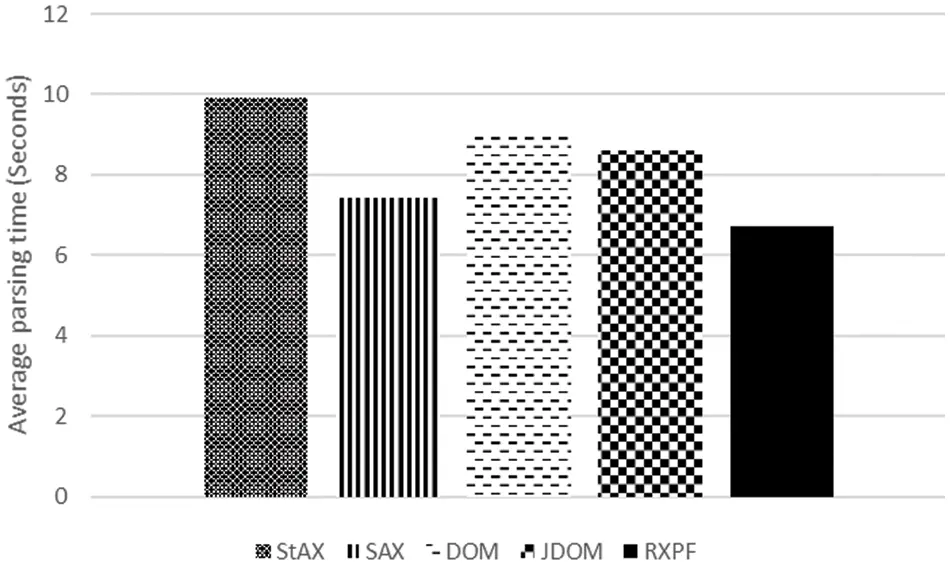

Figure 13: Average execution time for all configurations of file sizes and cores

5  Conclusion and Future Work

This paper proposes a parallel algorithm PXTG to accelerate the parsing of XML files and a framework RXPF that incorporates regression. The PXTG algorithm divides an XML file and produces multiple well-formed trees in parallel. The RXPF framework analyzes and predicts the performance of different XML parsing algorithms through profiling and regression, and then performs code generation for efficient parsing. The framework produces the dataset for regression through profiling of StAX, SAX, DOM, JDOM, and the proposed PXTG algorithm, while using multiple configurations of XML file sizes and processing cores. The framework generates the parsing code that invokes the best parsing algorithm based on the regression model. To evaluate the performance of the code generated using the RXPF framework, we have performed experimentation for different file sizes and processing cores. The results obtained for parsing XML files show that the code generated by the RXPF framework outperforms other algorithms, by producing average improvements of 32.34%, 9.54%, 25.62%, and 22% over the StAX, SAX, DOM, and JDOM algorithms, respectively. Our future research will enhance XML parsing performance by further exploring and applying neural network techniques for performance prediction. Moreover, currently, our approach is limited to shared memory architectures. In the future, we intend to target distributed memory architecture for parallel parsing.

Acknowledgement: Not applicable.

Funding Statement: The authors received no funding for this study.

Author Contributions: Mr. Muhammad Ali has performed implementation, experimentation, literature survey and writing of the paper draft. The idea and concept of regression and parallelism for XML in this article have been modeled by Minhaj Ahmad Khan, as well as the drafting and critical revision of the article.

Availability of Data and Materials: The data and materials used for experimentation can be accessed via GitHub repository https://github.com/muhammadalimaqbool/RXPF.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.

1For profiling, the taskset command has been used.
