Investigation of the Interaction Mechanism between Lignin Structural Units and Enzyme

1  Introduction

With the development of industrialization and the growth of population, energy consumption has increased significantly, and fossil fuel reserves can not meet the growing energy demand. Most important of all, fossil fuel is unsustainable, which brings many environmental pollution problems, such as sulfur dioxide and nitrogen dioxide produced from burning [1]. Therefore, the focus of energy research began to shift to bioenergy which can replace fossil fuel, mainly because bioenergy sources are clean available and have a wide range of raw materials, including bioethanol, biomethane and bio-oil [2]. Using lignocellulosic materials to produce bioethanol is conducive to reducing the dependence on fossil fuel, alleviating energy pressure, and helping to achieve “peak carbon dioxide emissions” and “carbon neutrality”.

The production process of bioethanol using lignocellulosic materials is dependent on three main steps including pretreatment, enzymatic hydrolysis and fermentation. Among them, enzymatic hydrolysis is the crucial step to convert polysaccharide in lignocellulosic material into glucose. There are many factors contribute to the recalcitrance of lignocellulosic material to hydrolysis, such as cellulase and its species, hydrolysis conditions, the crystallinity of cellulose, the accessibility of enzyme to cellulose, protection of cellulose by lignin [3–5]. Lignocellulosic material is a complex macromolecular material composed of cellulose, hemicellulose and lignin [6], while lignin, the main chemical component of plant fiber materials is a three-dimensional polymer composed of three phenylpropane units of guaicyl (G), syringyl (S) and p-hydroxyphenyl (H), connected by ether bond and carbon-carbon bond [7]. The ratio of G, S and H units differs in softwood, hardwood and grass species [8]. Softwood lignin is mainly composed of G structural units, hardwood lignin is polymerized by G-type and S-type monomers, while grass lignin contains G, S and H structural units [9].

It has been reported that the presence of lignin in the enzymatic hydrolysis of cellulose is mainly manifested in two aspects: steric obstruction and non-productive adsorption caused by the interaction with enzymes [10]. Lignin forms non-productive adsorption with cellulase through hydrophobicity, electrostatic action and hydrogen bonding [11]. In recent years, there have been many research on the effect of lignin on enzymatic hydrolysis of cellulose [12–14]. Cao et al. [15] found that the smaller S/G ratio, the larger the adsorption capacity will be, through studying the enzyme adsorption capacity on lignin isolated from masson pine, poplar and wheat straw, respectively. However contradictory results on the S/G ratio effects were also reported. In the adsorption experiment of cellulase onto lignin from untreated and pretreated lignocellulose, Li et al. [16] found that the S/G ratio of lignin showed a positive effect on the ability of adsorbing enzymes, indicating that lignin with a high S/G ratio had a negative effect on enzymatic hydrolysis. Nonetheless, due to the complexity of lignin structure, the mechanism of lignin-enzyme interaction is still not clear. The purpose of this experiment is to study the dynamic behavior of lignin with different structural unit ratios, as well as cellulose complexes in enzyme adsorption and enzymatic hydrolysis, deeply understand the influence of single factors of lignin, and construct the structure-activity relationship between lignin structural units and cellulase adsorption and enzymatic hydrolysis sugar conversion. The milled wood lignin (MWL) samples with different structural units were extracted from three hardwoods. Quartz crystal microbalance (QCM) was used to explore the effects of different structural units of lignin on cellulase adsorption, and the data were fitted to establish a kinetic model, and further elucidate the effects of lignin on cellulase hydrolysis (The experimental method is shown in Fig. 1).

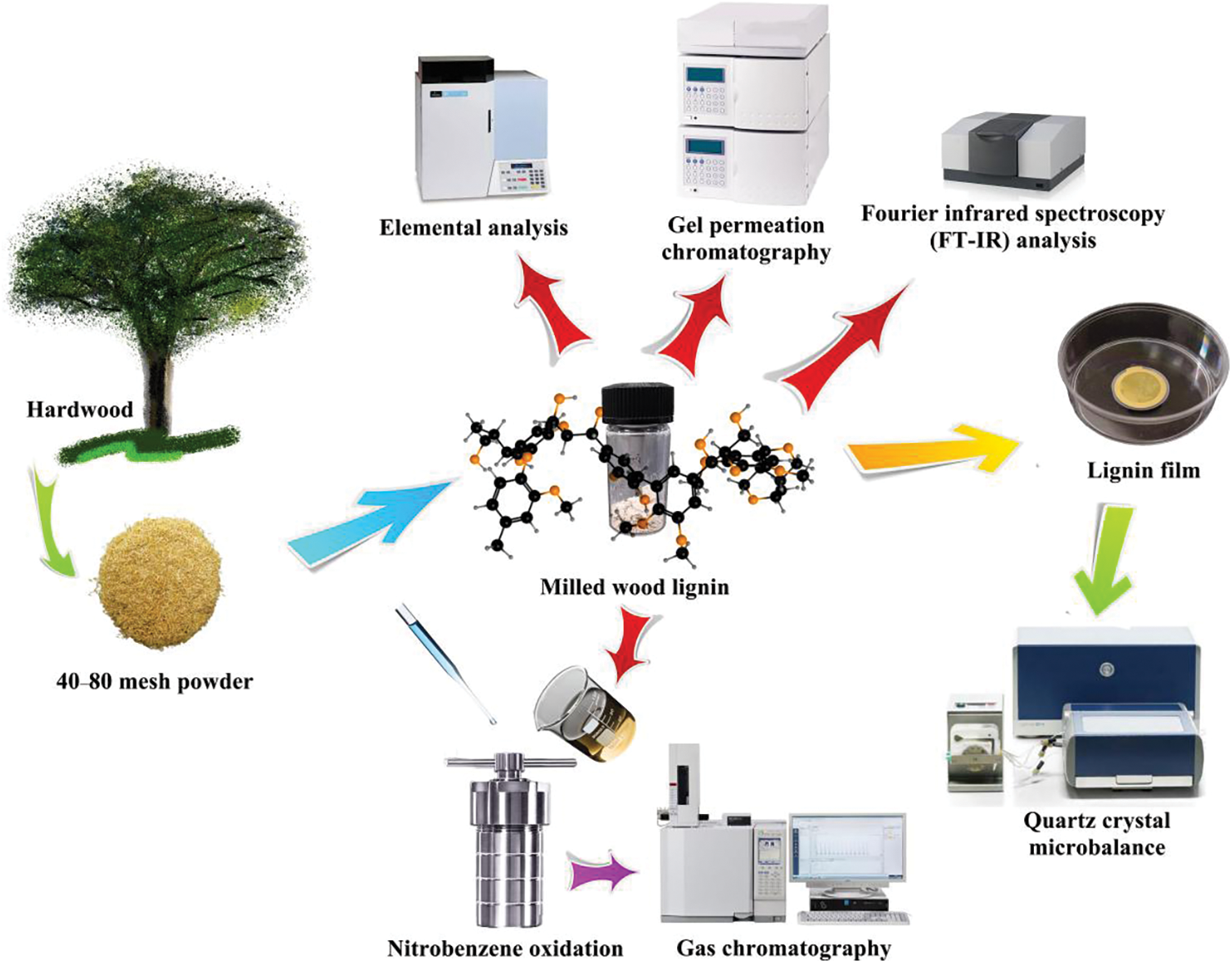

Figure 1: The steps of studying the interaction mechanism between lignin and enzyme

2  Materials and Methods

2.1 Materials

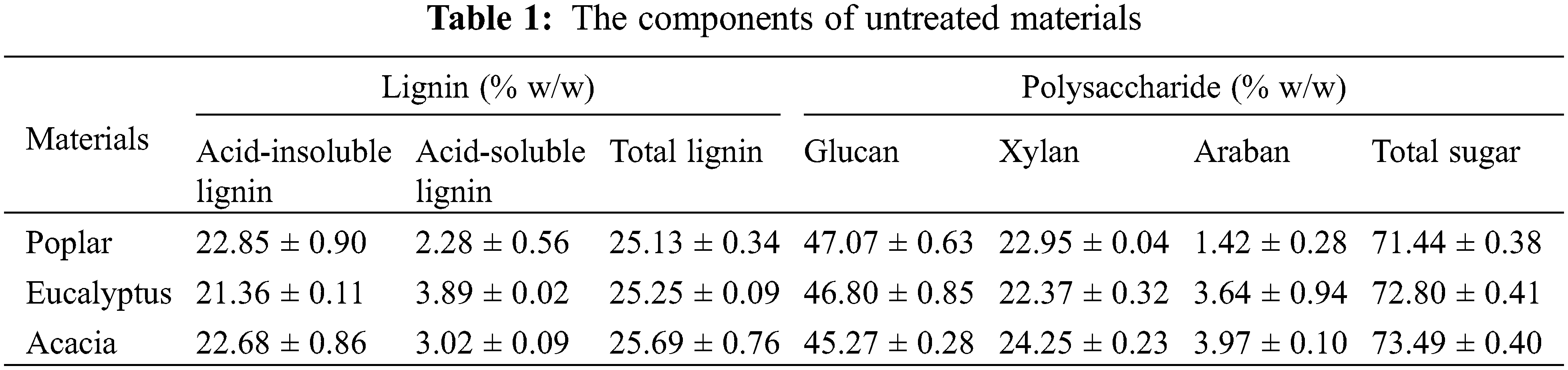

Poplar (Populus deltoids) was originally from Jiangsu OJI Paper Co., Ltd. (China), and eucalyptus (Nitens) and acacia (Acacia mearnsii) were both from Asia Symbol (Shandong) Pulp And Paper Co., Ltd. (China). The wood powder was grinded by Wiley micro mill. 40–80 mesh wood flour was screened, and extracted with benzene alcohol (2:1, v/v) for 8 h. The main chemical compositions of poplar, eucalyptus and acacia were shown in Table 1.

The cellulase (Cellic® CTec2) used in the experiment was purchased from Novozymes (Franklinton, NC, USA), and the cellulase filter paper activity was 200 FPU/g. The other chemicals were analytical grade and purchased from Sinopharmaceutical Chemical Reagents Co. Ltd. (China).

2.2 Enzymatic Hydrolysis

Enzymatic hydrolysis was carried out at 50°C and 180 r/min in acetic acid-sodium acetate buffer (pH = 4.8) with 5% dry matter (w/v), and enzyme dosage of 30 FPU/g-cellulose. Samples were taken at regular intervals, and the concentration of monosaccharides in the hydrolysate was quantitated by high performance liquid chromatograph (Waters 1525, USA). The free protein in supernatant was determined by Bradford method using bovine serum albumin as the protein standard [17]. The conversion rate of glucan was calculated by the following formula, where Y was glucan conversion, %; c was the concentration of glucose in hydrolysate, g/L; 0.04 was the hydrolysate volume of the total hydrolysis system, L; 0.9 was the glucan conversion coefficient, m was raw material quality, g; w was the content of glucan in the raw material, %.

Y=(c×0.04×0.9)/(m×w)×100% (1)

2.3 Lignin Preparation

The degreased wood meal was ball milled in a miniature planetary ball mill (Fritsch GMBH, Germany) for 2 h at a fixed frequency of 600 r/min. Four grams of the sample (dry weight) was put into a silicon nitride ball milling tank with 25 zirconia balls (1 cm in diameter) in each. The ball milling was conducted at room temperature, and a 10 min operating break was provided after every 5 min of milling to avoid overheating.

Milled wood lignin was isolated based on the Björkman method [18,19]. The ball-milled wood powder was mixed with 96% dioxane with a solid-liquid ratio of 1:10 (w/v), and extracted with magnetic stirring for 48 h at room temperature. The supernatant was collected by centrifugation, the residue was continued to extract using the same method. The extracting solution collected twice was concentrated by rotary evaporation at 40°C to remove the solvent. The dried residue was dissolved in 90% (w/w) acetic acid, centrifugation, and the supernatant was introduced into water (10 times the volume of deionized water). The precipitated residue was subject to centrifugation, washing with water and freeze-drying. The crude lignin obtained was then sufficiently dissolved in a mixture of 1, 2-dichloroethane/ethanol (2:1, v/v) and centrifuged. The supernatant was added to a large amount of anhydrous ether, and the precipitate was washed with ether for three times to obtain lignin with high purity.

2.4 Acetylation of Lignin

Acetylation was carried out for determination of GPC according to the method of Gonzalo et al. [20]. The lignin (about 30 mg) was dissolved in 1.5 mL of pyridine-acetic anhydride mixture (1:2, v/v), and stirred at room temperature for 24 h without light. After the reaction, the reaction system was evaporated to dryness with absolute ethanol. Add 1 mL of chloroform to completely dissolve and drop into 100 mL of ether to precipitate acetylated lignin. The precipitate was washed several times with diethyl ether, and then put it into a 40°C-vacuum drying oven for drying.

2.5 Preparation of Lignin Films

The lignin was dissolved 8 wt% LiCl/DMSO at a concentration of 0.25%(w/w), and the prepared solutions were coated on the QCM gold sensors by spin coating method. The specific parameters were set as follows: spin coating at the speed of 5000 r/min for 3 times (dosage: 100 μL each time), each time lasting for 1 min. The films were dried in an oven at 60°C, and immersed into ultra-pure water to remove LiCl and DMSO. The surface of the films then was dried with nitrogen gas and put in a dryer for later use.

2.6 Analytical Methods

2.6.1 Composition Analysis

The lignin and polysaccharide content of raw materials and MWL were analyzed according to an NREL protocol [21]. The samples were swollen with 72% H2SO4 at room temperature with occasional stirring for 3 h. After concentrated acid treatment, the mixture was diluted to 4% H2SO4 using distilled water, and reacted at 121°C for 1.5 h in an autoclave. The content of acid-insoluble lignin depended on hydrolysis residue, and the hydrolysate was used to determine the content of acid soluble lignin and sugar, respectively. The sum of acid-soluble lignin and acid-insoluble lignin was reported as the total lignin content. Acid soluble lignin was determined by calculating the absorbance at 205 nm in an UV-Vis spectrometer (TU-1900, China). The calculation of polysaccharide was based on the reference [22], and the content of polysaccharide was measured with a high-performance liquid chromatography (HPLC, Waters 1525, USA).

2.6.2 Crystallinity of the Raw Material

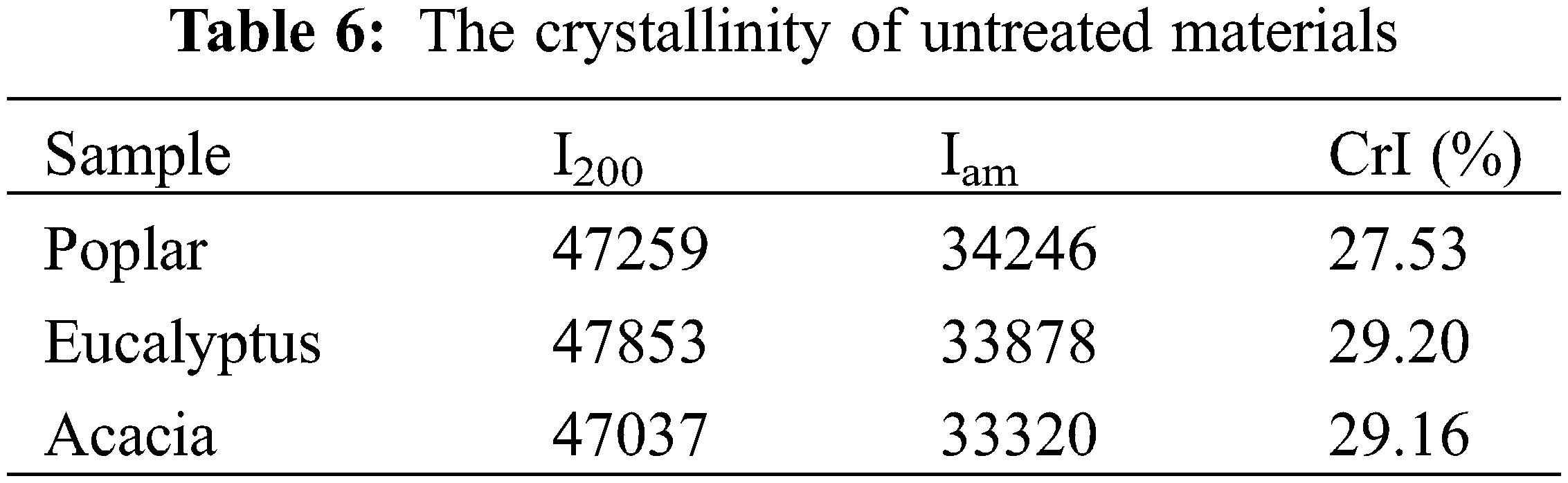

The crystallinity of the raw materials was analyzed by powder method on X-ray diffractometer (XRD, Ultima IV, Japan). Crystallinity can be calculated according to Segal formula [23], as shown below, where I200represented the peak intensity at 2θ = 20°–25°, and Iamrepresented the minimum peak intensity at 2θ = 16°–18°.

CrI(%)=I200−IamI200×100% (2)

2.6.3 Elemental Analysis

The lignin samples of 2–3 mg were sealed in tin capsules, and elemental analyzer ( PE 2400II, USA) was used for analyzing the elemental composition of C, H and O.

2.6.4 Gel Permeation Chromatography

The molecular weight and molecular distribution of lignin samples were determined by gel permeation chromatography (LC−20A, SHIMADZU, Japan) using tetrahydrofuran as the mobile phase at a flow rate of 1 mL/min.

2.6.5 Fourier Infrared Spectroscopy (FT-IR) Analysis

FT-IR analysis (VERTEX 80 V, Brucker, Germany) was carried out by potassium bromide wafer technique. The spectra were recorded in the 4000–400 cm−1 at a resolution of 4 cm−1, and scanning time was 60 times/s.

2.6.6 Nitrobenzene Oxidation

Operation of nitrobenzene oxidation referred to the procedure reported by Chen [24]. The absolute-dried lignin samples (10 mg) were reacted with 4 mL sodium hydroxide (2 M NaOH) and 0.25 mL nitrobenzene in the stainless reaction bomb at 170°C for 2 h. At the end of the reaction, the tanks were placed in an ice water for rapid cooling, and 1 mL of internal standard (0.3 g/L 3-ethoxy-p-hydroxy benzaldehyde) was added. The mixture was extracted with dichloromethane (CH2Cl2) for three times with the dosage of 15 mL each time, and the water phase was collected. Hydrochloric acid (4 M HCl) was used to acidify the water phase layer to pH = 1. The acidified solution was extracted twice with CH2Cl2 (dosage: 20 mL each time), and the organic phase was collected. Then extracted with 15 mL diethyl ether and removed the water phase. The organic phase collected, and 20 mL distilled water was poured into the separation funnel, and the water phase was discarded. The remaining organic phase was dried by anhydrous sodium sulfite and evaporated to dry by rotary evaporation at 40°C. The dried product was dissolved with 1–2 mL ethyl ether, and 0.2 mL BSA (N, O-bis (trimethylsilyl) acetamide) was added. The derivatization conducted in an oven at 105°C for 10 min, and was analyzed by gas chromatograph (GC 2010PLUS, Shimadzu, Japan).

2.6.7 Enzyme-Lignin Surface Interaction Studied by QCM

The lignin films were loaded into the QCM module. The temperature was set at 40°C, and acetic acid-sodium acetate buffer (pH 4.8) was introduced into the module at a rate of 0.1 mL/min until the frequency vibration demonstrated a stable baseline. At the moment, cellulase solution with a concentration of 0.1 mg/mL was added and stopped 30 min later. After adsorption, buffer solution was added into the module again and rinsed for 15 min. Each experiment was measured at least 3 times, and the average of the 3 times was selected as the frequency. The fundamental frequency of all frequency variations was 5 MHz, and the overtones of 15, 25, 35 and 45 MHz were monitored simultaneously. The data in the third overtone (15 MHz) was selected for data processing.

3  Results and Discussion

3.1 Chemical Composition

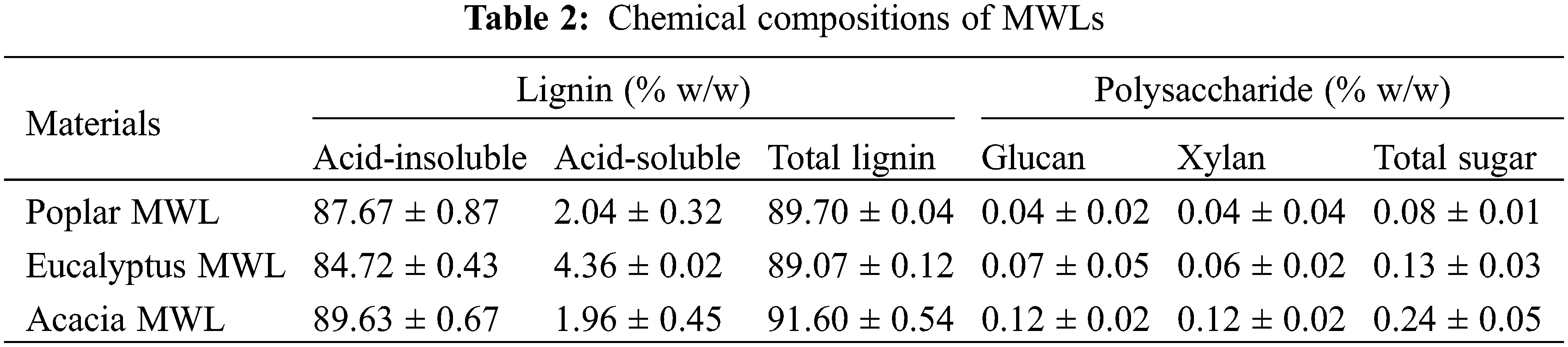

The main chemical components of the three kinds of lignin were shown in Table 2. The MWL samples contained 0.08%–0.24% (w/w) of polysaccharide and the cellulose content only accounted for about 0.1%, which meant that lignin can be used as an independent factor to study the effects on enzymatic hydrolysis regardless of the impact of carbohydrates in lignin samples.

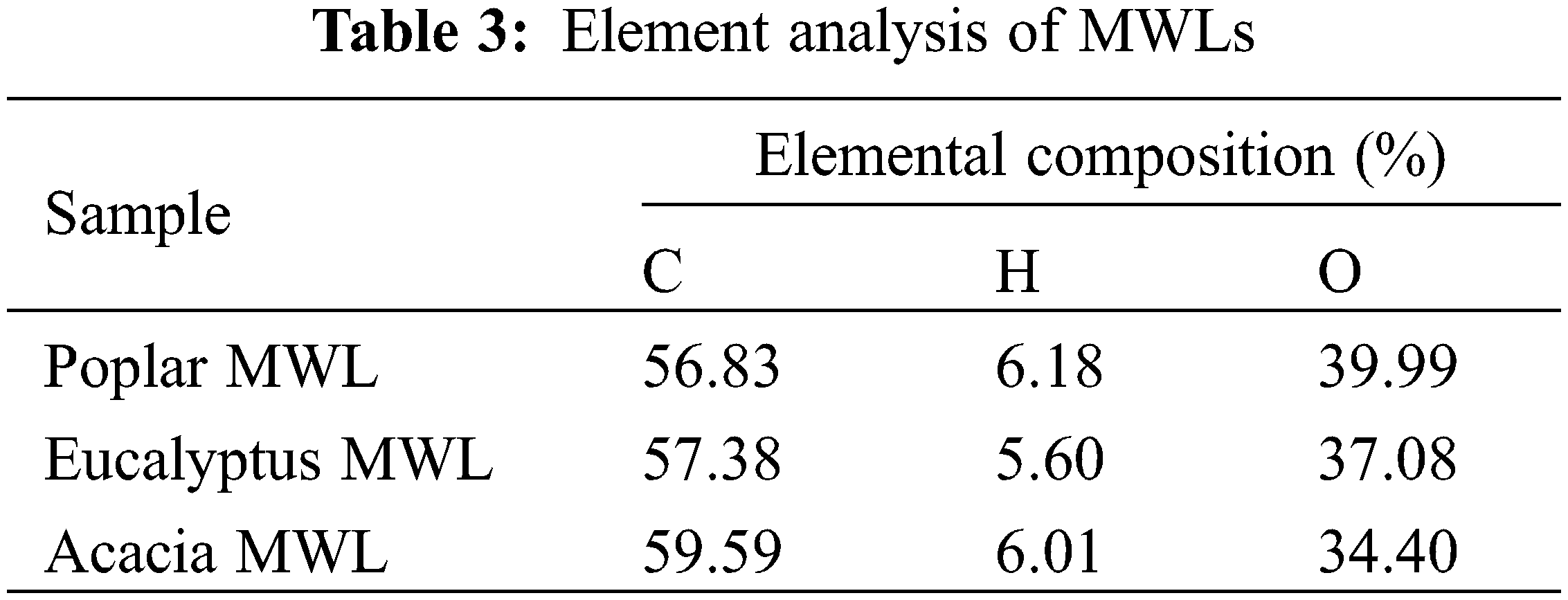

On the basis of the results of elemental analysis of poplar, eucalyptus and acacia MWL (Table 3), the contents of C, H and O of the three kinds of MWLs were close to each other, about 60% for C, 6% for H and 33% for O, respectively. Follow the C9 molecular formula, the milled wood lignin of poplar, eucalyptus and acacia could be written as C9H11.73O4.75, C9H10.54O4.35, C9H10.89O3.89.

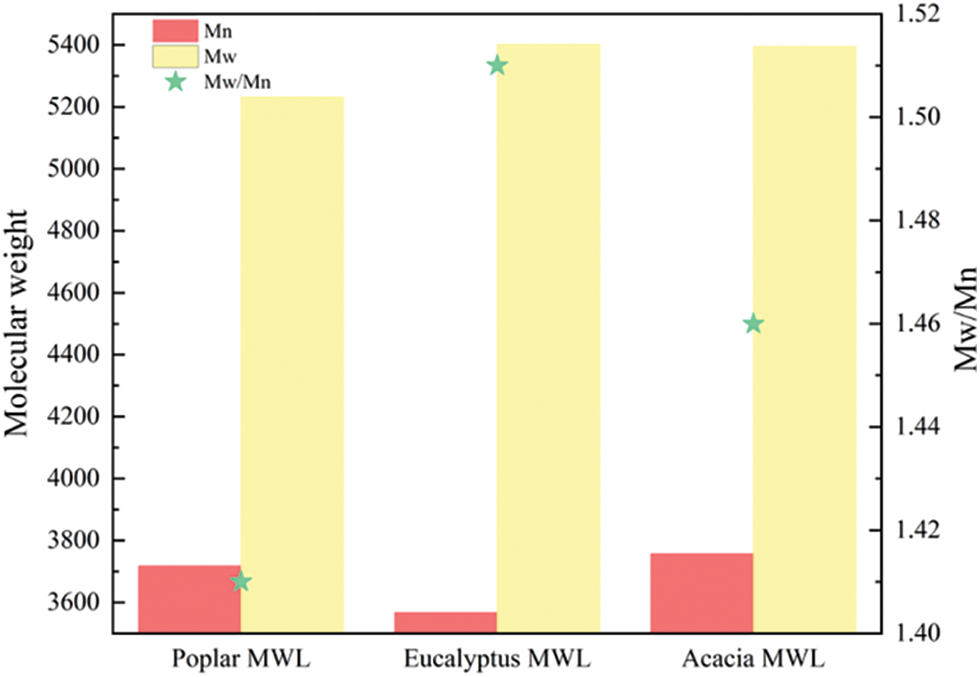

The number-average molecular weight (Mn), weight-average molecular weight (Mw) and polydispersity (Mw/Mn) of the three lignin samples were shown in Fig. 2. The molecular weight of the isolated MWL of poplar was 5232, similar to that of eucalyptus, 5402 and acacia, 5396. In addition, the Fig. 2 also showed the similar polydispersity, indicating that the molecular weight distribution of the extracted lignin was narrow and had good uniformity [25]. This observation indicated that the steric structure of the three kinds of lignin had little difference, and they had the similar steric hindrances induced in enzymatic hydrolysis.

Figure 2: Molecular weight and polydispersity of MWLs

3.2 Nitrobenzene Oxidation Products

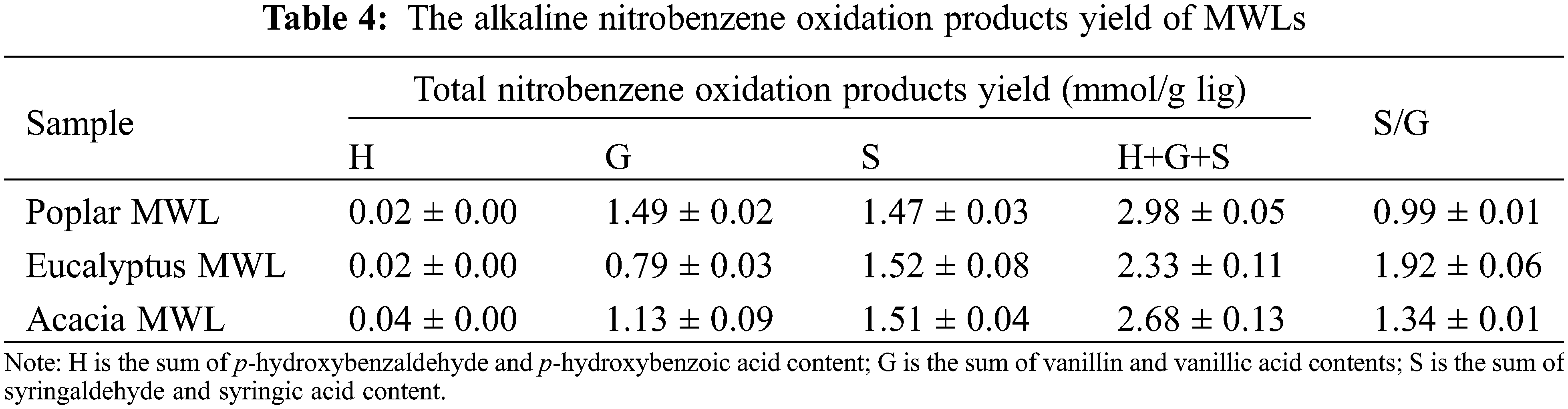

Alkaline nitrobenzene oxidation (NBO) is usually used to elucidation the structural analysis of lignin [26]. It could provide information about the constitutive monomeric composition of the lignin. After the reaction of lignin with nitrobenzene in alkaline conditions, the side chains of uncondensed lignin are oxidized by nitrobenzene, but the characteristics of the benzene ring in lignin are still retained [27]. The non-condensed guaiacyl, syringyl, and p-hydroxyphenyl groups are oxidized to aldehydes and to a lesser extent acids, and the yield of nitrobenzene oxidation products can reflect the degree of condensation of the reactants [28]. Products yields of alkaline nitrobenzene oxidation of isolated lignin samples were given in the Table 4.

Obviously, the three lignin samples all produced a large amount of syringaldehyde/acid, vanillin/acid and a small amount of p-hydroxy benzoaldehyde/acid after nitrobenzene oxidation, which were typical hardwood lignin. Although they belong to the broad-leaved wood class, the lignin of eucalyptus, poplar and acacia showed their own distinct characteristics in chemical structure. The content of G units in eucalyptus lignin was only half of that of poplar lignin, which was much lower than that of poplar and acacia lignin. The S/G ratio of lignin in eucalyptus was 1.92, which was close to the oxidation results of nitrobenzene in eucalyptus by Xie et al. [29]. The S/G of poplar lignin was about 1, and that of acacia lignin was 1.34. The high content of uncondensed units in the lignin structure was indicative of the low degree of lignin condensation [30]. The total oxidation products yield of lignin in poplar, eucalyptus and acacia were 2.98, 2.33 and 2.68 mmol/g lig, respectively. The degree of lignin condensation in poplar was the least, followed by acacia and eucalyptus lignin.

3.3 FT-IR Analysis

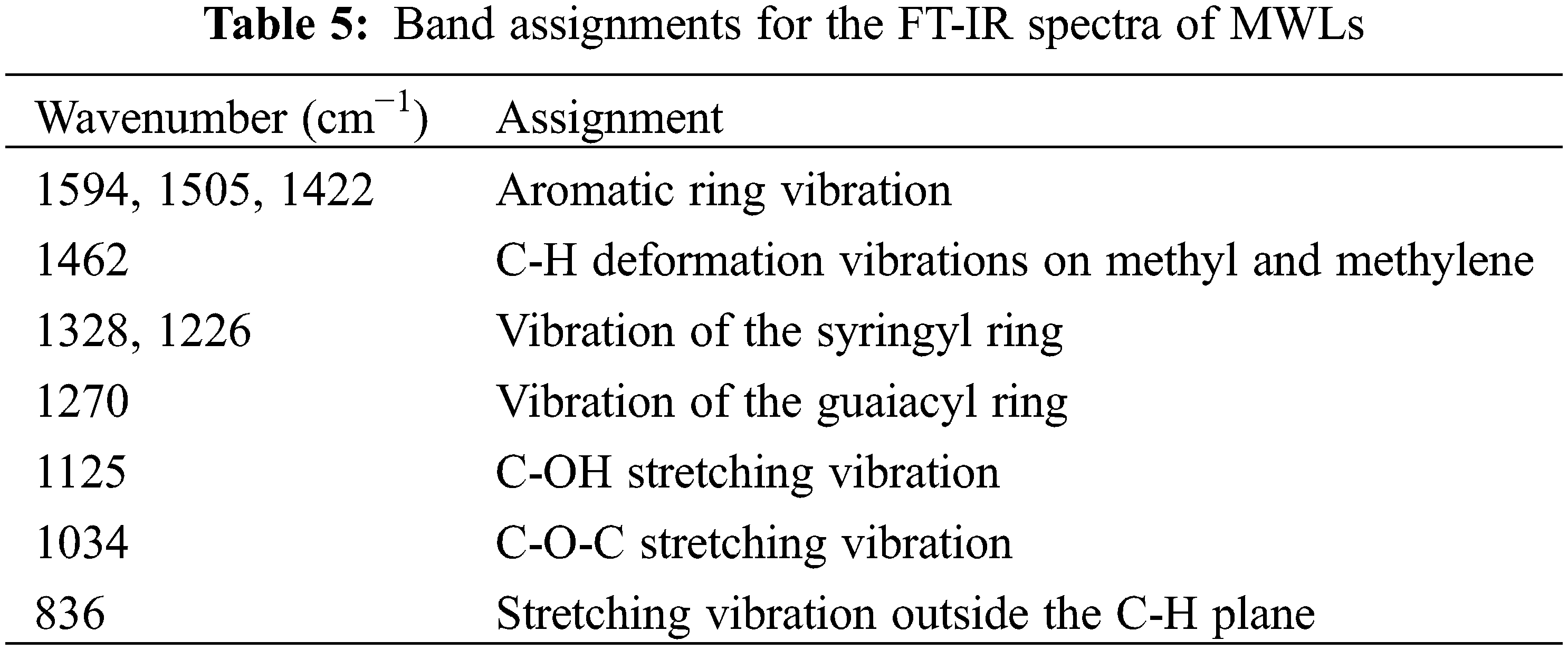

The functional groups and bonds of isolated lignin samples were analyzed by FTIR spectroscopy (Fig. 3), and band assignments were based on data from the literature [31]. The main peaks ranged from 2000 cm−1 to 800 cm−1, and their relative peak intensities were listed in Table 5. Obviously, they had the similar structural skeletons, and the bands at 1594, 1505, and 1422 cm−1 were attributed to aromatic ring vibration, indicating that the benzene ring structure of isolated lignin was intact. The C-H deformation vibrations on methyl and methylene were observed at 1462 cm−1, and 836 cm−1 represented the stretching vibration outside the C-H plane. The absorption bands at 1328, 1226 and 1125 cm−1 were due to the vibration of the syringyl ring, while the relative band at 1270 cm−1 represented the stretching vibration of the guaiacyl ring, which suggested that the three lignin samples all contain the S and G subunits. The absorption strength of lignin in eucalyptus was weak at 1270 cm−1, due to the small number of G structural units, which was consistent with the results of alkaline nitrobenzene oxidation.

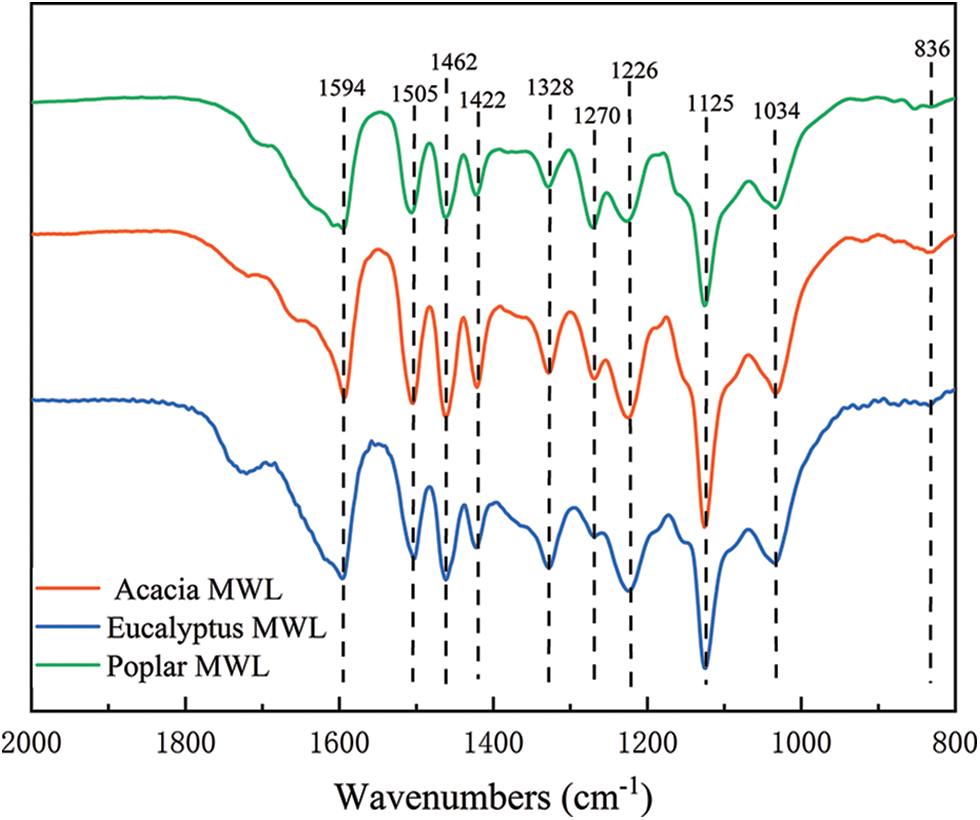

Figure 3: FT-IR spectra of MWLs

3.4 Enzymatic Hydrolysis

Using the raw materials after ball milling of poplar, eucalyptus and acacia wood as substrate, enzymatic hydrolysis was carried out at 50°C and 180 r/min in acetic acid-sodium acetate buffer (pH 4.8). The change of glucan conversion rate over time was shown in Fig. 4. According to the analysis results of the three raw materials (Table 1), although the content of cellulose and lignin in poplar, eucalyptus and acacia was almost the same, the glucan conversion rates of the three feedstocks were different after 72 h hydrolysis. The sugar conversion rate of poplar was 68.02%, and that of eucalyptus was 66.50%, while the glucan conversion rate of acacia was much lower than that of poplar and eucalyptus wood, which was only 54.03%. In combination with the X-ray diffraction patterns and crystallinity of enzymatic hydrolysis raw materials in Fig. 5 and Table 6, the three hardwood raw materials have similar crystallinity. In theory, poplar, eucalyptus and acacia also have similar glucan conversion rates. However, the glucan conversion rate of acacia was much lower than that of poplar and Eucalyptus. This might be due to the difference in lignin structure in the substrate, which produces different results in the process of cellulase hydrolysis.

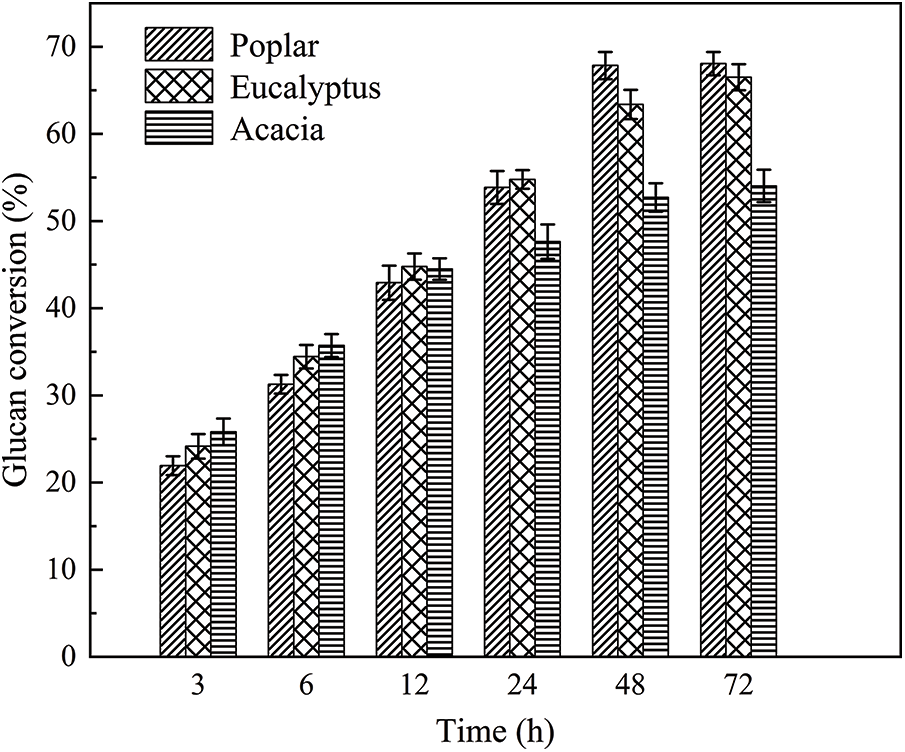

Figure 4: Glucan conversion of Poplar, Eucalyptus and Acacia

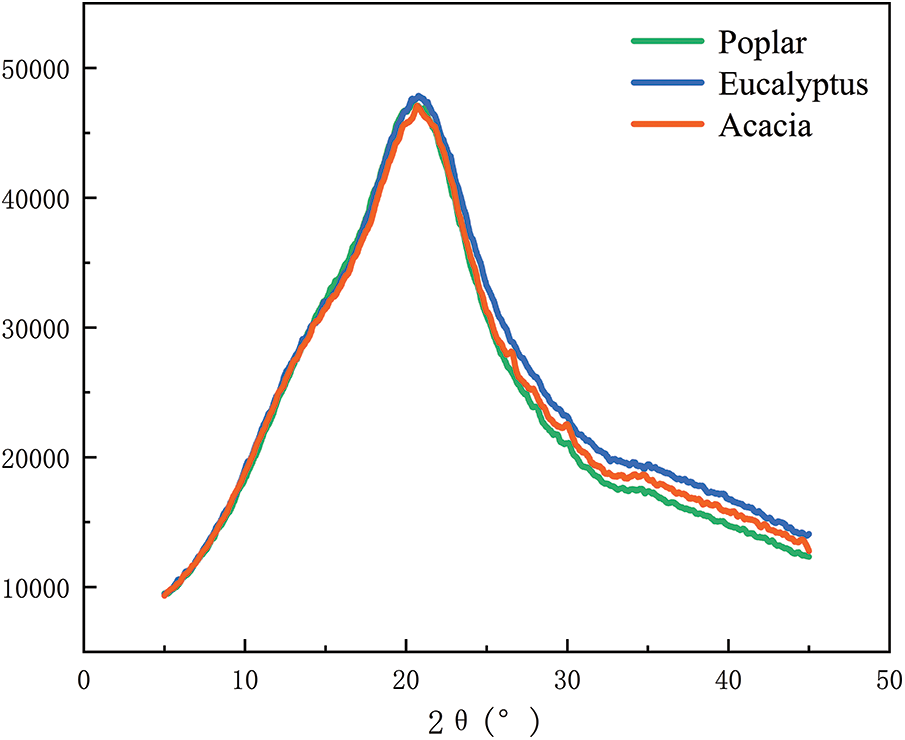

Figure 5: XRD spectra of untreated materials

The protein content detected in the supernatant was shown in Fig. 6. With the extension of hydrolysis time, the protein content in the supernatant first decreased, then increased, and then decreased slowly. In the initial stage of hydrolysis, a large number of cellulases were adsorbed on the hydrolysis substrate. With the progress of enzymatic hydrolysis reaction, more and more cellulose was hydrolyzed into glucose, more and more lignin was exposed, and some enzymes were slowly released into the supernatant [32], resulting in the increase of protein content in the supernatant. A small amount of cellulase will have ineffective adsorption with lignin, so the protein content in the supernatant will gradually decrease. The presence of lignin hinders the desorption of cellulase from the substrate [33]. Accordingly, in the initial stage of enzymatic hydrolysis, compared with eucalyptus and acacia, the protein content of supernatant in poplar hydrolysate was the highest, and the content of cellulase adsorbed on poplar substrate was relatively low, and this part of enzyme adsorbed on substrate might adsorb with cellulose or non-productive adsorption with lignin.

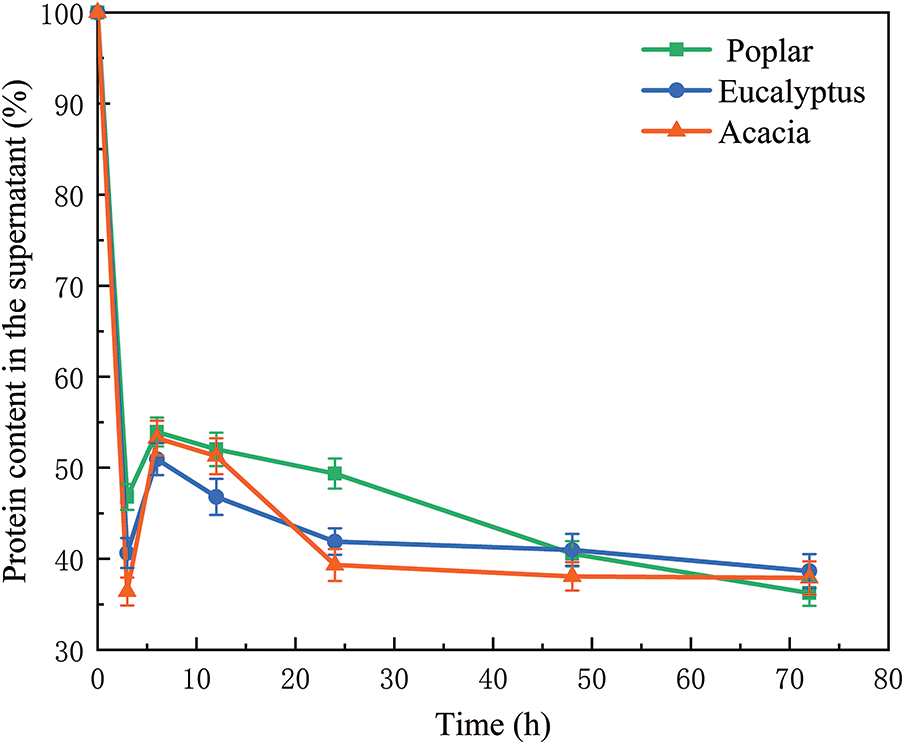

Figure 6: Protein content in the supernatant of Poplar, Eucalyptus and Acacia

3.5 Adsorption of Cellulase on Lignin

In order to determine whether the structure of lignin was the critical factor affecting the efficiency of enzymatic hydrolysis, the interaction between lignin and enzymes was studied in situ and in real time by preparing lignin films and using quartz crystal microbalance. Frequency changes of cellulase on lignin films of poplar, eucalyptus and acacia MWL were shown in Fig. 7. Since the frequency change of QCM was inversely proportional to the mass change of the film [34], the adsorption amount of cellulase on the lignin films could be intuitively seen through the frequency change. Once the frequency was in a stable state, the enzyme solution was introduced, and the frequency decreased instantaneously, indicating that the mass on the lignin film was increasing continuously, and the cellulase was rapidly adsorbing lignin. The decreasing rate of frequency reached a flat period after about 10 min, suggested that the adsorption rate of lignin by cellulase was slowing down. The frequency increased when the lignin film was rinsed with buffer solution, showing that a small part of the cellulase adsorbed on the lignin film was desorbed, but most of the cellulase was still tightly adsorbed with the lignin and was difficult to be eluted.

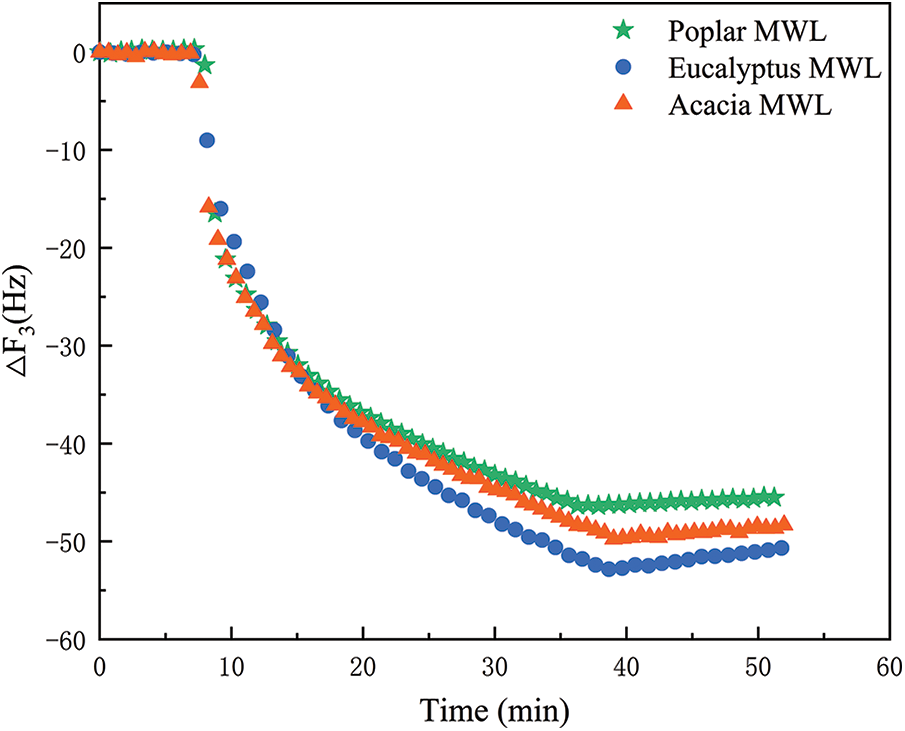

Figure 7: Adsorption of cellulase on lignin films

The difference of lignin structural units had a significant effect on the process of cellulase hydrolysis [35]. Compared to the maximum frequency of cellulase adsorption on lignin film in Fig. 7, it could be found that the adsorption capacity of cellulase on MWLs were in the following order: eucalyptus MWL > acacia MWL > poplar MWL. Combined with nitrobenzene oxidation results (The S/G ratios of poplar, eucalyptus and acacia MWL were 0.99, 1.92 and 1.34, respectively), the higher the S/G ratio of lignin, the stronger the enzyme adsorption capacity of lignin was, which reduced the contact opportunity of cellulose on the enzyme, and further blocked the accessibility between cellulose and enzymes, and finally retard the enzymatic efficiency. Tan et al. [36] also found in their study that sulfite pretreated lignin with high S/G ratio had stronger adsorption capacity than untreated lignin. Compared with the G structural unit, S unit showed a higher affinity for cellulase and induced more enzymes to adsorb on the lignin films irreversibly. In addition, the structure of S unit contained two methoxy groups, which caused the more space obstacles [37], thus hindering the adsorption of enzymes to cellulose. Beyond that, the contents of non-condensed units in MWL of poplar, eucalyptus and acacia were 2.98, 2.33 and 2.68 mmol/g lig. The adsorption amount of cellulase was also related to the condensation degree of lignin. The greater the degree of condensation, the stronger the interaction between lignin and enzymes was [38].

Frequency data obtained by QCM could also be combined with the exponential attenuation model (3) to establish the adsorption kinetics equation of lignin and enzyme [39]. Since the frequency (ΔF) and the mass (Δm) of the enzyme adsorbed on the surface of lignin films also accorded with the Sauerbrey linear formula (4) [40], the maximum adsorption amount and irreversible adsorption amount of cellulase on different lignin films could be calculated.

ΔF=ΔFmax(1−e−tτ) (3)

Δm=−cΔFn (4)

In formula (3), ΔFmaxwas the frequency when the maximum adsorption capacity was reached, Hz; t is time, min; τ was the reciprocal of adsorption rate, min−1. In formula (4), Δm was the adsorption mass, ng/cm2; c was the mass sensitivity constant, where c = 17.7 ng/cm2/Hz; ΔF was the frequency, Hz; n was the octave value, n = 3, 5, 7, 9, 11 (n = 3, in this work).

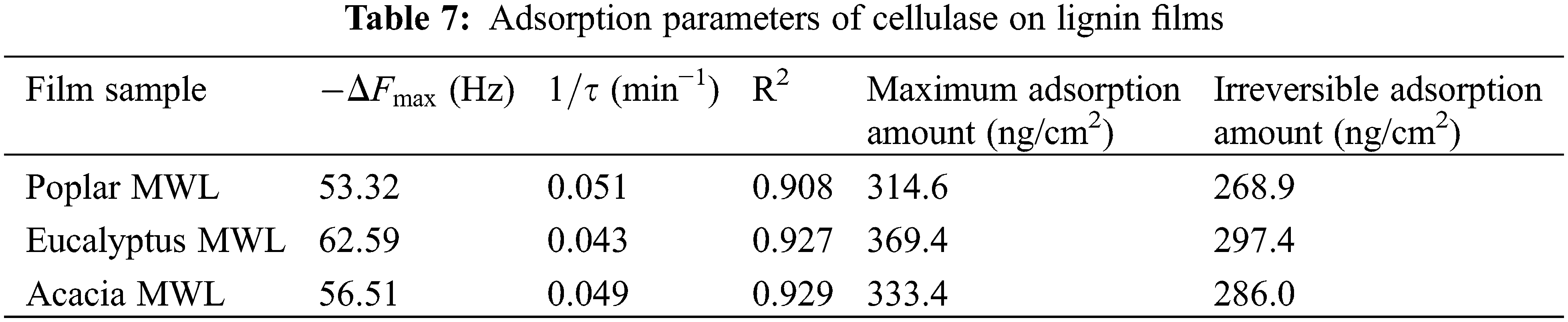

The fitting results of cellulase adsorption kinetics on lignin were shown in Table 7, and the fitting correlation coefficients were all greater than 0.9. The adsorption rate, maximum adsorption amount and irreversible adsorption amount of different lignin films were different. Among them, the adsorption rate of cellulase on poplar MWL was the highest, followed by acacia MWL, and eucalyptus MWL. On the grounds of the maximum adsorption amount and irreversible adsorption amount, the desorption capacity of cellulase on poplar, eucalyptus and acacia lignin films was 45.7, 72.0 and 47.4 ng/cm2, respectively, showing that the adsorption layer formed by cellulase on MWL film of eucalyptus was the most loose, which made it easier to desorption from lignin substrate. However, because of the higher S/G ratio of eucalyptus MWL, there were more sites that can be adsorbed with cellulase, which made the stronger adsorption capacity of eucalyptus and cellulase and the larger irreversible adsorption amount larger. This result was consistent with previous work [41,42].

4  Conclusion

Using poplar, eucalyptus and acacia wood as raw materials, milled wood lignin was extracted by Bjökman method. With detailed comparison of lignin structures, there was no significant difference between the three lignin samples, except for differences in lignin structural units. In the hydrolysis experiment, the results of enzymatic hydrolysis kinetic parameters based on QCM demonstrated that the lignin with higher S/G ratio showed a stronger affinity for cellulase, which caused more enzyme to be covered in the network structure of lignin. The more non-productive adsorption between lignin and enzyme with high S/G ratio will lead to the decrease of adsorption between enzyme and cellulose, resulting in a decrease in hydrolysis efficiency.

Funding Statement: National Natural Science Foundation of China (31730106, 21704045).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
