Open Access


Mechanical Properties of Moso Bamboo Connections with External Clamp Steel Plates

Shidong Nie1,2,*, Song Ran1,2, Di Wu1,2,3, Jieyu Chen1,2, Hui Wang1,2, Qike Wei4
1 Key Laboratory of New Technology for Construction of Cities in Mountain Area (Chongqing University), Ministry of Education, Chongqing, 400045, China
2 School of Civil Engineering, Chongqing University, Chongqing, 400045, China
3 Suzhou Newcity Investment and Development Co., Ltd., Suzhou, China
4 China Metallurgical Construction Engineering Group Co., Ltd., Chongqing, China

* Corresponding Author:Shidong Nie. Email:
(This article belongs to this Special Issue: Research and Innovations in Engineered Timber and Mass Timber Products for Sustainable Built-Environment)

Journal of Renewable Materials 2022, 10(2), 487-510.

Received 28 April 2021; Accepted 23 June 2021; Issue published 30 August 2021


The Moso bamboo, a renewable green building material used in various new green buildings, have received extensive attention with the promotion of the concept of green buildings. To explore the mechanical properties of Moso bamboo connections with external clamp steel plates, the 16 specimens were designed by changing the bolt diameters and the end distances of the bolt holes. Their static tension tests were conducted to investigate bearing capacities and failure modes of different connection configurations. Based on test results, three failure modes of these connections were obtained, including the shear failure of bolt shank, bearing failure of bolt hole and punching shear failure of the Moso bamboo. The influence of bolt diameters and end distances of bolt holes on bearing capacities of the connections was quantitatively analyzed. Based on a simplified mechanical model, the analytical models were deduced for the bolt shear failure and the bearing failure of bolt holes. The results showed that the predictive values are in substantial agreement with the experimental results. Finally, the design and manufacturing suggestions are recommended for this Moso bamboo connections.

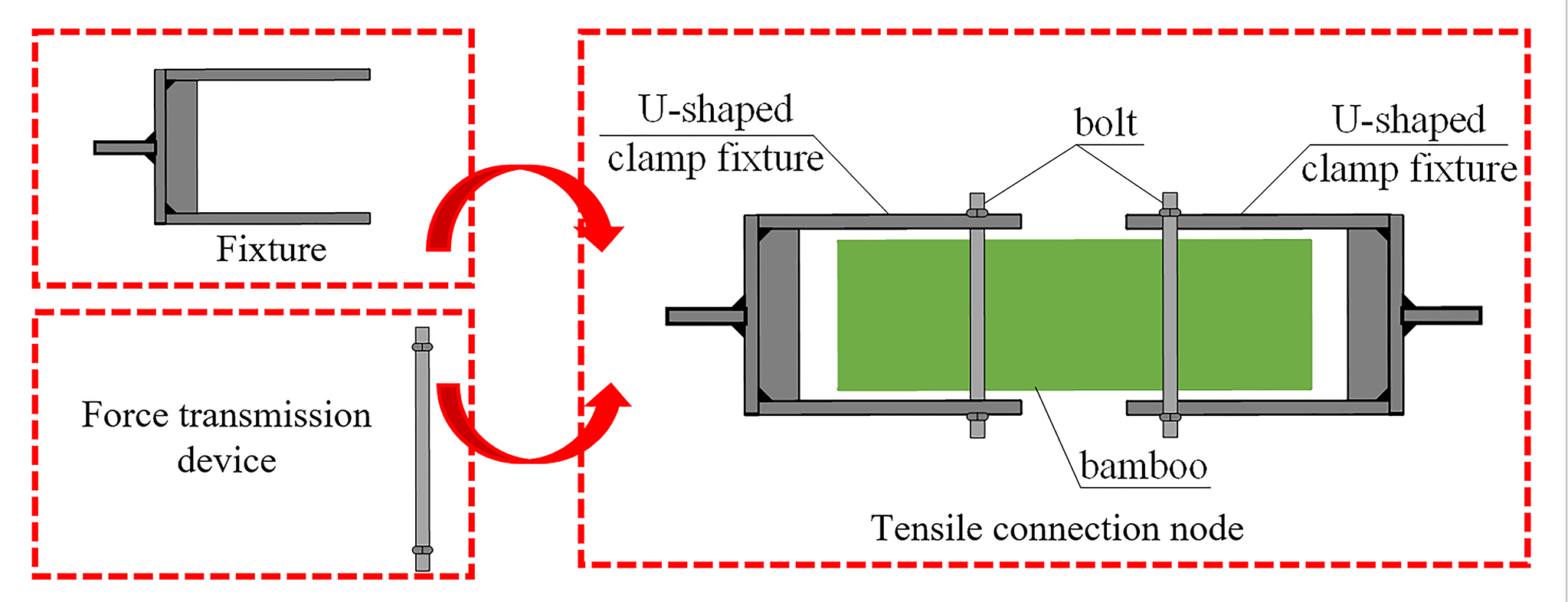

Graphical Abstract

Mechanical Properties of Moso Bamboo Connections with External Clamp Steel Plates


Moso bamboo connections; external clamp steel plates; load-carrying capacities; failure modes; the 5%d offset method; mechanical model

Cite This Article

Nie, S., Ran, S., Wu, D., Chen, J., Wang, H. et al. (2022). Mechanical Properties of Moso Bamboo Connections with External Clamp Steel Plates. Journal of Renewable Materials, 10(2), 487–510.
