A Time Series Intrusion Detection Method Based on SSAE, TCN and Bi-LSTM

Zhenxiang He*, Xunxi Wang, Chunwei Li

School of Cyberspace Security, Gansu University of Political Science and Law, Lanzhou, 730000, China

* Corresponding Author: Zhenxiang He. Email: email

Computers, Materials & Continua 2024, 78(1), 845-871. https://doi.org/10.32604/cmc.2023.046607

Abstract

In the fast-evolving landscape of digital networks, the incidence of network intrusions has escalated alarmingly. Simultaneously, the crucial role of time series data in intrusion detection remains largely underappreciated, with most systems failing to capture the time-bound nuances of network traffic. This leads to compromised detection accuracy and overlooked temporal patterns. Addressing this gap, we introduce a novel SSAE-TCN-BiLSTM (STL) model that integrates time series analysis, significantly enhancing detection capabilities. Our approach reduces feature dimensionality with a Stacked Sparse Autoencoder (SSAE) and extracts temporally relevant features through a Temporal Convolutional Network (TCN) and Bidirectional Long Short-term Memory Network (Bi-LSTM). By meticulously adjusting time steps, we underscore the significance of temporal data in bolstering detection accuracy. On the UNSW-NB15 dataset, our model achieved an F1-score of 99.49%, Accuracy of 99.43%, Precision of 99.38%, Recall of 99.60%, and an inference time of 4.24 s. For the CICDS2017 dataset, we recorded an F1-score of 99.53%, Accuracy of 99.62%, Precision of 99.27%, Recall of 99.79%, and an inference time of 5.72 s. These findings not only confirm the STL model’s superior performance but also its operational efficiency, underpinning its significance in real-world cybersecurity scenarios where rapid response is paramount. Our contribution represents a significant advance in cybersecurity, proposing a model that excels in accuracy and adaptability to the dynamic nature of network traffic, setting a new benchmark for intrusion detection systems.

Keywords


1  Introduction

The burgeoning use of the internet has corresponded with a marked rise in cyberattack incidents, presenting profound risks to societies, nations, and individuals alike [1,2]. Recent data from the China Internet Emergency Center’s 12th report of 2023 reveals a concerning trend: malicious software, backdoor website creations, and new security vulnerabilities are emerging at an alarming rate. Specifically, between March 20th and March 26th, there was a 52.5% jump in the spread of malicious programs from the previous interval. Backdoor website occurrences escalated by 76.2%, while the discovery of new security vulnerabilities rose by 24.9%. Every week, thousands of cybersecurity incidents demand intervention. These figures do not just spotlight the escalating cyber threat environment; they also emphasize the growing urgency for robust network intrusion detection solutions. Numerous challenges have arisen within the emerging fields of cloud computing and the Internet of Things (IoT). Cloud computing has evolved into a modern platform marked by high scalability and on-demand services, where one of the most formidable challenges is maintaining the reliability of the network environment [3,4]. Concurrently, the exponential increase in IoT devices has precipitated a similar surge in network traffic. Even brief periods of network unavailability can have catastrophic consequences, underscoring the critical need for robust network intrusion detection systems [5,6]. Network intrusion detection empowers us to promptly identify and counteract potential security threats [7,8]. Yet, the vastness and high dimensionality of network traffic data, combined with the continuous evolution of attack techniques, question the efficacy and efficiency of conventional detection approaches [9,10]. Herein lies the crux of our research: the STL model is engineered to directly address these challenges by integrating time series analysis, thus enhancing the predictive power and responsiveness of IDS.

The digital landscape’s evolution has been paralleled by an escalation in the sophistication and frequency of cyberattacks, necessitating advanced defenses in network security. Among the myriad of protective strategies, Intrusion Detection Systems (IDS) stand as sentinels against unauthorized access and malicious activities [11]. These systems not only monitor network traffic but also serve as crucial components in an organization’s security architecture, ensuring the integrity and confidentiality of data.

Despite the critical role of IDS, the incorporation of time series analysis in detecting intrusions is often overlooked. Time series data—observations recorded sequentially over time—unlocks a chronological perspective, allowing security systems to discern patterns and anomalies that sporadic data points may obscure. However, the complexities of time series data and the analytical challenges it presents have led to its underutilization in intrusion detection [12,13].

Acknowledging this lacuna, our research presents the STL hybrid model—a pioneering solution that integrates time series analysis into the fabric of intrusion detection. By systematically characterizing network data over time, the STL model aims to elevate detection efficacy, especially against threats that manifest incrementally. Time series data, with its potential to unveil subtler, evolving attack patterns, serves as a linchpin in this endeavor, enhancing the predictive capabilities of IDS and reducing the incidence of false negatives.

To elucidate the novel methodology underpinning the STL model, we offer a precis of the hybrid model’s components and their convergence to surmount the challenges of modern cyber threats:

•   The Stacked Sparse Autoencoder (SSAE) forms the foundational layer, tasked with distilling high-dimensional data to preserve salient features crucial for subsequent analysis.

•   The Temporal Convolutional Network (TCN) and Bidirectional Long Short-Term Memory Network (Bi-LSTM) synergize as the model’s core, adeptly sifting through the compressed data to extract features with high temporal fidelity.

As we unfold the narrative of this paper, the subsequent sections are laid out as follows: Section 2 reviews the extant literature, shedding light on the current state of intrusion detection and the time series gap therein. Section 3 delineates the deep learning models that constitute the STL model, detailing their roles and interplay. Section 4 provides an in-depth account of the STL hybrid model’s architecture and the experimental methodology we have adopted. Section 5 presents the datasets, preprocessing steps, and rigorous experimental results that validate our model’s proficiency in time series analysis. Finally, Section 6 offers a synthesis of our findings, openly discusses the limitations of our approach, and suggests directions for future research, emphasizing the broader implications of our work for the field of network intrusion detection.

Through this paper, we aim to not only bridge the current research gap but to also provide a clear roadmap for the integration of time series analysis in intrusion detection, demonstrating its criticality for robust and predictive cybersecurity defenses.

2  Related Work

2.1 Deep Learning Method

Deep learning is a subset of machine learning. Unlike traditional machine learning techniques, deep learning primarily aims to learn the inherent patterns within sample data. This approach not only streamlines model construction and feature extraction but also exhibits heightened accuracy, especially when handling large datasets. In recent times, as deep learning techniques have matured and gained traction, a growing number of researchers are harnessing these methods for network intrusion detection. Numerous systems have been crafted, integrating deep learning models like Convolutional Neural Networks (CNN), Recurrent Neural Networks (RNN), Auto Encoders (AE), and Deep Belief Networks (DBN). These systems have demonstrated remarkable efficacy in identifying large volumes of anomalous data and emergent network threats [14].

CNN is inherently adept at recognizing local features of data, leading to an optimized network structure that ensures both positional and shape invariance [15]. Their capacity to perform feature extraction and reduce data dimensionality has made them increasingly prevalent in the intrusion detection field. This is largely due to their proficiency in capturing salient data feature representations. Wang et al. [16] proposed a one-dimensional CNN-based end-to-end detection classification technique. This method can autonomously learn from raw input and discern nonlinear correlations between output features. However, its reliance on one-dimensional data hampers effective local feature extraction, yielding a detection rate that falls short of the benchmark. On another front, a Long Short-Term Memory Network (LSTM) is a distinct subtype of recurrent neural networks. It possesses the capability to retain input data and foresee outputs across varying periods, effectively circumventing the gradient vanishing and exploding challenges inherent in RNNs. Consequently, LSTMs have found extensive applications, notably in the realm of natural language processing [17]. Bi-LSTM [18], an enhancement over the conventional LSTM, remedies the limitations of the latter by bridging contextual information more effectively. In 2018, Bai et al. [19] introduced the TCN. This innovative model integrates causal and dilated convolution and embeds residual connections between network layers. Such an architecture facilitates the extraction of sequential features and simultaneously staves off gradient-related issues. The ongoing refinement of deep learning algorithmic frameworks and their ensuing success across diverse sectors underscore the burgeoning potential and bright future of deep learning.

2.2 Intrusion Detection Method

Research on network intrusion detection can be traced back to the 1980s when Professor Anderson [20] pioneered the notion of “intrusion detection.” Four decades hence, the principles underpinning intrusion detection have evolved, found extensive applications, and are now integral components of network security systems. A significant milestone was achieved in the 1990s when Debar and associates [21] integrated neural networks into intrusion detection, heralding the era of leveraging neural network models in this domain. Subsequently, Lin et al. [22] incorporated convolutional neural networks into network intrusion detection. Utilizing a refined LeNet-5 model coupled with gradient descent optimization, backpropagation, and meticulous fine-tuning of learning rates, they showcased commendable classification performance on the KDD99 dataset. In a further development, Vinayakumar et al. [23] introduced an intrusion detection methodology based on an enhanced RNN. This approach tackled the gradient explosion challenge and juxtaposed its efficacy against established deep learning techniques in the realm of network intrusion detection, encompassing models like RNN and LSTM. Experimental evaluations revealed that this advanced RNN held its ground, delivering detection results on par with LSTM across datasets such as KDDCUP99, NSL-KDD, and UNSW-NB15.

Fernandez et al. [24] empirically compared machine learning and deep learning-based intrusion detection methodologies. Their findings underscored the superior classification efficacy of deep learning over traditional machine learning in the context of network intrusion detection. In another study, Radford et al. [25] utilized a Bi-LSTM-driven intrusion detection technique to classify datasets, reporting impressive detection outcomes. Thirimanne et al. [26] fashioned a real-time intrusion detection system that analyzed both inbound and outbound network data. By employing a DNN model for classifying the KDDCUP99 dataset, they achieved a striking 96% accuracy. Pooja et al. [27] harnessed a Bi-LSTM model to bifurcate the KDDCUP99 dataset, registering remarkable accuracy. Thilagam et al. [28], by fusing CNN and LSTM, embarked on multi-classifying datasets across varied attack spectrums, including botnets, resulting in enhanced classification precision compared to other established techniques. Wang et al. [29] integrated a self-attention mechanism into a Bi-LSTM framework, enhancing feature significance computation and thereby optimizing classification performance. Sinha et al. [30] proposed a detection model melding both CNN and Bi-LSTM, enabling the model to learn the spatial and temporal characteristics of data. Trials on the NSL-KDD and UNSW-NB15 datasets affirmed its superior performance over traditional machine learning and other contemporary deep learning models. Lastly, Xu et al. [31] crafted an intrusion detection model based on the Stacked Sparse Autoencoder (SSAE). Their approach involved using SSAE for data dimensionality reduction before channeling the condensed data into a softmax classifier. They further augmented the model based on SSAE, not only bolstering its intrusion detection prowess but also diminishing the rate of false alarms.

Xu et al. [32] incorporated the Logarithmic Autoencoder (LogAE) to emphasize essential data attributes, leveraging the Extreme Gradient Boosting (XGBoost) for dataset categorization. Their performance on the UNSW-NB15 dataset outshined several contemporary methods. Imran et al. [33] designed an intrusion detection system, amalgamating predictive and learning facets. With the learning segment anchored in Automated Machine Learning (AutoML) and the predictive portion hinging on the Kalman filter, evaluations on the UNSW-NB15 and CICIDS2017 datasets confirmed the augmented accuracy of this amalgamated model. Wang et al. [34] presented RUIDS, a sturdy unsupervised intrusion detection paradigm, by embedding a masked context reconstruction module within a transformer-centric self-supervised learning architecture. Trials on the UNSW-NB15 dataset validated its enhanced robustness without compromising the algorithm’s efficiency. Lopez-Martin et al. [35] modernized the conventional Radial Basis Function (RBF) neural network, incorporating it into an offline reinforcement learning algorithm, delivering superior outcomes on the CICIDS2017 dataset in comparison to other models. Kim et al. [36] harnessed an LSTM-DNN framework on the primary dataset to generate mislabeled data. Employing a Generative Adversarial Network (GAN) on the retrained dataset facilitated real-time intrusion detection on the CICIDS2017 dataset without resorting to session discontinuations or data collection delays, maintaining competitive performance levels. Siddiqi et al. [37] introduced an innovative framework that synergizes an advanced feature selection mechanism with image augmentation techniques, targeting adept anomaly detection using deep learning classifiers. The superiority of this methodology on the CICIDS2017 dataset was evident when juxtaposed against alternatives. Lastly, Deng et al. [38] proposed an avant-garde technique rooted in the Flow Topology Graph Convolutional Network (FT-GCN) tailored for intrusion detection in resource-constrained IoT networks. Benchmarking on the UNSW-NB15 dataset showcased the FT-GCN’s commendable efficiency against leading-edge models.

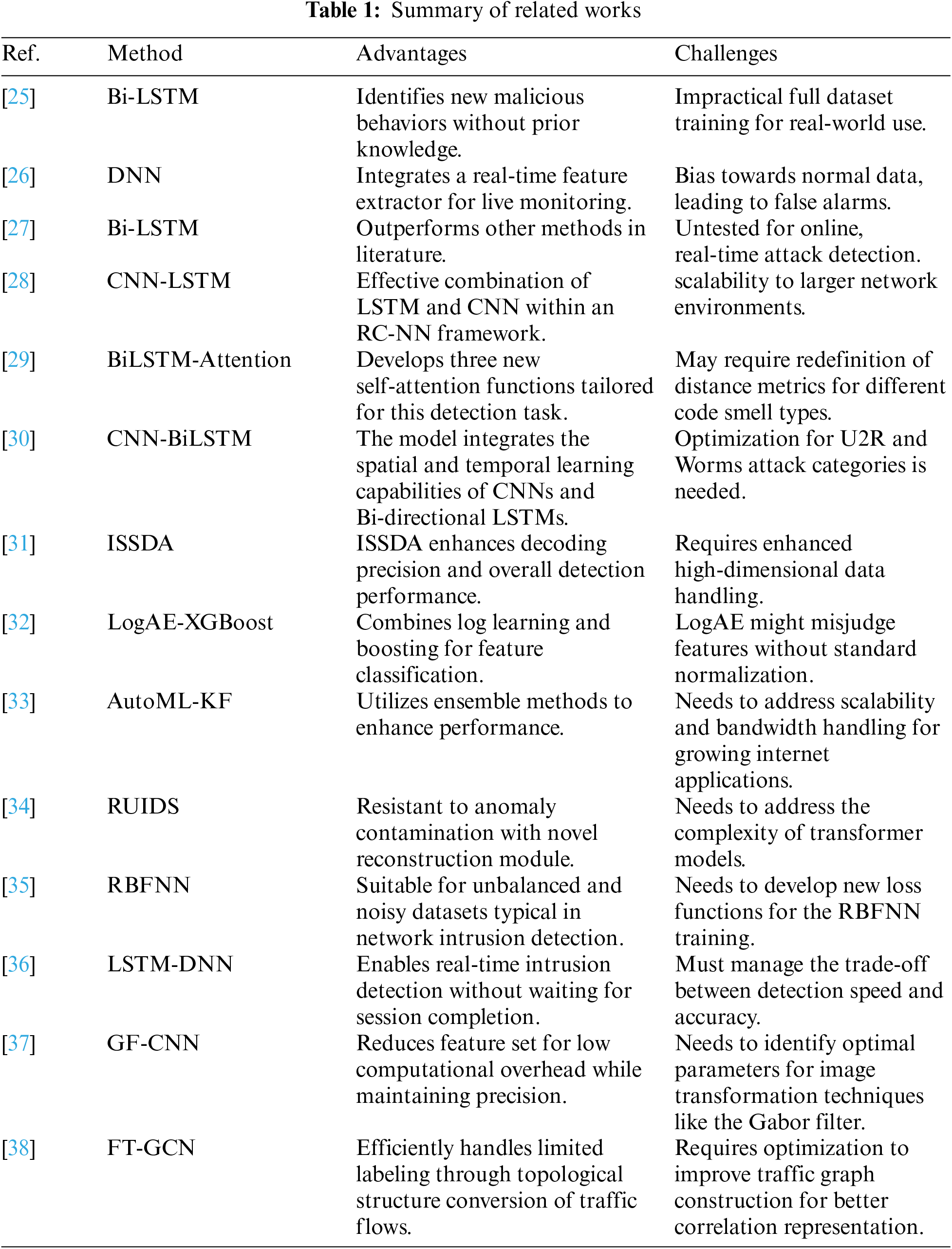

Table 1 presents a detailed comparative analysis of the existing research on intrusion detection that we have reviewed, highlighting the unique advantages and identifying the specific challenges encountered in each referenced study [39].

images

3  Methodology

3.1 Sparse Autoencoder

AE, a derivative of the feedforward neural network, comprises three layers: input, hidden, and output [40]. Unlike feedforward networks, AE learns features in an unsupervised manner, training iteratively and adjusting connection weights through gradient descent and the backpropagation algorithm. The training objective is to preserve as much information as possible after the encoding and decoding process while ensuring that the features represented in the hidden layer possess desirable properties.

Aside from learning low-dimensional encoding, autoencoders can also learn high-dimensional Sparse Autoencoder (SAE). Assuming the dimension M of the middle-hidden layer z is greater than the dimension D of the input sample x, and making z as sparse as possible, this is known as a sparse autoencoder. The advantage of the sparse autoencoder is its high interpretability, coupled with implicit feature selection. During intrusion detection, a sparse encoder can be used to compress high-dimensional traffic data, replacing the original data with newly acquired feature samples. While preserving the original data’s information, this effective compression reduces feature dimensions, enhancing model learning performance, cutting down computation, and boosting the intrusion detection speed.

By imposing sparsity constraints on the hidden layer unit z in the autoencoder, the autoencoder can learn some useful structures within the data. Given N training samples {x(n)}n=1N, the objective function of the sparse autoencoder is

L=n=1Nx(n)x(n)2+ηρ(Z)+λW2(1)

where Z=[z(1),,z(n)] represents the encoding of all training samples, ρ(Z) is the sparsity measurement function, and W represents the parameters in the autoencoder.

Given N training samples, the average activation value of the jth neuron in the hidden layer is

ρ^j=1Nn=1Nzj(n)(2)

ρ^j can be approximately viewed as the probability of the activation of the jth neuron. If we want ρ^j to be close to a pre-defined value ρ, for instance 0.05, the divergence between ρ^j and ρ can be measured using the KL distance, that is

KL(ρ||ρ^j)=ρlogρρ^j+(1ρ)log1ρ1ρ^j(3)

If ρ^j=ρ, then KL(ρ||ρ^j)=0. Therefore, the loss function of the sparse autoencoder is

JSAE(W)=L(x,y)+βj=1hKL(ρ||ρ^j)(4)

The stacked sparse autoencoder is closely related to the autoencoder, combining the stacked encoder and the sparse encoder. The features extracted from the previous layer are input to the next layer, deeply learning data features at different scales to obtain a high-level feature representation of the input data.

3.2 Temporal Convolutional Network

The Temporal Convolutional Network offers a distinctive convolutional neural network design that adapts one-dimensional convolution, making it adept at addressing time series challenges [41]. Fig. 1 depicts the comprehensive TCN architecture, encompassing causal convolution, dilated convolution, and residual connections, adeptly addressing multivariate time series extraction challenges. Its application to time series forecasting has grown in recent times. Subsequent sections detail each component’s specifics.

images

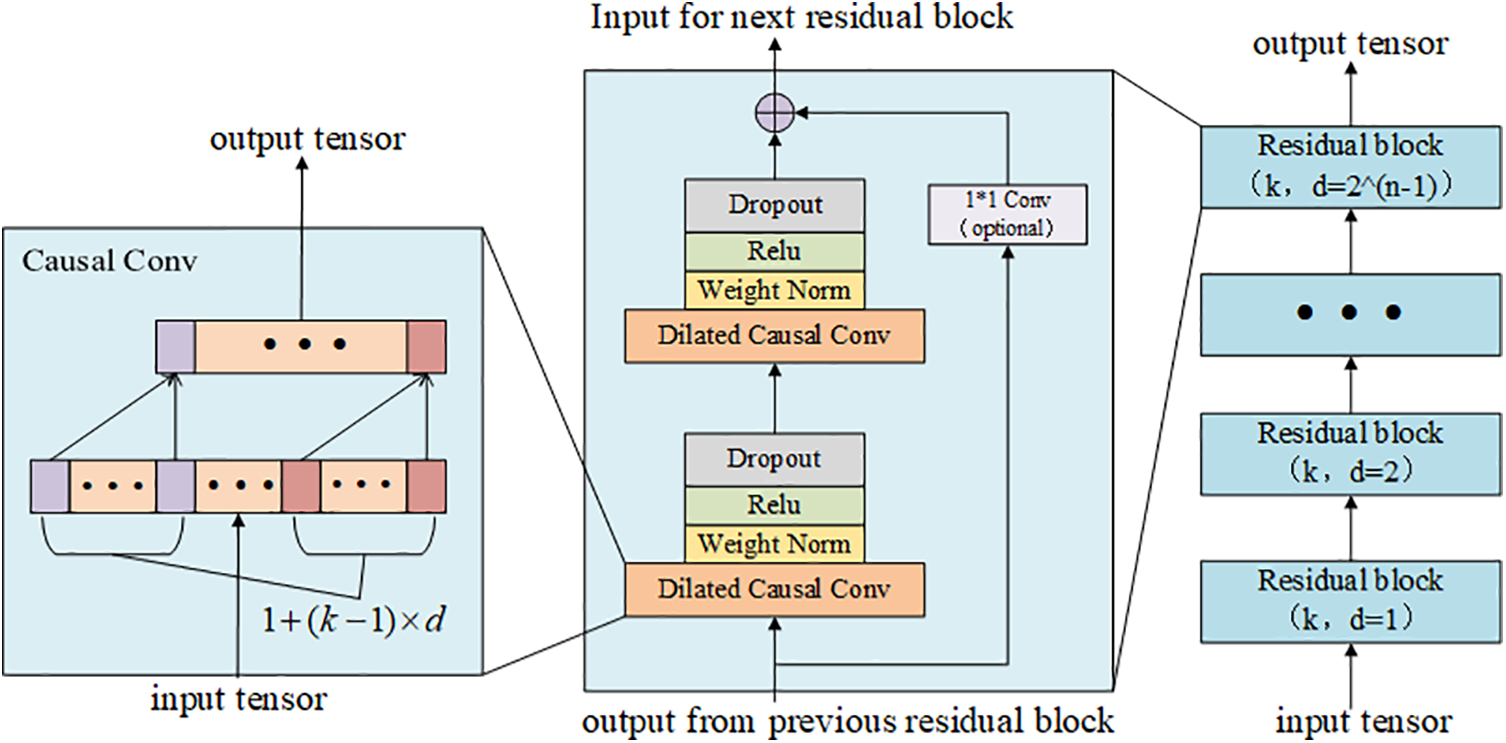

Figure 1: The complete structure of the temporal convolutional network

• Causal Convolution: Causal convolution has strict temporal constraints, using only the information from prior moments to predict the value at a specific moment. This convolution operation ensures that the TCN does not miss historical information like the CNN, thus influencing the final classification. The architecture of causal convolution is shown in Fig. 1. From Fig. 1, it can be seen that if the input time series is =[x1,x2,,xT], XRn and the filter is F=[f1,f2,,fT], the output of xt after causal convolution is the following equation:

Y(T)=(Xf)(T)=i=0k1F(i)xTi(5)

• Dilated Convolution: Essentially, as the network depth increases, each layer’s receptive field, or the number of steps it can read, expands. This operation ensures that the size of each hidden layer is consistent with the input time step length. From Fig. 1, the output of xT after dilated convolution with a dilated factor is the following equation:

Y(T)=(Xdf)(T)=i=0k1F(i)xTdi(6)

where d is the dilated factor, k is the filter size, and Tdi accounts for the direction of the past.

• Residual Connections: The role of residual connections is to address the gradient vanishing problem that may occur when the network layers are too deep [42].

3.3 Long Short-Term Memory Network

LSTM is a specialized form of RNN, characterized as a Gated Recurrent Neural Network (Gated RNN). Traditional RNNs grapple with persistent dependency challenges, which LSTMs adeptly address with their gating mechanism. This makes LSTMs aptly equipped to handle extended time series datasets.

The core strength of an LSTM resides in its memory cell, which seamlessly integrates across the entire network. This design ensures minimal data loss, promoting consistent information relay during prolonged sequences. Furthermore, LSTMs leverage input, forget, and output gates to maintain gradient flow and control: the forget gate evaluates data to discard from the cell state, the input gate integrates new information into the cell state, while the output gate determines the conclusive output. A visual representation of the LSTM’s recurrent architecture can be observed in Fig. 2.

images

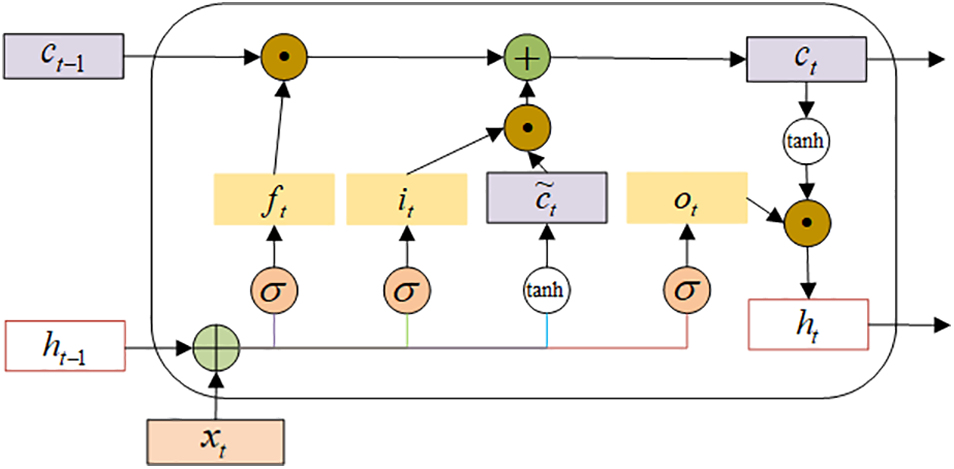

Figure 2: Recurrent unit structure of LSTM network

A Bi-LSTM is structured with dual recurrent neural network layers that share the same input but propagate information in opposite directions. Its predictions incorporate both past and future inputs. Given that the foremost layer processes data in a forward temporal sequence while the latter operates in reverse, the hidden states at a given time t are denoted as ht(1) for the forward sequence and ht(2) for the reverse. This relationship can be mathematically expressed as follows:

ht(1)=f(U(1)ht1(1)+W(1)xt+b(1))(7)

ht(2)=f(U(2)ht+1(2)+W(2)xt+b(2))(8)

ht=ht(1)ht(2)(9)

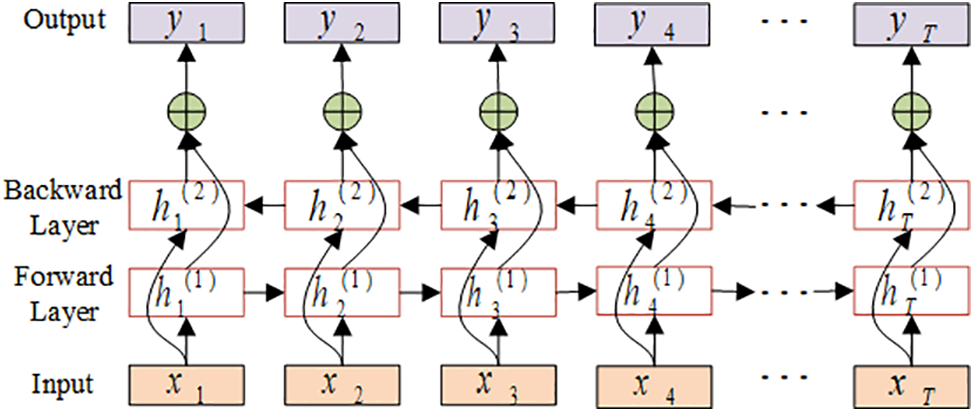

Fig. 3 displays the bidirectional recurrent neural network unfolded over time. The working principle of LSTM typically runs from front to back according to the time sequence, learning the internal features of the data, and obtaining the final result through the classifier. In this paper, we use Bi-LSTM, which runs both forward and backward in time sequence. The final output is determined by the internal features of the classifier from two unidirectional LSTMs. The advantage of this approach is that it allows the algorithm to better learn the internal features of the data, improving classification accuracy.

images

Figure 3: Bi-LSTM neural network structure expanded by time

4  Proposed Model

4.1 STL Model

We introduce a hybrid model, STL, tailored for the characteristics of time series data features, as depicted in Fig. 4. This model is structured into five distinct layers: the input layer, the SSAE layer, the TCN network layer, the Bi-LSTM network layer, and the output layer.

images

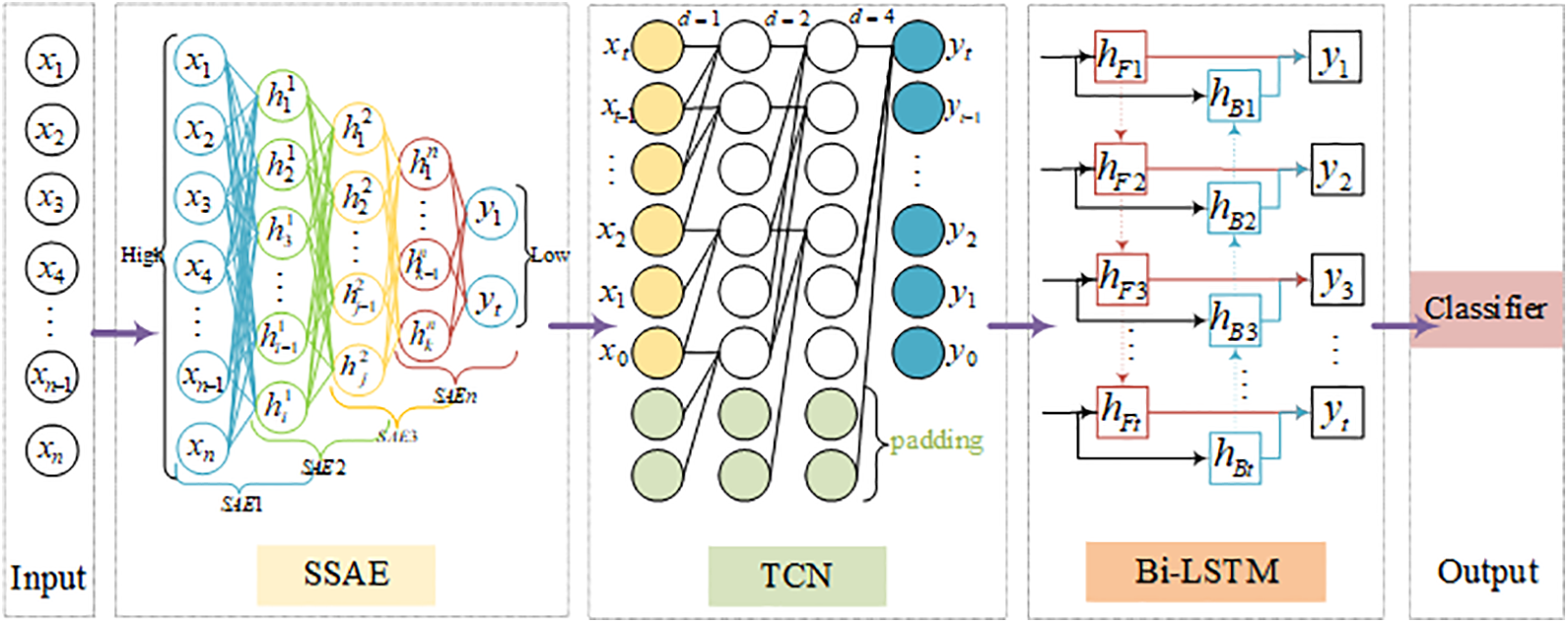

Figure 4: STL model framework

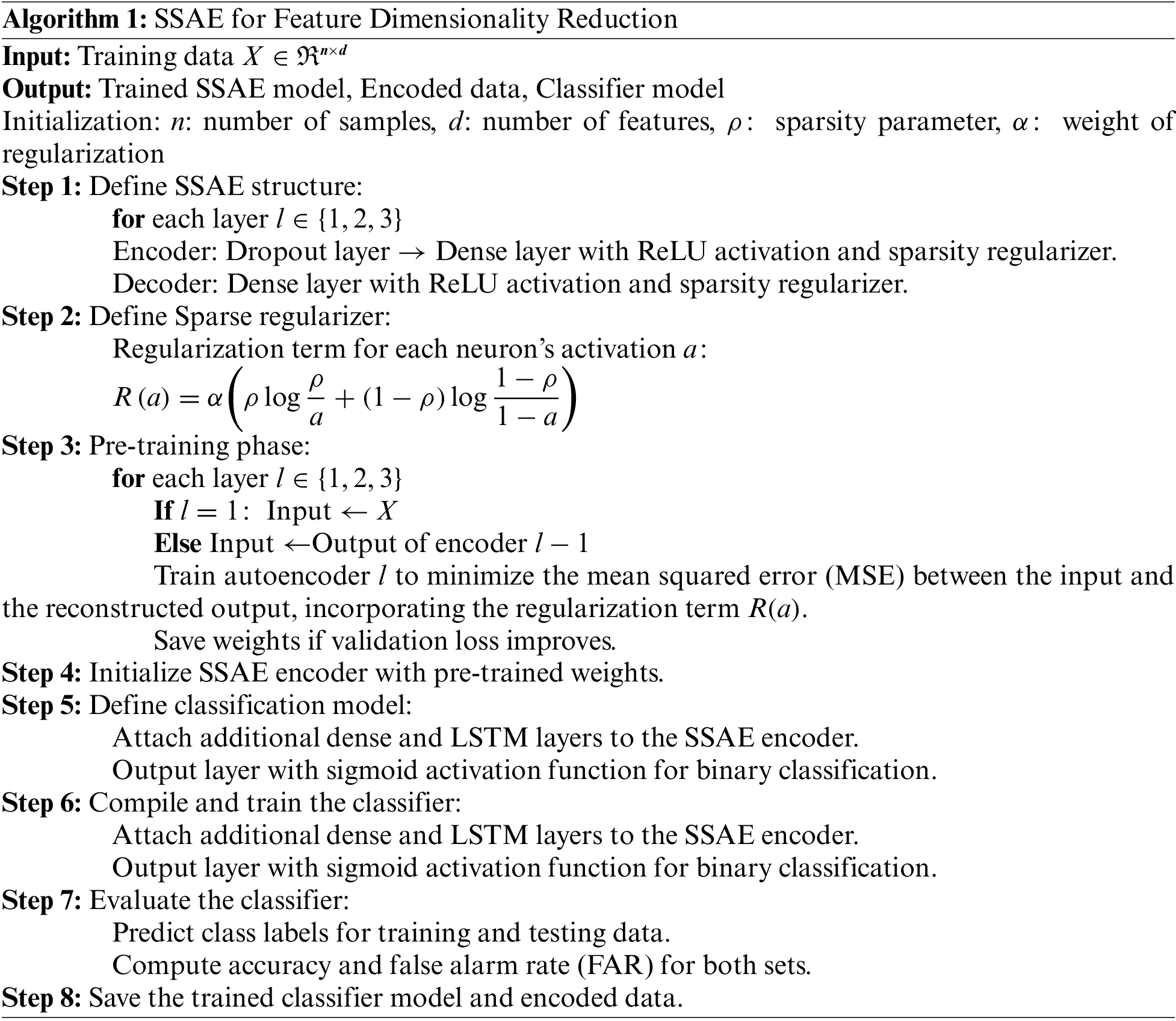

The input layer, being the first, inputs pre-processed data. Following this, the SSAE layer utilizes greedy layer-wise pre-training to pinpoint the optimal number of stacked layers suitable for the dataset. This model, once determined, is retained to handle the pre-processed data. The SSAE’s primary function is feature reduction, ensuring the preservation of crucial data features. The SSAE achieves a concise representation of the original data features and, with the integration of sparsity constraints, diminishes noise, computational strain, and potential overfitting. Moreover, it not only maintains the integrity of reduced dimensions but also showcases its prowess in feature extraction. The processed data from the SSAE layer then becomes the input for the subsequent temporal model. The steps for SSAE feature dimensionality reduction are as follows Algorithm 1.

images

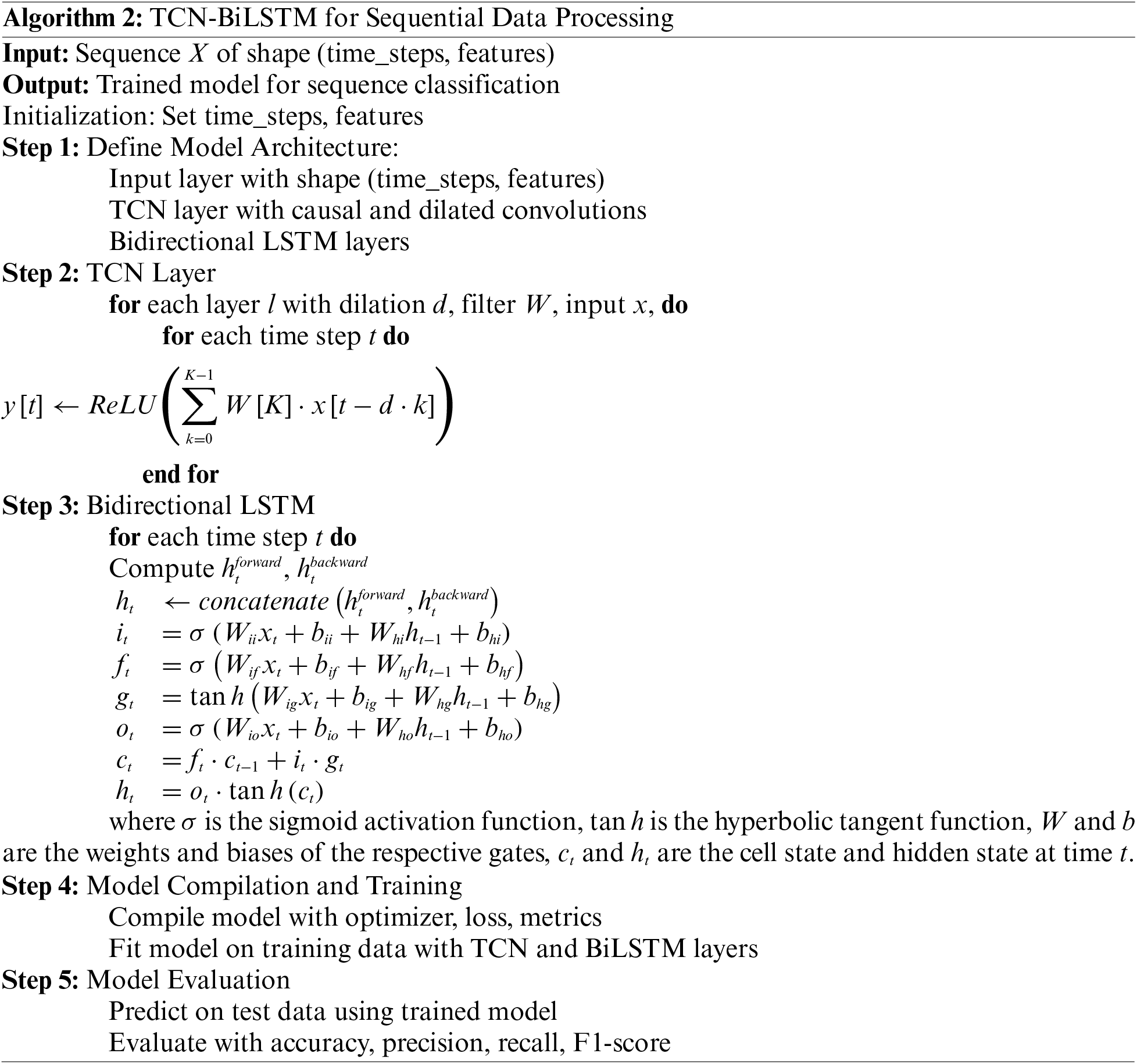

Transitioning to the third layer, we have the TCN network layer. TCN is a neural network architecture specifically designed for sequence data processing. It is characterized by its rapid convergence and superior feature extraction capabilities. This is achieved by multiple stacks of causal convolutional layers, extending the convolution’s receptive field, which underscores TCN’s proficiency in addressing time series issues. The fourth layer: Bi-LSTM network layer. The output of the TCN network layer serves as the input for the Bi-LSTM network layer, capturing the sequential relationships of the input. The Bi-LSTM network layer captures preceding and succeeding information of the input sequence through forward and backward loop processing. It fully learns the intrinsic patterns within the data and obtains future predictions, effectively revealing latent relationships between data. By combining TCN and Bi-LSTM, this hybrid model can fully utilize TCN’s long-term memory capabilities and Bi-LSTM’s bidirectional sequence-capturing abilities. This combination offers enhanced performance on complex sequences. Lastly, the fifth layer is the output layer. This layer bridges the Bi-LSTM’s output to the classifier via two fully connected layers, which then executes the binary classification imperative for intrusion detection. The steps for TCN-BiLSTM for Sequential Data Processing are as follows Algorithm 2.

images

Fig. 4 illustrates the network structure and the arrangement of the three models within it, which is primarily determined by two critical factors.

Sequential Transfer Learning employs a structured approach: initially, SSAE reduces dimensionality and filters noise from the data, establishing a foundation for feature extraction. This is followed by the TCN layer, which is adept at capturing local temporal features within the sequence. Finally, the Bi-LSTM layers integrate the previously processed data, considering both past and future contexts, to construct a comprehensive global representation of the sequence.

Layer Complementarity is central to our architecture, with each layer designed to augment the capabilities of the others. The SSAE is the foundation, creating a compact representation of the original data. Building on this, the TCN expands the analysis into the temporal domain, utilizing the reduced feature space to examine temporal scope more effectively. Finally, the Bi-LSTM layer weaves these refined features into a cohesive timeline, capturing the complex dynamics by considering both past and future information in the sequence.

4.2 Model Experiment Process

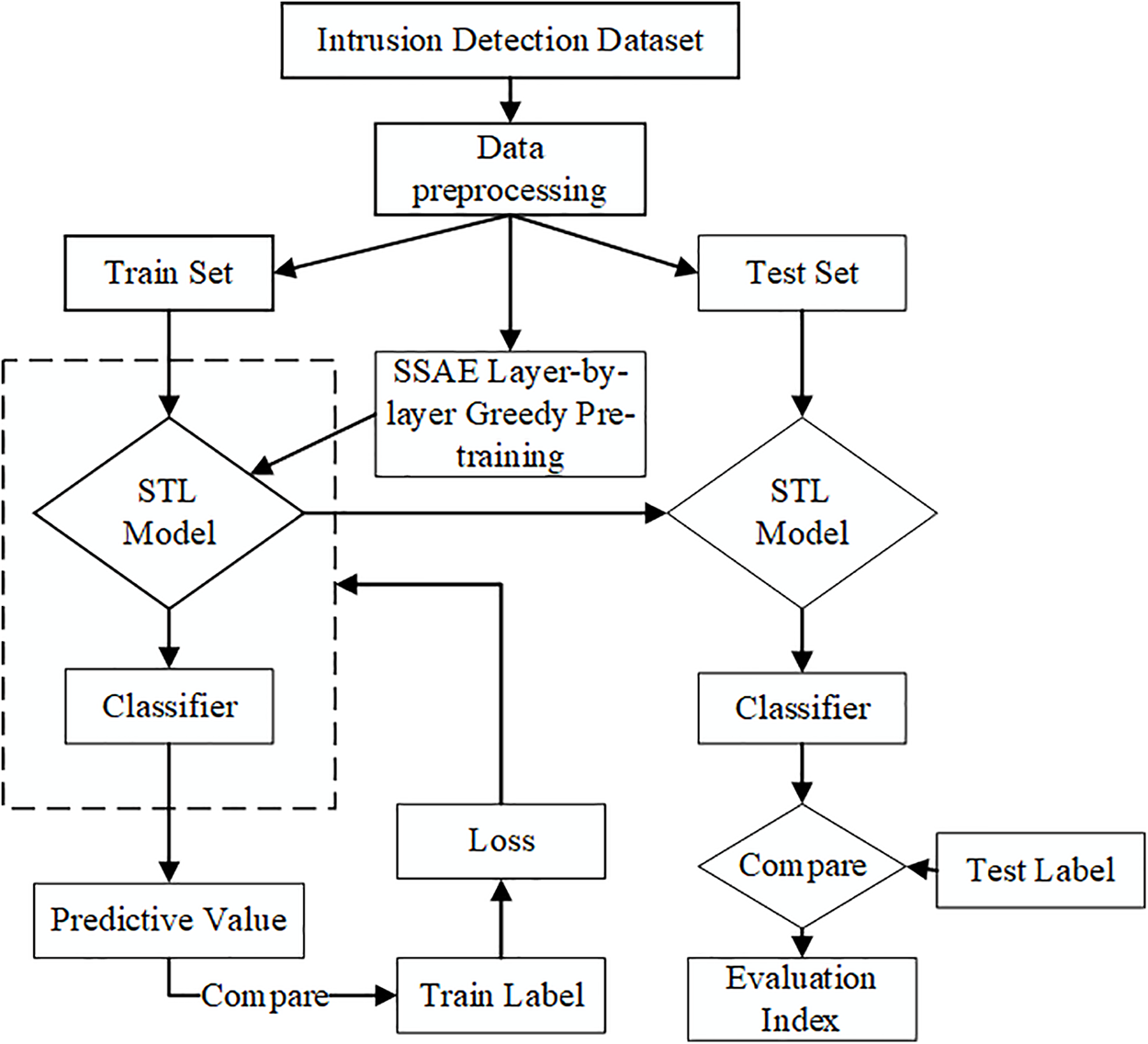

The workflow of our hybrid model is depicted in Fig. 5. Initially, we load the original data for both training and testing from the dataset. Upon preprocessing, this data is bifurcated into distinct training and testing sets. Subsequently, 30% of these sets are randomly chosen to determine the optimal SSAE model. With each added SAE layer during the training phase, the best-performing iteration is autonomously stored. After adding a layer of SAE for training, the best-performing model is automatically saved, and the final optimal model is used in the STL hybrid model. Following this, the training set is introduced into the pre-constructed STL model for further training. After obtaining the predicted values, compare them with the original data labels separated during data preprocessing. Finally, this trained model is applied to the testing set, and its efficacy is gauged using specified evaluation metrics.

images

Figure 5: Experimental flow chart

In the experiments, a time series generator is used to test the detection performance at different time steps, with its function and significance as follows:

•   The Time Series Generator is essential for preparing sequential data for deep learning models. It transforms the data into a compatible format by segmenting input sequences into fixed-length samples determined by the time_steps parameter, thereby allowing the model to identify and learn from patterns within these temporal segments.

•   Additionally, the generator plays a pivotal role in batch preparation during training, organizing the data into manageable units of batch_size samples each. This batching is vital for the efficient training of deep learning models, particularly when working with extensive datasets.

•   In time series analysis, capturing temporal dependencies is paramount. The Time Series Generator is designed to maintain the chronological sequence of the data, providing the model with the context needed to learn from temporal relationships across time steps.

•   Finally, the generator is integrated into the training workflow, supplying the model with consistent batches of input sequences alongside their corresponding labels for each training epoch, thereby streamlining the learning process.

5  Experiment Design and Comparative Analysis

5.1 Dataset

The experimental setup for this study is as follows: Intel(R) Xeon(R) CPU E5-2695 v3, 12 GB RAM, 50 GB NVMe, and a GeForce RTX 4070 Graphics Card. We use Python 3.8 and TensorFlow 2.11.0. The experiment uses the UNSW-NB15 and CICDS2017 datasets for intrusion detection.

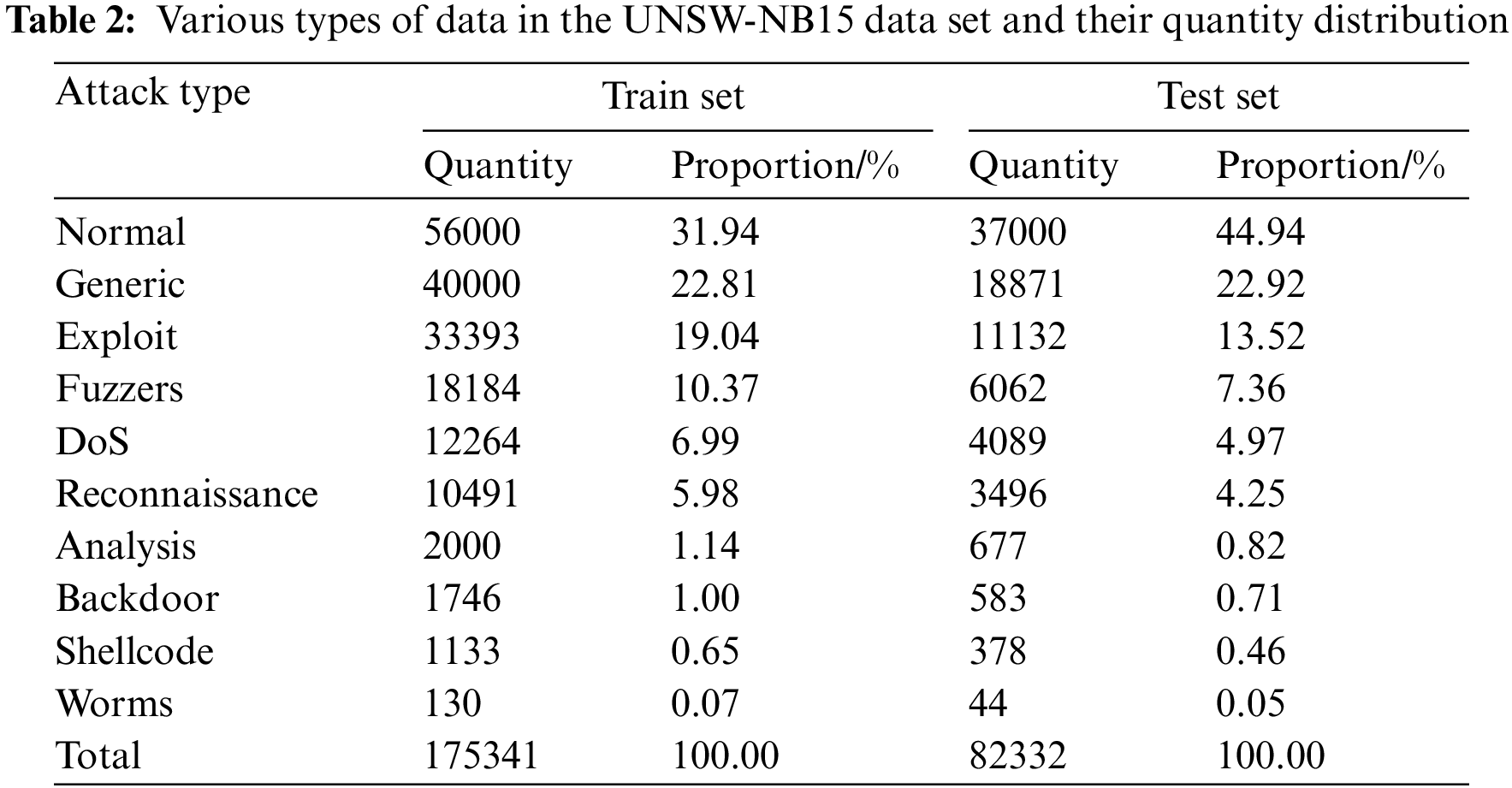

The UNSW-NB15 dataset was proposed in 2015 by a research group from the Australian Security Center. This dataset is generated by simulating real network environments, making it more relevant to current network traffic [43]. The dataset is composed of 175,341 entries in its training segment and 82,332 in its testing counterpart. It encompasses nine distinct attack classifications: Generic, Exploit, Fuzzers, Denial of Service (DoS), Reconnaissance, Analysis, Backdoor, Shellcode, and Worms. From the dataset’s 49 features, they can be categorized into 5 traffic attributes, 13 foundational attributes, 8 content attributes, 9 temporal attributes, 12 overarching attributes, and 2 label attributes. A detailed breakdown of the data count and distribution across the nine attack categories is depicted in Table 2.

images

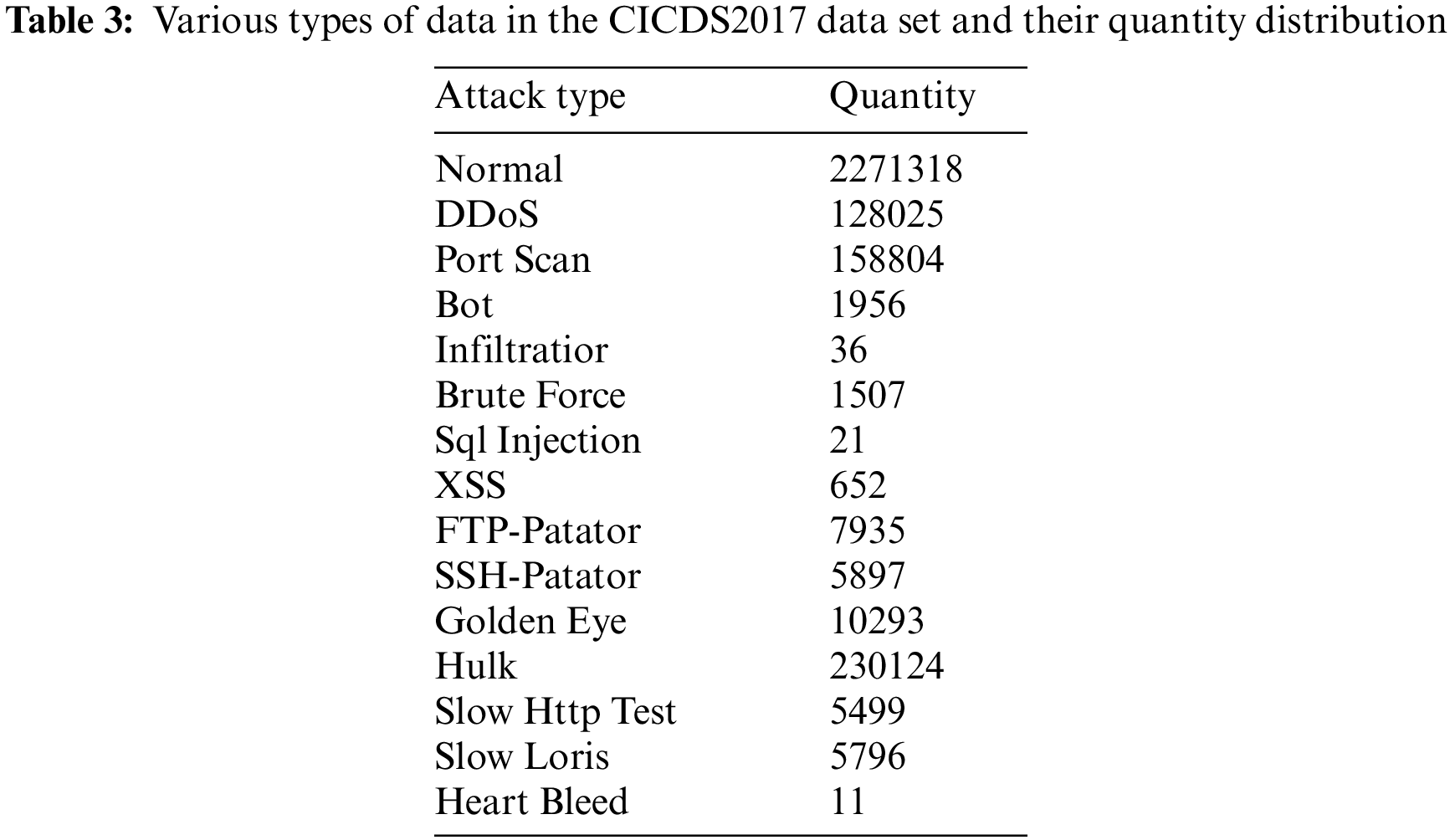

CICIDS2017 is a reliable dataset proposed by Sharafaldin and others. It includes normal behaviors and 14 typical types of intrusion network data flows [44]. Conforming to real network scenarios, the dataset uses script files to simulate the normal behaviors of users in real scenarios. Additionally, during an attack, the mixture of normal user traffic data can better simulate real network intrusion scenarios. CICIDS2017 has a rich variety of attack samples. Compared to other open-source network intrusion detection datasets, it reflects well the current level of network attack techniques. Moreover, its network data feature information is abundant. The CICIDS2017 is a renowned dataset acknowledged by experts within the intrusion detection domain.

This dataset’s data collection spanned five days, beginning at 9 a.m. on Monday, July 03, 2017, and concluding at 5 p.m. on July 07. The initial day, July 03, witnessed only regular network activities without any intrusions. The subsequent days recorded distinct attack patterns. Specifically, July 04 observed FTP-Patator and SSH-Patator brute force attacks alongside usual activities. July 05 was characterized by Denial of Service attacks with instances from Golden Eye, Hulk, Slow Http Test, Slow Loris, and Heartbleed. The next day, July 06, documented Web attacks such as XSS, SQL injection, Brute Force, and penetration assaults. Lastly, July 07 registered botnet invasions, port scanning, and Distributed Denial of Service attacks, notably DDoS LOIT. The attacks interspersed with regular activities simulated real-life network intrusions effectively. Details of the attacks and their quantities can be found in Table 3.

images

5.2 Data Preprocessing

The UNSW-NB15 dataset comprises both numerical and categorical features. As deep learning models necessitate numerical inputs, we transform the categorical attributes—“proto”, “service”, and “state”—into numerical counterparts via one-hot encoding. Specifically, the “proto” feature encompasses 133 unique symbolic values, “service” holds 13, and “state” includes 11. Consequently, post-transformation, the feature dimensionality escalates from 42 to 196. The dataset contains data of different dimensions that can be discrete or continuous, and they have a significant range difference, which makes values across different dimensions incomparable. To mitigate the impact of this significant range difference on model computations, the Min-Max normalization method is used to map the data samples into the [0,1] range. The preprocessed data is then fed into a stacked sparse autoencoder for dimensionality reduction.

The CICDS2017 dataset contains collected traffic data and does not have pre-divided training and test sets. Firstly, the data is cleaned, missing values are filled in, and erroneous content is corrected, converting “NaN” and “Infinite” values either to zero or replacing them with the average value. Subsequently, five irrelevant columns, such as IP addresses and timestamps, are removed from the dataset. Labels of 0 and 1 are then assigned to normal and attack traffic, respectively. Lastly, the data is transformed using one-hot encoding and Min-Max normalization, mapping all values into the [0,1] range. Min-Max normalization is represented by Eq. (13). The data preprocessing workflow is shown in Fig. 6.

x=xminmaxmin(10)

images

Figure 6: Data preprocessing flow chart

5.3 Evaluation Indicator

The performance of the proposed intrusion detection model is assessed using a comprehensive set of evaluation metrics specifically chosen for their relevance in the context of security analytics. These include Accuracy, Precision, Recall, F1-score, and the False Alarm Rate (FAR), each providing unique insights into the model’s detection capabilities [45].

Accuracy (Eq. (11)): Measures the proportion of both True Positives (TP) and True Negatives (TN) among all tested samples, giving a straightforward indication of overall correctness.

Accuracy=TP+TNTP+FP+TN+FN(11)

Precision (Eq. (12)): Evaluates the reliability of the model’s positive predictions, highlighting its ability to minimize False Positives (FP), which is critical in preventing unnecessary responses to non-threats.

Precision=TPTP+FP(12)

Recall (Eq. (13)): Also known as the true positive rate, it assesses the model’s ability to correctly identify all actual attacks, a key performance aspect in ensuring no threats go undetected.

Recall=TPTP+FN(13)

F1-score (Eq. (14)): The harmonic means of Precision and Recall serves as a single metric that balances both the false positives and false negatives, providing a holistic view of the model’s precision and robustness in detection.

F1sorce=2×Precision×RecallPrecision+Recall(14)

False Alarm Rate (FAR) (Eq. (15)): Indicates the likelihood of the model incorrectly labeling normal traffic as malicious, which is crucial for maintaining user trust and operational efficiency.

FAR=FPTN+FP(15)

The selection of these metrics is grounded in the need to present a nuanced view of the model’s performance, considering not only its effectiveness in identifying threats but also its precision and operational efficiency. This balanced approach to evaluation is particularly important in intrusion detection systems where the cost of misclassification can be high, both in terms of security breaches (when attacks are missed) and disrupted legitimate activities (when normal actions are falsely flagged as attacks).

5.4 Experimental Result

The model’s training was bifurcated into two phases. In the inaugural phase, a greedy layer-wise pre-training approach was adopted to ascertain the optimal number of layers for the SSAE. Initially, the structure of a single-layer sparse autoencoder was defined. Subsequently, layer-wise pre-training was employed to train SSAE with varying layers. This was then followed by connecting it to a single-layer LSTM network. The performance was tested with a time step length of 1, ultimately saving the most optimal SSAE model. The test results are shown in Table 4. Based on the definition of the sparse autoencoder, it is evident that its performance is primarily determined by factors such as the number of units, hidden layers, and sparsity constant.

images

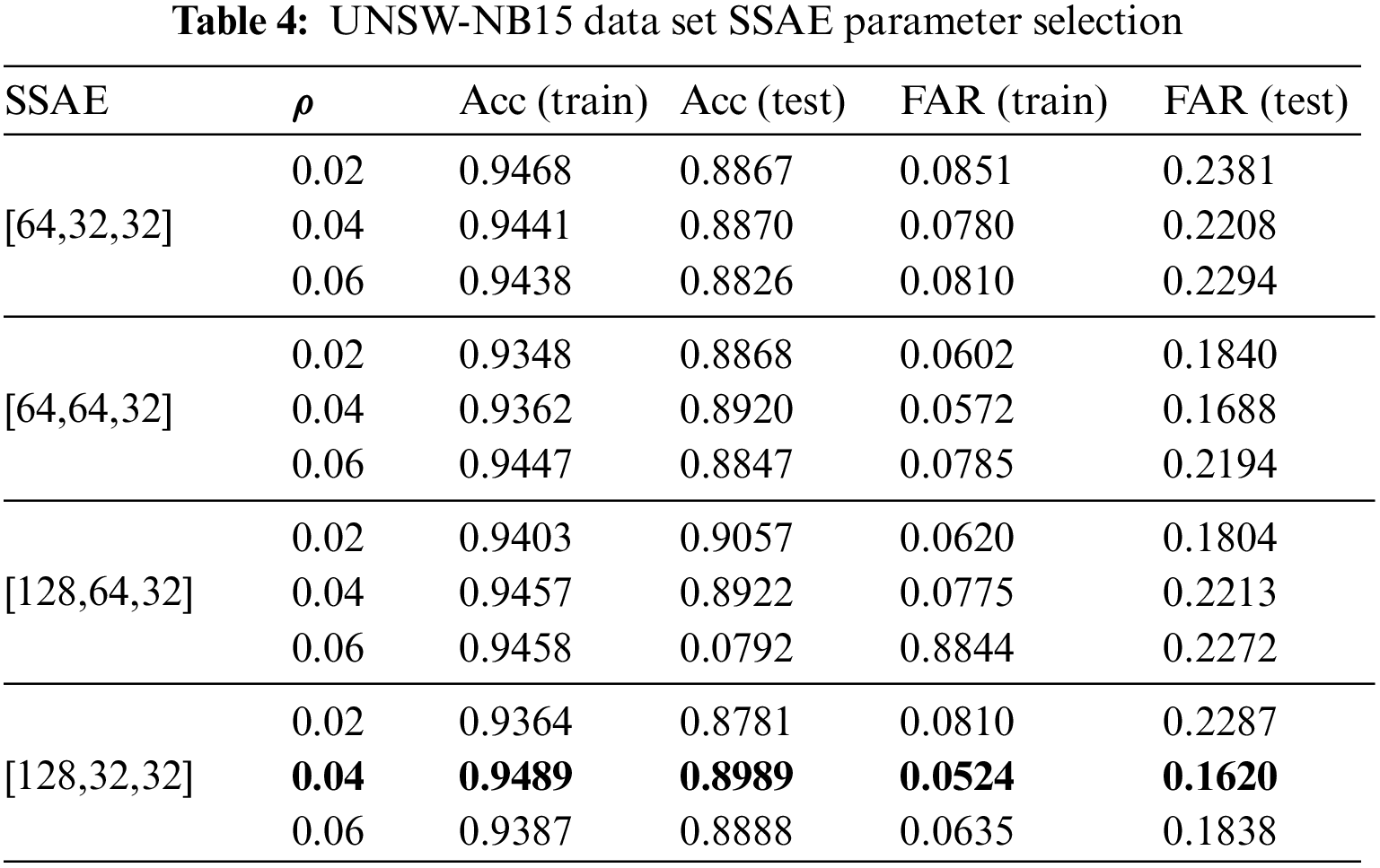

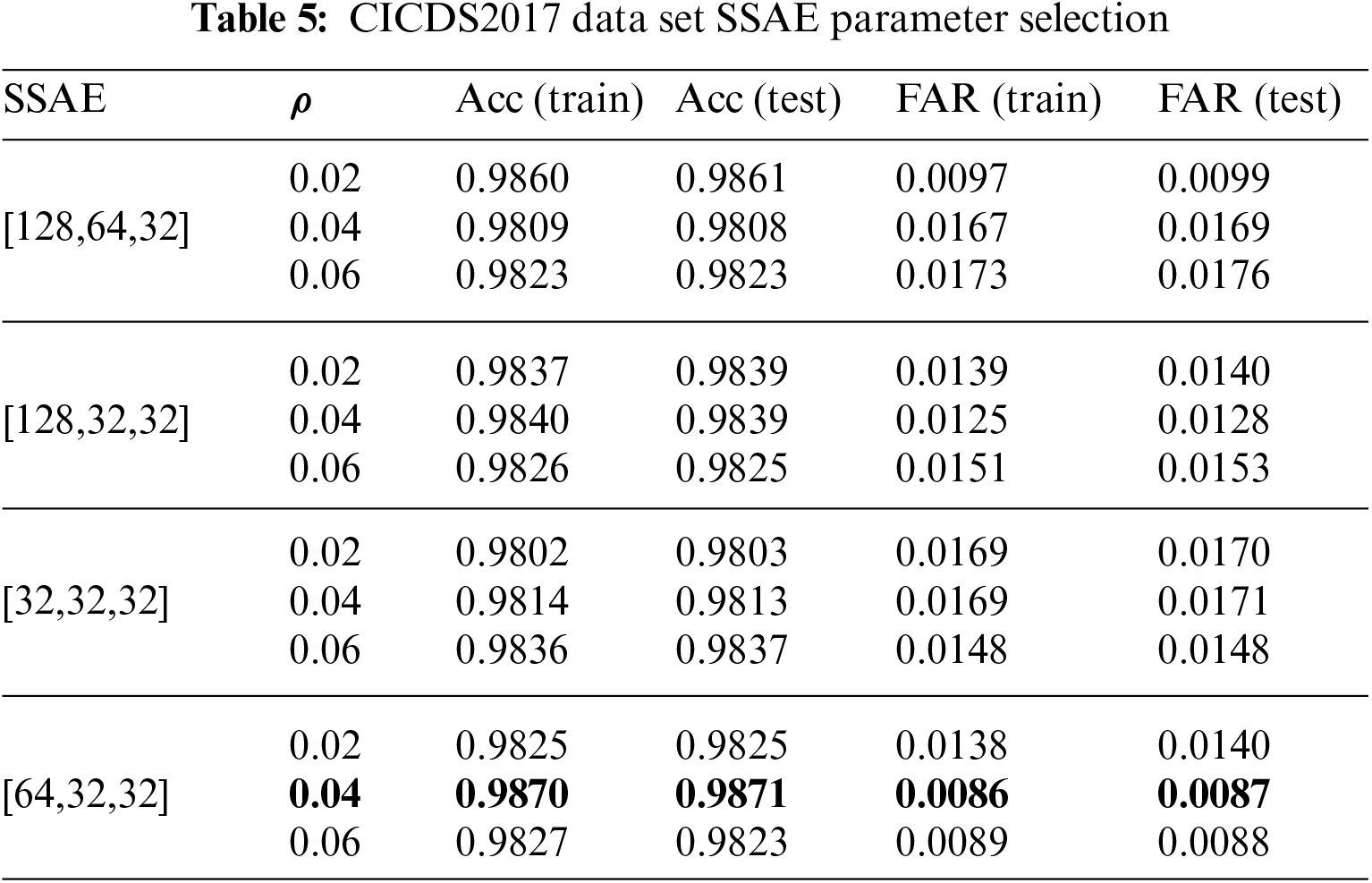

Analyzing the preprocessed 196-dimensional data from the UNSW-NB15 dataset, Table 4 reveals that the SSAE [128,32,32] equipped with a sparsity constant ρ=0.04, stands out with the pinnacle of training and testing accuracies and the nadir of FAR, hence it was selected for data dimensionality reduction. The CICDS2017 dataset lacks categorical features and after preprocessing, it only has 79-dimensional data. If we continue with the layer design of UNSW-NB15, the data would first be elevated from 79 dimensions to 128, making it sparser and unable to extract key features in subsequent stages. Scrutinizing the figures in Table 5, the SSAE [64,32,32] with sparsity constant ρ=0.04 emerges as the frontrunner in accuracy and the benchmark for the lowest FAR. Consequently, empirical evidence steered the parameter determinations for the SSAE across both datasets.

images

In the subsequent phase, data processed by SSAE serves as the foundation for the time-series model TCN-BiLSTM. Prolonged experimentation involving both TCN and Bi-LSTM yielded our chosen TCN parameters as follows: nb_filters = 64, kernel_size = 2, nb_stacks = 1, and dilations = [1, 2, 4, 8, 16]. For the Bi-LSTM, a neuron structure of [24,12] was adopted. To bolster the model’s resilience and impede overfitting, a Dropout layer with a rate of 0.4 was integrated post the assembly of TCN and Bi-LSTM networks.

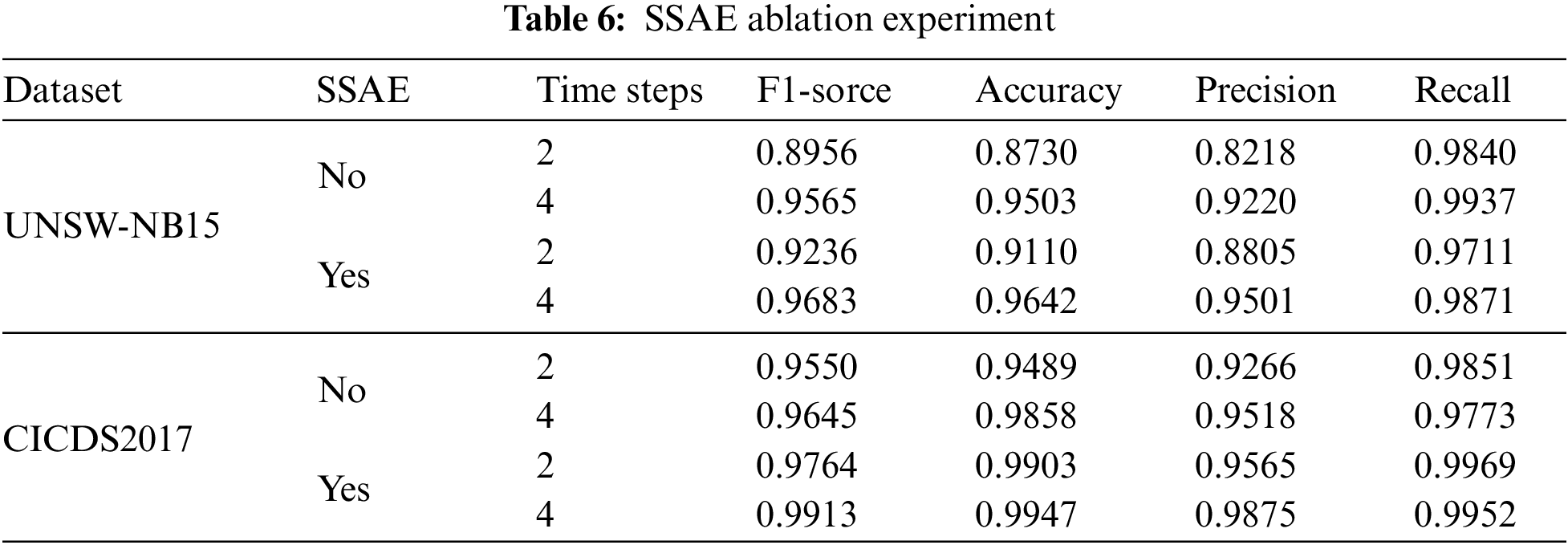

Table 6 presents a comparative analysis of the effects of SSAE on the dimensionality reduction for two datasets, specifically highlighting the results at time steps 2 and 4, where a notable increase in the STL hybrid model’s performance is observed. The data from Table 5 demonstrates that, at these specific time steps, the performance metrics for both datasets, post-application of SSAE for dimensionality reduction, are significantly higher compared to those metrics without dimensionality reduction. This finding leads to a clear conclusion: employing SSAE for data dimensionality reduction effectively enhances the STL hybrid model’s performance.

images

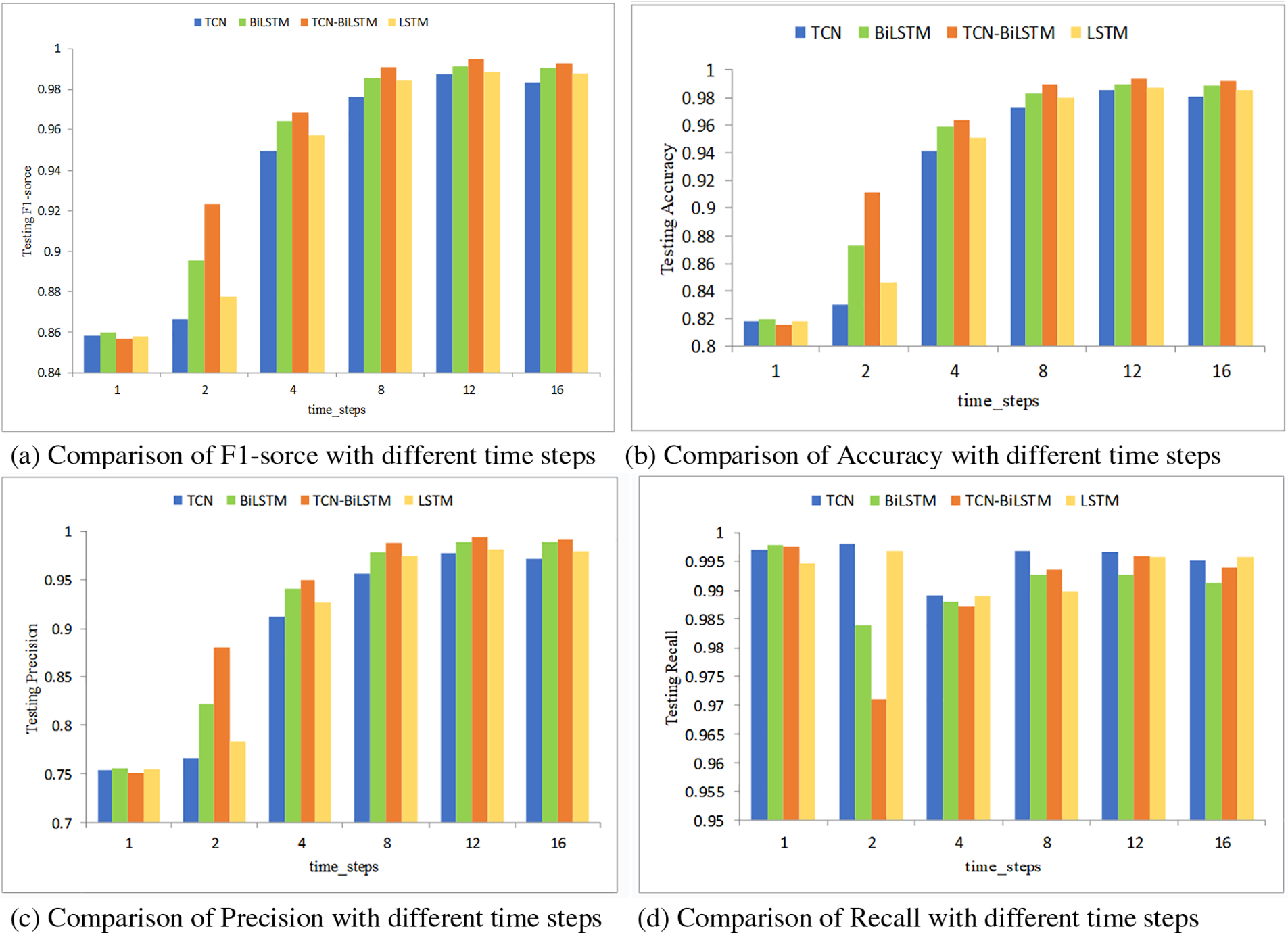

The Timeseries Generator was harnessed to simulate the repercussions of historical network activities on intrusion detection. This was instrumental in corroborating the model’s adeptness with time series data. An extensive time step might overlook quintessential events or patterns that transpire momentarily. Conversely, an overly minute time step can saturate the data with noise, complicating the model and possibly instigating overfitting. An analysis of Fig. 7 with the UNSW-NB15 dataset reveals an ascent in detection accuracy across four models as the time step amplifies. This ascent plateaus at a time step of 12, with a subsequent time step of 16 manifesting a slight ebb in detection proficiency. It underscores the optimality of our proposed hybrid model at a time step of 12, boasting metrics like F1-score, Accuracy, Precision, and Recall at 99.49%, 99.43%, 99.38%, and 99.60%, respectively.

images

Figure 7: UNSW-NB15 dataset experimental results

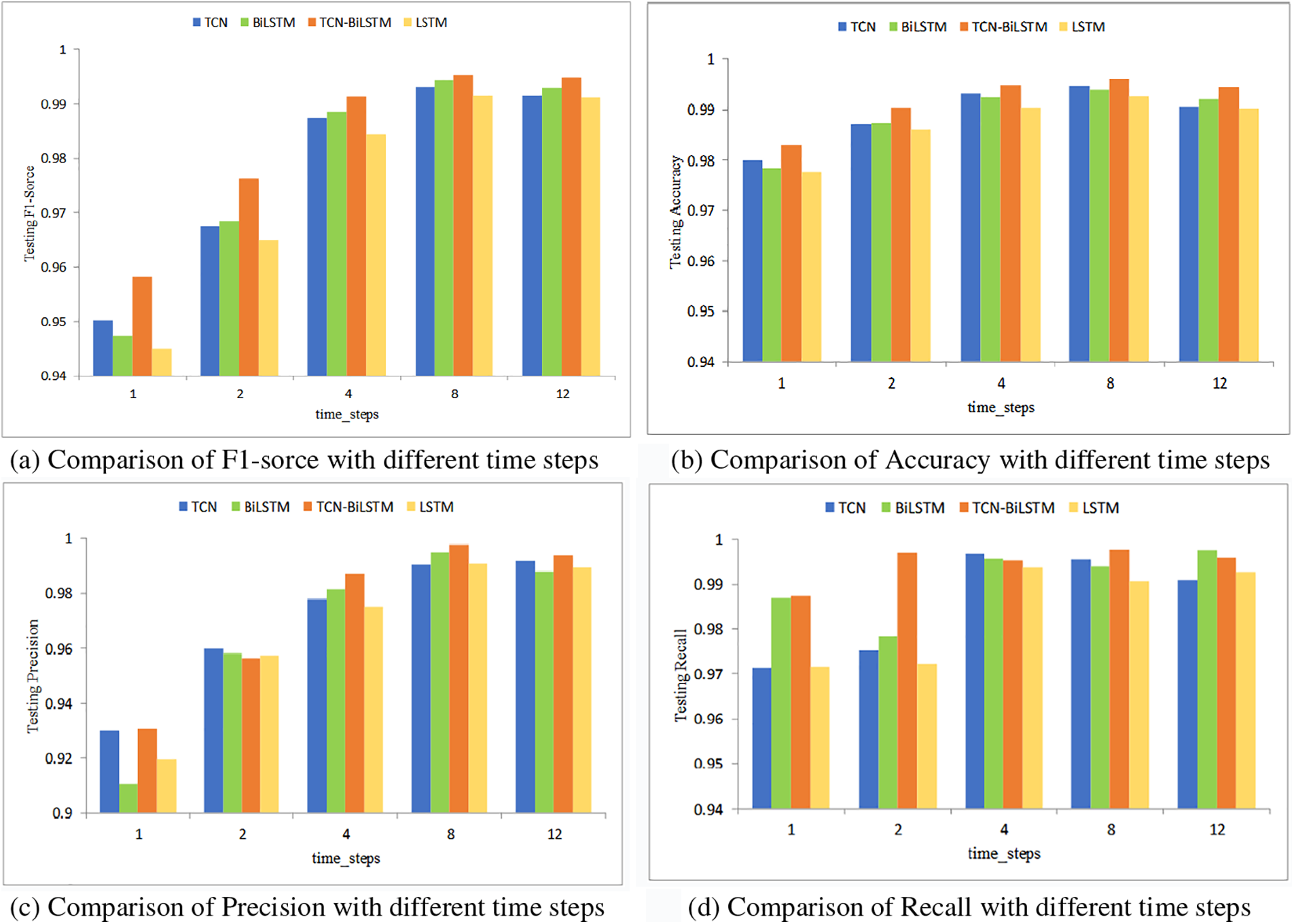

Fig. 8 showcases that, for the CICDS2017 dataset, our proposed hybrid model reaches its zenith of performance at a time step of 8, delivering impressive F1-score, accuracy, precision, and recall values of 99.53%, 99.62%, 99.27%, and 99.79%, respectively. This signifies the commendable generalization abilities of the SSAE-TB hybrid model.

images

Figure 8: CICDS2017 dataset experimental results

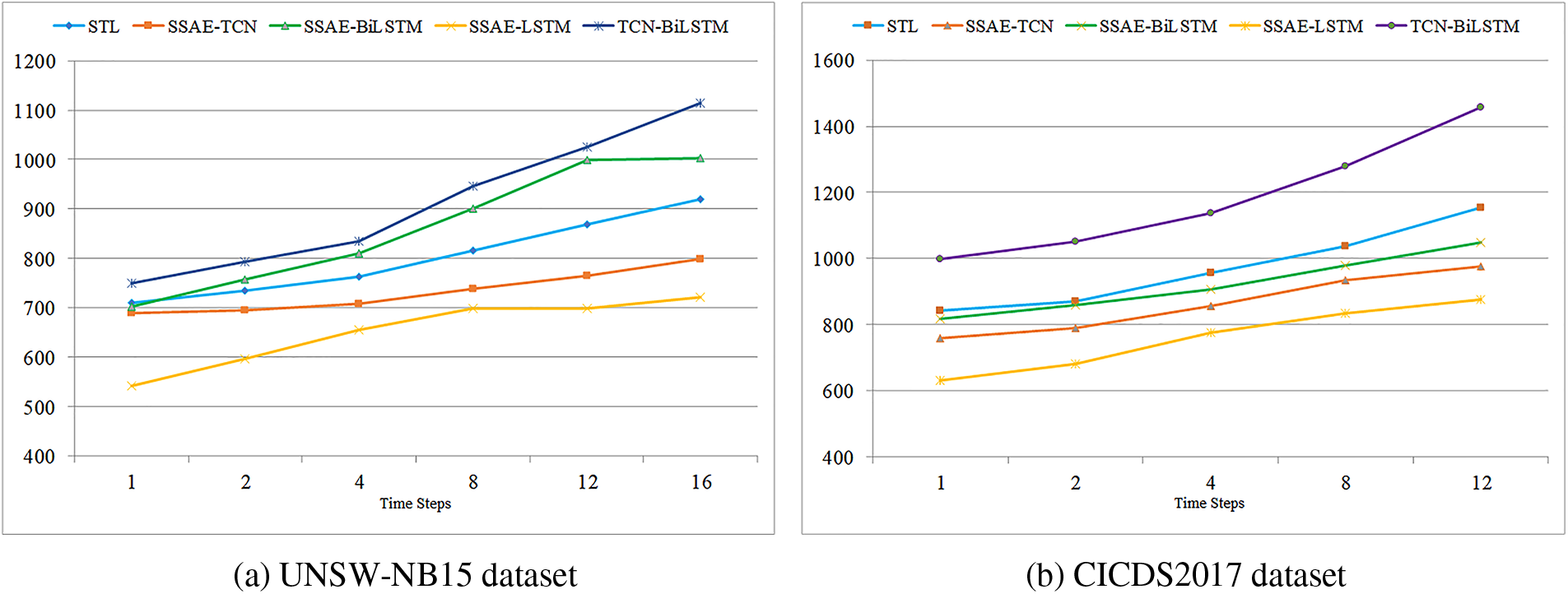

Fig. 9 depicts a comparative line chart illustrating the training durations of the hybrid model on two distinct datasets. This experiment was conducted using a batch size of 1024 over 250 epochs. The chart clearly shows that dimensionality reduction via SSAE leads to decreased training times, with simpler model combinations benefiting the most. The STL model, which integrates three deep learning approaches, unsurprisingly necessitates longer training periods. Furthermore, utilizing data that has not undergone SSAE’s dimensionality reduction in the hybrid model results in increased durations for feature extraction and attack detection. Consequently, employing SSAE to reduce data dimensionality before the training phase with the TCN and Bi-LSTM networks is both a logical and practical approach.

images

Figure 9: Training times comparison

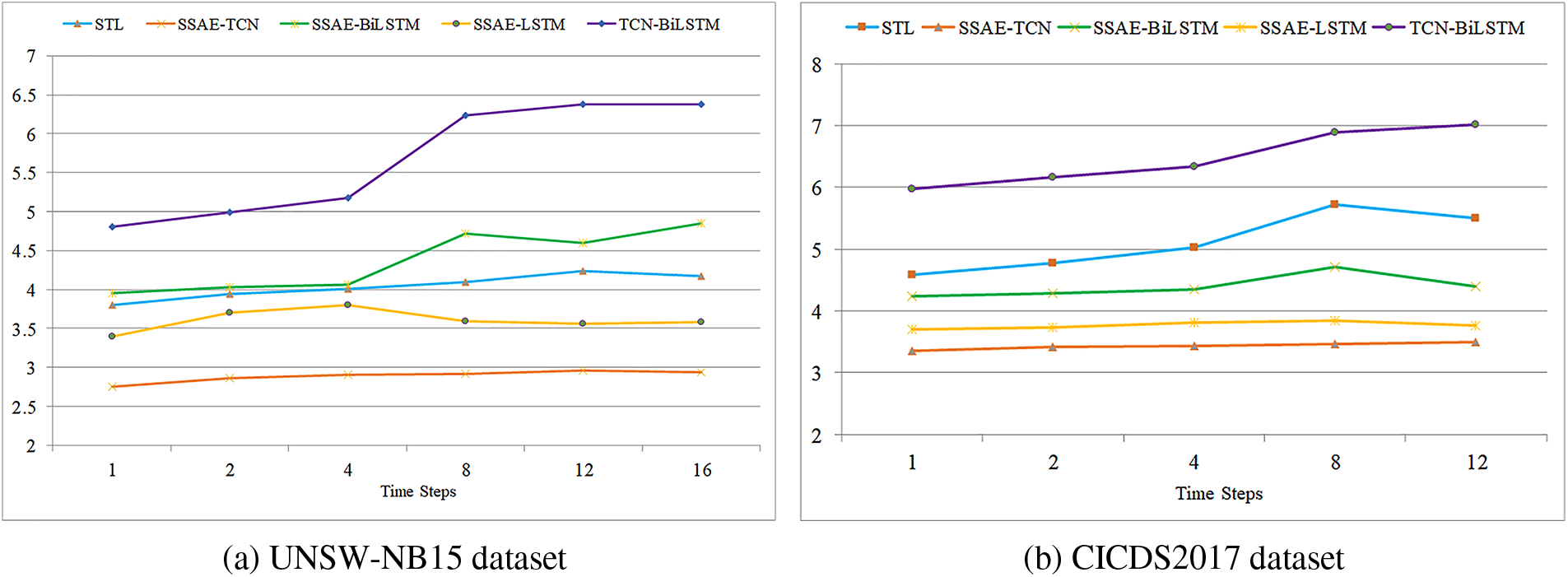

Fig. 10 presents a line graph that compares the inference times of a hybrid model utilizing two different datasets. Consistent with the training phase, data that has been subjected to SSAE dimensionality reduction before being processed by deep learning methods show a marked improvement in detection results over non-reduced data. While the inference times for various hybrid models post-SSAE reduction are comparable, the STL hybrid model distinguishes itself by achieving higher accuracy and F1-scores at different temporal steps. In the context of network intrusion detection, the precision of attack detection is paramount for enacting prompt countermeasures. Despite a marginal difference in inference time—mere seconds compared to other models—the STL hybrid model’s superior performance metrics solidify its advantage.

images

Figure 10: Inference times comparison

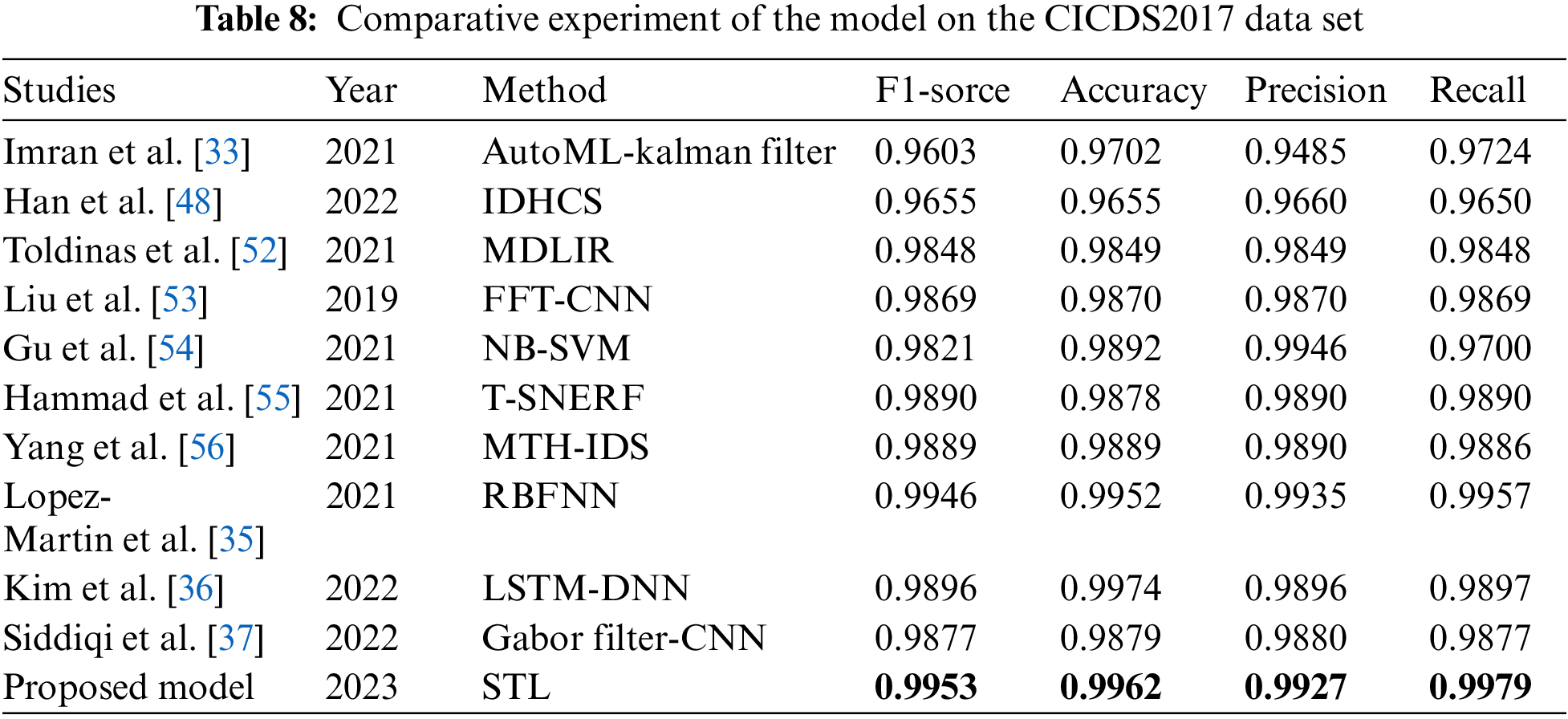

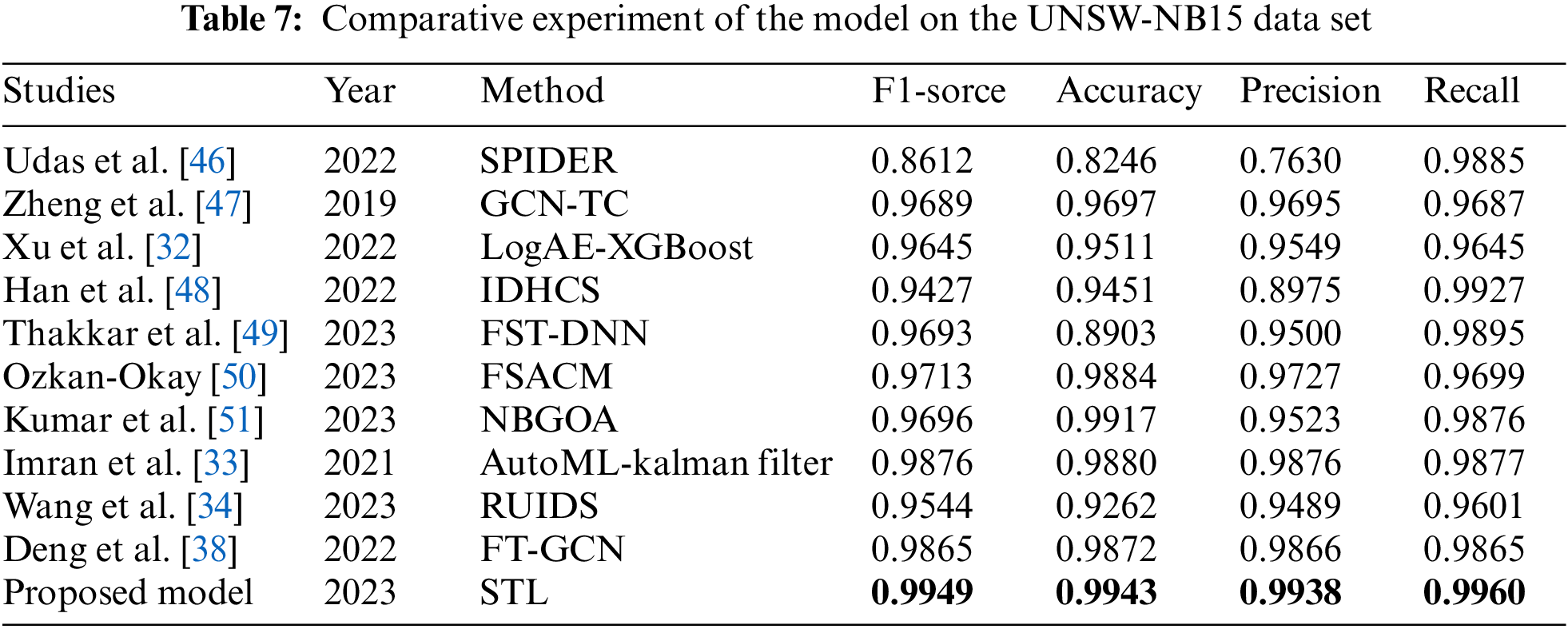

The performance of our SSAE-TB hybrid model was juxtaposed against prevailing advanced models using the UNSW-NB15 and CICDS2017 datasets, as delineated in Tables 7 and 8. Key metrics like F1-score, accuracy, precision, and recall were brought into consideration for comparison. Analyzing Table 7 reveals that the STL model clinches the top spot for F1-score and accuracy on the UNSW-NB15 dataset, with figures standing at 0.9949 and 0.9943, respectively. In the context of the CICDS2017 dataset, while its accuracy trails slightly behind the LSTM-DNN method, the model surpasses the other three evaluation criteria.

images

images

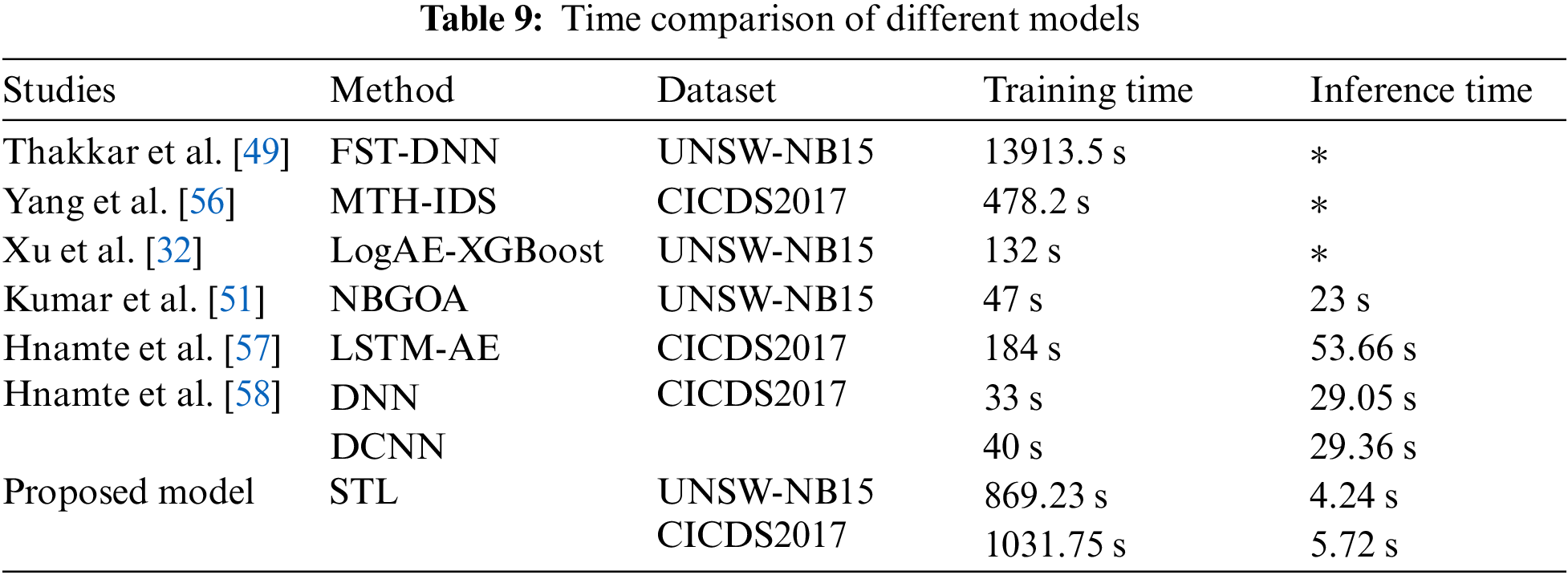

Table 9 details the training and inference times for a range of deep learning models, encompassing studies from comparative experiments conducted on the two previously mentioned datasets. In practical scenarios of network intrusion detection, the detection system—once trained—operates in real-time; thus, longer training times do not impede the system’s operational performance. Nevertheless, the inference time is of paramount importance as it directly reflects the model’s ability to quickly identify attacks, an essential feature for the timely detection and mitigation of potential network threats.

images

To validate the superiority of the STL model presented in this paper over the other studies discussed, we conducted a comprehensive analysis using key performance indicators such as accuracy, F1-score, and inference time.

•   The STL model demonstrated remarkable results, achieving an accuracy of 99.43% and an F1-score of 99.49% on the UNSW-NB15 dataset; and even higher scores of 99.62% and 99.53%, respectively, on the CICIDS2017 dataset. These figures not only exceed those of many competing models but also underscore the STL model’s robustness in detecting network intrusions.

•   In addition, the STL model proved to be significantly faster, recording inference times of just 4.24 and 5.72 s. This performance is at least five times quicker than its counterparts, marking a critical advantage in real-time threat detection scenarios.

The combination of high detection rates and rapid inference underlines the STL model’s competitive edge in the field of network intrusion detection. In conclusion, the STL model emerges as an exceptional solution, providing high accuracy, superior F1-scores, and swift inference times, and thereby outperforming the models in comparative studies.

6  Conclusion

In this research, we have introduced the STL hybrid model, meticulously crafted to tackle the complexity of network intrusion detection. Our innovative approach bridges the gap in conventional methods that often neglect the critical time-series dynamics, thus enhancing detection accuracy while reducing false positives and negatives. Through the application of an SSAE for feature reduction and a layered pre-training methodology, we have distilled an optimal configuration for our model. A time series generator has further enriched the model to reflect the intricacies of real-world data flow. The fusion of TCN and Bi-LSTM in our hybrid model stands as a testament to our commitment to precision, with the TCN adeptly unraveling the multivariate time series data and the Bi-LSTM refining the sequence processing. The subsequent experimental phase, marked by variations in time step length, has solidified the prowess of our hybrid model in surmounting the challenges inherent to time series data.

Impact and Implications: The outcomes of our research have significant implications for the field of intrusion detection. By successfully capturing the time-dependent nature of network traffic, our STL model paves the way for more nuanced and responsive intrusion detection systems. It is not merely a theoretical enhancement but a practical leap forward in safeguarding network infrastructures.

Challenges and Limitations: It is pertinent to acknowledge the challenges encountered during our research. We grappled with computational constraints and the intricate nature of crafting a model that could generalize across diverse network environments. Our model, while robust, may face limitations in scenarios of extreme data volatility or in instances where attack patterns drastically deviate from historical trends.

Future Directions: As we look to the horizon, we are compelled to delve into the untapped potential of real-time data collection. Our ambition is to construct comprehensive datasets that will allow for an in-depth examination of the variable impacts of time series on network intrusion detection. We seek to refine our model to achieve even greater speed and accuracy, thus contributing to the ever-evolving landscape of cybersecurity.

Call to Action: We call upon the research community to build upon our findings, explore new dimensions of time series analysis, and push the boundaries of what is possible in network intrusion detection. The STL model is a stepping stone toward a future where digital fortifications are as dynamic and intricate as the networks they protect.

Acknowledgement: The author thanks his family and colleague for their moral support.

Funding Statement: This work was supported in part by the Gansu Province Higher Education Institutions Industrial Support Program: Security Situational Awareness with Artificial Intelligence and Blockchain Technology. Project Number (2020C-29).

Author Contributions: For Conceptualization, Methodology, Validation, Writing, and Software, X.W.; Conceptualization, C.L.; Supervision and Funding Acquisition, Z.H. All authors have read and agreed to the published version of the manuscript.

Availability of Data and Materials: The data used in this study are not publicly available due to ongoing research projects that utilize the same dataset. The data will be considered for release after the completion of these projects.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
