# Design of Evolutionary Algorithm Based Unequal Clustering for Energy Aware Wireless Sensor Networks

1 Department of Computer Engineering, College of Computer Engineering & Sciences, Prince Sattam Bin Abdulaziz University, Al-Kharj, 11942, Saudi Arabia

2 Chaitanya Bharathi Institute of Technology, Hyderabad, Telangana, India

3 Department of Electrical Engineering, College of Engineering, Jouf University, Sakaka 72388, Saudi Arabia

4 Department of Computer Science and Engineering, Vignan’s Institute of Information Technology, Visakhapatnam, 530049, India

5 Department of Applied Data Science, Noroff University College, Kristiansand, Norway

6 Department of Electrical and Computer Engineering, Lebanese American University, Byblos, Lebanon

7 Artificial Intelligence Research Center (AIRC), College of Engineering and Information Technology, Ajman University, Ajman, United Arab Emirates

8 Department of ICT Convergence, Soonchunhyang University, Asan 31538, Korea

* Corresponding Author: Yunyoung Nam. Email:

*Computer Systems Science and Engineering* **2023**, *47*(1), 1283-1297. https://doi.org/10.32604/csse.2023.035786

**Received** 03 September 2022; **Accepted** 23 November 2022; **Issue published** 26 May 2023

## Abstract

Wireless Sensor Networks (WSN) play a vital role in several real-time applications ranging from military to civilian. Despite the benefits of WSN, energy efficiency becomes a major part of the challenging issue in WSN, which necessitate proper load balancing amongst the clusters and serves a wider monitoring region. The clustering technique for WSN has several benefits: lower delay, higher energy efficiency, and collision avoidance. But clustering protocol has several challenges. In a large-scale network, cluster-based protocols mainly adapt multi-hop routing to save energy, leading to hot spot problems. A hot spot problem becomes a problem where a cluster node nearer to the base station (BS) tends to drain the energy much quicker than other nodes because of the need to implement more transmission. This article introduces a Jumping Spider Optimization Based Unequal Clustering Protocol for Mitigating Hotspot Problems (JSOUCP-MHP) in WSN. The JSO algorithm is stimulated by the characteristics of spiders naturally and mathematically modelled the hunting mechanism such as search, persecution, and jumping skills to attack prey. The presented JSOUCP-MHP technique mainly resolves the hot spot issue for maximizing the network lifespan. The JSOUCP-MHP technique elects a proper set of cluster heads (CHs) using average residual energy (RE) to attain this. In addition, the JSOUCP-MHP technique determines the cluster sizes based on two measures, i.e., RE and distance to BS (DBS), showing the novelty of the work. The proposed JSOUCP-MHP technique is examined under several experiments to ensure its supremacy. The comparison study shows the significance of the JSOUCP-MHP technique over other models.## Keywords

Wireless Sensor Networks (WSNs) are advanced for monitoring and sensing vital signs of area and environment using linked and distributed sensor nodes (SNs). The SNs were divided into Gateway Nodes (GN), normal, and sink nodes [1]. The SNs were small in size and had insufficient sources concerning processing, storage, and space energy [2]. In many cases, the SNs were deployed in a very harsh and intense ecosystem. The first and foremost goal of this positioning was to sense information distantly and sends it to the system or user for decision-making. To send data, there comes a demand for more effective systems for managing the energy system of nodes and enhancing network lifetime [3]. The SNs perceive and sense the data from nearby environments, make processes, and transmit it to the nearby nodes until data arrives at the base station (BS). In WSN, because of the restricted energy sources of SNs, there comes a crucial need for a well-effective and balanced data aggregation system and energy-efficient routing protocol [4]. The energy feature becomes one factor to consider for devising any solution for WSNs. Numerous routing protocols were devised to conserve the energy of SNs [5]. The clustering approach becomes an effective topological control system that could efficiently enhance the scalability duration and lifetime of WSNs. The WSN applications have achieved popularity, including health monitoring, target tracking, disaster response, environmental monitoring, and security [6].

In a clustering ecosystem, data can be involved from one node to another and occurs energy holes or hotspot difficulties [7]. A hotspot can be made by SNs positioned nearby the BS and rapidly drain energy because traffic arises from other nodes and is sent from it. Such SNs not just transmit their data but also send it from other bases because the initial death of nodes causes hotspot problems. The methods, namely unequal clustering methods and mobile sinks or mobile data mules, were majorly utilized to resolve this problem [8]. But many unequal clustering techniques were devised for the solution of the hotspot leverages cluster, which is smaller in size adjacent to BS and cluster size rose case when we were going far away from BS. The cluster size was inversely proportional to the distance from BS. The clusters adjacent to BS hold a greater quantity of nodes that is helpful in efficient load sharing [9]. The projected method for size allotment and size difference of clusters leads to a reduction of frequency where a specific node turns out to be a cluster head (CH) [10]. This aids in the maintenance of the overall connectivity and thwarts network isolation. In line with this, hot spot issues can be reduced. One of the problems concerning unequal clustering was cluster size decreasing or increasing ratio that was not conferred in prevailing methods.

This article introduces a Jumping Spider Optimization Based Unequal Clustering Protocol for Mitigating Hotspot Problems (JSOUCP-MHP) in WSN. The JSO algorithm is stimulated by the characteristics of spiders in nature and mathematically modelled the hunting mechanism such as search, jumping skills, and persecution to attack prey. The presented JSOUCP-MHP technique mainly resolves the hot spot issue for maximizing the network lifespan. To attain this, the JSOUCP-MHP technique elects a proper set of cluster heads (CHs) using average RE. In addition, the JSOUCP-MHP technique determines the cluster sizes based on two measures i.e., RE and distance to BS (DBS). The proposed JSOUCP-MHP technique is examined under several experiments to ensure its supremacy.

Arikumar et al. [11] modelled an Energy Efficient LifeTime Maximization (EELTM) technique that uses intelligent techniques of Fuzzy Inference System (FIS) and particle swarm optimization (PSO). In addition, an optimal CH–CR selecting method in this technique exploits fitness values (FV) computed by the PSO approach for determining 2 optimal nodes in every cluster to serve as Cluster Router (CR) and CH. The CH, which is selected, exclusively accumulates the data from its cluster members. However, the CR is accountable for receiving the data collected from its CH and sending it to BS. Mehra [12] formulated an enhanced fuzzy unequal clustering and routing protocol (E-FUCA) in which vital variables were regarded at the time of CH candidate selection, and non-CH nodes considered intellectual decisions utilizing FL at the time of the election of its CH for forming clusters. FL is utilized as the next-hop choice for effective routing to expand the lifespan. And carried out the simulation experimentations for 4 cases, and a comparison was made with the propound performance of protocol with recent similar protocols.

Wang et al. [13] introduced an energy-efficient unequal clustering routing algorithm (UCRA). At first, the monitoring region was separated by concentric circles as rings of various sizes. Then, the CH was selected relating to RE and position. Before clustering, every typical sensor links cluster related to the electability of every CH. Nguyen et al. [14] presented a new optimization technique, like the compact bat algorithm (cBA), for using it for optimisation issues involving gadgets containing inadequate hardware sources. A real-valued prototype vector can be employed for probabilistic functions for generating every candidate solution for optimizing cBA. The projected cBA was widely assessed on numerous continual multi-modal functions and the unequal clustering of WSN (uWSN) issues.

In [15], competitive swarm optimization (CSO) related methods were introduced, together called such methods as CSO-UCRA. Initially, the CH selecting approach relies on CSO related approach after assigning non-CH sensors to CHs. At last, a CSO-related routing method was provided. New fitness functions and efficient particle encoding techniques were advanced for such methods. Guleria et al. [16] devise the new ant colony meta-heuristic related to unequal clustering for novel CH election. The neighbor finding level and link maintenance by Meta-Heuristic Ant Colony Optimization (ACO) technique choose the optimal path among the nodes that raises the packets distributed to the destiny. Though several models are available in the literature review, still much work is needed to resolve the hot spot problem. In addition, unequal clustering should be performed by the use of multiple input parameters.

3 The Proposed Unequal Clustering Protocol

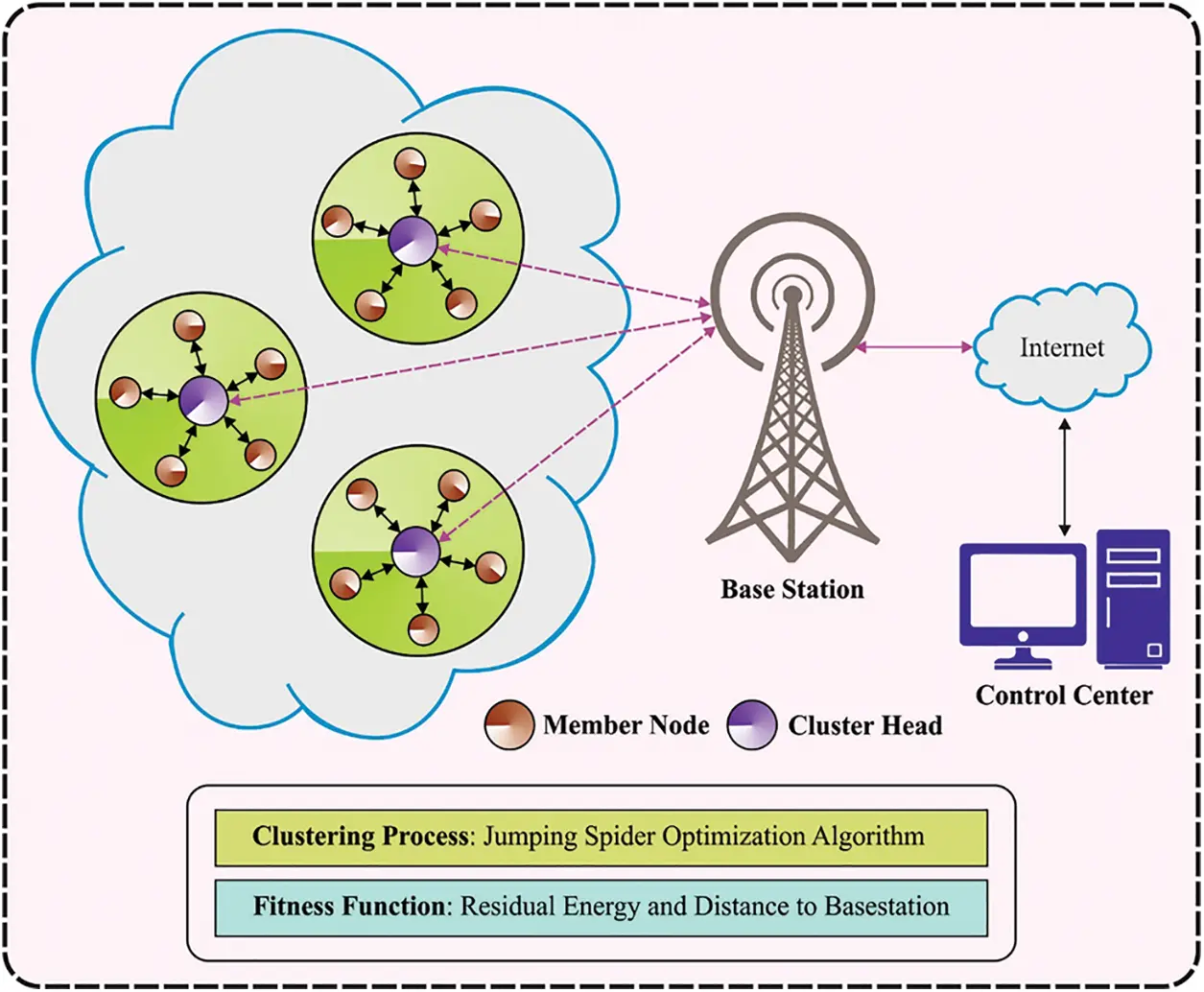

This article presented a novel JSOUCP-MHP algorithm for resolving hot spot issues in WSN. The JSO algorithm is stimulated by the characteristics of spiders in nature and mathematically modelled the hunting mechanism such as search, jumping skills, and persecution to attack prey. The presented JSOUCP-MHP technique mainly resolves the hot spot issue for maximizing network lifespan. Fig. 1 depicts the overall process of the JSOUCP-MHP approach.

A WSN comprises

In Eq. (1), E refers to the energy consumption; Tx is to transfer, elect, amp specifies electronic and amplify to modulate, digitalized coding, spreading, and filter signals. It illustrates that multi-hop transmission is highly efficient in WSN.

In Eq. (2), the power loss

WSN considered

Let

As a result, the energy consumed for WSN from the generation formulated from the energy process and transceiver was given by:

In Eq. (7),

The mathematical modelling of the jumping spider’s hunting strategy is initially proposed. Then, The JSOA approach was introduced. The hunting strategies are searching, jumping on the prey, and attacking by persecution [18]. Also, the algorithm describes the pheromone rate of the spider as follows.

Once the spider is away from a distance, whereas it could catch the prey by jumping, it moves closer by indulging in certain stealthy movements till it is at an attainable distance where it can catch the prey and pounces on it. The persecution approach can be described as the uniform accelerated rectilinear motion.

In Eq. (8),

In this study, to optimize, every iteration can be regarded as the duration, in which the differences between iterations are equivalent to 1, and initially, the speed is fixed as zero,

In Eq. (9),

The jumping spider follows the prey and jumps on them. The hunting strategy of jumping on prey is characterized by a projectile motion.

Likewise, the vertical axis and the derivative w.r.t time can be given as.

Similarly, time is characterized by strategy 1. Thus we attain the trajectory equation as follows.

Lastly, the trajectory is formulated by:

In Eq. (13),

The Jumping spider implements a random search around the environment to locate prey. Local and global search are the two mathematical functions presented as follows.

The local search can be defined as follows:

In Eq. (14),

At the same time, the Global search can be expressed as follows.

In Eq. (15),

Pheromone is released by several animals, amongst which were insects, together with spiders. Nonetheless, they produce pheromones; the modelling of the rate of pheromones was taken and described as follows:

In Eq. (16),

In Eq. (17),

3.3 Process Involved in JSOUCP-MHP Technique

In the real-time application of WSN, a massive amount of nodes is positioned generally with a higher node density. Assume a proper threshold

In Eq. (18),

In the JSOUCP-MHP technique, consider the distance from CH to BS and ignore the energy. This might leads to a lower energy node being the CH, and afterward generating a cluster, the member in the cluster causes an increase in the energy usage of CH. As a result, a competitive radius considering distance and energy is presented, and the competitive radius for CH

In Eq. (5),

A brief set of experimental analyses is carried out to demonstrate the enhanced performance of the JSOUCP-MHP model on WSN. The initial energy is 1 mJ, the node count is 500, and first-order radio energy model is used.

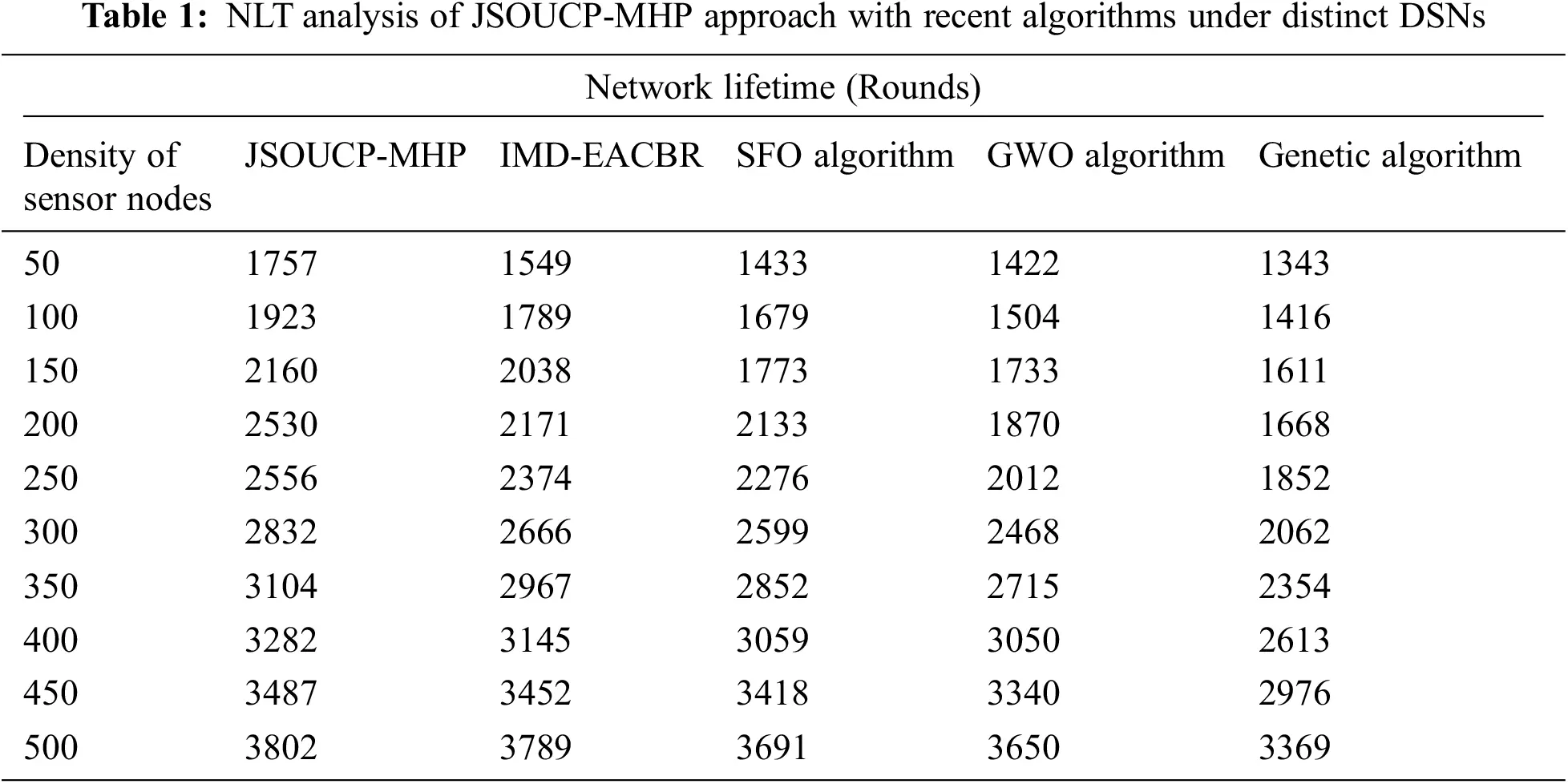

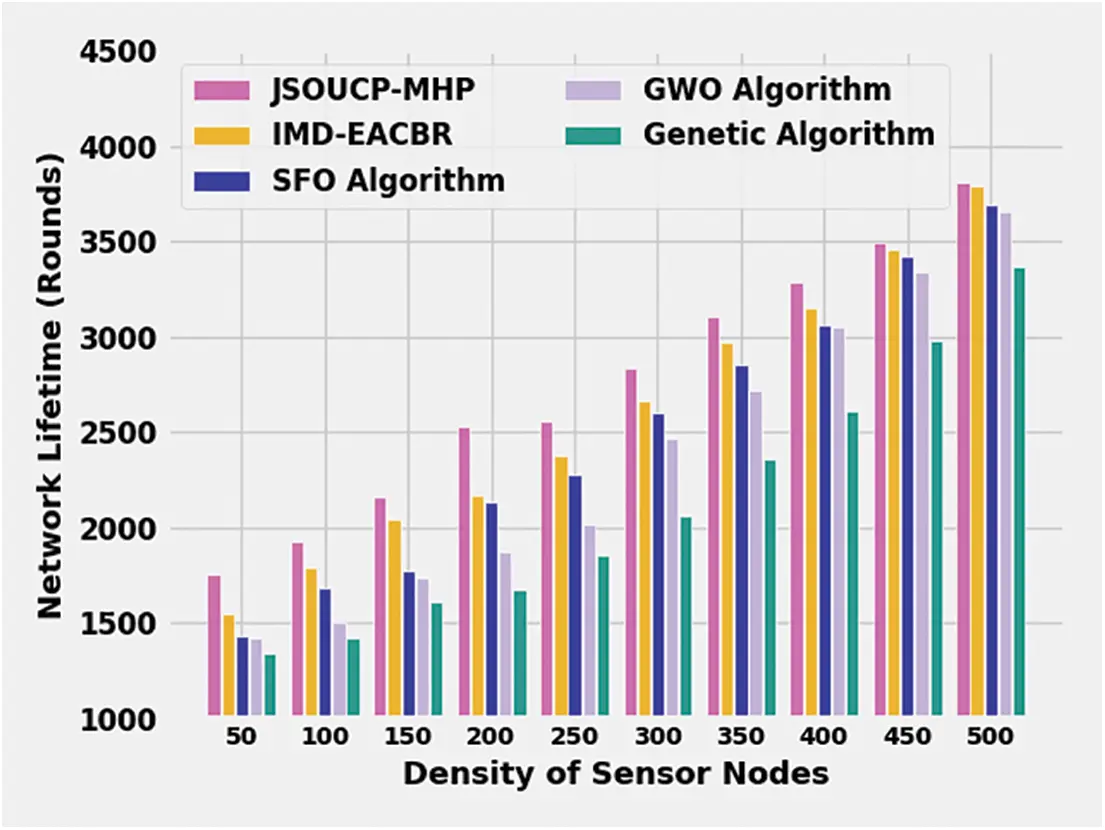

Table 1 and Fig. 2 showcase the network lifetime (NLT) inspection of the JSOUCP-MHP model with existing models under the varying density of sensor nodes (DSN). The experimental outcomes depicted that the JSOUCP-MHP model has shown enhanced performance with higher NLT values. For instance, with 50 DSN, the JSOUCP-MHP model has exhibited an increased NLT of 1757 whereas the enhanced metaheuristic-driven energy-aware cluster-based routing (IMD-EACBR), sunflower optimization (SFO), grey wolf optimization (GWO), and genetic algorithm (GA) models have demonstrated reduced NLT of 1549, 1433, 1422, and 1343 respectively. Moreover, with 250 DSN, the JSOUCP-MHP model has attained a higher NLT of 2556, whereas the IMD-EACBR, SFO, GWO, and GA models have obtained lower NLT of 2374, 2276, 2012, and 1852 respectively. On the other hand, with 500 DSN, the JSOUCP-MHP model has illustrated an improved NLT of 3802, whereas the IMD-EACBR, SFO, GWO, and GA models have depicted reduced NLT of 3789, 3691, 3650, and 3369 respectively.

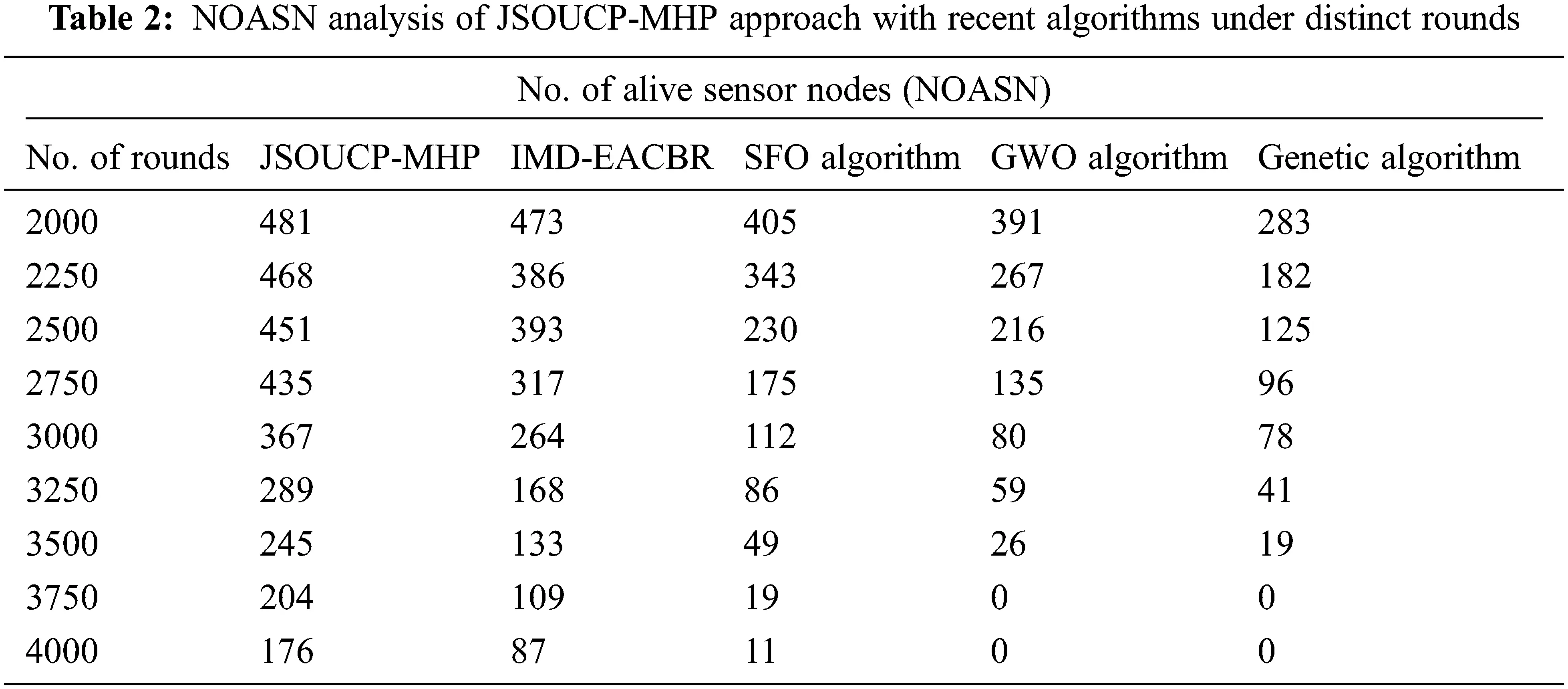

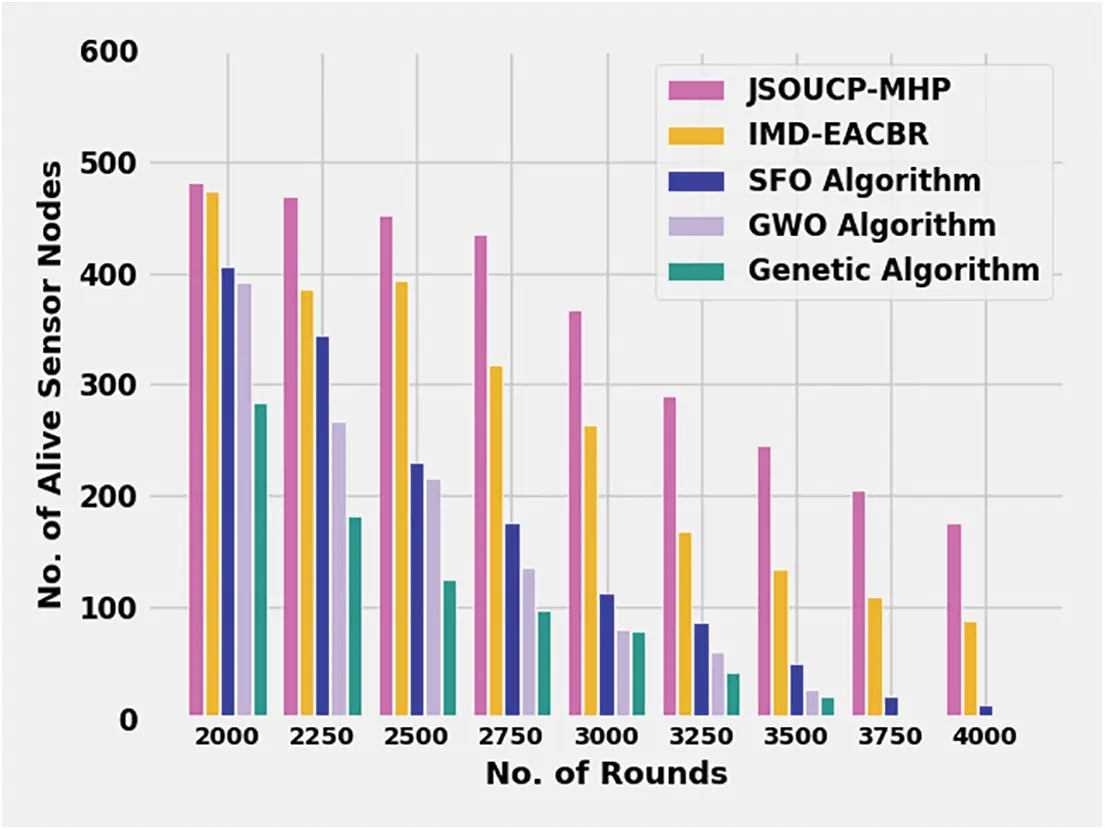

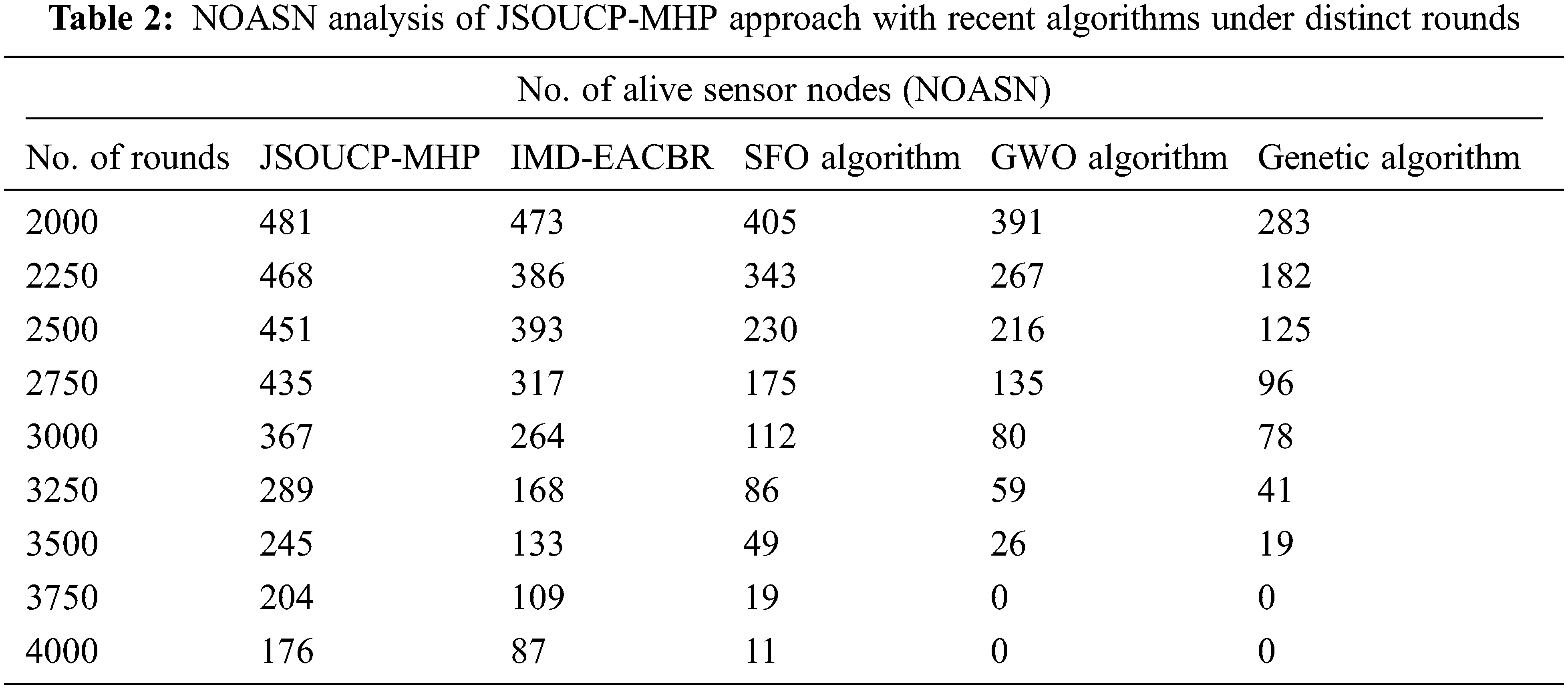

Table 2 and Fig. 3 exhibits the number of Alive Sensor Nodes (NOASN) analysis of the JSOUCP-MHP algorithm with existing models under varying count of rounds. The experimental outcomes depicted that the JSOUCP-MHP approach has shown enhanced performance with higher NOASN values. For example, with 2000 rounds, the JSOUCP-MHP approach has exhibited improved NOASN of 481 where the IMD-EACBR, SFO, GWO, and GA methods have demonstrated reduced NOASN of 473, 405, 391, and 283 correspondingly. Furthermore, with 3000 rounds, the JSOUCP-MHP method has reached a higher NLT of 367 whereas the IMD-EACBR, SFO, GWO, and GA models have acquired lower NOASN of 264, 112, 80, and 78 correspondingly. In contrast, with 4000 rounds, the JSOUCP-MHP model has demonstrated an improved NOASN of 176 whereas the IMD-EACBR, SFO, GWO, and GA models have shown reduced NOASN of 87, 11, 0, and 0 correspondingly.

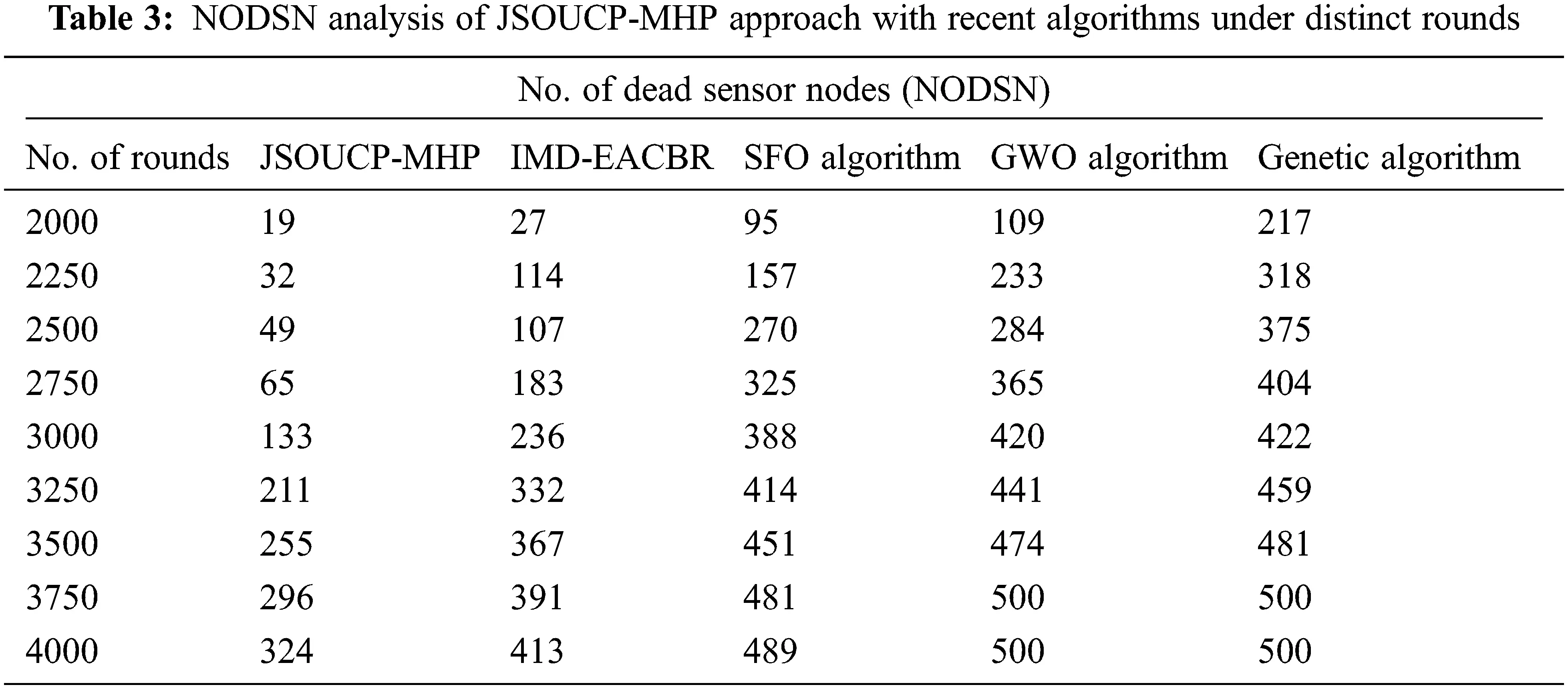

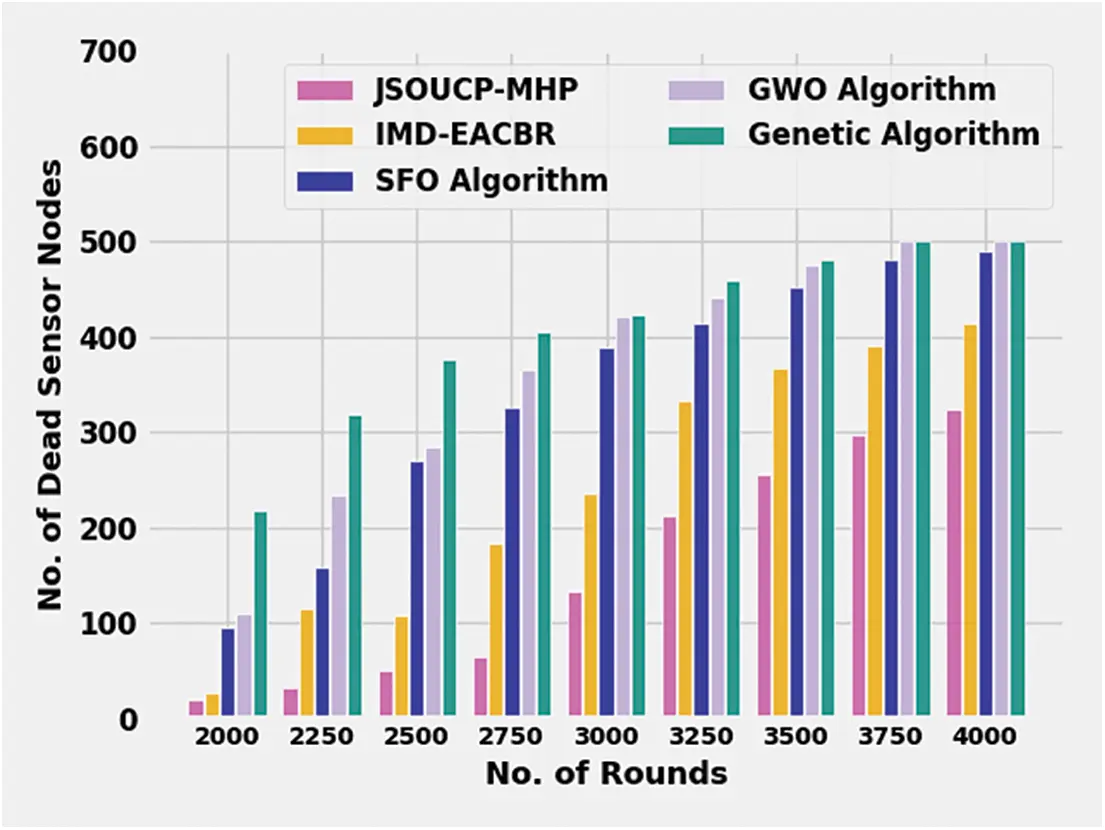

A detailed number of dead sensor node (NODSN) assessments of the JSOUCP-MHP with recent approaches were performed in Table 3 and Fig. 4. The results inferred the JSOUCP-MHP technique has resulted in enhanced results with minimum values of NODSN. For instance, with 2000 rounds, the JSOUCP-MHP model has achieved the least NODN of 19 whereas the IMD-EACBR, SFO, GWO, and GA models have reached increased NODN of 27, 95, 109, and 217 respectively. Meanwhile, with 3000 rounds, the JSOUCP-MHP model has resulted in decreased NODN of 133 whereas the IMD-EACBR, SFO, GWO, and GA models have exhibited increased NODN of 236, 388, 420, and 422 respectively. Eventually, with 4000 rounds, the JSOUCP-MHP method has rendered a minimal NODN of 324 whereas the IMD-EACBR, SFO, GWO, and GA models have achieved maximum NODN of 413, 489, 500, and 500 correspondingly.

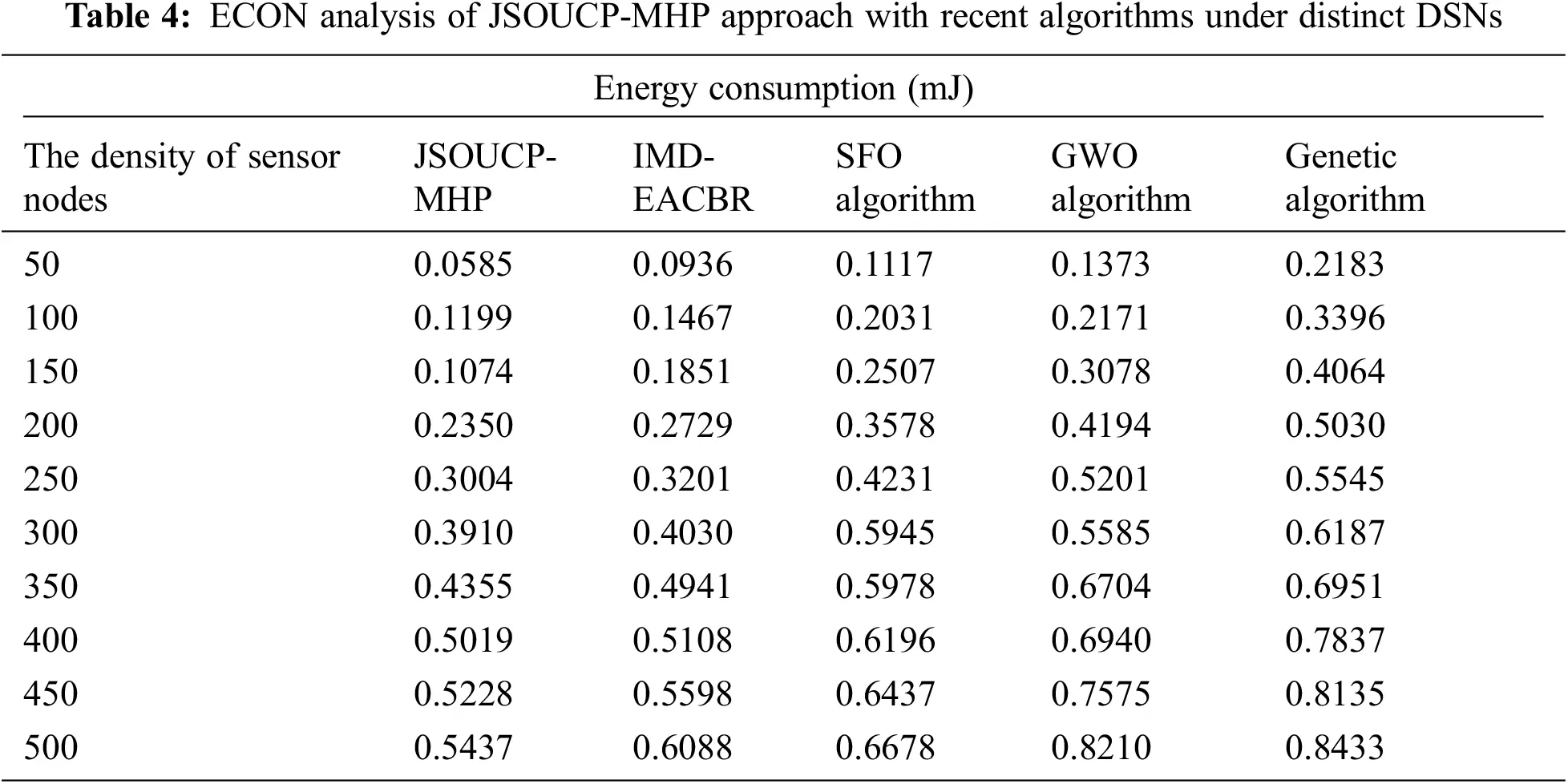

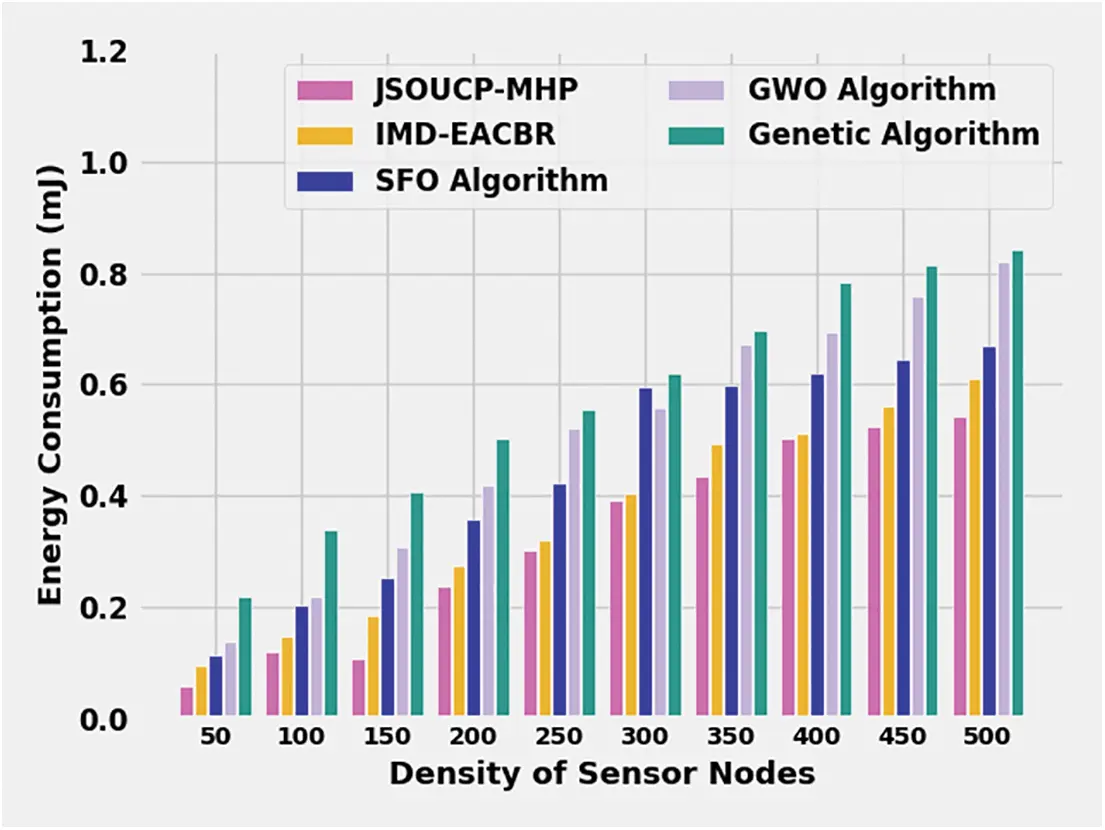

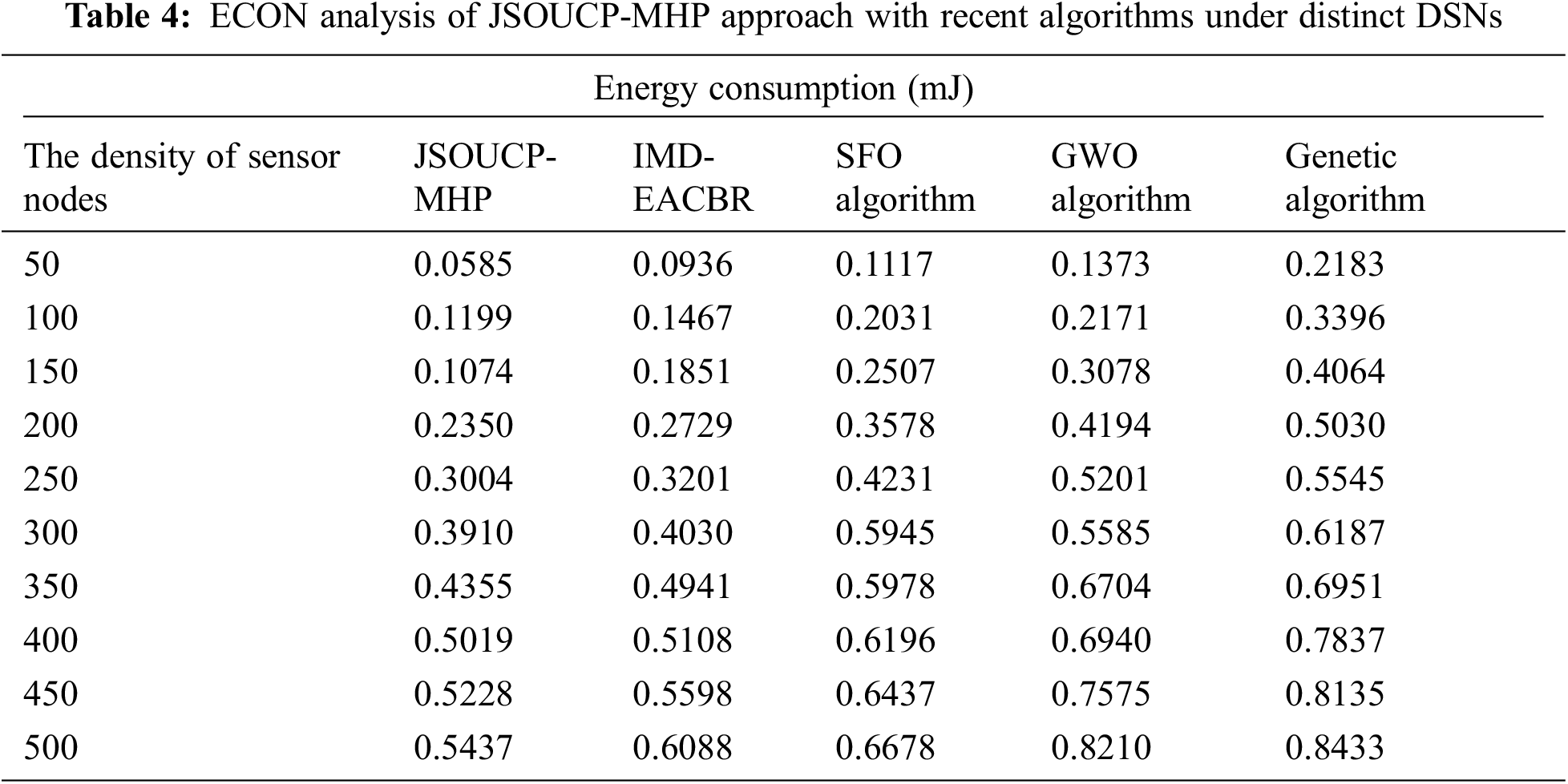

A detailed energy consumption (ECON) evaluation of the JSOUCP-MHP with recent methods is executed in Table 4 and Fig. 5. The results implicit the JSOUCP-MHP method have resulted in enhanced results with the least values of ECON. For example, with 50 DSN, the JSOUCP-MHP method del has gained the least ECON of 0.0585 mJ whereas the IMD-EACBR, SFO, GWO, and GA models have acquired increased ECON of 0.0936, 0.1117, 0.1373, and 0.2183 mJ correspondingly. In the meantime, with 250 DSN, the JSOUCP-MHP algorithm has resulted in decreased ECON of 0.3004 mJ whereas the IMD-EACBR, SFO, GWO, and GA algorithms have exhibited improved ECON of 0.3201, 0.4321, 0.5201, and 0.5545 mJ respectively. Finally, with 500 DSN, the JSOUCP-MHP model has presented a minimal ECON of 0.5437 mJ whereas the IMD-EACBR, SFO, GWO, and GA models have gained maximum NODN of 0.6608, 0.6678, 0.8210, and 0.8433 mJ correspondingly.

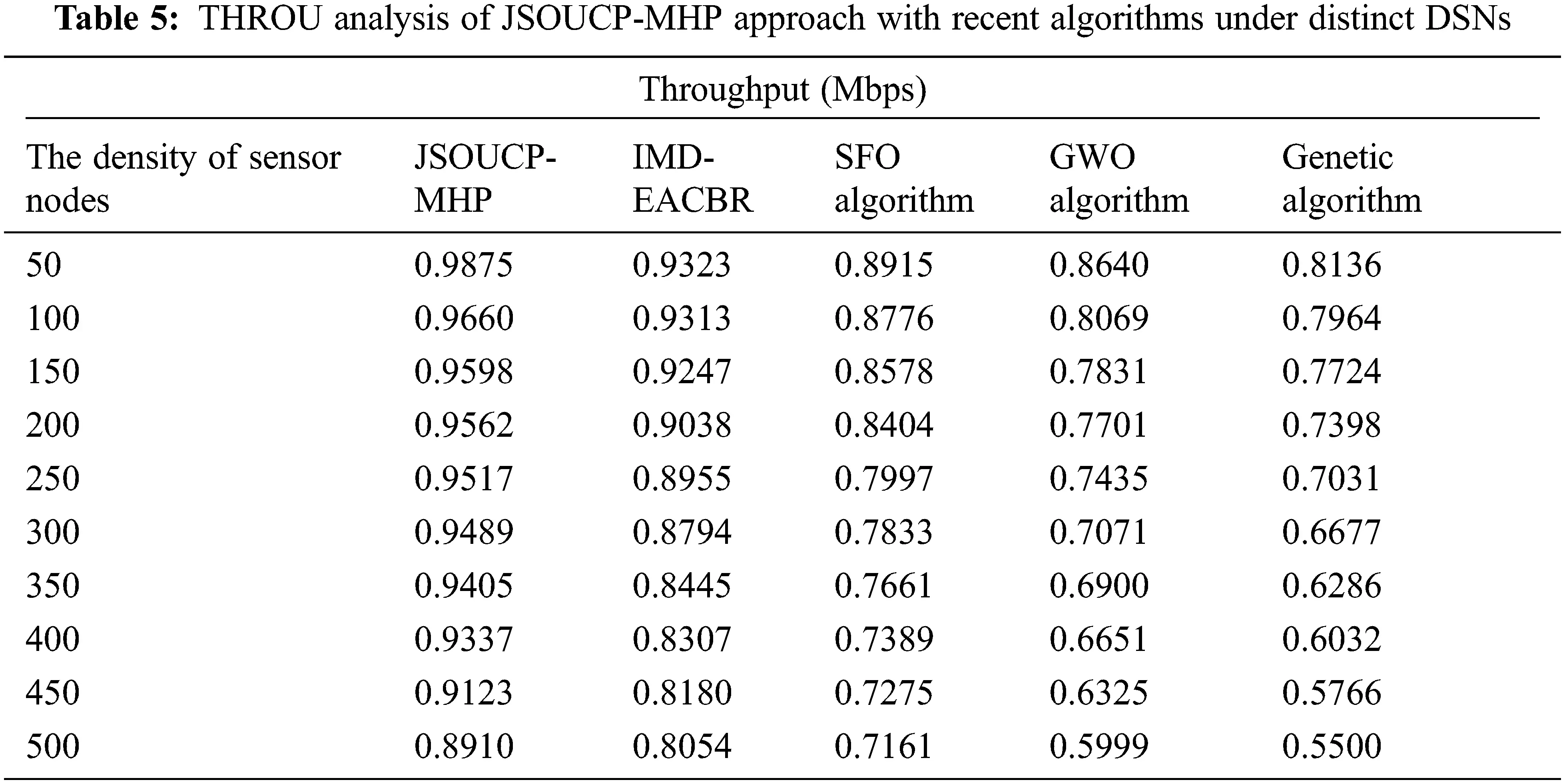

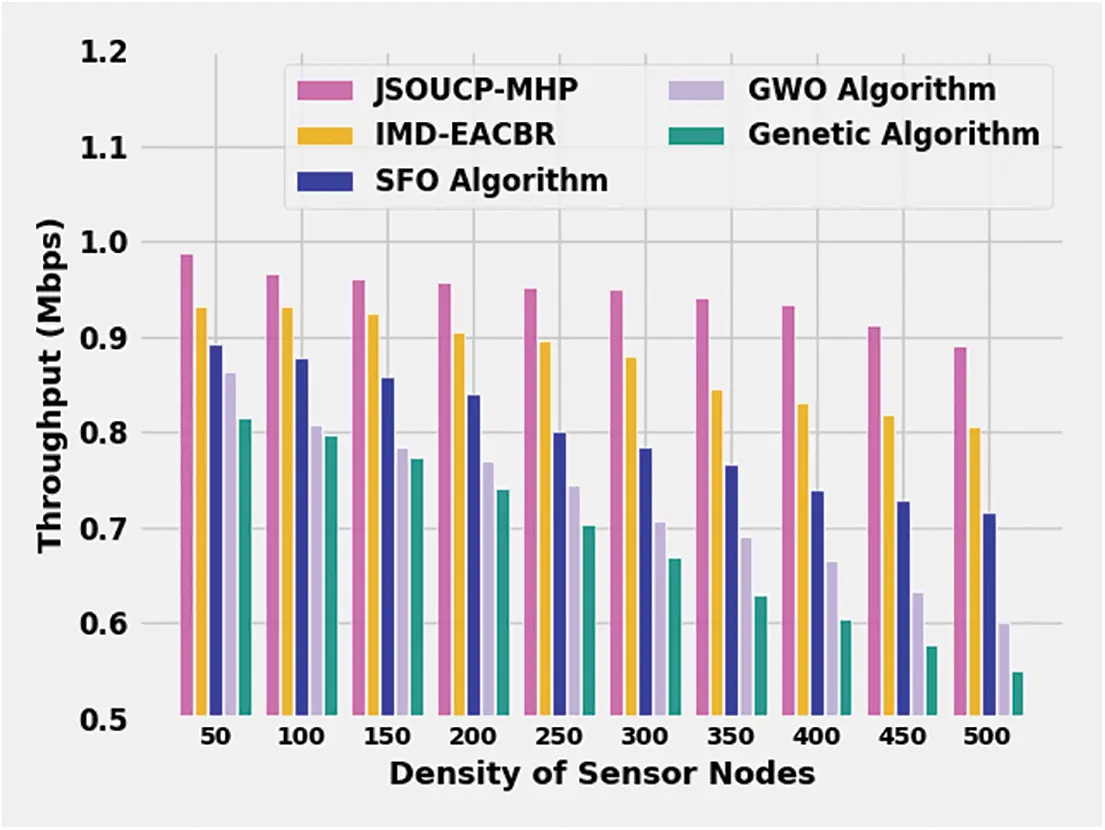

Table 5 and Fig. 6 display the throughput (THROU) review of the JSOUCP-MHP model with existing models under varying DSN. The experimental outcomes indicated the JSOUCP-MHP model has shown enhanced performance with higher THROU values. For example, with 50 DSN, the JSOUCP-MHP method has exhibited an increased THROU of 0.9875 Mbps whereas the IMD-EACBR, SFO, GWO, and GA models have demonstrated reduced THROU of 0.9323, 0.8915, 0.8640, and 0.8136 Mbps correspondingly. In addition, with 250 DSN, the JSOUCP-MHP model has gained higher THROU of 0.9517 Mbps whereas the IMD-EACBR, SFO, GWO, and GA models have obtained lower THROU of 0.8955, 0.7997, 0.7435, and 0.7031 Mbps correspondingly.

Conversely, with 500 DSN, the JSOUCP-MHP model has exemplified enhanced THROU of 0.8910 Mbps whereas the IMD-EACBR, SFO, GWO, and GA models have depicted reduced NLT of 0.8054, 0.7161, 0.5999, and 0.5500 Mbps correspondingly.

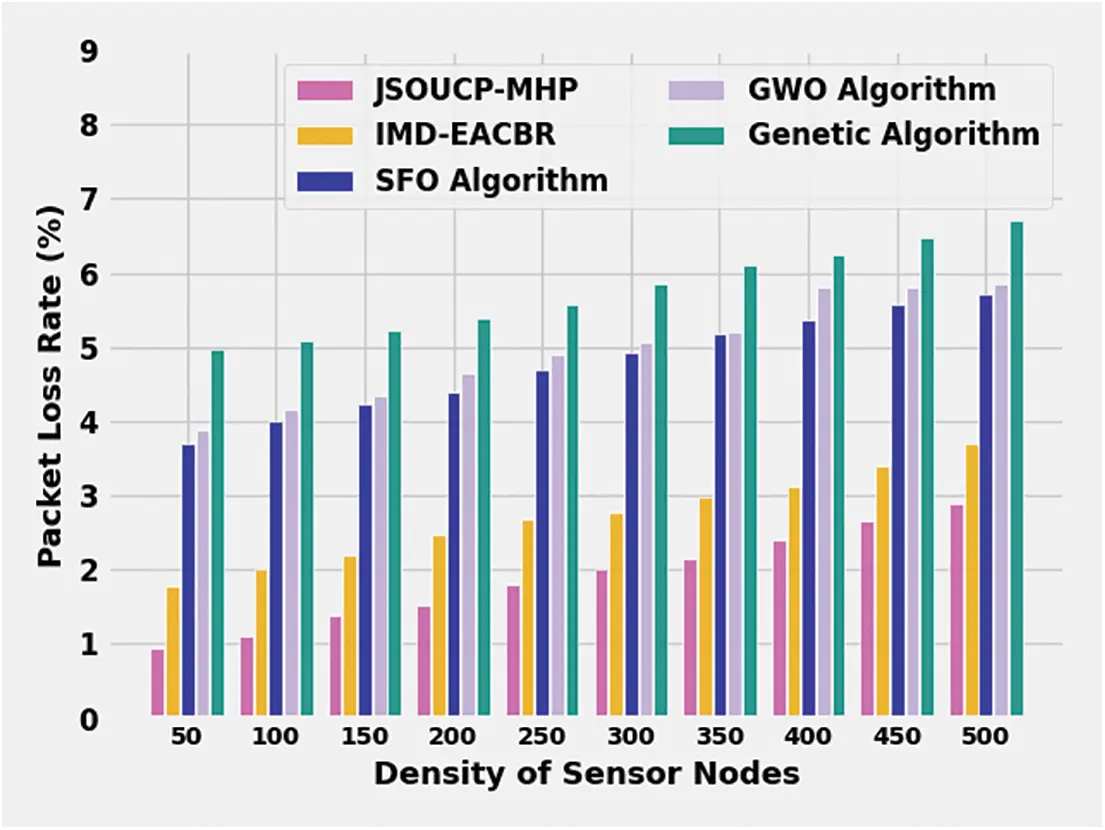

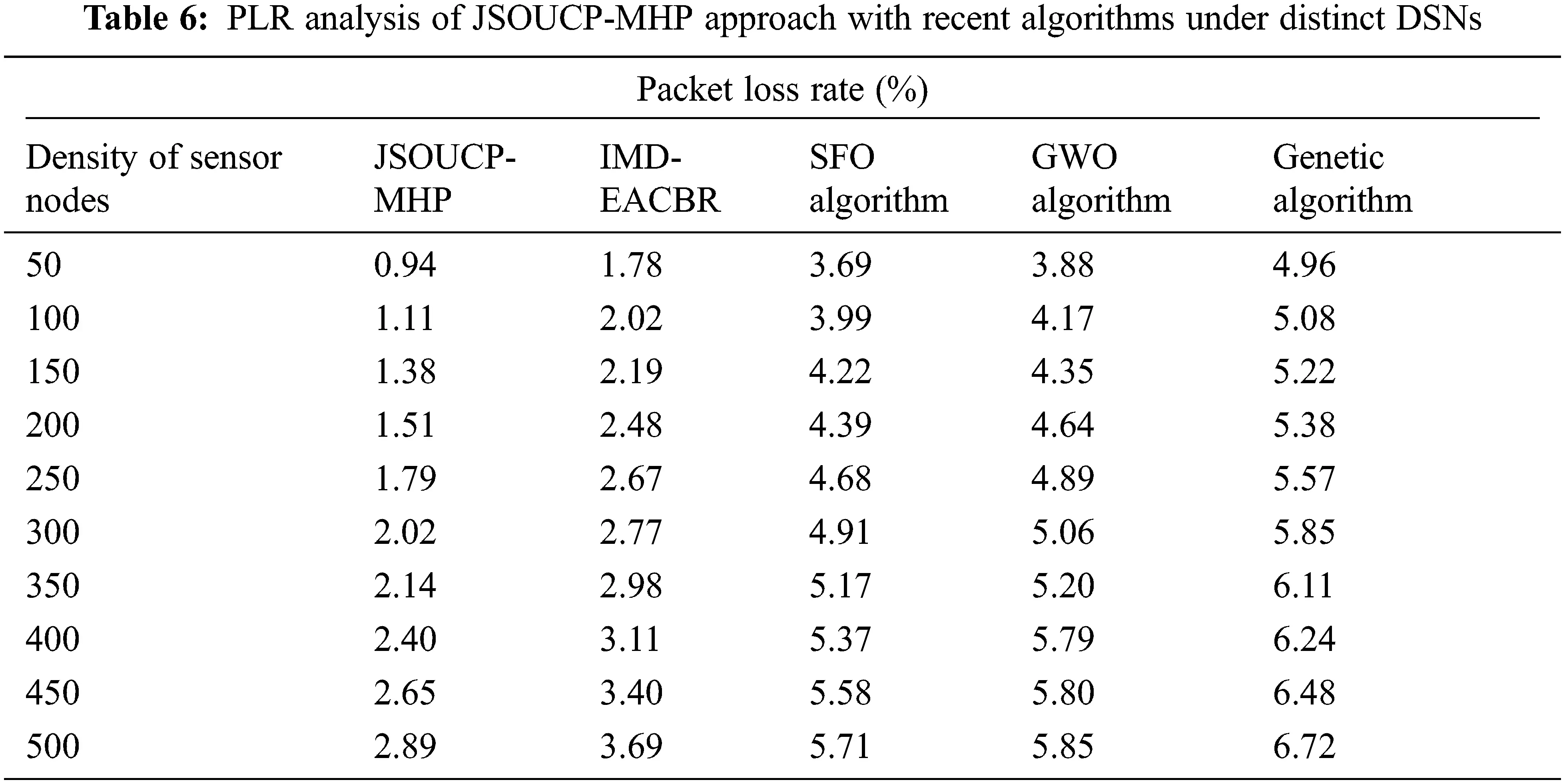

A detailed Packet Loss Rate (PLR) valuation of the JSOUCP-MHP with recent methods is exhibited in Table 6 and Fig. 7. The results denoted the JSOUCP-MHP approach has resulted in enhanced results with the least values of PLR. For example, with 50 DSN, the JSOUCP-MHP model has attained least PLR of 0.94% whereas the IMD-EACBR, SFO, GWO, and GA models have gained increased PLR of 1.78%, 3.69%, 3.88%, and 4.96% correspondingly.

Meanwhile, with 250 DSN, the JSOUCP-MHP model has resulted in decreased PLR of 1.79% whereas the IMD-EACBR, SFO, GWO, and GA models have exhibited increased PLR of 2.67%, 4.68%, 4.89%, and 5.57% correspondingly. Finally, with 500 DSN, the JSOUCP-MHP model has offered a lesser PLR of 2.89% whereas the IMD-EACBR, SFO, GWO, and GA models have acquired maximum PLR of 3.69%, 5.71%, 5.85%, and 6.72% correspondingly. These results confirmed that the JSOUCP-MHP technique has accomplished enhanced performance over other models.

In this article, a novel JSOUCP-MHP system has been presented for resolving hot spot issues in WSN. The JSO algorithm is stimulated by the characteristics of spiders naturally and mathematically modelled the hunting mechanism such as jumping skills, persecution, and search, to attack prey. The presented JSOUCP-MHP technique mainly resolves the hot spot issue for maximizing the network lifetime. To attain this, the JSOUCP-MHP technique elects proper set of CHs using average RE. Also, the JSOUCP-MHP system determines the cluster sizes dependent upon two measures such as RE and DBS. The proposed JSOUCP-MHP technique is examined under several experiments to ensure its supremacy. The comparison study shows the significance of the JSOUCP-MHP technique over other models. In upcoming years, the performance of the JSOUCP-MHP system will be improved by data aggregation approaches.
