Cutting Experiment of Fraxinus mandshurica Using Waterjet-Assisted CO₂ Laser

1  Introduction

Laser processing is of advantages such as rapid processing speed, less waste, high precision, and desired surface quality [1–4]. Therefore, it is widely used for cutting, engraving, drilling, and surface treatment [5–8]. Environmentally friendly wood has a wide application in fields of furniture, crafts, construction and so on [9–12]. Especially, high-quality wood products and valuable wood crafts receive everyone’s favor [13]. Due to the extreme shortage of wood, it is necessary to improve the high precision and utilization rate of wood resources [14,15]. Thus, laser processing is used to machine wood [16–18].

Fukuta et al. studied drilling holes in wood with lasers of different wavelengths and clarified the process mechanism. The heat-affected zone surrounding the holes was not recognized when the hole diameter on the surface was about 20 µm [19]. Yusoff et al. studied the influence of different parameters on the processing index by cutting different kinds of wood using the CO2 laser and obtained the optimal process parameters [20]. Eltawahni et al. demonstrated the effect of laser power, focus location and speed on cutting width surface roughness of MDF by CO2 laser [21]. Barcikowski et al. discussed the relationship between the heat-affected zone and process parameters of wood and wood composites using the laser process [22]. However, due to the low ignition point of wood and the high temperature of laser focusing, a part of the laser energy density is always lower than the temperature of wood gasification, resulting in the burning marks and carbon residues on the surface of wood by laser machining, which seriously affects the surface quality of valuable wood products [23]. Therefore, a new laser machining method is in urgent need to perfect the surface quality of wood machining.

Yang et al. raised the waterjet-assisted YAG laser machining of wood, the results showed that with the waterjet-assisted system, the minimum value of the cutting width was 0.18 mm when the cutting speed was 50 mm/s and the laser power was 6 W, and good surface quality was obtained [24]. Moreover, the mechanism of waterjet-assisted YAG laser machining of wood was clarified to obtain the needed machining surface [25]. However, through an in-depth study, Jiang et al. found that wood had a better absorptivity of CO2 laser waves, as well as this type of laser had a lower price. In order to study the influence of process parameters on the surface quality, Korean pine was used as the material, and the waterjet-assisted CO2 laser (WACL) technology was used to cut the Korean pine by five factors and four levels of the orthogonal test design method. The effects of laser power, cutting speed, water pressure, defocusing amount and jet angle on the kerf width of Korean pine molded parts were discussed by range analysis method, and the optimal process parameters were determined [26]. Surface roughness is also an important index to measure machining surface quality [27].

Many recent works revealed the influence of parameters on surface quality during laser processing [28,29]. However, these variation laws of laser processing may not be suitable for WACL machining Fraxinus mandshurica. Especially, when processing special-textured wooden crafts, it is necessary to study cutting transversally. The purpose of this research is to investigate the surface quality of Fraxinus mandshurica by WACL when cutting transversally. The Box-Behnken design (BBD) was used to examine the influence of interactive effects of cutting speed, flow pressure and laser power on the surface roughness Ra of machined parts. Additionally, the predicted models were established, and then optimal process parameters were obtained. Following that, the kerf surface microstructure and 3D profile morphology of Fraxinus mandshurica were analyzed. A flow chart of the work stages is shown in Fig. 1.

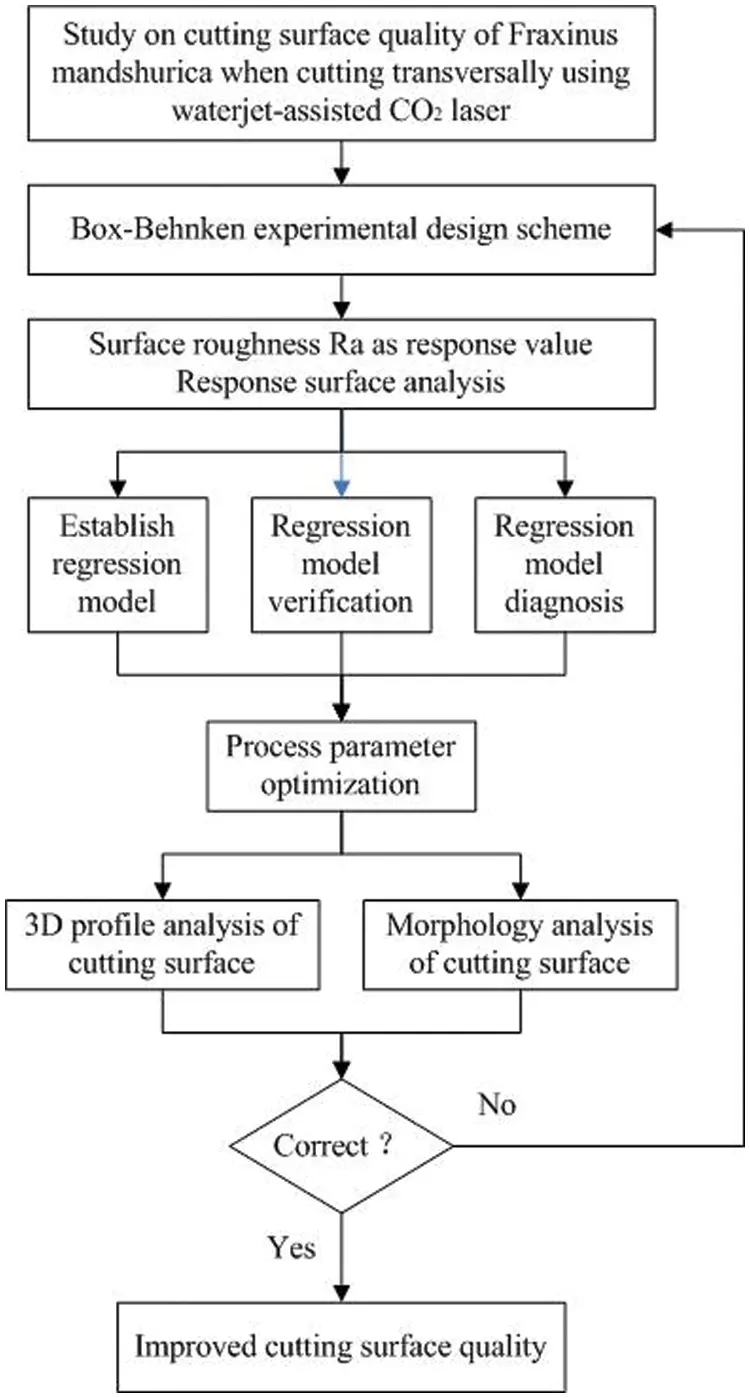

Figure 1: A flow chart of the work stages

2  Experiment

2.1 Equipment and Materials

The whole test process of WACL machining Fraxinus mandshurica is carried out in the WACL equipment. The equipment is composed of a CO2 laser cutting device and a waterjet-assisted device. The CO2 laser cutting device with a CO2 laser generator wavelength of 10.6 μm and the rated power of the laser is 80 W (Baomei Technology Ltd., Jinan, China). The waterjet-assisted device is designed and manufactured by the authors. It is mainly composed of a QL-380 pump with the highest flow pressure of 8 MPa and nozzle with a diameter of 0.5 mm and an adjustable direction angle produced by Harbin Hongyuan Mechanical and Electrical Equipment Company (China). WACL equipment is shown in Fig. 2a.

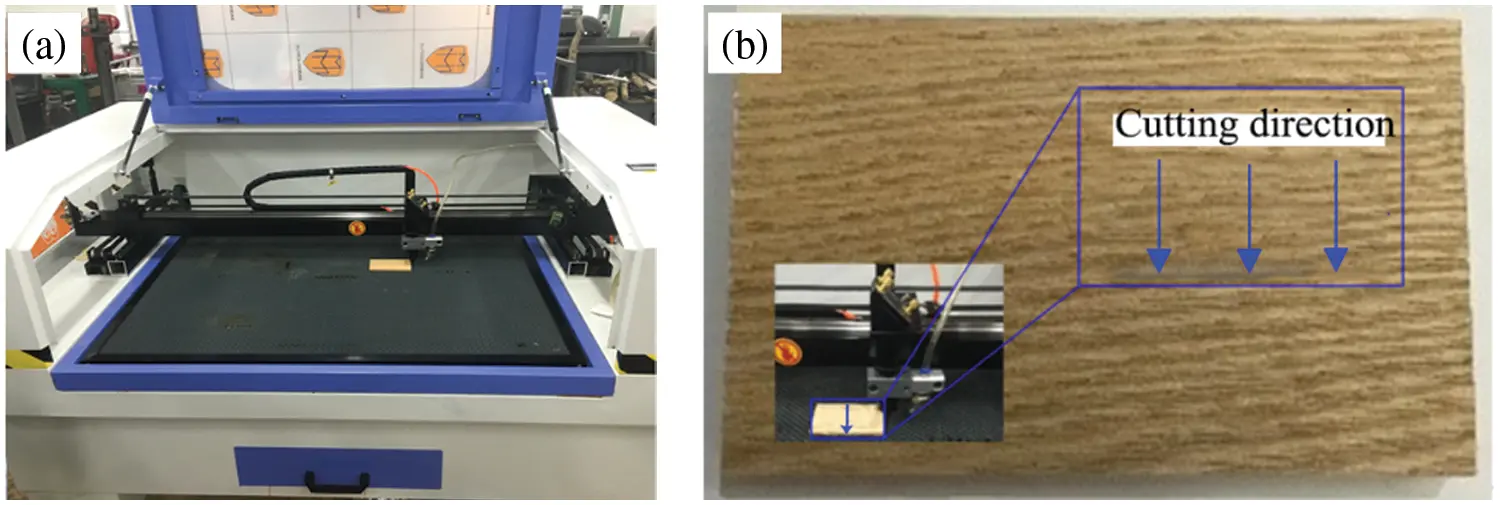

Figure 2: Equipment and processing ways (a) WACL equipment (b) Cutting direction of Fraxinus mandshurica

Fraxinus mandshurica is widely applied in furniture and woodware due to its tenacity, corrosion resistance and beautiful texture. Fraxinus mandshurica was selected for the WACL machining test and produced in Xiaoxinganling, Heilongjiang Province. The sample size of Fraxinus mandshurica is 100 mm × 60 mm × 2 mm (length × width × thickness), the air dry density is 0.78 g/cm3, and the moisture content is 12.42%. Fraxinus mandshurica specimens and their cutting methods (transverse cutting) are in Fig. 2b.

In the process of WACL machining Fraxinus mandshurica, when the temperature reaches the decomposition temperature of the wood, the wood begins to decompose and even carbonize, making the processing area of the wood to be processed produce water vapor, waste gas, carbon residue and other residues. At the same time, the waterjet can reduce the heat-affected zone and take away residuals, thus improving the surface quality of wood.

The surface roughness of the cross-section of WACL machining Fraxinus mandshurica was measured by Axio Scope. A1 laser microscopic system produced by Zeiss Company (Germany). Each Ra measurement was repeated three times along three different directions to achieve validity and accuracy. The average of the three replications was taken as the surface roughness value.

2.2 Experimental Design Scheme

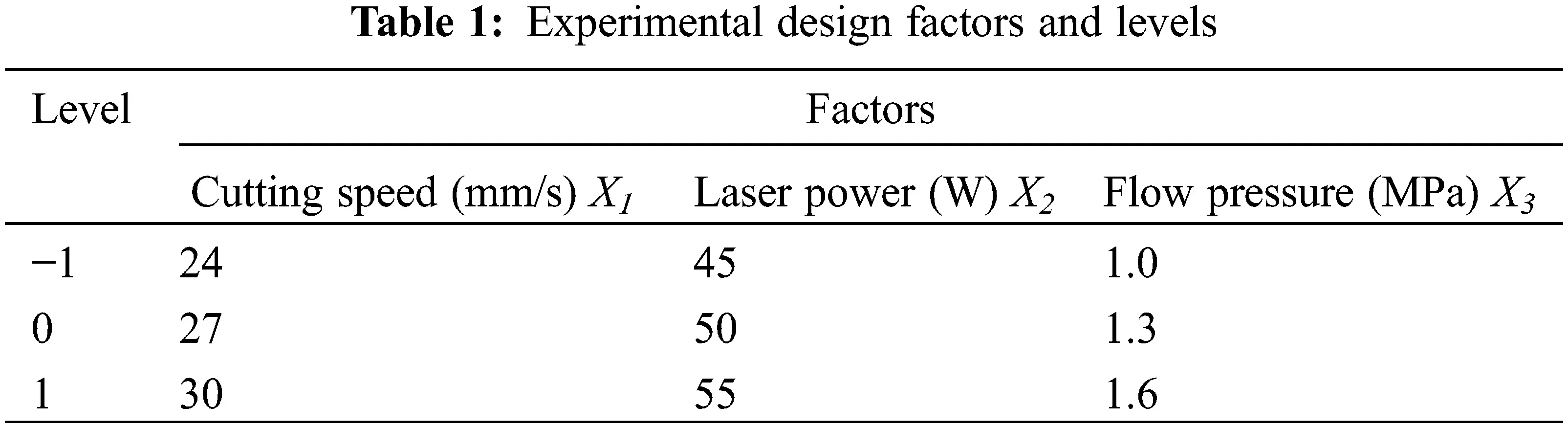

Response surface method (RSM) is a nonlinear regression analysis method, which combines statistical principles and experimental design methods. It can model and analyze multiple input values, so as to clarify the relationship between input values and response values. The response surface method can synthesize the experimental data into linear or quadratic polynomial models to find suitable process parameters, which is convenient to solve the problem of multiple independent variables. This method can build successive variable surface models, which can assess the factors affecting the response value and their interaction, so as to determine the optimal range of factors, and then complete the optimization of parameters. Moreover, the required number of test groups is small, which can save the cost of the test, so the response surface method has been widely used.

2.3 Box-Behnken Design

The Box-Behnken design (BBD) is relatively economical, because the parameter values assortments contain combinations in moderate conditions in contrast with the full-factorial design (FFD) that includes all combinations [30]. Therefore, the Box-Behnken design scheme was selected in this paper to optimize the process parameters. Through single-factor test results, three key factors were determined by considering the influence of various factors on the kerf surface roughness of Fraxinus mandshurica when cutting transversely during WACL machining. Box-Behnken experimental design method (BBD) was used to analyze cutting speed (X1), laser power (X2) and flow pressure (X3) as independent variables and kerf surface roughness of Fraxinus mandshurica as dependent variable (Y). The experimental scheme was performed using Design-Expert software (V8.0.6). The defocusing distance is −0.5 mm and the flow angle is 60°. The Box-Behnken factors and levels of the WACL machining test are in Table 1.

After using the BBD design scheme of the response surface method to complete the experiment, the relation equation between the response value and the independent variable was fitted by the least square method for regression analysis:

Y=β0+∑i=13βiXi+∑i=13βiiXi2+∑i=12∑j=i+13βijXiXj (1)

where Y stands for response value; Xi, Xj stand for independent variables; β0 stands for a constant term; βi, βii are coefficients of the first and second terms; βij stands for interaction term coefficient.

3  Results and Discussion

3.1 Establishment of Regression Model

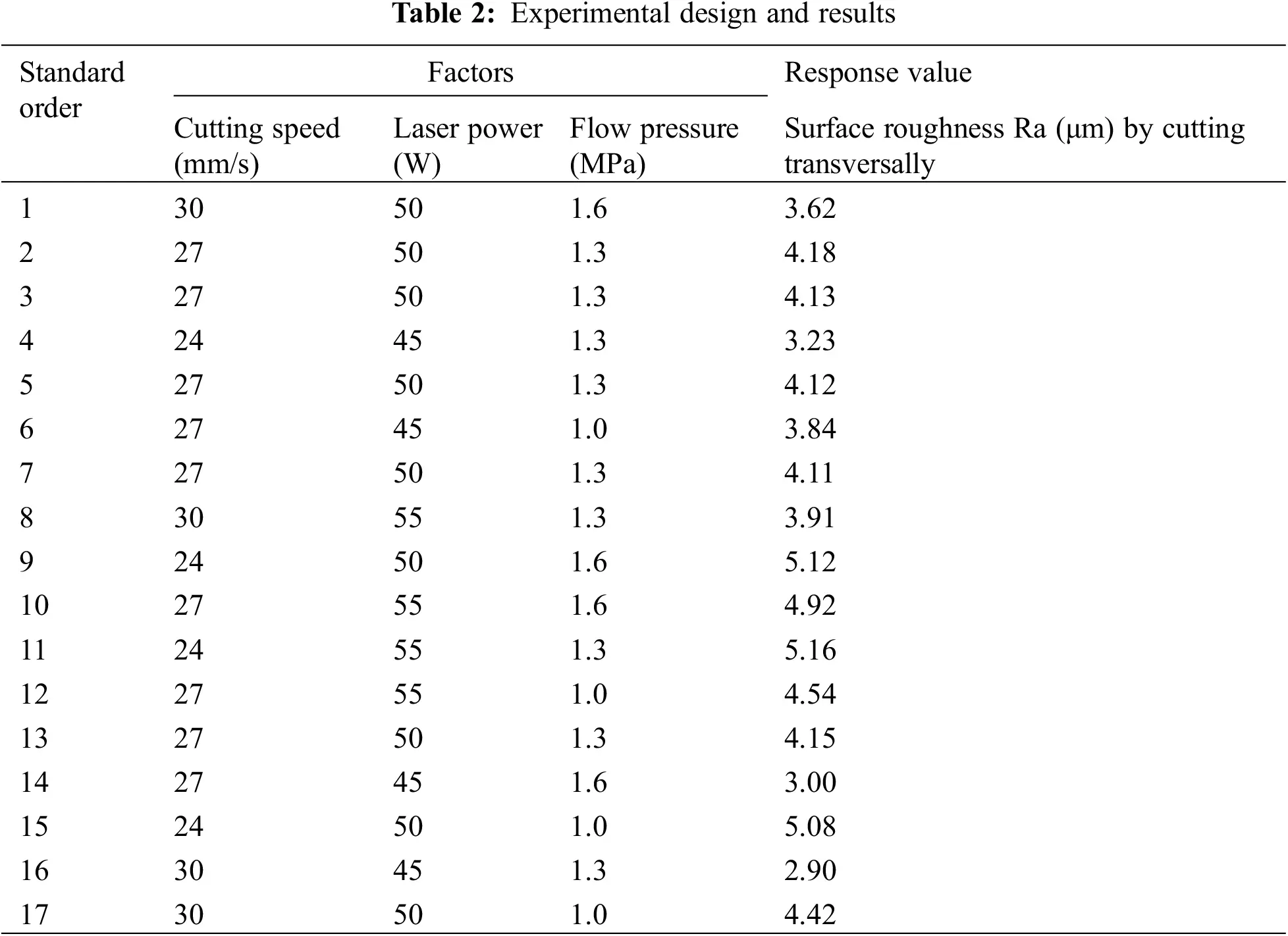

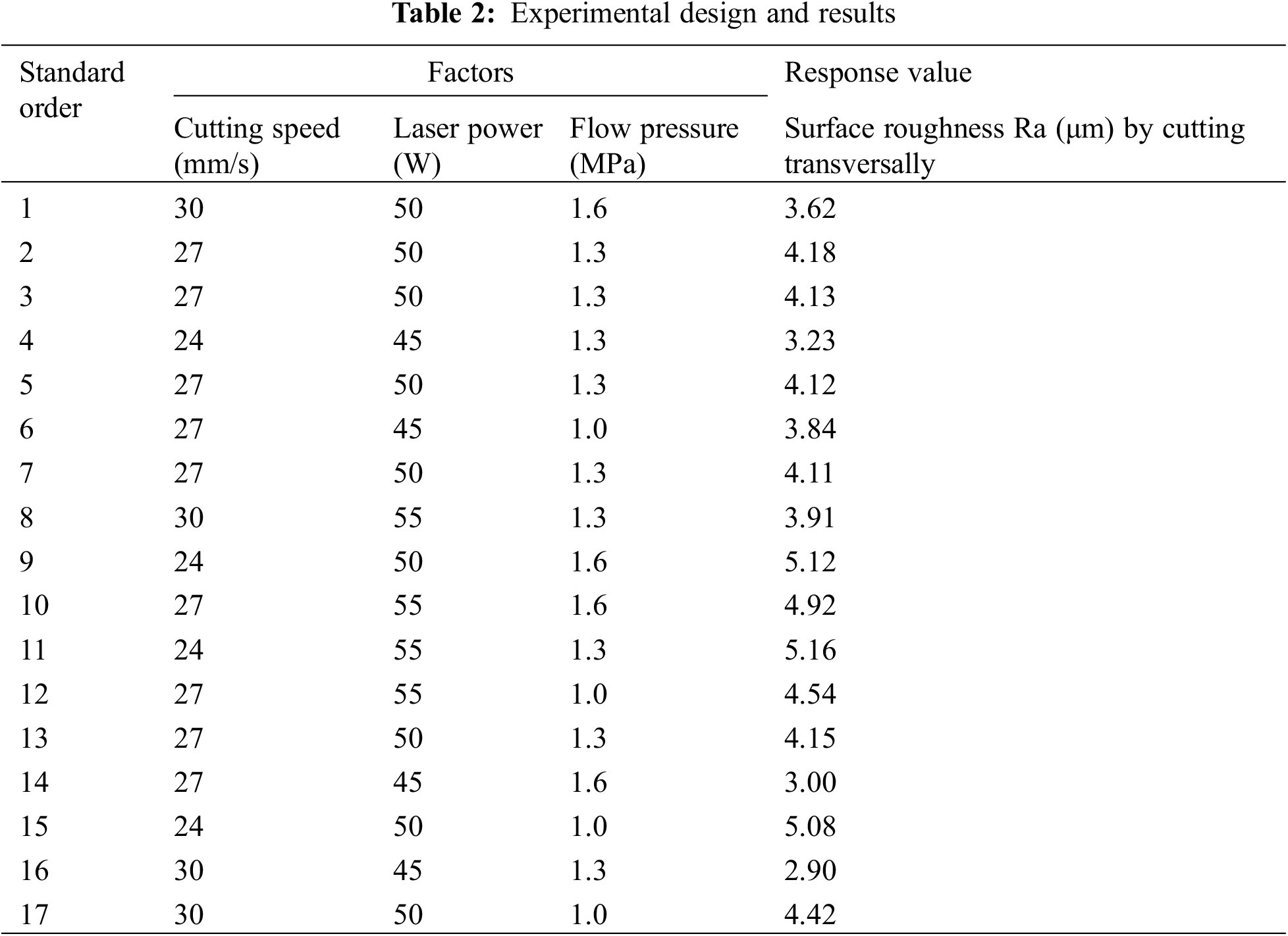

The surface roughness Ra of Fraxinus mandshurica when cutting transversely was used as the evaluation index, and the response surface analysis of 17 test points with three factors and three levels in Box-Behnken experimental design was used to optimize the waterjet-assisted laser processing technology with 12 test points and 5 zero points. Response surface experimental design and results was demonstrated in Table 2.

The experimental data in the equation was analyzed by multiple regression, and the prediction response of surface roughness of Fraxinus mandshurica when cutting transversally can be calculated by second order polynomial equation:

Ra=−32.5906+0.3028X1+1.576X2−11.7506X3−0.011X1X2−0.25X1X3+ 0.16X2X3+7.556X12−0.0135X22+3.811X32

where Y stands for response value; X1 represents cutting speed; X2 is laser power; X3 represents flow pressure.

3.2 Model Verification

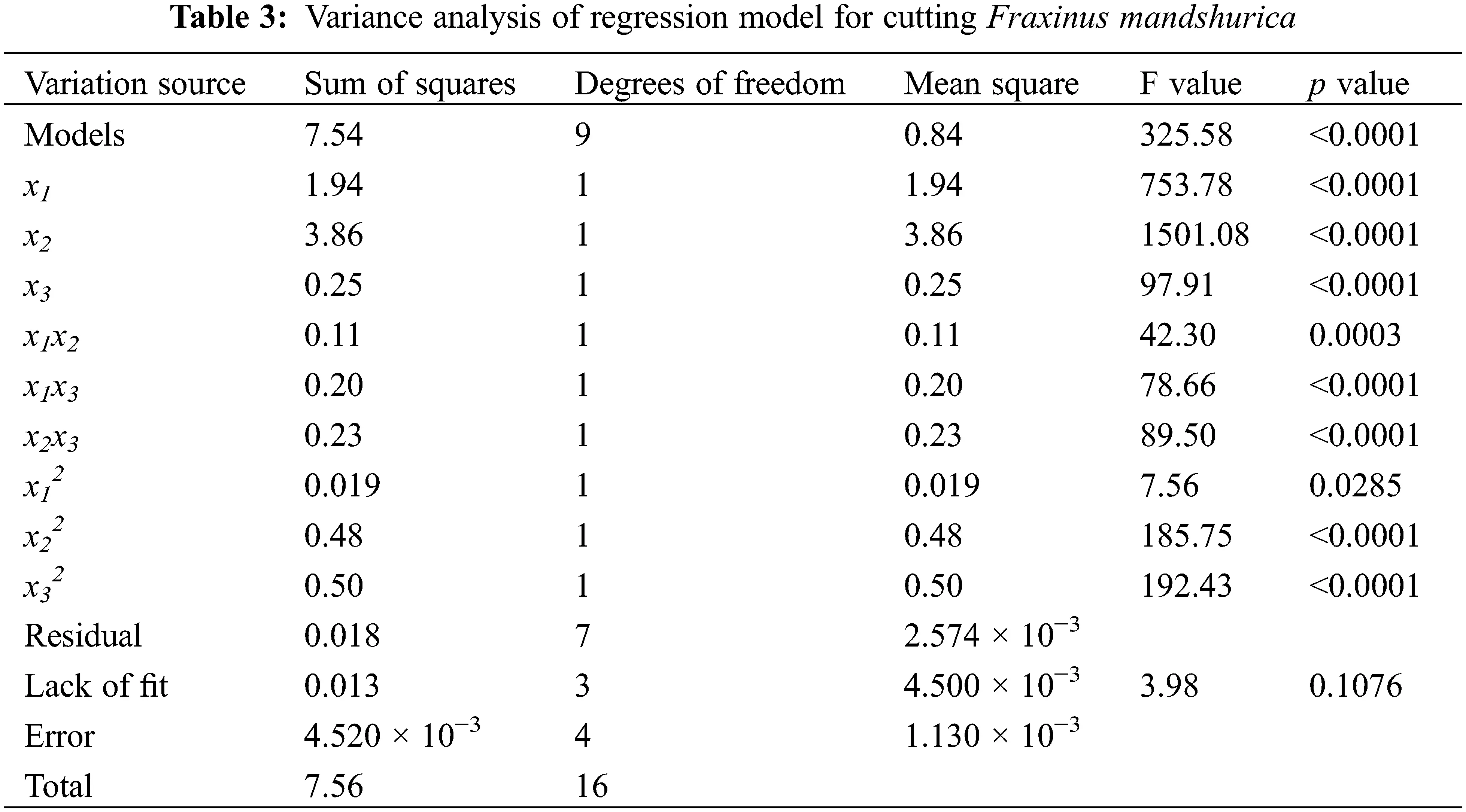

In order to evaluate the reliability of the mathematical model and the test results, variance analysis and explicitness test are needed for the results of the WACL test of Fraxinus mandshurica when cutting transversally, as shown in Table 3. It can be seen from Table 3 that three factors have a great impact on the surface roughness of Fraxinus mandshurica when cutting transversally, and the interaction between the factors is obvious. The regression of the model is significant (p < 0.0001). The determination coefficient of the model is 0.9976, and the adjustment determination coefficient is 0.9946, indicating that this model can explain 97.05% of the change in the response value. The lack of fit p = 0.1076 > 0.05; it is not obvious, indicating that the unknown factors have little interference with the results. Hence, the fitting degree of the model is high, and the error of the test is small. Therefore, it is feasible to use this model to analyze and predict the surface roughness of Fraxinus mandshurica.

3.3 Model Diagnosis

The coefficients of the multiple regression model are determined based on the analysis of the experimental data, and the multiple regression model is established at the same time. It is necessary to determine the coefficients of the multiple regression model. The adequacy of the multiple regression model is also studied according to the comparison between the predicted and experimental values. The research results are shown in Fig. 3. It can be seen from the figure that most test values are distributed above the predicted values, but only a few test values are distributed on both sides, demonstrating that the predicted values and the test values are relatively consistent.

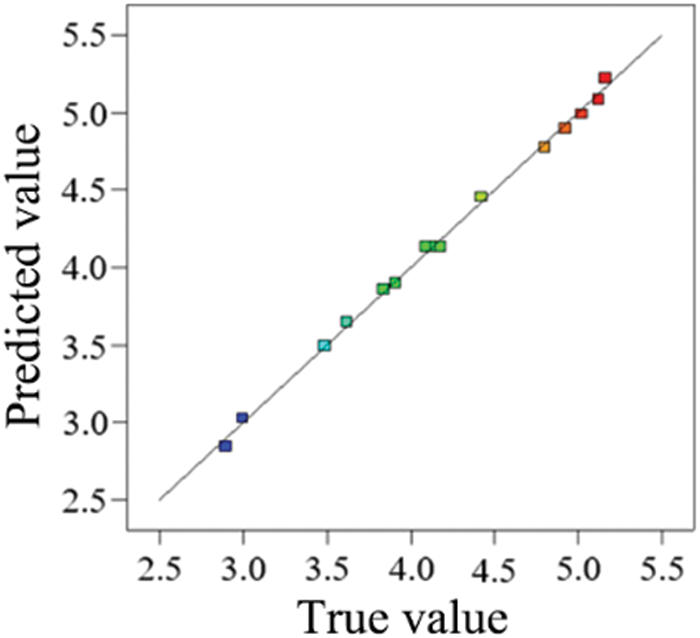

Figure 3: Comparison chart of predicted value and true value

3.4 Influence of Machining Parameters Interaction on Kerf Surface Roughness of Fraxinus mandshurica

The disturbance figure of kerf surface roughness of Fraxinus mandshurica during WACL machining is shown in Fig. 4a. It is obvious that the cutting speed, water pressure and laser power have a significant impact on the kerf surface roughness of the Fraxinus mandshurica, and the effect of the laser power and cutting speed on the kerf surface roughness of the Fraxinus mandshurica is higher than that of the water pressure. The kerf surface roughness increases under higher laser power, mainly because increasing laser power produces more heat accumulating on the kerf surface.

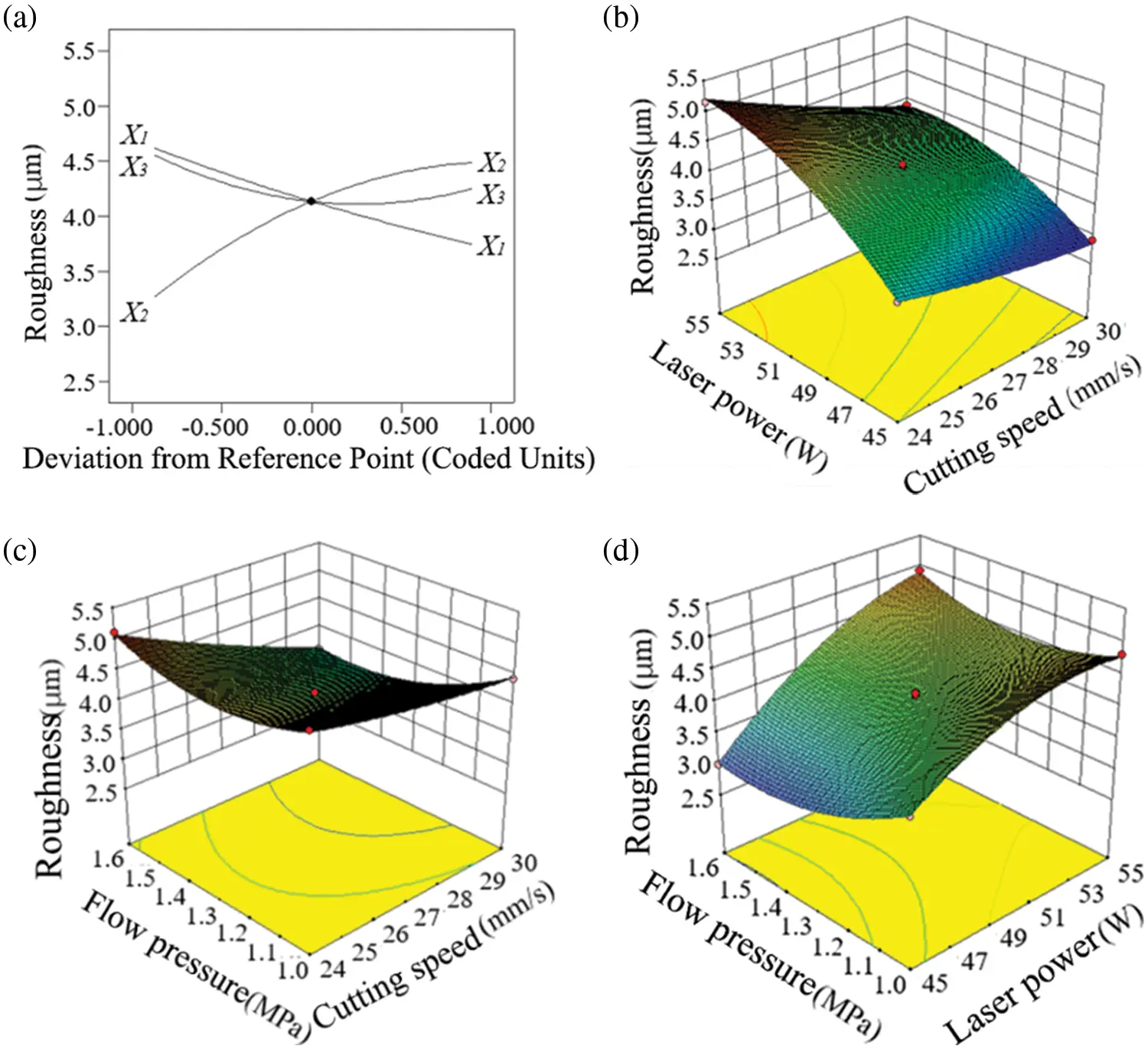

Figure 4: Surface roughness disturbance figure and response kerf surface figures of Fraxinus mandshurica (a) disturbance figure (b) laser power plus cutting speed interaction (c) flow pressure plus cutting speed interaction (d) flow pressure plus laser power interaction

Nevertheless, the roughness value decreases under higher cutting speed plus water pressure, because the laser of higher speed moves fast and less heat accumulates on the kerf surface. With the increase of water flow pressure, the turbulence and interference of water are intensified, reducing the heat of the laser on wood, so the surface roughness of Fraxinus mandshurica is reduced.

Machining parameters interaction also plays a key role in the surface roughness in Figs. 4b–4d. Fig. 4b shows that with a low-level cutting speed, the surface roughness is increased for larger cutting speed and the increasing rate is obvious, demonstrating the obvious effect of laser power and cutting speed interaction on surface roughness. The increasing laser power produces an amount of heat on the cutting surface of Fraxinus mandshurica, which leads to an increase in the surface roughness. Fig. 4c indicates the surface roughness value decreases under a larger cutting speed plus larger water pressure, and the cutting speed produces a more obvious effect on the kerf surface roughness than that of flow pressure. Fig. 4d shows the mutual effect between flow pressure plus laser power on the kerf surface roughness. Lower flow pressure and larger laser power lead to the increased surface roughness of Fraxinus mandshurica. In accordance with the kerf surface roughness of Fraxinus mandshurica, the established regression model equation was used to solve the equation, and the optimal process conditions of WACL machining Fraxinus mandshurica when cutting transversally were estimated: cutting speed is 30 mm/s, flow pressure is 1.58 MPa, and laser power is 45 W, and the predicted kerf surface roughness is 2.54 μm.

3.5 Result Verification

Response surface analysis was used to calculate the optimal theoretical process parameters for test to validate the reliability of BBD results. The actual surface roughness of the optimized Fraxinus mandshurica when cutting transversally is 2.41 μm, and it is in accord with the theoretically predicted surface roughness value of 2.54 μm, so the model fits the actual situation well.

3.5.1 Analysis of 3D Profile Morphology of Kerf Surface of Fraxinus Mandshurica

Fig. 5 shows 3D profile morphologies of the best kerf surface (No. 16 in the test) (Fig. 5a) and optimized kerf surface (Fig. 5b) of Fraxinus mandshurica when cutting transversally. The surface roughnesses Ra are 2.90 and 2.41 μm, respectively. Compared with the best surface roughness, the optimized kerf surface is relatively uniform and the surface roughness is small, and the surface roughness value is reduced by 16.90%. Therefore, the surface roughness decreases after optimization, producing a superior surface surface.

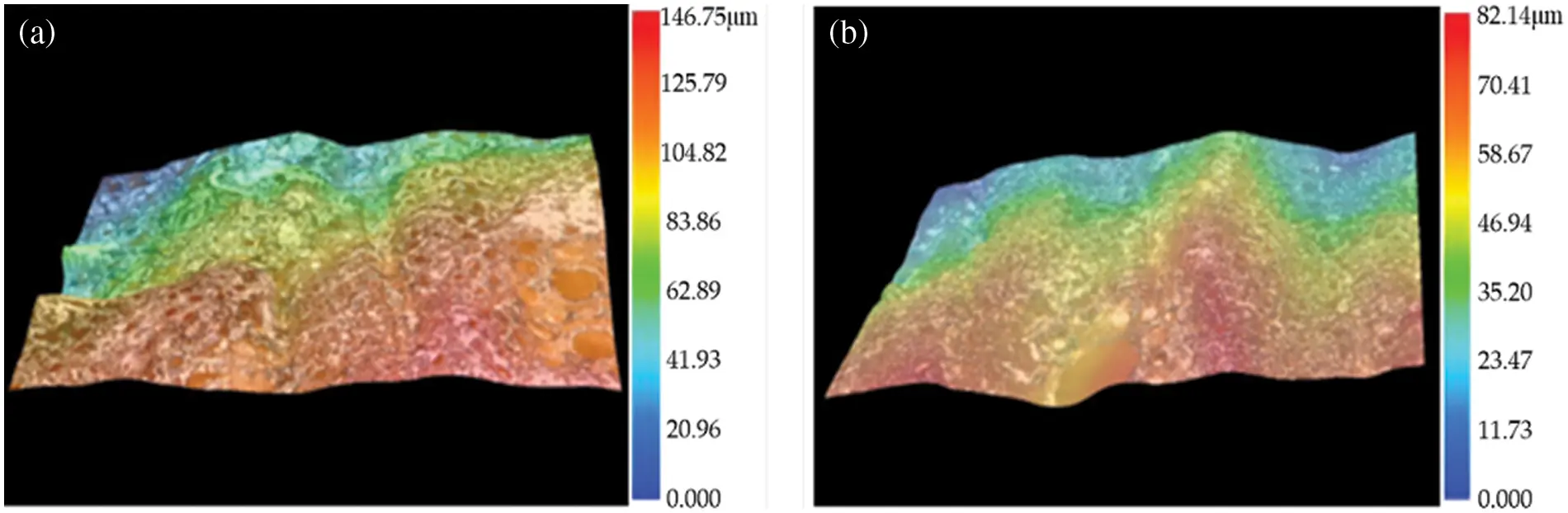

Figure 5: 3D profile morphology of kerf surface of Fraxinus mandshurica (a) Best kerf surface (No. 16 in the test) (b) Optimized kerf surface

3.5.2 Micromorphology Analysis of Kerf Surface of Fraxinus Mandshurica

Fig. 6 shows micromorphologies of the best kerf surface (No. 16 in the test) (Fig. 6a) and optimized kerf surface (Fig. 6b) of Fraxinus mandshurica when cutting transversally. Compared with Fig. 6a, in Fig. 6b the surrounding and inner wall of the vessel holes of Fraxinus mandshurica kerf surface are clear, with almost no residue. This is because under the optimized process parameters, the synergistic effect of each parameter makes the solid particles generated by wood vaporization taken away. At the same time, the flow of water takes away the residue, so the kerf surface quality is good.

Figure 6: Microtopography of kerf surface of Fraxinus mandshurica (a) Best kerf surface (No. 16 in the test) (b) Optimized kerf surface

4  Conclusions

In this paper, Fraxinus mandshurica was cut transversally by WACL to discuss the surface quality. Surface roughness variation of machined parts followed the changes in cutting parameters. The established quadratic mathematical model for describing the relationship between surface roughness changes and cutting parameters had a good prediction effect. The model helped to select the appropriate process parameters to get the required cutting quality. The kerf surface roughness increased with the increase of laser power, but decreased with the increase of cutting speed and flow pressure. The optimal process parameters are: the cutting speed of 30 mm/s, flow pressure of 1.58 MPa, and laser power of 45 W. The predicted kerf surface roughness of Fraxinus mandshurica when cutting transversally was 2.54 μm, which was essentially consistent with the actual value of 2.41 μm. The analysis of 3D profile morphology and microstructure demonstrated that the surface quality of Fraxinus mandshurica was improved, which provides the theoretical basis to obtain the expected surface quality for wood micromachining.

Funding Statement: The research is supported by the Joint Scientific and Technological Innovation Project of Hainan Province (2021CXLH0001), the Teaching Reform in Higher Education of Heilongjiang Province (SJGY20210135), the Key Subject of Education Planning in Heilongjiang Province (GJB1423352), the Guiding Innovation Fund Project of Northeast Petroleum University (2022YDL-06 and 2021YDL-13), Daqing City Guiding Science and Technology Project (zd-2021-41), the Scientific Research Start-Up Fund Project of Northeast Petroleum University (2021KQ09 and 2019KQ67), and the National Key R&D Program of China (2017YFD0601004).

Availability of Data and Materials: The data that support the findings of this study are available from the corresponding authors upon reasonable request.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
