Preparation of N,S-Doped Biochar via Modulating Chitosan and Sodium Dodecyl Benzene Sulfonate Interaction and Its Adsorption Performance

1  Introduction

Broad-spectrum antibiotics were widely used to treat bacterial and fungal infections since they could inhibit the protein synthesis of bacteria. Of them, tetracycline is one of the most prevalent and important antibiotic drugs. It is massively consumed every year. The annual usage is as high as 11,200 t [1–3]. Residues of antibiotics from medical and livestock wastewater cause serious pollution in the natural environment [4,5]. They disrupt the necessary microbial community structure and threaten the safety of the ecological environment.

Many approaches have been applied to solve these problems, such as photocatalytic degradation, biodegradation, electrochemical treatment, etc. [6–10]. The photocatalytic degradation is operated under mild conditions and greatly mineralizes the concentrations of antibiotics. However, photocatalysts are usually prone to low efficiency and high preparation costs. Biodegradation is an ecofriendly and energy-efficient method, but microorganisms need long acclimation and are also sensitive to the environment. Electrochemical treatment offers rapid degradation of antibiotics in a highly efficient way. However, it suffers from high energy demand, side reactions as well as safety risks, restricting further applications [11].

So far, adsorption is believed to be one of the most effective ways of removing tetracycline antibiotics from polluted water. Carbon materials have been widely used for sewage treatment. They have the advantages of simple operation, high adsorption efficiency, low energy consumption and sustainable use [12–16]. Many sorts have been paid attention to, including active carbons, graphene and chars [17–19]. For example, graphene and oxidized ones have chronic toxicity [20,21], which would affect the diversity of microbial communities. Environmentally-friendly active carbon was considered as a good candidate. However, it would require activation for adsorption use and risk environmental pollution [22,23]. This also raised energy consumption. Thus, it is still highly demanding to seek a green way to prepare carbon materials [24,25].

Biochar [26–28] is a type of carbon material. It is obtained by pyrolysis of biomass under anaerobic or low oxygen atmosphere conditions. As a cost-effective carbon material, biochar has physicochemical properties similar to activated carbon materials [29,30]. Briefly, biochar can show good properties even without activation. This offers it a good prospect to work as an adsorbent [31–33]. At the same time, most biochar materials have abundant oxo functional groups, like carboxyl and phenolic hydroxyl [34–36]. These allow biochar to easily interact with antibiotics and organic aromatic pollutants, through π-π electron donor acceptor interaction (EDA), electrostatic attraction, hydrogen bonding, etc. [37].

A lot of biomaterials, such as cellulose, lignin, wood and straw, have been reported for preparing biochar [38]. Chitosan (CS) is a natural nitrogen-containing biomass material and composed of β-(1,4)-N-acetyl-d-glucosamine units [39–41]. It is extracted from by-products like shrimp and crab shells in seafood processing engineering and obtained through deacetylation [42]. CS can directly synthesize nitrogen-doped biochar (NB) without adding any other nitrogen source chemicals. Chen et al. [43] prepared CS-FeS biochar composite materials by using CS as a carbon source. In removing heavy metal uranium (VI) from wastewater, the equilibrium adsorption capacity reaches 92.45 mg g−1 at room temperature. Previous studies showed that CS-derived biochar had relatively good adsorption properties, but its low specific surface area and low pore volume still limited the performance. How to tune the structure of CS-derived biochar is becoming critical in the respect.

As a weak polyelectrolyte, CS can dissolve in water and form cations in the acidic solution. It would produce the polyelectrolyte complex (PEC) by combining with anionic polyelectrolyte. Inspired by this, SDBS [44,45] was used to assemble with CS in this work. SDBS is long chain surfactant and carries negative charges in water. It would form PEC with positively charged CS via electrostatic attraction, hydrogen bonding and hydrophobic interactions. At the same time, SDBS has sulfonic acid groups, which could introduce the S element into biochar after calcination. This would enrich the types of functional groups as well as active sites on the sample surface, and thus improve the adsorption performance. Then the N and S-doped biochar (NSB) was prepared. The calcination was performed only once. No activation and the second calcination process were needed. The treatment of CTC in water was fully studied. The adsorption mechanism was also addressed by different adsorption models.

2  Materials and Methods

2.1 Materials

The CS (food grade) was purchased from Shandong Luhai Lansheng Biotechnology Co., Ltd., Dongying, China. SDBS, sodium hydroxide, glacial acetic acid, and hydrochloric acid were purchased from Tianjin Kemio Chemical Reagent Co., Ltd., Tianjin, China. Anhydrous ethanol was purchased from Tianjin Fuyu Fine Chemical Reagent Factory. Chlortetracycline hydrochloride (CTC) was purchased from Jiangxi Zhenghe Biotechnology Co., Ltd., Nanchang, China.

2.2 Synthesis of NSB Composite

1.0 g SDBS was dissolved in 50 mL deionized water to make SDBS solution. 1.0 g CS was dissolved in 50 mL 1% glacial acetic acid solution. These two solutions were mixed together. Adjust pH of the mixture to 9 with 1 mol L−1 NaOH solution. Being stirred for 2 h, the mixture was put in an oven for drying at 50°C. Then the obtained solid product was calcined at 450°C for 2 h with the heating rate of 5°C min−1 under a nitrogen atmosphere. The biochar was obtained after washing with dilute hydrochloric acid and deionized water and being dried at 50°C. The synthetic route was illustrated in Fig. 1.

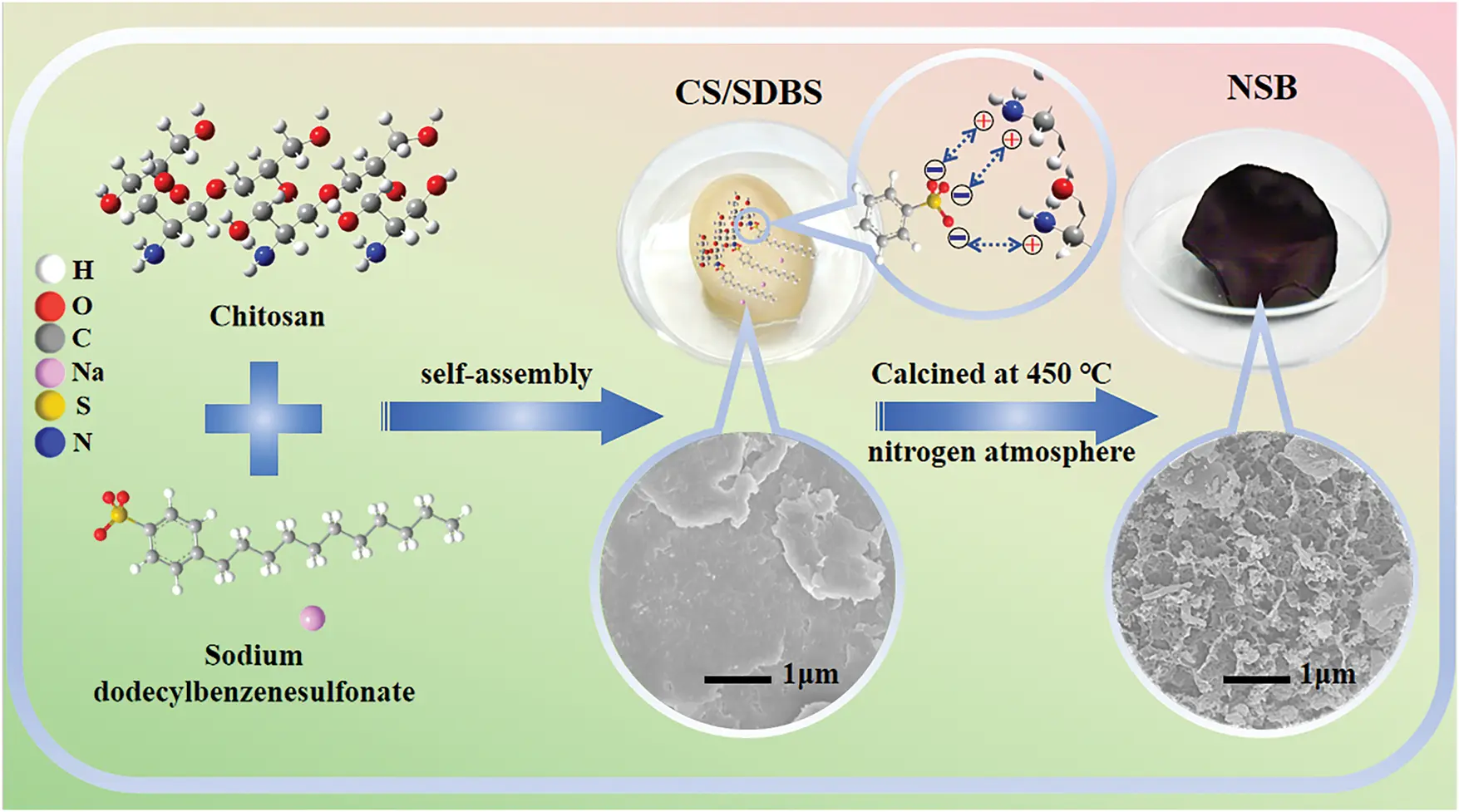

Figure 1: Diagram of the preparation of NSB

The prepared biochar was assumed to contain both N and S elements and named NSB. Meanwhile, SDBS and CS mixture at pH 9, -12 and -14 were studied. The resulted sample were named NSB-9, -12 and -14, respectively. In addition, the biochar obtained by calcining CS was named N-doped biochar (NB).

2.3 Characterization

X-ray diffraction (XRD, Japan Scientific Instruments Co., Ltd., Amagasaki-shi, Japan, D/max RB type) was used to analyze the structure using Cu Ka (λ = 1.5418 Å), and scanning rate of 5° min−1. The morphology was tested with field-emission scanning electron microscopy (SEM, Japan Electronics Corporation, Akishima-shi, Japan, JSM-750OF type). A physical adsorption analyzer (BET, multi station fully automatic specific surface area and porosity analyzer, American McMurdrick Instruments Co., Ltd., Norcross, GA, USA, ASAP2460) to analyze the specific surface area and porosity of biochar. Fourier transform infrared spectrometer (FT-IR, Tianjin Gangdong Technology Development Co., Ltd., Tianjin, China FTIR-650 type) was used to analyze the functional groups in range of 400–4000 cm−1. X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific, Waltham, MA, USA, K-Alpha type) to analyze the elemental chemical environment of biochar.

2.4 Adsorption Experiment

Adsorption experiment was carried out on 100 mL 100 mg L−1 CTC solution at pH 7. 100 mg sample was used unless otherwise noted. At regular intervals, the solution was sampled and tested using UV-visible spectrophotometry at 366 nm. The adsorption capacity was calculated according to Eq. (1). The adsorption isothermal experiment was conducted on CTC in the concentration range from 20 to 200 mg L−1 at 25°C. All the experiments were repeated for 3 times and the mean value was adopted.

Qmax=(C0−C)×VM(1)

herein, C0 and C (mg L−1) are the initial CTC concentration and the concentration at time t in solution, respectively; V is the initial solution volume (L) and M is the adsorbent mass (g).

To analyze the adsorption mechanism, the pseudo-first/second-order, Boyd and Elovich models were used to fit adsorption kinetic curves.

The first-order and second-order models were expressed by Eqs. (2) and (3).

ln⁡(Qe−Qt)=ln⁡Qe−k1t(2)

tQt=1k2Qe2+tQe(3)

herein, k1 (min−1) is the first-order reaction rate constant, k2 (g mg−1 min−1) is the second-order reaction rate constant, Qe (mg g−1) is the adsorption capacity at adsorption equilibrium, and t (min) is the adsorption time.

Boyd kinetics model was described by Eqs. (4) and (5) as follows:

F=qtqe(4)

Bt=−0.4997−(1−F)(5)

where F is the fraction of organic materials adsorbed at time t.

Elovich kinetics model was described by Eq. (6).

Qt=1αln⁡(1+abt)(6)

The a and b are the equation constants [46].

Meanwhile, models of Langmuir, Freundlich, Temkin (T), Redlich-Peterson isotherm and Weber-Morris were also adopted to study adsorption behaviors of CTC.

Eqs. (7) and (8) were described for Langmuir or Freundlich models.

CeQe=1kLQm+CeQm(7)

lg⁡Ce=lg⁡kF+(1n)lg⁡Ce(8)

herein, kL (mg−1) is a constant related to the adsorption energy, and Qm (mg g−1) is the saturated adsorption capacity; kF is a constant related to adsorption capacity, and 1/n is a heterogeneous parameter related to adsorption strength.

Temkin and Redlich-Peterson isotherm models and Weber-Morris (W-M) intraparticle diffusion model were described by Eqs. (9)–(11), respectively.

Qe=Bln⁡(ACe)(9)

herein, B = RT/b and b (J mol−1) is the Temkin constant related to the heat of adsorption, and A (L mg−1) is the equilibrium binding constant [47].

Redlich-Peterson isotherm was described by the Eq. (10):

N=KC(1+aCn)(10)

herein, N (mg g−1) is the adsorption capacity at adsorption equilibrium, and C (mg L−1) is the concentration at equilibrium. The a and K are the Redlich-Peterson constants [48].

Weber-Morris intraparticle diffusion model was described by Eq. (11):

qt=Kt1/2+C(11)

herein, qt represents the adsorption capacity at time t. C is a constant related to the thickness, and K is the intraparticle diffusion rate constant [49].

The adsorption thermodynamics studies were carried out on 100 mg L−1 CTC at 15°C, 25°C and 35°C. The relevant parameters were determined by Eqs. (12) and (13):

ΔG=−RTln⁡Kd(12)

ln⁡Kα=−ΔHRT+ΔST(13)

where △G (kJ mol−1) is the Gibbs free energy change, T (K) is absolute temperature, R is the universal gas constant (8.314 J mol−1 K−1), Kd is the dimensionless thermodynamic equilibrium constant, △H is the enthalpy change (kJ mol−1), and △S is the entropy change (J mol−1 K−1).

3  Results and Discussion

3.1 Characterization of Catalyst

Fig. 2a illustrates the XRD patterns of NSB. All the samples have a wide peak at 2θ angles between 20° and 30°, which is typical diffraction of carbon [50]. FT-IR spectra are shown in Fig. 2b. The absorption peak at 1600 cm−1 is attributed to C=O stretching vibration, and the wide peak located at 1000–1500 cm−1 derives from C-O, C-C and C-N vibrations. It indicates multiple functional groups in NSB.

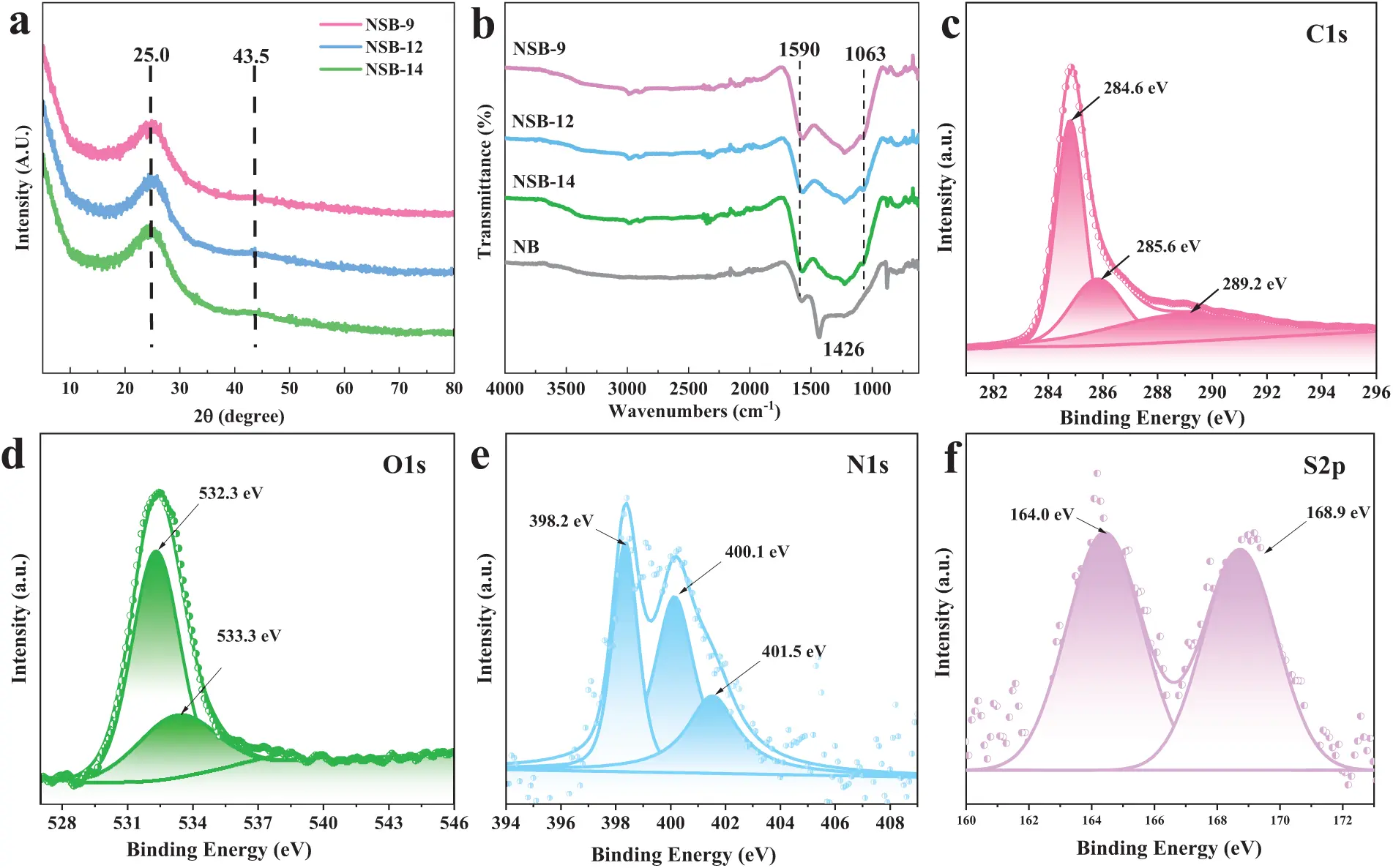

Figure 2: XRD patterns of (a) and FT-IR spectra (b) of NSBs, together with NSB-12 XPS spectra containing C 1s (c), O 1s (d), N 1s (e), and S 2p (f)

The chemical environments of C, O, N and S in NSB-12 were analyzed by XPS. To the C 1s spectrum (Fig. 2c), three peaks located at 284.6, 285.6 and 288.8 eV were fitted, which are the binding energies of C-C, C-N and C=O, respectively [51]. Fig. 2d is the O 1s XPS. The fitted two peaks at 532.3 and 533.3 eV correspond to the binding energies of C-O and C=O functional groups [52,53]. The XPS spectrum of N 1s was recorded from 390 to 410 eV. After fitting, three peaks at 398.2, 400.1 and 401.5 eV were obtained. They are the binding energies of pyridinium (N-6), pyrrole nitrogen (N-5), and graphitic nitrogen in NSB-12 [53–55]. It indicates that nitrogen was successfully doped into NSB. Meanwhile, peaks at 164.0 and 168.9 eV are attributed to S 2p. It indicates the presence of non-oxidizing sulfur such as thiophene sulfur in NSB-12. Strong peaks at 168.9 eV give the evidence that oxidized sulfur states, as sulfoxide and sulfone, are existing [56]. The calculated contents of C, O, N and S in NSB-12 are 88.4%, 9.9%, 0.9% and 0.8% according to XPS, respectively. The XPS results not only suggest the successful doping of N and S elements but also present the diverse functional groups in NSB. These heteroatoms-contained functional groups may work as active sites during the adsorption and enhance the adsorption performance.

The micromorphology of NSBs was detected by SEM in Fig. 3. It can be seen that NB prepared without adding SDBS has fewer pores than NSB. Meanwhile, pores in NB are intact and isolated, showing no obvious interconnection with each other. To NSBs, hierarchical porous architectures could be observed. These pores are mutually connected and their walls are thinner than NB.

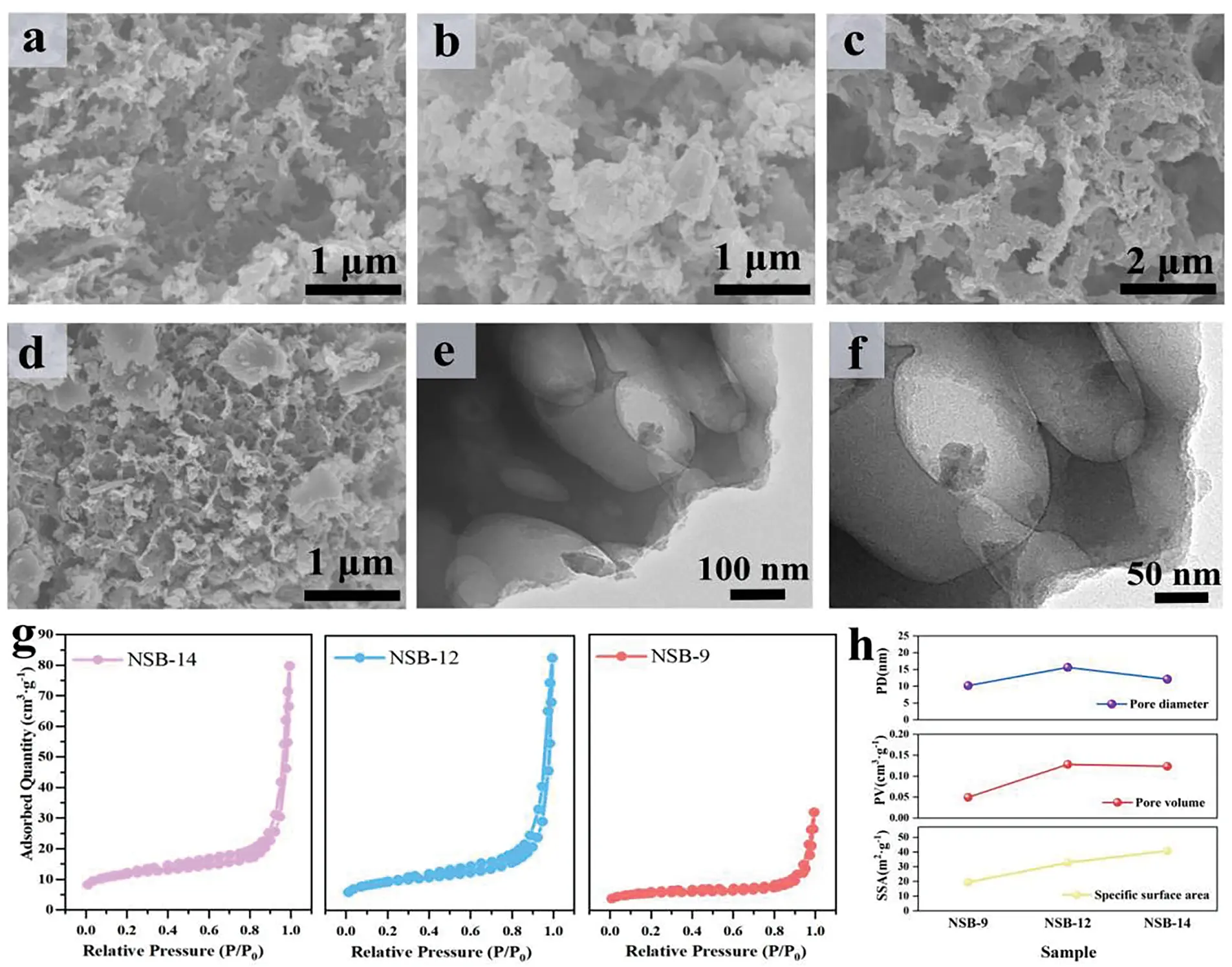

Figure 3: SEM images of NB (a), NSB-9 (b), NSB-12 (c) and NSB-14 (d), TEM images of NSB-12 (e, f), the nitrogen adsorption/desorption isotherms of NSBs (g), and pore diameter, pore volume and specific surface areas of NSBs (h)

The difference in microstructures apparently results from the addition of SDBS. The self-assembling of CS and SDBS could occur. One can deduce that CS dissolves into water and its -NH2 groups are protonated in the acidic condition. Generally, CS carries positive charge. Differently, SDBS with -SO3− groups is negatively charged in the solution. The electrostatic attractions drive the self-assembling of SDBS and CS. The CS/SDBS complexes are formed. When increasing pH of the solution, CS deprotonates and CS/SDBS are deposited from the solution. Due to the long hydrophobic functional groups at the tail of SDBS, the CS aggregation could be hindered. Then NSB with the crossing linking porous architecture is obtained after calcination [57,58].

The higher pH is used during preparation, the more porous structure and the thinner of walls are produced in NSB. TEM of NSB-12 was also tested (Fig. 3e,f). It shows thin-layer and porous structure. The special morphology would endow NSB-12 with a high specific surface area. It even saves the activation operation. This would not only reduce preparation cost but also make the preparation process more environmentally friendly.

The BET specific surface areas of NSBs were tested by N2 adsorption/desorption experiments. The adsorption isotherms are shown in Fig. 3g,h. The specific surface area increases with the increasement of pH during preparation. NSB-14 is the highest (40.8 m2 g−1), along with NSB-12 (32.8 m2 g−1) and NSB-9 (19.4 m2 g−1). Though the specific surface area is quite low compared to those carbon prepared by the activation, the pore volume of NSB-14 is large. It reaches 0.12 cm3 g−1, which may indicate that pores formed in this way are meso/macro ones.

3.2 Absorption Performance

Absorption performance of NSBs was fully evaluated by CTC. Fig. 4a is the adsorption capacities of samples after 4 h operation. One can see that NSBs show equilibrium adsorption capacity qe in the range of 60~70 mg g−1. They all are much larger than NB (38.6 mg g−1). The qe value of NSB-12 can reach 59.3 mg g−1, which is 155% higher than NB. One can notice that NSB-14 has even higher qe of 66.1 mg g−1. However, during the preparation of NSB-14, a large amount alkali was required to raise pH from 12 to 14. Thus, NSB-12 was considered as the most cost-effective sample among all NSBs.

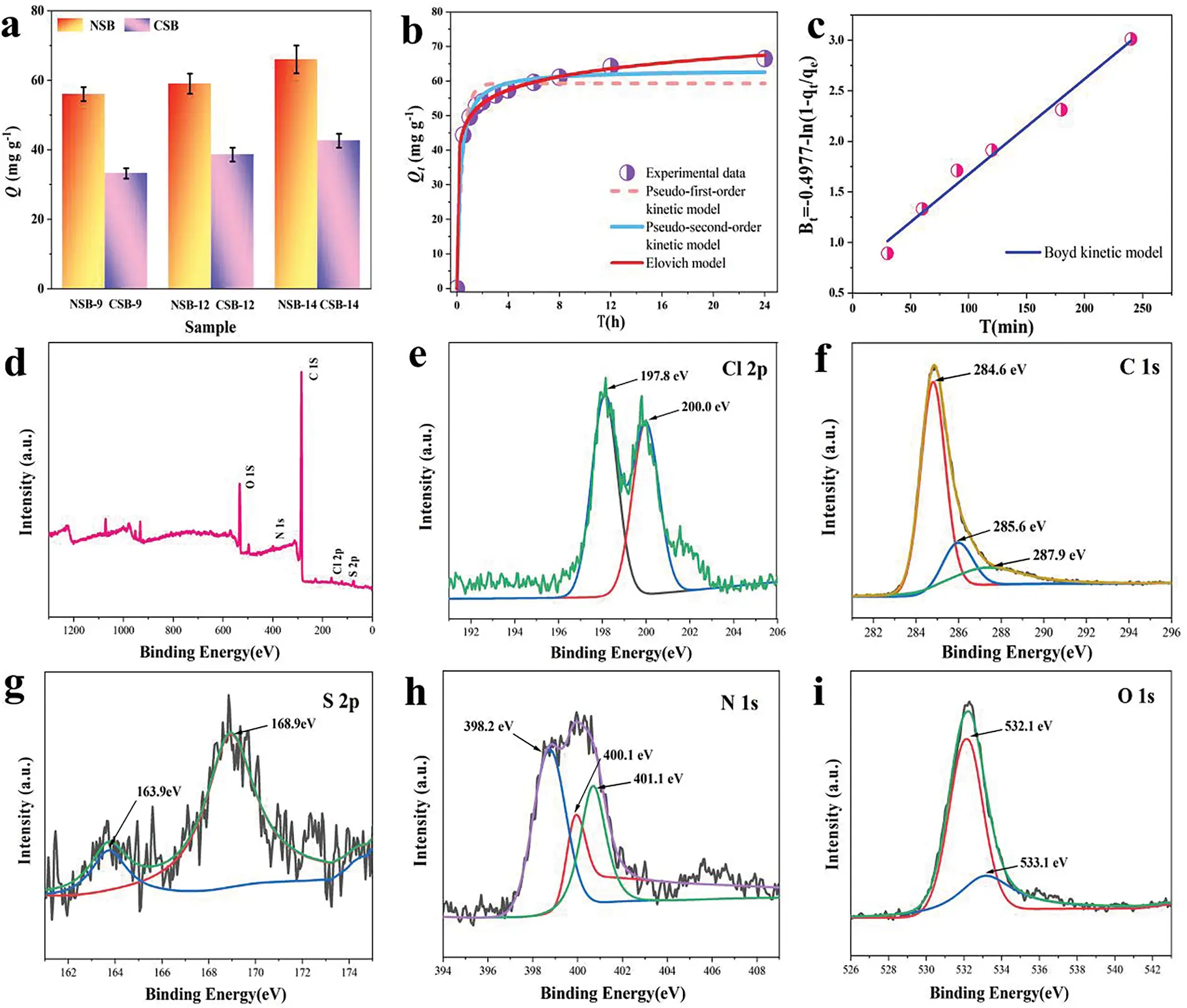

Figure 4: Adsorption capacities (a), adsorption kinetic curve of NSB-12 and its fitting plots (b), Boyd kinetic model fitting plot (c), XPS spectrum of NSB-12 after loaded with CTC, survey spectrum (d), Cl 2p (e), C 1s (f), S 2p (g), N 1s (h) and O 1s (i)

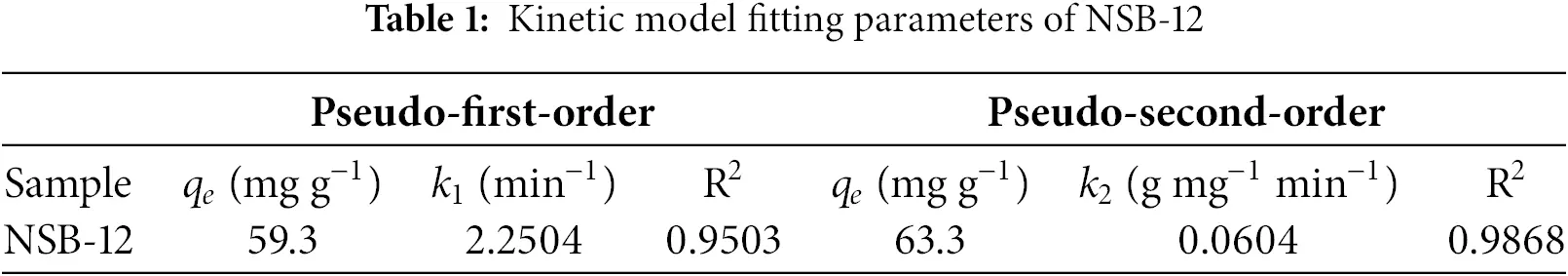

The kinetics of NSB-12 in Fig. 4b show that the adsorption rate to CTC is fast. It can achieve 44.4 mg g−1 capacity in 30 min and get to the equilibrium by taking 4 h. Both quasi-first/second-order kinetic models of Elovich and Boyd were used to fit the adsorption process (Fig. 4b,c and Table 1). R2 of 0.9868 was obtained for the quasi-second-order model, being higher than that of the quasi-first-order model (0.9503). Additionally, qe calculated by the quasi-second-order kinetic model is 63.3 mg g−1, which is close to experimental data. This means adsorption process is more accurately described by the quasi-second-order kinetic model. A chemical adsorption is involved. The correlation coefficients R2 of 0.9990 and 0.9820 were obtained by Elovich and Boyd fittings. It indicates the heterogeneous surface of NSB and multiple mechanism including intraparticle diffusion are involved in the adsorption process [59].

It is deduced that the heteroatoms-related functional groups play an important role during adsorption. To further prove it, XPS after adsorption was performed. And results were shown in Fig. 4d–i. In the survey spectrum, peaks of binding energies of C 1s, S 2p, N 1s, O 1s and Cl 2p are found. Meanwhile, the spectrum of Cl 2p exhibits doublet peak at binding energies of 197.9 and 200 eV. These results give the evidence that CTC has been successfully adsorbed onto NSB. The C 1s spectrum remains similar before and after adsorbing CTC by NSB (Figs. 2c and 4f). Spectra of N 1s and S 2p of NSB show close binding energies before and after adsorption. However, the integral areas of peaks at 400.1 eV (N 1s) and 163.9 eV (S 2p) decrease greatly. These results indicate that the doped N and S may participate in the adsorption process, which cause the heterogeneous surface [60,61]. Meanwhile, the two peaks observed in the O 1s spectrum correspond to C-O/C=O (532.1 eV) and –OH (533.1 eV), respectively. After CTC adsorption, the binding energies of O1s shift by 0.2 eV compared to ones of NSB. It is because of hydrogen bonds between NSB and CTC [62].

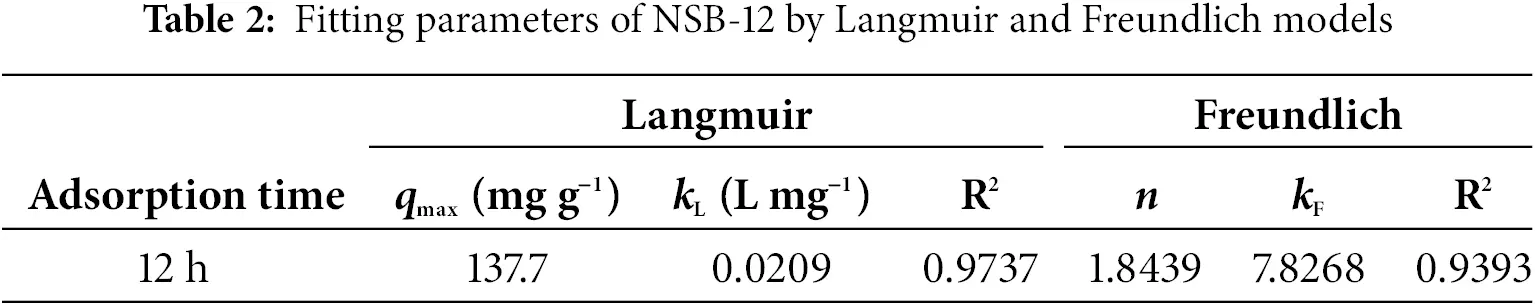

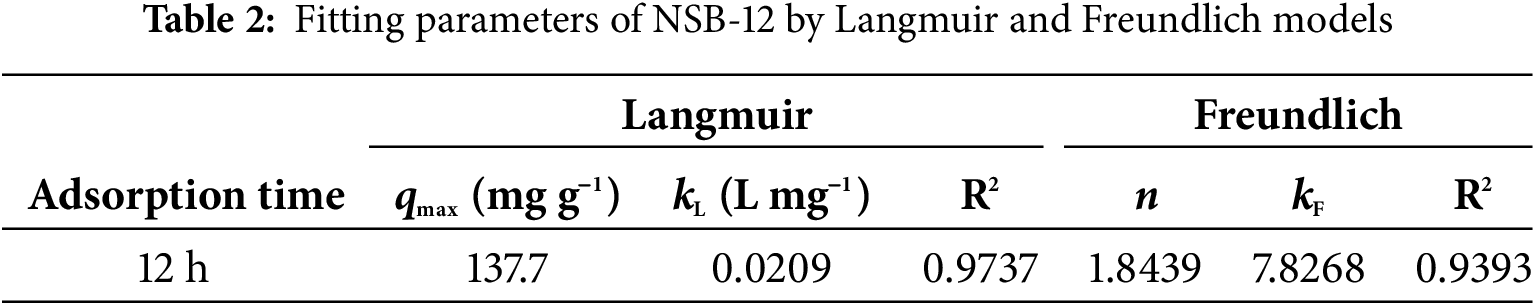

Effects of different CTC initial concentrations were also studied. The concentration ranges from 20 to 200 mg L−1. The adsorption isotherm curves of NSB-12 are presented in Fig. 5a. It can be seen that the higher the concentration is, the larger adsorption capacity is. The maximum adsorption capacity (qmax) reaches 101.3 mg g−1 after 24 h adsorption. Langmuir, Freundlich and Redlich-Peterson models were used to fit the isotherms obtained at 12 h (Fig. 4d and Table 2). The correlation coefficient R2 is 0.9737 for Langmuir model, revealing the adsorption process for CTC can be better described by the Langmuir model. It suggests that the adsorption is primarily of single-molecular layer adsorption. The correlation coefficient R2 obtained from Redlich-Peterson model is 0.9910. It indicates a complicated adsorption mechanism. Non-ideal monolayer adsorption and nonuniform multilayer adsorption on the surface may coexist [63].

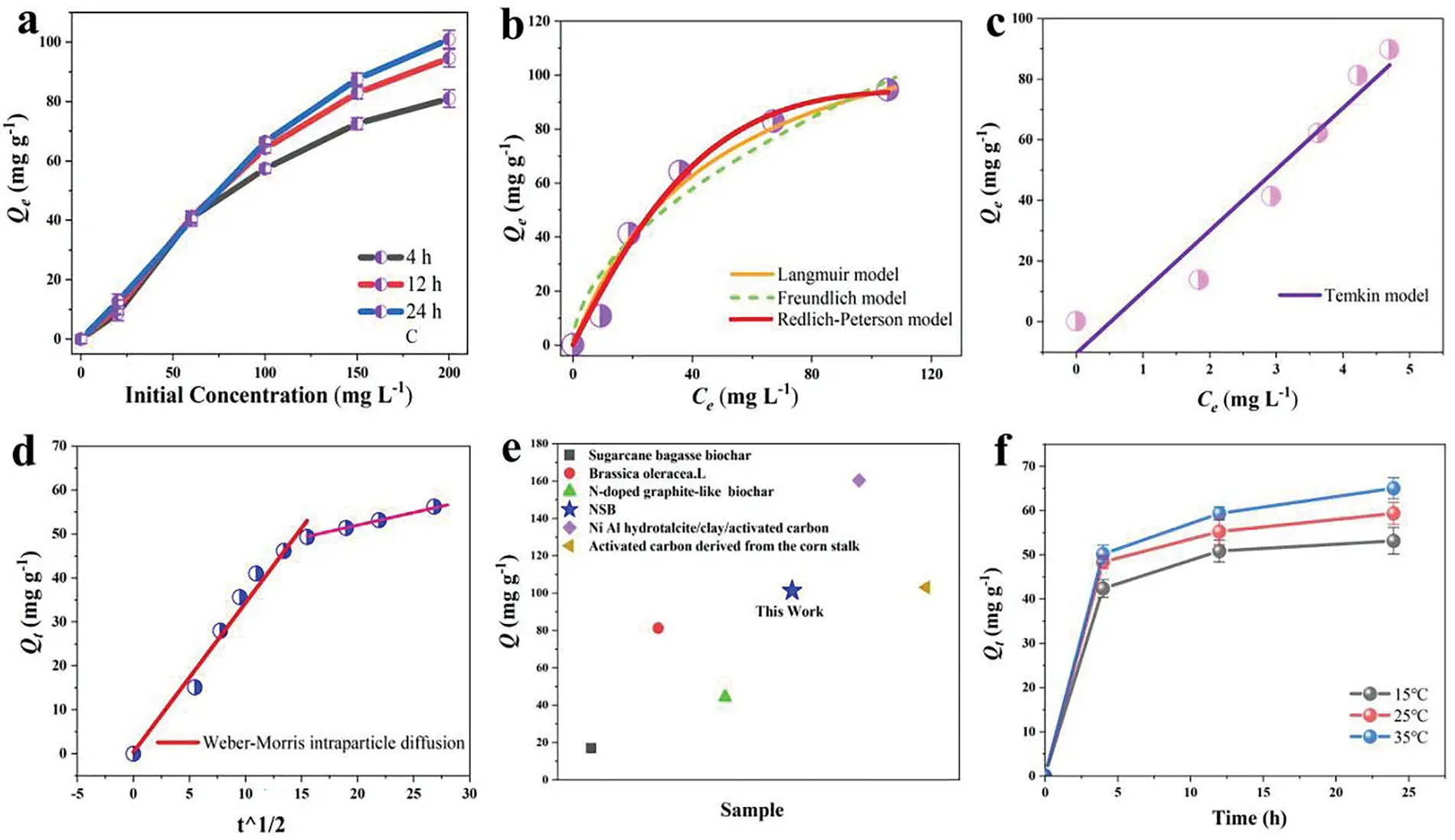

Figure 5: Adsorption isotherms of NSB-12 with different time (a) and fitting plots obtained by Langmuir, Freundlich and Redlich-Peterson models (b), Temkin model (c), Weber-Morris intraparticle diffusion model (d), adsorption performance with different materials (e) and adsorption kinetics at different temperatures (f)

Meanwhile, both Temkin and Weber-Morris intraparticle diffusion models were applied to fit adsorption isotherms in Fig. 5c,d. The correlation coefficient R2 from Temkin is 0.9348. Intermolecular interactions, such as electrostatic attraction or hydrogen bond between NSB and CTC, play an important role during the adsorption. Fitting plots with Weber-Morris model find that the adsorption process consists of two stages. In the first one, the intercept of the straight line is small, indicating the fast adsorption rate is controlled by external surface uptake; and the second stage shows a relatively slow rate, which is mainly dominated by intraparticle diffusion. The results further prove that the adsorption may be controlled by multiple mechanism [64].

The adsorption performance of NSB-12 and relevant materials was summarized in Fig. 5e [65–69]. Compared to other biochar materials, NSB-12 exhibits the superior adsorption activity towards CTC. Exemplarily, its adsorption capacity to CTC is doubled that of N-doped graphite-like mesoporous structure biochar prepared by furfural residue (44.3 mg g) [68].

The observed adsorption behavior can be attributed to the presence of diverse functional groups in NSBs, including -SO3H, -NH2, C=O, -OH, and pyridine nitrogen groups. These functional groups facilitate electron transfer and bond formation with CTC and then enhance adsorption efficiency. Furthermore, fittings by Freundlich model reveal that heterogeneous multilayer adsorption also occurs between NSB and CTC. This suggests that hydrogen bonding and electrostatic interactions between zwitterionic species within CTC and NSB also significantly influence the overall adsorption process [70].

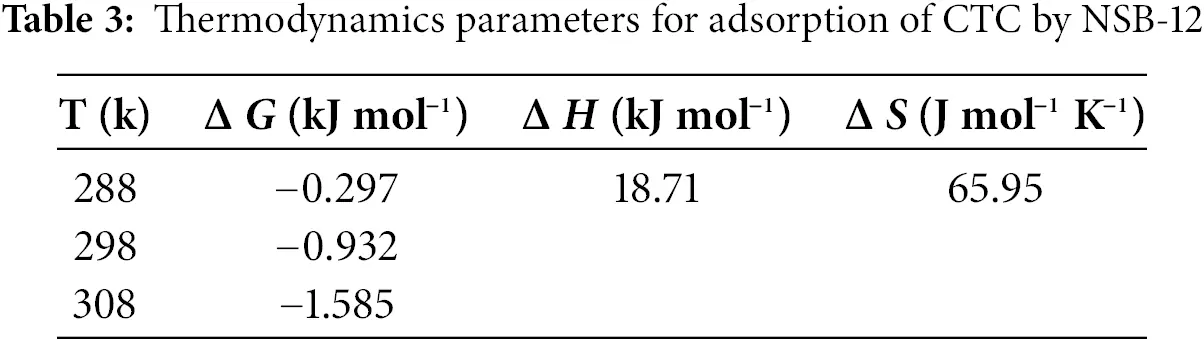

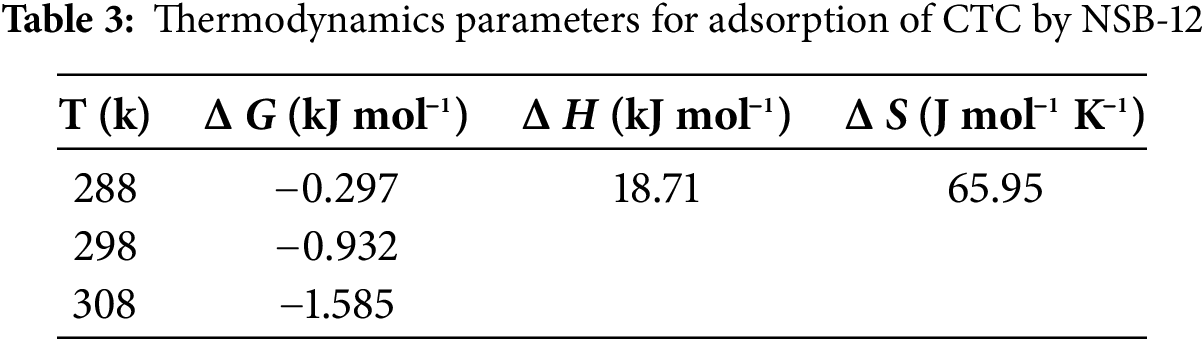

To investigate the temperature effect, adsorption experiments on 100 mg L−1 CTC solution at 15°C, 25°C, and 35°C were carried out. The results are shown in Fig. 5f and Table 3. As the adsorption temperature raises from 15°C to 35°C, the uptake of CTC increases from 53.1 to 65.2 mg g−1. Negative ΔG, and positive △S and △H indicate that CTC is spontaneously adsorbed onto NSB-12 surface; and the adsorption is an endothermic process [71]. The more negative value of ΔG while raising temperature indicates that high temperature can improve the adsorption performance [72].

3.3 Effect of pH, Ionic Strength and Stability on Adsorption

Effect of pH was studied as shown in Fig. 6a. The largest adsorption capacity was obtained when the solution pH is 7. To understand this, the pH of zero point charge (pHZPC) of NSB-12 was determined by pH drift method [73]. It gives pHZPC of 6 in Fig. 6b. This means the surface of NSB-12 is positively charged while solution pH below 6, and negatively charged above 6. Meanwhile, the ionization equilibrium constants of CTC solution are 3.3 (pK1) and 7.44 (pK2) [74]. Therefore, CTC could carry positive charge when pH is under 8; and it would carry negative charge when pH is 8 or higher. That means both NSB and CTC have the same sorts of charges under acid/basic conditions, which would be electrostatically repulsive and reduce adsorption capacity [75]. When the pH value of solution is 7, CTC is positively charged and NSB is negatively charged. The electrostatic attraction between them would enhance the adsorption performance [76]. Thus, NSB shows the best adsorption performance to CTC at the neutral condition.

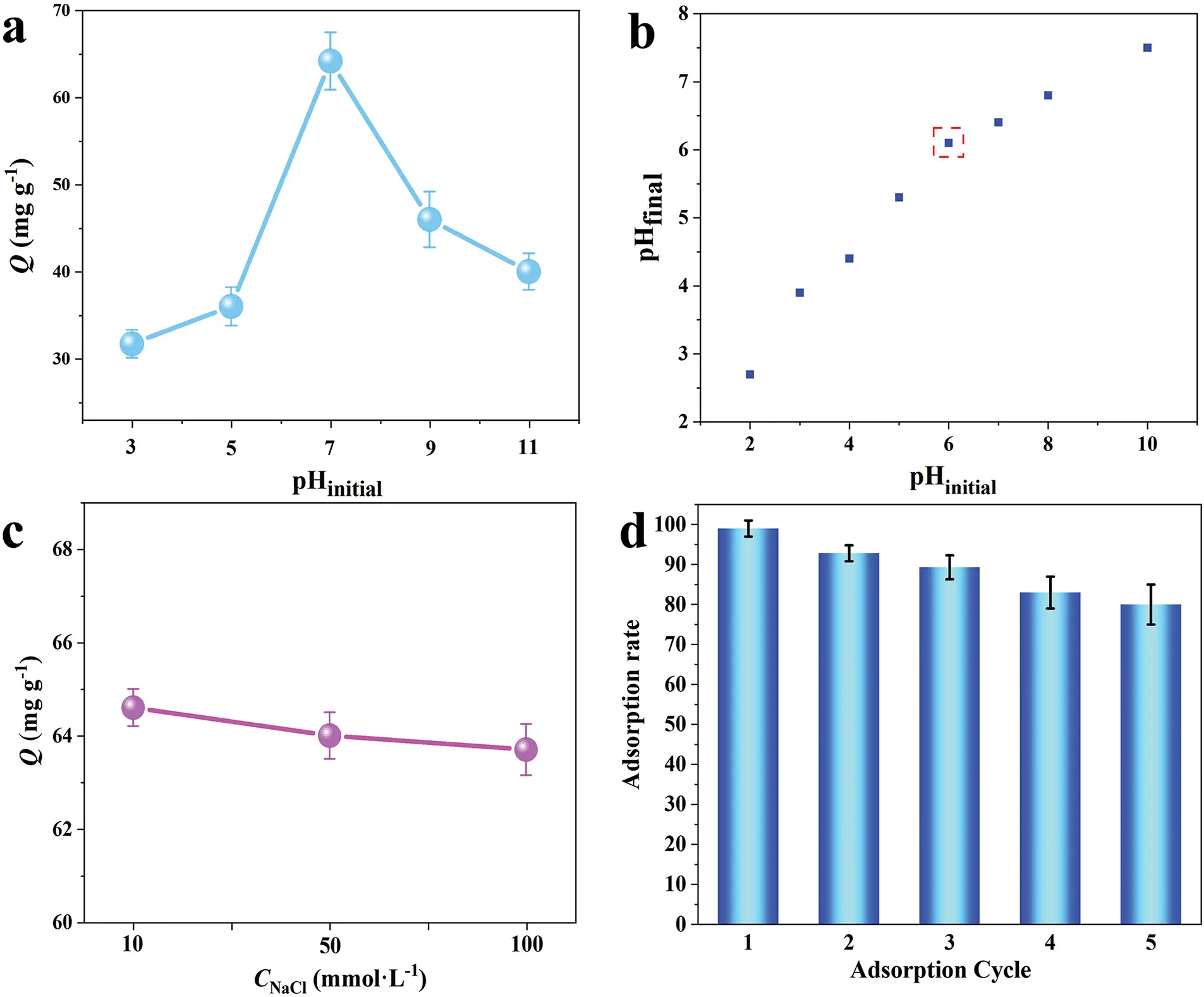

Figure 6: Adsorption of NSB-12 to CTC solution with different pH values (a) and pH variation in terms of initial pH of solution for determination of point of zero charge pH (b) and NaCl concentrations (c) for 12 h and adsorption in different adsorption cycles (d)

Fig. 6c illustrates the adsorption experiments in different NaCl concentrations. One can see that with the increase of salt concentration, the adsorption capacity of NSB remains stable. Generally, high ionic strength in the solution could weaken the electrostatic interaction between ionic compounds and surface functional groups of adsorbent materials through shielding effect, thereby diminishing the adsorption performance. However, during the adsorption of CTC by NSB, the influence of non-covalent interaction, such as electrostatic force, is relatively minor. This is in good agreement with the adsorption process we mentioned previously. It is mainly of chemical adsorption, thus barely affecting the adsorption performance.

To study the stability of NSB, the cyclic adsorption was carried out. To 100 mL 100 mg L−1 CTC solution, 100 mg NSB-12 was added. And then shake it at 25°C for 4 h. After that, the obtained NSB-CTC was filtered and put into 100 mL solution for desorption at 25°C for 12 h. The solution was made by 1 mol L−1 H2O2 and 0.01 mol L−1 ammonium persulfate. After five cyclic experiments, the adsorption capacity of NSB-12 still keeps 80% as shown in Fig. 6d.

4  Conclusions

In this work, SDBS was used as structure guidance in complexing with CS. SDBS also served as sulfur source and CS provided nitrogen source to successfully prepare N, S dually-doped biochar (NSB). Modulating the interaction of CS and SDBS helped fabricate thin-layer and porous structures. Our synthetic approach was developed by saving the activation operation and the second step calcination. Due to numerous pores, doped heteroatoms and abundant functional groups, NSB shows good adsorption properties towards CTC. Its adsorption capacity gets to 101.3 mg g−1 with a fast rate and good recycling stability. The capacity is twice higher than that of NB prepared by only CS. Analyses of adsorption kinetics and isotherms realize that the adsorption process is controlled by multiple mechanisms. It includes the electrostatic attraction and intermolecular force. Certainly, there is still room to improve the adsorption capacity of our material, and more types of antibiotics will be attempted for further application. In brief, the current NSB material could be blooming for CTC antibiotic treatment due to its merits of renewable and low-cost raw materials and a simplified synthesis strategy.

Acknowledgement: Not applicable.

Funding Statement: This work is supported by the National Natural Science Foundation of China (22276046).

Author Contributions: Jun-Jie Yang: Writing—original draft, Investigation, Formal analysis; Ran An: Data curation, Investigation; Jing-Heng Nie: Data curation, Investigation; Hao-Miao Ma: Investigation, Formal analysis; Yu-Qing Yan: Investigation, Formal analysis; Yuan-Ru Guo: Writing—review & editing, Supervision, Conceptualization; Qing-Jiang Pan: Writing—review & editing. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: Data will be made available on request.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest to report regarding the present study.
