Performance Analysis of a Profile Control Agent for Waste Drilling Fluid Treatment

Xueyu Zhao*

Hubei University of Technology, Wuhan, 430000, China

* Corresponding Author: Xueyu Zhao. Email: email

(This article belongs to the Special Issue: Advances in Oil and Gas Well Fluid Mechanics)

Fluid Dynamics & Materials Processing 2023, 19(7), 1897-1905. https://doi.org/10.32604/fdmp.2023.025247

Abstract

A method for the treatment of hazardous waste drilling fluids, potentially leading to environmental pollution, is considered. The waste drilling fluid is treated with an inorganic flocculant, an organic flocculant, and a pH regulator. The profile control agent consists of partially hydrolyzed polyacrylamide, formaldehyde, hexamethylenetetramine, resorcinol, phenol, and the treated waste drilling fluid itself. For a waste drilling fluid concentration of 2500 mg/L, the gelling time of the profile control agent is 25 h, and the gelling strength is 32,000 mPa.s. Compared with the profile control agent prepared by recirculated water under the same conditions, the present profile control agent displays better stability, salt-resistance, and performance.

Keywords


1  Introduction

Waste drilling fluid from the drilling process contains a huge quantity of treatment agents, additives, and conditioners which, if left untreated, would cause severe pollution to the atmosphere, soil, and surface water [16]. To safeguard the environment and decrease the treatment cost of waste drilling fluids, therefore, it is necessary to study the waste drilling fluids treatment technology [713].

At present, the most prevalent drilling fluid system in China’s oil fields is water-based drilling fluid, a mixing solution of suspension and colloid with water as the dispersion medium and clay (bentonite), weighing agents, and other chemical treatment agents as the dispersing phase [14]. Water-based drilling fluids have experienced natural drilling fluid, fine dispersion drilling fluid, coarse dispersion drilling fluid, non-dispersion low solid phase drilling fluid, solid-free drilling fluid, and polymer drilling fluid. The main oilfields in China employ polymer drilling fluid; thus, treatment technology is an urgent need [1523].

Solidification treatment is the predominant method for waste drilling fluids, but it has several drawbacks: the addition of a large amount of solidification agent increases solid waste; long-term storage poses a danger of leakage, and the treatment cost to meet standard discharge is high [2430]. In response to these drawbacks, this study suggests waste drilling fluid as a material to prepare a profile control agent, therefore realizing the recycling and utilization of waste drilling fluid and contributing to environmental protection.

2  Experiment

2.1 Chemicals and Instruments

Polymeric aluminum chloride, sodium hydroxide, formaldehyde (aqueous solution with a mass concentration of 37%), hexamethylenetetramine, resorcinol, sodium chloride, anhydrous calcium chloride, magnesium chloride, potassium chloride, sodium sulfate, and sodium bicarbonate were all analytically pure and purchased without further purification from Chengdu Kelong Chemical Co. (China); the organic flocculants were prepared in the laboratory; partially hydrolyzed polyacrylamide (HPAM) is purchased from Beijing Hengju Chemical Group Co. (China), with a relative molecular mass of 1.9 × 107 and the degree of hydrolysis of 25%.

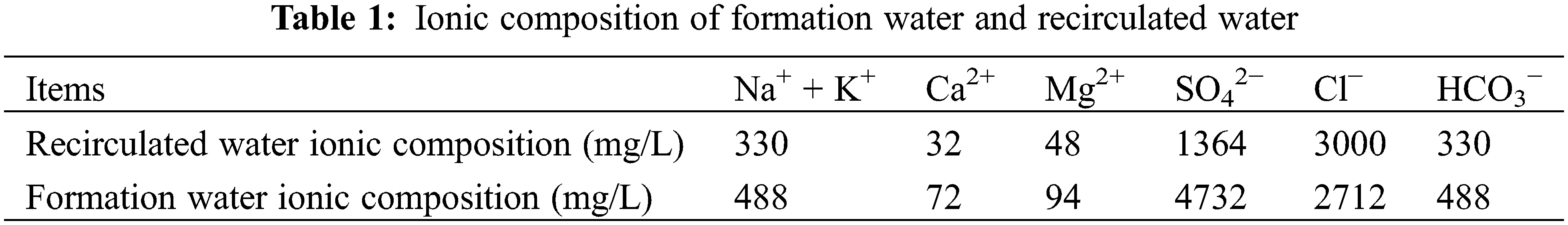

The waste drilling fluid from well XA722 in the Bohai A oilfield was a polymer drilling fluid system; the experimental water was the formation water and recirculated water from the Bohai A oilfield, with the ionic composition shown in Table 1; and the simulated core was made by core powder from the Bohai A oilfield.

images

Quanta 450 environmental scanning electron microscope (SEM, EFI), Brookfield DV-II viscometer (Brookfield), and multifunctional core replacement experimental equipment (Hai’an Petroleum Scientific Research Instrument Co., China) were the main experiment instruments.

2.2 Treatment of Waste Drilling Fluid

To obtain treated waste drilling fluid, solid phase particles in the waste drilling fluid were removed using an 80 mesh (0.198 mm pore size) screen, 15 g of inorganic flocculant polymeric aluminum chloride, and 0.2 g of organic flocculant were added to 1000 g of filtrate and stirred until completely dissolved, and sodium hydroxide was then added to adjust the pH of the solution to 7–7.5.

2.3 Preparation of Waste Drilling Fluid Profile Control Agent

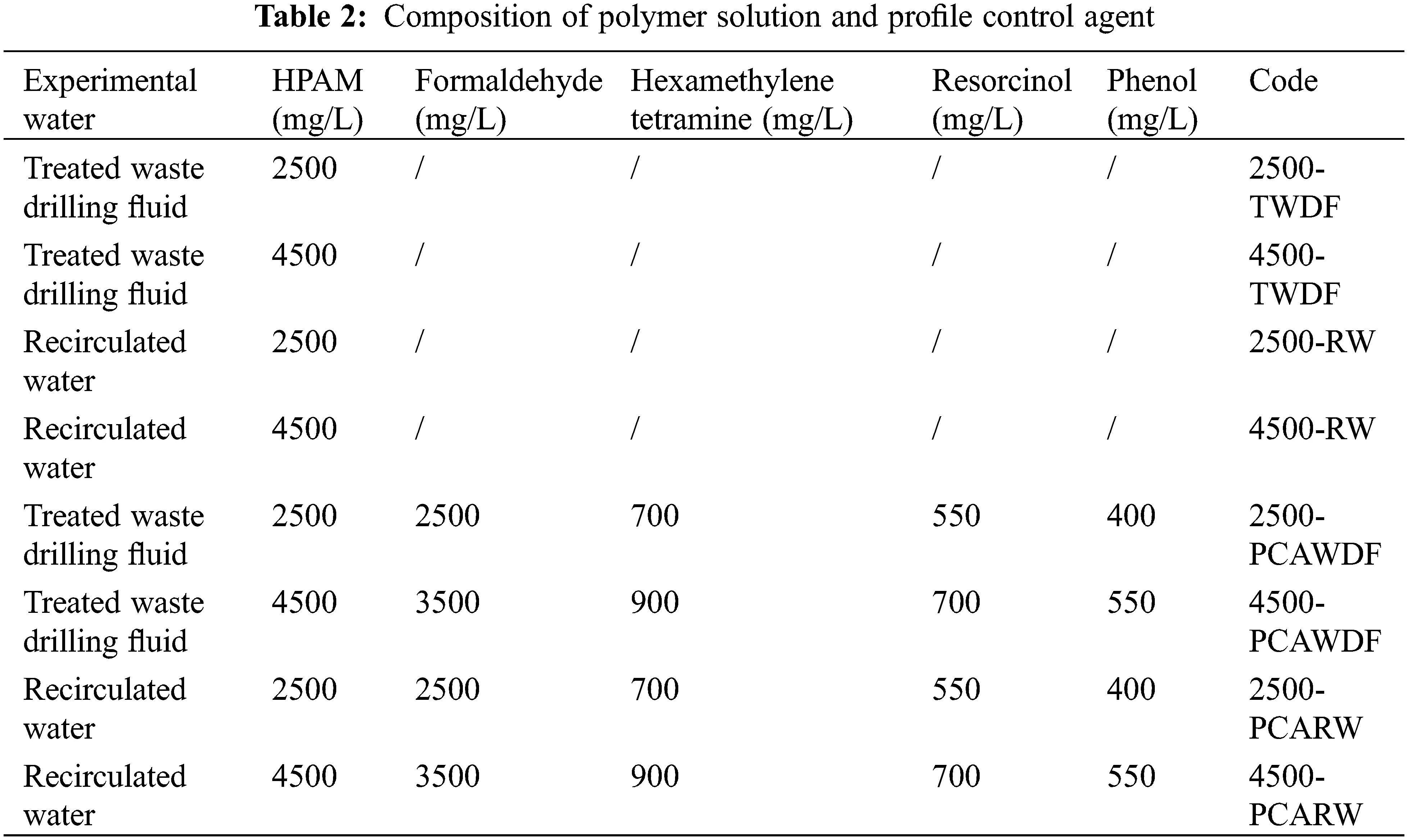

The waste drilling fluid profile control agent is formulated with the treated waste drilling fluid, partially hydrolyzed polyacrylamide (HPAM), formaldehyde, hexamethylenetetramine, resorcinol, and phenol, with the dosage of each agent detailed in Table 2. The waste drilling fluid profile control agent is prepared as follows: add partially hydrolyzed polyacrylamide (HPAM) to a certain amount of treated waste drilling fluid and stir to dissolve it completely; add formaldehyde, hexamethylenetetramine, resorcinol, and phenol to the polymer solution in turn and stir to dissolve it completely.

images

2.4 Performance Evaluation of Waste Drilling Fluid Profile Control Agent

2.4.1 Stability

The waste drilling fluid profile control agents with 2500 and 4500 mg/L concentrations were prepared, placed in glass bottles with stoppers, sealed, and baked in an oven at a constant temperature of 65°C to create a gel. Every ten days, a Brookfield DV3T viscometer is used to determine the apparent viscosity of the waste drilling fluid profile control agents was determined at 65°C with a Brookfield DV3T viscometer.

2.4.2 Salt-Resistance

To examine how sodium chloride impacts the performance of the profile control agent, different concentrations of sodium chloride are added to waste drilling fluid or treated waste drilling fluid to adjust the mineralization of the solution, which is then used to formulate the profile control agent. The waste drilling fluid profile control agent is then formulated with a solution of sodium chloride, put in a glass with a stopper, sealed, and placed in a constant temperature oven with a constant temperature of 65°C to form a gel. After gelatinization, the apparent viscosity of the waste drilling fluid profile control agents was evaluated at 65°C with a Brookfield DV3T viscometer.

2.4.3 Performance of Profile Improvement

The Sandpack model is used to examine the profile improvement performance of the waste drilling fluid profile control agent. As shown in Fig. 1, the experiment is carried out as follows: The sandpack model is saturated with formation water at an injection rate of 0.5 mL/min, followed by the injection of a profile control agent of 0.5 times the pore volume (PV); After 72 h, the sandpack model is injected by recirculated at the rate of 0.5 mL/min until the injection pressure stabilizes, and then measure the fractional flow at the exit of the parallel core during the experiment.

images

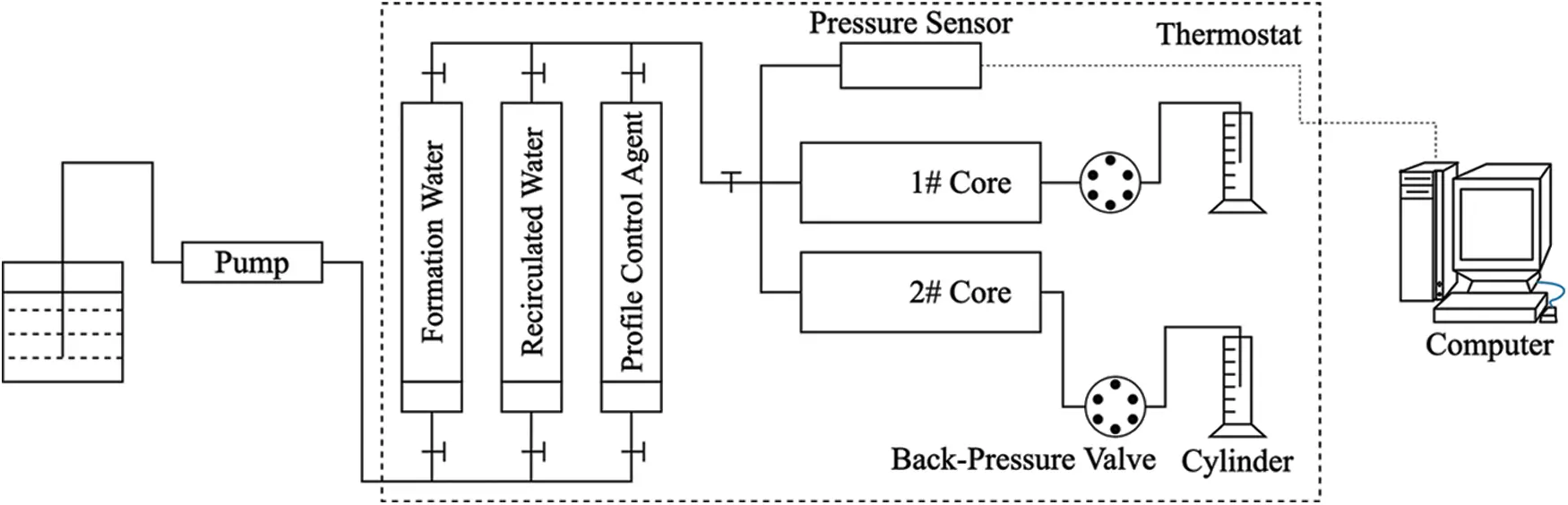

Figure 1: Flow chart of the parallel core plugging experiment

The performance of the profile control agent is characterized by the profile improvement rate, whose formula is as follows:

f=Qhb/QlbQha/QlaQhb/Qlb (1)

where f—profile improvement rate of profile control agent, %;

Qhb—the percentage of Water absorption of high permeability core before profile improvement (after flow stabilization), %;

Qha—the percentage of Water absorption of high permeability core after profile improvement (after flow stabilization), %;

Qlb—the percentage of Water absorption of low permeability core before profile improvement (after flow stabilization), %;

Qla—the percentage of Water absorption percentage of low permeability core after profile improvement (after flow stabilization), %.

3  Results and Discussion

3.1 Apparent Viscosity of Polymer Solution

As shown in Fig. 2, the viscosity of polymer solution made with treated waste drilling fluid is somewhat lower than that of polymer solution made with recirculated water, but the polymer still has excellent viscosity increasing performance. After flocculant and sodium hydroxide treatment, the water quality of the waste drilling fluid was improved, primarily because the flocculant can provide a large number of complex ions, which can strongly adsorb the colloidal particles in the waste drilling fluid and coagulate the colloids via adsorption, bridging, and cross-linking, thereby reducing the influence of various treatment agents and additives in the drilling fluid on viscosity and enhancing the performance of the polymer. It is evident from the viscosity data of the polymer solution that the treated waste drilling fluid may be substituted for the recirculated water in the preparation of the profile control agent.

images

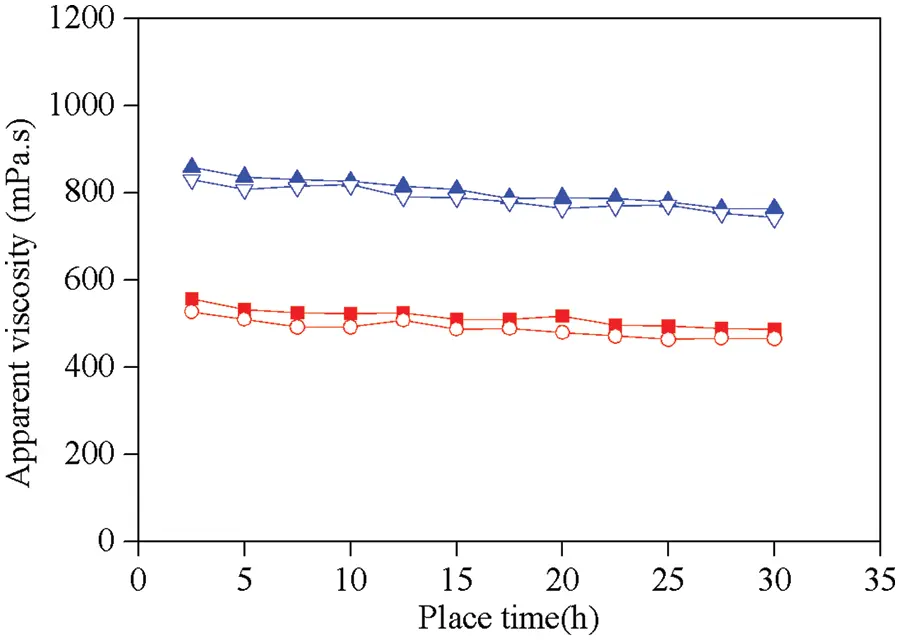

Figure 2: Effect of water quality on the viscosity of polymer solutions under varying concentrations. ◼ 2500-RW; ○ 2500-TWDF; ▲ 4500-RW; ▽ 4500-TWDF

3.2 Microstructure of Profile Control Agents

The microstructure of profile control agents made with treated waste drilling fluid and recirculated water was observed by scanning electron microscope (SEM). From Fig. 3, it is evident that both kinds of profile control agents have a spatial mesh structure, which is advantageous for locking the water molecules and maintaining the strength and stability of the profile control agents. Compared to the profile control agents made with recirculated water, the profile control agents made with treated waste drilling fluid have a more uniform and fine spatial mesh structure, which is advantageous for maintaining the binding ability of water molecules.

images

Figure 3: SEM images of 2500-PCAWDF and 2500-PCARW. (a) PCAWDF, 200×; (b) PCAWDF, 500×; (c) PCAWDF, 1000×; (d) PCARW, 200×; (e) PCARW, 500×; (f) PCARW, 1000×

3.3 Gelling Strength of Profile Control Agent

The apparent viscosity characterizes the gelling strength of the profile control agent, and Fig. 4 depicts the curve of the apparent viscosity of the profile control agent at various concentrations and place time. The gelatinization time of 500-PCAWDF and 2500-PCARW is about 25 h, and the viscosity after gelatinization is 18,000 mPa.s. While the gelatinization period for 4500-PCAWDF and 4500-PCARW is about 15 h and the viscosity after gelatinization is 32,000 mPa.s. This suggests that the apparent viscosity of the profile control agent generated with treated waste drilling fluid and recirculated water is comparable.

images

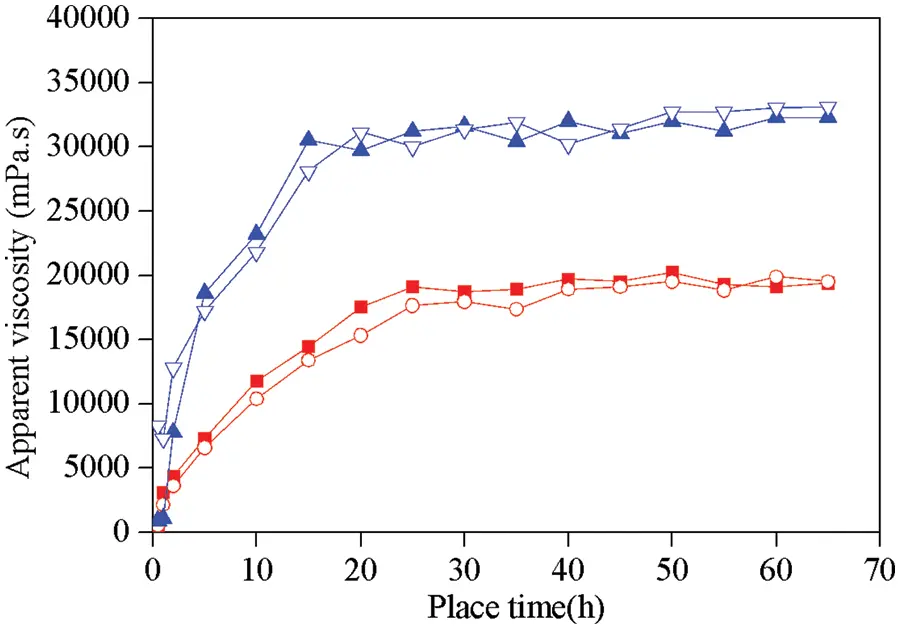

Figure 4: Effect of place time on the apparent viscosity of profile control agents. ◼ 2500-PCARW; ○ 2500-PCAWDF; ▲ 4500-PCARW; ▽ 4500-PCAWDF

3.4 Performance of Stability

The apparent viscosity of the profile control agent produced with treated waste drilling fluid and recirculated water reduced as the place time after gelatinization, as shown in Fig. 5. In the first 200 days, the apparent viscosity of 2500-PCARW was somewhat greater than that of 2500-PCAWDF, but as the place time was extended, 2500-PCAWDF demonstrated superior temperature resistance. Both 4500-PCARW and 4500-PCAWDF showed the same trend. This might be related to the microstructure of the profile control agent. The water quality of the waste drilling fluid was improved by the addition of flocculants and sodium hydroxide, and the spatial mesh structure of the profile control agent became more uniform and finer, resulting in a stronger binding force on water molecules and a lower likelihood of dehydration, resulting in stable performance.

images

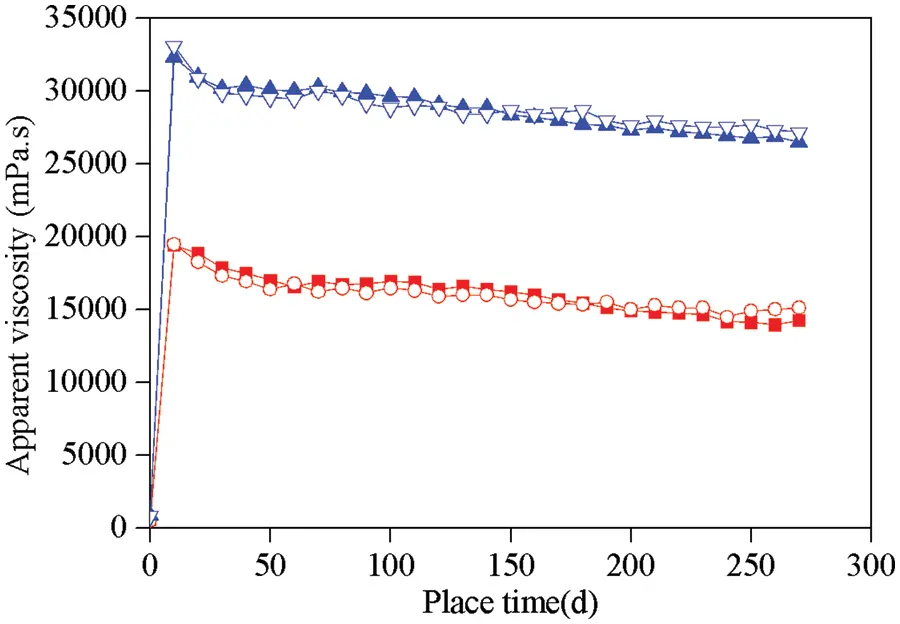

Figure 5: Effect of place time on the apparent viscosity of profile control agents. ◼ 2500-PCARW; ○ 2500-PCAWDF; ▲ 4500-PCARW; ▽ 4500-PCAWDF

3.5 Performance of Salt-Resistance

When sodium chloride is introduced to the profile control agent, the molecular chain of partially hydrolyzed polyacrylamide (HPAM) curls, resulting in a significant decrease in the agent’s strength. As shown in Fig. 6, the curve of apparent viscosity and sodium chloride concentration reveals that sodium chloride has a greater effect on the apparent viscosity of profile control agents after gelatinization, and the higher the sodium chloride concentration, the lower the apparent viscosity of profile control agents. As sodium chloride concentration increases, the apparent viscosity of the conditioning agent decreases. The profile control agents made with the treated waste drilling fluid have increased salt-resistance and viscosity under the same circumstances.

images

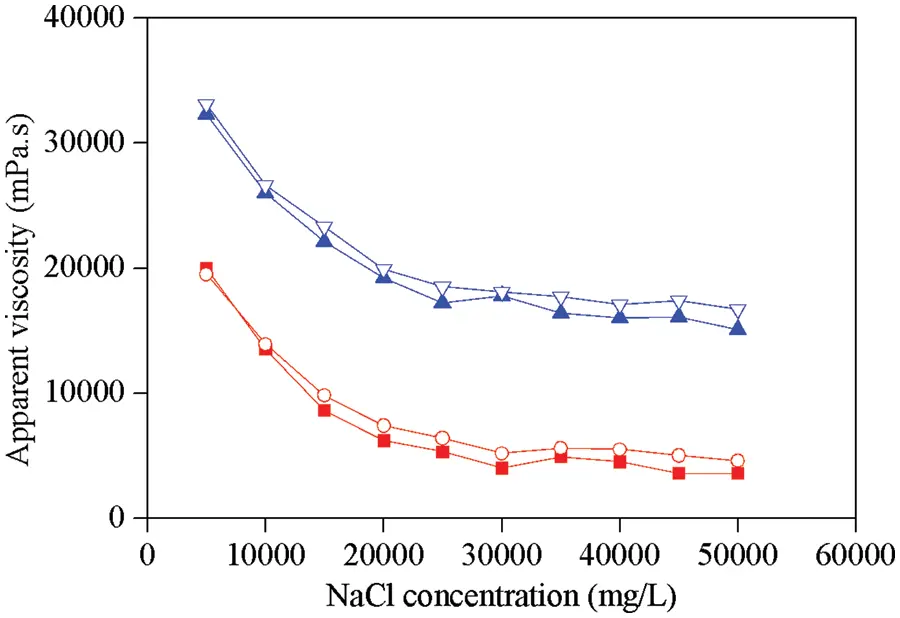

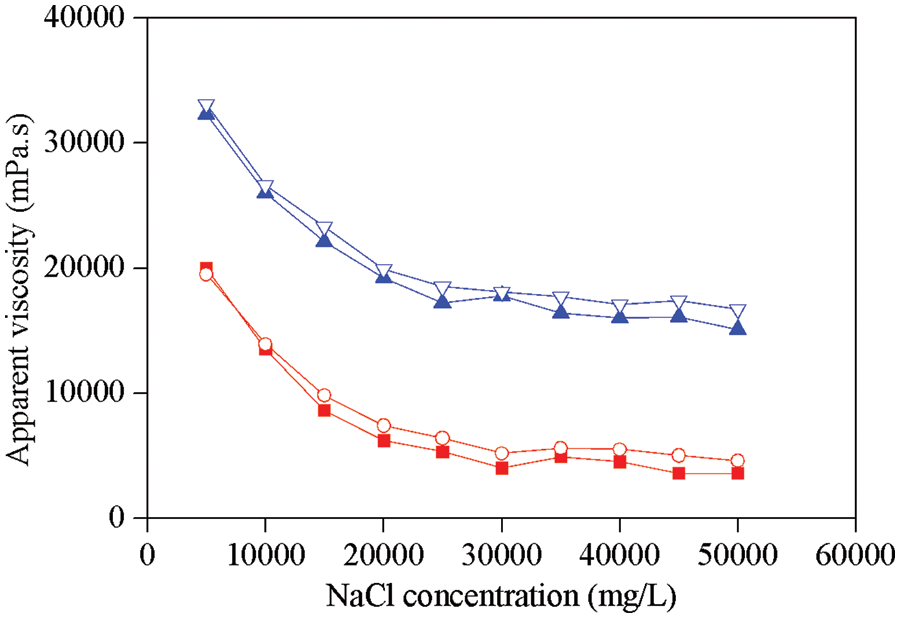

Figure 6: Effect of NaCl concentration on the apparent viscosity of profile control agents. ◼ 2500-PCARW; ○ 2500-PCAWDF; ▲ 4500-PCARW; ▽ 4500-PCAWDF

3.6 Profile Improvement Rate

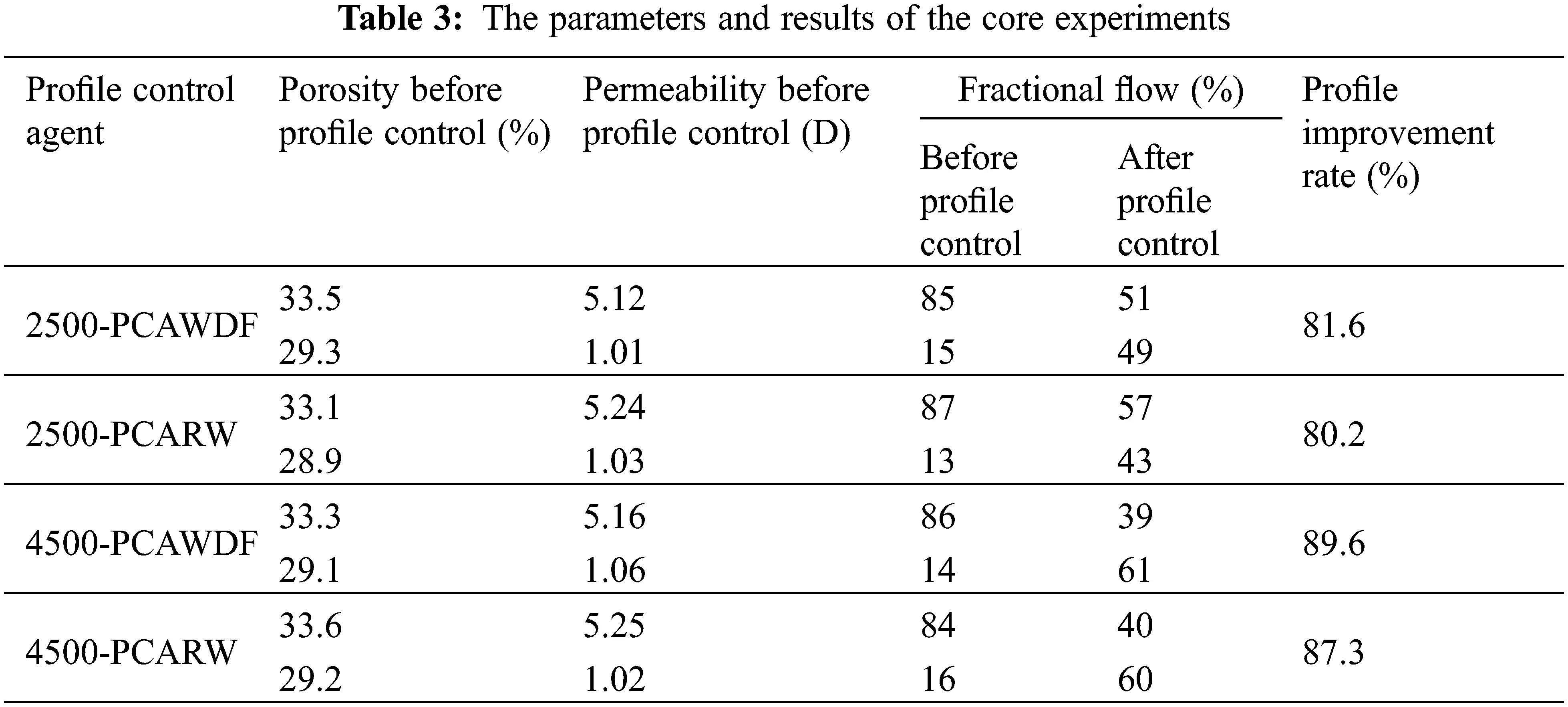

Table 3 demonstrates that the profile control agents formulated with treated waste drilling fluids and recirculated water have excellent profile improvement performance. After the injection of profile control agents, the fractional flow rate of the relatively high permeability sandpack model decreases, and the water absorption profile is significantly improved. As the concentration of the profile control agent increases, so does the pace of profile improvement. Under the same experimental settings, the profile improvement was greater when profile control agents were made with treated waste drilling fluid compared to recirculated water.

images

4  Conclusion

(1)   This paper devises a treatment method for waste drilling fluid. After the removal of the solid phase particles from the waste drilling fluid, inorganic and organic flocculants were added, and the pH was adjusted with sodium hydroxide to 7–7.5 to create the treated waste drilling fluid that can be utilized to prepare the profile control agent.

(2)   A waste drilling fluid conditioning agent system was created using partially hydrolyzed polyacrylamide (HPAM), formaldehyde, hexamethylenetetramine, resorcinol, phenol, and treated waste drilling fluid.

(3)   The profile control agent created with treated waste drilling fluid has equivalent strength to the profile control agent formulated with recirculated water but has superior stability, temperature resistance, and profile improvement performance.

(4)   Using treated waste drilling fluid to prepare the profile control agent not only solves the waste drilling fluid environmental pollution issue and decreases treatment costs but also supplies water for profile control and realizes recycling and utilization.
