A Trailblazing Framework of Security Assessment for Traffic Data Management

Abdulaziz Attaallah1, Khalil al-Sulbi2, Areej Alasiry3, Mehrez Marzougui3, Neha Yadav4, Syed Anas Ansar5,*, Pawan Kumar Chaurasia4, Alka Agrawal4

1 Department of Computer Science, Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, 21589, Saudi Arabia
2 Department of Computer Science, Al-Qunfudah Computer College, Umm Al-Qura University, Mecca, Saudi Arabia
3 College of Computer Science, King Khalid University, Abha, 61421, Saudi Arabia
4 Department of Information Technology, Babasaheb Bhimrao Ambedkar University, Lucknow, 226025, Uttar Pradesh, India
5 Department of Computer Applications, Babu Banarasi Das University, Lucknow, 226028, Uttar Pradesh, India

* Corresponding Author: Syed Anas Ansar. Email: email

Intelligent Automation & Soft Computing 2023, 37(2), 1853-1875. https://doi.org/10.32604/iasc.2023.039761

Abstract

Connected and autonomous vehicles are seeing their dawn at this moment. They provide numerous benefits to vehicle owners, manufacturers, vehicle service providers, insurance companies, etc. These vehicles generate a large amount of data, which makes privacy and security a major challenge to their success. The complicated machine-led mechanics of connected and autonomous vehicles increase the risks of privacy invasion and cyber security violations for their users by making them more susceptible to data exploitation and vulnerable to cyber-attacks than any of their predecessors. This could have a negative impact on how well-liked CAVs are with the general public, give them a poor name at this early stage of their development, put obstacles in the way of their adoption and expanded use, and complicate the economic models for their future operations. On the other hand, congestion is still a bottleneck for traffic management and planning. This research paper presents a blockchain-based framework that protects the privacy of vehicle owners and provides data security by storing vehicular data on the blockchain, which will be used further for congestion detection and mitigation. Numerous devices placed along the road are used to communicate with passing cars and collect their data. The collected data will be compiled periodically to find the average travel time of vehicles and traffic density on a particular road segment. Furthermore, this data will be stored in the memory pool, where other devices will also store their data. After a predetermined amount of time, the memory pool will be mined, and data will be uploaded to the blockchain in the form of blocks that will be used to store traffic statistics. The information is then used in two different ways. First, the blockchain’s final block will provide real-time traffic data, triggering an intelligent traffic signal system to reduce congestion. Secondly, the data stored on the blockchain will provide historical, statistical data that can facilitate the analysis of traffic conditions according to past behavior.

Keywords


1  Introduction

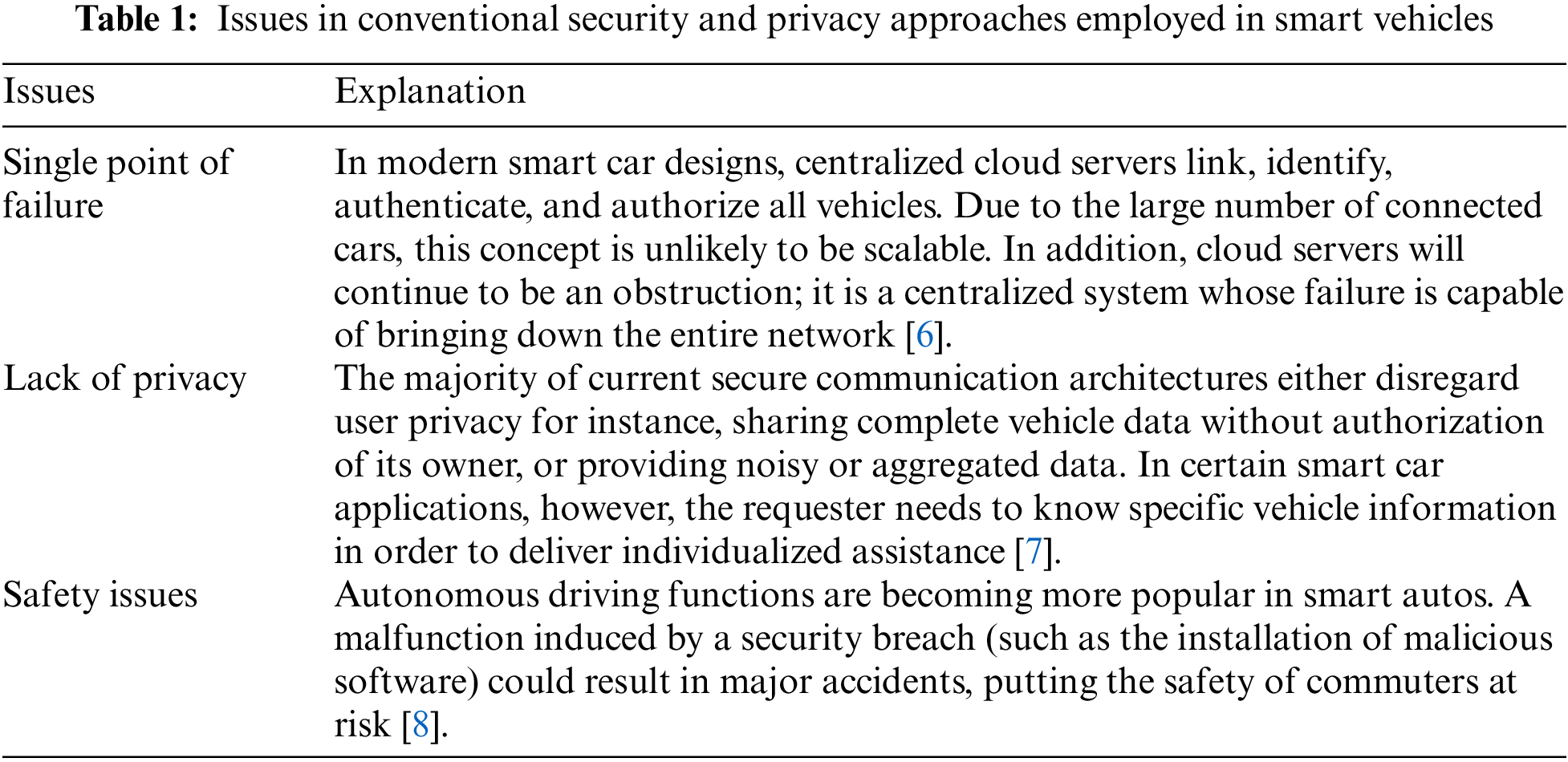

Vehicles that are autonomous and connected are linked to other vehicles, the environment, and the internet. These vehicles are susceptible to security and privacy risks due to their high level of connectivity and data exchange. Critical information such as location and vehicle trajectories is included in the data transferred by the vehicle, which can create new privacy concerns. Miller and Valasek demonstrated a sophisticated attack on a Jeep Cherokee by remotely controlling the vehicle’s key functions via the infotainment system’s wireless interface [13]. More vehicles have recently been revealed to be vulnerable to an attack against a remote keyless entry, including the majority of Volkswagen cars after 1995 [2]. The issues listed in Table 1 show that traditional security and privacy approaches employed in smart vehicles are ineffective. At present, blockchain has emerged as the most secure method of data sharing. It is a kind of database that uses distributed ledger.

images

Although the data has traditionally been stored on a central server, Blockchain technology allows for a decentralized and distributed architecture with backups and redundancy processes [3]. A blockchain is a chain of blocks that are rendered functional by encryption and then linked. Every block of blockchain comprises the previous block hash, timestamp value, and transaction data. By its nature, a blockchain is immutable. Nodes are anonymous members of the system. Blockchain comprises simple components that, when combined, reflect the system’s power. Decentralization, transparency, and immutability are three major characteristics of blockchain technology that contribute to its global popularity [4]. Blockchain stores data in blocks over the network in a decentralized manner. Data in a blockchain cannot be stolen or altered, hence can’t be changed retrospectively as it stores blocks of distinct data via the blockchain system [5]. Everything that happens on a blockchain is part of the system. Fig. 1 illuminates blockchain properties, including privacy, decentralization, immutability, transparency, time stamping, programmability, security, privacy, and unanimity.

images

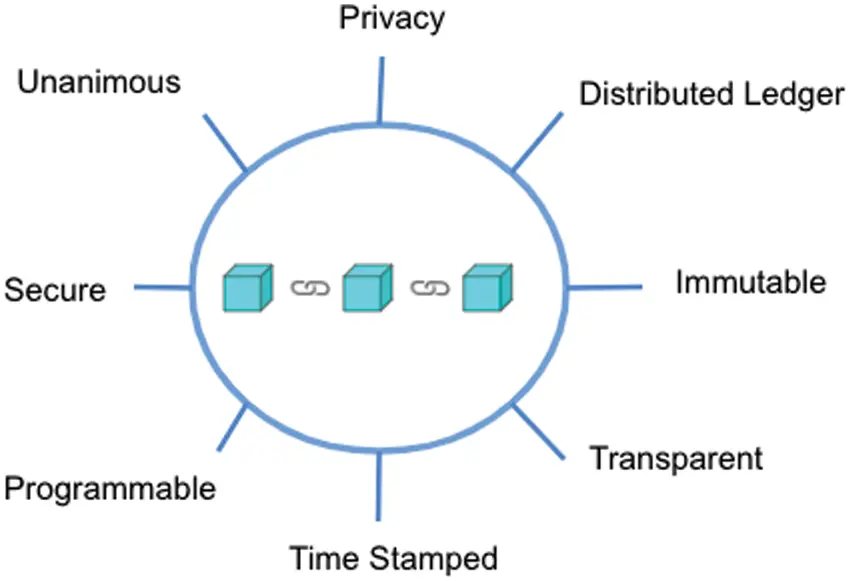

Figure 1: Lineaments of blockchain

Blockchain allows transparency of data as every node in the network has a copy of the chain, and each member of the network can access all the transactions at any moment. The use of cryptographic functions protects the privacy of the members of the network [9]. Transparency has made blockchain unique and popular as no one can be misled, as the whole network is transparent. One of the most important features of the blockchain is immutability, which means that once it is set up, no one can change it. It is defined as a blockchain distributed ledger’s ability to remain unchanged and permanent, with no single piece of information in the system being modified [10,11]. This approach has the potential to reclassify the general information verification technique, making it more productive, financially sound, and reliable.

Ethereum is a public, decentralized blockchain network that enables the execution of any decentralized application programming code [1113]. It is a global platform for exchanging information that cannot be edited or controlled. Hyperledger Fabric is a blockchain system that acts as a basis for distributed ledger solutions built according to a predetermined design that offers high confidentiality, versatility, and adaptability. For secure data transport, these two methods were employed [1416]. Nevertheless, these blockchain-based frameworks for traffic data management are not extensively adopted or utilized. As per the available research, the Ethereum technique has not yet been implemented in traffic data management systems, and there is limited research on this topic. Fujihara [13] has examined some of the features of blockchain-based traffic information-gathering systems, detailing the system’s incentives and the detection of automobile collisions and road conditions. This research examines the information and collection of traffic data in order to determine the road status (congested/normal) and mitigate it [14].

Also, this research paper suggests using blockchain to collect and store information about vehicles so that traffic jams can be found and fixed. The framework uses devices along the road to collect data from passing cars. This data is then put together on a regular basis to find the average travel time and traffic density on a particular road segment. The data is then put into a memory pool and mined every so often to add it to the blockchain as blocks [1518]. By storing vehicle data on the blockchain, the proposed framework gives vehicle owners security and privacy for their data. The data can be used in two different ways. First, the real-time traffic data stored on the blockchain can trigger an intelligent traffic signal system to reduce congestion. Second, the historical and statistical data stored on the blockchain can be used to analyze traffic conditions based on past behavior. Overall, the proposed blockchain-based framework has the potential to improve traffic conditions by providing real-time data for intelligent traffic management systems and historical data for analysis and optimization. However, the implementation of such a system would require significant infrastructure investment and widespread adoption to be effective. Sequential research contributions by authors are given below:

•   In the first section of the paper, the authors introduce the framework’s prerequisites. The software required to create this framework is included. It also covered the advantages of using them. In this part, the structure’s two most well-known and significant uses are discussed, including Interplanetary File System and Ethereum (IPFS).

•   In the next section, the authors present an elaborated system used for designing the framework. The system consists of physical components such as roadside units, connected and autonomous vehicles, and intelligent traffic signals; it also focuses on how blockchain technology is used for designing the framework.

•   Exaggerates the system architecture, modules, and components. The system architecture consists of four layers: the user layer, infrastructure layer, blockchain layer, and application layer. Each layer contains distinct components. Blockchain nodes, traffic watchers, emergency vehicles, and other commuters comprise the user layer. Infrastructure layer components include Wi-Fi, GPS, RFID, and sensors. The blockchain layer comprises nodes and peers, a consensus protocol, encryption, and smart contracts, while the application layer comprises signal triggering, congestion detection, congestion alleviation, and security and privacy. In addition, different modules and workflows are also explained by the authors.

•   At the end, the authors evaluated system performance by comparing the framework with the central server-based systems.

1.1 Related Work

The primary goal of Nakamoto’s blockchain technology was to develop a decentralized and cryptographically secure currency that helps in financial transactions. The application of blockchain technology has grown over time in a variety of industries, including traffic data management systems. Several researchers have investigated this topic to determine whether the concept of using blockchain for traffic data security and privacy is feasible [1921]. In addition, researchers identify the benefits, risks, concerns, and difficulties associated with employing this technology. A seven-layer conceptual model aimed at the intelligent transport system (ITS) is presented to address critical research concerns in the ITS [20,21]. A unique decentralized and secure design architecture for connected car data security is suggested using Hyperledger fabric. A framework for the application of blockchain technology to electronic health records in the healthcare sector is offered. This architecture’s main goal is to use blockchain to store electronic health records. Secure data storage is the second goal. Additionally, by maintaining documents off-chain, this approach overcomes the scalability issue that blockchain technology in general faces [22,23]. In contrast to proof-of-work or proof-of-authority methods, the concept of proof-of-event consensus is relevant to vehicle networks. When passing vehicles receive an event notification, they will check the correctness of the traffic data provided by roadside equipment. In order to convey alarm messages at the appropriate times and locations, a two-phase transaction is implemented on the blockchain [24,25]. The notion of a tradable mobility permit (TMP) to reduce traffic congestion is devised and statistically tested [19], together with the principles of cryptocurrencies, Blockchain, and Ethereum. Multiple components make up a permissioned blockchain system that is used to manage vehicle-related data. Utilize Vehicular Public Key Infrastructure (VPKI) to provide sponsorship creation and anonymity for the intended blockchain. Create a disjointed register next to store data related to a given car, such as maintenance details and histories, auto diagnosis reports, etc.

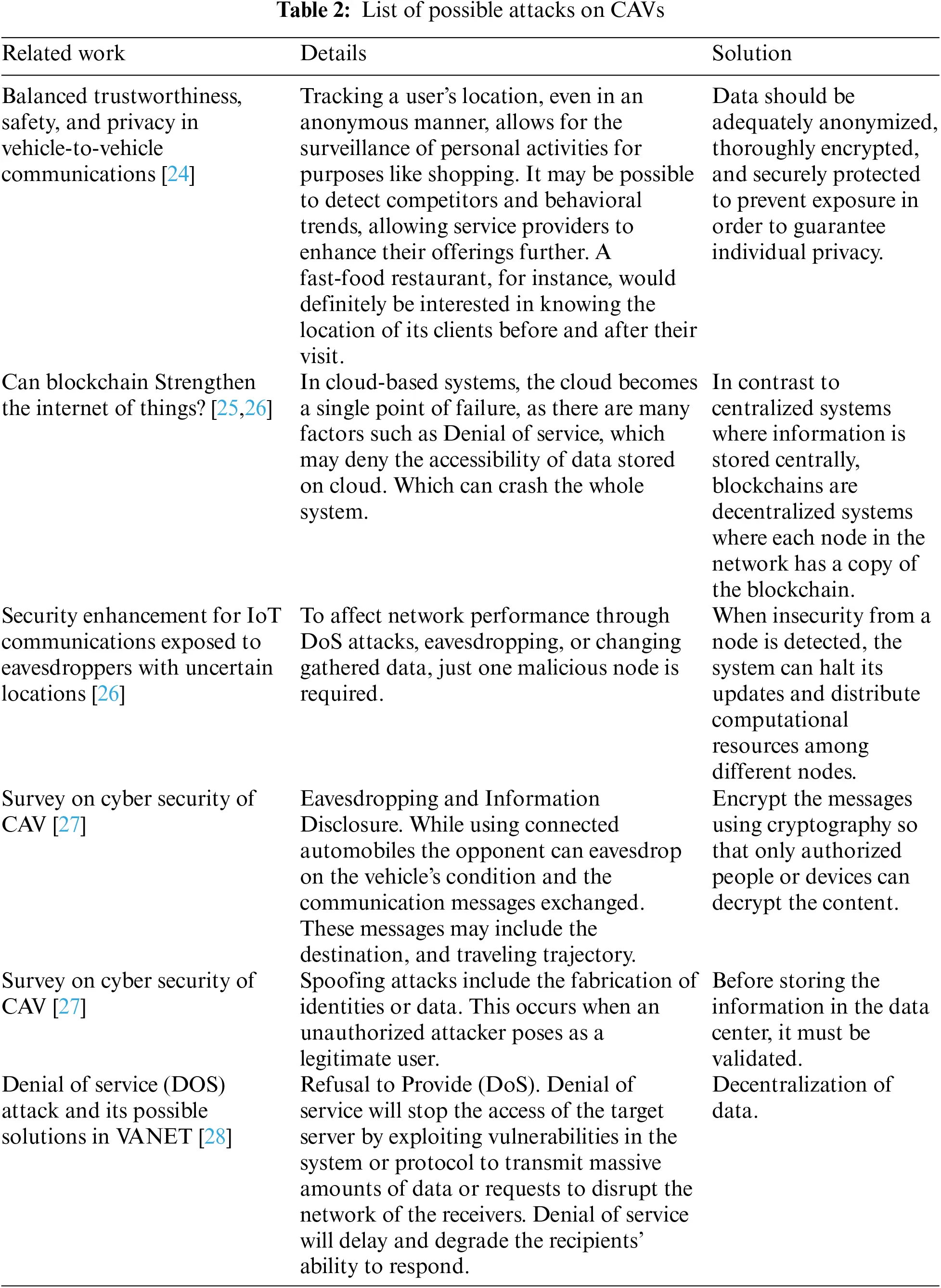

The forensic system outlined above offers post-accident investigation that is privacy-aware, traceable, and trust-less with little storage and processing overhead [2628]. A synopsis of bitcoin, Ethereum, and blockchain technology was provided [29]. Bigdata analytics is used to enhance the design, operations, and technological aspects involved in traffic control by managing the large amount of data generated by Vehicular Ad hoc Networks (VANET) [30,31]. A novel metaheuristic is designed with an adaptive neuro-fuzzy inference system for decision-making named MANFIS-DM technique on autonomous UAV systems [3234]. A thorough study of the literature is provided in Tables 2 and 3, with an emphasis on potential assaults on connected and autonomous vehicles and their defenses.

images

images

1.2 Observation

The literature review above presents the work where blockchain is used in vehicular networks or transportation and along with a listing of all possible attacks on CAV. None of the available research used a blockchain-based system that detects and mitigates congestion. The framework proposed in this paper uses blockchain technology to store traffic data to enhance the data’s security, privacy, immutability, transparency, and traceability. Furthermore, the stored data is used to detect and mitigate congestion making the proposed framework different from the relevant literature found in this domain.

1.3 Paper Structure

The remaining paper is structured as follows. Section 2 introduces the prerequisites of the framework. The system proposal is presented in Section 3, while Section 4 exaggerates system architecture, modules, and components. Section 5 offers an evaluation of the system’s performance, and Section 6 brings this study to a close with recommendations for the next enhancements.

2  Preliminaries

In this section, the proposed framework’s prerequisites are formally explained. It includes the software needed to build this framework. It also discussed the benefits of utilizing them. The two most well-known and important applications of the structure are described in this section: Ethereum and Interplanetary File System (IPFS).

2.1 Ethereum

It is a decentralized blockchain that builds on the blockchain technology concept pioneered by Bitcoin [3538]. Ethereum was introduced in 2015 as an open-source framework for trustless smart contracts with programmable blockchain capabilities. This technique also employs peer-to-peer networking to spread. This platform utilizes Ethers, its native coin [3941]. This coin can be used to transfer funds between accounts on the Ethereum blockchain [42]. Solidity, a programming language provided by Ethereum, enables developers to personalize their blockchain. It was intended to facilitate smart contracts, the core feature of Ethereum.

2.2 Information Transaction

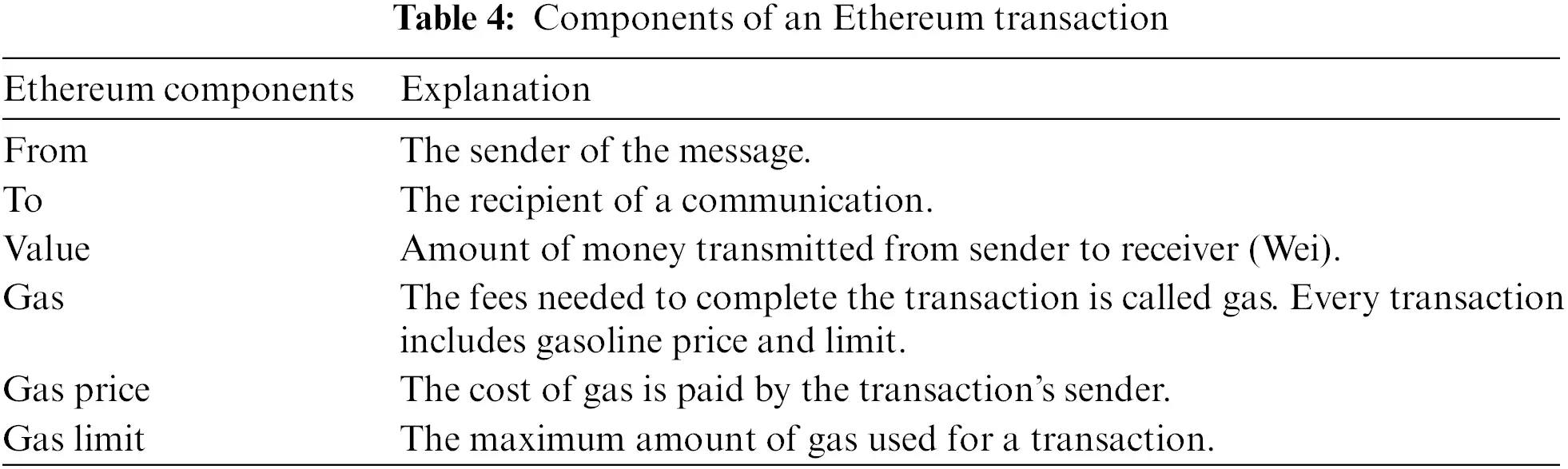

A transaction is an interaction between an external entity and the Ethereum network. It allows external users to edit the status of a record or piece of information on the Ethereum blockchain network. Table 4 shows the components of an Ethereum transaction [2528,4346]:

images

2.3 Smart Contracts

These make up the blockchain network’s programming section; activities on the blockchain are carried out using the program’s codes. When users submit transactions, this code is put into effect [36,38]. They work on the blockchain, making them impervious to change. Using the Solidity programming language, smart contracts may be used to write any form of action on the blockchain. After coding necessary functions, compilation takes place using EVM bytecode, detailed in the following section. After compilation, these functions were executed and deployed on the Ethereum blockchain [4,47,48]. JavaScript and Python are encased in Ethereum’s Solidity programming language for writing code for smart contracts.

2.4 Ethereum Virtual Machine (EVM)

The Ethereum platform’s programmable blockchain is the most essential feature. It allows users to create their Ethereum-based applications. Distributed Apps are applications developed using this platform (DApps). A DApp platform consists of a collection of protocols that have been bundled together. These DApps have smart contracts containing user-defined code to accomplish a particular application purpose. Execution and deployment of this code take place by EVM [5,6,4951]. As a result, EVM is used to operate smart contract-based applications.

2.5 Interplanetary File System

The interplanetary file system is a distributed file system for storing data. It protects data from tampering as it uses encrypted identifiers to protect information. If data on IPFS is changed, then the identifier must be changed, and in IPFS, every data file has a unique hash value [8,9,5255]. The IPFS protocol is suitable for storing vital and sensitive data due to its safe storage strategy. The decentralized application may save the created cryptographic hash, thereby decreasing the blockchain’s computing activities. The IPFS protocol employs a peer-to-peer (P2P) network consisting of an IPFS object containing data and links. The link is an array, whereas the data is unstructured binary data [10,11,5659].

3  System Proposal

An uninterrupted part of the road network is divided by intersections, as depicted in Fig. 2. Right to left or left to right are the two main directions in that cars travel down the road section. Although they periodically stop on a stretch of road, the vast majority of vehicles continue, and none may suddenly vanish. A sufficient number of roadside units (RSU) are installed along this road segment by anonymous neighboring residents, similar to how Wi-Fi routers are currently installed [6062]. In general, the RSU is held by several citizens who are not necessarily dependable. When an RSU gets vehicle IDs via Wi-Fi scanning, it stores them as traffic data.

images

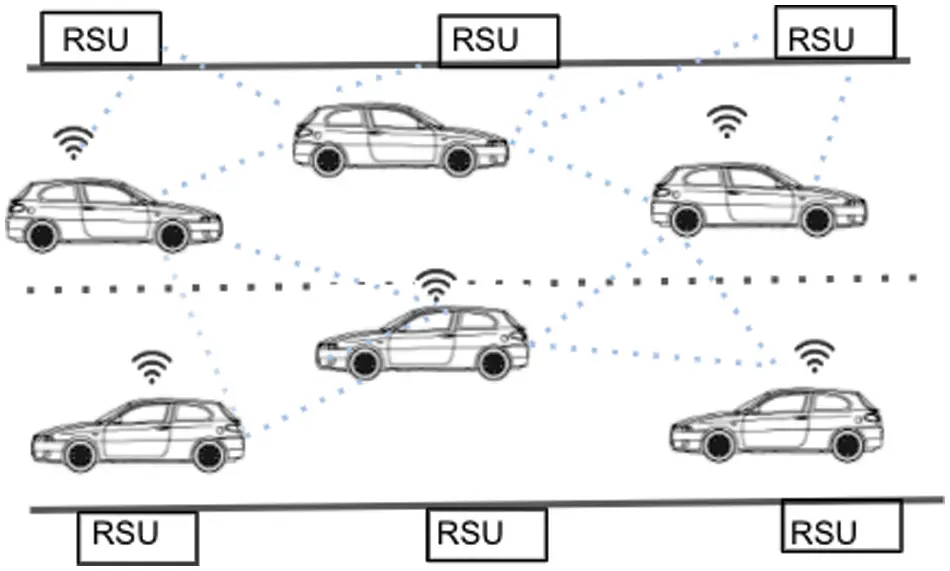

Figure 2: Visualization of the road network

3.1 Physical Components Used

The various physical components that make up the proposed structure are depicted in Fig. 3. Physical components include roadside units, autonomous and connected vehicles, and intelligent traffic signals. Below is a detailed explanation of each component. These vehicles are blockchain network nodes, so they are connected with each other. The roadside units also form the blockchain network nodes, so they are also connected to vehicles.

images

Figure 3: Car and road side units

3.1.1 Road Side Devices (RSD)

Road Side Devices are part of the roadside infrastructure. They facilitate Vehicle-to-infrastructure (V2I) communications [63,64]. They interact with the OBU (onboard units). This work uses RSDs to validate the data acquired by automobiles acting as Blockchain nodes.

3.1.2 Connected Vehicles

Vehicles that can communicate both inside and outside are said to be connected. These vehicles are equipped with communication devices and onboard sensors that enable connectivity with external devices, networks, applications, and services [65,66]. These cars support Vehicle-with-its sensors (VwS), Vehicle-with-vehicle (VwV), and Vehicle-with-environment (VwE). In this research study, linked vehicles collect information about nearby vehicles, which is subsequently confirmed by the RSU and finally stored on the blockchain [67,68].

3.1.3 Intelligent Traffic Signals

In this article, the activation of the traffic signal will vary based on the Blockchain data. The congestion level will be inferred from the data on a block formed in real time, and the traffic signal on the Road Segment will be activated based on the congestion level.

3.2 How to Use Blockchain

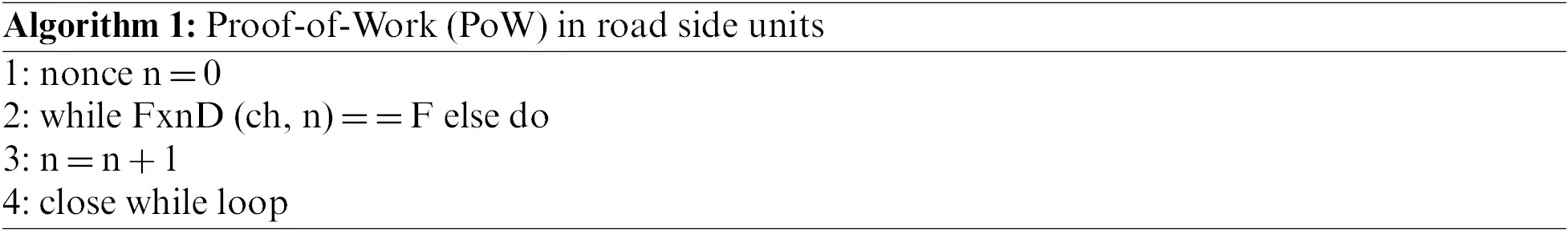

Previously proposed Proof-of-work (PoW) by Back [11,69,70] in Hashcash is employed in the Bitcoin blockchain. PoW is a consensus mechanism for demonstrating to users that a specific amount of computational power is used for a specific period. The Bitcoin Proof-of-work function is described by Eq. (1).

Function of difficulty (fxnD):

SHA 2562(ch+n)<2256/D ε {T, F}(1)

where D, ch, n, T, and F represent difficulty, challenge, nonce, true and false, respectively. The hash function is Double SHA256, and the PoW method returns True if the returned hash value is lower than the target number 2256/D. It is computationally challenging but possible to identify n such that FxnD(ch,n)=T, for parameters D and ch that are fixed. In Bitcoin, full node users compete in Proof-of-Work to select golden nonce n, and the winner is granted the ability to mine a new block and coin base. In the proposed system, roadside units (RSU) will perform PoW to generate a memory block, including Vehicle Identification number and road status (regular/congested). Proof-of-Work method in a roadside unit is outlined in Algorithm 1. Each roadside unit automatically connects the newly formed block to the blockchain after ensuring that PoW is conducted correctly. Below is described the proposed block and block header structure. This approach allows for the management of the blockchain for each segment of the road. The system’s blockchains fork from the genesis block to form RS genesis.

images

3.3 Ethereum Block Structure

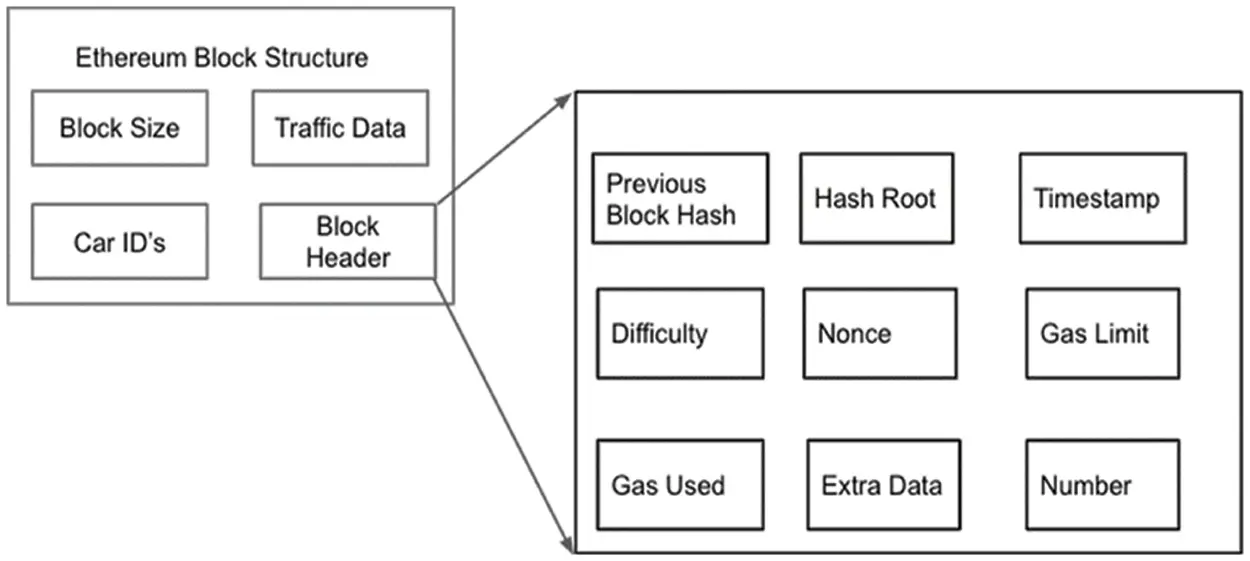

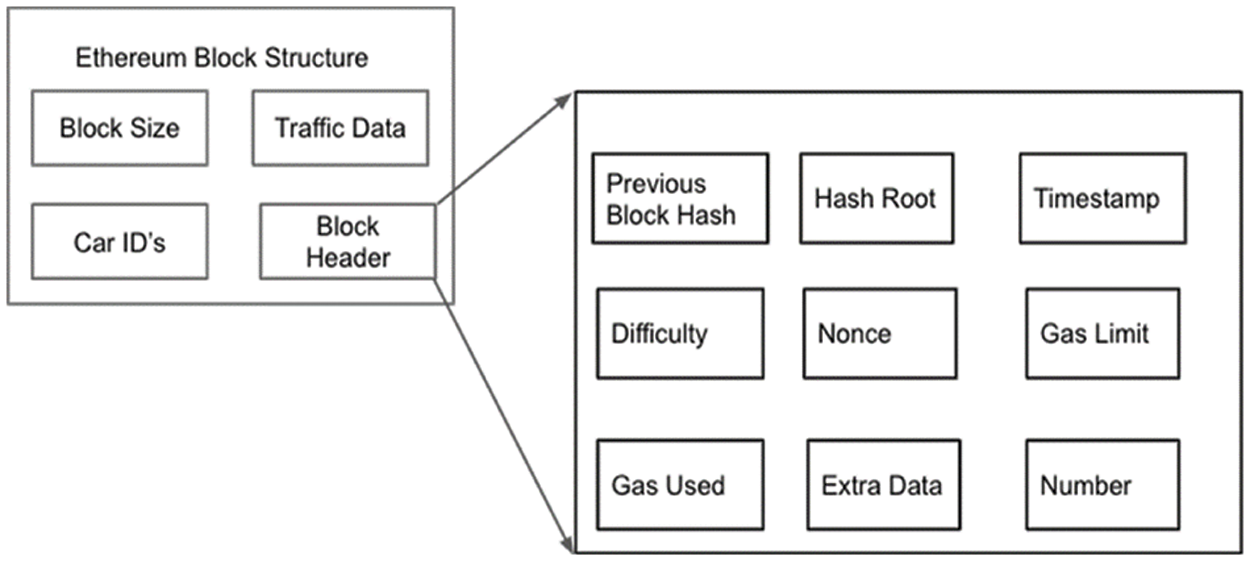

As shown in Fig. 4, the Ethereum block structure includes the block’s size, information on the traffic, a unique vehicle ID, and the block header. Additionally, Parts of the block header are also depicted. The block header contains the previous block hash function, the root of the hash found using the Merkle tree, the date of the block, the difficulty level, the nonce, the gas limit and amount used, and any other data [7173].

images

Figure 4: Structure of block and its header

3.4 Layered Architecture

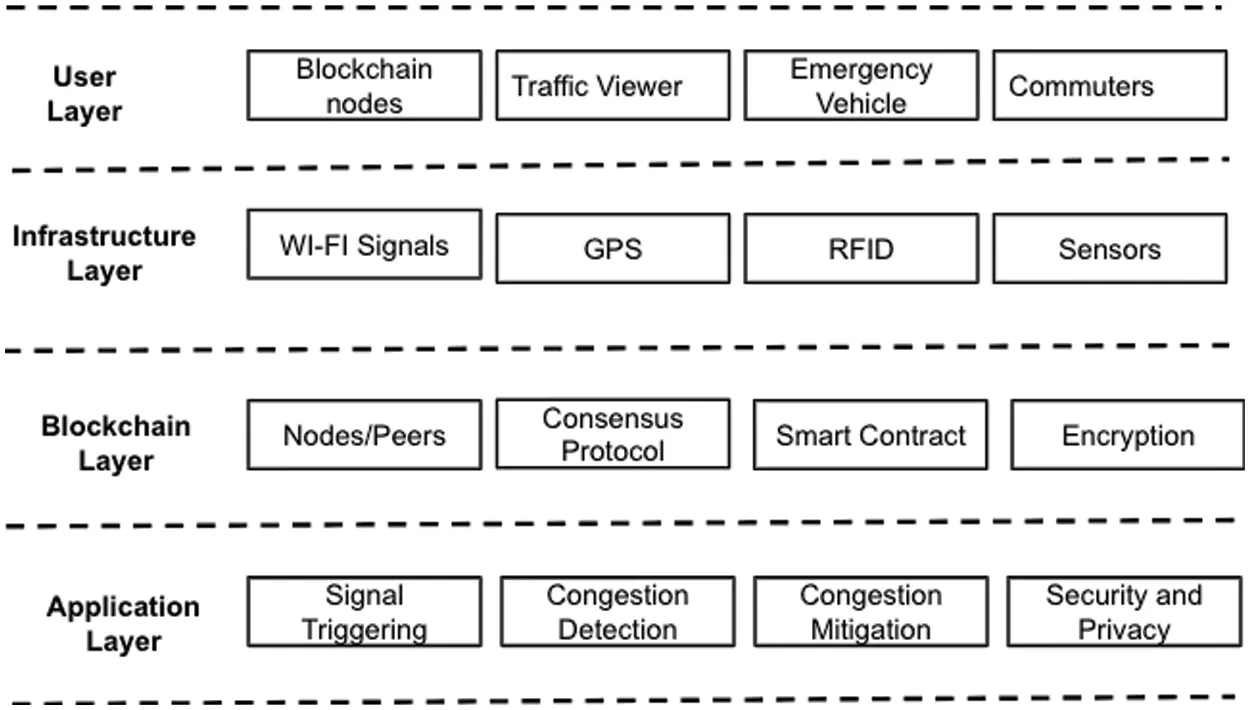

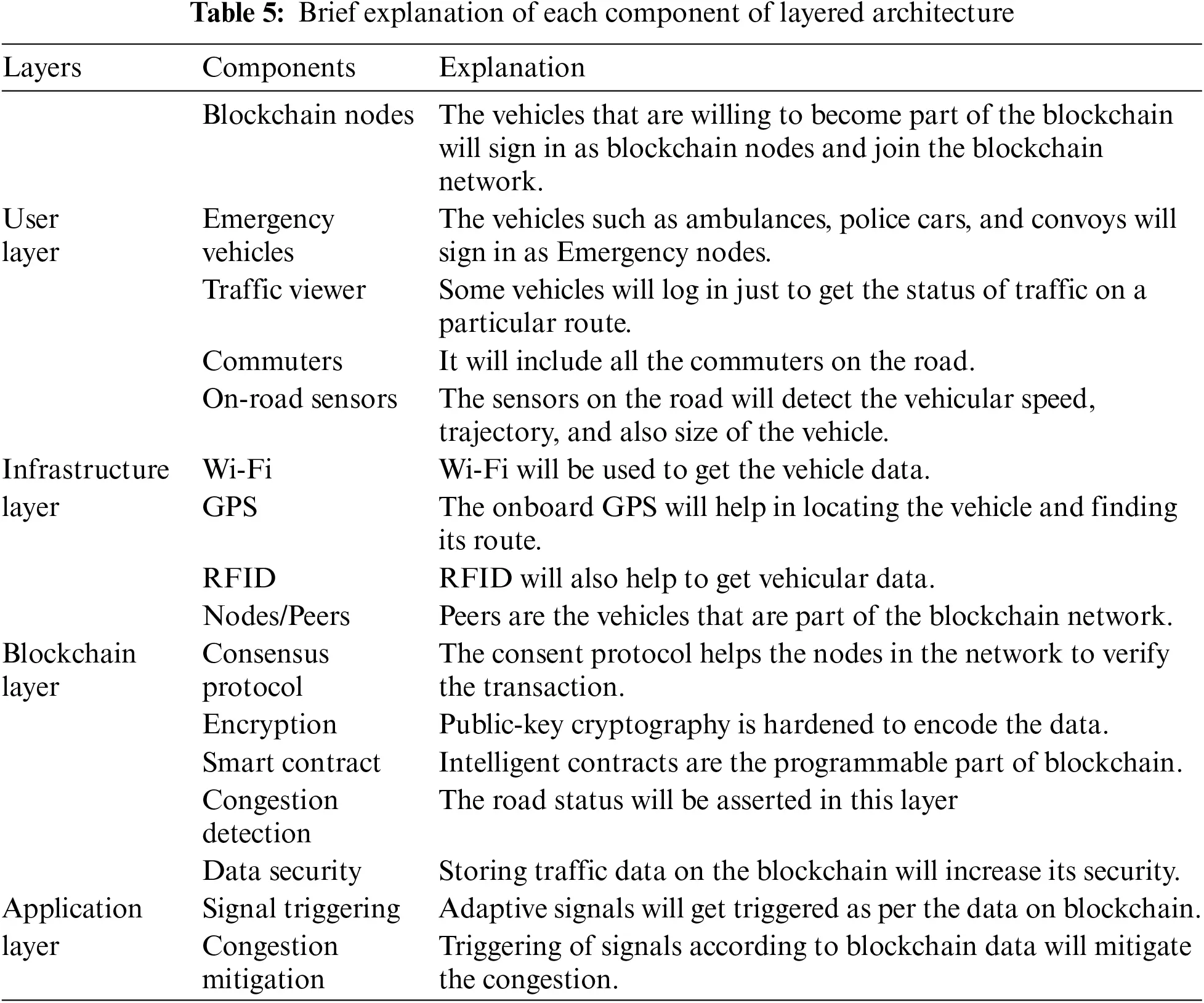

The suggested framework’s layered architecture is depicted in Fig. 5. It consists of four layers, namely the user layer, infrastructure layer, blockchain layer, and application layer. Each layer contains distinct components. Blockchain Nodes, traffic watchers, emergency vehicles, and other commuters comprise the User Layer. Infrastructure layer components include Wi-Fi, GPS, RFID, and sensors. The Blockchain layer comprises nodes/peers, consensus protocol, encryption, and smart contracts, while the application layer comprises signal triggering, congestion detection, congestion alleviation, and security & privacy. A brief explanation of each component is discussed in Table 5.

images

Figure 5: Four-layer architecture of the proposed framework

images

4  System Design

System design is the most fundamental and essential aspect of any architecture as it is used to develop the system from its theoretical basis. This section includes the system’s modules, architecture, and other components. As stated previously, the purpose of this proposed framework is to create a decentralized, tamper-resistant, secure, and private blockchain-based traffic data management system.

4.1 Real-World Representation of the Framework

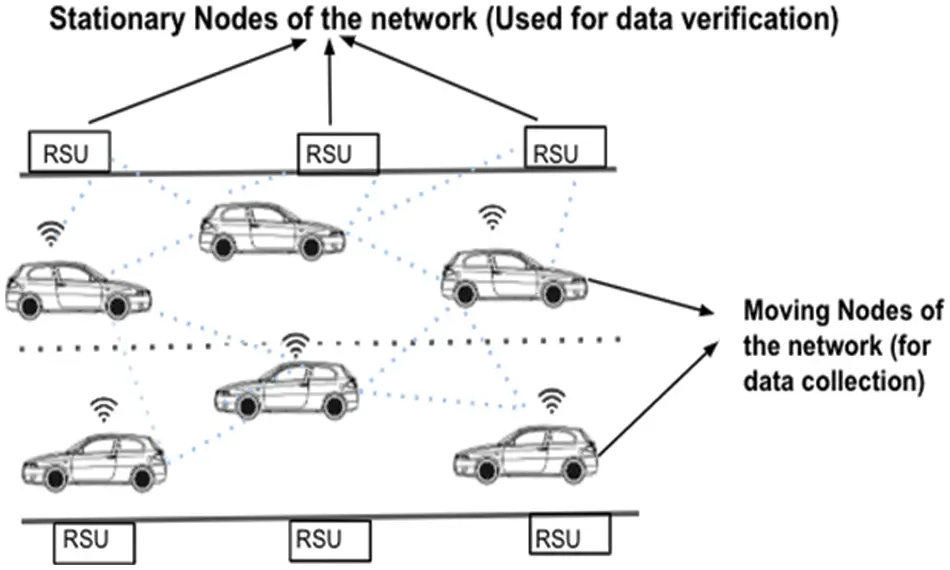

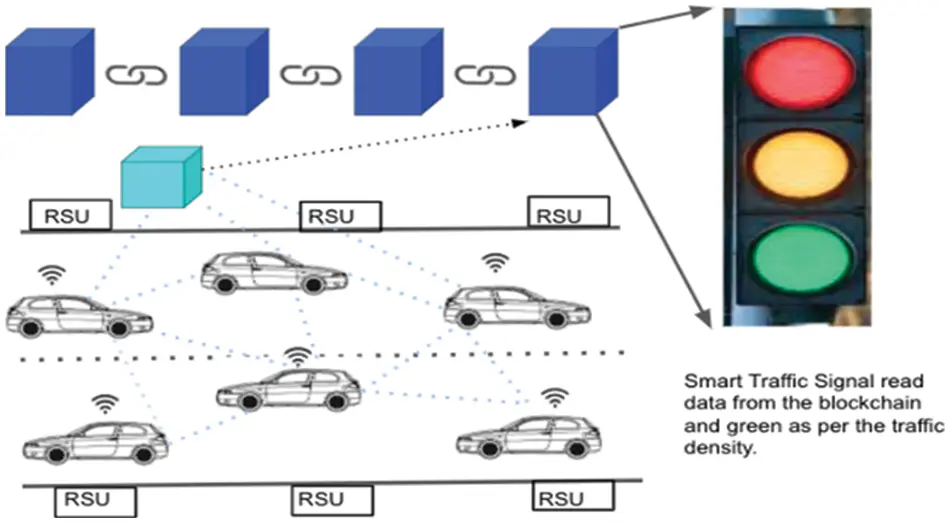

The real-world representation of the proposed architecture consisting of connected and autonomous vehicles is shown in Fig. 6. These vehicles will collect each other’s data based on proximity. Roadside units will also collect the data of all the vehicles. These data/transactions will be stored in the data pool. Part of the data from the pool will form a block. In the end, the block thus formed was added to the blockchain. According to the data on the last block (Current Road Condition), the intelligent traffic signal will get triggered to remove congestion if it exists.

images

Figure 6: Real-world representation of the proposed framework

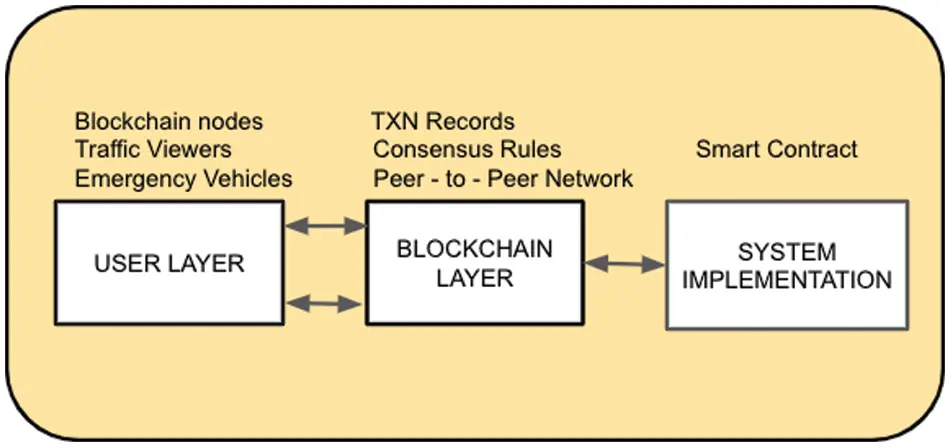

Fig. 7 demonstrates the system design of the proposed framework, which comprises three levels, namely the user layer, the blockchain layer, and the system implementation that are discussed. Further, the suggested framework or system contains three components or modules, depicted in Figs. 810, respectively. When these components are merged, our system will continue to function. These modules have additional notions that must be grasped, as described below:

images

Figure 7: System design of the proposed framework

images

Figure 8: Module 1:-collection of data through road-side devices

images

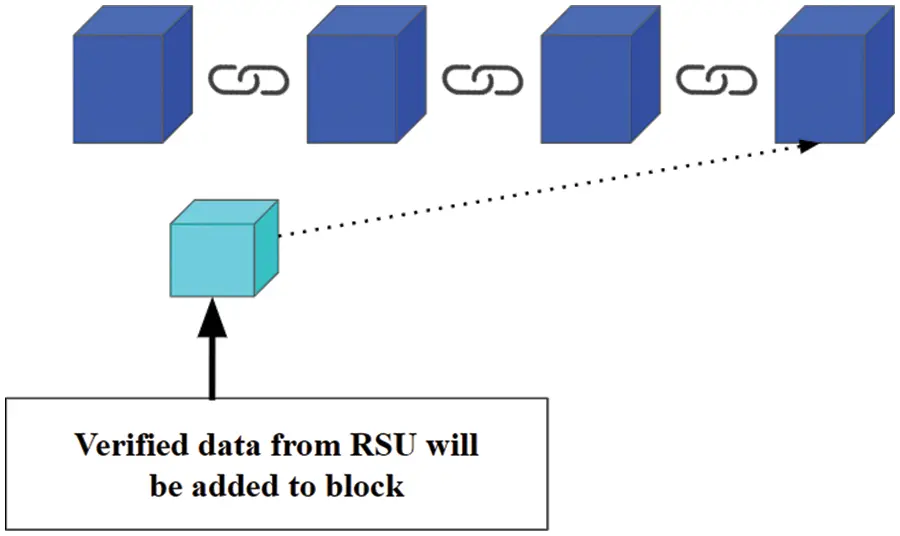

Figure 9: Module 2-verified data from roadside units

images

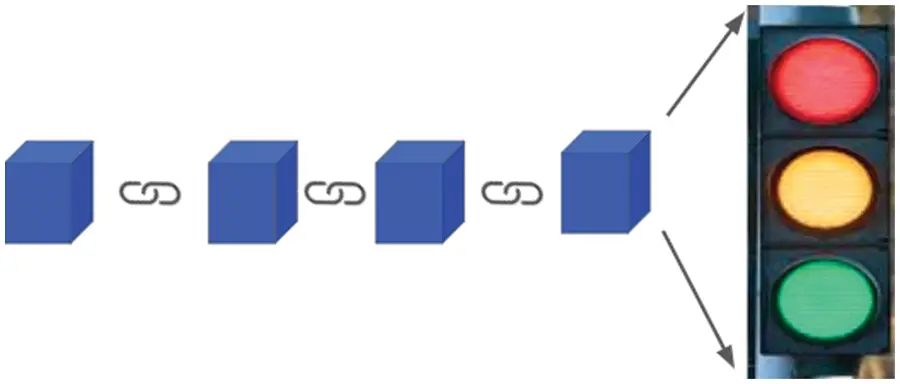

Figure 10: Module 3-traffic signal triggering based on blockchain data

4.1.1 User Layer

A structure customer is someone that uses the structure and its assets effectively. On the system, a user is recognisable by multiple roles and qualities. Potential users of this system include vehicle owners who wish to exchange information (blockchain nodes), single-traffic viewers, and emergency vehicles. The primary responsibility of these users would be to interact with the system and do simple tasks such as creating, reading, updating, and deleting traffic data. To access the system’s capabilities, users would employ a prospect that we indicate to be the same as a DApp prospect in technical terms while it incorporates the DApp’s GUI (Graphical User Interface), which is our suggested system framework. The GUI contains every function to which a particular user has access. Depending on their employment, the user could utilize this GUI to interface with the system’s other layer, the blockchain layer. The information of the person registered as a blockchain node will be shared with the environment and other vehicles. This part will collect and provide data from neighboring vehicles to the data pool. Blockchain nodes can only be generated by interconnected vehicles. As emergency vehicles, anybody can register ambulances, police cars, and essential convoys. One who registers as a traffic viewer will be able to gauge the status (congested/normal) of a particular route.

Roadside Units and Connected Vehicles are shown in Fig. 8. Roadside Devices and Connected automobiles are the network’s stationary and mobile nodes, respectively. The data of connected automobiles are exchanged (i.e., vehicular data). Data gathered by connected vehicles will be verified by roadside devices. The perception devices placed on the road also gather data about vehicles.

4.1.2 Blockchain Layer

The blockchain layer provides the code or method enabling the user to communicate with the blockchain-based DApp. There are three elements contained within this layer. They are listed below:

•   Cryptocurrency Assets: The transactions on the Ethereum blockchain are known as cryptocurrency assets. These transactions can modify the data stored on the blockchain. These transactions are referred to as assets since they involve data that one user transfers to another [5].

•   Governance Rules: Blockchain technology adheres to particular consensus standards to execute and calculate transactions. Some consensus procedures are essential to maintain the blockchain secure and tamper-proof. Proof of Work (PoW) is employed on the Ethereum blockchain to guarantee that the blockchain’s governance is sustained trustfully, with the agreement of all nodes on the blockchain network [6].

•   Network: The Ethereum blockchain utilizes the peer-to-peer network. Every point in this system is connected to its peers. There is no central node in the network that controls all network operations. The purpose was to develop a decentralized platform, not a central one; hence this system was chosen. Therefore, utilizing a system along with equivalent positions and rights used for the whole connected nodes was the best option for this technology [7].

•   The data collected at the pool will form a block at this layer. As Fig. 9 shows, the block thus formed is then added to the blockchain, so the Verified data from Roadside Units will be added to “BLOCK,” and then the block gets added to the blockchain.

4.1.3 System Implementation

As described in earlier sections, Ethereum and its dependencies were used to create the system. This section examines system implementation in further depth to provide insight into the system’s many functions.

•   Smart Contract: As was already mentioned, smart contracts are a crucial part of decentralized applications (DApps) and are used to carry out essential functions [8]. They are basically blockchain-based codes that execute when particular conditions are met. Usually, they are employed to automate the execution of a contract so that all parties can be informed of the result instantly, without the need for an intermediary or any time lost. This framework will be governed by a contract with vehicle records.

•   Vehicle Records: Vehicle records will have vehicular data such as vehicle ID, location, speed, and time stamp. It will also have code to trigger intelligent traffic signals according to the data on the last block of the blockchain. The adaptive traffic signal reads data from the blockchain and changes light (green/red) according to real-time traffic density, as shown in Fig. 10.

4.2 Flowchart

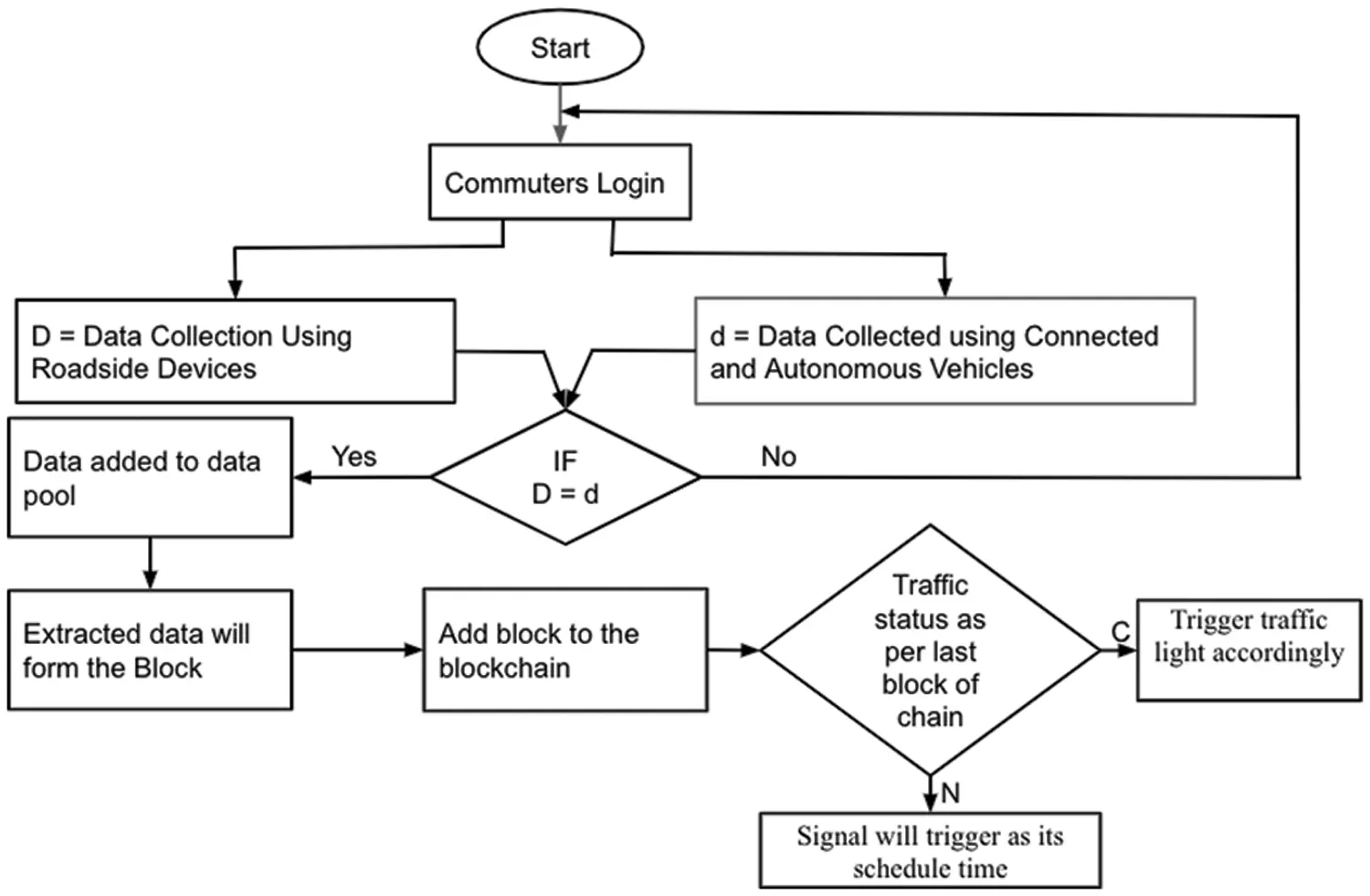

The flowchart shown in Fig. 11 presents the workflow of the proposed framework. The vehicle owner who wants to be part of the blockchain network will login to the Dapp and become the blockchain node. The vehicular data will be collected by connected and autonomous vehicles and roadside units. When the information collected by roadside devices and connected automobiles matches, it gets stored in the memory pool; data extracted from the memory pool then forms a blockchain block. As per the data on the last block of the blockchain, the intelligent signal system gets triggered to control congestion.

images

Figure 11: Workflow of the proposed framework

5  Performance Evaluation

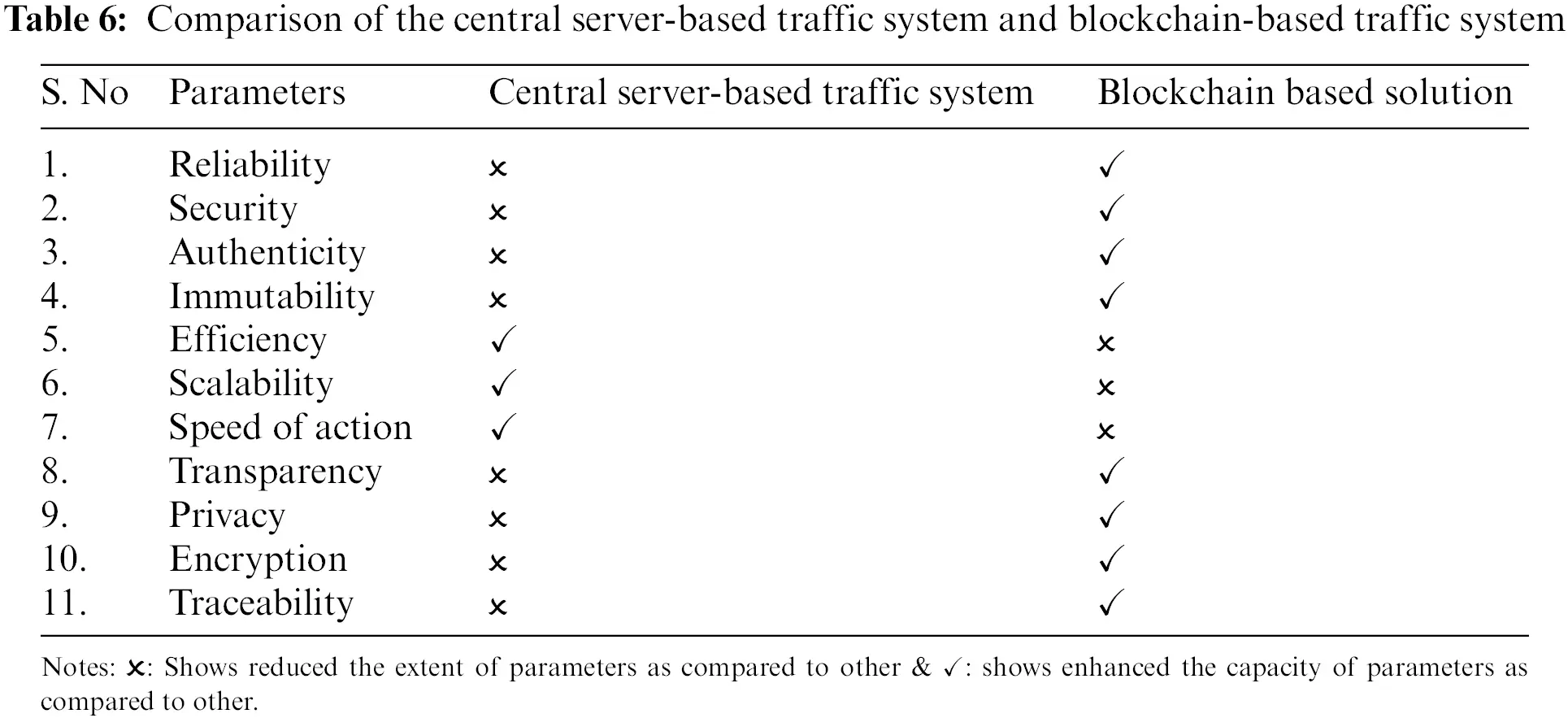

Table 6 below shows the parameters for which the proposed framework will be expected to perform more efficiently compared to the centralized systems: reliability, security, privacy, authenticity, immutability, transparency and traceability. Still, some parameters need to be worked upon to improve the proposed framework: scalability, efficiency, and speed of action. Parallel research is going on to improve these parameters in the blockchain paradigm.

images

Table 6 compares two traffic systems, i.e., central server-based and blockchain-based. It shows that storage of traffic data on central servers will lead to data hacking and tampering and the risk of single-point failure, making it less reliable. On the other hand, the storage of data on blockchain makes it immutable, secure, reliable, and transparent due to the inbuilt security features of blockchain technology. Efficiency and scalability factors still need to be improved for blockchain-based systems for implementation in real-time scenarios. The blockchain system is still incompatible with the existing system based on old technologies, making it less interoperable. Fig. 12 shows the graphical representation of the extent of parameters of central server-based and block-based systems.

images

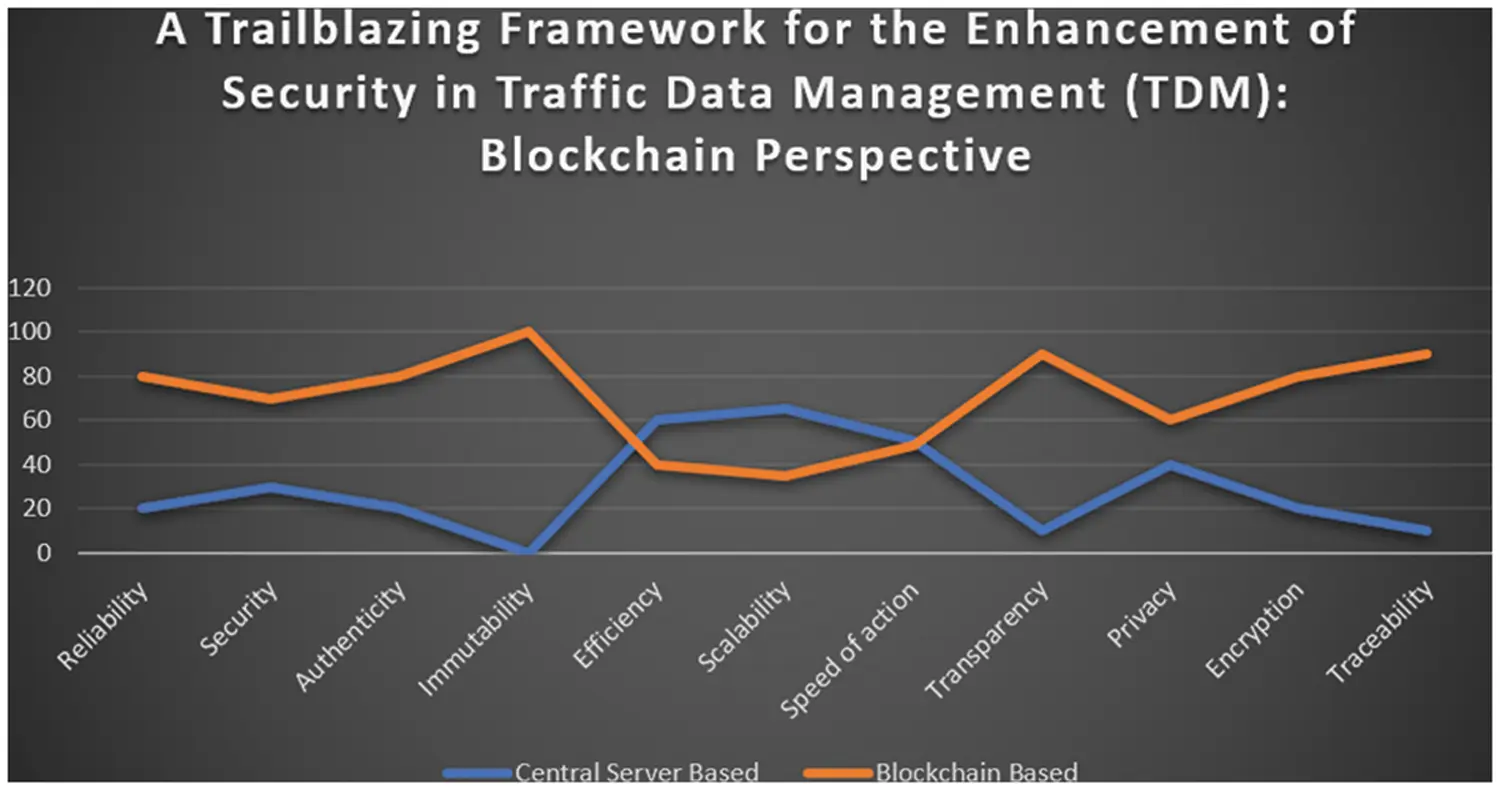

Figure 12: Comparison of the central server-based traffic system and blockchain-based traffic system

6  Conclusion

The automobile sector is going through a significant digital change. By 2030, automobiles will have more connectivity and autonomy. These cars will share a vast amount of data on a daily basis, which will require confidentiality, openness, and safety. Use of blockchain to store the data created by these vehicles will safeguard the data from tampering, spoofing, and other threats, as well as improve its traceability. It also assists commuters in determining the condition of the road. Accidents and traffic congestion will be identified immediately. This article proposes a blockchain-based infrastructure for securing traffic data, detecting congestion, and mitigating its effects. Security, privacy, and reliability of traffic data are the focal points of this research. The storage of traffic data on blockchain will facilitate future data tracing for accident and traffic case studies. The data will be unchangeable. Blockchain eliminates the chance of single-point failure by storing data in a decentralized fashion. As the number of automobiles on the road continues to rise, the appropriate application of the proposed framework can result in a traffic system that is efficient, intelligent, and transparent, making life easier. Additionally, it facilitates commuters’ access to road traffic. The activation of an adaptive traffic signal system based on blockchain data would alleviate congestion on the road. This framework brings a centralized approach to a decentralized form, which reduces the risk of a single point of failure. It increases the security, reliability, and authenticity of data stored on it. Additionally, it makes the data immutable and also enhances privacy.

The corporate sector, where technology companies and automakers are at the forefront of the development of actual vehicle networks, and the public sector, which can use this design to advance the development of smart city roads, can both benefit from this work by lowering implementation difficulties and showcasing how the primary user concerns are addressed. Using smart contracts and storing traffic data on the blockchain will simplify driving in a number of ways, including the payment of auto insurance, vehicle maintenance, and toll costs. Working with various stakeholders both physically and online is facilitated by the interactions between the vehicle and the infrastructure. For such practical applications, integrity and dependability are necessary. The architecture on which the application is built primarily incorporates the security and privacy features of the underlying blockchain technology. The size issue was not included in the scope of this suggested framework because it could be the focus of a different research project. This framework may be expanded to include green lanes for ambulances, police cars, and other emergency vehicles. The roadside devices of this system, which must identify autos and collect data from them, require a mechanical component that can manage this type of communication swiftly and flawlessly under real-world network conditions.

Acknowledgement: The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through large group Research Project under grant number RGP2/249/44.

Funding Statement: This Project was funded by the Deanship of Scientific Research at King Khalid University, Kingdom of Saudi Arabia for large group Research Project under grant number: RGP2/249/44.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
